USER MANUAL Viera TX-PF42S30 PANASONIC

Operating Instructions

Plasma Television

Line drawing of a flat-screen monitor with blank screen (no text or symbols)

VIERA

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local

Panasonic dealer for assistance.

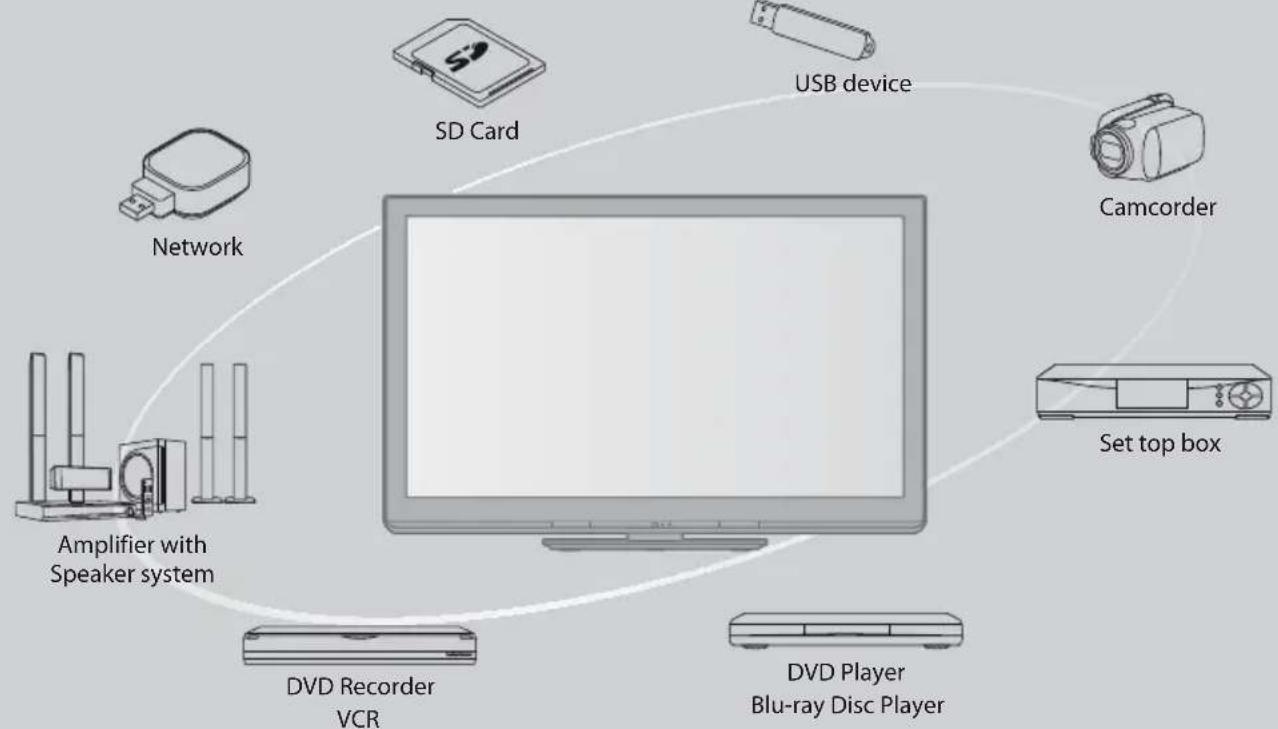

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

Notice for DVB / Data broadcasting / IPTV functions

- This TV is designed to meet the standards (as of August, 2009) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.

Consult your local dealer for availability of DVB-T services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.
- Not all the features are available depending on the country, area, broadcaster and service provider.
- Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
• This TV may not work correctly with CI module that is not approved by the service provider.
• Additional fees may be charged depending on the service provider.
• The compatibility with future services is not guaranteed.
- Check the latest information on the available services at the following website. (English only)

http://panasonic.jp/support/global/cs/tv/

Do not display a still picture for a long time

This causes the image to remain on the plasma screen ("image retention"). This is not considered a malfunction and is not covered by the warranty.

Typical still images :

• Channel number and other logos
• Image displayed in 4:3 mode
- Video game
• Computer image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 88)

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/ OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/

Contents

Be Sure to Read

Safety Precautions......4

Maintenance 5

Quick Start Guide

Accessories / Options 6

Identifying Controls 9

Basic Connection 11

Auto Setup 13

Enjoy your TV!

Basic Features

Using "VIERA Connect" 17

Watching TV 18

Using TV Guide 22

Viewing Teletext 25

Watching External Inputs 27

How to Use VIERA TOOLS 29

How to Use Menu Functions ......30

Advanced Features

Retuning from Setup Menu 38

Tuning and Editing Channels (DVB) 40

Tuning and Editing Channels (Analogue)...... 43

Timer Programming 45

Child Lock 47

Input Labels 49

Using Common Interface 50

Shipping Condition 51

Updating the TV Software 52

Using Media Player 53

Using Network Services 63

Link Functions (Q-Link / VIERA Link) 70

External Equipment 79

FAQs, etc.

Technical Information 82

FAQs 88

Specifications....90

Licence 91

Safety Precautions

Warning

Handling the mains plug and lead

• Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)
• Ensure that the mains plug is easily accessible.
• Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
• Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
• Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)
• Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)
• Do not move the TV with the lead plugged in the socket outlet.
• Do not place a heavy object on the lead or place the lead near a high-temperature object.
• Do not twist the lead, bend it excessively, or stretch it.
• Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
• Do not use a damaged mains plug or socket outlet.

If you find any abnormality, remove the mains plug immediately!

AC 220-240 V 50 / 60 Hz

Illustration of a flat-screen monitor connected to a cable (no text or symbols visible)

Power source

- This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.

Do not remove covers and NEVER modify the TV yourself

• Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside. (High-voltage components may cause serious electrical shock.)
• Have the TV checked, adjusted, or repaired at your local Panasonic dealer.

Do not expose to direct sunlight and other sources of heat

- Avoid exposing the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Do not expose to rain or excessive moisture

• To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not insert foreign objects into the TV

- Do not allow any objects to drop into the TV through the air vents. (Fire or electrical shock may result.)

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base

• The TV may fall off or tip over.

Use only the dedicated pedestals / mounting equipment

• Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.
• Use approved pedestals (p. 7) / wall-hanging brackets (p. 6).

Do not allow children to handle SD Card

- As with any small object, SD Cards can be swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.

Caution

When cleaning the TV, remove the mains plug

- Cleaning an energized TV may cause electrical shock.

When the TV is not going to be used for a long period of time, remove the mains plug

- This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

- Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.

Allow sufficient space around the TV for radiated heat

Minimum distance

(cm)

• When using the pedestal, keep the space between the bottom of the TV and the surface where the TV is set.
• In case of using Wall-hanging bracket, follow the manual of it.

Do not block the rear air vents

- Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical shock.

Do not expose your ears to excessive volume from the headphones

- Irreversible damage can be caused.

Do not apply strong force or impact to the display panel

• This may cause damage resulting in injury.

The TV is heavy. Handle the TV by 2 or more people. Support as shown to avoid injury by the TV tipping or falling.

Illustration of two workers installing a large screen with hands placed around (no text or symbols)

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care :

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.

For stubborn dirt :

Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
  Take care not to subject the TV's surfaces to water or detergent. A liquid inside the TV could lead to product failure.
  Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Accessories / Options

Standard accessories

Remote Control Batteries for the

N2QAYB000490

or

N2QAYB000672

Remote Control (2)

R6

→(p.7)

Mains Lead

→(p.11)

Pedestal

→(p.7)

Operating Instructions Ferrite core (2)

→ (p. 12, 80)

Pan European Guarantee Card Use the Ferrite cores to comply with the EMC standard.

- Accessories may not be placed all together. Take care not to throw them away unintentionally.

- This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

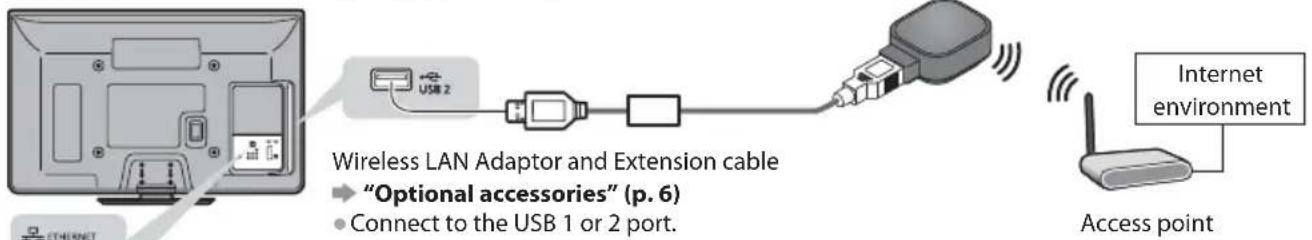

Wireless LAN Adaptor

DY-WL10E-K

Caution

• To use the Wireless LAN Adaptor, an access point needs to be obtained.
- It is recommended to use the Wireless LAN Adaptor with the extension cable.
- To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
- Depending on the area, this optional accessory may not be available.
• Additional information for Wireless LAN Adaptor and access point may be on the following website. (English only)

http://panasonic.jp/support/global/cs/tv/

Wall-hanging bracket

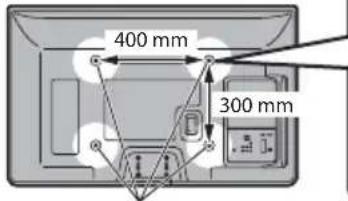

• TY-WK4P1RW

- Tilting angle for this TV: 0 (vertical) to 20 degrees

Rear of the TV

400 mm 300 mm

Depth of screw : minimum 15 mm, maximum 30 mm

Diameter : M8

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

(View from the side)

Holes for wall-hanging bracket installation

Warning

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
  Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
  • To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Communication Camera

• TY-CC10W

Caution

• This camera can be used on VIERA Connect (p. 17, 69).
- Please also read the manual of the camera.
- Depending on the area, this optional accessory may not be available.
For details, consult your local Panasonic dealer.

Installing / removing remote's batteries

1

Pull open Hook

2

Close Note the correct polarity (+ or -)

Caution

• Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
• Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
• Do not use rechargeable (Ni-Cd) batteries.
• Do not burn or breakup batteries. Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Do not disassemble or modify the remote control.

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

- Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than the one provided with this TV.

- Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

- If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

- If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

- If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

- If two or more people are not present, the TV may be dropped, and personal injury may result.

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (p. 8)

- Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

A

Assembly screw (4)

(silver)

M5 × 20

B

Assembly screw (4)

(black)

M5 × 25

C

Pole

TBL5ZA3028

D

Base

TBL5ZX0030

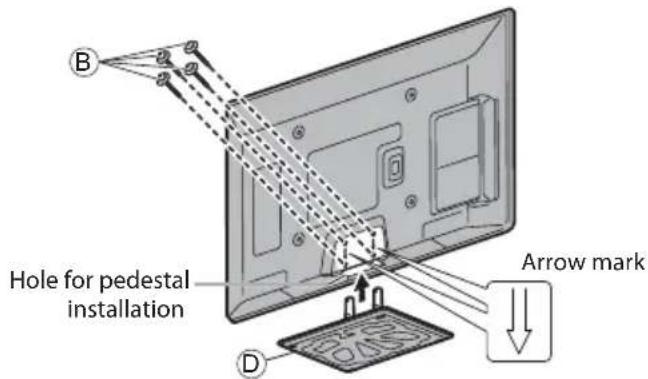

1 Assembling the pedestal

Use the assembly screws Ⓐ to fasten the pole Ⓒ to the base Ⓓ securely.

• Make sure that the screws are securely tightened.
- Forcing the assembly screws the wrong way will strip the threads.

A C D Front

2 Securing the TV

Use the assembly screws Ⓑ to fasten securely.

• Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.
• Carry out the work on a horizontal and level surface.

B Hole for pedestal installation Arrow mark D

(View from the bottom)

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Remove the assembly screws B from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screws A from the pole.

Identifying Controls

Remote Control

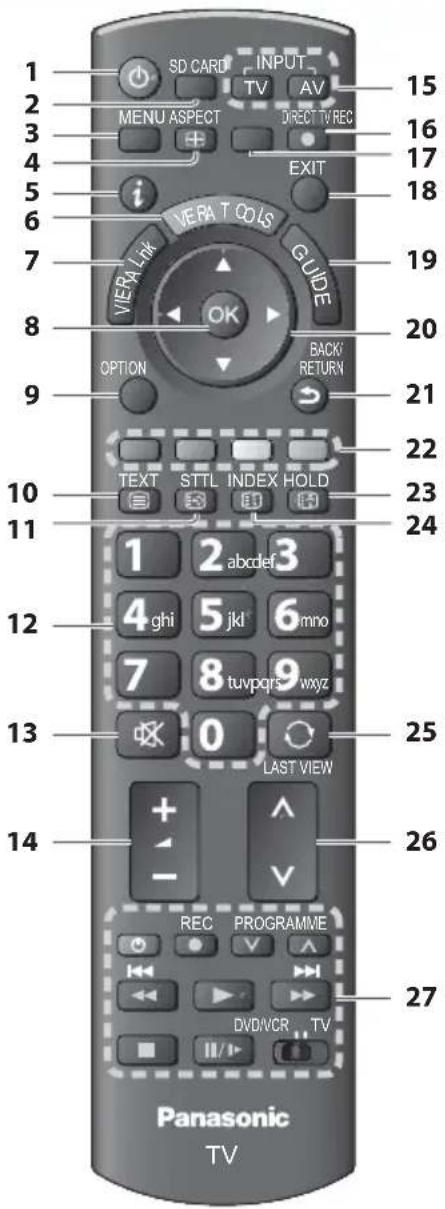

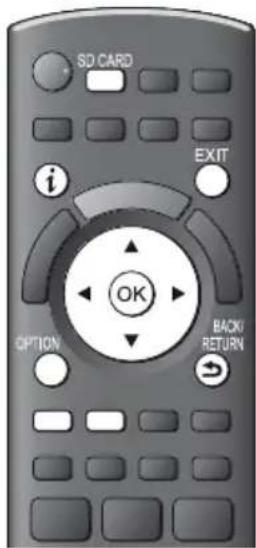

1 2 3 4 5 6 7 8 9 10 11 12 13 14 SD CARD INPUT TV AV MENU ASPECT DIRECT TV REC EXIT VIERA LINK VERA T COLS GUIDE OK OPTION BACK/RETURN TEXT STTL INDEX HOLD 3 3 3 3 1 2 abcdef 3 4 ghi 5 jkl 6 mno 7 8 tuvpqrs wxyz 0 LAST VIEW + - REC PROGRAMME DV/DVCR TV Panasonic TV 15 16 17 18 19 20 21 22 23 24 25 26 27

1 Standby On / Off switch

• Switches TV On or Off standby

2 [Media Player] (p. 53)

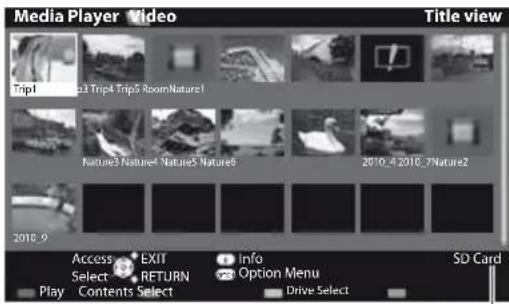

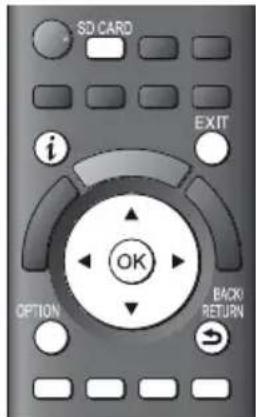

- Switches to SD Card and USB device viewing / listening mode

3 [Main Menu] (p. 30)

- Press to access Picture, Sound, Timer and Setup Menus

4 Aspect (p. 21)

• Changes aspect ratio

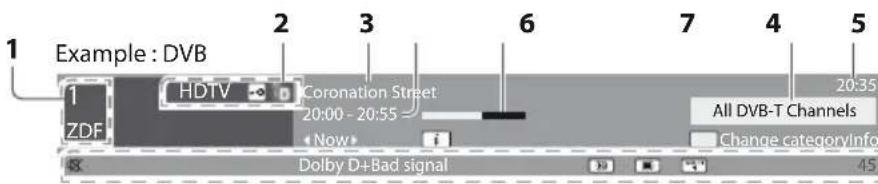

5 Information (p. 19)

• Displays channel and programme information

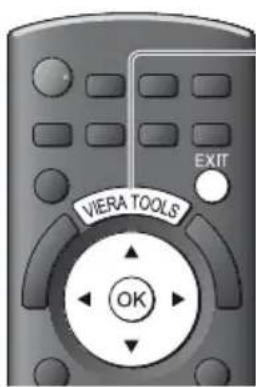

6 VIERA TOOLS (p. 29)

- Displays some special feature icons and accesses easily

7 [VIERA Link Menu] (p. 74)

8 OK

• Confirms selections and choices
- Press after selecting channel positions to quickly change channel
• Displays the Channel List

9 [Option Menu] (p. 20)

- Easy optional setting for viewing, sound, etc.

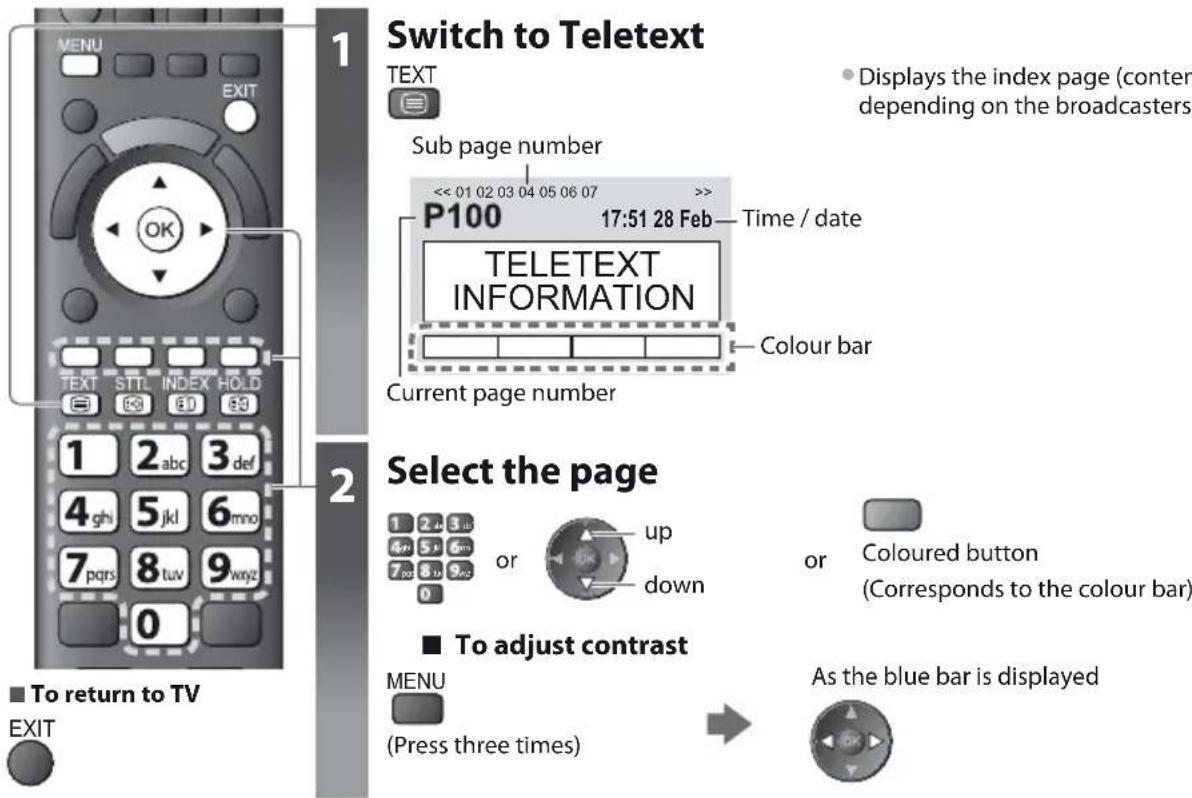

10 Teletext (p. 25)

• Switches to teletext mode

11 Subtitles (p. 19)

• Displays subtitles

12 Numeric buttons

• Changes channel and teletext pages
- Sets characters
- When in Standby mode, switches TV On (Press for about 1 second)

13 Sound Mute

• Switches sound mute On or Off

14 Volume Up / Down

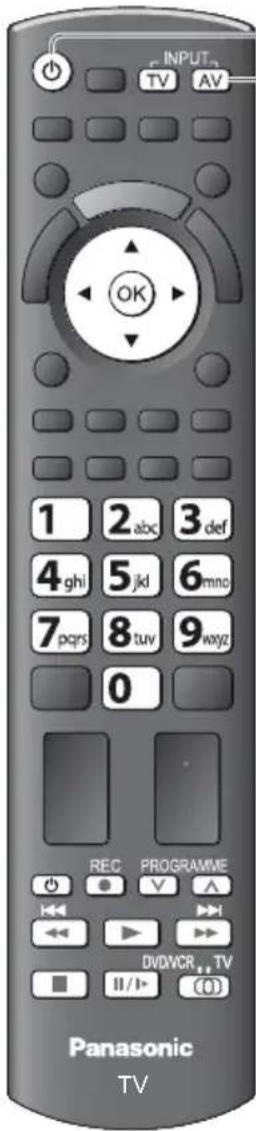

15 Input mode selection

• TV - switches DVB-C / DVB-T / Analogue mode
→(p.18)
- AV - switches to AV input mode from Input Selection list (p. 27)

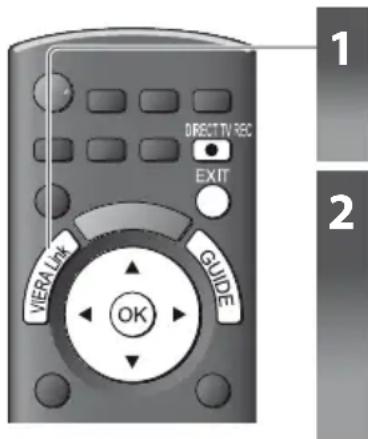

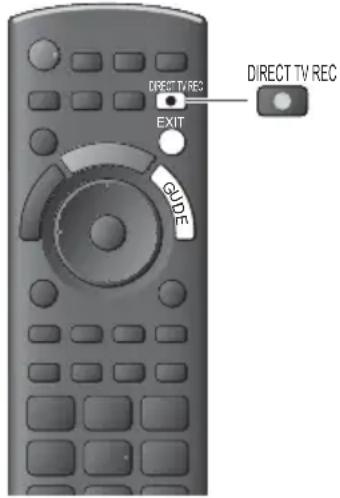

16 Direct TV Recording (p. 72, 74)

- Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection

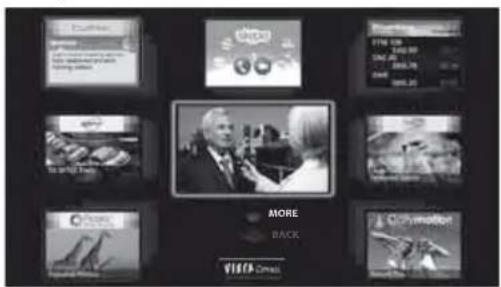

17 [VIERA Connect] (p. 17, 69)

• Displays VIERA Connect home screen

18 Exit

• Returns to the normal viewing screen

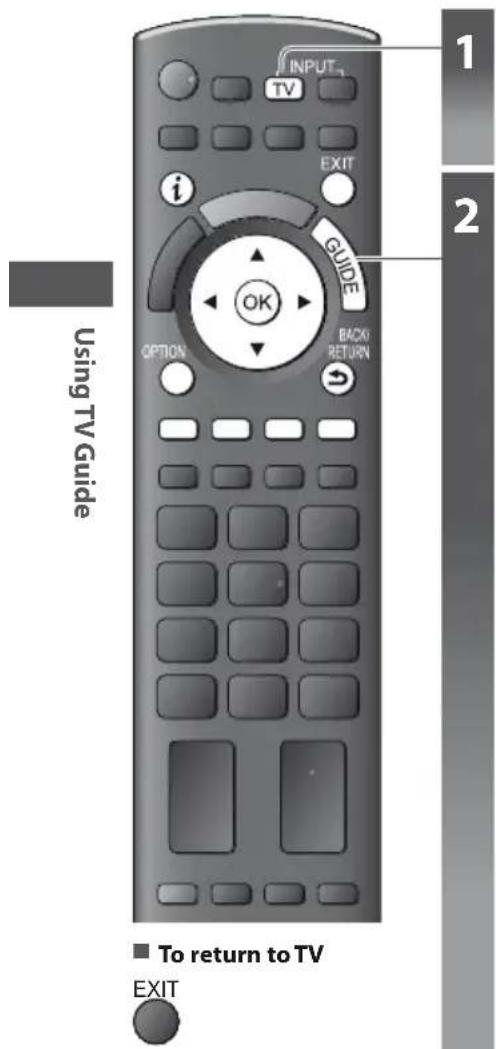

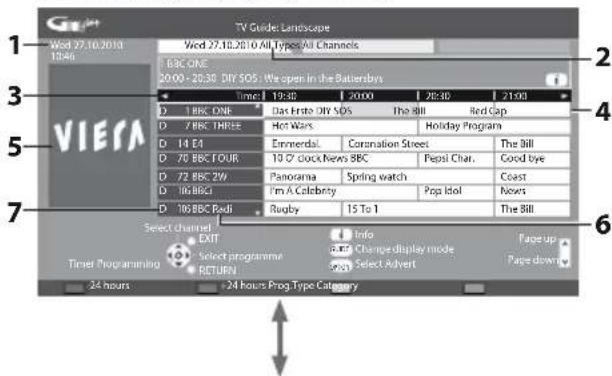

19 TV Guide (p. 22)

20 Cursor buttons

• Makes selections and adjustments

21 Return

- Returns to the previous menu / page

22 Coloured buttons

(red-green-yellow-blue)

- Used for the selection, navigation and operation of various functions

23 Hold

• Freeze / unfreeze picture (p. 20)
• Holds the current teletext page (teletext mode)
  →(p.25)

24 Index (p. 25)

- Returns to the teletext index page (teletext mode)

25 Last view (p. 21)

• Switches to previously viewed channel or input mode

26 Channel Up / Down

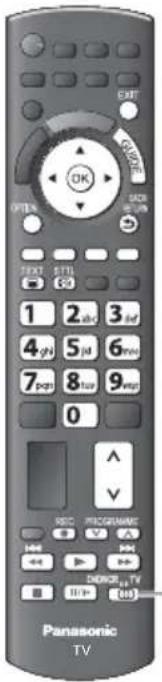

27 Connected equipment operations

→(p. 28, 54, 77)

TV

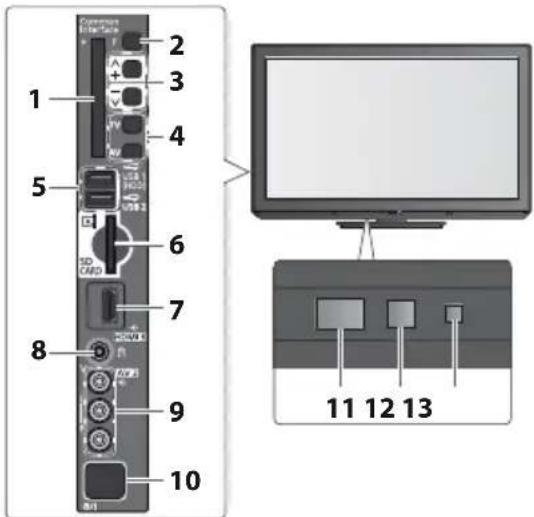

1 2 3 4 5 6 7 8 9 10 11 12 13

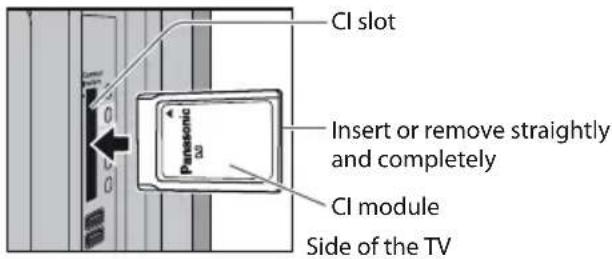

1 Cl slot (p. 50)
2 Function select

• [Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass] * / [Treble] * / [Balance] / [Auto Setup] (p. 38, 39) * [Music] or [Speech] mode in the Sound Menu

3 Channel Up / Down, Value change (when using the F button), Switching the TV On (press either button for about 1 second when in Standby mode)
4 Changes the input mode

5 USB 1 / 2 port (p. 81)
6 SD Card slot (p. 53)
7 HDMI3 terminal (p. 81)

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

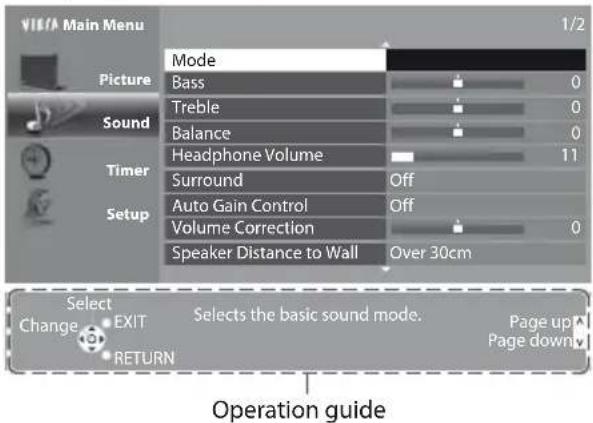

Operation guide

Operation guide will help you to operate by using the remote control.

Example : [Sound Menu]

VISA Main Menu 1/2 Mode Picture Bass 0 Sound Treble 0 Balance 0 Timer Headphone Volume 11 Surround Off Setup Auto Gain Control Off Volume Correction 0 Speaker Distance to Wall Over 30cm Select Change EXIT SELECT the basic sound mode. Page up Page down RETURN Operation guide

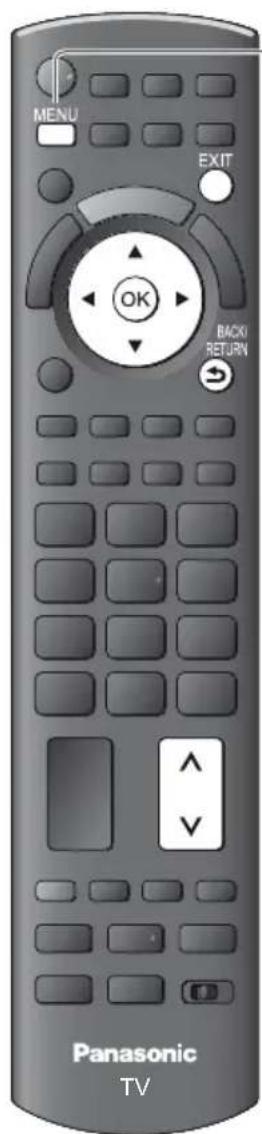

How to use remote control

Open the main menu

Move the cursor / select the menu item / select from a range of options

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Auto power standby function

The TV will automatically go to Standby mode in the following conditions:

• no signal is received and no operation is performed for 30 minutes in Analogue TV mode

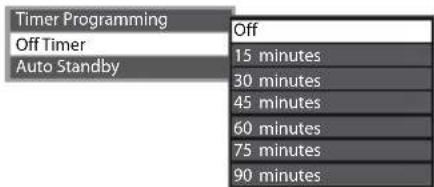

  • [Off Timer] is active in the Timer Menu (p. 20)
• no operation is performed for the period selected in [Auto Standby] (p. 34)
• This function does not affect the recording of Timer Programming and Direct TV Recording.

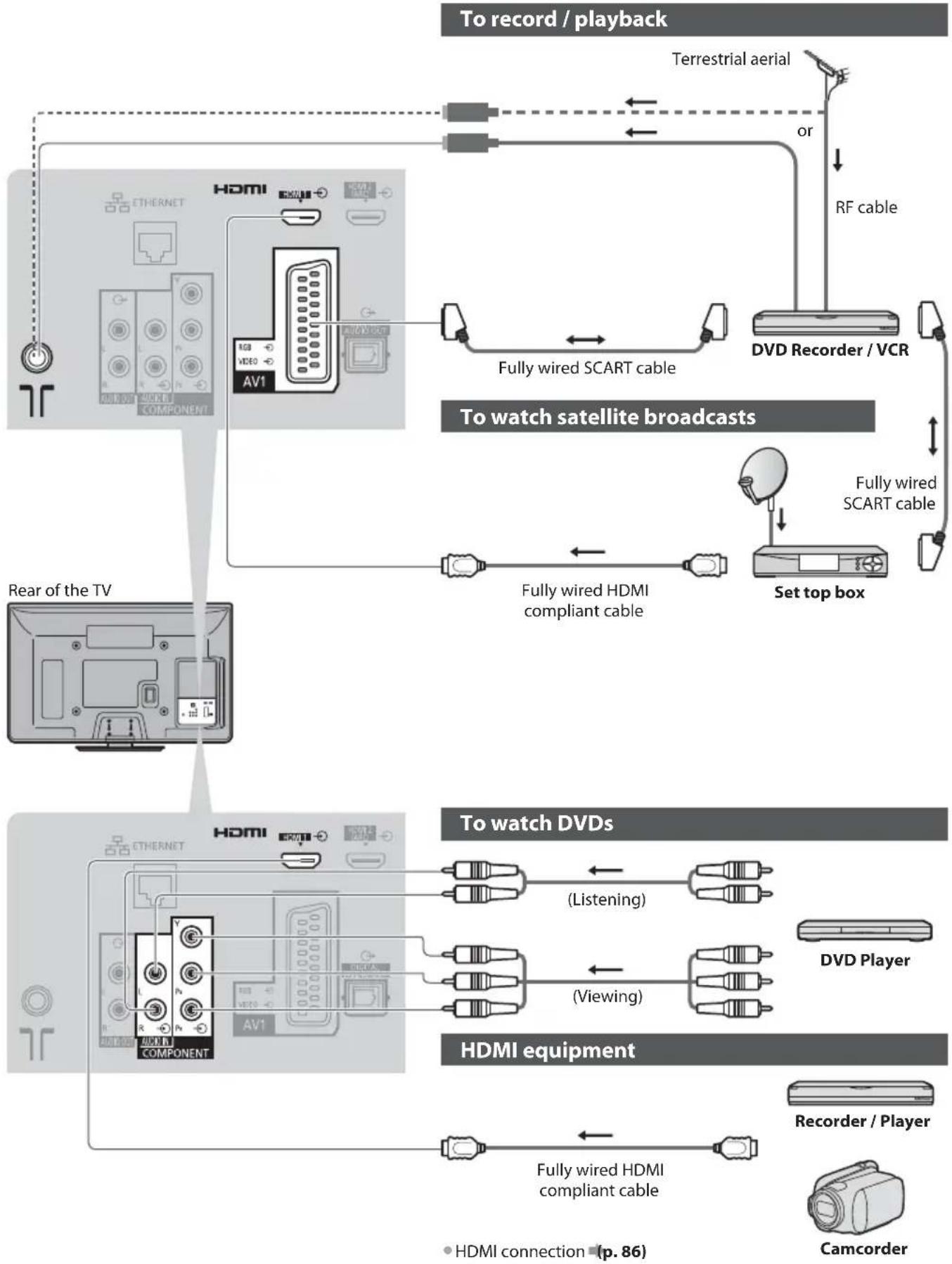

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Example 1 Example 2

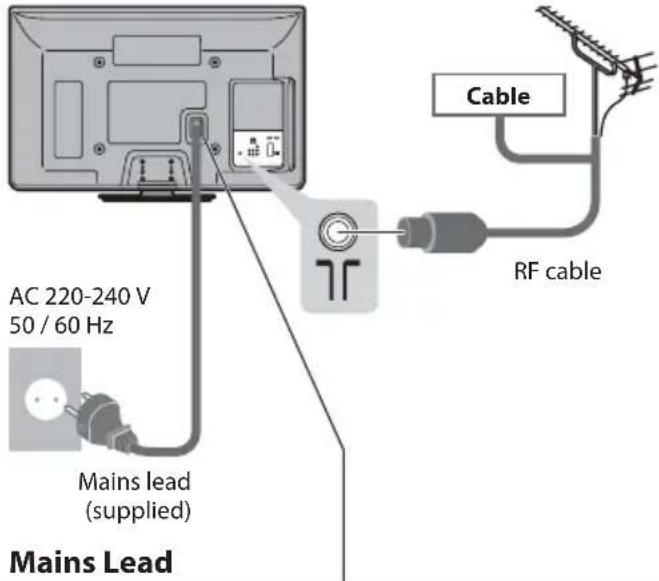

Connecting aerial Connecting DVD Record

TV only TV, DVD Recorder or VCR
Rear of the TV Terrestrial aerial

AC 220-240 V 50 / 60 Hz Mains lead (supplied) Mains Lead Cable RF cable

Line drawing of hands inserting a plug into a socket (no text or symbols)

Push until both side tabs click

Make sure that the mains lead is securely fixed.

To remove from the TV :

Press both tabs and pull on mains connector to release

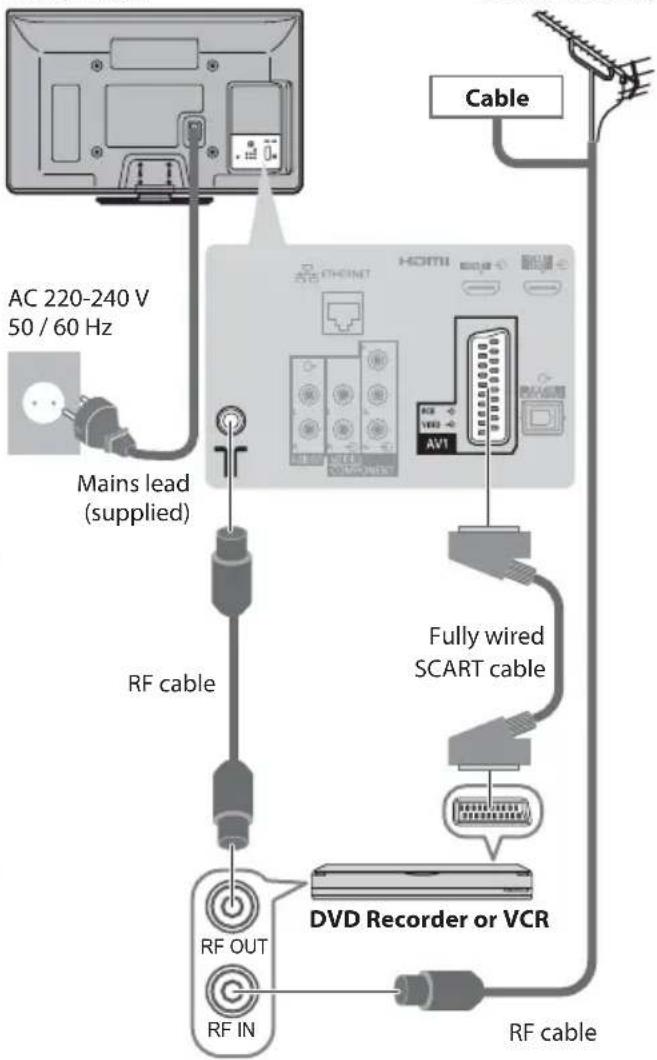

VCR

Rear of the TV

AC 220-240 V 50 / 60 Hz Mains lead (supplied) RF cable Fully wired SCART cable DVD Recorder or VCR RF OUT RF IN RF cable Cable

Terrestrial aerial

Cable

Fully wired SCART cable

DVD Recorder or VCR

RF cable

Note

• Connect to the TV's AV1 for a DVD Recorder / VCR supporting Q-Link (p. 72).
• For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using HDMI cable (p. 79).
  • Q-Link and VIERA Link connection (p. 70, 71)
• Please also read the manual of the equipment being connected.
• Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.

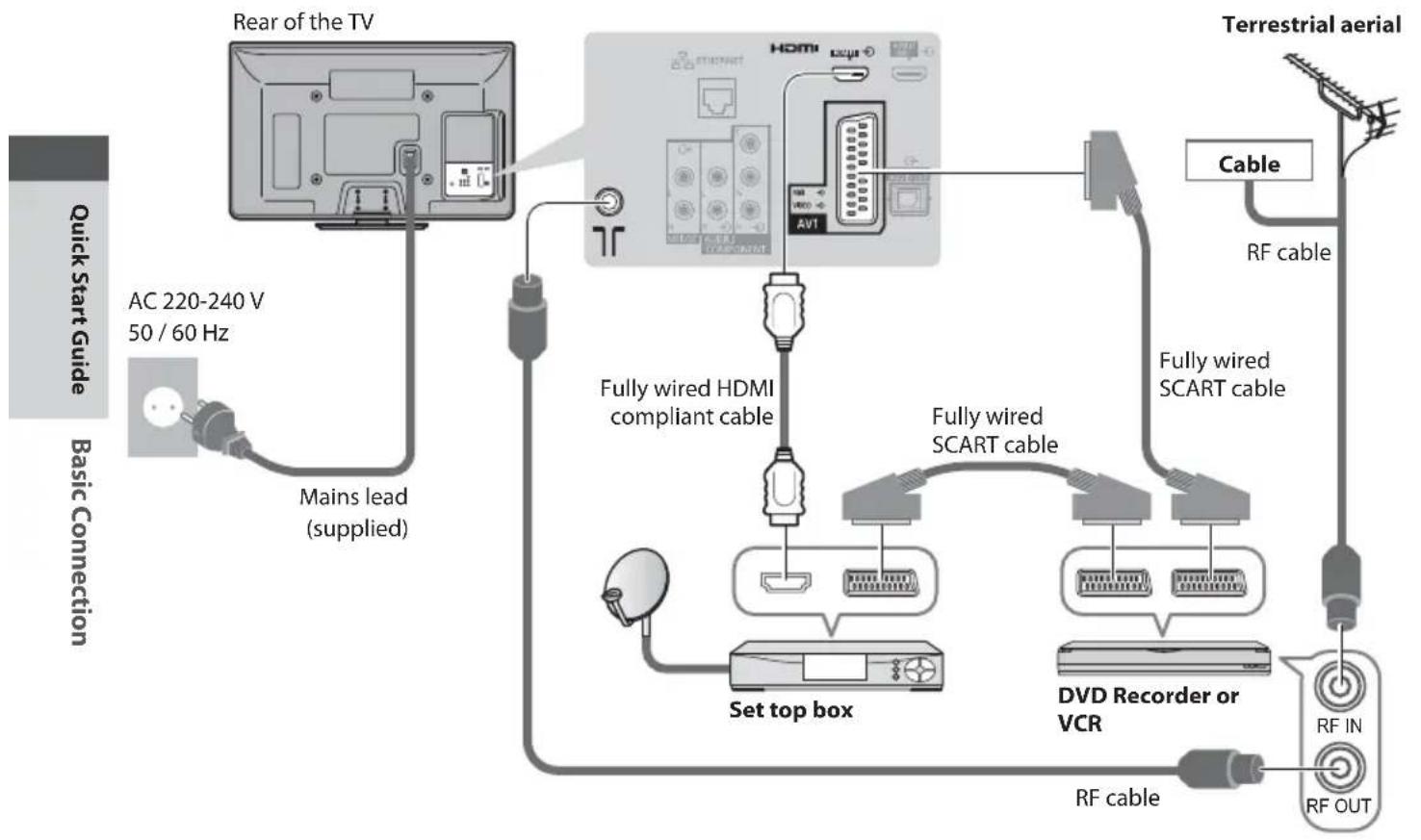

Example 3

Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Set top box


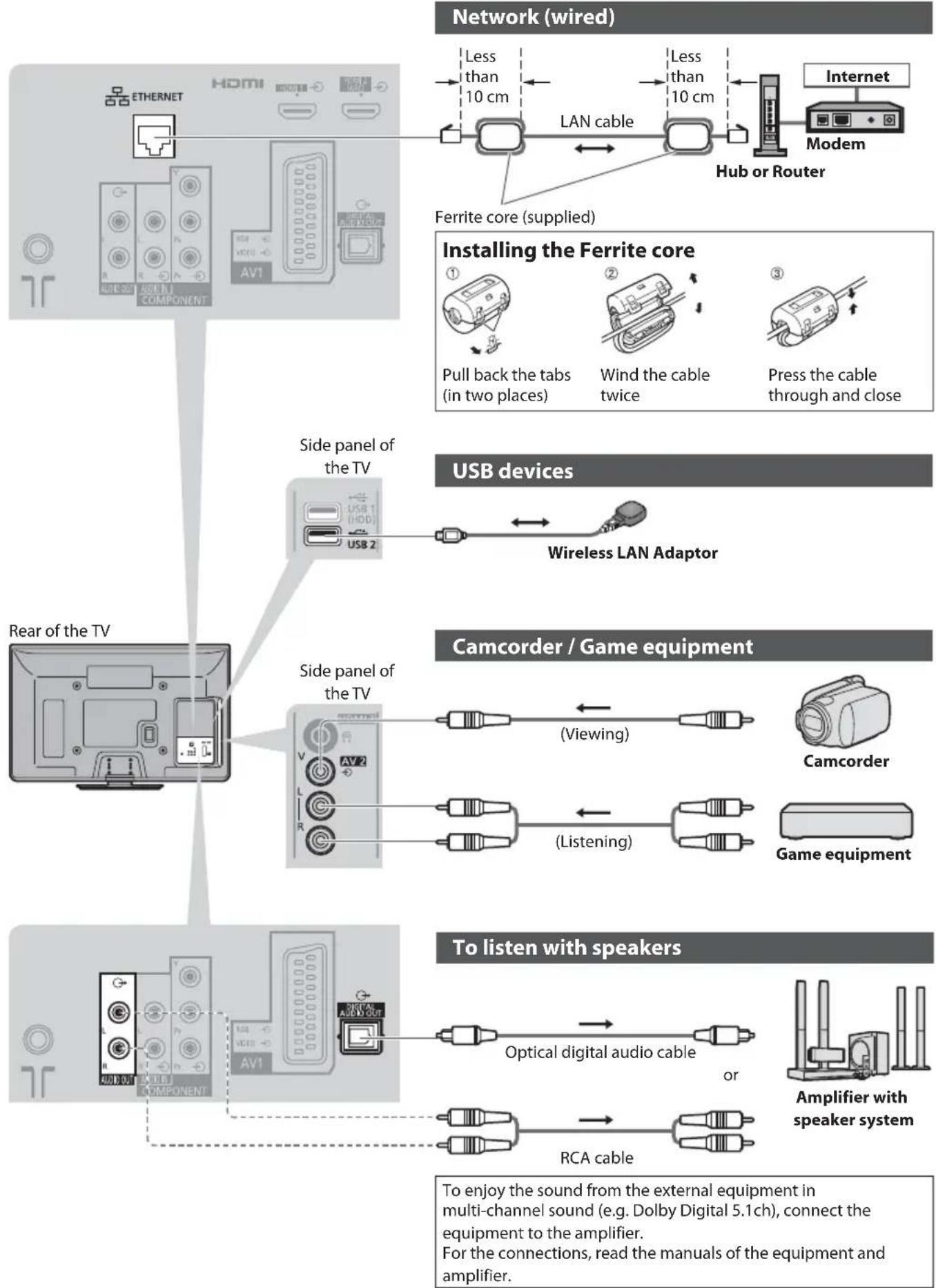

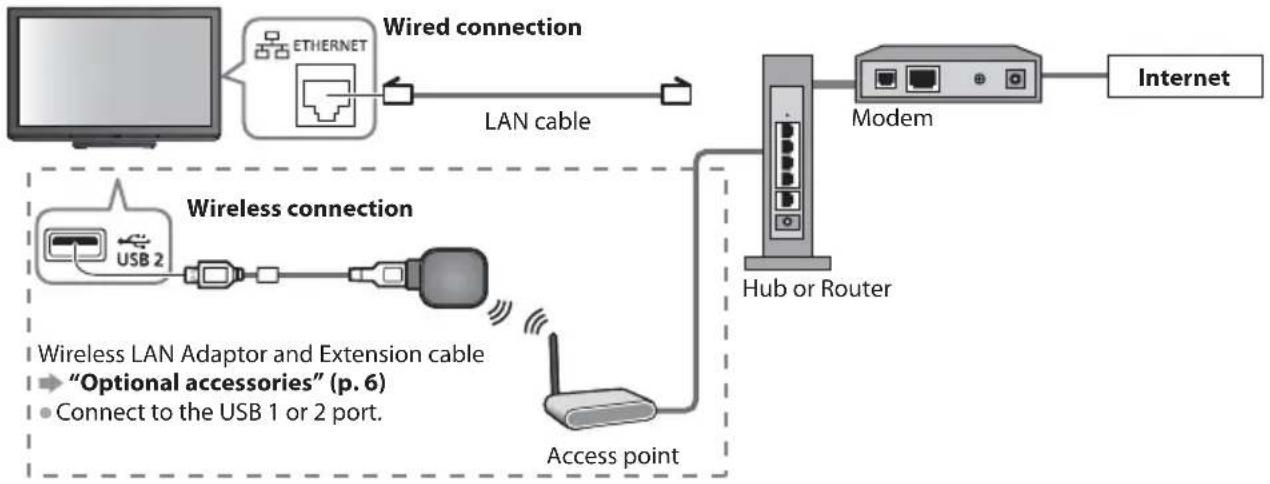

■ Connecting to the network environment (Network connections)

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

• If you do not have any broadband network services, please consult your retailer for assistance.
• Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
• Setup of the network connection will start after the tuning (when first using the TV) → (p. 14 - 16)

Rear of the TV

Wireless LAN Adaptor and Extension cable "Optional accessories" (p. 6) Connect to the USB 1 or 2 port. Internet environment Access point

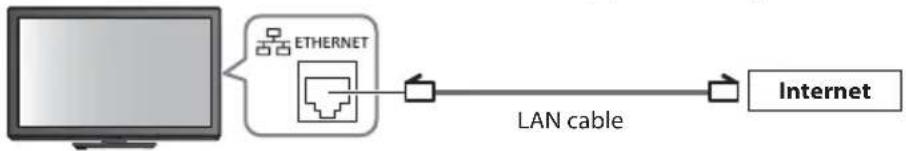

Wired connection


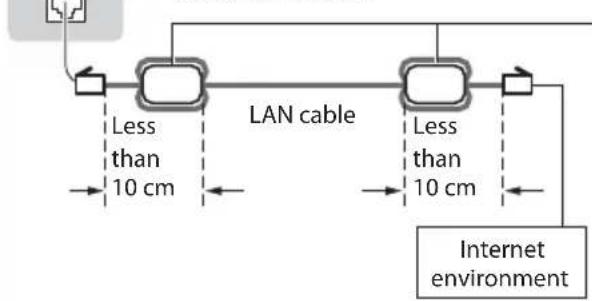

    B --> D["Less than 10 cm"]
    B --> E["Less than 10 cm"]
    style B fill:#f9f,stroke:#333
    style C fill:#ccf,stroke:#333
    style D fill:#cfc,stroke:#333
    style E fill:#fcc,stroke:#333

Ferrite core (supplied)

Installing the Ferrite core

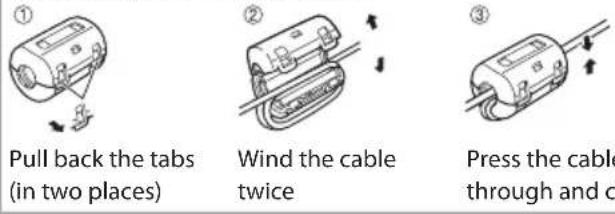

① Pull back the tabs (in two places) ② Wind the cable twice ③ Press the cable through and c

Note

- For more information of the network connections (p. 63)

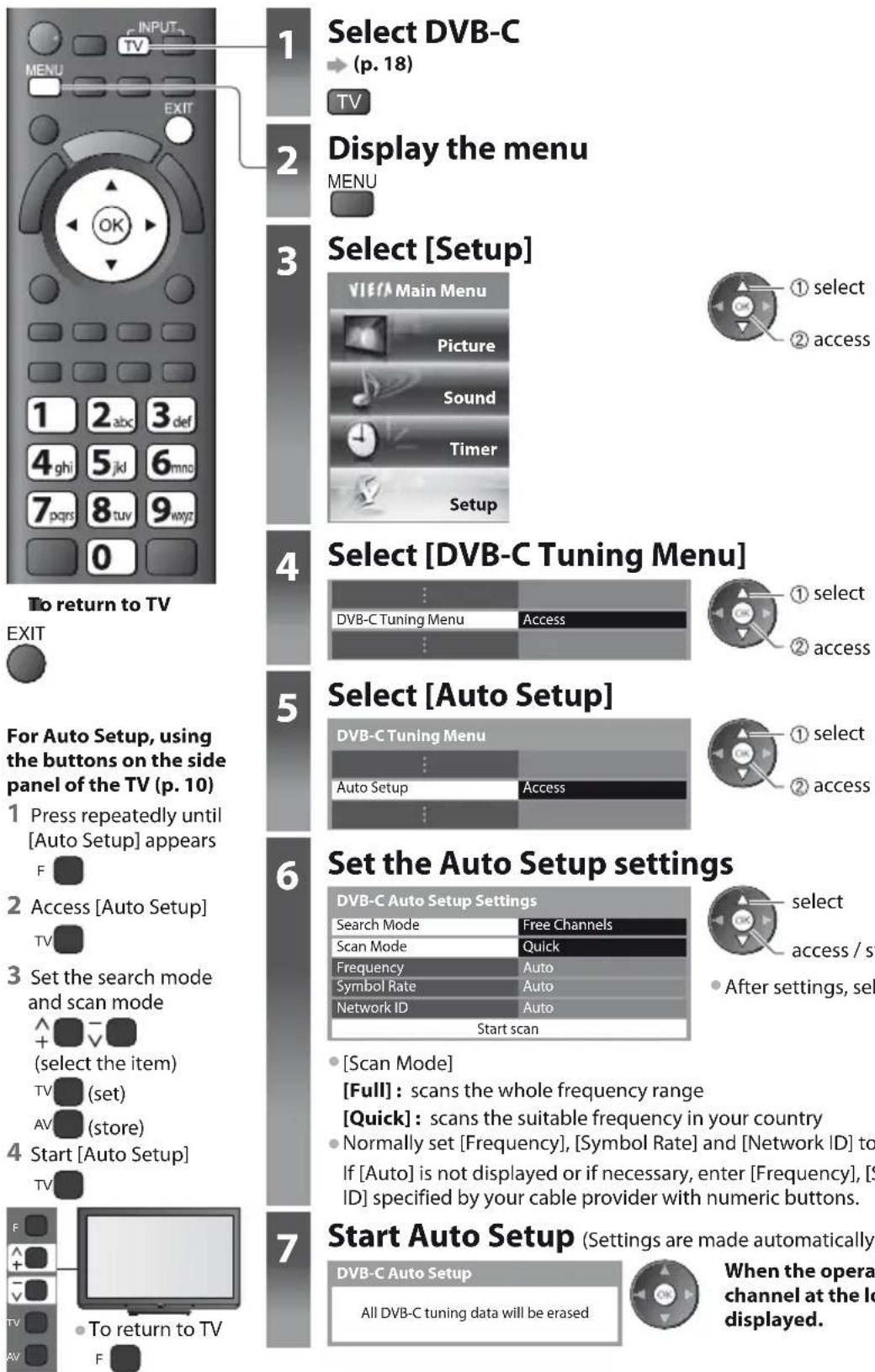

Auto Setup

Search and store TV channels automatically.

• These steps are not necessary if the setup has been completed by your local dealer.
- Please complete connections (p. 11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.

For details of settings for the connected equipment, read the manual of the equipment.

Illustration of a computer monitor with a line graph and a small circular icon on the left (no text or symbols)

1

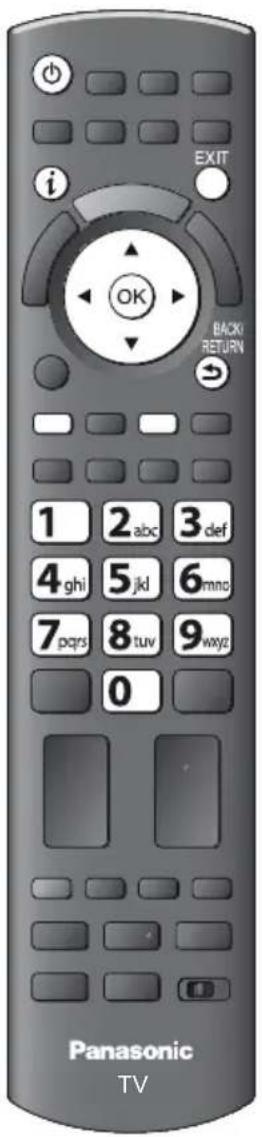

Plug the TV into mains socket and switch On

• Takes a few seconds to be displayed
- If the red LED shows on the TV, press the Standby On / Off switch on the remote control for about 1 second.

EXIT i OK BACKI RETURN 1 2 abc 3 def 4 ghi 5 jkl 6 mno 7 pqrs 8 tuv 9 wxyz 0 Panasonic TV

2

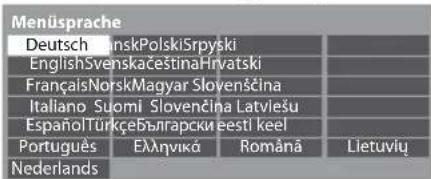

Select the language

Menüsprache Deutsch -ansk Polski Srpyški English-Svenskačestina Hrvatski Français Norsk Magyar Sloveniščina Italiano Suomi Slovenčina Latviešu Español Türkçebvýlagarcki eesti keel Português Ελληνικά Románá Lietuviu Nederlands

3

Select your country

Country
Germany	Denmark	Poland
Austria	Sweden	Czech
France	Norway	Hungary
Italy	Finland	Slovakia
Spain	Luxembourg	Slovenia
Portugal	Belgium	Croatia
Switzerland	Netherlands	Estonia
Malta	Turkey	Lithuania
Andorra	Greece	Others

- Depending on the country you select, select your Region or store the Child LockPIN number ("0000" cannot be stored) by following the on screen instructions.

4

Select the mode you want to tune

TV Signal Selection DVB-C DVB-T Analogue Start Auto Setup

5

Select [Start Auto Setup]

TV Signal Selection DVB-C DVB-T Analogue Start Auto Setup

• Auto Setup will start to search for TV channels and store them. The stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.

Auto Setup screen varies depending on the country you select.

1 [DVB-C Network Settings]

- Depending on the country you select, select your cable provider beforehand by following the on screen instructions.

DVB-C Network Settings Frequency Auto Network ID Auto Start Auto Setup

① select [Start Auto Setup] ② access

Normally set [Frequency] and [Network ID] to [Auto].

If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

2 [DVB-C Auto Setup] 3 [DVB-T Auto Setup]

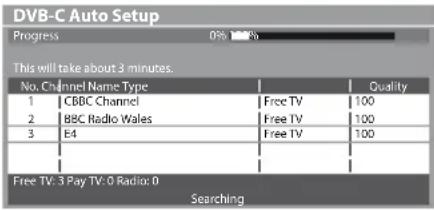

DVB-C Auto Setup Progress 0% 100% This will take about 3 minutes. No. Channel Name Type Quality 1 CBBC Channel Free TV 100 2 BBC Radio Wales Free TV 100 3 E4 Free TV 100 Free TV: 3 Pay TV: 0 Radio: 0 Searching

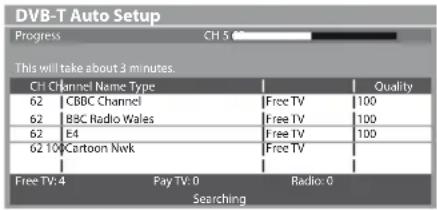

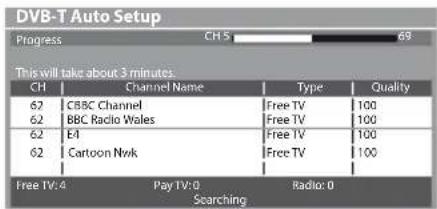

DVB-T Auto Setup Progress CH: 5 This will take about 3 minutes. CT Channel Name Type Quality 62 CBBC Channel Free TV 100 62 BBC Radio Wales Free TV 100 62 E4 Free TV 100 62 10 Cartoon Nwk Free TV Free TV: 4 Pay TV: 0 Radio: 0 Searching

- Depending on the country you select, the channel selection screen will be displayed after DVB-T Auto Setup if multiple channels have the same logical channel number. Select your preferred channel or exit the screen for automatic selections.

4 [Analogue Auto Setup]

Analogue Auto Setup Scan CH 2 ▪ 78 CC 1 41 This will take about 3 minutes. CH Channel Name CH 29 CH 33 BBC1 Analogue. 2 Searching

5 Preset Download

If Q-Link, VIERA Link or similar technology (p. 72, 73) compatible recorder is connected, channel, language, country / region settings are automatically downloaded to the recorder.

Sending Preset Data Please wait! 0% 100% Remote control unavailable

- If downloading has failed, you can download later through the Setup Menu. [Download] (p. 35)

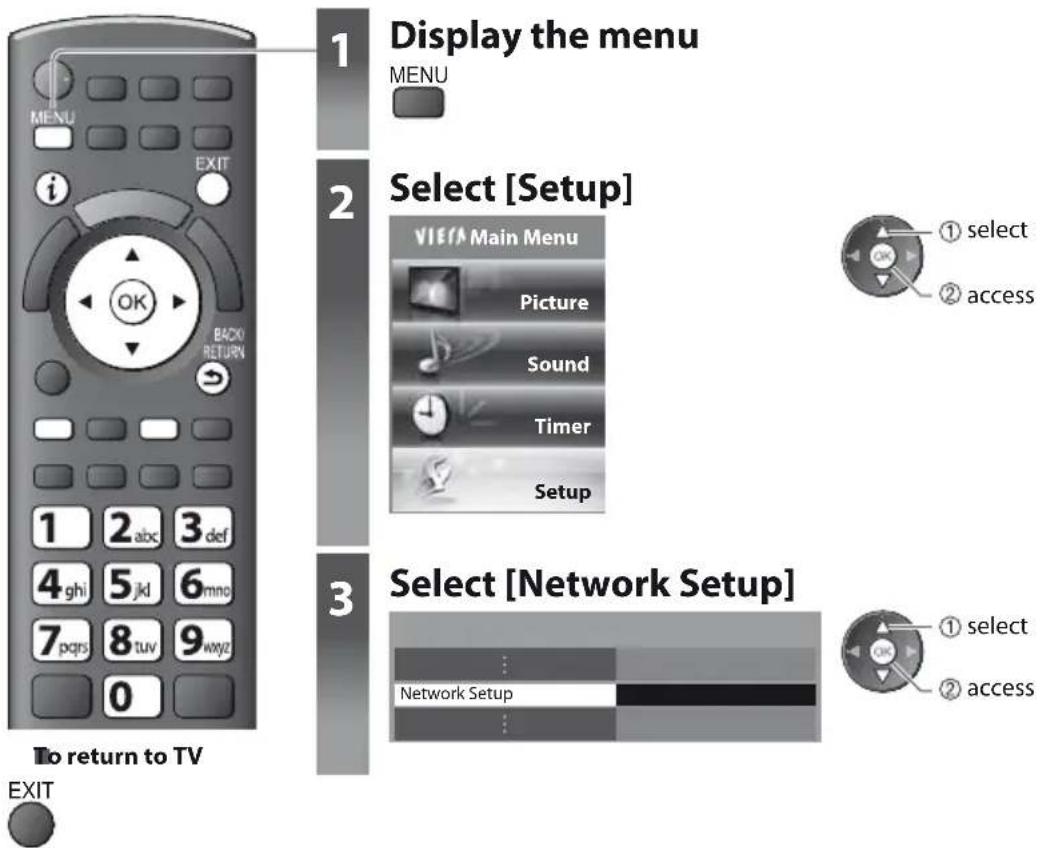

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 17, 63).

• To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required. Please note that this TV does not support wireless public access points.
• Ensure the network connections (p. 12) and network environment are completed before starting setup.

Select the network type

Network Setup Select Wired or Wireless Wired Wireless Set later ETHERNET

[Wired]→“Wired connection”(p. 12)

[Wireless] → "Wireless connection" (p. 12)

①select
②access

• To setup later on or skip this step

→ Select [Set later] or

■ [Wired]

1. Select [Auto]

Acquire IP Address

Auto

Manual

Connection Test

Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection
Check gateway connection

: succeeded

The test is successful and the TV is connected to the network.

①select
②access

Automatically setup is done and the test of the network connection starts.

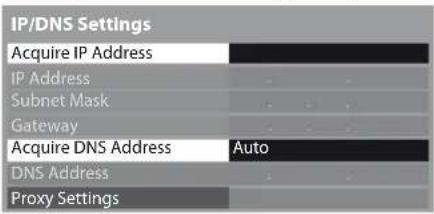

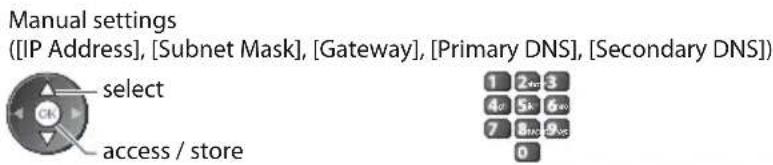

- To set manually, select [Manual] and set each item. For details → (p. 65)

:failed

Check the settings and connections. And then select [Retry].

2. Go to the next step

(Press twice)

Select the connection type

Connection Type Please select network connection type. Search for access point WPS(Push button)

[Search for access point]

Access points found automatically are listed.

1. Select your desired access point

Available Access Points
No.	Vnothing type Encrypt Reception
1	Access Point A	11n(2.5GHz)
2	Access Point B	11n(5GHz)
3	Access Point C	11n(5GHz)

- Encrypted access point

• To search access points again

• For the information of the highlighted access point

• To set manually (p. 68)

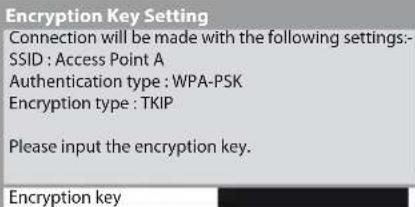

1. Access the encryption key input mode

Encryption Key Setting Connection will be made with the following settings:- SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP Please input the encryption key. Encryption key

- If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

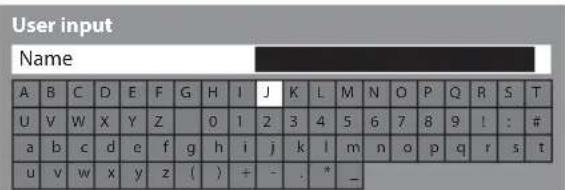

1. Enter the encryption key of the access point

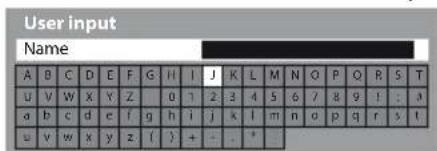

Access Point Settings Encryption key A T C F E G H I J K L M N D P O R S T U W Y Z 0 1 2 3 4 5 6 7 8 9 10 11 a b c d e f g h i k l m n > p q r s T u v w x y z l + *

Set characters Store

1. Select [Yes]

Access Point Settings Encryption key is set to-XXXXXXX Select 'Yes' to confirm. Select 'No' to change. Yes No

• You can set characters by using numeric buttons.

• To re-enter the encryption key, select [No].

- If the connection has failed, check the encryption key, settings and positions of your access point. And then, follow the on screen instructions.

1. After the access point setting is finished, perform the connection test

Connection Test

Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.

: succeeded

The test is successful and the TV is connected to the network.

:failed

Check the settings and connections. And then select [Retry].

- To set manually, select [Manual] and set each item. For details → (p. 65)

1. Go to the next step 7

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point

WPS(Push button)

1) Please press the 'WPS' button on the access point until its light flashes.

2) When the light is flashing select 'Connect' on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

• Ensure that your access point supports WPS for this setup.
• WPS: Wi-Fi Protected Setup™

• If the connection has failed, check the settings and positions of your access point. And then, follow the on screen instructions.

• After the access point setting is finished, perform the connection test

Connection Test

☑ Check access point connection.
Check acquired IP address.
☑ Check for devices using same IP address.
Check gateway connection.
Check gateway connection.

1. Go to the next step

(Press twice)

: succeeded

The test is successful and the TV is connected to the network.

:failed

Check the settings and connections. And then select [Retry].

- To set manually, select [Manual] and set each item. For details (p. 65)

Select [Home]

Select [Home] viewing environment to use in your home environment.

①select

②set

■ [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

- You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

1 Return to viewing environment selection screen

Shop You have selected shop mode Automatic Demo Off On BACK/ RETURN

2 Select [Home]

Please select your viewing environment.

Home

BACK/RETURN

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

→ [Shipping Condition] (p. 51)

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.

Note

• To check channel list at-a-glance "Using TV Guide" (p. 22)
• To edit or hide (skip) channels "Tuning and Editing Channels" (p. 40 - 44)
  • To retune all channels ■ [Auto Setup] (p. 38, 39)
• To add the available TV mode later [Add TV Signal] (p. 35, 36)
  • To initialise all settings [Shipping Condition] (p. 51)

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

• To setup the wireless connection (p. 66 - 68)

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up? No - Exit

Current network type : Wireless

Yes

No

Using "VIERA Connect"

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

- This TV has no full browser function and all features of websites may not be available.

EXIT OK BACK/ RETURN 1 2 abc 3 def 4 ghi 5 jkl 6 mno 7 pqrs 8 tuv 9 wxyz 0

■ To exit from VIERA Connect

• To set the VIERA Connect instruction banner display off

→ [VIERA Connect Banner] (p. 37)

1

Turn power on

Enjoy selected internet content with VIEFA Connect. Simply press the OK / INTERNET button

• Press for about 1 second
• Mains power On / Off switch should be On. (p. 10)

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

2

Access VIERA Connect
While the banner is displayed

Example :

or

• The button design varies depending on the remote control.

Welcome to VERA Connect™ © 2017 VERA Connect™, www.orient.com.cn The following: We are not allowed to use any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any other information on the website or any others Send to the website © 2017 VERA Connect™

Example : VIERA Connect home screen

Black-and-white collage of multiple media app interface windows showing video thumbnails and text overlays, including 'MORE' and 'BACK' buttons.

• Depending on the usage conditions, it may take a while to read all the data.
• Messages might be displayed before VIERA Connect home screen. Please read these instructions carefully and follow the on screen instructions.

• To go to the next level
→ [MORE]
• To back to the previous level
→ [BACK]

■ How to operate VIERA Connect (current as of January, 2011)

• To move the cursor / select the item

- When the key words are displayed on colour bar

• To access

- When options with numbers are displayed

• To return to the previous screen

BACK/RETURN

• To return to VIERA Connect home screen

- Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.

→ "Optional accessories" (p. 6)

For details, read the manual of the Communication Camera.

- You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features.

For more information → "USB connection" (p. 87)

Note

• If you cannot access VIERA Connect, check the network connections (p. 12) and settings (p. 14 - 16).
  • For more information of VIERA Connect (p. 69)

Watching TV

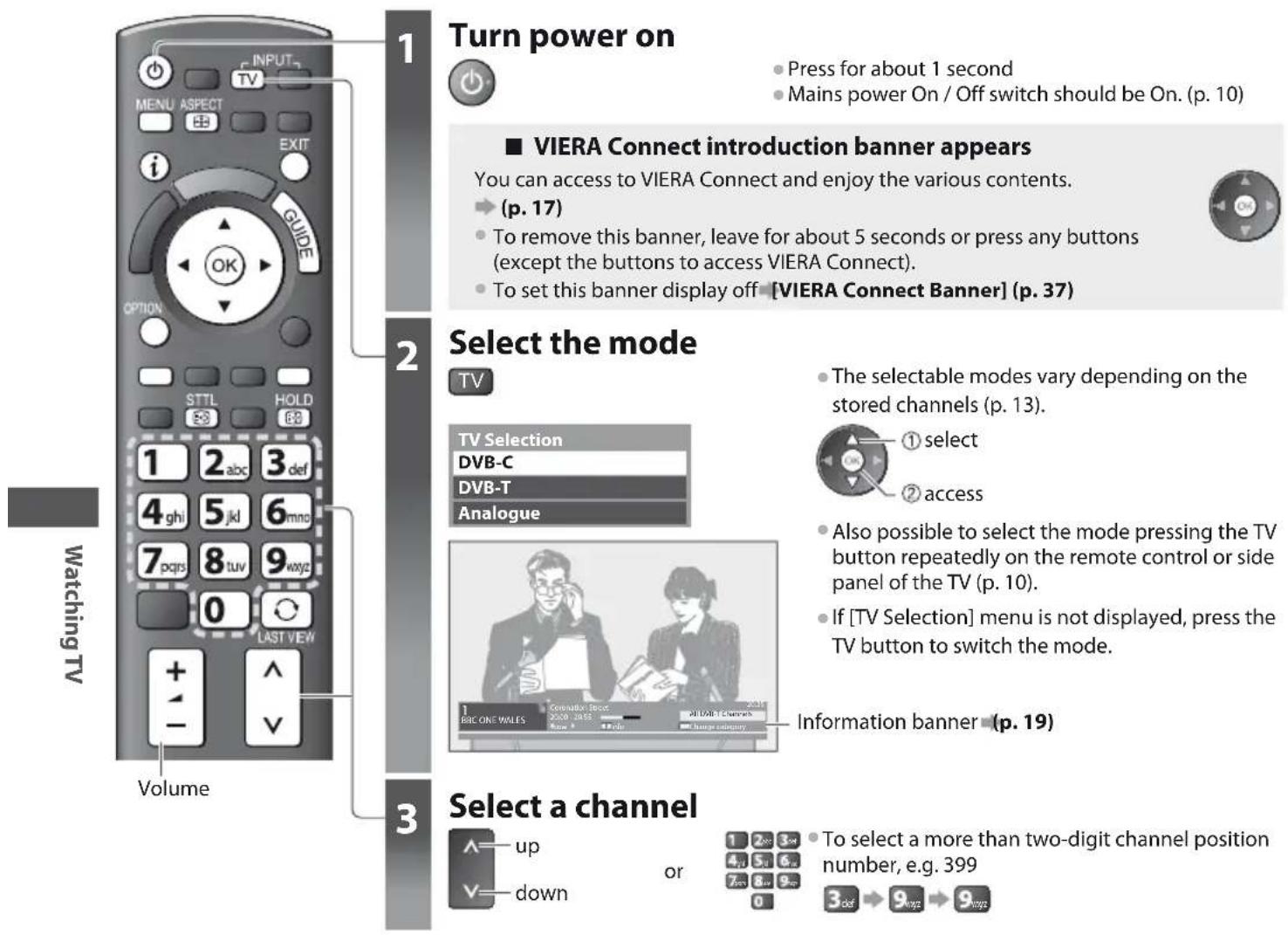

Turn power on Press for about 1 second Mains power On / Off switch should be On. (p. 10) ■ VIERA Connect introduction banner appears You can access to VIERA Connect and enjoy the various contents. (p. 17) To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect). To set this banner display off [VIERA Connect Banner] (p. 37) Select the mode TV The selectable modes vary depending on the stored channels (p. 13). TV Selection DVB-C DVB-T Analogue ① select ② access Also possible to select the mode pressing the TV button repeatedly on the remote control or side panel of the TV (p. 10). If [TV Selection] menu is not displayed, press the TV button to switch the mode. Information banner (p. 19) Select a channel up down or To select a more than two-digit channel position number, e.g. 399

■ To select from the Channel List

All DVB-T Channels	Sorting 123...
6 Cartoon Nwk
7 BBC Radio Wales
8 BBC Radio Cymru
1 BBC ONE Wales
2 BBC THREE
3 BBCi
4 CBBC Channel

① select channel
② watch

• To sort channel names in alphabetical order

(red)

• To change the category

(blue)

■ Select a channel using Information banner (p. 19)

1 Display Information banner if it is not displayed

2 While the banner is displayed, select the channel

①select channel
②watch

■ Select a channel using TV Guide (p. 22)

1 Display TV Guide

2 Select the current programme or channel

3 Select [View] (DVB mode)

- The postcode entry or update may be required depending on the country you select (p. 13). Follow the on screen instructions.

Note

• To watch pay-TV "Using Common Interface" (p. 50)

Other useful functions

Display Information banner

Display Information banner

• Also appears when changing a channel

Example: DVB 1 ZDF HDTV Coronation Street 20:00 - 20:55 Now i 6 7 4 5 All DVB-T Channels Change categoryInfo Dolby D+Bad signal 45

1 Channel position and name
2 Channel type ([Radio], [Data], [HDTV], etc.) / Encrypted channel (TV mode (7, 8)
3 Programme
4 Current time

5 Programme Start / Finish time (DVB)
Channel number, etc. (Analogue)
6 Progress time indicator of the selected programme (DVB)
7 Category

• To change the category (DVB)

Features available / Message meanings

Sound mute On

[Bad signal]

Poor TV signal quality

[Dolby D+], [Dolby D], [HE-AAC]

Dolby Digital Plus, Dolby Digital or HE-AAC audio track

Subtitle service available

Teletext service available Multiple audio and video available

Multiple audio available

Multiple video available

[Stereo], [Mono]

Audio mode

1 - 90

Off Timer remaining time

- For settings (p. 20)

• To confirm another tuned channel name

• To watch the channel listed in the banner

• Information on the next programme (DVB)

• To hide

• Extra information (DVB)

(Press again to hide the banner)

• To set display timeout

→ [Banner Display Timeout] (p. 37)

Display subtitles

Display / hide subtitles (if available)

STTL

• To change the language for DVB (if available)

[Preferred Subtitles] (p. 36)

Note

- If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page (p. 25). Press the EXIT button to return to TV mode.

Hold

Freeze / unfreeze picture

HOLD

Display the selectable settings for the current status

Check or change the current status instantly

OPTION

• To change

①select

②access

select / change

④ store

[Multi Video] (DVB mode)

Allows you to select from a group of multiple videos (if available)

- This setting is not memorized and it will return to the default setting once you exit the current programme.

[Multi Audio] (DVB mode)

Allows you to select between alternative language for sound tracks (if available)

- This setting is not memorized and it will return to the default setting once you exit the current programme.

[Dual Audio] (DVB mode)

Allows you to select stereo / monaural (if available)

[Sub Channel] (DVB mode)

Allows you to select the multifeed programme - sub channel (if available)

[Subtitle Language] (DVB mode)

Allows you to select the language in which subtitles should appear (if available)

[Teletext Character Set]

Sets the teletext language font

→ [Setup Menu] (p. 36)

[Teletext Language] (DVB mode)

Allows you to select between alternative language for teletext (if available)

[MPX] (Analogue mode)

Selects multiplex sound mode (if available)

→ [Sound Menu] (p. 34)

[Volume Correction]

Adjusts volume of individual channel or input mode

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

MENU

2 Select [Timer]

VISTA Main Menu Picture Sound Timer Setup

① select

② access

3 Select [Off Timer] and set the time

Timer Programming Off Timer Auto Standby Off 15 minutes 30 minutes 45 minutes 60 minutes 75 minutes 90 minutes

① select [Off Timer]

② access

③ select the time

④ store

• To cancel Set to [Off] or turn the TV off.
• To confirm the remaining time → "Display Information banner" (p. 19)
- When the remaining time is within 3 minutes, the remaining time will flash on the screen.

Aspect

Change the aspect ratio (image size)

ASPECT

Enjoy viewing the image at its optimum size and aspect.

Programmes usually contain an "Aspect Control Signal" (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the "Aspect Control Signal" (p. 82).

■ If you would like to change the aspect ratio manually

1 Display Aspect Selection list

ASPECT

Aspect Selection Auto 1.0k 1.5k 2.0k 2.5k 3.0k 3.5k Zoom Zoom2 Zoom3 Select Change EXIT RETURN

Aspect Selection list

2 While the list is displayed, select the mode

① select

②store

- You can also change the mode only using the ASPECT button.

ASPECT

(Press repeatedly until you reach the desired mode)

[Auto]

The best ratio is chosen and the image expanded to fill the screen.

For details (p. 82)

[16:9] [4:3 Full]

Directly displays the image at 16:9 without distortion (anamorphic).

[14:9] [Zoom1]

Displays the image at the standard 14:9 without distortion.

[Just] [Zoom2]

Displays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

[4:3] [Zoom3]

Displays the image at the standard 4:3 without distortion.

Displays a 4:3 image enlarged horizontally to fit the screen.

- HD signal only

Displays a 16:9 letterbox or 4:3 image without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion.

At 16:9, displays the image at its maximum (with slight enlargement).

Note

• Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
  • Not available in teletext service.
• Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

Last view

Switch to previously viewed channel or input mode easily

LAST VIEW

- Press again to return to the present view.

Note

• Switching channel is not available while the recording of Timer Programming or Direct TV Recording is in progress.
• Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

• This function varies depending on the country you select (p. 13).
- The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.

→ "View advertisement" (p. 23)

• DVB-T and Analogue channels are displayed on the same TV Guide screen. D means DVB-T channel and A means Analogue channel. There will be no programme listings for Analogue channels.
• When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.

INPUT TV EXIT i GUIDE OPTION BACK/RETURN Using TV Guide To return to TV EXIT

Select the mode

→ (p. 18)

TV

1

2

View TV Guide

- Press again to change the layout ([Landscape] / [Portrait]). View [Landscape] to see many channels. View [Portrait] to see one channel at a time.

Example :

[Landscape] (Displays by channel)

TV Guide Landscape Wed 27.10.2010 18:46 BBC ORE. 20100 - 20:30 DIY SOS : We open in the Batteries Time | 19:30 | 20:00 | 20:30 | 21:00 D 1 RBC ONR D 7 RBC THREE D 14 E4 D 70 BBC TOUR D 72 BBC 2W D 106 BBC D 106 BBC Radi Emmerdal. 10 D clock News SBC Panorama I'm A Celebrity Rugby Das Erato DIY SOS The Bill Red Gap Hot Wars Holiday Program Coronation Street The Bill Pepsi Char Good bye Spring watch Coast Prop Idol Next 15 To 1 The Bill Select channel EXIT Info Change display mode Page up Select programme Select Advert Page down 24 hours 24 hours Prog.Type Category

Example :

[Portrait] (Displays by time)

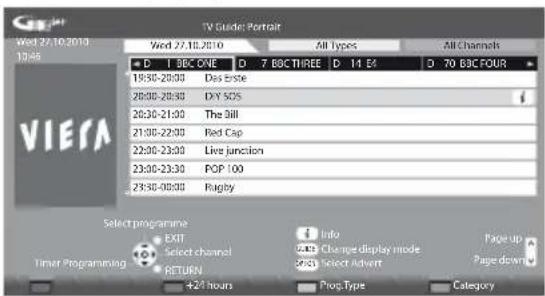

TV Guide: Portrait Wed 27.10.2010 13:46 Wed 27.10.2010 All Types All Channels D 1 BBC ONE D 7 BBC THREE D 14 E4 D 70 BBC FOUR 19:30-28:00 Des Erste 20:00-28:30 DY SOS 20:30-21:00 The Bill 21:00-22:00 Red Cap 22:00-23:00 Live junction 23:00-23:30 POP 100 23:30-08:00 Ragby Select programme EXIT Info Page up Select channel Select Charged display mode Page down Return Select Advert Page down 424 hours Prop Type Category Timer Programming

1 Current date and time
2 TV Guide date
3 TV Guide time
4 Programme
5 Advertisement
6 Channel position and name
7 D: DVB-T

Depending on the country you select, you can select the TV Guide type

[Default Guide] in [Display Settings] (p. 36)

If you select [Channel List], the channel list will appear when the GUIDE button is pressed.

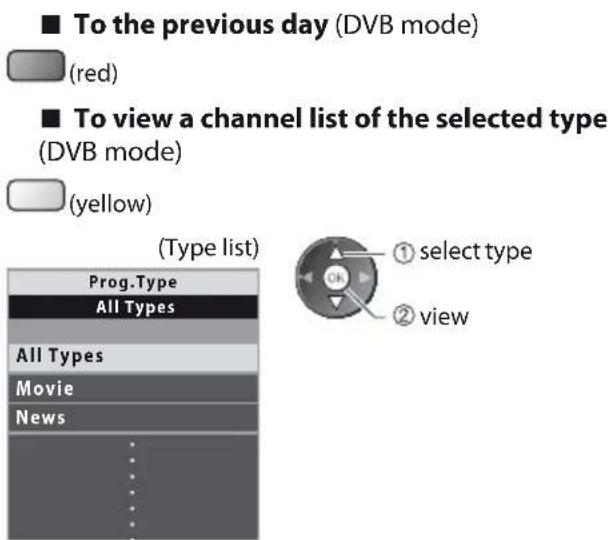

■ To watch the programme

1 Select the current programme or channel

2 Select [View] (DVB mode)

Das Erste 19:30- 20:00 View gramming

① select
② watch

• To use Timer Programming → (p. 24)

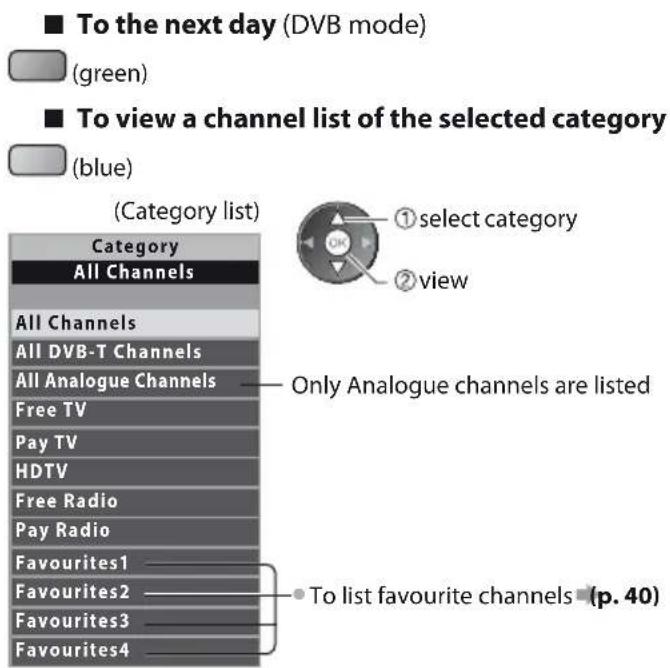

■ To the previous day (DVB mode) (red) ■ To view a channel list of the selected type (DVB mode) (yellow) (Type list) Prog.Type All Types All Types Movie News ① select type ② view

■ To the next day (DVB mode) (green) ■ To view a channel list of the selected category (blue) (Category list) Category All Channels All Channels All DVB-T Channels All Analogue Channels Free TV Pay TV HDTV Free Radio Pay Radio Favourites1 Favourites2 Favourites3 Favourites4 ①select category ②view Only Analogue channels are listed ●To list favourite channels (p. 40)

Other useful functions

View details of the programme (DVB mode)

1 Select the programme 2 View details

- Press again to return to TV Guide.

View advertisement

Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode

The postcode entry or update is required. Follow the on screen instructions.

- Also possible to setup manually from the Setup Menu

→ [Update] / [Postcode] in [GUIDE Plus+ Settings] (p. 37)

- Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION To display the latest advertisement → [Update] in [GUIDE Plus+ Settings] (p. 37)

■ To change advertisements

■ To return to TV Guide

Note

• To update the information continuously, the TV must be left in Standby mode.

Timer Programming (DVB mode)

Timer Programming is a timer to remind watching or record the programme to the external recorder.

1 Select the forthcoming programme

LED will turn to orange if

Timer Programming is set.

(Orange LED will flash if the recording of

Timer Programming is in progress.)

Diagram showing a device with an LED connected to a screen, labeled 'LED' pointing to the next panel.

2 Select the function ([Ext Rec.] or [Reminder])

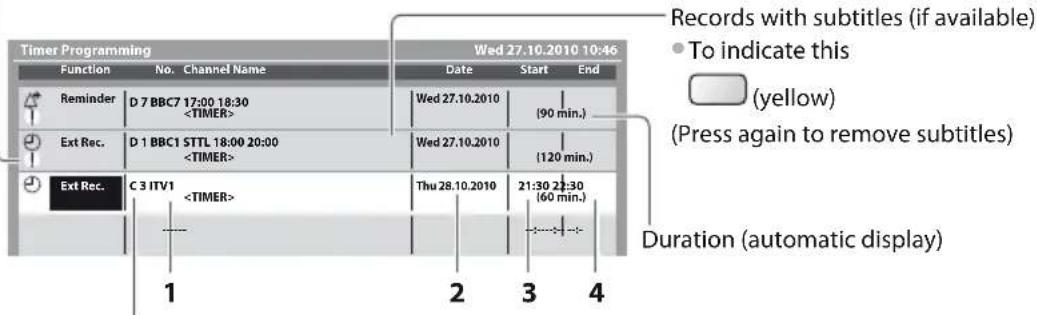

(Timer Programming screen)

Timer Programming Wed 27.10.2010 10:46 Function No. Channel Name Date Start End Est Time: Wed 27.10.2010 20:00D / 20:00C ONE (30 min.) (- min.) (- min.) (- min.) (- min.) (- min.) (- min.) Subway: Frontier 181 R-0 Postcode End

[Ext Rec.]:

to record the programme to the external recorder

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.

[Reminder]:

to remind you to watch the programme

When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

■ To check / change / cancel a timer programming event

→ "Timer Programming" (p. 45 - 47)

■ To return to TV Guide

BACK

RETURN

■ If you select the current programme

A confirmation screen asking whether you wish to watch or record the programme will appear.

Select [Timer Programming] and set [Ext Rec.] to record from the time you finish the timer programming event setting.

Das Erste 19:30- 20:00 View Timer Programming

Note

• This function is not available in Analogue mode.
- Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.
- No other channel can be selected while the recording of Timer Programming is in progress.
- When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 72, 73) and the [Link Settings] (p. 35) are completed, no setting of the recorder is required. Also read the manual of the recorder.

Viewing Teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

• Fast overview of the teletext information available
• Easy to use step-by-step selection of the topical subject
  • Page status information at the bottom of the screen

Available page up / down

(red) (green)

To select among subject blocks

(blue)

To select next subject within the subject block

(After the last subject, it moves to the next subject block.)

(yellow)

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory. "Store frequently viewed pages" (p. 26)

■ To change mode[Teletext] (p. 36)

Switch to Teletext TEXT Sub page number << 01 02 03 04 05 06 07 P100 17:51 28 Feb Time / date TELETEXT INFORMATION Colour bar Current page number Select the page 1 2 abc 3 def 4 ghi 5 jkl 6 mno 7 pqrs 8 tuv 9 wayz 0 To return to TV ■ To adjust contrast MENU (Press three times) ■ As the blue bar is displayed

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU

(red)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating) HOLD • Press again to resume.

INDEX

Return to the main index page

INDEX

Call up a favourite page

View a favourite page stored

Call up the page stored on the blue button (List mode). STTL • Factory setting is "P103".

FULL / TOP / BOTTOM

MENU

(green)

(TOP) (BOTTOM) Normal (FULL)

P100

Broadcast

(Expand the TOP half)

(Expand the BOTTOM half)

P100

Broadcast

View in multi window

Watch TV and Teletext in two windows at once

MENU

(Press twice)

Select Picture and text On or Off

• Operations can be made only in teletext screen.

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

(Corresponding coloured button)

press and hold

The number changes to white.

■ To change stored pages

Coloured button you want to change

Enter new page number

press and hold

View sub page

View sub page (Only when Teletext is more than one page)

Appears at top of the screen

■ To view specific sub page

(blue)

Enter the 4-digit number Example : P6

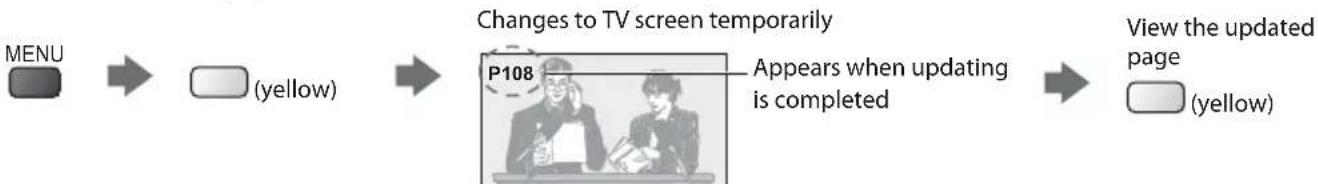

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

MENU

(yellow)

Appears when updating is completed

View the updated page

(yellow)

(You cannot change the channel.)

- The news page provides a function that indicates arrival of latest news ("News Flash").

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

• To connect the equipment (p. 11, 12, 79 - 81)
The remote control is capable of operating some functions of selected external equipment.
"Operating the equipment with the TV remote control" (p. 28)

INPUT TV AV OK 1 2 abc 3 def 4 ghi 5 jd 6 mnc 7 pqrs 8 tuv 9 wayz 0 REC PROGRAMME DVDVCR, TV II/IV (O) Panasonic TV

To return to TV TV

1

Turn the TV on

When connecting with SCART as example 2 or 3 (p. 11, 12)

Receives input signals automatically when playback starts

• Input signals are automatically identified by the SCART (pin 8) terminal.
  • This function is also available for HDMI connections (p. 79).

If input mode is not switched automatically

Perform 2 and 3

- Check the setup of the equipment.

2

Display the input selection menu

3

Select the input mode connected to the equipment

Input Selection AV1 AV2 COMPONENT HDMI1 HDMI2 HDMI3 TV SD Card/USB

• You can also select the input using the AV button on the remote control or the side panel of the TV (except [SD Card/USB]).
  Press the button repeatedly until the desired input is selected.

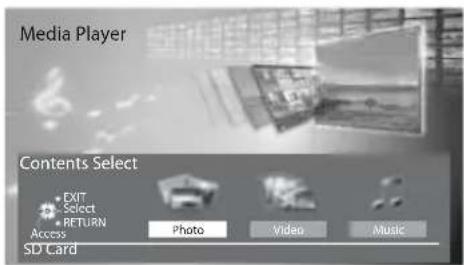

• [SD Card/USB] : Switches to Media Player → "Using Media Player" (p. 53)
• You can label or skip each input mode (except [SD Card/USB]). ➔ "Input Labels" (p. 49) Skipped inputs will not be displayed when the AV button is pressed.

4

View

AV1

Displays the selected mode

Note

• If the external equipment has an aspect adjustment function, set it to "16:9".
• For details, see the manual of the equipment or ask your local dealer.

Operating the equipment with the TV remote control

The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

DVDA	Selection Switch for operating the connected equipmentSelect “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR→“How to change the code for the type of the equipment” (see below)Select “TV” to use Media Player or VIERA Link→“Media Player” (p. 60)→“VIERA Link Control” (p. 77)
	StandbySet to Standby mode / Turn on
	PlayPlayback videocassette / DVD / video content
	StopStop the operations
	Rewind / Skip / SearchVCR :Rewind, view the picture rapidly in reverseDVD / video content :Skip to the previous track, title or chapterPress and hold to search backward
	Fast-forward / Skip / SearchVCR :Fast-forward, view the picture rapidly forwardDVD / video content :Skip to the next track, title or chapterPress and hold to search forward
[PROGRAMME	PausePause / ResumeDVD : Press and hold to play at slow speed
	Channel Up / DownSelect channel
	RecordStart recording

How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code.

Please change the code according to the equipment you want to operate.

1 Set the position to "DVD/VCR"

DVD/VCR TV

2 Press and hold during the following operations

Enter the appropriate code, see table below

Type of the equipment Code
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Player theatre, Blu-ray Disc theatre 71
VCR 72

Note

• Confirm if the remote control works correctly after changing the code.
• The codes may be reset to default values if batteries are replaced.
• Some operations may not be possible on some equipment models.

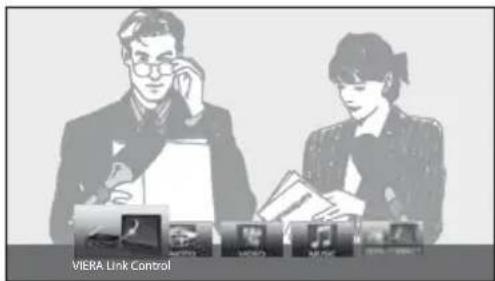

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

VIERA TOOLS EXIT

To return to TV

or

1

Display icons of the feature

2

Select a feature

VIERA Link Control

① select
② access

■ Follow the operations of each feature

[VIERA Link Control]

→ "VIERA Link Control" (p. 76)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

[Music]*

→ "Music mode" (p. 61)

[Photo]*

"Photo mode" (p. 55)

[VIERA Connect]

→ "VIERA Connect" (p. 17, 69)

[Video]*

→ "Video mode" (p. 59)

* When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

Note

- If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

MENU EXIT OK BACKI RETURN Panasonic TV

■ To return to TV at any time

■ To return to the previous screen

BACK/ETURN

■ To change menu pages

1

Display the menu

MENU • Displays the functions that can be set (varies according to the input signal)

2

Select the menu

Example : [Picture Menu]

VISTA Main Menu Picture Sound Timer Setup

① select

② access

3

Select the item

Example : [Picture Menu]

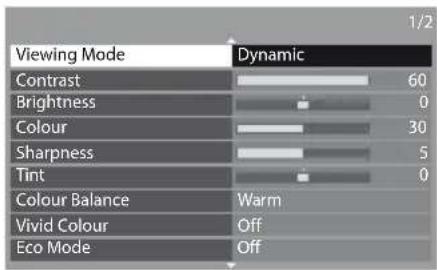

Viewing Mode Dynamic Contrast 60 Brightness 0 Colour 30 Sharpness 5 Tint 0 Colour Balance Warm Vivid Colour Off Eco Mode Off

① select

② access

■ Choose from among alternatives

Colour Balance Cool Normal Warm

① select

② store

■ Adjust using the slide bar

① change

② store

■ Go to the next screen

access

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

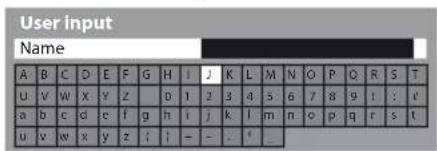

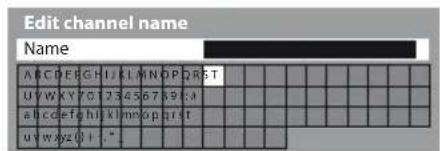

User input Name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 1 . a a b c d e f g h Imp n O p Qi r s\t u V W X Y Z ( ) + - - *

Set characters one by one Store

• You can set characters by using numeric buttons.
  "Characters table for numeric buttons" (p. 87)
  ■ To reset the settings
  • To reset the picture settings only
  [Reset to Defaults] in the Picture Menu (p. 33)
  • To reset the sound settings only
  [Reset to Defaults] in the Sound Menu (p. 34)
  • To initialise all settings

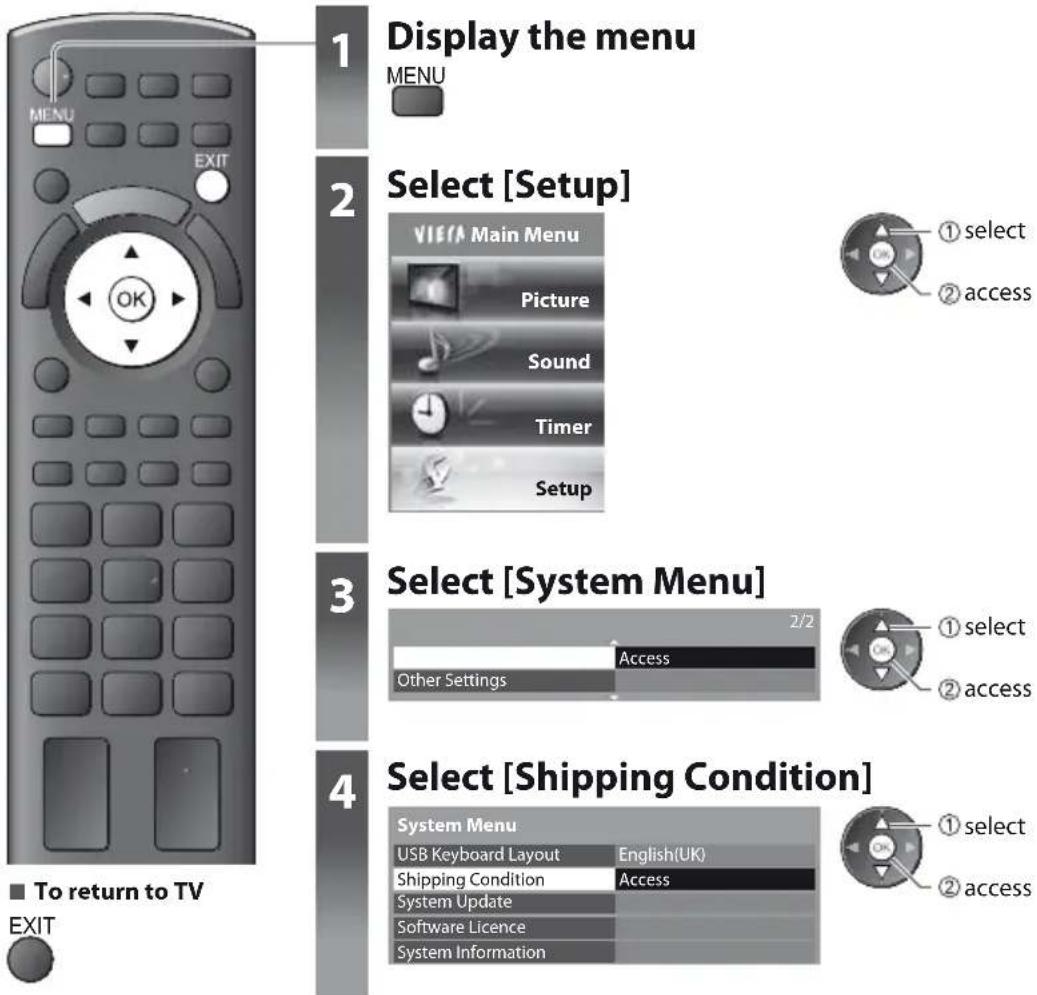

  → [Shipping Condition] in the Setup Menu (p. 37)

Menu list

Menu	Item Adjustments / Configurations (alternatives)
Picture	Viewing Mode	Basic picture mode[Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo]In each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.● Set for each input signal.[Dynamic]:Provides enhanced picture contrast and sharpness when viewing in a bright room.[Normal]:Recommended for viewing under normal ambient room lighting conditions.[Cinema]:For watching movies in a darkened room with the improved performance of contrast, black and colour reproduction[True Cinema]:Precisely reproduces the original quality of the image without any revision.[Game]:Fast response signal specifically to provide suitable images for playing games● Not valid on TV mode● A continuous record of time spent using Game mode can be displayed in the top right of the screen. ■ [Playing Time Display] (p. 37)[Photo]:Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos● For HDMI input, Media Player and VIERA Connect
	Contrast, Brightness, Colour, Sharpness	Increases or decreases the levels of these options according to your personal preference
	Tint	With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste● For NTSC signal reception only
	Colour Balance	Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]● Not valid when [Viewing Mode] is set to [True Cinema].
	Vivid Colour Automatically adjusts colours to vivid ones [Off] / [On]
	Reversal Film Effect	Provides the picture effect such as the reversal film [Off] / [On]● This function is available when [Viewing Mode] is set to [Photo].
	Eco Mode	Automatic Brightness Control functionAdjusts picture settings automatically dependent on ambient lighting conditions [Off] / [On]
	P-NR	Picture Noise ReductionAutomatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max]
Picture	3D-COMB
	Screen Display
	Advanced Settings	Intelligent Frame Creation
		24p Smooth Film
		Film Cadence Detection
		Resolution Enhancer
		Side Panel
		16:9 Overscan
		AV Colour System
		DVI Input Setting

Menu	Item Adjustments / Configurations (alternatives)
Picture	Advanced Settings	Pixel Orbiter	Selects the mode for wobbling of the image to prevent panel “image retention”[Auto] / [On][Auto] :Automatically works only for the appropriate images and you rarely recognise the wobbling.
		Scrolling Bar	Scrolls the vertical bar to prevent panel “image retention”Press the OK button to start scrolling and press any buttons (except Standby) to exit this mode.
	Reset to Defaults		Press the OK button to reset the present Picture Viewing Mode of the selected input to the default settings
Sound	Mode		Selects the basic sound mode [Music] / [Speech] / [User]The selected mode affects all input signals.[Music] :Improves sound quality for watching music videos, etc.[Speech] :Improves sound quality for watching news, drama, etc.In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those settings will be stored for each mode.[User] :Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and [Treble]. Select the [Equaliser] and adjust the frequency. ➤ [Equaliser] (see below)
	Bass Increases or decreases level to enhance or minimise lower, deeper sound output
	Treble Increases or decreases level to enhance or minimise sharper, higher sound output
	Equaliser		Adjusts the frequency level to suit your favourite sound qualityThis function is available when [Mode] is set to [User].Select the frequency and change the frequency level by using the cursor button.If you want to enhance the bass sound, raise the level of the lower frequency. If you want to enhance the treble sound, raise the level of the higher frequency.To reset the levels of each frequency to the default settings, select the [Reset to Defaults] by using the cursor button, and then press the OK button.
	Balance Adjusts volume level of right and left speakers
	Headphone Volume Adjusts the volume of the headphones
	Surround		Surround sound settings [Off] / [V-Audio] / [V-Audio Surround][V-Audio] :Provides a dynamic enhancer of width to simulate improved spatial effects[V-Audio Surround] :Provides a dynamic enhancer of width and depth to simulate improved spatial effects
	Auto Gain Control		Adjusts the current volume level if it is extremely different from the previous viewed channel or input mode [Off] / [On]
	Volume Correction Adjusts the volume of individual channel or input mode
	Speaker Distance to Wall		Adjusts the low frequency sound [Over 30cm] / [Up to 30cm]If the back space between the TV and wall is over 30 cm, [Over 30cm] is recommended.If the back space between the TV and wall is within 30 cm, [Up to 30cm] is recommended.
Sound	MPX	Selects multiplex sound mode (if available)[Stereo]: Use this normally[Mono]: When stereo signal cannot be received[M1] / [M2]: Available while mono signal is transmittedAnalogue mode only
	Audio Preference	Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]Selectable options vary depending on the country you select.[Auto]: Automatically selects the audio tracks if programme has more than two tracks.The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.[Multichannel]: The priority is given to multi-channel audio track.[Stereo]: The priority is given to stereo (2ch) audio track.[MPEG]: The priority is given to MPEG.Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.DVB mode only
	SPDIF Selection	SPDIF: A standard audio transfer file formatSelects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM][Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output as Dolby Digital Bitstream.MPEG is output as PCM.[PCM]: Digital output signal is fixed to PCM.For DVB mode, VIERA Connect (p. 17, 69) or Video mode of Media Player (p. 59)ARC (Audio Return Channel): A function of digital audio output using HDMI cable
	HDMI1 / 2 / 3 Input	Select to fit the input signal [Digital] / [Analogue] (p. 86)[Digital]: HDMI cable connection[Analogue]: HDMI-DVI adaptor cable connectionHDMI input mode only
	SPDIF Delay	Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals if the sound does not synchronize the imageDVB mode only
	Reset to Defaults	Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings
Timer	Timer Programming	Sets a timer to remind watching or record forthcoming programmes (p. 45)DVB mode only
	Off Timer	Sets the time until the TV automatically goes to Standby mode[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 20)
	Auto Standby	Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times [Off] / [2] / [4] (hours)Starting Timer Programming automatically does not affect this function.Automatic input switching with the connected equipment affects this function and time-count will be reset.The notification message will appear 3 minutes before going to Standby mode.
Menu	Item Adjustments / Configurations (alternatives)
Setup	Eco Navigation		Automatically sets the TV to the most suitable energy-saving modeIf you press the OK button, the following items are set as below:[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save]→[On][Intelligent Auto Standby]→[On (No reminder)][Auto Standby]→[2 hours]
	Link Settings	VIERA Link	Sets to use VIERA Link functions [Off] / [On] (p. 73)
		HDMI Content Type	Adjusts the picture settings according to the content type signal from the connected equipment via HDMI cable [Off] / [Auto]This function is available if the connected equipment supports HDMI Content Type.The content type information will be displayed for several seconds when this function works.
		AV1 out	Chooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor][Monitor]: Image displayed on screenComponent and HDMI signals cannot be output.
		Power on Link	Sets to use Power on Link function [Off] / [On] (p. 72, 73)
		Power off Link	Sets to use Power off Link function [Off] / [On] (p. 72, 73)
		Standby Power Save	Controls the power consumption in Standby mode of the connected equipment to reduce the consumption [Off] / [On] (p. 74)This function is available when [VIERA Link] is set to [On] and [Power off Link] is set to [On].
		Intelligent Auto Standby	Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption[Off] / [On (With reminder)] / [On (No reminder)] (p. 74)This function is available when [VIERA Link] is set to [On].
		Download	Downloads channel, language, country / region settings to a Q-Link or VIERA Link compatible equipment connected to the TVDVB-C channel settings cannot be downloaded.
	Child Lock Locks a channel / AV input to prevent access to it (p. 47)
	DVB-C Tuning Menu	Favourites Edit Creates list of favourite DVB-C channels (p. 40)
		Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p. 41)
		Auto Setup Automatically sets the DVB-C channels supplied (p. 38)
		Manual Tuning Sets the DVB-C channels manually (p. 42)
		Update Channel List Updates DVB-C Channel List while keeping your settings (p. 42)
		Favourite Network	Selects your favourite network for each broadcasters (only available in some countries)
		New Channel Message	Selects whether to give a notification message when a new DVB-C channel is found [Off] / [On] (p. 42)
		Service Replacement	Set to [On] to enable a message to switch to the available service (only available in some countries) [Off] / [On]
		Signal Condition Checks the DVB-C signal condition (p. 42)
		Attenuator	Automatically reduces the DVB-C signal to avoid the interference [Off] / [On] (p. 42)
		Add TV Signal	Adds the TV modeThis function is available if you skip any modes to tune in [Auto Setup] for first using the TV.To operate, refer to the "Auto Setup" operations for first using the TV (p. 13, 14).

Menu	Item Adjustments / Configurations (alternatives)
Setup	DVB-T Tuning Menu	Favourites Edit Creates list of favourite DVB-T channels (p. 40)
		Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p. 41)
		Auto Setup Automatically sets the DVB-T channels received in the area (p. 39)
		Manual Tuning Sets the DVB-T channels manually (p. 42)
		Update Channel List Updates DVB-T Channel List while keeping your settings (p. 42)
		Favourite Network Selects your favourite network for each broadcasters (only available in some countries)
		New Channel Message Selects whether to give a notification message when a new DVB-T channel is found [Off] / [On] (p. 42)
		Signal Condition Checks the DVB-T signal condition (p. 42)
		Add TV Signal Adds the TV modeThis function is available if you skip any modes to tune in [Auto Setup] for first using the TV.To operate, refer to the "Auto Setup" operations for first using the TV (p. 13, 14).
	Analogue Tuning Menu	Channel List Skips the unwanted Analogue channels or edits Analogue channels (p. 43)
		Auto Setup Automatically sets the Analogue channels received in the area (p. 39)
		Manual Tuning Sets the Analogue channels manually (p. 44)
		Add TV Signal Adds the TV modeThis function is available if you skip any modes to tune in [Auto Setup] for first using the TV.To operate, refer to the "Auto Setup" operations for first using the TV (p. 13, 14).
	Language	OSD Language Changes language for on screen displays
		Preferred Audio 1 / 2 Selects the first and second preferred language for DVB multi audio (depending on the broadcaster)
		Preferred Subtitles 1 / 2 Selects the first and second preferred language for DVB subtitles (depending on the broadcaster)To display subtitles (p. 19)
		Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster)
	Display Settings	Preferred Subtitle Type Selects the preferred subtitle type [Standard] / [Hard of Hearing][Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).[Preferred Subtitles 1 / 2] in [Language] are given priority.
		Teletext Teletext display mode [TOP (FLOF)] / [List] (p. 25)
		Teletext Character Set Selects teletext language font [West] / [East1] / [East2][West]: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.[East1]: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.[East2]: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
		Default Guide Selects the default TV Guide type when the GUIDE button is pressed (only available in some countries) [TV Guide] / [Channel List][TV Guide]:Electronic Programme Guide (EPG) is available.To use EPG (p. 22)[Channel List]:EPG is not available and the channel list will appear instead of it.
		Input Labels Labels or skips each input terminal (p. 49)
Menu	Item Adjustments / Configurations (alternatives)
Setup	Display Settings	Banner DisplayTimeout		Sets how long the Information banner (p. 19) stays on screen[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)
		VIERA ConnectBanner		Sets the VIERA Connect introduction banner display [Off] / [On] (p. 17, 18)
		Playing Time Display		Set to [On] to display a continuous record of time spent using Game mode every 30 minutes [Off] / [On]This function is available when [Game] is selected in [Viewing Mode] (p. 31)
		Radio Mode		Sets the timer for turning off the screen automatically when a radio channel is selected [Off] / [5] / [10] / [15] / [20] (seconds)The sound is active even if the screen turns off.Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to turn the screen on.This function is effective in reducing power consumption when listening to a radio channel.DVB mode only
	Common Interface Uses include to watch encrypted channels (p. 50)
	Network Setup Sets the network setting to use in your network environment (p. 64)
	DivX® VOD Displays DivX VOD registration code (p. 84)
	System Menu	USB KeyboardLayout		Selects the language that your USB Keyboard supportsFor the information of using USB Keyboard (p. 87)
		Shipping Condition Resets all settings, for example, when moving house (p. 51)
		System Update Downloads new software to this TV (p. 52)
		Software Licence Displays the software licence information
		System Information Displays the system information of this TV
	Other Settings	GUIDE Plus+ Settings	Update	Performs the update of the GUIDE Plus+ schedule and advertising information for the GUIDE Plus+ system (p. 23)
			Postcode Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 23)
			System Information	Displays the system information of the GUIDE Plus+ system
		Power on Preference		Automatically selects the input when the TV is turned on [TV] / [AV]Set to [TV] to view picture from TV tuner.Set to [AV] to view input from an external equipment connected to the AV1 or HDMI1 terminal, e.g. set top box.The external equipment must be switched on and sending a control signal for automatic switching at power on to occur.
		Power Save		Reduces brightness of picture to economise on power consumption [Off] / [On]
		Time Zone		Adjusts the time dataThe time data will be corrected based on GMT.Set to [Auto] to adjust the time automatically according to your area.

• A different menu will be displayed in the mode of Media Player (p. 53 - 62) or VIERA Connect (p. 17, 69).
  • Only available items can be selected.

Retuning from Setup Menu

Automatically retune the channels received in the area.

• This function is available if channel tuning is already performed.
• Only the selected mode is retuned. All the previous tuning settings are erased.
• If Child Lock PIN number (p. 48) has been set, the PIN number is required.
  • If tuning has not been done completely [Manual Tuning] (p. 42, 44)

DVB-C channels

For Auto Setup, using the buttons on the side panel of the TV (p. 10)

1 Press repeatedly until [Auto Setup] appears

2 Access [Auto Setup]

3 Set the search mode and scan mode

(select the item)

AV (store)

4 Start [Auto Setup]

1

Select DVB-C

→ (p. 18)

2

Display the menu

MENU

3

Select [Setup]

① select

② access

4

Select [DVB-C Tuning Menu]

① select

② access

5

Select [Auto Setup]

① select

② access

6

Set the Auto Setup settings

select

access / store

• After settings, select [Start scan].

• [Scan Mode]
[Full]: scans the whole frequency range
[Quick]: scans the suitable frequency in your country
- Normally set [Frequency], [Symbol Rate] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency], [Symbol Rate] and [Network ID] specified by your cable provider with numeric buttons.

7

Start Auto Setup (Settings are made automatically)

DVB-C Auto Setup

All DVB-C tuning data will be erased

When the operation is completed, the channel at the lowest position will be displayed.

DVB-T or Analogue channels

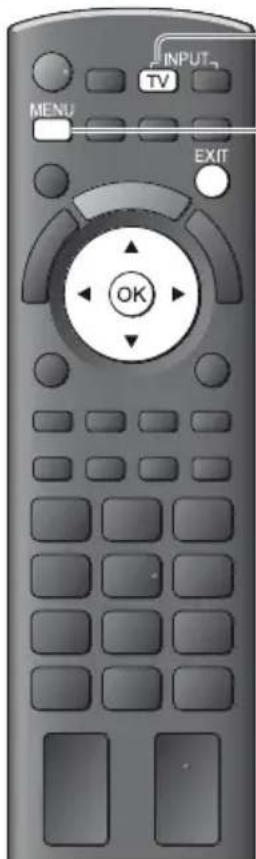

INPUT TV MENU EXIT OK

■ To return to TV

EXIT

For Auto Setup, using the buttons on the side panel of the TV (p. 10)

1 Press repeatedly until [Auto Setup] appears

2 Access [Auto Setup]

3 Start [Auto Setup]

F + - TV AV To return to TV F

1 Select DVB-T or Analogue

→ (p. 18)

2 Display the menu

MENU

3 Select [Setup]

VISTA Main Menu Picture Sound Timer Setup

4 Select [DVB-T Tuning Menu] or [Analogue Tuning Menu]

DVB-T Tuning Menu Analogue Tuning Menu $5

- The displayed item depends on the selected mode.

5 Select [Auto Setup]

Example :

DVB-T Tuning Menu Auto Setup

6 Start Auto Setup (Settings are made automatically)

DVB-T:

DVB-T Auto Setup Progress CH 5 69 This will take about 3 minutes. CH Channel Name Type Quality 67 CBC Channel Free TV 100 62 BBC Radio Wales Free TV 100 62 E/I Free TV 100 62 Cartoon Nowk Free TV 100 Free TV: 4 Pay TV: 0 Radio: 0 Searching

Analogue :

Analogue Auto Setup Scan CH 2 ▼ 78 CC 1 41 This will take about 3 minutes. CH Channel Name CH 29 CH 33 BBC 1 Analogue: 2 Searching

- The channel, language, country / region settings are downloaded to a Q-Link or VIERA Link compatible equipment connected to the TV.

When the operation is completed, the channel at the lowest position will be displayed.

Tuning and Editing Channels (DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

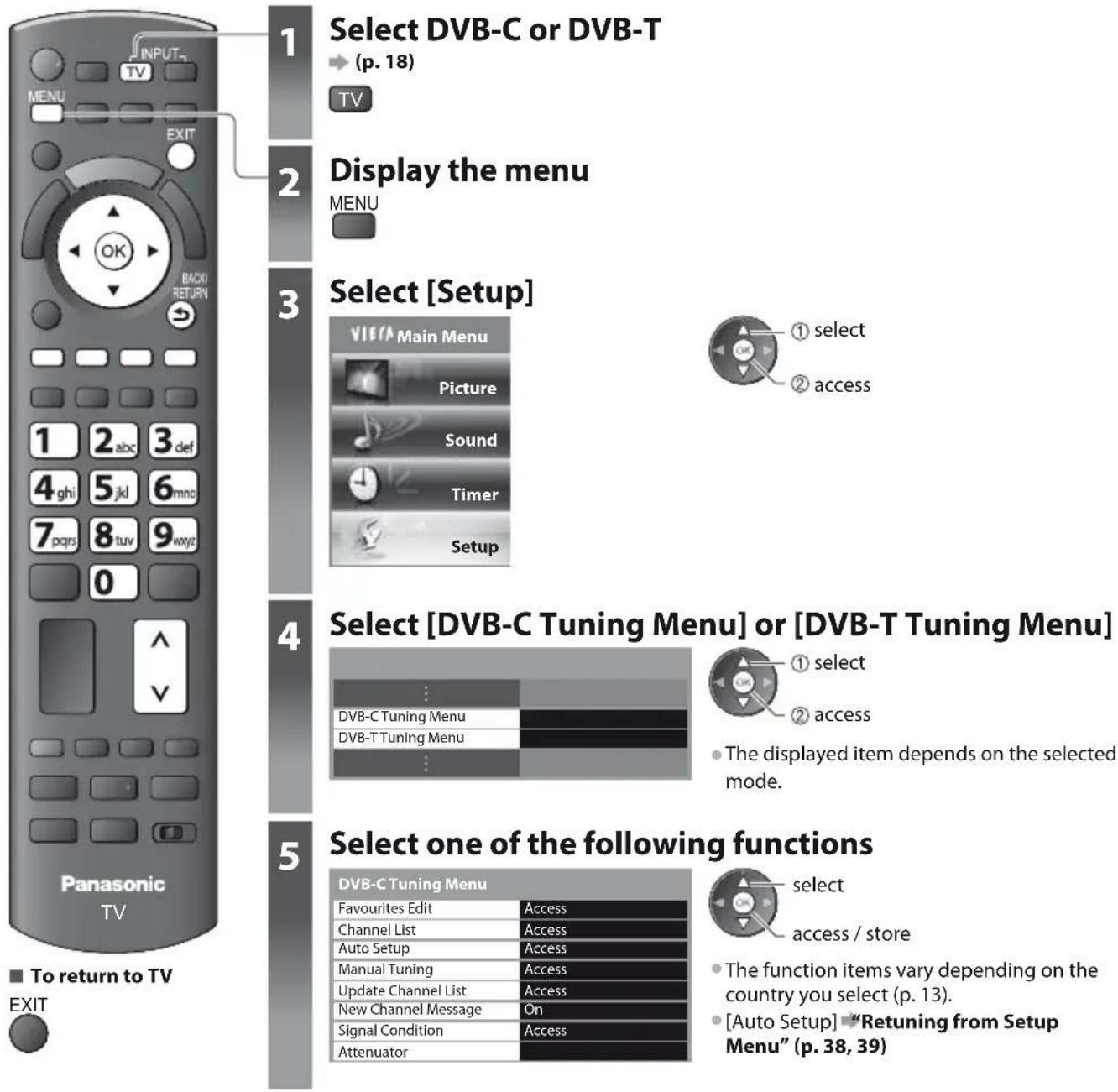

1 Select DVB-C or DVB-T → (p. 18) TV 2 Display the menu MENU 3 Select [Setup] VIEFA Main Menu Picture Sound Timer Setup ① select ② access 4 Select [DVB-C Tuning Menu] or [DVB-T Tuning Menu] ① select ② access DVB-C Tuning Menu DVB-T Tuning Menu The displayed item depends on the selected mode. 5 Select one of the following functions DVB-C Tuning Menu Favourites Edit Access Channel List Access Auto Setup Access Manual Tuning Access Update Channel List Access New Channel Message On Signal Condition Access Attenuator select access / store The function items vary depending on the country you select (p. 13). [Auto Setup] "Retuning from Setup Menu" (p. 38, 39) To return to TV EXIT

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4 : [Favourites]1 to 4).

The DVB Favourites lists are available from "Category" in the Information banner (p. 19) and the TV Guide screen (p. 22).

1 Select a channel to list (☐: Encrypted channel)

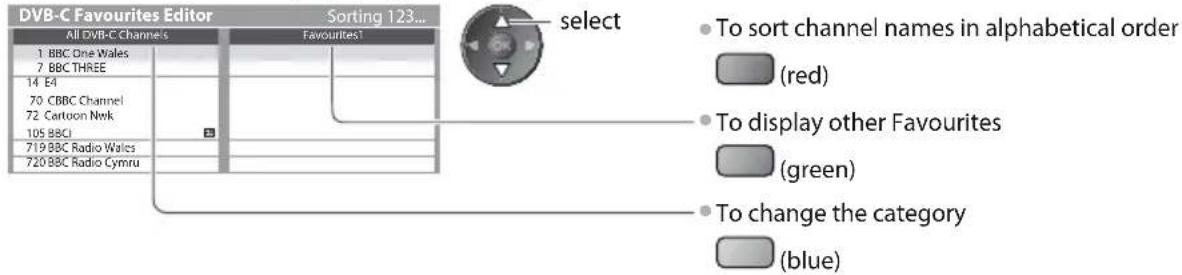

DVB-C Favourites Editor All DVB-C Channels 1 BBC One Wales 7 BBC THREE 14 E4 70 CBC Channel 72 Cartoon Nwk 105 BBCJ 719 BBC Radio Wales 720 BBC Radio Cymru Sorting 123... Favourites? select To sort channel names in alphabetical order (red) To display other Favourites (green) To change the category (blue)

2 Add it to the Favourites list

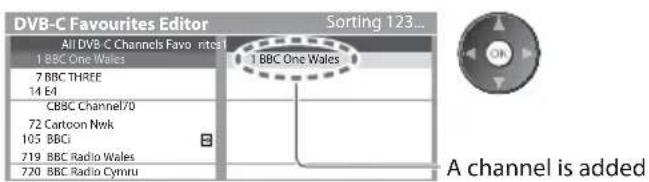

DVB-C Favourites Editor All DVB-C Channels Favo intal 1 BBC One Wales 7 BBC THREE 14 E4 CBBC Channel/0 72 Cartoon Nwk 105 BBCi 219 BBC Radio Wales 720 BBC Radio Cymru Sorting 123... 1 BBC One Wales A channel is added

• To add continuous block of channels to the list at once

• To add all channels to the list

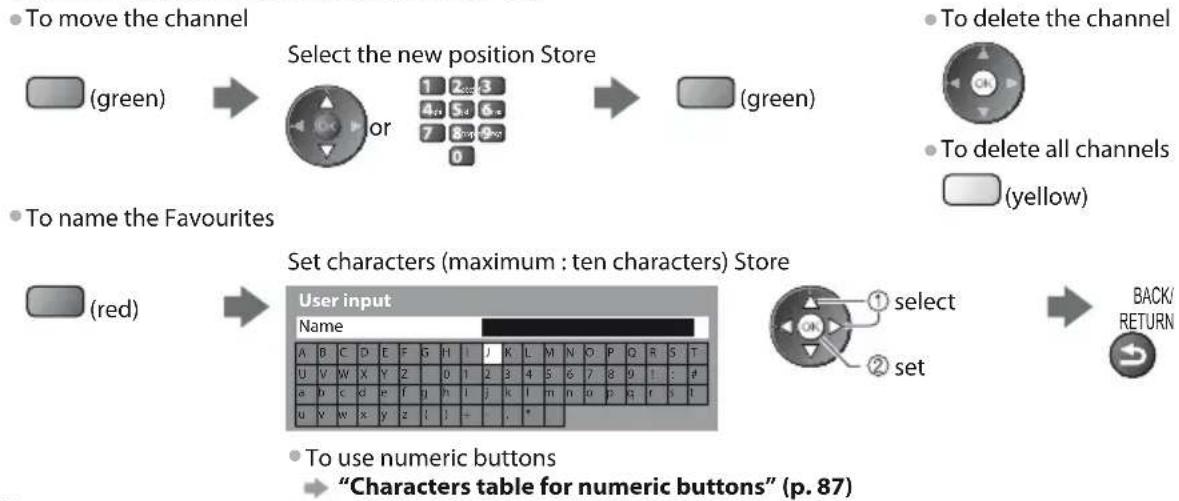

■ To edit Favourites list

While the cursor is in the Favourites field to edit

    subgraph Channel1
        G1["(green)"] --> H1["or"]
        H1 --> I1["1 2 3 4 5 6 7 8 9 0"]
    end

    subgraph Channel2
        J1["(yellow)"] --> K1["To delete all channels"]
        K1 --> L1["To delete the channel"]
    end

    M["User input"] --> N["Name"]
    N --> O["A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 1 : # a b c d e f g h l j k l m n o p q r s t u v w x y z l + . *"]
    end

    style Channel1 fill:#f9f,stroke:#333
    style Channel2 fill:#ccf,stroke:#333

3 Store

Skip unwanted DVB channels, Edit DVB Channels [Channel List]

You can hide unwanted DVB channels.

The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

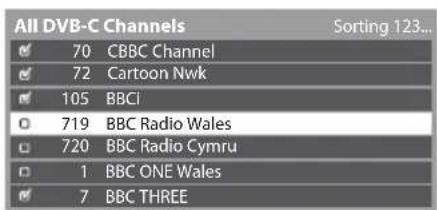

All DVB-C Channels 70 CBBC Channel 72 Cartoon Nwk 105 BBCI 719 BBC Radio Wales 720 BBC Radio Cymru 1 BBC ONE Wales 7 BBC THREE Sorting 123...

• To reveal all channels

■ To sort channel list

• To sort channel names in alphabetical order

• To change the category

■ To edit channels

You can also edit each channel in Channel List.

• To swap the channel position (if available)

• To move the channel position (if available)

Channel position

1 BBC ONE WALES Coronation Street 20:00 - 20:55 Now Info 20:35 All DVB-T Channels Change category

Set DVB channel manually [Manual Tuning]

Normally use [Auto Setup] or [Update Channel List] to retune DVB channels.

If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

• All channels found will be added to the Channel List.

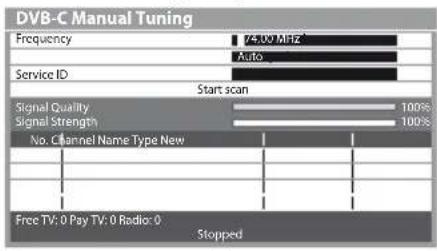

DVB-C:

1 Enter the frequency

- Normally set [Symbol Rate] and [Service ID] to [Auto].

2 Select [Start scan]

DVB-T:

1 Adjust frequency for each channel 2 Search

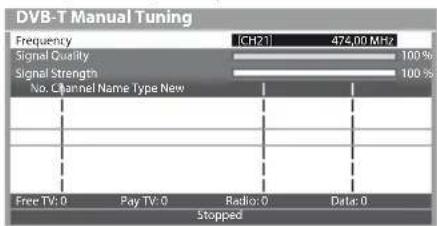

DVB-T Manual Tuning Frequency [CH21] 475.00 MHz Signal Quality 100% Signal Strength 100% No. Channel Name Type New Free TV: 0 Pay TV: 0 Radio: 0 Data: 0 Stopped

- Set where the level of [Signal Quality] becomes the maximum.

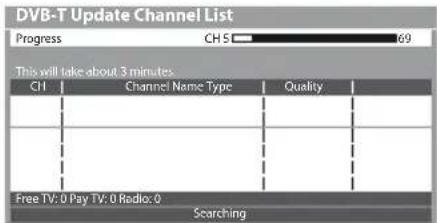

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB-T Update Channel List Progress CH 5 69 This will take about 3 minutes. CII Channel Name Type Quality Free TV: 0 Pay TV: 0 Radio: 0 Searching

• Channel List is updated while keeping your settings in [Favourites Edit], [Channel List], [Child Lock], etc.
  • Depending on the signal condition, the update may not work properly.

Display a notification message [New Channel Message]

Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]

New channels found! Press OK to update channel list. Press EXIT to ignore.

- Selecting OK will perform [Update Channel List].

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition.

A good Signal Strength is not an indication of suitable signal for DVB reception.

Please use the Signal Quality indicator as follows :

• To change the channel

[Signal Quality]:

• Green bar → Good
• Yellow bar → Poor

- Red bar Bad (Check the Terrestrial aerial or cable)

Example :

DVB-C Signal Condition Channel Name 70 CBDC Channel Signal Quality 100 % Signal Strength 80 % Bit Error Rate 0.00E+100 Network Name Wenvoe Parameter 832.00 MHz, 64 QAM, 6940 kS

These bars show the maximum signal value of the selected channel.

Reduce the DVB-C signal [Attenuator]

If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically.

• This function is available only for DVB-C signal.

Tuning and Editing Channels (Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

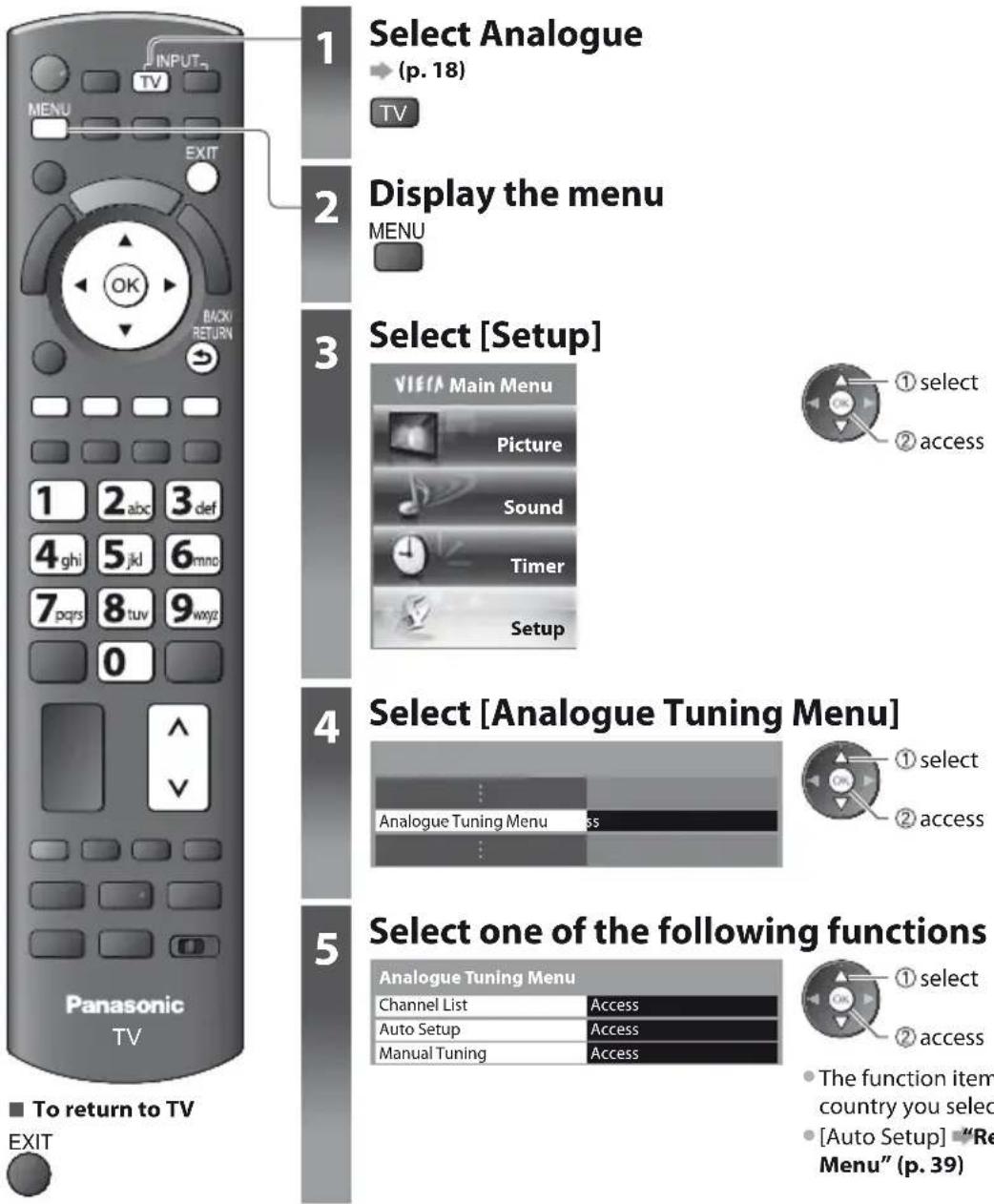

1 Select Analogue (p. 18) TV 2 Display the menu MENU 3 Select [Setup] VIEF Main Menu Picture Sound Timer Setup ① select ② access 4 Select [Analogue Tuning Menu] Analogue Tuning Menu ① select ② access 5 Select one of the following functions Analogue Tuning Menu Channel List Access Auto Setup Access Manual Tuning Access ① select ② access • The function item country you select • [Auto Setup] "Re Menu" (p. 39) Panasonic TV To return to TV EXIT

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]

You can hide unwanted Analogue channels.

The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

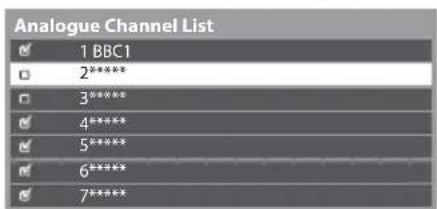

Analogue Channel List ✓ 1 BBC1 ☐ 2**** ☐ 3**** ✓ 4**** ✓ 5**** ✓ 6**** ✓ 7*

① select ② [Reveal] / [Hide] ✓ : [Reveal] □ : [Hide] (skip)

• To reveal all channels

■ To edit channels

You can also edit each channel in Channel List.

• To retune each channel ([Manual Tuning])

(red)

(see below)

• To move the channel position

Select the new position Store

(green)

(green)

• To rename the channel name

Set characters (maximum : five characters) Store

(blue)

Edit channel name Name A B C D E F G H I J K L M N O P O R S T U Y W X Y 7 0 1 2 3 4 5 6 7 k 8 . s a h c d e f g h i k l m n o p q r t u y w x y z 0 1 . " _

BACK/RETURN

• To use numeric buttons

"Characters table for numeric buttons" (p. 87)

Channel position

Channel name 1 ITV CH23-SC1 23:35 All Analogue Channels

Note

- If a VCR is connected only with the RF cable, edit [VCR].

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]

Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

[Manual Tuning]

Set Analogue channel manually after Auto Setup.

• Set [Sound System] and [Colour System], and then perform this function. Normally set [Colour System] [Auto].
• If a VCR is connected only with the RF cable, select channel position [0].

Analogue Manual Tuning Fine Tuning Manual Tuning Sound System Colour System Store CH331 B8 2 78 1 41 SC1 Auto

SC1: PAL B, G, H / SECAM B, G

SC2: PALI

SC3 : PAL D, K / SECAM D, K

F : SECAM L, L'

1 Select the channel position

2 Select the channel

3 Search

4 Select [Store]

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.

TV Guide may also be used to set timer programming event (p. 24).

• This function is not available in Analogue mode.
- Timer Programming can store up to 15 events.
- Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.
- For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, the TV must be On.
- No other channel can be selected while the recording of Timer Programming is in progress.
- It may not be possible to record an encrypted programme (which is copy-protected).
- When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV.

If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 72, 73) and the [Link Settings] (p. 35) are completed, no setting of the recorder is required. Also read the manual of the recorder.

• If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder.
  For preparations of a recorder, read the manual of the recorder.
• Recordings to the external recorders are always in standard definition composite video via SCART, even if the original programme is in high definition.
• 2 minutes before the starting time, a reminder message appears if you are watching TV.

• To remove the message and start the programming

• To cancel the programming

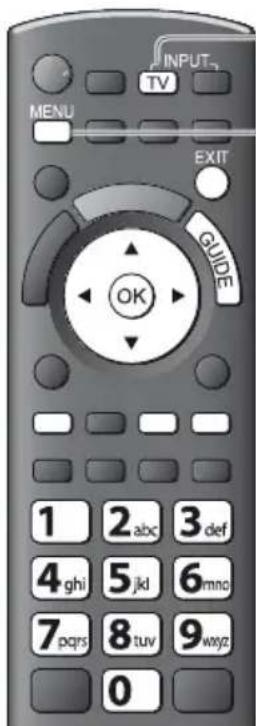

INPUT TV MENU EXIT GUIDE OK 1 2 abc 3 def 4 ghi 5 jd 6 mno 7 pqrs 8 tuv 9 wyz 0

1 Select the mode you want to set (DVB-C or DVB-T)

→ (p. 18)

2 Display the menu

MENU

3 Select [Timer]

VISTA Main Menu Picture Sound Timer Setup

To return to TV

To unlock the tuner and stop recording

4 Select [Timer Programming]

Timer Programming	Access
Off Timer	Off
Auto Standby	Off

Set timer programming event details [Timer Programming]

1 Start making the settings

2 Select the function ([Ext Rec.] or [Reminder])

select

[Ext Rec.]:

to record the programme to the external recorder

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.

[Reminder]:

to remind you to watch the programme

When you are watching TV, a reminder message appears 2 minutes before the start time.

Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

• 1, 3 and 4 can also be entered with numeric buttons.

! : Displayed if the timer programming events are overlapped

Timer Programming Function No. Channel Name Wed 27.10.2010 10:46 Reminder D 7 BBC7 17:00 18:30 Ext Rec. D 1 BBC1 STTL 18:00 20:00 Ext Rec. C 3 ITV1 1 2 3 4 Records with subtitles (if available) • To indicate this (yellow) (Press again to remove subtitles) Duration (automatic display)

- You cannot change the mode within the menu.

1 Channel number

3 Starting time

2 Date

4 Ending time

one day ahead

daily or weekly (press repeatedly)

• [Daily Sun-Sat] : Sunday to Saturday
• [Daily Mon-Sat] : Monday to Saturday
• [Daily Mon-Fri] : Monday to Friday
• [Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun] : Same time on the same day every week

4 Store

■ To change a timer programming event

Select the programme to be changed

①select

②access

Correct as necessary (p. 46)

■ To cancel a timer programming event

Select the programme to be deleted

(red)

■ To record with subtitles (if available)

Select the programme to record with subtitles

(yellow)

• Each time pressed :

auto ←→ off

■ To cancel a timer programming event temporarily

Select the programme to be cancelled

(blue)

• Each time pressed :

cancel ←→ stop cancelling

Note

• Check that the LED is orange. If not, timer programmes are not active or not stored.
• Timer Programming reminder messages will remain displayed until one of the following occurs:

- You press the OK button to view the programme or the EXIT button to cancel the reminder.

- The timer programming event that the reminder is set for ends.

• "!" identifies that any timer programming events have overlapped. [Ext Rec.] is given priority over [Reminder]. As for the overlapped two or more [Ext Rec.], the first timer programming event starts and finishes as programmed. The next timer programming event can then start.
• The recording of Timer Programming will automatically change to the programmed channel 10 seconds before the start time.
• To stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder manually.
• The recording of Timer Programming will be performed even if the TV is in Pause Live TV recording (p. 75). In this case, Pause Live TV recording will be cancelled.

Child Lock

You can lock specific channels / AV input terminals and control who watches them.

When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

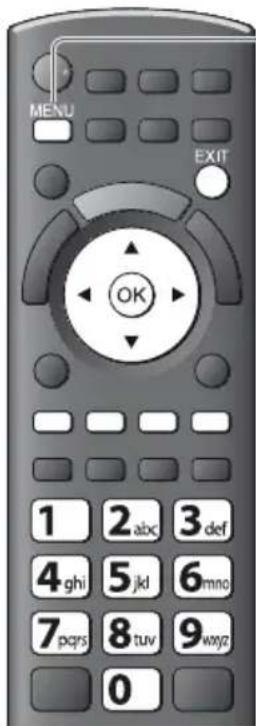

MENU EXIT 1 2 abc 3 def 4 ghi 5 jd 6 mno 7 pcrs 8 tuv 9 wyz 0

1

Display the menu

MENU

2

Select [Setup]

VISA Main Menu Picture Sound Timer Setup

① select

② access

3

Select [Child Lock]

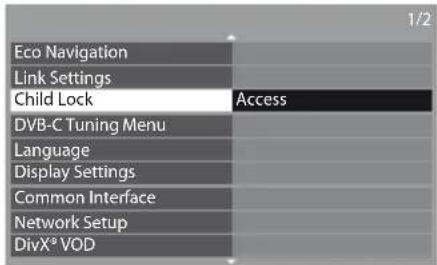

1/2 Eco Navigation Link Settings Child Lock Access DVB-C Tuning Menu Language Display Settings Common Interface Network Setup DivX® VOD

① select

② access

■ To return to TV

EXIT

Control channel audience [Child Lock]

1 Enter the PIN number (4 digits)

Child Lock-PIN Entry Please enter new PIN PIN * * * *

• Enter the PIN number twice at first setting.
  • Make a note of the PIN number in case you forget it.
• "0000" may be stored as the default PIN number which depends on the country you select (p. 13).

2 Select [Child Lock List]

Child Lock Change PIN Child Lock List Access Parental Rating No limit

① select
② access

3 Select the channel / input to be locked

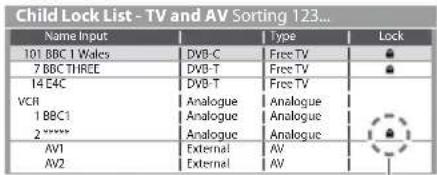

Child Lock List - TV and AV Sorting 123... Name Input Type Lock 101 BBC 1 Wales DVB-C Fres TV 7 BBC THREE DVB-T Fres TV 14 E4C DVB-T Fres TV VCR Analogue Analogue 1 BBC1 Analogue Analogue 2 **** Analogue Analogue AV1 External AV AV2 External AV

① select
② lock

: Appears when the channel / input is locked

• To cancel

Select the locked channel / input

• To sort channel names in alphabetical order

(red) (green)

• To cancel all locks

(yellow) (blue)

• To lock all

• To jump to the top of the next input

■ To change the PIN number

1. Select [Change PIN]

Child Lock Change PIN Access Child Lock List Parental Rating No limit

① select
② access

2. Enter a new PIN number twice

■ To set Parental Rating

- The availability of this function depends on the country you select (p. 13).

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock Change PIN Child Lock List Parental Rating No limit

select

access / store

Note

- Setting [Shipping Condition] (p. 51) erases the PIN number and all settings.

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment.

• To select the input mode (p. 27)

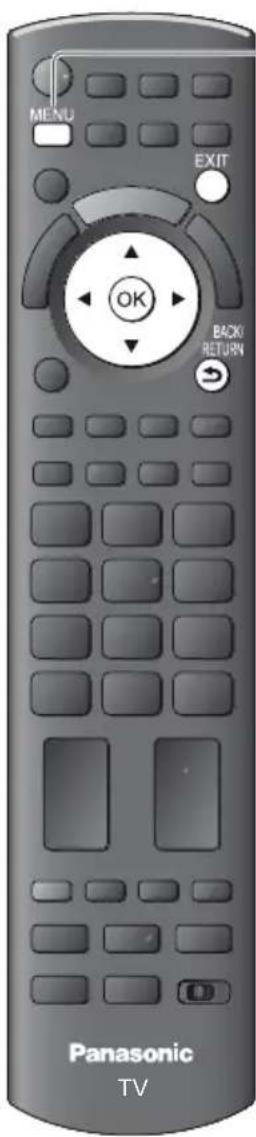

MENU EXIT OK BACKI RETURN Panasonic TV

■ To return to TV
EXIT

1

Display the menu

MENU

2

Select [Setup]

VISTA Main Menu Picture Sound Timer Setup

3

Select [Display Settings]

Display Settings Access

4

Select [Input Labels]

Display Settings Input Labels Access

5

Select an input terminal

Input Labels
AV1	DVD
AV2	AV2
COMPONENT	COMPONENT
HDMI1	HDMI1
HDMI2	HDMI2
HDMI3	HDMI3
DVB-C	DVB-C
DVB-T	DVB-T
Analogue	Analogue

The labels you set will be displayed in [Input Selection] menu (p. 27), [TV Selection] menu (p. 18) or banner.

- If [Skip] is selected, you cannot select the mode.

■ User input

You can name each input mode freely.

1 Select [User input]

2 Set characters (maximum : ten characters)

User input Name A B C D E F G H I J K L M N O P O R S T U V W X Y Z D 1 2 3 4 5 6 7 8 9 i : e a b c d e f g h i j k l m n o p q r s t u v w x y z i i - - - * _

3 Store
BACK/RETURN

• To use numeric buttons

"Characters table for numeric buttons" (p. 87)

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

• This function may not be available in some countries or regions.
  • Video and audio signals may not be output depending on broadcasts or services.

Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels).

Please use only the approved CI module by the broadcaster.

Consult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

• Turn Off Mains power On / Off switch whenever inserting or removing the CI module.
• If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader.
• Insert the module in the correct direction.

CI slot Insert or remove straightly and completely CI module Side of the TV

Insert the CI module (optional)

• The features that appear on screen are dependent on the contents of the selected CI module.
• Normally encrypted channels will appear. Follow the on screen operation guide.
  If encrypted channel does not appear, perform below.
• For more details, see the manual of the CI module, or check with the broadcaster.

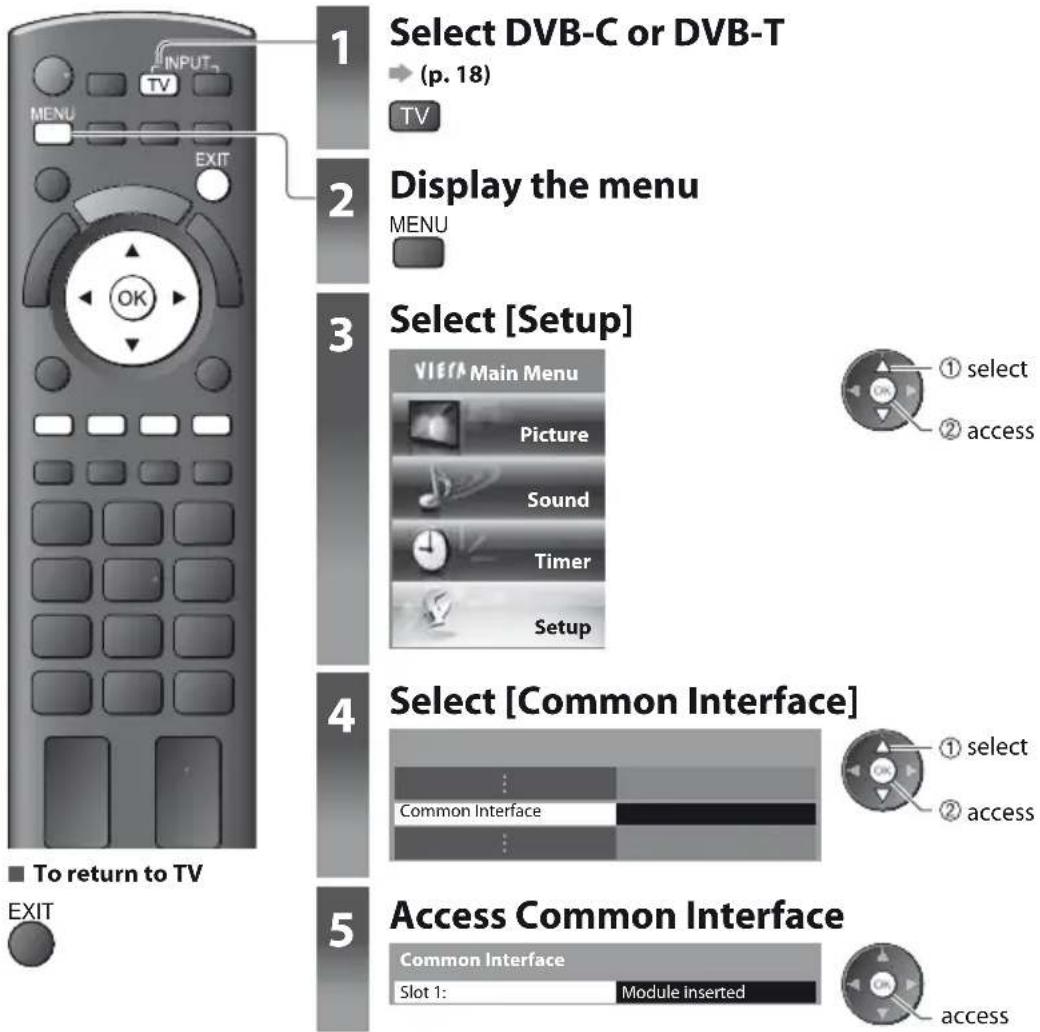

1 Select DVB-C or DVB-T → (p. 18) TV 2 Display the menu MENU 3 Select [Setup] VIEW Main Menu Picture Sound Timer Setup 4 Select [Common Interface] Common Interface 5 Access Common Interface Slot 1: Module inserted To return to TV EXIT access

■ How to operate services by following the on screen operation guide

Example :

- Select, go

Symbol: ◀▶▼▲

• Coloured characters

Coloured button

- On screen operation guide may not correspond to the remote control buttons.

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in.

All settings are reset (channels, picture, sound settings, etc.).

• To retune TV channels only, e.g. after moving house ➤ "Retuning from Setup Menu" (p. 38, 39)

1

Display the menu

MENU

2

Select [Setup]

3

Select [System Menu]

4

Select [Shipping Condition]

Restore Settings [Shipping Condition]

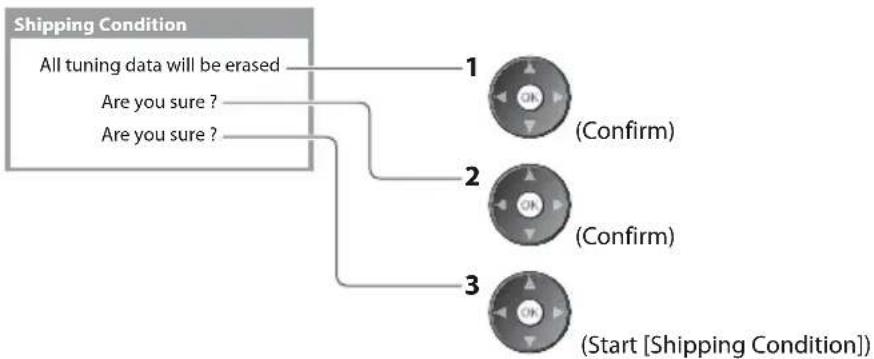

1 Check the message and initialise 2 Follow the on screen instructions
    note1["All tuning data will be erased"]
    note2["Are you sure ?"]
    note3["Are you sure ?"]

Reset to Factory Shipping Condition Completed. Please switch off TV.

• [Auto Setup] will automatically start when Mains power On / Off switch is next turned On. (p. 13)

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV.

If there is an update available, a notification banner is displayed when the channel has the update information.

• To download

• If you choose not to download

You can update any new software automatically or update manually.

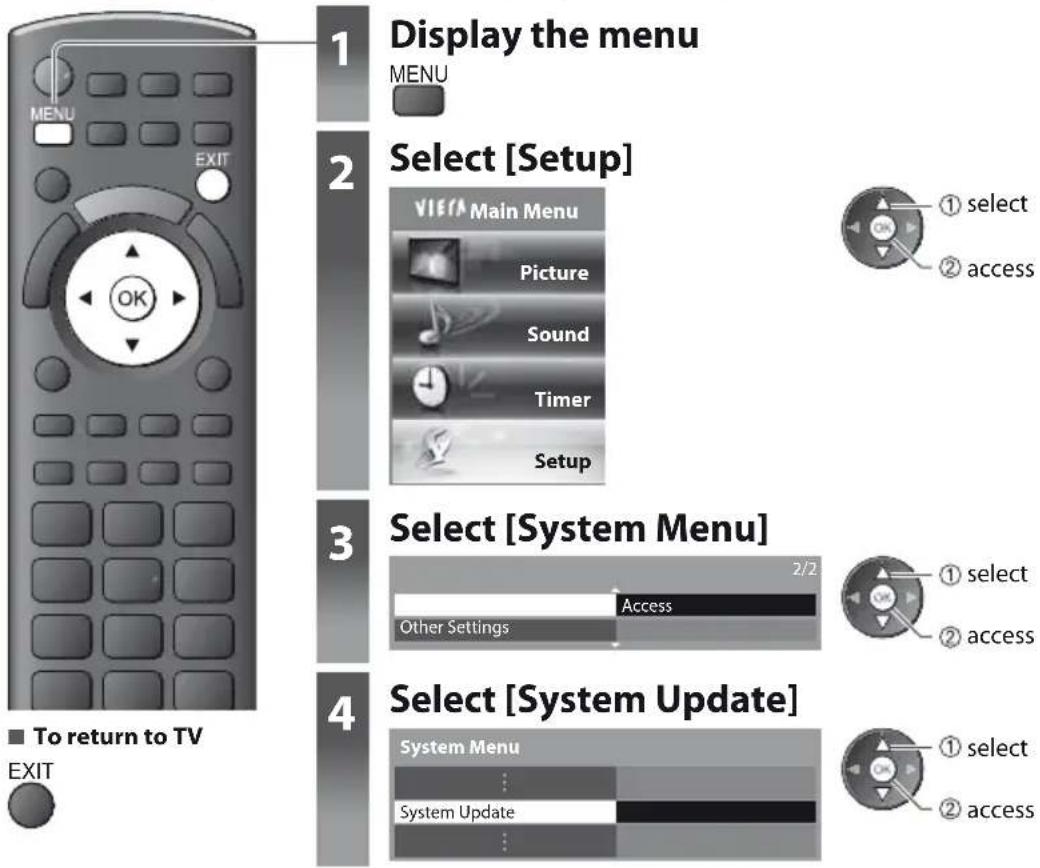

1 Display the menu MENU 2 Select [Setup] VIEFA Main Menu Picture Sound Timer Setup ① select ② access 3 Select [System Menu] 2/2 Access Other Settings ① select ② access 4 Select [System Update] System Menu System Update ① select ② access To return to TV EXIT

Update TV's software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby]

System Update
Auto Update Search in Standby	Off
System Update Search Now

select

access / store

If System Update is performed, the software will be updated (it may change TV functions).

If you do not wish to do so, set [Auto Update Search in Standby] to [Off].

• Every time you set, the TV automatically performs a search in standby and downloads an update, if any software updates are available.
• The automatic updating is performed under the following conditions:

- Standby (TV turned Off with the remote control)

- Recording of Timer Programming or Direct TV Recording is not in progress.

■ To update immediately

1 Select [System Update Search Now]

System Update Auto Update Search in Standby Off System Update Search Now Access

① select

② access

2 Searches for an update (for several minutes) and displays a corresponding message if any

3 Download

Note

• Download may take for about 60 minutes.
• During software download and update, DO NOT switch Off the TV.
• The message might be the notification beforehand. In this case, the schedule information (the date that the new version can be used) will appear. You can set the reservation for update. The update will not start when the TV is set to Off.

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory.

VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed.

Video mode : Moving pictures recorded by digital video cameras will be played back.

Music mode : Digital music data will be played back.

• During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 35). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 71) and set to use theatre speakers (p. 78).
• [Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is shown “**/**/****”.
  • The picture may not appear correctly on this TV depending on the recording equipment used.
  • Display may take some time when there are many files and folders.
• Partly degraded files might be displayed at a reduced resolution.
  • Picture setting may not work depending on the conditions.
• The folder and file names may be different depending on the digital camera or digital video camera used.

To insert or remove the SD Card / USB Flash Memory

USB Flash Memory

Diagram showing USB port connection with labeled ports and a USB flash drive

• Insert or remove straightly and completely.
• Connect to the USB 1 or 2 port.

SD Card

To insert the SD Card To remove the SD Card

① Gently insert the SD Card label surface facing front.

② Push until a click is heard

SIL CARD Cutout

Push the centre of the card

• For the information of the devices "Devices for recording or playing back" (p. 85)
• For the supported file format "Supported file format in Media Player" (p. 83, 84)

Starting Media Player

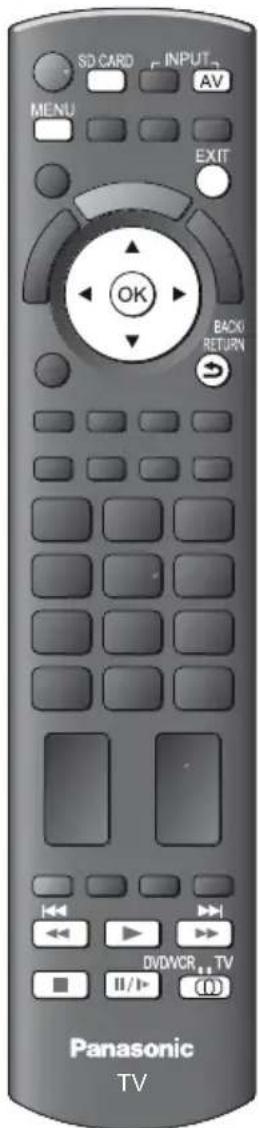

SD CARD INPUT MENU AV EXIT OK BACK RETURN DVDVCR, TV Panasonic TV

return to TV

or

return to the evious screen

BACK/
RETURN

1

Insert the SD Card or USB Flash Memory to the TV

→ (p. 53)

2

Start Media Player

Media Player

Signal output from all AV terminals will be disabled during Media Player view. Press OK to proceed.

Press EXIT to return to TV viewing.

• Also possible by pressing following buttons.

SD CARD

→"Watching External Inputs" (p. 27)

3

Select the device you want to access to

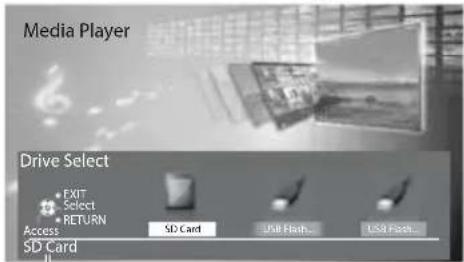

Media Player Drive Select EXIT Select RETURN Access SD Card SD Card USB Flash... USB Flash...

Selected device name

① select

② access

- If two or more devices are not connected, this step will be skipped.

4

Select the content

Media Player Contents Select EXIT Select RETURN Access Photo Video Music SD Card

① select

② access

[Photo] "Photo mode" (p. 55)

[Video] "Video mode" (p. 59)

[Music] "Music mode" (p. 61)

Note

• You can also access each mode directly by using VIERA TOOLS.
  "How to Use VIERA TOOLS" (p. 29)
• Select the appropriate device and content for playing back each file.
  • You can use the following buttons during playback.
  Set the position to "TV"

Photo mode

Photo mode will read all ".jpg" extension files in the SD Card or USB Flash Memory.

SD CARD i EXIT OK OPTION BACKI RETURN

To return to TV

EXIT

To return to the previous screen

BACK/RETURN

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos]

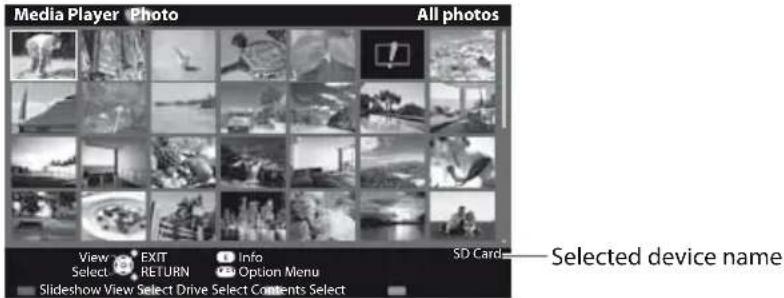

Media Player Photo All photos View 10 EXIT Info SD Card Select RETURN Option Menu Slideshow View Select Drive Select Contents Select Selected device name

: Error display

• To change the back ground music "Photo Settings" (p. 56)
• To display the information of the highlighted photo

File number / Total file number File name 1/48 Date p1010001.JPG Pixel 23/10/2010 1600X1200

• To change the size of photos on a thumbnail screen

■ To sort by folder, recorded date or recorded month

1 Display the view selection

(green)

2 Select the sort type

Folder view

Sort by Date

Sort by Month

[Folder view] :

Displays the thumbnail grouped by folder

- The files which are not into a folder will be collected to the folder named "/".

[Sort by Date]:

Displays the thumbnail grouped by the same date

- The group of the photos without recorded date is shown as [Unknown].

[Sort by Month]:

Displays the thumbnail grouped by the same month

- The group of the photos without recorded date is shown as [Unknown].

3 Select one of the sorted groups to display the thumbnail of the selected group

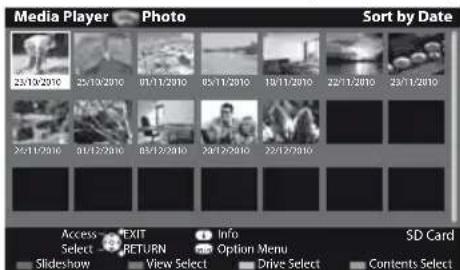

Media Player Photo Sort by Date 25/10/2010 25/10/2010 03/11/2010 05/11/2010 18/11/2010 22/11/2010 23/11/2010 24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010 Access SELECT EXIT RETURN Info Option Menu SLideshow View Select Drive Select Contents Select SD Card

thumbnail of the selected group

• To return to the thumbnail of all photos

(green)

• To display the information of the highlighted group

i Folder name 1/12 23/10/2010 Number of files 3 Group number / Total group number Folder name, date or month

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

① select

② access

Example :

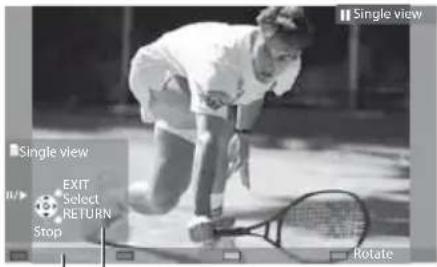

Single view Single view EXIT Select RETURN Stop Rotate

Operation guide

• To display / hide the operation guide

• To return to thumbnail

BACK/ETURN

• To operate Single view

To the previous photo Slideshow To the next photo Stop (return to thumbnail)

• To rotate 90°

(blue)

[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.

1 Select the file from the thumbnail of photos for the first view

• To display / hide the operation guide

• To pause (return to Single view)

2 Start Slideshow

(red)

• To return to thumbnail

BACK/RETURN

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu

OPTION

2 Select [Slideshow Settings]

Option Menu

Slideshow Settings

access

3 Select the items and set

Slideshow Settings

Frame

Colour Effect

Transition Effect

Screen Mode

Burst Playback

Interval

Repeat

Back Ground Music

m = 311

Off

Fade

Normal

Off

5 seconds

On

select

access / store

Note

●Picture quality may become lower depending on the slideshow settings.
●Picture setting may not work depending on the slideshow settings.

Menu	Item Adjustments / Configurations (alternatives)
Slideshow Settings	Frame	Selects the frame type of the slideshow[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema][Multi]:9 photos are displayed orderly at once.[Collage]:Each photo is displayed at a random position and random scale.[Drift (+ calendar)] / [Drift]:Photos are displayed like flow images.You can select to display the calendar or not. The month of calendar is turned by pressing left or right cursor button.[Gallery (+ calendar)] / [Gallery]:The various sizes of photos in the frame are displayed.You can select to display the calendar or not. The month of calendar is turned by pressing left or right cursor button.[Cinema]:Photos are displayed like old films (sepia tone)
	Colour Effect	Selects the colour effect of photos on Single view and Slideshow[Off] / [Sepia] / [Gray scale]This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
	Transition Effect	Selects the transition effect for switching the photo during the slideshow[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random][Fade]:The next photo fades in gradually.[Slide]:The next photo slides and appears from the left side.[Dissolve]:Each photo is dissolved when switching to the next photo.[Motion]:Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.[Random]:Each transition is selected at random.This function is available when [Frame] is set to [Off].
	Screen Mode	Selects whether enlarged or normal viewing on Single view and Slideshow [Normal] / [Zoom]This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema].This function is not available when [Transition Effect] is set to [Motion].Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.
	Burst Playback	Selects whether to display burst photos in a fast-paced slideshow mode[Off] / [On]This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].This function is not available when [Transition Effect] is set to [Motion].
	Interval	Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].This function is not available when [Transition Effect] is set to [Motion].
	Repeat Slideshow repeat [Off] / [On]
[0347]	Back Ground Music	Selects the back ground music during Photo mode [Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]• [Type1], [Type2] and [Type3] are the fixed music each installed in this TV. [User] : Music data in the device registered by yourself will be played back.To register the music1. Select the music file 2. Select [File] or [Folder]Depending on the condition of the device, select folders until you reach the desired music file.• If no music has been registered or the device which has the registered music is removed, no sound will be produced.[Auto] : Music data stored in the root folder of the current device will be played back randomly.• If there is no available music data, no sound will be produced.
		Register Slideshow BGM?FileFolder[File] : The selected music file will be registered as back ground music. [Folder] : All the music in the folder which contains the selected music file will be registered as back ground music.

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed, display the device selection

(yellow)

2 Select the device you want to access to

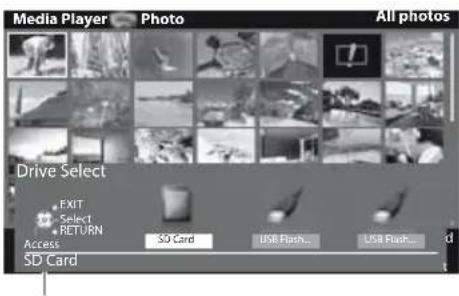

Media Player Photo All photos Drive Select EXIT Select RETURN Access SD Card SD Card USB Flash... USB Flash...

Selected device name

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

- The mode can be switched in the current device.

1 While the thumbnail is displayed, display the contents selection

(blue)

2 Select the contents

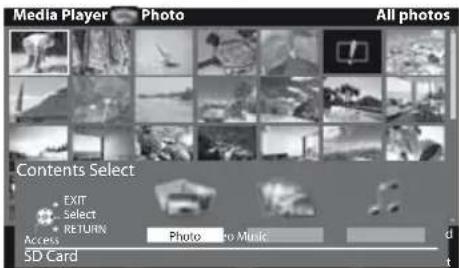

Media Player Photo All photos Contents Select EXIT Select RETURN Access Photo Photo Music SD Card

[Photo] "Photo mode" (p. 55)

[Video] "Video mode" (p. 59)

[Music] "Music mode" (p. 61)

Video mode

• Supported file format → (p. 83)

SD CARD MENU ASPECT EXIT OPTION BACKI RETURN STTL Panasonic TV

■ To return to TV

■ To return to the previous screen

BACK/RETURN

Note

• The structure of titles and scenes may vary depending on the digital video camera used.

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed.

Example : Thumbnail - [Title view]

Media Player Video Title view Trip1 34 Trip4 Trip5 RoomNature1 Nature3 Nature4 Nature5 Nature6 2010-9 2010_7Nature2 2010-9 Access EXIT Info SD Card Select RETURN Option Menu Play Contents Select Drive Select

Selected device name

The preview will start when the title is highlighted if it supports a preview.

• To turn off the preview
→ "Video Setup" (p. 60)
• To display the information of the highlighted title

ACHD 1/15 File format Title number / Total title number Trip1 Date & Time 19/02/2010 11:21 Number of scenes 8 Duration 00h15m39s

: Error display
: The file does not support thumbnail view.

• To view the scenes of the title

Select the title
Example : Thumbnail - [Scene view]

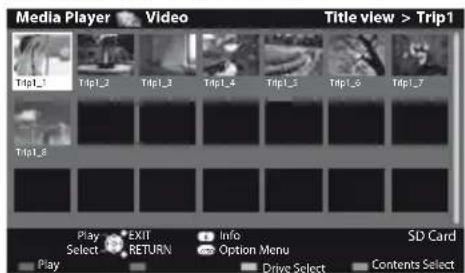

Media Player Video Title view > Trip1 Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7 Trip1_8 Play EXIT Info SD Card Select RETURN Option Menu Drive Select Contents Select

The preview will start when the scene is highlighted if it supports a preview.

• To turn off the preview
→ "Video Setup" (p. 60)
- To display the information of the highlighted scene

File format 1/8 Scene Date & Time 19/02/2010 11:21 Duration Trip1_1 00h04m12s Scene number / Total scene number

■ Playback from Title view

Playback of the selected title will start.

• To repeat playback → "Video Setup" (p. 60)

1 Select the title

2 Start playback

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback will start from the selected scene to the end of the title.

- To repeat playback ➔ "Video Setup" (p. 60)

1 Select the title

2 Select the scene

3 Start playback

■ How to operate in the playback

Example : Playback

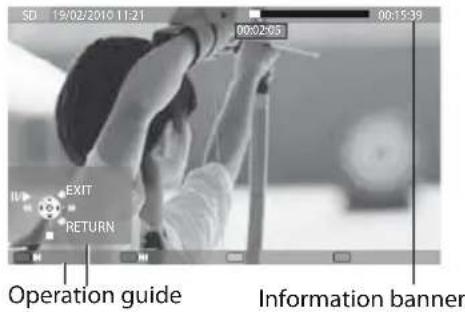

SD 19/02/2010 11:21 00:02:05 00:15:39 EXIT RETURN Operation guide Information banner

• To display / hide the operation guide and information banner

• To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

• To change aspect ASPECT

• To the previous title / scene

(red)

• To the next title / scene

(green)

• To return to thumbnail BACK

RETURN

■ To change the device → "Change the device" (p. 58)
■ To change the content in the current device → "Change the contents" (p. 58)

■ Video Setup

Setup the settings for Video mode.

1 Display the option menu in the thumbnail view

OPTION

2 Select [Video Setup]

Option Menu

Video Setup

access

3 Select the items and set

Video Setup Menu

Video Preview

Repeat

m = 311

Off

select

access / store

Menu	Item Adjustments / Configurations (alternatives)
Video Setup	Video Preview	Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]Image may not be displayed for an instant in the thumbnail view. Set the preview [Off] to resolve this.
	Repeat	Playback repeat within the title or selected file (depending on the content) [Off] / [On]

■ Confirm or change the current status

You can confirm or change the current status of the content.

- Menu items and selectable options vary depending on the content.

1 Display the option menu during playback

OPTION

2 Select [Video Setup]

Option Menu

Video Setup

access

3 Select the items and set

Video Setup Menu

Multi Audio

Aspect Change

Repeat

The image is too blurry to recognize any text content.

Aspect1

Off

select

access / store

Menu	Item Adjustments / Configurations (alternatives)
Video Setup	Multi Audio	Allows you to select between selectable sound tracks (if available)It may take several seconds to change the sound.
	Aspect Change	[Aspect1]: Displays the content enlarged without distortion[Aspect2]: Displays the content full-screen[Original]: Displays the content original sizeYou can also change the aspect using the ASPECT button.Aspect change may not work depending on the content.

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

• To confirm or change the current sound status ➤ "Confirm or change the current status" (p. 60)

1 Display the menu

MENU

2 Select [Sound]

VISTA Main Menu Picture Sound Timer Setup

① select

② access

3 Select [SPDIF Selection] and set

SPDIF Selection Auto Reset to Defaults Reset

select

access / store

Menu	Item Adjustments / Configurations (alternatives)
Sound	SPDIF Selection	SPDIF : A standard audio transfer file formatSelects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM][Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output as Dolby Digital Bitstream.DTS is output as DTS.MPEG is output as PCM.[PCM] : Digital output signal is fixed to PCM.

Music mode

• Supported file format → (p. 83)

SD CARD EXIT OPTION OK BACK/RETURN

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Folder view]

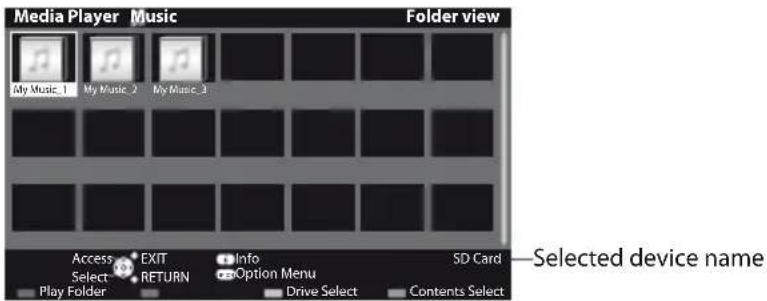

Media Player Music Folder view My Music_1 My Music_2 My Music_3 Access EXIT Info SD Card Select RETURN Option Menu Play Folder Drive Select Contents Select Selected device name

• To display the information of the highlighted folder

— Folder number / Total folder number

To return to TV

EXIT

SD CARD

To return to the previous screen

BACK

RETURN

■ Playback from Folder view

All the files in the selected folder will be played back.

1 Select the folder

elect

2 Start playback

(red)

■ Playback from File view

Selected file will be played back.

1 Select the folder

2 Select the file Example : Thumbnail - File view

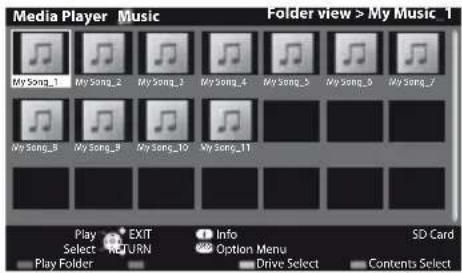

Media Player Music Folder view > My Music 1 My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7 My Song_8 My Song_9 My Song_10 My Song_11 Play EXIT Info SD Card Select NOTURN Option Menu Play Folder Drive Select Contents Select

3 Start playback

• To display the information of the highlighted file

File number / Total file number

■ How to operate in the playback

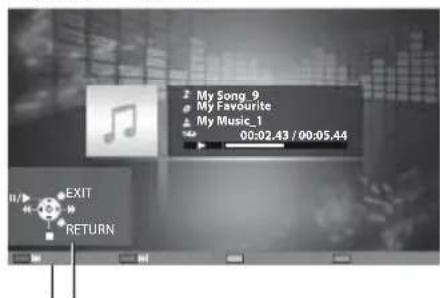

Example : Playback

My Song_9 My Favourite My Music_1 00:02.43 / 00:05.44 EXIT RETURN

Operation guide

• To display / hide the operation guide

• To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

• To the previous track

(red)

• To the next track

(green)

• To return to thumbnail

BACK!

RETURN

■ To change the device → "Change the device" (p. 58)
■ To change the content in the current device → "Change the contents" (p. 58)

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu
OPTION

2 Select [Music Setup]

3 Set

select

access / store

[Folder]: Playback repeat within the selected folder

[One]: Playback repeat of the selected one file

Using Network Services

VIERA Connect

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

- This TV has no full browser function and all features of websites may not be available.

Network Link

Enables to control the TV from the network equipment (Smartphone, etc.)

Network connection → (see below)

Network setup → (p. 64 - 68)

VIERA Connect operations → (p. 17, 69)

Network Link Settings → (p. 64)

Network connections

To use VIERA Connect features, you need a broadband network environment.

• If you do not have any broadband network services, please consult your retailer for assistance.
• Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on this TV. Read the manual of the equipment.
• Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.

Example 1

• Ensure to use a LAN straight cable for this connection.
• If your modem has no broadband router functions, use a broadband router.
• If your modem has broadband router functions but there are no vacant ports, use a hub.
• Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
• If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

Example 2

You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

Note

• Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network equipment.
• Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.

Network Setup

- Ensure the connections are completed before starting Network Setup.

→ "Network connections" (p. 63)

1 Display the menu MENU 2 Select [Setup] VIEFA Main Menu Picture Sound Timer Setup ① select ② access 3 Select [Network Setup] Network Setup ① select ② access 1 2 abc 3 def 4 ghi 5 jkd 6 mno 7 pqrs 8 tuv 9 wyyg 0 To return to TV EXIT

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

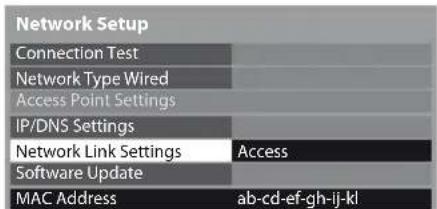

1 Select [Network Link Settings]

Network Setup Connection Test Network Type Wired Access Point Settings IP/DNS Settings Network Link Settings Access Software Update MAC Address ab-cd-ef-gh-ij-kl

2 Select the items and set

Network Link Settings
VIERA Name	VIERA
Network Remote Control	On

Menu	Item Adjustments / Configurations (alternatives)
Network Link Settings	VIERA Name	Sets your favourite name for this TVThis name will be used as the name of this TV on the screen of the other network equipment.
	Network Remote Control	Enables to control the TV from the network equipment (Smartphone, etc.) [Off] / [On]Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.For more information of this function, visit the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Type] and set to [Wired]

Network Setup Connection Test Network Type Wired Access Point Settings IP/DNS Settings Network Link Settings Software Update MAC Address ab-cd-ef-gh-ij-kl

2 Select [IP/DNS Settings] and set the items

Network Setup IP/DNS Settings

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)

- The available settings are displayed automatically.

IP/DNS Settings Acquire IP Address IP Address Subnet Mask Gateway Acquire DNS Address Auto DNS Address Proxy Settings

Manual settings ([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS]) select access / store

3 Select [Proxy Settings] and set the items

IP/DNS Settings Acquire IP Address Auto IP Address Subnet Mask Gateway Acquire DNS Address Auto DNS Address Proxy Settings Access

After settings, return to [Network Setup] screen BACK/ RETURN

[Proxy]

Sets Proxy address.

- This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is required if specified by the provider.

1. Select [Proxy] 2. Enter the address 3. Store

Proxy Settings Proxy Proxy Port 0

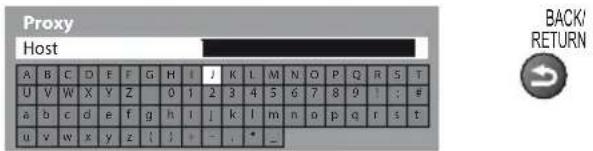

Proxy Host A B C D E F G H I J K L M N O P Q R 5 T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 : : # a b c d e f g h I J k l m n o p q r s t u v w x y z ( ) + - . * _

- You can set characters by using numeric buttons.

■ [Proxy Port]

Sets Proxy port number.

• This number is also specified by the provider with the Proxy address.

1. Select [Proxy Port]

Proxy Settings Proxy Proxy Port 0

2. Move the cursor and enter the number

4 Select [Connection Test] and access to test

Network Setup
Connection Test	Access
Network Type	Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address	ab-cd-ef-gh-ij-kl

① select

② access

- Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Connection Test

Check network cable connection.
Check acquired IP address.
√ Check for devices using same IP address.
Check gateway connection.
Check server connection.

: succeeded

The test is successful and the TV is connected to the network.

:failed

Check the settings and connections, and then perform this function again.

Wireless connection settings

This setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)

- Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

1 Select [Network Type] and set to [Wireless]

Network Setup
Connection Test
Network Type	Wireless
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address	ab-cd-ef-gh-ij-kl

select

access / store

2 Select [Access Point Settings]

Network Setup
Connection Test
Network Type	Wireless
Access Point Settings	Access
IP/DNS Settings
Network Link Settings
Software Update
MAC Address	ab-cd-ef-gh-ij-kl

① select

② access

- When the access point is already set, [Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

Manual

① select

② access

• For details of each connection type (p. 67, 68)
  • After settings, return to [Network Setup] screen

4 Select [Connection Test] and access to test

Network Setup
Connection Test
Network Type	Wireless
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address	ab-cd-ef-gh-ij-kl

① select

② access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Connection Test

Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.

: succeeded

The test is successful and the TV is connected to the network.

:failed

Check the settings and connections, and then perform this function again. If you continue to have difficulty, please contact your internet service provider.

■ [WPS(Push button)]

WPS(Push button)

1) Please press the 'WPS' button on the access point until its light flashes.

2) When the light is flashing select 'Connect' on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

① press the WPS button on the access point until the light flashes

② connect the Wireless LAN Adaptor and the access point

• Ensure that your access point supports WPS for this setup.
  WPS: Wi-Fi Protected Setup™

[WPS(PIN)]

1 Select your desired access point

Available Access Points
No.	Wireless type Encrypt Reception
1	Access Point A	11n(2.4GHz)	B	call
2	Access Point B	11n(5GHz)	B	call
3	Access Point C	11n(5GHz)		call

① select
② access

- Ensure that your access point supports WPS for this setup.

• To search access points again

(yellow)

- For the information of the highlighted access point

• To set manually

(red)

2 Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code: 12345678

Select 'Connect' after entering and saving the settings on the access point.

Connect

■ [Search for access point]

Access points found automatically are listed.

1 Select your desired access point

Available Access Points

No.	Access Point A	11m(2.4GHz)
1	Access Point A	11m(2.4GHz)		call
2	Access Point B	11m(5GHz)		call
3	Access Point C	11m(5GHz)		call

① select
② access

- : Encrypted access point

• To search access points again

(yellow)

- For the information of the highlighted access point

• To set manually

(red)

2 Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings:-

SSID : Access Point A

Authentication type : WPA-PSK

Encryption type : TKIP

Please input the encryption key.

Encryption key

- If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

3 Enter the encryption key of the access point (Set characters one by one)

Access Point Settings Encryption key A B C D E F G H I J K L M N Q P Q R S T U V W X Y Z 01 23 45 67 89 11 a b c d e f g h i k l m n o p r s t u v w x y z i + - ^

- You can set characters by using numeric buttons.

4 Select [Yes]

Access Point Settings
Encryption key is set to:- XXXXXXXXX
Select 'Yes' to confirm. Select 'No' to change.
Yes	No

• To re-enter the encryption key, select [No].

■ [Manual]

You can setup SSID, authentication type, encryption type, and encryption key manually. Follow the on screen instructions and set manually.

- When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES] for the encryption type.

Access Point Settings Please Input the SSID. SSID XXXXXXX

SSID Setting SSID Is set to:- XXXXXXXX Select 'Yes' to confirm. Select 'No' to change. Yes No

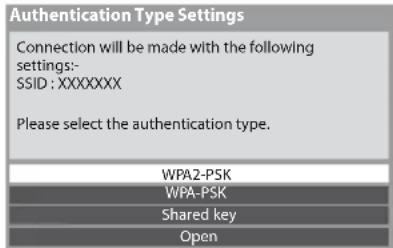

Authentication Type Settings Connection will be made with the following settings:- SSID : XXXXXXX Please select the authentication type. WPA2-PSK WPA-PSK Shared key Open

Update TV's software

Accesses the specific website to update TV's software and search if any software updates are available.

Select [Software Update]

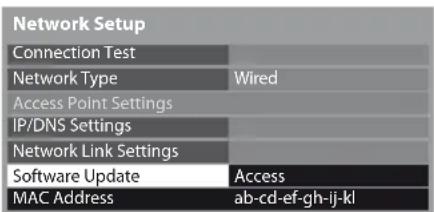

Network Setup Connection Test Network Type Wired Access Point Settings IP/DNS Settings Network Link Settings Software Update Access MAC Address ab-cd-ef-gh-ij-kl

- Follow the on screen instructions

Note

Network Setup : MAC Address ab-cd-ef-gh-ij-kl

[MAC Address]

- MAC address is a unique address that identifies hardware in the network. (for information only)

VIERA Connect

You can access VIERA Connect and enjoy various network contents.

• VIERA Connect requires a broadband internet connection. Dial-up internet connections cannot be used.
• Ensure the network connections and network settings are completed. "Network connections" (p. 63), [Network Setup] (p. 64 - 68)
• For details about VIERA Connect operation "Using "VIERA Connect"" (p. 17)
• Setup menu (Items in [Setup] may change without notice.)

Customize HomeScreen Changes the position of each services on VIERA Connect home screen

My Account Confirms or removes the account information of the TV you entered on VIERA Connect

Lock Sets to restrict access to some services

Beep Sets beep sound On or Off when operating VIERA Connect

Notices Displays the information of VIERA Connect

Note

• Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use VIERA Connect.
  You can update the software later manually [Software Update] in [Network Setup] (p. 68)
• VIERA Connect home screen is subject to change without notice.
• The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
• Some content may be inappropriate for some viewers.
• Some content may only be available for specific countries and may be presented in specific languages.
• Depending on the connection environment, the internet connection may be slow or may not be successful.
• During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 35). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 71) and set to use theatre speakers (p. 78).
• You can restrict access to VIERA Connect [Child Lock] (p. 47)
• Turn the TV off, and then on again when changing or reconnecting the network connection.

Link Functions (Q-Link / VIERA Link)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 72)

VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting. (p. 73 - 78) You can use Q-Link and VIERA Link functions together.

• This TV supports "HDAVI Control 5" function. But available features are depending on the connected equipment's version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
• VIERA Link features may be available even with other manufacturers' equipment supporting HDMI CEC.

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

Features\Connected equipment	DVD Recorder / VCR with Q-Link function
Preset download	○
Easy playback	○
Power on link	○
Power off link	○
Direct TV Recording	○

Connection

DVD Recorder / VCR with Q-Link function

• Use fully wired SCART cable.
- Connect the DVD Recorder / VCR supporting Q-Link to the TV's AV1 terminal via a SCART cable.

VIERA Link (HDMI connection)

Features\Connected equipment	DIGA Recorder with VIERA Link function	DVD Player / Blu-ray Disc Player with VIERA Link function	HD Video Camera / LUMIX Camera with VIERA Link function
Preset download	*2*5	-	-
Easy playback	○	○	○
Power on link	○	○	○
Power off link	○	○	○
Reduce unnecessary power consumption in standby	*3	*3	-
Auto standby for unnecessary equipment	*3	*3	-
Pause Live TV programme	*2*4	-	-
Direct TV Recording	*2	-	-
Control the menu of the connected equipment by VIERA remote control	*1	*1	*1
Speaker control - - -

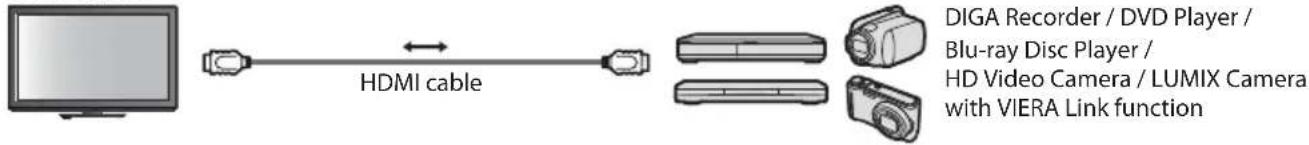

Connection

• Use fully wired HDMI compliant cable.
• Connect the equipment supporting VIERA Link to the TV's HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable.
• About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

VIERA Link (HDMI and Audio out connections)

Features\Connected equipment	Player theatre with VIERA Link function	Blu-ray Disc theatre with VIERA Link function	Amplifier with VIERA Link function
Preset download ---
Easy playback	*6	*6	-
Power on link	○	○	-
Power off link	○	○	○
Reduce unnecessary power consumption in standby	-	*3	-
Auto standby for unnecessary equipment	*3 *7	*3 *7	*3
Pause Live TV programme ---
Direct TV Recording ---
Control the menu of the connected equipment by VIERA remote control	*1	*1	-
Speaker control	○	○	○

Connection

HD Video Camera / LUMIX Camera with VIERA Link function

• Use fully wired HDMI compliant cable.
• Connect the equipment supporting VIERA Link to the TV's HDMI2 or HDMI3 terminal via an HDMI cable.
  • Use fully wired SCART cable.
• If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV's AV1 terminal and set [AV1 out] to [Monitor] in the Setup Menu (p. 35).
• Use the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.

*1: Available with the equipment which has "HDAVI Control 2 or later" function.
*2: Available with the equipment which has "HDAVI Control 3 or later" function.
*3 : Available with the equipment which has "HDAVI Control 4 or later" function.
*4: Available with DIGA Recorder which has HDD.
*5: This function is available regardless of the version of HDAVI Control when the recorder supports Q-Link and is connected via SCART cable.

*6: While playing a disc
*7: Except for watching a disc
*8: If the connected equipment has "HDAVI Control 5" function, you do not have to use this audio cable (Optical digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV's HDMI2 terminal via an HDMI cable.

VIERA Link Control of compatible equipment ([VIERA Link Control] p. 76)

- Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV.

For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number
Recorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)	3
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4

Q-Link

Preparations

• Connect the DVD Recorder / VCR with the following logos :
  • Q-Link connection (p. 70)
  • Use fully wired SCART cable.
• Set up the DVD Recorder / VCR. Read the manual of the recorder.
  • Q-Link terminal setup in the Setup Menu [AV1 out] (p. 35)
• Download preset - channel, language, country settings "Preset download" (see below)

"Q-Link", "NEXTVIEWLINK", "DATA LOGIC (a trademark of Metz Corporation)", "Easy Link (a trademark of Philips Corporation)", "Megalogic (a trademark of Grundig Corporation)", "SMARTLINK (a trademark of Sony Corporation)"

Features available

Preset download

Channel, language, country settings can be downloaded to the recorder.

• DVB-C channel settings cannot be downloaded.

• To download settings

[Download] (p. 35) or [Auto Setup] (p. 39) or "Auto Setup" - when first using the TV (p. 13, 14)

Direct TV Recording - What you see is What you record

Recording the current programme in DVD Recorder / VCR immediately.

• Available conditions :

DIRECT TV REC EXIT GUIDE DIRECT TV REC

Picture source Mode Recording from
Analogue	TV TV monitor out
	AV Recorder's tuner
DVB TV TV monitor out
AV (watching recorder's tuner) AV Recorder's tuner
AV (watching recorder's external input) AV		Recorder's external input
AV (watching TV's external input) AV TV monitor out

• When Direct TV Recording is performed, the recorder is automatically turned on if it is in Standby mode.
• Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
• Changing channel is not available while the recorder is recording from the TV tuner.

■ To stop recording

Unlock the tuner

Tuner Locked Press EXIT to unlock and stop recording

Power on link and Easy playback

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p. 35)

When DVD Recorder /VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p. 35)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

- This function will work even if the TV enters Standby mode automatically by auto power standby function.

Note

- Some recorders are not applicable. Read the manual of the recorder.

VIERA Link 'HDAVI Control™ \*

\*Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control" function.

This TV supports "HDAVI Control 5" function.

Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 70, 71).

These features are limited to models incorporating "HDAVI Control" and "VIERA Link".

• Some functions are not available depending on the equipment's version of HDAVI Control. Please confirm the connected equipment's version of HDAVI Control.
• VIERA Link "HDAVI Control", based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
  As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.
• Please refer to individual manuals for other manufacturers' equipment supporting VIERA Link function.
• About applicable Panasonic equipment, consult your local Panasonic dealer.

Preparations

• Connect the equipment supporting VIERA Link.
  • VIERA Link connection (p. 70, 71)
• Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.

Recommended Panasonic's HDMI cable part number :

• RP-CDHS15 (1.5 m)

• RP-CDHS30 (3.0 m)

• RP-CDHS50 (5.0 m)

• Use fully wired SCART cable.
- Set up the connected equipment. Read the manual of the equipment.
- For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.
- Download preset - channel, language, country / region settings "Preset download" (see below)
- Set [VIERA Link] [On] in the Setup Menu [VIERA Link] (p. 35)

- Set up the TV

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 27), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur :

• for the first time
- when adding or reconnecting equipment
- when changing setup

Features available

Preset download

Channel, language, country / region settings can be downloaded to the recorder.

• DVB-C channel settings cannot be downloaded.

• To download settings

[Download] (p. 35) or [Auto Setup] (p. 39) or "Auto Setup" - when first using the TV (p. 13, 14)

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p. 35)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p. 35)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

- This function will work even if the TV enters Standby mode automatically by auto power standby function.

Reduce unnecessary power consumption in standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 35)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption.

When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimised.

When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time early.

- This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

- This function will work when [Power off Link] is set to [On].

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function → [Intelligent Auto Standby] (p. 35)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI, when Speaker Selection is changed to [TV] (except for watching a disc).

- If you select [On (With reminder)], the on screen message will be displayed to be noticed before working this function.

- This function may not work properly depending on the connected equipment. If required, set to [Off].

Direct TV Recording - What you see is What you record [Direct TV Rec]

Recording the current programme in DIGA Recorder immediately.

• If you connect a variety of recorders including other manufacturers' recorders at the same time, please connect DIGA Recorder to the TV's lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder to HDMI1.
• If you cannot operate, check the settings and the equipment
  → "Summary of Q-Link and VIERA Link features" (p. 70, 71), "Preparations" (p. 73)
• If you wish to record the programme which DIGA Recorder does not support, SCART connection is required and the programme is recorded by Q-Link function (p. 72).
• Depending on the programme, SCART connection may be required to record.
• Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
• Changing channel is not available while the recorder is recording from the TV tuner.

DIRECT TV REC EXIT VIERA Link GUIDE OK

Display [VIERA Link Menu]

2

Select [Direct TV Rec] and start recording

VIERA Link Menu
Pause Live TV	Start
Direct TV Rec	Start
VIERA Link Control	Recorder
Speaker Selection	Home Cinema

select

access / start

- You can also start recording directly.

DIRECT TV REC

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu
Pause Live TV	Start
Direct TV Rec	Stop
VIERA Link Control	Recorder
Speaker Selection	Home Cinema

select

access / stop

- You can also stop recording directly.

Unlock the tuner

Tuner Locked Press EXIT to unlock and stop recording

Pause Live TV programme [Pause Live TV]

You can pause the live TV programme and resume later.

Live TV programme will be recorded on HDD of the connected DIGA Recorder.

• This function is available with DIGA Recorder which has HDD.
- If you connect a variety of recorders including other manufacturers' recorders at the same time, please connect DIGA Recorder which has HDD to the TV's lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder which has HDD to HDMI1.
• If you cannot operate, check the settings and the equipment

"Summary of Q-Link and VIERA Link features" (p. 70, 71), "Preparations" (p. 73)

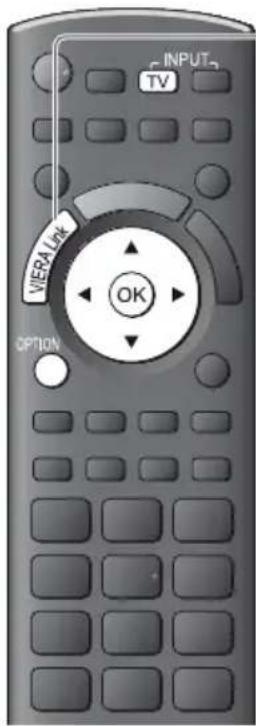

INPUT TV VIERALK OK OPTION

1

Display [VIERA Link Menu]

2

Select [Pause Live TV] and pause

The TV picture will be paused.

VIERA Link Menu
Pause Live TV	Start
Direct TV Rec	Start
VIERA Link Control	Recorder
Speaker Selection	Home Cinema

• Live TV programme is recorded on HDD from where it was paused.
- If the paused TV picture disappears after a few minutes.

OPTION

(The paused picture will be restored)

- Follow the operation guide to operate Pause Live TV function.

■ To operate Pause Live TV

- If you stop playback, the recorded programme will be deleted from HDD.

- Operations may be different depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

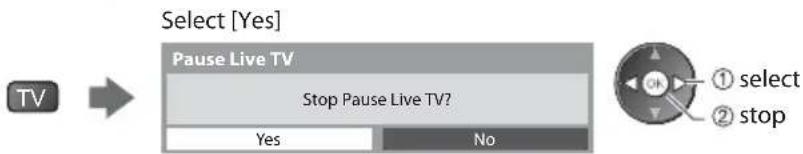

■ To return to Live TV

(Stop playback of Pause Live TV / cancel pause)

- If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV's signal receiver).

• If you cannot operate, check the settings and the equipment
  "Summary of Q-Link and VIERA Link features" (p. 70, 71), "Preparations" (p. 73)
• For details of the operations for the connected equipment, read the manual of the equipment.

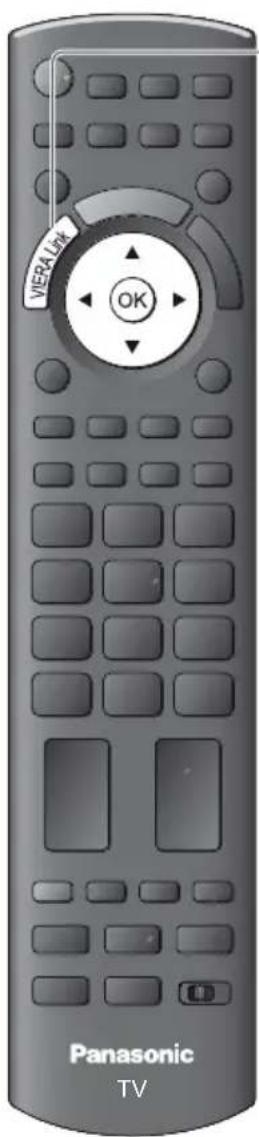

VIERA LAK OK Panasonic TV

1

Display [VIERA Link Menu]

2

Select [VIERA Link Control]

VIERA Link Menu
Pause Live TV	Start
Direct TV Rec	Start
VIERA Link Control	Recorder
Speaker Selection	Home Cinema

① select

② access

3

Select the equipment you want to access

The type of the connected equipment is displayed.

Select the type of the equipment and access.

VIERA Link Menu Pause Live TV Direct TV Rec VIERA Link Control Speaker Selection Start Start Recorder Home Cinema

① select

② store

[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] / [Other]

• You can also access directly by using VIERA TOOLS
→ "How to Use VIERA TOOLS" (p. 29)
• The displayed item may vary depending on the connected equipment.
- [Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.
• [Other] means Tuner set top box.

The menu of the accessed equipment (Input mode will be changed automatically)

4 Operate the menu of the equipment

Available VIERA remote control buttons : (Depending on the connected equipment)

EXIT CHANGE OK OPEN START TEXTS STL 1 2 abc 3 id 4 pj 5 jd 6 mm 7 pgi 8 tvn 9 tvg 0 REC PROGRAMME HAPP DHKOR TV HIPS Panasonic TV

1 Set the position to "TV"

2 Follow the operation guide

• To display the operation guide

OPTION

If other manufacturers' equipment is accessed, Setup / Contents Selection menu may be displayed.

- When the key words are displayed on colour bar

(red) (green) (yellow) (blue)

Note

- Some operations may not be available depending on the equipment. In this case use its own remote control to operate the equipment.

■ If multiple recorders or players are connected

VIERA Link Menu Pause LiveTV Start Direct TV Rec Start VIERA Link Control Recorder2 Speaker Selection Home Cinema

[Recorder1-3 / Player1-3]

The number is given from the TV's lower HDMI terminal number connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, in this case the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder connected to HDMI3 is displayed as [Recorder2].

■ If you access non-VIERA Link equipment

VIERA Link Menu Pause LiveTV Start Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema

The type of the connected equipment is displayed.

You can access the menu of the equipment. But you cannot operate it. Use its own remote control to operate the equipment.

Speaker control [Speaker Selection]

You can control the theatre speaker with this TV remote control (point the remote control at the TV's signal receiver).

• If you cannot operate, check the settings and the equipment
"Summary of Q-Link and VIERA Link features" (p. 70, 71), "Preparations" (p. 73)

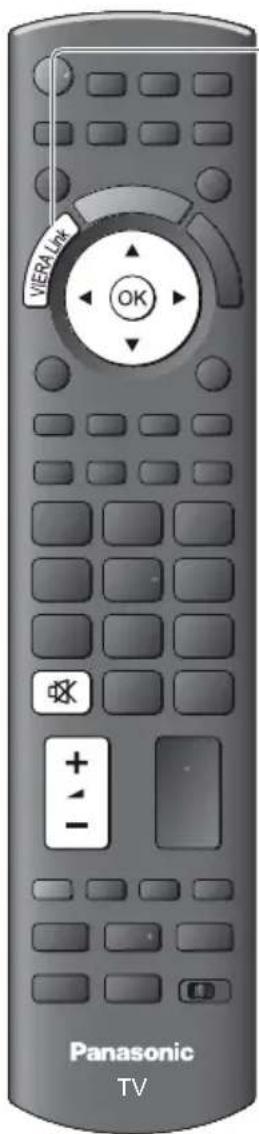

VIERA Link OK Panasonic TV

1

Display [VIERA Link Menu]

2

Select [Speaker Selection]

VIERA Link Menu
Pause Live TV	Start
Direct TV Rec	Start
VIERA Link Control	Recorder
Speaker Selection	Home Cinema

3

Set to [Home Cinema] or [TV]

[Home Cinema]

Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment.

• Volume up / down

• Mute

• The sound of TV speakers is mute.
- When the equipment is turned off, TV speakers will be active.

[TV]

TV speakers are active.

Multi-channel sound

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect with HDMI cable and Optical digital audio cable (p. 71), and then select [Home Cinema]. If your Amplifier has "HDAVI Control 5" function, you can connect only with HDMI cable. In this case, connect your Amplifier to the TV's HDMI2 terminal.

To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 71).

Note

• These functions may not work properly depending on the connected equipment.
- Image or sound may not be available for the first few seconds when input mode is switched.
- Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the manual of the equipment.
- "HDAVI Control 5" is the newest standard (current as of December, 2010) for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.
• To confirm this TV's version of HDAVI Control [System Information] (p. 37)

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment.

For other connections, consult the instructions for each piece of equipment, the table (p. 81), and the specifications (p. 90, 91).

    subgraph Network (wired)
        H["ETHERNET"] --> I["HDMI"]
        I --> J["AV1"]
        J --> K["COMPONENT"]
        L["Less than 10 cm"] --> M["LAN cable"]
        N["Less than 10 cm"] --> O["Hub or Router"]
        P["Internet"] --> Q["Modem"]
    end

    subgraph Installing the Ferrite core
        Q --> R["① Pull back the tabs (in two places)"]
        Q --> S["② Wind the cable twice"]
        Q --> T["③ Press the cable through and close"]
    end

    subgraph Side panel of the TV
        U["USB 1"] --> V["USB 2"]
        W["Side panel of the TV"] --> X["UV 2"]
    end

    subgraph Wireless LAN Adaptor
        X --> Y["Wireless LAN Adaptor"]
    end

    subgraph Camcorder / Game equipment
        Z["(Viewing)"] --> AA["(Listening)"]
        AB["Camcorder"] --> AC["Game equipment"]
    end

    subgraph To listen with speakers
        AD["Optical digital audio cable"] --> AE["or"]
        AF["RCA cable"] --> AG["Speaker system"]
    end

    note1["To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier."]:::note1

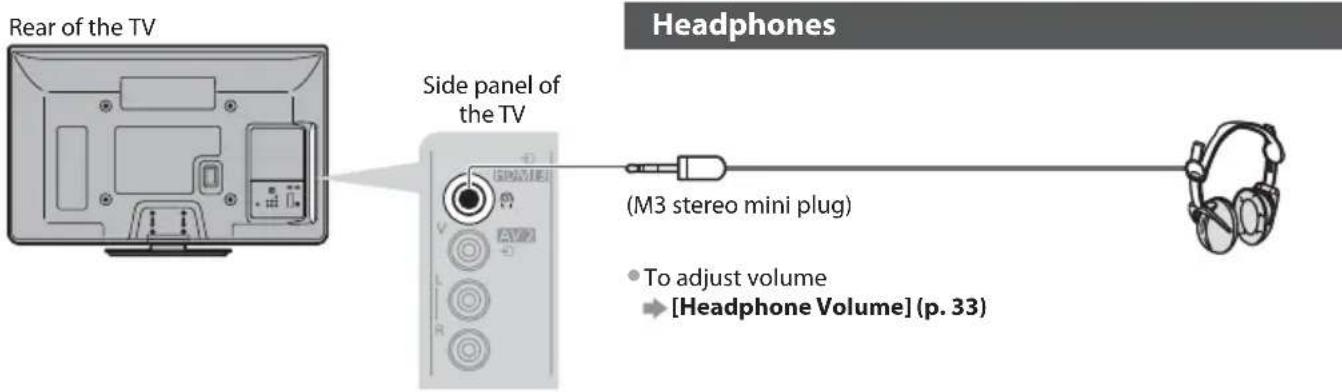

Rear of the TV Side panel of the TV Headphones (M3 stereo mini plug) • To adjust volume → [Headphone Volume] (p. 33)

Types of connectable equipment to each terminal

Recording / Playback (equipment)	Terminal
	AV1	AV2	COMPONENT	AUDIO OUT	AUDIO OUT	DIGITAL	ETHERNET	HDMI 1-3
To record / playback videocassettes / DVDs (VCR / DVD Recorder)	○
To watch satellite broadcasts (Set top box)	○	○						○*1
To watch DVDs (DVD Player)	○	○	○					○
To watch camcorder images (Video camera)	○	○						○
To play games (Game equipment)	○	○						○
To use amplifier with speaker system				○	○			○*2
To use network services							○
Q-Link	○
VIERA Link	○(with HDMI)							○
Direct TV Recording	○							○

○: Recommended Connection
*1 : Use HDMI1 for automatic input switching.
*2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return Channel) function.

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 21)

Aspect Control Signal

[WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found.

The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.

This function will work in any aspect mode.

Input terminal Input signal format		Aspect Control Signal
		Widescreen signal (WSS)	Control signal through SCART (pin8) / HDMI terminal
Cable RF	DVB-C	○
	DVB-T	○
	PAL B, G, H, I	○
	PAL D, K	○
	SECAM B, G	○
	SECAM L, L'	○
	SECAM D, K	○
	PAL 525/60 6.5 MHz -
	PAL 525/60 6.0 MHz -
	PAL 525/60 5.5 MHz -
	M.NTSC 6.5 MHz -
	M.NTSC 6.0 MHz -
	M.NTSC 5.5 MHz -
AV1 / AV2 (Composite)	PAL	○	○
	SECAM	○	○
	PAL 525/60 -		○
	M.NTSC -		○
	NTSC -		○
COMPONENT	525 (480) / 60i, 60p -
	625 (576) / 50i, 50p	○
	750 (720) / 60p, 50p -
	1,125 (1,080) / 60i, 50i -
HDMI1HDMI2HDMI3	525 (480) / 60i, 60p -		○
	625 (576) / 50i, 50p -		○
	750 (720) / 60p, 50p -		○
	1,125 (1,080) / 60i, 50i -		○
	1,125 (1,080) / 60p, 50p, 24p -		○

Auto mode

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen) to determine.

This process may take several minutes, depending on the darkness of the image.

Letterbox detection :

If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to fill the screen.

If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

• The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom of the screen may appear.
• If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.

Supported file format in Media Player

■ Photo

Format File extension	Image resolution (pixel)	Details / Restrictions
JPEG.jpg		8 × 8 to 30,719 × 17,279 DCF* ^1 and EXIF* ^2 standardsSub-sampling : 4:4:4, 4:2:2, 4:2:0Progressive JPEG is not supported.

*1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology Industries Association (JEITA)
*2 : Exchangeable Image File - image file format used by digital cameras

Video

Container File extension Video codec Audio codec Details / Restrictions
SD-Video .mod		MPEG1MPEG2	MPEGDolby Digital	SD-Video Standard Ver. 1.3(Entertainment Video Profile)The data may not be available if a folder structure on the device is modified.
AVCHD .mts H.264 Dolby Digital				AVCHD StandardThe data may not be available if a folder structure on the device is modified.
AVI	.avi.divx	DIV3 DIV4DIVX DX50DIV6 XviDMPEG4 SP / ASP	MPEGMP3Dolby Digital	Certified to play DivX Plus HD video file in Media PlayerFor details of DivX ➔ “DivX” (p. 84)
MKV	.mkv H.264 BP / MP	/ HP	MPEGMP3Dolby DigitalDTS core
ASF	.asf.wmv	Windows Media Video Ver. 9VC-1	WMA	Copy-protected files cannot be played back.WMA Pro and WMA Lossless are not supported.
MP4	.mp4	H.264 BP / MP / HP	AACMP3Dolby Digital	This TV supports this container recorded by Panasonic products.For details, read the manual of the products.
MOV .mov		MotionJPEGH.264 BP / MP / HP	Linear PCM (RAW / TWOS / SOWT)AACMP3Dolby Digital	This TV supports Motion JPEG recorded by Panasonic LUMIX Camera*3.
PS	.mpg.mpeg	MPEG1MPEG2	MPEGMP3Linear PCM	-

*3 : Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.

Music

Codec File extension Restrictions
MP3 .mp3 –
AAC .m4a
WMA .wma

Note

• Some files may not be played back even if they fulfill these conditions.
• Do not use two-byte characters or other special codes for data.
• The device may become unusable with this TV if the file or folder names are changed.

DivX

DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content. ABOUT DIVX VIDEO :

DivX ^® is a digital video format created by DivX, Inc. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

Subtitle text file of DivX

Subtitles format - MicroDVD, SubRip, TMPlayer

• The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
• If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: ".srt", ".sub", ".txt".
• To confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option Menu.
• Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or the subtitles may not be displayed at all.

Note

• Depending on how you make SD Card or USB Flash Memory files and folders may not be displayed in the order you numbered.
• Depending on how you create the files and the structure of folders, the files and folders may not be displayed.
• When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.

ABOUT DIVX VIDEO-ON-DEMAND :

This DivX Certified ^® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to complete your registration.

To show DivX VOD registration code

→ [DivX® VOD] in the Setup Menu (p. 37)
- If you want to generate the new registration code, you have to deregister the present registration code.
After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX®VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be able to play any contents that you purchased using the present registration code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
- If you purchase DivX VOD content using a registration code different from this TV's code, you will not be able to play this content. ([Your device is not authorized to play this DivX protected video.] is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times.

When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. ([This DivX rental has expired.] is displayed.)

- When playing this content, the number of remaining plays is reduced by one in the following conditions:

- If you exit the current application.

• If you play the other content.

- If you go to the next or previous content.

Devices for recording or playing back

■ SD Card (for playing back in Media Player)

Card format: SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), miniSD Card (2 GB) (requiring miniSD adaptor)

• If miniSD Card is used, insert / remove it together with the adaptor.
• Check the latest information on the card type at the following website. (English only) http://panasonic.jp/support/global/cs/tv/
• Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

■ USB Flash Memory (for playing back in Media Player)

USB Flash Memory format : FAT16, FAT32 or exFAT

- A USB HDD formatted by PC is not supported in Media Player.

2.1 mm 32 mm 24 mm

Note

• Data modified with a PC may not be displayed.
- Do not remove the device while the TV is accessing data (this can damage device or TV).
- Do not touch the pins on the device.
- Do not subject the device to a high pressure or impact.
- Insert the device in the correct direction (otherwise, device or TV may be damaged).
• Electrical interference, static electricity, or erroneous operation may damage the data or device.
- Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

SCART and HDMI terminal information

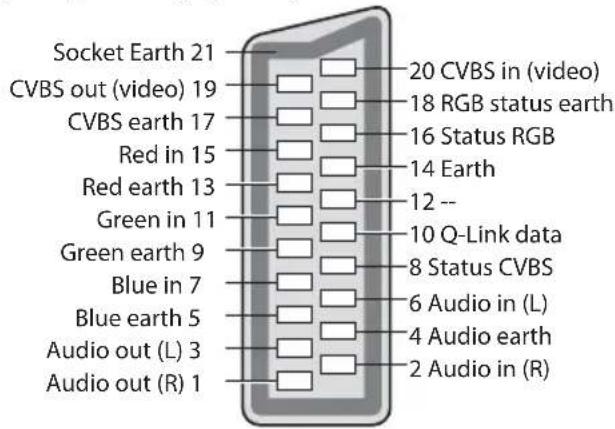

AV1 SCART terminal (RGB, VIDEO, Q-Link)

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -- 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

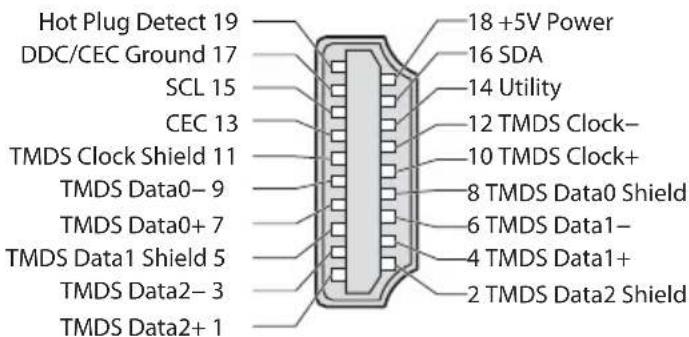

HDMI terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield 11 TMDS Data0- 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2- 3 TMDS Data2+ 1 18 +5V Power 16 SDA 14 Utility 12 TMDS Clock- 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1- 4 TMDS Data1+ 2 TMDS Data2 Shield

HDMI connection

HDMI (high-definition multimedia interface) is the world's first complete digital consumer AV interface complying with a non-compression standard.

HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.

HDMI-compatible equipment ^*1 with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

About connections, see "External Equipment" (p. 79).

Applicable HDMI features

- Input audio signal :

2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)

• Input video signal :

480i, 480p, 576i, 576p, 720p, 1080i and 1080p

→ "Input signal that can be displayed" (p. 86)

Match the output setting of the digital equipment.

- Input PC signal :

→ "Input signal that can be displayed" (p. 86)

Match the output setting of the PC.

• VIERA Link (HDAVI Control 5) → [VIERA Link] (p. 73)

- Content Type

- Deep Colour

• x.v.Colour™

• Audio Return Channel ^*2 (HDMI2 terminal only)

DVI connection

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable ^*3 . When the DVI to HDMI adaptor cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 : use AUDIO IN terminals / HDMI3 : use AV2 audio terminals).

Note

• Audio settings can be made on the [HDMI1 / 2 / 3 Input] in the Sound Menu. (p. 34)
- If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
• These HDMI connectors are "type A".
• These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
- Equipment having no digital output terminal may be connected to the input terminal of "COMPONENT" or "VIDEO" to receive analogue signals.
• This TV incorporates HDMI™ technology.

*1: The HDMI logo is displayed on HDMI-compliant equipment.
*2: Audio Return Channel (ARC) is a function to be able to send digital sound signals via an HDMI cable.
*3 : Enquire at your local digital equipment retailer shop.

Input signal that can be displayed

COMPONENT (Y, P_B , P_R ), HDMI

Signal name COMPONENT	HDMI
525 (480) / 60i, 60p	○	○
625 (576) / 50i, 50p	○	○
750 (720) / 60p, 50p	○	○
1,125 (1,080) / 60i, 50i	○	○
1,125 (1,080) / 60p, 50p, 24p		○

○ Mark : Applicable input signal

Applicable input signal for PC is basically compatible to VESA standard timing.

PC (from HDMI terminal)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00

Applicable input signal for PC is basically compatible to HDMI standard timing.

Note

• Signals other than above may not be displayed properly.
  • The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

USB connection

• It is recommended to connect the USB Flash Memory directly to the TV's USB ports.
• Some USB devices or USB HUB may not be used with this TV.
• You cannot connect any devices by using USB card reader.
• You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory.
  • Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/

USB Keyboard

• The USB Keyboard which requires the driver is not supported.
• To change the language type [USB Keyboard Layout] (p. 37)
- Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout setting.
- Some of the keys of USB keyboards may correspond to the operation of the remote control.

USB Keyboard Remote Control USB Keyboard Remote Control
↑/↓/←/→	Cursor buttons F2 VIERA TOOLS
Enter OK F3 MENU
Backspace BACK/RETURN F4 INPUT (AV)
Esc EXIT F5 / F6 Channel Down / Up
0 - 9 / Character Numeric buttons	F7 / F8 Volume Down / Up
F1 GUIDE	F9 / F10 / F11 / F12	Coloured buttons

Gamepad

• Check the gamepads that have been tested for the performance with this TV at the following website. (English only) http://panasonic.jp/support/global/cs/tv/
  • Some of the keys of gamepads correspond to the operation of the remote control.

Example :

1 2 Select Start 3 4 5 11 10 9 8 7 6

	Remote Control		Remote Control
1	Volume Up / Down	7	VIERA TOOLS
2	Channel Up / Down	8	EXIT
3	GUIDE	9	INPUT (AV)
4	OK
5	BACK/RETURN	10	MENU
6	VIERA Connect	11	Cursor buttons

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items.

User input Name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h {i j k l m n{o p$q r s t u v w x y z ( )+ - .* _

Press the numeric button repeatedly until you reach the desired character.

• The character is set automatically if you leave for 1 second.
- You can also set the character by pressing the OK button or other numeric buttons within 1 second.

Characters table :

Numeric buttons	The number of times to press
	1	2	3	4	5	6	7	8	9	10	11
1	.	1	!	:	#	+	-	*	-	(	)
2ks	a	b	c	2	A	B	C
3def	d	e	f	3	D	E	F
4pt	g	h	i	4	G	H	I
5pt	j	k	l	5	J	K	L
6tro	m	n	o	6	M	N	O
7rqs	p	q	r	s	7	P	Q	R	S
8tr	t	u	v	8	T	U	V
9wgt	w	x	y	z	9	W	X	Y	Z
0	Space	0

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance.

Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned

• Check the position, direction and connection of the aerial.
• Check [Signal Condition] (p. 42). If [Signal Quality] is displayed in red, the DVB signal is weak.
• Weather conditions will affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.
• Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
• Turn the TV off with the Mains power On / Off switch, and then on again.
• If problem persists, consult your local dealer or service provider for the availability of services.

No programmes shown on TV Guide

• Check the digital transmitter.
• Adjust the direction of the aerial to another transmitter installed nearby.
• Check the analogue broadcast. If the image quality is poor, check the aerial and consult your local dealer.

Neither image nor sound is produced

• Is the TV in AV mode?
- Check the correct input mode is selected.
- Check the mains lead is plugged into the socket outlet and the TV is turned on.
- Check the Picture Menu (p. 31, 33) and volume.
- Check all required cables and connections are firmly in place.

Auto aspect

• Auto aspect is designed to provide you with the best ratio to fill the screen. (p. 82)
• Press the ASPECT button if you would like to change the aspect ratio manually. (p. 21)

Black and white picture

• Check that the output of the external equipment matches the input of the TV.
  When connecting with SCART, ensure the output setting of the external equipment is not S-Video.

Input mode, i.e. EC/AV1 remains on the screen

• Press the i button to clear these.
  Press again to redisplay.

Q-Link function does not work

• Confirm SCART cable and connection.
  Also set [AV1 out] in the Setup Menu. (p. 35)

[VIERA Link] function does not work and an error message appears

• Confirm the connection. (p. 70, 71)
• Turn the connected equipment on and then switch the TV on. (p. 73)

Recording does not start immediately

- Check the settings of the recorder. For details, read the manual of the recorder.

Contrast is reduced

- Contrast is lowered in the following conditions without any user operation for a few minutes :

• no signal in DVB or AV mode
- selected locked channel
- selected invalid channel
- selected radio channel
- displayed menu

• thumbnail or still picture in Media Player

Problem Actions
Screen	Chaotic image, noisy	Set [P-NR] in the Picture Menu (to remove noise). (p. 31)Check nearby electrical products (car, motorcycle, fluorescent lamp).
	No image can be displayed	Is [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?(p. 31)
	Blurry or distorted image (no sound or low volume)	Reset channels. (p. 38, 39)
	Unusual image is displayed	Turn the TV Off with Mains power On / Off switch, then turn it On again.If the problem persists, initialise all settings [Shipping Condition] (p. 51)
Sound	No sound is produced	Is "Sound mute" active? (p. 9)Is the volume set to the minimum?
	Sound level is low or sound is distorted	Sound signal reception may be deteriorated.Set [MPX] (p. 34) in the Sound Menu to [Mono]. (Analogue only)
HDMI	Sound is unusual	Set the sound setting of the connected equipment to "2ch L.PCM".Check the [HDMI1 / 2 / 3 Input] setting in the Sound Menu. (p. 34)If digital sound connection has a problem, select analogue sound connection.(p. 86)
	Pictures from external equipment are unusual when the equipment is connected via HDMI	Check the HDMI cable is connected properly. (p. 79)Turn the TV and equipment Off, then turn them On again.Check an input signal from the equipment. (p. 86)Use equipment compliant with EIA/CEA-861/861D.
Network	Cannot connect to the network	Check the LAN cable or Wireless LAN Adaptor is connected properly. (p. 63)Check the connections and settings. (p. 63 - 68)Check the network equipment and network environment.The router may not be set to issue IP address automatically. If the network administrator prefers to allocate an IP address, set an IP address manually. (p. 65)The router may be using MAC address filtering (security setting).Confirm the MAC Address of this TV (p. 68) and set the router to be able to use it.If the problem persists, consult your Internet Service Provider or telecommunications company.
	Cannot operate VIERA Connect	Check the connections and settings. (p. 63 - 68)The server or connected line might be busy now.
Other	The TV does not switch On	Check the mains lead is plugged into the socket outlet.
	The TV goes into Standby mode	Auto power standby function is activated. (p. 10)The TV enters Standby mode about 30 minutes after analogue broadcasting ends.
	The remote control does not work or is intermittent	Are the batteries installed correctly? (p. 7)Has the TV been switched On?The batteries may be running low. Replace them.Point the remote control directly at the front of the TV (within about 7 m and a 30 degree angle of the front of the TV).Situate the TV away from sunshine or other sources of bright light not to shine on the TV's remote control signal receiver.
	Parts of the TV become hot	Even when the temperature of parts of the front, top and rear panels has risen, these temperature rises will not pose any problems in terms of performance or quality.
	Overcurrent error message appears	The connected USB device might cause this error. Remove the device and turn the TV Off with Mains power On / Off switch, then turn it On again.Check if foreign objects are inside the USB port.
	An error message appears	Follow the message's instructions.If the problem persists, contact your local Panasonic dealer or the authorized Service Centre.

Specifications

Power Source AC 220-240 V, 50 /		60 Hz
Rated Power Consumption 255 W
On mode Average Power Consumption(based on IEC 62087 Ed.2 measurement method)		121 W
Standby Power Consumption		0.30 W
		16.00 W (With monitor out recording)
Dimensions (W × H × D)		1,023 mm × 671 mm × 288 mm (With Pedestal)1,023 mm × 637 mm × 93 mm (TV only)
Mass		23.0 kg Net (With Pedestal)20.0 kg Net (TV only)
Display panel	Aspect Ratio 16:9
	Visible screen size	106 cm (diagonal)921 mm (W) × 518 mm (H)
	Number of pixels 2,073,600 (1,920 (W) × 1,080(H)) [5,760 × 1,080 dots]
Sound	Speaker	(160 mm × 40 mm) × 2, 6 Ω
	Audio Output 20 W (10 W + 10 W)
	Headphones M3 (3.5 mm) stereo mini Jack × 1
Receiving Systems / Band nameCheck the latest information on the available services at the following website.(English only)http://panasonic.jp/support/global/cs/tv/		PAL B, G, H, I, VHF E2 - E12 VHF H1 - H2 (ITALY)SECAM B, G, VHF A - H (ITALY) UHF E21 - E69SECAM L, L' CATV S01 - S05) CATV S1 - S10 (M1 - M10)CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
		PAL D, K, VHF R1 - R2 VHF R3 - R5SECAM D, K VHF R6 - R12 UHF E21 - E69
		PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)
		M.NTSC Playback from M.NTSC Video recorders (VCR)
		NTSC (AV input only) Playback from NTSC Video recorders (VCR)
		DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264))
		DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))
Aerial input		VHF / UHF
Operating Conditions		Temperature : 0 °C - 35 °CHumidity : 20 % - 80 % RH (non-condensing)
Connection Terminals	AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
	AV2 input	VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
		AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
	COMPONENT input	Y 1.0 V[p-p] (including synchronization)PB, PR ±0.35 V[p-p]
	HDMI 1 / 2 / 3 input	TYPE A ConnectorsHDMI1 / 3 : Content Type, Deep Colour, x.v.ColourTMHDMI2 : Content Type, Audio Return Channel, Deep Colour, x.v.ColourTMThis TV supports "HDAVI Control 5" function.
Connection Terminals	Card slot	SD Card slot × 1Common Interface slot (complies with CI Plus) × 1
	ETHERNET RJ45, IEEE802.3	10BASE-T / 100BASE-TX
	USB 1 / 2 USB2.0 DC 5 V, Max. 500 mA
	AUDIO IN RCA PIN Type × 2	0.5 V[rms]
	AUDIO OUT RCA PIN Type × 2	0.5 V[rms] (high impedance)
	DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
  • This equipment complies with the EMC standards listed below.

EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024

Licence

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

• DVB and the DVB logos are trademarks of the DVB Project.
• SDXC Logo is a trademark of SD-3C, LLC.
- HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
HDAVI Control™ is a trademark of Panasonic Corporation.
- "AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.
• x.v.Colour™ is a trademark.
• Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• VIERA Connect is a trademark of Panasonic Corporation.
- Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
DivX®, DivX Certified®, DivX Plus™ HD and associated logos are trademarks of DivX, Inc. and are used under license.
- The Skype name, associated trade marks and logos and the "S" symbol are trade marks of Skype Limited.
- QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Inc., used under license therefrom.
GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Rovi Corporation and/or its related affiliates.

dts™ 2.0+Digital Out

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Declaration of Conformity (DoC)

Authorized Representative :

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic Corporation

Web Site : http://panasonic.net
