USER MANUAL TX-55GXR900 PANASONIC

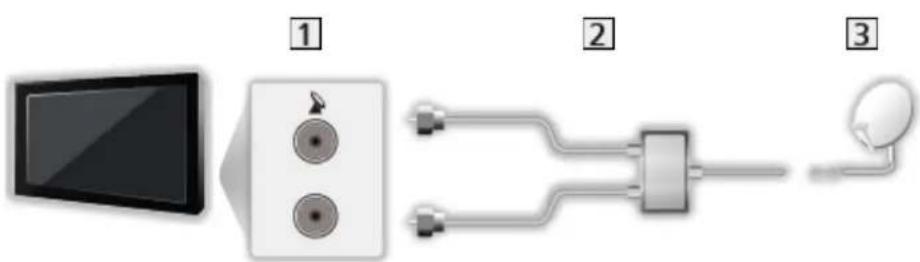

- Satellite connection 31
- Basic connection 33
- Selecting channel 36
• Information banner 37
• AV Options 39
- Subtitle 41
- Last view 42
- Off Timer 43
• Energy saving functions 44 - Adjusting time 47
• Language 48
4K resolution
- 4K compatible equipment 49
• HDMI Auto Setting 50 - Valid 4K format 51
External equipment

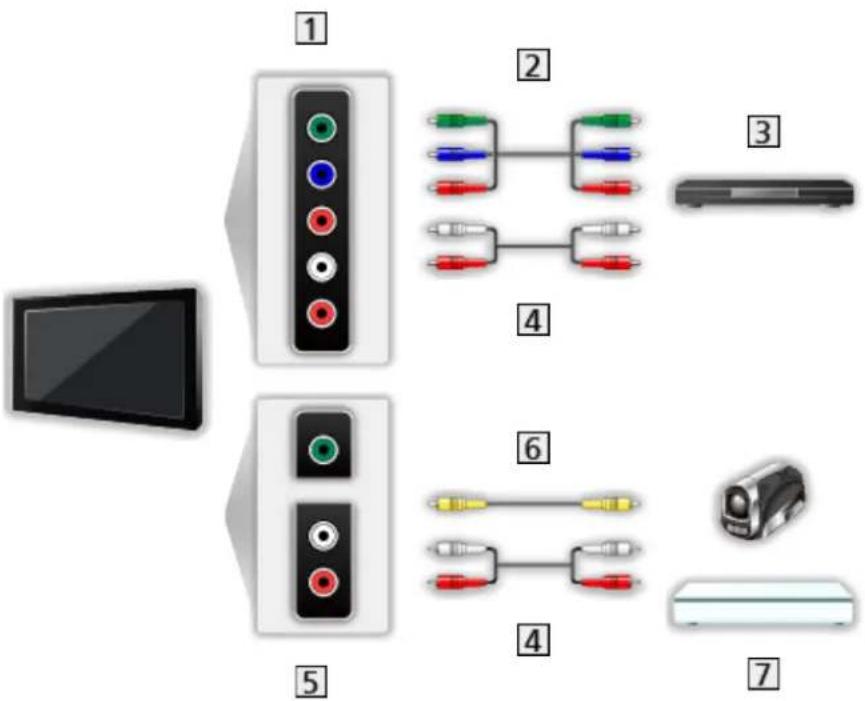

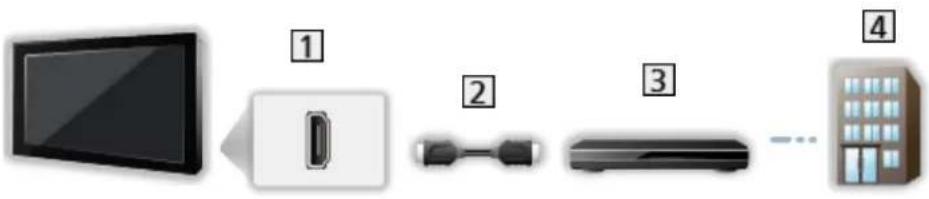

- External connection 52
- Watching external input 56
- Operating with TV's remote control 58
- HDMI features 60
• HDMI HDR Setting 62 - HDMI 2.1 Settings 63
- Valid input signals 64
For best picture
- Viewing Mode 65
- Aspect 68
- Aspect Control Signal 70
- Basic settings 72
- Ambient Sensor 75
- HDR Brightness Setting 76
- Noise reduction settings 77
- Advanced Settings 78
- Option Settings 83
- Screen Settings 87
- Lock Settings 90
• Copy Adjustment 91
For best audio
- Sound mode 92
- Basic settings 93
• Volume settings 95
• Headphone terminal output setting 97
• Voice Guidance Settings 99
• Audio Description 101
- Advanced settings 102
TV Guide

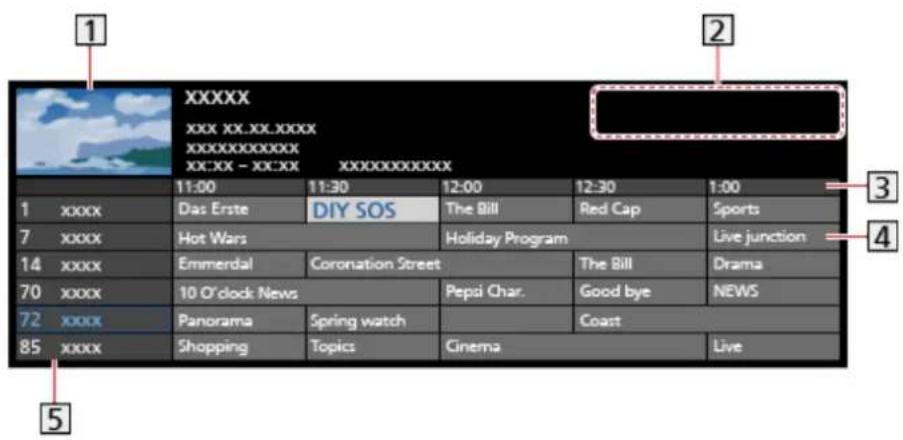

• Using TV Guide 105
Teletext
- Viewing Teletext 107
- Teletext mode 109
- Teletext Character Set 110
Tuning and editing channels
- Setting menu 111
- Channel List Editor 112
• Favourites Editor 115 - Auto Setup 117
- Manual Tuning 121
- Update Channel List 124
- Signal Condition 125
- Other settings 126
- Selectable satellites 127
Media Player
Using Media Player
• Information 128
- Selecting device / mode 130
Easy List View
- Selecting file 131
- Filtering files 133
Mix Folder View
- Selecting file 134
- Filtering files 136
- Sorting files 137
Playback
- Playback 138
- Slideshow Settings 140
- Video Setup 142
• Audio output settings 143
Connected device
• Device handling caution 144
- USB devices 145
Supported format
- Photo format 146
• Video format 147 - Music format 150
Network
Internet content
• Information 151
- Selecting internet content 152
- Note 153
Home network
• In-House streaming 154
• Preparations 156
Network connections
- Internet connection 157
• Home network connection 158 - Note 161
Network settings
• Network Connection 162
- Custom - Wireless 164
- Custom - Wired 167
- Custom - Wireless Access Point 169
• Network Status 170
• TV Name 171
• TV Remote App Settings 172
• Network Link Settings 174
• DVB-via-IP Server Settings 176
- Mirroring Settings 177
• Control4 Settings 178
• VOD Content Refresh 179
- Software Update 180
- New Software Message 181
- IPv6 182
- Terms of Service and Settings 183
Photos
- Selecting file 184
- Viewing photo 185
• Using Slideshow 186
Videos
- Selecting file 187
- Watching video 188
- Video Setup 190
• Audio output settings 192
Music
- Selecting file 194
- Playing music 195
- Music Setup 196
Supported format
- Photo format 197
- Video format 198
- Music format 201
Functions
Mirroring
- How to use 202
- Mirroring Settings 203
DVB-via-IP
• DVB-via-IP server connection 204
• DVB-via-IP Server Settings 206
• DVB-via-IP client connection 207
• DVB-via-IP Server Selection 209
- Note 210
Multi Window
• Information 211

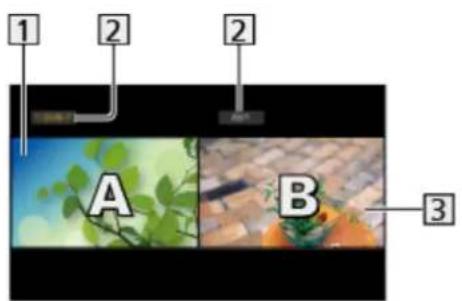

- Multi Window 212
- Note 215
VIERA Link "HDAVI Control™"
• Summary of VIERA Link 216
• Preparations 222
- Easy playback 223
• Power on Link 224
• Power off Link 225
- Standby Power Save 226
- Intelligent Auto Standby 227
• VIERA Link Control 228
- Speaker Selection 230
• Note 231
Child Lock

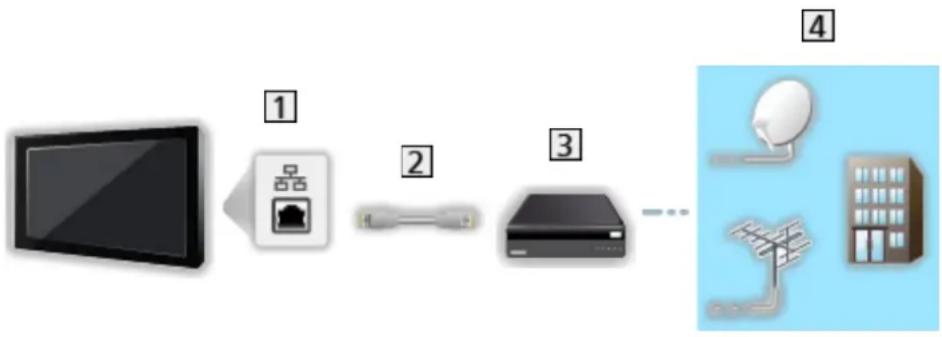

• Using Child Lock 232

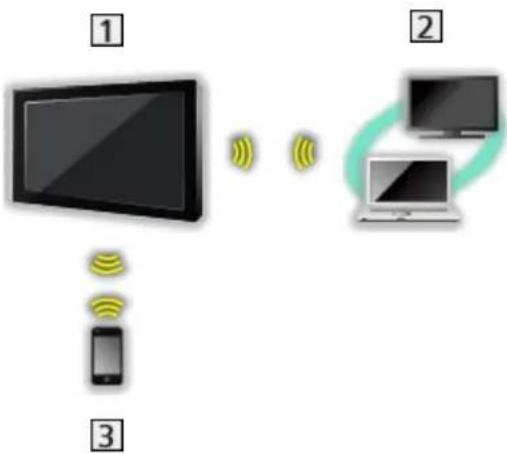

• PIN number 233
Power LED Indicator
• Using Power LED Indicator 234
Data Service Application
• Using Data Service Application 235
- Privacy Setting 236
- Note 237
Common Interface
- Caution 238

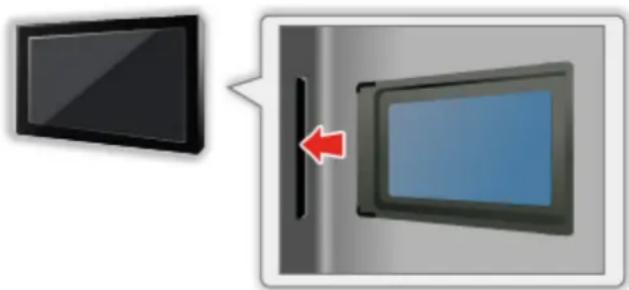

• Using Common Interface 239
Shipping Condition
• Shipping Condition 240
Updating the TV Software
• Information 241
- Auto update 242
- Manual update 243
Setting characters
• Using Numeric buttons 244
Bluetooth devices
- Bluetooth Setup 245
Keyboard
- Keyboard 248
Settings
Setting menu
• How to use 249
- Viewing Mode 251
- Basic settings 252
- Ambient Sensor 254
• HDR Brightness Setting 255
- Noise reduction settings 256
- Advanced Settings 257
- Option Settings 258
- Screen Settings 260
• PICTURE Button Setting 261
- Lock Settings 262
• Copy Adjustment 263
- Reset to Defaults 264
Sound
- Mode 265
- Basic settings 266
• Volume settings 267
• Headphone terminal output setting 268
• Voice Guidance Settings 269
• Audio Description 270
- Advanced settings 271
- Reset to Defaults 272
Network
• Network Connection 273
• Network Status 274
• TV Name 275
• TV Remote App Settings 276
• Network Link Settings 277
• DVB-via-IP Server Settings 278
- Mirroring Settings 279
• Control4 Settings 280
- Other settings 281
Timer
- Off Timer 282
• Time Zone 283
• Auto Standby 284 - No signal Power off 285
Setup
- Eco Navigation 286
- USB Device Setup 287
- Bluetooth Setup 288
- Child Lock 289
- Tuning Menu 290
- Language 292
- Display Settings 293
• HDMI Auto Setting 295
• HDMI HDR Setting 296
• HDMI 2.1 Settings 297
- Common Interface 298
• VIERA Link Settings 299
• Data Service Application 300
- System Menu 301
- Other Settings 302
Support
Help menu
• Using Help menu 303
FAQs
• Picture 304
- Digital TV 306
• Analogue TV 308
- Sound 309
- HDMI 310
• Network 311
- Other 313
• Detailed information 315
Maintenance
• Care and Cleaning 316
■ Meaning of signs
OK:
Letters enclosed in brackets indicate remote control buttons.
Menu :
Letters in cyan indicate on-screen display items.
→:
References in this eHELP
You can jump to the page by pressing OK while the cursor is on the references.

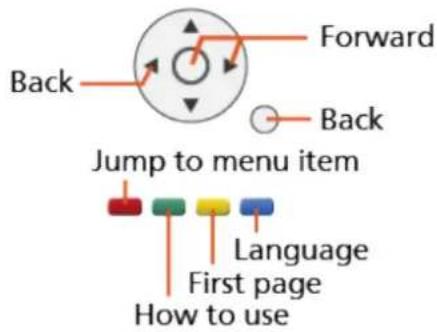

Operation guide
•The design and specifications are subject to change without notice.
•The images shown in this eHELP are for illustrative purposes only.
- This eHELP covers all models, however, some features may not be available on certain models.
- Refer to the paper manual and the actual menu in the TV etc. to confirm your model's features.
Read first
Before use
Licence
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
DVB and the DVB logos are trademarks of the DVB Project.
DiSEqC ^TM is a trademark of EUTELSAT.
THX and the THX logo are trademarks of THX Ltd., registered in the United States and other countries.
The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
x.v.Colour ^TM is a trademark.
Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.
Confidential unpublished works.
Copyright © 2013-2015 Dolby Laboratories. All rights reserved.
Text-to-Speech Powered by Nuance
2002-2019 Nuance Communications, Inc. All rights reserved.
"PlayReady" is a trademark registered by Microsoft. Please be aware of the following.
(a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
(b) Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content.
If you decline an upgrade, you will not be able to access content that requires the upgrade.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE Version 2.1 (LGPL V2.1), and/or,
(5) open sourced software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the “Software Licence” menu on this product.
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
Contact Information: oss-cd-request@gg.jp.panasonic.com
The source code and the copyright notice are also available for free in our website below.
https://panasonic.net/cns/oss/tv/EUIDTV19.html
Features
4K resolution
You can watch content in 4K format that has twice the horizontal and vertical resolution of the 1080p signal.
Watching > 4K resolution > 4K compatible equipment
Home
"Home" is a gateway to the TV programmes, applications and connected devices.
It provides you an easy way to access all the features.
Home > Home > Information
Some features are not available on all models.

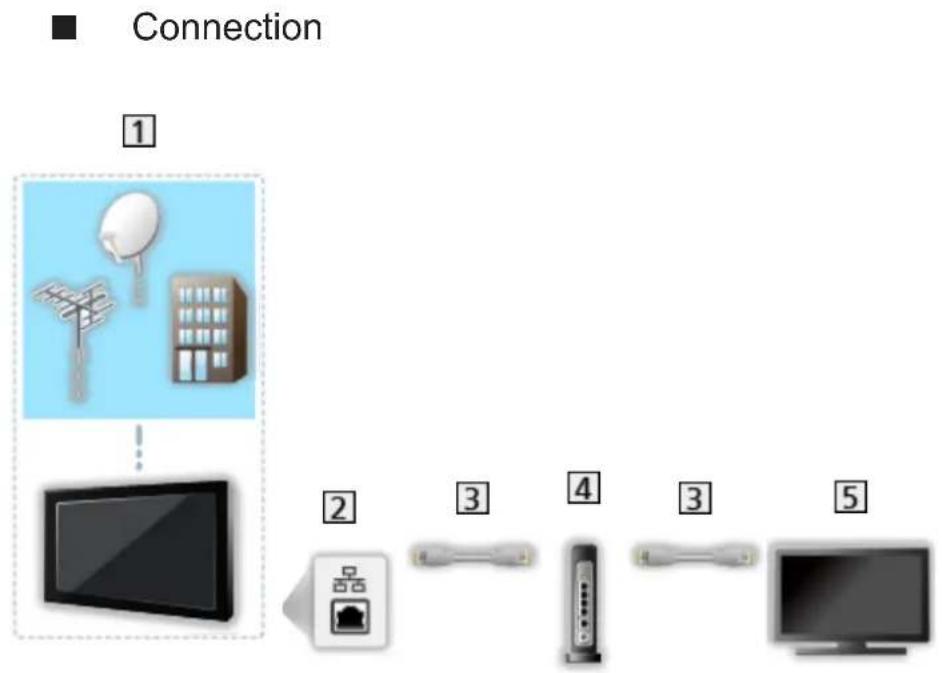

This TV can be configured as a DVB-via-IP server to provide broadcast streaming to another TV supporting DVB-via-IP client function or SAT>IP compatible devices.
Functions > DVB-via-IP > DVB-via-IP server connection
This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming.
Functions > DVB-via-IP > DVB-via-IP client connection
Easy Mirroring
You can watch and display images of other devices (smartphone, etc.) on the TV screen using a mirroring function. You can also start the mirroring function from the other devices without operating the TV.
Functions > Mirroring > How to use
Home
Home
Information

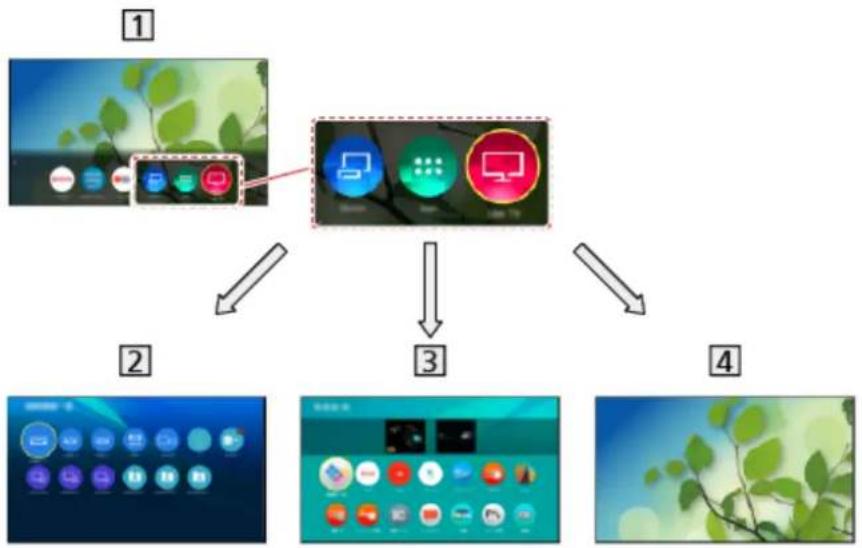

"Home" is a gateway to the TV programmes, applications and connected devices.
Home is displayed by pressing HOME and it provides you an easy way to access all the features as shown below (example).
1 Home
2 Devices
- Gateway to connected devices (HDMI equipment, USB device, network equipment, etc.)
Home > Devices
3 Apps
- Gateway to various applications (internet content, etc.)
Home > Apps
4 Live TV
- Gateway to TV programmes
Home > Live TV
= Note =
- Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use Home. You can update the software later manually.
Network > Network settings > Software Update
How to use
From Home, you can access all the features such as TV programmes, applications and connected devices.
- Display Home with HOME.
(Example)
• A broadband network environment is required to use internet services.
Network > Network connections > Internet connection
- Select Devices / Apps / Live TV and press OK to access.
•To watch full-screen TV, select Live TV.
(Example)
•The design and specifications are subject to change without notice.
Search
You can search for content from various sources.
- Display Home with HOME.
-
Press △ to select Search and press OK to access.
-
A search history may be displayed and you can select it for keyword search.
•To delete the search history
1) Select Search or a keyword and press OPTION.
2) Select Delete all histories / Delete a history and press OK.
- Follow the on-screen instructions.
Setting
You can set up Home, tabs, etc.
- Display Home with HOME.
- Press ▽ repeatedly to display the setting tab.
- Select one of the following items and press OK to access.
Tab Settings / Enable Auto Pin / Disable Auto Pin - Follow the on-screen instructions.
Tab Settings
Edits the tabs of Home.
Enable Auto Pin / Disable Auto Pin
Selects whether to automatically add a shortcut for a feature frequently used on Home.
Pin to HOME
You can add a shortcut for a frequently used feature on Home.
- Display Home with HOME.
- Select Devices / Apps / Live TV and press OK to access.
- Select a feature (device / application / TV programme).
- Display the option menu with OPTION.
- Select Pin to HOME and press OK to set.
- Select the position to add on Home.
•To remove a shortcut from Home, set Unpin from HOME.
Home > Home > Option menu
Option menu
You can customise Home.
- Display the option menu with OPTION.
- Select one of the following items and press OK to access.
Unpin from HOME / Move
- Set the item and press OK to store.
Unpin from HOME
Removes a shortcut from Home.
Move
Arranges the position of the icons.
Devices
How to use
Connected devices (HDMI equipment, USB device, network equipment, etc.) can be accessed easily from Devices.
-
Display Home with HOME.
-
Select Devices and press Ok to access.
(Example)
EXIT
•To add a shortcut icon
Home > Home > Pin to HOME
- Select a device and press OK to access.
•For external equipment
Watching > External equipment
- For USB device
Media Player > Using Media Player
•For network equipment
Network > Home network
- For mirroring function
Functions > Mirroring
= Note =
•The design and specifications are subject to change without notice.
Option menu
- Display the option menu with OPTION.
- Select one of the following items and press OK to access.
Pin to HOME / Accessibility / Switch to Component / Switch to Video / Show Info. - Set the item and press OK to store.
Pin to HOME
Adds a shortcut for a frequently used feature on Home.
Home > Home > Pin to HOME
Accessibility
Guidance settings for visually impaired users
Watching > For best audio > Voice Guidance Settings
Switch to Component / Switch to Video
You can select COMPONENT and VIDEO in AV.
Show Info.
Displays the information about the selected device.
Apps
How to use
Various applications (internet content, etc.) can be accessed easily from Apps.
- Display Home with HOME.
- Select Apps and press OK to access.
(Example)
Home > Home > Pin to HOME
- You can assign a favourite application to MY APP of the TV's remote control.
Home > Apps > Option menu
-
Select an application and press OK to access.
-
Follow the on-screen instructions.
= Note =
•The design and specifications are subject to change without notice.
- Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.
•A broadband network environment is required to fully use this function.
Option menu
- Display the option menu with OPTION.
- Select one of the following items and press OK to access.
Pin to HOME / Set as My App / Move / Lock / Unlock / Uninstall / Show Info. - Set the item and press OK to store.
Pin to HOME
Adds a shortcut for a frequently used feature on Home.
Home > Home > Pin to HOME
Set as My App
Assigns your favourite application to MY APP of the TV's remote control.
• is displayed on the assigned application.
- To change the assignment, set Set as My App while the cursor is on another application.
Move
Arranges the position of the applications.
Lock, Unlock
Locks / unlocks a specific application to restrict access (if available).
- Child Lock PIN number is required to access to locked application.
Functions > Child Lock > PIN number
Uninstall
Deletes an application from Apps (if available).
Show Info.
Displays the information about the selected application.
Live TV
How to use
Live TV is a gateway to the TV programmes.
- Display Home with HOME.
- Select Live TV.
- Press Ok to access.
(Example)
Watching > Basic
•To add a shortcut icon
Home > Home > Pin to HOME
Option menu
- Display the option menu with OPTION.
- Select one of the following items and press OK to access.
Pin to HOME / Accessibility / AV Options / Category - Set the item and press OK to store.
Pin to HOME
Adds a shortcut for a frequently used feature on Home.
Home > Home > Pin to HOME
Accessibility
Guidance settings for visually impaired users
Watching > For best audio > Voice Guidance Settings
AV Options
Easy optional setting for viewing, sound, etc.
Watching > Basic > AV Options
- Menu items and selectable options vary depending on the TV mode.
Category
Changes the category of channels for selecting a channel from the channel list, information banner, etc.
Watching
Basic
Satellite connection
Only for dual tuner model
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
•External equipment and cables shown are not supplied with this TV.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
- For DVB-S
■ Dual Tuner (DiSEqC)
② Satellite cables with Multiswitch
3 Satellite dish
■ Dual Tuner (Single Cable System)
② Satellite cable with Single Cable router
3 Satellite dish
■ Single Tuner
Connect the satellite IN 1 terminal to the satellite dish.
2 Satellite cable
3 Satellite dish
= Note =
• To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.
- Selectable satellites and dish alignment to tune DVB-S channels
Watching > Tuning and editing channels > Selectable satellites
- Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
- Check the terminal type and cable plugs are correct for connection.
Basic connection
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
- External equipment and cables shown are not supplied with this TV.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
Satellite dish
2 Satellite cable
3 Satellite dish
- For DVB-S
• To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.
- Selectable satellites and dish alignment to tune DVB-S channels
Watching > Tuning and editing channels > Selectable satellites
Aerial
① Terrestrial / cable terminal
2 RF cable
3 Terrestrial aerial / Cable
•For DVB-C, DVB-T, Analogue
■ DVD Recorder / Blu-ray Recorder, etc.
1 Terrestrial / cable terminal
2 RF cable
3 DVD Recorder / Blu-ray Recorder, etc.
4 Terrestrial aerial / Cable
5 HDMI terminal
6 HDMI cable
■ Set top box
① HDMI terminal
2 HDMI cable
3 Set top box
4 Cable
= Note =
•For details of DVB-via-IP connections
Functions > DVB-via-IP
•For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Please also read the manual of the equipment being connected.
- Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
- Use a fully wired HDMI compliant cable.
- Use a high speed HDMI cable for high resolution images.
- Check the terminal type and cable plugs are correct for connection.
Selecting channel
- Select the mode with TV.
DVB-S / DVB-C / DVB-T / DVB-via-IP / Analogue
- Selectable modes vary depending on the channels stored.
- Select a channel with Channel Up / Down or Numeric buttons.
- Press Numeric buttons to select a channel position with 2 or more-digit (e.g. 399, press 3 9). 9
■ To select a channel from the channel list
- Display Apps with APPS.
- Select List Application and press OK.
- Select a channel from the list and press OK to watch.
• To sort channel names in alphabetical order
(red)
■ To select a channel using information banner
- Display information banner with if it is not displayed.
- Select a channel and press OK to watch while the banner is displayed.
Watching > Basic > Information banner
■ To select a channel using TV Guide
- Display TV Guide with GUIDE.
- Select the current programme and press OK to access.
- The current programme is displayed on the top left of the screen.
Watching > TV Guide > Using TV Guide
- Not valid in Analogue
■ To watch pay-TV
- For details of the encrypted channels
Functions > Common Interface > Using Common Interface
- Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.
Information banner
Display information banner with
•Also appears when changing a channel.
(Example)
② Channel type (Radio, HDTV, etc.) / Encrypted channel 📋/ TV mode ( , 🎯, 📋, 🌐)
3 Programme
Start time / End time (except Analogue)
Channel position, etc. (Analogue)
Progress time indicator of the selected programme (except Analogue)
4 Category
•To change the category (DVB)
Home > Live TV > Option menu
5 Date and time
6 Features available / message meanings
Bad signal:
Poor quality TV signal
DD, DD+, DAC4, HE-AAC:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos or HE-AAC audio track
AD:
Audio Description service available
- This function can aid visually-impaired viewers by providing an additional audio track to describe events on screen.
Watching > For best audio > Audio Description
:
Subtitle service available
Teletext service available
Multiple audio available
Multiple video available
Multiple audio and video available
Stereo, Mono:
Audio mode
Data service (Hybrid Broadcast Broadband TV application) available
Functions > Data Service Application > Using Data Service Application
1 - 90:
Off Timer remaining time
Watching > Basic > Off Timer
• To confirm another tuned channel
•To watch the channel listed in the banner
•Information on the next programme (DVB)
•Extra information (DVB)
- Press again to hide the banner.
•To hide the banner
• To adjust banner timeout, set Banner Display Timeout.
1) Display the menu with MENU.
2) Select Setup > Display Settings > Banner Display Timeout and press OK to access.
3) Set the item and press OK to store.
AV Options
Some features are not available on all models. Available menu items are displayed on your TV screen.
Confirm or change the current status.
- Display the image full-screen to use this function.
- Display the option menu with OPTION.
- Select AV Options and press OK to access.
- Select one of the following items and press OK to access.
Audio Type / Multi Video / Multi Audio / Dual Audio / Sub Channel / Subtitle Language / Teletext Character Set / Teletext Language / MPX / Volume Correction / CAM Selection
- The function items vary depending on the TV mode and country you select.
- Set the item and press OK to store.
Audio Type
Set to Audio Description if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen (if available).
- For DVB
• To adjust the volume for Audio Description
Watching > For best audio > Audio Description - Not valid in multi window mode
Multi Video
Selects from a group of multiple videos (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
Multi Audio
Selects between alternative language or Audio Description for sound tracks (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
Dual Audio
Selects stereo / monaural (if available).
- For DVB
Sub Channel
Selects the multifeed programme - sub channel (if available).
- For DVB
Subtitle Language
Selects between alternative subtitle languages or types (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
- Not valid on the sub screen in multi window mode
Teletext Character Set
Sets the teletext language font.
Watching > Teletext > Teletext Character Set
Teletext Language
Selects between alternative teletext languages (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
MPX
Selects multiplex sound mode (if available).
Watching > For best audio > Advanced settings
- For Analogue
Volume Correction
Adjusts the volume of each individual channel or input mode.
CAM Selection
Selects CI module (if available).
- For DVB
Subtitle
Display / hide subtitles (if available) with STTL.
- To select the preferred language for DVB subtitles (if available), set Preferred Subtitles.
Watching > Basic > Language
• To select the preferred subtitle type
1) Display the menu with MENU.
2) Select Setup > Display Settings > Preferred Subtitle Type and press OK to access.
3) Select Standard / Hard of Hearing and press OK to set.
- Hard of Hearing provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).
- Preferred Subtitles 1 / 2 in Language are given priority.
Watching > Basic > Language
= Note =
- If you press STTL in Analogue, the TV switches to teletext service and calls up a favourite page. Press EXIT to return to TV mode.
- Not valid on the sub screen in multi window mode
Last view
Switch to a previously viewed channel or input mode easily with LAST VIEW.
- Press again to return to the current view.
= Note =
- Switching channel may not be available depending on the condition.
- Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.
Off Timer
Switch to TV Standby mode automatically after a fixed period.
- Display the menu with MENU.
- Select Timer > Off Timer and press OK to access.
- Select the time in 15-minute increments and press OK to set. 90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)
• To cancel, set to Off or turn the TV off.
- The remaining time is displayed on the bottom right of the screen.
- The remaining time will flash on the screen when less than 3 minutes.
Energy saving functions
The TV can be eco-friendly using energy-saving functions.
The TV goes into Standby mode in the following conditions:
•Eco Navigation is set to Set to Eco.
- Off Timer is active.
Watching > Basic > Off Timer
- No operation is performed for 4 hours while Auto Standby is set to On.
- No signal is received and no operation is performed for 10 minutes while No signal Power off is set to On.
■ Auto Standby
- Display the menu with MENU.
- Select Timer > Auto Standby and press OK to access.
- Select On / Off and press OK to set.
Auto Standby
(On / Off)
Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
- Automatic input switching with the connected equipment affects this function and time-count resets.
- A notification message will appear 3 minutes before going into Standby mode.
- Changing the default configuration may result in higher energy consumption of the product.
■ No signal Power off
- Display the menu with MENU.
- Select Timer > No signal Power off and press OK to access.
- Select On / Off and press OK to set.
No signal Power off
(On / Off)
Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.
- A notification message will appear 3 minutes before going into Standby mode.
■ Eco Navigation
- Display the menu with MENU.
- Select Setup > Eco Navigation and press OK to access.
- Select Set to Eco and press OK to set.
Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode.
The concerned items and their current settings are displayed. Select Set to Eco to set them to the energy-saving settings at once.
- Auto Standby and No signal Power off are active when Eco Navigation is set to Set to Eco.
Radio Mode
- Display the menu with MENU.
- Select Setup > Display Settings > Radio Mode and press OK to access.
- Select the time and press OK to set.
Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is selected.
(20 / 15 / 10 / 5 / Off (seconds))
- Sound is active even if the screen is turned off. This function is effective in reducing power consumption when listening to a radio channel.
- Press any buttons except Standby On / Off switch, Volume Up / Down and MUTE to turn the screen on.
- Not valid in Analogue
Adjusting time
Adjusts the time data.
- Display the menu with MENU.
- Select Timer > Time Zone and press OK to access.
- Set the item and press OK to store.
•The time data are corrected based on GMT.
Language
- Display the menu with MENU.
- Select Setup > Language and press OK to access.
- Select one of the following items and press OK to access.
OSD Language / Preferred Audio 1 / 2 / Preferred Subtitles 1 / 2 / Preferred Teletext - Set the item and press OK to store.
OSD Language
Changes language for on-screen displays.
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the broadcaster).
Preferred Subtitles 1 / 2
Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).
•To display subtitles
Watching > Basic > Subtitle
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster).
4K resolution
4K compatible equipment
You can watch content in 4K format that has twice the horizontal and vertical resolution of the 1080p signal.
- For details of valid 4K format
Watching > 4K resolution > Valid 4K format
- Connect the 4K compatible equipment to HDMI terminal using a 4K compatible cable and you can watch content in 4K format.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
■ 4K compatible equipment
2 HDMI cable
3 4K compatible equipment
- Check the terminal type and cable plugs are correct for connection.
- Use a fully wired HDMI compliant cable.
- Use a high speed HDMI cable for high resolution images.
HDMI Auto Setting
- Display the menu with MENU.
- Select Setup > HDMI Auto Setting and press OK to access.
- Set the item and press OK to store.
HDMI Auto Setting
(Mode1 / Mode2)
Reproduces the image more precisely with the expanded colour gamut when connecting the 4K compatible equipment. Select the mode depending on the equipment.
Mode1:
For better compatibility. Set to Mode1 when the image or sound in HDMI input is not played properly.
Mode2:
For the 4K compatible equipment that has the function to output the image precisely with the expanded colour gamut
- The setting can be stored for each HDMI input.
-
Valid format (4K)
-
Mode1: 4:4:4 / 4:2:2 (30p, 25p, 24p), 4:2:0 (60p, 50p)
- Mode2: 4:4:4 / 4:2:2 (30p, 25p, 24p), 4:4:4 / 4:2:2 / 4:2:0 (60p, 50p)
■ Valid 4K format (HDMI)
K UHD
3 840 × 2 160 (60p, 50p, 30p, 25p, 24p)
- Aspect is fixed to 16:9.
CI 4K
4 096 × 2 160 (60p, 50p, 30p, 25p, 24p)
- Actual resolution is 3840 × 2160p .
- Aspect is fixed to V Full.
= Note =
- The above signals are reformatted for optimal viewing on your display.
- For details of aspect
Watching > For best picture > Aspect
External equipment
External connection
Some features are not available on all models.
These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.
- For details of basic connection
Watching > Basic > Basic connection
•To use the specific devices supporting Bluetooth wireless technology
Functions > Bluetooth devices
- Check the terminal type and cable plugs are correct for connection.
- External equipment and cables shown are not supplied with this TV.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
■ HDMI equipment
1 HDMI terminal
2 HDMI cable
3 Recorder / Player / Set top box / Camcorder / Amplifier with speaker system
= Note =
- Use a fully wired HDMI compliant cable.
- Use a high speed HDMI cable for high resolution images.
- For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Use HDMI2 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.
■ AV devices
1 AV (COMPONENT) terminals
② Component cables (Shielded)
- Use shielded component cables.
③ DVD Player, etc.
4 Audio cables (Shielded)
- Use shielded audio cables.
5 AV (VIDEO) terminals
6 Composite cable (Shielded)
- Use shielded composite cable.
7 Camcorder / Game equipment
USB devices
2 USB devices
= Note =
- It is recommended to connect the device to the TV's USB port directly.
- You cannot use two or more of the same kind of USB devices simultaneously except USB Flash Memory.
- Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices by using USB card reader.
■ Listening with external speakers
1 DIGITAL AUDIO
② Optical digital audio cable
3 Amplifier with speaker system
• To enjoy multi-channel sound from external equipment (e.g. Dolby Audio (Dolby Digital) 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.
• To select the sound output to adjust the volume, set TV Speaker Setting.
Watching > For best audio > Volume settings
Headphones
2 3.5 mm stereo mini plug
3 Headphones
•To use headphones, set Headphone Terminal Output to Headphone.
Watching > For best audio > Headphone terminal output setting
- Do not connect a sub woofer while Headphone Terminal Output is set to Headphone.
•To adjust the volume, set Headphone Volume.
Watching > For best audio > Headphone terminal output setting
• To select the sound output to adjust the volume, set TV Speaker Setting.
Watching > For best audio > Volume settings
2 Audio cable (3.5 mm stereo mini plug - audio pin plug)
3 Sub woofer
•To use a sub woofer, set Headphone Terminal Output to Sub Woofer.
Watching > For best audio > Headphone terminal output setting
- Do not connect headphones while Headphone Terminal Output is set to Sub Woofer.
• To adjust the volume, set Sub Woofer Adjustment.
Watching > For best audio > Headphone terminal output setting
- The volume of the sub woofer can be also controlled when adjusting the volume of this unit with this TV's remote control.
Watching external input
Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.
- Display the input selection menu with AV.
-
Select the input mode connected to the equipment and press OK to watch. (The selected mode is displayed on the top left of the screen.)
-
You can also select the input pressing AV. Press repeatedly until the desired input is selected.
- You can select COMPONENT and VIDEO in AV.
- You can label or skip each input mode. Skipped inputs will not be displayed when AV is pressed. (Input Labels)
- The remote control is capable of operating the content or external equipment.
Watching > External equipment > Operating with TV's remote control
•To return to TV mode
= Note =
- If the external equipment has an aspect adjustment function, set it to 16:9.
- For details, read the manual of the equipment or ask your local dealer.
■ Input Labels
Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner.
Watching > Basic > Information banner
- Display the menu with MENU.
- Select Setup > Display Settings > Input Labels and press OK to access.
- Set the item and press OK to set.
- To name each input mode freely, select User input and set characters (maximum 10 characters).
- To skip the input mode, select Skip.
■ Playing Time Display
Set to On to display a time period of continuous use in Game Mode on the top right of the screen every 30 minutes.
- Display the menu with MENU.
- Select Setup > Display Settings > Playing Time Display and press OK to access.
- Select On / Off and press OK to set.
- This function is available when Game Mode is set to On.
Operating with TV's remote control
You can operate the content in Media Player / media server, recording functions or the connected equipment with the following buttons of this TV's remote control.
Playback (VCR / DVD / video content)
Stop the operations
Rewind, view the picture rapidly in reverse (VCR)
Skip to the previous track, title or chapter (DVD / video content)
Rewind, view the picture rapidly in reverse (VCR)
Search backward (DVD / video content)
Fast-forward, view the picture rapidly forward (VCR)
Skip to the next track, title or chapter (DVD / video content)
Fast-forward, view the picture rapidly forward (VCR)
Search forward (DVD / video content)
Pause / Resume
Press and hold to play at slow speed (DVD)
Start recording (DVD Recorder / VCR)
■ How to change the code
Each Panasonic product has its own remote control code. Change the code according to the product for operation.
- Press and hold Standby On / Off switch during the following operations.
- Enter the appropriate code as follows with Numeric buttons.
- Codes for each product and features
70: DVD Recorder, DVD Player, Blu-ray Disc Player
71: Player theatre, Blu-ray Disc theatre
72: VCR
73 (default):
Using in Media Player, in-house streaming or VIERA Link
- Press ■ to change.
= Note =
- Confirm if the remote control works correctly after changing the code.
- The codes may be reset to defaults if batteries are replaced.
- Some operations may not be available depending on the equipment.
HDMI features
HDMI (high-definition multimedia interface) is the world's first complete digital consumer AV interface complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV to external equipment.
HDMI-compatible equipment* with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using a fully wired HDMI compliant cable.
Watching > External equipment > External connection
* : The HDMI logo is displayed on HDMI-compliant equipment.
■ Applicable HDMI features
- Input audio signal:
LPCM, Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby TrueHD), Dolby Atmos
- Audio settings can be made on HDMI Audio Format in the Sound Menu.
Watching > For best audio > Advanced settings
- Input video signal:
Matches the output setting of the digital equipment.
Watching > External equipment > Valid input signals
•VIERA Link (HDAVI Control 5)
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Content Type
- Deep Colour
•Audio Return Channel
– Audio Return Channel (ARC) is a function to send digital sound signals via an HDMI cable.
- For HDMI2
•x.v.Colour™
•4K
Watching > 4K resolution > Valid 4K format
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable, connect the audio cable to the audio input terminal (use COMPONENT / VIDEO audio terminals).
- Enquire HDMI adaptor cable at your local digital equipment retailer shop.
= Note =
- Audio settings can be made on HDMI Audio Format / HDMI Input in the Sound Menu.
Watching > For best audio > Advanced settings
- If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
• These HDMI connectors are "type A".
- These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
- Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.
•This TV incorporates HDMI™ technology.
HDMI HDR Setting
- Display the menu with MENU.
- Select Setup > HDMI HDR Setting and press OK to access.
- Set the item and press OK to store.
HDR Setting
(Dynamic / Static / Off)
Set to Dynamic or Static when the HDR device is connected to the TV.
- Please turn Off this function if the image looks unnatural. This may occur in some cases such as compatibility with the connected device, source images or with use of multi-window function.
- Image may disappear for a few seconds when the setting is changed.
•For HDMI
HDR Dynamic Setting
HDR10+ Functionality
(On / Off)
Enables the HDR10+ function for HDMI input signal.
Dolby Vision
(On / Off)
Enables the Dolby Vision function for HDMI input signal.
= Note =
- Supporting HDR does not increase the peak brightness capabilities of the TV panel.
HDMI 2.1 Settings
- Display the menu with MENU.
- Select Setup > HDMI 2.1 Settings and press OK to access.
- Set the item and press OK to store.
ALLM
(On / Off)
Automatically switches the TV to Game Mode according to the ALLM information when using this TV in single window mode.
•For HDMI
- Not valid when HDMI Auto Setting is set to Mode1
COMPONENT, HDMI
| Signal name COMPONENT HDMI | |
| 525 (480) / 60i, 60p ○ ○ | |
| 625 (576) / 50i, 50p ○ ○ | |
| 750 (720) / 60p, 50p ○ ○ | |
| 1 125 (1 080) / 60i, 50i ○ ○ | |
| 1 125 (1 080) / 60p, 50p, 24p ○ | |
| 3 840 × 2 160 / 60p, 50p, 30p, 25p, 24p | |
| 4 096 × 2 160 / 60p, 50p, 30p, 25p, 24p |
○: Applicable input signal
= Note =
- Signals other than those above may not be displayed properly.
- The above signals are reformatted for optimal viewing on your display.
- For details of valid 4K format
Watching > 4K resolution > Valid 4K format
For best picture
Viewing Mode
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Picture > Viewing Mode and press OK to access.
- Select the mode and press OK to set.
Viewing Mode
(Dynamic / Normal / Professional Photo / Cinema / THX Cinema / THX Bright Room / True Cinema / Custom / Professional1 / Professional2 / Sport / Game / Dolby Vision Vivid / Dolby Vision Bright / Dolby Vision Dark)
Selects your favourite picture mode for each input.
Dynamic:
Improves contrast and sharpness for viewing in a bright room.
Normal:
Normal use for viewing in a normal lighting condition.
Professional Photo:
Reproduces the original image for photo.
- For photo content
Cinema:
Improves the performance of contrast, black and colour reproduction for watching a film in a darkened room.
THX Cinema\*:
Reproduces the original image quality precisely in a darkened room.
THX Bright Room\*:
Reproduces the original image quality precisely in a bright room.
True Cinema:
Reproduces the original image quality precisely without any revision.
Custom:
Adjusts each menu item manually to suit your favourite picture quality.
Professional1 / 2:
Allows you to set and lock the professional picture settings.
Watching > For best picture > Advanced Settings
- If a certified professional dealer sets these modes, Professional1 and Professional2 may be displayed as isf Day and isf Night.
Sport:
Improves picture quality for watching sports, etc.
- The sound mode is automatically set to Stadium when Viewing Mode is set to Sport. To cancel the linkage of the sound and viewing mode, set Sport Link to Off.
Watching > For best audio > Basic settings
Game:
Improves picture quality for playing games, etc.
- For HDMI, AV (COMPONENT / VIDEO)
- Game Mode is automatically set to On when Viewing Mode is set to Game.
Watching > For best picture > Option Settings
Dolby Vision Vivid:
Reproduces Dolby Vision content precisely in a bright room.
Dolby Vision Bright:
Reproduces Dolby Vision content precisely in a normal lighting condition.
Dolby Vision Dark:
Reproduces Dolby Vision content precisely in a darkened room.
- The following items can be adjusted and stored for each mode.
Luminance Level / Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Colour Remaster / Rec.2020 Colour Remaster / Adaptive Backlight Control / Ambient Sensor / HDR Brightness Setting / Noise Reduction / MPEG Remaster / Resolution Remaster / Dynamic Range Remaster / Intelligent Frame Creation / Clear Motion
- This function can be memorised respectively for input or TV mode.
* : THX modes are used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies. THX Certified movies have the THX logo on the disc. THX modes are not available for photo content.
■ Netflix Calibrated Mode
Reproduces the image quality based on the professional monitor settings while watching Netflix.
- Display the menu with MENU.
- Select Picture > Netflix Calibrated Mode and press OK to access.
-
Select On / Off and press OK to set.
-
Ambient Sensor / HDR Auto Brightness are not available and Viewing Mode is fixed to Netflix when Netflix Calibrated Mode is set to On.
- For Netflix content
■ To change the viewing mode with PICTURE
You can change the viewing mode easily only by pressing PICTURE.
- Display Viewing Mode with PICTURE.
-
Select the mode and press OK to set.
-
You can also change the mode by pressing PICTURE.
(Press repeatedly until you reach the desired mode.)
•To set the viewing mode selection
1) Display the menu with MENU.
2) Select Picture > PICTURE Button Setting and press OK to access.
3) Select the viewing mode to set.
Some features are not available on all models. Available menu items are displayed on your TV screen.
Changes the aspect ratio (image size).
■ To change the aspect ratio manually
- Display the menu with MENU.
- Select Picture > Screen Settings and press OK to access.
- Select Aspect and press OK to access.
- Set the item and press OK to store.
Auto:
The best ratio is selected automatically according to the “Aspect Control Signal”.
Watching > For best picture > Aspect Control Signal
16:9:
Directly displays the image at 16:9 without distortion (anamorphic).
4:3:
Displays the image at the standard 4:3 without distortion.
Zoom:
Displays a 16:9 letterbox or 4:3 image without distortion.
4:3 Full:
Displays a 4:3 image enlarged horizontally to fit the screen.
V Full:
Displays the image enlarged vertically to fit the screen without distortion.
- For DCI 4K format
= Note =
- Display the image full-screen to use this function completely.
- Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.
- Aspect cannot be changed in teletext service.
- Aspect is fixed to 16:9 in the following conditions:
– Game Mode is set to On.
- 1080p Pure Direct is set to On.
- 4K Pure Direct is set to On.
- 1080p Pixel by 4pixels is set to On.
- 4K content except DCI 4K
Aspect Control Signal
Programmes usually contain an "Aspect Control Signal". (Widescreen signal, Control signal through HDMI terminal)
In Auto mode, aspect mode will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through HDMI terminal is found. The aspect switches to the appropriate ratio.
Watching > For best picture > Aspect
■ Available conditions
Satellite terminal (WSS only)
Valid input signal format:
DVB-S
- Terrestrial / cable terminal (WSS only)
Valid input signal format:
DVB-C
DVB-T / DVB-T2
PAL D, K
SECAM D, K
Invalid input signal format:
PAL 525/60 6.5 MHz
PAL 525/60 6.0 MHz
PAL 525/60 5.5 MHz
M.NTSC 6.5 MHz
M.NTSC 6.0 MHz
M.NTSC 5.5 MHz
AV (VIDEO) terminals
Valid input signal format:
PAL
SECAM
PAL 525/60*
M.NTSC*
NTSC*
* : Control signal through HDMI terminal only
▲V (COMPONENT) terminals (WSS only)
Valid input signal format:
625 (576) / 50i, 50p
Invalid input signal format:
525 (480) / 60i, 60p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
HDMI terminal
Valid input signal format:
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
1 125 (1 080) / 60p, 50p, 24p
3 840 × 2 160 / 60p, 50p, 30p, 25p, 24p
4 096 × 2 160 / 60p, 50p, 30p, 25p, 24p
- HDMI terminal does not receive WSS signal.
= Note =
- If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.
- For details of valid 4K format
Watching > 4K resolution > Valid 4K format
Basic settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Picture and press Ok to access.
- Select one of the following items and press OK to access.
Luminance Level / Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Colour Remaster / Rec.2020 Colour Remaster / Adaptive Backlight Control / Resolution Remaster / Dynamic Range Remaster / Intelligent Frame Creation / Clear Motion - Set the item and press OK to store.
Luminance Level, Backlight, Contrast, Brightness, Colour, Tint, Sharpness
Adjusts the levels of these options according to your personal preference.
- Sharpness is not available when 1080p Pixel by 4pixels is set to On.
Colour Temperature
Sets the overall colour tone of the picture (bluer - redder).
Vivid Colour
(On / Off)
Automatically adjusts colours to vivid ones.
Colour Remaster
(Max / Min / Off)
Displays the vivid images with the expanded colour gamut.
- Not valid in the following conditions:
- Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark.
- Viewing Mode is THX mode.
Rec.2020 Colour Remaster
(On / Off)
Displays the vivid images with the suitable colour gamut.
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
- This function is available only for Rec. 2020 and displayed instead of Colour Remaster.
Adaptive Backlight Control
Automatically controls the level of backlight according to the images.
Resolution Remaster
(Auto / Max / Mid / Min / Off)
Enhances picture resolution to make the image sharper.
- Not valid when 1080p Pixel by 4pixels is set to On
Dynamic Range Remaster
(On / Off)
Enhances bright areas of the image closer to the original luminance making improved picture impact.
- Not valid in the following conditions:
- Multi window
- HDR video signal
- Viewing Mode is set to Sport.
Intelligent Frame Creation
(Custom / Max / Mid / Min / Off)
Automatically compensates the picture frame rate and removes juddering movements to make the images smooth.
- Depending on the content, images may be noisy. To prevent the noise, change the setting.
- Select Custom to set Intelligent Frame Creation manually.
Blur Reduction:
Adjusts the smoothness of camera content to minimise blur.
Film Smooth:
Adjusts the smoothness of film content.
Black Frame Insertion:
Makes the blurring image clearer for video content, etc.
- Not valid for photo content
Reset to Defaults:
Resets items for Intelligent Frame Creation.
- Not valid in the following conditions:
– Game Mode is set to On.
- 1080p Pixel by 4pixels is set to On.
- 1080p Pure Direct is set to On.
- 4K Pure Direct is set to On.
- Photo content
Clear Motion
(On / Off)
Makes the moving pictures clearer by controlling the level of backlight.
•Not valid for photo content
Ambient Sensor
- Display the menu with MENU.
- Select Picture > Ambient Sensor and press OK to access.
- Select On / Off and press OK to set.
Ambient Sensor
(On / Off)
•Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting condition.
•Not valid for HDR video signal
HDR Brightness Setting
- Display the menu with MENU.
- Select Picture > HDR Brightness Setting and press OK to access.
- Select one of the following items and press OK to access.
Dynamic HDR Effect / HDR Auto Brightness / HDR Brightness Enhancer - Set the item and press OK to store.
Dynamic HDR Effect
(On / Off)
Automatically adjusts the luminance according to an HDR video signal.
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
HDR Auto Brightness
(On / Off)
Automatically adjusts the luminance according to a lighting condition.
HDR Brightness Enhancer
Adjusts the luminance when watching an HDR video in a bright environment.
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
= Note =
- Supporting HDR does not increase the peak brightness capabilities of the TV panel.
Noise reduction settings
- Display the menu with MENU.
- Select Picture > Noise Reduction / MPEG Remaster and press OK to access.
- Set the item and press OK to store.
Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces unwanted picture noise.
- Not valid in the following conditions (The condition may differ depending on the model.):
– Game Mode is set to On. - 1080p Pure Direct is set to On.
- 4K Pure Direct is set to On.
- 1080p Pixel by 4pixels is set to On.
MPEG Remaster
(Auto / Max / Mid / Min / Off)
Reduces flicker noise in contoured parts of a picture and block noise.
- Not valid in the following conditions (The condition may differ depending on the model.):
– Game Mode is set to On. - 1080p Pure Direct is set to On.
- 4K Pure Direct is set to On.
- 1080p Pixel by 4pixels is set to On.
Advanced Settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
You can adjust and set up the detailed picture settings when Viewing Mode is set to Professional Photo, Cinema, True Cinema, Custom, Professional1 / 2, Dolby Vision Bright or Dolby Vision Dark. The settings in True Cinema, Custom or Professional1 / 2 can be stored for each input.
Watching > For best picture > Viewing Mode
- Select the input mode with AV or TV.
- Display the menu with MENU.
- Select Picture > Viewing Mode and press OK to access.
- Select the mode and press OK to set.
Professional Photo / Cinema / True Cinema / Custom / Professional1 / Professional2 / Dolby Vision Bright / Dolby Vision Dark
■ Adjust the detailed picture settings
- Display the menu with MENU.
- Select Picture > Advanced Settings and press OK to access.
- Select one of the following items and press OK to access.
Contrast Control / Colour Gamut / Photo Colour Gamut / White Balance / Colour Management / Gamma / Reset to Defaults
- Set the item and press OK to store.
■ Contrast Control
Contrast Control
(Custom / Auto / Off)
Automatically adjusts the detailed contrast settings. Select Custom to set Contrast Control Setting manually.
Contrast Control Setting
Adaptive Gamma Control:
Adjusts the gamma curve to make the image brighter.
Black Expander:
Gradually adjusts the shades of black.
Clear White Effect:
Makes the white area clearer.
Reset to Defaults:
Resets items for Contrast Control Setting.
■ Colour Gamut / Photo Colour Gamut
Colour Gamut
(Auto / Normal / Native / Rec. 709 / SMPTE-C / EBU / Rec. 2020 / DCI-P3)
Reproduces image colour precisely according to the colour gamut standards.
Auto:
Automatically adjusts the colour gamut according to the input signal.
Normal:
Displays colours according to the colour gamut.
Native:
Displays deep colours by expanding the colour gamut to its maximum.
Rec. 709:
Standard for HD (High definition)
SMPTE-C:
Standard for NTSC
EBU:
Standard for PAL
Rec. 2020:
Provides the suitable colour gamut for Rec. 2020.
DCI-P3:
Provides the suitable colour gamut for DCI 4K.
- Set Colour Remaster to Off to use this function.
- Set Rec.2020 Colour Remaster to Off to use this function for the Rec. 2020 signal.
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
Photo Colour Gamut
(Auto / sRGB / Adobe / Rec. 2020)
Auto:
Automatically adjusts the colour gamut according to the input signal.
sRGB:
Standard for sRGB
Adobe:
Standard for AdobeRGB
Rec. 2020:
Provides the suitable colour gamut for Rec. 2020.
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
White Balance
R-Gain / G-Gain / B-Gain
Adjusts the white balance of bright red / green / blue areas.
R-Cutoff / G-Cutoff / B-Cutoff
Adjusts the white balance of dark red / green / blue areas.
More Detailed Adjustment
Adjusts more detailed items for White Balance.
Input Signal Level:
Adjusts the input signal level.
R-Gain / G-Gain / B-Gain:
Adjusts the detailed white balance of bright red / green / blue areas.
Reset to Defaults:
Resets items for More Detailed Adjustment.
Reset to Defaults
Resets White Balance to the default settings.
■ Colour Management
R-Hue / R-Saturation / R-Luminance
Adjusts the picture hue / saturation / luminance of red areas.
G-Hue / G-Saturation / G-Luminance
Adjusts the picture hue / saturation / luminance of green areas.
B-Hue / B-Saturation / B-Luminance
Adjusts the picture hue / saturation / luminance of blue areas.
More Detailed Adjustment
Adjusts more detailed items for Colour Management.
C-Hue / M-Hue / Y-Hue:
Adjusts the picture hue of cyan / magenta / yellow areas.
C-Saturation / M-Saturation / Y-Saturation:
Adjusts the saturation of cyan / magenta / yellow areas.
C-Luminance / M-Luminance / Y-Luminance:
Adjusts the luminance of cyan / magenta / yellow areas.
Reset to Defaults:
Resets items for More Detailed Adjustment.
Reset to Defaults
Resets Colour Management to the default settings.
Gamma
Gamma
Switches the gamma curve.
- Please note the numerical values are reference for the adjustment.
More Detailed Adjustment
Adjusts more detailed items for Gamma.
Input Signal Level:
Adjusts the input signal level.
Gain:
Adjusts the gain of gamma for selected signal level.
Reset to Defaults:
Resets items for More Detailed Adjustment.
Reset to Defaults
Resets Gamma to the default settings.
■ Reset to Defaults
Reset to Defaults
Resets Advanced Settings to the default settings.
Option Settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Picture > Option Settings and press OK to access.
- Select one of the following items and press OK to access.
Game Mode / Film Cadence Mode / 1080p Pure Direct / 4K Pure Direct / 1080p Pixel by 4pixels / HDMI Content Type / HDMI EOTF Type / HDMI Colorimetry Type / HDMI RGB Range / HDMI YCbCr Range / EOTF Type / AV Colour System / 3D-COMB
- Set the item and press OK to store.
Game Mode
(On / Off)
Provides suitable images for fast response signals when playing games.
- Not valid in TV mode
- To display a continuous record of time spent using Game Mode, set Playing Time Display.
Film Cadence Mode
(Auto / On / Off)
Improves vertical resolution for movie images.
- This function is available for interlaced signals (except in the mode of multi window, Network services or when Game Mode is set to On).
1080p Pure Direct
(On / Off)
Reproduces the original image quality in detail for 1080p (HDMI) input signal.
- Not valid in the following conditions:
- Multi window
- Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark.
- 1080p Pixel by 4pixels is set to On.
4K Pure Direct
(On / Off)
Reproduces the original image quality in detail for 4K (HDMI) input signal.
- Not valid in the following conditions:
- Multi window
- Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark.
1080p Pixel by 4pixels
(On / Off)
Displays like pixel by pixel to make the image sharper for 1080p signal.
•For HDMI
- Not all image may be displayed as pixel by pixel precisely.
- Not valid in the following conditions:
- Multi window
- Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark.
HDMI Content Type
(Graphics / Photos / Auto / Off)
Adjusts the picture settings of each HDMI input according to the selected content type.
Auto:
Automatically adjusts the picture settings according to the received HDMI content if the connected equipment supports HDMI Content Type.
- To set the availability of each content type for Auto mode, select Auto Detail Setting.
•For HDMI - Not valid when Viewing Mode is set to Professional Photo, Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
HDMI EOTF Type
(Auto / Traditional gamma / HLG / PQ)
Selects the EOTF type for each HDMI input. Set to Auto for general use.
- For HDMI
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
HDMI Colorimetry Type
(Auto / Rec. 601 / Rec. 709 / Rec. 2020)
Selects the colourimetry type for each HDMI input.
•For HDMI
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
HDMI RGB Range
(Auto / Full / Normal)
Adjusts the black level of the image for each HDMI input.
- When the black level is not suitable, select Full.
- For HDMI
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
HDMI YCbCr Range
(Full / Normal)
Adjusts the black level of the image in the YCbCr signal for each HDMI input.
•For HDMI
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
EOTF Type
(Auto / Traditional gamma / HLG / PQ)
Selects the EOTF type of broadcast or video content.
It works correctly only when the signal corresponds the each EOTF type. Set to Auto for general use.
- Automatically switches to Auto for broadcast each time another input / channel is selected.
- For DVB, video content
- Not valid when Viewing Mode is set to Dolby Vision Vivid, Dolby Vision Bright or Dolby Vision Dark
AV Colour System
(Auto / PAL / SECAM / M.NTSC / NTSC)
Selects optional colour system based on video signals.
- For AV (VIDEO)
3D-COMB
(On / Off)
Makes still or slow moving pictures more vivid.
•Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to On to display sharper and more accurate colours.
- For PAL / NTSC signal reception in TV mode or from composite connection
Screen Settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Picture > Screen Settings and press OK to access.
- Select one of the following items and press OK to access.
Aspect / 16:9 Overscan / Zoom Adjustments / Screen Display / Pixel Orbiter / Logo Luminance Control / Panel Maintenance / Panel Maintenance Message
- Set the item and press OK to store.
Aspect
Changes the aspect ratio (image size).
Watching > For best picture > Aspect
16:9 Overscan
(On / Off)
Selects the screen area displaying the image for 16:9 aspect.
On:
Enlarges the image to hide the edge of the image.
Off:
Displays the image in the original size.
- Set to On if noise occurs on the edge of the screen.
-
This function can be memorised for SD (Standard definition) and HD (High definition) signals respectively.
•Not valid in the following conditions: -
Photo content
– Game Mode is set to On. - 4K content
- 1080p Pixel by 4pixels is set to On.
- 1080p Pure Direct is set to On.
- 4K Pure Direct is set to On.
- Multi window
Zoom Adjustments
Adjusts the vertical position and size when aspect is set to Zoom.
- Not valid in the following conditions:
- 4K content
- Multi window
Screen Display
(On / Off)
Turns the screen off when you select Off.
- This function is effective in reducing power consumption when listening to the sound without watching the TV screen.
- Press any buttons (except Standby On / Off switch) to turn the screen on.
Pixel Orbiter
(On / Off)
Sets the pixel shifting of the image to prevent panel "image retention".
Logo Luminance Control
(Max / Mid / Min)
Adjusts the luminance level of the displayed logo to prevent panel “image retention”.
Panel Maintenance
Turns the screen off and perform the maintenance to prevent the panel "image retention".
- It takes approx. 80 minutes to finish the maintenance.
- LED turns to orange during adjustment of the panel.
- To cancel the maintenance, turn the TV on while the maintenance is in progress.
- A white horizontal line appears on the screen for a while to adjust the panel. This is not a malfunction.
- Completion message will be displayed when turning the TV on after panel maintenance.
Panel Maintenance Message
(On / Off)
Enables to display the regular panel maintenance notification.
On:
The message automatically displays for maintenance when the TV is turned off with Standby On / Off switch of the TV's remote control after watching for a certain period of time.
Off:
The message does not display. Select Panel Maintenance and perform the panel maintenance manually. (see above)
Only for the OLED TV
Locks the settings of Professional1 / 2 for each input.
- Select Professional1 / Professional2 in Viewing Mode in advance.
Watching > For best picture > Viewing Mode
- Display the menu with MENU.
- Select Picture > Lock Settings and press OK to access.
- Enter the PIN number (4 digits) with Numeric buttons.
-
Enter the PIN number twice at first setting.
• Make a note of the PIN number in case you forget it. -
Select Adjustment Lock and press OK to access.
-
Select On and press Ok to set.
•The following items can be locked.
Luminance Level / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Resolution Remaster / Dynamic Range Remaster / Advanced Settings / Reset to Defaults
To change the PIN number
- Select Change PIN and press OK to access.
- Enter a new PIN number twice with Numeric buttons.
Copy Adjustment
Some features are not available on all models. Available menu items are displayed on your TV screen.
Copies the picture settings of True Cinema, Custom, Professional1, Professional2, Dolby Vision Bright or Dolby Vision Dark to those of the other input mode or Viewing Mode.
- Display the menu with MENU.
- Select Picture > Copy Adjustment > Destination Viewing Mode / Destination Input and press OK to access.
- Select the destination to copy to and press OK to set.
- Select Copy Start and press OK to copy.
- When a confirmation screen is displayed, select Yes and press OK to set.
= Note =
- Option Settings and Screen Settings are not copied.
- You cannot copy to the locked mode.
For best audio
Sound mode
- Display the menu with MENU.
- Select Sound > Mode and press OK to access.
- Select the mode and press OK to set.
Mode
(Standard / Music / Speech / Stadium / User)
Selects your favourite sound mode for each input.
Standard:
Provides the suitable sound quality for all types of scenes.
Music:
Improves sound quality for watching music videos, etc.
Speech:
Improves sound quality for watching news, drama, etc.
Stadium:
Improves sound quality for watching sports, etc.
- The sound mode is automatically set to Stadium when Viewing Mode is set to Sport. To cancel the linkage of the sound and viewing mode, set Sport Link to Off.
Watching > For best audio > Basic settings
User:
Adjusts the sounds manually using the equaliser to suit your favourite sound quality.
- The following items can be adjusted and stored for each mode.
Bass / Treble / Surround / Bass Boost
- For the User mode, Equaliser is available in the Sound Menu instead of Bass and Treble. Select Equaliser and adjust the frequency.
Watching > For best audio > Basic settings
- This function is effective only for the sound from TV speakers.
Basic settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Sound and press Ok to access.
- Select one of the following items and press OK to access.
Bass / Treble / Equaliser / Balance / Dolby Atmos / Surround / Bass Boost / Sport Link - Set the item and press OK to store.
Bass
Adjusts level to enhance or minimise lower, deeper sound output.
Treble
Adjusts level to enhance or minimise sharper, higher sound output.
Equaliser
Adjusts the frequency level to suit your favourite sound quality.
- This function is available when Mode is set to User.
- Select the frequency and adjust the frequency level.
• To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency. - To reset the levels of each frequency to the default settings, select Reset to Defaults and press OK.
- This function is effective only for the sound from TV speakers.
Balance
Adjusts the volume level of right and left speakers.
Dolby Atmos
(On / Off)
Provides the precise sound of Dolby Atmos when playing Dolby Atmos content. Set to On for general use.
Surround
(Dolby Surround / Cinema Surround Pro / Cinema Surround / Stadium Surround / Off)
Selects surround sound settings.
Dolby Surround:
Provides a surround sound just like the Dolby Atmos content for all input.
Cinema Surround Pro:
Provides a more progressive sound for watching a film by improving spatial effects.
Cinema Surround:
Provides a suitable sound for watching a film by improving spatial effects.
Stadium Surround:
Provides a dynamic sound for watching sports by improving spatial effects.
- This function is effective only for the sound from TV speakers.
•Not valid for Dolby Atmos content
Bass Boost
(On / Off)
Enhances the effect of bass sounds.
- This function is effective only for the sound from TV speakers.
Sport Link
(On / Off)
Automatically sets the sound mode to Stadium when Viewing Mode is set to Sport.
Volume settings
- Display the menu with MENU.
- Select Sound and press OK to access.
- Select one of the following items and press OK to access.
Speaker Selection / TV Speaker Setting / Auto Gain Control / Volume Correction / Clear Sound Adjustment / Dialogue Enhancement
- Set the item and press OK to store.
Speaker Selection
(TV / Home Cinema)
Enables controlling the theatre speaker with this TV's remote control by pointing at the TV's signal receiver.
TV:
TV speakers are active.
Home Cinema:
The sound is delivered from theatre speakers. Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.
- The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be activated.
- You can use Volume Up / Down and MUTE.
- This function is available when the theatre speakers supporting VIERA Link function is connected to this TV.
TV Speaker Setting
(TV Speaker / Headphone / Off)
Selects the sound output to adjust the volume.
- Sound from TV speaker turns off when Headphone or Off is selected.
Auto Gain Control
(On / Off)
Automatically regulates large sound level differences between channels and inputs.
Volume Correction
Adjusts the volume of each individual channel or input mode.
Clear Sound Adjustment
(On / Off)
If the sound from TV speakers is unclear due to installation environment, On is recommended.
- This function is effective only for the sound from TV speakers.
Enhances the intelligibility of dialogue and commentary.
Headphone terminal output setting
Some features are not available on all models. Available menu items are displayed on your TV screen.
- Display the menu with MENU.
- Select Sound and press Ok to access.
- Select one of the following items and press OK to access.
Headphone Terminal Output / Headphone Volume / Sub Woofer Adjustment - Set the item and press OK to store.
Headphone Terminal Output
(Headphone / Sub Woofer)
Selects the sound output from the headphone terminal.
Headphone:
The sound outputs for using headphones.
Sub Woofer:
The sound outputs for using sub woofer.
= Note =
- Normally set Headphone Terminal Output to Headphone.
- When Headphone Terminal Output is set to Sub Woofer, the headphones cannot be used properly because only the low-frequency sounds are output.
- The volume of the sub woofer can be also controlled when adjusting the volume of this unit with this TV's remote control.
Headphone Volume
Adjusts the volume of headphones.
Sub Woofer Adjustment
Adjusts the sound output of sub woofer.
Sub Woofer Volume:
Adjusts the volume of sub woofer.
- Confirm the actual sound volume from this TV and sub woofer and adjust the volume.
Cut Off Frequency:
Adjusts the cut-off frequency of sub woofer signal output.
- The frequency output to the sub woofer is less than the set cut-off frequency.
- The frequency can be adjusted from 100 Hz to 400 Hz.
- Confirm the actual sound volume from this TV and sub woofer and adjust the volume.
Reset to Defaults:
Resets Sub Woofer Adjustment to the default settings.
Voice Guidance Settings
- Display the menu with MENU.
- Select Sound > Voice Guidance Settings and press OK to access.
- Select one of the following items and press OK to access.
Voice Guidance / Speed / Volume / Language / User Level / Web Browser - Set the item and press OK to store.
Voice Guidance
(On / Off)
Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users.
- Not valid in multi window mode
Speed
(Fast / Normal / Slow)
Selects the readout speed for the voice guidance.
Volume
(Max / Mid / Min)
Selects the volume for the voice guidance.
Language
Changes language for the voice guidance.
- All languages may not be available. When the selected language is not supported, Language is set to English automatically.
User Level
(Beginner / Expert)
Selects the level of verbosity for the voice guidance.
Web Browser
(On / Off)
Set to On to enable voice guidance of the network content in web browser function.
= Note =
•Voice guidance function may not correspond exactly.
Audio Description
- Display the menu with MENU.
- Select Sound > Audio Description and press OK to access.
- Select one of the following items and press OK to access.
Preferred Audio Type / Volume - Set the item and press OK to store.
•For DVB
Preferred Audio Type
(Audio Description / Standard)
Narration settings for visually impaired users
Set to Audio Description to activate the narration sound track when available on the broadcast.
- The availability of audio description sound track is indicated by AD in the information banner.
- Not valid in multi window mode
Volume
Adjusts the volume for Audio Description.
Advanced settings
- Display the menu with MENU.
- Select Sound and press Ok to access.
- Select one of the following items and press OK to access.
MPX / Audio Preference / SPDIF Selection / HDMI Audio Format / PCM Optical Level / SPDIF Delay / HDMI Input
- Set the item and press OK to store.
MPX
Selects multiplex sound mode (if available).
Stereo:
Use this normally.
Mono:
When stereo signal cannot be received
M1 / M2:
Available while mono signal is transmitted
- For Analogue
Audio Preference
(Auto / MPEG)
Selects the initial setting for audio tracks.
Auto:
Automatically selects the audio tracks if a programme has two or more tracks. The priority is given in the following order - Dolby Audio (Dolby Digital Plus), HE-AAC, Dolby Audio (Dolby Digital, Dolby AC-4), MPEG.
MPEG:
The priority is given to MPEG.
- Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4) and Dolby Atmos are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.
- HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.
- MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.
- Dolby Audio (Dolby Digital Plus, Dolby AC-4), Dolby Atmos and HE-AAC are the technologies for HD (High definition) programmes.
- For DVB
SPDIF Selection
(Auto / PCM / Dolby Audio)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
- Dolby Atmos may be output as Dolby Atmos Bitstream, Dolby Digital Plus and Dolby AC-4 may be output as Dolby Digital Plus Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
PCM:
Digital output signal is fixed to PCM.
Dolby Audio:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.
- Dolby Atmos may be output as Dolby Atmos Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
•For DVB, video content
Media Player > Playback > Audio output settings
Network > Videos > Audio output settings
HDMI Audio Format
(Auto / Bitstream / PCM)
Selects the audio format for the HDMI input signal.
Auto:
Dolby Audio is output as Dolby Audio Bitstream. Other digital audio output signals are output as PCM. When the sound is delivered from theatre speakers, Dolby Audio is output with pass-through method.
Bitstream:
Dolby Audio is output as Dolby Audio Bitstream. Other digital audio output signals are output as PCM. When the sound is delivered from theatre speakers, Dolby Audio is output with transcoding method.
PCM:
Digital audio signal is output as PCM.
PCM Optical Level
Adjusts the audio level of PCM output from DIGITAL AUDIO and HDMI2 (ARC function) terminals to equalise with that of the other audio types.
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.
- For DVB
HDMI Input
(Digital / Analogue)
Selects to fit the input signal.
Watching > External equipment > HDMI features
Digital:
When sound is carried via the HDMI cable connection
Analogue:
When sound is not carried via the HDMI-DVI adaptor cable connection
•For HDMI
TV Guide
Using TV Guide
TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcaster).
- Not valid in Analogue
- Select the mode with TV.
DVB-S / DVB-C / DVB-T / DVB-via-IP
- Display TV Guide with GUIDE.
(Example)
② Date / Search / Category
3 Time
4 Programme
⑤ Channel position and name
•To watch the programme
1) Select the current programme.
- The current programme is displayed on the top left of the screen.
2) Press Ok to watch.
•To the previous day
•To the next day
- To search programme titles and view a list of the searched programmes (if available)
1) Display the search list with □ (yellow).
2) Select Search and press OK to access.
3) Enter characters with Cursor buttons or Numeric buttons, and press OK to set.
4) Press (green) to start searching.
- All the programme titles including the word you set are listed.
- Searching without any characters lists all programmes including current programmes.
•To view a channel list of the selected category
Home > Live TV > Option menu
- To list favourite channels, set Favourites Editor.
Watching > Tuning and editing channels > Favourites Editor
•To view more details of the programme
1) Select the programme.
2) Press i to view.
- Press again to return to TV Guide.
•To exit TV Guide
EXIT
= Note =
- When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
Teletext
Viewing Teletext
1. Switch to teletext with TEXT.
- Displays the index page (content varies depending on the broadcaster).
- Current / sub page numbers are displayed on the top left of the screen.
- Time / date is displayed on the top right of the screen.
- Colour bar is displayed on the bottom of the screen.
2. Select the page with Cursor buttons, Numeric buttons or (coloured buttons).
•To adjust contrast
1) Press MENU three times to display Contrast.
2) Adjust and press OK to set.
•To exit teletext
EXIT
■ Reveal hidden data
- Press MENU.
- Reveal with □ (red).
- Press again to hide.
■ To view a favourite page stored
Press STTL to view a favourite page.
- Call up the page stored on (blue). (List mode)
- Factory setting is "P103".
■ FULL / TOP / BOTTOM
- Press MENU.
- Press (green) to change the layout.
■ Watch TV and teletext in two windows at once
- Press MENU twice.
- Set Picture and text to On / Off.
- Operations can be made only in teletext screen.
■ Store frequently viewed pages in the colour bar (List mode)
- Press ■ (coloured buttons) while the page is displayed.
- Press and hold OK.
•The stored page number changes to white.
•To change stored pages
1) Press ■ (coloured buttons) to change.
2) Enter a new page number with Numeric buttons.
3) Press and hold OK.
■ View sub page
The number of sub pages is displayed on the top of the screen. Press ◀ to view sub page. (Only when teletext has more than one page.)
- The number of sub pages varies depending on the broadcaster (up to 79 pages).
- Searching may take time while you are watching TV.
• To view a specific sub page
1) Press MENU.
2) Press (blue).
3) Enter the 4-digit number (e.g. P6, press 0 0).0 6
Teletext mode
Teletext services are the text information provided by the broadcaster.
•The features may vary depending on the broadcaster.
- Display the menu with MENU.
- Select Setup > Display Settings > Teletext and press OK to access.
- Select TOP (FLOF) / List and press OK to set.
■ TOP mode (For TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
- Fast overview of the teletext information available
- Easy to use step-by-step selection of the topical subject
•Page status information on the bottom of the screen
•Available page up / down
(red) / (green)
• To select among subject blocks
(blue)
•To select next subject within the subject block
(yellow)
(After the last subject, it moves to the next subject block.)
■ FLOF (FASTEXT) mode (For FLOF (FASTEXT) broadcasting)
In FLOF mode, four differently coloured subjects are situated on the bottom of the screen.
To access more information about one of these subjects, press the appropriate coloured button.
This facility enables fast access to information on the subjects shown.
■ List mode
In List mode, four differently coloured page numbers are situated on the bottom of the screen. Each of these numbers can be changed and stored in the TV's memory.
Watching > Teletext > Viewing Teletext
Teletext Character Set
Selects teletext language font.
- Display the menu with MENU.
- Select Setup > Display Settings > Teletext Character Set and press OK to access.
- Select the font and press OK to set.
West:
English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
East1:
Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
East2:
Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Tuning and editing channels
Setting menu
You can retune channels, edit channel lists, create your favourite channel lists, etc.
- Select the mode with TV.
DVB-S / DVB-C / DVB-T / DVB-via-IP / Analogue
-
Display the menu with MENU.
-
Select Setup > Tuning Menu and press OK to access.
DVB-S Tuning Menu / DVB-C Tuning Menu / DVB-T Tuning Menu / DVB-via-IP Tuning Menu / Analogue Tuning Menu
- The menu name varies depending on the TV mode.
- Select one of the functions and press OK to access.
Channel List Editor / Favourites Editor / Auto Setup / Manual Tuning / Update Channel List / New Channel Message / Signal Condition / Attenuator / Add TV Signal
- The function items vary depending on the TV mode and country you select.
Edit DVB channels
You can edit the list of All DVB Channels by adding / deleting and moving channels.
- Channels not in all DVB channels list cannot be displayed except in this function.
- Select Channel List Editor and press OK to access.
• To swap / move the channel position
1) Press (green) to edit.
2) Set the new position with Cursor buttons or Numeric buttons, and press ■ (green) to store.
•To delete the channel
(blue)
•To delete all channels
(yellow)
•To add channel
1) Select a channel from Channels Found.
2) Press Ok to add it to all channels.
• To sort channel names in alphabetical order
(red)
• To add all channels to the list (if available)
1) Press (yellow).
2) Press ■ (green) to add all (depending on the broadcaster).
• To add consecutive channels to the list at once (if available)
1) Press (yellow).
2) Make the channel block and press OK to add.
•To change the category of Channels Found
(blue)
- Press BACK/RETURN and OK to store.
•To exchange channel list (DVB-S)
1) Display the menu with MENU.
2) Select Setup > Other Settings > Exchange Channel List and press OK to access.
3) Follow the on-screen instructions.
- During the operation, remove USB devices other than the USB Flash Memory used for this function.
Settings > Setup > Other Settings
- Skip unwanted Analogue channels
You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.
- Select Channel List and press OK to access.
- Select a channel.
- Press OK to set Reveal / Hide (skip).
: Reveal
□: Hide (skip)
•To reveal all channels (if available)
(yellow)
Edit Analogue Channels
• To swap / move the channel position (if available)
1) Press ■ (green) to edit.
2) Set the new position with Cursor buttons and press ■ (green) to store.
• To retune each channel (Manual Tuning)
(red)
•To rename the channel name
1) Press (blue) to edit.
2) Enter characters (maximum 5 characters) with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
$$ = \text { Note } = $$
- If a VCR is connected only with the RF cable in Analogue, edit VCR.
The favourites lists are available for switching in the information banner and the TV Guide screen.
Watching > Basic > Information banner
Watching > TV Guide > Using TV Guide
■ List favourite DVB channels
Create your favourite channel lists from various broadcasters (up to 4: Favourites 1 to 4).
- Select Favourites Editor and press OK to access.
- Select a channel to list from all DVB channels.
• appears when the channel is encrypted.
•To display other favourites
(green)
•To sort channel names in alphabetical order
(red)
•To change the category
Home > Live TV > Option menu
- Press Oh to add it to favourites list.
• To add all channels to the list (if available)
1) Press (yellow).
2) Press □ (green) to add all.
• To add consecutive channels to the list at once
1) Press (yellow).
2) Make the channel block and press OK to add.
- Press BACK/RETURN and OK to store.
Edit DVB favourites list
You can edit the favourites list while the cursor is on the channel in the favourites list.
•To move the channel
1) Select the channel.
2) Press (green).
3) Select the new position with Cursor buttons.
4) Press (green) to store.
•To delete the channel
1) Select the channel.
2) Press (blue) to delete.
- Press (yellow) to delete all channels.
•To name the favourites
1) Press (red).
2) Enter characters (maximum 10 characters) with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Auto Setup
Automatically retunes the channels received in the area.
- This function is available if channel tuning is already performed.
- Only the selected mode is retuned. All the previous tuning settings are erased.
- Child Lock PIN number is required to retune locked channels.
Functions > Child Lock > PIN number
- If tuning has not been done completely, set Manual Tuning.
Watching > Tuning and editing channels > Manual Tuning
DVB-S
- Select Antenna System and press OK to access.
- Select One LNB / MiniDiSEqC / DiSEqC 1.0 / Single Cable and press OK to set.
One LNB:
Compatible with single LNB.
MiniDiSEqC:
Up to 2 LNBs can be controlled.
DiSEqC 1.0:
Up to 4 LNBs can be controlled.
Single Cable:
When using the Single Cable router, up to 32 user bands are available.
-
You can receive several satellites if you have DiSEqC control antenna system.
•This TV supports DiSEqC Version 1.0. -
Select LNB Configuration and press OK to access.
- Select Dual Tuner Mode, set to On to use dual tuner function.
- Select LNB / Satellite and set.
- Select IN 1 / IN 2 in Signal Input to set for each tuner.
1) Set LNB first.
- If you set to One LNB, LNB is not selectable.
- If you set to MiniDiSEqC or Single Cable, select from LNB AA and AB.
- If you set to DiSEqC 1.0, select from LNB AA, AB, BA and BB.
2) Set Satellite for the selected LNB.
- Select No Satellite if you do not know the connected satellite. (Available satellite is searched in Auto Setup.)
- Select User defined to set Test Transponder Frequency manually.
- If you set to Single Cable, additional settings are required. Set SingleCable Version and User Band Frequency. For details, read the manual of the Single Cable router.
Watching > Tuning and editing channels > Selectable satellites
- Press BACK/RETURN to store.
- Select Auto Setup and press OK to access.
- Select Search Mode / Scan Mode and press OK to access.
- Set the item and press OK to store.
- Scan Mode
Quick:
Scans the suitable frequency for the selected satellite.
Full:
Scans the whole frequency range.
•After settings, select Start scan and press OK to search.
- A confirmation screen is displayed and press OK to start Auto Setup. (Settings are made automatically.)
- When the operation is completed, the channel at the lowest position will be displayed.
$$ = \text { Note } = $$
- Set Dual Tuner Mode to On to select DVB-S signal for DVB-via-IP server function. (Only for dual tuner model)
■ DVB-C, DVB-T, Analogue
- Select Auto Setup and press OK to access.
- Set DVB-C Auto Setup Settings and press OK to store. (DVB-C)
- Scan Mode
Quick:
Scans the suitable frequency in your country.
Full:
Scans the whole frequency range.
- Normally set Frequency, Symbol Rate and Network ID to Auto. If Auto is not displayed or if necessary, enter each value specified by your cable provider with Numeric buttons.
•After settings, select Start scan and press OK to search.
- A confirmation screen is displayed and press OK to start Auto Setup. (Settings are made automatically.)
- When the operation is completed, the channel at the lowest position will be displayed.
DVB-via-IP
- Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP client connection
Network > Network settings
- Select Auto Setup and press OK to access.
- A confirmation screen is displayed and press OK to access.
- Select a server from Server List.
-
Select Client Settings and press OK to access.
-
Select Unicast Environment to use in a home network.
-
Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)
-
Select Search Channels and press OK to access.
-
Set DVB-via-IP Search Mode and select Start Auto Setup.
-
Set DVB-via-IP configuration to tune DVB channels.
- When the operation is completed, the channel at the lowest position will be displayed.
■ Auto Setup using the buttons on the TV
- Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu.
- Set Auto Setup with following control panel buttons.
- Move the cursor / select from a range of options / select the menu item
- Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button
Manual Tuning
- Normally use Auto Setup or Update Channel List to retune DVB channels.
- If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function. (DVB)
- All DVB channels found are added to Channel List Editor.
DVB-S
- Please consult the received satellite broadcasting companies for the setting.
- Select Transponder Frequency / Symbol Rate / Polarisation / Modulation / Service ID and set with Cursor buttons or Numeric buttons.
- Select Start scan and press OK to search.
DVB-C
- Enter the frequency with Numeric buttons.
- Normally set Symbol Rate and Service ID to Auto.
- Select Start scan and press OK to search.
DVB
- Select a channel and adjust frequency for each channel.
- Set where the level of Signal Quality becomes the maximum.
- Press Oh to search.
■ Analogue
Set Analogue channel manually after Auto Setup.
- Select the channel position with Numeric buttons.
- Select the channel with Channel Up / Down.
- Set Manual Tuning.
-
Select Store and press OK to set.
-
Use Fine Tuning to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.).
- If a VCR is connected only with the RF cable, select channel position 0.
■ DVB-via-IP (DVB-S)
- Please consult the received satellite broadcasting companies for the setting.
- Select Transponder Frequency / Symbol Rate / Polarisation / Modulation / FEC / Service ID and set with Cursor buttons or Numeric buttons.
- Select Start scan and press OK to search.
■ DVB-via-IP (DVB-C)
- Select Frequency / Bandwidth / Modulation Type / Symbol Rate / FEC / Service ID and set with Cursor buttons or Numeric buttons.
•Normally set Symbol Rate to Auto.
- Select Start scan and press OK to search.
■ DVB-via-IP (DVB-T)
- Select Frequency / Bandwidth / Modulation / FEC / Service ID and set with Cursor buttons or Numeric buttons.
- Select Start scan and press OK to search.
= Note =
•For details of DVB-via-IP connections
Functions > DVB-via-IP > DVB-via-IP client connection
- Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
Update Channel List
Some features are not available on all models. Available menu items are displayed on your TV screen.
By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.
- The channel list is updated while keeping your settings in Channel List Editor, Favourites Editor, Child Lock, etc.
- Depending on the signal condition, the update may not work properly.
- To update DVB-S channels, set Search Mode and Scan Mode before updating.
1) Select Search Mode / Scan Mode and press OK to access.
2) Set each item and press OK to store.
3) After settings, select Start scan and press OK to search.
= Note =
- Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
Signal Condition
Selects a channel and checks the signal condition with indicators.
•A good Signal Strength is not an indication of suitable signal reception.
•Vertical lines show the maximum signal value of the selected channel.
•To change the channel
- For DVB
Other settings
New Channel Message
Selects whether to give a notification message when a new DVB channel is found or not.
- When a notification message appears, you can perform Update Channel List pressing OK.
•Not valid in DVB-via-IP
Attenuator
(On / Off)
Automatically reduces the DVB-C signal to avoid the interference.
- If the DVB-C signal is too strong, interference may occur. In this case, set to On to weaken the signal automatically.
Add TV Signal
Adds the TV mode.
- Allows you to add any TV mode which was skipped during initial Auto Setup.
■ Selectable satellites and dish alignment to tune DVB-S channels
To ensure your satellite dish is correctly installed, please consult your local dealer.
Also please consult the received satellite broadcasting companies for details.
- Intelsat at 85.2° East
•Hot Bird at 13° East
•ABS 1 at 75° East
•Eutelsat at 10° East - Express at 53^ East
•Eutelsat at 9° East - Intelsat at 45° East
•Eutelsat at 7° East
•Turksat at 42° East
•Astra at 4.8° East
• Hellas at 39° East
•Thor at 0.8° West / Intelsat at 1° West
•Eutelsat at 36° East
•Eutelsat at 33° East - Amos at 4^ West
•Astra at 28.2° East
•Eutelsat at 5° West - Badr at 26° East
•Eutelsat at 7° West
•Eutelsat at 25.5° East
•Eutelsat at 8° West
•Astra at 23.5° East
•Eutelsat at 12.5° West
•Eutelsat at 21.5° East
•Telstar at 15° West
•Astra at 19.2° East - SES at 22^ West
•Eutelsat at 16° East - Intelsat at 24.5° West
•Hispasat at 30° West
Media Player
Using Media Player
Information
Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory.
(Example)
Still pictures / moving pictures recorded with digital camera or digital video camera are played back.
Mix Folder View:
All files grouped by folder are displayed.
- During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions > VIERA Link "HDAVI Control™"
- Pictures may not appear correctly on this TV depending on the recording equipment used.
- Displaying may take some time when there are many files and folders.
- Partially degraded files may be displayed with reduced resolution.
•Picture setting may not work depending on the condition. - Folder and file names may be different from those on the digital camera or digital video camera used.
■ To insert or remove the USB Flash Memory
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before inserting or removing the USB Flash Memory.
Ensure alignment is straight and complete when inserting or removing.
1) Display the menu with MENU.
2) Select Setup > USB Device Setup and press OK to access.
3) Select the device and press OK to set.
= Note =
- Check the terminal type and devices are correct for connection.
•For details of the devices
Media Player > Connected device
- For details of supported file formats
Media Player > Supported format
Selecting device / mode
- Insert the USB Flash Memory to the TV.
Media Player > Using Media Player > Information
- Display Home with HOME.
- Select Devices and press Ok to access.
- Select the device (USB Flash Memory) and press OK to access.
- Select Easy List View / Mix Folder View and press OK to access.
Easy List View
Media Player > Easy List View
Mix Folder View
Media Player > Mix Folder View
- The thumbnail view is displayed.
(Example)
= Note =
- Select the appropriate device and content for playing back each file.
- You can use the following buttons during playback. Confirm the remote control code is "73".
Watching > External equipment > Operating with TV's remote control
Easy List View
Selecting file
Still pictures / moving pictures recorded with digital camera or digital video camera are played back.
Select the file in the thumbnail view and press OK to start playback.
- If a file or folder is edited or renamed by digital camera, digital video camera, PC, etc., the thumbnail may not be displayed properly.
: Error display
•To sort by month
1) Display the option menu with OPTION.
2) Select Calendar and press OK to access.
- The preview will start when the title / scene is highlighted in the thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.
1) Display the option menu with OPTION.
2) Select √ and press OK to access.
3) Select Video Setup > Video Preview and press OK to access.
4) Select On / Off and press OK to set.
- Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
- This function is available in the thumbnail view.
- For details of supported file formats
Media Player > Supported format
•To play back the file
Media Player > Playback > Playback
Settings
- Display the option menu with OPTION.
- Select 📁 and press OK to access.
- Select one of the following items and press OK to access.
Play Select / Repeat / Shuffle
- Set the item and press OK to store.
Play Select
Settings for playback file selection
Repeat
(Folder / File Repeat / Off)
Playback repeat
Folder:
Playback repeat within the selected folder
File Repeat:
Playback repeat of the selected one file
Shuffle
(On / Off)
Files are played back at random.
Filtering files
You can filter the files as the content type. (Photo / Video)
- Display the option menu with OPTION.
- Select Filter and press Ok to access.
- Select Photo / Video and press OK to set.
- Select OK and press Ok to change.
•To select the music file
Media Player > Mix Folder View > Filtering files
Mix Folder View
Selecting file
Displays the thumbnail of all files which are grouped by folder.
Select the folder / file and press OK to start playback.
中 : Error display
- The preview will start when the title / scene is highlighted in the thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.
1) Display the option menu with OPTION.
2) Select & and press OK to access.
3) Select Video Setup > Video Preview and press OK to access.
4) Select On / Off and press OK to set.
- Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
- This function is available in the thumbnail view.
- For details of supported file formats
Media Player > Supported format
•To play back the file
Media Player > Playback > Playback
Settings
- Display the option menu with OPTION.
- Select 📁 and press OK to access.
- Select one of the following items and press OK to access.
Play Select / Repeat / Shuffle
- Set the item and press OK to store.
Play Select
Settings for playback file selection
Repeat
(Folder / File Repeat / Off)
Playback repeat
Folder:
Playback repeat within the selected folder
File Repeat:
Playback repeat of the selected one file
Shuffle
(On / Off)
Files are played back at random.
Filtering files
You can filter the files as the content type. (Photo / Video / Music)
- Display the option menu with OPTION.
- Select Filter and press OK to access.
- Select Photo / Video / Music and press OK to set.
- Select OK and press Ok to change.
Sorting files
You can sort the files in alphabetical / date order.
- Display the option menu with OPTION.
- Select Sort and press Ok to access.
- Select Alphabet(A...Z) / Alphabet(Z...A) / Date(1...9) / Date(9...1) and press OK to change.
Playback
Playback
■ Photo playback
To the previous photo
To the next photo
Stop
Switch the playback mode (Single view / Slideshow).
Rotate
Display / hide the operation guide.
BACK/RETURN :
Return to thumbnail.
■ Video / Music playback
◀ :
Rewind
:
Fast forward
▽ :
Stop
OK :
Pause (displays the time seek bar) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▶
Search approx. 10 seconds
Press and hold ◀ / ▶
Search rapidly
3) Jump to the specified time point with OK.
(red):
To the previous title / scene / track
(green):
To the next title / scene / track
i :
Display / hide the operation guide.
BACK/RETURN :
Return to thumbnail.
= Note =
•To set Repeat / Shuffle for playback
Media Player > Easy List View > Selecting file
Media Player > Mix Folder View > Selecting file
Slideshow Settings
Set up the settings for Photo mode.
- Display the option menu with OPTION.
- Select Slideshow Settings with Ok.
- Select one of the following items and press OK to access.
Screen Mode / Interval / Back Ground Music
- Set the item and press OK to store.
Screen Mode
(Normal / Zoom)
Selects enlarged or normal viewing.
- Depending on the photo size, the photo may not be fully enlarged to fill the screen (e.g. portrait style picture).
Interval
(Long / Normal / Short)
Selects slideshow interval.
Back Ground Music
(Off / Type1 / Type2 / Type3 / Type4 / Type5 / User / Auto)
Selects the background music during Photo mode.
Type1 - 5:
Music files installed on this TV at the factory settings are played back.
Auto:
Music files stored in the current device are played back.
- If there is no available music data, no sound is played back.
User:
Music files in the device registered by yourself are played back.
- If no music files have been registered or the device which had registered music files is removed, no sound is played back.
To register music
1) Select the music file and press OK to access.
- Depending on the condition of the device, select folders until you reach the desired music file.
2) Select File / Folder and press OK to set.
File:
The selected music file is registered.
Folder:
All the music files in the folder which contains the selected music file are registered.
= Note =
•Picture quality may be degraded depending on the slideshow setting.
- Picture setting may not work depending on the slideshow setting.
Video Setup
Set up the settings for Video mode.
- Display the option menu with OPTION.
- Select Video Setup with Ok.
- Select one of the following items and press OK to access.
Multi Audio / Dual Mono Audio / Subtitle Settings
- Menu items and selectable options vary depending on the content.
- Set the item and press OK to store.
Multi Audio, Dual Mono Audio
Selects for selectable sound tracks (if available).
- It may take several seconds to change the sound.
•This function is available during playback. - Dual mono of Dolby Audio (Dolby Digital, Dolby Digital Plus) is not supported.
Subtitle Settings
Sets the subtitle setting.
- This function is available during playback.
Subtitle:
Displays / hides subtitles (if available).
Subtitle Text:
Selects the font type to display subtitles correctly (if available).
Subtitle Text Size:
Selects the font size of subtitles.
Subtitle Text Colour:
Selects the colour of subtitles.
Subtitle Text Position:
Adjusts the position of subtitles on the screen.
Subtitle Text Delay:
Adjusts the delay time for the subtitles.
Audio output settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.
• To confirm or change the current sound status
Media Player > Playback > Video Setup
- Display the menu with MENU.
- Select Sound > SPDIF Selection and press OK to access.
- Select Auto / PCM / Dolby Audio and press OK to set.
SPDIF Selection
(Auto / PCM / Dolby Audio)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
- Dolby Atmos may be output as Dolby Atmos Bitstream, Dolby Digital Plus and Dolby AC-4 may be output as Dolby Digital Plus Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
PCM:
Digital output signal is fixed to PCM.
Dolby Audio:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.
- Dolby Atmos may be output as Dolby Atmos Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
Connected device
Device handling caution
- Data modified with a PC may not be displayed.
- Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.
- Do not touch the pins on the device.
- Do not subject the device to a high pressure or impact.
- Insert the device in the correct direction. Otherwise this can damage the device or TV.
- Electrical interference, static electricity, or erroneous operation may damage the data or device.
- Back up the recorded data at regular intervals to prevent data deterioration, data damage or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.
USB devices
- It is recommended to connect the device to the TV's USB port directly.
- Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices using a USB card reader.
USB Flash Memory
USB Flash Memory format:
FAT16, FAT32 or exFAT
- USB HDDs formatted on a PC are not guaranteed to work in Media Player.
Supported format
Photo format
■ Supported Photo formats
●ILG Photo (.hsp)
•CTA-2072 standard
- Still pictures recorded with HLG standard are supported.
-PEG (.jpg, .jpeg)
Sub-sampling:
4:4:4, 4:2:2, 4:2:0
Image resolution (pixel):
8 × 8 to 30719 × 17279
- DCF and EXIF standards
•Progressive JPEG is not supported.
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Some files may not be played back correctly depending on the resolution, etc.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Supported Video formats
AVI (.avi)
Video codec:
H.264, MPEG1, MPEG2, MPEG4, VC-1, WMV9
Audio codec:
AAC, ADPCM, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM, MP3, WMA, WMA Pro
MP4 (.f4v, .m4v, .mp4)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC, MP3
- This TV supports this container recorded with Panasonic products. For details, read the manual of the products.
MKV (.mkv)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, MP3, Vorbis
ASF (.asf, .wmv)
Video codec:
MPEG4, VC-1, WMV9
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM, MP3, WMA, WMA Pro
- Copy-protected files cannot be played back.
●LV (.flv)
Video codec:
H.264
Audio codec:
AAC, MP3
●GPP (.3gp, .3g2)
Video codec:
H.264, MPEG4
Audio codec:
AAC, HE-AAC
S (.mod, .mpg, .mpeg, .vob, .vro)
Video codec:
H.264, MPEG1, MPEG2, VC-1
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM, MP3
S (.mts, .m2ts, .tp, .trp, .ts, .tts)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2, VC-1
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC, MP3
WebM (.webm)
Video codec:
VP9
Audio codec:
Vorbis
Supported Subtitles formats
MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)
- The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
- If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: ".srt", ".sub", ".txt".
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Some files may not be played back correctly depending on the resolution, frame rate condition, etc.
- Some subtitles or chapter functions may not be available.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
- Supported formats are different in Media Player and media server.
Music format
■ Supported Music formats
MP3 (.mp3)
AC / Apple Lossless (.m4a)
•Copy-protected files cannot be played back.
●LAC (.flac)
- Copy-protected files cannot be played back.
PCM (.wav)
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Network
Internet content
Information
You can access some specific websites supported by Panasonic, and enjoy internet content such as videos, games, communication tools, etc. from Apps. (Example)
You can browse websites.
- Some internet services may not be available or may not be displayed properly depending on the website.
Selecting internet content
1. Display Apps with APPS.
- For details of Apps
Home > Apps
- Depending on the usage conditions, it may take a while to read all the data.
2. Select the desired item and press OK to access.
(Example)
EXIT
- You can connect a keyboard for character input in the applications. You can also use the keyboard for TV operation.
Functions > Bluetooth devices
Functions > Keyboard
Note
- If you cannot access the internet content, check the network connections and settings.
Network > Network connections
Network > Network settings
•The design and specifications are subject to change without notice.
- Not all the features of the websites are available.
- Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use Apps. You can update the software later manually.
Network > Network settings > Software Update
- The services through Apps are operated by their respective service providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
- Content may not be available depending on the country you select.
- Content may be presented in specific languages.
- Depending on the connection environment, the internet connection may be slow or may not be successful.
Home network
In-House streaming
- To enable this function, connect this TV to your home network.
Network > Network connections
Network > Network settings
■ Playback of sharing content stored in the media server
Store photo, video or music content into the media server connected to your home network. And then you can enjoy the content on this TV.
(Example)
Network > Home network > Preparations
- For details of supported file formats
Network > Supported format
■ Playback of sharing content on this TV with the DMC (Digital Media Controller) network equipment
You can enjoy content stored in the media server by controlling with the DMC network equipment connected to your home network.
- To use this function with your smartphone or PC, set TV Remote App Settings of this TV.
Network > Network settings > TV Remote App Settings
And you need to install the application for controlling this TV on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
■ Sharing the content of this TV with another piece of network equipment
You can enjoy the content of this TV with another network equipment connected to your home network.
Available content:
•Photo, video or music content of this TV
•Current digital TV programme
Available network equipment:
•TV supporting home network function
- Smartphone, etc.
- To use this function with your smartphone, you need to install the application for controlling this TV on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
•To use this function with another TV, set Network Link Settings of this TV.
Network > Network settings > Network Link Settings
- Sharing the current programme may not be available when selecting radio channels, encrypted (copy-protected) programmes or when the broadcast prohibits the output of video and audio.
- Display the TV full-screen for sharing the TV programme with another piece of network equipment.
- Only 1 piece of other equipment can share the content of this TV.
= Note =
- This function is not available when the TV is turned off with Mains Power On / Off switch.
Preparations
To use in-house streaming features, ensure the preparations of the media server, network connections and network settings are completed.
Network > Home network > In-House streaming
Network > Network connections
Network > Network settings
- Display Home with HOME.
- Select Devices and press Ok to access.
- Select the media server and press OK to access.
•To display / hide information of the highlighted media server
1) Display the option menu with OPTION.
2) Select Show Info. and press OK to access.
- Select the file and press OK to access.
(Example)
•To display / hide information of the highlighted file
i
= Note =
- Non-playable files are also listed but cannot be selected.
- You can use the following buttons during playback. Confirm the remote control code is "73".
◀◀◀◀▶▶▶■▶
→
Watching > External equipment > Operating with TV's remote control
Network connections
Internet connection
A broadband network environment is required to use internet services.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting the LAN cable.
- If you do not have any broadband network services, please consult your retailer for assistance.
•Dial-up internet connections cannot be used. - Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) and 6 Mbps for HD (High Definition) picture quality, respectively. If the transfer speed is not enough, content may not be played back properly.
■ Wireless connection
2 Access point
3 Internet environment
■ Wired connection
2 LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
3 Internet environment
Home network connection
To use in-house streaming features, you need a home network environment and you can operate the features without a broadband network environment.
• A broadband network environment is required to use internet services.
Network > Network connections > Internet connection
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting the LAN cable.
■ Wireless connection (For home network and internet service)
1 Built-in wireless LAN (Rear of the TV)
2 Access point
3 Hub / Router
4 Internet environment
5 Smartphone, etc.
6 Media server (PC, etc.)
■ Wired connection (For home network and internet service)
① ETHERNET terminal
② LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
3 Hub / Router
4 Internet environment
5 Media server (PC, etc.)
■ Wireless connection (For home network)
•To use the TV as a wireless access point
Network > Network settings > Custom - Wireless Access Point
2 Media server (PC, etc.)
3 Smartphone, etc.
Note
- Ensure to use a LAN straight cable.
- Set up and connect equipment required for the network environment. You cannot make such settings on this TV. Read the manual of the equipment.
- If your modem has no broadband router functions, use a broadband router.
- If your modem has broadband router functions but there are no vacant ports, use a hub.
- Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
- If you use the equipment compatible only with 100BASE-TX, category 5 or later LAN cables are required.
- Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.
- Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.
- Turn the TV off with Mains Power On / Off switch, then turn it on again when changing or making the network connection again.
- Depending on the network condition, the content may not be played back properly.
- For details of DVB-via-IP connections
Functions > DVB-via-IP > DVB-via-IP client connection
Network settings
Network Connection
Ensure the connections are completed before starting network setup.
Network > Network connections
■ Quick setup - Wireless
- Display the menu with MENU.
- Select Network > Network Connection and press OK to access.
- Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
- Select Quick setup and press OK to access.
- When the LAN cable is connected, wired setup will be done automatically.
- Select your desired access point and press OK to access.
•Available Wireless Networks are displayed automatically.
- : Encrypted access point
- For WPS(Push button)
1) Select Easy setup with Push button and press OK to access.
2) Press the WPS button on the access point until the light flashes.
3) Connect the TV with the access point with OK.
- WPS: Wi-Fi Protected Setup™
- If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.
- It is recommended to select the encrypted access point.
- Enter the encryption key of the access point and press OK to set.
- You can set characters using Numeric buttons.
- Press BACK/RETURN to store.
- Automatically setup is done and Network Status is displayed.
Network > Network settings > Network Status
- Select Exit and press OK to set.
•To set manually
Network > Network settings > Custom - Wireless
■ Quick setup - Wired
- Display the menu with MENU.
- Select Network > Network Connection and press OK to access.
- Select Quick setup and press OK to access.
- Automatically setup is done and Network Status is displayed.
Network > Network settings > Network Status
- Select Exit and press OK to set.
•To set manually
Network > Network settings > Custom - Wired
= Note =
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
Ensure the connections are completed before starting network setup.
Network > Network connections
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wireless and press OK to access.
- Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
- Select your desired access point and press OK to access.
•Available Wireless Networks are displayed automatically.
-0 : Encrypted access point
- For WPS(Push button)
1) Press (red).
2) Press the WPS button on the access point until the light flashes.
3) Connect the TV with the access point with OK.
- WPS: Wi-Fi Protected Setup™
- If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.
- For WPS(PIN)
1) Press (green).
2) Enter the PIN code to the access point.
3) Connect the TV with the access point with OK.
- For Manual
1) Press (yellow).
2) You can set up SSID, security settings and encryption key manually.
3) Follow the on-screen instructions and set manually.
• To search access points again
(blue)
- To display / hide information of the highlighted access point
i
- It is recommended to select the encrypted access point.
- Enter the encryption key of the access point and press OK to set.
- You can set characters using Numeric buttons.
- Press BACK/RETURN to store.
- IP/DNS Settings is displayed.
Acquire IP Address / Acquire DNS Address
•Auto is recommended.
•Available settings are displayed automatically.
- To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address.
Proxy Settings
- It is not required for normal household use.
- Some internet services may not be available depending on the proxy setting.
Proxy:
This is the address of the relay server which is connected between the browser and the target server to send data to the browser.
1) Select Proxy and press OK to access.
2) Enter the address with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Proxy Port:
This number is also specified by the provider with the proxy address.
1) Select Proxy Port.
2) Enter the number with Numeric buttons.
3) Press BACK/RETURN to store.
- Select Network Status and press OK to access.
Network > Network settings > Network Status
- Select Exit and press OK to set.
Custom - Wired
Ensure the connections are completed before starting network setup.
Network > Network connections
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wired and press OK to access.
- IP/DNS Settings is displayed.
Acquire IP Address / Acquire DNS Address
•Auto is recommended.
•Available settings are displayed automatically.
- To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address.
Proxy Settings
- It is not required for normal household use.
- Some internet services may not be available depending on the proxy setting.
Proxy:
This is the address of the relay server which is connected between the browser and the target server to send data to the browser.
1) Select Proxy and press OK to access.
2) Enter the address with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Proxy Port:
This number is also specified by the provider with the proxy address.
1) Select Proxy Port.
2) Enter the number with Numeric buttons.
3) Press BACK/RETURN to store.
- Select Network Status and press OK to access.
Network > Network settings > Network Status
- Select Exit and press OK to set.
= Note =
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
You can use the TV as a wireless access point and connect the network equipment without an access point.
- Confirm the PIN code, network settings of the equipment before starting setup. For details, read the manual of the equipment.
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wireless Access Point and press OK to access.
- Select Connect to device and press OK to access.
- To set manually, select Change settings (see below).
- Select and set Push button / PIN code and press OK to access.
Push button:
Set up the equipment for Push button. For details, read the manual of the equipment.
PIN code:
Enter the PIN code of the equipment.
- If the connection fails, check the settings and positions of the equipment. And then, follow the on-screen instructions.
■ Change settings
You can set up Network Name(SSID), Encryption key, Wireless type and Channel setting method manually.
Follow the on-screen instructions and set manually.
- Set Reset settings to reset the items for Change settings.
= Note =
- You cannot connect the internet service while the TV is set to Wireless Access Point.
- You can connect up to 7 devices. But the transfer rate varies according to communication environment or the numbers of connected equipment.
• To confirm the current network settings
Network > Network settings > Network Status
Network Status
Displays and checks the network status (MAC Address, current network settings, etc.).
- Display the menu with MENU.
- Select Network > Network Status and press OK to access.
- Automatically testing is done and Network Status is displayed.
Try Again:
Performs automatic testing of the network connection for the TV and displays the current status again.
Status Details:
Displays the detailed network status (SSID, security settings, etc.).
- For information about the network connection, select Help.
TV Name
Sets your favourite name for this TV.
- Display the menu with MENU.
- Select Network > TV Name and press OK to access.
- Enter characters and press OK to set.
- This name is used as the name of this TV on the screen of the other network equipment.
- When you use two or more TVs in your network environment, set the names of the TVs for each.
TV Remote App Settings
Sets to control the TV with the equipment (smartphone, etc.) connected to your network.
- Display the menu with MENU.
- Select Network > TV Remote App Settings and press OK to access.
- Select one of the following items and press OK to access.
TV Remote / Powered On by Apps / Networked Standby / Home Streaming / Device to upload contents / Delete All Pairings
- Set the item and press OK to store.
TV Remote
(On / Off)
Enables controlling the TV from the network equipment (smartphone, etc.).
Powered On by Apps
(On / Off)
Enables turning the TV on from the network equipment (smartphone, etc.).
- Depending on the network condition, you may have to turn the TV on with Standby On / Off switch of the TV's remote control.
- Changing the default configuration may result in higher energy consumption of the product.
- LED turns to orange in Standby mode when Powered On by Apps is set to On.
Networked Standby
(On / Off)
Enables turning the TV on via the LAN cable or wireless LAN using a wake-up message sent from the network equipment in the home network.
- Changing the default configuration may result in higher energy consumption of the product.
Home Streaming
(Always / Only when powered on)
Enables sharing the TV programme and content of this TV with the network equipment (smartphone, etc.) in the home network.
- Changing the default configuration may result in higher energy consumption of the product.
- LED turns to orange in Standby mode when Home Streaming is set to Always.
Device to upload contents
Selects device to upload content from the network equipment (smartphone, etc.).
Delete All Pairings
Delete the pairing information for all paired devices.
= Note =
- This function is not available when the TV is turned off with Mains Power On / Off switch.
- You need to install the application for controlling this TV on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
- Depending on the network condition, this function may not be available.
- Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.
Network Link Settings
Sets to control the TV with devices connected to the network.
- Display the menu with MENU.
- Select Network > Network Link Settings and press OK to access.
- Select one of the following items and press OK to access.
Home Network Server / Registration Type / Remote Device List
- Set the item and press OK to store.
Home Network Server
(On / Off)
Enables sharing the TV programme and content of this TV with the network equipment (TV, etc.).
- To use this function with another TV, select the name of this TV from the media server list of another TV, and then select the content to share. Also read the manual of another TV.
- To use this function with your smartphone, you need to install the application for controlling this TV on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
- Changing the default configuration may result in higher energy consumption of the product.
- LED turns to orange in Standby mode when Home Network Server is set to On.
Registration Type
(Auto / Manual)
Selects the type to restrict the access to this TV for each piece of equipment on the home network.
Auto:
All available equipment on the home network is accessible (maximum 16 pieces of equipment).
Manual:
Sets the restrictions for each piece of equipment in Remote Device List.
Remote Device List
Lists the equipment accessible to this TV on the home network.
= Note =
- Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.
DVB-via-IP Server Settings
Only for the model supporting DVB-via-IP server function
Selects TV signal and enables tuning in DVB-via-IP server function.
Functions > DVB-via-IP > DVB-via-IP Server Settings
Mirroring Settings
Settings for the mirroring function
Functions > Mirroring > Mirroring Settings
Control4 Settings
Settings for the Control4 function
- Display the menu with MENU.
- Select Network > Control4 Settings and press OK to access.
- Select Control4 Discovery / Send Identify and press OK to access.
- Set the item and press OK to store.
Control4 Discovery
(On / Off)
Enables Control4 mode.
Send Identify
Sends identifying message to Control4 controller.
- This function is available when Control4 Discovery is set to On.
= Note =
- For details of the settings and operations, consult your local Control4 dealer.
VOD Content Refresh
Selects whether to update the VOD content to the latest even when the TV is in Standby mode.
- Display the menu with MENU.
- Select Network > VOD Content Refresh and press OK to access.
- Select On / Off and press OK to access.
- Changing the default configuration may result in higher energy consumption of the product.
- LED turns to orange while updating in Standby mode when VOD Content Refresh is set to On.
Software Update
Accesses the specific website to update the TV's software if any updates are available.
- Display the menu with MENU.
- Select Network > Software Update and press OK to access.
- Follow the on-screen instructions.
- A broadband network environment is required to use this function.
New Software Message
Selects whether to give a notification message when new software is found via network or not.
- Display the menu with MENU.
- Select Network > New Software Message and press OK to access.
- Select On / Off and press OK to set.
IPv6
Enables the IPv6 function for the network connections.
- Display the menu with MENU.
- Select Network > IPv6 and press OK to access.
- Select On / Off and press OK to set.
= Note =
- The IPv6 function may not be available for all combinations of an application and network. If an application does not work properly, set IPv6 to Off and turn the TV off, then turn it on again.
Terms of Service and Settings
Displays the terms of service and settings.
- Display the menu with MENU.
- Select Network > Terms of Service and Settings and press OK to access.
- Follow the on-screen instructions.
Photos
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
- Select Devices and press Ok to access.
- Select the media server and press OK to access.
• To display / hide information of the highlighted media server
1) Display the option menu with OPTION.
2) Select Show Info. and press OK to access.
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
•To display / hide information of the highlighted file
i
= Note =
•Non-playable files are also listed but cannot be selected.
■ Playback
•To operate Single view
◀ : To the previous photo
▷ : To the next photo
▽ : Stop (return to list)
OK: Slideshow
• To display / hide the operation guide
i
•To rotate 90°
(blue)
•To return to list
BACK/RETURN
Using Slideshow
- Select the file from the thumbnail of photos for the first view.
- Start Slideshow with (red) and OK.
• To display / hide the operation guide
• To pause (return to Single view)
•To return to list
BACK/RETURN
Slideshow Settings
Set up the settings for photo file operations on this TV.
- Display the option menu with OPTION.
- Select Slideshow Settings and press OK to access.
- Select one of the following items and press OK to access.
Interval / Repeat / Back Ground Music
- Set the item and press OK to store.
Interval
(Long / Normal / Short)
Selects slideshow interval.
Repeat
(On / Off)
Slideshow repeat
Back Ground Music
(Off / Type1 / Type2 / Type3 / Type4 / Type5)
Selects the background music during Photo mode.
Videos
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
Network > Home network > In-House streaming
Network > Network connections
Network > Network settings
- Display Home with HOME.
- Select Devices and press Ok to access.
- Select the media server and press OK to access.
• To display / hide information of the highlighted media server
1) Display the option menu with OPTION.
2) Select Show Info. and press OK to access.
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
•To display / hide information of the highlighted file
i
$$ = \text { Note } = $$
•Non-playable files are also listed but cannot be selected.
■ Playback
If you have stopped the last playback halfway, a confirmation screen may be displayed to select whether to start from where you stopped last time or from the beginning.
•To operate playback
△ : Manual skip (if available)
- Press to skip forward approx. 30 seconds.
◀ : Rewind
▷ : Fast forward
▽ : Stop
OK : Pause (displays the time seek bar / slow playback) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▷
Search rapidly
3) Jump to the specified time point with OK.
•To display / hide the operation guide and information banner
•To the previous content
•To the next content
•To change aspect
1) Display the menu with MENU.
2) Select Picture > Screen Settings > Aspect and press OK to access.
3) Select the mode and press OK to set.
Aspect1:
Displays the content in original size.
Aspect2:
Displays the content enlarged without distortion.
– Aspect cannot be changed depending on the content.
• To return to list
BACK/RETURN
Video Setup
Set up the settings for video file operations on this TV.
- Display the option menu with OPTION.
- Select Video Setup and press OK to access.
- Select one of the following items and press OK to access.
Video Preview / Multi Audio / Dual Audio / Dual Mono Audio / Repeat / Subtitle Settings
- Menu items and selectable options vary depending on the content.
- Set the item and press OK to store.
Video Preview
(On / Off)
Sets to start the preview of the title or scene in the thumbnail view.
- Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
Multi Audio, Dual Audio, Dual Mono Audio
Selects for selectable sound tracks (if available).
- It may take several seconds to change the sound.
•This function is available during playback.
- Dual mono of Dolby Audio (Dolby Digital, Dolby Digital Plus) is not supported.
Repeat
(On / Off)
Playback repeat within the selected file
Subtitle Settings
Sets the subtitle setting.
•This function is available during playback.
Subtitle:
Display / hide subtitles (if available).
Subtitle Text:
Selects the font type to display subtitles correctly (if available).
Subtitle Text Size:
Selects the font size of subtitles.
Subtitle Text Colour:
Selects the colour of subtitles.
Subtitle Text Position:
Adjusts the position of subtitles on the screen.
Subtitle Text Delay:
Adjusts the delay time for the subtitles.
Audio output settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.
• To confirm or change the current sound status
Network > Videos > Video Setup
- Display the menu with MENU.
- Select Sound > SPDIF Selection and press OK to access.
- Select Auto / PCM / Dolby Audio and press OK to set.
SPDIF Selection
(Auto / PCM / Dolby Audio)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
- Dolby Atmos may be output as Dolby Atmos Bitstream, Dolby Digital Plus and Dolby AC-4 may be output as Dolby Digital Plus Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
PCM:
Digital output signal is fixed to PCM.
Dolby Audio:
Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.
- Dolby Atmos may be output as Dolby Atmos Bitstream from HDMI2 (ARC function) terminal depending on the connected equipment.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
= Note =
- During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions > VIERA Link "HDAVI Control™"
Music
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
Network > Home network > In-House streaming
Network > Network connections
Network > Network settings
- Display Home with HOME.
- Select Devices and press Ok to access.
- Select the media server and press OK to access.
• To display / hide information of the highlighted media server
1) Display the option menu with OPTION.
2) Select Show Info. and press OK to access.
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
•To display / hide information of the highlighted file
i
$$ = \text { Note } = $$
•Non-playable files are also listed but cannot be selected.
■ Playback
•To operate playback
◀ : Rewind
▷ : Fast forward
▽ : Stop
OK : Pause (displays the time seek bar) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▶
Search rapidly
3) Jump to the specified time point with OK.
• To display / hide the operation guide
i
•To the previous track
(red)
•To the next track
(green)
•To return to list
BACK/RETURN
Music Setup
Set up the settings for music file operations on this TV.
- Display the option menu with OPTION.
- Select Music Setup > Repeat with OK.
- Select Off / Folder / One and press OK to set.
Folder:
Playback repeat within the selected folder
One:
Playback repeat of the selected one file
Supported format
Photo format
■ Supported Photo formats
-PEG (.jpg, .jpeg)
Sub-sampling:
4:4:4, 4:2:2, 4:2:0
Image resolution (pixel):
8 × 8 to 30719 × 17279
•DCF and EXIF standards
•Progressive JPEG is not supported.
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Supported Video formats
AVI (.avi)
Video codec:
H.264, MPEG1, MPEG2, MPEG4, VC-1, WMV9
Audio codec:
AAC, ADPCM, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM, MP3, WMA
MP4 (.f4v, .m4v, .mp4)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC, MP3
- This TV supports this container recorded with Panasonic products. For details, read the manual of the products.
MKV (.mkv)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, MP3, Vorbis
ASF (.asf, .wmv)
Video codec:
MPEG4, VC-1, WMV9
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC, LPCM, MP3, WMA
- Copy-protected files cannot be played back.
●LV (.flv)
Video codec:
H.264
Audio codec:
AAC, MP3
●GPP (.3gp, .3g2)
Video codec:
H.264, MPEG4
Audio codec:
AAC, HE-AAC
S (.mod, .mpg, .mpeg, .vob, .vro)
Video codec:
MPEG1, MPEG2
Audio codec:
Dolby Audio (Dolby Digital), LPCM
S (.mts, .m2ts, .tp, .trp, .ts, .tts)
Video codec:
H.264, H.265 (HEVC), MPEG1, MPEG2
Audio codec:
AAC, Dolby Audio (Dolby Digital, Dolby Digital Plus, Dolby AC-4), Dolby Atmos, HE-AAC
WebM (.webm)
Video codec:
VP9
Audio codec:
Vorbis
Supported Subtitles formats
MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)
- The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
- If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: ".srt", ".sub", ".txt".
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Some subtitles or chapter functions may not be available.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
- Supported formats are different in Media Player and media server.
Music format
■ Supported Music formats
MP3 (.mp3)
AC / Apple Lossless (.m4a)
- Copy-protected files cannot be played back.
●LAC (.flac)
WMA (.wma)
- Copy-protected files cannot be played back.
PCM (.wav)
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Functions
Mirroring
How to use
You can watch and display images of other devices (smartphone, etc.) on the TV screen using a mirroring function.
2 TV
- Display Home with HOME.
- Select Devices and press Ok to access.
- Select Mirroring and press Ok.
- Follow the on-screen instructions.
- Pairing information of the device (smartphone, etc.) is registered once you use this function.
Easy Mirroring
You can also start the mirroring function from the other devices (smartphone, etc.) when Easy Mirroring is set to On.
Functions > Mirroring > Mirroring Settings
- You cannot use Easy Mirroring function while the TV is set to Wireless Access Point.
Network > Network settings > Network Status
= Note =
- This function is available with the other devices (smartphone, etc.) supporting the mirroring function. For details, refer to the operating instructions of the devices.
Mirroring Settings
You can set items for the mirroring function.
- Display the menu with MENU.
- Select Network > Mirroring Settings and press OK.
- Select one of the following items and press OK to access.
Easy Mirroring / Powered On by Easy Mirroring / Delete All Pairings
- Set the item and press OK to store.
Easy Mirroring
(On / Off)
Enables starting the mirroring function from the other devices (smartphone, etc.) without operating the TV.
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
Network > Network settings > Network Status
- Not valid when the TV is set to Wireless Access Point
Powered On by Easy Mirroring
(On / Off)
Enables turning on the TV automatically when the mirroring function is activated from the other devices (smartphone, etc.).
- Changing the default configuration may result in higher energy consumption of the product.
- Use the mirroring function to turn on the TV only when you can see the status of the TV.
- Register the devices (smartphone, etc.) before using this function.
- LED turns to orange in Standby mode when Powered On by Easy Mirroring is set to On.
Delete All Pairings
Delete the pairing information for all paired devices.
DVB-via-IP
DVB-via-IP server connection
Only for the model supporting DVB-via-IP server function
This TV can be configured as a DVB-via-IP server to provide broadcast streaming to another TV supporting DVB-via-IP client function or SAT>IP compatible devices.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
TV (Satellite dish / Terrestrial aerial / Cable)
② ETHERNET terminal
3 LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
4 Hub / Router
5 DVB-via-IP client (TV, etc.)
= Note =
- External equipment and cables shown are not supplied with this TV.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
- Check the terminal type and cable plugs are correct for connection.
- To use this function, set DVB-via-IP Server Settings.
Network > Network settings > DVB-via-IP Server Settings
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
• To confirm the current network settings
Network > Network settings > Network Status
■ Preparations
- Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP server connection
Network > Network settings
- Ensure that Dual Tuner Mode is set to On in LNB Configuration.
Watching > Tuning and editing channels > Auto Setup
■ DVB-via-IP Server Settings
Selects TV signal and enables tuning in DVB-via-IP server function.
- Display the menu with MENU.
- Select Network > DVB-via-IP Server Settings and press OK to access.
- Select DVB-S / DVB-C / DVB-T and press OK to set.
- Selectable TV modes for client vary depending on the channels stored.
Watching > Tuning and editing channels > Auto Setup
- Select Enable DVB-via-IP server and press OK to access.
- A confirmation screen is displayed and press OK to set. (The TV automatically restarts.)
- Changing the default configuration may result in higher energy consumption of the product.
- LED turns to orange in Standby mode when this function is active.
= Note =
- This function is not available when the TV is turned off with Mains Power On / Off switch.
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
DVB-via-IP client connection
This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
- It is recommended to connect to DVB-via-IP server with a LAN cable.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting the LAN cable.
■ Wired connection
① ETHERNET terminal
2 LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
3 DVB-via-IP server
4 Satellite dish / Terrestrial aerial / Cable
■ Wireless connection
1 Built-in wireless LAN (Rear of the TV)
2 Access point
3 DVB-via-IP server
4 Satellite dish / Terrestrial aerial / Cable
= Note =
- External equipment and cables shown are not supplied with this TV.
- Check the terminal type and cable plugs are correct for connection.
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
• To confirm the current network settings
Network > Network settings > Network Status
- For information about the connections, read the manual of the DVB-via-IP server.
■ Preparations
- Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP client connection
Network > Network settings
- Ensure the server settings are completed. For details, read the manual of DVB-via-IP server.
■ DVB-via-IP Server Selection
- Display the menu with MENU.
- Select Setup > Tuning Menu > Add TV Signal and press OK to access.
- Select DVB-via-IP and press OK to access.
- Select Start Auto Setup and press OK to access.
- Select a server from Server List and press OK to set.
-
Select Client Settings and press OK to access.
-
Select Unicast Environment to use in a home network.
-
Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)
-
Select Search Channels and press OK to access.
-
Set DVB-via-IP Search Mode and select Start Auto Setup.
-
Set DVB-via-IP configuration to tune DVB channels.
- When the operation is completed, the channel at the lowest position will be displayed.
= Note =
- If tuning has not been done completely, set Manual Tuning.
Watching > Tuning and editing channels > Manual Tuning
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
• In case you install the DVB-via-IP client in multicast environment, please consult your professional dealer or server manufacturer.
Note
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
- This function is not available when the TV is turned off with Mains Power On / Off switch.
- Please also read the manual of DVB-via-IP server.
Multi Window
Information
■ Multi Window
Only for dual tuner model
Displays two windows at once for viewing the TV programmes or external input (AV / COMPONENT / HDMI) as shown below (example).
Pre-view Dual view
Pre-view Pre-view
•Pre-view is not available for OLED TV.
•To swap windows
•To exit multi window
Multi Window
Only for dual tuner model
You can select a channel while watching another programme or external input.
- Display Apps with APPS.
- Select Multi Window and press OK to access.
■ Pre-view (Example)
2 TV mode / Input mode / Channel position and name (for main screen)
3 TV mode / Input mode (for sub screen)
- Press ◀ / ▷ to select the TV mode / input mode of the sub screen.
4 Current programme information (if available) (for sub screen)
- Press / to select the programme of the sub screen.
5 Sub screen / information screen
- Press (blue) to change the screen.
•The sound comes only from the main screen.
•Pre-view is not available for OLED TV.
■ Dual view (Example)
2 TV mode / Input mode / Channel position and name
3 Sub screen
- Press ◀ to select the screen to operate.
- displays on the screen.
•To select the sound
1) Display the option menu with OPTION.
2) Select Sound Output and press OK to access.
3) Select Main / Sub and press OK to set.
- displays on the screen.
• To confirm or change the current status
OPTION
- Menu items and selectable options vary between the main screen and sub screen.
Watching > Basic > AV Options
•To display / hide the operation guide
i
= Note =
- Operations vary while using DVB-via-IP server function as following.
PandP:
Press (yellow) to switch to Picture-and-Picture mode.
PinP:
Press ■ (green) to switch to Picture-in-Picture mode. The main screen is displayed on full-screen and the sub screen is displayed at the right bottom of the main screen.
- You can swap the main and sub screen with (blue).
- Press i to display / hide the operation guide.
- The sound comes only from the main screen in multi window.
Note
- This function may not work properly depending on the signal format.
- Ensure that Dual Tuner Mode is set to On in LNB Configuration to display DVB-S both in two windows. (Only for dual tuner model)
Watching > Tuning and editing channels > Auto Setup
- Not valid in Analogue
- Data services are not available in multi window.
- You cannot change the aspect ratio in multi window.
- External input mode can only be displayed either on the main screen or sub screen.
•HDMI is available for the main screen.
- Some signals are reformatted for suitable viewing on your display.
- Playback in fast-forward or in reverse on the sub screen may affect the picture quality on the main screen.
VIERA Link "HDAVI Control™"
Summary of VIERA Link
Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control™" function.
VIERA Link (HDAVI Control) connects the TV and the equipment with VIERA Link function, and enables easy control, playback, energy saving, creating home theatre, etc. without complicated settings. Connections to the equipment (DVD Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cable allow you to interface them automatically. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
- This TV supports "HDAVI Control 5" function.
- Some functions are not available depending on the equipment's version of HDAVI Control. Confirm the connected equipment's version of HDAVI Control.
- VIERA Link “HDAVI Control” is a unique function that we have developed and added based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control). As such, its operation with other manufacturers’ product that supports HDMI CEC cannot be guaranteed.
- VIERA Link features may be available even with other manufacturers' equipment supporting HDMI CEC.
- Please refer to individual manuals for other manufacturers' product supporting VIERA Link function.
- About applicable Panasonic product, consult your local Panasonic dealer.
■ VIERA Link (HDMI connection)
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
- Use a fully wired HDMI compliant cable.
- Use a high speed HDMI cable for high resolution images.
- Connect the equipment supporting VIERA Link to the TV's HDMI terminal via an HDMI cable.
About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.
① HDMI terminal
2 HDMI cable
3 Equipment with VIERA Link function (DVD Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera)
■ Available features (HDMI connection)
DVD Recorder / DVD Player / Blu-ray Disc Player
- Easy playback
•Power on Link - Power off Link
- Standby Power Save ^*2
- Intelligent Auto Standby ^*2
•VIERA Link Control*1
HD Video Camera / LUMIX Camera
- Easy playback
•Power on Link - Power off Link
•VIERA Link Control ^*1
*1 : For equipment which has "HDAVI Control 2 or later" function.
*2 : For equipment which has "HDAVI Control 4 or later" function.
■ VIERA Link (HDMI and Audio out connections)
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before connecting or disconnecting cables.
- Use a fully wired HDMI compliant cable.
- Connect the equipment supporting VIERA Link to the TV's HDMI terminal via an HDMI cable.
- Use the optical digital audio cable for audio output from the TV.
② HDMI cable
3 DVD Recorder with VIERA Link function
4 HDMI cable (Optical digital audio cable*)
5 Amplifier with VIERA Link function
6 Speaker system
7 Player theatre / Blu-ray Disc theatre with VIERA Link function
8 HD Video Camera / LUMIX Camera with VIERA Link function
* : If the connected equipment has "HDAVI Control 5" function, you do not have to use this audio cable (Optical digital audio cable). In this case, connect the equipment to the TV's HDMI2 terminal via an HDMI cable.
■ Available features (HDMI and Audio out connections)
Player theatre
- Easy playback*3
•Power on Link - Power off Link
- Intelligent Auto Standby ^2 4
•VIERA Link Control*1 - Speaker Selection
Blu-ray Disc theatre
- Easy playback*3
•Power on Link - Power off Link
- Standby Power Save ^*2
- Intelligent Auto Standby ^2 4
•VIERA Link Control*1 - Speaker Selection
Amplifier
- Power off Link
- Intelligent Auto Standby ^*2
- Speaker Selection
*1 : For equipment which has "HDAVI Control 2 or later" function.
*2 : For equipment which has "HDAVI Control 4 or later" function.
*3 : While playing a disc
*4 : Except for watching a disc
■ VIERA Link Control of compatible equipment
The following is the maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV.
For example, DVD Player connected to Amplifier which is connected to the TV via an HDMI cable.
Functions > VIERA Link "HDAVI Control™" > VIERA Link Control
- Recorder:
Maximum 3 - Player:
Maximum 3 (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)
•Audio system:
Maximum 1 (Player theatre, Blu-ray Disc theatre, Amplifier, etc.)
•Tuner:
Maximum 4 (Set top box, etc.)
Preparations
- Connect the equipment supporting VIERA Link.
- For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Use a fully wired HDMI compliant cable.
- Set up the connected equipment. Read the manual of the equipment.
- Set VIERA Link to On in the Setup Menu.
-
Set up the TV. After connection, turn the equipment on and then switch the TV on. Select the HDMI input from Input Selection with AV and make sure that an image is displayed correctly. (This setup should be done each time the following conditions occur.)
-
First time operation
- Adding or reconnecting equipment
- Changing setup
Easy playback
Automatic input switching - When the connected equipment is operated, the input mode is switched automatically.
Power on Link
Set Power on Link to On in VIERA Link Settings to use this function.
When the connected equipment is operated, the TV is automatically turned on. (Only when the TV is in Standby mode.)
Power off Link
Set Power off Link to On in VIERA Link Settings to use this function.
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
- This function will work even if the TV enters Standby mode automatically by auto power standby function.
Standby Power Save
Set Standby Power Save to On in VIERA Link Settings to use this function.
The power consumption of the connected equipment in Standby mode is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to quickly start the connected equipment.
- This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.
- This function works when Power off Link is set to On.
Intelligent Auto Standby
Set Intelligent Auto Standby to On in VIERA Link Settings to use this function.
When the TV is on, non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to TV (except for watching a disc).
- This function may not work properly depending on the connected equipment. In this case, set to Off.
You can control some functions of the connected equipment with this TV's remote control by pointing at the TV's signal receiver.
- Display Apps with APPS.
- Select VIERA Link and press OK to access.
- Select VIERA Link Control and press OK to access.
- Select one of the following items and press OK to access.
Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other
(The menu of the accessed equipment is displayed. The input mode is changed automatically.)
- The displayed item may vary depending on the connected equipment.
•Home Cinema means Player theatre, Blu-ray Disc theatre or Recorder theatre. -
Other means Tuner set top box.
-
Follow the on-screen instructions to operate the menu of the equipment.
- Confirm the remote control code is "73".
Watching > External equipment > Operating with TV's remote control
•To display the operation guide
OPTION
(If other manufacturers' product is accessed, Setup / Contents Selection menu may be displayed.)
- Available TV's remote control buttons depend on the connected equipment.
■ If multiple recorders or players are connected
Each recorder / player is numbered. The number is given from the TV's lower number of HDMI terminal connected to the same type of equipment. For example, when two recorders are connected to HDMI2 and HDMI3, the recorder connected to HDMI2 is displayed as Recorder1, and the recorder connected to HDMI3 is displayed as Recorder2.
■ If you access non-VIERA Link equipment
The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use the remote control of the connected equipment.
= Note =
- If you cannot operate the equipment, check the settings and the equipment.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Some operations may not be available depending on the equipment. In this case, use the remote control of the connected equipment.
- For details of the operations for the connected equipment, read the manual of the equipment.
Speaker Selection
You can control the theatre speaker with this TV's remote control by pointing at the TV's signal receiver.
- Display Apps with APPS.
- Select VIERA Link and press OK to access.
- Select Speaker Selection and press OK to access.
- Select TV / Home Cinema and press OK to set.
TV:
TV speakers are active.
Home Cinema:
The sound is delivered from theatre speakers. Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.
- The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be activated.
- You can use Volume Up / Down and MUTE.
■ Multi-channel sound
If you want to enjoy the multi-channel sound (e.g. Dolby Audio (Dolby Digital) 5.1ch) via an Amplifier, connect it with an HDMI cable and Optical digital audio cable, and then select Home Cinema. If your Amplifier has the “HDAVI Control 5” function, you only need to connect it with an HDMI cable to the TV’s HDMI2 terminal.
To enjoy multi-channel sound from DIGA Recorder, connect an HDMI cable from the DIGA Recorder to the Amplifier.
= Note =
- If you cannot operate the equipment, check the settings and the equipment.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Some operations may not be available depending on the equipment.
Note
• These functions may not work properly depending on the connected equipment.
- Image or sound may not be delivered for the first few seconds when the input mode is switched.
- "HDAVI Control 5" is the newest standard for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.
•To confirm the HDAVI Control version of this TV
Support > Help menu > Using Help menu
Child Lock
Using Child Lock
You can lock specific channels / AV input terminals to restrict access to them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.
- Display the menu with MENU.
- Select Setup > Child Lock and press OK to access.
- Enter the PIN number (4 digits) with Numeric buttons.
- Enter the PIN number twice at first setting.
-
Make a note of the PIN number in case you forget it.
-
Select Child Lock List and press OK to access.
-
Select the channel / input and press OK to lock.
• appears when the channel / input is locked.
•To cancel
1) Select the locked channel / input.
2) Press OK.
• To sort channel names in alphabetical order
(red)
•To lock all
(green)
• To cancel all locks
(yellow)
•To jump to the head of the next channel / input group
(blue)
■ Show Adult App
Set to Off to lock specific applications to restrict access to them (if available).
= Note = •For internet content
PIN number
You can change the PIN number.
- Select Change PIN and press OK to access.
- Enter a new PIN number twice with Numeric buttons.
= Note =
- Setting Shipping Condition erases the PIN number and all settings.
Power LED Indicator
Using Power LED Indicator
Selects the power LED indication mode.
- Display the menu with MENU.
- Select Setup > Other Settings and press OK to access.
- Select Power LED Indicator and press OK to access.
- Select On / On(Standby Only) / Off and press OK to set.
On:
The power LED indicator illuminates continuously.
On(Standby Only):
The power LED indicator illuminates only when the TV is turned off with Standby On / Off switch of the TV's remote control.
Off:
The power LED indicator is turned off.
= Note =
- The power LED indicator may light when switching the TV status or activating some functions.
- The TV may not display any image on the screen depending upon the input source after setting. This may make it impossible to know whether the TV is turned on or not.
Data Service Application
Using Data Service Application
You can enjoy Hybrid Broadcast Broadband TV application that may be provided via digital broadcasting as interactive data services.
- Display the menu with MENU.
- Select Setup > Data Service Application > Service and press OK to access.
- Select Auto Start / Manual Start / Off for each channel.
Auto Start:
Automatically starts the application.
Manual Start:
Starts the application by pressing (red).
• To sort channel names in alphabetical order
(red)
• To set Auto Start for all channels
(green)
•To disable the service for all channels
(yellow)
•To set Manual Start for all channels
(blue)
-
Press BACK/RETURN to store.
-
A notification message will appear when the application is available. Follow the on-screen instructions.
- is displayed on the information banner if the programme has Hybrid Broadcast Broadband TV application.
→
Watching > Basic > Information banner
- To terminate the running application. (The default application may start immediately.)
EXIT
Privacy Setting
- Display the menu with MENU.
- Select Setup > Data Service Application > Privacy Setting and press OK to access.
- Select Low / High / Custom and press OK to set.
■ To change the privacy settings manually
You can set up the detailed privacy settings when Privacy Setting is set to Custom.
Store Cookie
(On / Off)
Enables storing the technical information that a data service application leaves into the TV in order to recognise to use it again.
Delete Cookie
Deletes all of technical information left by a data service application.
Do Not Track Setting
(Mode1 / Mode2 / Mode3)
Sets to notify websites and some applications about tracking your browsing activities.
Mode1:
Notifies websites that you want to be tracked.
Mode2:
Notifies websites that you do not want to be tracked.
Mode3:
Sends no configuration information about tracking.
Allow Unique Device ID
(On / Off)
Sends identifying ID of this TV for the data service application.
Reset Unique Device ID
Resets the identifying ID of this TV.
Note
- A broadband network environment is required to fully use Hybrid Broadcast Broadband TV application. Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
- Not all the data services are available depending on the country, area and broadcaster.
- Not valid in multi window mode
- Depending on the connection environment, the internet connection may be slow or may not be successful.
- Operations may vary depending on the broadcaster. Follow the on-screen instructions.
- On-screen instructions may not correspond to the remote control buttons.
Common Interface
Caution
If the encrypted message is displayed on the screen, the correct Common Interface (CI) Module and smart card that are required for this service are not inserted.
■ How to insert CI module and smart card
- Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.
- Depending on the model, it may be necessary to remove the terminal cover / cable cover before inserting or removing the CI module.
- If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
- Insert or remove the CI module completely in the correct direction as shown.
= Note =
- There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.4 TV. In this case, please contact your content provider.
Some features are not available on all models.
The Common Interface Module menu provides access to software contained in Common Interface (CI) Modules.
- This function may not be available in some countries or regions.
•Video and audio signals may not be output depending on the broadcast or service.
Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the broadcaster-approved CI module. Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.
■ Insert the CI module (optional)
- Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.) If encrypted channels do not appear, take the following steps.
-
For details, read the manual of the CI module, or check with the content provider.
-
Select the mode with TV.
DVB-S / DVB-C / DVB-T
- Display the menu with MENU.
- Select Setup > Common Interface and press OK to access.
- Select Slot 1: / Slot 2:, press OK and follow the on-screen instructions.
• To enter the CICAM PIN number, select Option Settings.
- On-screen instructions may not correspond to the remote control buttons.
- You can also select the CI module to watch the encrypted channels from CAM Selection.
Watching > Basic > AV Options
= Note =
- To tune in the encrypted channels properly, ensure the appropriate CI module is inserted and selected.
Shipping Condition
Shipping Condition
Resets the TV to its original condition (i.e. no channels tuned in).
All settings are reset (channels, picture, sound settings, etc.).
- Display the menu with MENU.
- Select Setup > System Menu > Shipping Condition and press OK to access.
- When a confirmation screen is displayed, select Yes and press OK to set.
- Follow the on-screen instructions.
•Auto Setup automatically starts.
= Note =
• To retune TV channels only (e.g. after moving house), set Auto Setup.
Watching > Tuning and editing channels > Auto Setup
Updating the TV Software
Information
A new version of software may be released for download to enhance the performance or operations of the TV.
If there is an update available and the channel has the update information, a notification message is displayed.
- To install new software, select Standby / Now and press OK to set.
Standby:
Installs new software in standby condition.
Now:
Installs new software now.
= Note =
- Software updating may result in higher energy consumption of the product.
Auto update
You can update new software automatically.
- Display the menu with MENU.
- Select Setup > System Menu > System Update > Auto Update Search in Standby and press OK to access.
- Select the time and press OK to set.
- If any software updates are available, a notification message will appear. To install new software, select Standby / Now and press OK to set.
Standby:
Installs new software in standby condition.
Now:
Installs new software now.
Ignore:
Cancel the software updating.
- If System Update is performed, the software will be updated (TV functions may be changed). If you do not want to do so, set Auto Update Search in Standby to Off.
- The automatic updating cannot be performed in the following conditions:
- TV turned off with Mains Power On / Off switch
- DVB-via-IP
= Note =
- Download may take a few hours.
- During software download and update, DO NOT switch off the TV.
- A notification message may be a reminder. In this case, schedule information (the date when the new version can be used) will appear. You can set the reservation for update. The update will not start when the TV is off.
Manual update
You can update new software manually.
- Display the menu with MENU.
- Select Setup > System Menu > System Update > System Update Search Now and press OK to access.
- Searches for an update (for several minutes) and displays a corresponding message if any.
- Download with OK.
= Note =
- Download may take a few hours.
- During software download and update, DO NOT switch off the TV.
Setting characters
Using Numeric buttons
You can enter characters for free input items using Numeric buttons.
Press Numeric buttons repeatedly until you reach the desired character.
1: . @ / 1 ! : # + - * _ ( ) “ % & ? , ; = \$ [ ] \~ < > { } | ^ \
2:abc2ABC
3 : def3DEF
4: ghi4GHI
5 : jk15JKL
6:mno6MNO
7:pqrs7PQRS
8 : tu v 8 T UV
9 : wxyz9WXYZ
0 : Space 0
• The character is set automatically if you leave for 1 second.
- You can also set the character pressing OK or other Numeric buttons less than 1 second.
• The characters may vary depending on the input item.
Bluetooth devices
Bluetooth Setup
You can use Bluetooth keyboards ^1 , Bluetooth mouses ^1 and Bluetooth audio devices ^*2 (headphones, smartphone, etc.) with this TV by setting Bluetooth Setup in the Setup Menu.
*1 : HID (Human Interface Device Profile) and HOGP (Human interface device Over Generic attribute Profile) compliant keyboards and mouses can be used.
*2 : A2DP (Advanced Audio Distribution Profile) and AVRCP (Audio Video Remote Control Profile) compliant audio devices can be used.
- Display the menu with MENU.
- Select Setup > Bluetooth Setup and press OK to access.
- Select one of the following items and press OK to access.
Devices / Bluetooth Audio Mode Setting / Bluetooth Audio Settings
- Set the item and press OK to store.
Devices
Searches the available device and displays the status.
- Place the device within 50 cm from the TV while registration is in progress.
- Turn the device on for registering. The setup for registration may be required depending on the device. Read the manual of the device.
- You cannot use two or more A2DP compliant audio devices simultaneously.
Not paired:
The device is not registered. Register the device by following the on-screen instructions to use with this TV.
Connected:
The device is registered and you can use with this TV.
Not connected:
The device is already registered, but not connected to this TV. Check the device is turned on and set within the available range.
Bluetooth Audio Mode Setting
(Transmitter / Receiver)
Selects the TV's Bluetooth audio mode.
Transmitter:
Connects an audio device such as headphones, speaker, etc.
Receiver:
Connects an audio device such as a smartphone, audio player, etc.
Bluetooth Audio Settings
Adjusts the volume for an audio device, etc. in the transmitter mode.
Audio Output:
Sets to Bluetooth only to mute the TV speakers automatically when using a Bluetooth audio device. And you can adjust the volume of the device using Volume Up / Down.
Volume:
Adjusts the volume of a Bluetooth audio device.
Audio Control:
Sets to control a Panasonic Bluetooth audio device with this TV.
- Settings on a Panasonic Bluetooth audio device are also required to use this audio control function.
- Settings in the Sound Menu may not be effective for the Bluetooth audio devices.
•To use Audio Link
1) Display Apps with APPS.
2) Select Audio Link and press OK to access.
3) Follow the on-screen instructions.
- If using the 2.4 GHz band on the wireless router, simultaneous use with Bluetooth device may result in connection interruptions. If your wireless router supports 5 GHz band, try using the 5 GHz band. If you have a wired LAN connection, try using the wired LAN connection.
- If the sound interruption occurs, place Bluetooth device closer to the TV.
- When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronised (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.
Keyboard
Keyboard
•Keyboards requiring the drivers are not supported.
•To change the language type, set Keyboard Layout.
1) Display the menu with MENU.
2) Select Setup > System Menu > Keyboard Layout and press OK to access.
3) Select the language and press OK to set.
- Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout setting.
- Some of the keys of keyboards may correspond to the operation of the remote control.
| Keyboard Remote Control | |
| ↑/↓/←/→ | △/▽/◀ ▷ |
| Enter OK | |
| Backspace BACK/RETURN | |
| Esc EXIT | |
| 0 - 9 / Character Numeric buttons | |
| F1 HOME | |
| F2 APPS | |
| F3 MENU | |
| F4 AV | |
| F5 / F6 Channel Down / Up | |
| F7 / F8 Volume Down / Up | |
| F9 / F10 / F11 / F12 Coloured buttons | |
Settings
Setting menu
How to use
Various menus allow you to make settings for the picture, sound and other functions.
- Display the menu with MENU.
- Displayed items vary depending on the input signal.
-
Select the menu and press OK to access.
-
Select the items and press OK to access.
- Only available items can be selected.
- You can also access from eHELP pressing (red) at each item (if available).
- You can select from among alternatives with and press to set.
- You can adjust using the slide bar with ◀ and press to set.
- You can go to the next screen with OK.
- You can enter names or numbers freely for some items.
1) Enter characters one by one with Cursor buttons and press OK to set.
- You can set characters using Numeric buttons.
Functions > Setting characters > Using Numeric buttons
2) Press BACK/RETURN to store.
•To reset the settings
- To initialise picture or sound settings only, select Reset to Defaults in the Picture Menu or Sound Menu.
- To initialise all settings, select Shipping Condition.
Functions > Shipping Condition
•To exit the menu screen
EXIT
•To return to the previous screen
BACK/RETURN
= Note =
- Menu items and selectable options vary depending on the mode (TV mode, Media Player, Network services, etc.).
- Some settings in Picture menu may also affect the menu screen when watching content in 4K format.
- Depending on the model, the initial setting value of Viewing Mode may differ between Home and Shop even when selecting the same viewing mode.
The setting value can be adjusted by pressing MENU and selecting Picture.
■ Using control panel buttons
- Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu.
- Select and set with following control panel buttons.
- Move the cursor / select from a range of options / select the menu item / adjust levels
- Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button
Viewing Mode
Selects your favourite picture mode for each input.
Watching > For best picture > Viewing Mode
Basic settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
Luminance Level, Backlight, Contrast, Brightness, Colour, Tint, Sharpness
Adjusts the levels of these options according to your personal preference.
Watching > For best picture > Basic settings
Colour Temperature
Sets the overall colour tone of the picture (bluer - redder).
Watching > For best picture > Basic settings
Vivid Colour
Automatically adjusts colours to vivid ones.
Watching > For best picture > Basic settings
Colour Remaster
Displays the vivid images with the expanded colour gamut.
Watching > For best picture > Basic settings
Rec.2020 Colour Remaster
Displays the vivid images with the suitable colour gamut.
Watching > For best picture > Basic settings
Adaptive Backlight Control
Automatically controls the level of backlight according to the images.
Watching > For best picture > Basic settings
Resolution Remaster
Enhances picture resolution to make the image sharper.
Watching > For best picture > Basic settings
Dynamic Range Remaster
Enhances bright areas of the image closer to the original luminance making improved picture impact.
Watching > For best picture > Basic settings
Intelligent Frame Creation
Automatically compensates the picture frame rate and removes juddering movements to make the images smooth.
Watching > For best picture > Basic settings
Clear Motion
Makes the moving pictures clearer by controlling the level of backlight.
Watching > For best picture > Basic settings
Ambient Sensor
Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting condition.
Watching > For best picture > Ambient Sensor
HDR Brightness Setting
You can adjust and set up the details of HDR brightness.
Watching > For best picture > HDR Brightness Setting
Noise reduction settings
Noise Reduction
Reduces unwanted picture noise.
Watching > For best picture > Noise reduction settings
MPEG Remaster
Reduces flicker noise in contoured parts of a picture and block noise.
Watching > For best picture > Noise reduction settings
Advanced Settings
You can adjust and set up the detailed picture settings.
Watching > For best picture > Advanced Settings
Option Settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
Game Mode
Provides suitable images for fast response signals when playing games.
Watching > For best picture > Option Settings
Film Cadence Mode
Improves vertical resolution for movie images.
Watching > For best picture > Option Settings
1080p Pure Direct
Reproduces the original image quality in detail for 1080p (HDMI) input signal.
Watching > For best picture > Option Settings
4K Pure Direct
Reproduces the original image quality in detail for 4K (HDMI) input signal.
Watching > For best picture > Option Settings
1080p Pixel by 4pixels
Displays like pixel by pixel to make the image sharper for 1080p signal.
Watching > For best picture > Option Settings
HDMI Content Type
Adjusts the picture settings of each HDMI input according to the selected content type.
Watching > For best picture > Option Settings
EOTF Type
Selects the EOTF type of broadcast or video content.
Watching > For best picture > Option Settings
HDMI Colorimetry Type
Selects the colourimetry type for each HDMI input.
Watching > For best picture > Option Settings
HDMI RGB Range
Adjusts the black level of the image for each HDMI input.
Watching > For best picture > Option Settings
HDMI YCbCr Range
Adjusts the black level of the image in the YCbCr signal for each HDMI input.
Watching > For best picture > Option Settings
HDMI EOTF Type
Selects the EOTF type for each HDMI input. Set to Auto for general use.
Watching > For best picture > Option Settings
AV Colour System
Selects optional colour system based on video signals.
Watching > For best picture > Option Settings
3D-COMB
Makes still or slow moving pictures more vivid.
Watching > For best picture > Option Settings
Screen Settings
Some features are not available on all models. Available menu items are displayed on your TV screen.
Aspect
Changes the aspect ratio (image size).
Watching > For best picture > Aspect
16:9 Overscan
Selects the screen area displaying the image for 16:9 aspect.
Watching > For best picture > Screen Settings
Zoom Adjustments
Adjusts the vertical position and size when aspect is set to Zoom.
Watching > For best picture > Screen Settings
Screen Display
Turns the screen off when you select Off.
Watching > For best picture > Screen Settings
Pixel Orbiter
Sets the pixel shifting of the image to prevent panel "image retention".
Watching > For best picture > Screen Settings
Logo Luminance Control
Adjusts the luminance level of the displayed logo to prevent panel “image retention”.
Watching > For best picture > Screen Settings
Panel Maintenance
Turns the screen off and perform the maintenance to prevent the panel "image retention".
Watching > For best picture > Screen Settings
Panel Maintenance Message
Enables to display the regular panel maintenance notification.
Watching > For best picture > Screen Settings
PICTURE Button Setting
Sets the viewing mode selection when pressing PICTURE.
Watching > For best picture > Viewing Mode
Lock Settings
Only for the OLED TV
Locks the settings of Professional1 / 2 for each input.
Watching > For best picture > Lock Settings
Copy Adjustment
Some features are not available on all models. Available menu items are displayed on your TV screen.
Copies the picture settings of True Cinema, Custom, Professional1, Professional2, Dolby Vision Bright or Dolby Vision Dark to those of the other input mode or Viewing Mode.
Watching > For best picture > Copy Adjustment
Reset to Defaults
Resets the current Picture Viewing Mode to the default settings.
Sound
Mode
Selects your favourite sound mode for each input.
Watching > For best audio > Sound mode
Basic settings
Bass
Adjusts level to enhance or minimise lower, deeper sound output.
Watching > For best audio > Basic settings
Treble
Adjusts level to enhance or minimise sharper, higher sound output.
Watching > For best audio > Basic settings
Equaliser
Adjusts the frequency level to suit your favourite sound quality.
Watching > For best audio > Basic settings
Balance
Adjusts the volume level of right and left speakers.
Watching > For best audio > Basic settings
Dolby Atmos
Provides the precise sound of Dolby Atmos when playing Dolby Atmos content. Set to On for general use.
Watching > For best audio > Basic settings
Surround
Selects surround sound settings.
Watching > For best audio > Basic settings
Bass Boost
Enhances the effect of bass sounds.
Watching > For best audio > Basic settings
Sport Link
Automatically sets the sound mode to Stadium when Viewing Mode is set to Sport.
Watching > For best audio > Basic settings
Volume settings
Speaker Selection
Enables controlling the theatre speaker with this TV's remote control by pointing at the TV's signal receiver.
Watching > For best audio > Volume settings
TV Speaker Setting
Selects the sound output to adjust the volume.
Watching > For best audio > Volume settings
Auto Gain Control
Automatically regulates large sound level differences between channels and inputs.
Watching > For best audio > Volume settings
Volume Correction
Adjusts the volume of each individual channel or input mode.
Watching > For best audio > Volume settings
Clear Sound Adjustment
If the sound from TV speakers is unclear due to installation environment, On is recommended.
Watching > For best audio > Volume settings
Enhances the intelligibility of dialogue and commentary.
Watching > For best audio > Volume settings
Headphone terminal output setting
Some features are not available on all models. Available menu items are displayed on your TV screen.
Sets the sound output from the headphone terminal.
Watching > For best audio > Headphone terminal output setting
Voice Guidance Settings
Voice Guidance
Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users.
Watching > For best audio > Voice Guidance Settings
Speed
Selects the readout speed for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Volume
Selects the volume for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Language
Changes language for the voice guidance.
Watching > For best audio > Voice Guidance Settings
User Level
Selects the level of verbosity for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Web Browser
Set to On to enable voice guidance of the network content in web browser function.
Watching > For best audio > Voice Guidance Settings
Audio Description
Preferred Audio Type
Narration settings for visually impaired users
Watching > For best audio > Audio Description
Volume
Adjusts the volume for Audio Description.
Watching > For best audio > Audio Description
Advanced settings
MPX
Selects multiplex sound mode (if available).
Watching > For best audio > Advanced settings
Audio Preference
Selects the initial setting for audio tracks.
Watching > For best audio > Advanced settings
SPDIF Selection
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
Watching > For best audio > Advanced settings
HDMI Audio Format
Selects the audio format for the HDMI input signal.
Watching > For best audio > Advanced settings
PCM Optical Level
Adjusts the audio level of PCM output from DIGITAL AUDIO and HDMI2 (ARC function) terminals to equalise with that of the other audio types.
Watching > For best audio > Advanced settings
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.
Watching > For best audio > Advanced settings
HDMI Input
Selects to fit the input signal.
Watching > For best audio > Advanced settings
Reset to Defaults
Resets the current Sound Mode to the default settings.
Network
Network Connection
Sets the network setting to use this TV in your network environment.
Network > Network settings > Network Connection
Network Status
Displays and checks the network status (MAC Address, current network settings, etc.).
Network > Network settings > Network Status
TV Name
Sets your favourite name for this TV.
Network > Network settings > TV Name
TV Remote App Settings
Sets to control the TV from network equipment (smartphone, etc.).
Network > Network settings > TV Remote App Settings
Network Link Settings
Sets to control the TV with devices connected to the network.
Network > Network settings > Network Link Settings
DVB-via-IP Server Settings
Only for the model supporting DVB-via-IP server function
Selects TV signal and enables tuning in DVB-via-IP server function.
Functions > DVB-via-IP > DVB-via-IP Server Settings
Mirroring Settings
Settings for the mirroring function
Functions > Mirroring > Mirroring Settings
Control4 Settings
Settings for the Control4 function
Network > Network settings > Control4 Settings
Other settings
VOD Content Refresh
Selects whether to update the VOD content to the latest even when the TV is in Standby mode.
Network > Network settings > VOD Content Refresh
Software Update
Accesses the specific website to update the TV's software if any updates are available.
Network > Network settings > Software Update
New Software Message
Selects whether to give a notification message when new software is found via network or not.
Network > Network settings > New Software Message
IPv6
Enables the IPv6 function for the network connections.
Network > Network settings > IPv6
Terms of Service and Settings
Displays the terms of service and settings.
Network > Network settings > Terms of Service and Settings
Timer
Off Timer
Sets the duration of time until the TV automatically goes into Standby mode.
Watching > Basic > Off Timer
Time Zone
Adjusts the time data.
Watching > Basic > Adjusting time
Auto Standby
Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
Watching > Basic > Energy saving functions
No signal Power off
Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.
Watching > Basic > Energy saving functions
Setup
Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode.
Watching > Basic > Energy saving functions
USB Device Setup
Safely removes USB device.
Media Player > Using Media Player > Information
Bluetooth Setup
Settings for the specific devices supporting Bluetooth wireless technology
Functions > Bluetooth devices > Bluetooth Setup
Child Lock
Applies access control for channels or inputs to prevent unwanted access.
Functions > Child Lock > Using Child Lock
Tuning Menu
Channel List Editor
You can edit the channel list by adding / deleting and moving channels.
Watching > Tuning and editing channels > Channel List Editor
Favourites Editor
Creates a list of favourite channels.
Watching > Tuning and editing channels > Favourites Editor
Auto Setup
Automatically searches for receivable channels.
Watching > Tuning and editing channels > Auto Setup
Manual Tuning
Searches for channels manually.
Watching > Tuning and editing channels > Manual Tuning
Update Channel List
Updates the channel list while keeping your settings.
Watching > Tuning and editing channels > Update Channel List
New Channel Message
Selects whether to give a notification message when a new channel is found or not.
Watching > Tuning and editing channels > Other settings
Signal Condition
Checks the signal condition.
Watching > Tuning and editing channels > Signal Condition
Antenna System
Sets the antenna system to use plural LNBs for receiving several satellites.
Watching > Tuning and editing channels > Auto Setup
LNB Configuration
Selects the satellite for each LNB.
Watching > Tuning and editing channels > Auto Setup
Attenuator
Automatically reduces the DVB-C signal to avoid the interference.
Watching > Tuning and editing channels > Other settings
Add TV Signal
Adds the TV mode.
Watching > Tuning and editing channels > Other settings
= Note =
- The settings in Tuning Menu are applicable only for the selected TV mode. The menu name varies depending on the TV mode. (DVB-S Tuning Menu / DVB-C Tuning Menu / DVB-T Tuning Menu / DVB-via-IP Tuning Menu / Analogue Tuning Menu)
Language
OSD Language
Changes language for on-screen displays.
Watching > Basic > Language
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the broadcaster).
Watching > Basic > Language
Preferred Subtitles 1 / 2
Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).
Watching > Basic > Language
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster).
Watching > Basic > Language
Display Settings
Preferred Subtitle Type
Selects the preferred subtitle type.
Watching > Basic > Subtitle
Teletext
Selects teletext display mode.
Watching > Teletext > Teletext mode
Teletext Character Set
Selects teletext language font.
Watching > Teletext > Teletext Character Set
Input Labels
Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner.
Watching > External equipment > Watching external input
Banner Display Timeout
Sets how long the information banner stays on screen.
Watching > Basic > Information banner
Playing Time Display
Set to On to display a time period of continuous use in Game Mode on the top right of the screen every 30 minutes.
Watching > External equipment > Watching external input
Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is selected.
Watching > Basic > Energy saving functions
Notification
(On / Off)
Displays a notification message.
Dolby Notification
(On / Off)
Displays a Dolby notification.
HDMI Auto Setting
Set to Mode1 when the image or sound in HDMI input is not played properly.
Watching > 4K resolution > HDMI Auto Setting
HDMI HDR Setting
Settings for input signal from the connected HDR device
Watching > External equipment > HDMI HDR Setting
HDMI 2.1 Settings
Automatically switches the TV to Game Mode according to the ALLM information when using this TV in single window mode.
Watching > External equipment > HDMI 2.1 Settings
Common Interface
Sets to watch encrypted channels, etc.
Functions > Common Interface > Using Common Interface
VIERA Link Settings
VIERA Link
Sets to use VIERA Link functions.
Functions > VIERA Link "HDAVI Control™" > Preparations
Power on Link
Sets to use Power on Link functions.
Functions > VIERA Link "HDAVI Control™" > Power on Link
Power off Link
Sets to use Power off Link functions.
Functions > VIERA Link "HDAVI Control™" > Power off Link
Standby Power Save
Controls the connected equipment to reduce power consumption in Standby.
Functions > VIERA Link "HDAVI Control™" > Standby Power Save
Intelligent Auto Standby
Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption.
Functions > VIERA Link "HDAVI Control™" > Intelligent Auto Standby
Data Service Application
Service
Sets to use Hybrid Broadcast Broadband TV application.
Functions > Data Service Application > Using Data Service Application
Privacy Setting
Settings for the privacy in the interactive data services
Functions > Data Service Application > Privacy Setting
System Menu
Keyboard Layout
Selects the language that your USB or Bluetooth Keyboard supports.
Functions > Keyboard > Keyboard
Shipping Condition
Resets all settings to the original condition.
Functions > Shipping Condition > Shipping Condition
System Update
Downloads new software to this TV.
Functions > Updating the TV Software > Auto update
Licence Menu
Displays the software licence information.
Other Settings
Power Save
(On / Off)
Reduces brightness of the picture to economise on power consumption.
Power LED Indicator
Selects the power LED indication mode.
Functions > Power LED Indicator > Using Power LED Indicator
Exchange Channel List
Exports / Imports DVB-S Channel List settings using the USB device to share the same settings with another TV which has the same function.
Watching > Tuning and editing channels > Channel List Editor
Support
Help menu
Using Help menu
- Display the menu with MENU.
- Select Help and press Ok to access.
- Select TV Self Test / System Information / Device Information and press OK to access.
TV Self Test
Makes a diagnosis of picture or sound problems.
Follow the on-screen instructions.
System Information
Displays the system information of this TV.
Device Information
Displays the device information of this TV.
FAQs
Some features are not available on all models. Available menu items are displayed on your TV screen.
Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of picture problem in TV Self Test.
Support > Help menu > Using Help menu
If the problem still persists, please contact your local Panasonic dealer for assistance.
Auto aspect
- Auto aspect is designed to provide you with the best ratio to fill the screen.
Watching > For best picture > Aspect Control Signal
- Set Aspect in the Picture Menu if you want to change the aspect ratio manually.
Watching > For best picture > Aspect
Black and white picture
- Check that the output of the external equipment matches the input of the TV.
Chaotic image, noisy
- Set Noise Reduction and MPEG Remaster in the Picture Menu to remove noise.
Watching > For best picture > Noise reduction settings
- Check nearby electrical equipment (car, motorcycle, fluorescent lamp).
No image is displayed
- Check the correct input mode is selected.
- Check the setting of AV (COMPONENT / VIDEO) in Input Selection to match the signal being output by the external equipment.
Watching > External equipment - Is Luminance Level, Backlight, Contrast, Brightness or Colour in the Picture Menu set to the minimum?
Watching > For best picture > Basic settings - Check all required cables and connections are firmly in place.
Blurry or distorted image (no sound or low volume)
- Reset channels.
Watching > Tuning and editing channels > Auto Setup
There may be a short black image
- A black image is displayed to avoid picture distortion when an input signal changes.
There may be white, red, blue, green and black spots on the screen
- This is a characteristic of the panels and is not a problem. The panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of white, red, green, blue or black. Please note this does not affect the performance of the panel.
Only for the OLED TV
A white horizontal line appears in Standby mode
- A white horizontal line may appear on the screen for a while to adjust the panel. This is not a malfunction.
Digital TV
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Block noise, frozen or disappearing image occurs / Some channels cannot be tuned
- Check the position, direction and connection of the aerial or dish.
- Check Signal Condition. If the level of Signal Quality is low, the DVB signal is weak. Connecting the aerial to the TV directly may improve signal quality than connecting the aerial through the equipment (Set top box, DVD, etc.).
Watching > Tuning and editing channels > Signal Condition
Watching > Basic > Basic connection
- Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.
- Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
- Check the network connections and settings (DVB-via-IP).
Functions > DVB-via-IP
Network > Network settings
- Turn the TV off with Mains Power On / Off switch, then turn it on again.
DVB-S Auto Setup cannot be done completely
- Check connections and dish alignment.
Watching > Basic > Basic connection
- If the problem persists, consult your local dealer.
Faulty dish message appears
- The satellite cable may be short-circuited or there may be connection problems of the cable. Check the cable and connection and then turn the TV off with Mains Power On / Off switch, and turn it on again.
- If the message persists, consult a dish installer for checking the dish and cable.
No programmes shown on TV Guide
- Check the digital transmitter.
- Adjust the direction of the aerial or dish to another transmitter installed nearby.
Analogue TV
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow image (ghosting) occurs / Some channels cannot be tuned
- Check the position, direction and connection of the aerial.
- Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.
- Turn the TV off with Mains Power On / Off switch, then turn it on again.
- If the problem persists, consult your local dealer or service provider for the availability of services.
Sound
Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of sound problem in TV Self Test.
Support > Help menu > Using Help menu
If the problem still persists, please contact your local Panasonic dealer for assistance.
No sound is produced
- Is "Sound mute" active? Press MUTE to switch sound mute on or off.
•Is the volume set to the minimum? - Check connections and setting of external equipment.
Watching > External equipment
- Ensure that Speaker Selection is set to TV.
Watching > For best audio > Volume settings
Functions > VIERA Link "HDAVI Control™" > Speaker Selection
- Ensure that TV Speaker Setting is set to TV Speaker.
Watching > For best audio > Volume settings
Sound level is low or sound is distorted
•Sound signal reception may be poor.
- Set MPX in the Sound Menu to Mono. (Analogue)
Watching > For best audio > Advanced settings
HDMI
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Sound is unusual
- Check the setting of HDMI Audio Format in the Sound Menu to match the audio signal from the connected equipment.
Watching > For best audio > Advanced settings
- Check the HDMI Input setting in the Sound Menu.
Watching > For best audio > Advanced settings
- If digital sound connection has a problem, select analogue sound connection.
Watching > External equipment > HDMI features
- Set HDMI Auto Setting in the Setup Menu to Mode1.
Watching > 4K resolution > HDMI Auto Setting
Pictures from external equipment are unusual when the equipment is connected via HDMI
- Check the HDMI cable is connected properly.
Watching > External equipment > External connection
- Turn the TV and equipment off, then turn them on again.
- Check an input signal from the equipment.
Watching > External equipment > Valid input signals
- Use equipment compliant with EIA/CEA-861/861D.
- Set HDMI Auto Setting in the Setup Menu to Mode1.
Watching > 4K resolution > HDMI Auto Setting
- The valid 4K format varies depending on the HDMI terminal.
Watching > 4K resolution > Valid 4K format
Network
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Cannot connect to the network
- Check the LAN cable or wireless LAN is connected properly.
Network > Network connections
- Check the connections and settings.
Network > Network connections
Network > Network settings
- Check the network equipment and network environment.
- The router may not be set to issue IP address automatically. If the network administrator prefers to allocate an IP address, set an IP address manually.
Network > Network settings
- The router may be using MAC address filtering (security setting). Confirm the MAC Address of this TV and set the router to use it.
Network > Network settings > Network Status
- If the problem persists, consult your Internet Service Provider or telecommunications company.
Cannot select the file during in-house streaming operations
•Is media server of the connected equipment prepared?
Network > Home network > In-House streaming
- Check applicable data format.
Network > Supported format
- Check the settings of Network Link Settings.
Network > Network settings > Network Link Settings
- Check the connections and settings.
Network > Network connections > Internet connection
Network > Network settings
•The server or connected line may be busy now.
Other
Some features are not available on all models.
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
VIERA Link function does not work and an error message appears
- Check the connections.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Turn the connected equipment on and then switch the TV on.
Functions > VIERA Link "HDAVI Control™"
Parts of the TV become hot
- Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality.
Overcurrent error message appears
- The connected USB device may cause this error. Remove the device and turn the TV off with Mains Power On / Off switch, then turn it on again.
- Check foreign objects are not inside the USB port.
An error message appears
- Follow the message's instructions.
- If the problem persists, contact your local Panasonic dealer or the authorised service centre.
LED does not light.
Set Power LED Indicator in the Setup Menu to On.
Functions > Power LED Indicator > Using Power LED Indicator
- LED turns to orange in Standby mode in the following conditions:
– Home Network Server is set to On.
– Powered On by Apps is set to On.
- Home Streaming is set to Always.
- Powered On by Easy Mirroring is set to On.
- VOD Content Refresh is set to On and VOD content is updated.
– DVB-via-IP Server Settings is set to Enable DVB-via-IP server.
- LED turns to orange during adjustment of the panel (approx. 10 minutes to maximum 80 minutes). LED turns to orange again in standby mode when the TV is turned on / off before the panel adjustment is completed. (Be sure to turn the TV off with the remote control to adjust the panel.)
The panel maintenance notification is displayed when turning the TV off with Standby On / Off switch of the TV's remote control.
- Perform the panel maintenance. Select Turn the TV off now and press OK to start the panel maintenance.
- The panel maintenance is interrupted when selecting Don't start panel maintenance this time or turning the TV off while the notification is displayed.
When pushed with a finger, the display panel moves slightly and makes a noise
- There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.
Detailed information
Support information about the application, optional devices, operation, etc. may be found on the following website.
http://panasonic.jp/support/global/cs/tv/ (English only)
Maintenance
Care and Cleaning
First, remove the mains plug from the mains socket.
■ Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
(3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.)
(4) Carefully wipe moisten and wipe away the stubborn dirt.
(5) Finally, wipe away all the moisture.
= Caution =
- Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
•Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint. - The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
- Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.
■ Mains plug
- Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
