USER MANUAL SLV-669HF SONY

Video Cassette Recorder

Operating Instructions

Owner's record

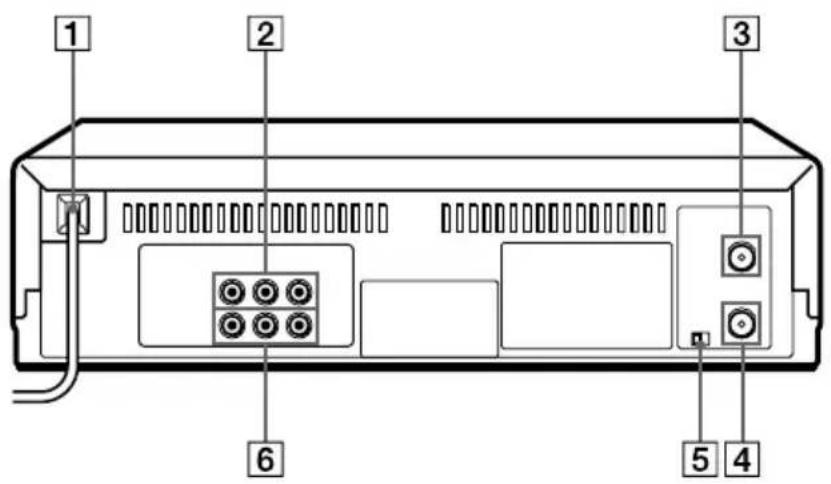

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____

Serial No. ____

VHS

Hi-Fi

SL V-669HF

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

The power cord must be changed only at a qualified service shop.

CAUTION

To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

Precautions

Safety

• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
• This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, contact your Sony dealer.

Installing

• Allow adequate air circulation to prevent internal heat buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.
• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a warm location, moisture may condense inside the VCR and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.

Information

For customers in the USA CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Television programs, films, video tapes and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or program owner.

Table of contents

Getting Started

4 Step 1: Unpacking
5 Step 2: Setting up the remote commander
7 Step 3: Hookups
22 Selecting a language
23 Setting the clock
31 Presetting channels

Basic Operations

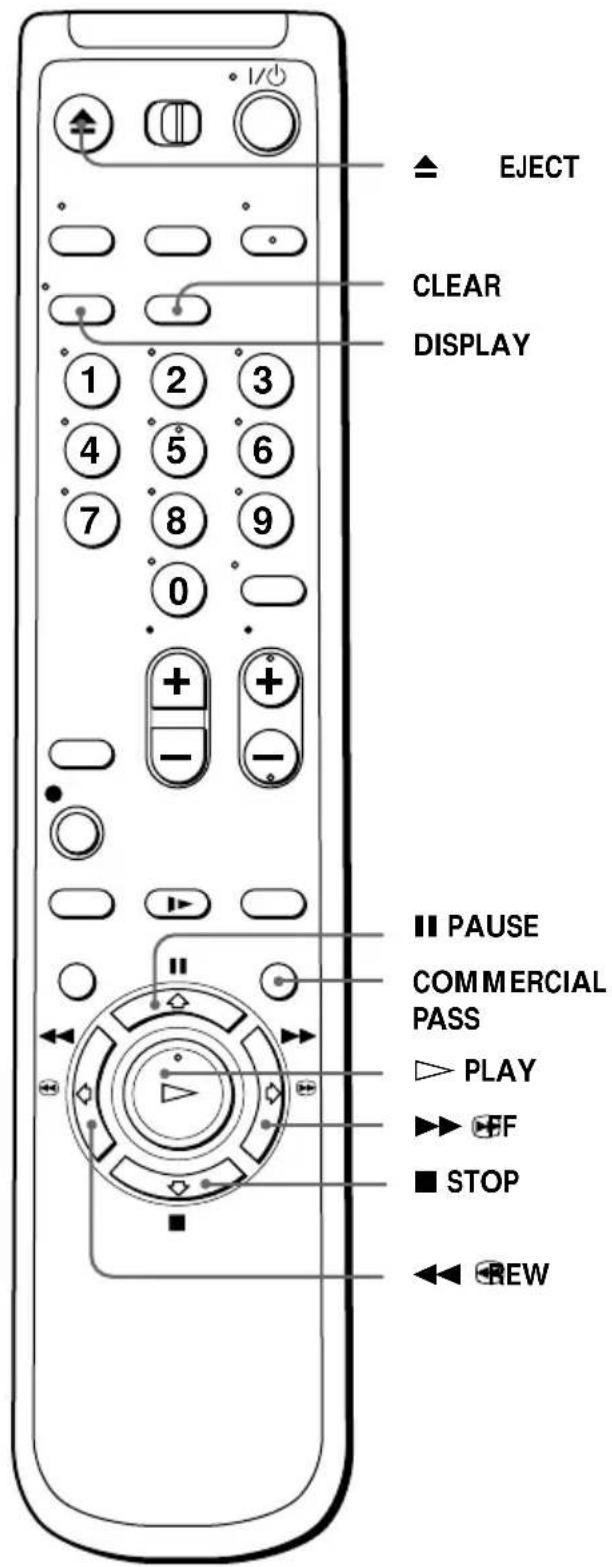

37 Playing a tape
40 Recording TV programs
43 Recording TV programs using the timer

Additional Operations

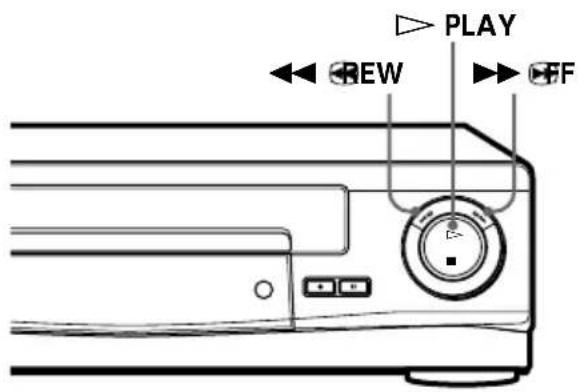

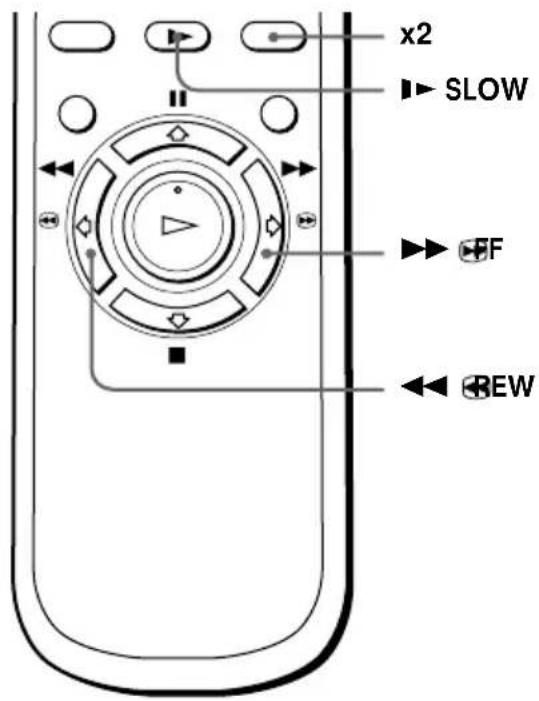

46 Playing/searching at various speeds
48 Setting the recording duration time
49 Checking/changing/canceling timer settings

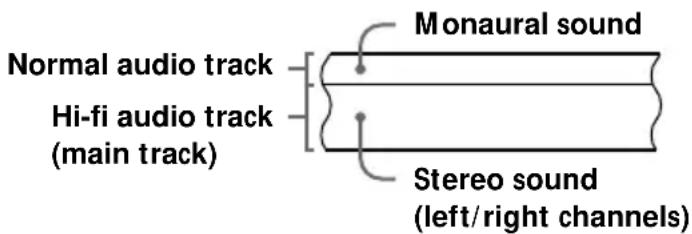

51 Recording stereo and bilingual programs
53 Adjusting the picture
54 Changing menu options

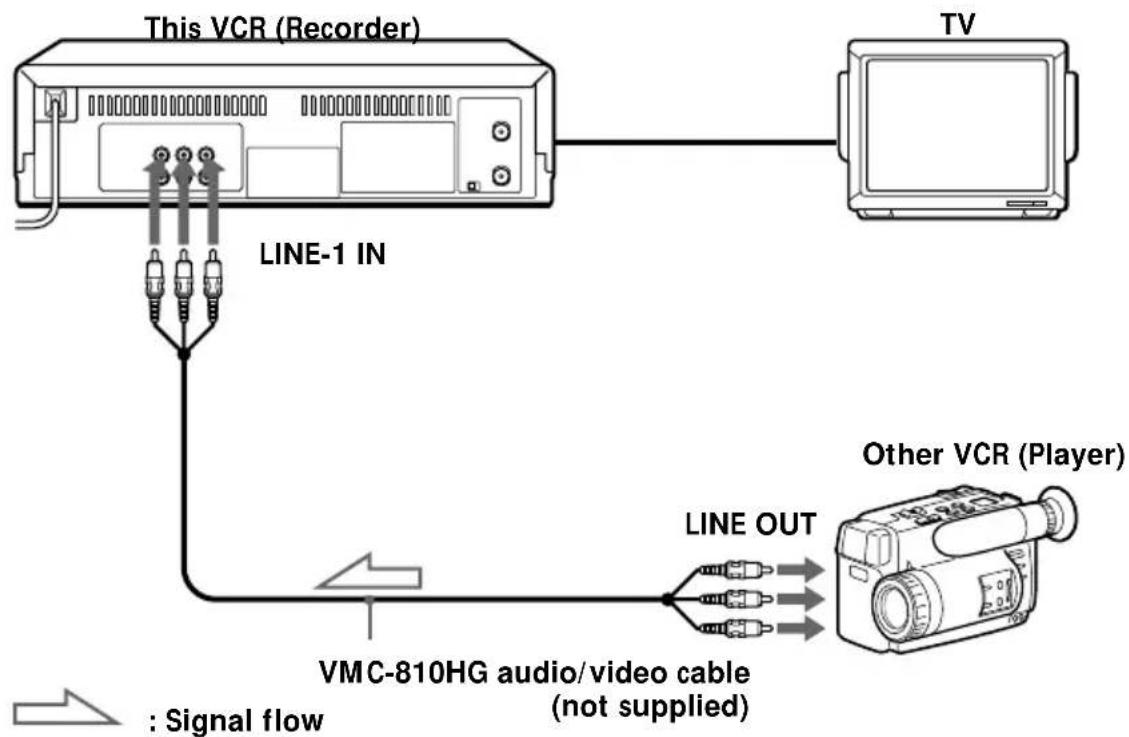

55 Editing with another VCR

Additional Information

57 General setup information
59 Troubleshooting
61 Specifications

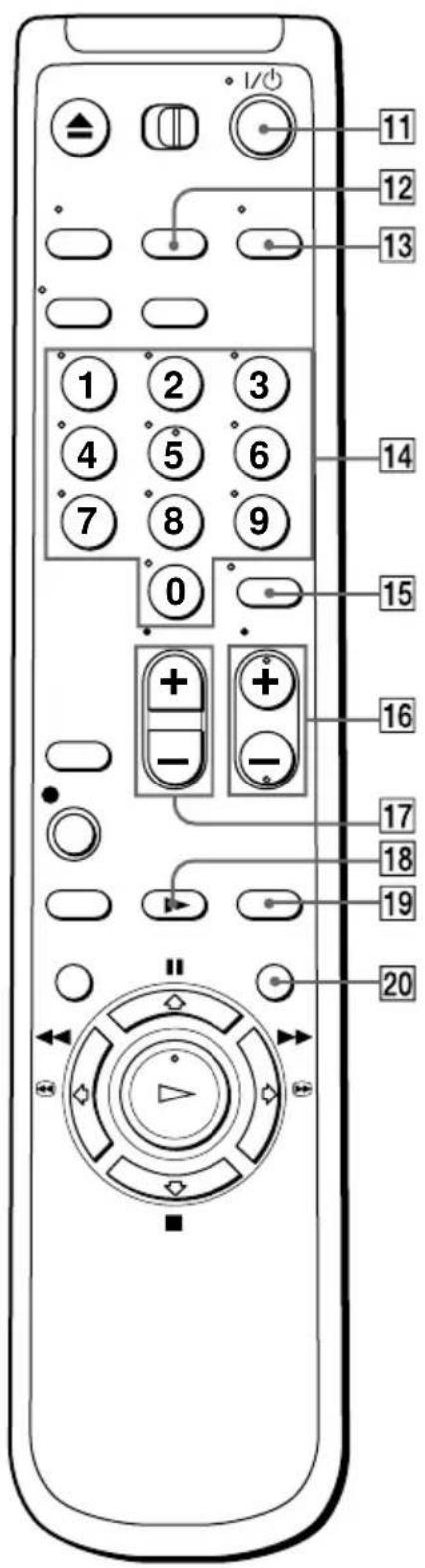

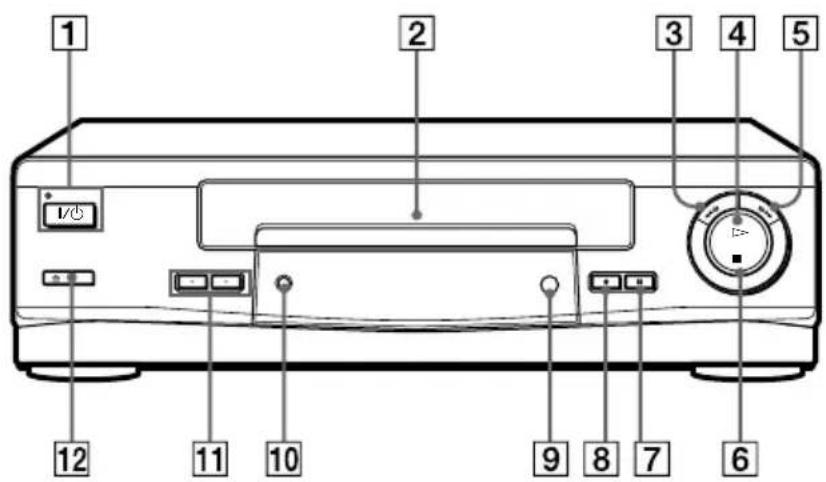

62 Index to parts and controls
67 Index

back cover

Quick reference to using the VCR

Step 1

Unpacking

Check that you have received the following items with the VCR:

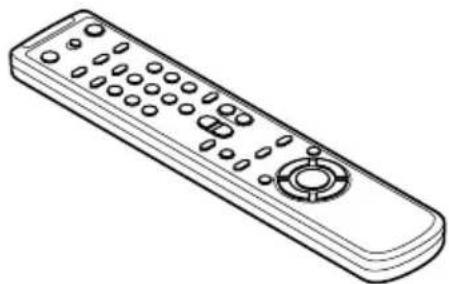

- Remote commander

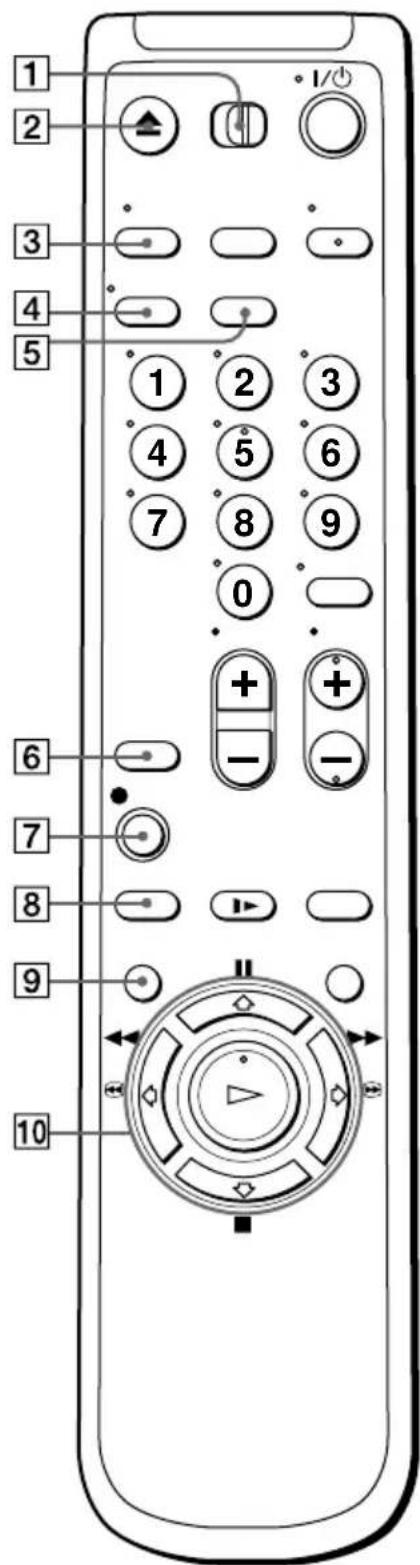

Line drawing of a remote control with buttons and dials (no text or symbols)

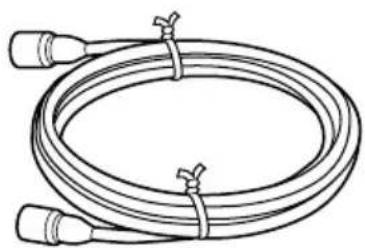

- 75-ohm coaxial cable with F-type connectors

Line drawing of a coiled cable with two connectors and tied straps (no text or symbols)

- Size AA (R6) batteries

Step 2

Setting up the remote commander

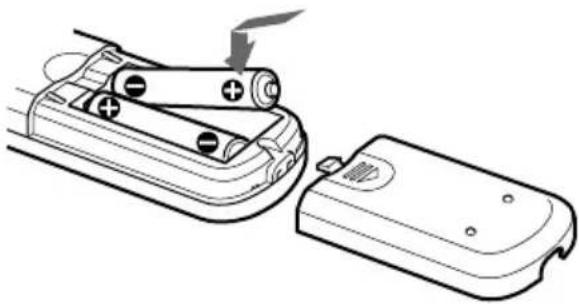

Inserting the batteries

Insert two size AA (R6) batteries by matching the + and - on the batteries to the diagram inside the battery compartment. Insert the negative (-) end first, then push in and down until the positive (+) end clicks into position.

Line drawing of a remote control device with battery and switch, showing internal components (no text or symbols)

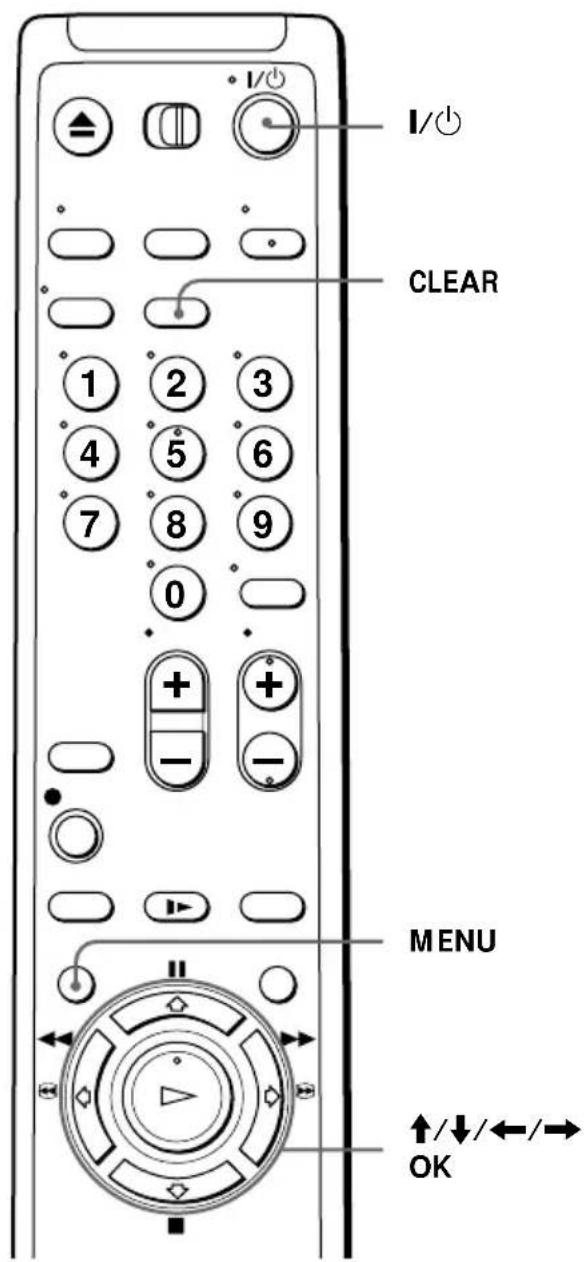

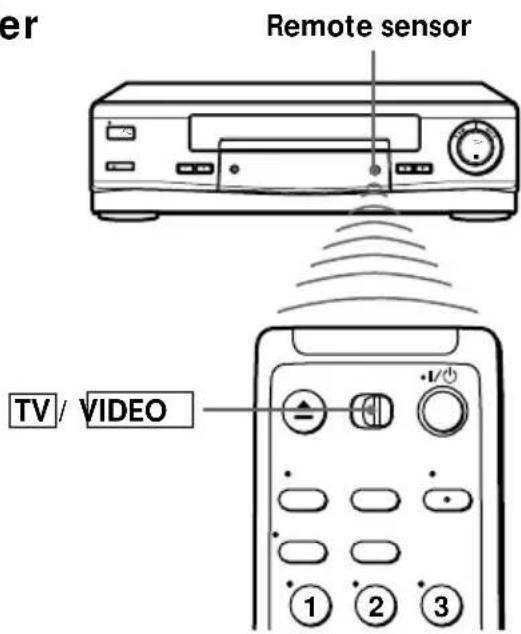

Using the remote commander

You can use this remote commander to operate this VCR and a Sony TV. Buttons on the remote commander marked with a dot (•) can be used to operate your Sony TV.

Remote sensor TV/ VIDEO

To operate Set TV / VIDEO to

the VCR VIDEO and point at the remote sensor on the VCR

a Sony TV TV and point at the remote sensor on the TV

Notes

• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.

continued

Step 2: Setting up the remote commander (continued)

Controlling other TVs with the remote commander

The remote commander is preprogrammed to control non-Sony TVs. If your TV is listed in the table below, set the appropriate manufacturer's code number.

1 Set TV/VIDEO at the top of the remote commander to TV.
2 Hold down I/☐, and enter your TV's code number(s) using the number buttons. Then release I/☐.

Now you can use the I/↓, VOL +/−, CH +/− and TV/VIDEO buttons to control your TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To control the VCR, reset TV/VIDEO to VIDEO.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer	Code number
Sony	01
Akai	04
AOC	04
Centurion	12
Coronado	03
Curis-Mathes	12
Daytron	12
Emerson	03, 04, 14
Fisher	11
General Electric	06, 10
Gold Star	03, 04, 17
Hitachi	02, 03
J.C.Penny	04, 12

Manufacturer	Code number
JVC	09
KMC	03
Magnavox	03, 08, 12
Marantz	04, 13
MGA/Mitsubishi	04, 12, 13, 17
NEC	04, 12
Panasonic	06, 19
Philco	03, 04
Philips	08
Pioneer	16
Portland	03
Quasar	06, 18
Radio Shack	05, 14

Manufacturer	Code number
RCA	04, 10
Sampo	12
Sanyo	11
Scott	12
Sears	07, 10, 11
Sharp	03, 05, 18
Sylvania	08, 12
Teknika	03, 08, 14
Toshiba	07
Wards	03, 04, 12
Yorx	12
Zenith	15

Notes

• If the TV uses a different remote control system from the one programmed to work with the VCR, you cannot control your TV with the remote commander.
• If you enter a new code number, the code number previously entered will be erased.
• When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.
• When you press the AUDIO MONITOR button, your TV's menu may appear on the TV screen. To exit the TV menu, press the MENU button on the TV remote commander or wait until the menu disappears automatically.

Step 3

Hookups

Selecting the best hookup option

There are many ways in which your VCR can be hooked up. To hook up your VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your VCR.

If you have	Use	Refer to
TV that has audio/video input	Audio/video (A/V) hookup, then follow one of the hookups below.	Pages 8 and 9
Antenna only, no cable TV	Hookup 1	Pages 10 to 12
Cable box with many scrambled channels	Hookup 2	Pages 13 to 15
No cable box or cable box with only a few scrambled channels	Hookup 3	Pages 16 to 18
Cable box with only a few scrambled channels, using an A/B switch	Hookup 4	Pages 19 to 21

After you've completed the connections, follow the instructions for setup. During setup, if you need more details on the procedure described, page numbers are provided where you can find complete, step-by-step instructions.

After you've completed the setup, you're ready to use your VCR.

Procedures differ depending on the hookup you used. For an overview, refer to “Quick reference to using the VCR” on the back cover.

Before you get started

• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are completed.
• Be sure you make connections firmly. Loose connections may cause picture distortion.
• If your TV doesn't match any of the examples provided, see your nearest Sony dealer or qualified technician.

continued

Step 3: Hookups (continued)

Audio/video (A/V) hookup Pages 8 and 9

If your TV has audio/video (A/V) input jacks, you will get a better picture and sound if you hook up your VCR using these connections. In addition, for a true “home theater” experience, you should connect the audio outputs of your VCR or TV to your stereo system. If your TV doesn’t have A/V inputs, see the following pages for antenna or cable hookups.

If you're not planning to use your VCR to record programs, you're finished setting up the VCR after you've made the connections shown on this page. If you want to record off-air or off your cable TV system, complete these connections first, and then go to the following pages for antenna or cable hookups.

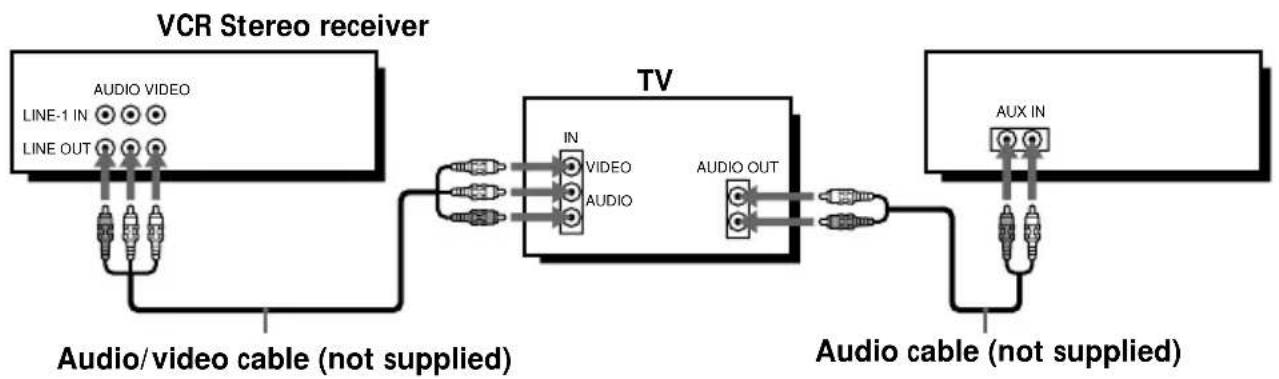

A Use this hookup if your TV has stereo jacks


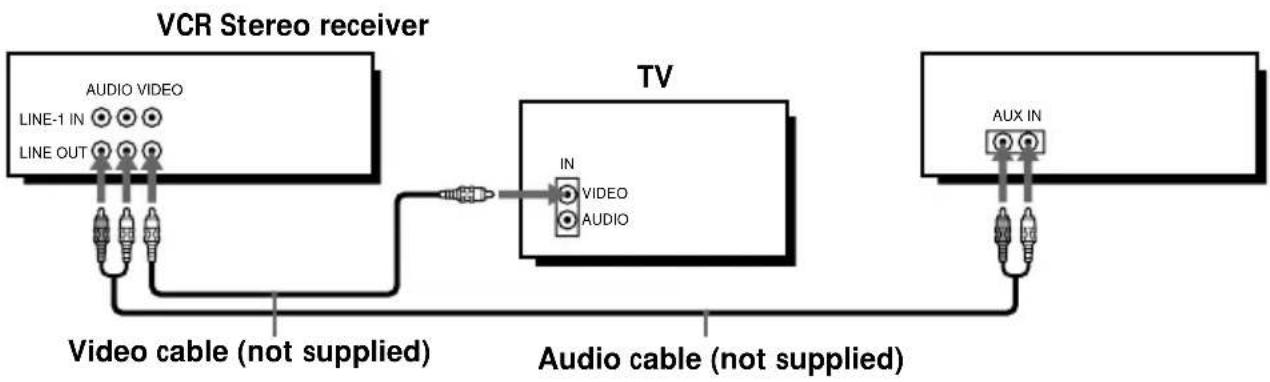

B Use this hookup if your TV doesn't have stereo jacks

Note

• To play a tape in stereo, you must use the A/V connection.

A/V hookup: VCR setup

After you've connected your TV and completed antenna or cable hookup, use the following procedure to set up the VCR.

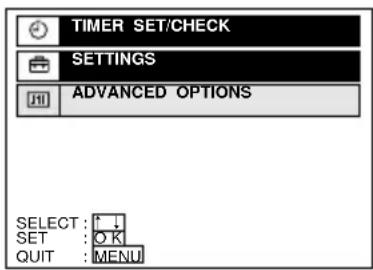

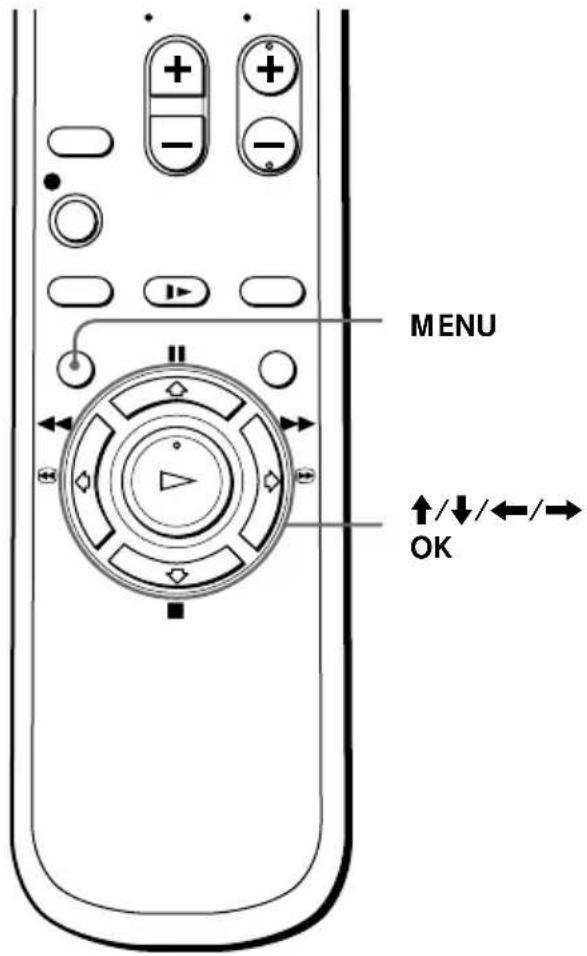

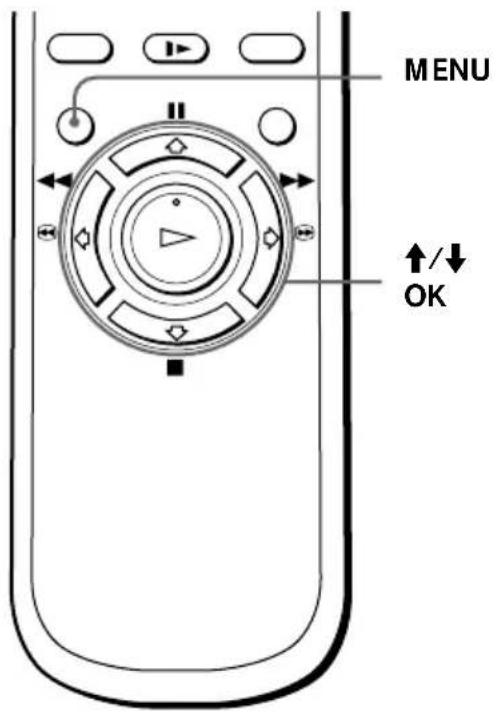

Press MENU and select ADVANCED OPTIONS.

TIMER SET/CHECK SETTINGS ADVANCED OPTIONS SELECT : ↑ ↓ SET : ○ K QUIT : MENU

Set AUTO ANT SELECT to OFF and press OK.

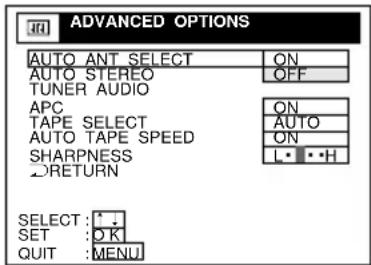

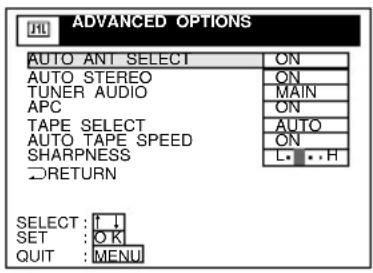

ADVANCED OPTIONS AUTO ANT SELECT ON AUTO STEREO OFF TUNER AUDIO APC ON TAPE SELECT AUTO AUTO TAPE SPEED ON SHARPNESS L• ••H RETURN SELECT: *_ SET: OK QUIT: MENU

For details, see page 54.

Caution

Connections between the VCR's VHF/UHF connector and the antenna terminals of the TV receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the VCR to an antenna or make simultaneous (parallel) antenna and VCR connections at the antenna terminals of your receiver.

Note to CATV system installer (in USA)

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

continued

Step 3: Hookups (continued)

Hookup 1

Antenna hookup

Make the following connections if you're using an antenna (if you don't have cable TV).

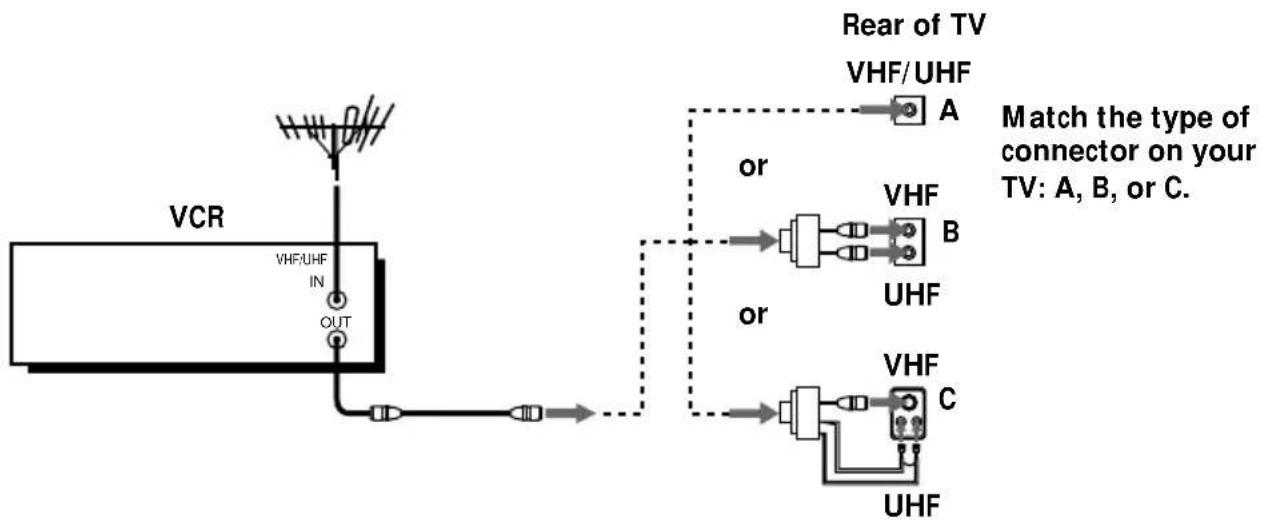

A Use this hookup if you're using:

• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
- Separate VHF and UHF antennas
    note right of F Match the type of connector on your TV: A, B, or C.

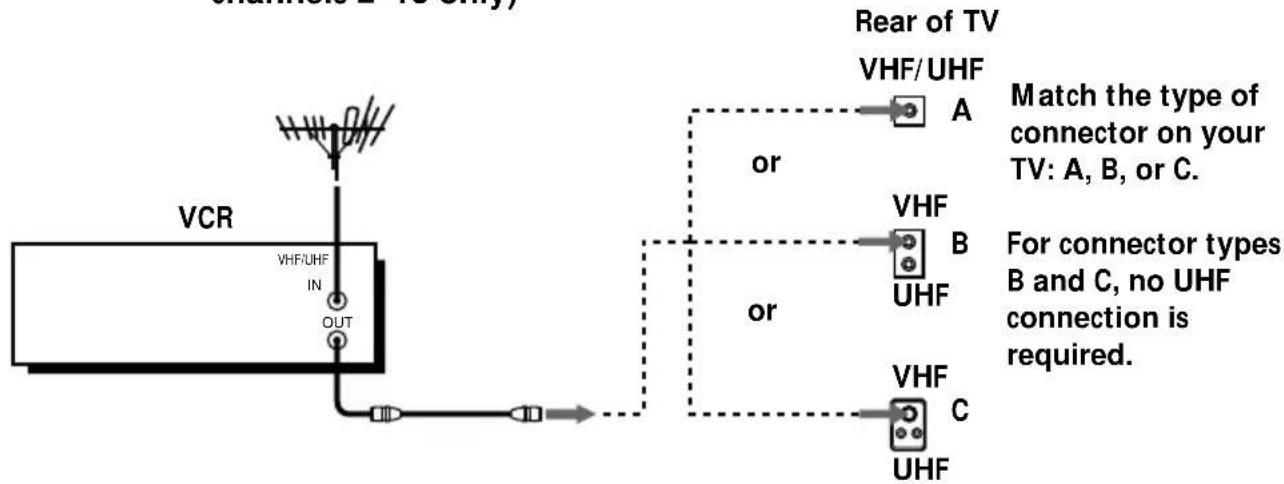

B Use this hookup if you're using a VHF-only antenna (you get channels 2–13 only)


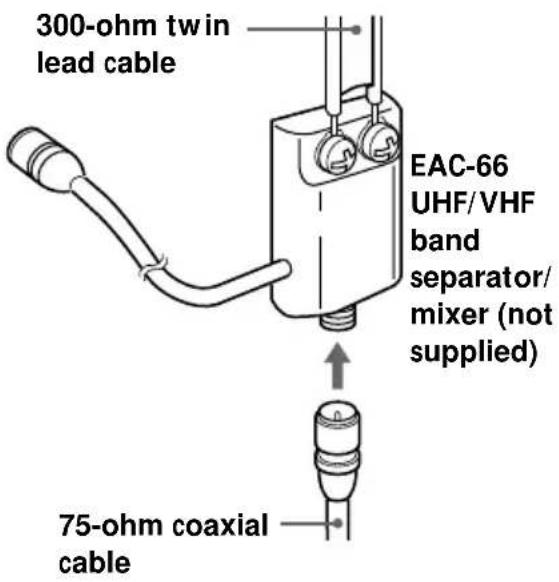

If you cannot connect your antenna cable to the VCR directly

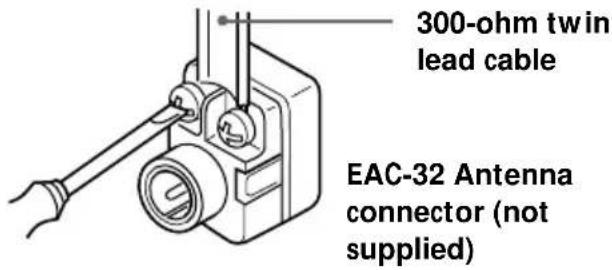

If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cable to the VHF/UHF IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band mixer (not supplied). For details, see page 58.

Hookup 1: VCR setup

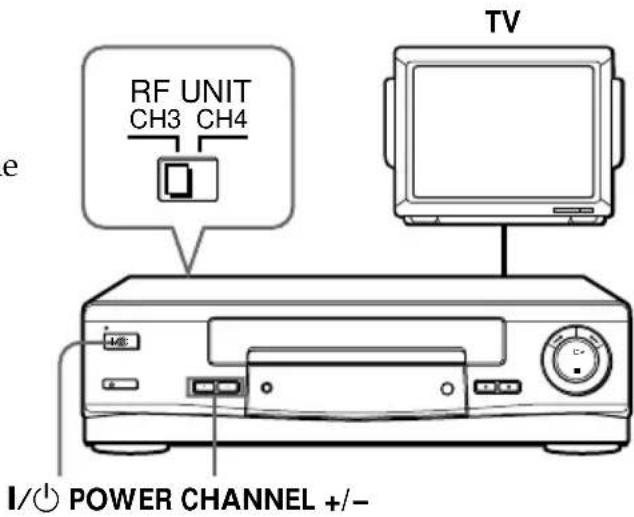

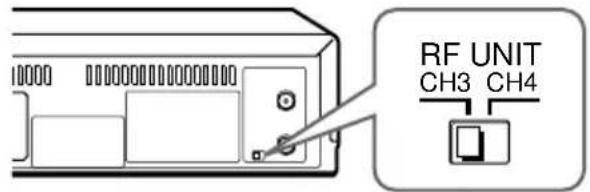

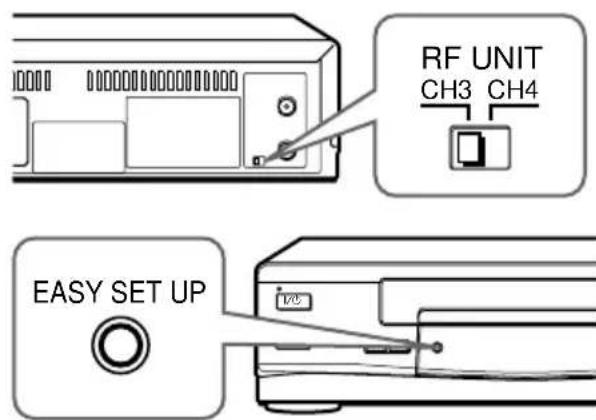

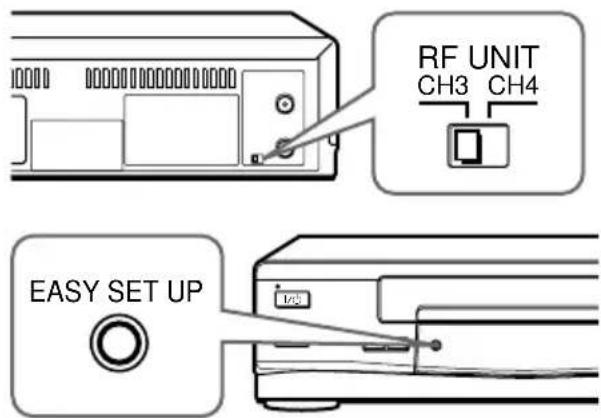

1 Set the RF UNIT switch to CH3 or CH4, whichever channel is not used in your area. If both are used, set the switch to either channel. For details, see page 57. If you made A/V connections (page 8), you can skip this step.

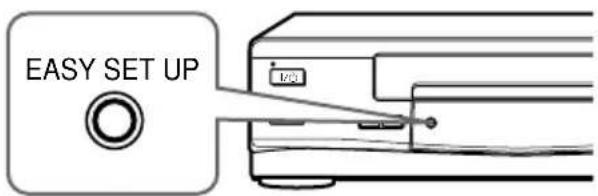

2 Press EASY SET UP on the VCR.

RF UNIT CH3 CH4

EASY SET UP

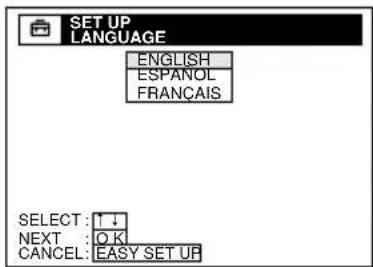

The LANGUAGE menu appears. Change the on-screen display language to Spanish (ESPAÑOL) or French (FRANÇAIS) if desired, and press OK. For details, see page 22.

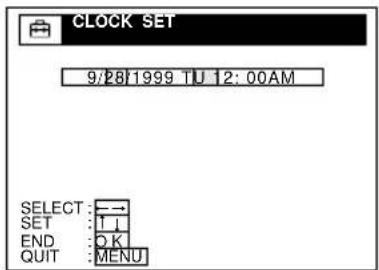

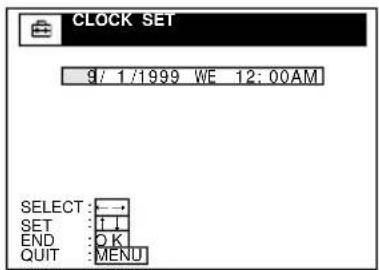

② The CLOCK SET menu appears. Select AUTO and press OK. For details, see page 24.

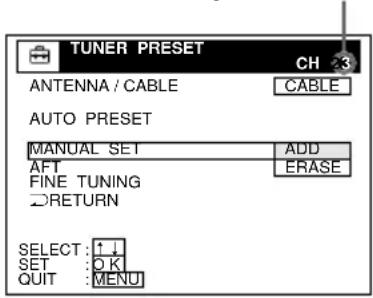

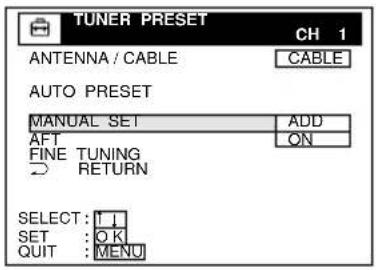

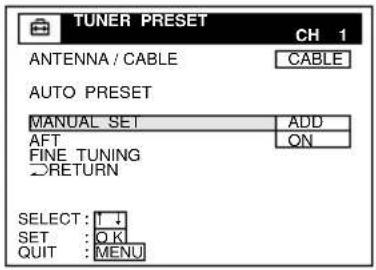

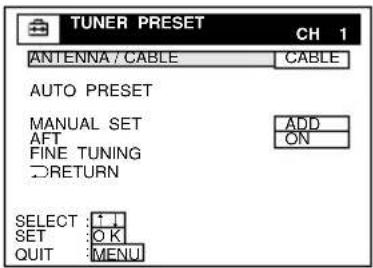

③ The TUNER PRESET menu appears. Set ANTENNA/CABLE to ANT and press OK. For details, see page 32.

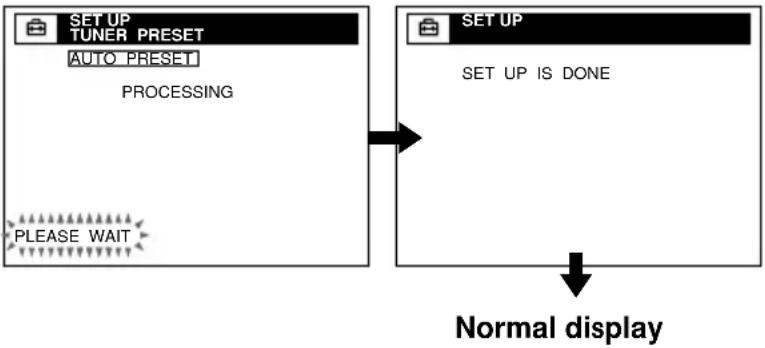

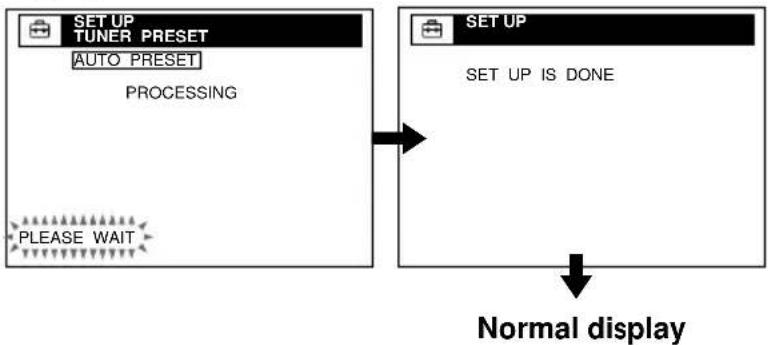

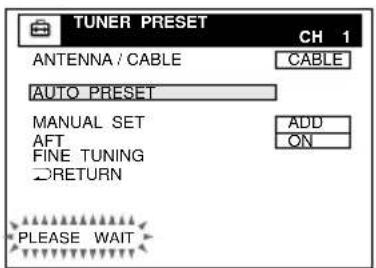

④ The AUTO PRESET starts.

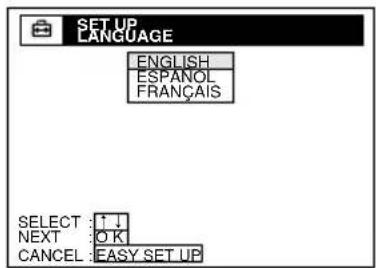

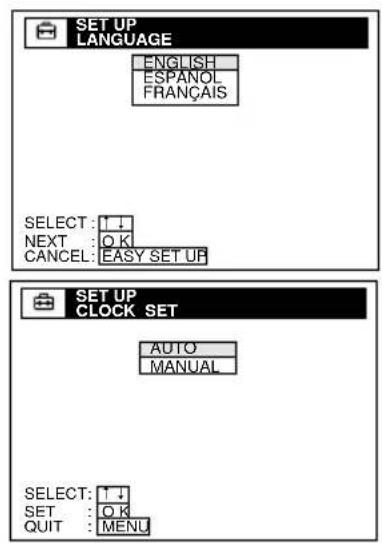

SET UP LANGUAGE ENGLISH ESPAÑOL FRANÇAIS SELECT: ↑↓ NEXT : O K CANCEL: EASY SET UP

SET UP CLOCK SET AUTO MANUAL SELECT: 1 SET : OK QUIT : MENU

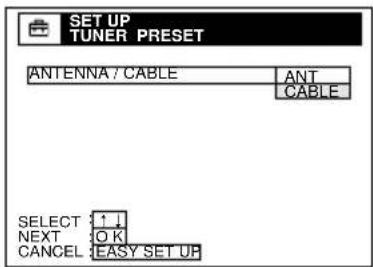

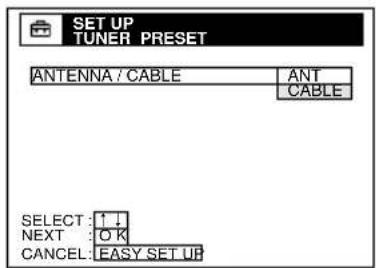

SET UP TUNER PRESET ANTENNA / CABLE ANT CABLE SELECT: 1 NEXT: OK CANCEL: EASY SET UP

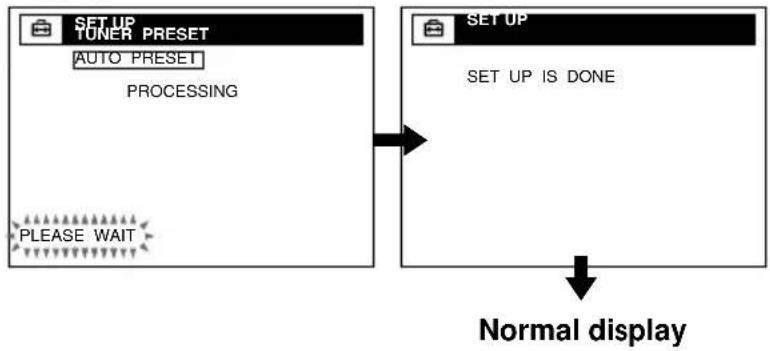

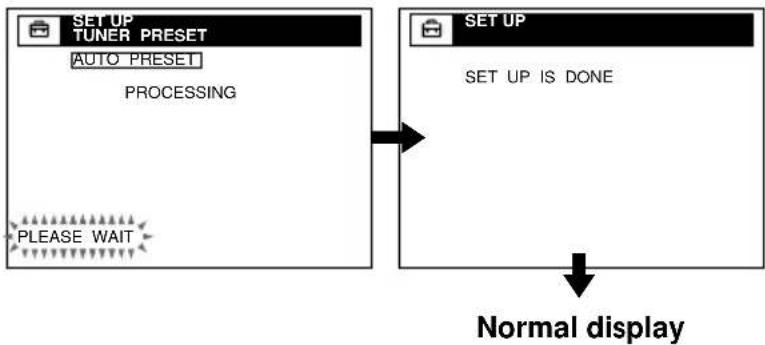


continued

Step 3: Hookups (continued)

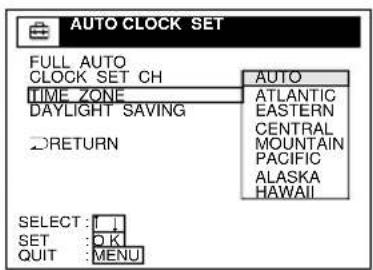

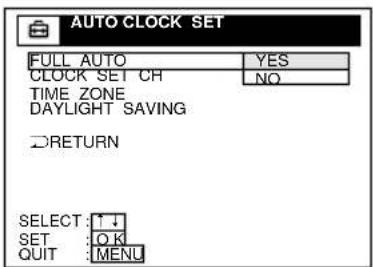

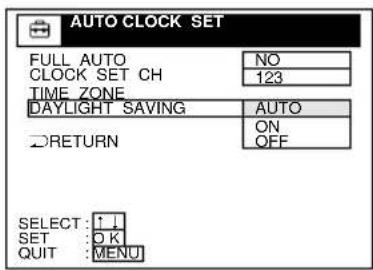

Automatic clock setting

Once you've set up the VCR, it automatically sets the clock the first time you turn off the VCR. After that, whenever you turn off the VCR, it checks the time and adjusts the clock, even for Daylight Saving Time. The VCR sets the clock by picking up a time signal provided by some TV channels.

If you want to use the timer to record right away, or if the channels in your area do not carry time signals, set the clock manually. For details, see page 26.

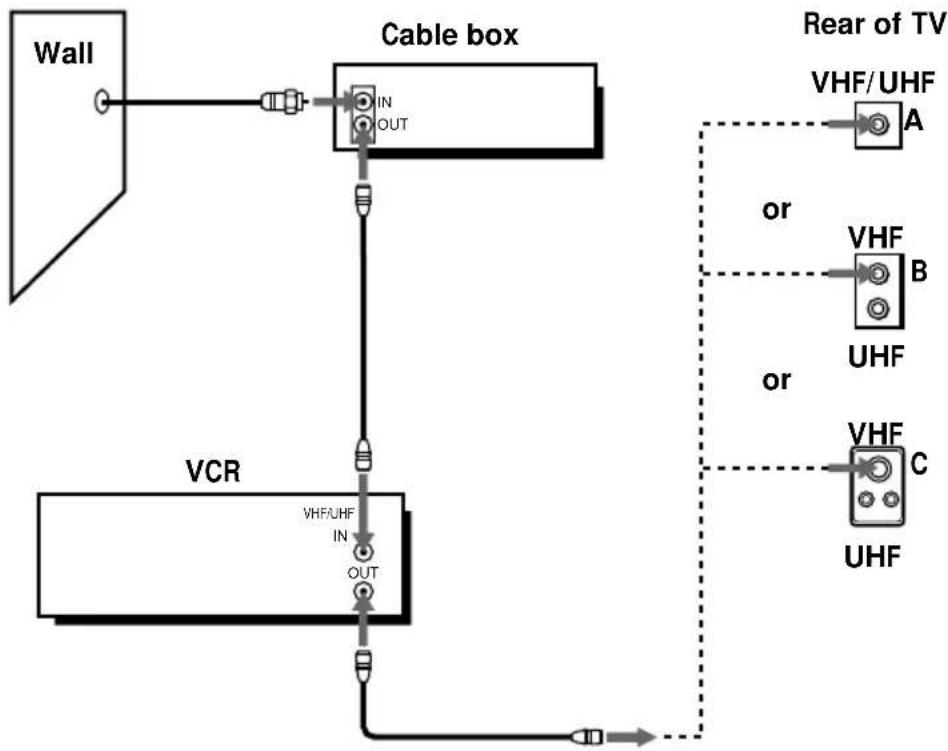

Hookup 2 Pages 13 to 15

Cable box with many scrambled channels

Recommended use

Use this hookup if your cable system scrambles all or most channels.

What you can do with this hookup

- Record any channel by selecting the channel on the cable box

What you can't do

• Record with the cable box turned off
• Record one channel while watching another channel

Match the type of connector on your TV: A, B, or C.

For connector types B and C, no UHF connection is required.

continued

Step 3: Hookups (continued)

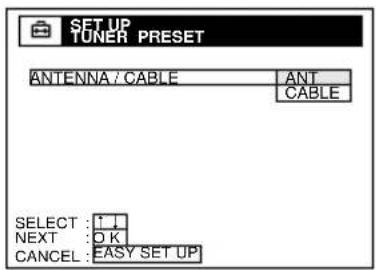

Hookup 2: VCR setup

1 Set the RF UNIT switch to CH3 or CH4, whichever channel is not used in your area. If both are used, set the switch to either channel. For details, see page 57. If you made A/V connections (page 8), you can skip this step.

RF UNIT CH3 CH4 EASY SET UP

2 Turn on your cable box.
3 Press EASY SET UP on the VCR.

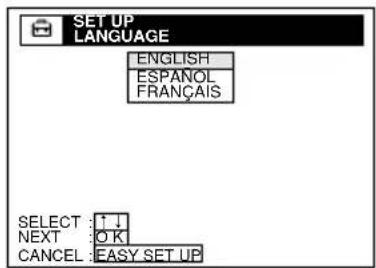

The LANGUAGE menu appears. Change the on-screen display language to Spanish (ESPAÑOL) or French (FRANÇAIS) if desired, and press OK. For details, see page 22.

SET UP LANGUAGE ENGLISH ESPAÑOL FRANÇAIS SELECT : 1 NEXT : OK CANCEL : EASY SET UP

2 The CLOCK SET menu appears. Select MANUAL and press OK. Then set the clock manually and press OK. For details, see page 26.

SET UP CLOCK SET AUTO MANUAL SELECT 1.1 SET O K QUIT MENU

3 The TUNER PRESET menu appears. Set ANTENNA/CABLE to ANT and press OK. For details, see page 32.

SET_UP TUNER PRESET ANTENNA / CABLE ANT CABLE SELECT : 11 NEXT : OK CANCEL : EASY SET UP

④ The AUTO PRESET starts.

Automatic clock setting

To use the Auto Clock Set feature with this hookup, you need to manually select a channel that carries a time signal:

1 Tune the cable box to a channel that carries a time signal.
2 Select AUTO in the CLOCK SET menu to turn on the Auto Clock Set feature.
3 Turn off the VCR. It automatically sets the clock and adjusts for Daylight Saving Time by picking up the time signal.

If you want to use the timer to record right away, or if the channels in your area do not carry time signals, set the clock manually. For details, see page 26.

Note

- To use the Auto Clock Set feature, leave the cable box on.

continued

Step 3: Hookups (continued)

Hookup 3 Pages 16 to 18

No cable box, or cable box with only a few scrambled channels

Recommended use

Use this hookup if you do not have a cable box. Also use this hookup if your cable system scrambles only a few channels.

What you can do with this hookup

• Record any unscrambled channel by selecting the channel on the VCR
• Record scrambled channels that require a cable box

What you can't do

Hookup 3: VCR setup

1 Set the RF UNIT switch to CH3 or CH4, whichever channel is not used in your area. If both are used, set the switch to either channel. For details, see page 57. If you made A/V connections (page 8), you can skip this step.

2 Press EASY SET UP on the VCR.

RF UNIT CH3 CH4 EASY SET UP

The LANGUAGE menu appears. Change the on-screen display language to Spanish (ESPAÑOL) or French (FRANÇAIS) if desired, and press OK. For details, see page 22.

2 The CLOCK SET menu appears. Select AUTO and press OK. For details, see page 24.

③ The TUNER PRESET menu appears. Set ANTENNA/CABLE to CABLE and press OK. For details, see page 32.

4 The AUTO PRESET starts.

SET UP LANGUAGE ENGLISH ESPAÑOL FRANÇAIS SELECT: ↑↓ NEXT: OK CANCEL: EASY SET UP SET UP CLOCK SET AUTO MANUAL SELECT: ↑↓ SET: OK QUIT: MENU

SET UP TUNER PRESET ANTENNA / CABLE ANT CABLE SELECT : 1 : NEXT : OK CANCEL : EASY SETUP

continued

Step 3: Hookups (continued)

Automatic clock setting

Once you've set up the VCR, it automatically sets the clock the first time you turn off the VCR. After that, whenever you turn off the VCR, it checks the time and adjusts the clock, even for Daylight Saving Time. The VCR sets the clock by picking up a time signal provided by some TV channels.

If you want to use the timer to record right away, or if the channels in your area do not carry time signals, set the clock manually. For details, see page 26.

Hookup 4 Pages 19 to 21

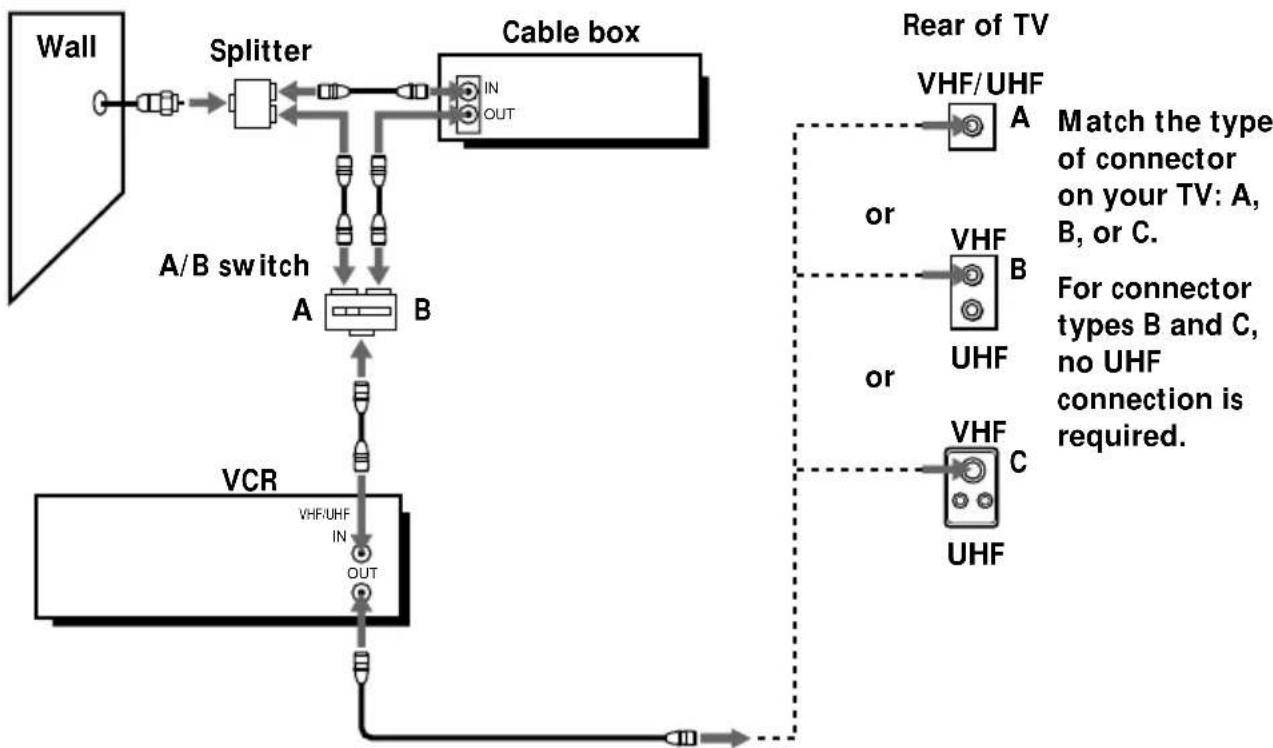

Cable box with only a few scrambled channels, using an A/B switch

Recommended use

By using an A/B switch (not supplied), this hookup allows you to record both scrambled and unscrambled channels conveniently.

What you can do with this hookup

• Record any unscrambled channel by selecting the channel directly on the VCR (the A/B switch is set to A)
• Record any scrambled channel by selecting the channel on the cable box (the A/B switch is set to B)

What you can't do

- Record one scrambled channel while watching another channel (the A/B switch is set to B)

continued

Step 3: Hookups (continued)

Hookup 4: VCR setup

1 Set the RF UNIT switch to CH3 or CH4, whichever channel is not used in your area. If both are used, set the switch to either channel. For details, see page 57. If you made A/V connections (page 8), you can skip this step.

2 Set the A/B switch to "A."
3 Press EASY SET UP on the VCR.

The LANGUAGE menu appears. Change the on-screen display language to Spanish (ESPAÑOL) or French (FRANÇAIS) if desired, and press OK. For details, see page 22.
2 The CLOCK SET menu appears. Select AUTO and press OK. For details, see page 24.
3 The TUNER PRESET menu appears. Set ANTENNA/CABLE to CABLE and press OK. For details, see page 32.
④ The AUTO PRESET starts.

RF UNIT CH3 CH4 EASY SET UP

SET UP LANGUAGE ENGLISH ESPAÑOL FRANÇAIS SELECT :T J NEXT :O K CANCEL :EASY SET UP

SET UP CLOCK SET AUTO MANUAL SELECT 1 3 SET O K QUIT MENU

SET UP TUNER PRESET ANTENNA / CABLE ANT CABLE SELECT 1.1 NEXT O K CANCEL EASY SET UP


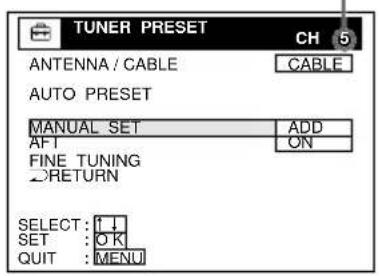

4 Preset the cable box output channel (usually 2, 3 or 4). For details, see page 33.

① Press MENU, then select SETTINGS and press OK.
② Select TUNER PRESET and press OK.

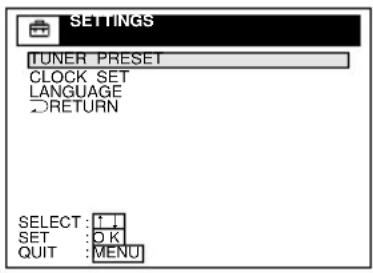

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: I SET: O K QUIT: MENU

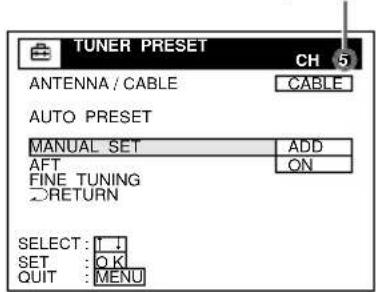

③ Enter the cable box output channel.
4 Set MANUAL SET to ADD and press OK.

Cable box output channel

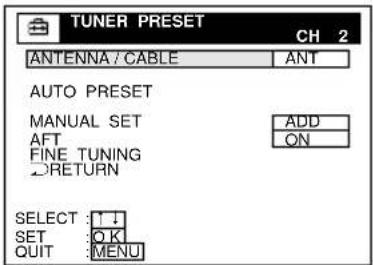

TUNER PRESET CH 28 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ERASE FINE TUNING RETURN SELECT: ↑ ↓ SET: ○ K QUIT: MENU

5 Press MENU to exit the menu.

Automatic clock setting

Once you've set up the VCR, it automatically sets the clock the first time you turn off the VCR. After that, whenever you turn off the VCR, it checks the time and adjusts the clock, even for Daylight Saving Time. The VCR sets the clock by picking up a time signal provided by some TV channels.

If you want to use the timer to record right away, or if the channels in your area do not carry time signals, set the clock manually. For details, see page 26.

Note

- To use the Auto Clock Set feature, set the A/B switch to "A."

Selecting a language

You can change the on-screen display language.

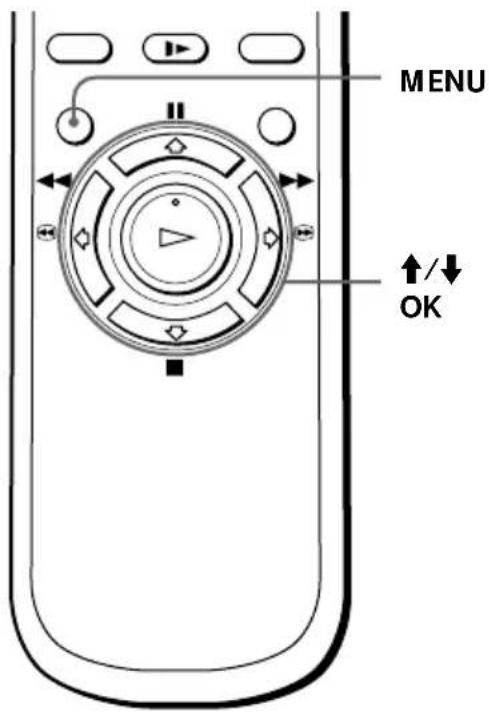

MENU ↑/↓ OK

1 Press MENU, then press ↑/↓ to highlight SETTINGS and press OK.

When using the EASY SET UP procedure, skip steps 1 and 2.

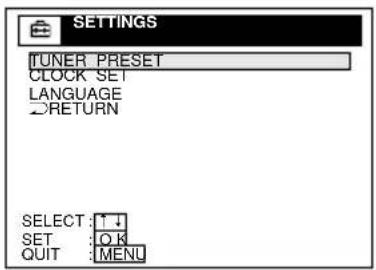

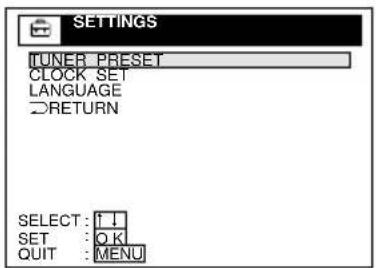

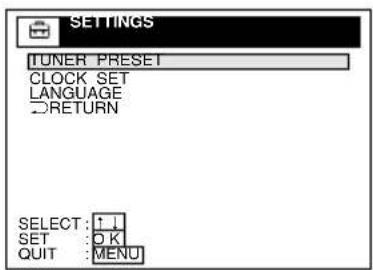

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: ↑↓ SET: OK QUIT: MENU

2 Press ↑/↓ to highlight LANGUAGE, then press OK.

highlight LANGUAGE, then press OK.

LANGUAGE ENGLISH ESPAÑOL FRANÇAIS SELECT : ↑↓ SET : O K QUIT : MENU

3 Press ↑/↓ to highlight ENGLISH, ESPAÑOL, or FRANÇAIS, then press OK.

4 Press MENU to exit the menu.

Tip

- If you want to return to the previous menu, highlight RETURN and press OK.

Setting the clock

Set the time and date to use the timer feature for recording programs.

Using the Auto Clock Set feature

Some TV and cable channels transmit time signals with their broadcasts. Your VCR can pick up this time signal to automatically set the clock.

The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are not yet sending time signals, set the time manually (page 26).

Before you start...

• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3 or 4). If your TV is connected to the VCR using A/V connections, set the TV to video input.
• Press TV/VIDEO to display the VIDEO indicator in the VCR's display window.
• Press INPUT SELECT so that a channel number appears in the VCR's display window.

MENU ↑/↓ OK

1

MENU Press MENU,

then press ↑/↓ to highlight SETTINGS and press OK.

When using the EASY SET UP procedure, skip steps 1 and 2.

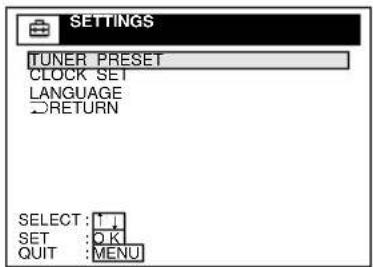

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: ↑↓ SET: ○K QUIT: MENU

continued

Setting the clock (continued)

2

Press↑/↓ to highlight CLOCK SET, then press OK.

CLOCK SET AUTO MANUAL SELECT : 1 ↓ SET : O K QUIT : MENU

3

Press ↑/↓ to highlight AUTO, then press OK.

AUTO CLOCK SET FULL AUTO YES CLOCK SET CH TIME ZONE DAYLIGHT SAVING RETURN SELECT: ↑↓ SET: OK QUIT: MENU

4

Press/✗/✗ to highlight FULL AUTO, then press OK.

AUTO CLOCK SET FULL AUTO YES CLOCK SET CH NO TIME ZONE DAYLIGHT SAVING RETURN SELECT: ↑↓ SET: OK QUIT: MENU

5

Press ↑/↓ to highlight YES, then press OK.

6

MENU Press MENU to exit the menu.

7

the Auto Clock Set function, turn off the VCR.

The VCR automatically sets the clock by searching for a channel that carries a time signal and sets your time zone and Daylight Saving Time (if applicable).

If your clock is set to the wrong time zone or Daylight Saving Time, you can adjust these settings without turning off the Auto Clock Set feature (page 28).

Tip

- If you want to return to the previous menu, highlight RETURN and press OK.

Notes

- The clock cannot be set automatically if you don't receive a channel that carries a time signal in your area. If so, set the clock manually.

- If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 30 minutes. If nothing happens even after you wait about 30 minutes, set the clock manually.

continued

Setting the clock (continued)

Using Manual Clock Set

Set the time and date manually.

Before you start...

• Turn on the VCR and the TV.
- Set the TV to the VCR channel (channel 3 or 4). If your TV is connected to the VCR using A/V connections, set the TV to video input.
- Press TV/VIDEO to display the VIDEO indicator in the VCR's display window.

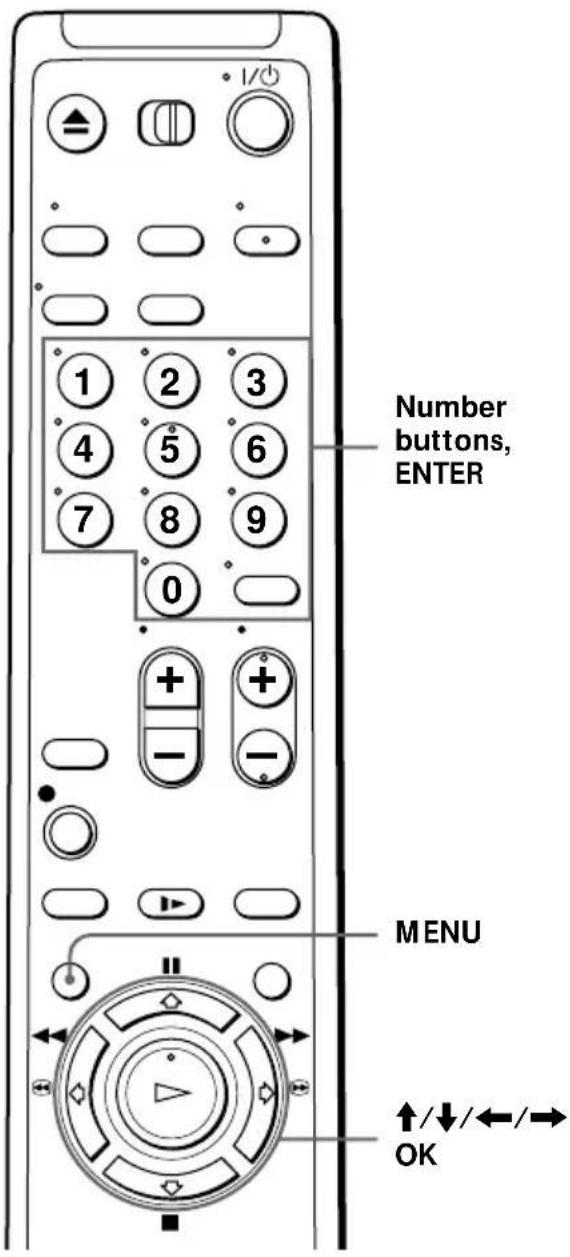

MENU ↑/↓/←/→ OK

1 MENU Press MENU, then press ↑/↓ to highlight SETTINGS and press OK.

When using the EASY SET UP procedure, skip steps 1 and 2.

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: ↑↓ SET: OK QUIT: MENU

2 Press ↑/↓ to highlight CLOCK SET, then press OK.

3

The AUTO/MANUAL selection menu appears. Press ↑/↓ to highlight MANUAL, then press OK.

CLOCK SET AUTO MANUAL SELECT : I SET : Q K QUIT : MENU

4

Press / to set the month.

CLOCK SET 9/1/1999 WE 12:00AM SELECT :---* SET :---* END :---* QUIT :--- MENU

5

Press to highlight the day and press / to set the day. The day of the week is set automatically.

CLOCK SET 9/28/1999 TU 12:00AM SELECT :— SET :— END :— QUIT :— MENU

6

Set the year, hour, and minutes in the same way as the day.

7

Press OK to start the clock.

Tip

- If you want to return to the previous menu, highlight RETURN and press OK.

continued

Setting the clock (continued)

If the clock is not activated

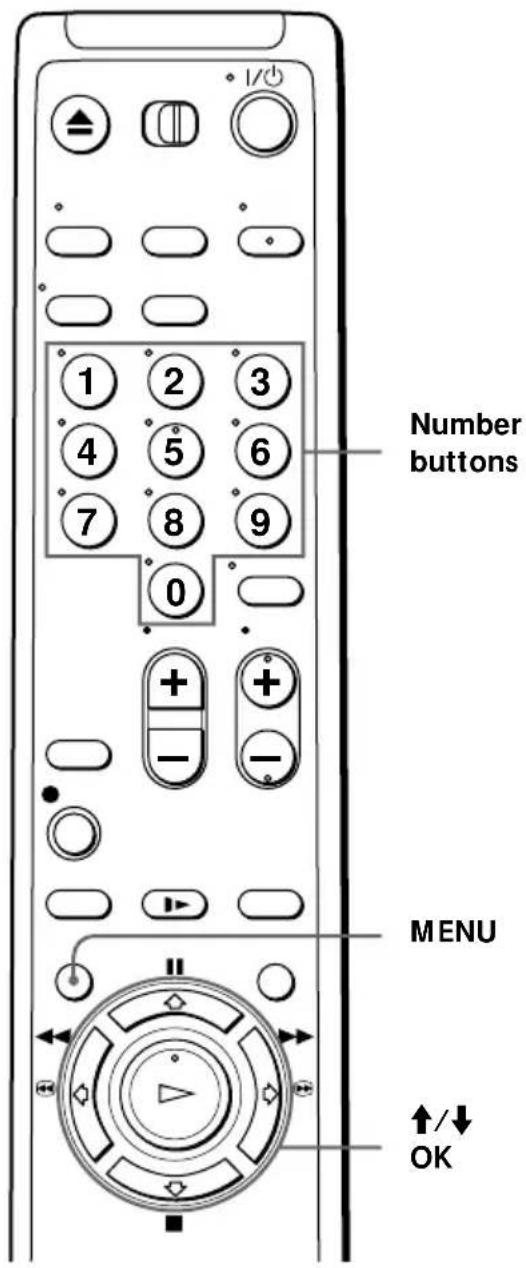

Number buttons MENU ↑/↓ OK

1 Follow steps 1 to 4 in "Using the Auto Clock Set feature."

The AUTO CLOCK SET menu is displayed.

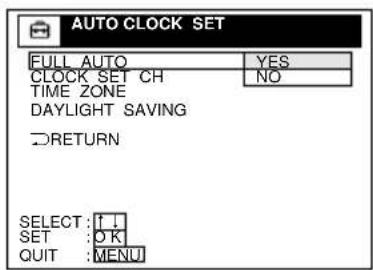

AUTO CLOCK SET FULL AUTO YES CLOCK SET CH NO TIME ZONE DAYLIGHT SAVING RETURN SELECT: I SET: OK QUIT: MENU

2
Press ↑/↓ to highlight NO for FULL AUTO and press OK.

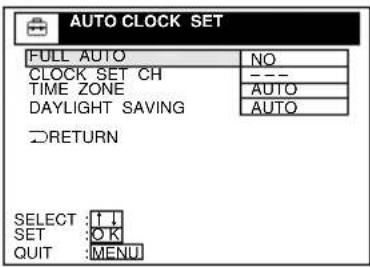

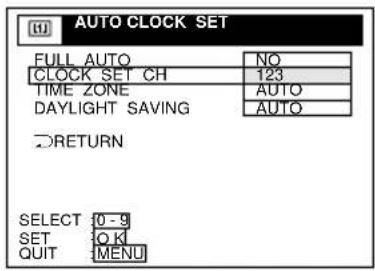

AUTO CLOCK SET FULL AUTO NO CLOCK SET CH --- TIME ZONE AUTO DAYLIGHT SAVING AUTO RETURN SELECT:↑↓ SET:OK QUIT:MENU

3

Press ↑/↓ to highlight the item you want to set and press OK. Then press ↑/↓ to make the setting and press OK.

• For CLOCK SET CH
  Leave the setting to “--” to have the VCR automatically search for a channel that carries a time signal.
  Press the number buttons to select a channel that carries a time signal.
  Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station.

AUTO CLOCK SET FULL AUTO NO CLOCK SET CH 123 TIME ZONE AUTO DAYLIGHT SAVING AUTO RETURN SELECT 0-9 SET O K QUIT MENU

- For TIME ZONE Select the time zone of your area, or select AUTO to have the VCR automatically set your time zone.

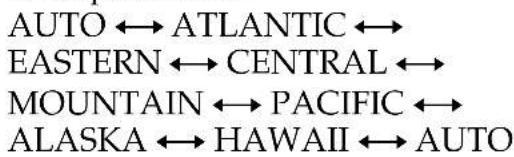

The options are:

AUTO ↔ ATLANTIC ↔ EASTERN ↔ CENTRAL ↔ MOUNTAIN ↔ PACIFIC ↔ ALASKA ↔ HAWAII ↔ AUTO

- For DAYLIGHT SAVING Select ON or OFF (standard time), or AUTO to have the VCR automatically set the daylight saving time.

AUTO CLOCK SET FULL AUTO CLOCK SET CH TIME ZONE DAYLIGHT SAVING RETURN AUTO ATLANTIC EASTERN CENTRAL MOUNTAIN PACIFIC ALASKA HAWAII SELECT : I J SET : O K QUIT : MENU

AUTO CLOCK SET FULL AUTO NO CLOCK SET CH 123 TIME ZONE DAYLIGHT SAVING AUTO RETURN ON OFF SELECT: 1↓ SET: O K QUIT: MENU

continued

Setting the clock (continued)

4 MENU Press MENU to exit the menu.

5 To activate the Auto Clock Set function, turn off the VCR.

Tip

- If you want to return to the previous menu, highlight RETURN and press OK.

Presetting channels

This VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting. Then, if there are any unwanted channels, disable them manually. If you have decided which channels you wish to preset, set them directly using manual presetting.

Before you start...

• Turn on the VCR and the TV.
• Set the TV to the VCR channel (channel 3 or 4). If your TV is connected to the VCR using A/V connections, set the TV to video input.
• Press TV/VIDEO to display the VIDEO indicator in the VCR's display window.

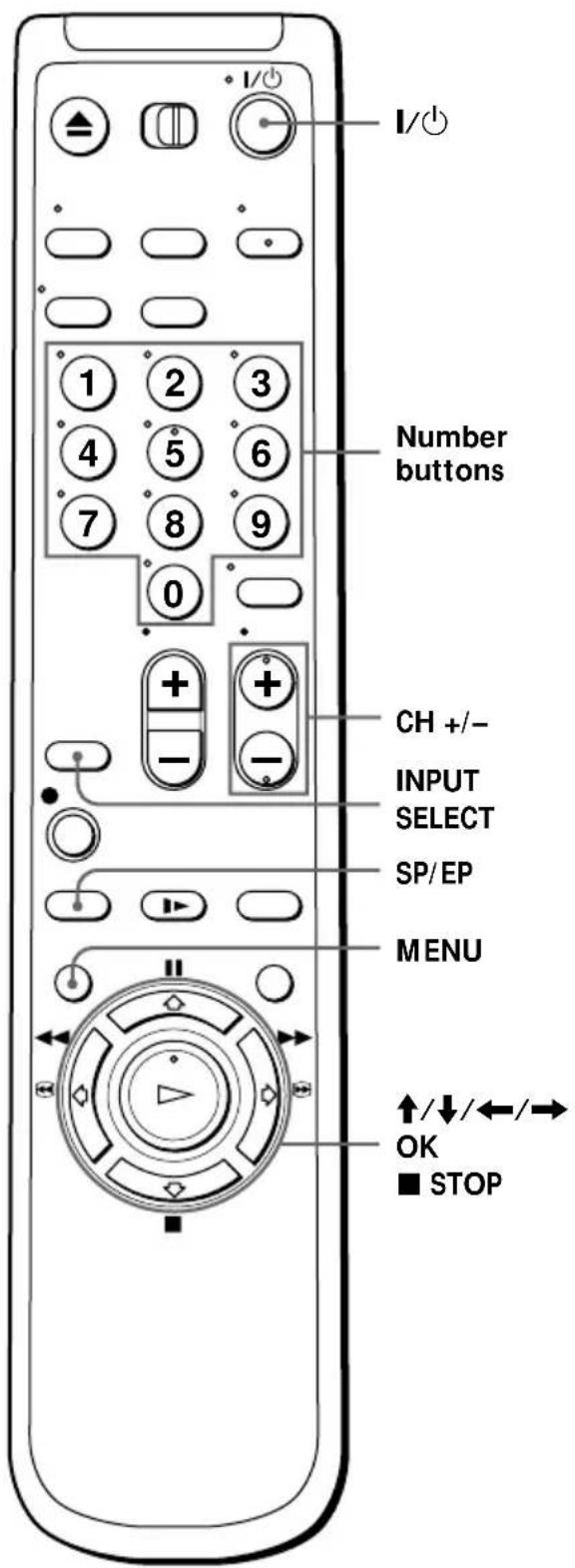

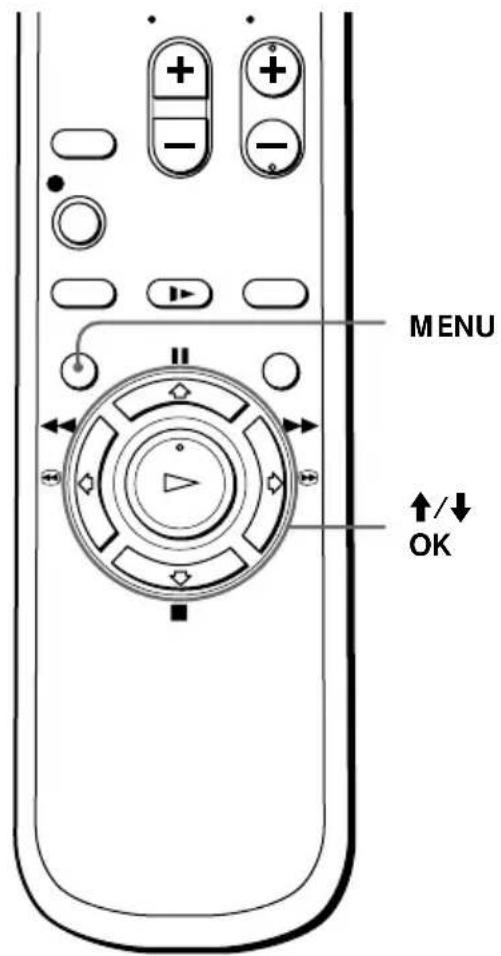

MENU ↑/↓ OK

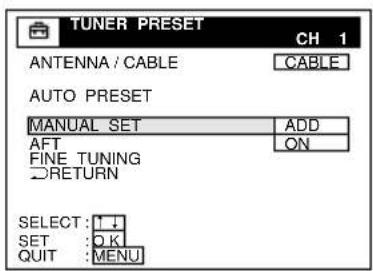

Presetting all receivable channels automatically

1

Press MENU, then press ↑/↓ to highlight ○ SETTINGS and press OK.

When using the EASY SET UP procedure, skip steps 1 and 2.

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT : 1 SET : OK QUIT : MENU

2

Press/ to highlight TUNER PRESET, then press OK.

TUNER PRESET CH 1 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT : I ↓ SET : Q K QUIT : MENU

continued

Presetting channels (continued)

3

Press↑/↓ to highlight ANTENNA/CABLE, then press OK.

4

• To preset cable TV channels:

Press ↑/↓ to set ANTENNA/CABLE to CABLE, then press OK.

TUNER PRESET CH 1 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT : I SET : O K QUIT : MENU

- To preset VHF and UHF channels: Press ↑/↓ to set ANTENNA/CABLE to ANT, then press OK.

TUNER PRESET CH 2 ANTENNA / CABLE ANT AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING ORETURN SELECT T1 SET Q K QUIT MENU

5

Press ↑/↓ to highlight AUTO PRESET, then press OK.

All receivable channels are preset in numerical sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen.

TUNER PRESET CH 1 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN PLEASE WAIT

Tips

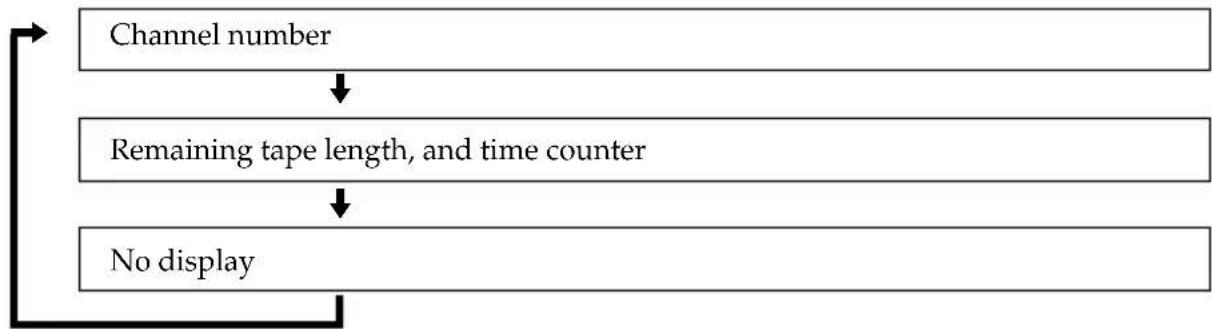

- When receiving a VHF, UHF, or CATV channel, the display changes as follows each time you press DISPLAY.

- If you want to return to the previous menu, highlight RETURN and press OK.

Presetting/disabling channels manually

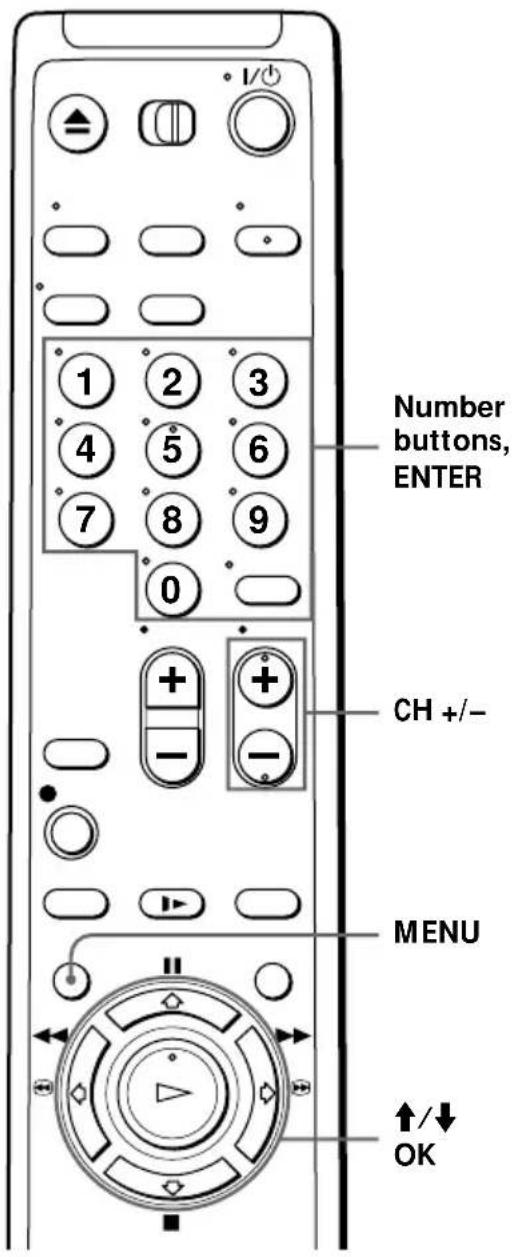

Number buttons, ENTER CH +/- - MENU ↑/↓ OK

1
Press MENU, then press ↑/↓ to highlight SETTINGS and press OK.

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: ↑ ↓ SET: OK QUIT: MENU

continued

Presetting channels (continued)

2

Press ↑/↓ to highlight TUNER PRESET, then press OK.

TUNER PRESET CH 1 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT: I ↓ SET : O.K QUIT : MENU

3

•1To preset a channel:

1 Press the number buttons to enter the channel number, then press ENTER.
2 Press OK.
3 Press ↑/↓ to set MANUAL SET to ADD, then press OK.

Channel to be preset

TUNER PRESET CH 5 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT: I: SET : O K QUIT : MENU

• To disable a channel:

1 Press CH +/- to select the channel number.
2 Press OK.
3 Press ↑/↓ to set MANUAL SET to ERASE, then press OK.

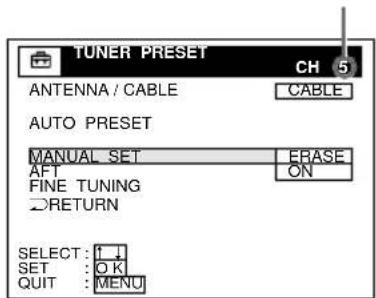

Channel to be disabled

TUNER PRESET CH 5 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ERASE AFT ON FINE TUNING RETURN SELECT : I , I SET : O K QUIT : MENU

4

Repeat step 3 to preset or disable channels as required, then press MENU.

Tip

- If you want to return to the previous menu, highlight RETURN and press OK.

If the picture is not clear

Normally, the Auto Fine Tuning (AFT) function automatically tunes in channels clearly. If, however, the picture of a channel is not clear, you can also use the manual tuning function.

Number buttons, ENTER MENU ↑/↓/←/→ OK

1 Press MENU, then press ↑/↓ to highlight SETTINGS and press OK.

SETTINGS TUNER PRESET CLOCK SET LANGUAGE RETURN SELECT: 1.1 SET: Q.K QUIT: MENU

continued

Presetting channels (continued)

2

Press ↑/↓ to highlight TUNER PRESET, then press OK.

TUNER PRESET CH 1 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT: I SET : O K QUIT : MENU

3

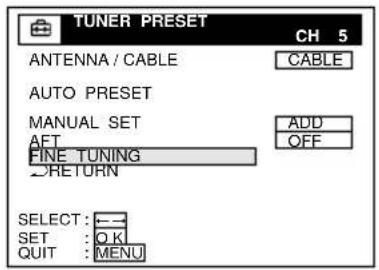

Press the number buttons to select the channel you want to fine-tune, then press ENTER.

Selected channel

TUNER PRESET CH 5 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT ON FINE TUNING RETURN SELECT: ↑ ↓ SET: OK QUIT: MENU

4

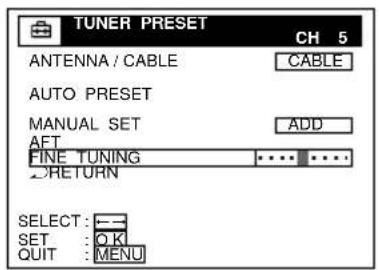

Press/ to highlight FINE TUNING, then press OK. The fine tuning meter appears.

TUNER PRESET CH 5 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AFT FINE TUNING •••• •••• •RETURN SELECT : -- SET : O.K. QUIT : MENU

5

Press ←/→ to adjust to a clearer picture, then press OK. Note that the AFT setting switches to OFF.

TUNER PRESET CH 5 ANTENNA / CABLE CABLE AUTO PRESET MANUAL SET ADD AET OFF FINE TUNING RETURN SELECT : - SET : O.K QUIT : MENU

6

MENU Press MENU to exit the menu.

Tips

• To select the channel in step 3 above, you can also use the CH +/- buttons. In this case, you don't need to press ENTER.
• If you want to return to the previous menu, highlight RETURN and press OK.

Note

- When adjusting FINE TUNING, the menu may become difficult to read due to interference from the picture being received.

Playing a tape

EJECT CLEAR DISPLAY 1 2 3 4 5 6 7 8 9 0 + + - + ■ PAUSE COMMERCIAL PASS ▶ PLAY ▶ ▶FF ■ STOP ◀◀ REW

1 Turn on your TV and set it to the video channel.

continued

Playing a tape (continued)

2 Insert a tape.

The VCR turns on and starts playing automatically if you insert a tape with its safety tab removed.

Line drawing of a CD-ROM device with front panel and control knob (no text or symbols)

3 Press>PLAY.

When the tape reaches the end, it will rewind automatically.

Additional tasks

To Press

Stop play ■ STOP

Pause play ■ PAUSE

Resume play after pause || PAUSE or ▷ PLAY

Fast-forward the tape ▶▶ FF during stop

Rewind the tape ◀ REW during stop

Eject the tape ▲ EJECT

To skip playback

You can skip a portion of playback you don't want to watch such as a commercial and restart playback by pressing a single button.

1 Press COMMERCIAL PASS during playback of the scene you want to skip. The VCR starts searching.
2 Press COMMERCIAL PASS again when you find the scene you want to watch. The VCR stops searching, rewinds a few seconds, then resumes normal playback.

If you press and hold COMMERCIAL PASS while the VCR is skip searching, the VCR will stop searching, and continue rewinding until you release COMMERCIAL PASS.

To use the time counter

At the point on the tape that you want to find later, press CLEAR. The counter in the display window resets to "0:00:00." Search for the point afterwards by referring to the counter.

SP VIDEO APC □:□□:□□

To display the counter on the TV screen, press DISPLAY.

Notes

• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.
• While setting the menu on the TV screen, you cannot use ▷ PLAY, ■ PAUSE, ▶▶ OFF, ◀◀ REW, or ■ STOP buttons.
• The counter resets to "0:00:00" whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.

Recording TV programs

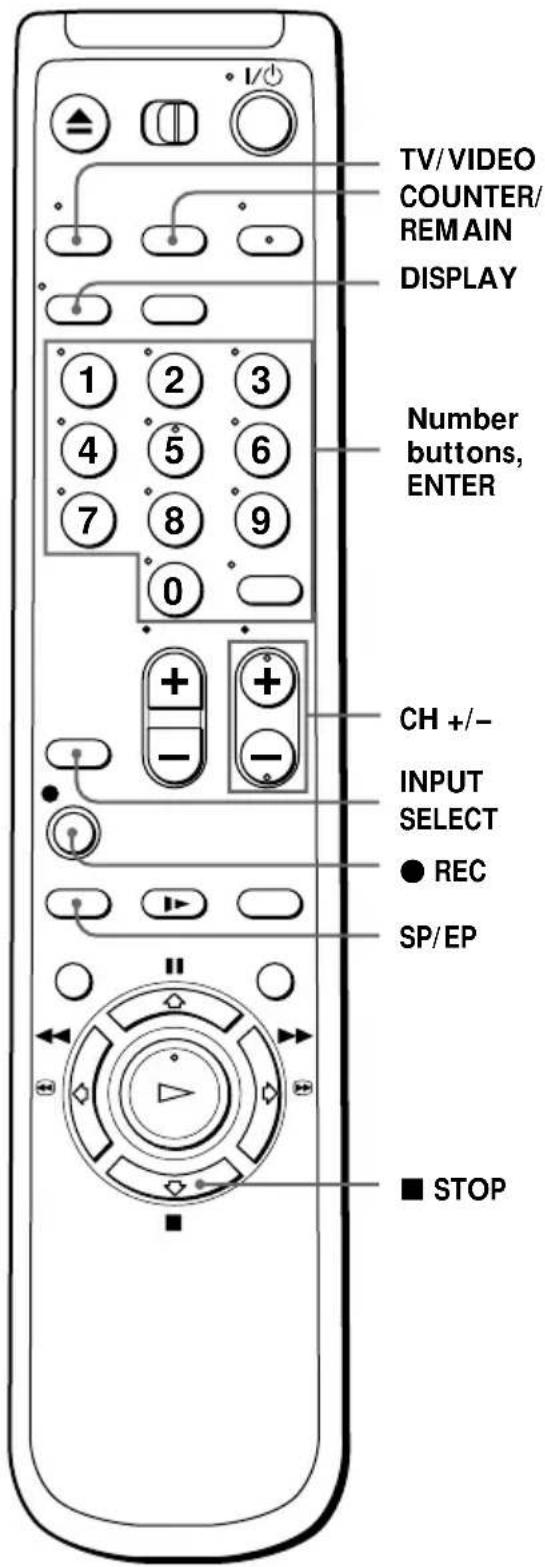

TV/VIDEO COUNTER/ REMAIN DISPLAY Number buttons, ENTER CH +/- INPUT SELECT ● REC SP/EP ■ STOP

1 Turn on your TV and set it to the video channel.
To record from a cable box, turn it on.

2 Insert a tape with its safety tab in place.

3 PreINPUT SELECT until a channel number appears in the display window.

VIDEO APC EP CH 5

4 PressCH +/- to select the channel you want to record.

VIDEO APC EP CH 12

5 Press/SP/EP to select the tape speed, SP or EP.

EP (Extended Play) provides recording time three times as long as SP (Standard Play), however, SP produces better picture and audio quality.

SP VIDEO APC CH 12

6 Press REC to start recording.

The recording indicator lights up red in the display window.

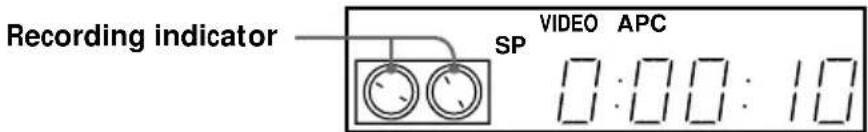

Recording indicator SP VIDEO APC 0:00:10

To stop recording

Press ■ STOP.

continued

Recording TV programs (continued)

To check the remaining tape length

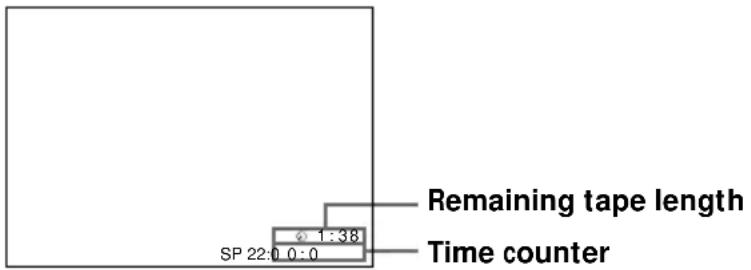

Press DISPLAY. The remaining tape length and the time counter appear on the TV screen. Each time you press COUNTER/REMAIN, the time counter and remaining tape length with the ⏻ indicator appear in the display window.

Remaining tape length SP 22:0 0:0 Time counter

To check the remaining time of a T-140 or T-180 tape, set TAPE SELECT in the ADVANCED OPTIONS menu to 180. (For details, see page 54.)

To watch another TV program while recording

1 Press TV/VIDEO to turn off the VIDEO indicator in the display window.
2 If the TV is connected to the VCR's LINE OUT jacks, set the TV to TV input; if not, skip this step.
3 Select another channel on the TV.

To save a recording

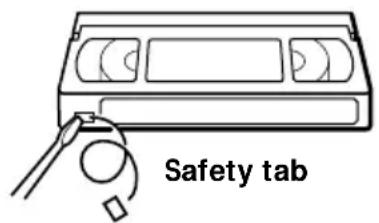

To prevent accidental erasure, break off the safety tab as illustrated. To record on a tape again, cover the tab hole with adhesive tape.

Safety tab

Tips

• To select a channel, you can use the number buttons on the remote commander. Enter the channel number, then press ENTER.
• You can select a video source from the LINE-1 IN jacks using the INPUT SELECT button.
• The display appears on the TV screen indicating information about the tape, but the information won't be recorded on the tape.
• If you don't want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on.

Notes

• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in the LP mode.
• The display does not appear during still (pause) mode or slow-motion playback.
• It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY.

Recording TV programs using the timer

You can preset up to eight programs at a time.

Before you start...

• Check that the VCR clock is set to the correct time.
• Turn on your TV and set it to the video channel. When using a cable box, turn it on.
• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.

I/○ Number buttons CH +/- INPUT SELECT SP/EP MENU ↑/↓/←/→ OK ■ STOP

1

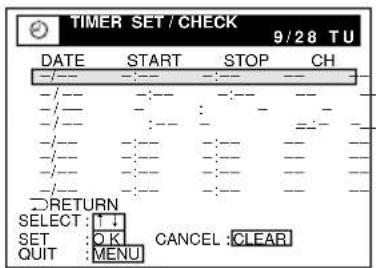

Press MENU, then press ↑/↓ to highlight ○ TIMER SET/CHECK and press OK.

TIMER SET/CHECK 9/28 TU DATE START STOP CH RETURN SELECT: ↑↓ SET: OK CANCEL: CLEAR QUIT: MENU

continued
Basic Operations

Setting the timer manually (continued)

2

Press / to highlight the line that is to be set, then press OK.

3

Set the date, start and stop time, channel number and tape speed:

1 Press ↑/↓ to set each item.
2 Press to highlight and set each item in turn.

To correct a setting, press ← to return to that setting and reset.

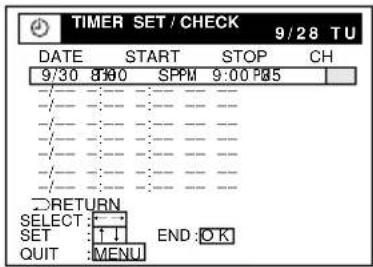

TIMER SET / CHECK 9/28 TU DATE START SOP STOP CH 9/30 8:00 SPPM 9:00 P@5 RETURN SELECT :_ SET : 11 END: OK QUIT :MENU

To record the same program every day or the same day every week, press ↓ while the date is highlighting. For details, see "Daily/weekly recording" below.

To record from a source connected to the LINE-1 IN jacks, press INPUT SELECT to display "L1" in the "CH" position.

4

Press OK to confirm the setting.

To enter another setting, highlight the next line and repeat step 3.

5

Press MENU to exit the menu.

6

Press/ to turn off the VCR.

The Ⓔindicator appears in the display window and the VCR stands by for recording.

When using a cable box, leave it on.

To stop recording

To stop the VCR while recording, press ■ STOP.

Daily/weekly recording

In step 3 above, press ↓ to select the recording pattern. Each time you press ↓, the indication changes as shown below. Press ↑ to change the indication in reverse order.

$$ \begin{array}{l}\text { the current date } \rightarrow \text { SU - SA } \rightarrow \text { MO - SA } \rightarrow \text { MO - FR } \rightarrow \text { EVERY SA } \rightarrow \dots . \rightarrow\\text { EVERY MO } \rightarrow \text { EVERY SU } \rightarrow 1 \text { month later } \rightarrow (\text { dates count down }) \rightarrow \text { the }\\text { current date }\end{array} $$

To use the VCR after setting the timer

To use the VCR before a timer recording begins, just press I/⏻. The ⏻ indicator disappears from the display window and the VCR switches on. Remember to press I/⏻ to reset the VCR to the timer recording standby mode after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter.
• Display tape information on the TV screen.
• Check the timer settings.
• Watch another TV program.

To lock the VCR after setting the timer (Child Lock)

While the VCR turns on, hold down I/POWER on the VCR until the indicator appears in the display window. The VCR turns off and the indicator remains lit. The VCR will not work except for timer recording.

To unlock the VCR, hold down I/↓ POWER on the VCR until the ○— indicator disappears from the display window. The VCR is unlocked and turns on.

To stop timer recording while the VCR is locked, press ■ STOP. The recording stops and the VCR is unlocked.

Tips

• To set the channel, you can also use the CH + / - or number buttons.
• To set the tape speed, you can also use the SP/EP button.
• When you are recording a program in the SP mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to the EP mode. Note that some noises will appear on the picture when the tape speed is changed. If you want to keep the tape speed, set AUTO TAPE SPEED to OFF in the ADVANCED OPTIONS menu (page 54).
• If you want to return to the previous menu and continue with other operations after setting the timer, press ↓ to highlight RETURN, then press OK.
  The display returns to the MENU screen.

If you are finished using the VCR, turn off the power before the timer recording starts.

Playing/searching at various speeds

PLAY REW FF

x2 SLOW FF REW

Playback options	Operation
View the picture during fast-forward or rewind	During fast-forward, hold down ▶▶FF. During rewind, hold down ◀◀REW.
Play at high speed	·During playback, press ▶▶FF or ◀◀REW on the remote commander.·During playback, hold down ▶▶FF or ◀◀REW.When you release the button, normal playback resumes.
Play at twice the normal speed	During playback, press x2.
Play in slow motion	During playback or pause, press ▶▶SLOW.
Play frame by frame	During pause, press ▶▶FF or ◀◀REW on the remote commander. Hold down the button to play one frame each second.
Rewind and start play	During stop, press ▶▶PLAY on the VCR while holding down ◀◀REW on the VCR.

To resume normal playback

Press PLAY.

Tip

• Adjust the picture using the TRACKING + / - buttons if:
  – Streaks appear while playing in slow motion.
  – The picture shakes while pausing.
  To set tracking to the center position, press both buttons (+/-) at the same time.

Notes

• The sound is muted during these operations.
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.
• The picture may have snow when playing at high speed in reverse.

Setting the recording duration time

After starting recording in the normal way, you can have the VCR stop recording automatically after a specified duration.

REC

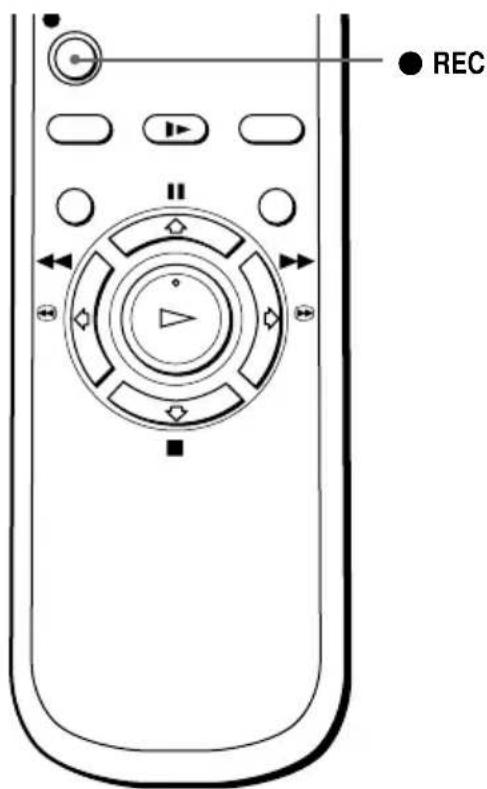

1 While recording, press ● REC.

The Ⓗindicator appears in the display window.

VIDEO APC EP 0:30

2 Press ● REC repeatedly to set the duration.

Each press advances the time in increments of 30 minutes.

The tape counter decreases minute by minute to 0:00, then the VCR stops recording and turns off automatically.

To extend the duration

Press ● REC repeatedly to set a new duration.

To cancel the duration

Press ● REC repeatedly until ◎indicator disappears and the VCR returns to normal recording mode.

To stop while recording

Press ■ STOP.

Note

- You cannot display the current tape time in the display window when setting the recording duration.

Checking/ changing/ canceling timer settings

Before you start...

- Turn on your TV and set it to the video channel.

I/⏻ CLEAR 1 2 3 4 5 6 7 8 9 0 + + - - MENU ↑/↓/←/→ OK

1 Press I/⏻ to turn on the VCR.
2 Press MENU, then press ↑/↓ to highlight TIMER SET/CHECK and press OK.

• If you want to change a setting, go on to the next step.
• If you do not need to change the settings, press MENU, then turn off the VCR to return to recording standby.

continued

Checking/changing/canceling timer settings (continued)

3 Press ↑/↓ to highlight the setting you want to change or cancel.

• To change the setting, press OK and press
←/→ to highlight the item you want to change, then press ↑/↓ to reset it.
- To cancel the setting, press CLEAR.

TIMER SET/CHECK 9/28 TU DATE START STOP CH 9/30 8:00 SPPM 9:00 PM 10/2 0 AB0 AM11:30AM 20 MO-FR E2:00 PM 3:00PM 6 0 EVERY SU 6:03 AM 7:00AM 42 EP RETURN SELECT: F.1 SET: O K CANCEL: CLEAR QUIT: MENU

4 Press OK.

5 Press MENU to exit the menu.

If any timer settings remain, turn off the VCR to return to recording standby.

When the timer settings overlap

The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority.

Recording stereo and bilingual programs

Recording stereo programs

This VCR automatically receives and records stereo programs. When a stereo program is received, the STEREO indicator lights up. If there is noise in the stereo program, set AUTO STEREO in the ADVANCED OPTIONS menu to OFF. The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise. For details, see page 54.

Recording bilingual programs

Normally, this VCR records only the main sound. When a SAP (Second Audio Program) is received, the SAP indicator lights up. To record only SAP sound, set TUNER AUDIO in the ADVANCED OPTIONS menu to SAP. For details, see page 54.

Selecting the sound during playback

Press AUDIO MONITOR to select the sound you want. (The sound being recorded will not change.)

To listen to On-screen display Display window

Stereo STEREO STEREO

Left channel L STEREO

Right channel R STEREO

Monaural sound on the normal No indicator No indicator audio track

continued

Recording stereo and bilingual programs (continued)

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.

Normal audio track Hi-fi audio track (main track) Monaural sound Stereo sound (left/right channels)

Notes

• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO MONITOR setting.

Adjusting the picture

Adjusting the tracking

Although the VCR automatically adjusts the tracking when playing a tape (the ☑ indicator flashes in the display window, then goes off), distortion may occur if the tape was recorded in poor condition. In this case, manually adjust the tracking.

Press TRACKING +/- to display the tracking meter. The distortion should disappear as you press one of the two buttons (the 📋 indicator lights up). To resume automatic tracking adjustment, eject the tape and reinsert it.

NORMAL TRACKING Tracking meter

About the Adaptive Picture Control (APC) function

The Adaptive Picture Control (APC) function automatically improves recording and playback quality by adjusting the VCR to the condition of the video heads and tape. To maintain better picture quality, we recommend that you set APC to ON in the ADVANCED OPTIONS menu (with the APC indicator in the display window lit). For details, see page 54.

APC playback

The APC function automatically works on all types of tapes, including rental tapes and tapes that were not recorded with APC.

APC recording

Whenever you insert a tape and first start recording, the VCR adjusts to the tape using the APC function (the APC indicator flashes rapidly). This adjustment is retained until the tape is ejected.

Notes

• Auto tracking adjustment cannot be guaranteed to work with tapes recorded in LP mode on other VCRs.
• The APC function does not work if the tape speed is automatically changed from the SP to EP mode during a timer r recording when AUTO TAPE SPEED is set to ON in the ADVANCED OPTIONS menu, unless the tape has been r recorded in the EP mode with the APC function.
• There is a delay of about ten seconds before the VCR actually star ts recording while the VCR analyzes the tape. To avoid the delay, first set the VCR to r recording pause (the APC indicator flashes slowly) and press ● REC to have the VCR analyze the tape (the APC indicator flashes rapidly). After the APC indicator stops flashing, press ■ PAUSE to star t recording immediately.
  If you want to start recording quickly without using the APC function, first set the VCR to recording pause (the APC indicator flashes slowly) and press ■■ PAUSE to start recording.

Changing menu options

1 Press MENU, then select ADVANCED OPTIONS and press OK.

ADVANCED OPTIONS AUTO ANT SELECT ON AUTO STEREO ON TUNER AUDIO MAIN APC ON TAPE SELECT AUTO AUTO TAPE SPEED ON SHARPNESS L• ••H RETURN SELECT : [ ] SET : OK QUIT : MENU

2 Press ↑/↓ to highlight the option to change, then press OK.

3 Press ↑/↓ to change the setting, then press OK.

To adjust the sharpness, press / and press OK.

4 Press MENU to return to the original screen.

Menu choices

Initial settings are indicated in bold print.

Menu option Set this option to
AUTO ANT SELECT	ON if your TV is connected only to VHF/UHF OUT on the VCR. To play a tape, set the TV to the VCR channel (channel 3 or 4).OFF if your TV is connected to both VHF/UHF OUT and LINE OUT on the VCR. To play a tape, set the TV to the VCR input.
AUTO STEREO	ON to receive stereo programs.OFF to reduce noise. The sound changes to monaural.
TUNER AUDIO	MAIN to record the main sound on both hi-fi and normal audio tracks.SAP to record the SAP (Second Audio Program) sound on both hi-fi and normal audio tracks.
APC • ON to switch on the APC (Adaptive Picture Control) function and improve picture quality .OFF to switch of f APC.
TAPE SELECT	AUTO when using a T -160 length tape or any tape shorter than a T-140 length tape.180 when using a T -140 or T-180 length tape.For details, see page 42.
AUTO TAPE SPEED	ON to change the timer recording tape speed automatically to the EP mode when the remaining tape length becomes shorter than the recording time. To operate AUTO TAPE SPEED, set TAPE SELECT correctly.OFF to keep the tape speed.
SHARPNESS	L (Low) through H (High) to adjust the sharpness of the picture. L to turn off the sharpness control.

Editing with another VCR

How to hook up to record on this VCR

Notes

• Make sure you connect the plugs to jacks of the same color.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise.
• You can use the LINE-1 IN jacks for editing. If the other VCR is a monaural type, the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO R/L jacks using a VMC-910HG audio/video cable (not supplied).

continued

Editing with another VCR (continued)

Operation (when recording on this VCR)

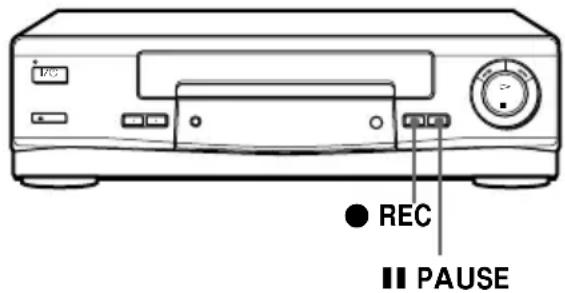

Before you start editing

• Turn on your TV and set it to the video channel.
• Press INPUT SELECT to display "L1" in the display window.
• Press SP/EP to select the tape speed, SP or EP.

REC ■ PAUSE

1 Insert a source tape with its safety tab removed into the other (playback) VCR. Search for the point to start playback and set it to playback pause.
2 Insert a tape into this (recording) VCR. Search for the point to start recording and press III PAUSE.
3 Press ● REC on this VCR and set it to recording pause.
4 To start editing, press the II PAUSE buttons on both VCRs at the same time.

To stop editing

Press the ■ STOP buttons on both VCRs.

Tip

- To cut out unwanted scenes while editing, press PAUSE on this VCR when an unwanted scene begins. When it ends, press PAUSE again to resume recording.

Note

- If you start recording following the procedure above, the VCR won't start recording with the APC function. To record a tape with the APC function, press ● REC again during recording pause in step 3 so that the VCR analyzes the tape. Then when you start recording in step 4, press ■ PAUSE immediately after the APC indicator stops flashing. If you press ■ PAUSE before the APC indicator stops flashing, the APC function is canceled.

General setup information

Setting the RF unit

When connecting the VCR to the TV using only the antenna cable, you must set the RF UNIT switch on the rear of the VCR so that the TV can receive the correct signal from the VCR.

RF UNIT CH3 CH4 TV I/POWER CHANNEL +/-

1 Set the RF UNIT switch on the rear of the VCR to CH3 or CH4, whichever channel is not used in your area. If both are used, set the switch to either channel.
2 Press I/POWER to turn on the VCR.
3 Press TV/VIDEO to turn on the VIDEO indicator in the VCR's display window.
4 Press CHANNEL +/- to display a channel number in the display window. Select an active channel number in your area.
5 Turn on your TV and set it to the channel you selected in step 1 (channel 3 or 4).

The channel you selected in step 4 appears on the TV screen. If the channels change when you press CHANNEL +/-, you have made the correct setting.

Whenever you use the VCR, set the TV to the channel selected in step 1.

continued

General setup information (continued)

Attaching the external antenna connector

When using a 300-ohm twin lead cable for VHF/UHF antenna, use the EAC-32 antenna connector (not supplied) to connect the antenna to the VCR.

300-ohm twin lead cable EAC-32 Antenna connector (not supplied)

1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.

Attaching a UHF/VHF band mixer

When using both 75-ohm coaxial cable and 300-ohm twin lead cable for VHF/UHF antenna, use the EAC-66 UHF/VHF band separator/mixer (not supplied) to connect the antenna to the VCR.

300-ohm twin lead cable EAC-66 UHF/VHF band separator/ mixer (not supplied) 75-ohm coaxial cable

1 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.

Troubleshooting

If you have any questions or problems not covered below, please consult your nearest Sony dealer.

Symptom	Remedy
The I/⏻ switch does not function.	Connect the AC power cord securely.Make sure the VCR is not locked. To unlock, hold down I/⏻ POWER on the VCR until the o- n indicator disappears.
The power is turned on but the VCR does not operate.	Moisture condensation occurs. Turn the power off, unplug the AC power cord and leave the VCR to dry for over three hours.
The clock has stopped and “-:- -” lights in the display window.	The clock stops if the VCR is disconnected from the wall outlet for more than one hour. Reset the clock (and the timer).
The playback picture does not appear on the TV screen.	Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.
The picture is not clear.	Adjust the tracking with the TRACKING +/- buttons.The video heads are dirty (see below). Clean the video heads using the Sony T-25CLD, T-25CLDR, or T-25CLW video head cleaning cassette. If these cleaning cassettes are not available in your area, have the heads cleaned at your nearest Sony service facility (a standard service fee will be charged). Do not use a commercially available liquid-type cleaning cassette other than Sony’s, as it may damage the video heads.The video heads may have to be replaced. Consult your local Sony dealer for more information.
The picture rolls vertically during picture search.	Adjust the vertical hold control on the TV or monitor.
The picture has no sound.	The tape is defective.If you made A/V connections, check the audio cable connection.

Symptoms caused by contaminated video heads

- Normal picture

- Rough picture

- Unclear picture

• No picture (or black & white screen appears)

initial contamination

terminal

continued

Troubleshooting (continued)

RecordingTimer recordingOthers	Symptom	Remedy
	A TV program does not appear on the TV screen.	Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.Select the correct source with the INPUT SELECT button. Select a channel number when recording TV programs; select “L1” when recording from other equipment.
	TV reception is poor.	Adjust the TV antenna.
	The tape starts playing as soon as it is inserted.	The safety tab has been removed. To record on this tape, cover the tab hole.
	The tape ejects when you press● REC.	Check that the safety tab has not been removed.
	Nothing happens when you press ● REC.	Make sure the tape is not at its end.
	The timer does not operate.	Check that the clock is set.Make sure a tape has been inserted.Check that the safety tab has not been removed.Make sure the tape is not at its end.Make sure a program has been set for timer recording.Make sure your timer settings are pass the current time.Check that the cable box is turned on.The clock stops if the VCR is disconnected from the wall outlet for more than one hour. Reset the clock and timer.
	A tape cannot be inserted.	Check that a tape isn’t already in the tape compartment.
	The remote commander does not function.	Make sure you are pointing the remote commander at the remote sensor on the VCR.Replace all the batteries in the remote commander with new ones if they are weak.Make sure the TV/VIDEO switch is set correctly.
	The tracking meter does not appear on the screen.	The recording condition of the tape is very poor and tracking cannot be adjusted.
	You cannot control other TVs.	Set your TV’s code number. The code number may change when you replace the batteries of the remote commander.
	The VCR needs to be cleaned.	Clean the cabinet, panel and controls with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.

Specifications

System

Format

VHS NTSC standard

Video recording system

Rotary head helical scanning FM system

Video heads

Double azimuth four heads

Video signal

NTSC color, EIA standards

Tape speed

SP: 33.35 mm/s (1 ^3 /8 inches/s)

EP: 11.11 mm/s ( ^7/_16 inches/s)

LP: 16.67 mm/s ( ^11 / _16 inches/s), playback only

Maximum recording/playback time

8 hrs. in EP mode (with T-160 tape)

Fast-forward and rewind time

Approx. 3 min. (with T-120 tape)

Tuner section

Channel coverage

VHF 2 to 13

UHF 14 to 69

CATV A-8 to A-1, A to W, W+1 to W+84

Antenna

75-ohm antenna terminal for VHF/UHF

Inputs and outputs

LINE-1 IN

VIDEO IN, phono jack (1)

Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO IN, phono jacks (2)

Input level: 327 mVrms

Input impedance: more than 47 kilohms

LINE OUT

VIDEO OUT, phono jack (1)

Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO OUT, phono jacks (2)

Standard output: 327 mVrms

Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

Timer section

Clock

Quartz locked

Timer indication

12-hour cycle

Timer setting

8 programs (max.)

Power back-up

Built-in self-charging capacitor

Back-up duration: up to 1 hour at a time

General

Power requirements

120 V AC, 60 Hz

Power consumption

24 W

Operating temperature

5^ to 40^ (41°F to 104°F)

Storage temperature

-20^ to 60^ (-4^ to 140^)

Dimensions

Approx. 355 · 96 · 285 mm (w/h/d)

(Approx. 14· 3^7 / 8· 11^1 / 4 inches) including projecting parts and controls

Mass

Approx. 3.6 kg (7 lb 15 oz)

Supplied accessories

Remote commander (1)

Size AA (R6) batteries (2)

75-ohm coaxial cable with F-type connectors (1)

Design and specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the

ENERGY STAR guidelines for energy efficiency.

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

Front panel

1 2 3 4 5 12 11 10 9 8 7 6

1 I/○ POWER switch/indicator (44)
2 Tape compartment
3 REW (rewind) button (38, 46)
4 ▷ PLAY button (38, 46)
5 ▶▶▶FF (fast-forward) button (38, 46)
6 ■ STOP button (38, 56)

7 ■ PAUSE button (38, 56)
8 ● REC (record) button (41, 48, 56)
9 Remote sensor (5)
10 EASY SET UP button (11, 14, 17, 20)
11 CHANNEL/TRACKING +/- buttons (41, 53)
12 ▲ EJECT button (38)

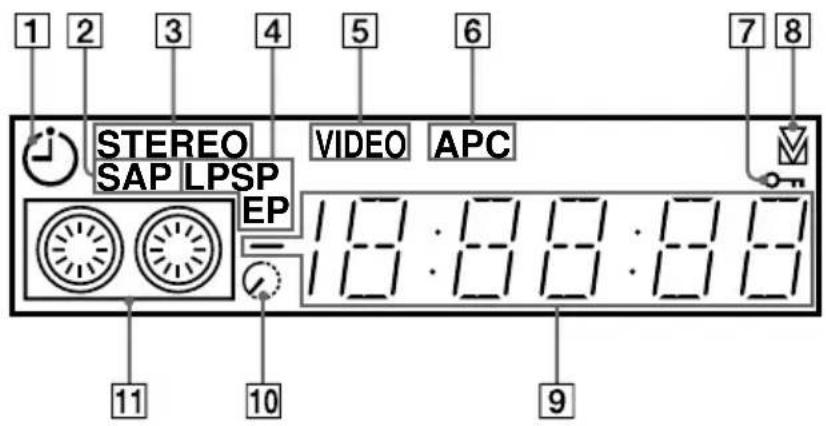

Display window

1 2 3 4 5 6 7 8 STEREO SAP LPSP EP VIDEO APC 11 10 9

1 Timer indicator (44)
2 SAP (Second Audio Program) indicator (51)
3 STEREO indicator (51)
4 Tape speed indicator (41)
5 VIDEO indicator (42, 57)
6 APC (Adaptive Picture Control) indicator (53)

7 Child Lock indicator (45)
8 Tracking indicator (53)
9 Time counter/clock/line/channel indicator (39, 41, 56)
10 Remaining time indicator (42)
11 Tape/recording indicator (41)

continued

Index to parts and controls (continued)

Rear panel

1 2 3 6 5 4

1 AC power cord (7)
2 LINE-1 IN AUDIO R/L/VIDEO jacks (55)
3 VHF/UHF IN connector (10, 13, 16, 19)

4 VHF/UHF OUT connector (10, 13, 16, 19)
5 RF (Radio Frequency) UNIT switch (57)
6 LINE OUT AUDIO R/L/VIDEO jacks (8)

Remote commander

1 2 3 4 5 1 2 3 4 5 6 7 8 9 0 + - 6 7 8 9 10

1 TV / VIDEO switch (5)

2 ▲ EJECT button (38)

3 TV/VIDEO button (6, 42)

4 DISPLAY button (42)

5 CLEAR button (39, 50)

6 INPUT SELECT button (41, 42, 56)

7 ● REC (record) button (41, 48)

8 SP (Standard Play)/EP (Extended Play) button (41)

9 MENU button (22, 43, 49)

10 ■ PAUSE/ ↑ button (22, 38)

■ STOP/↓ button (22, 38) ◀◀ REW (rewind)/← button (38, 46)

▶▶ FF (fast-forward)/→ button (38, 46) ▷ PLAY/OK button (22, 38)

continued

Index to parts and controls (continued)

1 11 12 13 14 15 16 17 18 19 20

11 I/⏻ (power) switch (6, 44)
12 COUNTER/REMAIN button (42)
13 AUDIO MONITOR button (51)
14 Number buttons (34)
15 ENTER button (34)
16 CH (channel) +/- buttons (6, 41)
17 VOL (volume) +/- buttons (6)
18 ▶ SLOW button (46)
19 x2 button (46)
20 COMMERCIAL PASS button (38)

Index

A, B

Adjusting

picture 53

tracking 53

Advanced option 54

AFT (Auto Fine Tuning) 35

Antenna hookup 10

APC (Adaptive Picture

Control) 53

Audio track 52

Audio/video (A/V)

hookup 8

Auto Clock Set 23

Auto Tape Speed 54

C

Cable hookup 7

Child Lock 45

Cleaning the video

heads 59

Clock setting 23

Connecting

cable TV 7

external antenna

connector 58

UHF/VHF band

mixer 58

Counter 39

D

Disabling channels 33

Dubbing See Editing

E, F, G

Easy Set Up 11, 14, 17, 20

Editing 55

EP mode 41

H, I, J, K

Hi-fi audio track 52

L

Language selecting 22

Locking the VCR 45

LP mode 42

M

Monaural 51

Monitoring audio during

playback 51

N, O

Normal audio track 52

P, Q

Picture adjustment See

Adjusting

Playback 37

at various speeds 46

frame-by-frame 46

selecting the sound 51

skip 38

slow motion 46

Presetting channels 31

R

Recording 40

bilingual programs 51

SAP broadcasts 51

saving 42

stereo broadcasts 51

timer setting 43

while watching another

program 42

RF channel 57

S

Safety tab 42

SAP (Second Audio

Program) 51

Searching at various

speeds 46

SP mode 41

Stereo 51

T, U, V, W, X, Y, Z

Timer setting 43

canceling 49

changing 49

checking 49

daily/weekly

recording 45

Tracking adjustment See

Adjusting

Tuner presetting 31

Hookup 1

To play a tape

1 Set the TV to channel 3 or 4 (or to video input, if you made A/V connections.)
2 Insert a tape and press ▷ PLAY. If there's no picture on your TV, press the VCR's TV/VIDEO button until the VIDEO indicator comes on in the display window.

To record a program

1 Press VCR Plus+ on the remote commander.
2 Enter the PlusCode number.
3 Select ONCE, DAILY, or WEEKLY, then press ENTER.
4 Insert a tape.
5 Press I/⏻ to turn off the VCR.

To watch TV

1 Turn off the VCR, or press the VCR's TV/VIDEO button until the VIDEO indicator in the display window goes off.
2 Set the TV to the channel you want to watch.

Hookup 2

To play a tape

1 Set the TV to channel 3 or 4 (or to video input, if you made A/V connections.)
2 Insert a tape and press ▷ PLAY.

To record a program

1 Turn on the cable box.
2 Set the cable box to the channel you want to record.
3 Press VCR Plus+ on the remote commander.
4 Enter the PlusCode number.
5 Select ONCE, DAILY, or WEEKLY, then press ENTER.
6 Insert a tape.
7 Press I/ ^① to turn off the VCR.
8 Leave the cable box on.

To watch TV

1 Turn off your VCR, or press the VCR's TV/VIDEO button until the VIDEO indicator in the display window goes off.
2 Turn on your cable box.
3 Set the TV to the cable box output channel (usually 2, 3, or 4).
4 Set the cable box to the channel you want to watch.

Hookup 3

To play a tape

1 If you made A/V connections, set the TV to video input. If you didn't use A/V hookup:

• Turn on the cable box.
• Set the cable box to channel 3 or 4.
• Set the TV to the output channel of the cable box (usually 2, 3 or 4).
  2 Insert a tape and press ▷ PLAY.

To record a program

1 Press VCR Plus+ on the remote commander.
2 Enter the PlusCode number.
3 Select ONCE, DAILY, or WEEKLY, then press ENTER.
4 Insert a tape.
5 Press I/ to turn off the VCR.

To watch TV

1 Turn off your VCR, or press the VCR's TV/VIDEO button until the VIDEO indicator in the display window goes off.
2 Select the channel with your cable box (if you have one) or with your TV.

If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) or write to: Sony Customer Information Center Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656
