1 Network Config

1.1 Network Connection

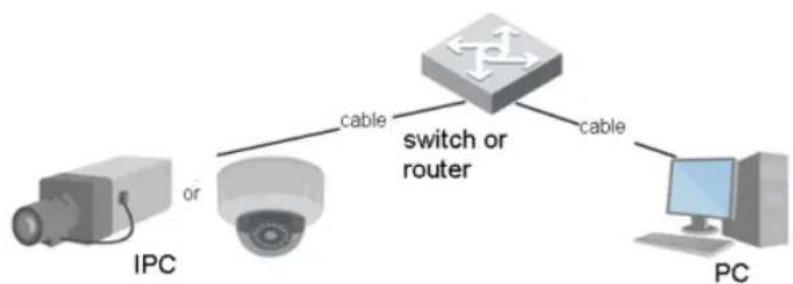

Network camera and PC connection mainly has two ways, see Figure 1-1 and Figure 1-2.

Figure 1-1

alhua

Dahua Network Camera Web 3.0 Operation Manual

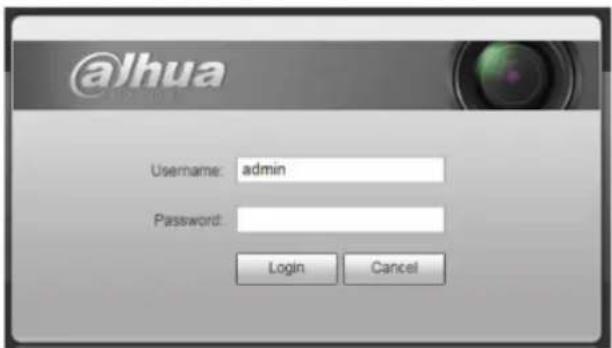

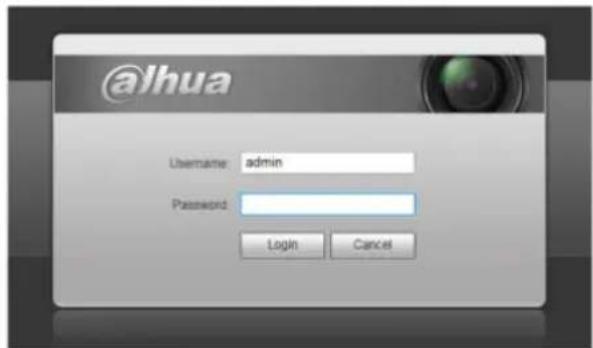

After successful connection, the login interface is shown as in Figure 1-3; input your user name and password. Default factory username is admin and password is admin.

@lhua Username: admin Password: Login Cancel

Figure 1-3

The system will display "Update Password" prompt box for your first login, users need to modify the password and save it properly.

First login, suggest updating password. New Password Weak Middle Strong Confirm Password Don't show me again

alhua

Dahua Network Camera Web 3.0 Operation Manual

@thua @thua Live F53 Product Setup Help Legend Main Scene Out Scene 1 Out Scene 2 About NAP Theme Click Texts in Department and Install For help to.

Figure 1-5

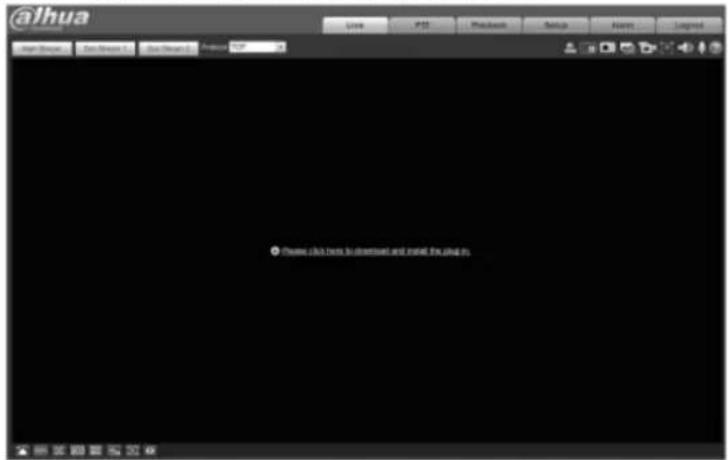

Click on "Please click here to download and install the plug-in". The system pops up warning information to ask you whether run or save this plug-in. See Figure 1-6.

File Download - Security Warning Do you want to run or save this file?

Dahua Network Camera Web 3.0 Operation Manual

Figure 1-6

You must either run or save the file to local and install it. Follow the following steps. Click on run, you will see Figure 1-7 and Figure 1-8.

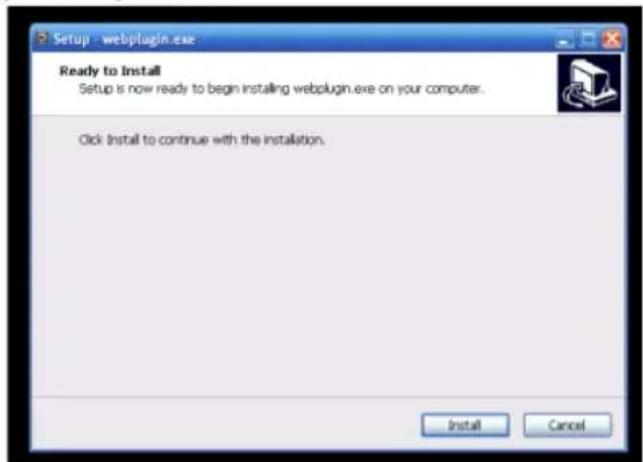

Setup - webplugin.exe Ready to Install Setup is now ready to begin installing webplugin.exe on your computer. Click Install to continue with the installation. Install Cancel

Figure 1-7

Dahua Network Camera Web 3.0 Operation Manual

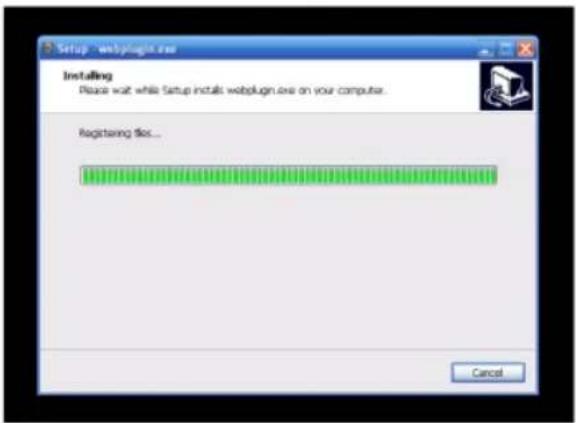

Setup - webplugin.exe Installing Please wait while Setup installs webplugin.exe on your computer. Registering files... Cancel

Figure 1-8

When plug-in installation completes, the installation page closes automatically. The web-end will refresh automatically, and then you can view video captured by the camera.

@lhua File Path: 1.0 Status Path: 2.0 Lock PTS Project Setup ASP Layout

@alhua

Dahua Network Camera Web 3.0 Operation Manual

2 Live

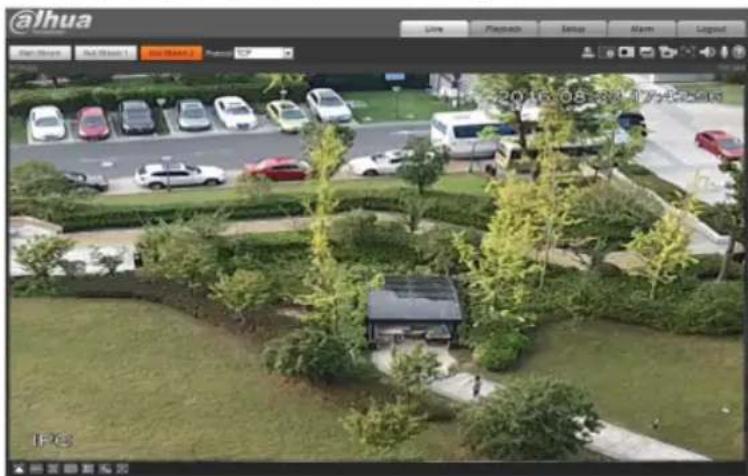

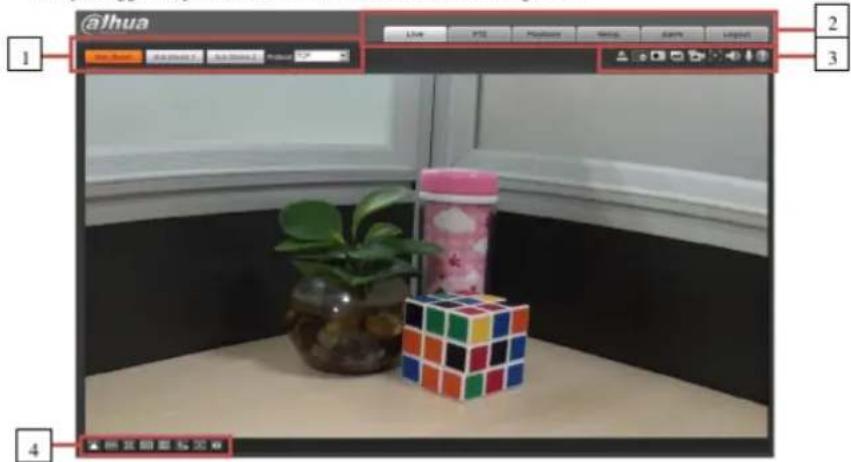

After you logged in, you can see the live monitor window. See Figure 2-1.

@lhua Live PTS Preview Help Apply Layout 1 2 3 4 新五图层5.2

Figure 2-1

There are four sections:

• Section 1: Encode setup bar
• Section 2: System menu
• Section 3: Window function option bar
• Section 4: Window adjust bar

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Main stream	Click it to enable main stream video monitoring and click again to disable it. Generally for storage and monitor.
Sub Stream 1	Click it to enable Sub Stream1 video monitoring and click again to disable it. When network bandwidth is insufficient, it substitutes main stream for monitoring.
Sub Stream 2	Click it to enable Sub Stream 2 video monitoring and click again to disable it. When network bandwidth is insufficient, it substitutes main stream for monitoring.
Protocol	You can select stream media protocol from the dropdown list. There are three options: TCP/UDP/Multicast

2.2 System Menu

System menu is shown as in Figure 2-3.

Please refer to chapter 2 Live, chapter 3 PTZ, chapter 4 Playback, chapter 5 Setup, chapter 6 Alarm, chapter 7 Log out for detailed information.

Live

PTZ

Playback

Setup

Alarm

Logout

Figure 2-3

2.3 Video Window Function Option

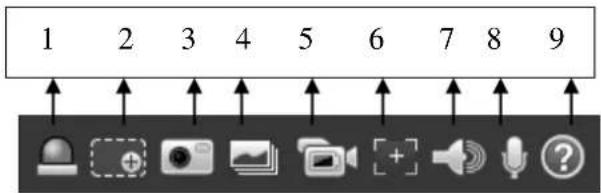

The interface is shown as below. See Figure 2-4.

1 2 3 4 5 6 7 8 9

Figure 2-4

Please refer to the following sheet for detailed information.

SN	Parameter	Function
1	Relay-out	It shows if there is any alarm output, status description is as follows:● Red: means there is alarm output.● Grey: means alarm is over.Click on the button to force alarm to be on or off.

Dahua Network Camera Web 3.0 Operation Manual

2	Digital Zoom	When the video is in the original status, click it you can select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status.Click it; you can use the middle button of the mouse to zoom in/out the video size.
3	Snapshot	Click on the button to snapshot, save picture to path in Ch 5.1.2.5.
4	Triple Snapshot	Click it to take snapshot upon the video at the frequency of one picture per second. All images are saved to path in Ch 5.1.2.5.
5	Record	Click it to record the video. All videos are saved to path in Chapter 5.1.2.5.
6	Easy focus	Click it, you can see there are two parameters on the preview video: AF Peak and AF Max.AF Peak: It is to display the video definition during the focus process.AF Max: It is the most suitable value for the video definition.The close the AF Peak and AF Max is, the better the focus effect is.
7	Audio	Turn on or off audio when you are monitoring.
8	Talk	Click it to start or end bidirectional talk.
9	Help	Click it to open help file.

2.4 Video Window Setup

The interface is shown as in Figure 2-5.

Image Adjustment 64 64 64 64 Reset

Figure 2-6

Click this button to display/hide image control interface. Click it to open picture setup interface. This interface is on the top right pane.
Please refer to the following sheet for detailed information.

Parameter		Function
Video setup		It is to adjust monitor video brightness.	Note:● All the operations here apply to WEB end only.● Please go to Setup->Camera->Conditions to adjust corresponding items.
		It is to adjust monitor video contrastness.
		It is to adjust monitor video hue.
		It is to adjust monitor video saturation.
	Reset	Restore brightness, contrastness saturation and hue to system default setup.

2.4.2 Original Size

Click this button to go to original size. It is to display the actual size of the video stream. It depends on the resolution of the bit stream.

2.4.3 Full Screen

Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full screen.

Dahua Network Camera Web 3.0 Operation Manual

2.4.4 Width and Height Ratio

Click it to restore original ratio or suitable window.

2.4.5 Fluency Adjustment

There are three levels of fluency for you to select (Realtime, Normal, and Fluency). The default is normal.

2.4.6 Rules Info

Click the button, preview image will display intelligent rules after enabling; it is "enable" by default.

2.4.7 Zoom and Focus

Click this button and the focus zooming interface appears on the right of preview interface, as shown in Figure 2-7, click left mouse button to adjust focus zooming configuration.

Note:

- The product series which support motorized zoom, synchronous focus and back focus have this button.

• Auto-focus after zoom and focus adjustment.

2.4.8 Fisheye/Trigger Track

Click the button, installation mode and display mode interface will show up on the right of the preview interface, see Figure 2-8 and Figure 2-9, single click to switch different installation mode and display mode, or different display modes, it is enabled by default.

Note:

It is only supported by some models.

Parameter	Function
Zoom	Adjust the focal length of the lens by clicking or long pressing “+”“-”buttons.Step length is used to adjust the length of one step with one click.
Focus	Adjust the sharpness of the lens by clicking or long pressing“+”、“-” buttons.Step length is used to adjust the length of one step with one click.
Auto-focus	Click to adjust the image definition automatically.Note:Other lens operations are not allowed during the process of auto-focus.
Reset All	Reset the lens to zero position to eliminate the accumulative error of lens.Note:Please reset when the image adjustment is not clear or operating zoom focus many times.
Refresh	Synchronize the location of drag slider of lens and zoom focus after hardware zoom focusing.
Regional Focus	Click it and use the mouse to select a zone, then the device can auto focus within the specific region.

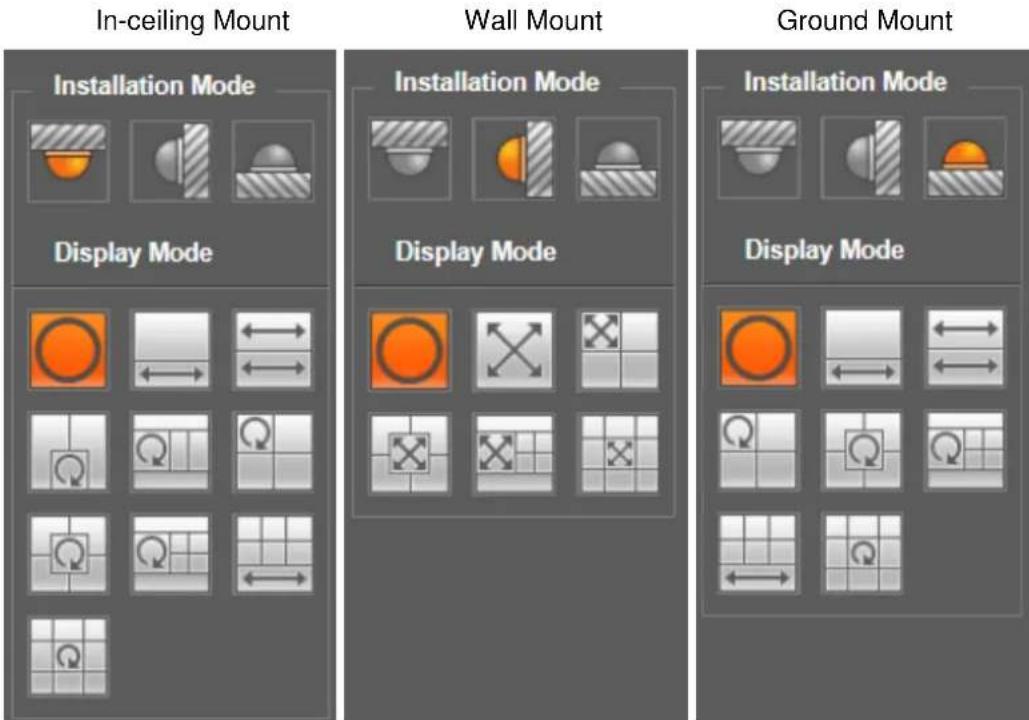

In-ceiling Mount Wall Mount Ground Mount Installation Mode Display Mode Installation Mode Display Mode Installation Mode Display Mode

Figure 2-8

parameter	Note
Installation Mode	Three modes which are ceiling mount, wall mount and ground mount.
Display Mode	It represents the display mode of the current image (default supports original image mode), the display modes may be different according to different installation modes. It is shown as follows:Ceiling: 1P+1、2P、1+2、1+3、1+4、1P+6、1+8。Wall: 1P、1P+3、1P+4、1P+8。Ground: 1P+1、2P、1+3、1+4、1P+6、1+8。Note:The default displays original image mode when switching installation mode.
In-ceiling/Wall/Ground	Originalimage	It menas the original image without de-warping
In-ceiling/Ground	1P+1	360°expanded rectangular panorama + independent sub image, the sub image and the subbox in the expanded rectangular panorama support zoom and movement, for the expanded rectangular panorama also supports left and right starting point movement.
	2P	Two related 180° expanded rectangular pictures, two subwindows form 360° panorama anytime, which is also called “dual panorama”. Two expanded rectangular pictures both support left and right movement starting point, which are also linked by eachother.
	1+2	Original image + 2 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation (no such display mode for ground installation).
	1+3	Original image + 2 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation
	1+4	Original image + 4 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation

Dahua Network Camera Web 3.0 Operation Manual

parameter	Note
		360° expanded rectangular panorama +6 independent sub image, both the sub image and the subbox in the expanded rectangular panorama support zoom and movement, for the expanded rectangular panorama also supports left and right starting point movement.
		Original image + 8 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation
Wall		From left to right 180° expanded rectangular panorama, which supports up and down movement and changes vertical angle of view.
		180° expanded rectangular panorama+3 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.
		180° expanded rectangular panorama+4 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.
		180° expanded rectangular panorama+8 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.

Display Mode

Figure 2-9

Enable the trigger track on the interface of tripwire or intrusion, and draw the rule of tripwire or intrusion, the scene of trigger track window will change according to the moving object when it triggers rule alarm until the moving object disappears from the view range of the camera. Please refer to "5.3.4 IVS" for more details about the rules drawing and parameter config of tripwire and intrusion.

Trigger track includes three modes which are 1P, 1P+3 and 1P+5.

alhua

Dahua Network Camera Web 3.0 Operation Manual

1P: Original picture

1P+3: Original picture and three trigger track windows, it can adjust the location and size of trigger track windows on the original picture.

1P+5: Original picture and five trigger track windows, it can adjust the location and size of trigger track windows on the original picture.

Dahua Network Camera Web 3.0 Operation Manual

3 PTZ Control

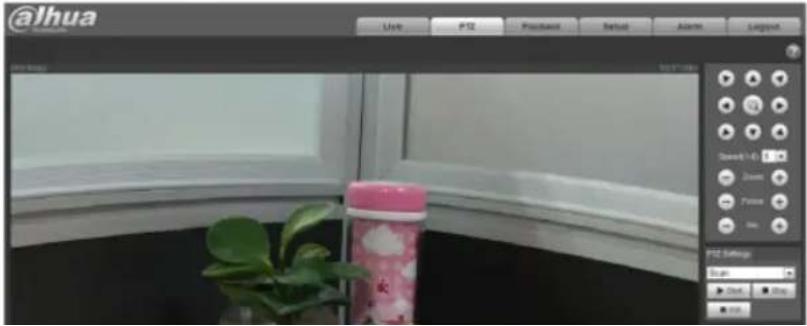

Here you can view direction keys, speed, zoom, focus, iris, preset, tour, scan, pattern, aux on, off and PTZ setup button. See Figure 3-1.

Note:

Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to Ch 5.5.3). Currently only IPC-HFXXXX series and -PT series products can support PTZ function.

Parameter	Note
PTZ direction	● PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right.
Speed	It controls rotation speed. The longer the step length, the higher the speed.Step length control PTZ, zoom, focus and iris.
	Use mouse to draw a box in monitoring video, PTZ will rotate and focus to quickly positioning.

@ihua Use PID Position Setup Alarm Layout Speed 1:0 Drawn Frame OK PID Settings Run Start Stop

Dahua Network Camera Web 3.0 Operation Manual

Figure 3-2

PTZ setting interface is shown as in Figure 3-3.

Here you can set scan, preset, tour, pattern, assistant function and light and wiper plus view coordinate.

Figure 3-3

3.1 Scan

Scan interface is shown in Figure 3-4.

Dahua Network Camera Web 3.0 Operation Manual

Figure 3-4

Steps to scan are:

Step 1. Click on Set button, display icon.
Step 2. Move via direction key to select left, click on Set Left to set left border of camera
Step 3. Move via direction key to select right, click on Set Right to set right border of camera.
Step 4. Complete scan path setup.

3.2 Preset

Preset interface is shown in Figure 3-5.

Figure 3-5

Steps to preset are:

Step 1. In preset box, input preset value.
Step 2. Click on Go to, camera rotates to preset position.
Step 3. Use direction key to rotate camera, and in preset box input preset value.
Step 4. Click on Add to add a preset. Range of preset relates to PTZ protocol.

3.3 Tour

Tour interface is shown in Figure 3-6.

Dahua Network Camera Web 3.0 Operation Manual

Figure 3-6

Steps to tour are:

Step 1. In tour box, input tour path value.

Step 2. Click on Add. Range of tour relates to PTZ protocol.

Step 3. In preset box, input preset value.

Step 4. Click on Add as to add a preset in this tour. If click on Del, it deletes this preset in tour.

Note:

You can add more than one preset here, or delete more than one preset.

3.4 Pattern

Pattern interface is shown in Figure 3-7.

Dahua Network Camera Web 3.0 Operation Manual

Click “Start” and it will start pattern according to the pattern spot which has been set; click “Stop” and the pattern ends.

3.5 Assistant

Assistant interface is shown in Figure 3-8.

Figure 3-8

Steps to assistant are:

Step 1. In assistant box input assistant value.

Step 2. Click on Aux On to turn on aux function.

Click on Aux off to turn off aux function.

3.6 Light Wiper

Light wiper interface is shown in Figure 3-9.

Figure 3-9

Steps to light wiper are:

Click on Enable to enable light wiper function.

Click on Disable to disable light wiper function.

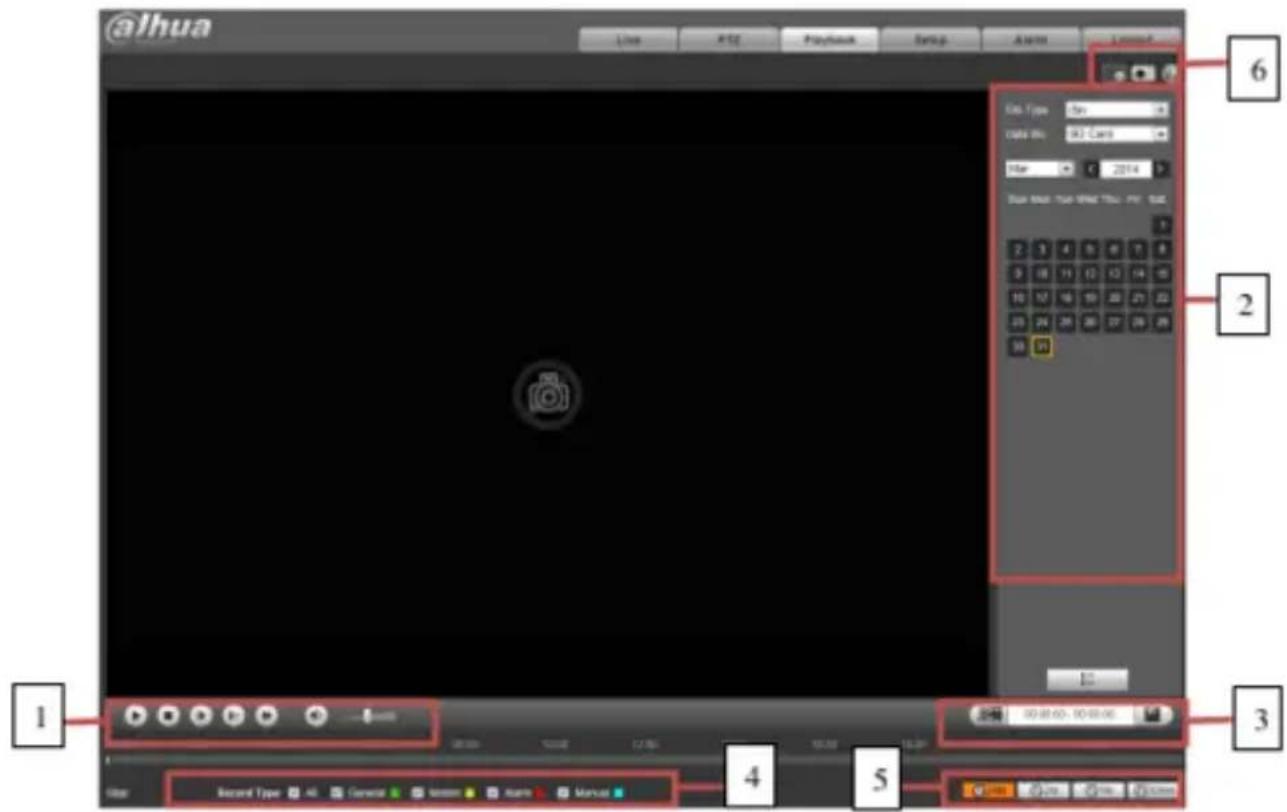

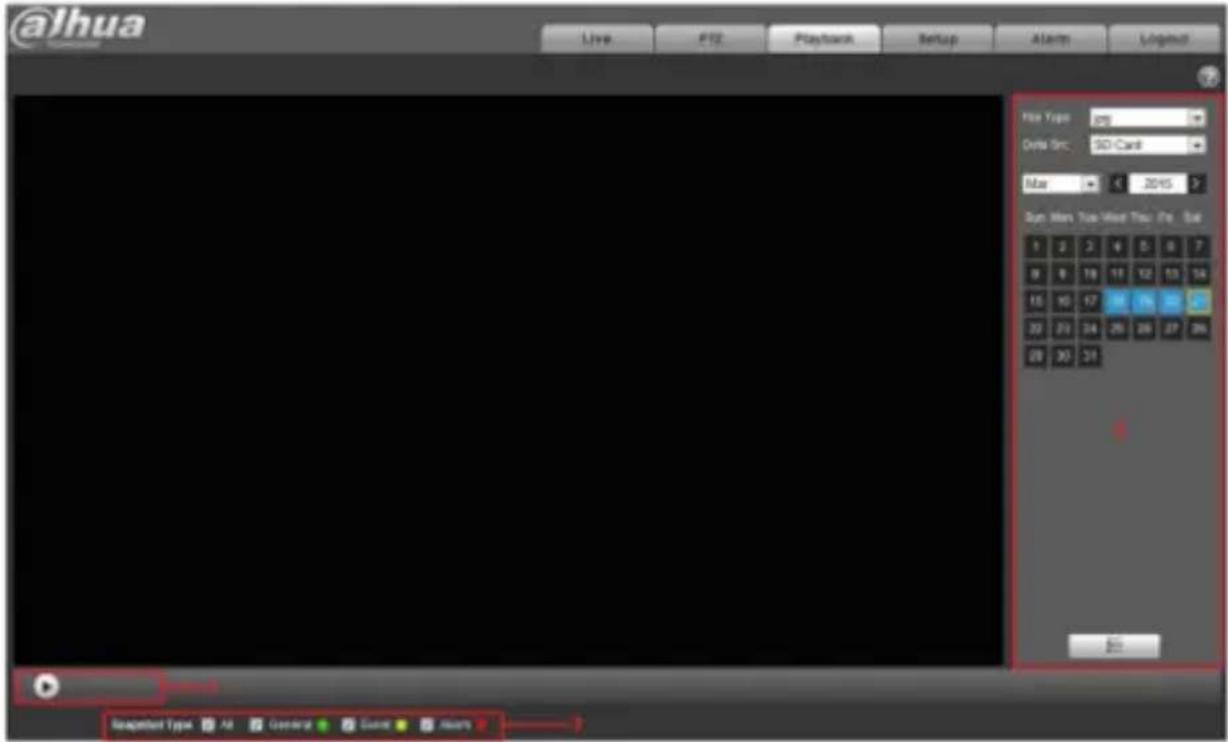

4 Playback

Web client playback supports video playback and picture playback.

Note:

Before playback, user shall set storage management as in Ch. 5.4.

4.1 Playback

The playback interface is shown as in Figure 4-1.

@lhua Line PTG Playback Setup Alert Laser 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Figure 4-1

There are four sections:

• Section 1: Function of play
• Section 2: Playback file
• Section 3: Play time cut
• Section 4: Record type
• Section 5: Progress bar
• Section 6: Assistant function

Dahua Network Camera Web 3.0 Operation Manual

4.1.1 Function of Play

The function of play is shown as in Figure 4-2 and Figure 4-3.

① ② ③ ④ ⑤ ⑥ ⑦ ⑧-1

Figure 4-2

① ② ③ ④ ⑤ ⑥ ⑦ ⑧-2

Figure 4-3

Parameter	Function
1 Play	When you see this button, it means pause or not played record. Click on this button, switch to normal play status.
2 Stop	Click this button to stop playing.
3 Play by frame	Click on this button to go to next frame.Note:You shall pause record when you use this function.

4.1.2 Playback File

In calendar, blue date represents data currently has video record or snapshot. See Figure 4-4.

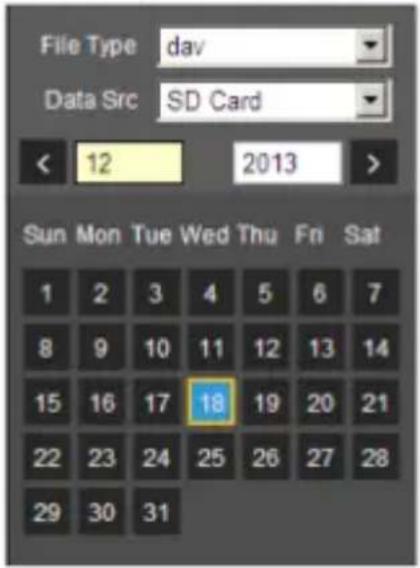

File Type dav Data Src SD Card < 12 2013 > Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Figure 4-4

Parameter	Function
File Type	Select "dav", as video playback.Select "jpg" as picture playback.
Data Source	Default is SD card.

Step 1. Click on data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record.

Step 2. Click on certain time on progress bar, playback starts from this time. See Figure 4-5.

Step 3. Click on file list ☐, select date file will be displayed in list.

Step 4. Double click on file in list, playback this file and display file size, start time and end time. See Figure 4-6..

Dahua Network Camera Web 3.0 Operation Manual

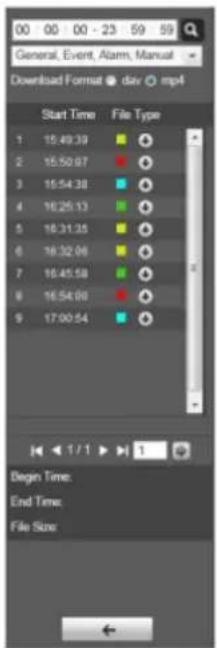

General, Event, Alarm, Manual Download Format ● dev ○ mp4 Start Time File Type 1 15:49.39 2 15:50.97 3 15:54.38 4 16:25.13 5 16:31.35 6 16:32.06 7 16:45.58 8 16:54.90 9 17:00.54 Begin Time: End Time: File Size

Figure 4-6

@alhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Download	click the download button and download file to path in Ch. 5.1.2.5.System does not support download and playback at the same time.
Back	Click on back button to go to calendar interface.

4.1.3 Playback Cut

Note:

Playback cut function will automatically pause playing record as playback cut and playback cannot be at the same time.

Step 1. Click on start time to cut on time axis. This time must be within progress bar range.

Step 2. Move mouse to cut icon. You will be ask to select start time. Click on cur icon as finish cutting.

Step 3. Click on playback cut end time on time axis. This time must be within progress bar range.

Step 4. Move mouse to cut icon you will be asked to select end time. Click on cut icon as finish cutting.

Step 5. Click on Save button to save file cut to path in Ch 5.1.2.5. See Figure 4-7.

Figure 4-7

Figure 4-9

Parameter	Function
24 hours	Click on it, means video in past 24 hours.
2 hours	Click on it, means video in past 2 hours.
1 hour	Click on it, means video in past 1 hour.
30 min	Click on it, means video in past 30 min.

4.1.6 Assistant Function

Video playback assistant function is shown in Figure 4-10.

Figure 4-10

Parameter		Function
	Digital Zoom	Click on it, video in playback status if is in original size, user can zoom in any area, If it is not in its original size, Right mouse click to restore its original size.Click on this button, you can scroll to zoom in.
	Snapshot	Click on this button, you can snapshot video under playback status. Snapshot will be saved to path in Ch. 5.1.2.5.

4.2 Picture Playback

Web client picture playback interface has the following three functions:

Parameter	Function
1	Play function bar
2	Playback file bar
3	Snapshot type bar

See Figure 4-11.

@lhua Live PT2 Playback Setup Alarm Logmail File Type: jpg Data Inc: SD Card Max: .2015 Run Miss You Need You For Set 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 22 23 24 25 26 27 28 28 29 30 Sessioned Type: All General Game Users

Figure 4-11

4.2.1 Play

Figure 4-12

Default icon is 🧑 and it means pause or not played picture. Click on play button to switch to

normal play status. Icon become

Click on it to pause.

4.2.2 Playback File

Dahua Network Camera Web 3.0 Operation Manual

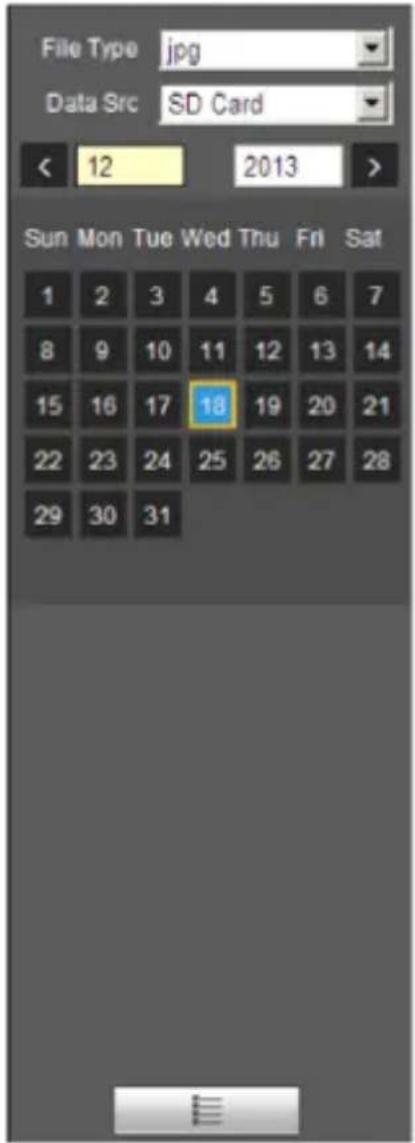

File Type jpg Data Src SD Card < 12 2013 > Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Figure 4-13

Step 1. Click on file list ☐, select snapshot file of the date.
Step 2. Double click on file in list, to play this snapshot.

Parameter		Function
	Search	It means all snapshot files within the start time and end time of selected date.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Download	Click the download button to open snapshot file or directly download to local according to the browser types.
Back	Click the back button to return to calendar interface and re-select time.

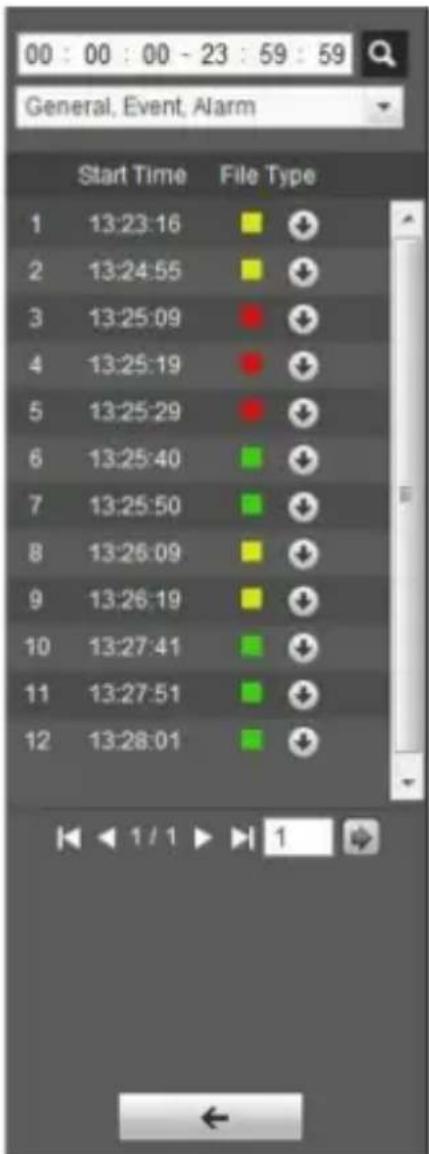

00 : 00 : 00 - 23 : 59 : 59 General, Event, Alarm Start Time File Type 1 13:23:16 2 13:24:55 3 13:25:09 4 13:25:19 5 13:25:29 6 13:25:40 7 13:25:50 8 13:26:09 9 13:26:19 10 13:27:41 11 13:27:51 12 13:28:01

Figure 4-14

4.2.3 Snapshot Type

After checking snapshot file type, in file list only display file of selected type. Users can also select the snapshot type to be displayed via the dropdown box above the file list. See Figure 4-15.

Snapshot Type ✓ All ✓ General ✓ Event ✓ Alarm

Figure 4-15

alhua

Dahua Network Camera Web 3.0 Operation Manual

5 Setup

Web client setup support camera, network, time, storage, system and system info view.

5.1 Camera

The camera setting includes conditions, profile management, zoom and focus.

5.1.1 Conditions

Note:

The camera parameter may be different according to different models, please refer to the actual product for more details.

5.1.1.1 Picture

Note:

The device which supports true WDR fails to support long exposure when true WDR is enabled.

Step 1

Select "Setup > Camera > Conditions > Picture" and the system will display the "Picture" image which is shown in Figure 5-1.

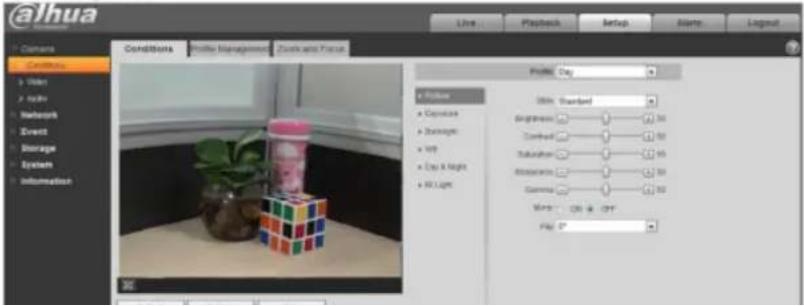

alhua Controls Video Light Networks Events Storage System Information Live Playback Setup Alerts Layout Conditions Write Management Quick-and-Preset Profile: Day Follow Capture Shortage Vit Day & Night W/Light Width: Standard Beginance: Combined: Subtraction: Abandoned: Custom: View: On & Off Flag: 0°

@ahua
Dahua Network Camera Web 3.0 Operation Manual

Parameter	Note
Brightness	It is to adjust the image overall brightness via linear adjustment mode. The larger the number is, the brighter the picture is, and on the contrary it is opposite. The picture get blurry easily when the value is set too big.
Contrast	It is to adjust the picture contrast. The bigger the value is, the bigger the bright contrast becomes, and on the contrary it is smaller. The dark area becomes darker and the bright area becomes overexposed easily when the value is set too big. The picture becomes blurry when the value is set too small.
Saturation	It is to adjust the color darkness and lightness. The color becomes darker when the value is bigger; on the contrary it becomes lighter. The value causes no influence to the overall brightness of the image.
Sharpness	It is to adjust the sharpness level of the picture edge. The bigger the sharpness value is, the more obvious the image edge becomes, the image is likely to generate noise more easily when the value is set too big.
Gamma	It is to change image brightness and improve the dynamic display range of the image via nonlinear adjustment mode. The bigger the value is, the brighter the picture becomes, and on the contrary it is opposite.
Mirror	After mirror is enabled, the monitoring image will be displayed invertedly.
Flip	It is to change the display direction of the monitoring image.It includes following options:Normal: The monitoring picture is normally displayed.Flip mode 1: The monitoring picture is displayed with clockwise rotation 90^ Flip mode 2: The monitoring picture is displayed with anticlockwise rotation 90^ 180^ : The monitoring picture is displayed upside down.

alhua

Dahua Network Camera Web 3.0 Operation Manual

5.1.1.2 Exposure

Step 1

Select "Setup > Camera > Conditions > Exposure". The system will display the "Exposure" interface which is shown in Figure 5-2.

@lhua Camers Conditions ✓ Filter ✓ Adder Network Event Storage System Information Conditions Interface Management Class and Part List Profile: Normal ✓ Pickout ✓ Expand ✓ SaveMap ✓ Add ✓ Add a Layer ✓ Remove Addout: Outdoor OK/OK: None After In: 200 - 100% Start: 200 - 100% End: OK Cancel Remove Reset

Figure 5-2

Step 2
It is to set the exposure parameter, please refer to the following sheet for more details.

Parameter	Note
Anti-flicker	You can switch to exposure mode when it is in outdoor mode, it can realize the result in the corresponding exposure mode.50Hz: When the current is 50Hz, system can auto adjust the exposure according to the environment brightness in case there is any stripe.

Dahua Network Camera Web 3.0 Operation Manual

Parameter

Note

Mode

It is the camera exposure mode.Note:When "Anti-flicker" is "Outdoor", the "exposure mode" can be set as "gain priority" or "shutter priority" mode.Different devices have different exposure modes; please refer to the actual interface.It includes the following options:Auto: It can auto adjust the image brightness according to the environment.Gain priority: The device can auto adjust according to the gain range which is set by priority during normal exposure range according to the different scene brightness. The device will auto adjust shutter value if the image brightness fails to reach the effect and the gain value has reached to upper limit or lower limit, which is to make the image reach the best brightness.Shutter priority: The device can auto adjust according to the shutter range which is set by priority during normal exposure range according to the different scene brightness. The device will auto adjust shutter value if the image brightness fails to reach the effect and the shutter value has reached to upper limit or lower limit, which is to make the image reach the best brightness.Iris priority: Iris value is fixed, the device can auto adjust the shutter value if the image brightness fails to reach effect and the shutter value has reached the upper limit or lower limit, the device can auto adjust the gain value to make the image reach the best brightness.Manual: It is to manually set gain value and shutter value, adjust the the displayed brightness of the image.

alhua

Dahua Network Camera Web 3.0 Operation Manual

Step 3

Click "Save" to complete the parameter config of camera exposure.

5.1.1.3 Backlight

Backlight mode can be divided into BLC, WDR and HLS.

BLC: it can avoid cucoloris phenomenon of the darker area in the backlight environment.

WDR: It can suppress the overbright area and compensate darker area by enabling WDR, which can make the overall image clear.

HLC: It is to weaken the high light, which can be applied in the areas such as toll gate, entrance and exit of the parking lot and etc. As for extreme light, it can snapshot the human face in the dark environment and it can realize better effect for the details of the plate number.

Step 1

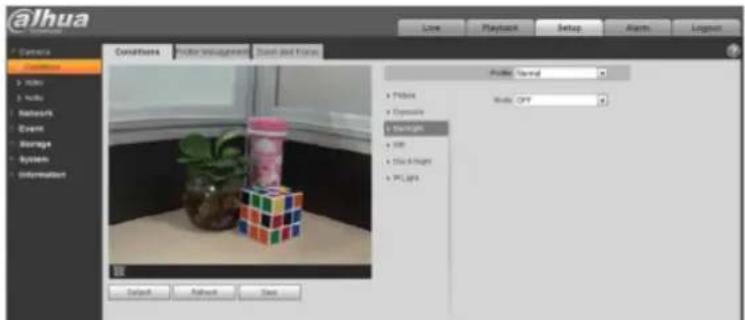

Select "Setup > Camera > Condition > Backlight", the system will display the interface of "Backlight" which is shown in Figure 5-3.

@alhua Camera Conditions > listen > link Network Event Storage System Information Conditions Monitor Installment Dual and Focus Lock Playback Setup Alerts Logmen Profile: Normal + Pixels + Exposure + Viewings + 100 + Time & Night + PC Laps Select Aftercall Save

alhua

Dahua Network Camera Web 3.0 Operation Manual

When selecting "Customized" mode, the system can realize exposure upon the selected area after it set customized area, which is to make the image of the selected area reach appropriate brightness.
- When the "Mode" is set as "WDR", it will lower the brightness of the area with high brightness and enhance the brightness of the area with low brightness, which is to make the objects in both high brightness and low brightness area display clearly.

Note:

There may be video loss of a few seconds when the camera is switched from non WDR mode to WDR mode.

- When the "Mode" is set as "HLC", the system will constrain the brightness of the area with high brightness and decrease the size of the halo area, which is to lower the brightness of the whole image.

Step 3

Click "Save" to complete the config of the backlight mode.

5.1.1.4 WB

WB is used to restore the white object in the scene by the camera, after WB mode is set, it can make the white object look white in different environments.

Step 1

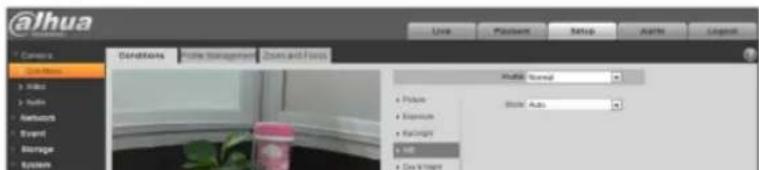

Select "Setup > Camera > Conditions > WB", the system will display the interface of "WB", which is shown in Figure 5-4.

@thua Camers Conditions Home Management Down and Focus Mobile Image + Picture + Exposure + Retrosing + Soft + Display

alhua

Dahua Network Camera Web 3.0 Operation Manual

• When the "Mode" is set as "Auto", the system can auto compensate white balance upon different color temperatures, which is to make the image color normal.
• When the "Mode" is set as "Natural", the system can auto compensate white balance to the scene without artificial light, which is to make the image color normal.
• When the "Mode" is set as "Street Lamp", the system can auto compensate white balance to the outdoor scene at night, which is to make the image color normal.
• When the "Mode" is set as "Outdoor", the system can auto compensate white balance to the most outdoor scenes with natural light and artificial light, which is to make the image color normal.
• When the "Mode" is set as "Manual", it can manually set the value of red gain and blue gain; the system can compensate the different color temperatures in the environment according to the settings.
• When the "Mode" is set as "Regional Custom", it is to set customized area, the system can compensate white balance to different color temperature of the images in the area, which is to make the image color normal.

Step 3

Click "Save" to complete the config of WB mode.

5.1.1.5 Day & Night

It is to set the switch between color mode and black & white mode.

Step 1

Select "Setup > Camera > Conditions > Day & Night" and the system will display the interface of "Day & Night", which is shown in Figure 5-5.

@lhua Camera Conditions 3 Weeks 3 Units Networks Photo General Photo Auto Exposure Audio

@ahua

Dahua Network Camera Web 3.0 Operation Manual

Step 2

Set day & night parameter: please refer to the following sheet for more details.

Parameter	Note
Mode	It is to set the camera image displayed as color or black & white mode.Note:The setting of “Day/Night Mode” is not affected by the setting of “Profile Management”.It includes the following options:● Color: The camera image is displayed as color image.● Auto: The camera can auto select color image or black & white image to be displayed according to the environmental brightness.● Black & white: The camera image is displayed as black & white image.
Sensitivity	The parameter can be set when the “Day/Night Mode” is “Auto”.It is to set the sensitivity of the switch between image color display and black & white display.
Delay	The parameter can be set when the “Day/Night Mode” is “Auto”.It is to set the switch delay between image color display and white & black display. The smaller the delay is, the faster of the switch becomes between color display and black & white display.

Step 3

Click "Save" to complete the config of day/night mode.

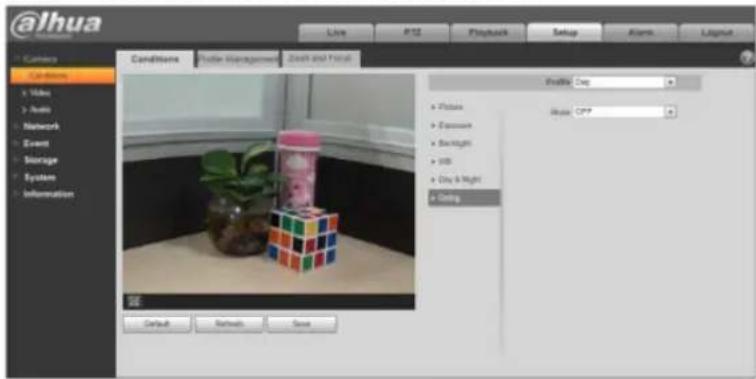

5.1.1.6 Defog

The image quality will become weak when the device is in the environment with fog or haze, you can enable defog function to adjust the image definition.

Step 1

Select "Setup > Camera > Conditions > Defog" and the system will display the interface of "Defog" which is shown in Figure 5-6.

alhua

Dahua Network Camera Web 3.0 Operation Manual

@lhua Conditions Video Radio Network Event Storage System Information Live PT2 Playback Setup Alert Layout Photo Cap Pictures Water: OP Excessive Switching USB Day & Night A dimming OK Default Networks Save

Figure 5-6

Step 2

It is to set defog mode according to the actual scene.

• When the "Mode" is set as "Manual", it is to manually set intensity and air light mode, the system will adjust the image definition according to the intensity and air light mode which have been set previously. As for air light mode, you can set manual or auto.
• When the "Mode" is set as "Auto", the system will auto adjust the image definition according to the actual scene.
• When the "Mode" is set as "Off", then the defog function is disabled.

Step 3

Click "Save" to complete the config of defog mode.

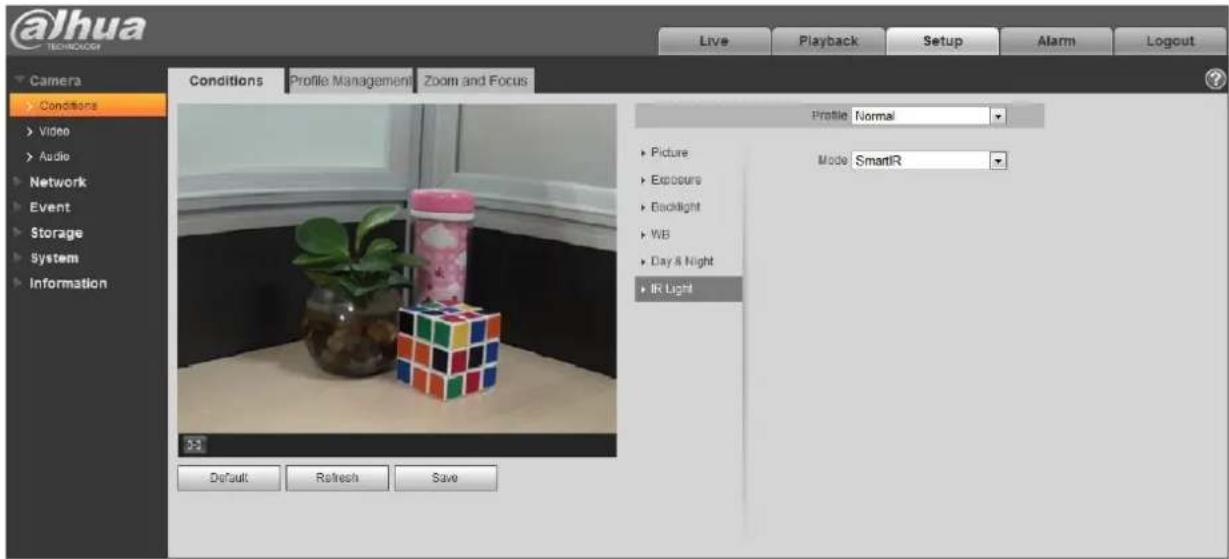

@lhua TECHNOLOGY Live Playback Setup Alarm Logout Camera Conditions Video Audio Network Event Storage System Information Conditions Profile Management Zoom and Focus Profile Normal Picture Exposure Backlight WB Day & Night IR Light Mode SmartIR Default Refresh Save

Figure 5-7

Step 2

It is to set IR light mode according to the actual scene.

• When the "Mode" is set as "Manual", it can manually set the brightness of IR light; the system will realize light compensation to the image according to the IR light intensity.
• When the "Mode" is set as "Smart IR", the system can adjust the light brightness according to the actual scene.
• When the "Mode" is set as "Zoomprio", the system can auto adjust the IR light according to the brightness change of the actual scene.

The system will enable near light by priority when the actual scene becomes dark, the system will enable the far light when the near light fails to meet the requirement of scene brightness even if it is adjusted to the brightest.
The system will adjust far light brightness by priority to off and then adjust the brightness of near light when the actual scene becomes bright. The system will always disable far light when the focal length of the lens is adjusted to a certain wide angle, which is to avoid near overexposure. Meanwhile, it can manually set light compensation to slightly adjust the brightness of IR light.

- When the "mode" is set as "Off", it will not enable the IR light.

Step 3

Click "Save" and complete the config of IR light.

alhua

Dahua Network Camera Web 3.0 Operation Manual

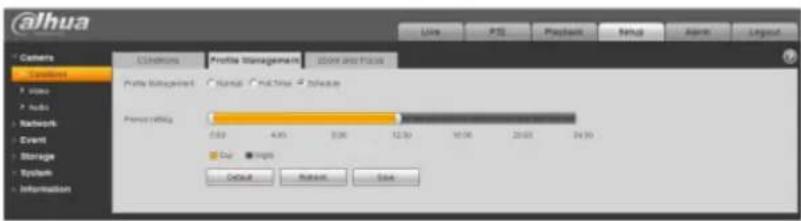

5.1.1.8 Profile Management

Step 1

Select "Setup > Camera > Conditions > Profile Management" and the system will display the interface of "Profile Management".

Step 2

Set profile management.

- When the "Profile Management" is set as "Normal", the system will monitor according to the normal config.

@hua Camera Camilla Views Audio Networks Event Storage System Information Conditions Profile Management Zoom and Focus Profile Management Residual Not Drive Accession Default Approach Save

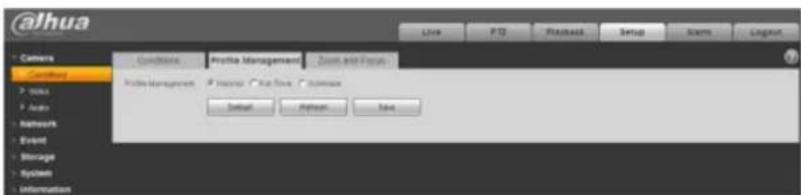

Figure 5-8

- When the "Profile Management" is set as "Full Time", you can select "Always Enable" in "Day" or "Night", the system will monitor according to the config of "always enable".

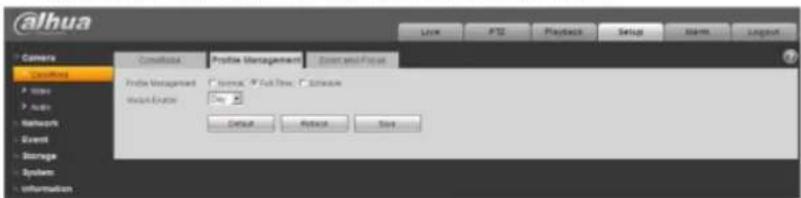

alhua Camera Catalina Video Audio Networks Events Storage System Information Confluate Profile Management Event and Focus Profile Management Visual Engine Normal, "Call True," Software Default Refresh Save

Figure 5-9

alhua

Dahua Network Camera Web 3.0 Operation Manual

@lhua Camera Capture Video Audio Networks Event Storage System Information Conditions Profile Management 2000 and 2000 Profile Management Name: FullTime Influx Pressure settings: 5.60 4.85 3.00 12.50 16.00 20.60 24.50 Day: Monday Default Reset Save

Figure 5-10

Step 3

Click "Save" to complete the settings of profile management.

Note:

Click "Default" to restore the device to default config; click "Refresh" to check the latest config file of the device.

5.1.1.9 Zoom and Focus

Note:

Only motorized vari-focal devices support focus and zoom function.

Step 1

Select "Setup > Camera > Conditions > Zoom and Focus" and the system will display the interface of "Zoom and Focus" which is shown in Figure 5-11.

@lhua Camera Camers Camers Video Audio Network Event Conditions Photo management Zoom and Focus Live PT2 Playback Setup Alarm Layout

alhua

Dahua Network Camera Web 3.0 Operation Manual

Step 2

Adjust the local length of the lens.

After it is zoomed, set "Speed" and press "+", "-"or drag the sliding block directly to adjust.

Step 3

Adjust the lens definition.

After it is focused, set "Speed" and press "+", "-" or drag the sliding block directly to adjust.

Note:

• Speed is used to set the length by pressing "+" and "-"
• After adjusting the focal length of the lens or click "Auto Focus", the device will auto adjust the image definition, it is not allowed to implement other lens operation during auto focus.
• After several times of zoom and focus, the image fails to be adjusted clear, click "Restore All" to reset the lens to zero and remove the accumulative error of the lens.
• Click "Refresh" and the device will automatically synchronize the hardware to the location of sliding block of lens zoom and focus.

5.1.2 Video

5.12.1 Video

Step 1

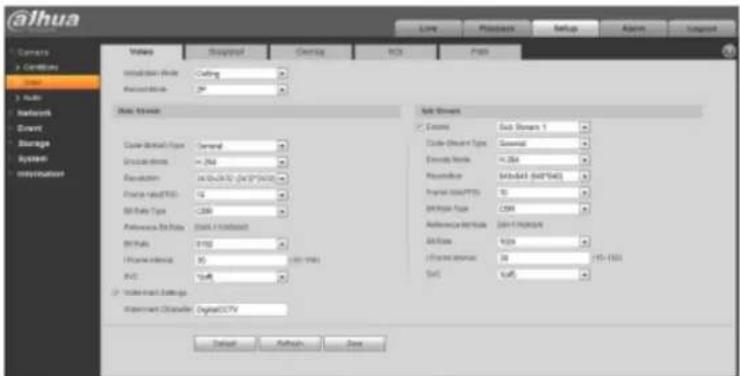

Select "Setup > Camera > Video > Video" and the system will display the interface of "Video" which is shown in Figure 5-12 or Figure 5-13.

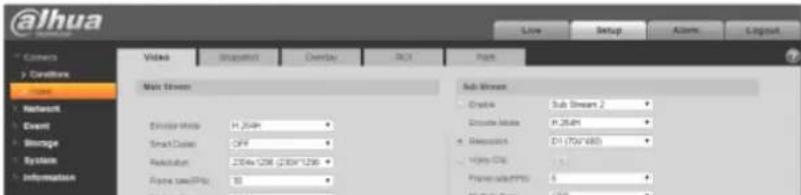

Alhua Main Stream Stream 1 Stream 2 Stream 3 Stream 4 Stream 5 Stream 6 Stream 7 Stream 8 Stream 9 Stream 10 Stream 11 Stream 12 Stream 13 Stream 14 Stream 15 Stream 16 Stream 17 Stream 18 Stream 19 Stream 20 Stream 21 Stream 22 Stream 23 Stream 24 Stream 25 Stream 26 Stream 27 Stream 28 Stream 29 Stream 30 Stream 31 Stream 32 Stream 33 Stream 34 Stream 35 Stream 36 Stream 37 Stream 38 Stream 39 Stream 40 Stream 41 Stream 42 Stream 43 Stream 44 Stream 45 Stream 46 Stream 47 Stream 48 Stream 49 Stream 50 Stream 51 Stream 52 Stream 53 Stream 54 Stream 55 Stream 56 Stream 57 Stream 58 Stream 59 Stream 60 Stream 61 Stream 62 Stream 63 Stream 64 Stream 65 Stream 66 Stream 67 Stream 68 Stream 69 Stream 70 Stream 71 Stream 72 Stream 73 Stream 74 Stream 75 Stream 76 Stream 77 Stream 78 Stream 79 Stream 80 Stream 81 Stream 82 Stream 83 Stream 84 Stream 85 Stream 86 Stream 87 Stream 88 Stream 89 Stream 90 Stream 91 Stream 92 Stream 93 Stream 94 Stream 95 Stream 96 Stream 97 Stream 98 Stream 99 Stream 100

aihua Wireless Camera Connectors Audio Radio Networks Event Storage System corporation Noise Options Sub-Sensor Type: Normal Cable Noise: 2.56 Resolution: 0.0012 (GHz/Hz) Frame rate: 16 Bit Rate Type: -284 Antenna Bit Rate: 0.0012 (GHz/Hz) Bit Rate: 0.0012 (GHz/Hz) F-Frame Address: 30 (GHz/Hz) MAC: 1.44 Video insert settings Experiment Displacement: CyberaCCTV Noise Output Add Noise Add Add Noise Sub-Sensor 1 Cable Noise Type: General Cable Noise: 0.264 Resolution: Unfold (dB/Fbit) Signal Output: 10 Bit Rate Type: CMH Antenna Bit Rate: 0.017 (GHz/Hz) Bit Rate: 0.016 f-Frame Address: 50 (GHz/Hz) MAC: 0.49

Figure 5-13 (Fisheye)

Step 2
Set video bit stream, please refer to the following sheet for more details about the parameters.

Parameter

Function

Installation Mode

It will display the parameter when the device is fisheye. There are three installation modes for fisheye which are ceiling, wall mount and ground installation, please select installation mode according to the actual installation scene of the fisheye.The system will begin to switch after switching installation mode, it will prompt successfully saved after it is switched successfully.Note:The device and will output the devamped video stream

Dahua Network Camera Web 3.0 Operation Manual

Parameter

Function

Record Mode

It will display the parameter when the device is fisheye. The system will begin to switch after record mode is switched, it will prompt saved successfully after it is switched successfully.The record mode will change according to the different installation modes.1O: the original picture which is not dewarped.1P: 360° rectangular panorama.2P: The mode can be set when the "Installation Mode" is set as "Ceiling" or "Ground". It is the 2 related 180° rectangular image, the two subwindows can both form 360° panorama anytime.1O+3R: original image + 3 independent sub images, both the sub image and sub boxes in the original image can support zoom and movement.1R: Original image + independent sub image, the sub boxes of the original image support zoom and movement.4R: original image + 4 independent sub images, both the sub image and sub boxes in the original image support zoom and movement.2R: Original image + 2 independent sub images, the sub boxes of the original image can support zoom and movement, the sub image supports up and down movement, which can change the vertical angle of view.Note:The device end will output dewarped video stream after configuring installation and record mode, when the device is accessed to the third-party platform, it will directly display the dewarped image on the third-party platform.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Encode mode	There are five options: H.264 (main profile standard, H.264H (high profile standard), H.264B (Baseline Profile), H.265 (main profile standard) and MJPEG encode.The H.264, H.264H both are H264 bit stream.H.264 is the Main Profile encode and you need to enable the sub stream function in your camera and set the resolution as CIF. Then you can monitor via the Blackberry cell phone.The H.265 is the main profile encode mode.MJPEG: In this encode mode, the video needs to large bit stream to guarantee the video definition. You can use the max bit stream value in the recommend bit to get the better video output effect.
Resolution	There are multiple resolutions. You can select from the dropdown list.For each resolution, the recommended bit stream value is different.Note: When video is under rotating status, you cannot set resolution higher than 1080P (excluding 1080P).
Video Clip	The function is only supported by sub stream 2, please refer to "Video Clip" for more details below the sheet.
Frame Rate (FPS)	PAL: 1~25l/s. 1-50l/s NTSC: 1~30l/s or 1~60l/s.The frame rate may vary due to different resolutions.
Bit Rate Type	There are two options: VBR and CBR.Please note, you can set video quality in VBR mode.Under MJPEG mode, only CBR is available.
Recommended Bit	Recommended bit rate value according to the resolution and frame rate you have set.
Bit Rate	In CBR, the bit rate here is the max value. In

@alhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Watermark Settings	Select "Watermark Setting" and enable watermark function. After the watermark function is enabled, you can check if the video is tampered via verifying watermark character.
Watermark Character	It is the character of watermark verification, it is DigitalCCTV by default.

- Video Clip

1. Select "Sub Stream 2" in the drop-down box, click "Enable".

2. Enable "Video Clip", click

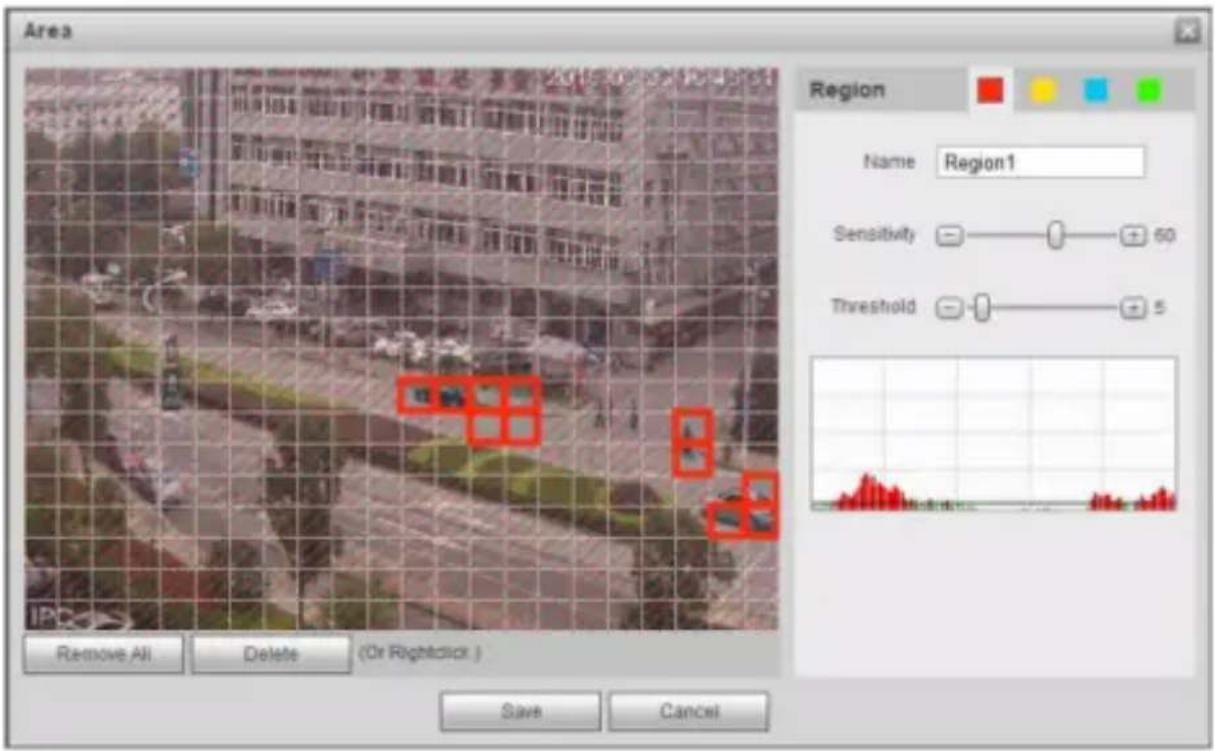

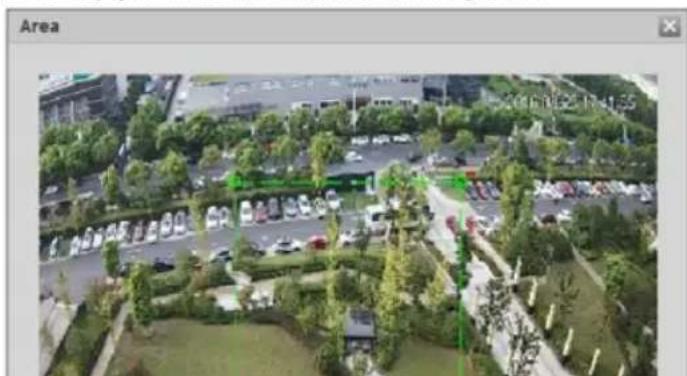

The system will display the interface of "Area", which is shown in Figure 5-14.

Aerial view of a modern urban area with parking lots, green lawns, and surrounding buildings (no visible text or symbols)

@ahua

Dahua Network Camera Web 3.0 Operation Manual

1. Select the needed resolution and clip the needed image on the interface, which is shown in Figure 5-15.
2. Click "Save". You can check the clipped video in the preview interface (the sub stream 2 preview interface only displays the clipped area), which is shown in Figure 5-15.

@ihua File Edit View Insert Tools Help 2016.05.30 17:35:24:05 IPG

Figure 5-15

Step 3

Click "Save" to complete video stream setup.

Dahua Network Camera Web 3.0 Operation Manual

Please refer to the following sheet for detailed information.

Parameter	Function
Snapshot type	There are two modes: general (schedule) and Event (activation).
Image size	It is the same as the resolution of main stream.
Quality	It is to set the image quality. There are six levels.
Interval	It is to set snapshot frequency. Optional1~7s/picture, customized.

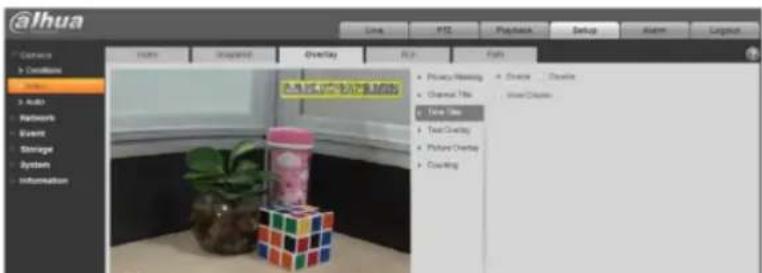

5.1.2.3 Video Overlay

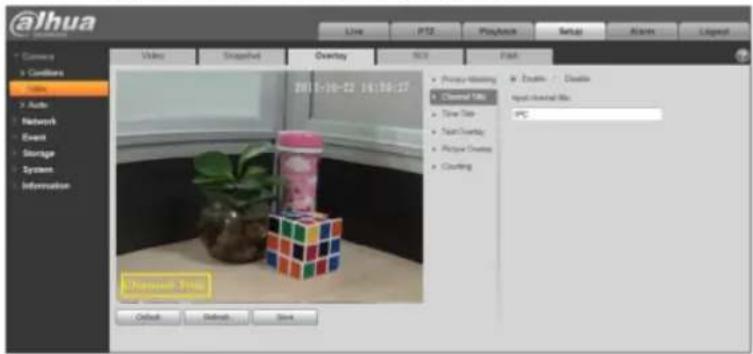

The video overlay interface is shown as in Figure 5-17.

Figure 5-17

alhua

Dahua Network Camera Web 3.0 Operation Manual

@lhua Camera 3 Conditions Video Audio Network Event Storage System Information Live PT2 PlayAbox Setup Actions Lockout Video Snapshot Overlay Tick Flash 2015-10-22 14:36:17 • Privacy-Blending • Channel Viki • Time Dot • Start Overlay • Picture Drawout • Counting • Outputs • Audio Input channel Mix: PC Microsoft Style Default Default Save

Figure 5-18

@lhua Connects > Cramions Home Auto Networks Event Storage System Information Live PTE Playback Setup Alarm Layout Name Designed Overlay Play Falls Privacy Modeling Chemical Tile Time Tile Text Embedly Picture Embedly Covering Device Customs User Creality

alhua

Dahua Network Camera Web 3.0 Operation Manual

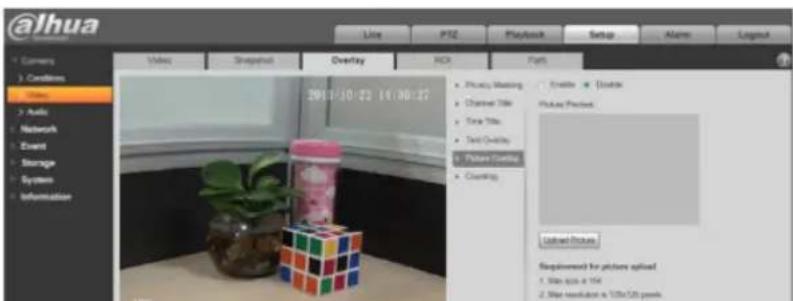

@lhua Live PTZ Playback Setup Alerts Layout Control Conditions Video Audio Network Event Storage System Information Video Snapshot Overlay BOX Flash 2013-10-22 14:30:27 Primary Mastering Cronial Title Time Title Text Overlay Picture Overlay Counting Custom Input Text Text Align Edge Defined Network Show

Figure 5-20

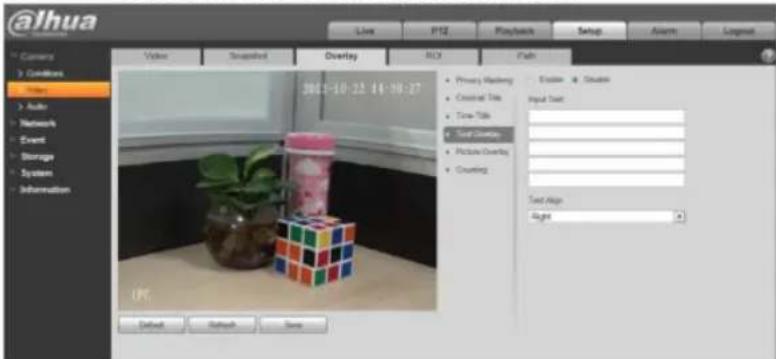

@lhua Convers > Creations Video > Audio Network Event Storage Systems Information Live PTZ PlayBook Setup Alarms Layout Video Snapshot Overlay ROI Path Privacy Masking Create < Enable Channel Title Picture Preview Text Title Text Overlay Picture Continue Counting Created Picture Supplanned for pictures applied 1. Map size at 154 2. Map resolution is 0.00x 0.00 pixels

@lhua Camera > Conditions > Video > Audio > Network > Event > Storage > System > Information Video Snapshot Overlay ROI Pack 20:13-10:22 14:30:27 Privacy Working Channel Title Time Title Text Overlay Picture Overlay Counting Enable Enable Statistics Type Enter Number Leave Number Text Align Left Default Refresh Save

Figure 5-22

Please refer to the following sheet for detailed information.

Parameter	Function
Privacy Masking	● Here you can privacy mask the specified video in the monitor video.● System max supports 4 privacy mask zones.
Time Title	● You can enable this function so that system overlays time information in video window.● You can use the mouse to drag the time tile position.
Channel Title	● You can enable this function so that system overlays channel information in video window.● You can use the mouse to drag the channel tile position.
Text Overlay	● You can enable this function to overlay text in video window.● Private protocol is connected to mobile NVR, support GPS information overlay.● You can use the mouse to drag location box to adjust its position. Alignment include align left and align right.
Picture Overlay	● You can enable this function to display overlay picture. Click on disable to turn it off.● Click on Upload Picture to overlay local picture into monitoring window. You can drag the yellow box to move it.Note:You cannot enable text and picture overlay at the same time.

Dahua Network Camera Web 3.0 Operation Manual

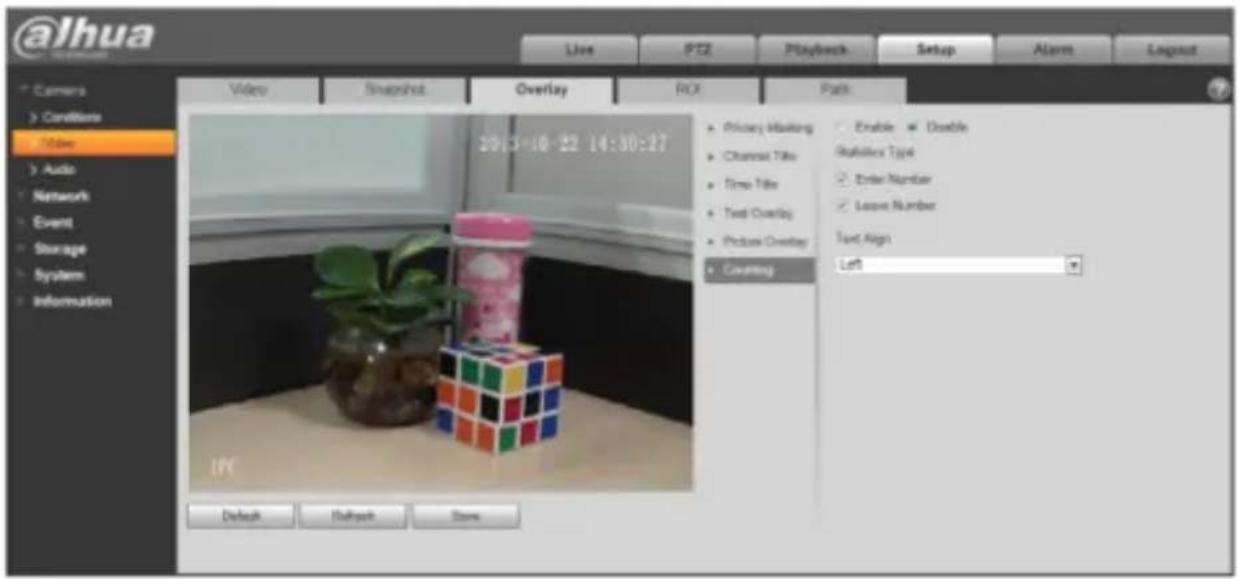

Counting	Check “Enable” to display the counting statistics data in the video monitoring window; check “Disable” not to display.There are enter number and leave number for statistics type and left align and right align for OSD info.
Refresh	Set privacy mask, channel title, time title, location, overlay and save the change. You can click on Refresh to see effect.
Default	Click it to restore default config.
Save	Click it to complete video settings.

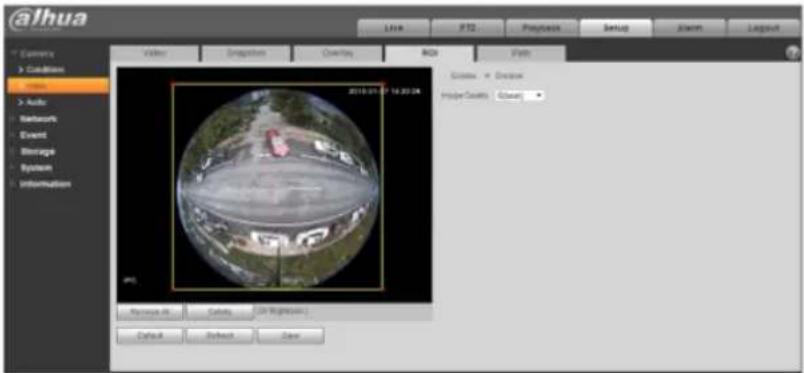

5.1.2.4 ROI

Note: Some series don't support ROI setup function.

Figure 5-23

Dahua Network Camera Web 3.0 Operation Manual

@lhua Live PT2 Playback Setup Zoom Layout Currency > Conditions Video > Audio Bancours Event Storage System Information Video Disgptom Overlay RGB Path Glasco Glasco Holder Quality Glasco Preview ID Details On Highlighted Default Refresh Save

Figure 5-24

Parameters	Note
Enable	Check “Enable”, then it will display the ROI in the video monitoring window; Check “Disable”, then it won’t display.
Image Quality	Set the image quality of ROI, ranging from 1~6, default is 6.Note:For fisheye device, it ranges from 1~6 (best), default is 6 (best)Able to set area block, max 4 areas.

Dahua Network Camera Web 3.0 Operation Manual

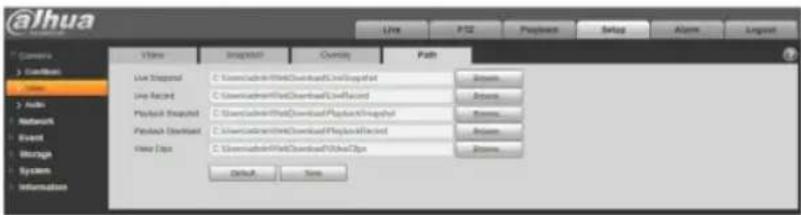

@lhua Live Playup View Imagptal Query Path Live Snapshot Download/Download/Download/Record Save Record Download/Download/Record Playup Snapshot Download Snapshot View fps Download/Download/Record Default Turn Live Snapshot Download/Download/Record Save Record Download/Download/Record Playup Snapshot Save fps Download/Download/Record Default Turn

Figure 5-25

5.1.3 Audio

Please note some series devices do not support audio function.

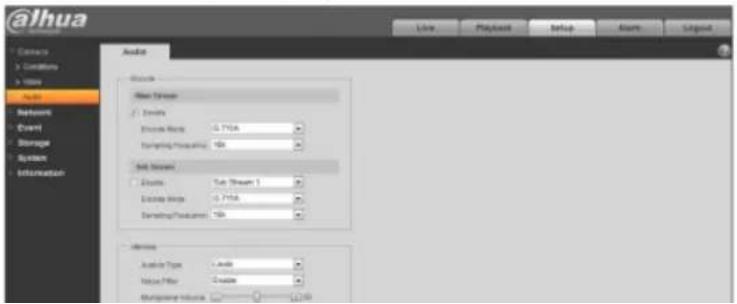

5.1.3.1 Audio

The audio interface is shown as below. See Figure 5-26.

@lhua Audio Wave Stream Emotion Emotion Mode: 0.1MHz Transforming Properties: 10% Soft Stream Emotion: Top Stream 1 Emotion Mode: 0.1MHz Transforming Properties: 10% Audio Type Value Filter Language Options Live Playback Setup ASM Legend

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Enable	You can enable audio only when video is enabled.After selecting the “Enable” of main stream or sub stream, the network transmission stream is the audio/video composite stream, otherwise it only includes video image.
Encode mode	The encode mode of the main stream and extra stream include G.711A, G.711Mu, G.726 and ACC. The default mode is G.711A.The setup here is for audio encode mode and the bidirectional talk encode both.
Sampling Frequency	The sampling frequency of audio. It includes the following options:8K16K32K48K64K
AudioIn Type	Two modes to select: Lineln, Mic.Device needs to connect external audio input source under Lineln mode, and it doesn’t need to connect external audio input source under Mic mode.
Noise Filter	Enable the function and it can filter relevant noise.
Microphone Volume	Adjust microphone volume from 0~100.Note:Supported by some devices.
Speaker Volume	Adjust speaker volume from 0~100.Note:Supported by some devices.

5.1.3.2 Alarm audio

alhua

Dahua Network Camera Web 3.0 Operation Manual

@lhua Search Search Audio Channel Key Play Download Modify Status

sound.pact

#

audio.pact

#

sound.pact

#

audio.pact

Figure 5-27

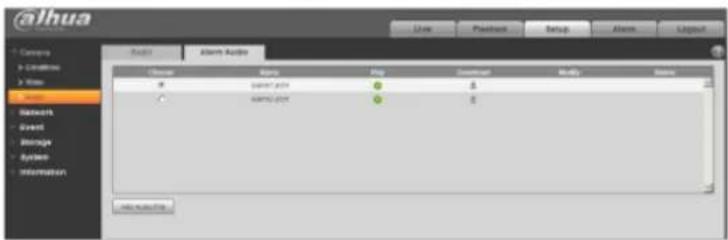

Add Audio File Record Upload Audio File pcm Record

Figure 5-28

Audio management currently supports PCM format to record and PCM, wav two forms to upload. and can select an audio file for the audio alarm linkage.

The way to download the web alarm playback audio file into local is as follows:

Step 1 Use the left mouse button to click the hollow circle in the "choice" column on the left, and shows , which means effective choice of alarm audio.

@jhua

Dahua Network Camera Web 3.0 Operation Manual

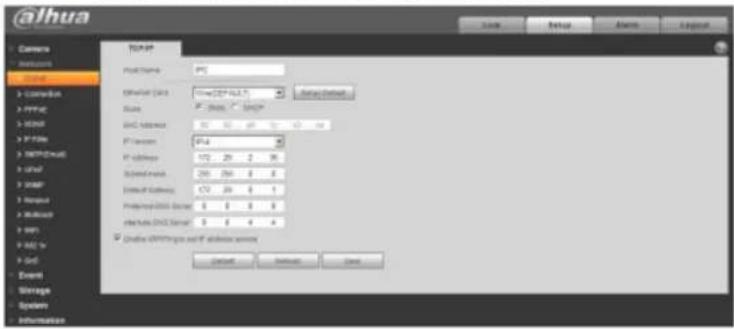

@jhua Camera Internet 2014 Comerion PPRT 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30CIP address: 97.56.82.71.62.68 IP address: 97.56.82.71.62.68 IP address: 97.56.82.71.62.68 Network address: 97.56.82.71.62.68 Network address: 97.56.82.71.62.68 Network address: 97.56.82.71.62.68 Network address: 97.56.82.71.62.68 Network address: 97.56.82, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100 Update Windows and Internet access Default... Default... Cancel...

Figure 5-29

Please refer to the following sheet for detailed information.

Parameter	Function
Host Name	It is to set current host device name. It max supports 15 characters.
Ethernet Card	Please select the Ethernet port. Default is wired.Please note you can modify the default Ethernet card if there is more than one card.
Mode	There are two modes: static mode and the DHCP mode. Select DHCP mode, it auto searches IP, and you cannot set IP/subnet mask/gateway. Select static mode, you must manually set IP/subnet mask/gateway.
Mac Address	It is to display hose Mac address.

Dahua Network Camera Web 3.0 Operation Manual

Enable ARP/Ping set device IP address service.

You can use ARP/Ping command to modify or set the device IP address if you know the device MAC address.Before the operation, please make sure the network camera and the PC in the same LAN. This function is on by default.You can refer to the steps listed below.Step 1: Get an IP address. Set the network camera and the PC in the same LAN.Step 2: Get the physical address from the label of the network camera.Step 3: Go to the Run interface and then input the following commands.arp -s <IP Address> <MAC>ping -l 480 -t <IP Address>Such as: arp -s 192.168.0.125 11-40-8c-18-10-11 ping -l 480 -t 192.168.0.125Step 4: Reboot the device.Step 5: You can see the setup is OK if you can see there are output information such as "Reply from 192.168.0.125 ..." from the command output lines. Now you can close the command line.Step 6: Open the browse and then input http://<IP address>.Click the Enter button, you can access now.

5.2.1.1 Easy4ip

Click "Enable" to connect the device to network, and then you can connect to the device via mobile client of Easy4ip after "Online" is displayed on the interface (connection mode: add device serial number or scan QR code). See Figure 5-30.

@ihua Camera HUAU Cayng Live Playback Setup Name Layout

Dahua Network Camera Web 3.0 Operation Manual

5.2.2 Connection

5.2.2.1 Connection

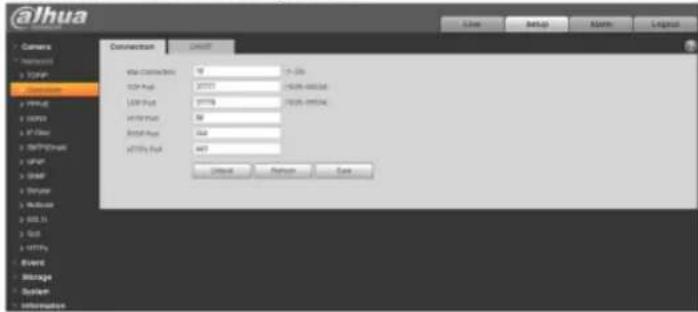

The connection interface is shown as in Figure 5-31.

@ihua Camera Networks TCP/IP Internet USB DNS IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address IP Address

Figure 5-31

Please refer to the following sheet for detailed information.

Parameter	Function
Max connection	It is the max Web connection for the same device. The value ranges from 1 to 20. Default connection amount is 10.
TCP port	Port range is 1025~65534. The default value is 37777. You can input the actual port number if necessary.
UDP port	Port range is 1025~65534. The default value is 37778. You can input the actual port number if necessary.
HTTP port	Port range is 1025~65524. The default value is 80. You can input the

Dahua Network Camera Web 3.0 Operation Manual

RTSP port

The default value is 554. Please leave blank if use default. User uses QuickTime or VLC can play the following formats. BlackBerry can play too.Real-time monitoring URL format, please require real-time RTSP media server, require channel no., bit stream type in URL. You may need username and password.User uses BlackBerry need to set encode mode to H.264B, resolution to CIF and tum off audio.URL format is:rtsp://username:password@ipport/cam/realmonitor?channel=1&subtype=0Username/password/IP and portThe IP is device IP and the port default value is 554. You can leave it in blank if it is the default value.Follow standard RTP protocol and when encode mode is MJPEG, the max resolution only supports 2040*2040.

HTTPS Port

HTTPS communication port, range is 1025-65534, default is 443.

Note:
- 0\~1024, 37780\~37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999, 42323 are all special ports. User cannot modify them.
● Avoid using default port value of other ports.

5.2.2.2 ONVIF

ONVIF (Open Network Video Interface Forum), this standard describes network video mode, interface, data type and data interaction mode. ONVIF Standard's aim is to achieve a network video frame agreement and makes the network video products (including video front-end, video equipment, etc.) from different manufacturers completely compatible.

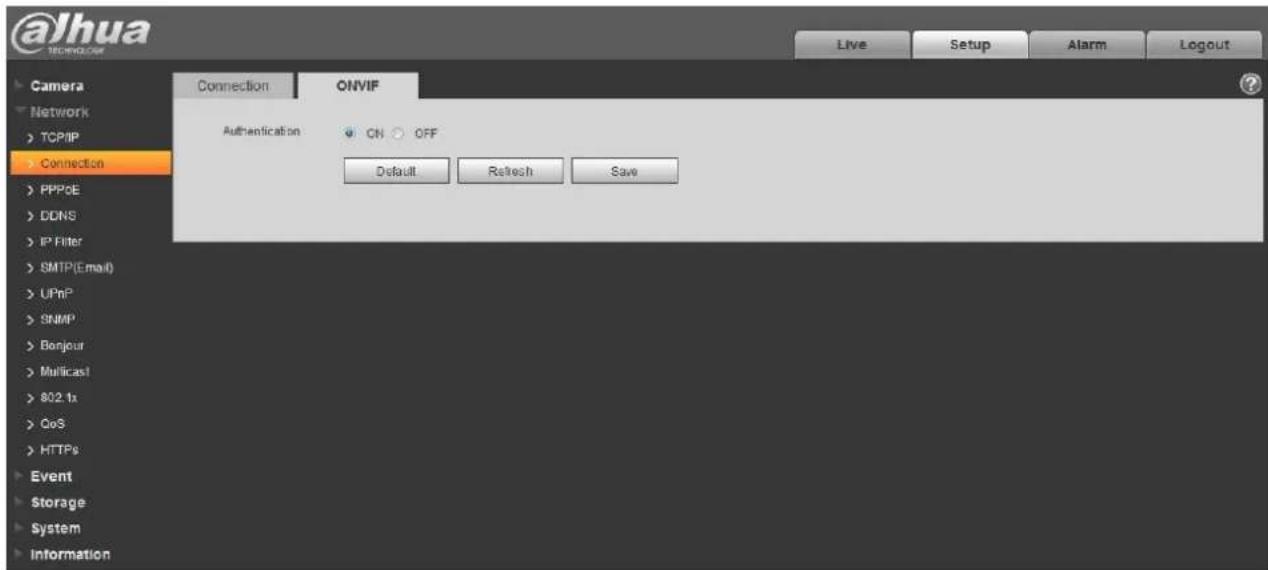

@lhua Tecnology Live Setup Alarm Logout Camera Network TCP/IP Connection ONVIF Authentication ON OFF Default Refresh Save PPPoE DDNS IP Filter SMTP(Email) UPnP SNMP Bonjour Multicast 802.1x QoS HTTPS Event Storage System Information

Figure 5-32

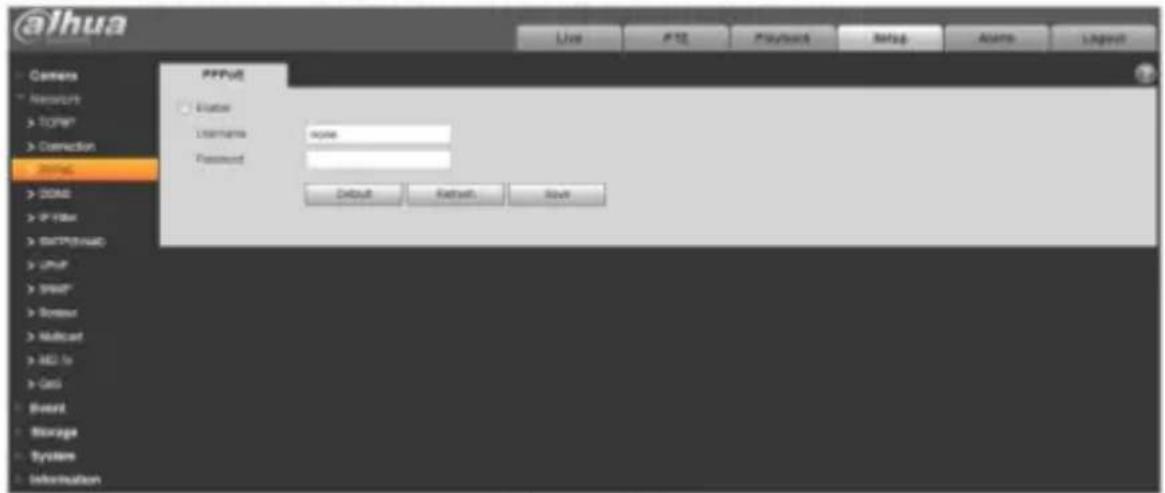

5.2.3 PPPoE

The PPPoE interface is shown as in Figure 5-33.

Enter the PPPoE username and password which are provided by ISP (Internet Service Provider), and click “Enable”. The network camera will automatically establish network connection in the mode of PPPoE after it is enabled, after it is successful, the IP of the “IP Address” will be automatically modified into the dynamic IP address of the acquired WAN.

Note:

After PPPoE dial-up is successful, it needs to log in the device via the IP which is set before dial-up; in the PPPoE setup interface, it will display the registered IP address, and then it can visit the IP address via client.

Please disable UPnP when clicking PPPoE enable, which is to avoid causing influence to PPPoE dial-up.

@ihua PPVIE Enable Username: none Password: Default Retrench Save

Figure 5-33

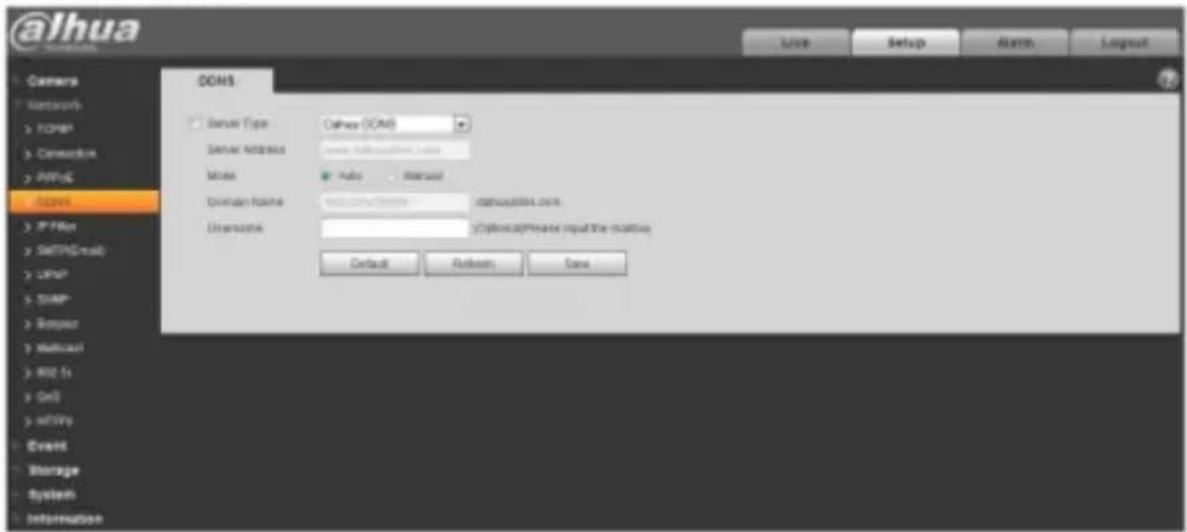

5.2.4 DDNS

The DDNS interface is shown as in Figure 5-34.

The DDNS is to set to connect the various servers so that you can access the system via the server. Please go to the corresponding service website to apply a domain name and then access the system via the domain. It works even your IP address has changed. When the device connects to WLAN, you should disable UPnP.

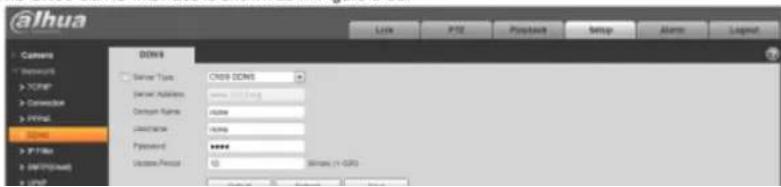

@Ihua @Camera Networks TCP/IP Connection PHPG CCNS IP-Filter SETUPEmail UPAP SMAF Borper Mailcall RTZ 1x Get HITIRy Event Storage System Information CCNS Server Type: Other (CCN) Server Address: new addressline Mode: Auto Manual Domain name: https://www.orient.com/ Username: http://open30/Private IP mail the matrix Default LockDown Done

Figure 5-34

Please refer to the following sheet for detailed information.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Server Type	You can select DDNS protocol from the dropdown list: CN99 DDNS, NO-IP DDNS, Dyndns DDNS, Dahua DDNS, the default is Dahua DDNS.
Server Address	DDNS server IP addressCN99 DDNSServer address: www.3322.orgNO-IP DDNSServer address: dynupdate.no-ip.comDyndns DDNSServer address: members.dyndns.orgDahua DDNSServer address: www.dahuaddns.com
Mode	Default is auto, able to choose manual
Domain Name	Both auto and manual are "MAC address.s.dahuaddns.com"by default, able to set prefix manually.
Username	The user name you input to log in the server, optional.

The CN99 DDNS interface is shown as in Figure 5-35.

@lhua Camera Networks > TCPMP Connection > Print DSL > IP Files > HTTP/Internet > USB DOSI DSI Server Type: CRES DOSI Server Address: www.cresi.org Address Name: none Description: none Password: ****** Version Period: 10 Mbps (4000) Link PTE Playback Setup Alert Layout

alhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Server Type	You can select CN99 DDNS protocol
Server Address	Under CN99 DDNS the default server address is "www.3322.org"
Domain Name	Self-defined domain name
Username	The user name you input to log in the server.
Password	The password you input to log in the server
Refresh Period	The refresh period of the connection between the device IP and the server, default is 10 minutes.

5.2.5 IP filter

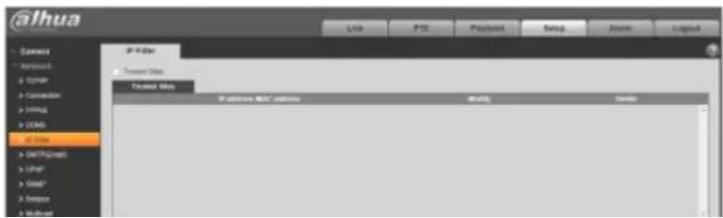

The IP filter interface is shown as in Figure 5-36.

You can enable IP filter function so that some specified IP/MAC user can access the network camera.

You can add IP address or IP segment.

If you do not check the box here, it means there is on access limit.

Here you can add IP address and MAC address. You must add these addresses before enabling the trusted sites.

Please note: You must set MAC address in the same network segment.

@lhua Camera Networks Turner Conversion Image USB Add Text Add Text Download Text IP address: MBT address Modify Modify

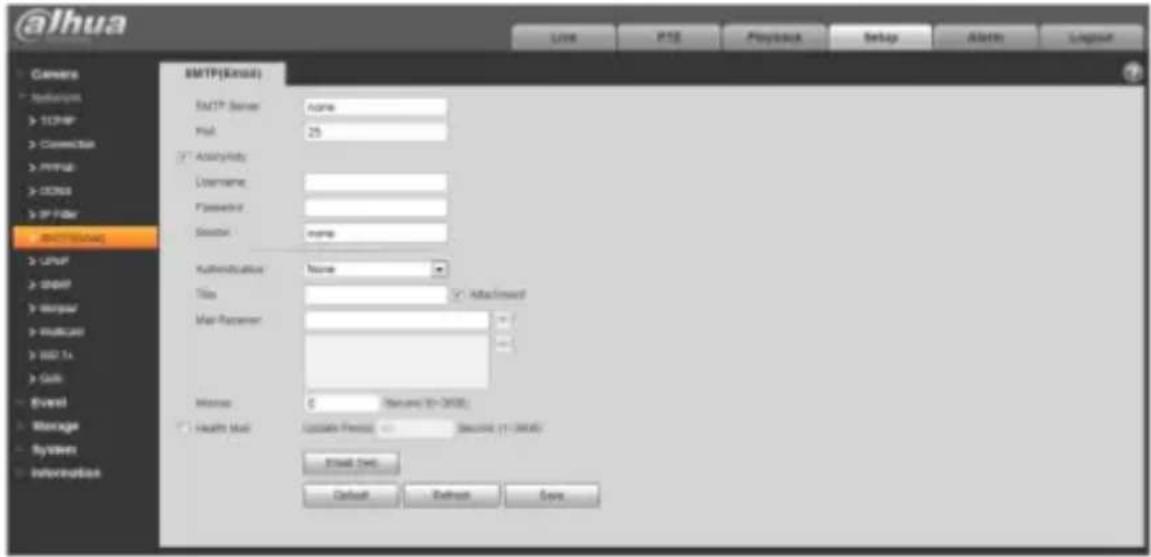

@ihua CMSTP(Kmail) SMTP Server: Aname Mail: 25 ActivityHost: Username: Password: Email: Authentication: Name Title: * Attachment Main Receiver: Access: Access: C (January 10–2008) Health Mail: Update Press: Browse: (1–2008) Email: Email Default Refresh Save

Figure 5-37

Please refer to the following sheet for detailed information.

Parameter	Function
SMTP Server	Input server address and then enable this function.
Port	Default value is 25. You can modify it if necessary.
Anonymity	For the server which supports the anonymity email function, it won't display the information of the sender.
User Name	The user name of the sender email account.
Password	The password of sender email account.
Sender	Sender email address.
Authentication (Encryption mode)	You can select SSL, TLS or none.
Title (Subject)	Input email subject here.
Attachment	System can send out the email of the snapshot picture once you check the box here.
Mail receiver	Input receiver email address here. Max three addresses.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Interval	The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormality event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormality events, which may result in heavy load for the email server.
Health mail enable	Please check the box here to enable this function.
Email test	The system will automatically sent out a email once to test the connection is OK or not .Before the email test, please save the email setup information.

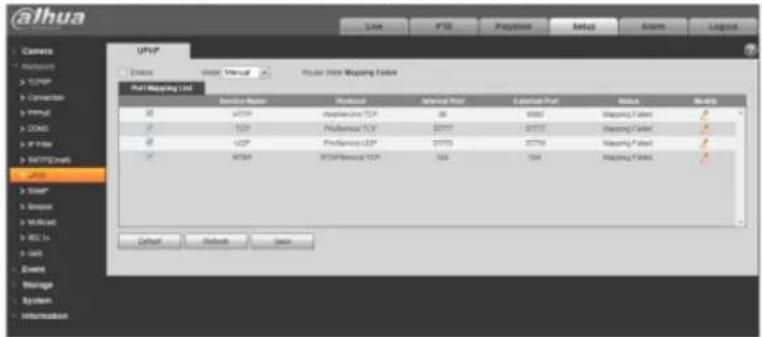

5.2.7 UPnP

It allows you to establish the mapping relationship between the LAN and the public network. Here you can also add, modify or remove UPnP item. For UPnP on different routers, you must disable UPnP function. See Figure 5-38.

In the Windows OS, From Start->Control Panel->Add or remove programs. Click the "Add/Remove Windows Components" and then select the "Network Services" from the Windows Components Wizard. Click the Details button and then check the "Internet Gateway Device Discovery and Control client" and "UPnP User Interface". Please click OK to begin installation.

Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the network camera can auto detect it via the "My Network Places".

Under manual mode, you can modify external port. Under auto mode, select idle port for auto port mapping without user modification.

alhua

Dahua Network Camera Web 3.0 Operation Manual

@lhua Connects Connects TCP/IP Connection PPM CONN IP Web SMTP/Email UPnP Connects Model: Microsoft Pulsar Data Mapping Factor Port Mapping Unit Connects Name: WTPP Webserver TCP 36 0000 Wapping Panel 1 TCP Webserver TCP 2011 2015 Wapping Panel 1 UDP Webserver TCP 2019 2070 Wapping Panel 1 HTTP Webserver TCP 364 104 Wapping Panel 1 Default Default Save

Figure 5-38

5.2.8 SNMP

The SNMP interface is shown as in Figure 5-39 and Figure 5-40.

The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function. You need to reboot the device to activate the new setup.

alhua Browse Networks > 320000 > Commler > PTPM > 320000 > 120000 SNFP SNFP Version SNFP v1 SNFP v2 SNFP v3 SNFP Type type Size Community public Name Community private Link PTZ Playback Setup Atom Legend

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
SNMP Version	Check SNMP v1, device only process v1 info.Check SNMP v2, device only process v2 info.Check SNMP v3, can set username, password and encryption method. Server calibrate corresponding username, password and encryption method too access device and v1/v2 are unavailable.
SNMP port	The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161
Community	It is a string, as command between management and proxy, , defining a proxy, and a manager's authentication.
Read community	Read-only access to all SNMP targets, default is public.Note: Only number, letter, , and - supported.
Write community	Read/write access to all SNMP targets, default is private.Note: Only number, letter, , and - supported.
Trap address	The destination address of the Trap information from the proxy program of the device.
Trap Address	Address where to send Trap message.
Trap Port	Port which send Trap message, default is 162, range 1~65535.

@alhua Email Email Address: 12345678 Email Type: 12345678 Email Community: www.12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Info: 12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 120000000 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678 Email Address: 12345678 Email Subscribers: www.12345678

Check SNMP v3 version and SNMP port, read community, write community, Trap address, Trap port are same with SNMP v1 and SNMP v2 versions. Only when SNMP version is SNMP v3, users need to configure parameter in chart.

Parameter	Function
SNMP Version	SNMP v3
Read-only Username	Default is public.Note:Name only can be number, letter and underline.
Read/Write Username	Default is private.Note:Name only can be number, letter and underline.
Authentication	You may select MD5 or SHA, default is MD5.
Authentication Password	Password not less than 8 characters.
Encryption	Default is CBC-DES.
Encryption Password	Password not less than 8 characters.

5.2.9 Bonjour

The Bonjour interface is shown as below. See Figure 5-41.

Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can automatically broadcast its service information and listen to the service information from other device.

You can use the browse of the Bonjour service in the same LAN to search the network camera device and then access if you do not know the network camera information such as IP address.

You can view the server name when the network camera is detected by the Bonjour. Please note the safari browse support this function. Click the "Display All Bookmarks: and open the Bonjour, system can auto detect the network camera of the Bonjour function in the LAN.

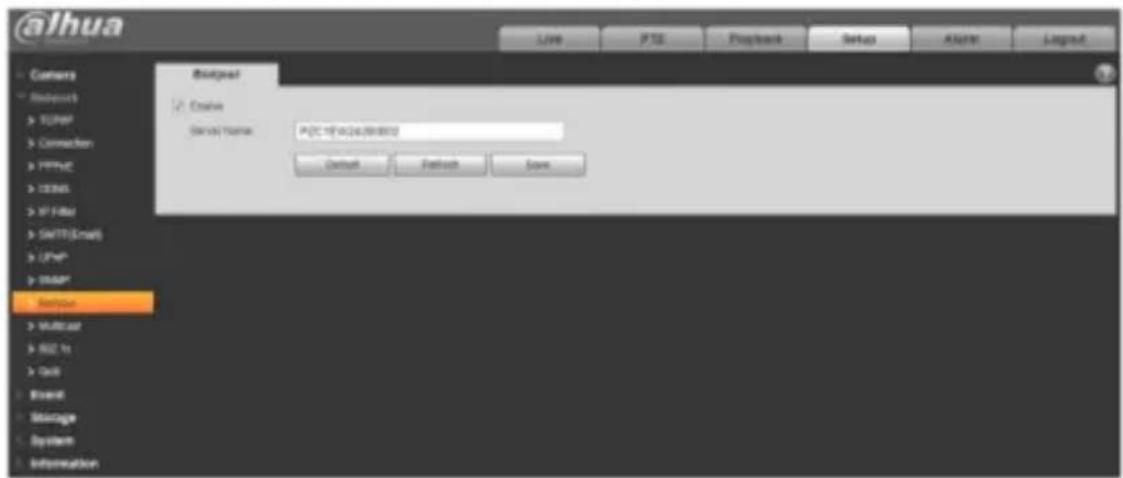

@lhua Backgoet Creative Service Name: PSC IP address(Windows) Default Pathback Save Backgoet Multicast B02 to Get Stream Manage System Information

Dahua Network Camera Web 3.0 Operation Manual

Figure 5-41

5.2.10 Multicast

The multicast interface is shown as in Figure 5-42.

Multicast is a transmission mode of data packet. When there is multiple-host to receive the same data packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit. This function also depends on the relationship of the group member and group of the outer.

Note:

• Open preview, streaming media protocol, select multicast, and monitor via multicast format.

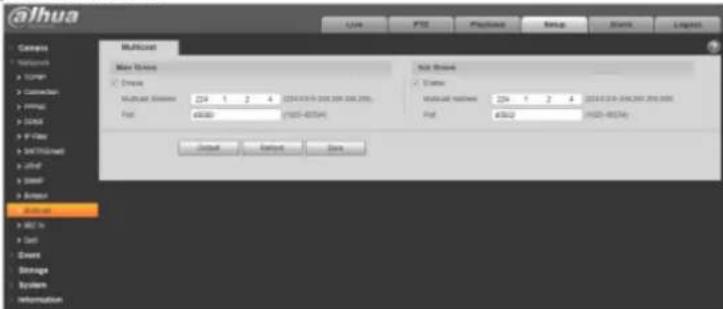

• Here you can set multicast address and port. You also need to go to Live interface to set the protocol as Multicast.

@alhua Caspia Networks UserP Connector Filing Cloud P Day SMTM30001 Cloud System Information Multicost Main Text Source Multicost Server 224 1 2 4 (2014.03.09.00.00.00.00.00) Port: 65000 (HDD-85254) Sub Text Source Multicost Server 224 1 2 4 (2014.03.09.00.00.00.00) Port: 65002 (HDD-85254) Default Default Data

Figure 5-42

Please refer to the following sheet for detailed information.

Note: This function is only for series with 4G module.

4G is a mobile communication system which makes wireless communication integrates with Internet and multimedia communication.

5.2.11.1 Dialing Setting

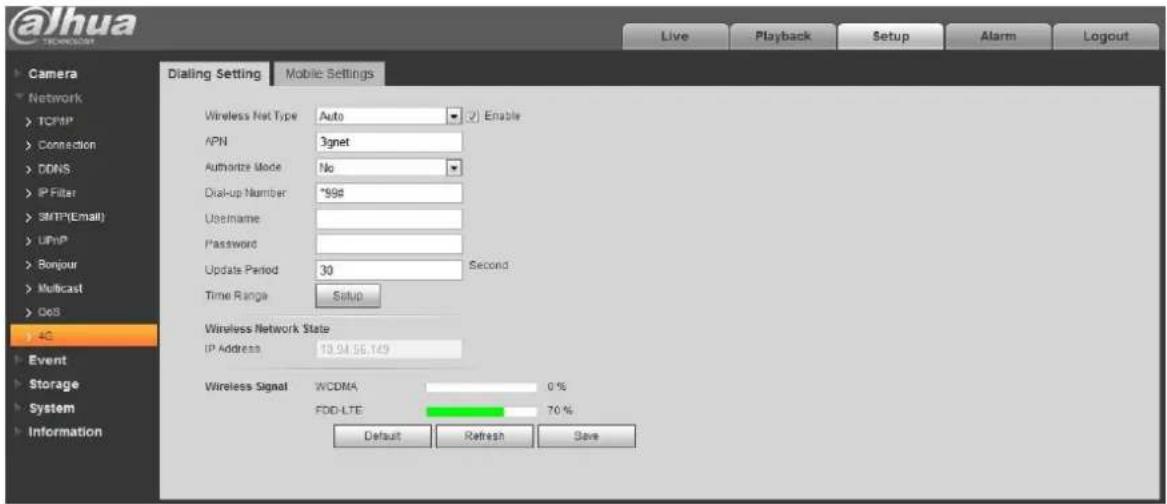

@lhua @zhua TOMSCOM Live Playback Setup Alarm Logout Camera Network TCP/IP Connection CDNS IP Filter SMTP(Email) UI/IP Bonjour Multicast DoS 4G Event Storage System Information Dialing Setting Mobile Settings Wireless Net Type Auto 2) Enable APN 3gnet Authorize Mode No Dial-up Number *99& Username Password Update Period 30 Second Time Range Setup Wireless Network State IP Address 10.94 56.149 Wireless Signal WCDMA 0% FDD-LTE 70% Default Refresh Save

Figure 5-43

Parameter	Function
Wireless Net Type	Auto, WCDMA, FDD-LTE optional, you can select according to the operator.
Enable	Check to enable 4G module.
APN	It shall be acquired from the operator according to the setup of operator.
Authentication Mode	Auto, PAP and CHAP, the authentication algorithm is different according to different operators.
Dial-up Number	The number is different according to different operator, it can be acquired from operator.
User name	It shall be acquired from the operator.
Password	It shall be acquired from the operator.
Update Period	It is the period beyond the dial-up period which has been set, it is 30s by default, which means the device can auto acquire 4G dial-up status, cut off dial-up to save flow.

Dahua Network Camera Web 3.0 Operation Manual

Time Range	It is the time period to set dial-up. It can activate the function via message to enable/disable dial-up function if it is beyond the time period.
IP Address	It will display the acquired IP after the dial-up is successful via 4G.

5.2.11.2 Mobile Setting

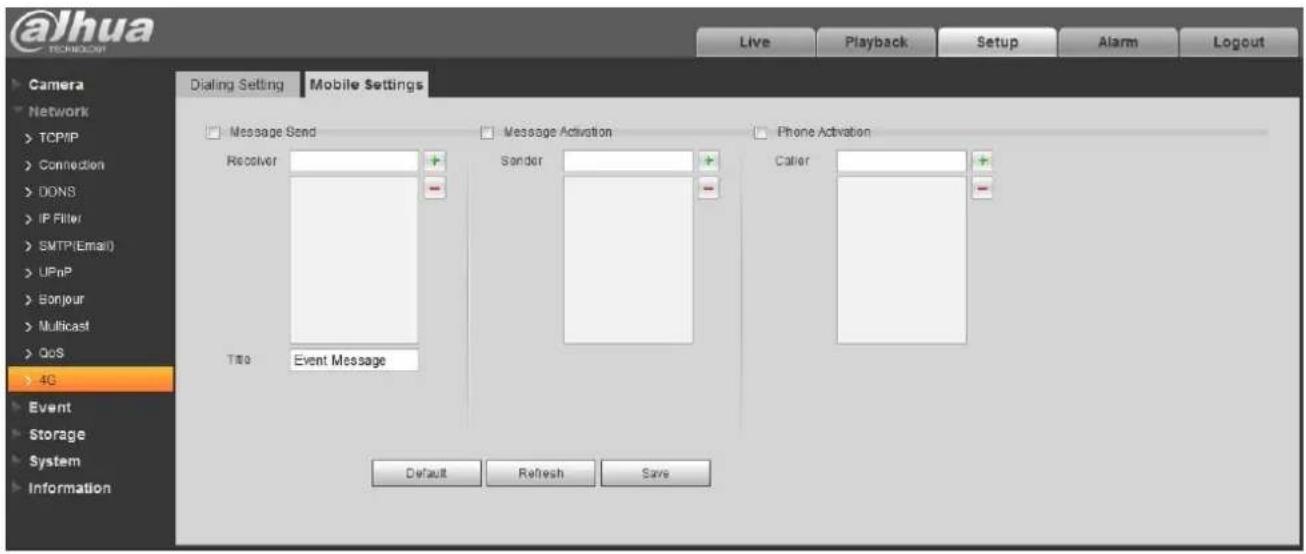

@Jhua TECHNOLOGY Live Playback Setup Alarm Logout Camera Network TCP/IP Connection DONS IP Filter SMTP(Email) UPnP Bonjour Multicast QoS 4G Event Storage System Information Dialing Setting Mobile Settings Message Send Message Activation Phone Activation Receiver Sender Caller - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Figure 5-44

Please refer to the following sheet for detailed information.

Parameter	Function
Message Send	In the event, after the corresponding message activation is enabled, it will send message to the phone of receiver when event happens. It needs to enable the function of message activation function in the event interface when using the function.
Message Activation	It can send message ON/OFF to the SIM card inside the device by the mobile phone in the list, which is to enable /disable the dial-up function and send REBOOT to restart the device.
Phone Activation	You can use the mobile phone in the calling list to call the SIM card inside the device to enable dial-up function.

5.2.12 WIFI

alhua

Dahua Network Camera Web 3.0 Operation Manual

Note:

Some series devices don't support WIFI and WPS function.

WPS function is supported by the devices with WPS button.

5.2.12.1 WIFI

WIFI info can show the name, status, IP information of the Current Hot Spot. Usually please "Refresh" WIFI work information after reconnection to ensure the real-time display of the work status, because it often takes some time to connect WIFI Hot Spot, which depends on the network signal strength.

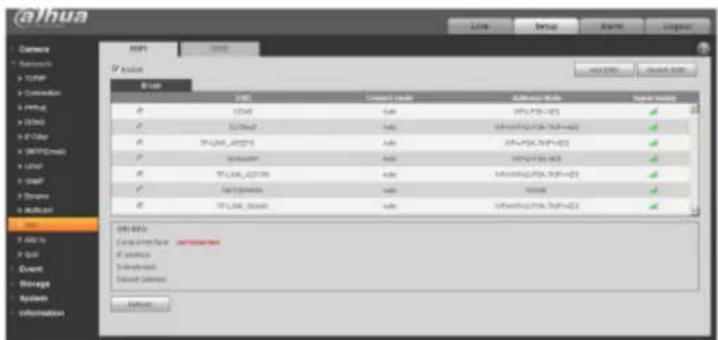

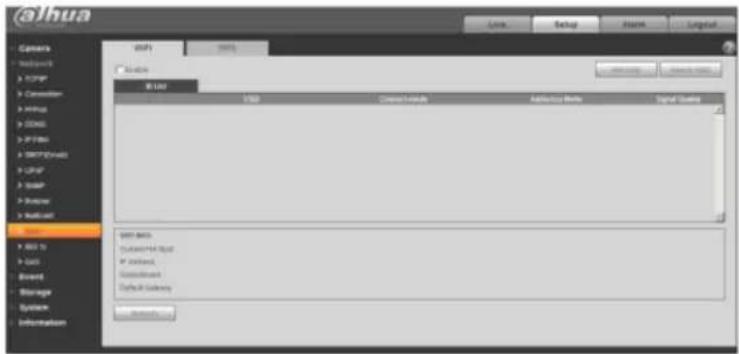

@ihua WIFI Network B:100 USB Channel Details Additional Links Signal Quality WIN BDO Channel Name IP Interface ConnectBox Default Gateway WIN BDO Connection Name IP Interface ConnectBox Default Gateway

Figure 5-45

WIFI setting method is as follows:

@ahua

Dahua Network Camera Web 3.0 Operation Manual

@alhua Networks T10MP Connection A: WiFi B: 10000 C: 10000 D: 10000 E: 10000 F: 10000 G: 10000 H: 10000 I: 10000 J: 10000 K: 10000 L: 10000 M: 10000 N: 10000 O: 10000 P: 10000 Q: 10000 R: 10000 S: 10000 T: 10000 U: 10000 V: 10000 W: 10000 X: 10000 Y: 10000 Z: 10000 W: 10000 C: 10000 D: 10000 E: 10000 F: 10000 G: 10000 H: 10000 I: 10000 J: 10000 K: 10000 L: 10000 M: C: 10000 D: 10000 E: 10000 F: 10000 G: 10000 H: 10000 I: 10000 J: 10000 K: 10000 L: 1000

Figure 5-46

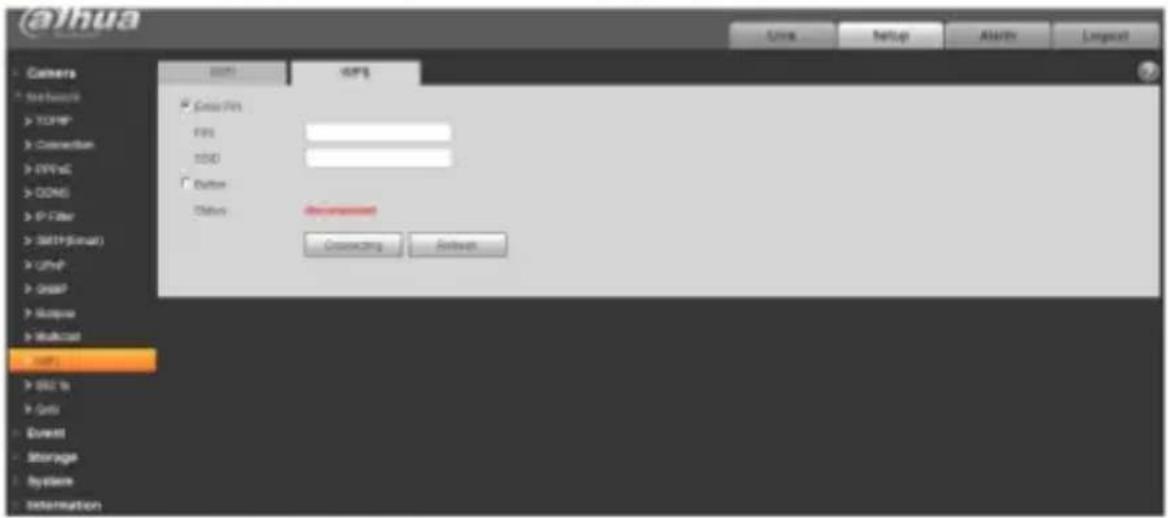

Step 3 Click "Add SSID" when need to add a wireless network manually pop out an interface in the figure below, and enter network ID in the dialog box.

Add Wireless SSID SSID: Ok Cancel

Figure 5-47

Step 4 Double click on one can pop out the signal intensity and authentication of the hot spot.

@hua Camera Software TCP/IP Connection IP/PS/C GONS IP-Filter Satry (Serial) UI/HP Graph Mouse Multiscale MPT USB to Grid Event Storage System Information Color Filter FBS USB Button Status Comment Connecting Refresh

Figure 5-48

PIN Number and SSID are both acquired from the router, please "refresh" the work information of WIFI to ensure the real-time display of work state after filling in correctly.

5.2.13 802.1x

802.1x (port based network access control protocol) supports manual selection of authentication method to control if device connected to LAN can join the LAN. It well supports authentication, charging, safety and management requirement of network.

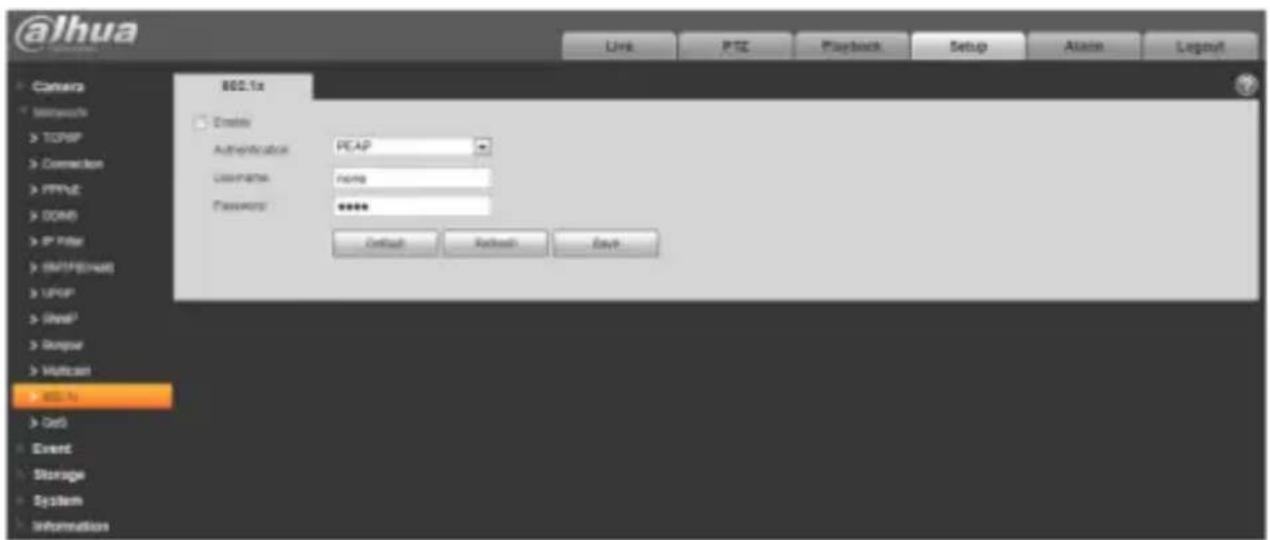

@lhua R02.1x ■ Enable Authentication: PEAP Username: none Password: ****** Default Refresh Buy Camera Smartphone TOPSP Connection PPP2 COMB IP Filter SMTP(Martin) UPPOP Gmail Saguar Multicom R02.1% Get Event Storage System Information

Figure 5-49

Please refer to the following sheet for detailed information.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Authentication	PEAP (protected EAP protocol).
Username	It needs the username to login, which is authenticated by the server.
Password	Please input password here.

5.2.14 QoS

The QoS interface is shown as below. See Figure 5-50.

Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay and jam problem and etc. For the network service, the quality of service includes the transmission bandwidth, delay, the packet loss and etc. We can guarantee the transmission bandwidth, lower the delay, and reduce the loss of the data packet and anti-dither to enhance the quality.

We can set the DSCP (Differentiated Services Code Point) of the IP to distinguish the data packet so that the router or the hub can provide different services for various data packets. It can select the different queues according to the priority (64 different priority levels) of the packets and select the bandwidth of the each queue. Level 0 is the lowest, and level 63 is the highest. It can also discard at the different ratio when the broad bandwidth is jam.

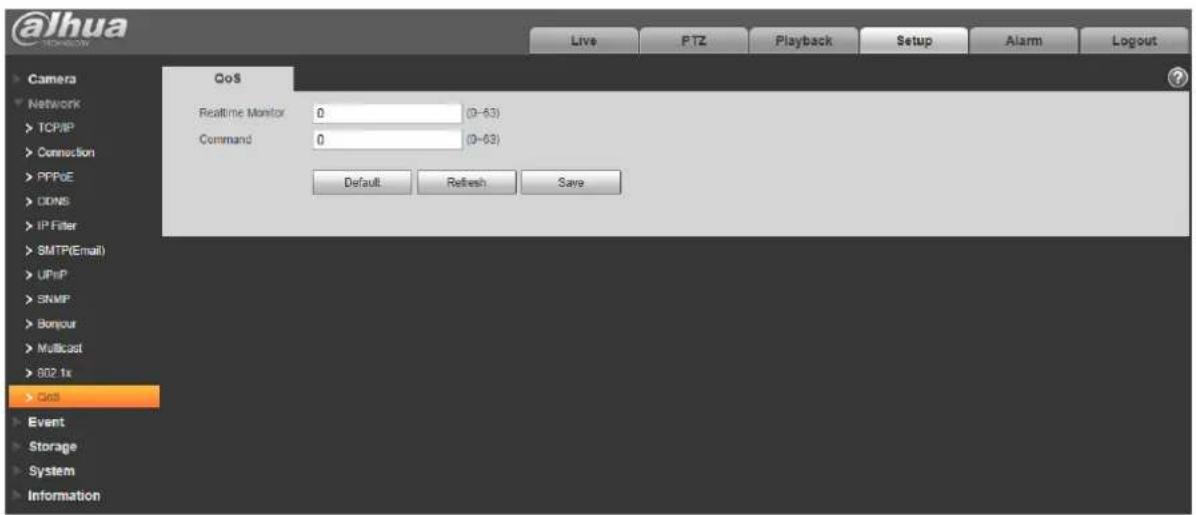

@Jhua Live PTZ Playback Setup Alarm Logout Camera Network TCP/IP Connection PPPoE CDNS IP Fitter SMTP(Email) UPnP SNMP Bonjour Multicast 802.1x QoS Event Storage System Information RealTime Monitor 0 (0-63) Command 0 (0-63) Default Refresh Save

Figure 5-50

Please refer to the following sheet for detailed information.

Parameter	Function
Real-time monitor	The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Command	The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
Enable Wireless QoS	Check it to enable QoS.

5.2.15 HTTPS

In the HTTPS setting interface, users can make PC log in normally via HTTPS by creating certificate or uploading signed certificate, which is to guarantee the security of communication data and provide safeguard for user information and device security with reliable and stable technical means.

Step 1

Create certificate or upload the signed certificate.

Please refer to the following steps if you select "Create Certificate".

1. Select “Setup > Network > HTTPS”, and the system will display the interface of HTTPS, which is shown in Figure 5-51.

Figure 5-51

1. Click "Create" and it will pop out the dialog box of "HTTPS", which is shown in Figure 5-52.

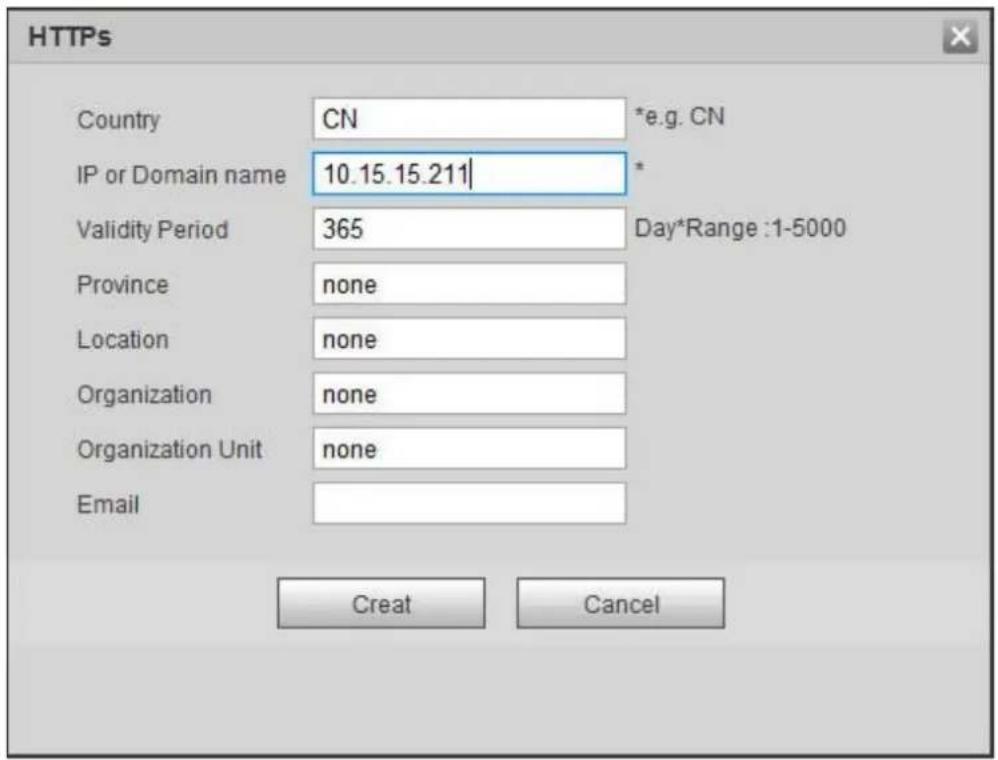

HTTPS Country CN *e.g. CN IP or Domain name 10.15.15.211 Validity Period 365 Day*Range :1-5000 Province None Location None Organization None Organization Unit None Email Creat Cancel

Figure 5-52

1. Fill in corresponding "Country", "Province" and some other information, click "Create" after filling in. It will show the prompt of "Create Successfully", which means the server certificate has been successfully created.

Note:

Make sure the "IP or domain name" is the same as that of the device.

1. Click "Install" and it will install the certificate on the device end, which is shown in Figure 5-53.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

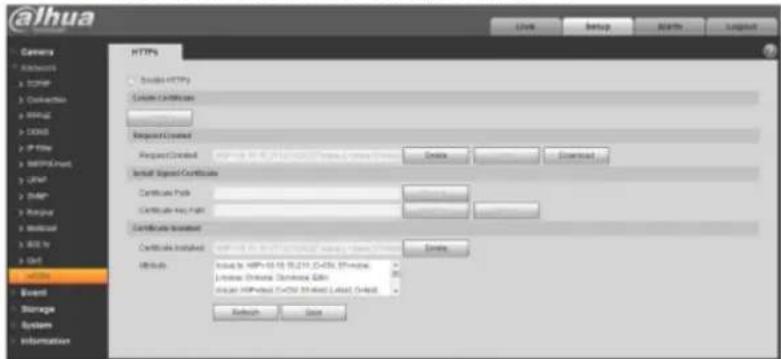

@ihua HTTPS Browse HTTPs Custom Certificate Request Created Request Created: Copyright © 8/16/2023, General License, Email Delete Download Initial Signed Certificate Certificate Pack: Certificate Key Pack: Certificate Updated: Certificate Installed: Copyright © 8/16/2023, General License, Delete Attribute: http://8p-16.16.15.219.0476.0796. Internet: Oraiyo, China Mobile Organ: HPProduct Co-CDI Limited, Owned Refresh Save

Figure 5-53

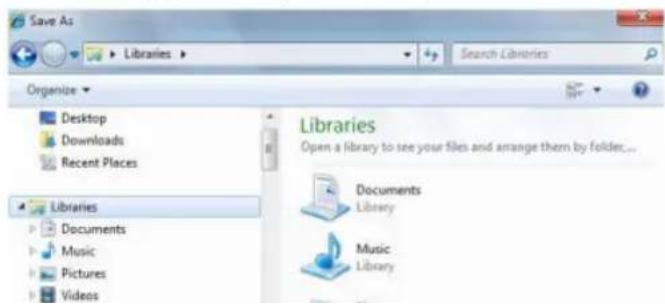

1. Click "Download". It will pop out the dialog box of "Save as", save the file into the computer.

Save As Libraries Search Libraries Organize Desktop Downloads Recent Places Libraries Documents Music Pictures Videos Libraries Open a library to see your files and arrange them by folder... Documents Library Music Library

@ahua

Dahua Network Camera Web 3.0 Operation Manual

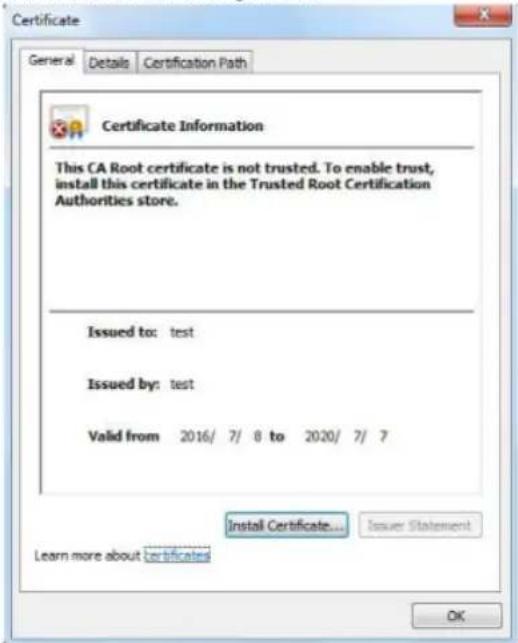

1. Double click the downloaded icon of "RootCert.cer". The system will display the information interface of "Certificate", which is shown in Figure 5-55.

Certificate General Details Certification Path Certificate Information This CA Root certificate is not trusted. To enable trust, install this certificate in the Trusted Root Certification Authorities store. Issued to: test Issued by: test Valid from 2016/ 7/ 8 to 2020/ 7/ 7 Install Certificate... Issuer Statement Learn more about certificates OK

Figure 5-55

Dahua Network Camera Web 3.0 Operation Manual

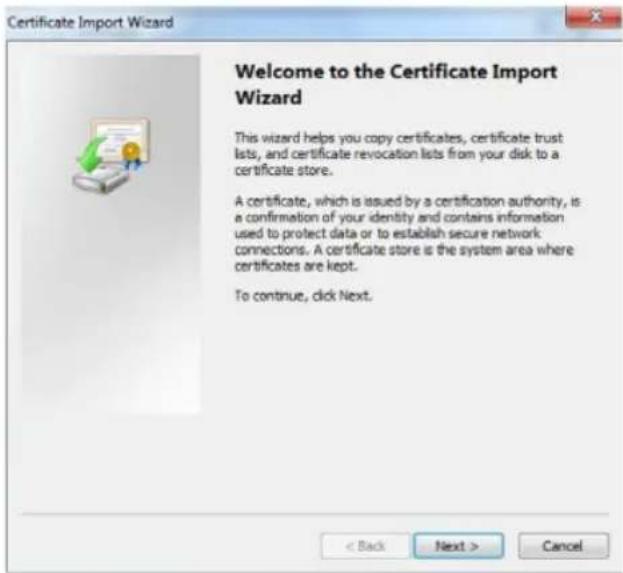

Certificate Import Wizard Welcome to the Certificate Import Wizard This wizard helps you copy certificates, certificate trust lists, and certificate revocation lists from your disk to a certificate store. A certificate, which is issued by a certification authority, is a confirmation of your identity and contains information used to protect data or to establish secure network connections. A certificate store is the system area where certificates are kept. To continue, click Next.

Figure 5-56

1. Click "Next". Select "Trusted Root Certification Authorities", which is shown in Figure 5-57.

Dahua Network Camera Web 3.0 Operation Manual

Figure 5-57

1. Click “Next”. The system will display the interface of “Completing the Certificate Import Wizard”, which is shown in Figure 5-58.

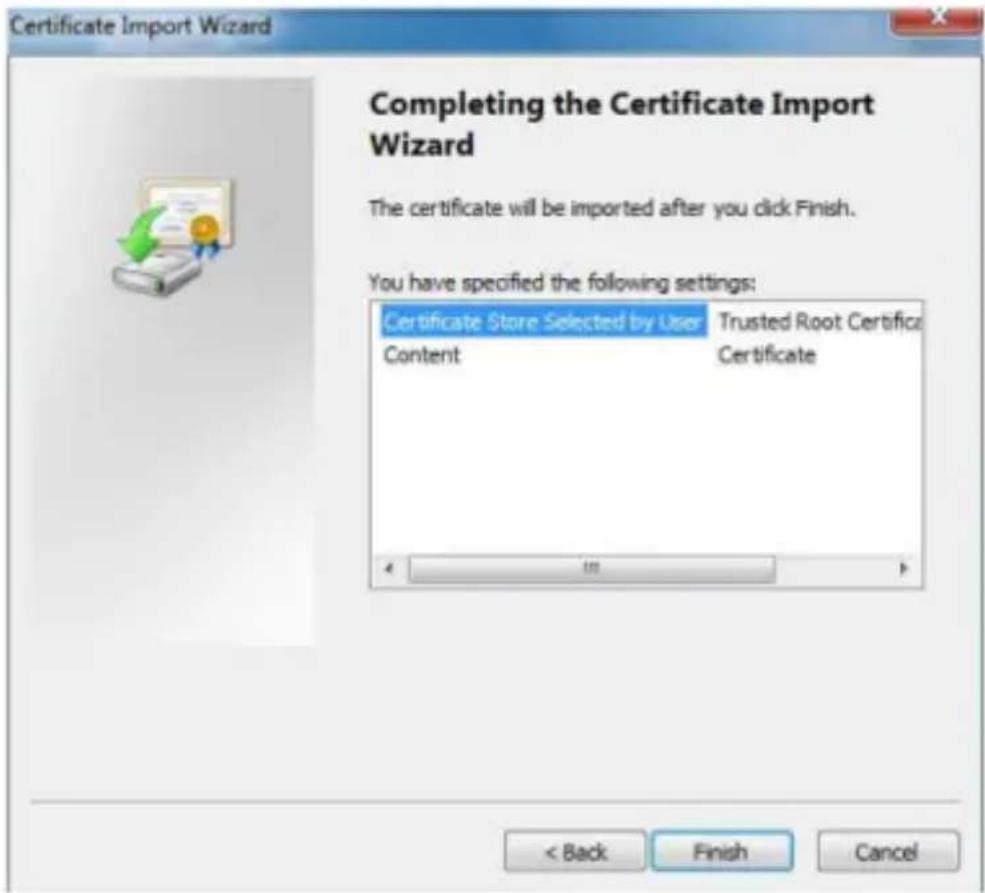

Certificate Import Wizard Completing the Certificate Import Wizard The certificate will be imported after you click Finish. You have specified the following settings: Certificate Store Selected by User Trusted Root Certifica Content Certificate < Back Finish Cancel

Figure 5-58

1. Click "Finish", and it will pop out the dialog box of "Security Warning", which is shown in Figure 5-59.

Dahua Network Camera Web 3.0 Operation Manual

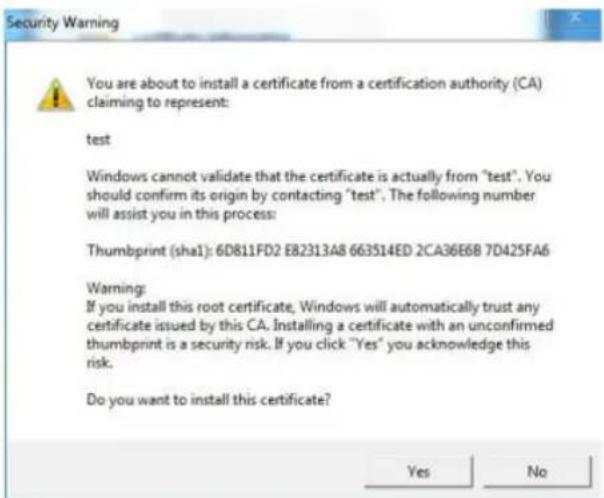

Security Warning You are about to install a certificate from a certification authority (CA) claiming to represent: test Windows cannot validate that the certificate is actually from "test". You should confirm its origin by contacting "test". The following number will assist you in this process: Thumbprint (sha1): 6D811FD2 E82313A8 663514ED 2CA36E6B 7D425FA6 Warning: If you install this root certificate, Windows will automatically trust any certificate issued by this CA. Installing a certificate with an unconfirmed thumbprint is a security risk. If you click "Yes" you acknowledge this risk. Do you want to install this certificate? Yes No

Figure 5-59

1. Click "Yes". It will pop out the dialog box of "Import Successful", click "Ok" to complete downloading certificate, which is shown in Figure 5-60.

Dahua Network Camera Web 3.0 Operation Manual

Figure 5-61

1. Select signed certificate and certificate key path respectively via "Browse", click "Upload".
2. Install root certificate, please refer to step 6\~11 for more details.
3. Check "Enable HTTPS", click "Save". The system will display the dialog box of "Need to reboot the device", and then the config is valid.

Figure 5-62

5. Use HTTPS

Use HTTPS to log in.

Enter https://xx.xx.xx.xx in the browser, and it will pop out normal login interface; the browser will prompt certificate error if the certificate is not installed, which is shown in Figure 5-63.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

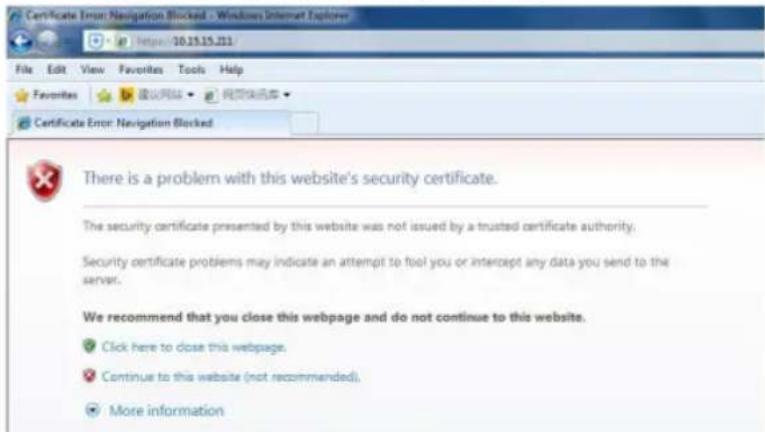

Certificate Error: Navigation Blocked - Windows Internet Explorer File Edit View Favorites Tools Help Favorites Certificate Error: Navigation Blocked There is a problem with this website's security certificate. The security certificate presented by this website was not issued by a trusted certificate authority. Security certificate problems may indicate an attempt to fool you or intercept any data you send to the server. We recommend that you close this webpage and do not continue to this website. Click here to close this webpage, Continue to this website (not recommended), More information

Figure 5-63

Note:

"xx.xx.xx.xx" is corresponding to your IP or domain name.

5.3 Event

5.3.1 Video detection

Select "Setup > Event > Video Detection > Motion Detection" and the system will display the interface of "Motion Detection" which is shown in Figure 5-64.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

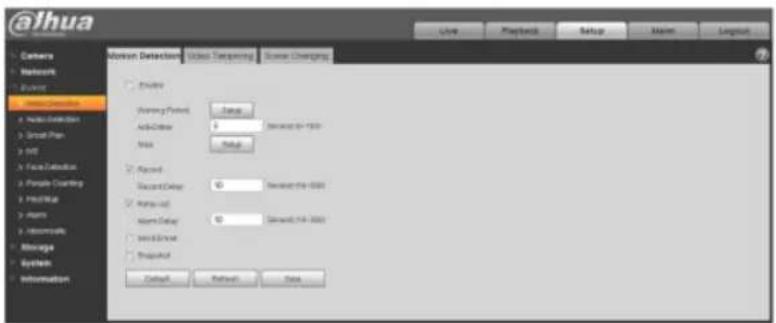

@ihua Search Detection Video Transparency Search Changing Inspector Warning Periods Audio Order Risk Record Sagard Delay Accuracy (d) Kurtis Delay Service/Event Snapshot Default Refresh Data

Figure 5-64

Step 2

Select "Enable" to enable motion detection function.

Step 3

Set motion detection area.

1. Click "Setup" and the system will pop out the interface of "Setting Area", which is shown in Figure 5-

Area Region Name Region1 Sensitivity 0 60 Threshold 0 5 Remove All Delete (Or Rightclick ) Save Cancel

Figure 5-65

1. Set area name, it is to set valid area of motion detection according to the actual situation, and it can set the value of sensitivity and threshold respectively.

The bigger the sensitivity is, the easier it is to generate motion detection, the smaller the threshold is, the easier it is to generate motion detection; the entire video image is the valid area of motion detection by default.

Note:

● Different colors represent different areas; each area can set different detection area.
- The red line in the Oscillogram means triggering motion detection; green line means not triggering motion detection.

1. Click "Save" to complete area setting.

Step 4

It is to set other parameters of motion detection, please refer to the following sheet for more details.

@ahua
Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function

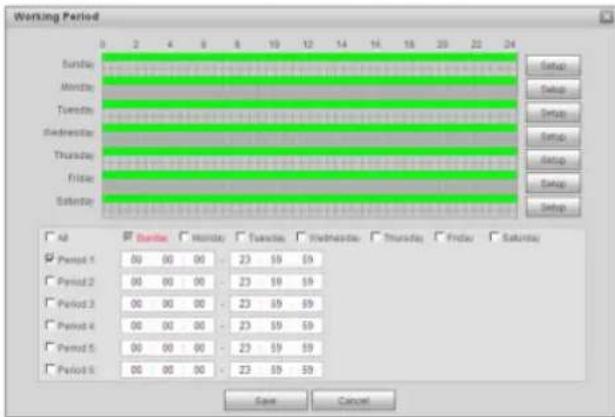

Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click "Save" to complete the setup of working period.
Anti-dither	System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s.
Area	1. Click "Setup" and the system will pop out the interface of "Set Area".2. Set the area name, it is to set the valid area of motion detection according to the actual situation, and it can set its sensitivity and threshold respectively. The higher the sensitivity is, the easier it is to trigger motion detect, the smaller the area threshold is, the easier it is to generate motion detect, the whole video image is the valid area of the motion detect by default.Note:Different colors represent different areas; each area can set different detection areas.The red line in the Oscillogram means triggering motion detect, the green line means not triggering motion detect.3. Click "Save" to complete area setup.
Record	Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
PTZ	Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.The event type includes: preset, tour and pattern.
Snapshot	You need to check the box here so that system can backup motion detection snapshot file. You shall set snapshot period in Storage>Schedule.

Step 5

Click "Save" to complete the setting of motion detection.

5.3.1.2 Video Tampering

Step 1

Select “Setup > Event > Video Detection > Video Tampering” and the system will display the interface of “Video Tampering” which is shown in Figure 5-66.

Figure 5-66

Step 2

Set the parameter of video tampering; please refer to the following sheet for more details.

Parameter	Function
Enable video tampering	You need to check the box to enable video mask detection alarm.
Enable defocus detection	You need to check the box to enable defocus detection alarm.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click "Save" to complete the setup of working period.
Record	Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface.
Record Delay	System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
Audio linkage	Check it and the system will play alarm audio file when alarm occurs. Use can set the recorded or uploaded audio file in "camera setting > audio > alarm audio".
Flash linkage	Check it and the flash will be on when alarm occurs, and the flash will be off until the end of alarm after corresponding delay.
PTZ	Here you can set PTZ movement when alarm occurs. Such as go to

Figure 5-67

Step 2

Check “Enable” to enable the function of scene changing.

Step 3

It is to set the parameters of scene changing, please refer to the following sheet for more details.

Parameter	Function
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click “Setup” and the system will pop out the interface of “Working Period”.2. It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click “Save” to complete the setup of working period.
Record	Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface.
Record Delay	System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.

@jhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
PTZ	Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.The event type includes: preset, tour and pattern.
Snapshot	You need to check the box here so that system can backup motion detection snapshot file. You shall set snapshot period in Storage>Schedule.

Step 4

Click "Save" to complete the setup of scene changing.

5.3.2 Audio Detection

Step 1

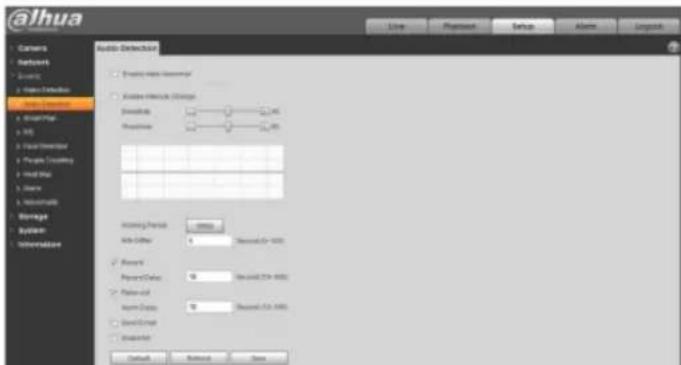

Select "Setup > Event > Audio Detection" and the system will display the interface of "Audio Detection" which is shown in Figure 5-68.

@lhua Camera Network Source 1. Audio Connection Audio Connection 2. Sound Plot x 100 3. Audio Director 4. People Tracking 5. Host Site 6. Name 7. Submilli Storage System Information Audio Detector Audio Filter Response Audio Filter Response Standard Frequency Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Lower Lower Close

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Sensitivity	It can be judged as audio abnormality when the input volume change exceeds continuous environment volume; users need to adjust according to the actual environment test.
Threshold	It is to set the filtered environment volume intensity, if the environmental noise is too big, then the value needs to be set higher, users can adjust according to the actual environment test.
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.Click “Setup” and the system will pop out the interface of “Working Period”.It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).Click “Save” to complete the setup of working period.
Anti-dither	System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s.
Record	Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface.
Record Delay	System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
PTZ	Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.The event type includes: preset, tour and pattern.
Snapshot	You need to check the box here so that system can backup motion detection snapshot file. You shall set snapshot period in Storage>Schedule.

@alhua

Dahua Network Camera Web 3.0 Operation Manual

5.3.3 Smart Plan

Smart plan is the master switch for intelligent analysis such as "Face Detection", "Heat Map", "IVS", "People Counting" and so on, the corresponding intelligent functions can be valid after smart plan is enabled.

Step 1

Select "Setup > Event > Smart Plan". The system will display the interface of "Smart Plan", which is shown in Figure 5-69.

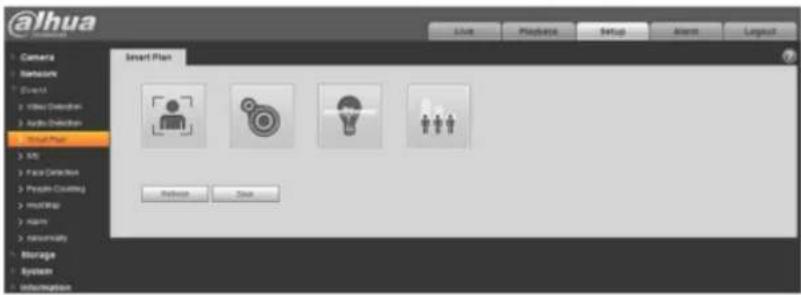

@lhua Smart Plan Live Playouts Setup Assert Logout Camera Networks Events Video Detection Audio Detection Small Plan MOS Face Detection People-Coupling Insurfit Name Locality Storage System Information

Figure 5-69

Step 2

Click "Save" to complete the config of smart plan.

5.3.4 Intelligence Behavior Analytics

The basic requirements of scene selection.

● The total proportion of the target shall not exceed 10% of the image.
- The target size in the image can't be less than 10 pixel × 10 pixel, the size of abandoned target can't be less than 15 pixel × 15 pixel (CIF image): The height and width of the target can't exceed

Dahua Network Camera Web 3.0 Operation Manual

5.3.4.1 IVS

5.3.4.1.1 Tripwire

It will trigger alarm when the target crosses the warning line according to the movement direction which has been set.

It needs some time from when the target appears to when the target is confirmed, so it has to leave some space on both sides of the warning line when setting the warning line, please do not set the warning line near the obstructions.

Application scene: it can be applied to the scene with sparse target and there is barely any blocks between the targets, such as the unmanned perimeter defense.

Step 1

Select "Setup > Event > IVS > IVS" and the system will display the interface of "IVS".

Step 2

Click “+” to set rule name and select the rule type as “Tripwire” which is shown in Figure 5-70.

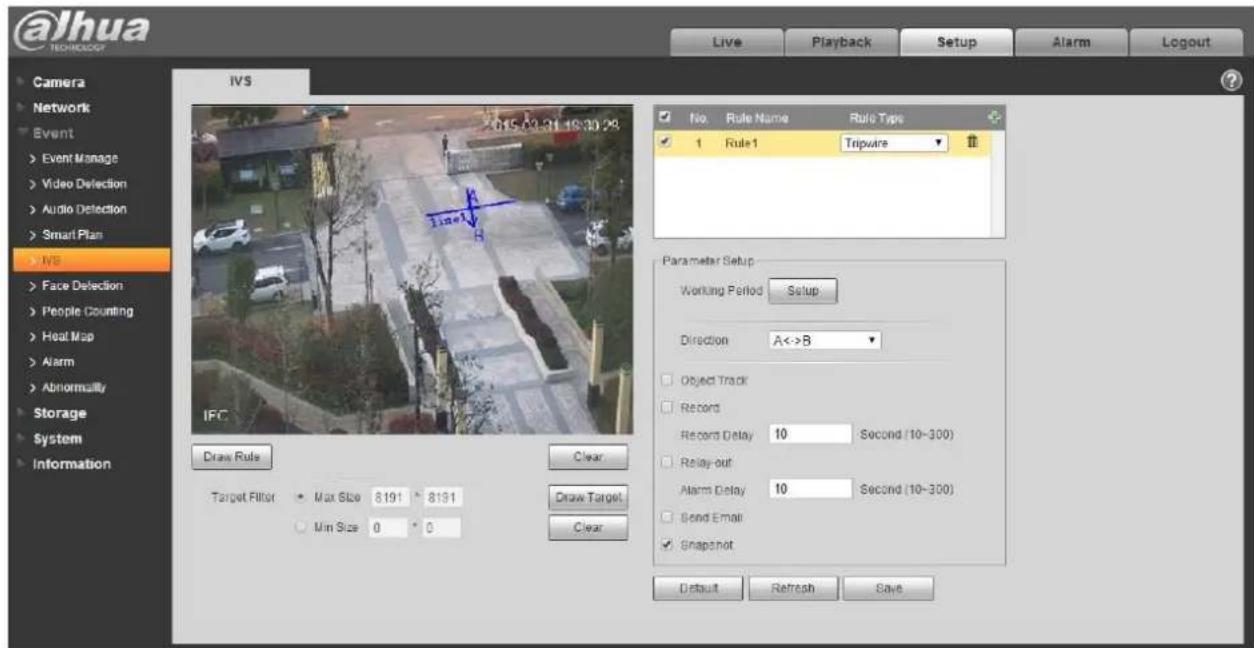

@lhua TECHNOLOGY Live Playback Setup Alarm Logout Camera Network Event Event Manage Video Detection Audio Detection Smart Plan IVS Face Detection People Counting Heat Map Alarm Abnormally Storage System Information IVS 03.21 19:30:28 Draw Rule Clear Target Filter Max Size 8191 8191 Min Size 0 0 Draw Target Clear No. Rule Name Rule Type 1 Rule1 Tripware Parameter Setup: Working Period Setup Direction A<>B Object Track Record Record Delay 10 Second (10~300) Relay-out Alarm Delay 10 Second (10~300) Send Email Snapshot Default Refresh Save

Figure 5-70

Step 3

Click "Draw Rule" to draw tripwire in the monitoring scene, click the right mouse button to complete tripwire setting.

Step 4

Click "Draw Target" to draw the size model of filtered target in the video image.

Step 5

It is to set the parameters of tripwire, please refer to the following sheet for more details.

alhua
Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Object tracking	Select "Object tracking" to enable the function, refer to "2.4 Video Window Adjustment" for more details.Note:The function is only supported by some models.
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click "Save" to complete the setup of working period.
Direction	It is to set the direction of tripwire, you can select A->B、B->A、A<->B.
Object Track	Select "Object Track" and it will enable the function of object track; when the moving object triggers rule and generates alarm, it will select the display mode of object track such as 1P+3 or 1P+5 in the preview interface, the scene of tracking window will follow the moving object till the object leaves the view range of the camera. Please refer to "2.4.8 Fisheye/Trigger Track" for more details.
Record	Check it and so when alarm occurs, system will auto record.
Record Delay	System can delay the record for specified time after alarm ended.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.

alhua

Dahua Network Camera Web 3.0 Operation Manual

• Cross means that it will trigger alarm when the target enters or exits the area.
  ● Appears means that it will trigger alarm when the target appears in the area.
• As for the report interval of the IVS function in the area, the system will trigger an alarm if it detects same event happened during the interval; the alarm counter will become zero if there is no same event happened in the interval.

It needs to leave some space for target movement for the area periphery if it is to detect enter & exit event, which is similar to the warning line.

Application scene; it can be applied to the scene where the target is sparse and there is barely any obstruction between the targets, such as the unmanned perimeter defense.

Step 1

Select "Setup > Event > IVS > IVS" and the system will display the interface of "IVS".

Step 2

to set rule name, select the rule type as "Intrusion" which is shown in Figure 5-71.

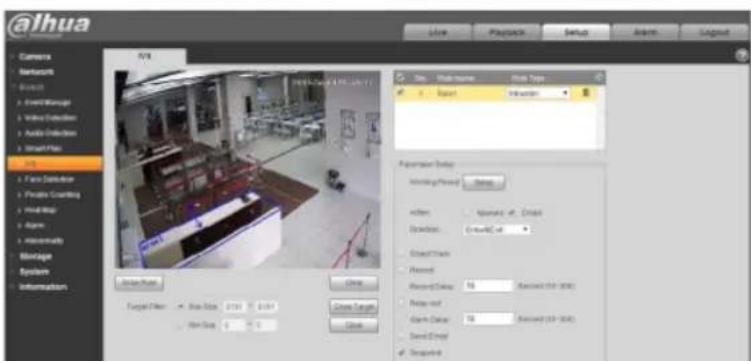

@lhua Camera Networks Burst Event Manager Value Detection Audio Detection Smart Plus FAS Face Detection Private Counting Holdtop Airplane Recrimonia Storage System Information Auto Rate Target Filter Base Data 0.159 0.041 New Data 0 0.0 Close Target Close Name: Main Name: Main Type: + Reset: Inverter Parameter Delay: Interlag/Period: Status width: Apparate at: Default Direction: Drive@lat Close Chain Record Record Date: 16 (Backward 03-200) Delay: 16 (Backward 03-200) Alarm Date: 16 (Backward 03-200) Send Event Disagend

alhua
Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Object tracking	Select "Object tracking" to enable the function, refer to "2.4 Video Window Adjustment" for more details.Note:The function is only supported by some models.
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:● You can input time numerical value or press the left mouse button to drag on the setup interface to set.● There are six periods to be set every day, select the check box in front of the period, and then the period is valid.● Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click "Save" to complete the setup of working period.
Action	It is to set the action of intrusion, you can select appears and cross.
Direction	It is to set the direction of intrusion, you can select enter, exit and enter&exit.
Object Track	Select "Object Track" and it will enable the function of object track; when the moving object triggers rule and generates alarm, it will select the display mode of object track such as 1P+3 or 1P+5 in the preview interface, the scene of tracking window will follow the moving object till the object leaves the view range of the camera. Please refer to "2.4.8 Fisheye/Trigger Track" for more details.
Record	Check it and so when alarm occurs, system will auto record.
Record Delay	System can delay the record for specified time after alarm ended.

alhua

Dahua Network Camera Web 3.0 Operation Manual

5.3.4.3 Abandoned Object

Abandoned object means the system will trigger alarm if the abandoned object in the monitoring scene exceeds the time which has been set by the users.

Abandoned object and missing object can be confusing in a situation where both foreground and background are complicated.

It also triggers alarm as abandoned object if there is pedestrian or vehicle staying still for too long. In order to filter this kind of alarm, generally the abandoned object is smaller than people and vehicle; therefore it can filter the people and vehicle via setting size. Besides, it can avoid the false alarm caused by short stay of people via extending alarm time properly.

Application scene: It can be applied to the scene where the target is sparse and there is no obvious and frequent light change. False alarm will be increased in the scene with high target density and frequent blocking; false alarm will be increased in the scene where there are more people staying. As for the detection area, try to make it simple, the function is not suitable for the area which is too complicated.

Step 1

Select "Setup > Event > IVS > IVS" and the system will display the interface of "IVS".

Step 2

Click 🧑️ to set rule name, select the rule type as "Abandoned Object" which is shown in Figure 5-72.

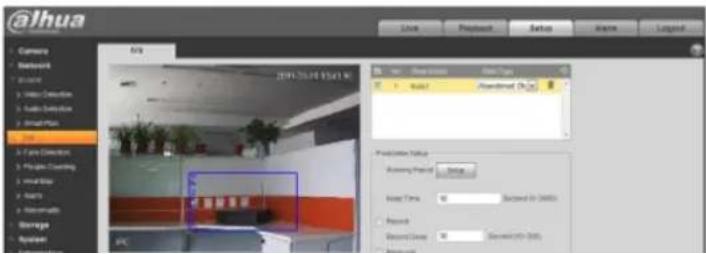

@lhua Camera Networks Account Video Connection Audio Connection Smart Plus Top Core Connection Play Flag Clamping View Filter Assets Remote Storage Options 2019-05-04 15:41:30 View Show status Show Type Add/Remove Add/Remove (Down) Add/Remove Status Access Period: 0.0000 Insert Time: 00 Second to 0000s Record Record Group: 00 Second to 000s

Parameter	Function
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click “Setup” and the system will pop out the interface of “Working Period”.2. It is to set working period according to the following methods:● You can input time numerical value or press the left mouse button to drag on the setup interface to set.● There are six periods to be set every day, select the check box in front of the period, and then the period is valid.● Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click “Save” to complete the setup of working period.
Keep time	It is to set the shortest time from when the object is abandoned to when it triggers alarm.
Record	Check it and so when alarm occurs, system will auto record.
Record Delay	System can delay the record for specified time after alarm ended.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot	Select “Snapshot” and the system will auto trigger alarm and snapshot when alarm occurs.

Step 5

Click "Save" to complete the setup of abandoned object.

5.3.4.4 Missing Object

Missing object means the system will trigger alarm if it exceeds certain amount of time after the target is taken away from the original scene.

The system can make statistics of the still areas in the foreground area and distinguish if it is missing object or abandoned object according to the similarity between foreground and background, it will trigger alarm when it exceeds the time which is set by users.

Because the system distinguishes abandoned object from missing object according to the similarity of foreground and background, it may cause error between abandoned object and missing object in a situation where both foreground and background are complicated.

Dahua Network Camera Web 3.0 Operation Manual

Application scene: it can be applied to the scene where the target is sparse and there is no obvious and frequent light change. False alarm will be increased in the scene where the target density is high and there is frequent obstruction; the false alarm will be increased in the scene where there are more people staying. As for the detection area, try to make it simple, the function is not suitable for the area which is too complicated.

Step 1

Select "Setup > Event > IVS > IVS" and the system will display the interface of "IVS".

Step 2

Click "→" to set rule name and select rule type as "Missing Object", which is shown in Figure 5-73.

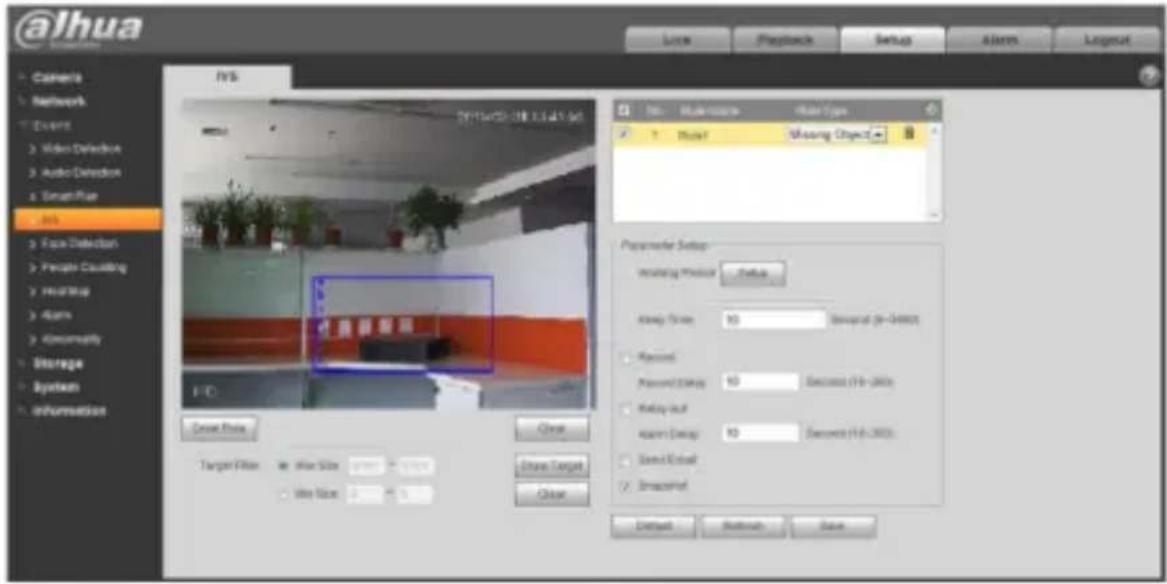

@lhua Cathena Network Event Video Detection Audio Detection Smart Plan JBS Face Detection People Clustering Heatmap Alarm Accuracy Storage System Information FPC Close Price Target Fillen W: Max Size 100% Min: Max 5% Close Target Background Close File: Make a new file (N: 1.1.43.96) File Type: Shack? Missing Object Parameter Setup: Missing Image - Default Locky Size: 10 Reserved (10-24800) Record: Password ID: 10 Security (10-24800) Relay-out Alarm Error: 10 Security (10-24800) Send Outset Streamset Default Refresh Save

Figure 5-73

Step 3

Click "Draw Rule" to draw an area in the monitoring scene.

Step 4

Click "Draw Target" to draw the size model of filtered target in the video image.

Step 5

It is to set the parameters of missing object, please refer to the following sheet for more details.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).3. Click "Save" to complete the setup of working period.
Keep time	It is to set the shortest time from when the object is missing to when it triggers alarm.
Record	Check it and so when alarm occurs, system will auto record.
Record Delay	System can delay the record for specified time after alarm ended.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot	Select "Snapshot" and the system will auto trigger alarm and snapshot when alarm occurs.

Step 5

Click "Save" to complete the setup of missing object.

alhua

Dahua Network Camera Web 3.0 Operation Manual

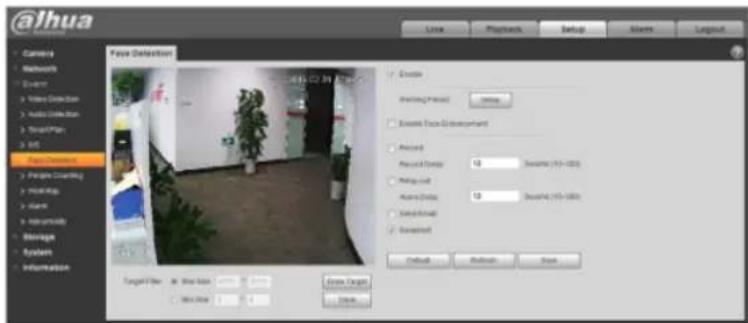

@ihua Camera Networks Events Video Detection Audio Cable Star Total Plan MS Face Detection People Counting PhoneMap Name Recumbidity Storage System Information Face Detection Enable Winning Precision Reset Visible Face Enhancement Rescual Rescual Center 10 Secured (95-100) Refused out None/Chips 10 Secured (95-100) Named Chips Unselected Default Random Down... Target Filter View Size View Mode Show Options Show On Show OK

Figure 5-74

Step 2

Select "Enable" to enable face detection function.

Step 3

Click "Draw Target" to draw the size model of target filter in the video image.

Step 4

It is to set the parameters of face detection, please refer to the following sheet for more details.

Parameter	Function
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.1. Click "Setup" and the system will pop out the interface of "Working Period".2. It is to set working period according to the following methods:● You can input time numerical value or press the left mouse button to drag on the setup interface to set.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot	Select “Snapshot” and the system will auto trigger alarm and snapshot when alarm occurs.

Step 5

Click "Save" to complete the setup of face detection.

5.3.6 People Counting

5.3.6.1 People Counting

Step 1

Select “Setup > Event > People Counting > People Counting” and the system will display the interface of “Entrance/Exit”, which is shown in Figure 5-75.

Figure 5-75

Step 2

Select "Enable" to enable statistics function of entrance and exit.

Step 3

Dahua Network Camera Web 3.0 Operation Manual

Click "Draw Rule" to draw an area in the monitoring image.

Step 4

Click “Draw Target” to draw the size model of filtered target in the video image.

Step 5

It is to set the parameters of entrance and exit, please refer to the following sheet for more details.

Parameter	Function
Enable OSD	Select “Enable OSD” and it will display the people number statistics of entrance and exit in the monitoring image.
Working Period	Note:It is to set the alarm period, it can enable alarm event only during the period range which has been set.Click “Setup” and the system will pop out the interface of “Working Period”.It is to set working period according to the following methods:You can input time numerical value or press the left mouse button to drag on the setup interface to set.There are six periods to be set every day, select the check box in front of the period, and then the period is valid.Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).Click “Save” to complete the setup of working period.
Installation Mode	It is to select wall mount if there is an angle between device lens and horizontal surface, select ceiling if the device lens face downward vertically.
Rule Name	It is to set the name of rule.
Direction	It is to select the direction of entrance and exit statistics; A->B or B->A, the arrow direction always means the entrance direction.
Flowrate Alarm	It is to set the enter number, leave number, stranded number; it will trigger alarm when it exceeds the limited number.
Record	Check it and so when alarm occurs, system will auto record.
Record Delay	System can delay the record for specified time after alarm ended.
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm Delay	System can delay the alarm output for specified time after alarm ended.
Send Email	If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot	Select “Snapshot” and the system will auto trigger alarm and snapshot when alarm occurs.

Step 6

Click "Save" to complete the setup of people counting.

5.3.6.2 Report

It is to generate a form of report according to the number statistics.

Step 1

Select "Setup > Event > People Counting > Report" and the system will display the interface of "Report", which is shown in Figure 5-76.

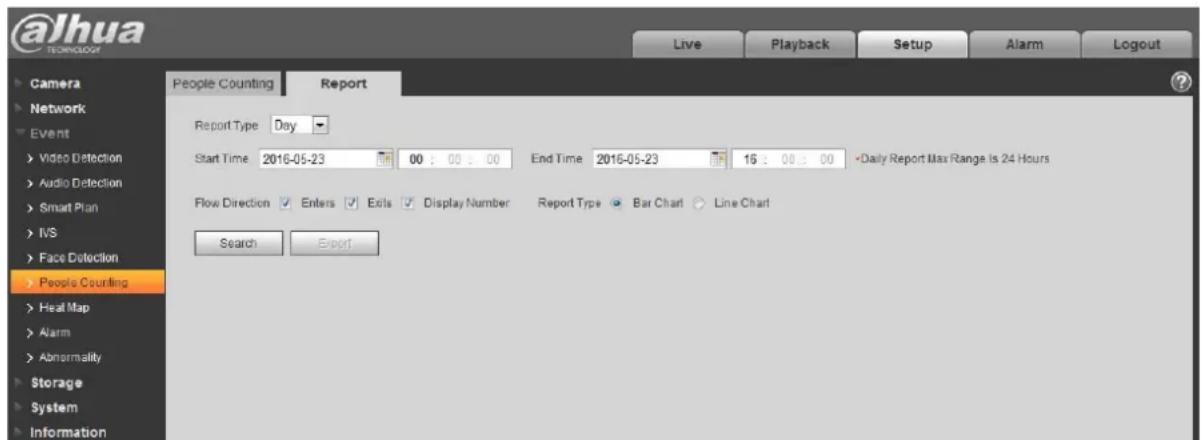

@lhua TECHNOLOGY Live Playback Setup Alarm Logout Camera Network Event Video Detection Audio Detection Smart Plan IVS Face Detection People Counting Health Map Alarm Abnormality Storage System Information People Counting Report Report Type Day Start Time 2016-05-23 00:00:00 End Time 2016-05-23 16:00:00 Daily Report Max Range Is 24 Hours Flow Direction Enters Exits Display Number Report Type Bar Chart Line Chart Search Export

Figure 5-76

Step 2
It is to set search condition, please refer to the following sheet for more details.

Parameter	Note
Report Type	Can select day report, month report and year report; also can select bar chart or line chart to display the report.
Time	It can set the begin /end time within the range of statistics time.
Flow Direction	It can select enter, leave and display number; the data of checked item can b displayed in the report.
Search	Search flow statistics data according to the setting to form report.
Export	Export the saved report.

Step 3

Click "Search" to complete report statistics, click "Export" to export the report.

5.3.7 Heat Map

5.3.7.1 Heat Map

It is the density statistics of moving object that can generate report, the color range is from blue to red, blue means the min heat value and red means the max heat value.

Mirroring, view angle change and heat map original data will be cleared.

Dahua Network Camera Web 3.0 Operation Manual

Step 1

Select “Setup > Event > Heat Map > Heat Map” and the system will display the interface of “Heat Map”, which is shown in Figure 5-77.

Figure 5-77

Step 2

Select "Enable" to enable heat map function.

Step 3

It is to set the working period.

1. Click “Setup” and the system will display the interface of “Working Period”, which is shown in Figure 5-78.

Dahua Network Camera Web 3.0 Operation Manual

Working Period Sunday Monday Tuesday Wednesday Thursday Friday Saturday All Period 1 Period 2 Period 3 Period 4 Period 5 Period 6 S星期 Sunday Sunday Tuesday Wednesday Thursday Friday Saturday Save Cancel

Figure 5-78

1. It is to set working period according to the following methods:

2. You can input time numerical value or press the left mouse button to drag on the setup interface to set.

3. There are six periods to be set every day, select the check box in front of the period, and then the period is valid.
4. Select week number (it selects Sunday by default, if it selects the whole week, then it means the setup can be applied to the whole week, you can also select the check box in front of the week number to implement independent setting for some days).
5. Click "Save" to complete the setup of working period.

Dahua Network Camera Web 3.0 Operation Manual

Figure 5-79

Step 2

It is to set begin time and end time.

Step 3

Click “Search” to complete report statistics, click “Export” to export the statistics report.

5.3.8 Alarm

Please note some series products do not support this function.

5.3.2.1 PIR alarm

The alarm activation interface PIR alarm is shown as in figure 5-80.

Figure 5-80
Please refer to the following sheet for detailed information.

Parameter	Function
Enable	After enabled, relay activation will work. Check it and enable the PIR alarm.
Working period	This function becomes activated in the specified periods.There are six periods in one day. Please draw a circle to enable corresponding period.Select date. If you do not select, current setup applies to today only. You can select all week column to apply to the whole week.Click OK button, system goes back to motion detection interface; please click save button to exit.Note: User can set via dragging mouse while not releasing left mouse.
Anti-dither	System only memorizes one event during the anti-dither period.The value ranges from 0s to 100s.
Flash	After enabling, the system will automatically turn on the flash when alarm occurs.
Flash Delay	The flash will be off with a period of time delay when the alarm linkage is over.Time is calculated by unit of second and ranges from 10s~300s.
Record	System auto activates motion detection channel to record once alarm occurs (working with motion detection function).
Record Delay	System can delay the record for specified time after alarm ended.The value ranges from 10s to 300s.

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Relay out	Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
Alarm delay	System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.
Send Email	After this function is enabled, system can send out email to alert you when alarm occurs and ends.
Audio Linkage	Check it and the system will play alarm audio file when alarm occurs. Users can set recorded audio file in "Camera Setting > Audio > Alarm Audio".
Snapshot	After you enabled snapshot, the system will automatically snapshot if alarm occurs.

5.3.8.1 Alarm Linkage

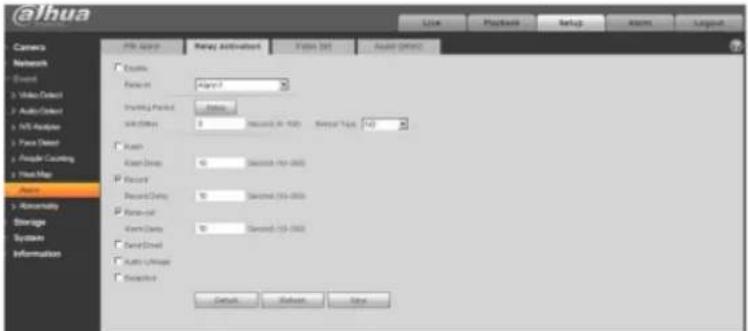

@jhua File Edit View Activation Status Set Audio Options Camera Network Event Video/Direct Audio/Direct APIs/Options Face Direct People Counting Home Map Balance Storage Systems Information Basic Basic Access Details Record Details Form-out Form Details Send Email Audio Linkage Search List Default Refresh Stop

alhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
PTZ	Check it and set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.The event type includes: preset, tour and pattern and so on.

5.3.8.2 Flash Set

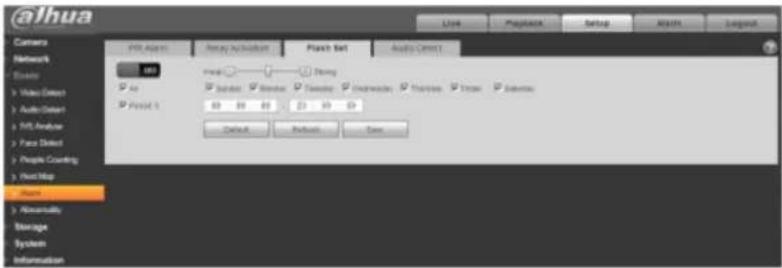

@ihua Camera Network Audio Video Detect Audio Detect MIL Analyzer Face Detect People Counting Next Map Aram Annuity Storage System Information PPI Agent Array Activation Flash Set Audio Click Post 1 String Audio Texter Audio Audio Audio Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter Texter

Figure 5-82

Parameter	Function
ON/OFF	ON means flash is on; OFF means flash is off.
Weak-strong bar	Via dragging this bar to adjust flash brightness.
All	Check and it means the day flash works.

Figure 5-83

parameter	Function
Enable	Check it and enable audio detection.
Threshold	It will trigger alarm and set up a series of linkage when volume exceeds the set threshold.

5.3.9 Abnormity

Abnormity includes No SD Card, Capacity Warning, SD Card Error, Disconnection, IP Conflict and Unauthorized Access.

Note:

Only device with SD card function has these three statuses: No SD card, capacity warning, and SD card error. Device without SD card function does not have the above three statuses. See Figure 5-84 to Figure 5-86.

alhua

Dahua Network Camera Web 3.0 Operation Manual

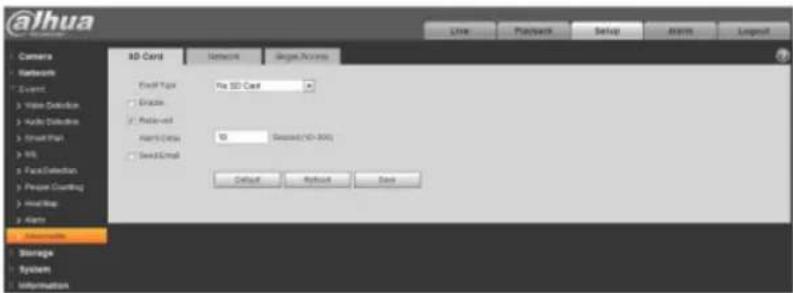

@ihua Live Playback Setup Ams Logout Camera Network Event Video Detection Audio Detection Email Plan URL Face Detection Prepare Counting MailMap Alarm Settings Storage System Information AD Card Network Begin Access File Type: No SD Card Enable Relaxed Name/Alias: 10 Passed (10-300) Send/Email Default Replace Add

Figure 5-84

@lhua @lhua Camera Network Event Video Detection Audio Detection Smart Plan MS Face Detection People Counting Winship Start Immediately Storage System Information SD Card Network Regular Active Event Type: SD Card Error Source: Mocked Alarm/Deep: 100 (Backup-70-800) Send Email Default Refresh End

Figure 5-86
Please refer to the following sheet for detailed information.

Parameter	Function
Enable	Check to alarm when SD card is abnormal.
Relay-out	Check to enable relay-out alarm.
Relay out delay	The alarm output can delay for the specified time after alarm stops. The value ranges from 10s to 300s.Note:No SD card, capacity warning, SD card error, relay-out delay all start from alarm occurs.
Send email	After you enabled this function, the system can send out email to alarm the specified user.This function is invalid when network is offline or IP conflict occurs.
SD Card Capacity Limit	User can set SD card capacity that is left free. When SD card space left is smaller than this limit, alarm occurs.

When device is offline or IP conflicts, the abnormal alarm is similar with case of SD card error.

alhua

Dahua Network Camera Web 3.0 Operation Manual

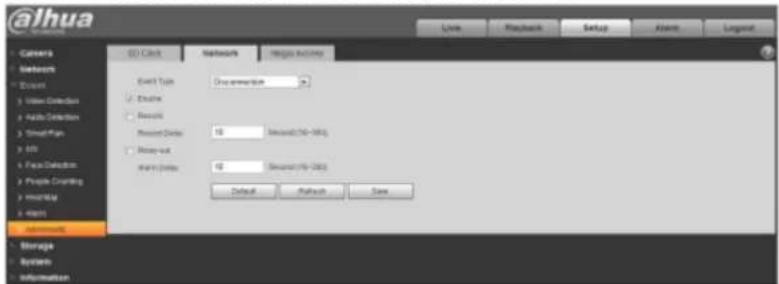

@ihua Camera Networks Display Video Detection Radio Detection Small Plan BDS Face Detection People Connecting PhoneMap Item Settings Storage System Information SD Click Networks Images Active Event Type Description Enzyme Record Resource Date: 10 Microsoft (No-MS) Money-out Main Date: 10 Microsoft (No-MS) Default Refresh Save

Figure 5-87

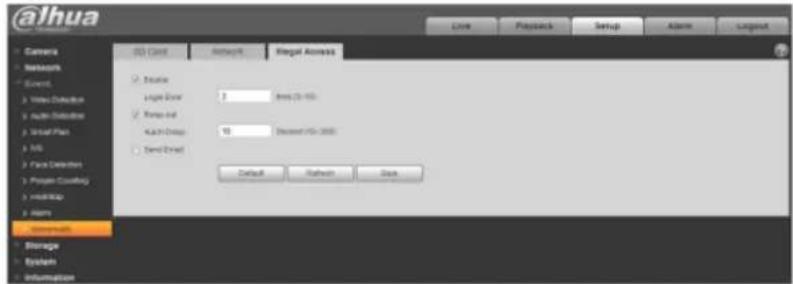

When login password keep been wrong for a few times, unauthorized access alarm occurs. This operation is similar to SD card error. Allow login error times as when it exceeds this limit, user account will be locked.

@lhua Camera Networks Event Video Detection Audio Detection Serial Plan AVS Face Detection Project Tracking MailMap Altery Internet Storage System Information ID Card Antekeyt Legal Access Initial Logd Email 2 New Ed 10 Send Email Default Refresh Down

@ahua

Dahua Network Camera Web 3.0 Operation Manual

@jhua Live PSE Playback Setup Alarm Legend Record Schedule Dispatched Schedule Implied Schedule Sunday Monday Tuesday Wednesday Thursday Friday Saturday Sunday Hawaii Default Refresh Back

Figure 5-89

Step 2. From Monday to Sunday select record time, click on setup on the right, see Figure 5-90.

• Set period according to actual need. There are six periods available each day.
• By checking or unchecking, you can add or delete three types of record schedule: General, Motion, and Alarm.

Note:

Period setup can be done by dragging in record schedule interface while not releasing left mouse.

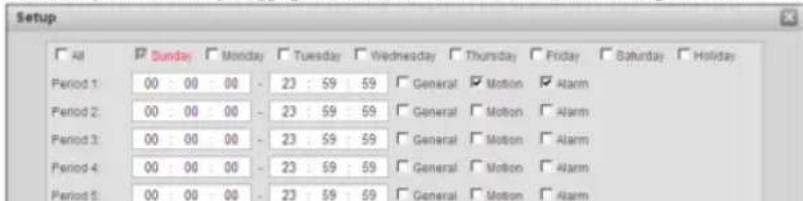

Setup All Sunday Monday Tuesday Wednesday Thursday Friday Saturday Holiday Period 1 00 00 00 - 23 59 59 General Motion Alarm Period 2 00 00 00 - 23 59 59 General Motion Alarm Period 3 00 00 00 - 23 59 59 General Motion Alarm Period 4 00 00 00 - 23 59 59 General Motion Alarm Period 5 00 00 00 - 23 59 59 General Motion Alarm

@alhua

Dahua Network Camera Web 3.0 Operation Manual

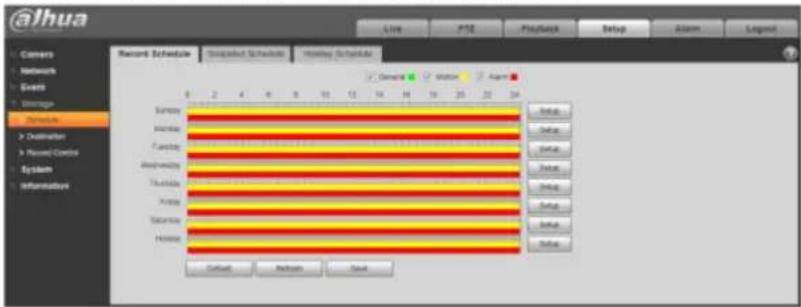

@Jhua Live P12 Playback Setup Alarms Legend Record Schedule Scheduled Schedule Holiday Schedule ✓ Outcome ✓ Action ✓ Alert Switch Monday Tuesday Wednesday Thursday Friday Saturday Sunday Monday Default Network Case

Figure 5-91
Step 4. In record schedule interface, click on OK. System prompts it is successfully saved.

5.4.1.2 Snapshot Schedule

Snapshot setup as:

Step 1. Click on Snapshot Schedule tab, see Figure 5-92.

@lhua Camera Network Event Storage Schloss Destination Record Control System News Schedule Snapshot Schedule Holiday Schedule General Water Action E 2 4 6 8 10 12 14 16 18 20 22 24 Sunday Monday Tuesday Wednesday Wednesday Status Status Status Status

Dahua Network Camera Web 3.0 Operation Manual

By checking or unchecking, user can add or delete three types of snapshot schedule: General, Motion and Alarm.

Note: Period setup can be done by dragging in snapshot schedule interface while not releasing left mouse.

Figure 5-93

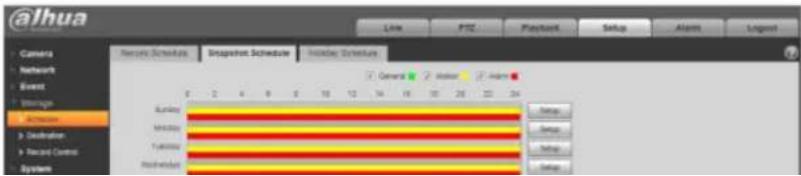

Step 3. Click on OK, return to snapshot schedule interface. See Figure 5-94.

Green color stands for the general record/snapshot.

Yellow color stands for the motion detect record/snapshot.

Red color stands for the alarm record/snapshot.

Figure 5-94

Step 5. In snapshot interface, click on OK. System prompts it is successfully saved.

5.4.1.3 Holiday Schedule

Holiday schedule can set specific date as holiday.

Step 1. Click on Holiday Schedule tab, see Figure 5-95.

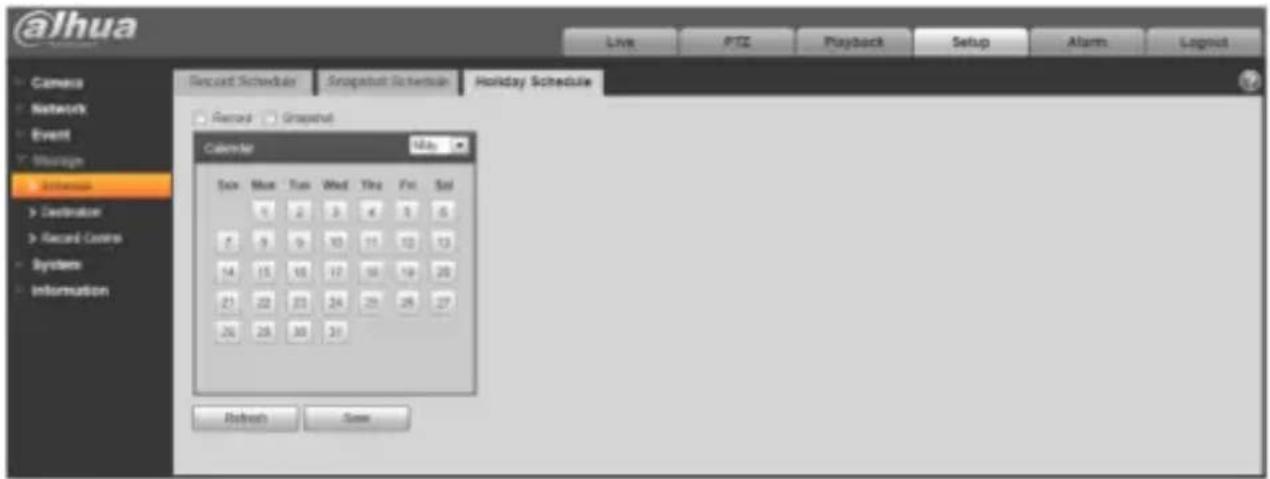

@Jhua Live PTC Playback Setup Alarms Logout Record Schedule Snapchat Schedule Holiday Schedule Remed Snapchat Calendar 12:00 Sun Mon Tue Wed Thu Fri Sat 5 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 26 28 30 31 Refresh Save

Figure 5-95

Step 2. Select date to set as holiday. The selected date will be highlighted in yellow.
Step 3. Check Record/Snapshot, click on Save. System prompts it is successfully saved.
Step 4. Check Record Schedule/Snapshot Schedule interface, click on setup next to Holiday, and refer to setup of Monday to Sunday.
Step 5. Complete setup of holiday, then it records/snapshots according to date in holiday schedule.

5.4.2 Destination

5.4.2.1 Path

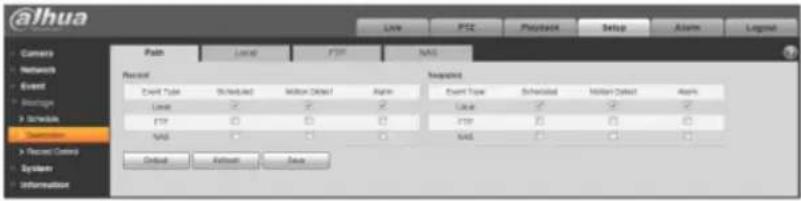

The destination interface is shown as in Figure 5-96.

Path can config record and snapshot storage path. There are three options: Local, FTP and NAS. You can only select one mode. System can save according to the event types. It is corresponding to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to enable the save functions.

Note: Only device supports SD card has local.

alhua

Dahua Network Camera Web 3.0 Operation Manual

@ihua Live PTZ Playback Setup Alarm Legend Camera Network Event Burstage Schedule Question Path Local PTZ NAS Recent Event Type Scheduled Motion Select Alarm Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Scheduled Motion Select Alarm Local PTZ NAS Update Event Type Cancelled Playback... Save ...... Default Followup... Save ...... System Information

Figure 5-96

Please refer to the following sheet for detailed information.

Parameter	Function
Event Type	It includes: scheduled, motion detect and alarm.
Local	It saved in the SD card.
FTP	It saved in the FTP server.
NAS	It saved in NAS disk.

5.4.2.2 Local

The local interface is shown as in Figure 5-97.

Here you can view local Micro SD card or NAS disk information. You can also operate the read-only, write-only, hot swap and format operation.

@lhua Camera Network Event Fish Local 210 NAS Default Name Normal Attribute User Type By Value Capital By Default Normal Default & Info SIDI NETS/5% 78

alhua

Dahua Network Camera Web 3.0 Operation Manual

5.4.2.3 FTP

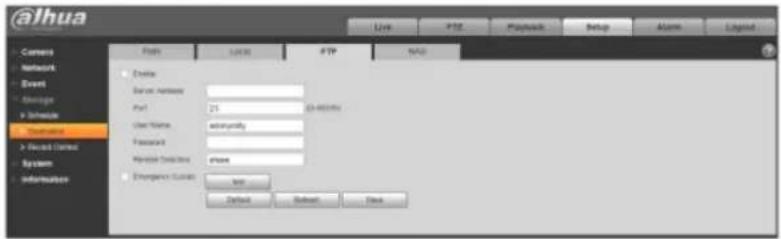

The FTP interface is shown as in Figure 5-98.

You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card. Click the test button to check if the FTP server can be connected for test.

You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server address and corresponding store path, then you can store video file or pictorial information in the NAS server.

Select NAS storage as to same file to NAS disk. See Figure 5-99.

@lhua Live PTC Playback Setup Acorn Login Camers Network Event Server Address Email NAB

@ahua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Remote Directory	Set storage directory, videos and pictures can be stored in to corresponding server directory.

5.4.3 Record control

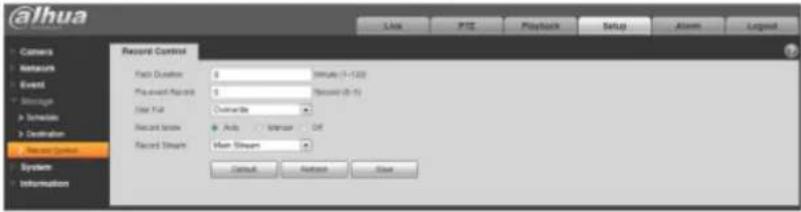

The record control interface is shown as in Figure 5-100.

@ihua Record Control Field Duration: 0 Minutes (1-120) Play-out Record: 0 Second (5-15) Last Full: Continue Record Stream: Auto Version Off Record Stream: Main Streams Default Settings Save

Figure 5-100

Please refer to the following sheet for detailed information.

Parameter	Function
Pack Duration	Here you can select file size within 1min~120min. Default setup is 8 minutes.
Pre-record	Please input pre-record value here.For example, system can record the four seconds video in the buffer.The record begins from the fifth second.Note:Configure pre-record time, when alarm or motion detection occurs, if there is no record, system will record the preceding n seconds

Dahua Network Camera Web 3.0 Operation Manual

5.5 System

5.5.1 General

The General interface is shown as in Figure 5-101.

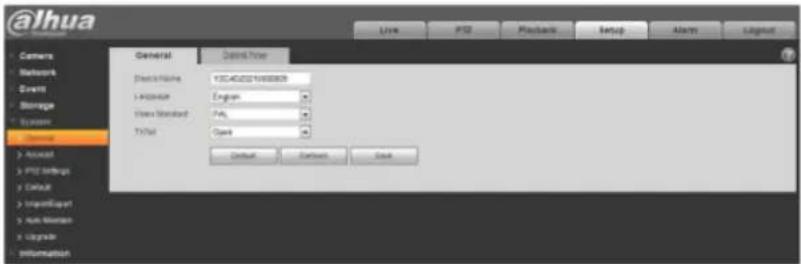

@ihua General Default Time Select Name: Y3C40201988888 + Address: Engers Video Standard: Poly T Vital: Open Default Settings Back

Figure 5-101

Please refer to the following sheet for detailed information.

Parameter	Function
Device Name	It is to set device name.Note: Different devices have different names.
Video Standard	This is to display video standard such as PAL
Language	You can select the language from the dropdown list.
TV Out	You can open or close the function, it can only be supported by the devices with TV Out.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

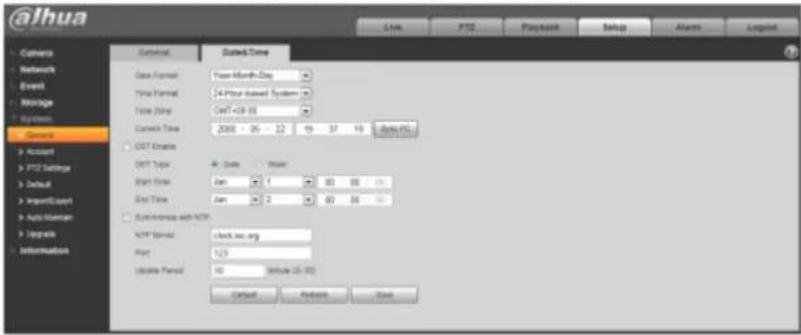

@lhua Camera Network Event Storage System General Account PT2 Settings Default ImportLayer1 Auto-Manager Options Information Dataset Date Time Case Format: Year-Month-Day Time Format: 24 Hour-based System Time Date: Sept+09:00 Current Time: 2000 - 05 - 22 19 37 16 GDT Create GDT Type: Status User: Start Time: Jan 1 80 80 100 End Time: Jan 2 80 80 100 E-mail: www.ahcp.com NATP Format: check.exe.org Port: 123 Update Format: 40 Module (25-30) Default Refresh Save

Figure 5-102

Please refer to the following sheet for detailed information.

Parameter	Function
Date format	Here you can select date format from the dropdown list.
Time Format	There are two options: 24-H and 12-H.
Time zone	The time zone of the device.
Current Time	It is to set system time. It becomes valid after you set.
Sync PC	You can click this button to save the system time as your PC current time.
DST Enable	Here you can set both begin and end time of daylight saving time.

@alhua

Dahua Network Camera Web 3.0 Operation Manual

5.5.2 Account

• For user name and user group, the max length is 31 characters, which can be made up of digit, letter, underline, hyphen, dot and @.
• Password can be 0\~32 characters in number and letter only. User can modify other user's password.
• User and group can be manually added to 18 and 8 respectively.
• User management adopts group/user modes. The user name and the group name shall be unique. One user shall be included in only one group.
  ● Currently logged in user cannot change his/her own right.

5.5.2.1 Username

In this interface you can enable anonymity login, add/remove user and modify user name. See Figure 5-103.

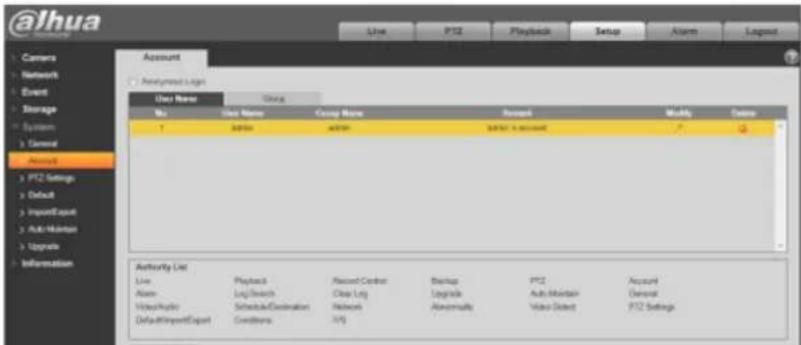

@lhua Account Accounting Logis User Name Group No. User Name Cancel Name Percent Modality Options 1 30%#: 40%#: 50%#: Account 7 Authority List Line Playback Race# Control Backup PTZ Account Account LogSwitch Close Log Locks UAE Auto Maintain Demnt VisualPlayer Schedule/Destination Network Abnormally Video Dated PTZ Settings Default/ImportExport Conditions ✓/ @hua Camera Network Event Storage System General Access PTZ Settings Default InputExport Auto Maintain Upgrade Information

Dahua Network Camera Web 3.0 Operation Manual

Please note the user rights shall not exceed the group right setup.

For convenient setup, please make sure the general user has the lower rights setup than the admin.

Figure 5-104

Modify user

It is to modify the user property, belonging group, password and rights. See Figure 5-103.

Modify password

It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save.

Please note, the password ranges from 0-digit to 32-digit. It shall include the number and letter only. For the user who has the account rights, he can modify the password of other users.

Dahua Network Camera Web 3.0 Operation Manual

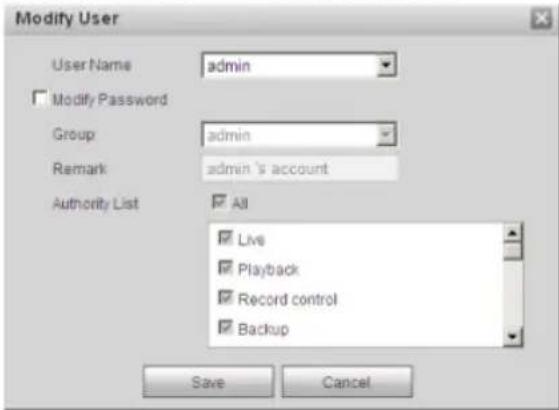

Modify User User Name admin Modify Password Group admin Remark admin's account Authority List All Live Playback Record control Backup Save Cancel

Figure 5-105

5.5.2.2 Group

The group management interface can add/remove group, modify group password and etc.

The interface is shown as in Figure 5-106.

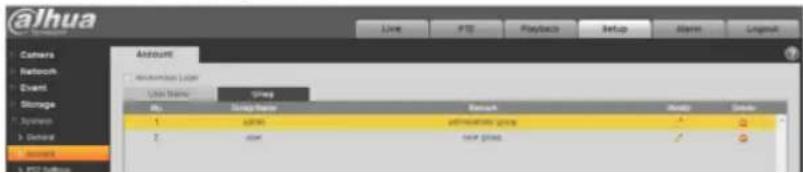

@ihua Camera Network Event Storage Systems General Access Account Account Number Use Name Show No. Setup Name Remark Balance Cancel 1 32000 administrative group ✓ ✓ 2 user new group ✓ ✓

Dahua Network Camera Web 3.0 Operation Manual

Please input the group name and then check the box to select the corresponding rights. It includes: preview, playback, record control, PTZ control and etc.

Figure 5-107

Modify group

Click the modify group button, you can see an interface is shown as in Figure 5-108.

Here you can modify group information such as remarks and rights.

Figure 5-108

5.5.3 PTZ

Please note only some series products support this function.

The PTZ settings interface is shown as in Figure 5-109.

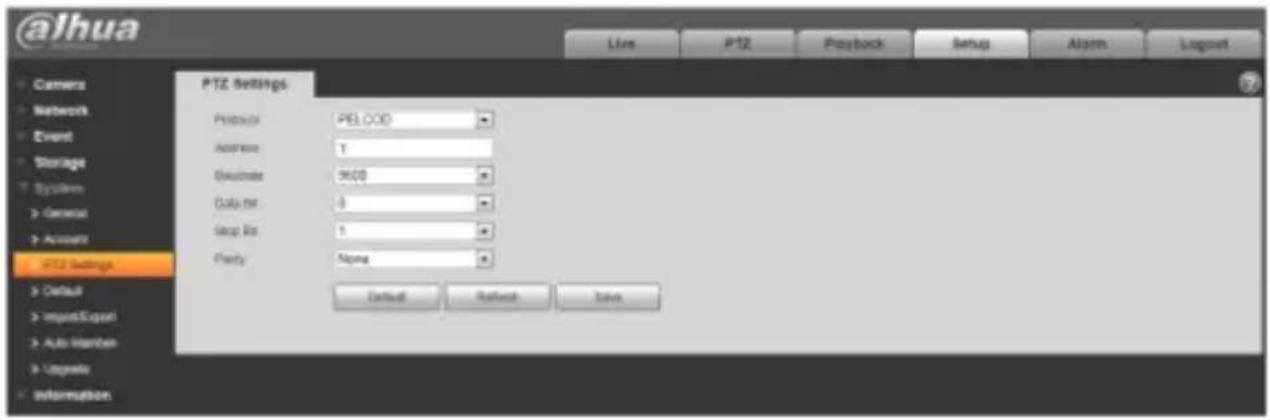

@lhua PTZ Settings Protocol: PELOOD Address: 1 Excode: 9400 Data: 8 Setup Bit: 5 Party: Alone Default Refresh Solve

Figure 5-109

Please refer to the following sheet for detailed information.

Parameter	Function
Protocol	Select the corresponding dome protocol.
Address	Set corresponding dome address. Default value is 1.Please note your setup here shall comply with your dome address; otherwise you cannot control the speed dome.
Baud Rate	Select the dome baud rate. Default setup is 9600.
Data Bit	Default setup is 8.
Stop bit	Default setup is 1.
Parity	Default setup is none.

5.5.4 Default

The default setup interface is shown as in Figure 5-110.

Please note system cannot restore some information such as network IP address, account and so on.

@ahua

Dahua Network Camera Web 3.0 Operation Manual

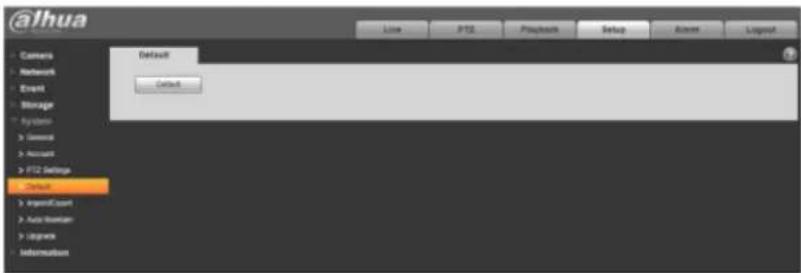

@lhua Live PTZ Playback Setup Action Layout Camera Network Event Storage System General Account PTZ Settings Default OK

Figure 5-110

5.5.5 Import/Export

The interface is shown as in Figure 5-109.

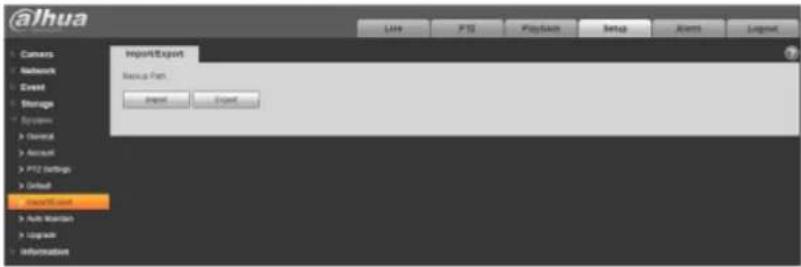

@ihua import/export Riserva Part Print... Export

Figure 5-111

alhua

Dahua Network Camera Web 3.0 Operation Manual

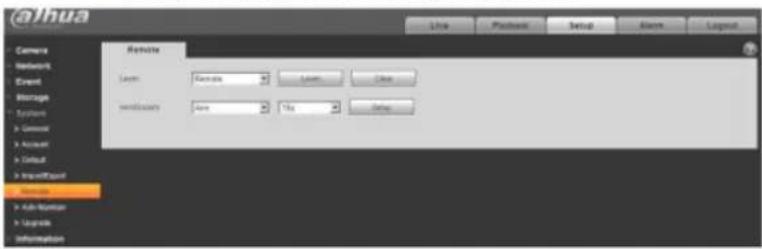

@hua Remote Layer: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name:

Figure 5-112

Parameter	Function
Learn	Bind remote control or wireless alarm with equipment.
Clear	Unbind remote control with equipment.
Arm/Disarm	Start arm after the time you choose, disarm comes into effect immediately. Note: With disarm status, all the following alarms won't trigger: motion detect alarm, masking alarm, local alarm, PIR alarm, wireless alarm.

5.5.6 Auto Maintenance

The auto maintenance interface is shown as in Figure 5-113.

Here you can select auto reboot and auto delete old files interval from the dropdown list.

If you want to use the auto delete old files function, you need to set the file period.

@lhua User PT2 Playbox Setup Alarm Layout Camera Auto Mention

alhua

Dahua Network Camera Web 3.0 Operation Manual

Parameter	Function
Auto Reboot	Check it and set auto reboot time.
Auto Delete Old Files	Check it and set period within 1~31 days.

5.5.7 Upgrade

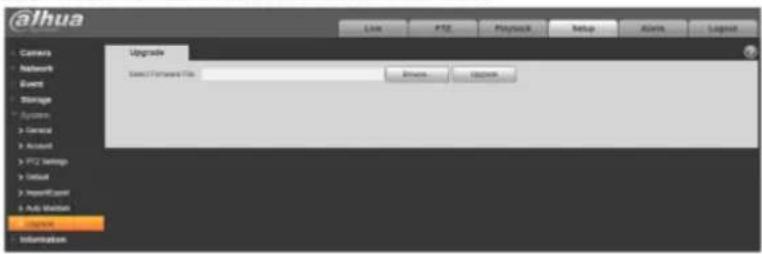

The upgrade interface is shown as in Figure 5-114.

Please select the upgrade file (file extension is ".bin") and then click the update button to begin firmware update.

Important

Improper upgrade program may result in device malfunction!

@ihua Camera Network Event Storage System General Account PTZ Savings Initial ImportExpert Auto Version Options Information Upgrade Select Forward File Browse... Options

Figure 5-114

5.6 Information

5.6.1 Version

The version interface is shown as in Figure 5-115.

Dahua Network Camera Web 3.0 Operation Manual

5.6.2 Log

Here you can view system log. See Figure 5-116.

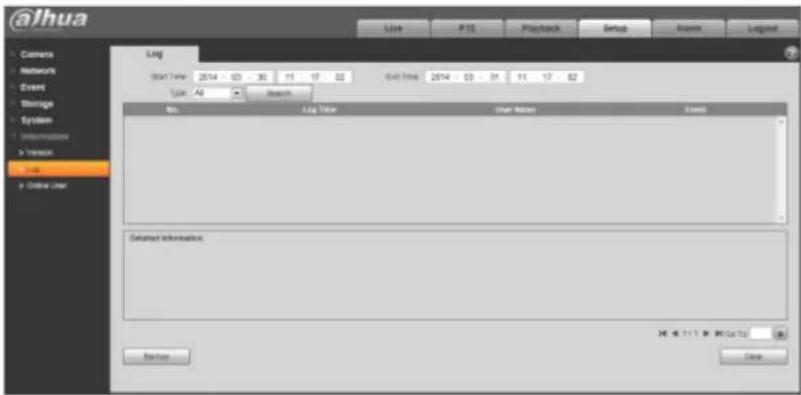

@thua Live PTC Playback Setup Auto Legend Camera Networks Event Storage System Information > Version Help > Online User Log Start Time 2014 03 30 11 17 62 040 Time 2014 03 31 11 17 62 Type: All Search No. Log Time User Status Closed Deleted Information Finish Close

Figure 5-116

Please refer to the following sheet for log parameter information.

Parameter	Function
Start time	Set the start time of the requested log. (The earliest time is 2000/1/1)
End time	Set the end time of the requested log. (The latest time is 2037/12/31)
Type	Log type.
Search	You can select log type from the drop down list and then click search

alhua

Dahua Network Camera Web 3.0 Operation Manual

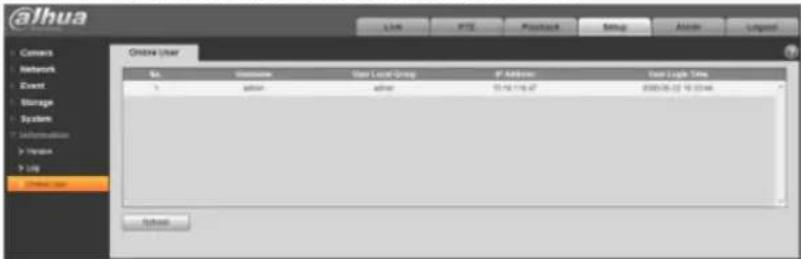

@ihua Online User No. Comms Home L card Link IP Address Total L card Time 1 admin admin 03:16:14:47 2005/05/22 19:23:46 Options

Figure 5-117

6 Alarm

Please note some series product does not support this function.

Click alarm function, you can see an interface is shown as in Figure 6-1.

Here you can set device alarm type and alarm sound setup.

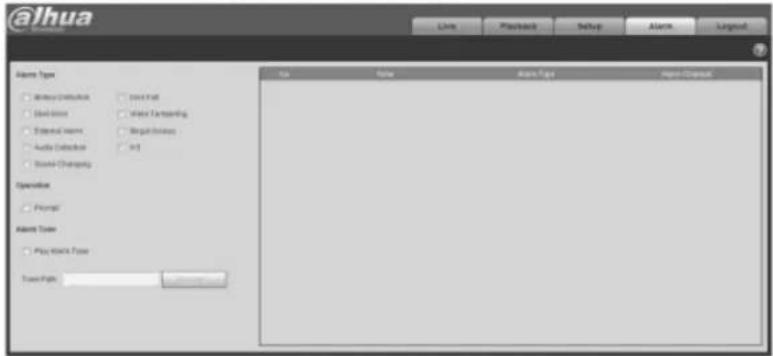

@ihua Volume Type □ Write Email/Host □ 2014-Full □ Send Items □ Mail Captioning □ External Name □ Regularize □ Audio Checklist □ iOS □ Sound Channeling Operation □ Prompt Alert Type □ Play Work Type Travel Type: Live Playback Setup Alarm Layout File Type Alert Type Alert Address

Figure 6-1

Please refer to the following sheet for detailed information.

Type	Parameter	Function
Alarm type	Motion detection	System alarms when motion detection alarm occurs.
	Disk full	System alarms when disk is full.
	Disk Error	System records alarm info when disk error happens.
	Video	System alarms when video is tampering.

Dahua Network Camera Web 3.0 Operation Manual

Type	Parameter	Function
Operation	Prompt	When alarm is triggered, there will be s inmain menu of alarm interface and system automatically records alarm info. The icon disappears when user click on alarm menu bar.Note:If alarm interface is displayed, when alarm is triggered, there will be no image prompt, but alarm record will be in list on the right.
Alarm Tone	Play Alarm Tone	Click it and select the path of audio file to be played in the tone path, when the subscribed alarm event triggers, it will play the selected audio file to prompt that there is alarm event which has been triggered.
	Tone Path	You can customize the storage path of the alarm tone.

alhua

Dahua Network Camera Web 3.0 Operation Manual

7 Log out

Click log out button, system goes back to log in interface. See Figure 7-1.

@lhua Username: admin Password: Login Cancel

Figure 7-1

Note:

● This manual is for reference only. Slight difference may be found in user interface.
- All the designs and software here are subject to change without prior written notice.
- All trademarks and registered trademarks mentioned are the properties of their respective owners.
- If there is any uncertainty or controversy, please refer to the final explanation of us.
- Please visit our website for more information.
