Product Type	Quartz analogue watch with date display
Brand	Sekonda
Model	Classic 1224
Movement	Quartz (battery-powered)
Display	Analogue with hour, minute, second hands and date window
Case Material	Stainless steel (typical)
Glass	Mineral crystal
Strap Material	Leather or stainless steel bracelet (variant dependent)
Case Diameter	40 mm (typical)
Case Thickness	10 mm (typical)
Weight	80 g (approx.)
Water Resistance	30 meters (splash and rain resistant)
Battery Type	SR626SW or equivalent
Battery Life	2-3 years (typical)
Functions	Time setting (hours, minutes, seconds), date setting
Additional Features	Quick date change, AM/PM indication (via date change at midnight)
Guarantee	2 years against defects in materials and workmanship
Care & Maintenance	Service and re-seal every 12 months to maintain water resistance; avoid setting date between 8.30pm and 1.30am; keep crown fully pushed in
Safety	Do not operate buttons underwater; avoid exposure to water if not marked water resistant
Spare Parts & Repairability	Batteries and straps not covered under guarantee; service and repairs available from Sekonda after estimate

Frequently Asked Questions - Classic 1224 Sekonda

How do I set the time on my Sekonda Classic 1224?

Pull the crown out to position B. Turn the crown to advance the hands to the correct time. Push the crown back to position A. For date watches, if the date changes when passing 12 o'clock, it is AM; if not, it is PM.

How do I set the date on this watch?

Pull the crown out to position B. Turn the crown clockwise or anticlockwise to set the correct date. Return the crown to position A. Avoid setting the date between 8.30pm and 1.30am as the date change cycle is in progress.

Is the Sekonda Classic 1224 water resistant?

If your watch is marked "Water Resistant" or has a depth rating on the dial or caseback, it is. Typical Classic models are water resistant to 30 metres, suitable for splashes and rain but not swimming or bathing. If not marked, avoid any water contact.

What battery does the Classic 1224 use?

The watch uses a common quartz battery such as SR626SW or equivalent. Battery life is typically 2-3 years. Replacement should be done by a professional to maintain water resistance.

How do I know if my watch is set to AM or PM?

When setting the time, if the date changes as the hands pass 12 o'clock, it is AM. If the date does not change, it is PM. This applies to date models.

Can I swim with my Classic 1224?

If rated to 30 metres, it is splash and rain resistant only. Do not swim or shower with it. For higher water resistance, check the caseback marking. Models rated to 50 metres allow bathing and swimming; 100 metres allow snorkelling.

How do I care for the bracelet?

Some models have a multiple clasp system for adjusting bracelet size. Open and remove one or both adjustable clasps to reduce size. For further adjustment, refer to the bracelet gauge instructions in the manual.

What is covered by the 2-year guarantee?

The guarantee covers defects in materials and workmanship. It does not cover batteries, straps, or damage from accidents, misuse, or water penetration on non-water-resistant models.

How do I get service under guarantee?

Send the watch by registered post to T.P. (UK) Ltd, Alexander House, Chartwell Drive, Wigston, Leicester LE18 2EZ, along with proof of purchase, the completed guarantee slip, and a note explaining the fault. Do not send the presentation box.

Why does my watch stop or lose time?

A dead battery is the most common cause. If the watch has a chronograph or other functions, ensure the crown is fully pushed in to position A to prevent excessive battery drain. Otherwise, a service may be needed.

USER MANUAL Classic 1224 Sekonda

InstructionGuide and

2YearGuarantee

IS01

Contents

1ServiceandRepairs/SettingtheTime–AM/PM

2WaterResistancy 3–12OperationandAdjustment

Forfreebraceletadjustingservice,returnthewatch totheaddressbelow.

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Formaximumprotection,pleasekeepyourwatch initspresentationboxwhennotinuse.

ImportantNote It is important to identify your watch correctly. If, after reading this Instruction Guide, you have any further questions regarding the use, operation or adjustment of your watch, please call us during office hours on 01162882500

SERVICEANDREPAIRS

YourSEKONDAwatchisguaranteedagainstdefectsinmaterials andworkmanshipforaperiodof2yearsfromthedateof purchase. During this period, wewillexchangeorrepair, atourdiscretion, any defective components.

IMPORTANT-NotcoveredbyGuarantee

1. Batteries, strapsandbracelets.
2. Damagecausedbyaccident, misuseorlackofcare.
3. Waterpenetrationexceptinwatchesmarked as "WaterResistant". (seepage2).

SERVICINGANDREPAIRSUNDERGUARANTEE

Pleasepostyourwatch,togetherwiththeRetailer'sSalesRe- ceiptorProofofPurchase,thecompletedGuaranteesliponthe backcoverofthisbooklet,andabriefnotetoexplainthenature ofthefault,byRegisteredPostorRecordedDeliverytothead-dressshown.Donotsendthepresentationboxasthiswillnotbe returned.

SERVICINGANDREPAIRSOUTSIDEOFGUARANTEE

Availableatareasonablechargeafteranestimatehasbeen sentbySEKONDA.SendyourwatchtousbyRegisteredPost orRecordedDeliverytotheaddresssshownontheinsidefront cover.

SETTINGTHECORRECTTIME(AM/PM)—DATEWATCHES

• IftheDATEchangeswhenthehandsareturnedpast 12o'clock,thetimeshownis“am”.
• IftheDATEdoesnotchange,thetimeshownis"pm".

WATERRESISTANCY

If your watch is water resistant, it will clearly state "Water Resistant" or have a static water pressure indication (eg "30/50/100 metres") on the daily and/or caseback.

IfitisNOTmarkedaswaterresistant, it should not be allowed to come into contact with water or beworn in condition that could expose it to moisture (egwashing, heavy rainetc). Certain chemicals in water may damage the watch seals. Tomaintain its water resistance, were recommend that your watch is serviced and re-sealed at least every 12 months by SEKONDA.

IMPORTANTButtonsmustnotbeoperatedwhilein contactwithwater.

WATERRESISTANTorRESISTANT TO30METRES

Suitablefornormaleverydayuseandwillresist exposuretosplashesandrain;itisNOTdesigned tobeusedwhilebathingorswimming.

WATERRESISTANTTO50METRES

As30metresplusbathingorswimming.

WATERRESISTANTTO100METRES

As50metrespluspoolsidedivingandsnorkelling, butNOThighboardorscubadiving.

WATERRESISTANTTO200METRES

As100metresplusscubadiving, but NO Thighboard diving.

MODELSWITHASCREW-DOWNCROWN (BUTTON)

Unlockthecrownbyturningitanti-clockwiseuntilfree. Lockitbypressinginwhileturningclockwise.WATER RESISTANCEislostwhenthecrownisintheUN-LOCKEDposition.

QuartzanaloguewatchesdoNOT requirewinding.

Thebuttonisusedforhand/functionsettingonly.When inuse,ensurethatthebuttonispushedFULLYINto position“A”.Failuretodosocanresultinexcessive batterydrainordamagetothehandsetting/date mechanism.

The instructions and diagramson the following pages are designed to demonstrate the adjustment of all models within our range.

Yourwatchmaynothaveallofthecharacteristics shownandmayhaveotherbuttonsanddialsinadditiontothoseshownonindividualdiagrams.

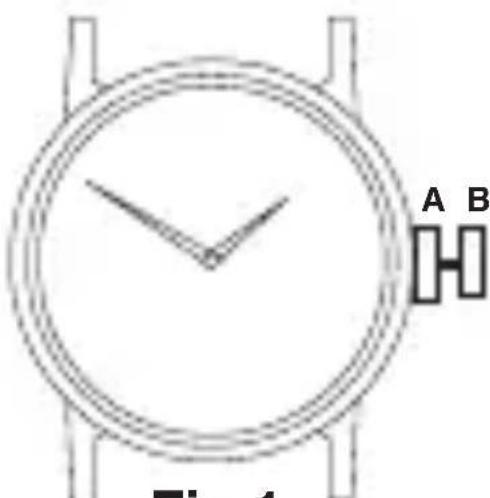

QUARTZNON-DATEWATCH TIMESETTING:

• Pullbuttonouttoposition“B”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

A B Fig 1

Fig 1

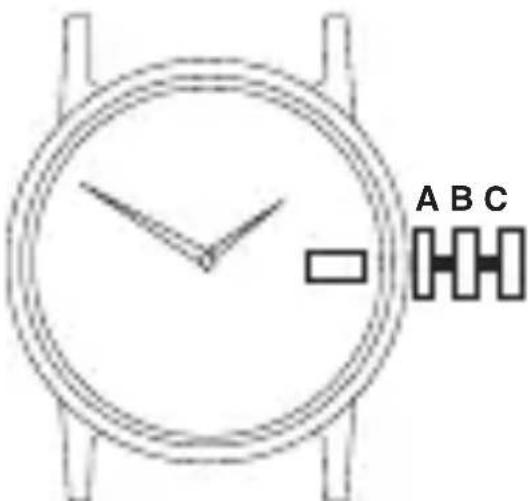

QUARTZDATEWATCH DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Returnbuttontoposition“A”.

NOTE: Donotusethisfunctionbetween8.30pm and1.30amasdatechangecycleisinprogress.

A B C

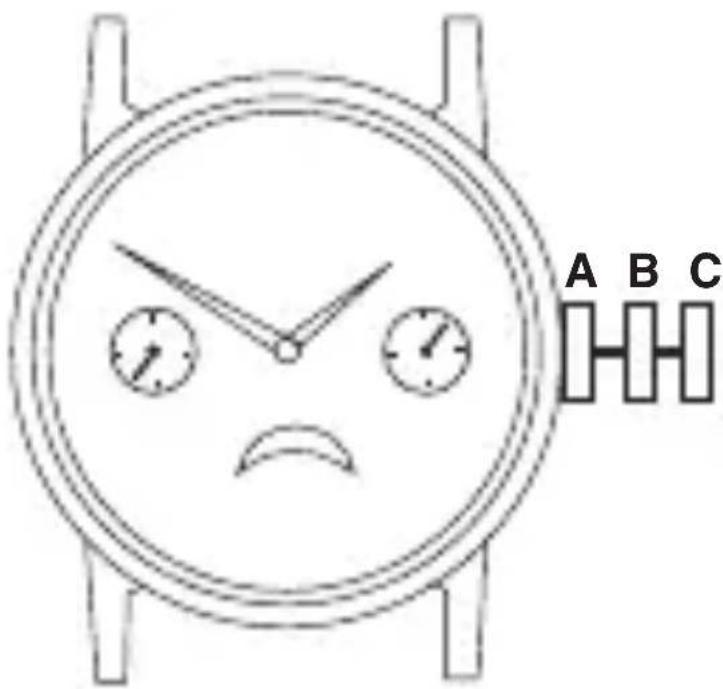

DAY/DATEMOONPHASEWATCH MOONPHASESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwisetosetcorrectmoonphase (seeenclosedleafletfordatesofmoonphase).
• Returnbuttontoposition“A”.

DATECORRECTION:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetdate.
• Returnbuttontoposition“A”.

DAY/TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnhandsforwardsuntilcorrectdayandtimearereached.
• Returnbuttontoposition“A”.

A B C

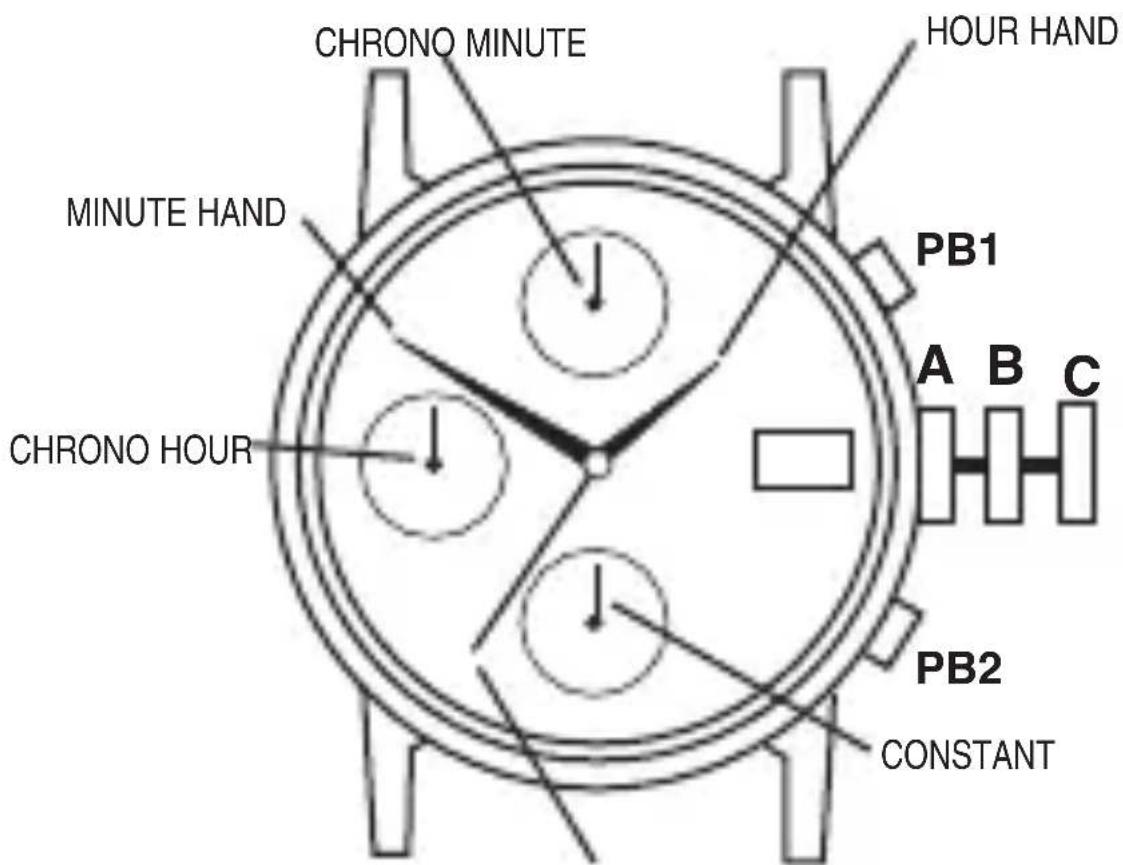

QUARTZ3EYECHRONOGRAPHWITHDATE TIME/DATESETTING:

Seeinstructionsonpages4and5.

OPERATINGCHRONOGRAPH:

• PushPB1tostart/stopchronograph.
• PushPB2toreset.

CHRONOGRAPHZERORESET:

• Pullbuttonouttoposition'C' (Chronosecondhandsreturntozeroposition).
• PushPB1tosetChronosecondhand to12.00(zero)position.
• Returnbuttontoposition'A'.
• PushPB2tosetChronominuteto12.00(zero)position.

HAND DISPLAYS

CHRONO MINUTE HOUR HAND MINUTE HAND PB1 A B C CHRONO HOUR PB2 CONSTANT

CHRONO SECONDS NOTE: Thishandshouldbeat zero(12o'clockposition) whenchronoisnotinuse.

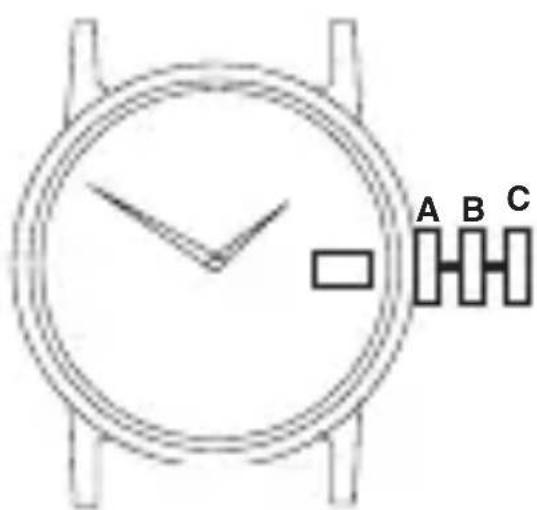

QUARTZDAY/DATEWATCHES TIMESETTING:

• Pullbuttonouttoposition“C”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Turnclockwiseoranti-clockwisetosetcorrectday.

NOTE:DaysoftheweekcanbesetinEnglishor Spanish. Oncesetthewatchwillautomatically indicatethedayinthechosenlanguage.

- Returnbuttontoposition“A”.

NOTE: Donotsetday/datebetween8.30pm and5.00amasday/datechangecycleisinprogress.

A B C

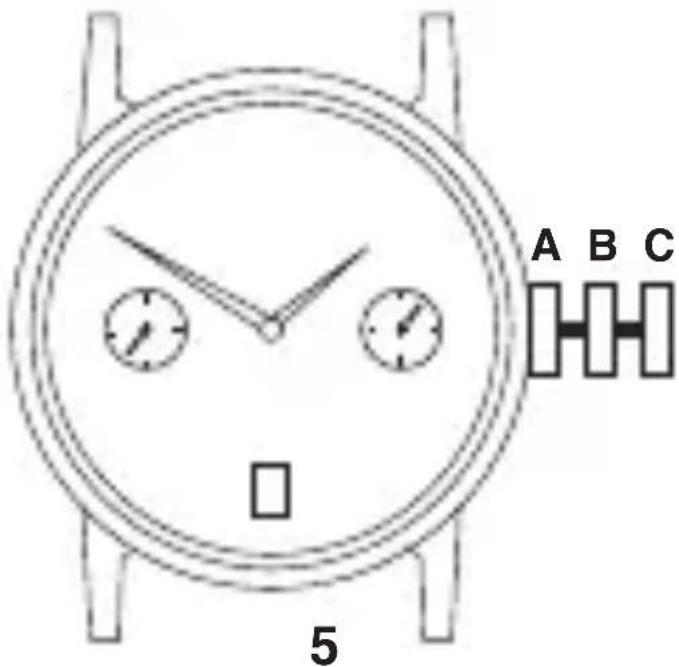

QUARTZ“TWO-EYE”(MONTH&DAY)WITHDATEWATCH DAY&TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition“A”.

DATE&MONTHSETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntilmonthchanges (every31days).
• Repeat until correct month and date areshown.
• Returnbuttontoposition"A".

A B C 5

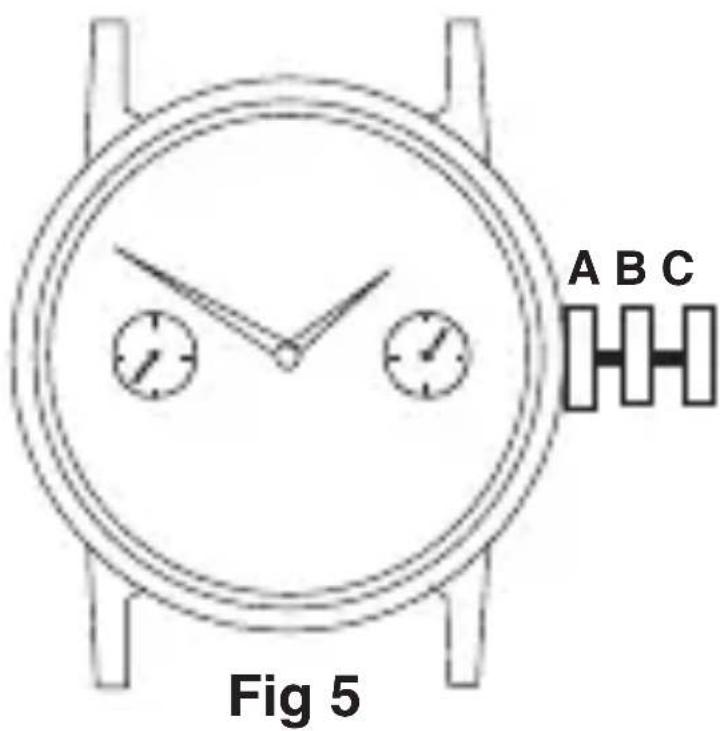

QUARTZ“TWO-EYE”(DAY&DATE)WATCH

IMPORTANT-Thepositionoftheday/date"eyes"referredtoin theseinstructionsMAYBEREVERSEDoncertainModels.

DATEINRIGHTEYE-DAY&TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition"A".

QUARTZ“TWO-EYE”(DAY&DATE)WATCH(continued) DATEINRIGHTEYE(continued) DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntildatechanges.
• Repeatuntilcorrectdateisshown.
• Returnbuttontoposition“A”.

DATEINLEFTEYE TIMESETTING:

• Pullbuttonouttoposition"C".
  •Turnbuttontoadvancehands.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetcorrectDAY.
• TurnbuttonclockwisetosetcorrectDATE.
• Returnbuttontoposition“A”.

A B C Fig 5

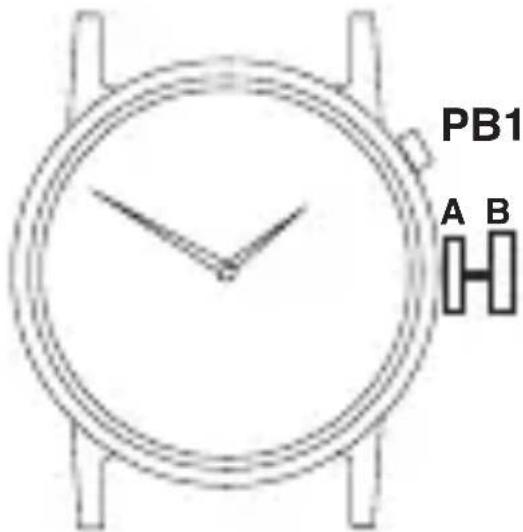

MODELSWITHELECTROLUMINESCENT DISPLAY(E.L.D.)FACILITY

NON-DATEMODELS

TIMESETTING:

•Seeinstructionsonpage4.

DATEMODELS

TIME/DATESETTING:

•Seeinstructionsonpages4and5.

PB1 A B

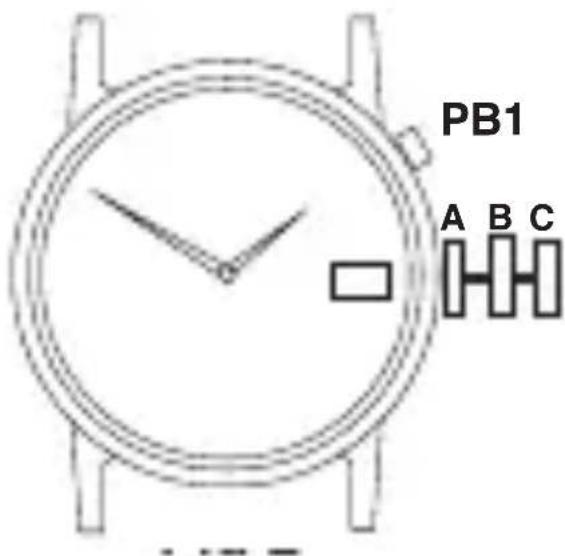

E.L.D.DISPLAY

- PressPB1toactivatedisplay (Displayonlyvisibleinsubduedlight).

Note: Displayshouldonlybeactivatedfor shortperiods, e.g. 1 or 2 seconds as excessive use will greatly reduce the life of the battery.

PB1 A B C

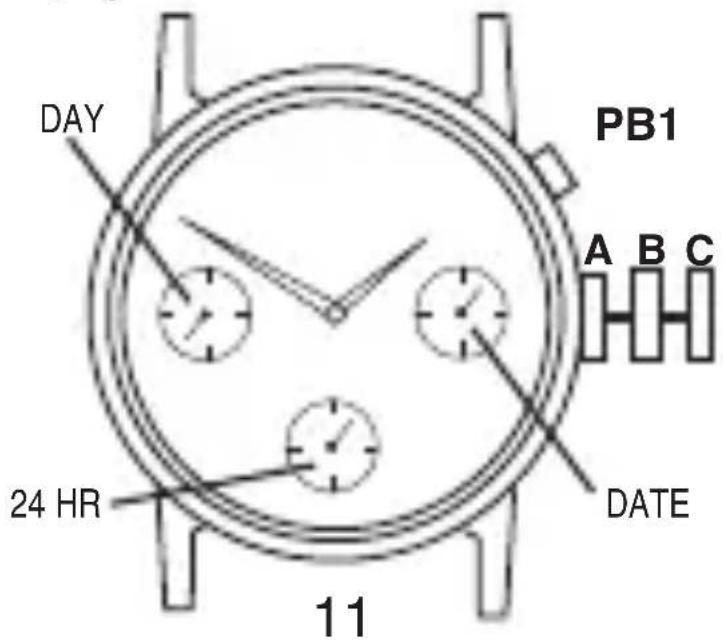

E.L.D.-THREEEYEWITHDAY-DATE- 24HOURFUNCTIONS DAYSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetoadvancehands.
• Continueuntilcorrectdayisshown.
• Returnbuttontoposition“A”.

NOTE: Datechangetakesplacebetweenapproximately midnight and 5.30am.

TIME/24HRFUNCTIONSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetosetthehour,minuteand24 hourhandstothecorrecttime.*Whensettingthehour hand,besuretocheckthatthe24hourhandisset properly.(E.G.12midnight=24.00hrs)
• Returnbuttontoposition“A”.

NOTE: Whensettingtheminutehandfirstadvanceit4to 5minutesaheadofthedesiredtimeandthenturnitback totheexactminute.

DATE(QUICKCHANGEFUNCTION)SETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetoadvancedatehand tocorrectdate.
• Returnbuttontoposition“A”.

E.L.D.DISPLAY:

Seeinstructionsonpage10.

DAY PB1 A B C 24 HR DATE 11

A

B

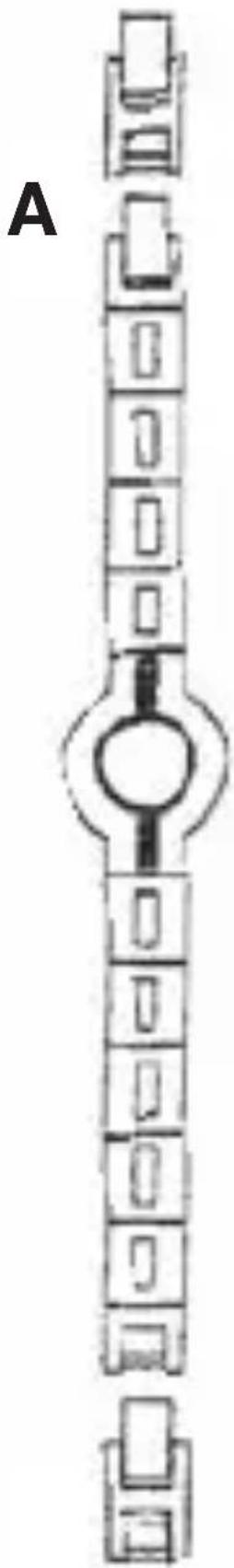

MULTIPLECLASPS

Someofourbraceletmodelsare nowfittedwithamultipleclasp systemwhichisdesignedtomake braceletadjustmenteasierforyou.

Toreducethesizeofthebracelet simplyopenandremoveoneor bothoftheadjustableclasps indicatedas(A)and(B)onthe diagram.

Shouldyoufeelthatyourbracelet isinneedoffurtheradjustment, pleasefollowtheproceduresinIn-struction3ofthebraceletgaugein-cluduedinthisleaflet.

Guarantee

BlockCapitals

Name

Address

PostCode

DaytimePhone

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Important

ThisguaranteeshouldberetainedbytheownerofthewatchandshouldbesenttoSekondatogetherwiththewatchand£4.00tocoverhandlingandpostagewhenserviceunderguaranteeisrequired.Pleaserefertopage1oftheinstructionguideforfurtherinformationonserviceunderguarantee.Thisguaranteedoesnotaffect yours tatutoryrights.

RetailersStampifrequiredorfullnameandaddress

AttachReceptorProofofPurchase; failuretoattachmayinvalidateguarantee. Thisguaranteedoesnotaffectyour statutoryrights.

IS01/10-10
