Product Type	Motherboard
Brand	Supermicro
Model	X10DRFR (also X10DRFR-N, X10DRFR-NT)
CPU Support	Dual Intel E5-2600 v3/v4 (Socket R3 LGA 2011)
Memory Support	16 DDR4 DIMM slots, up to 1024GB LRDIMM / 512GB RDIMM, 2400/2133/1866/1600 MHz ECC
Chipset	Intel C612
Expansion Slots	1 x MLP PCI-E 3.0 x8, 1 x SXB1 PCI-E 3.0 x16, 2 x NVMe PCI-E 3.0 x4 (X10DRFR-N/NT only)
Graphics	Aspeed AST2400 BMC (VGA port)
Network	Dual Gigabit LAN (Intel i350) on X10DRFR/-N; Dual 10G-LAN (Intel X540) on X10DRFR-NT; IPMI Dedicated LAN
SATA	6 x SATA 3.0 (PCH) + 4 x SATA 3.0 (SCU, 2 for SuperDOM)
USB	2 x USB 3.0 rear
I/O Ports	VGA, COM (RS-232), TPM header, IPMB, Fan headers
Form Factor	Proprietary (19.63" x 8.53" / 498.60 mm x 216.67 mm)
Power Connectors	2 x 8-pin +12V, 3 x 4-pin HDD power
BIOS	16 MB AMI SPI UEFI BIOS
System Monitoring	BMC with IPMI 2.0, fan speed control, voltage/temperature monitoring
Management	SuperDoctor 5, Intel Node Manager (with SPM)
Supported OS	Windows 7/8/2012/R2, Linux
Safety	FCC Class A, static sensitive, battery handling warnings
Battery	CR2032 CMOS battery (replaceable)

Frequently Asked Questions - X10DRFR Supermicro

Which processors are supported by the Supermicro X10DRFR motherboard?

The motherboard supports dual Intel E5-2600 v3/v4 processors (Socket R3 LGA 2011). v4 requires BIOS rev 2.0 or higher.

What type of memory does it support and what is the maximum capacity?

It supports DDR4 ECC memory in 16 slots, up to 1024 GB with LRDIMM or 512 GB with RDIMM, at speeds of 2400/2133/1866/1600 MHz.

How many PCIe expansion slots are available?

It has one MLP PCI-E 3.0 x8 slot and one SXB1 PCI-E 3.0 x16 slot. The X10DRFR-N/-NT models also include two NVMe PCI-E 3.0 x4 ports.

What networking options are available on this motherboard?

The X10DRFR/-N models have Gigabit Ethernet (dual Intel i350); the X10DRFR-NT has 10GbE (dual Intel X540). All models include an IPMI dedicated LAN.

How many SATA ports does the motherboard provide?

There are 6 SATA 3.0 ports from the Intel PCH, plus 4 SATA 3.0 ports from the Intel SCU (two of which are used for SuperDOM devices).

What is the form factor of the X10DRFR motherboard?

It has a proprietary form factor measuring 19.63 inches (498.60 mm) in length and 8.53 inches (216.67 mm) in width.

Does the motherboard support IPMI for remote management?

Yes, it features an Aspeed AST2400 BMC with a dedicated IPMI LAN port, providing remote KVM and system monitoring capabilities.

How do I clear the CMOS settings?

To clear CMOS, first power off and unplug the system, then use a metal object to short the JBT1 contact pads for a few seconds.

What type of BIOS does the motherboard use?

It uses a 16 MB AMI SPI UEFI BIOS with support for legacy and UEFI boot modes.

How can I update the BIOS?

Download the BIOS image from Supermicro's website, rename it to Super.ROM, place it on a USB flash drive (FAT formatted), and boot with the drive inserted while pressing Ctrl + Home to enter recovery mode.

USER MANUAL X10DRFR Supermicro

The information in this user's manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between the manufacturer and the customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.1

Release Date: April 5, 2016

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2016 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

This manual is written for system integrators, IT professionals, and knowledgeable end-users. It provides information for the installation and use of the X10DRFR/X10DRFR-N//X10DRFR-NT motherboard.

About This Motherboard

The Super X10DRFR/X10DRFR-N/X10DRFR-NT motherboard supports dual Intel® E5-2600 (v3/v4) processors (Socket R3) that offer new Intel Microarchitecture 22nm (E5-2600v3)/14nm (E5-2600v4) Process Technology, delivering the best balanced solution of performance, power efficiency, and features to meet demands of high-end server platforms. With the PCH C612 built in, the X10DRFR(-N/-NT) motherboard supports Intel® Manageability Engine, Intel Rapid Storage Technology enterprise, Digital Media Interface, PCI-E Gen. 3.0, and 2400 MHz (max) DDR4 memory. This motherboard is ideal for 4U FatTwin server platforms. Please refer to our website (http://www.supermicro.com) for processor and memory support updates.

Manual Organization

Chapter 1 describes the features, specifications and performance of the motherboard. It also provides detailed information about the Intel PCH C612 chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules, and other hardware components into the system. If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to BIOS, and provides detailed information on running the BIOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software installation instructions.

Appendix C contains UEFI BIOS Recovery instructions.

Conventions Used in the Manual

Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself:

Warning: Important information given to ensure proper system installation or to prevent damage to the components

Note: Additional information given to differentiate between various models or provides information for proper system setup.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Table of Contents

Preface

Chapter 1 Overview

1-1 Overview 1-1
1-2 Processor and Chipset Overview 1-11
1-3 Special Features 1-12
1-4 System Health Monitoring.... 1-12
1-5 ACPI Features.... 1-13
1-6 Power Supply 1-13
1-7 Advanced Power Management.... 1-14

Intel® Intelligent Power Node Manager (NM) (Available when the Supermicro Power Manager [SPM] is installed).... 1-14 Management Engine (ME).... 1-14

Chapter 2 Installation

2-1 Standardized Warning Statements 2-1
2-2 Static-Sensitive Devices....2-4

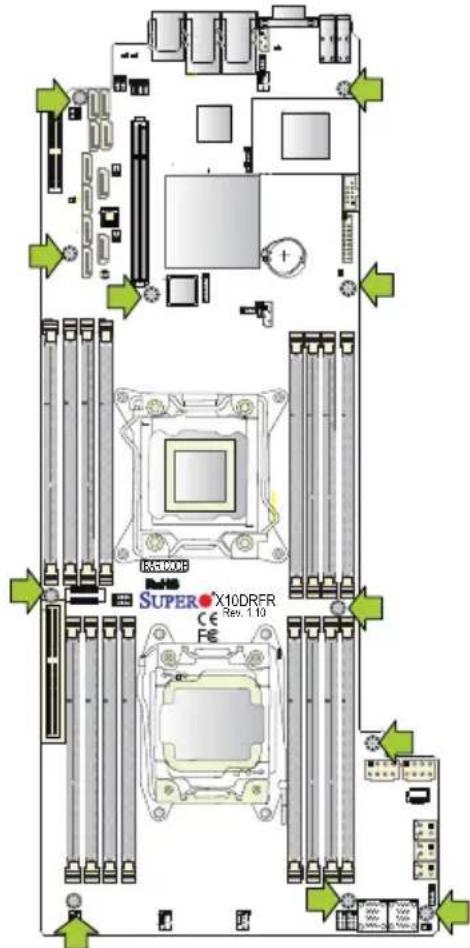

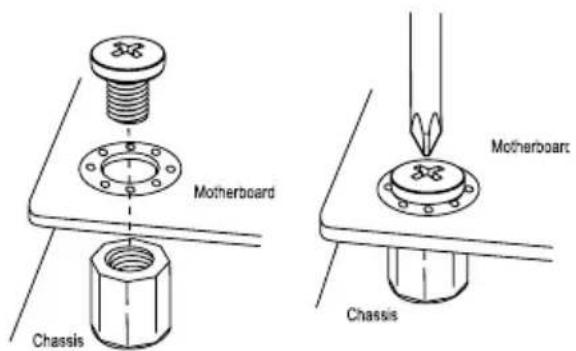

2-3 Motherboard Installation....2-5
2-4 Processor and Heatsink Installation.... 2-7

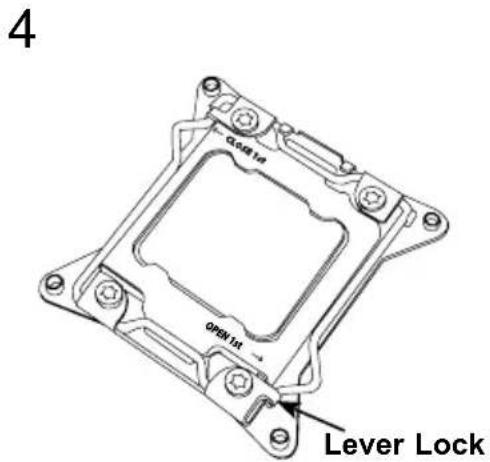

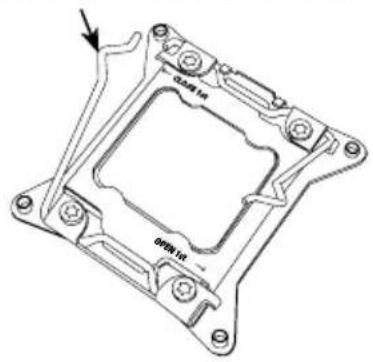

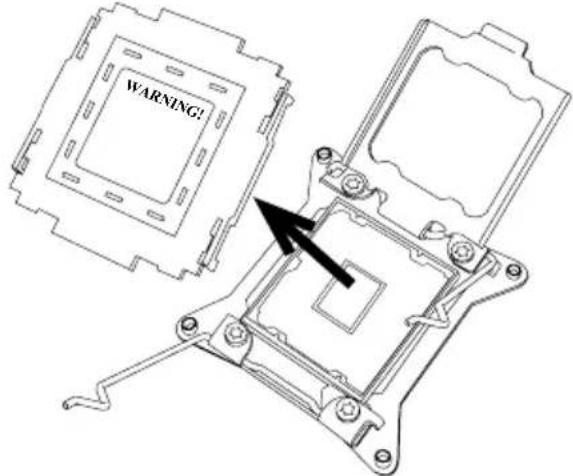

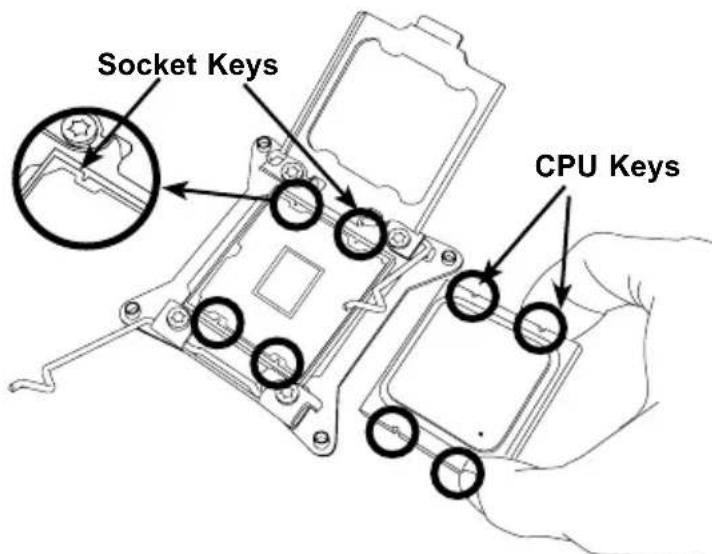

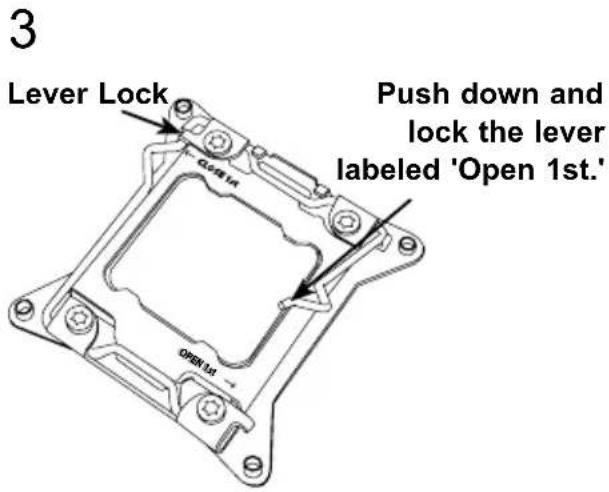

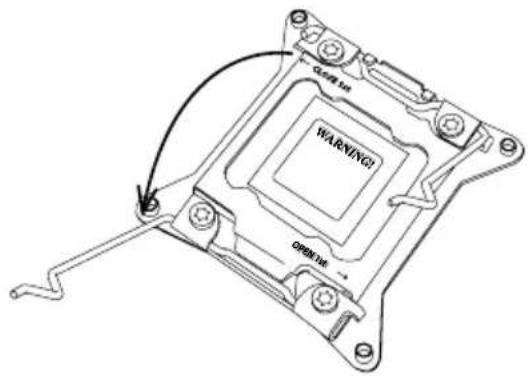

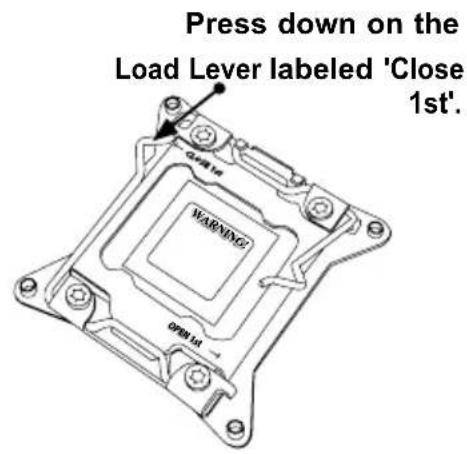

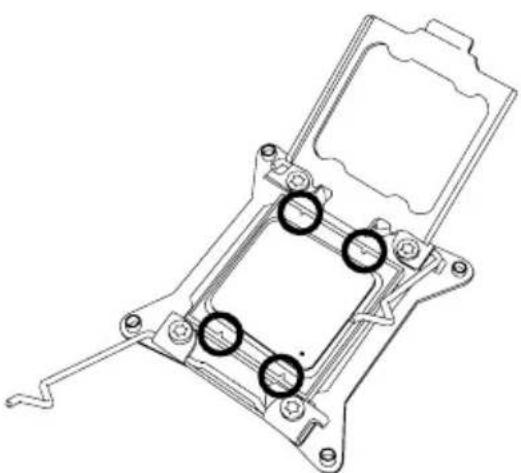

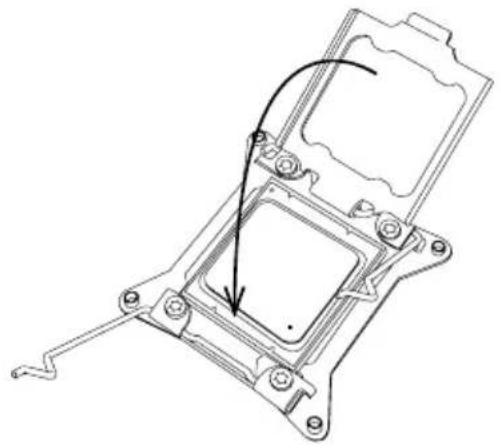

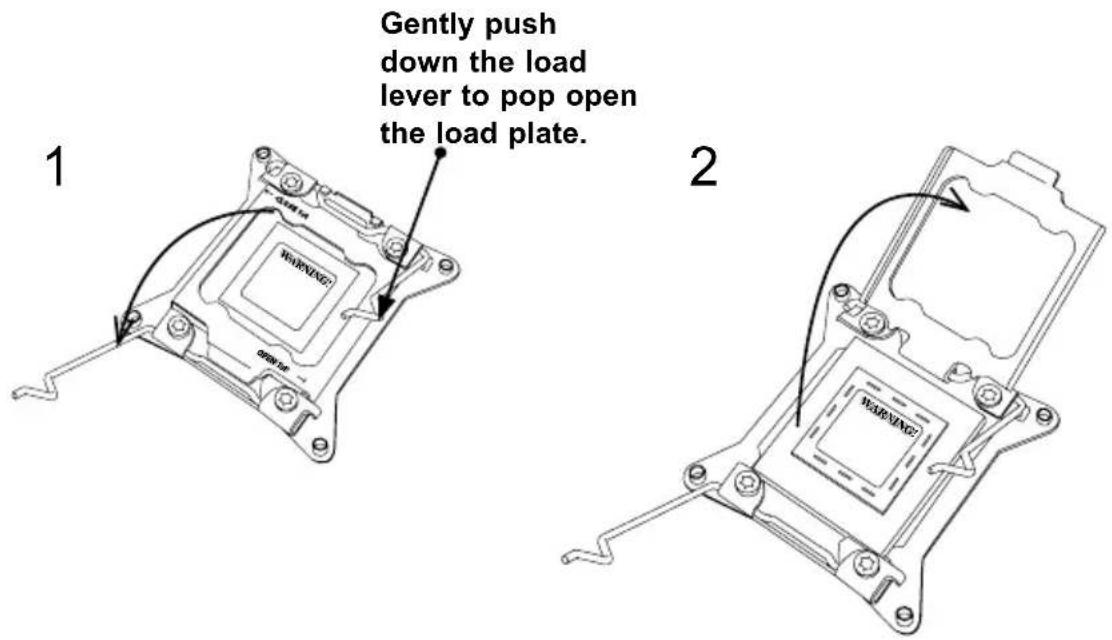

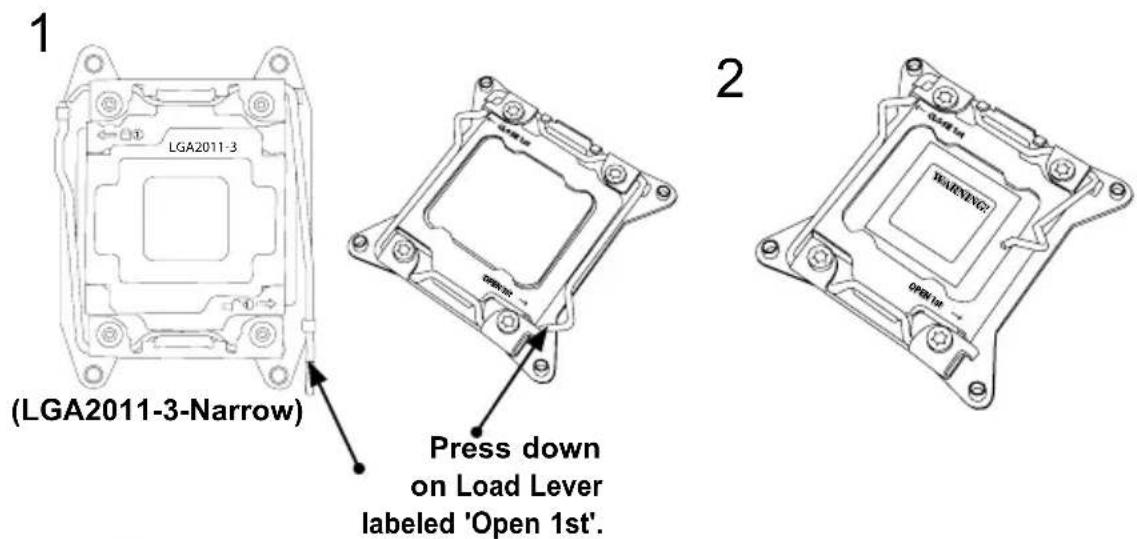

Installing the LGA2011 Processor 2-7

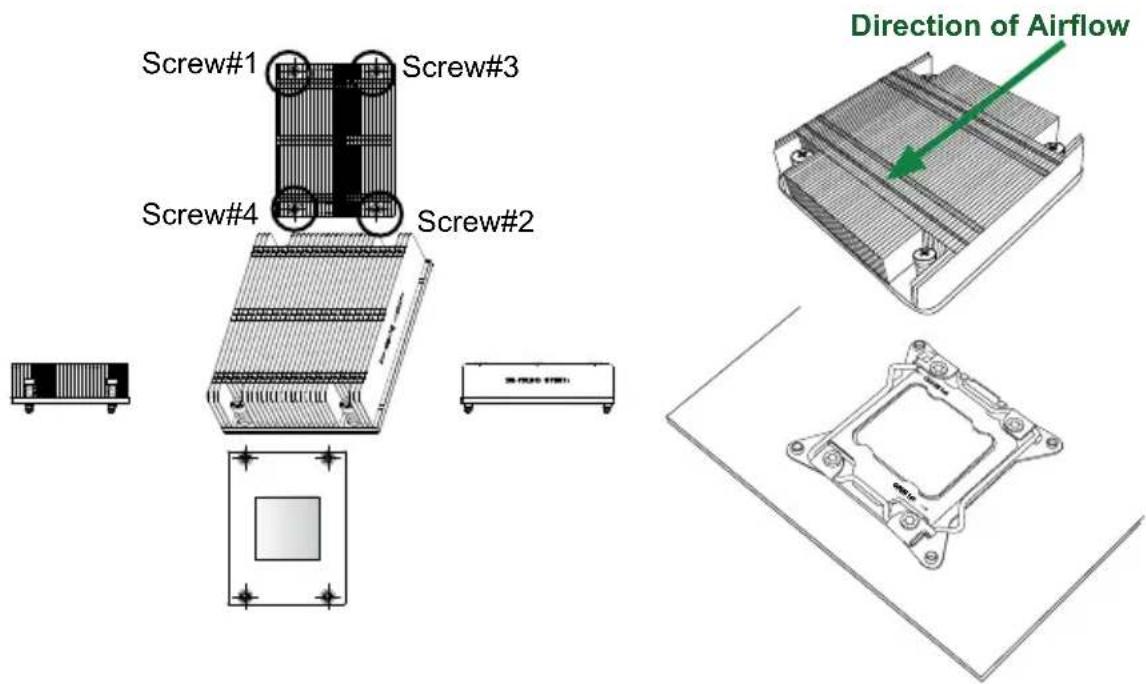

Installing a Passive Heatsink....2-11

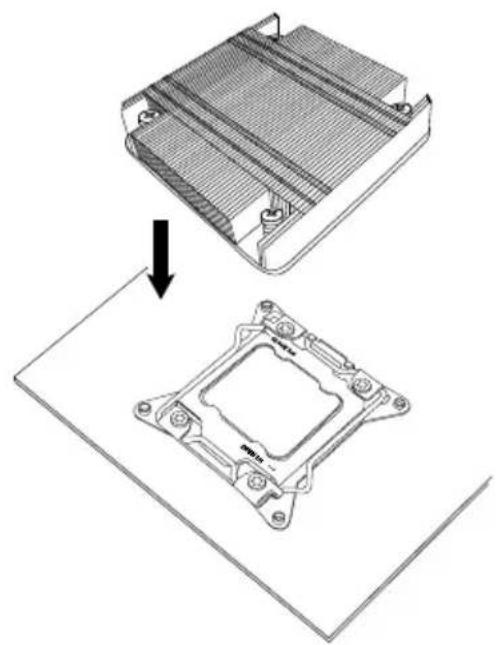

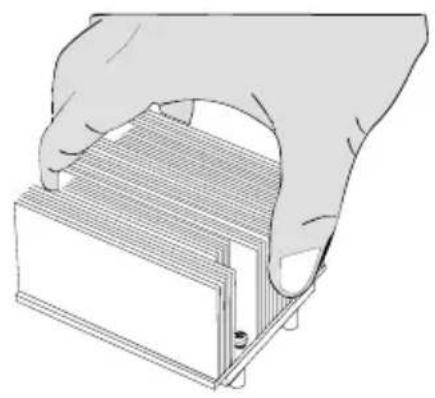

Removing the Passive Heatsink 2-12

2-5 Installing and Removing the Memory Modules.... 2-13

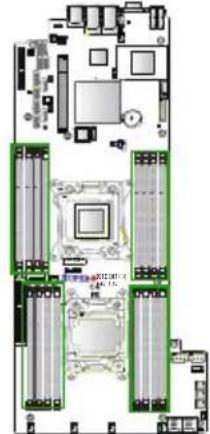

Installing & Removing DIMMs....2-13
Removing Memory Modules 2-13

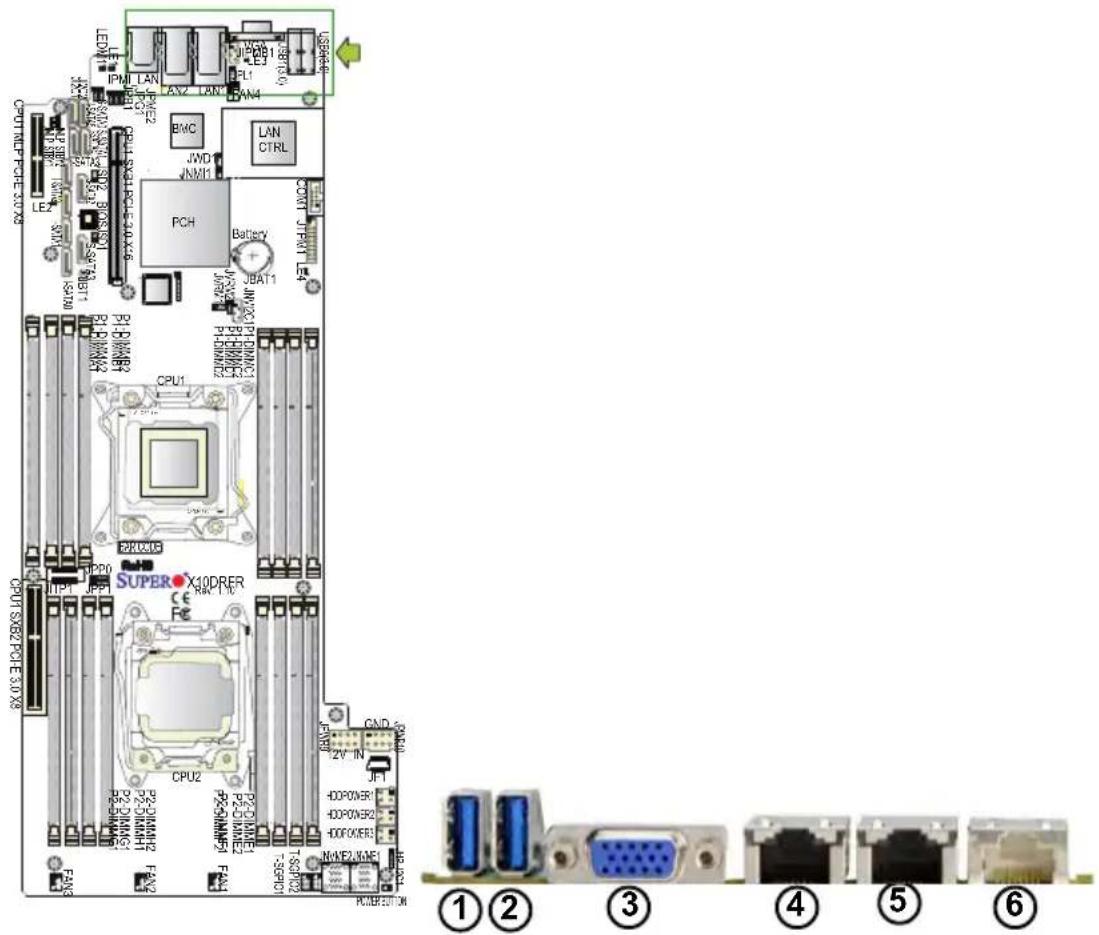

2-6 Control Panel Connectors and I/O Ports 2-16

Back Panel Connectors and I/O Ports 2-16
Back Panel I/O Port Locations and Definitions 2-16

Universal Serial Bus (USB) 2-17

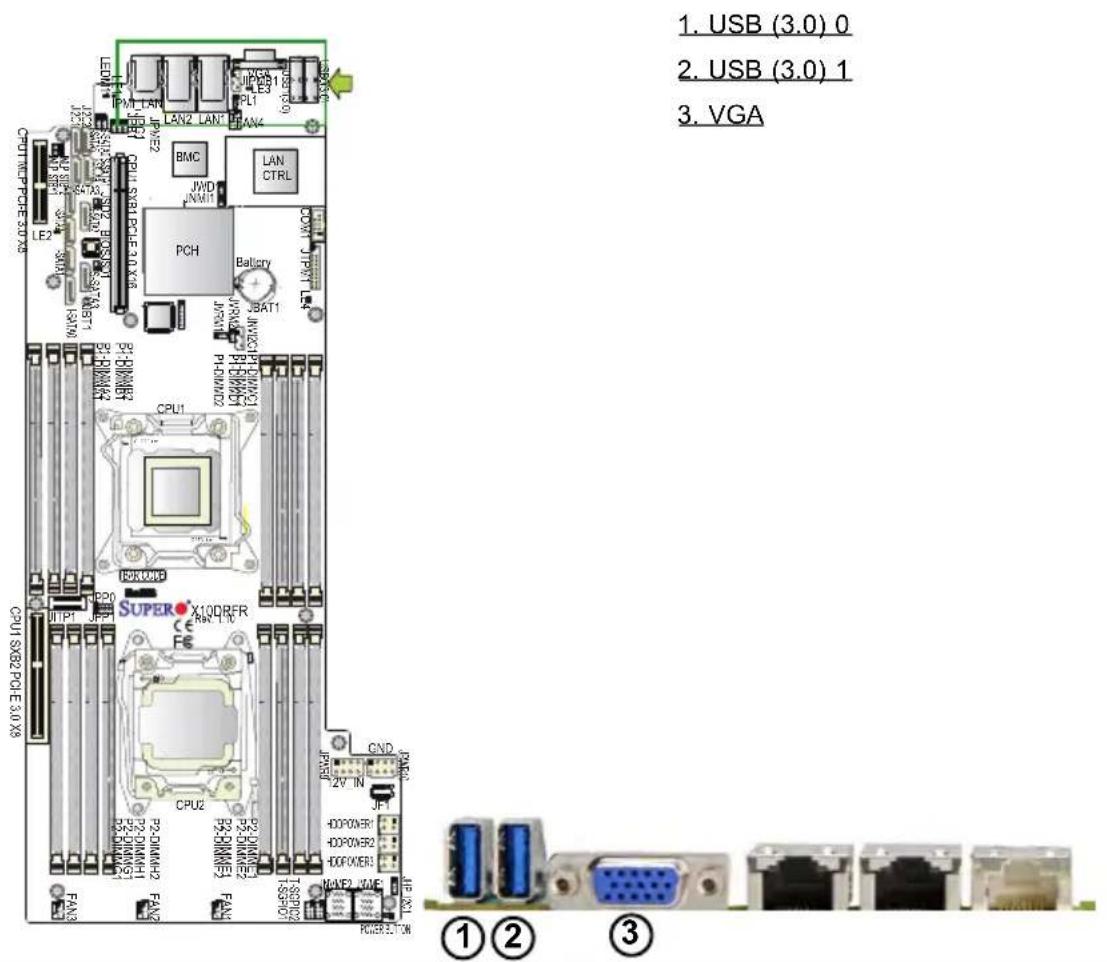

Video Connector....2-17

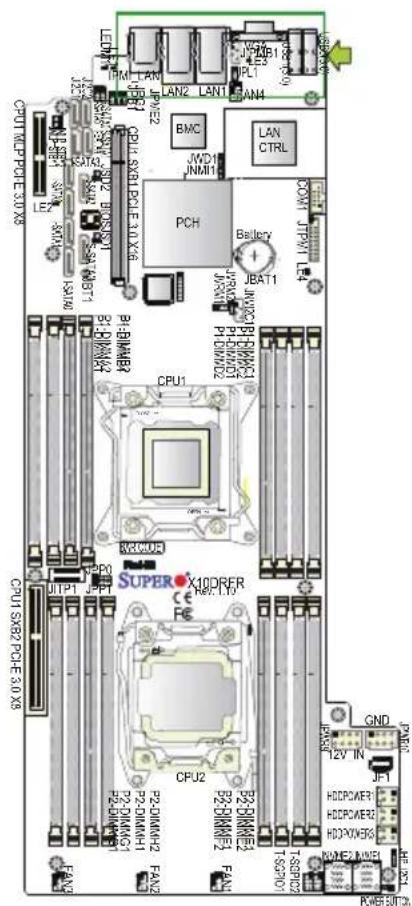

Ethernet Ports 2-18

2-7 Connecting Cables....2-19

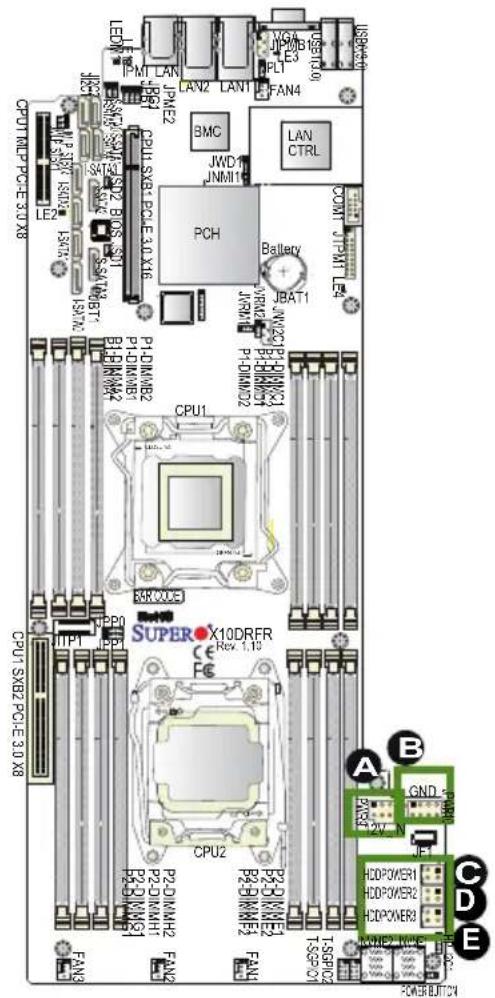

Power Connectors 2-19
COM Port Header 2-20

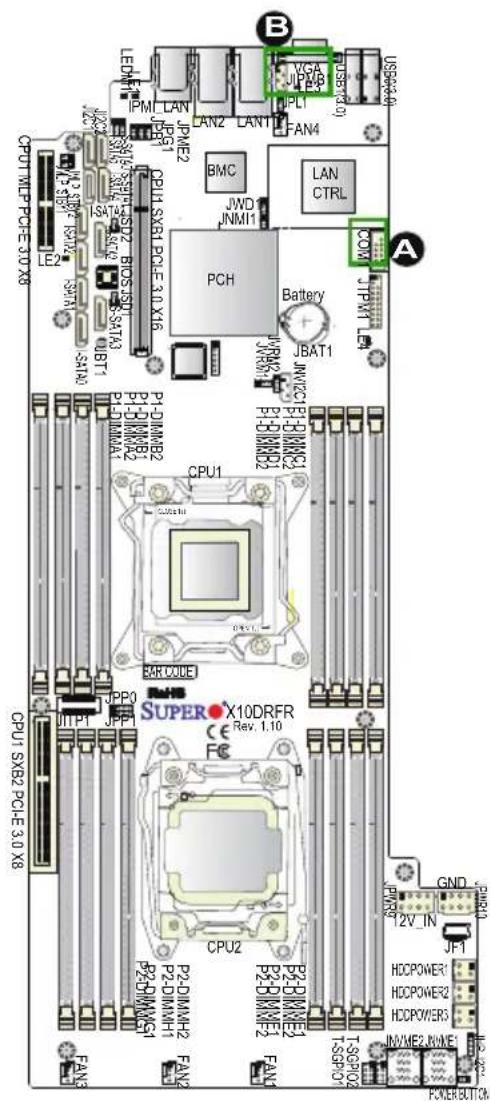

IPMB I²C SMB 2-20

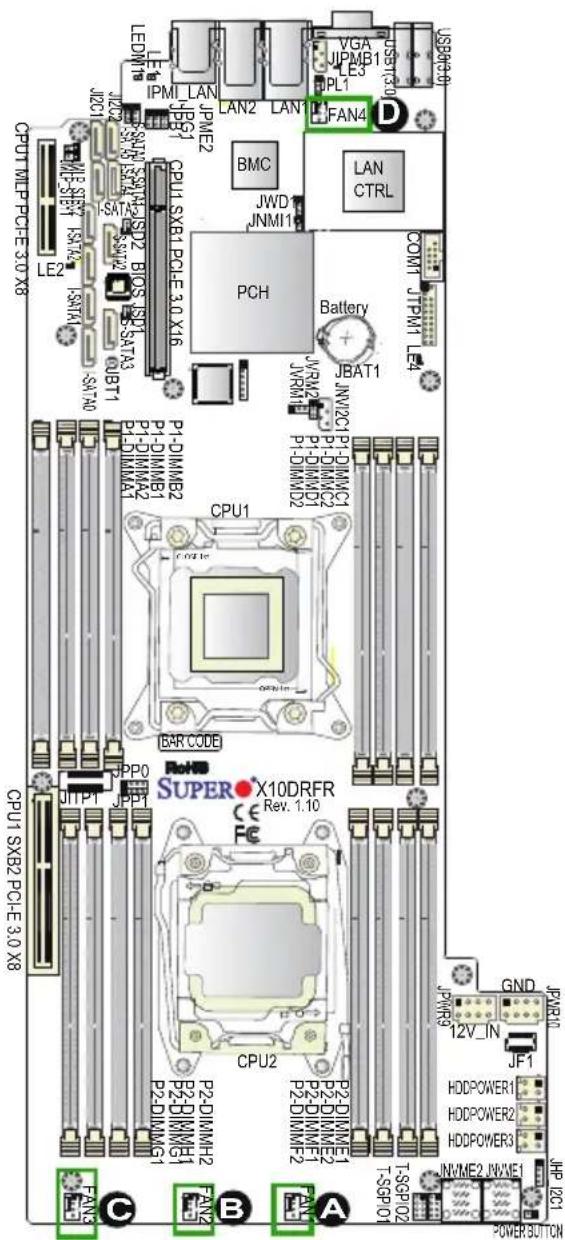

Fan Headers....2-21
TPM Header/Port 80 2-22

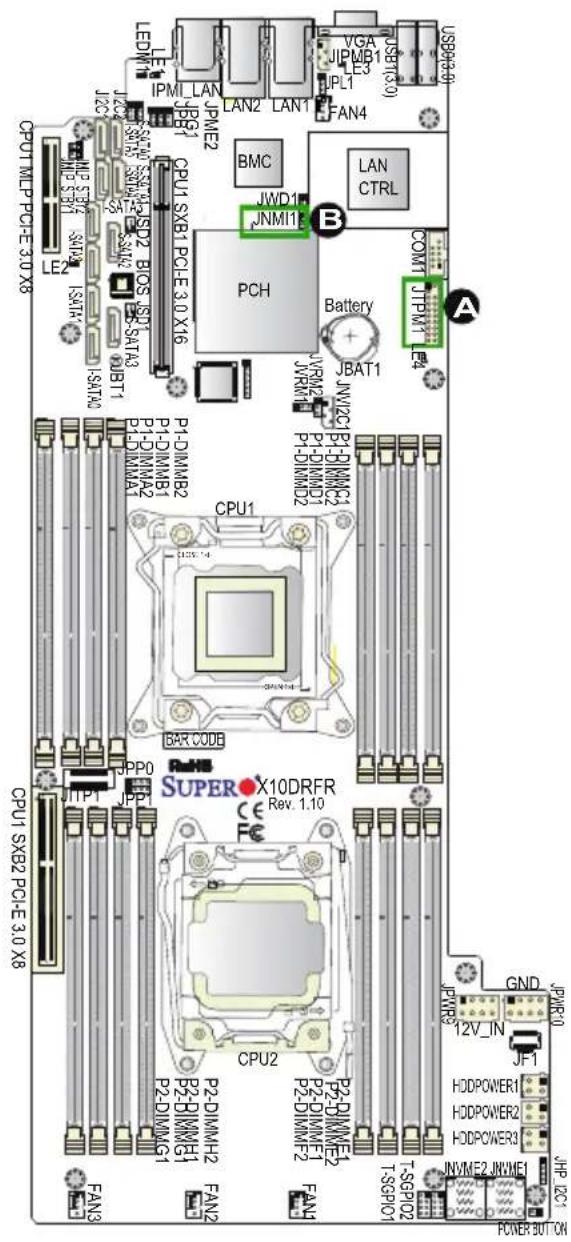

Non-Mask Interrupt Header 2-22

T-SGPIO 1/2 Headers 2-23

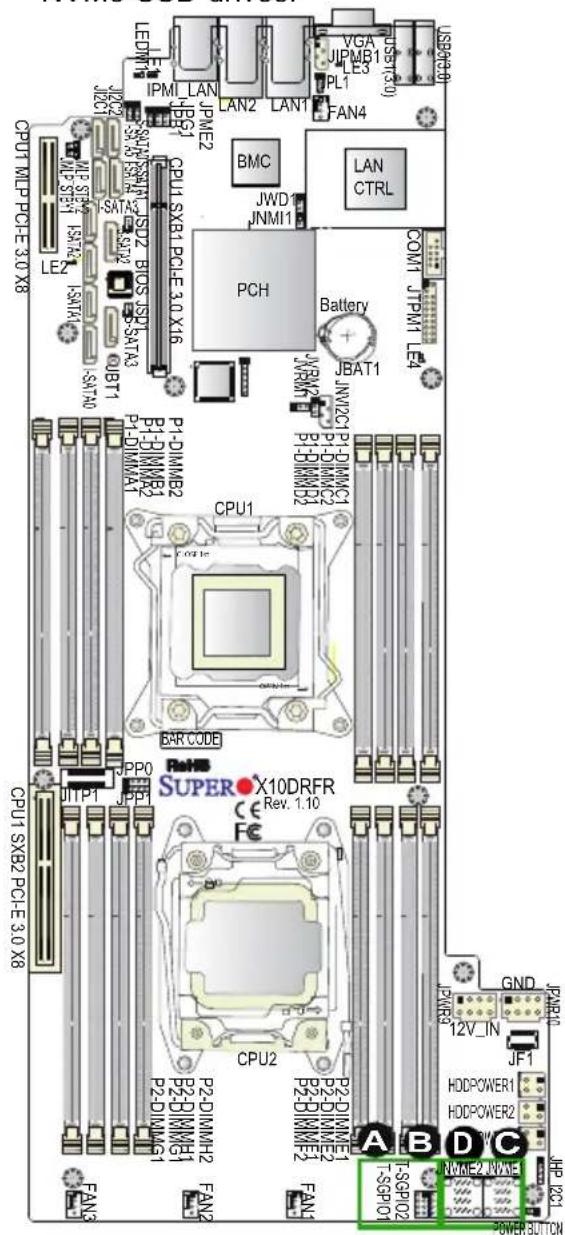

NVM Express Connections (For X10DRFR-N/NT Only)....2-23

2-8 Jumper Settings 2-24

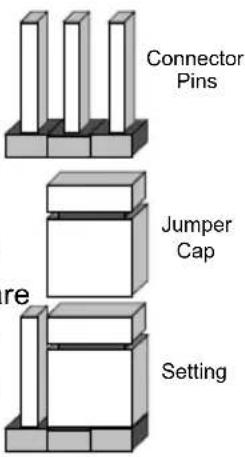

Explanation of Jumpers 2-24

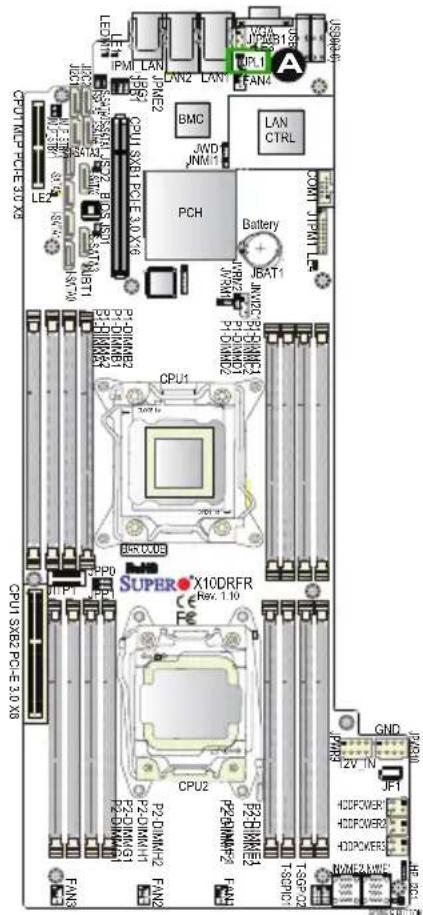

LAN Ports 1/2 Enable 2-24

CMOS Clear 2-25

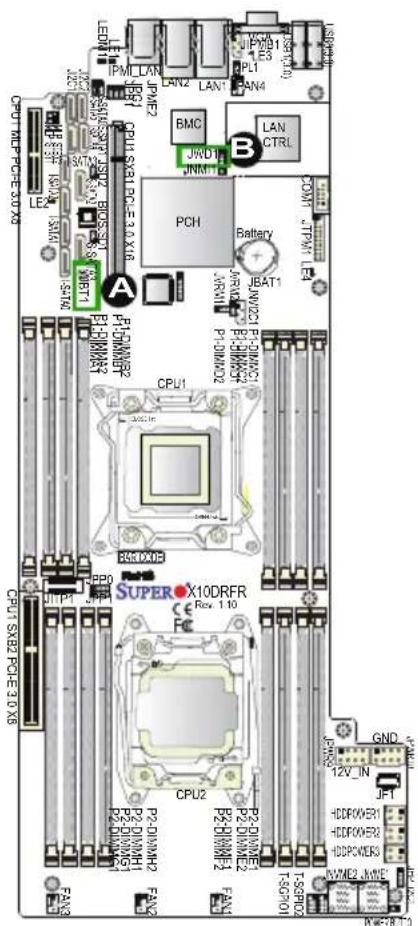

Watch Dog Enable/Disable 2-25

VGA Enable....2-26

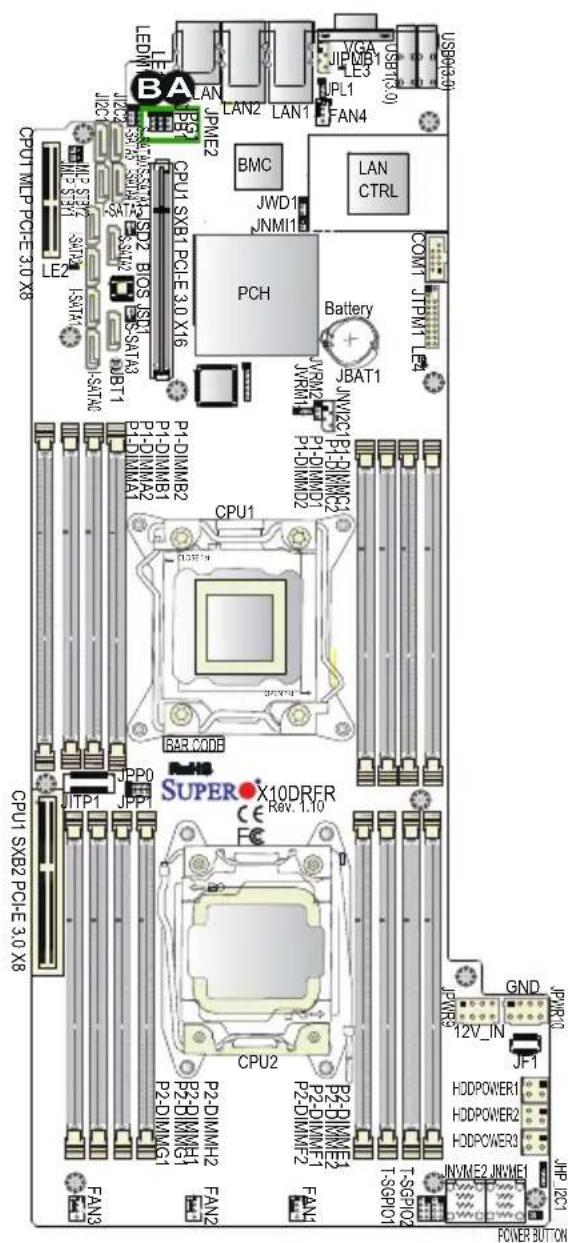

BMC Enable 2-26

I²C Bus to PCI-Exp. Slots 2-27

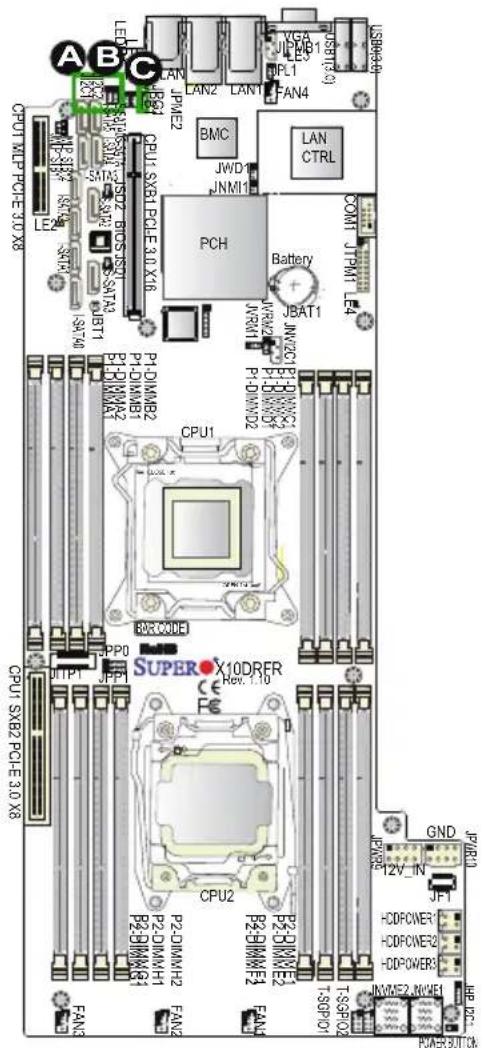

Manufacturer Mode Select 2-27

2-9 Onboard LED Indicators 2-28

LAN LEDs....2-28

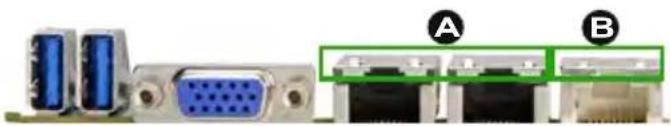

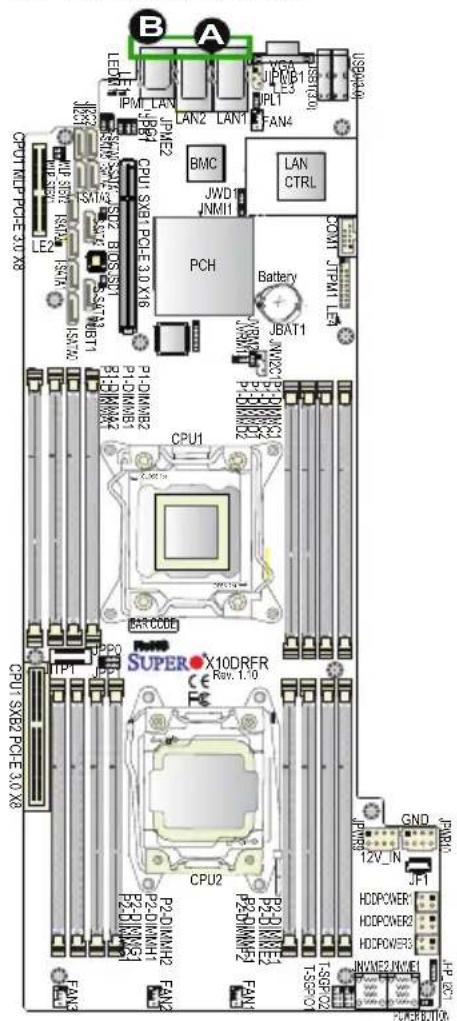

IPMI_LAN LEDs 2-28

Standby_Power Good LED 2-29

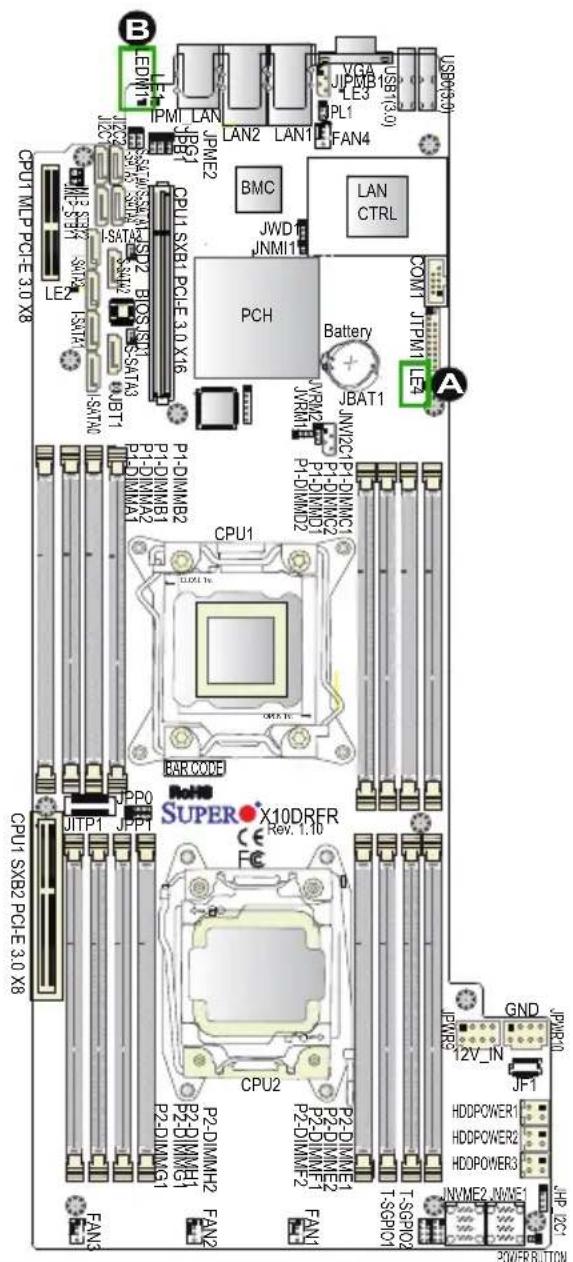

BMC Heartbeat LED 2-29

System_Power Good LED 2-30

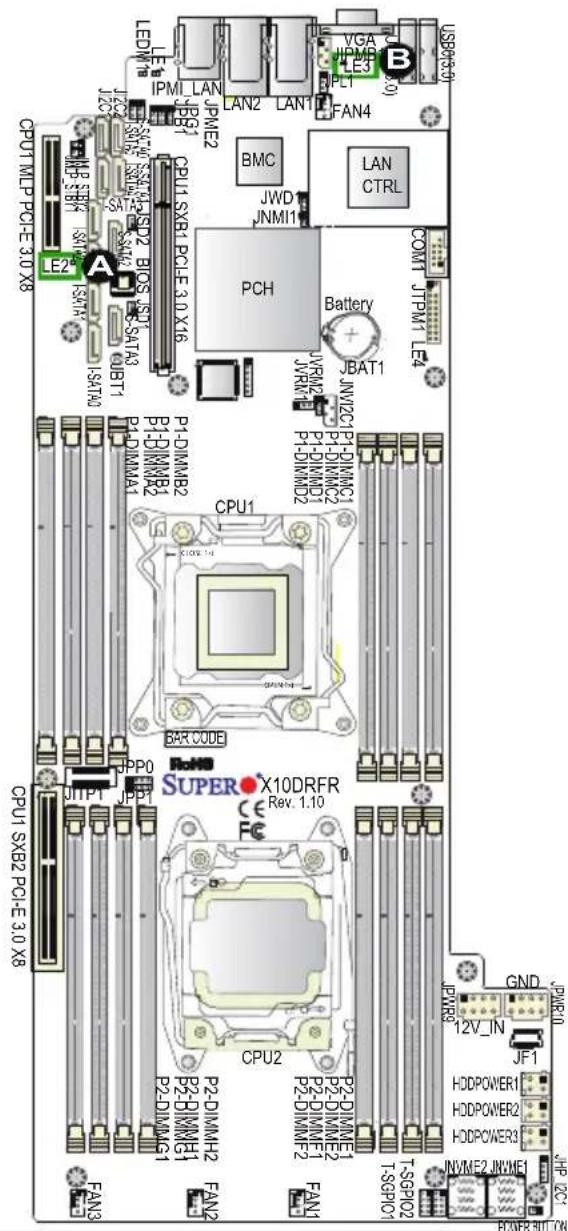

SATA Activity LED 2-30

2-10 PCI-Express and Serial ATA Connections 2-31

PCI-Express 3.0 x16 Slot....2-31

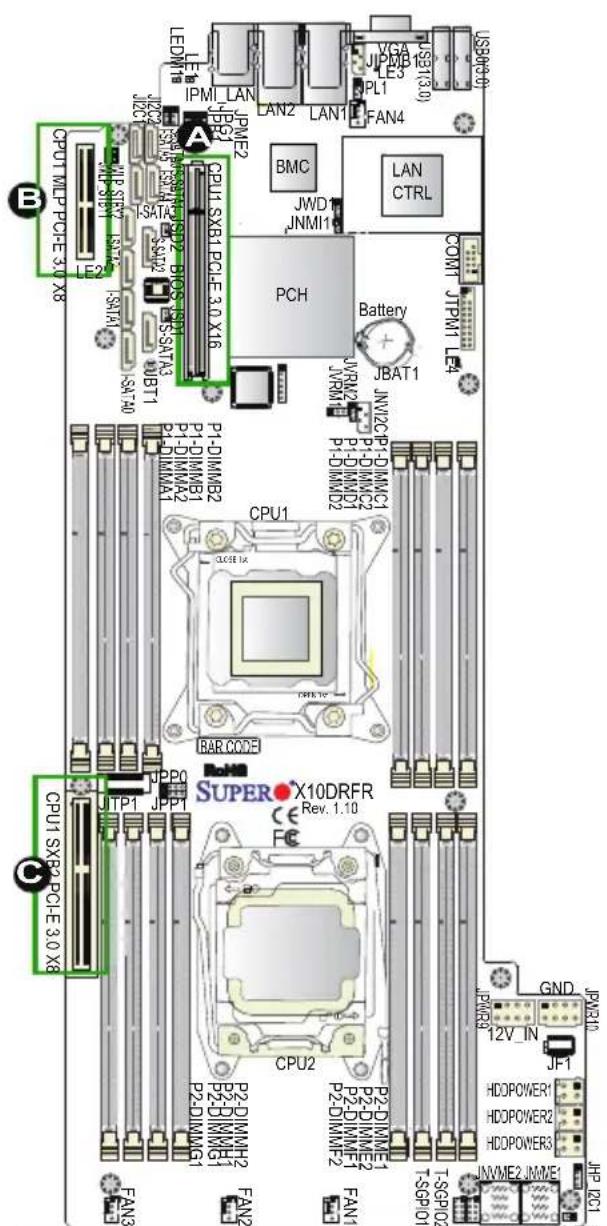

PCI-Express 3.0 x8 Slots 2-31

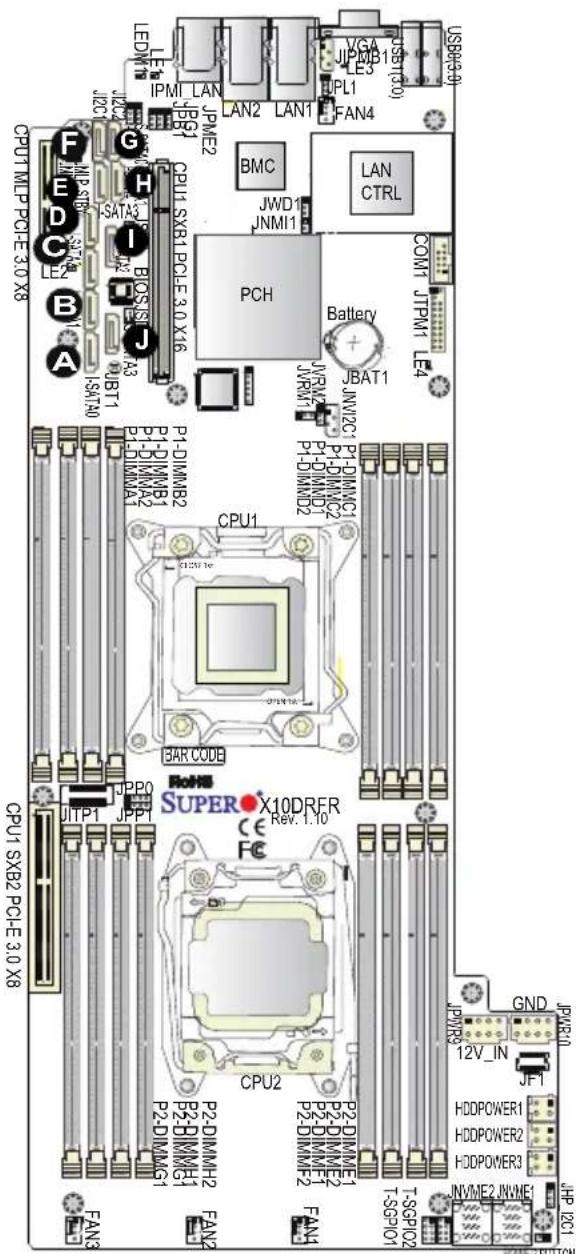

Serial ATA Ports....2-32

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures 3-1

3-2 Technical Support Procedures 3-5

3-3 Battery Removal and Installation 3-6

Battery Removal....3-6

3-4 Frequently Asked Questions 3-7

3-5 Returning Merchandise for Service.... 3-8

Chapter 4 BIOS

4-1 Introduction.... 4-1

4-2 Main Setup 4-2

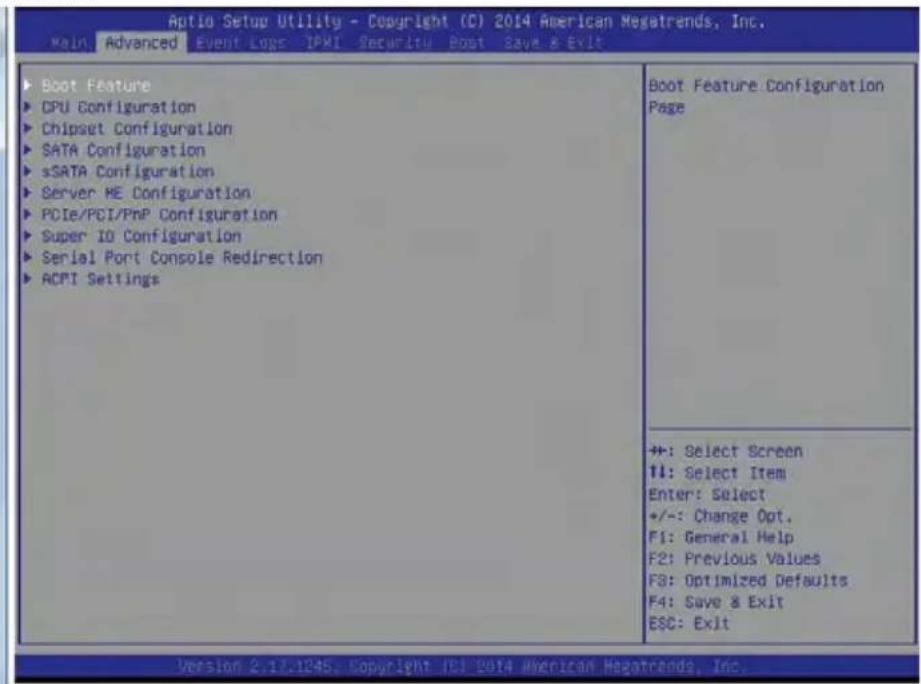

4-3 Advanced Setup Configurations.... 4-4

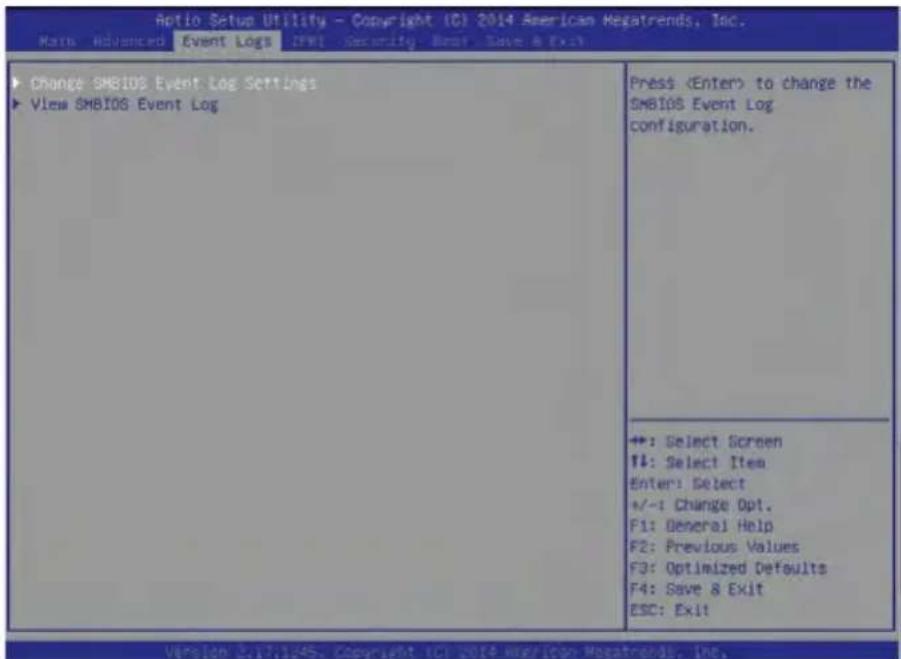

4-4 Event Logs 4-32

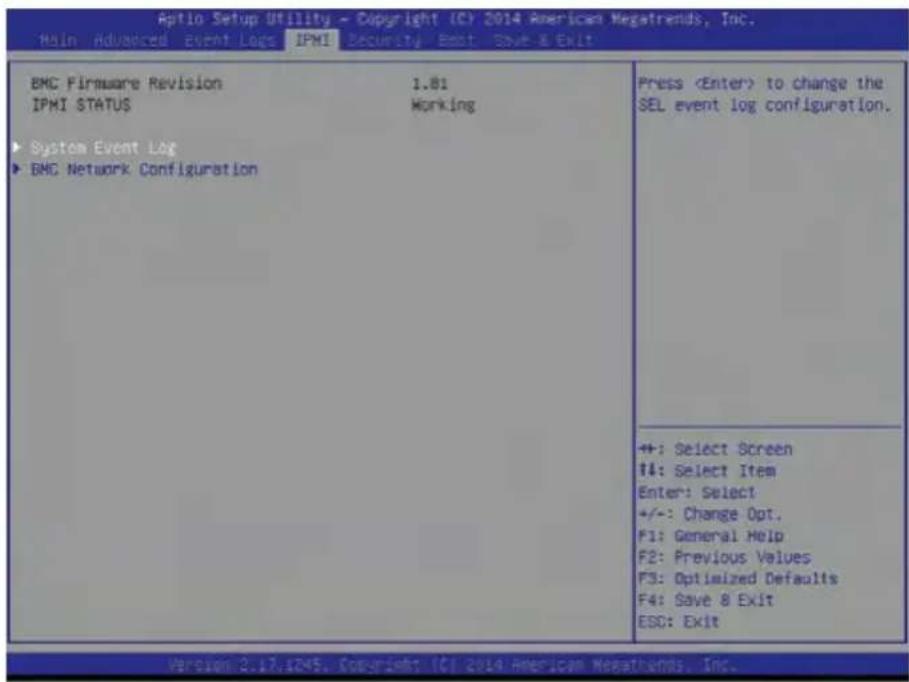

4-5 IPMI 4-34

4-6 Security Settings 4-36

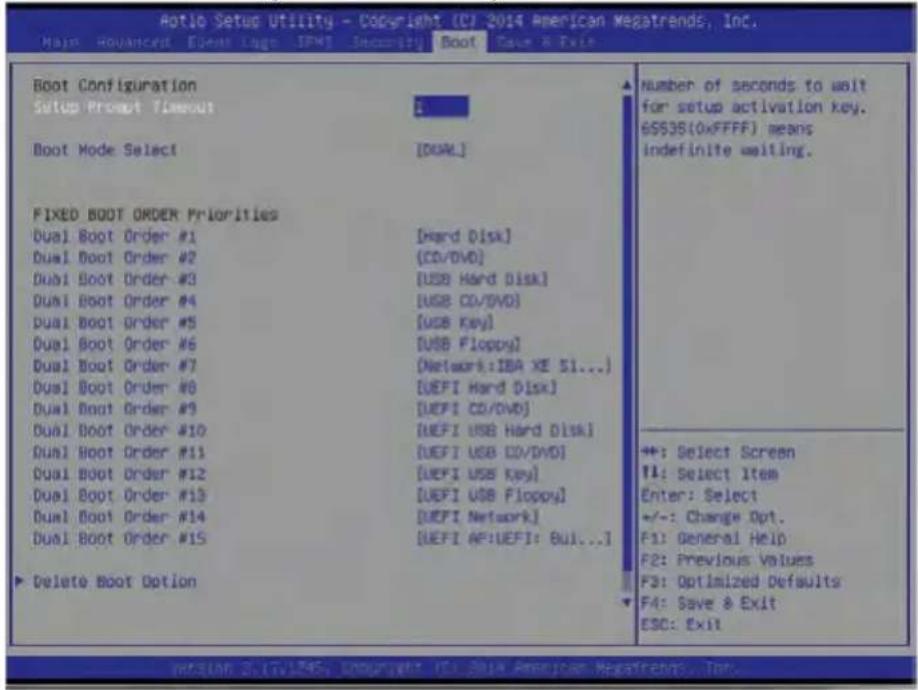

4-7 Boot Settings.... 4-37

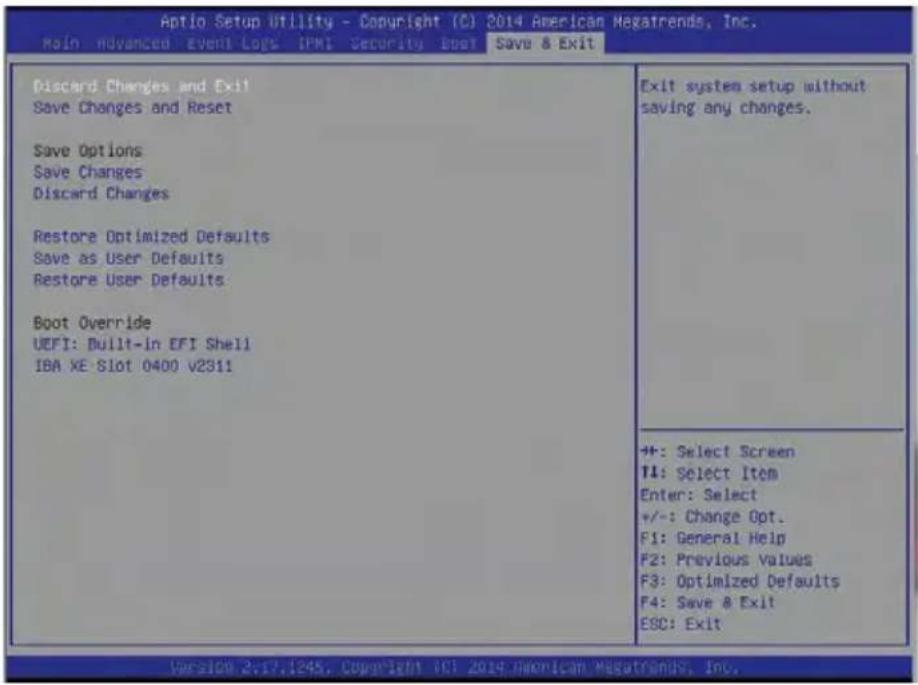

4-8 Save & Exit 4-39

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes ......A-1

Appendix B Software Installation Instructions

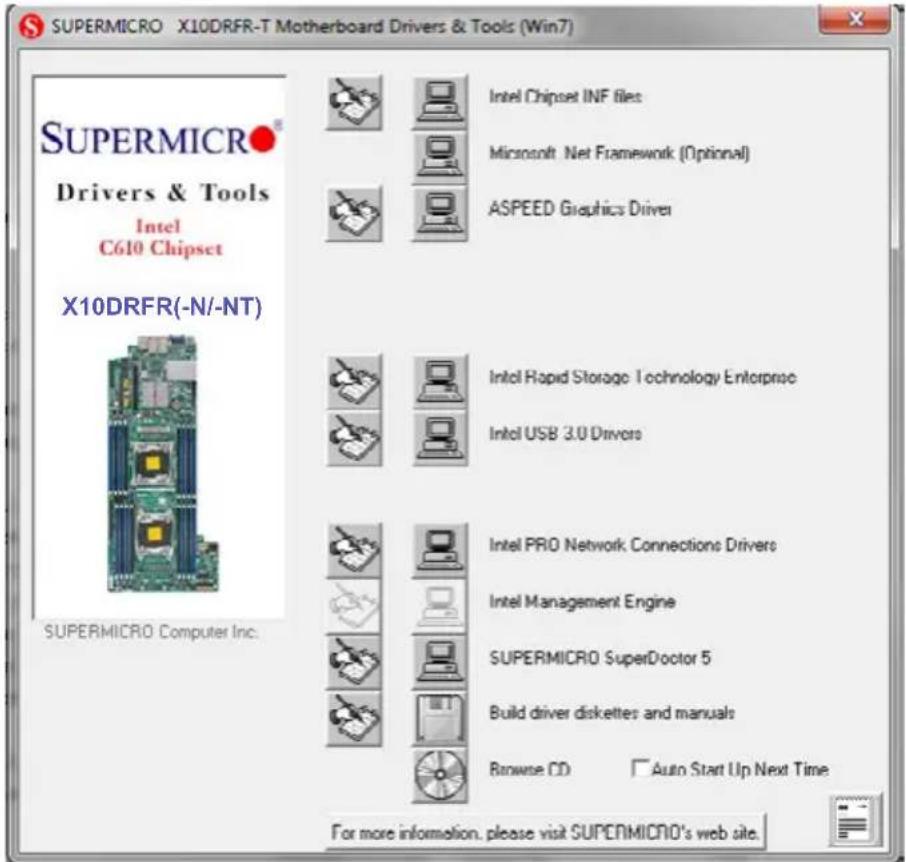

B-1 Installing Software Programs....B-1

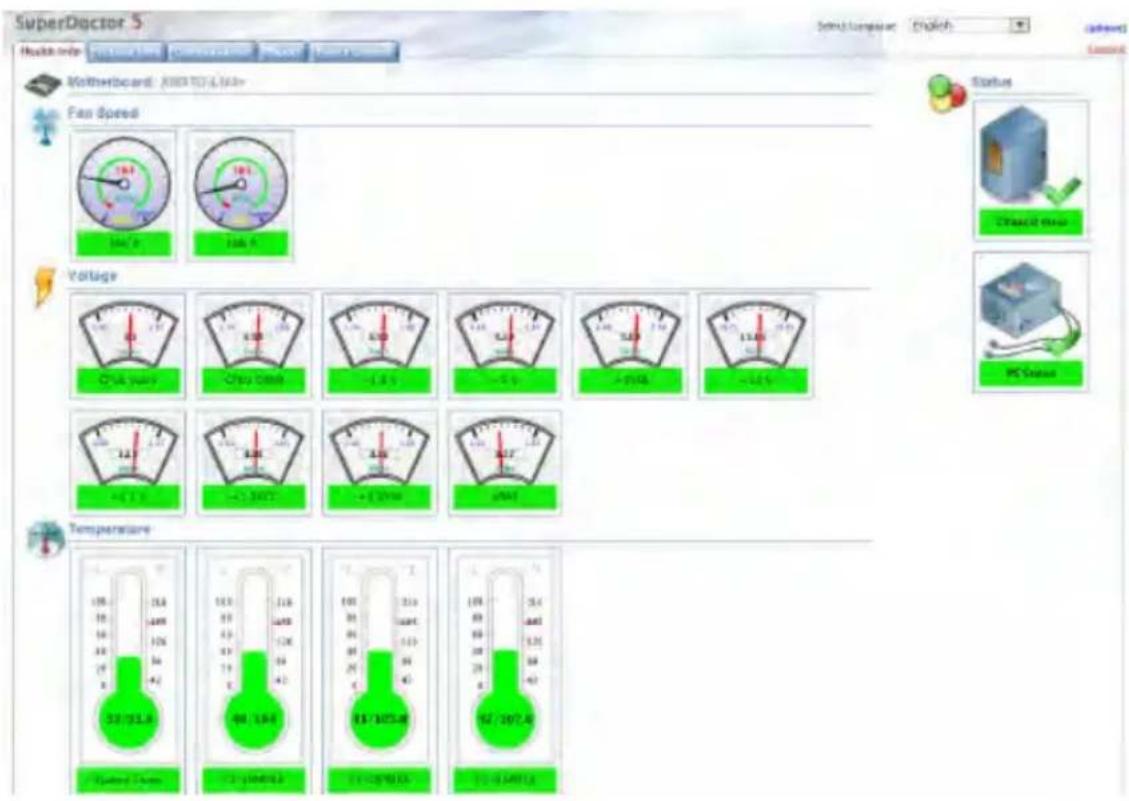

B-2 Configuring SuperDoctor 5 ...... B-2

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ......C-1
C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)......C-1

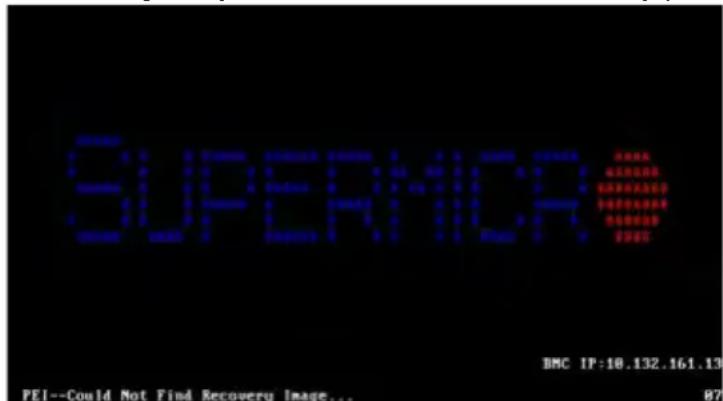

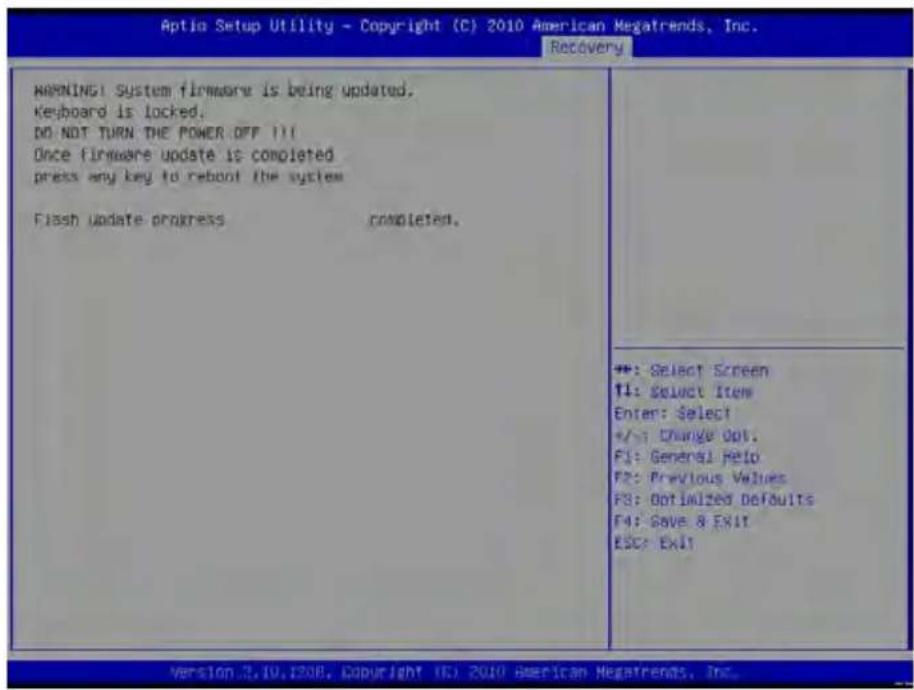

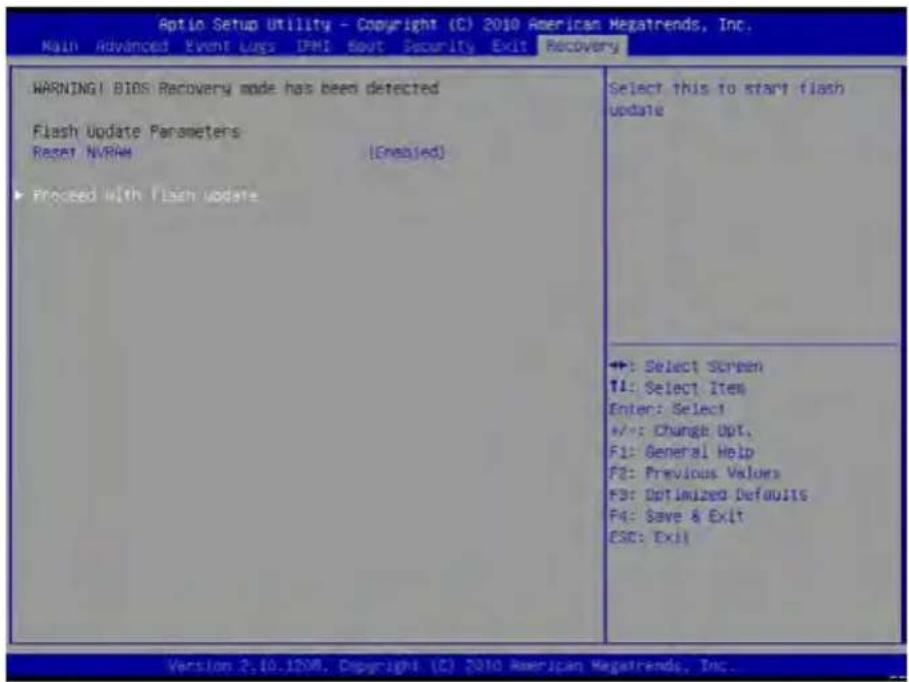

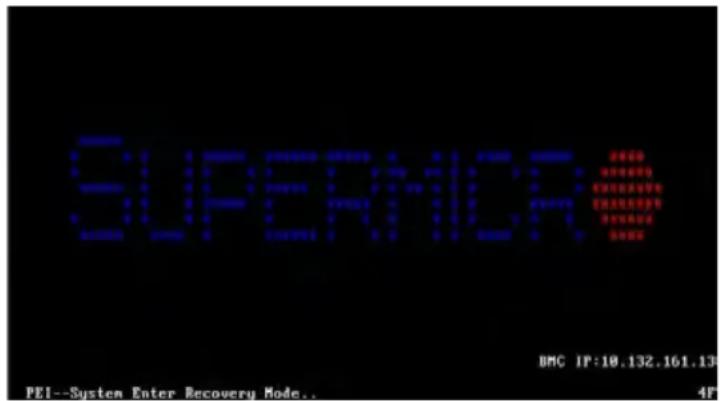

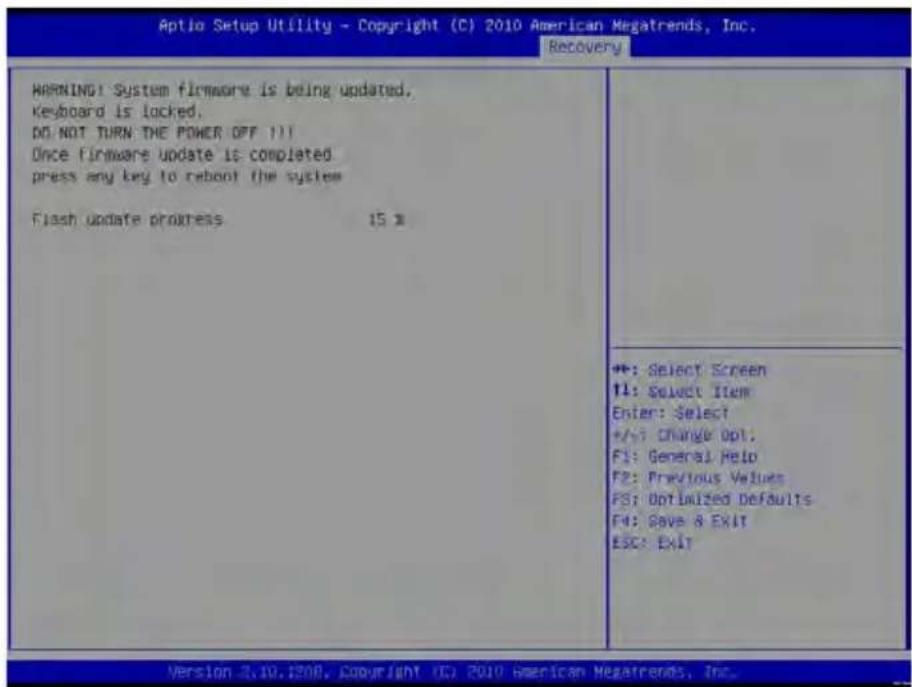

C-3 To Recover the Main BIOS Block Using a USB-Attached Device.....C-1

Chapter 1

Overview

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

The X10DRFR(-N/-NT) motherboard was designed to be used with a Supermicro-proprietary chassis as an integrated server platform. It is not to be used as a standalone product and will not be shipped independently in a retail box. No motherboard shipping package will be provided in your shipment.

Note 1: For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your motherboard.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
  • Product Drivers and utilities: ftp://ftp.supermicro.com/

Note 2: For safety considerations, please refer to the complete list of safety warnings posted on the Supermicro website at http://www.supermicro.com/about/policies/safety_information.cfm.

If you have any questions, please contact our support team at [e-mail].

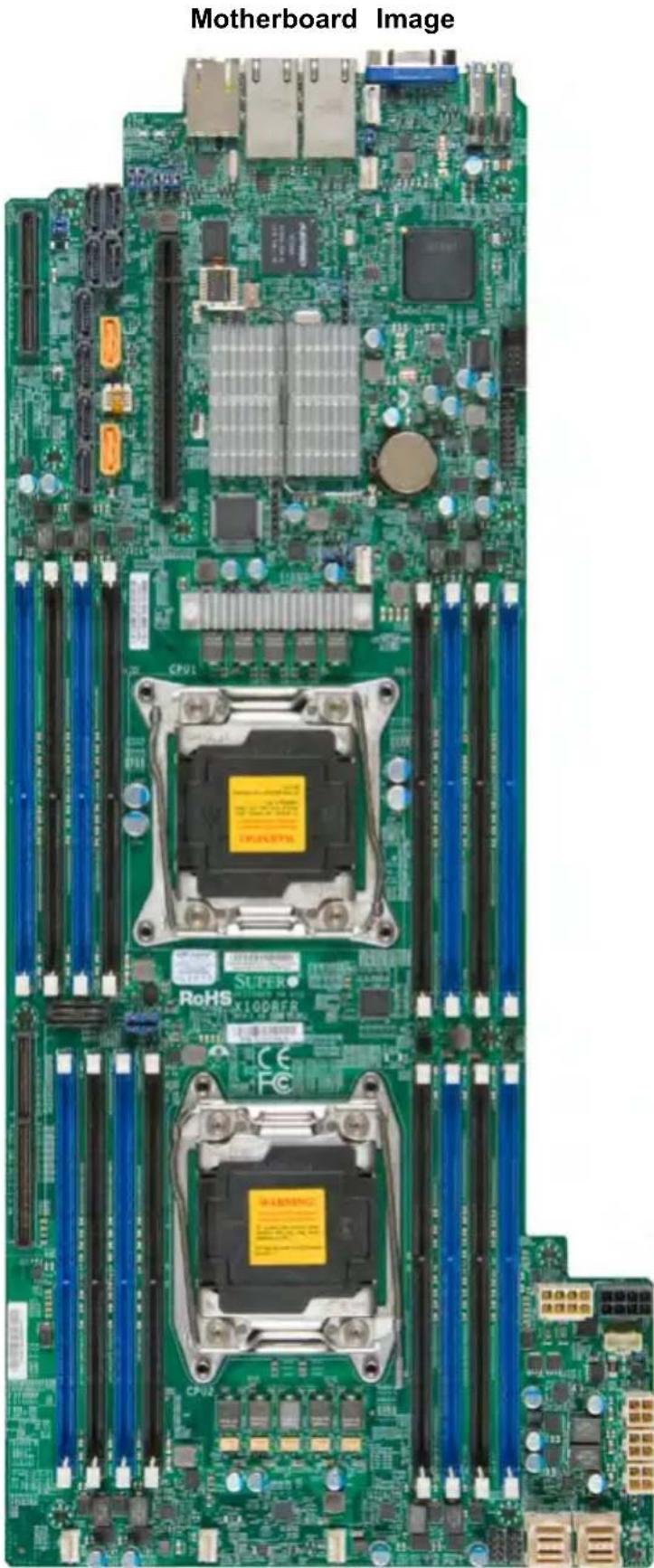

Green computer motherboard with multiple CPU and peripheral components, no visible text or symbols on the circuit itself.

Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics shown in this manual.

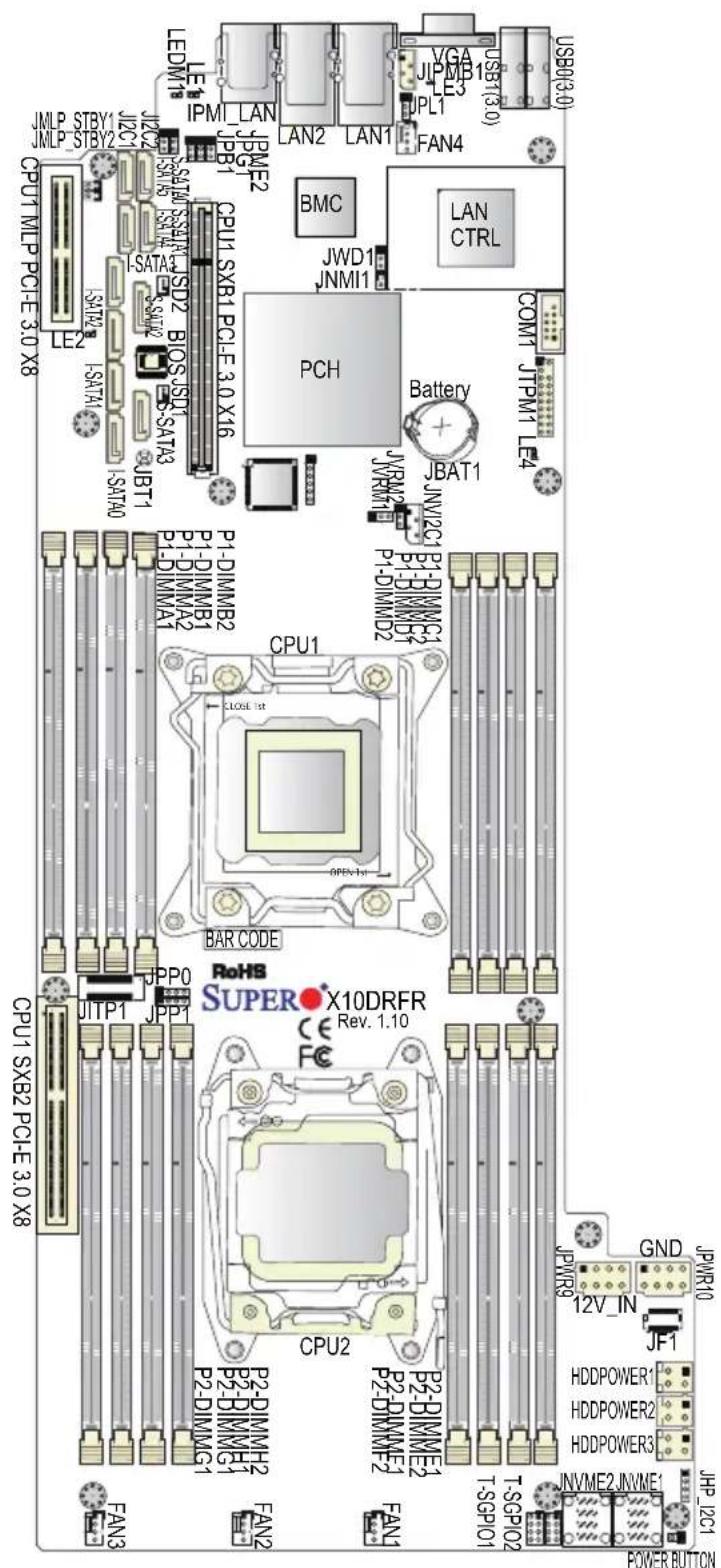

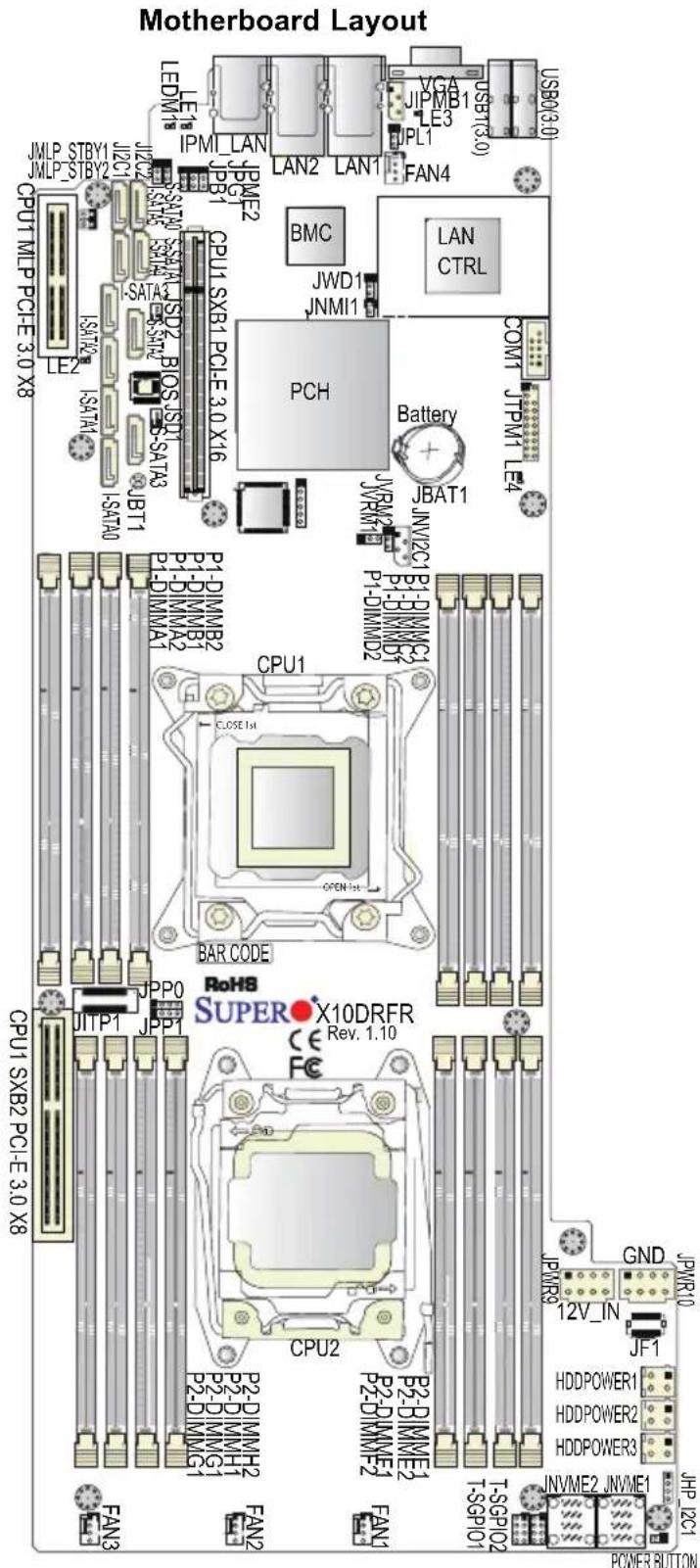

Motherboard Layout LE1a JMLP_STBY1 JMLP_STBY2 JU2C1 JLMT2 JLMT3 JLMT4 JLMT5 JLMT6 JLMT7 JLMT8 JLMT9 JLMT10 JLMT11 JLMT12 JLMT13 JLMT14 JLMT15 JLMT16 JLMT17 JLMT18 JLMT19 JLMT20 JLMT21 JLMT22 JLMT23 JLMT24 JLMT25 JLMT26 JLMT27 JLMT28 JLMT29 JLMT30 JLMT31 JLMT32 JLMT33 JLMT34 JLMT35 JLMT36 JLMT37 JLMT38 JLMT39 JLMT40 JLMT41 JLMT42 JLMT43 JLMT44 JLMT45 JLMT46 JLMT47 JLMT48 JLMT49 JLMT50 JLMT51 JLMT52 JLMT53 JLMT54 JLMT55 JLMT56 JLMT57 JLMT58 JLMT59 JLMT60 JLMT61 JLMT62 JLMT63 JLMT64 JLMT65 JLMT66 JLMT67 JLMT68 JLMT69 JLMT70 JLMT71 JLMT72 JLMT73 JLMT74 JLMT75 JLMT76 JLMT77 JLMT78 JLMT79 JLMT80 JLMT90 JLMT91 JLMT92 JLMT93 JLMT94 JLMT95 JLMT96 JLMT97 JLMT98 JLMT99 JLMT100 USB0/3.0 USB1/3.0 (0) USB2/3.0 USB3/3.0 (0) LAN 2 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LAN 1 LN M I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I N I L P M B L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L A L B C M C D E R T U V E X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x n m i n e r o p t h e l e f o r e d i n c t {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r {e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{e} n m i n e r{f} o u v y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o w y z o.w y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y s t s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s.s t-SCGPI01 T-SGPIO1 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO2 T-S GPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-SGPIO2 T-SGPIO3 T-SGPIO4 T-SGPIO5 T-SGPIO6 T-SGPIO7 T-SGPIO8 T-SGPIO9 T-SGPIO10 T-s GPio10 T-s GPio2 T-s GPio3 T-s GPio4 T-s GPio5 T-s GPio6 T-s GPio7 T-s GPio8 T-s GPio9 T-s GPio10 T-s GPio2 T-s GPio3 T-s GPio4 T-s GPio5 T-s GPio6 T-s GPio7 T-s GPio8 T-s GPio9 T-s GPio10 T-s GPio2 T-s GPio3 T-s GPio4 T-s GPio5 T-s GPio6 T-s GPio7 T-s GPio8 T-s GPio9 T-s GPio10 T's GPio10 T's GPio2 T's GPio3 T's GPio4 T's GPio5 T's GPio6 T's GPio7 T's GPio8 T's GPio9 T's GPio10T's GPio10T's GPio2T's GPio3T's GPio4T's GPio5T's GPio6T's GPio7T's GPio8T's GPio9T's GPio10T's GPio2T's GPio3T's GPio4T's GPio5T's GPio6T's GPio7T's GPio8T's GPio9T's GPio10T's GPio2T's GPio3T's GPio4T's GPio5T's GPio6T's GPio7T's GPio8T's GPio9T's GPio10T' SGPIO10T' SGPIO2T' SGPIO3T' SGPIO4T' SGPIO5T' SGPIO6T' SGPIO7T' SGPIO8T' SGPIO9T' SGPIO10T' SGPIO10T' SGPIO2T' SGPIO3T' SGPIO4T' SGPIO5T' SGPIO6T' SGPIO7T' SGPIO8T' SGPIO9T' SGPIO10T' SGPIO10T' SGPIO2T' SGPIO3T' SGPIO4T' SGPIO5T' SGP IOY HDP D P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W R P O W F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F Y F & CPU1 MLP PC-E 3.0X8 CPU2 CPU-SPB2 PCI-E 3.0X8 CPU3 CPU-SPB2 PCI-E 3.0X8 CPU4 CPU-SPB2 PCI-E 3.0X8 CPU5 CPU-SPB2 PCI-E 3.0X8 CPU6 CPU-SPB2 PCI-E 3.0X8 CPU7 CPU-SPB2 PCI-E 3.0X8 CPU8 CPU-SPB2 PCI-E 3.0X8 CPU9 CPU-SPB2 PCI-E 3.0X8 CPU10 CPU-SPB2 PCI-E 3.0X8 CPU11 CPU-SPB2 PCI-E 3.0X8 CPU12 CPU-SPB2 PCI-E 3.0X8 CPU13 CPU-SPB2 PCI-E 3.0X8 CPU14 CPU-SPB2 PCI-E 3.0X8 CPU15 CPU-SPB2 PCI-E 3.0X8 CPU16 CPU-SPB2 PCI-E 3.0X8 CPU17 CPU-SPB2 PCI-E 3.0X8 CPU18 CPU-SPB2 PCI-E 3.0X8 CPU19 CPU-SPB2 PCI-E 3.0X8 CPU20 CPU-SPB2 PCI-E 3.0X8 CPU21 CPU-SPB2 PCI-E 3.0X8 CPU22 CPU-SPB2 PCI-E 3.0X8 CPU23 CPU-SPB2 PCI-E 3.0X8 CPU24 CPU-SPB2 PCI-E 3.0X8 CPU25 CPU-SPB2 PCI-E 3.0X8 CPU26 CPU-SPB2 PCI-E 3.0X8 CPU27 CPU-SPB2 PCI-E 3.0X8 CPU28 CPU-SPB2 PCI-E 3.0X8 CPU29 CPU-SPB2 PCI-E 3.0X8 CPU30 CPU-SPB2 PCI-E 3.0X8 CPU31 CPU-SPB2 PCI-E 3.0X8 CPU32 CPU-SPB2 PCI-E 3.0X8 CPU33 CPU-SPB2 PCI-E 3.0X8 CPU34 CPU-SPB2 PCI-E 3.0X8 CPU35 CPU-SPB2 PCI-E 3.0X8 CPU36 CPU-SPB2 PCI-E 3.0X8 CPU37 CPU-SPB2 PCI-E 3.0X8 CPU38 CPU-SPB2 PCI-E 3.0X8 CPU39 CPU-SPB2 PCI-E 3.0X8 CPU40 CPU-SPB2 PCI-E 3.0X8 CPU41 CPU-SPB2 PCI-E 3.0X8 CPU42 CPU-SPB2 PCI-E 3.0X8 CPU43 CPU-SPB2 PCI-E 3.0X8 CPU44 CPU-SPB2 PCI-E 3.0X8 CPU45 CPU-SPB2 PCI-E 3.0X8 CPU46 CPU-SPB2 PCI-E 3.0X8 CPU47 CPU-SPB2 PCI-E 3.0X8 CPU48 CPU-SPB2 PCI-E 3.0X8 CPU49 CPU-SPB2 PCI-E 3.0X8 CPU50 CPU-SPB2 PCI-E 3.0X8 CPU51 CPU-SPB2 PCI-E 3.0X8 CPU52 CPU-SPB2 PCI-E 3.0X8 CPU53 CPU-SPB2 PCI-E 3.0X8 CPU54 CPU-SPB2 PCI-E 3.0X8 CPU55 CPU-SPB2 PCI-E 3.0X8 CPU56 CPU-SPB2 PCI-E 3.0X8 CPU57 CPU-SPB2 PCI-E 3.0X8 CPU58 CPU-SPB2 PCI-E 3.0X8 CPU59 CPU-SPB2 PCI-E 3.0X8 CPU60 CPU-SPB2 PCI-E 3.0X8 CPU61 CPU-SPB2 PCI-E 3.0X8 CPU62 CPU-SPB2 PCI-E 3.0X8 CPU63 CPU-SPB2 PCI-E 3.0X8 CPU64 CPU-SPB2 PCI-E 3.0X8 CPU65 CPU-SPB2 PCI-E 3.0X8 CPU66 CPU-SPB2 PCI-E 3.0X8 CPU67 CPU-SPB2 PCI-E 3.0xSAXAATICPU - [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] CPU - [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ][ ]

Notes:

1. For the latest CPU/Memory updates, please refer to our website at http://www.supermicro.com/products/motherboard/ for details.

2. Use only the correct type of onboard CMOS battery as specified by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.

Motherboard Quick Reference

LE IPM LAN JPMF2 JMD1 JNMI1 LAN LAN2 LAN1 VGA JPMB1 LE3 UPL1 (0.3.0) USB013.0 JMLP STBY1 JJC1 JMLP STBY2 CPU1 MLP PC-E 3.0 X8 LE2 SATAI SATAI SATAI SATAI BIOIS JDT SATAI JBT1 SATAI SATAI CPU1 SXB1 PC-E 3.0 X16 PCH JWDM2 JVRM1 JNMI2C1 JNMI1 JPM1 LE4 COMT JPM1 LE4 P1-DIMMB2 CPU1 P1-DIMMB1 P1-DIMMB3 P1-DIMMD2 P1-DIMMA2 P1-DIMMA1 BAR CODE RoHS SUPERX10DRFR Rev. 1.10 CPU1 SXB2 PC-E 3.0 X8 JPP0 JPP1 JITP1 CPU1 SXB2 PC-E 3.0 X8 FAN3 P2-DIMMH2 P2-DIMMH1 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMNC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMFC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMME2 P2-DIMMC1 P2-DIMME2 P2-DIMME1 P2-DIMMC2 P2-DIMME2 P2-DIMME1 P2-DIMMC3 P2-DIMME2 P2-DIMME1 P2-DIMMC3 P2-DIMME2 P2-DIMME1 P2-DIMMC4 P2-DIMME2 P2-DIMME1 P2-DIMMC5 P2-DIMME2 P2-DIMME1 P2-DIMMC6 P2-DIMME2 P2-DIMME1 P2-DIMMC7 P2-DIMME2 P2-DIMME1 P2-DIMMC8 P2-DIMME2 P2-DIMME1 P2-DIMMC9 P2-DIMME2 P2-DIMME1 P2-DIMMC10 P2-DIMME2 P2-DIMME1 P2-DIMMC11 P2-DIMME2 P2-DIMME1 P2-DIMMC14 P2-DIMME2 P2-DIMME1 P2-DIMMC15 P2-DIMME2 P2-DIMME1 P2-DIMMC16 P2-DIMME2 P2-DIMME1 P2-DIMMC17 P2-DIMME2 P2-DIMME1 P2-DIMMC18 P2-DIMME2 P2-DIMME1 P2-DIMMC19 P2-DIMME2 P2-DIMME1 P2-DIMMC30 P2-DIMME2 P2-DIMME1 P2-DINMFC30 P2-DINMFC30 PAPDPCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDCTCCTDTCCTTTCSTGPIO1 T-SCPIO0 T-SGPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SGPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SCGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SPICOLOEICOSCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECCEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEECEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEECSEEEE CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIEE CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE E CSECIE A CC DCGA B G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G S U V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V I V II U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U I N H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H H HH N N M N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N-NNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHNHHHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWHTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTHWWINTTNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no no No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NONO O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O S

Notes:

• See Chapter 2 for detailed information jumpers, I/O ports, connectors and expansion slots. "■" indicates the location of "Pin 1".
• Components/Jumpers/LED Indicators that are not documented in this manual are reserved for internal testing only.

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard Jumpers

Jumper	Description Default Setting
JBT1 Clear CMOS/Reset BIOS Configuration		See Chapter 2
JI2C1/JI2C2 SMB to PCI-E Slots Pins 2-3 (Normal)
JPB1 BMC Enable Pins 1-2 (Enabled)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPL1 (For X10DRFR(-N)	GLAN1/GLAN2 Enable Pins 1-2 (Enabled)
JPL1 (For X10DRFR-NT)	10G-LAN1/10G-LAN2 Enable Pins 1-2 (Enabled)
JPME2 Manufacture Mode (ME) Select Pins 1-2 (Normal)
JWD1 Watch Dog Pins 1-2 (Reset)

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard Connectors

Connectors Description
Battery	Onboard CMOS battery (JBAT1) (See the Note on P. 1-3.)
COM1	Serial Port/COM Port 1
CPU1 MLP_PCI-E 3.0x8	Micro Low_Profile (MLP) PCI-E 3.0 x8 slot supported by CPU1
CPU1_SXB_PCI-E 3.0x16	SXB1_PCI-E 3.0 x16 slot supported by CPU1
FAN1-FAN4	CPU/System Cooling Fan headers 1-4
HDDPOWER 1/2/3	HDD Power headers 1/2/3 (JPWR_HDD1/2/3)
JF1	SMCI-Proprietary multiple connections head w/PMBus, Hotswap I2C, LED signals, button signals, 5V standby power supported
JIPMB1	4-pin External BMC I2C header (for an IPMI card)
JNMI1	Non-Mask Interrupt header
JPTM1	TPM (Trusted Platform Module)/Port 80
JPWR9/JPWR10	8-pin Power Connector 9 (12V_in)/Power Connector 10 (Ground)
JNVME1/2	NVM Express PCI-E 3.0 x4 ports 1/2 (for X10DRFR-N/NT only)
JNVI2C1	System Management Bus (SMB) for NVM Express port (for X10DRFR-N/NT only)
LAN1/2	Gigabit (GLAN) Ethernet ports 1/2 (for X10DRFR(-N), 10G-LAN (TLAN) Ethernet ports 1/2 (for X10DRFR-NT)
(IPMI) LAN	IPMI_dedicated LAN port
Power-Button	Onboard power button

I-SATA0-5 I-SATA connectors 0-5 (supported by Intel PCH)

S-SATA0-3 S-SATA connectors 0-3, supported by Intel SCU (S-SATA2/3: used for Supermicro SuperDOMs (Devices-on-Module with built-in power pins)

T-SGPIO 1/2 Serial_link General Purpose I/O headers 1/2 (T-SGPIO1: for I-SATA0-5, T-SGPIO2: for S-SATA0-3)

USB0/USB1 (3.0) Back panel USB 3.0 ports (USB0/USB1)

VGA Back panel VGA port (JVGA1)

X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard LED Indicators
LED Description State

LE1

UID (Unit_Identifier) LED)

Blue: (On/Blinking) Unit identified

LE2 System Power Good LED On: System power on

LE3 SATA Activity LED Green (Blinking): SATA active

LE4 Standby Power Good LED On: Standby power on

LEDM1 BMC Heartbeat LED Green (Blinking): BMC Normal

Warning: Do not install the onboard battery upside down to avoid damaging the components or the motherboard. Also, be sure to follow the instructions given by your local hazardous materials management agency to properly dispose of the used battery for your safety.

Motherboard Features

CPU	Dual Intel® E5-2600 (v3/v4) processors (Socket R3 LGA 2011); each processor supports two full-width Intel QuickPath Interconnect (QPI) links (with Data Transfer Rate of up to 9.6 GT/s per QPI)[DACY] Notes: 1. E5-2600v4 requires Revision 2.0 BIOS (or higher). 2. E5-2600v3 is fully back-compatible with all BIOS revisions.
Memory	Integrated memory controller supports up to 1024 GB of Load Reduced (LRDIMM), and up to 512 GB of Registered (RDIMM) DDR4 (288-pin) ECC 2400/2133/1866/1600 MHz memory in 16 slotsNote: Memory speed support is pending on the processors installed in the system. For the latest CPU/memory updates, please refer to our website at http://www.supermicro.com/products/motherboard.
	DIMM Sizes
	64GB @ 1.20V
Chipset	Intel® PCH C612
Expansion Slots	One (1) Micro Low-Profile (MLP) PCI-Exp 3.0 x8 slot supported CPU1One (1) SXB1 PCI-Exp 3.0 x16 slot supported CPU1Two (2) NVMe Ports 1/2 (dual PCI-E 3.0 x 4 mini-SAS HD connectors) (X10DRFR-N/-NT)
Graphics	ASpeed AST2400 BMC Controller
Network	One Intel i350 Gigabit (10/100/1000 Mb/s) Ethernet Dual-Channel Controller for GLAN 1/GLAN 2 ports (for X10DRFR/X10DRFR-N)One Intel X540 10-Gigabit Ethernet Dual-Channel Controller for 10G-LAN (TLAN) 1/10G-LAN (TLAN) 2 ports (X10DRFR-NT)One IPMI-dedicated LAN supported by the AST2400 BMC
I/O Devices	SATA Connections
	• SATA 3.0	Six (6) SATA 3.0 Connections supported by Intel PCH (I-SATA0-5), Four (4) SATA 3.0 Connections supported by Intel SCU (S-SATA0-3), (S-SATA2/3: used with Supermicro's SuperDOMs (Device-on-Module) with power supply supported
	• RAID RAID	0, 1, 5, 10 (from Intel PCH)
	IPMI 2.0
	• IPMI 2.0 supported by the ASpeed 2400 BMC
	Serial (COM) Port
	• One (1) Fast UART 16550 Connection: 9-pin RS-232 port
	VGA
	• Rear VGA Port
Peripheral Devices	USB Devices
	• Two (2) USB 3.0 ports on the rear I/O panel (USB0/USB1)
BIOS	• 16 MB AMI SPI BIOS Flash ROM
	• DMI/DMI2 2.3, PCI 2.3, ACPI 2.0/3.0/4.0, USB Keyboard, Plug & Play (PnP), UEFI 2.3.1, and SMBIOS 2.7 or later
Power Config.	• ACPI Power Management
	• Main switch override mechanism
	• Power-on mode for AC power recovery
	• Intel Intelligent Power Node Manager (available when the Supermicro Power Manager [SPM] is installed)
	• Management Engine
	• Riser Card auto-detection
System Health Monitoring	System Health Monitoring
	• Onboard system health monitors for 1.2V, +3.3V, 3.3V Standby, +5V, +5V Standby, +12, chipset (PCH) voltage, memory voltage, BMC voltage, and battery voltage.
	CPU 6-Phase switching voltage regulator
	CPU/System overheat LED and control
	CPU Thermal Trip support
	Thermal Monitor 2 (TM2) support
	Fan Control
	Fan status monitoring with firmware 4-pin fan speed control
	Low noise fan speed control
	LED Indicators
	System/CPU Overheat LED
	Suspend-state LED
System Management	PECI (Platform Environment Configuration Interface) 2.0 support
	System resource alert via SuperDoctor® 5
	Thermal Monitor 2 (TM2) support
	SuperDoctor® 5, Watch Dog, NMI
	Chassis Intrusion Header and Detection
Dimensions	19.63" (L) x 8.53" (W) x (498.60 mm x 216.67 mm)

Note: For IPMI Configuration Instructions, please refer to the Embedded IPMI Configuration User's Guide available @ http://www.supermicro.com/support/manuals/.
    subgraph_System_1["Network"]
        A["Processor DDR4"] -->|P0-P3 P1 P2 ABAB CDDMI2| B["Processor DDR4"]
        B -->|QPI 9.6G| C["Processor DDR4"]
        C -->|P1 P0 P1 #1 #2 #3 DMI2| D["Processor DDR4"]
        D -->|QPI 9.6G| E["Processor DDR4"]
        E -->|P1 P0 P1 #1 #2 #3 NVME 1,2| F["Processor DDR4"]
        F -->|QPI 9.6G| G["Processor DDR4"]
        G -->|P1 P0 P1 #1 #2 #3 NVME 1,2| H["Processor DDR4"]
        H -->|QPI 9.6G| I["Processor DDR4"]
        I -->|P1 P0 P1 #1 #2 #3 NVME 1,2| J["Processor DDR4"]
        J -->|QPI 9.6G| K["Processor DDR4"]
        K -->|P1 P0 P1 #1 #2 #3 NVME 1,2| L["Processor DDR4"]
        L -->|QPI 9.6G| M["Processor DDR4"]
        M -->|P1 P0 P1 #1 #2 #3 NVME 1,2| N["Processor DDR4"]
        N -->|QPI 9.6G| O["Processor DDR4"]
        O -->|P1 P0 P1 #1 #2 #3 NVME 1,2| P["Processor DDR4"]
        P -->|QPI 9.6G| Q["Processor DDR4"]
        Q -->|P1 P0 P1 #1 #2 #3 NVME 1,2| R["Processor DDR4"]
        R -->|QPI 9.6G| S["Processor DDR4"]
        S -->|P1 P0 P1 #1 #2 #3 NVME 1,2| T["Processor DDR4"]
        T -->|QPI 9.6G| U["Processor DDR4"]
        U -->|P1 P0 P1 #1 #2 #3 NVME 1,2| V["Processor DDR4"]
        V -->|QPI 9.6G| W["Processor DDR4"]
        W -->|P1 P0 P1 #1 #2 #3 NVME 1,2| X["Processor DDR4"]
        X -->|QPI 9.6G| Y["Processor DDR4"]
        Y -->|P1 P0 P1 #1 #2 #3 NVME 1,2| Z["Processor DDR4"]
        Z -->|QPI 9.6G| AA["Processor DDR4"]
        AA -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AB["Processor DDR4"]
        AB -->|QPI 9.6G| AC["Processor DDR4"]
        AC -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AD["Processor DDR4"]
        AD -->|QPI 9.6G| AE["Processor DDR4"]
        AE -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AF["Processor DDR4"]
        AF -->|QPI 9.6G| AG["Processor DDR4"]
        AG -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AH["Processor DDR4"]
        AH -->|QPI 9.6G| AI["Processor DDR4"]
        AI -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AJ["Processor DDR4"]
        AJ -->|QPI 9.6G| AK["Processor DDR4"]
        AK -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AL["Processor DDR4"]
        AL -->|QPI 9.6G| AM["Processor DDR4"]
        AM -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AN["Processor DDR4"]
        AN -->|QPI 9.6G| AO["Processor DDR4"]
        AO -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AP["Processor DDR4"]
        AP -->|QPI 9.6G| AQ["Processor DDR4"]
        AQ -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AR["Processor DDR4"]
        AR -->|QPI 9.6G| AS["Processor DDR4"]
        AS -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AT["Processor DDR4"]
        AT -->|QPI 9.6G| AU["Processor DDR4"]
        AU -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AV["Processor DDR4"]
        AV -->|QPI 9.6G| AW["Processor DDR4"]
        AW -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AX["Processor DDR4"]
        AX -->|QPI 9.6G| AY["Processor DDR4"]
        AY -->|P1 P0 P1 #1 #2 #3 NVME 1,2| AZ["Processor DDR4"]
        AZ -->|QPI 9.6G| BA["Processor DDR4"]
        BA -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BB["Processor DDR4"]
        BB -->|QPI 9.6G| BC["Processor DDR4"]
        BC -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BD["Processor DDR4"]
        BD -->|QPI 9.6G| BE["Processor DDR4"]
        BE -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BF["Processor DDR4"]
        BF -->|QPI 9.6G| BG["Processor DDR4"]
        BG -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BH["Processor DDR4"]
        BH -->|QPI 9.6G| BI["Processor DDR4"]
        BI -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BJ["Processor DDR4"]
        BJ -->|QPI 9.6G| BK["Processor DDR4"]
        BK -->|P1 P0 P1 #1 #2 #3 NVME 1,2| BL["Processor DDR4"]
        BL -->|QPI 9.6G| BM["Processor DDR4"]
    end

    subgraph System_Series
        CA["BMC AST2400"] --> CB["RGRMII"] --> DC["BMC AST2400"] --> DC
    end

    subgraph Components
        DD["RJ45"] --> DJ["LAN3 RTL821E-VB-CG"] --> DC
        DD_RDR3 --> DS["BMC Boot Flash"] --> DC
        DD_BIOS --> DS
        DD_VGA_CONN --> DS
        DD_PTemp Sensor_W83773G --> DC
    end

    subgraph Systems_Finewables
        DB["MICROLP SLOT SBX"] --> DC
    end

    subgraph Systems_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewables
        DB_BIOS --> DC
    end

    subgraph Systems_Finewables
        DB_PTemp Sensor_W83773G --> DC
    end

    subgraph Systems_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewables
        DB_BIOS --> DC
    end

    subgraph Systems_Finewables
        DB_PTemp Sensor_W83773G --> DC
    end

    subgraph Systems_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series_Finewables_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series_Finewables_Finewables_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series_Finewables_Finewables_Finewables_Finewables
        DB_RDR3 --> DC
    end

    subgraph Systems_Finewable_Series_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewable_Series
    end

    subgraph Systems_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewables_Finewable_Series
    end

    subgraph Systems_Finewables_Finewables_Finewables_Finewables_FInewable_Series
    end

    subgraph Systems_Finewable_Series_Finewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_FInewable_Series_Archments
    end

    subgraph Systems_Finewable_Series_FInewable_Series_Archments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Brchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Crchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Drchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Erchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_FInewable_Series_Nrchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Prchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Prchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Prchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Prchments
    end

    subgraph Systems_FInewable_Series_FInewable_Series_Prchments
    end

    note left of A: MICROLP_SLOT,SXX_IGR
    note right of B: PCI-E X8_G3
    note left of C: LAN_I350_X540
    note right of D: RMII/NCSI
    note left of E: PACI-E X8_G3
    note right of F: USB_2.0
    note left of G: PACI-E X8_G3
    note right of H: USB_3.0
    note left of I: PACI-E X8_G3
    note right of J: USB_3.0
    note right of K: USB_3.0
    note left of L: PACI-E X8_G3
    note right of M: USB_3.0

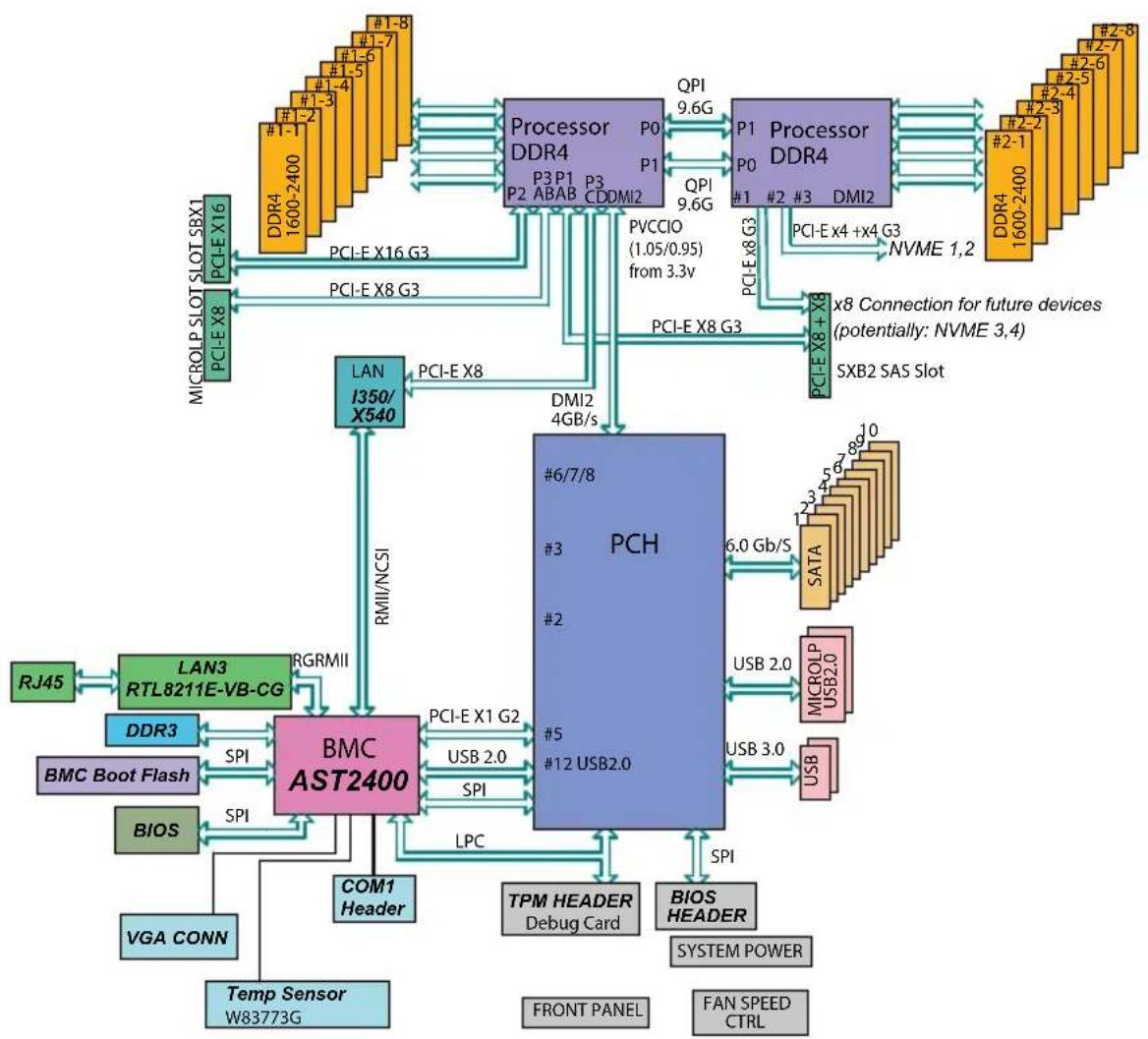

System Block Diagram

Notes: 1. This is a general block diagram and may not exactly represent the features on your motherboard. See the Motherboard Features pages for the actual specifications of each motherboard. 2. This block diagram is provided for your reference only.

1-2 Processor and Chipset Overview

Built upon the functionality and capability of the Intel E5-2600 (v3/v4) processors (Socket R3) and the Intel C612 PCH, the X10DRFR(-N/-NT) motherboard provides the best-balanced solution for performance, power efficiency, and features to address the diverse needs of next-generation Enterprise (4U) FatTwin server platforms.

With support of new Intel Microarchitecture 22nm (E5-2600v3)/14nm (E5-2600v4) Process Technology, the X10DRFR(-N/-NT) motherboard dramatically increases system performance.

The PCH C612 chip provides Enterprise SMbus and MCTP support, including the following features:

• DDR4 288-pin memory support on Socket R3
• Support for MCTP Protocol and ME
• Support of SMBus speeds of up to 1 MHz for BMC connectivity
- Improved I/O capabilities to high-storage-capacity configurations
- Embedded Platform
- SPI Enhancements with address space large enough for 2x BIOS
- BMC supports remote management, virtualization, and the security package for enterprise platforms

Notes:

1. E5-2600v4 requires Revision 2.0 BIOS (or higher).
2. E5-2600v3 is fully backward-compatible with all BIOS revisions.

1-3 Special Features

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1-4 System Health Monitoring

This section describes the features of system health monitoring of the motherboard. This motherboard has an onboard BaseBoard Management Controller (BMC) chip that supports system health monitoring. An onboard voltage monitor will scan the following onboard voltages continuously: +1.2V, +3.3V, 3.3V Standby, +5V, +5V Standby, +12V, CPU core, memory, chipset, BMC, and battery voltages. Once a voltage becomes unstable, a warning is given, or an error message is sent to the screen. The user can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

The system health monitoring support provided by the BMC controller can check the RPM status of a cooling fan. The onboard CPU and chassis fans are controlled by the thermal management via the onboard BMC.

Environmental Temperature Control

System-Health sensors monitor temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

Note: To avoid possible system overheating, please be sure to provide adequate airflow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range.

1-5 ACPI Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

In addition to enabling operating_system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play, and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures, while providing a processor architecture-independent implementation that is compatible with Windows 7, Windows 8/R2, and Windows 2012/R2 operating systems.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

1-7 Advanced Power Management

The following new advanced power management features are supported by the motherboard.

Intel® Intelligent Power Node Manager (NM) (Available when the Supermicro Power Manager [SPM] is installed)

The Intel ^® Intelligent Power Node Manager (IPNM) provides your system with real-time thermal control and power management for maximum energy efficiency. Although IPNM Specification Version 1.5/2.0 is supported by the BMC (BaseBoard Management Controller), your system must also have IPNM-compatible Management Engine (ME) firmware installed to use this feature.

Note: Support for IPNM Specification Version 1.5 or Vision 2.0 depends on the power supply used in the system.

Management Engine (ME)

The Management Engine, which is an ARC controller embedded in the IOH (I/O Hub), provides Server Platform Services (SPS) to your system. The services provided by SPS are different from those provided by the ME on client platforms.

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components in the Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

2-2 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To avoid possible damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure that your system chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure that the person handling it is static protected.

2-3 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly. Then use a screwdriver to secure the motherboard onto the motherboard tray.

Tools Needed

• Phillips Screwdriver
• Pan head screws (11 pieces)
• Standoffs (11 pieces, if needed)

Technical line drawing of a screwdriver and two threaded fasteners (no text or symbols)

Location of Mounting Holes

There are eleven (11) mounting holes on this motherboard indicated by the arrows.

SUPER X10DRFR Rev. 1.10 CE FE

Caution: 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to prevent damage to these components when installing the motherboard to the chassis.

Installing the Motherboard

Note: Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Install the I/O shield into the chassis.

1. Locate the mounting holes on the motherboard.

Line drawing of a technical enclosure or rack unit with ventilation and control panel (no text or symbols)

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

2. Install standoffs in the chassis as needed.

Chassis Chassis

1. Install the motherboard into the chassis carefully to avoid damaging motherboard components.

2. Using the Phillips screwdriver, insert a Pan head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.

Motherboard Chassis Motherboard Chassis

1. Repeat Step 5 to insert #6 screws into all mounting holes.

2. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are is for illustration only. Your chassis or components might look different from those shown in this manual.

2-4 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area. Also, improper CPU installation or socket/pin misalignment can cause serious damage to the CPU or the motherboard that will require RMA repairs. Be sure to read and follow all instructions thoroughly before installing your CPU and heatsink.

Notes:

• Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an Intel-certified multi-directional heatsink only.
• Make sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place, and none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the Supermicro website for updates on CPU support.

Installing the LGA2011 Processor

1. There are two load levers on the LGA2011 socket. To open the socket cover, first press and release the load lever labeled 'Open 1st'.

1 LGA2011-3 (LGA2011-3-Narrow) Press down on Load Lever labeled 'Open 1st'. 2 HANNAVG OPEN 1st

Note: the graphics provided in the manual are for illustration only. Your components may or may not look the same as the ones shown in this manual.

1. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position.

1

Press down on the Load Lever labeled 'Close 1st'.

2 Pull the lever away from the socket.

Quick 1m WARNING Open 1m

1. With the 'Close 1st' lever fully retracted, gently push down on the lever labeled 'Open 1st' to open the load plate. Lift the load plate to open it completely.

Gently push down the load lever to pop open the load plate. 1 2

1. Using your thumb and the index finger, remove the 'WARNING' plastic cap from the socket.

WARNING!

1. Use your thumb and index finger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys.

Socket Keys CPU Keys

1. Once they are aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on the socket. Do not move the CPU horizontally or vertically. Do not rub the CPU against the surface or against any pins of the socket to avoid damaging the CPU or the socket.)

Technical line drawing of a mechanical component with mounting holes and mounting brackets (no text or symbols)

Warning: You can only install the CPU inside the socket in one direction. Make sure that it is properly inserted into the CPU socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

1. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed.
2. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' first, then lock the lever labeled 'Open 1st' lever second. Use your thumb to gently push the load levers down to the lever locks.

1 Gently close the load plate.

Technical line drawing of a mechanical component with mounting holes and a curved arrow indicating direction (no text or symbols)

2 Push down and lock lever labeled 'Close 1st'.

0.258 in 0.058 in

3 Lever Lock Push down and lock the lever labeled 'Open 1st.' Open In

4 Open/Int Open/Int Lever Lock

Installing a Passive Heatsink

1. Apply the proper amount of thermal grease to the heatsink.

2. Place the heatsink on top of the CPU so that the two mounting holes on the heatsink are aligned with those on the retention mechanism.

3. Insert two push-pins on the sides of the heatsink through the mounting holes on the motherboard, and turn the push-pins clockwise to lock them.

Screw#1 Screw#3 Screw#4 Screw#2 Direction of Airflow

Note: For optimized airflow, please follow your chassis airflow direction to properly install the heatsink. Graphics included in this manual are for reference only. They might look different from the components installed in your system.

Removing the Passive Heatsink

Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to uninstall the heatsink to avoid damaging the CPU or other components.

1. Unplug the power cord from the power supply.
2. Press down the push-pin on the heatsink, and turn counter-clock-wise to loosen it. Repeat the same step to loosen the second push-pin.
3. Hold the heatsink as shown in the picture below, and gently wriggle the heatsink to loosen it. (Do not use excessive force when wriggling the heatsink.)

Illustration of a hand pressing down on a heatsink component (no text or symbols visible)

Technical illustration of a heat sink assembly with a magnified view of the internal structure (no text or symbols)

1. Once the heatsink is loosened, remove it from the motherboard.

2-5 Installing and Removing the Memory Modules

Note: Check Supermicro's website for recommended memory modules.

CAUTION

Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Installing & Removing DIMMs

1. Insert the desired number of DIMMs into the memory slots, starting with P1-DIMMA1. (For best performance, please use the memory modules of the same type and speed in the same bank.)

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

Floor plan diagram of a computer room with green structural elements and no visible text or labels

Diagram of a mechanical assembly with cylindrical components and a rectangular housing (no text or symbols)

Notches Release Tabs

1. Align the key of the DIMM module with the receptive point on the memory slot.

2. Align the notches on both ends of the module against the receptive points on the ends of the slot.

3. Use two thumbs together to press the notches on both ends of the module straight down into the slot until the module snaps into place.

4. Press the release tabs to the locking positions to secure the DIMM module into the slot.

Press both notches straight down into the memory slot at the same time.

Illustration of hands holding a 32-pin HNERTROM chip (no text or symbols visible)

Removing Memory Modules

Press the release tabs on both ends of the memory module to unlock it. Once it is loosened, remove the DIMM module from the memory slot.

Memory Support for the X10DRFR(-N/-NT) Motherboard

The X10DRFR(-N/-NT) motherboard supports up to 1024 GB of Load Reduced (LRDIMM), and up to 512 GB of Registered (RDIMM) DDR4 (288-pin) ECC 2400/2133/1866/1600 MHz memory in 16 slots

Note: Memory speed support is pending on the processors installed in the system. For the latest CPU/memory updates, please refer to our website at http://www.supermicro.com/products/motherboard.

Processor & Memory Module Population Configuration

For memory to work properly, follow the tables below for memory installation.

Processors and their Corresponding Memory Modules
CPU# Corresponding DIMM Modules
CPU 1 P1-DIMMA1	P1-DIMMB1	P1-DIMMC1	P1-DIMMD1	P1-DIMMA2	P1-DIMMB2	P1-DIMMC2	P1-DIMMD2
CPU2 P2-DIMME1	P2-DIMMF1	P2-DIMMG1	P2-DIMMH1	P2-DIMME2	P2-DIMM F2	P2-DIMMG2	P2-DIMMH2

Processor and Memory Module Population for Optimal Performance
Number of CPUs+DIMMs	CPU and Memory Population Configuration Table(For memory to work properly, please follow the instructions below.)
1 CPU & 2 DIMMs	CPU1P1-DIMMA1/P1-DIMMB1
1 CPU & 4 DIMMs	CPU1P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU & 5~8 DIMMs	CPU1P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots
2 CPUs & 4 DIMMs	CPU1 + CPU2P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs & 6 DIMMs	CPU1 + CPU2P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs & 8 DIMMs	CPU1 + CPU2P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
2 CPUs & 9~16 DIMMs	CPU1/CPU2P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots
2 CPUs & 16 DIMMs	CPU1/CPU2P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2

Populating DIMM Memory Modules for E5-2600v3-based Motherboards

Type	Ranks Per DIMM and Data Width	DIMM Capacity (GB)		Speed (MT/s); Voltage (V); Slot Per Channel (SPC) and DIMM Per Channel (DPC)
				2 Slots Per Channel
				1DPC 2DPC
		4Gb 8Gb		1.2V 1.2V
RDIMM	SRx4 8GB 16GB			2133 1866
RDIMM	SRx8 4GB 8GB			2133 1866
RDIMM	DRx8 8GB 16GB			2133 1866
RDIMM	DRx4 16GB 32GB			2133 1866
LRDIMM	QRx4 32GB 64GB			2133 2133
LRDIMM 3DS^†	8Rx4 64GB 128GB			2133 2133

Populating DIMM Memory Modules for E5-2600v4-based Motherboards

Type	Ranks Per DIMM and Data Width	DIMM Capacity (GB)		Speed (MT/s); Voltage (V); Slot Per Channel (SPC) and DIMM Per Channel (DPC)
				2 Slots Per Channel
				1DPC 2DPC1.2V	1.2V
		4Gb 8Gb
RDIMM	SRx4 8GB 16GB			2400	2133
RDIMM	SRx8 4GB 8GB			2400	2133
RDIMM	DRx8 8GB 16GB			2400	2133
RDIMM	DRx4	16GB 32GB		2400	2133
LRDIMM	QRx4 32GB	64GB		2400	2400
LRDIMM 3DS	8Rx4	64GB 128GB		2400	2400

2-6 Control Panel Connectors and I/O Ports

The I/O ports are color coded in conformance with the industry standards. See the picture below for the locations of the various I/O ports.

Back Panel Connectors and I/O Ports

LE IPM1 LAN LAN2 LAN LAN3 PCH JWYD JWM1 LAN CTRL BMC PCH Battery JBAT1 CPU1 CPU2 S&P500 SUPER X10DRER CPU1 CPU2 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P500 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 S&P100 CPIPULPCX89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89X89N ①②③④⑤⑥

Back Panel I/O Port Locations and Definitions

1. Back panel USB 3.0 Port 0

2. Back panel USB 3.0 Port 1

3. Back panel VGA (Blue)

4. GLAN Port 1 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for X10DRFR-NT)

5. GLAN Port 2 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for X10DRFR-NT)

6. IPMI_Dedicated LAN

Universal Serial Bus (USB)

Two Universal Serial Bus (USB) 3.0 ports are located on the I/O back panel. Connect USB cables to use USB ports 0/1. (Cables are not included.) See the tables on the right for pin definitions.

Back Panel USB(USB 3.0 0/1)Pin Definitions
Pin#	Definition
1 +5V
2 PO-
3 PO+
4 Ground
5	NA

Video Connector

A Video (VGA) connector is located next to USB Port 1 on the IO back panel. This connector is used to provide video to your monitor display. Refer to the board layout below for the location.

1. USB (3.0) 0 2. USB (3.0) 1 3. VGA CPU1/USB(3.0) 0 CPU2/USB(3.0) 1 CPU3/USB(3.0) 2 CPU4/USB(3.0) 3 CPU5/USB(3.0) 4 CPU6/USB(3.0) 5 CPU7/USB(3.0) 6 CPU8/USB(3.0) 7 CPU9/USB(3.0) 8 CPU10/USB(3.0) 9 CPU11/USB(3.0) 10 CPU12/USB(3.0) 11 CPU13/USB(3.0) 12 CPU14/USB(3.0) 13 CPU15/USB(3.0) 14 CPU16/USB(3.0) 15 CPU17/USB(3.0) 16 CPU18/USB(3.0) 17 CPU19/USB(3.0) 18 CPU20/USB(3.0) 19 CPU21/USB(3.0) 20 CPU22/USB(3.0) 21 CPU23/USB(3.0) 22 CPU24/USB(3.0) 23 CPU25/USB(3.0) 24 CPU26/USB(3.0) 25 CPU27/USB(3.0) 26 CPU28/USB(3.0) 27 CPU29/USB(3.0) 28 CPU30/USB(3.0) 29 CPU31/USB(3.0) 30 CPU32/USB(3.0) 31 CPU33/USB(3.0) 32 CPU34/USB(3.0) 33 CPU35/USB(3.0) 34 CPU36/USB(3.0) 35 CPU37/USB(3.0) 36 CPU38/USB(3.0) 37 CPU39/USB(3.0) 38 CPU40/USB(3.0) 39 CPU41/USB(3.0) 40 CPU42/USB(3.0) 41 CPU43/USB(3.0) 42 CPU44/USB(3.0) 43 CPU45/USB(3.0) 44 CPU46/USB(3.0) 45 CPU47/USB(3.0) 46 CPU48/USB(3.0) 47 CPU49/USB(3.0) 48 CPU50/USB(3.0) 49 CPU51/USB(3.0) 50 CPU52/USB(3.0) 51 CPU53/USB(3.0) 52 CPU54/USB(3.0) 53 CPU55/USB(3.0) 54 CPU56/USB(3.0) 55 CPU57/USB(3.0) 56 CPU58/USB(3.0) 57 CPU59/USB(3.0) 58 CPU60/USB(3.0) 59 CPU61/USB(3.0) 60 CPU62/USB(3.0) 61 CPU63/USB(3.0) 62 CPU64/USB(3.0) 63 CPU65/USB(3.0) 64 CPU66/USB(3.0) 65 CPU67/USB(3.0) 66 CPU68/USB(3.0) 67 CPU69/USB(3.0) 68 CPU70/USB(3.0) 69 CPU71/USB(3.0) 70 CPU72/USB(3.0) 71 CPU73/USB(3.0) 72 CPU74/USB(3.0) 73 CPU75/USB(3.0) 74 CPU76/USB(3.0) 75 CPU77/USB(3.0) 76 CPU78/USB(3.0) 77 CPU79/USB(3.0) 78 CPU80/USB(3.0) 79 CPU81/USB(3.0) 80 CPU82/USB(3.0) 81 CPU83/USB(3.0) 82 CPU84/USB(3.0) 83 CPU85/USB(3.0) 84 CPU86/USB(3.0) 85 CPU87/USB(3.0) 86 CPU88/USB(3.0) 87 CPU89/USB(3.0) 88 CPU90/USB(3.0) 89 CPU91/USB(3.0) 90 CPU92/USB(3.0) 91 CPU93/USB(3.0) 92 CPU94/USB(3.0) 93 CPU95/USB(3.0) 94 CPU96/USB(3.0) 95 CPU97/USB(3.0) 96 CPU98/USB(3.0) 97 CPU99/USB(3.0) 98 CPU100/USB(3.0) CNC DND JNORO JF1 DDOPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDPONER HDpDQOL PCNERE TION #①②③

Ethernet Ports

Two Ethernet ports (LAN1/2) are located on the I/O back panel on the motherboard. These two LAN ports support Gigabit LAN connections on the X10DRFR(-N), and 10-Gigabit LAN (TLAN) connections on the X10DRFR-NT. In addition, an IPMI_Dedicated LAN is located next to LAN 2 on the back panel to provide IPMI/KVM support for the motherboard. All these ports accept RJ45 type cables. (Note: Please refer to the LED Indicator Section for LAN LED information.)

LAN PortsPin Definition

Pin# Definition

1 P2V5SB 10 SGND

2 TD0+ 11 Act LED

3 TD0- 12 P3V3SB

4 TD1+ 13 Link 100 LED (Yel-low, +3V3SB)

5 TD1- 14 Link 1000 LED(Yellow, +3V3SB)

6 TD2+ 15 Ground

7 TD2- 16 Ground

8 TD3+ 17 Ground

9 TD3- 18 Ground

(NC: No Connection)

CPU1/8623-PCLE 5.0.0X SUPER X10DRER CPU2 P2 DIMMH1 P2 DIMMH2 P2 DIMMH3 P2 DIMMH4 P2 DIMMH5 P2 DIMMH6 P2 DIMMH7 P2 DIMMH8 P2 DIMMH9 P2 DIMMH10 P2 DIMMH11 P2 DIMMH12 P2 DIMMH13 P2 DIMMH14 P2 DIMMH15 P2 DIMMH16 P2 DIMMH17 P2 DIMMH18 P2 DIMMH19 P2 DIMMH20 P2 DIMMH21 P2 DIMMH22 P2 DIMMH23 P2 DIMMH24 P2 DIMMH25 P2 DIMMH26 P2 DIMMH27 P2 DIMMH28 P2 DIMMH29 P2 DIMMH30 P2 DIMMH31 P2 DIMMH32 P2 DIMMH33 P2 DIMMH34 P2 DIMMH35 P2 DIMMH36 P2 DIMMH37 P2 DIMMH38 P2 DIMMH39 P2 DIMMH40 P2 DIMMH41 P2 DIMMH42 P2 DIMMH43 P2 DIMMH44 P2 DIMMH45 P2 DIMMH46 P2 DIMMH47 P2 DIMMH48 P2 DIMMH49 P2 DIMMH50 P2 DIMMH51 P2 DIMMH52 P2 DIMMH53 P2 DIMMH54 P2 DIMMH55 P2 DIMMH56 P2 DIMMH57 P2 DIMMH58 P2 DIMMH59 P2 DIMMH60 CPU1 CPUB1 CPUB2 CPUB3 CPUB4 CPUB5 CPUB6 CPUB7 CPUB8 CPUB9 CPUB10 CPUB11 CPUB12 CPUB13 CPUB14 CPUB15 CPUB16 CPUB17 CPUB18 CPUB19 CPUB20 CPUB21 CPUB22 CPUB23 CPUB24 CPUB25 CPUB26 CPUB27 CPUB28 CPUB29 CPUB30 CPUB31 CPUB32 CPUB33 CPUB34 CPUB35 CPUB36 CPUB37 CPUB38 CPUB39 CPUB40 CPUB41 CPUB42 CPUB43 CPUB44 CPUB45 CPUB46 CPUB47 CPUB48 CPUB49 CPUB50

1. GLAN Port 1 (X10DRFR/X10DRFR-N), 10G-LAN (TLAN) Port 1 (X10DRFR-NT)
2. GLAN Port 2 (X10DRFR/X10DRFR-N), 10G-LAN (TLAN) Port 2 (X10DRFR-NT)
3. IPMI_LAN

Diagram showing three labeled connectors: two blue USB drives and one white Ethernet port, with no text or symbols present.

2-7 Connecting Cables

Power Connectors

There are two 8-pin power connectors and three 4-pin power connectors located on the motherboard. The 8-pin power connectors (JPWR9/JPWR10) provide power supply to the motherboard. The 4-pin power connectors (JPWR_HDD1/2/3) are used to for onboard HDDs. See the layout below for the locations of the power connectors.

12V 8-pin PWR Connector Pin Definitions
Connect# Pins Definition
JPWR9 1-8	+12V
JPWR10 1-8	GND

12V 4-pin Power Connector Pin Definitions
Pins	Definition
1	+12V
2-3	Ground
4	+5V

Warning: To ensure adequate power supply to your motherboard, be sure to connect all the power connectors mentioned above to your power supply For proper system operation.

LED MT LAN JPM2 LAN2 LAN1 FAN4 PCU1 MUP PCLE-3.0 X8 LE2 15V7 15V7 15V7 PDU1 SX8 PCLE-3.0 X16 SALW BPT- P-DIMMB2 P-DIMMB1 B1-BIMBA2 CPU1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMB1 (X10DRFR Rev 1.10) CPU2 P2-DIMHA2 P2-DIMHA1 P2-DIMHA2 P2-DIMHA1 P2-DIMHA2 P2-DIMHA1 (X10DRFR) P2-DIMHA2 (X10DRFR) P2-DIMHA1 (X10DRFR) P2-DIMHA2 (X10DRFR) P2-DIMHA1 (X10DRFR) P2-DIMHA2 (X10DRFR) P2-DIMHA1 (X10DRFR) P2-DIMHA2 (X10DRFR) P2-DIMHA1 (X10DRFR) P2-DIMHA2 (X09999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 PCU1 SXB2 PCLE-3.0 X8 FAN3 FAN2 FAN1 FAN0 FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FAN10 FAN11 FAN12 FAN13 FAN14 FAN15 FAN16 FAN17 FAN18 FAN19 FAN20 FAN30 FAN31 FAN32 FAN33 FAN34 FAN35 FAN36 FAN37 FAN38 FAN39 FAN40 FAN41 FAN42 FAN43 FAN44 FAN45 FAN46 FAN47 FAN48 FAN49 FAN50 FAN51 FAN52 FAN53 FAN54 FAN55 FAN56 FAN57 FAN58 FAN59 FAN60 FAN61 FAN62 FAN63 FAN64 FAN65 FAN66 FAN67 FAN68 FAN69 FAN70 FAN71 FAN72 FAN73 FAN74 FAN75 FAN76 FAN77 FAN78 FAN79 FAN80 FAN81 FAN82 FAN83 FAN84 FAN85 FAN86 FAN87 FAN88 FAN89 FAN90 FAN91 FAN92 FAN93 FAN94 FAN95 FAN96 FAN97 FAN98 FAN99 FAN100

A. JPWR9: 8-pin PWR (12V-in) (Req'd)
B. JPWR10: 8-pin PWR (Ground) (Req'd)
C. HDDPOWER1 (JPWR_HDD1: HDD power supply)
D. HDDPOWER2 (JPWR_HDD2: HDD power supply)
E. HDDPOWER3 (JPWR_HDD3: HDD power supply)

COM Port Header

A COM port header is located next to the LAN controller. See the table on the right for pin definitions.

Serial Port Pin Definitions (COM1)
Pin #	Definition	Pin #	Definition
1	CDC	6	DSR
2	RXD	7	RTS
3	TXD	8	CTS
4	DTR	9	RI
5	Ground

IPMB I²C SMB

A System Management Bus header for the IPMI slot is located at JIPMB1. Connect an appropriate cable here to use the IPMB I ^2 C connection on your system.

SMB Header Pin Definitions
Pin#	Definition
1	Data
2	Ground
3	Clock
4	No Connection

B VGA USB(3.0) USB4.40 IPM1 LAN LAN2 LAN1 FAN4 LAN CTRL JWD JNM11 PCH Battery JBAT1 CPU1 P-DIMMB2 P-BDIMMB1 P-DIMMA1 P-BDIMMB2 JPM0 JPM1 CPU1 SXB2 PC-E 3.0 X8 S&P CODE SUPER X10DRFR Rev. 1.10 CPU2 P2-DIMMH2 P2-DIMMH1 P2-DIMMA1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1

A. COM 1

B. IPMB

Fan Headers

This motherboard has four system cooling fan headers (Fan1-Fan4). All these 4-pin fans headers are backward compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only and is controlled by thermal management via IPMI 2.0 interface. See the table on the right for pin definitions.

Fan HeaderPin Definitions
Pin#	Definition
1 Ground
2 +12V
3 Tachometer
4 PWR Modulation

LE1 IPMI_LAN JPM2 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG4 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG3 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG2 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPG1 JPCB0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

A. Fan1

B. Fan2

C. Fan3

D. Fan4

TPM Header/Port 80

A Trusted Platform Module/Port 80 header is located at JTPM1 to provide TPM support and Port 80 connection. Use this header to enhance system performance and data security. See the table on the right for pin definitions.

Non-Mask Interrupt Header

A Non-Mask Interrupt header is located at JNMI1 to provide NMI1 connection. Use this header to enhance system. See the layout for the location.

LED1 LE IPMI_LAN JPM2 JJB3 JEC JCP SVM SPD SDP BIOS SAT0 SAT0 JUBT1 ISAT0 CPU1 MLP PCHE 3.0 X8 SHP SSB SUPR LE2 SATA0 CPU1 SXB1 PCLE 3.0 X16 SHP SSB SATA0 SATA0 CPU1 SXB2 PCH-E 3.0 X8 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM2 JPM1 JPM3 CPU1 SXB2 PCH-E 3.0 X8 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0 SHP SSB SATA0

TPM/Port 80 HeaderPin Definitions
Pin #	Definition	Pin #	Definition
1	LCLK	2	GND
3	LFRAME#	4	<(KEY)>
5	LRESET#	6	+5V (X)
7	LAD 3	8	LAD 2
9	+3.3V	10	LAD1
11	LAD0	12	GND
13	SMB_CLK4	14	SMB_DAT4
15	+3V_DUAL	16	SERIRQ
17	GND	18	CLKRUN# (X)
19	LPCPD#	20	LDRQ# (X)

NMI ButtonPin Definitions
Pin#	Definition
1	Control
2	Ground

A. TPM/Port80

B. JNMI1

T-SGPIO 1/2 Headers

Two SGPIO (Serial-Link General Purpose Input/Output) headers (T-SGPIO 1/2) are located on the motherboard. These headers support Serial_Link interface for onboard SATA connections (T-SGPIO1: for I-SATA0-5, T-SGPIO2: for S-SATA0-3). See the table on the right for pin definitions.

T-SGPIO Pin Definitions
Pin#	Definition	Pin	Definition
1	NC	2	NC
3	Ground	4	Data
5	Load	6	Ground
7	Clock	8	NC

NVM Express Connections (For X10DRFR-N/NT Only)

Two NVM Express ports are located on the motherboard. JNVME ports 1/2 provide high-speed, low-latency PCI-Exp. 3.0 x4 connections directly from the CPU to NVMe Solid State (SSD) drives. This greatly increases SSD data-throughput performance and significantly reduces PCI-E latency by simplifying driver/software requirements resulted from direct PCI-E interface from the CPU to the NVMe SSD drives.

LED IPM LAN JPG1 JPG2 JMC2 CPU1 SXP3 SXP4 SXP5 SXP6 SXP7 SXP8 SXP9 SXP10 SXP11 SXP12 SXP13 SXP14 SXP15 SXP16 SXP17 SXP18 SXP19 SXP20 SXP21 SXP22 SXP23 SXP24 SXP25 SXP26 SXP27 SXP28 SXP29 SXP30 SXP31 SXP32 SXP33 SXP34 SXP35 SXP36 SXP37 SXP38 SXP39 SXP40 SXP41 SXP42 SXP43 SXP44 SXP45 SXP46 SXP47 SXP48 SXP49 SXP50 SXP51 SXP52 SXP53 SXP54 SXP55 SXP56 SXP57 SXP58 SXP59 SXP60 SXP61 SXP62 SXP63 SXP64 SXP65 SXP66 SXP67 SXP68 SXP69 SXP70 SXP71 SXP72 SXP73 SXP74 SXP75 SXP76 SXP77 SXP78 SXP79 SXP80 SXP81 SXP82 SXP83 SXP84 SXP85 SXP86 SXP87 SXP88 SXP89 SXP90 SXP91 SXP92 SXP93 SXP94 SXP95 SXP96 SXP97 SXP98 SXP99 SXP100 SUPERX10DRFR Rev. 1.10

A. T-SGPIO 1
B. T-SGPIO 2
C. JNVME1
D. JNVME2

2-8 Jumper Settings

Explanation of Jumpers

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a squa solder pad on the printed circuit board. See the motherboard layout pages for jumper locations.

Connector Pins Jumper Cap re Setting

3 2 1 Pin 1-2 short

Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

LAN Ports 1/2 Enable

JPL1 is used to enable or disable onboard LAN1 and LAN2. LAN ports 1/2 support Gigabit LANs on the X10DRFR(/-N), and support 10G-LANs on the X10DRFR-NT. See the table on the right for jumper settings.

LAN EnableJumper Settings
Jumper Setting Definition
1-2	Enabled (default)
2-3	Disabled

CPU1 PCH BMC JWD JNM1 LAN LPG JPM1 LAN LAN2 LAN3 LAN4 JPM2 JPM3 JPM4 JPM5 JPM6 JPM7 JPM8 JPM9 JPM10 JPM11 JPM12 JPM13 JPM14 JPM15 JPM16 JPM17 JPM18 JPM19 JPM20 JPM21 JPM22 JPM23 JPM24 JPM25 JPM26 JPM27 JPM28 JPM29 JPM30 JPM31 JPM32 JPM33 JPM34 JPM35 JPM36 JPM37 JPM38 JPM39 JPM40 JPM41 JPM42 JPM43 JPM44 JPM45 JPM46 JPM47 JPM48 JPM49 JPM50 JPM51 JPM52 JPM53 JPM54 JPM55 JPM56 JPM57 JPM58 JPM59 JPM60 JPM61 JPM62 JPM63 JPM64 JPM65 JPM66 JPM67 JPM68 JPM69 JPM70 JPM71 JPM72 JPM73 JPM74 JPM75 JPM76 JPM77 JPM78 JPM79 JPM80 JPM81 JPM82 JPM83 JPM84 JPM85 JPM86 JPM87 JPM88 JPM89 JPM90 JPM91 JPM92 JPM93 JPM94 JPM95 JPM96 JPM97 JPM98 JPM99 JPM100

A. GLAN1/2 Enable (X10DRFR(/-N)) A. 10G-LAN1/2 Enable (X10DRFR-NT)

CMOS Clear

JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads to prevent accidental clearing of CMOS. To clear CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection.

Always remove the AC power cord from the system before clearing CMOS.

Note: Be sure to completely power-off the system, remove power cords, and the onboard CMOS battery before you short JBT1 to clear CMOS.

Watch Dog Enable/Disable

Watch Dog (JWD1) is a system monitor that can reboot the system when a software application hangs. Close pins 1-2 to reset the system if an application hangs. Close pins 2-3 to generate non-maskable interrupt signals for the application that hangs. See the table on the right for jumper settings. Watch Dog must also be enabled in the BIOS.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2	Reset (default)
Pins 2-3	NMI
Open	Disabled

CPU1 CPU2 CPU3 CPU4 CPU5 CPU6 CPU7 CPU8 CPU9 CPU10 CPU11 CPU12 CPU13 CPU14 CPU15 CPU16 CPU17 CPU18 CPU19 CPU20 CPU21 CPU22 CPU23 CPU24 CPU25 CPU26 CPU27 CPU28 CPU29 CPU30 CPU31 CPU32 CPU33 CPU34 CPU35 CPU36 CPU37 CPU38 CPU39 CPU40 CPU41 CPU42 CPU43 CPU44 CPU45 CPU46 CPU47 CPU48 CPU49 CPU50 CPU51 CPU52 CPU53 CPU54 CPU55 CPU56 CPU57 CPU58 CPU59 CPU60 CPU61 CPU62 CPU63 CPU64 CPU65 CPU66 CPU67 CPU68 CPU69 CPU70 CPU71 CPU72 CPU73 CPU74 CPU75 CPU76 CPU77 CPU78 CPU79 CPU80 CPU81 CPU82 CPU83 CPU84 CPU85 CPU86 CPU87 CPU88 CPU89 CPU90 CPU91 CPU92 CPU93 CPU94 CPU95 CPU96 CPU97 CPU98 CPU99 CPU100

A. Clear CMOS

B. Watch Dog Enable

VGA Enable

Jumper JPG1 allows the user to enable the onboard VGA connector. The default setting is on pins 1/2 to enable the connection. See the table on the right for jumper settings.

VGA EnableJumper Settings
Jumper Setting	Definition
1-2	Enabled (Default)
2-3	Disabled

BMC Enable

Jumper JPB1 allows you to enable the onboard BMC (Baseboard Management) Controller to provide IPMI 2.0/KVM support on the motherboard. See the table on the right for jumper settings.

BMC EnableJumper Settings
Jumper Setting Definition
Pins 1-2	BMC Enable (Default)
Pins 2-3	Normal

LED LE LE JCP1 JCP2 JCP3 JCP4 JCP5 JCP6 JCP7 JCP8 JCP9 JCP10 JCP11 JCP12 JCP13 JCP14 JCP15 JCP16 JCP17 JCP18 JCP19 JCP20 JCP21 JCP22 JCP23 JCP24 JCP25 JCP26 JCP27 JCP28 JCP29 JCP30 JCP31 JCP32 JCP33 JCP34 JCP35 JCP36 JCP37 JCP38 JCP39 JCP40 JCP41 JCP42 JCP43 JCP44 JCP45 JCP46 JCP47 JCP48 JCP49 JCP50 JCP51 JCP52 JCP53 JCP54 JCP55 JCP56 JCP57 JCP58 JCP59 JCP60 JCP61 JCP62 JCP63 JCP64 JCP65 JCP66 JCP67 JCP68 JCP69 JCP70 JCP71 JCP72 JCP73 JCP74 JCP75 JCP76 JCP77 JCP78 JCP79 JCP80 JCP81 JCP82 JCP83 JCP84 JCP85 JCP86 JCP87 JCP88 JCP89 JCP90 JCP91 JCP92 JCP93 JCP94 JCP95 JCP96 JCP97 JCP98 JCP99 JCP100 JHP 10C1 POWER BUTTON

A. VGA Enabled
B. BMC Enabled

I²C Bus to PCI-Exp. Slots

Jumpers JI ^2 C1 and JI ^2 C2 allow you to connect the System Management Bus (I ^2 C) to PCI-Express slots. The default setting is on pins 2/3 for normal operation. See the table on the right for jumper settings.

I2C to PCI-ExpJumper Settings
Jumper Setting	Definition
1-2	Enabled
2-3	Normal (Default)

Manufacturer Mode Select

Close pin 2 and pin 3 of Jumper JPME2 to bypass SPI flash security and force the system to operate in the Manufacturer mode, allowing the user to flash the system firmware from a host server for system setting modifications. See the table on the right for jumper settings.

ME Mode SelectJumper Settings
Jumper Setting Definition
1-2	Normal (Default)
2-3	Manufacture Mode

ABC LE1 LAN CAN2 LAN1 VCA JPM1 USB1 (10.0) JPM2 PL1 FAN4 USB16-89 JPM1 LPG JPM2 BMC JWD JNM1 LAN CTRL COM1 JPM1 LE4 PCH Battery JVRM1 JVBAT1 JVRM2 JPM2 PI-DIMMB2 PI-DIMMB1 PI-DIMM2 PI-DIMM1 CPU1 SXB1 PCLE 3.0 X6 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA1 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA1 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA1 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA1 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA1 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA1 BI-MMA0 BI-MMA2 BI-MMA2 CPU1 MIP PCLE 3.0 X8 CPU1 SXB2 PCLE 3.0 X8 SUPEROX10DRER Rev. 1.10 CPU2 P2-DIMMH2 P2-DIMMH1 P2-BIMMH1 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BIMMH2 P2-BINMHP FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FAN10 FAN11 FAN12 FAN13 FAN14 FAN15 FAN16 FAN17 FAN18 FAN19 FAN20 FAN30 FAN31 FAN32 FAN33 FAN34 FAN35 FAN36 FAN37 FAN38 FAN39 FAN40 FAN41 FAN42 FAN43 FAN44 FAN45 FAN46 FAN47 FAN48 FAN49 FAN50 FAN51 FAN52 FAN53 FAN54 FAN55 FAN56 FAN57 FAN58 FAN59 FAN60 FAN61 FAN62 FAN63 FAN64 FAN65 FAN66 FAN67 FAN68 FAN69 FAN70 FAN71 FAN72 FAN73 FAN74 FAN75 FAN76 FAN77 FAN78 FAN79 FAN80 FAN81 FAN82 FAN83 FAN84 FAN85 FAN86 FAN87 FAN88 FAN89 FAN90 FAN91 FAN92 FAN93 FAN94 FAN95 FAN96 FAN97 FAN98 FAN99 FAN100 FAN101 FAN102 FAN103 FAN104 FAN105 FAN106 FAN107 FAN108 FAN109 FAN110 FAN111 FAN112 FAN113 FAN114 FAN115 FAN116 FAN117 FAN118 FAN119 FAN120 FAN121 FAN122 FAN123 FAN124 FAN125 FAN126 FAN127 FAN128 FAN129 FAN130 FAN131 FAN132 FAN133 FAN134 FAN135 FAN136 FAN137 FAN138 FAN139 FAN140 FAN141 FAN142 FAN143 FAN144 FAN145 FAN146 FAN147 FAN148 FAN149 GND I2V_IN JFT HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWERH CDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCDPOWER HCD Power OUT CM

A. JI^2C1

B. JI^2C2

C. JPME2

2-9 Onboard LED Indicators

LAN LEDs

The LAN ports are located on the IO back panel on the motherboard. Each Ethernet LAN port has two LEDs. The yellow LED indicates activity. The Link LED on the left side of the LAN port may be green, amber or off to indicate the speed of the connection. See the tables at right for more information.

IPMI\_LAN LEDs

In addition to LAN1/LAN2, an IPMI_LAN is also located next to LAN2 port on the I/O back panel. The amber LED on the right indicates activity, while the green LED on the left indicates the speed of the connection. See the tables at right for more information.

B A LEA IPM1 LAN2 LAN1 JPME2 JWD JNM1 LAN CTRL CPU+ SXP1 PCH-3.0 X16 PCH P-DIMNMB2 P-DIMNMB1 P-DIMNMB4 P-DIMNMB2 P-DIMNMB1 P-DIMNMB4 P-DIMNMB2 P-DIMNMB1 P-DIMNMB4 P-DIMNMB2 P-DIMNMB1 P-DIMNMB4 P-DIMNMB2 P-DIMNMB1 P-DIMNMB4 P-DIMNMB2 P-DIMNMB1 PCU1 CAT CODE SUPER X10DRFR Rev. 1:0 CPU+ SXP2 PCH-3.0 X8 CPU+ SXP2 PCH-3.0 X8 GND JPNB0 12V_IN JF1 HDDPOWER HDDPOWER2 HDDPOWER3 INVIME2 POWER1 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01 T-SGP-02 T-SGP-01

Link LED Activity LED

Rear View (when facing the rear side of the chassis)

GLAN Activity Indicator (Left)LED Settings
Color	Status	Definition
Yellow	Flashing	Active

LAN Link LED Settings(For X10DRFR(/-N))
Color	Definition
Off	No Connection, 10 Mbps
Green	100 Mbps
Amber	1 Gbps

LAN Link LED Settings(For X10DRFR-NT)
Color	Definition
Off	No Connec-tion,10 or 100Mbps
Green	10 Gbps
Amber	1 Gbps

IPMI LAN Link LED —— Activity LED

IPMI LAN Link LED (Left) & Activity LED (Right)
	Color/State	Definition
Link (Left)	Green: SolidAmber: Solid	100 Mbps1 Gbps
Activity (Right)	Amber: Blinking	Active

A. LAN1/2 LEDs
B. IPMI LAN LEDs

Close-up of electronic components including a blue GND card, a blue VGA, and two connected Ethernet connectors labeled A and B (no text or symbols on the devices themselves)

Standby\_Power Good LED

The Standby_Power Good LED is located at LE4 on the motherboard. When LE4 is on, standby power is normal. See the table at right for more information.

Standby PWR Good LED Status
State	Description
On	StandbyPWR Normal

BMC Heartbeat LED

A BMCHeartbeat LED is located at LEDM1 on the motherboard. When LEDM1 is blinking, BMC functions normally. See the table at right for more information.

BMC Heartbeat LED Status
Color/State	Definition
Green: Blinking	BMC: Normal

B EDM11 IPMI LAN JPG1 JPG2 JPG3 JPG4 JPG5 JPG6 JPG7 JPG8 JPG9 JPG10 JPG11 JPG12 JPG13 JPG14 JPG15 JPG16 JPG17 JPG18 JPG19 JPG20 JPG21 JPG22 JPG23 JPG24 JPG25 JPG26 JPG27 JPG28 JPG29 JPG30 JPG31 JPG32 JPG33 JPG34 JPG35 JPG36 JPG37 JPG38 JPG39 JPG40 JPG41 JPG42 JPG43 JPG44 JPG45 JPG46 JPG47 JPG48 JPG49 JPG50 JPG51 JPG52 JPG53 JPG54 JPG55 JPG56 JPG57 JPG58 JPG59 JPG60 JPG61 JPG62 JPG63 JPG64 JPG65 JPG66 JPG67 JPG68 JPG69 JPG70 JPG71 JPG72 JPG73 JPG74 JPG75 JPG76 JPG77 JPG78 JPG79 JPG80 JPG81 JPG82 JPG83 JPG84 JPG85 JPG86 JPG87 JPG88 JPG89 JPG90 JPG91 JPG92 JPG93 JPG94 JPG95 JPG96 JPG97 JPG98 JPG99 JPG100 CPU1 MLC PCHE 3.0 X8 CPU1 SXB1 PCHE 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 CPU1 SXTH 3.0 X16 PCH P1-DIMMB2 P1-DIMMB1 P1-DIMMB2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DIMMD2 P1-DMCM2 P1-DMCM1 P1-DMCM2 P1-DMCM3 P1-DMCM4 P1-DMCM5 P1-DMCM6 P1-DMCM7 P1-DMCM8 P1-DMCM9 P1-DMCM10 P1-DMCM11 P1-DMCM12 P1-DMCM13 P1-DMCM14 P1-DMCM15 P1-DMCM16 P1-DMCM17 P1-DMCM18 P1-DMCM19 P1-DMCM20 P1-DMCM21 P1-DMCM22 P1-DMCM23 P1-DMCM24 P1-DMCM25 P1-DMCM26 P1-DMCM27 P1-DMCM28 P1-DMCM29 P1-DMCM30 P1-DMCM31 P1-DMCM32 P1-DMCM33 P1-DMCM34 P1-DMCM35 P1-DMCM36 P1-DMCM37 P1-DMCM38 P1-DMCM39 P1-DMCM40 P1-DMCM41 P1-DMCM42 P1-DMCM43 P1-DMCM44 P1-DMCM45 P1-DMCM46 P1-DMCM47 P1-DMCM48 P1-DMCM49 P1-DMCM50 P1-DMCM51 P1-DMCM52 P1-DMCM53 P1-DMCM54 P1-DMCM55 P1-DMCM56 P1-DMCM57 P1-DMCM58 P1-DMCM59 P1-DMCM60 P1-DMCM61 P1-DMCM62 P1-DMCM63 P1-DMCM64 P1-DMCM65 P1-DMCM66 P1-DMCM67 P1-DMCM68 P1-DMCM69 P1-DMCM70 P1-DMCM71 P1-DMCM72 P1-DMCM73 P1-DMCM74 P1-DMCM75 P1-DMCM76 P1-DMCM77 P1-DMCM78 P1-DMCM79 P1-DMCM80 P1-DMCM81 P2-DIMMH2 FAN2 FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FANA FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FANA FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FANA FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FANA FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FANA FAN3 A GND JPAR0 2V_IN HDPOPOWERI HDDPOWER2 HDPOPOWER3 INVME2 INVME4 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO0 T-SGPIO

A. Standby PWR Good LED
B. BMC LED

System\_Power Good LED

The System_Power Good LED is located at LE2 on the motherboard. When LE2 is on, system power is normal. See the table at right for more information.

System PWR Good LED Status
State	Description
On System PWR Normal

SATA Activity LED

An onboard SATA Activity LED is located at LE3 on the motherboard. When LE3 is blinking, SATA is active. See the table at right for more information.

SATA Activity LED Status
State	Description
Blinking	SATA Active

LED1E IPM1 LAN JPM2 JUP1 J23 SVM SD2 BIOS SAT4 SAT3 JUBT1 ISATAW CPU1 MLP PCLE-3.0 X8 LE2 A PCH JWD JNM11 BMC JVRM2 JVRM1 JBAT1 INV2C1 P1-DIMM2 P1-DIMM1 P1-DIMM2 P1-DIMM1 P1-DIMM2 CPU1 P1-DIMMB2 P1-DIMMB1 P1-DIMMA1 BAR CODE JPP0 JPP1 CPU1 SBR2 PCLE-3.0 X8 SUPER X10DRFR Rev. 1.10 CPU2 P2-DIMMH2 P2-DIMMH1 P2-DIMMG1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 P2-DIMMH1 P2-DIMMH2 FAN3 FAN2 FAN1 USB963.0 VGA JPM8 LE3 B PLT LFP1 FAN4 LAN CTRL COM1 JTPM1 LE4 Battery + JVRM2 JVRM1 JPM80 12V_IN JF1 HDDPOWER1 HDDPOWER2 HDDPOWER3 NPME2 JNWEI T-SGPIO1 T-SGPIO2 HP 12C POWER30 ON

A. System PWR Good LED
B. SATA Activity LED

2-10 PCI-Express and Serial ATA Connections

PCI-Express 3.0 x16 Slot

A PCI-Express 3.0 x16 slot (CPU1 SXB1 PCI-E 3x16) is located on the motherboard. This slot supports PCI-Express 3.0 connections. Refer to the layout below for the location.

PCI-Express 3.0 x8 Slots

One PCI-Express 3.0 x8 slot (CPU1 MLP PCI-E 3x8) is located on the motherboard. This slot supports Micro Low-profile PCI-E 3.0 x8 add-on cards. In addition, CPU 1 SXB2, located next to P2-DIMMG1, also supports PCI-E 3.0x8. Refer to the layout below for the locations.

LEDMA LE IPMI LAN JPM2 JPM1 LAN2 LAN1 VCA PL1 JPN3 JPN4 USB0601 JPN3 JPN2 JPN1 JPN0 JPN1 JPN2 JPN3 JPN4 JPN5 JPN6 JPN7 JPN8 JPN9 JPN10 JPN11 JPN12 JPN13 JPN14 JPN15 JPN16 JPN17 JPN18 JPN19 JPN20 JPN21 JPN22 JPN23 JPN24 JPN25 JPN26 JPN27 JPN28 JPN29 JPN30 JPN31 JPN32 JPN33 JPN34 JPN35 JPN36 JPN37 JPN38 JPN39 JPN40 JPN41 JPN42 JPN43 JPN44 JPN45 JPN46 JPN47 JPN48 JPN49 JPN50 JPN51 JPN52 JPN53 JPN54 JPN55 JPN56 JPN57 JPN58 JPN59 JPN60 JPN61 JPN62 JPN63 JPN64 JPN65 JPN66 JPN67 JPN68 JPN69 JPN70 JPN71 JPN72 JPN73 JPN74 JPN75 JPN76 JPN77 JPN78 JPN79 JPN80 JPN81 JPN82 JPN83 JPN84 JPN85 JPN86 JPN87 JPN88 JPN89 JPN90 JPN91 JPN92 JPN93 JPN94 JPN95 JPN96 JPN97 JPN98 JPN99 JPN100 CPU1 MLP PCFE 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP 3.0 X8 CPU1 SXP/PCFE 3.0 X8 CPU1 SXP/PCFE 3.0 X8

A. CPU1 SXB1 PCI-E 3.0 x16 Slot
B. CPU1 MLP PCI-E 3.0 x8 Slot
c. CPU1 SXB2 PCI-E 3.0 x8 Slot

Serial ATA Ports

Six Serial ATA Ports (I-SATA0-I-SATA5), supported by Intel PCH, are located on the motherboard. I-SATA0-3 support SATA 2.0, and I-SATA4/5 support SATA3 ports. In addition, four S-SATA connectors (S-SATA0-3), supported by the Intel SCU, are also located on the motherboard. S-SATA2/3, colored in yellow, are used with Supermicro SuperDOM (Disk-on-Module) connectors with power-pins built in. Supermicro SuperDOM connectors are backward-compatible with regular SATA HDDs and SATA DOMs. All SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA. See the table on the right for pin definitions.

SATA 2/0/3.0Pin Definitions
Pin#	Definition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground

Note: Please refer to the Intel SATA HostRAID User's Guide posted on our website @ http://www.supermicro.com for more info on SATA.

LED LE IPMI LAN JCP1 JCP2 JCP3 JCP4 JPM1 JPM2 JPM3 JPM4 JPM5 JPM6 JPM7 JPM8 JPM9 JPM10 JPM11 JPM12 JPM13 JPM14 JPM15 JPM16 JPM17 JPM18 JPM19 JPM20 JPM21 JPM22 JPM23 JPM24 JPM25 JPM26 JPM27 JPM28 JPM29 JPM30 JPM31 JPM32 JPM33 JPM34 JPM35 JPM36 JPM37 JPM38 JPM39 JPM40 JPM41 JPM42 JPM43 JPM44 JPM45 JPM46 JPM47 JPM48 JPM49 JPM50 JPM51 JPM52 JPM53 JPM54 JPM55 JPM56 JPM57 JPM58 JPM59 JPM60 JPM61 JPM62 JPM63 JPM64 JPM65 JPM66 JPM67 JPM68 JPM69 JPM70 JPM71 JPM72 JPM73 JPM74 JPM75 JPM76 JPM77 JPM78 JPM79 JPM80 JPM81 JPM82 JPM83 JPM84 JPM85 JPM86 JPM87 JPM88 JPM89 JPM90 JPM91 JPM92 JPM93 JPM94 JPM95 JPM96 JPM97 JPM98 JPM99 JPM100

A. I-SATAO
B. I-SATA1
C. I-SATA2
D. I-SATA3
E. I-SATA4
F. I-SATA5
G. S-SATAO
H. S-SATA1
I. S-SATA2 (Yellow: SuperDOM)
J. S-SATA3 (Yellow: SuperDOM)

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Note: Always disconnect the power cord before adding, changing or installing any hardware components.

Before Power On

1. Make sure that there are no short circuits between the motherboard and chassis.
2. Disconnect all ribbon/wire cables from the motherboard, including those for the keyboard and mouse.
3. Remove all add-on cards.
4. Install CPU 1 first (making sure that it is fully seated) and connect the front panel connectors to the motherboard.

No Power

1. Make sure that no short circuits between the motherboard and the chassis.
2. Make sure that all power connectors are properly connected.
3. Check that the 115V/230V switch on the power supply is properly set, if available.
4. Turn the power switch on and off to test the system, if applicable.
5. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on, but you do not have video, remove all the add-on cards and cables.
2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

System Boot Failure

If the system does not display POST or does not respond after the power is turned on, check the following:

1. Check for any error beep from the motherboard speaker.

2. If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, try to turn on the system again with only one processor installed in CPU Socket#1. If there is still no error beep, replace the motherboard.

3. If there are error beeps, clear the CMOS settings by unplugging the power cord and contracting both pads on the CMOS Clear Jumper (JBT1). (Refer to Section 2-8 in Chapter 2.)

4. Remove all components from the motherboard, especially the DIMM modules. Make sure that the system power is on, and memory error beeps are activated.

5. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this Chapter.

Losing the System's Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 2-7 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

3. If the steps indicated above do not fix the Setup Configuration problem, contact your vendor for repairs.

Memory Errors

When a No_Memory_Beep_Code is issued by the system, check the following:

1. Make sure that the memory modules are compatible with the system and that the DIMM modules are properly and fully installed. (For memory compatibility, refer to the Memory Compatibility Chart posted on our website @ http://www.supermicro.com.)
2. Check if DIMM modules with different speeds have been installed. It is strongly recommended that you use the same RAM speed for all DIMMs in the system.
3. Make sure that you are using the correct type of Registered (RDIMM)/Load Reduced (LRDIMM)ECC DDR4 memory modules as recommended by the manufacturer.
4. Check for bad DIMM modules or slots by swapping a single module among all memory slots and check the results.
5. Make sure that all memory modules are fully seated in their slots. Follow the instructions given in Section 2-5 in Chapter 2.
6. Please follow the instructions given in the DIMM Population Tables listed in Section 2-5 to install your memory modules.

When the System Becomes Unstable

A. When the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported, and you have the latest BIOS installed in your system.
2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Refer to the product page on our website http://www.supermicro.com for memory and CPU support and updates.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. System cooling: Check system cooling to make sure that all heatsink fans, CPU fans and system fans work properly. Check Hardware Monitoring set-

tings in the IPMI to make sure that the CPU and System temperatures are within the normal range. Also check the front panel Overheat LED, and make sure that the Overheat LED is not on.

1. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on minimum power requirement.

2. Proper software support: Make sure that the correct drivers are used.

B. When the system becomes unstable before or during OS installation, check the following:

1. Installation Devices: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD disc.

2. Cable connection: Check to make sure that all cables are connected and working properly.

3. Using minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use minimum configuration (with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.

5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.

6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you.

1. Please go through the 'Troubleshooting Procedures' and 'Frequently Asked Question' (FAQ) sections in this chapter or see the FAQs on our website (http://www.supermicro.com/) before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website (http://www.supermicro.com).

3. If you still cannot resolve the problem, include the following information when contacting Supermicro for technical support:

4. Motherboard model and PCB revision number

5. BIOS release date/version (This can be seen on the initial display when your system first boots up.)
   • System configuration

6. An example of a Technical Support form is on our website at (http://www.supermicro.com/RmaForm/).

- Distributors: For immediate assistance, please have your account number ready when placing a call to our technical support department. We can be reached by e-mail at [e-mail].

3-3 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.

Proper Battery Disposal

Warning: Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow the steps 1& 2 above and continue below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Warning: When replacing a battery, be sure to only replace it with the same type.

3-4 Frequently Asked Questions

Question: What are the various types of memory that my motherboard can support?

Answer: The motherboard supports DDR4 RDIMM/LRDIMM ECC modules. To enhance memory performance, do not mix memory modules of different speeds and sizes. Please follow all memory installation instructions given on Section 2-5 in Chapter 2.

Question: How do I update my BIOS?

It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. You can choose from the zip file and the .exe file. If you choose the zip BIOS file, please unzip the BIOS file onto a bootable USB device. Run the batch file using the format FLASH.BAT filename.rom from your bootable USB device to flash the BIOS. Then, your system will automatically reboot.

Warning: Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure!

Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com.

Question: How do I handle the used battery?

Answer: Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly. Refer to Section 3-3 on Page 3-6.

3-5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and the shipping package is mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, You can also request a RMA authorization online (http://www.supermicro.com/RmaForm/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMI BIOS setup utility for the X10DRFR(/-N/-NT). The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS setup utility screens.

Note: For AMI BIOS recovery, please refer to the UEFI BIOS Recovery Instructions in Appendix C.

Starting BIOS Setup Utility

To enter the AMI BIOS setup utility screens, press the key while the system is booting up.

Note: In most cases, the key is used to invoke the AMI BIOS setup screen.

Each main BIOS menu option is described in this manual. The AMI BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options cannot be configured. Options in blue can be configured by the user. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it.

Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

The AMI BIOS setup utility uses a key-based navigation system called "hot keys." Most of the AMI BIOS setup utility "hot keys" can be used at any time during the setup navigation process. These keys include , , , , arrow keys, etc.

Note: Options printed in Bold are default settings.

How To Change the Configuration Data

The configuration data that determines the system parameters may be changed by entering the AMI BIOS setup utility. This setup utility can be accessed by pressing at the appropriate time during system boot.

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the key to enter the main menu of the AMI BIOS setup utility. From the main menu, you can access the other setup screens. An AMI BIOS identification string is displayed at the left bottom corner of the screen, below the copyright message.

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

4-2 Main Setup

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

Aptio Setup Utility - Copyright (C) 2014 American Megatrends, Inc. Main Advanced Event Logs IPM Security Boat Save & Exit System Date [Med 02/18/2015] System Time [07:20:57] Supermicro X10DRFR-NT BIOS Version 1.0b Build Date 12/31/2014 Memory Information Total Memory 32768 MB Memory Speed 2193 MT/s Set the Date. Use Tab to switch between Date elements. +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2-17-1245 Copyright 10-2014 American Megatrends, Inc.

The following Main menu items will be displayed:

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.

Supermicro X10DRFR-NT

BIOS Version: This item displays the version of the BIOS ROM used in the system.

Build Date: This item displays the date when the version of the BIOS ROM used in the system was built.

Memory Information

Total Memory: This item displays the total size of memory available in the system.

Memory Speed: This item displays the default speed of the memory modules installed in the system.

4-3 Advanced Setup Configurations

Use the arrow keys to select Advanced setup and press to access the submenu items:

Aptio Setup Utility - Copyright (C) 2014 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ SATA Configuration ▶ sSATA Configuration ▶ Server ME Configuration ▶ PCIe/PCI/PnP Configuration ▶ Super IO Configuration ▶ Serial Port Console Redirection ▶ ACPI Settings Boot Feature Configuration Page +:-: Select Screen ↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1245. Copyright FCI 2014 American Hegatrenda, Inc.

Warning: Take Caution when changing the Advanced settings. An incorrect value, an incorrect DRAM frequency, or an incorrect setting may cause the system to malfunction. When this occurs, restore the setting to the manufacture default setting.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Enabled and Disabled.

AddOn ROM Display Mode

Use this item to set the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup Num-Lock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Wait For 'F1' If Error

Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

When EFI Boot is selected, the system BIOS will automatically reboot the system from an EFI boot device after its initial boot failure. Select Legacy Boot to allow the BIOS to automatically reboot the system from a Legacy boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Configuration

Watch Dog Function

Select Enabled to allow the Watch Dog timer to reboot the system when it is inactive for more than 5 minutes. The options are Enabled and Disabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are 4 Seconds Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Power-On, Stay-Off and Last State.

▶CPU Configuration

This submenu displays the following CPU information as detected by the BIOS. It also allows the user to configure CPU settings.

• Processor Socket
• Processor ID
• Processor Frequency
• Processor Max Ratio
• Processor Min Ratio
• Microcode Revision
• L1 Cache RAM
  • L2 Cache RAM
  • L3 Cache RAM
• CPU 1 Version
• CPU 2 Version

Clock Spread Spectrum

Select Enabled to allow the BIOS to attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Disabled and Enabled.

Hyper-Threading (All)

Select Enable to support Intel's Hyper-threading Technology to enhance CPU performance. The options are Enable and Disable.

Cores Enabled

This feature allows the user to determine the number of CPU cores to enable. Enter "0" to enable all cores. There are 14 cores available in the system. The default setting is 0.

Execute-Disable Bit (Available if supported by the OS & the CPU)

Select Enable for Execute Disable Bit Technology support, which will allow the processor to designate areas in the system memory where an application code

can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor to damage the system during an attack. The options are Enable and Disable. (Refer to Intel and Microsoft websites for more information.)

PPIN Control

Select Unlock/Enable to use the Protected-Processor Inventory Number (PPIN) in the system. The options are Unlock/Enable and Unlock/Disable.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Disable and Enable.

Adjacent Cache Prefetch (Available when supported by the CPU)

Select Enable for the CPU to prefetch both cache lines for 128 bytes as comprised. Select Disable for the CPU to prefetch both cache lines for 64 bytes. The options are Disable and Enable.

Note: Please reboot the system for changes on this setting to take effect. Please refer to Intel's website for detailed information.

DCU (Data Cache Unit) Streamer Prefetcher (Available when supported by the CPU)

If set to Enable, the DCU Streamer Prefetcher will prefetch data streams from the cache memory to the DCU (Data Cache Unit) to speed up data accessing and processing to enhance CPU performance. The options are Disable and Enable.

DCU IP Prefetcher

If set to Enable, the IP prefetcher in the DCU (Data Cache Unit) will prefetch IP addresses to improve network connectivity and system performance. The options are Enable and Disable.

Direct Cache Access (DCA)

Select Enable to use Intel DCA (Direct Cache Access) Technology to improve the efficiency of data transferring and accessing. The options are Auto, Enable, and Disable.

X2APIC

Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The options are Enable and Disable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Enable and Disable.

Intel Virtualization Technology

Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security and availability in networking and data-sharing. The options are Enable and Disable.

▶ Advanced Power Management Configuration

Advanced Power Management Configuration

Power Technology

Select Energy Efficient to support power-saving mode. Select Custom to customize system power settings. Select Max Performance to optimize system performance. Select Disabled to disable power-saving settings. The options are Disable, Energy Efficient, and Custom.

If the option is set to Custom, the following items will display:

▶ CPU P State Control (Available when Power Technology is set to Custom)

EIST (P-states)

Select Enable to support EIST (Enhanced Intel SpeedStep Technology) to allow the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable.

Turbo Mode

Select Enable to use the Turbo Mode to boost system performance. The options are Enable and Disable.

P-state Coordination

Use this item to change the P-state (Power-Performance State) coordination type. P-state is also known as "SpeedStep" for Intel processors. Select HW_ALL to change the P-state coordination type for hardware components only. Select SW_ALL to change the P-state coordination type for all software installed in the system. Select SW_ANY to change the P-state coordination type for a software program in the system. The options are HW_All, SW_ALL, and SW_ANY.

▶ CPU C State Control (Available when Power Technology is set to Custom)

Package C State limit

Use this item to set the limit on the C-State package register. The options are C0/1 state, C2 state, C6 (non-Retention) state, and C6 (Retention) state.

CPU C3 Report

Select Enable to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned off. The options are Enable and Disable.

CPU C6 Report (Available when Power Technology is set to Custom)

Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the operating system. During the CPU C6 state, power to all cache is turned off. The options are Enable and Disable.

Enhanced Halt State (C1E)

Select Enable to use Enhanced Halt-State technology, which will significantly reduce the CPU's power consumption by reducing the CPU's clock cycle and voltage during a Halt-state. You will need to reboot the system for the change of this setting to take effect. The options are Disable and Enable.

▶ CPU T State Control (Available when Power Technology is set to Custom)

ACPI (Advanced Configuration Power Interface) T-States

Select Enable to support CPU throttling by the operating system to reduce power consumption. The options are Enable and Disable.

Energy Performance Tuning

Select Enable to support energy-performance tuning to enhance CPU performance. The options are Enable and Disable.

Energy Performance Bias Setting

Use this feature to select an appropriate fan setting to achieve maximum system performance (with maximum cooling) or maximum energy efficiency with maximum power saving). The fan speeds are controlled by the firmware management via IPMI 2.0. The options are Performance, Balanced Performance, Balanced Power, and Power.

Energy Efficiency Turbo Mode

Select Enable to use the Energy Efficiency Turbo mode to turn up the CPU core frequency to improve CPU performance without compromising energy efficiency. The options are Enable and Disable.

▶Chipset Configuration

Warning! Please set the correct settings for the items below. A wrong configuration setting may cause the system to become malfunction.

▶North Bridge

This feature allows the user to configure the settings for the Intel North Bridge.

▶IIO Configuration

EV DFX (Device Function On-Hide) Feature

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶IIO1 Configuration

IOU2 (II01 PCIe Port 1)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4, x8, and Auto.

CPU1 SXB2 PCI-E 3.0 x8 Slot Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

IOU0 (II01 PCIe Port 2)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

CPU1 SXB1A PCI-E 3.0 x16/x8 Slot Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

IOU1 (II01 PCIe Port 3)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

CPU1 MLP PCI-E 3.0 x8 Slot Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

▶IIO2 Configuration

IOU0 (II02 PCIe Port 2)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

CPU2 NVME Port 1 Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

CPU2 NVME Port 2 Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

CPU2 NVME Port 3 Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

CPU2 NVME Port 4 Link Speed

This item configures the link speed of a PCI-E port specified by the user. The options are Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s).

▶IOAT (Intel® IO Acceleration) Configuration

Enable IOAT

Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which significantly reduces CPU overhead by leveraging CPU architectural improvements and freeing the system resource for other tasks. The options are Enable and Disable.

No Snoop

Select Enable to support no-snoop mode for each CB device. The options are Disable and Enable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support which will allow certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been queued earlier. The options are Disable and Enable.

▶ Intel VT for Directed I/O (VT-d)

Intel VT for Direct I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security and availability in networking and data-sharing. The options are Enable and Disable.

Interrupt Remapping

Select Enable for Interrupt Remapping support to enhance system performance. The options are Enable and Disable.

▶QPI (Quick Path Interconnect) Configuration

QPI Status

The following information will display:

• Number of CPU
• Number of IIO
• Current QPI Link Speed
• Current QPI Link Frequency
• QPI Global MMIO Low Base/Limit
• QPI Global MMIO High Base/Limit
• QPI PCIe Configuration Base/Size

Link Frequency Select

Use this item to select the desired frequency for QPI Link connections. The options are 6.4GB/s, 8.0GB/s, 9.6GB/s, Auto, and Auto Limited.

Link L0p Enable

Select Enable for Link L0p support. The options are Enable and Disable.

Link L1 Enable

Select Enable for Link L1 support. The options are Enable and Disable.

COD Enable (Available when the OS and the CPU support this feature)

Select Enabled for Cluster-On-Die support to enhance system performance in cloud computing. The options are Enable, Disable, and Auto.

Early Snoop (Available when the OS and the CPU support this feature)

Select Enabled for Early Snoop support to enhance system performance. The options are Enable, Disable, and Auto.

Isoc Mode

Select Enabled for Isochronous support to meet QoS (Quality of Service) requirements. This feature is especially important for Virtualization Technology. The options are Enable and Disable.

▶Memory Configuration

Enforce POR

Select Enable to enforce POR restrictions on DDR4 frequency and voltage programming. The options are Enabled and Disabled.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1333, 1400, 1600, 1800, 1867, 2000, 2133, 2200, and 2400.

Data Scrambling

Select Enabled to enable data scrambling to enhance system performance and data integrity. The options are Auto, Disabled and Enabled.

Enable ADR

Asynchronous DRAM Refresh (ADR), supported by the Haswell-EP/EN processors, provides a mechanism to preserve the key data in DDR4 NVDIMM system memory when an AC power-supply failure occurs. The options are ADR + NVDIMMs and Disabled.

Erase-Arm NVDIMMs (Non-Volatile DIMMs)

Non-volatile memory modules use flash memory to save data by erasing the old data first before writing (saving) data. When this item is set to Enabled, the BIOS will erase the flash memory located inside the NVDIMM and get it ready to save data. The options are Enabled and Disabled.

Restore NVDIMMs (Non-Volatile DIMMs)

Select Enabled to restore Non-Volatile DIMM modules. The options are Enabled and Disabled.

Interleave NVDIMMs (Non-Volatile DIMMs)

Select Enabled to support memory-rank interleaving for NVDIMM modules to enhance memory performance. The options are Enabled and Disabled.

DRAM RAPL (Running Average Power Limit) Baseline

Use this feature to set the run-time power-limit baseline for DRAM modules. The options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1.

Set Throttling Mode

Throttling improves reliability and reduces power consumption in processors via automatic voltage control during processor idle states. The options are Disabled and CLTT (Closed Loop Thermal Throttling).

A7 Mode

Select Enabled to support the A7 (Addressing) mode to improve memory performance. The options are Enable and Disable.

▶DIMM Information

This item displays the status of a DIMM module as detected by the BIOS.

P1-DIMMA1 - P1-DIMMH2

▶Memory RAS (Reliability\_Availability\_Serviceability) Configuration

Use this submenu to configure the following Memory RAS settings.

RAS Mode

When Disable is selected, RAS is not supported. When Mirror is selected, the motherboard maintains two identical copies of all data in memory for data backup. When Lockstep is selected, the motherboard uses two areas of memory to run

the same set of operations in parallel to boost performance. The options are Disable, Mirror, and Lockstep Mode.

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve memory performance. The options are Disabled and Enabled.

Patrol Scrub

Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this item is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub will be scrubbed every day. The options are Enable and Disable.

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The Default setting is 24.

Demand Scrub

Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module. When the CPU or I/O issues a demand-read command, and the read data from memory turns out to be a correctable error, the error is corrected and sent to the requestor (the original source). Memory is updated as well. Select Enable to use Demand Scrubbing for ECC memory correction. The options are Enable and Disable.

Device Tagging

Select Enable to support device tagging. The options are Disable and Enable.

▶South Bridge Configuration

The following South Bridge information will display:

▶USB Configuration

- USB Module Version

- USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled and Auto.

XHCI (Extensible Host Controller Interface) Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

EHCI (Enhanced Host Controller Interface) Hand-Off

This item is for operating systems that do not support Enhanced Host Controller Interface (EHCI) hand-off. When this item is enabled, EHCI ownership change will be claimed by the EHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

USB 3.0 Support

Select Enabled for USB 3.0 support. The options are Smart Auto, Auto, Enabled, Disabled and Manual.

EHCI1

Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #1 (-at least one USB 2.0 connector should be enabled for EHCI support.) The options are Disabled and Enabled.

EHCI2

Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #2 (-at least one USB 2.0 connector should be enabled for EHCI support.) The options are Disabled and Enabled.

XHCI (Extensible Host Controller Interface) Pre-Boot Drive

Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a pre-boot drive specified by the user. The options are Enabled and Disabled.

▶SATA Configuration

When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items:

SATA Controller

This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled.

Configure SATA as

Select IDE to configure a SATA drive specified by the user as an IDE drive. Select AHCI to configure a SATA drive specified by the user as an AHCI drive. Select RAID to configure a SATA drive specified by the user as a RAID drive. The options are IDE, AHCI, and RAID.

*If the item above "Configure SATA as" is set to AHCI, the following items will display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active. The options are Enabled and Disabled.

SATA Port 0\~ Port 5

This item displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity
• Software Preserve Support

Port 0\~ Port 5

Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled.

Port 0 \~ Port 5 Hot Plug

Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system. The options are Enabled and Disabled.

Port 0 \~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Enabled and Disabled.

Port 0 \~ Port 5 SATA Device Type

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

*If the item above "Configure SATA as" is set to IDE, the following items will display:

Serial ATA Port 0\~ Port 5

This item indicates that a SATA port specified by the user is installed (present) or not.

Port 0 \~ Port 5 SATA Device Type (Available when a SATA port is detected)

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

*If the item above "Configure SATA as" is set to RAID, the following items will display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active. The options are Enabled and Disabled.

SATA RAID Option ROM/UEFI Driver

Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disabled, EFI, and Legacy.

SATA/sSATA RAID Boot Select

Select SATA Controller to use a device supported by the SATA connector for system boot. Select sSATA Controller to use a device supported by the sSATA connector for system boot. The options are SATA Controller, sSATA Controller, and Both.

SATA Port 0\~ Port 5

This item displays the information detected on the installed SATA drives on the particular SATA port.

• Model number of drive and capacity
• Software Preserve Support

Port 0\~ Port 5

Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled.

Port 0 \~ Port 5 Hot Plug

Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system. The options are Enabled and Disabled.

Port 0 \~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRESET initialization to the device. The options are Enabled and Disabled.

Port 0 \~ Port 5 SATA Device Type

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶sSATA Configuration

When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the PCH-sSATA controller and displays the following items:

sSATA Controller

This item enables or disables the onboard SATA controller supported by the Intel PCH-sSATA controller. The options are Enabled and Disabled.

Configure sSATA as

Select IDE to configure an sSATA drive specified by the user as an IDE drive. Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are IDE, AHCI, and RAID.

*If the item above "Configure sSATA as" is set to AHCI, the following items will display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active. The options are Enabled and Disabled.

sSATA Port 0\~ Port 3

This item displays the information detected on the installed on the sSATA port. specified by the user.

• Model number of drive and capacity
• Software Preserve Support

sSATA Port 0\~ Port 3

Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled.

sSATA Port 0 \~ Port 3 Hot Plug

Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a sSATA disk drive installed on this port without shutting down the system. The options are Enabled and Disabled.

sSATA Port 0 \~ Port 3 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRESET initialization to the device. The options are Enabled and Disabled.

Port 0 \~ Port 3 sSATA Device Type

Use this item to specify if the sSATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

*If the item above "Configure sSATA as" is set to IDE, the following items will display:

sSATA Port 0\~ Port 3

This item indicates that an sSATA port specified by the user is installed (present) or not.

Port 0 \~ Port 3 sSATA Device Type (Available when a SATA port is detected)

Use this item to specify if the sSATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

*If the item above "Configure sSATA as" is set to RAID, the following items will display:

Support Aggressive Link Power Management

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active. The options are Enabled and Disabled.

sSATA RAID Option ROM/UEFI Driver

Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disabled, EFI, and Legacy.

SATA/sSATA RAID Boot Select

Select SATA Controller to use a device supported by the SATA connector for system boot. Select sSATA Controller to use a device supported by the sSATA connector for system boot. The options are SATA Controller, sSATA Controller, and Both.

sSATA Port 0\~ Port 3

This item displays the information detected on the installed sSATA drives on the particular sSATA port.

• Model number of drive and capacity
• Software Preserve Support

sSATA Port 0\~ Port 3

Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled.

sSATA Port 0 \~ Port 3 Hot Plug

This feature designates this port for hot plugging. Set this item to Enabled for hot-plugging support, which will allow the user to replace an sSATA drive without shutting down the system. The options are Enabled and Disabled.

sSATA Port 0 \~ Port 3 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRESET initialization to the device. The options are Enabled and Disabled.

Port 0 \~ Port 3 sSATA Device Type

Use this item to specify if the sSATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶Server ME (Management Engine) Configuration

This feature displays the following system ME configuration settings.

• General ME Configuration
  • Operational Firmware Version
  • Recovery Firmware Version

• ME Firmware Features

• ME Firmware Status #1

• ME Firmware Status #2

• Current State
• Error Code

▶PCIe/PCI/PnP Configuration

The following PCI information will be displayed:

• PCI Bus Driver Version

PCI Latency Timer

Use this item to configure the PCI latency timer for a device installed on a PCI bus. Select 32 to set the PCI latency timer to 32 PCI clock cycles. The options are 32, 64, 96, 128, 160, 192, 224 and 248 (PCI Bus Clocks).

PCI PERR/SERR Support

Select Enabled for the system to log an error event when a PERR (PCI/PCI-E Parity Error) or a SERR (System Error) occurs. The options are Enabled and Disabled.

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Enabled and Disabled.

SR-IOV (Available if the system supports Single-Root Virtualization)

Select Enabled for Single-Root IO Virtualization support. The options are Enabled and Disabled.

Maximum Payload

Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, and 256 Bytes.

Maximum Read Request

Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

ASPM Support

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disabled and Auto.

Warning: Enabling ASPM support may cause some PCI-E devices to fail!

MMIOHBase

Use this item to select the base memory size according to memory-address mapping for the base address above 4G decoding. The options are 56T, 48T, 24T, 512G, and 256G.

MMIO High Size

Use this item to select the high memory size according to memory-address mapping for for the base address above 4G decoding. . The options are 256G, 128G, 512G, and 1024G.

CPU1 SXB2 PCI-E 3.0 X8 Slot OP OPROM/CPU1 SXB1 PCI-E 3.0 X16 Slot OPROM/CPU1 MLP PCI-E 3.0X8 Slot OPROM

Select Enabled to enable Option ROM support to boot the computer using a device installed on the slot specified by the user. The options are Disabled, Legacy and EFI.

Onboard LAN Option ROM Type

Select Enabled to enable Option ROM support to boot the computer using a device installed on the slot specified by the user. The options are Legacy and EFI.

Onboard LAN1 Option ROM/Onboard LAN2 Option ROM

Use this option to select the type of device installed in LAN Port1, LAN Port2 or the onboard video device used for system boot. The default setting for LAN1 Option ROM is PXE and for LAN2 Option ROM is Disabled.

Onboard NVME1 Option ROM/Onboard NVME2 Option ROM/Onboard NVME3 Option ROM/Onboard NVME4 Option ROM

Use this option to select the type of the device installed on an NVME port specified by the user to be used for system boot. The options are Disabled and EFI.

Onboard Video Option ROM

Use this option to select the type of the device installed on the onboard video port to be used for system boot. The options are Disabled, Legacy, and EFI.

VGA Priority

Use this item to select the graphics device to be used as the primary video display for system boot. The options are Onboard and Offboard.

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

▶ Super IO Configuration

Super IO Chip AST2400

▶ Serial Port 1 Configuration/Serial Port 2 Configuration

Serial Port 1/Serial Port 2

Select Enabled to enable the onboard serial port specified by the user. The options are Enabled and Disabled.

Device Settings

This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Port 1 Settings/Change Port 2 Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1 or Serial Port 2. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

The options for Serial Port 2 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial_Over_LAN (SOL) port for console redirection. The options are COM and SOL.

▶Serial Port Console Redirection

COM 1

COM 1 Console Redirection

Select Enabled to enable COM Port 1 Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for configuration:

▶COM1 Console Redirection Settings

Terminal Type

Use this item to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per second

Use this item to set the transmission speed for a serial port used in Console Redirection. Be sure to use the same speed in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this item to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this item to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

Use this item to configure the settings for the function keys and the key pad for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS Post

Use this item to enable or disable legacy Console Redirection after BIOS POST (Power-on Self-Test). When Bootloader is selected, legacy Console Redirection is disabled before booting the OS. When Always Enable is selected, legacy Console Redirection remains enabled upon OS bootup. The options are Always Enable and Bootloader.

SOL/COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are En-abled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶SOL/COM2 Console Redirection Settings

This feature specifies how the host computer exchanges data with the client computer, which is the remote computer used by the user.

Terminal Type

Use this item to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per second

Use this item to set the transmission speed for a serial port used in Console Redirection. Be sure to use the same speed in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this item to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when

the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this item to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

Use this item to configure the settings for the function keys and the key pad for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS Post

Use this item to enable or disable legacy Console Redirection after BIOS POST (Power-On Self-Test). When this feature is set to Bootloader, legacy Console Redirection is disabled before booting the OS. When this feature is set to Always Enable, legacy Console Redirection remains enabled upon OS boot. The options are Always Enable and Bootloader.

▶Legacy Console Redirection Settings

This feature specifies how the host computer exchanges data with the client computer via Legacy Console Redirection.

Legacy Serial Redirection Port

The feature selects a serial port in a client server to be used by Legacy Console Redirection to communicate with a remote host server. The options are COM1 and COM2/SOL.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

The submenu allows the user to configure Console Redirection settings to support Out-of-Band Serial Port management.

EMS Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶EMS Console Redirection Settings (Available when EMS Console Redirection is enabled)

This feature specifies how the host computer exchanges data with the client computer, which is the remote computer used by the user.

Out-of-Band Management Port

The feature selects a serial port in a client server to be used by the Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 (Console Redirection) and COM2/SOL (Console Redirection).

Terminal Type

Use this item to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

Bits Per Second

This item sets the transmission speed for a serial port used in Console Redirection. Be sure to use the same speed in both host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop data-sending when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

The following settings will be displayed: Data Bits, Parity, Stop Bits

▶Trusted Computing (Available when a TPM device is installed and detected by the BIOS)

Configuration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Enabled and Disabled.

TPM State

Select Enabled to use TPM (Trusted Platform Module) settings to enhance system data security. Please reboot your system for any change on the TPM state to take effect. The options are Disabled and Enabled.

Pending Operation

Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system needs to reboot for a pending TPM command to be performed. The options are 0, Enable Take Ownership, Disable Take Ownership, and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Current Status Information

This item displays the status of the TPM support on this motherboard.

▶ ACPI Settings

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring. The options are Enabled and Disabled.

High Precision Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Enabled and Disabled.

NUMA (Available when the OS supports this feature)

Select Enabled to enable Non-Uniform Memory Access support to enhance system performance. The options are Enabled and Disabled.

4-4 Event Logs

Use this feature to configure Event Log settings.

Anio Setup Utility - Copyright 101 2014 American Regatrends, Inc. Main Advanced Event Logs IPW Security Beat Date & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press (Enter) to change the SMBIOS Event Log configuration. +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1245. Copyright 101 2014 American Regatrends, Inc.

▶Change SMBIOS Event Log Settings

This feature allows the user to configure SMBIOS Event settings.

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Enabled and Disabled.

Runtime Error Logging Support

Select Enable to support Runtime Error Logging. The options are Enable and Disable. If this item is set to Enable, the following item will be available for configuration:

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No and Yes.

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Disabled and Enabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This item is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Please reboot the system for the changes to take effect.

▶View SMBIOS Event Log

This item allows the user to view the event in the SMBIOS event log. Select this item and press to view the status of an event in the log. The following categories are displayed:

Date/Time/Error Code/Severity

4-5 IPMI

Use this feature to configure Intelligent Platform Management Interface (IPMI) settings.

Aptio Setup Utility - Copyright (C) 2014 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Event Save & Exit BMC Firmware Revision 1.81 IPMI STATUS Working ► System Event Log ► BMC Network Configuration Press to change the SEL event log configuration. +:-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1245. Copyright: ICI 2014 American Megatrends, Inc.

IPMI Firmware Revision

This item indicates the IPMI firmware revision used in your system.

IPMI Status

This item indicates the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled to enable all system event logging support at bootup. The options are Enabled and Disabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to determine what the AMI BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

▶BMC Network Configuration

The following items will be displayed:

• IPMI LAN Selection
• IPMI Network Link Status

Update IPMI LAN Configuration

Select Yes for the system BIOS to automatically reset the following IPMI settings at next system boot. The options are Yes and No.

Configuration Address Source (Available when the item above - Update IPMI LAN Configuration is set to Yes)

Use this item to select the IP address source for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, AMI BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server attached to the network and request the next available IP address for this computer. The options are DHCP Unspecified, and Static.

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each three-digit number is separated by dots and it should not exceed 255.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

4-6 Security Settings

This menu allows the user to configure the following security settings for the system.

Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20		Setup: Check password while Invoking setup. Always: Check password while invoking setup as well as on each boot.
Password Check Administrator Password	Isetup1	+: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Password Check

Select Setup for the system to prompt for a password upon entering the BIOS setup utility. Select Always for the system to prompt for a password at bootup and upon entering the BIOS Setup utility. The options are Setup and Always.

Administrator Password

Use this feature to set the administrator password which is required before entering the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

User Password

Use this feature to set the user password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

4-7 Boot Settings

Use this feature to configure Boot Settings:

Aptio Setup Utility - Copyright (C) 2014 American Megatrends, Inc. Major Advanced Events Large IPM Security Boot Save & Fail Boot Configuration Setup Prompt Timeout Boot Mode Select FIXED BOOT ORDER Priorities Dual Boot Order #1 Dual Boot Order #2 Dual Boot Order #3 Dual Boot Order #4 Dual Boot Order #5 Dual Boot Order #6 Dual Boot Order #7 Dual Boot Order #8 Dual Boot Order #9 Dual Boot Order #10 Dual Boot Order #11 Dual Boot Order #12 Dual Boot Order #13 Dual Boot Order #14 Dual Boot Order #15 Delete Boot Option Number of seconds to wait for setup activation key. 6SS3S(0xFFFF) means indefinite waiting. ++: Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot Configuration

Setup Prompt Timeout

Use this item to indicate how many seconds the system shall wait for the BIOS setup activation key to respond before the system starts to boot. The default setting is 1.

Boot Mode Select

Use this item to select the type of device to be used for system boot. The options are Legacy, UEFI, and Dual.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices from which the system will boot. Press on each entry from top to bottom to select devices.

• Dual Boot Order #1
• Dual Boot Order #2
• Dual Boot Order #3
• Dual Boot Order #4
• Dual Boot Order #5
• Dual Boot Order #6

• Dual Boot Order #7
  • Dual Boot Order #8
  • Dual Boot Order #9
  • Dual Boot Order #10
  • Dual Boot Order #11
  • Dual Boot Order #12
  • Dual Boot Order #13
  • Dual Boot Order #14
  • Dual Boot Order #15

▶ Delete Boot Option

Use this item to select a boot device to delete from the boot priority list.

Delete Boot Option

Select the target boot device to delete.

▶ Network Drive BBS Priorities

• Legacy Boot Order #1

▶ UEFI Application Boot Priorities

• UEFI Boot Order #1

4-8 Save & Exit

Select the Save & Exit tab from the BIOS setup screen to configure the settings below.

Aptio Setup Utility - Copyright (C) 2014 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Discard Changes and Exit Save Changes and Reset Save Options Save Changes Discard Changes Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-in EFI Shell IBA XE Slot 0400 v2311 Exit system setup without saving any changes. +#: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.17.1245, Copyright (C) 2014 American Megatrends, Inc.

Discard Changes and Exit

Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to leave the BIOS setup utility and reboot the computer for the new system configuration parameters to take effect. Select Save Changes and Exit from the Exit menu and press .

Save Options

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS Utility Program.

Restore Defaults

Select Restore Defaults from the Exit menu and press to load manufacture default settings for your system to maximize system performance but not stability.

Save As User Defaults

Select Save as User Defaults from the Exit menu and press to save changes to the BIOS setup for future use.

Select Restore User Defaults from the Exit menu and press to retrieve user-defined settings that have been previously saved.

Boot Override

This feature allows the user to override the Boot priorities sequence in the Boot menu, and immediately boot the system with another device specified by the user. This is a one-time override.

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue to boot. The error messages normally appear on the screen.

Fatal errors will not allow the system to continue with bootup procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list correspond to the number of beeps for the corresponding error.

A-1 BIOS Error Beep Codes

BIOS Error Beep Codes
Beep Code/LED Error Message Description
1 beep Refresh Circuits have been reset.		(Ready to power up)
5 short beeps + 1 long beep	Memory error No memory detected in the system
5 long beeps + 2 short beeps	Display memory read/write error	Video adapter missing or with faulty memory
1 continuous beep System	OH System Overheat

Notes

Appendix B

Software Installation Instructions

B-1 Installing Software Programs

After you've installed the operating system, a screen as shown below will appear. You are ready to install software programs and drivers that have not yet been installed. To install these programs, click the icons to the right of these items.

Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

SUPERMICRO X10DRFR-T Motherboard Drivers & Tools (Win7) SUPERMICRO® Drivers & Tools Intel C610 Chipset X10DRFR(-N/-NT) SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft Net Framework (Optional) ASPEED Graphics Driver Intel Rapid Storage Technology Enterprise Intel USB 3.0 Drivers Intel PRO Network Connections Drivers Intel Management Engine SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Note 1: Click the icons showing a hand writing on the paper to view the readme files for each item. Click a computer icon to the right of an item to install an item (from top to the bottom) one at a time. After installing each item, you must reboot the system before proceeding with the next item on the list. The bottom icon with a CD on it allows you to view the entire contents of the CD.

Note 2: When making a storage driver diskette by booting into a Driver CD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver diskette, be sure to change the SATA settings back to your original settings.

B-2 Configuring SuperDoctor 5

The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is admin / admin.

SuperDoctor 5 Interface Display Screen (Health Information)

SuperDoctor 5 Health help Voltmboard: X8070/4.163x Fan Speed Voltage Temperature Status C:\Program Files MS Status +0.1 V +0.2 V +0.3 V +0.4 V +0.5 V +0.6 V +0.7 V +0.8 V +0.9 V +1.0 V +1.1 V +1.2 V +1.3 V +1.4 V +1.5 V +1.6 V +1.7 V +1.8 V +1.9 V +2.0 V +2.1 V +2.2 V +2.3 V +2.4 V +2.5 V +2.6 V +2.7 V +2.8 V +2.9 V +3.0 V +3.1 V +3.2 V +3.3 V +3.4 V +3.5 V +3.6 V +3.7 V +3.8 V +3.9 V +4.0 V +4.1 V +4.2 V +4.3 V +4.4 V +4.5 V +4.6 V +4.7 V +4.8 V +4.9 V +5.0 V +5.1 V +5.2 V +5.3 V +5.4 V +5.5 V +5.6 V +5.7 V +5.8 V +5.9 V +6.0 V +6.1 V +6.2 V +6.3 V +6.4 V +6.5 V +6.6 V +6.7 V +6.8 V +6.9 V +7.0 V +7.1 V +7.2 V +7.3 V +7.4 V +7.5 V +7.6 V +7.7 V +7.8 V +7.9 V +8.0 V

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

Appendix C

UEFI BIOS Recovery Instructions

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

C-1 An Overview to the UEFI BIOS

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism for add-on card initialization to allow the UEFI OS loader, which is stored in the add-on card, to boot the system. The UEFI offers a clean, hands-off control to a computer system at bootup.

C-2 How to Recover the UEFI BIOS Image (-the Main BIOS Block)

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The boot block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a new BIOS image if the original main BIOS image is corrupted. When the system power is on, the boot block codes execute first. Once it is completed, the main BIOS code will continue with system initialization and bootup.

Note: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS boot crashes. However, when the BIOS boot block crashes, you will need to follow the procedures below for BIOS recovery.

C-3 To Recover the Main BIOS Block Using a USB-Attached Device

This feature allows the user to recover a BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by UEFI is FAT (including FAT12, FAT16, and FAT32) installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large because it contains too many folders and files.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "\" Directory of a USB device or a writeable CD/DVD.

Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super.ROM" for BIOS recovery use.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and power on the system

2. While powering on the system, please keep pressing and simultaneously on your keyboard until the following screen (or a screen similar to the one below) displays.

Warning!! Please stop pressing the and keys immediately when you see the screen (or a similar screen) below; otherwise, it will trigger a system reboot.

SUPPLY BMC IP:10.132.161.13 PEI--System Enter Recovery Mode.. 4F

Note: On the other hand, if the following screen displays, please load the "Super.ROM" file to the root folder and connect this folder to the system. (You can do so by inserting a USB device that contains the new "Super.ROM" image to your machine for BIOS recovery.)

SUPPANT BMC IP:10.132.161.13 PEI--Could Not Find Recovery Image... 87

1. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

Note: At this point, you may decide if you want to start with BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

Automatic Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Main Advanced Event Logs IPMI Boot Security Exit Recovery WARNING! BIOS Recovery mode has been detected Flash Update Parameters Reset NVRAM (Enabled) Processed with Flash update Select this to start flash update ↔: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.10.1208. Copyright (C) 2010 American Megatrends, Inc.

1. When the screen as shown above displays, using the arrow key, select the item "Proceed with flash update" and press the key. You will see the progress of BIOS recovery as shown in the screen below.

Note: Do not interrupt the process of BIOS flashing until it is completed.

Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Recovery WARNING! System firmware is being updated, Keyboard is locked, DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update progress 15 x ++: Select Screen ↑1: Select Item Enter: Select +/-: Change Opt: F1: General Help F2: Previous Values FS: Optimized Defaults F4: Save & Exit ESC: Exit Version 3.10.1208, Copyright (C) 2010 American Megatrends, Inc.

1. After the process of BIOS recovery is completed, press any key to reboot the system.

Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc. Recovery WARNING! System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF IT! Once firmware update is completed press any key to reboot the system Flash update progress completed. ##: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 3.10.1208, Copyright (C) 2010 American Megatrends, Inc.

1. Using a different system, extract the BIOS package into a bootable USB flash drive.
2. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.

Note: Do not interrupt this process until BIOS flashing is completed.

1. After seeing the message that BIOS update is completed, unplug the AC power cable from the power supply to clear the CMOS, and then plug the AC power cable in the power supply again to power on the system.
2. Press continuously to enter the BIOS Setup utility.
3. Press to load default settings.
4. After loading default settings, press to save the settings and exit the BIOS Setup utility.

(Disclaimer Continued)

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
