Product Type	Touch POS Terminal / Cash Register
Model	RT-2016
Display	15.6" TFT LCD with LED backlight
Resolution	1920 x 1080 (Full HD)
Touch Technology	P-CAP (Projected Capacitive) touch
Processor	Intel Celeron J1900 (quad-core, 2.0 GHz, 10W TDP)
Memory	DDR3L SO-DIMM slot x 1, max 8 GB
Storage	SATA x 2 (supports HDD/SSD)
Power Supply	12V DC / 60W (upgradable to 150W with PoweredUSB module)
Serial Ports	3 (1x DB9 + 2x RJ50)
USB Ports	4 (1x USB 3.0 + 3x USB 2.0) + internal USB hub (4x USB 2.0)
LAN Port	1x Gigabit Ethernet (10/100/1000)
Display Port	1x Mini DisplayPort
Cash Drawer Port	1x (controls up to 2 drawers)
Audio	Internal 2W speaker
Expansion Slot	M.2 slot x 1
Dimensions (with base)	402 x 297 x 207 mm
Operating Temperature	0°C to 40°C (HDD) / 0°C to 50°C (SSD)
Storage Temperature	-20°C to 70°C
Humidity (Operating)	20% to 90% RH
Certifications	FCC, CE
Design	Fanless, robust metal base, tiltable screen
Optional Accessories	MSR, fingerprint/iButton sensor, 2nd display, PoweredUSB hub, barcode scanner

Frequently Asked Questions - RT-2016 Posiflex

How do I adjust the viewing angle of the Posiflex RT-2016?

Steady the base with one hand, then tilt the screen in the direction shown in the manual. Do not press on the LCD panel while adjusting the tilt angle.

What does the LED indicator on the RT-2016 mean?

The LED at the bottom edge of the LCD panel indicates system status: Off (power off), Orange (standby), Blue (power on).

How do I install cables for the RT-2016?

Lay the terminal with rear facing you, tilt screen down, remove system back cover and stand cover. Connect power adapter to DC-IN jack and other cables. Arrange cables neatly using cable holder, then replace covers.

Can I upgrade the RT-2016 with optional peripherals?

Yes, the RT-2016P model supports optional upgrades like magnetic stripe reader (MSR), fingerprint/iButton sensor, 2nd rear-mount POS monitor, PoweredUSB hub, and barcode scanner.

How do I power on/off the RT-2016?

Press the power button to turn on. To turn off, press the power button again. If the system does not respond, hold the power button for more than 10 seconds to force shutdown.

What are the environmental requirements for the RT-2016?

Operating temperature: 0°C to 40°C (with HDD) or 0°C to 50°C (with SSD). Storage: -20°C to 70°C. Humidity: 20% to 90% RH. Keep at least 25mm away from other devices for ventilation.

How do I install an operating system on the RT-2016?

It is highly recommended not to install an OS without professional instructions. Contact your dealer for proper installation to avoid system malfunction.

How do I perform system recovery on the RT-2016?

If your system has a preloaded OS, a Recovery DVD is included. Do not attempt recovery without assistance from system integrators; contact your service center for help.

What type of touch technology does the RT-2016 use?

The RT-2016 uses P-CAP (Projected Capacitive) touch technology, which offers multi-touch support and is highly durable for retail environments.

How do I clean the Posiflex RT-2016?

Use a soft, dry cloth to wipe the screen and casing. Do not use harsh chemicals or spray liquids directly. Ensure the system is powered off before cleaning.

USER MANUAL RT-2016 Posiflex

Black rectangular electronic display with a blank screen, no visible text or symbols

Package Contents

√ RT-2015 15" fanless touch terminal or RT-2016 15.6" fanless touch terminal or RT-2115 15" fanless touch terminal or RT-2116 15.6" fanless touch terminal (x 1)
√ Power adapter (x 1)
√ Power cord (x 1)
√ User manual (x 1)

Views of RT-2015/2016/2115/2116

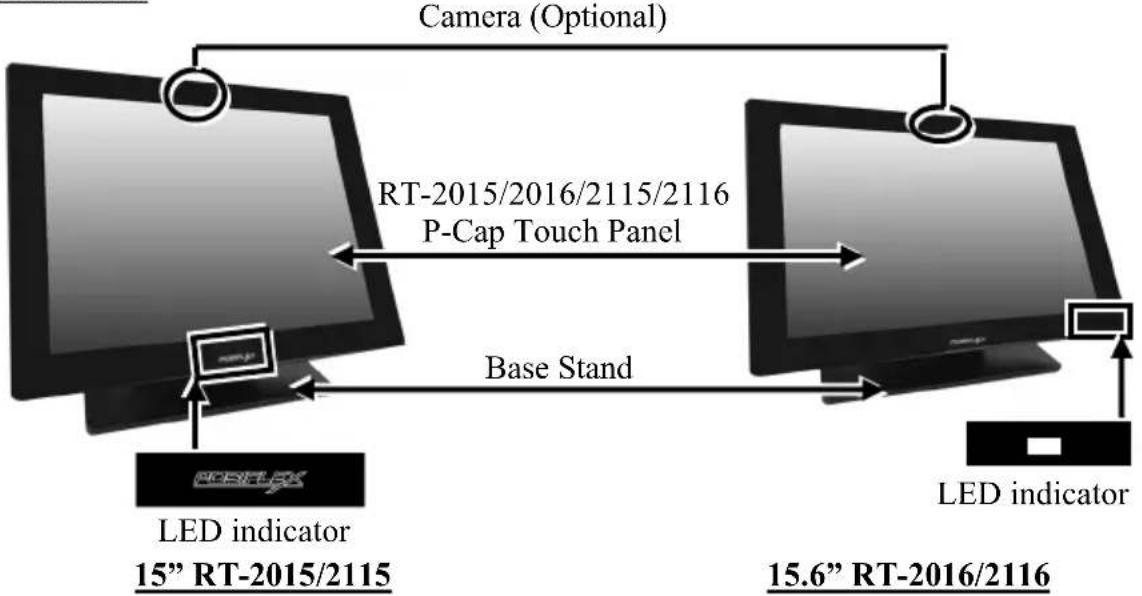

Front View


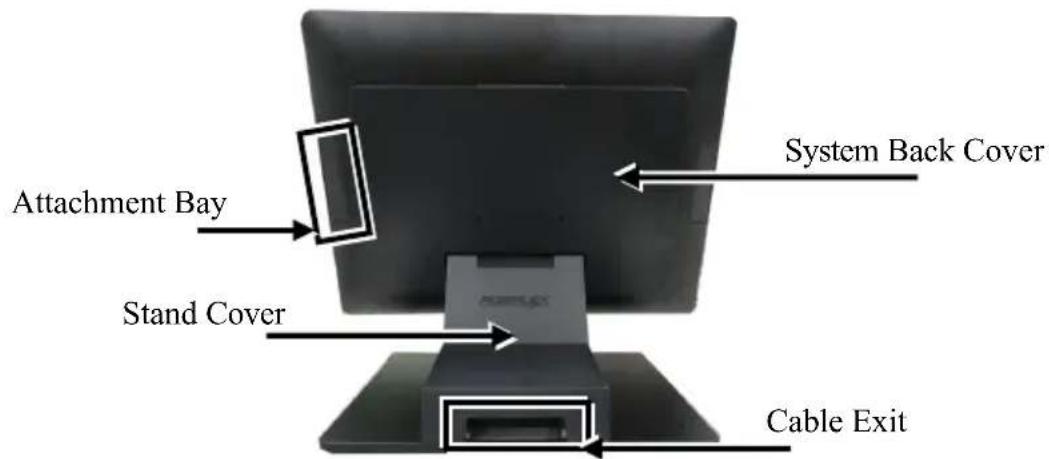

Rear View

Attachment Bay Stand Cover System Back Cover Cable Exit

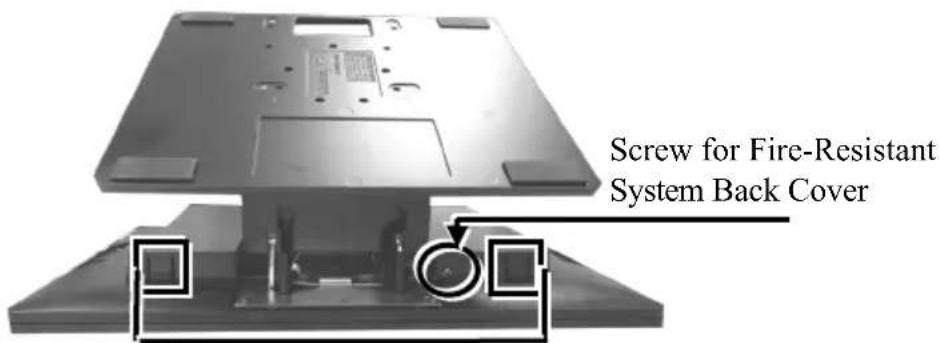

Bottom View

Screw for Fire-Resistant System Back Cover

Release Lever for System Back Cover

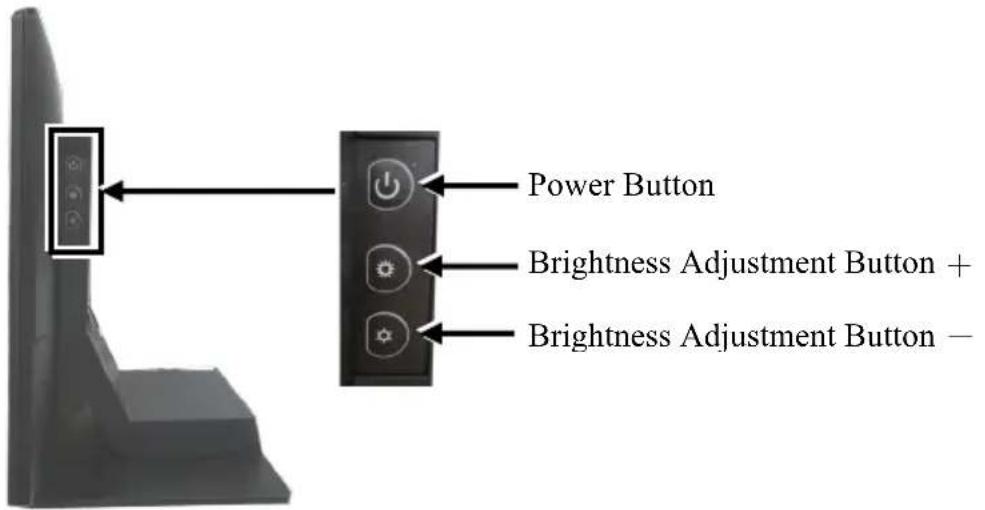

Left-Side View

Power Button Brightness Adjustment Button + Brightness Adjustment Button -

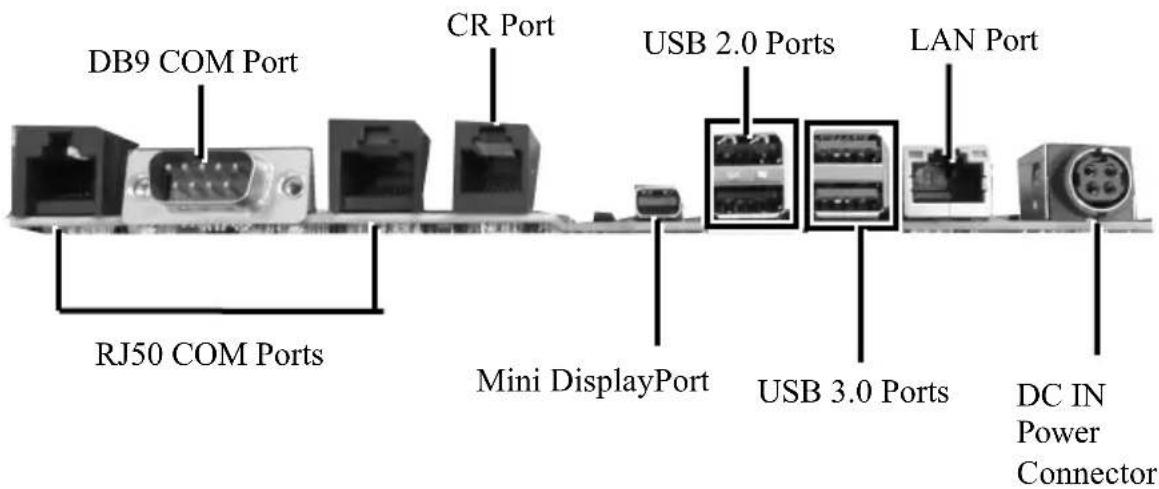

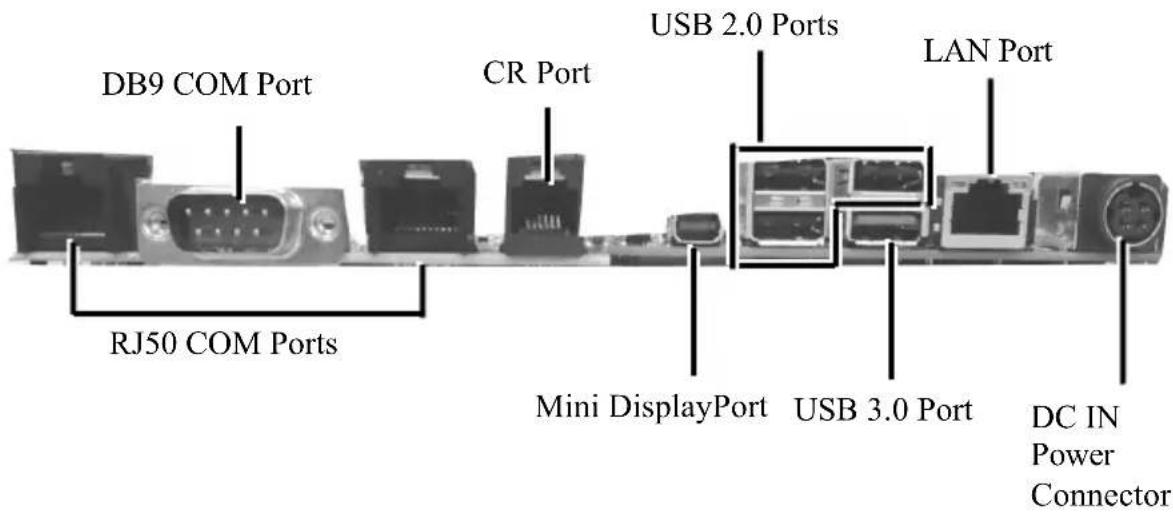

View of I/O Interface of RT-2015/2016

DB9 COM Port CR Port USB 2.0 Ports LAN Port RJ50 COM Ports Mini DisplayPort USB 3.0 Port DC IN Power Connector

View of I/O Interface of RT-2115/2116

DB9 COM Port CR Port USB 2.0 Ports LAN Port RJ50 COM Ports Mini DisplayPort USB 3.0 Ports DC IN Power Connector

Positioning your POS for a Perfect Viewing Angle

Steady the base with one hand, and then tilt the screen in the direction shown by the arrow in the figure. Please do NOT press on the LCD panel while setting up the tilt angle.

Black-and-white illustration of a computer monitor with an arrow indicating rotation (no text or symbols)

Installing Power Adapter and Cables

The following provides instructions required to install your cables.

1. Lay the terminal with its rear facing towards you and tilt the screen all the way down.

Exterior view of a black metal bracket (no text or symbols visible)

1. Remove the system back cover.

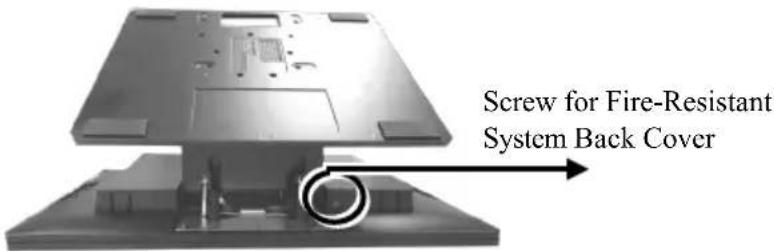

2.1 If the system back cover is fire-resistant, first locate the screw as indicated in the figure, and then remove it.

Screw for Fire-Resistant System Back Cover

2.2 Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards.

Close-up of a hand pressing down on a computer monitor (no visible text or symbols)

1. To remove the stand cover from the base, grab the top side of the cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree angle, and then (3) slide it in the horizontal direction shown by the arrow.

1 2 3

1. Connect the connector of the power adapter to the DC-IN power jack. If necessary, properly insert other cables into the correct port.

Close-up of a hand inserting a component into a device (no visible text or symbols)

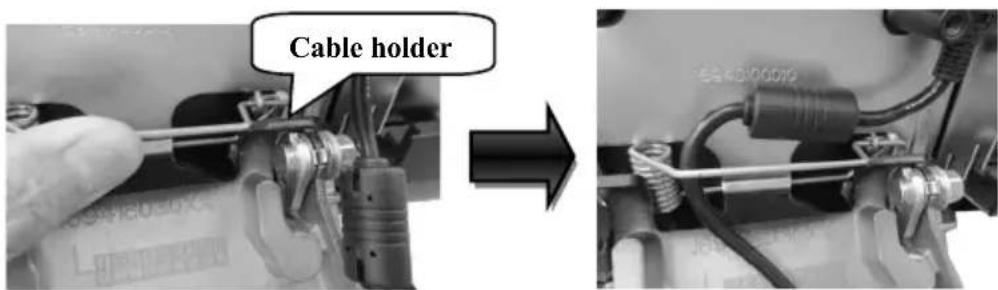

1. Neatly arrange the cables. Locate the cable holder inside the base as shown in the figure. Push down the lever to release if from the hook, pass the cable through cable holder, and then press down the lever again to lock it onto the hook.

Cable holder

1. Make sure the cord can be held into place and passed through the cable exit after sliding back the stand cover.

Close-up of a hand pressing down on a mechanical component with an arrow pointing to the part (no visible text or symbols)

7.

7.1 Place back the sytem back cover. Make sure it is well locked into place with a click sound.

Close-up of a hand pressing down on a computer monitor with a curved arrow indicating rotation (no text or symbols visible)

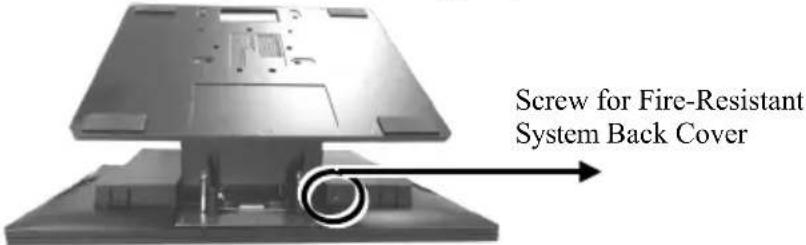

7.2 For the fire-resistant system back cover, please insert another screw into the screw hole indicated in the figure, and secure it.

Screw for Fire-Resistant System Back Cover

1. Make sure the cable could be pulled out of the cable exit from the bottom of the base.

Close-up of a computer monitor with a paper lid and cable inserted (no visible text or symbols)

Installing Optional Upgrade Kits and Peripherals

RT-2015P/2016P/2115P/2116P is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2^nd rear-mount POS monitor, according to your preference. The following will give you brief instructions on how to expand on your current POS system with these optional upgrade kits. Before proceeding with the installation of peripherals, please make sure the POS system is completely shut down to prevent damage.

Installing Side Mount Upgrade Kits

Located at left side on the back of your system unit, side mount compartment is mainly used for installation of side-mounted equipment, such as magnetic stripe reader. For detailed installation instructions, please refer to the user manual specific to the device which you intend to mount onto the terminal.

Close-up of a black electronic device with a cable inserted, showing internal components and a close-up view (no text or symbols visible)

Installing Rear-Mount POS Monitor

RT-series POS terminal also allows you to additionally install rear-mount POS monitor to expand its functionality. Regarding the step-by-step instructions which aim to help you mount it onto your POS system, Please refer to the user manual specific to the device you intend to install.

Close-up of a mechanical component with a highlighted rectangular frame (no visible text or symbols)

Installing PoweredUSB or USB Hub

Please go through the below steps to complete the installation of PoweredUSB or USB hub.

1. After tilting the screen all the way down, remove the system back cover.

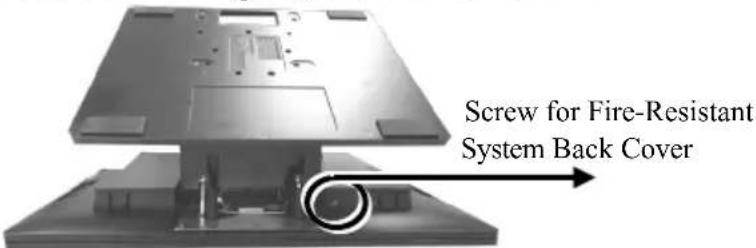

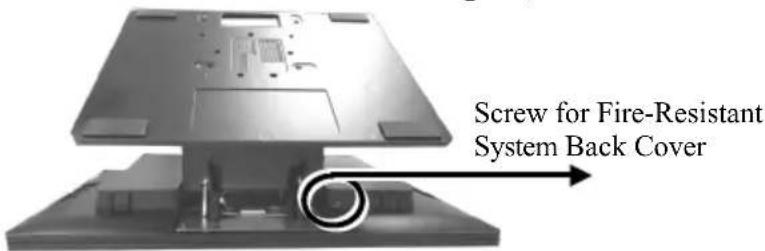

1.1 If the system back cover is fire-resistant, first locate the screw as indicated in the figure, and then remove it.

Screw for Fire-Resistant System Back Cover

1.2 Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards

Close-up of a hand holding a computer monitor with an arrow indicating rotation (no visible text or symbols)

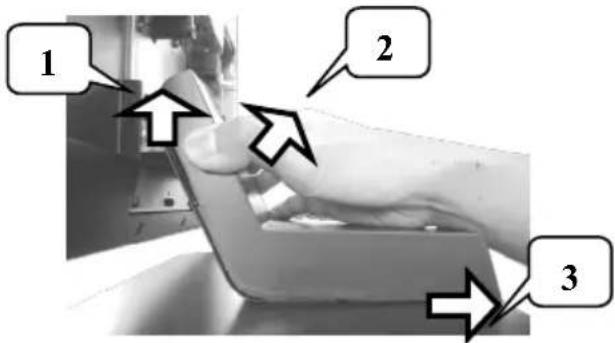

1. To remove the stand cover from the base, grab the top side of the cover, (1) lift the stand cover up gently, (2) pull it at a 45 degree angle, and then (3) slide it in the horizontal direction shown by the arrow.

1 2 3

1. Align the two screw bolts at the bottom of PoweredUSB or USB hub with rail slots in the base.

Diagram showing a device's internal structure before and after assembly, with no visible text or symbols.

4.

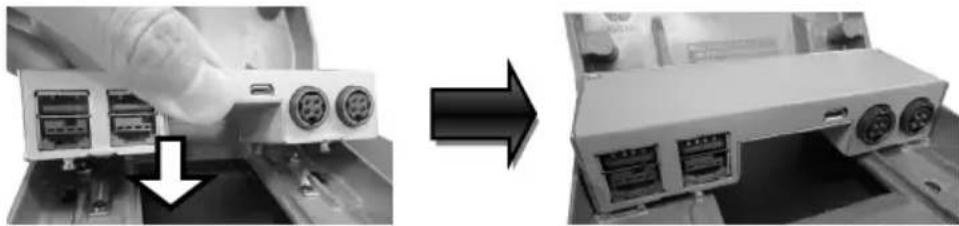

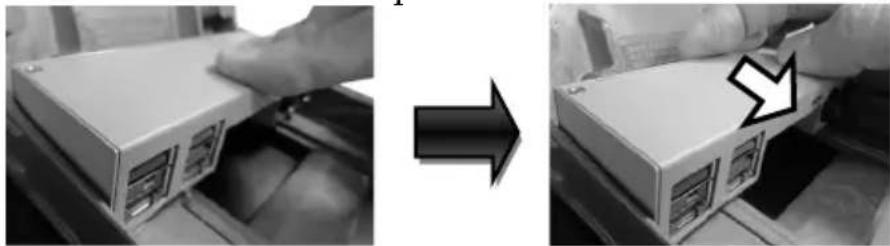

Push PoweredUSB or USB hub in the direction shown by the arrow to lock it into place.

Close-up of a hand inserting into a computer drive module (no visible text or symbols)

To remove the PoweredUSB or USB hub from the rail slots, press down the hubs first and then push it outwards.

Two-panel image showing a computer interface with a hand inserting a device into the first panel and another with an arrow pointing to a device on top (no visible text or symbols)

1. Install power adaptor extension cable, USB cable, and power adaptor for PoweredUSB hub.

5.1 Insert one end of the provided power adaptor extension cable to DC Input port of PoweredUSB hub and another end to DC-in power jack of the terminal.

Close-up of a hand inserting a USB into a device housing (no visible text or symbols)

5.2 Insert mini-USB connector of the USB cable to PoweredUSB hub and another end to USB3.0 port of the terminal.

Close-up of a mechanical component with two circular features, possibly a valve or connector (no visible text or symbols)

5.3 Connect the connector of the power adapter to DC Output port of PoweredUSB hub, and the other end to the electrical outlet.

Close-up of a mechanical component with a black connector and threaded shaft (no visible text or symbols)

1. To Install USB cable for USB hub, Plug Type-A connector of USB cable to USB Port of USB hub and the other end of USB cable to USB3.0 port of the POS terminal.

Close-up of a mechanical device with a paper feeding into a container (no visible text or symbols)

1. Neatly arrange your cable and then slide back the stand cover.

Close-up of a hand pressing down on a metallic electronic device (no visible text or symbols)

1. .

8.1 Place back the sytem back cover. Make sure it is well locked into place with a click sound

Close-up of a hand holding a black electronic device with a curved arrow indicating rotation (no text or symbols visible)

8.2 For the fire-resistant system back cover, please insert another screw into the screw hole indicated in the figure, and secure it.

Screw for Fire-Resistant System Back Cover

Status LED Indicator

LED status indicator, which is located at the bottom edge of the LCD panel, is mainly responsible for notifying users of the current system status by emitting various LED signals. In the chart provided below, it describes all the possible LED status as a quick reference.

15" RT-2015/2115

LED Status	Description
Off	System power OFF
Green	System standby
Blue	System power ON

15.6" RT-2016/2116

LED Status	Description
Off	System power OFF
Orange	System standby
Blue	System power ON

Powering ON/OFF RT-2015/2016/2115/2116

Power ON RT-2015/2016/2115/2116

Press down the power button to power on the POS.

Power OFF RT-2015/2016/2115/2116

In most cases, press the power button of the POS to power the system off. If the terminal fails to turn off the machine for unknown reasons, please be advised to hold the power button more than 10 seconds to force a shutdown of the system.

Power Button

Installing an Operating System

You are highly advised not to install an operating system on RT-2015/2016/2115/2116 without professional instructions. Improper installation could lead to system malfunction or failure. Please contact with your dealers about the issues of operating system installation.

Performing System Recovery

For RT-2015/2016/2115/2116 model with preloaded operating systems, Recovery DVD which includes useful utilities will be provided in the package to assist you in efficiently restoring or repairing your damaged system. However, you are not encouraged to recover your system without the help of system integrators. Please be advised to contact your service center for further assistance with system recovery.

Operation Environment

To prevent RT-2015/2016/2115/2116 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally.

Specifications

RT-2015/2016

	RT-2015	RT-2016
CPU	Intel Bay Trail-DIntel Celeron - J1900 (2.0 GHz, Quad-Core, 10W TDP)
System Memory	DDR3L, SO-DIMM socket x 1, max. 8GB
Storage Device	SATA Storage x 2
Power Supply	12V / 60W, can be upgraded to 150W while adopting PoweredUSB module
LCD Panel	15"TFT LCD with LED backlight	15.6" TFT LCD with LED backlight
LCD Resolution	1024 x 768	1920 x 1080
Touch Sensor	P-CAP touch
Serial Port	3 ports, DB9 x 1 + RJ-50 x 2
USB Port	4 ports, USB3.0 x 1 + USB2.0 x3Additional USB port replicator (USB2.0 x 4, installed in base stand)
LAN Port	10/100/1000 Mb x 1
Display Port	eDP connector (internal header, support 15.6" LCD)VGA + USB + 12V (internal header, supporting 2nd monitor 9.7"/10.1")1 x Mini DP port (on I/O plate)
CR Port	1 port, controlling 2 CR
Audio Port	Internal 2W speaker x 1
Extension Slot	M.2 slot x 1
vPro	N/A
TPM	N/A
RAID	N/A
Dimension(W x V x D in mm)	Main Unit : 368 x 292 x 46.6with base stand : 368 x 325 x 207	Main Unit : 402 x 251 x 41.2with base stand : 402 x 297 x 207
Environmental Requirements	Operating:0°C ~ 40°C, 20%RH - 90%RH (with HDD)0°C ~ 50°C, 20%RH - 90%RH (with SSD)Storage:-20°C ~ 70°C, 10%RH - 90%RH
Regulation Rules	FCC/CE
Attachment
RA-101	Slim MSR attachment for RT series
RA-103	iButton (or RFID) with one USB port attachment for RT series
RA-104	2D scanner attachment for RT series
RA-301	3-in-1 MSR + Fingerprint Sensor + 2D scanner attachment for RT series
LM/TM-4010	9.7" 2nd display for RT series terminal
LM/TM-4011	10.1" 2nd display for RT series terminal
PU-460	PoweredUSB module to support 12V and 24V Powered USB ports
RT-560	USB port replicator ( USB2.0 x 4, installed in base stand)

RT-2115/2116

	RT-2115	RT-2116
CPU	Intel Apollo Lake SoCIntel Celeron - N3350 (2.4 GHz, Dual-Core, 6W TDP)
System Memory	DDR3L, SO-DIMM socket x 1, max. 8GB
Storage Device	SATA Storage x 2
Power Supply	12V / 60W, can be upgraded to 150W while adopting PoweredUSB module
LCD Panel	15" TFT LCD with LED backlight	15.6" TFT LCD with LED backlight
LCD Resolution	1024 x 768	1920 x 1080
Touch Sensor	P-CAP touch
Serial Port	3 ports, DB9 x 1+ RJ-50 x 2
USB Port	4 ports, USB3.0 x 2 + USB2.0 x 2Additional USB port replicator ( USB2.0 x 4, installed in base stand)
LAN Port	10/100/1000 Mb x 1
Display Port	eDP connector (internal header, supporting 15" and 15.6" LCD panel)VGA + USB + 12V (internal header, support 2nd monitor 9.7"/10.1")1 x Mini DP port (on I/O plate)
CR Port	1 port, controlling 2 CR
Audio Port	Internal 2W speaker x 1
Extension Slot	M.2 slot x 1
vPro	N/A
TPM	N/A
RAID	N/A
Dimension(W x V x D in mm)	Main Unit : 368 x 292 x 46.6with base stand : 368 x 325 x 207	Main Unit : 402 x 251 x 41.2with base stand : 402 x 297 x 207
Environmental Requirements	Operating :0°C ~ 40°C, 20%RH - 90%RH (with HDD)0°C ~ 50°C, 20%RH - 90%RH (with SSD)Storage :-20°C ~ 70°C, 10%RH - 90%RH
Regulation Rules	FCC/CE
Attachment
RA-101	Slim MSR attachment for RT series
RA-103	iButton/RFID) with one USB port attachment for RT series
RA-104	2D scanner attachment for RT series
RA-301	3-in-1 MSR + Fingerprint Sensor + 2D scanner attachment for RT series
LM/TM-4010	9.7" 2nd display for RT series terminal
LM/TM-4011	10.1" 2nd display for RT series terminal
PU-460	PoweredUSB module to support 12Vand 24VPowered USB ports
RT-560	USB port replicator ( USB2.0 x 4, installed in base stand)

※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-2015/2016/2115/2116, please check this model from Posiflex Global Website
