OWNER'S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this owner's manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.

TABLE OF CONTENTS

WARRANTY 2

IMPORTANT SAFETY INSTRUCTIONS 3

PARTS LIST 4

TOOLS 5

HARDWARE & PARTS PACKING LIST 6

OVERVIEW DRAWING 7

ASSEMBLY INSTRUCTIONS 8

LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use. This warranty does not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is offered only to the original owner and is not transferable. Proof of purchase is required.

When ordering replacement parts please have the following information ready:

1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following important safety instructions when using this equipment: Read all instructions before using this equipment.

1. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise is necessary. Refer to the Warm Up and Cool Down Routine pages. After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This equipment should be placed on a flat surface when using. Using a mat or other covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that might catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away from the equipment while in use. This machine is designed for adults use only. The minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kgs.

WARNING: Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.

CAUTION: Read all instructions carefully before operating this product.

Retain this Owner's Manual for future reference.

PARTS LIST

No.	Description	Qty		No.	Description
001	Main Frame 1 030 Curve Washer ∅10	4
002	Handlebar ∅25 1 031 Cap Nut M10	4
003	Handlebar Post ∅50 1 032 Rear	Stabilizer End Cap ∅50	2
004	Rear Stabilizer ∅50 1 033 Front	Stabilizer End Cap ∅50	2
005	Seat Post ∅38	1 034 Bolt M6x48			2
006	Front Stabilizer ∅50	1	035	Transport Wheel ∅23x∅6x32		2
007	Seat Sliding Tube	1	036	Nylon Nut M6		2
008	Seat Sliding Tube Square End Cap (□38)	2	037	Curve Washer ∅20x∅8		4
009	Washer ∅8	5	038	Bolt M8x15		4
010	Nylon Nut M8	5	039 Hexagon Nut 7/8"			1
011	Seat Cushion (DD-353T)	1	040	Washer ∅34.5x∅23x2.5		1
012	Big Washer ∅20x∅8x2.0T	1	041 Bearing Nut I 15/16"			1
013	Seat Adjustment Knob M8	1	042	Ball Bearing		2
014	Handlebar Foam Grip ∅30x∅24x455	2	043	Bearing Cup		2
015	Clamp Cover	1	044 Bearing Nut II 7/8"			1
016	Spacer (∅12x20x1.5)	1	045	Washer 7/8"		1
017	Handlebar T-Knob (M8x55)	1	046	Left Foot Pedal (YH-30X)		1
018	Hand Pulse Sensor with Wire L=550mm	2	047 Belt Pulley with Crank			1
019	Handlebar End Cap ∅25	2	048	Right Foot Pedal (YH-30X)		1
020	Screw ST4.2x20	2	049	Belt (PJ380J6)		1
021	Wire Plug ∅12.1	1	050	Flywheel		1
022	Tension Control Knob	1	051 Nut M10x1x10			2
023	Big Curve Washer ∅5	1	052 Bearing 6000			2
024	Bolt M5x45	1	053	Idler Arm		1
025	Bolt M5x10	4	054	Bolt M8x18		1
026	Computer (JVT-29120)	1	055	Spring 18x92x∅3.0		1
027	Tension Cable L=1110mm	1	056	Eyebolt M6x36		2
028	Extension Sensor Wire L=800mm	1	057	Tension Bracket		2
029	Carriage Bolt M10x57 4 058 Spring Washer ∅6 2

PARTS LIST

No.	Description	Qty		No.	Description
059	Nut M6 2 064 Seat Post Cover	1
060	Sensor with Wire L=1100mm 1 065 Left Cover 1
061	Screw ST2.9x10 2 066 Right	Cover			1
062	Seat Post Knob M12	1 067 Cover Cap ∅40x∅25x10			2
063	Seat Post Bushing	1 068 Screw ST4.2x25			6

TOOLS

Simple line drawing of a bent pipe or angle bracket (no text or symbols)

Allen Wrench S5 1 PC

Simple line drawing of a symmetrical mechanical or electrical component with no text or symbols

Multi Hex Tool with Phillips Screwdriver S13, S14, S15 1 PC

Line drawing of a wrench tool (no text or symbols)

Multi Hex Tool S10, S13, S17, S19 1 PC

HARDWARE & PARTS PACKING LIST

(15) Clamp Cover 1 PC

Top-down line drawing of three identical rectangular shapes with curved top tabs, no text or symbols present.

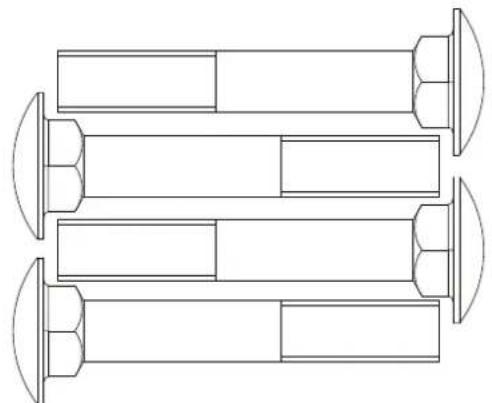

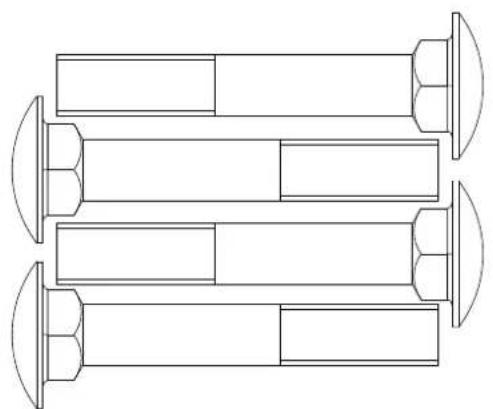

(29) Carriage Bolt M10x57 4 PCS

(16) Spacer ∅12x20x1.5 1 PC

Technical line drawing of a mechanical component with threaded shaft and flanges (no text or symbols)

(17) Handlebar T-Knob M8x55 1 PC

Four identical empty circular shapes arranged in a 2x2 grid (no text or symbols)

(30) Curve Washer ∅10 4 PCS

Four identical diagrams of mechanical components with no text or symbols

(31) Cap Nut M10 4 PCS

Four identical empty circular shapes arranged in a 2x2 grid (no text or symbols)

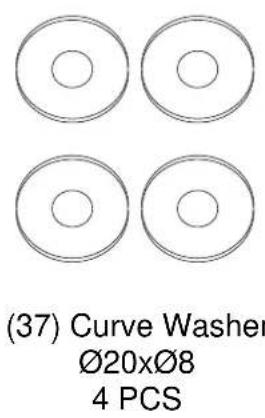

(37) Curve Washer ∅20x∅8 4 PCS

Pure diagram of two parallel wavy lines with curved ends, no text or symbols present

(38) Bolt M8x15 4 PCS

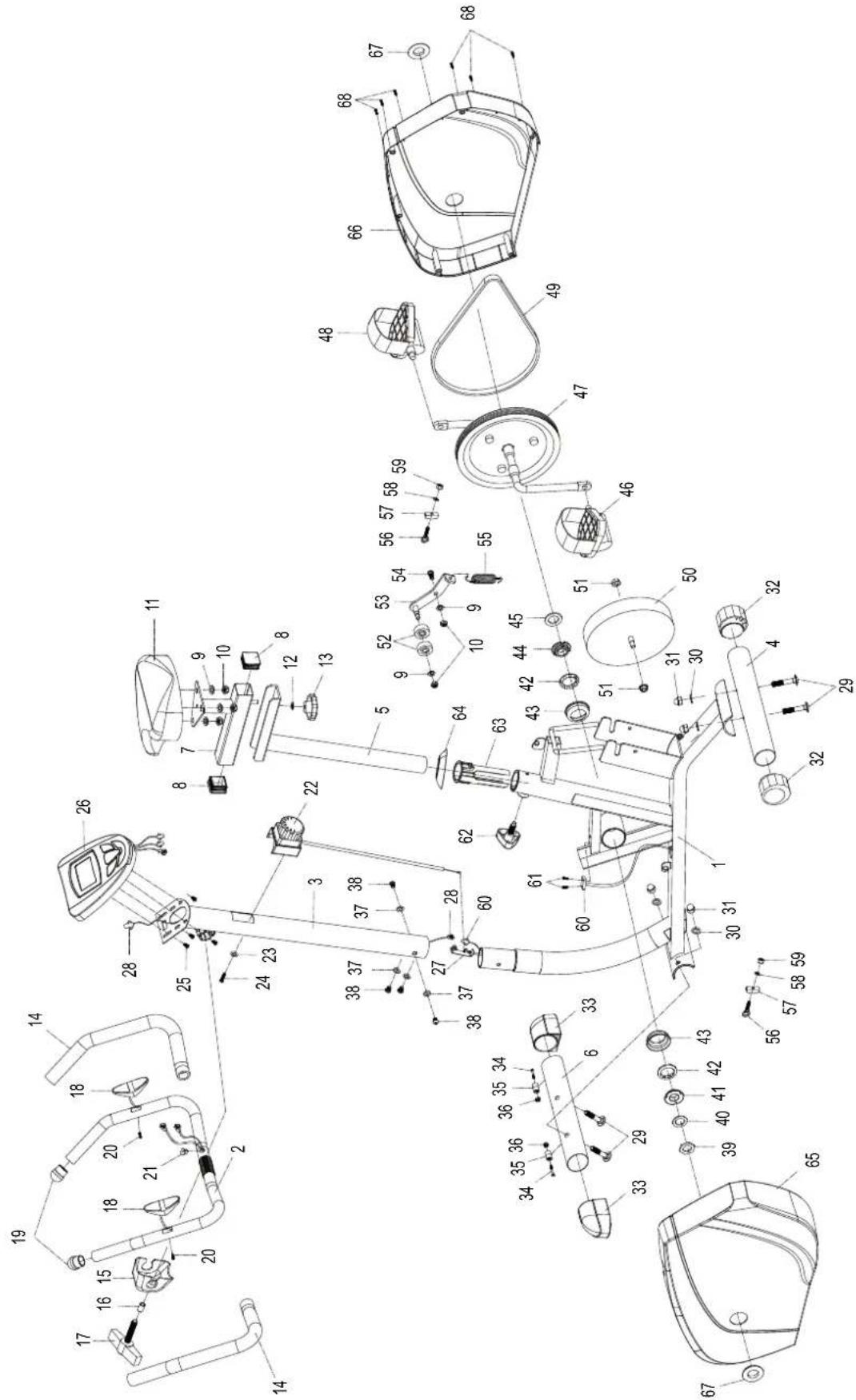

OVERVIEW DRAWING

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

ASSEMBLY INSTRUCTIONS

Technical diagram of a mechanical device with numbered components and labeled parts

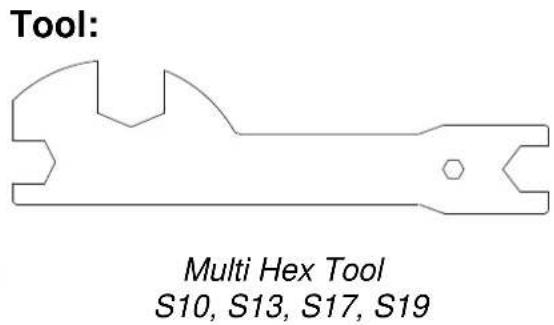

Tool: Multi Hex Tool S10, S13, S17, S19

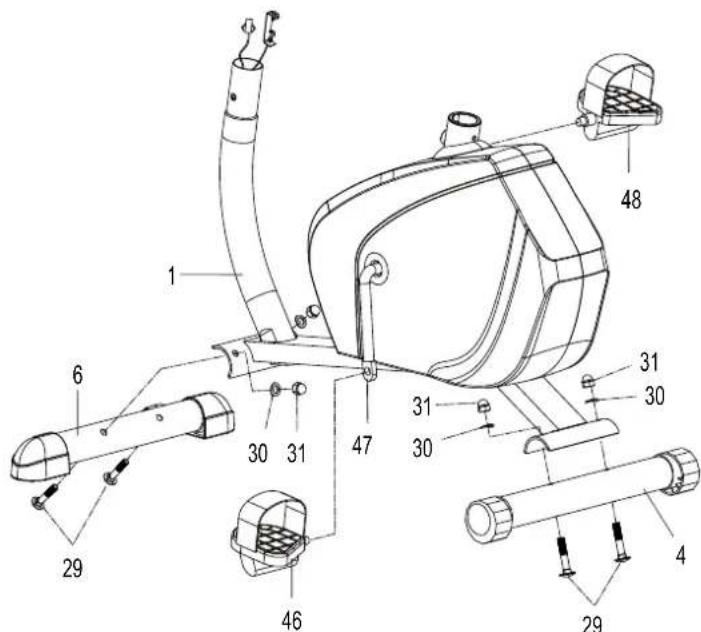

1. Front/Rear Stabilizers and Right/Left Foot Pedals Installation

Position the Front Stabilizer (6) in front of the Main Frame (1) and align bolt holes. Attach the Front Stabilizer (6) onto the front curve of the Main Frame (1) with two M10x57 Carriage Bolts (29), two ∅10 Curve Washers (30), and two M10 Cap Nuts (31). Tighten cap nuts with the Multi Hex Tool provided.

Position the Rear Stabilizer (4) behind the Main Frame (1) and align bolt holes. Attach the Rear Stabilizer (4) onto the rear curve of the Main Frame (1) with two M10x57 Carriage Bolts (29), two ∅10 Curve Washers (30), and two M10 Cap Nuts (31). Tighten cap nuts with the Multi Hex Tool with Phillips screwdriver provided.

Foot Pedals Installation

The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked "R" for Right and "L" for Left.

Insert the pedal shaft of Left Foot Pedal (46) into threaded hole in the left Crank (47). Turn the pedal shaft by hand in the counter-clockwise direction until snug.

Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the threads.

Tighten the pedal shaft of Left Foot Pedal (46) with the Multi Hex Tool provided. Insert pedal shaft of Right Foot Pedal (48) into threaded hole in right Crank (47). Turn the pedal shaft by hand in the clockwise direction until snug. Tighten pedal shaft of Right Foot Pedal (48) with the Multi Hex Tool provided.

Hardware:

Top-down line drawing of three identical rectangular shapes with curved top and side panels, no text or symbols present.

(29) Carriage Bolt M10x57 4 PCS

Four identical empty circular diagrams arranged in a 2x2 grid (no text or symbols)

(30) Curve Washer ∅10 4 PCS

Four identical diagrams of a bolt head assembly with no text or symbols

(31) Cap Nut M10 4 PCS

Technical diagram of a mechanical device with numbered components for identification

Tool:

Simple line drawing of a symmetrical tool or knob with a central handle (no text or symbols)

Multi Hex Tool with Phillips Screwdriver S13, S14, S15

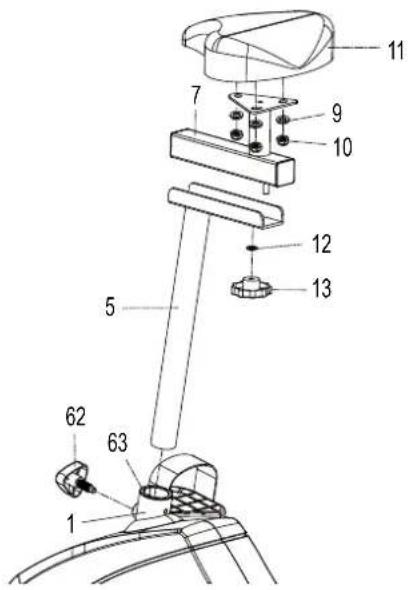

2. Seat Post, Seat Cushion, and Seat Sliding Tube Installation

Insert the Seat Post (5) into the Seat Post Bushing (63) on the tube of the Main Frame (1) and then attach the M12 Seat Post Knob (62) onto the tube of the Main Frame (1) by turning it in a clockwise direction to lock the Seat Post (5) in the suitable position.

Remove three ∅8 Washers (9) and three M8 Nylon Nuts (10) and from underside of the Seat Cushion (11). Remove nylon nuts and washers with the Multi Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat Cushion (11) through holes on top of the Seat Sliding Tube (7), attach with three removed ∅8 Washers (9) and M8 Nylon Nuts (10). Tighten nylon nuts and washers with the Multi Hex Tool with Phillips Screwdriver provided.

Guide the bolt on underside of the Seat Sliding Tube (7) through hole on top of the Seat Post (5), attach with one ∅20x∅8x2.0T Big Washer (12) and M8 Seat Adjustment Knob (13).

A 27 22 B 27 22 3 24 23 38 37 37 38 28 27 60 1

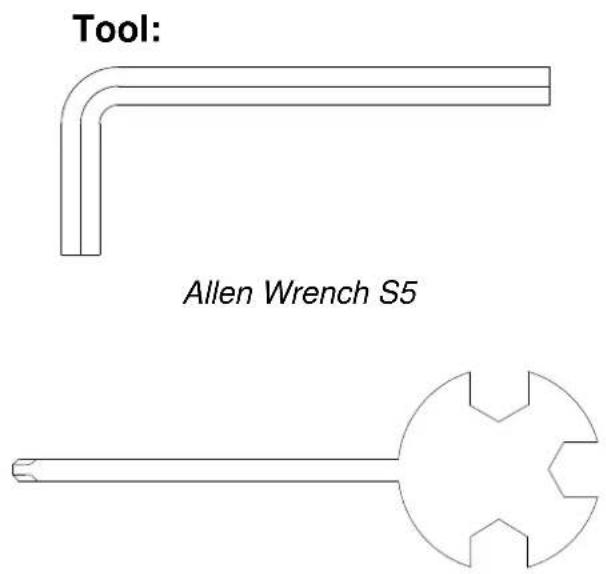

Tool: Allen Wrench S5

Multi Hex Tool with Phillips Screwdriver S13, S14, S15

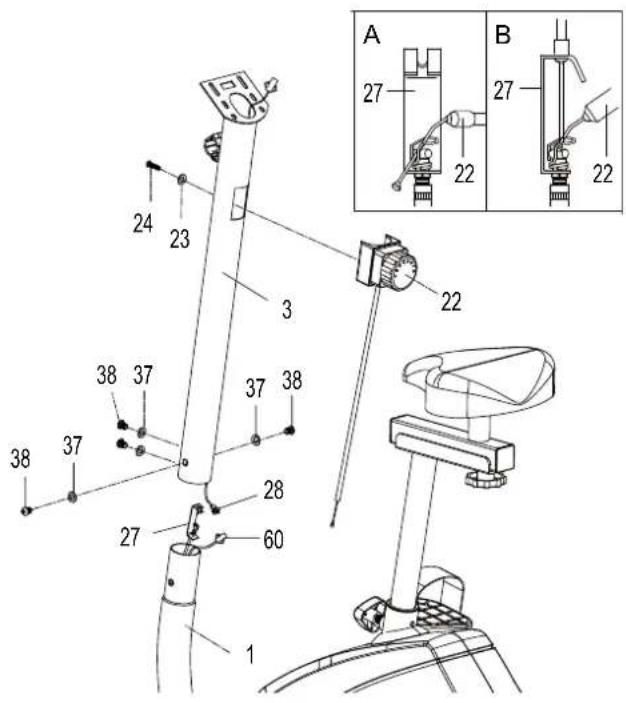

3. Handlebar Post and Tension Control Knob Installation

Remove the ∅5 Big Curve Washer (23) and M5x45 Bolt (24) and from the Tension Control Knob (22). Remove bolt with the Multi Hex Tool with Phillips Screwdriver provided.

Attach the Tension Control Knob (22) onto the Handlebar Post (3) with the ∅5 Big Curve Washer (23) and M5x45 Bolt (24) that were removed. Tighten bolt with the Multi Hex Tool with Phillips Screwdriver provided.

Put the cable end of resistance cable of Tension Control Knob (22) into the spring hook of Tension Cable (27) as shown in drawing A of figure 3. Pull the resistance cable of Tension Control Knob (22) up and force it into the gap of metal bracket of Tension Cable (27) as shown in drawing B of figure 3.

Connect the Sensor Wire (60) from the Main Frame (1) to the Extension Sensor Wire (28) from the Handlebar Post (3).

Insert the Handlebar Post (3) onto the tube of the Main Frame (1) and secure with four M8x15 Bolts (38) and four ∅20x∅8 Curve Washers (37). Tighten bolts with the S5 Allen Wrench provided.

Hardware:

Pure diagram of coiled spring or coil components without any text, numbers, or symbols

(38) Bolt M8x15 4 PCS

Technical diagram of a stationary exercise device with numbered components and exploded view

Tool:

Multi Hex Tool with Phillips Screwdriver S13, S14, S15

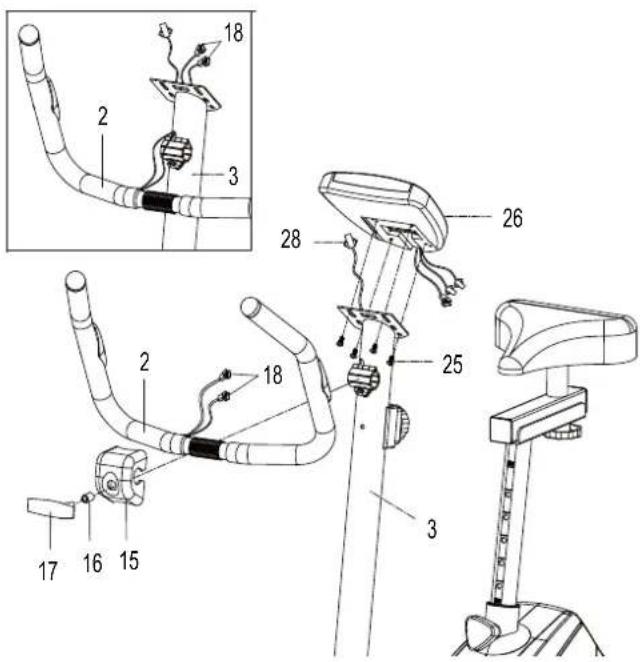

4. Handlebar and Computer Installation

Insert the Hand Pulse Sensor Wires (18) into the hole on the Handlebar Post (3) and then pull them out from the top end of the Handlebar Post (3). Place the Handlebar (2) through clamp on the Handlebar Post (3) with hand pulse sensors facing the seat.

Hold the Handlebar (2) in desired position and fasten Clamp Cover (15), ∅12x20x1.5 Spacer (16), and M8x55 Handlebar T-Knob (17) onto clamp. Tighten the M8x55 Handlebar T-Knob (17) after adjustment.

NOTE: M8x55 Handlebar T-Knob should be tightly secured before using.

Remove four M5x10 Bolts (25) from the Computer (26). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. Connect the Hand Pulse Sensor Wires (18) and Extension Sensor Wire (28) to the wires that come from the Computer (26). Tuck wires into the Handlebar Post (3). Attach the Computer (26) onto the top end of the Handlebar Post (3) with four M5x10 Bolts (25) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.

Parts and Hardware:

(15) Clamp Cover 1 PC

(16) Spacer ∅12x20x1.5 1 PC

Technical line drawing of a mechanical component with threaded shaft and flanged base (no text or symbols)

(17) Handlebar T-Knob M8x55 1 PC

Front view of a lifeGear brand balance meter with control buttons and display (no readable text or symbols beyond branding)

USING YOUR COMPUTER

The computer can be activated by pressing the MODE button or by pedaling. If you leave the equipment for 256 seconds, the power will turn off automatically.

BUTTON FUNCTIONS:

Press the MODE button to select each function of the computer.

Press and hold the MODE button for 3 seconds to reset all data values to zero except the ODO (ODOMETER) data values.

COMPUTER FUNTIONS:

SCAN: Automatically scans each function in sequence with change every 6 seconds.

NOTE: If you do not want to use the SCAN function, press the MODE button to select one of the other functions.

TIME: Displays your elapsed workout time in minutes and seconds.

SPEED: Displays the current training speed.

DIST (DISTANCE): Displays the cumulative distance traveled during workout.

CAL (CALORIES): Displays approximate amount of calories burned during workout. (This data is a rough guide for comparison of different exercise sessions and should not be used in medical treatment).

ODO (ODOMETER): Displays the total accumulative distance traveled. The ODOMETER data values can not be clear to zero by pressing and holding the MODE button for 3 seconds. If you take out the batteries from the computer, the ODOMETER data values will clear to zero.

PULSE: Displays your current heart rate figures after you grip the handlebar pulse sensors with both your hands during exercise. To ensure the pulse readout is more precise, please always hold on to the handlebar pulse sensors with two hands instead of just with one hand only when you try to test your heart rate figures.

HOW TO INSTALL THE BATTERIES:

1. Remove the battery cover on the back of the computer.
2. Place two "SIZE-AA" batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are proper contact with batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appear, remove batteries and wait 15 seconds before reinstalling.

ADJUSTMENTS

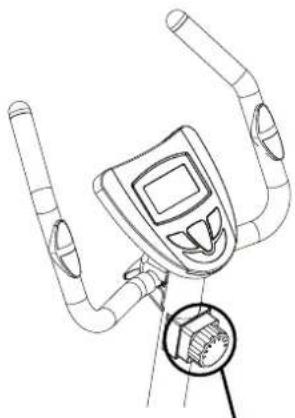

Adjusting the Tension Control Knob

To increase the load, turn the tension control knob in a clockwise direction.

To decrease the load, turn the tension control knob in a counterclockwise direction.

Line drawing of a fitness bike with a circular inset showing a device (no text or symbols)

Tension Control Knob

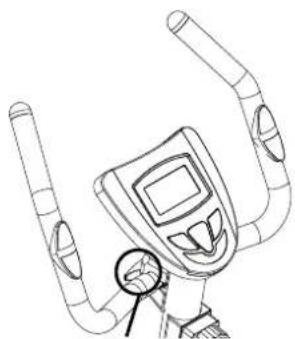

Adjusting the Handlebar

Hold the handlebar while loosening the handlebar T-Knob. Adjust the handlebar to the desired position and turn the handlebar T-Knob in a clockwise direction to tighten.

NOTE: Continue to turn the handlebar T-Knob until handlebar is secure before exercising.

Line drawing of a stationary exercise machine with two legs and a circular dial indicator (no text or symbols)

Handlebar T-Knob

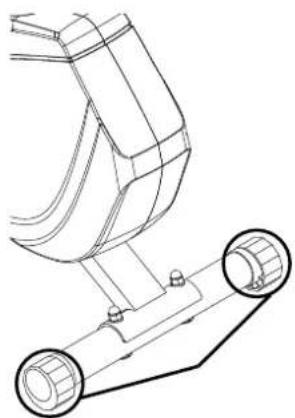

Adjusting the Rear Stabilizer End Cap

Turn the rear stabilizer end cap on the rear stabilizer as needed to level the upright bike.

Technical line drawing of a mechanical assembly with two circular components (no text or symbols)

Rear Stabilizer End Cap

Adjusting the Seat Height

Turn the seat post knob in a counterclockwise direction until the seat post can be slid up or down and then slide the seat post up or down direction to the suitable position. Lock the seat post in place by tightening the seat post knob in a clockwise direction.

NOTE: When adjusting the height of seat post, make sure the seat post bushing does not exceed the mark line on the seat post.

Technical line drawing of a mechanical device with a circular inset detail (no text or symbols)

Seat Post Knob

Adjusting the Seat Forward or Back

Turn the seat adjustment knob to loosen the seat sliding tube. Slide the seat sliding tube forward or back to desired position and turn seat adjustment knob to tighten.

NOTE: Continue to turn seat adjustment knob until seat sliding tube is secure before exercising.

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Seat Adjustment Knob

MAINTENANCE

Cleaning

The upright bike can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the upright bike after each use. Be careful not get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

Please keep the upright bike, specially, the computer console, out of direct sunlight to prevent screen damage.

Please inspect all assembly bolts and pedals on the machine for proper tightness every week.

Storage

Store the upright bike in a clean and dry environment away from children.

TROUBLESHOOTING

PROBLEM	SOLUTION
The upright bike wobbles when in use.	Turn the rear stabilizer end cap on the rear stabilizer as needed to level the upright bike.
There is no display on the computer console.	1. Remove the computer console and verify the wires that come from the computer console are properly connected to the wires that come from the handlebar post.2. Check if the batteries are correctly positioned and battery springs are in proper contact with batteries.3. The batteries in the computer console may be dead. Change to new batteries.
There is no heart rate reading or heart rate reading or is erratic / inconsistent.	1. Make sure that the wire connections for the hand pulse sensors are secure.2. To ensure the pulse readout is more precise, please always hold on to the handlebar grip sensors with two hands instead of just with one hand only when you try to test your heart rate figures.3. Gripping the hand pulse sensors too tight. Try to maintain moderate pressure while holding onto the hand pulse sensors.
The upright bike makes a squeaking noise when in use.	The bolts may be loose on the upright bike, please inspect the bolts and tighten the loose bolts.

WARM UP AND COOL DOWN ROUTINE

The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired muscles. The purpose of cooling down is to return the body to its resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart.

HEAD ROLLS

Rotate your head to the right for one count, you should feel a stretching sensation up the left side of your neck. Then rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open. Rotate your head to the left for one count, then drop your head to your chest for one count.

Line drawing of a person's neck and shoulder (no text or symbols)

Line drawing of a person wearing a leotard (no text or symbols)

SHOULDER LIFTS

Lift your right shoulder toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder.

SIDE STRETCHES

Open your arms to the side and lift them until they are over your head. Reach your right arm as far toward the ceiling as you can for one count. Repeat this action with your left arm.

Line drawing of a person performing a stretching exercise with arms raised (no text or symbols)

Line drawing of a person in a standing or kneeling posture (no text or symbols)

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot.

INNER THIGH STRETCH

Sit with the soles of your feet together and your knees pointing outward. Pull your feet as close to your groin as possible. Gently push your knees toward the floor. Hold for 15 counts.

Line drawing of a seated person in profile, no text or symbols present

Line drawing of a person bending forward with knees and arms extended (no text or symbols)

TOE TOUCHES

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach as far as you can and hold for 15 counts.

HAMSTRING STRETCHES

Extend your right leg. Rest the sole of your left foot against your right inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax and then repeat with left leg.

Line drawing of a person kneeling and stretching their back (no text or symbols)

Line drawing of a person in motion, viewed from above with one arm raised (no text or symbols)

CALF/ACHILLES STRETCH

Lean against a wall with your left leg in front of the right and your arms forward. Keep your right leg straight and the left foot on the floor; then bend the left leg and lean forward by moving your hips toward the wall. Hold, then repeat on the other side for 15 counts.
