004-271 - Cooker Menuett - Free user manual and instructions

Brand	Menuett
Model	004-271
Product Type	Induction Cooktop (Portable)
Rated Voltage	230 V ~ 50 Hz
Power Output	500 – 2000 W
Temperature Range	60 – 240 °C
Timer Range	0 – 180 minutes
Power Cord Length	1.5 m
Safety Class	II
Control Type	Touch buttons (ON/OFF, FUNCTION, +, -, TIMER, LOCK)
Display	Digital display for power/temperature/time
Auto Shut-off	After 2 hours of inactivity
Pan Detection	Induction heating; requires ferromagnetic pan (steel, stainless steel, iron, enamelled iron)
Pan Size Compatibility	Bottom diameter 12 – 26 cm, flat bottom
Lock Function	Yes, locks all touch buttons; unlock by pressing LOCK until 2 beeps
Overheat Protection	Built-in (automatic power reduction or shut-off)
Hot Surface Indicator	Warning light and symbol; surface remains hot after use
Ventilation	Do not block ventilation openings; clean with vacuum cleaner
Cleaning	Wipe with damp cloth and mild detergent; do not immerse in water
Included Accessories	User manual

Frequently Asked Questions - 004-271 Menuett

Does the Menuett 004-271 induction cooktop work with any type of pan?

No, it requires pans with a ferromagnetic base such as steel, stainless steel, iron, or enamelled iron. The bottom must be flat and 12–26 cm in diameter. Do not use copper, aluminium, ceramic, or heat-resistant glass pans.

How do I lock the controls to prevent accidental changes?

Press the LOCK touch button. The lock indicator will light up and all touch controls will be disabled. To unlock, press and hold the LOCK button until you hear 2 beeps.

What is the maximum timer setting?

The timer can be set from 0 to 180 minutes. Setting it to 0 disables the timer function. The appliance will emit an audio prompt 30 seconds before automatic shut-off.

Can I use the cooktop on a countertop near other appliances?

Yes, but ensure it is on a level, stable surface away from flammable materials. Leave at least 10 cm of free space around the appliance for ventilation. Avoid placing near strong magnetic fields (radios, TVs, etc.) as they may interfere.

What does the auto shut-off feature do?

If no touch operation or pan movement is detected for 2 hours, the cooktop will automatically switch off. A beep sounds 30 seconds before shut-off to warn you.

How should I clean the induction cooktop?

Always unplug and let it cool completely. Wipe with a soft cloth moistened with mild detergent. Do not use abrasive cleaners or scouring pads. Clean the ventilation openings with a vacuum cleaner. Never rinse or pour water on the unit.

What do the different indicator lights mean?

The ON/OFF status light shows power is on. Temperature status light indicates heating. Timer status light shows timer is active. Warming status light indicates keep-warm mode. Lock status light shows controls are locked.

Is it safe to leave empty pans on the cooktop?

No, never heat empty pans or overheat them. This can damage the cooktop or cause fire. Always ensure there is food or liquid in the pan when heating.

Can I use the cooktop outdoors?

It is designed for indoor use only. Do not expose to water, rain, or extreme temperatures. Use in a dry, well-ventilated area.

What should I do if the cooktop surface cracks?

Immediately switch off the appliance and unplug it. A cracked surface poses a risk of electric shock. Do not use it again until it has been inspected and repaired by a qualified service centre.

USER MANUAL 004-271 Menuett

Black electrical induction cooktop with circular heating element and control buttons (no visible text or symbols)

SE INDUKTIONSPLATTA

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

Line drawing of a cooking pot on a stand with a downward arrow indicating cooling (no text or symbols)

3

SÄKERHETSANVISNINGAR

• Do not touch the appliance, the power cord or plug with wet hands or wet parts of your body.
• Do not use the appliance if it is damaged or not working properly, or if the power cord or plug are damaged. Never modify the plug in any way. A damaged cord or plug must be replaced by an authorised service centre or qualified person to ensure safe use.
• Do not dismantle the appliance, or attempt to modify or repair it.
• Do not use the appliance near water or naked flames.
• This appliance can be used by children from 8 years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the appliance and understand the risks involved with its use.

Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance without supervision.

• Place the appliance on a level, stable surface.
• Do not move the appliance when it has a pan on it.
• Do not warm up empty pans, and avoid overheating pans.
• Do not put metal object such as cutlery, lids, tins or aluminium foil on the hob because they can get hot.
• Make sure there is enough free space for the appliance to work safely and without any problems. Leave some free space in front and to the left and right of the appliance.
• Do not place the appliance on or near combustible or non heat-resistant material, such as mats or cloths.

• Never put paper or other combustible material between a pan and the surface of the appliance – fire risk.

• Switch off the appliance immediately if the surface has cracked – risk of electric shock.

• Do not block the ventilation openings on the appliance – risk of overheating.
• The hob remains hot even after a pan has been removed – risk of burn injury.
• Do not place the appliance near other appliances or objects that are affected by a magnetic field, such as radios, televisions, cash cards or cassette tapes.

Symbols

	Safety class II.
	Approved as per applicable directives.
	Recycle discarded product in accordance with local regulations.
	Warning, hot surface.

TECHNICAL DATA

Rated voltage: 230 V	~50Hz
Output: 500–2000 W
Safety class: II
Temperature:	60–240°C
Cable length: 1.5 m

DESCRIPTION

1. Hob
2. "ON/OFF" status light
3. Temperature status light
4. Timer status light
5. Warming status light
6. Touch-button "ON/OFF"
7. Touch-button "FUNCTION"
8. Touch-button "+"
9. Display
10. Touch-button "-"
11. Touch-button "TIMER"
12. Touch-button "LOCK"
13. Lock status light

FIG. 1

USE

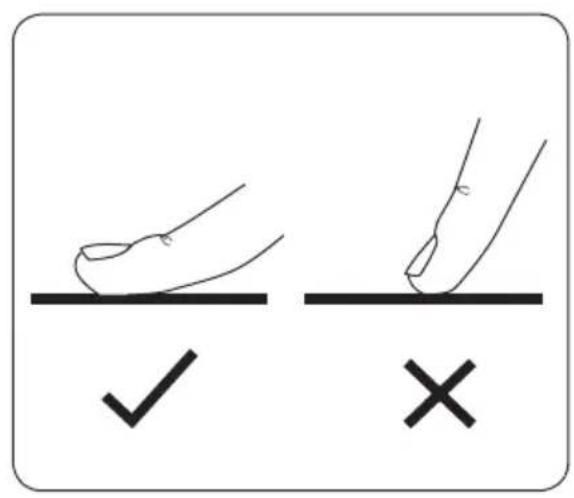

USING THE TOUCH-BUTTONS

FIG. 2

POSITIONING OF PANS

FIG. 3

1. Place a suitable pan on the centre of the hob.

2. Plug in the plug.

3. By pressing the touch-button "ON/OFF" the status light "Function" goes on. The appliance starts and heats the pan with 1200 W. The power can be adjusted from 500 to 2000 W with the touch-buttons "+" and "-"

4. Press the function selector "FUNCTION" to switch between temperature and time settings. The standard setting for temperature is 200^ and the standard setting for time is 0 minutes.

5. Use the touch-buttons "+" and "-" to set power (500–2000 W), temperature (60–240 °C) and time (0–180 minutes). Set the time to 0 minutes to disable the timer function. The appliance switches off automatically after 2 hours of inactivity.

6. An audio prompt is given 30 seconds before the appliance switches off automatically.

7. Press the touch-button "LOCK" when the required function has been selected to lock the setting. The lock status light goes on and the appliance does not respond to touch. To reset or switch off the appliance press the touch-button "LOCK" until 2 beeps are given. All the touch-buttons can now be used as normal.

WARNING!

The surfaces on the appliance get hot when in use.

PANS THAT CAN BE USED

Use pans made of steel, stainless steel, iron or enamelled iron with flat bottoms and a bottom diameter of 12–26 cm.

PANS THAT CANNOT BE USED

Do not use pans made of copper, aluminium, ceramic or heat-resistant glass, or pans with round bottoms, feet or a bottom diameter less than 12 cm.

MAINTENANCE

• Pull out the plug and wait until the appliance has cooled.
  • Always clean the appliance after use.
• Dirty pans can cause discolouring or burn marks.
• Do not use hard or abrasive utensils or detergents.
• Wipe the appliance with a cloth moistened with a mild detergent.
• Clean the ventilation openings on the appliance with a vacuum cleaner.
• Do not rinse or pour water on the appliance. The penetration of water can cause the electronic components to stop working.
