USER MANUAL DECT 6500 AUDIOLINE

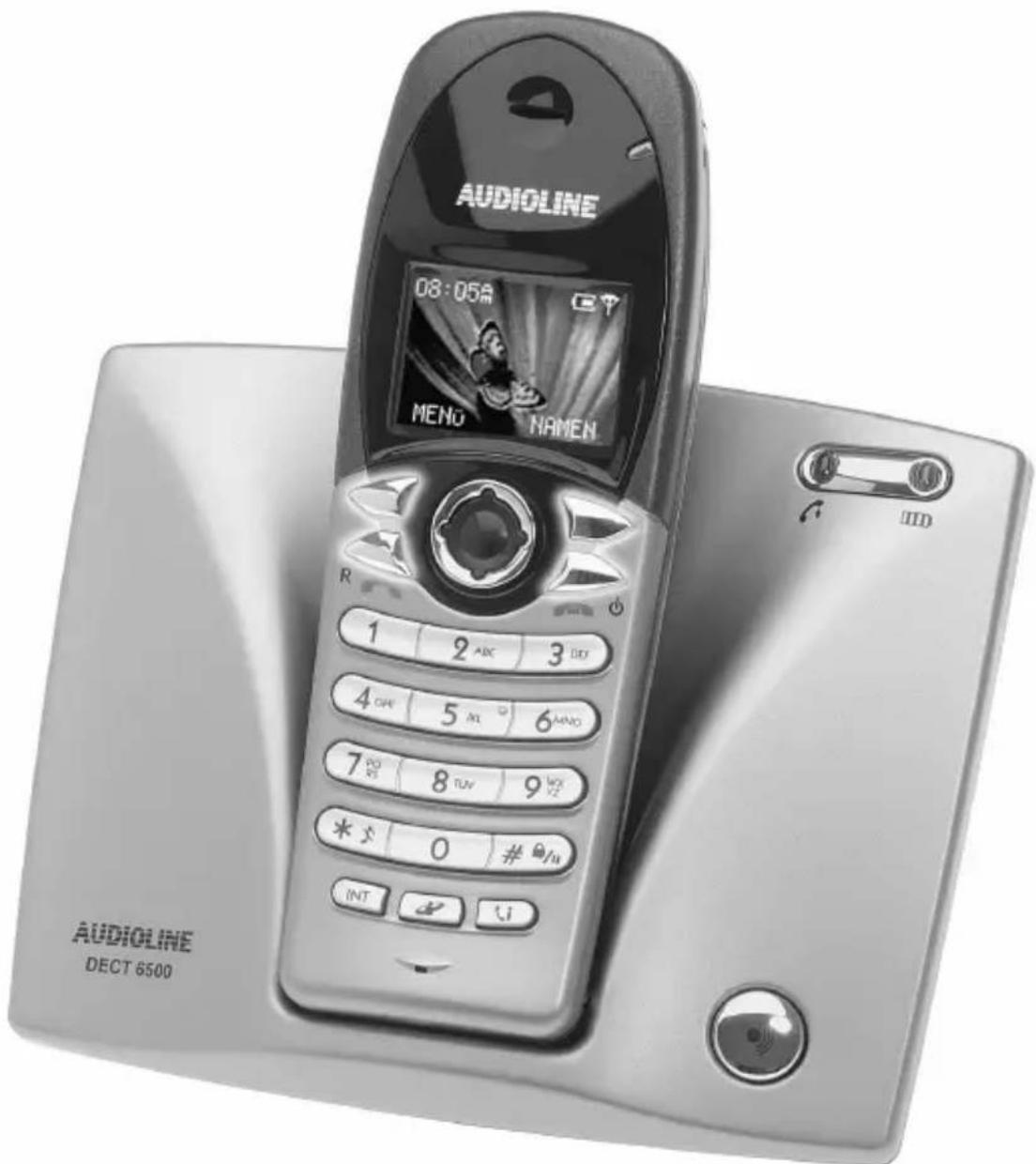

Schnurloses digitales DECT-Telefon Cordless digital DECT telephone

AUDIOLINE 08:05AM MENO NAMEN R 1 2 ABC 3 DEF 4 OR 5 IN 6 ANN 7 PO 8 TUV 9 WIX * $ 0 # # INT JID AUDIOLINE DECT 6500

Operating instructions 39

3.2 Check contents of pack....44

3.3 Connecting the base station....44

3.4 Fitting/changing batteries 44

3.5 Battery capacity....44

3.6 Setting the time 44

4 Operation....45

4.1 The display....45

4.2 Operation with the cursor....45

4.3 Receiving calls 46

4.4 Making calls 46

4.5 Handsfree facility....46

4.6 Call duration display.... 46

4.7 Caller lists + Caller display (CLIP) 47

4.7.1 Viewing the caller list ....48

4.7.2 Delete caller list 48

4.8 Switching the mobile unit on and off 49

4.9 Muting the microphone in the mobile unit 49

4.10 Setting the receiver and handsfree volume 49

4.11 Keypad lock.... 49

4.12 Range information.... 49

4.13 Paging from the base station to the mobile unit.... 49

4.14 Headset connector 49

4.15 R Signal button/T-NET 50

4.15.1 "R" Button on private exchanges ....50

4.15.2 "R" Button and the DEUTSCHE TELEKOM T-Net 50

4.15.3 Using Pause ....50

5 The phone book.... 51

5.1 Entering numbers and names in the phone book 51

5.2 Dialling stored numbers from the phone book 52

5.3 Other phone book functions....53

5.4 Quick dial buttons.... 53

5.4.1 Assign/change/delete quick dialbuttons....53

5.4.2 Using the quick dialbuttons....54

5.5 Setting up the special phone book 54

5.5.1 Dialling stored numbers from the special phone book....54

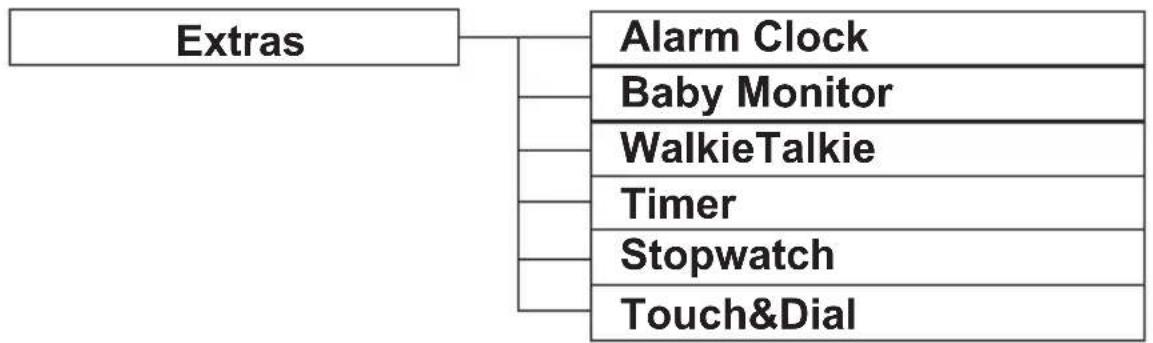

6 Extras....55

6.1 Alarm/Wake-up function....55

6.2 Internal room monitoring (baby phone) 56

6.3 Walkie-talkie 56

6.4 Timer....57

6.5 Integral stopwatch....57

6.6 Baby call....58

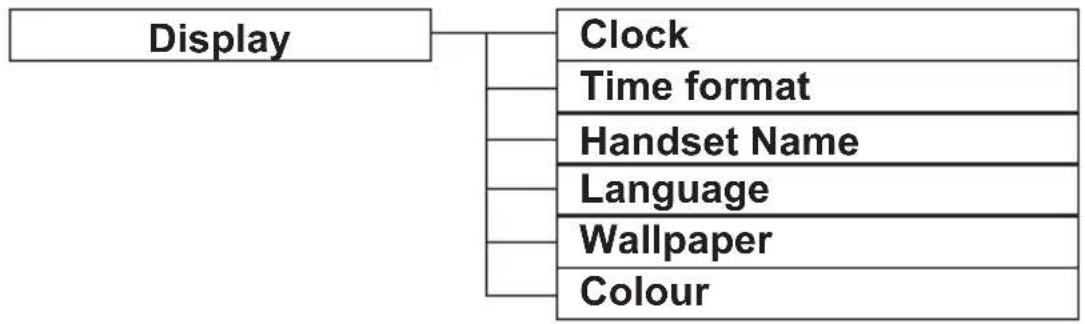

7 Display settings....59

7.1 Entering the time....59

7.2 Changing display names....59

7.3 Setting the display language 59

7.4 Changing the display background....60

7.5 Changing the display menu colour....60

- Contents -

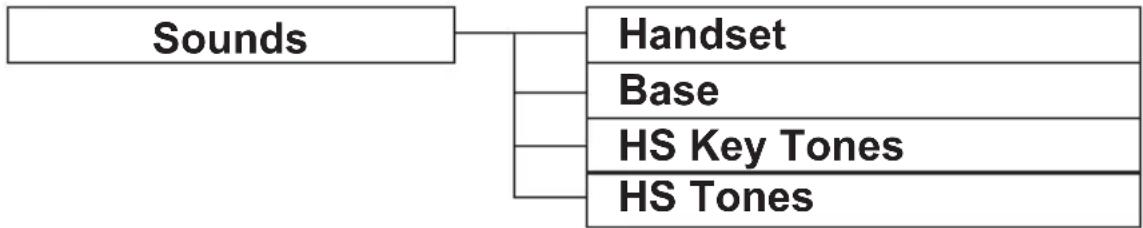

8 Setting up ring tones and signal tones 61

8.1 Setting up ring tones for the mobile unit....61
8.2 Setting up ring tones for the base station....62
8.3 Activating/deactivating the button tone....62
8.4 Activating/deactivating warning tones 62

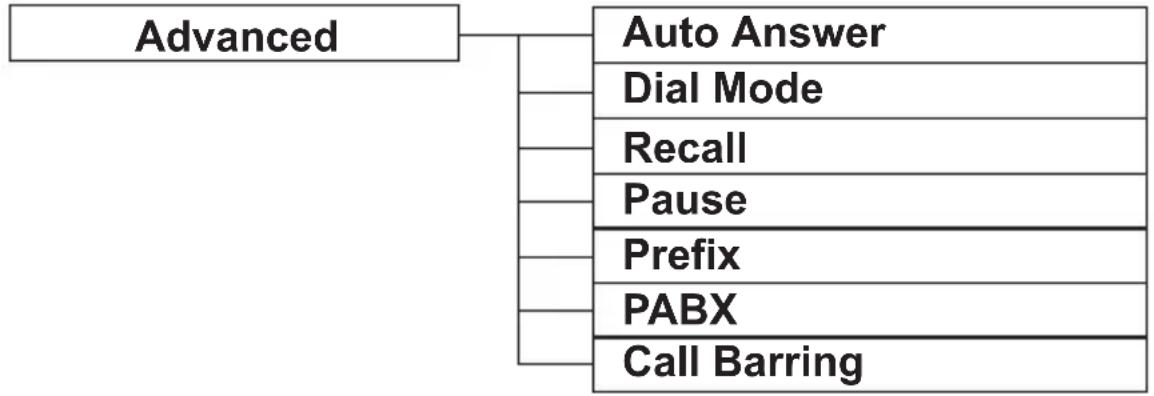

9 Special functions....63

9.1 Accepting calls automatically....63
9.2 Tone (TD) or pulse (PD) dialling....63
9.3 Flash time for private exchanges 64
9.4 Pause when using on private exchanges....64
9.5 Automatic dialling code 64
9.6 Outside line code when using on private exchanges 65
9.7 Dialling block 66

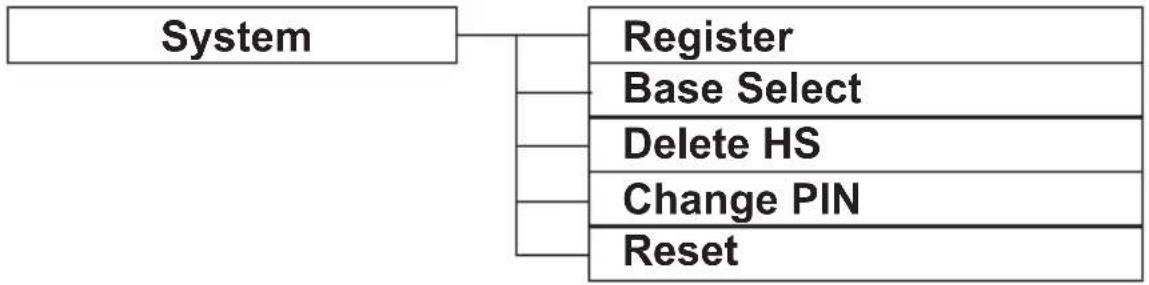

10 System....67

10.1 Logging on mobile units 67
10.2 Automatic base unit selection....67
10.3 Logging off mobile units 67
10.4 Changing the system PIN code....68
10.5 Restoring factory settings....68

11 Multiple mobile units....69

11.1 Making an internal call....69
11.2 Connecting external calls to another mobile unit....69
11.3 Holding conference calls 70
11.4 Logging on and logging off mobile units....70

11.4.1 Logging on DECT6500 mobile units 70
11.4.2 Logging on other DECT-GAP telephones to the base station....70
11.4.3 Logging off mobile units 71

12 Troubleshooting ....72

13 Important information ....73

13.1 Technical data....73

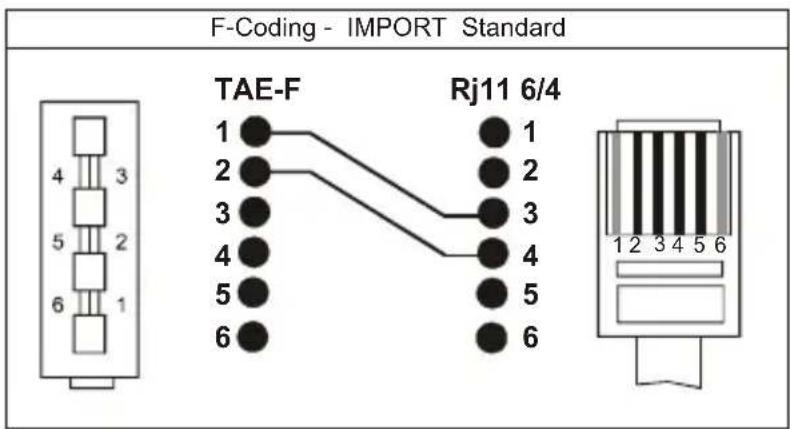

13.2 Changing the telephone cable....73
13.3 Warranty....74
13.4 Declaration of Conformity/CE mark....74

1 General Information

Please read these operating instructions carefully. If you should have any questions, please contact our Service Department on the Hotline number 0180 5 00 13 88 (Telekom cost at the time of printing 12 cents/min). Under no circumstances open the unit yourself and do not try to carry out your own repairs. For any claims under the warranty, please refer to your dealer.

Intended use - This telephone has been designed for use on an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators. The telephone requires a TAE socket with F/N coding in common with other plug-in units such as fax machines, answering machines or modems. Connect the telephone cable to the phone socket intended for the purpose only. Do not change the plug on the connecting cable.

Power failure - If the power should fail, it will not be possible to make calls using the telephone. Keep a cord-connected phone handy, which works without an external power supply, for possible emergencies.

Position - There must be a 230 Volt mains socket near to where the telephone is positioned. Do not set up the base station in the immediate vicinity of other electrical equipment such as microwaves or hi-fi systems, as this may result in mutual interference. The location has a decisive influence on the trouble-free operation of the telephone.

Place the base station on a flat and non-slip surface. The feet of the base station do not normally leave any marks on the surface. However, due to the large number of varnishes and surfaces in use, it may not be possible to prevent marks occurring on the surface due to the feet of the unit.

Do not use the handset in areas where there is a risk of explosion.

Excessive exposure to smoke, dust, vibrations, chemicals, moisture, heat or the direct rays of the sun must be avoided.

Power supply - Use only the AUDIOLINE plug-in power supply provided, as other power supplies could damage the telephone. There is a risk to life if the power supply is opened and not disconnected from the mains.

Standard rechargeable batteries - do not use any other rechargeable batteries or battery packs. These could possibly cause a short circuit. When changing batteries, always use standard batteries, Type AAA 1.2V 750mAh. Do not throw standard batteries into the fire or immerse in water. Do not dispose of old or defective standard batteries with the normal household waste.

The maximum standby and talk times quoted are applicable for the standard rechargeable batteries supplied under optimum conditions. Ambient temperature, charging cycle and other external factors, such as the radio loading in the area of use, can considerably reduce the operating times. Furthermore, the charging capacity is reduced for technical reasons during use or when stored at very high or low temperatures.

- General information -

Charging the handset - It is normal for the handset to become warm when charging and is not dangerous. Do not use other manufacturer's charging equipment for charging the handset, as otherwise damage could occur.

Private exchanges - The telephone can also be connected to a private exchange. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems. Due to the large number of different private exchanges, it is not possible to guarantee this function.

Information regarding medical equipment - The telephone works with a very low transmission power. This low transmission power prevents any risk to health according to the current state of research and technology. However, it has been shown that portable telephones can interfere with medical equipment when switched on. Therefore, please maintain a distance of at least one metre from medical equipment.

Disposal - If the useful life of the standard batteries or the complete equipment has expired, please dispose of these carefully in accordance with the statutory requirements and in a manner friendly to the environment.

Temperature and Ambient Conditions - The telephone is designed for use in protected rooms with a temperature range of +10 °C to +30 °C. The base station must not be installed in damp rooms such as a bathroom or laundry room. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

Cleaning and care - The surface of the case can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents, particularly aggressive solvents. No attention is necessary apart from cleaning the case occasionally. The rubber feet of the base station are not resistant to all cleaning agents. The manufacturer can therefore not accept any liability for possible damage to furniture or the like.

CE mark - The telephone complies with the basic requirements of the R&TTE Directive This is confirmed by the CE mark.

2 User controls

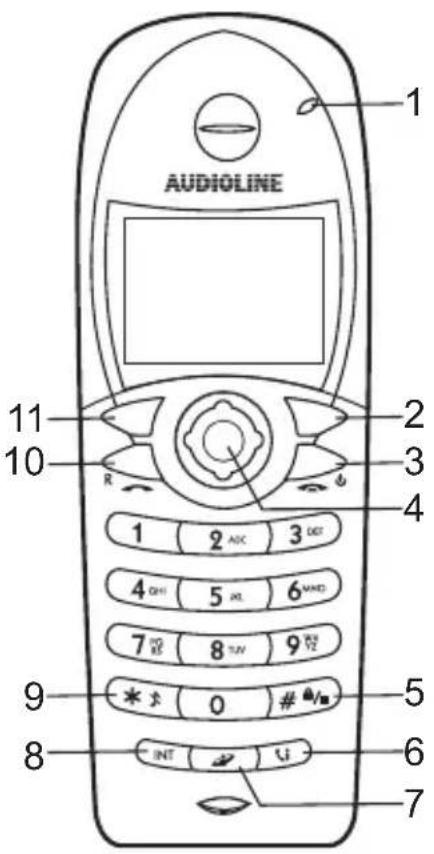

Mobile unit

1 Call indicator
2 Display button right
3 End call/Mobile unit on-off
4 4-button cursor
5 Keypad lock/Pause
6 Caller lists for missed, accepted and dialled numbers
7 Special phone book
8 Button for internal calls
9 Ring tone on/off
10 Call button / R signal button
11 Display button left

AUDIOLINE 1 2 3 4 5 6 7 8 9 10 11 R INT U #AIC 3 4 5 6 7 8 V V V V V V V V V V V V V V V

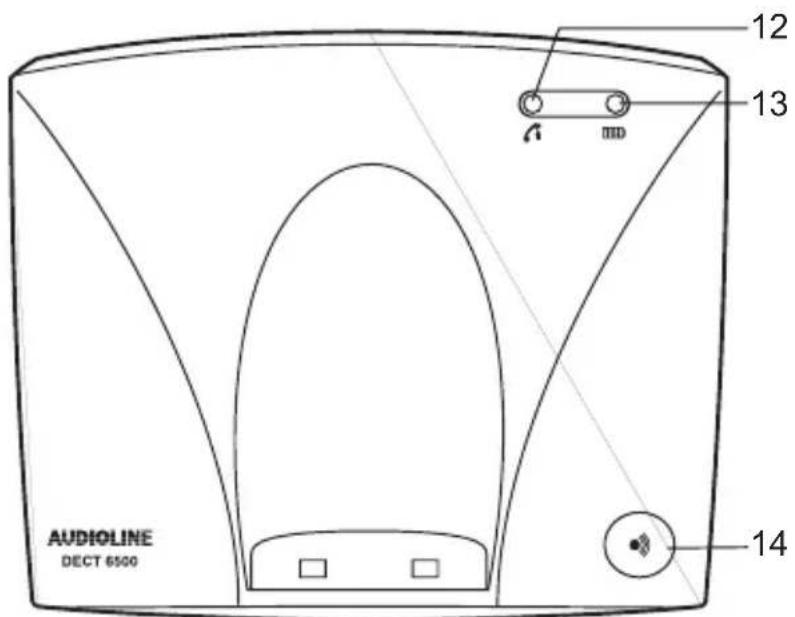

Base station

12 Call indicator
13 Charge monitoring lamp
14 PAGE button

AUDIOLINE DECT 6500 12 13 14

3 Setting up

3.1 Safety Information

NOTE: Before setting up, it is essential that you read the safety information at the beginning of this manual.

3.2 Check contents of pack

The following items are supplied:

one base station one mains cable
one mobile unit with belt clip one instruction manual
one telephone connecting cable two rechargeable batteries

3.3 Connecting the base station

Position the telephone near to your telephone connection socket and to a mains socket.

1. Insert the plug of the power supply into the socket on the underside of the base station and plug the power supply into a properly installed 230 V mains socket. The plug-in power supply for the base station must always be connected. For safety reasons, use only the plug-in mains power supply provided.
2. Connect the telephone cable supplied to the telephone socket and the telephone jack on the underside of the base station. Use only the new telephone cable provided.
3. Finally, run the two cables through the cable channels to the rear.

3.4 Fitting/changing batteries

Open the battery compartment cover by sliding the cover downwards and insert the new batteries. Take care to ensure that the polarity is correct and close the battery compartment cover.

Use only rechargeable batteries, type AAA 2 x 1.2V, 750mAh.

Important note: Place the mobile unit on the base station with the display to the front for at least 16 hours. The telephone may malfunction if the batteries are not properly charged. The indicator light on the base station ⚪ always illuminates when the mobile unit is charged.

3.5 Battery capacity

The rechargeable batteries for your telephone have a stand-by time of max. 120 hours at room temperature and a maximum talk time of up to 8 hours.

The current battery capacity is shown in the display by means of the symbol ☐.

If the handset must be loaded again, you hear a warning tone. Place your phone on the base unit for charging as soon as possible or it would turn off when it is out of battery. When the mobile unit is correctly located on the base station, you will hear a short tune in confirmation.

3.6 Setting the time

Before using the telephone, you should set the current time. You will find more information in Chapter 7.1.

4 Operation

4.1 The display

The display is provided with an automatic backlight, which illuminates the display for ca. 10 seconds every time a button is pressed. The display can be re-lit with any button.

If the mobile unit is not used for more than 30 seconds, the screensaver, in the form of an analogue clock, will switch on automatically. The screensaver can be switched off again by means of the two display buttons. All other buttons likewise switch off the screensaver but also go directly to the selected function.

4.2 Operation with the cursor.

All functions can be accessed by means of a very user-friendly menu. Here are a few general instructions to help you find your way around the menu:

In standby mode (normal operation)

In the normal standby mode, you can go into the phone book in the mobile unit directly with the up and down cursor buttons.

In the normal standby mode, you can go into the redial list with the left and right cursor buttons.

In the menu

You can find the required items in the menu when programming by using the up and down cursor buttons.

This level is opened with the OK display button.

You can then again find the required function using the up and down cursor buttons and again confirm with the OK display button.

The left and right cursor buttons are used, amongst other things, for changing values.

You can go back one level each time by pressing the CANCEL display button.

You can leave programming mode at any time without making any changes by

pressing the

4.3 Receiving calls

When a call arrives, the ring tone sounds on the mobile unit and on the base station. Lift the mobile unit from the base station or press the call button 📐 on the mobile unit and the connection will be made.

If you do not want to be disturbed, press the SILENT display button and the ring tone for this one call will be switched off directly.

The call indicator on the base station will flash during the call. To end the call, replace the handset in the base station or press the button on the mobile unit.

If it is not possible to accept a call because you are not there, a message will appear in the display. In this way, you will be able to tell that you have received a call during your absence. You will find further information on this topic in Chapter 4.7

4.4 Making calls

Enter the required telephone number with a maximum of 20 digits using the number pad. The numbers pressed are shown in the display. Press the call button 📄 and the required connection will be made.

If you have entered a number incorrectly, you can delete the number by repeatedly pressing the CLEAR button.

Note: You can also get a dialling tone by first pressing the call button 📐. On entering the digits of your required phone number, your telephone will dial the number directly. With this method of making a call, it is not possible to correct individual digits in the number in the manner described above.

4.5 Handsfree facility

If you want to use the hands-free facility, first set up the call in the usual way. During the call, press the left display button twice (OPTIONS -> SPEAKER). You will now hear the person you are speaking to over the loudspeaker in the mobile unit. By pressing the left display button twice, you can change over between normal and handsfree mode during a call. Always end calls made using the handsfree facility with the button.

4.6 Call duration display

The call duration in minutes and seconds is shown in the top left of the display during a call. The call duration will still be retained in the display for a few seconds after the call has been ended. This indication can be cancelled prematurely with the OK display button.

Your telephone remembers the times of all the calls so that you can subsequently see the duration of the last call and a summary of the call times for all calls that have been dialled and received.

- Operation -

• Press the button.
  ■ Select the CALL TIMERS entry with the cursor and press OK.
  ■ Using the cursor, choose one of the following functions and confirm with OK.

• LAST CALL = Shows the duration of the last call.
  ○ DIALLED = Shows the duration of all dialled calls.
  ○ RECEIVED = Shows the duration of all received calls.

• ALL CALLS = Shows the duration of all calls.
• CLEAR ALL = Resets all lists to zero.

- You can exit the menu with the CANCEL button.

4.7 Caller lists + Caller display (CLIP)

Incoming and outgoing calls are stored in the caller lists. Lists are available for RECEIVED, MISSED and DIALLED (redial) calls.

The DIALLED list (redial) can store 10 calls. 10 numbers can be stored in the RECEIVED list and a total of 20 numbers can be stored under MISSED. When the lists are full, the oldest number is deleted from the respective list. If incoming calls have been registered during your absence, there will be a message in the display.

Note:

The RECEIVED and MISSED lists work with the caller display facility CLIP. Caller display CLIP is an optional service from your telephone provider. In Switzerland, this function is not offered by all network carriers.

With caller display CLIP, your telephone will show the number in the display if your telephone provider offers this service. The display of date and time is not transmitted by all telephone service providers. Please ask your telephone provider for further information. Furthermore, transmission of the phone number and also the date and time is not possible with many private exchanges.

General information on caller display (CLIP)

In the case of incoming calls, you can see who is calling you by means of the caller display facility. If this function is available on your telephone, the display will show you the caller's telephone number when the telephone rings. If you have stored this number in your private phone book, the name will be displayed instead of the phone number.

A phone number will not be displayed when the caller has blocked the transmission of the number (display: PRIVATE). Also, it is sometimes not possible to display the number when calls are received from abroad (display: OUT OF AREA or UNVAILABLE).

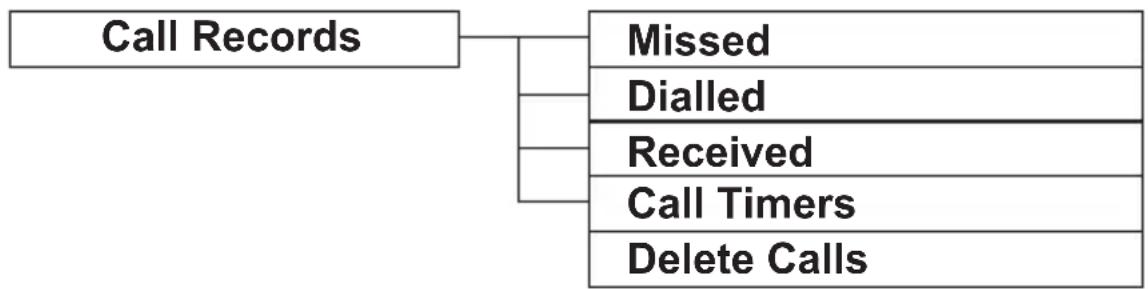

4.7.1 Viewing the caller list

Note: If a call is missed, there will be a corresponding message in the display and you can access the appropriate list directly by means of the VIEW display button.

• Press the button.
  ■ Use the cursor to select which caller list you want to view and press OK.

• You can now scroll through the list with the cursor.
• To dial the number, press the left-hand display button twice (OPTIONS => USE

NUMBER) and then press the call button

TIP! In the normal standby mode, you can go into the redial list with the left and right cursor buttons (DIALLED).

Options

In all lists you can access the following functions by choosing OPTIONS.

Use number = The number will be shown in the display and can be dialled using the call button.

Details = Here you will see the time of the call and the phone number and name of the person called if this has been stored in the phone book.

To private = Here, the selected phone number can be saved in the private phone book in the mobile unit. Enter the required name and press the SAVE display button.

To shared = Here, the selected phone number can be saved in the SHARED phone book in the base station. Enter the required name and press the SAVE display button.

Delete = Entry will be deleted

4.7.2 Delete caller list

You can delete a particular list or all lists by choosing DELETE CALLS from the menu.

• Press the button.
• Select the DELETE CALLS function with the navigation keys and press OK.
• Choose the list that you want to delete or delete all lists with ALL and confirm with OK. The VMWI list is not used
  ■ Reconfirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

4.8 Switching the mobile unit on and off

You can switch off the mobile unit by pressing and holding the button. No battery power is used if the mobile unit is switched off. It will not be possible to receive calls and the handset lost your time settings.

You can switch the mobile unit on again by pressing and holding the ⏻ button. The mobile unit will be ready to use again after a short time.

Note: If the mobile part is switched off, you should set the current time again after switching on.

4.9 Muting the microphone in the mobile unit

With the MUTE display button you can switch the microphone in the mobile unit on and off again during a call. It is thus possible to speak without the other person hearing you. The loudspeaker in the mobile unit remains switched on and you can continue to hear the other person.

4.10 Setting the receiver and handsfree volume

If the receiver volume is too quiet or too loud for you, you can change this to suit your requirements.

You can adjust the volume during a call by means of the cursor. The selected volume will be shown in the display.

4.11 Keypad lock

If you frequently carry the mobile unit with you, you can lock the keypad so that buttons are not pressed unintentionally. When the keypad lock is switched on, incoming calls can be received as normal.

Activating the keypad lock

Press and hold the #/II button on the mobile unit for one second. A key symbol will appear in the display and one of the display buttons will be labelled UNLOCK.

Deactivating the keypad lock

To deactivate the keypad lock, press the UNLOCK display button and then OK.

4.12 Range information

The range of the mobile unit is ca. 50 metres in closed rooms and ca. 300 metres outdoors. When there is a good contact with the base station, the aerial symbol will come on in the display. If you are too far away from the base station, the aerial symbol will flash. In this case, move nearer to the base station once more, as otherwise the call will be interrupted.

4.13 Paging from the base station to the mobile unit

If you cannot remember where you have left your mobile unit, press the ●1) button on the base station. You will hear the mobile unit audible signals for 30 seconds and thus be able to find it again easily. You can cancel the audible signal prematurely by pressing the STOP display button.

4.14 Headset connector

A connection facility for a headset with a 2.5 mm stereo jack plug is located on the left-hand side of the mobile unit underneath a cover. Due to the large number of different headsets, it is not possible to guarantee this function.

4.15 R Signal button/T-NET

You can use the "R" signal button on your telephone on private exchanges and when using DEUTSCHE TELEKOM's T-Net functions. To do this, press the OPTION display button and choose SEND R and OK during a call.

4.15.1 "R" Button on private exchanges

If you have connected your telephone to a private exchange, you can use all the facilities such as call transfer, automatic recall, etc. The "R" signal button gives you access to these facilities. The FLASH time "100ms" will be required on a private exchange (Adjustment, see 9.3). You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems.

4.15.2 "R" Button and the DEUTSCHE TELEKOM T-Net

Your AUDIOLINE telephone supports the most important DEUTSCHE TELEKOM added value functions (e.g. brokering, call waiting, three-way conference, etc.). The T-Net works using the "FLASH 300ms" setting. (Adjustment, see 9.3). Please contact DEUTSCHE TELEKOM to gain access to T-Net functions.

4.15.3 Using Pause

With private exchanges, it is necessary to dial a certain number (e.g. "9" or "0") in order to obtain a dialling tone for an outside line on the extension. With some, older private exchanges, it takes some time before the dialling tone can be heard. Especially for these private exchanges, an automatic pause can be inserted after connecting to the outside line so that you can dial directly without waiting for the dialling tone.

Entering a pause when dialling manually

Press and hold the redial button #/ll for 2 seconds between the number for the outside line and the actual telephone number. The letter P will appear in the display. After connecting to an outside line your telephone will wait for 3 seconds before dialling the actual telephone number.

The pause can also be saved with numbers in the phone book.

NOTE: If an automatic outside line code is activated, the pause will be inserted automatically. You will find more information in Chapter 9.6.

5 The phone book

100 numbers including a name can be stored in the phone book in the mobile unit (PRIVATE). The maximum length for a number is 20 characters. In addition, 20 numbers can be stored in the base station (SHARED), which are then available to each mobile unit when several mobile units are in use.

TIP! The phone book in the mobile unit can also be used during a call. To do this, press the OPTIONS display button and choose PHONEBOOK. In this way, you can pass on numbers from your phone book to the person you are calling.

5.1 Entering numbers and names in the phone book

• Press the NAMES display button and the display will show the options PRIVATE (mobile unit) and SHARED (base unit).
  ■ Using the cursor, choose which phone book you want to store the entry in and press the OK display button.
• Select ADD ENTRY with the cursor and again press OK.
  ■ Now enter the first line of the name with a maximum of 10 letters. You will find information on how to enter names in the next section.
• Select the second line of the display with the cursor and here enter the associated telephone number with a maximum of 20 digits.
• Select the third line of the display with the cursor and here choose your own call tone for this number or select OFF.
• Confirm with the SAVE display button and the phone book entry will be saved.

Note:

In addition, a ring tone can be assigned to each phone number stored. In this way, you can tell who is calling you simply from the ring tone. This assignment will only work when your telephone line and also the caller has the CLIP caller display facility. In this case, it is possible that the mobile unit may first ring once with the normal ring tone before the allocated tone is heard.
- Numbers with the same name cannot be saved. In this case, the name that has already been entered will be replaced with the new phone number following a prompt.
- When the memory capacity of one of the phone books has been used up, an appropriate message will appear in the display.

How to enter names

√ The number keys are also printed with letters for entering names. Letters, as well as numbers and special characters, can be entered by repeatedly pressing the appropriate button. To change from uppercase letters to lowercase letters or vice versa, simply press the 🔊/|| button.
√ To enter a space, press the 1 button once.
√ To enter the same letter twice, press the appropriate letter and then wait until the cursor automatically jumps to the next position.

- Phone book -

√ You can move the display cursor within the name or number using the left and right cursor buttons in order to make changes.
√ Incorrect numbers can be deleted with CLEAR.

TIP! Your phone can also store numbers in the rapid save mode. Simply enter the required phone number and press the SAVE display button. Enter the associated name and press the SAVE display button again.

Overview

1 Button Space 1
2 Button	A	B	C	2	À	Ä	Â	ç
3 Button D	E F 3 È É Δ
4 Button	G	H	I	4	ì	Γ
5 Button	J	K	L	5	∧
6 Button	M	N	O	Ö	6	Ñ	Ò	ö	∅	Ω
7 Button	P	Q	R	S	7	Π	Φ	Ψ	Σ
8 Button	T	U	V	Ü	8	ù	ü	Θ
9 Button	W	X	Y	Z	9	Æ	≡
0 Button	0	.	-	,	?	!	:	“	’
★ Button	*	#	@	&	(	)	/		_

5.2 Dialling stored numbers from the phone book

After you have stored a few phone numbers, you can call these up very quickly and easily.

Dialling numbers from the mobile unit

• Press the up or down cursor button and the first entry in alphabetical order will be displayed directly.
• Select the required phone book entry with the cursor. To choose a phone number directly alphabetically, press the appropriate letter.
• Press the call button

TIP! In the normal standby mode, you can go to the phone book in the mobile unit directly with the up and down cursor buttons.

Dialling numbers from the base station.

• Press the NAMES display button.
• Select the SHARED setting with the cursor and confirm by pressing OK twice.
• Select the required phone book entry with the cursor. To choose a phone number directly alphabetically, press the appropriate letter.
• Press the call button

5.3 Other phone book functions

Other items can be reached from the phone book menu:

VIEW = You can see the entries that have been saved by using the cursor buttons. You can access other functions such as EDIT, DELETE etc. by pressing OPTIONS

ADD ENTRY = Saving phone book entries (see 5.1)

QUICK DIAL = Assign, change or delete QUICK DIALbuttons (see 5.4.1)

STATUS = Shows the number of occupied and free memory locations.

DELETE ALL = Deletes the whole phone book

Other options are available in the phone books depending on the function selected:

USE NUMBER = Shows the phone number in the display and the number can be dialled directly with the call button.

DETAILS = Shows the phone book entry with name, number and associated ring tone.

EDIT = Names and phone numbers can be edited here.

TO SHARED = Copies a phone number from the private phone book (mobile unit) into the SHARED phone book (base station).

TO PRIVATE = Copies a phone number from the SHARED phone book (base station) into the private phone book (mobile unit).

DELETE = Deletes individual entries.

Note: If a call number in the phone book is deleted, which is used also on the quick dial buttons, also the storage of the quick dial buttons is lost.

5.4 Quick dial buttons

A phone number from the phone book in the mobile unit can be allocated to each of the numbers 1 to 9. The stored number is then dialled directly by pressing one of these buttons.

5.4.1 Assign/change/delete quick dialbuttons

• Press the NAMES display button and confirm with OK.
• Select the QUICK DIALsetting with the cursor and confirm with OK.
• Select the required quick dialbutton (button 1 to 9) that you want to assign by using the cursor. If a button has already been assigned, the number and name will be displayed. In this case, you can delete or change the assignment. To do this, press OPTIONS and choose CHANGE or DELETE. If choosing DELETE, confirm with OK. If choosing CHANGE, continue with the next but one step.
• Press the SELECT display button.
• Select the required phone book entry with the cursor. To choose a phone number directly alphabetically, press the appropriate letter.
• Confirm the selection with OK and more details on this number will again be displayed.
  ■ Again confirm with OK and the quick dialbutton will be assigned.

5.4.2 Using the quick dialbuttons

Hold the appropriate quick dialbutton 1 to 9 pressed for 2 seconds. The corresponding phone number will be shown in the display and the connection will be made.

5.5 Setting up the special phone book

You can store a further 10 numbers in your telephone's special phone book. The special phone book can be used to store important numbers such as those of doctors, fire brigade or police. If you wish, you can also save the need to press the R signal button in the phone number. Numbers with the same name cannot be saved. In this case, the name that has already been entered will be replaced with the new phone number following a prompt.

• Press the button.
• Select the ADD ENTRY setting with the cursor and confirm with OK.
• Now enter the first line of the name with a maximum of 10 letters. You will find information on entering names in Chapter 5.1.
• Select the second line of the display with the cursor and here enter the associated telephone number with a maximum of 20 digits.
• Press the OPTIONS display button.
  If you want to incorporate the R signal button into the number, choose R and OK. Choose SAVE to save the number directly in the special phone book.

You will find information on other options in the special phone book, such as delete or edit, under 5.3.

5.5.1 Dialling stored numbers from the special phone book

• Press the button and the OK display button. The first entry in alphabetical order will be displayed directly.
• Select the required phone book entry with the cursor. To choose a phone number directly alphabetically, press the appropriate letter.
• Press the call button

6 Extras

6.1 Alarm/Wake-up function

You can enter an alarm time using the integral wake-up and alarm function. When this time is reached you will hear signal tones from the mobile unit for one minute and the display will show the message ALARM with the current time. To stop the alarm, either press the STOP display button or the SNOOZE display button. If SNOOZE is pressed, a second alarm will be initiated automatically after 10 minutes. The volume of the alarm cannot be adjusted.

You can find out how to set the time in Chapter 7.1.

Activating the alarm and wake-up function

• Press the MENU display button, select EXTRAS with the cursor and confirm by pressing the OK display button twice.
  ■ Select ON and press the OK display button.
• Now select the required hours in the first line of the display with the cursor, and the minutes in the second line.
  ■ Press the OK display button.
• Press the button to return to the main display immediately or choose other items from the menu. The alarm clock symbol will appear in the display when the alarm/wake-up function is switched on.

Switching the alarm and wake-up function on and off early

• Press the MENU display button, select EXTRAS with the cursor and confirm by pressing the OK display button twice.
  ■ Select OFF and press the OK display button.
• Press the button to return to the main display immediately or choose other items from the menu.

6.2 Internal room monitoring (baby phone)

With room monitoring, you can listen in to another room using a second mobile unit. A second mobile unit is always required for this purpose. You will find further information on using additional mobile units in Chapter 11.

Switching on the baby phone on the mobile unit

• Press the MENU display button, select EXTRAS with the cursor and confirm with the OK display button.
• Select the BABY MONITOR setting and press the OK display button.
• Choose the ON setting and confirm with the OK display button. The internal room monitoring is now activated. An appropriate message will appear in the display.

Now place the mobile unit in the room that you want to monitor. In order to listen in to the room, dial the internal number of the mobile unit. The call will be accepted directly without ringing and you will be able to listen in to the room. To cancel room monitoring, terminate the call with the button. You can listen in to the room again at any time by dialling the internal number of the mobile unit.

Switching off the baby phone on the mobile unit

You can switch off the BABY PHONE function with the CANCEL display button and then OK.

6.3 Walkie-talkie

When you use several Type DECT6500 handsets, you can use the mobile units as walkie-talkies. In the walkie-talkie mode, the mobile units are logged off from the base station. You can therefore be as far away from the base station as you like. It is not possible to receive external calls during this time. In order to use this function, several mobile units must be switched to the walkie-talkie function. The range between two mobile units is up to 50 m indoors and up to 300 m outdoors.

Preparing the mobile units

In order to use this function, you must switch each mobile unit individually to the WALKIE-TALKIE function.
- Press the MENU display button, select EXTRAS with the cursor and confirm with the OK display button.
- Select the WALKIE-TALKIE setting and press the OK display button.
- Now select the number that the mobile unit is to be allocated during the WALKIE-TALKIE function and confirm with OK. Repeat the procedure for the required mobile units. The display buttons are now allocated the functions TALK and CANCEL.

Calling between mobile units.

• Press the TALK display button on one mobile unit.
  ■ Select the mobile unit you that you want to call and press OK.
• A ring tone will sound on the selected mobile unit. The call can be accepted there
  with the call button 📤 and the two mobile units will be able to speak to one
  another. The call is terminated on both mobile units with the button.

Switching off walkie-talkie mode

To cancel the function, press the CANCEL display button and then OK on all mobile units concerned. The mobile units will be logged on to the base station once more.

6.4 Timer

You can use the integral timer to be reminded of an appointment or the like after a certain time.

• Press the MENU display button, select EXTRAS with the cursor and confirm with the OK display button.
• Select the TIMER setting and press the OK display button.
• Enter how long the timer is to run in hours, minutes and seconds in the three lines and confirm with OK. The timer will be switched on and the remaining time will be indicated in the display.

When the timer has run down to zero, you will hear an alarm tone for one minute. The alarm can be cancelled prematurely by pressing the STOP display button.

6.5 Integral stopwatch

You can measure times with a resolution of 1/10 of a second using the integral stopwatch.

• Press the MENU display button, select EXTRAS with the cursor and confirm with the OK display button.
• Select the STOPWATCH setting and press the OK display button.
• The stopwatch will start to run when the START display button is pressed.
• When the stopwatch is running, an intermediate time can be read with PAUSE. The time is resumed by pressing RESUME.
• The time is stopped by means of the STOP button.
• The stopwatch is reset to zero with RESET.

- Press the button to return immediately to the main display or choose CANCEL to select other items from the menu.

6.6 Baby call

Small children or even older people can easily dial a previously defined telephone number using the baby call feature by pressing any button on the mobile unit. Excluded from this are the 📄 and CANCEL buttons.

Activating baby call

• Press the MENU display button, select EXTRAS with the cursor and confirm with the OK display button.
• Select the TOUCH & DIAL setting and press the OK display button.
  ■ Now select the ON setting in the first line.
• Select the second line and there enter the required telephone number with a maximum of 20 digits using the number pad. If a number has already been entered, this can be deleted with the CLEAR display button.
• Confirm with the OK display button. Baby call will be switched on and will be indicated with DIAL accordingly in the display. The stored phone number can be dialled directly by pressing any button (apart from the 📄 and CANCEL buttons).

Deactivating baby call

• Press the CANCEL display button.
• Confirm with the OK display button and baby call will be deactivated.

7 Display settings

7.1 Entering the time

Before using the telephone, you should set the current time. The internal time is used for the display and for the caller lists. You can therefore always tell retrospectively at what time you received a particular call.

■ Press the MENU display button.
- Select DISPLAY with the navigation keys and confirm twice with the OK display button.
- You can select HOUR and MINUTE using the navigation keys.
The required values can then be set by means of the left and right navigation keys.
■ Save the time with the OK display button.
- Press the button to return to the main display immediately or choose other items from the menu.

The 24-hour and 12-hour formats are available if you should want to change the time format. The 24-hour format is already preset.

Note: If the mobile part is switched off, you should set the current time again after switching on.

7.2 Changing display names

In normal operation, the message "DECT6500" appears in the display. If you have logged on several mobile units to one base station, it can be useful to give each mobile unit its own name (max. 10 letters). The number after the name shows with which number the mobile unit can be called internally.

• Press the MENU display button, choose DISPLAY by means of the navigation keys and confirm with OK.
• Select HANDSET NAME with the navigation keys and confirm with OK.
  ■ Now enter the required name and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

7.3 Setting the display language

The display messages can be set up in German and English.

• Press the MENU display button, choose DISPLAY by means of the navigation keys and confirm with OK.
• Select LANGUAGE with the navigation keys and confirm with OK.
  ■ Now select the required language using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

- Display settings -

7.4 Changing the display background

Three photos are available for the display background; flower, sky and butterfly.

• Press the MENU display button, choose DISPLAY by means of the navigation keys and confirm with OK.
• Select WALLPAPER with the navigation keys and confirm with OK.
• Now select the required background using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

7.5 Changing the display menu colour

The display background colour for the menu can be set to three different colours.

• Press the MENU display button, choose DISPLAY by means of the navigation keys and confirm with OK.
• Select COLOUR with the navigation keys and confirm with OK.
• Now select the required colour using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

8 Setting up ring tones and signal tones

8.1 Setting up ring tones for the mobile unit

Your mobile unit can respond with 20 different ring tones when a call comes through. If you are using the telephone system with several mobile units, you can set different ring tones for external and internal calls.

• Press the MENU display button, choose SOUNDS by means of the navigation keys and confirm with OK.
• Select HANDSET with the navigation keys and confirm with OK.
• The volume of the ring tone can be adjusted in five steps in the first line of the display using the left and right navigation keys. When CRESCENDO is selected, the ring tone starts quietly and becomes louder with each ring. If at any time you do not want to be disturbed, you can also turn the ring tone off altogether. If the ring tone is turned off, incoming calls will only be signalled at the base station and by means of the display on the mobile unit.
• Now use the navigation keys to move to the second line of the display and then select the required ring tone for external calls.
• If you are using the phone system with several mobile units, you can choose the required ring tone for internal calls in the third line of the display.
  ■ Confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

TIP! If at any time you do not want to be disturbed, you can turn off the ring tone on the mobile unit. Press and hold the * * button for 2 seconds. The symbol will appear in the display. Incoming calls will now only be signalled at the base station and no longer at the mobile unit. To switch the ring tone on again, press and hold the * * button again for 2 seconds.

8.2 Setting up ring tones for the base station

• Press the MENU display button, choose SOUNDS by means of the navigation keys and confirm with OK.
• Select BASE with the navigation keys and confirm with OK.
• The volume of the ring tone can be adjusted in five steps in the first line of the display using the left and right navigation keys. When CRESCENDO is selected, the ring tone starts quietly and becomes louder with each ring. If at any time you do not want to be disturbed, you can also turn off the ring tone on the base station altogether.

- Now use the navigation keys to move to the second line of the display and then select the required ring tone.

- Confirm with OK.

- Press the button to return to the main display immediately or choose other items from the menu.

8.3 Activating/deactivating the button tone

Each time a button is pressed, the mobile unit confirms with a button tone. The button tone can be switched on or off.

• Press the MENU display button, choose SOUNDS by means of the navigation keys and confirm with OK.
• Select HS KEY TONES with the navigation keys and confirm with OK.
• Now select whether you want to activate or deactivate the function by using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

8.4 Activating/deactivating warning tones

A short tune will sound when the phone is placed on the base station or a save operation has been successfully completed. This tune can be switched on or off.

• Press the MENU display button, choose SOUNDS by means of the navigation keys and confirm with OK.
• Select HS TONES with the navigation keys and confirm with OK.
• Now select whether you want to activate or deactivate the function by using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

9 Special functions

9.1 Accepting calls automatically

Incoming calls are accepted automatically when you lift the mobile unit from the base station. If you only want calls to be accepted by means of the button, you can deactivate the automatic acceptance facility.

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select AUTO ANSWER with the navigation keys and confirm with OK.
• Now select whether you want to activate or deactivate the function by using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

9.2 Tone (TD) or pulse (PD) dialling

This feature enables you to use your telephone both on analogue exchanges (PD) and on the new exchanges (TD). The factory setting is TONE dialling.

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select DIAL MODE with the navigation keys and confirm with OK.
• Now select the dialling method you require using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

9.3 Flash time for private exchanges

If you have connected your telephone to a private exchange, you can use all the facilities such as call transfer, automatic recall, etc. The FLASH time "100ms" (FLASH1, factory setting) will be required on a private exchange. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems.

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select RECALL with the navigation keys and confirm with OK.
• Now select which flash time you require using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

9.4 Pause when using on private exchanges

With private exchanges, it is sometimes necessary to dial a certain number (e.g. "9" or "0") in order to obtain a dialling tone for an outside line on the extension. With some, older private exchanges, it takes some time before the dialling tone can be heard. Especially for these private exchanges, an automatic pause can be inserted after connecting to the outside line (see Chapter 9.6). Two different pause lengths of 2 seconds (Pause 1) and 4 seconds (Pause 2) can be set.

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select PAUSE with the navigation keys and confirm with OK.
• Now select which pause length you require using the navigation keys and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

9.5 Automatic dialling code

Your telephone has an automatic dialling code function. With this function, when dialling a particular combination of numbers, a previously stored number is inserted in front of the actual phone number.

In this way, when dialling a particular dialling code for example, you can automatically insert a required call-by-call number in front of this phone number. Or, you can automatically add the required country code to an international number.

Example: The number 0221 (in this case, an area dialling code) has the number 0xxxx assigned to it. Here, the call-by-call will automatically be placed in front of every number dialled that begins with 0221. If you have dialled the number 0221-987654321, the telephone will recognise the 0221 and will dial 0xxxx-0221-987654321.

- Special functions -

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select PREFIX with the navigation keys and confirm with OK.
• Enter the PIN code (factory setting 0 0 0 0) and confirm with OK.
• Now select the required display line using the navigation keys.

On/Off

The function can be switched on or off in the first line of the display. In the second line of the display, enter the numbers, which are to be placed in front of the phone number.

0xxxx

In the third line of the display, enter the dialling code or phone number that these numbers are to be placed in front of.

0221

OK.
- Confirm
Press
Press
button to return to the main display immediately or choose other nu.

The PIN code will be required for programming (factory setting 0 0 0 0). Three phone numbers (dialling code 1, 2 and 3), each with 5 digits, can be stored and assigned. The prefixed numbers will not be shown in the display. The phone numbers in the phone books and the caller list are also monitored. After the call button was pressed, a monitoring is no longer possible.

9.6 Outside line code when using on private exchanges

With private exchanges, it is sometimes necessary to dial a certain number (e.g. "9" or "0") in order to obtain a dialling tone for an outside line on the extension. This outside line code can be inserted automatically every time a number is dialled. The PIN code will be required for programming (factory setting 0 0 0 0).

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select PABX with the navigation keys and confirm with OK.
• Enter the PIN code (factory setting 0 0 0 0) and confirm with OK.
• Now select the required display line using the navigation keys.

On/Off

The function can be switched on or off in the first line of the display. Enter the outside line code with a maximum of 3 digits in the second line of the display.

0

h OK.
- Confirm
Press
button to return to the main display immediately or choose other nu.

Note: A pause will also be inserted between the outside line code and the actual phone number. See Chapter 9.4.

9.7 Dialling block

You can block specific phone numbers by using the dialling blocks. When several mobile units are used, the dialling blocks can be set separately for each mobile unit. The PIN code will be required for programming (factory setting 0 0 0 0).

• Press the MENU display button, choose ADVANCED by means of the navigation keys and confirm with OK.
• Select CALL BARRING with the navigation keys and confirm with OK.
• Enter the PIN code (factory setting 0 0 0 0) and confirm with OK.
• Now choose which mobile unit you want to set up a dialling block for (only when multiple mobile units are used) and confirm with OK.
• Select the required function by means of the navigation keys.

OFF All phone numbers are allowed

ALL All numbers are blocked except the emergency numbers 110 and 112.

EXCEMPT All numbers are blocked except a freely programmable dialling code with a maximum of 5 digits and the emergency numbers 110 and 112.

BAR Here, you can block a specific dialling code with a maximum of 5 digits (e.g. 0190).

- If you have selected EXCEMPT or BAR, press the down navigation key once and enter the required number.

- Confirm with OK.

- Press the button to return to the main display immediately or choose other items from the menu.

- System -

10 System

10.1 Logging on mobile units

Before you can use additional mobile units, these must first be logged on. You will find further information on using additional mobile units in Chapter 11.

10.2 Automatic base unit selection

If a mobile unit is logged on to several base stations, you can choose here the base station that the mobile unit is currently connected to. In the AUTO setting, the mobile unit will automatically search for the nearest base station. When reception is no longer adequate, the mobile unit will then search for the other base stations, which it is logged on to.

• Press the MENU display button, choose SYSTEM by means of the navigation keys and confirm with OK.
• Select BASE SELECT with the navigation keys and confirm with OK.
  ■ Use the navigation keys to select which base station the mobile unit is to be connected to. For automatic base station selection, choose AUTO.
• Confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

General information on using additional base stations: You can increase the range of the mobile units by using several base stations. To make use of this effect, all base stations must have a telephone connection and the mobile unit must be logged on to all base stations used. Depending upon the application, you can allocate the same telephone number to each base station or you can give the base stations different numbers. In this case, the mobile unit will always be given a new phone number as soon as it is within range of a different base station. Make sure that the ranges of all base stations overlap. Please test the range of the mobile units before putting a new base station into operation. If a mobile unit is logged on to the base station and if the automatic base station selection is activated, the mobile unit is always forwarded automatically to the nearest base station. Current calls cannot be transferred from one base station to another.

10.3 Logging off mobile units

When several mobile units are used, any mobile unit can be logged off again here. You will find further information on using additional mobile units in Chapter 11.

10.4 Changing the system PIN code

Some functions of the telephone system are protected against unauthorised use by a PIN code. The PIN code consists of up to 8 numbers. As supplied, the PIN code is set to "0000". If the old PIN code is not entered correctly, the process will be aborted.

The old PIN code will first be required for programming (factory setting 0 0 0 0). The new PIN code must be entered twice under NEW PIN and CONFIRM.

• Press the MENU display button, choose SYSTEM by means of the navigation keys and confirm with OK.
• Select CHANGE PIN with the navigation keys and confirm with OK.
• Enter the current PIN code (factory setting 0 0 0 0) and confirm with OK.
  ■ Now enter the new PIN code and confirm with OK.
• Enter the new PIN Code again and confirm with OK.
• Press the button to return to the main display immediately or choose other items from the menu.

Note: When you assign a new PIN, you must keep this safely.

10.5 Restoring factory settings

The mobile unit and the base station are reset to the factory settings using this function. The PIN code will be required for programming (factory setting 0 0 0 0).

Language: German Name	of mobile unit: DECT6500	PIN code: 0 0 0 0
Menu colour: Blue Automatic call accept: on Dialling code: off
FLASH time: 100ms External ring tone: 2 Outside line code: none
Dialling mode: Tone/TD Internal ring tone: 3 Dialling blocks: off
Receiver volume: medium	Ring tone volume, mobile unit: medium	Assignment of quick dialbuttons: off
Time format: 24-hour Ring tone, base: 1 Button tone: on
Background: 1 Ring tone volume, base: off Warning tones: on
Menu colour: 1	Pause length: 1	Alarm/Wake-up function: off
Room monitoring: off	Walkie-talkie: off	Timer: off
Stopwatch: off	Baby call: off	Base selection: Auto

- Press the MENU display button, choose SYSTEM by means of the navigation keys and confirm with OK.

- Select RESET with the navigation keys and confirm with OK.

- Enter the current PIN code (factory setting 0 0 0 0) and confirm with OK.

- Confirm again with OK and the factory settings will be restored.

11 Multiple mobile units

Up to three additional mobile units can be logged on to your base station. One mobile unit can be logged on to up to three further base stations.

When you use multiple mobile units you will have the following options:

• Internal calls between mobile units (see 11.1).
• External calls can be forwarded between mobile units (see 11.2).
  ■ Conference calls between one external and two internal subscribers (see 11.3).
  ■ Room monitoring (see 6.2)
  ■ Walkie-talkie (see 6.3):
• Incoming external calls are signalled on all mobile units.

Note: Mobile units from other manufacturers can be integrated into the telephone system by means of the internationally adopted GAP standard. However, all functions that are supported by the DECT6500 are only available in conjunction with a DECT6500 mobile unit. In the same way, you can use a DECT6500 mobile unit on base stations from other manufacturers, as long as these units work using the GAP standard.

Information for using the mobile unit on other base stations:

Due to the large number of different manufacturers, it is not possible to guarantee all the functions when using the mobile unit on another base station. It is possible that not all the functions supported by the DECT6500 mobile unit will be available.

Note: If another mobile unit is already using the external line, an appropriate message will appear in the display. In this case, it is not possible to make a further external call.

11.1 Making an internal call

When you have connected multiple mobile units to a base station, you will be able to make internal calls. To do this, press the INT button and the internal number of the required mobile unit. You can also select the required mobile unit with the cursor and make the connection with the OK display button. The call is accepted at the mobile unit called with the call button and terminated on both mobile units with the button.

Note: If an external call comes in while you are making an internal call, you will hear the base station ringing and the caller's number will be shown in the display of the mobile units, provided that caller display (CLIP) is available. End the internal call with the button and accept the external call by means of the call button on one of the mobile units.

11.2 Connecting external calls to another mobile unit

If you have accepted an external call on one mobile unit, you can forward the external call to another mobile unit. To do this, press the INT button and then the number of the required mobile unit. After the internal call has been accepted at the other mobile unit, you have the following options:

A. Consultation: You can now speak to the internal subscriber. To return to the external call, press the left display button twice (OPTIONS -> OUTSIDE CALL).

B. Forward the call: Press the OPTIONS display button. Select the TRANSFER function and press the OK display button.

11.3 Holding conference calls

An external call can be connected to a further internal subscriber as a conference call. In this way, two mobile units can talk to the external caller simultaneously.

■ Establish the required connection with the external subscriber.
- Then call the internal mobile unit. To do this, press the OPTIONS display button and choose the INTERCOM function. Press the number of the required mobile unit. You can also select the required mobile unit with the cursor and make the connection with the OK display button. If the internal call is not accepted, press the CANCEL display button and you will be connected to the external subscriber once more.
If the internal call is accepted by the selected mobile unit, press the OPTIONS display button again and choose the CONFERENCE function. Both internal mobile units will now be connected to the external subscriber.
- To end the conference call, press the OPTIONS display button on one of the mobile units. Then select the EXIT CONF. function and confirm with OK. Only one mobile unit will then remain connected to the external subscriber. The call can be terminated here with the 📄 button.

11.4 Logging on and logging off mobile units

11.4.1 Logging on DECT6500 mobile units

• If the mobile unit has not yet been logged on to a base station, press the REG. display button. Otherwise, press the MENU display button. Then select SYSTEM from the menu and confirm with OK.
  ■ Press the OK display button once.

- Press and hold the page button ●) on the base station until you hear several signal tones. Now log on the new mobile unit to the base station within 60 seconds.

- Now enter the PIN code of the base station (factory setting 0 0 0 0) and confirm with OK. A search will now be carried out for the base station.

As soon as the base station has been found, the internal number that has been allocated to the mobile unit will appear briefly in the display. The mobile unit is logged on and can be used for external and internal calls. An internal number will be automatically assigned to the mobile unit. The main mobile unit already logged on has the internal number 1. All further mobile units that are logged on will be numbered in the sequence in which they were logged on (internal phone numbers 2 to 4). This internal telephone number will be indicated on the right of the display next to the name.

11.4.2 Logging on other DECT-GAP telephones to the base station

• In order to log on a DECT-GAP mobile unit from another manufacturer, follow the instructions in the other supplier's operating manual and then press the button until you hear several signal tones.
  ■ Use the PIN-Code 0 0 0 0 to log on.
  ■ Due to the large number of different mobile units, it is not possible to guarantee all the functions provided.

- Multiple mobile units -

11.4.3 Logging off mobile units

• Press the MENU display button and choose SYSTEM from the menu.
• Confirm with the OK display button and choose DELETE HS from the menu.
• Choose which mobile unit is to be logged off and confirm with the OK display button.
• Now enter the PIN code of the base station (factory setting 0 0 0 0) and confirm with the OK display button. The mobile unit will now be logged off.

- Troubleshooting -

12 Troubleshooting

If you have problems with your telephone, please check the following points first. For technical problems, you can also contact our hotline on Tel. [phone] (Telekom cost at the time of printing 12 cents/min). For any claims under the warranty, please refer to your dealer. The warranty period is 2 years.

No calls possible The telephone line is not correctly connected or is faulty.Use only the telephone cable provided.Test whether your telephone connection is in order by using another telephone.The power supply is not plugged in or there is a total power failure.The rechargeable batteries are flat or defective.You are too far away from the base station.The base station is not connected to the mains supply.
Connection is cut off or drops out	You are too far away from the base station.Incorrect position for the base station.
The charging light does not come on	Place the mobile unit properly on the base station, clean the contact surfaces on the handset and on the base station with a soft, dry cloth.The base station is not connected to the mains supply.
The battery symbol flashes in the display after a few hours	Place the mobile unit on the base station for 16 hours.If this does not help, replace the rechargeable batteries.
Display dark	The batteries are flat. Please charge the mobile unit on the base station.Is the mobile unit switched off?Caused by direct sunlight, allow the mobile unit to cool down.
Troublesome noises when making a call	Do not set up the base station in the immediate vicinity of other electrical equipment such as microwaves or hi-fi systems, as this may result in mutual interference.

13 Important information

13.1 Technical data

Standard DECT-GAP
Number of channels 1880 to 1900 MHz
Power supply Base station 220/230V, 50 Hz
Range Indoors up to 50 m
Range Outdoors up to 300 m
Standby up to 120 hours
Max. call duration up to 8 hours
Standard rechargeable batteries 2 x 1.2V/750mAh, Type AAA
Dialling method TD or PD
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20 to 75%
Signal button function 100ms or 300ms

13.2 Changing the telephone cable

If you have to replace your telephone cable, you can locate the appropriate cable at your dealer's with the help of the following diagram.

F-Coding - IMPORT Standard TAE-F Rj11 6/4 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6

13.3 Warranty

AUDIOLINE units are manufactured and tested in accordance with the most up-to-date manufacturing procedures. Selected materials and highly developed technologies ensure trouble-free operation and long life. The situation, where the cause of a malfunction of the unit is due to the telephone network provider or any private exchanges that may be connected in between, is not covered by the warranty. The warranty is not applicable to the batteries or battery packs used in the various products. The warranty period is 24 months calculated from the day of purchase

All defects, which are the result of material or manufacturing faults, will be rectified free of charge within the warranty period. Claims under the warranty shall not be considered if the equipment has been tampered with by the purchaser or third parties. Damage, which results from improper handling or use, incorrect positioning or storage, inappropriate connection or Installation and through Act of God or other external influences are not covered by the warranty. In the case of complaints, we reserve the right to repair or to replace the defective parts or to exchange the unit. Parts or units that have been exchanged shall become our property. Claims for damages shall not be entertained unless they relate to intention or gross negligence on the part of the manufacturer.

If, however, your unit should develop a fault within the warranty period, please contact the shop where you bought your AUDIOLINE unit, taking with you your purchase receipt. In accordance with these conditions, all claims under the warranty shall be made exclusively to your dealer. Rights under the warranty can no longer be enforced after the expiry of two years from the purchase and handing over of our products.

13.4 Declaration of Conformity/CE mark

The telephone complies with the basic requirements of the R&TTE Directive "1999/5/EEC". This is confirmed by the CE mark.

For the complete Declaration of Conformity, please use the free download from our web site www.audioline.de.
