Product Type	Cyclone Vacuum Cleaner
Brand	Hanseatic
Model	CJ132WT-060
Suction Power	600 W
Power Supply	220–240 V ~, 50/60 Hz
Protection Class	II
Weight (approx.)	5.25 kg
Sound Power Level	80 dB(A)
Filtration System	Motor protection foam filter, hygiene filter, coarse dust filter, exhaust air filter
Included Accessories	Universal floor nozzle, turbo brush, crevice nozzle, furniture brush, upholstery nozzle
Suction Adjustment	Air bypass vent on handle
Cable Retraction	Foot switch for cable retractor

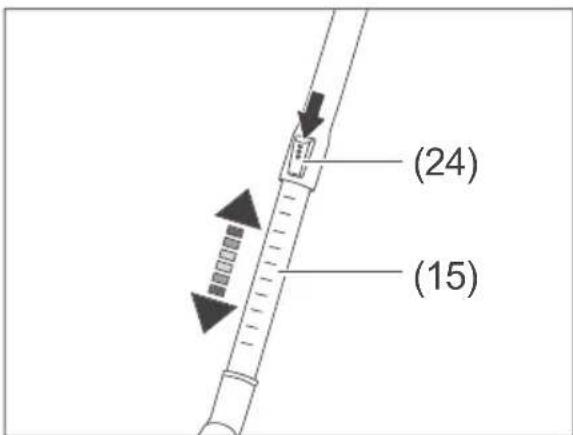

Telescopic Tube	Yes, adjustable length

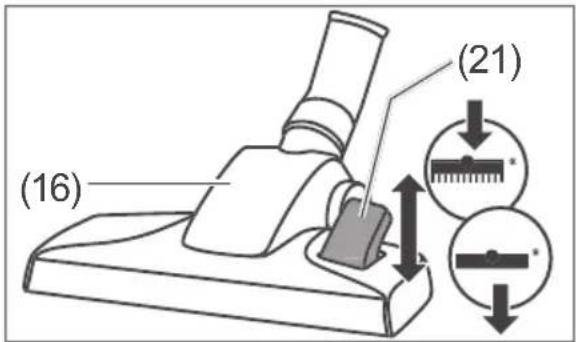

Floor Nozzle Settings	Two positions: for hard floors and for carpets
Turbo Brush	Rotating brush driven by airflow for hair and threads
Overheat Protection	Automatic shutdown when motor protection filter blocked
Intended Use	Household dry vacuuming of floors, upholstery, cushions, car interior
Maintenance	Empty dust bin after each use; clean motor protection filter; replace hygiene filter as needed; clean coarse dust and exhaust air filters
Replacement Filters	Hygiene filter: order no. 594380 (Purple) / 53596542 (Black/white)
Order Numbers	829 951 (Purple), 21551158 (Black/white)

Frequently Asked Questions - CJ132WT-060 Hanseatic

How do I adjust the suction force?

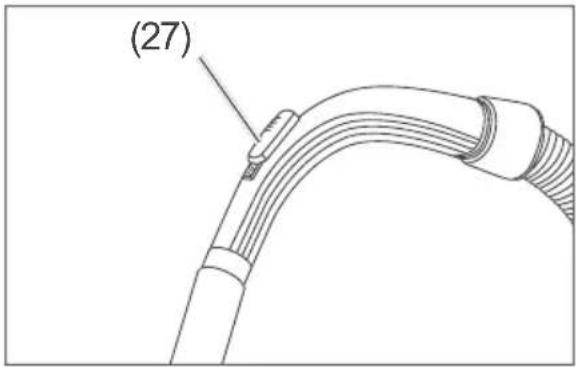

You can adjust the suction force by using the air bypass vent on the telescopic tube handle. Opening the vent reduces suction, which is useful for delicate surfaces or when the vacuum accidentally picks up an object.

Can I vacuum liquids or wet carpets?

No, the vacuum cleaner is designed only for dry vacuuming. Vacuuming water or other liquids can cause short circuits and damage the appliance. Never vacuum wet carpets or freshly shampooed carpets until completely dry.

How often should I empty the dust bin?

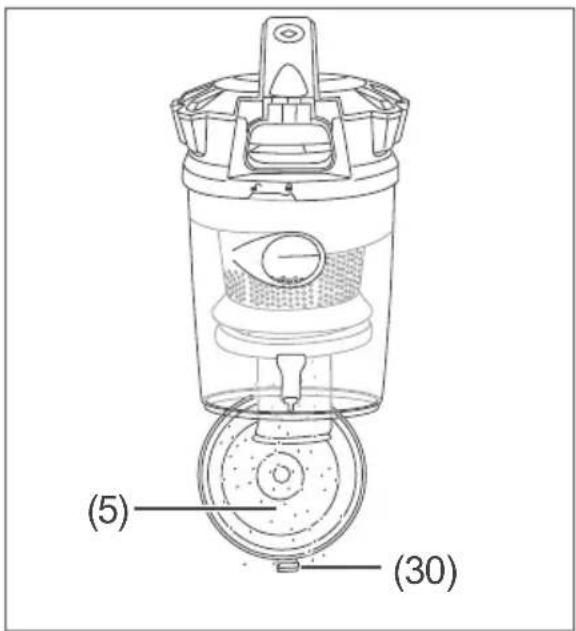

It is recommended to empty the dust bin after each use, or at the latest when the lower third of the dust bin is full. This maintains optimal suction power and prevents dust from escaping.

How do I clean the motor protection filter?

Remove the dust bin, pull out the motor protection filter (foam), tap it out over a waste bin. If very dirty, rinse under warm running water, squeeze gently (do not wring), and let it dry completely before reinserting.

How do I replace the hygiene filter?

Remove the dust bin and dust bin lid. Take out the hygiene filter. If dirty, tap it out or rinse with clear water (max 40°C) and air-dry for at least 24 hours. Replace if odors persist or filter is heavily soiled.

What should I do if the suction power is weak?

Check if the dust bin is full or incorrectly inserted, if the air bypass vent is open, if the brush/nozzle is blocked, or if the filters are dirty. Also ensure the telescopic tube and hose are not blocked. Clean or empty as needed.

Is it safe to use the vacuum cleaner without filters?

No, never operate the vacuum cleaner without filters or with damaged filters. Doing so allows dust to penetrate the motor and escape into the air, posing health and damage risks.

How do I store the vacuum cleaner?

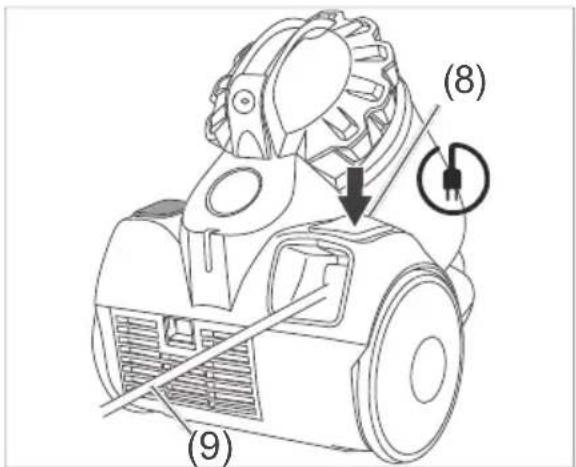

After use, switch off, unplug, and press the foot switch to retract the cord while holding the plug. Insert the nozzle bracket into the storage holder on the appliance for compact storage.

How do I clean the turbo brush?

Unplug the vacuum and remove the turbo brush from the tube. Open the maintenance flap on the bottom, remove lint and hair from the brush and air blade wheel, then close the flap securely.

What does the overheat protection do?

If the motor protection filter is blocked or the appliance overheats, the vacuum cleaner automatically switches off. Let it cool for at least 30 minutes, clean the filter, and it will be ready to use again.

USER MANUAL CJ132WT-060 Hanseatic

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

195457 20240916

Line drawings of various vacuum cleaner components including a coiled hose, handle, and accessories (no text or labels)

WARNUNG

Stromschlaggefahr!

Technical line drawing of a mechanical component with a labeled section (17), no readable text or symbols present.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

User manual

Manual/version:

195457 20240916

Order no.: 829 951,

21551158

Reproduction, even of

excerpts, is not per-

mitted!

Cyclone vacuum cleaner

Table of contents

Explanation of terms/

symbols ...... EN-3

Explanation of terms .... EN-3

Safety ...... EN-4

Intended use ..... EN-4

Safety notices ..... EN-4

Delivery .....EN-11

Package contents .....EN-11

Checking the delivery . . .EN-11

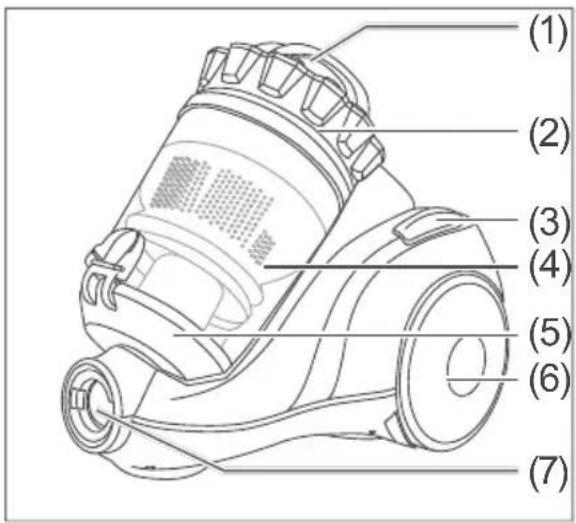

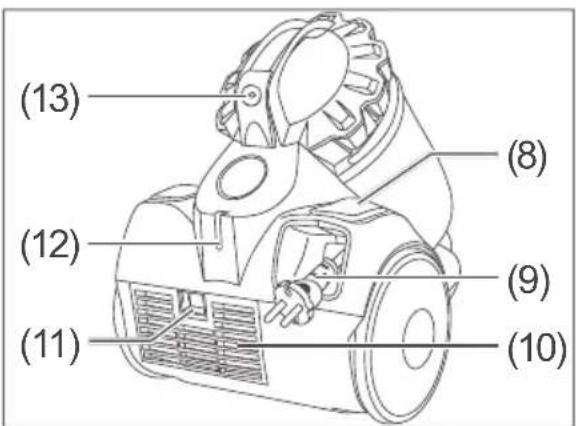

Appliance parts, controls and

nozzles ..... EN-12

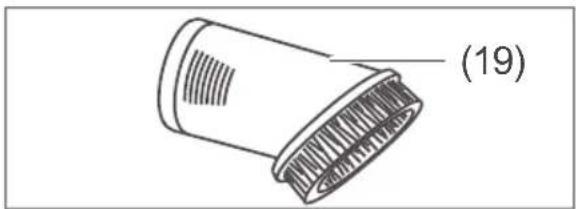

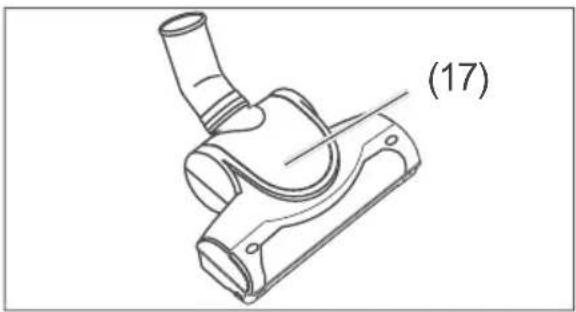

Nozzles ..... EN-13

Getting started ..... EN-15

Unpacking the

appliance..... EN-15

Setting up the

appliance..... EN-15

Operation ..... EN-17

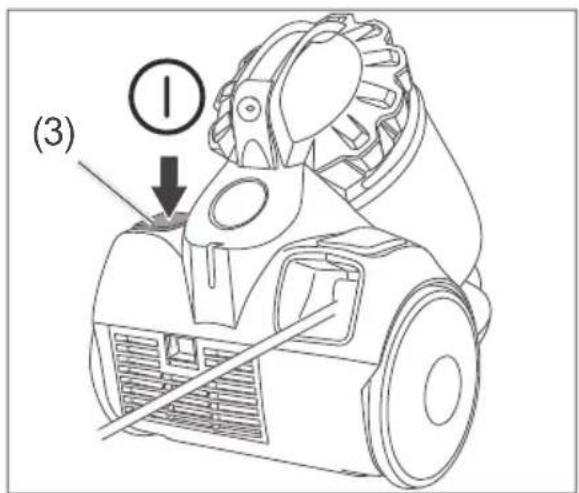

Before getting started . . EN-17

Vacuuming floors..... EN-17

Setting the

suction force ..... EN-19

Finishing vacuuming . . . EN-19

Shutdown and storage... EN-21

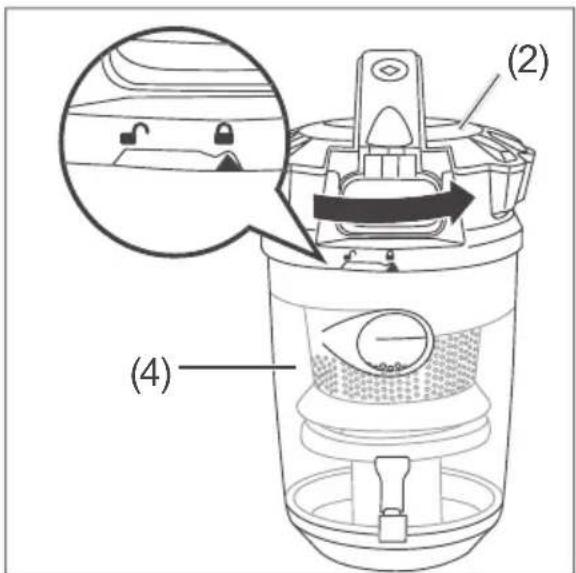

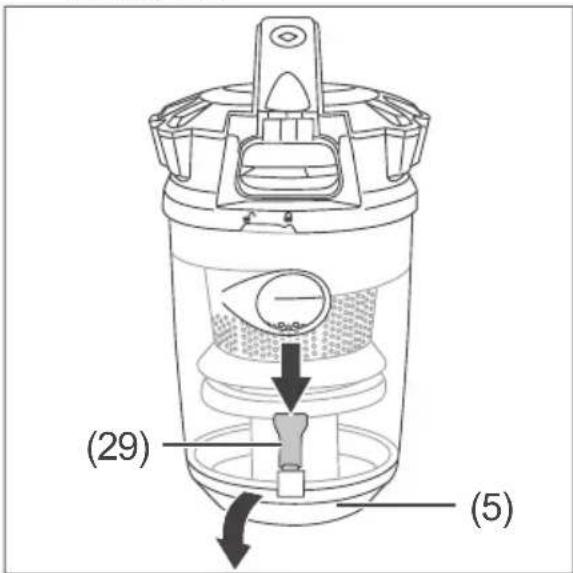

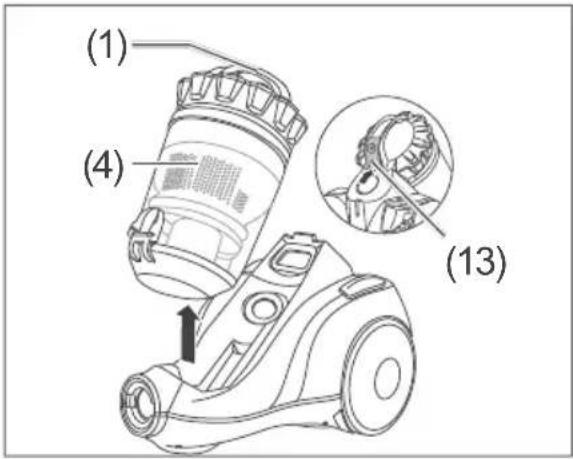

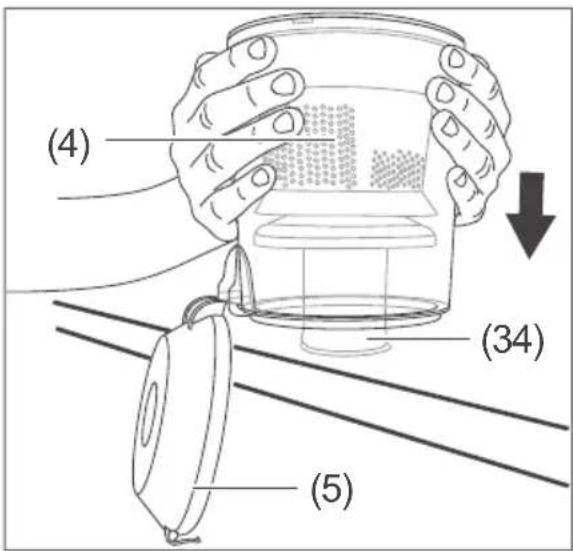

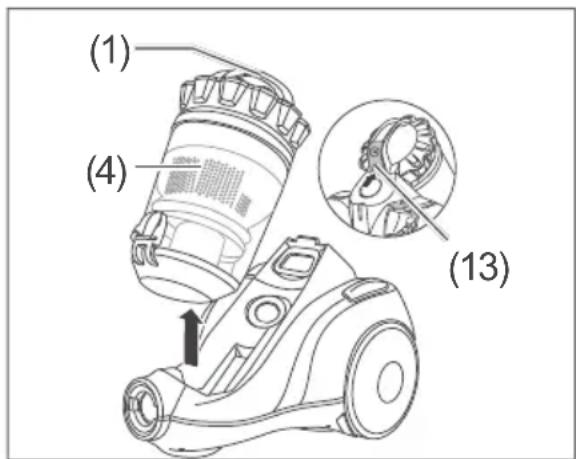

Emptying the dust bin ... EN-22

Cleaning/changing

the filter..... EN-24

Cleaning/changing the motor protection filter..... EN-24

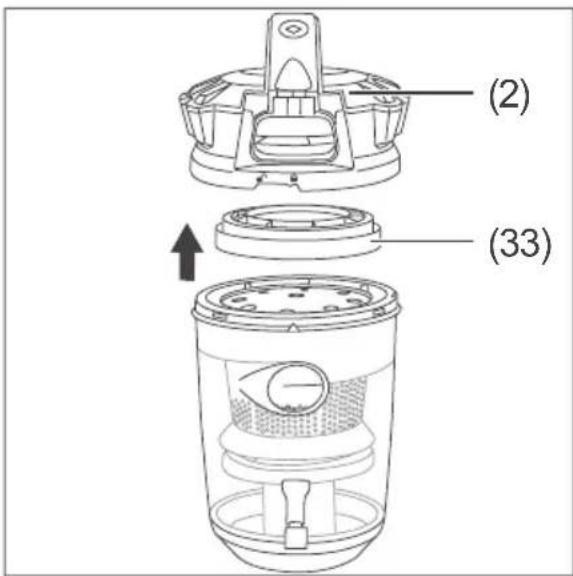

Cleaning/changing the hygiene

filter EN-25

Cleaning the coarse dust filter ..... EN-27

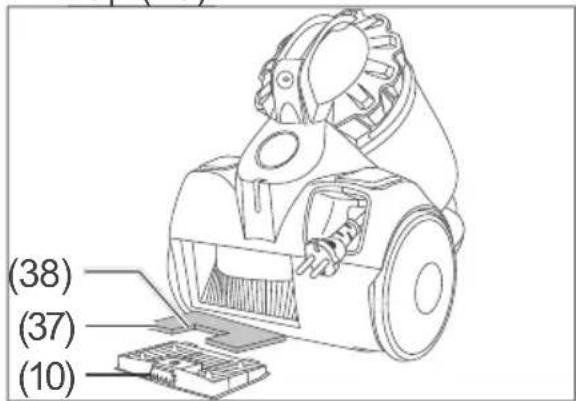

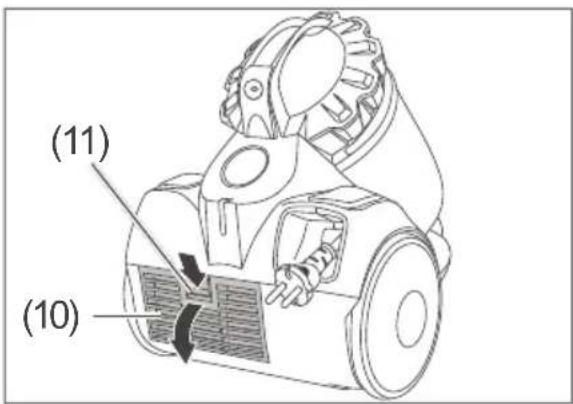

Cleaning the exhaust air filter ..... EN-28

Cleaning the vacuum

cleaner EN-30

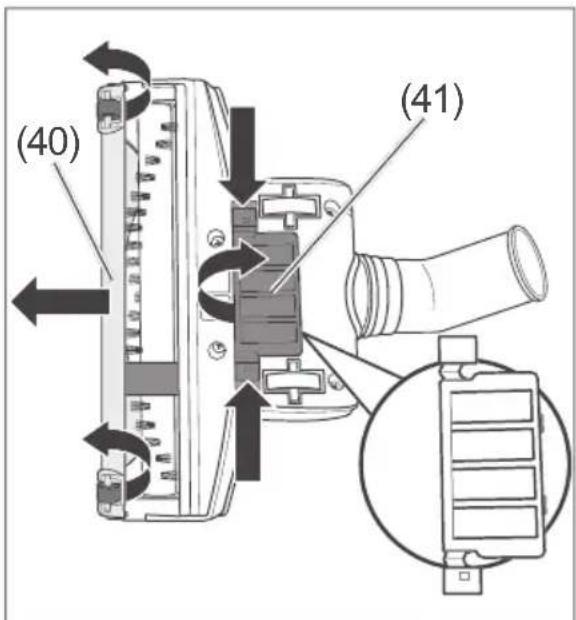

Cleaning the universal floor nozzle ..... EN-30

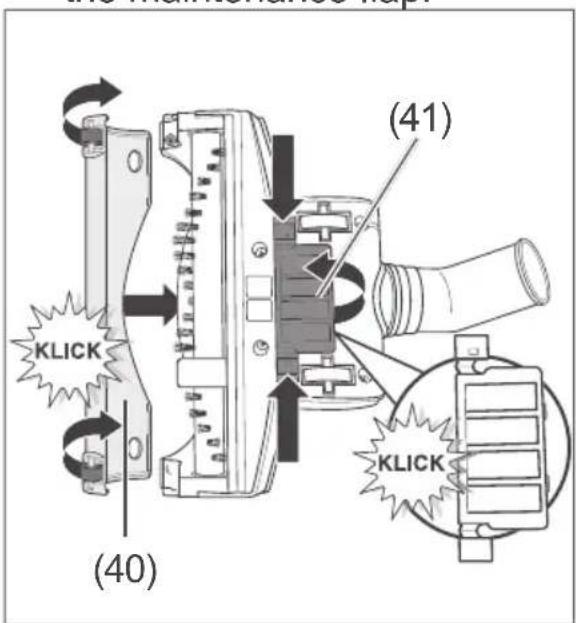

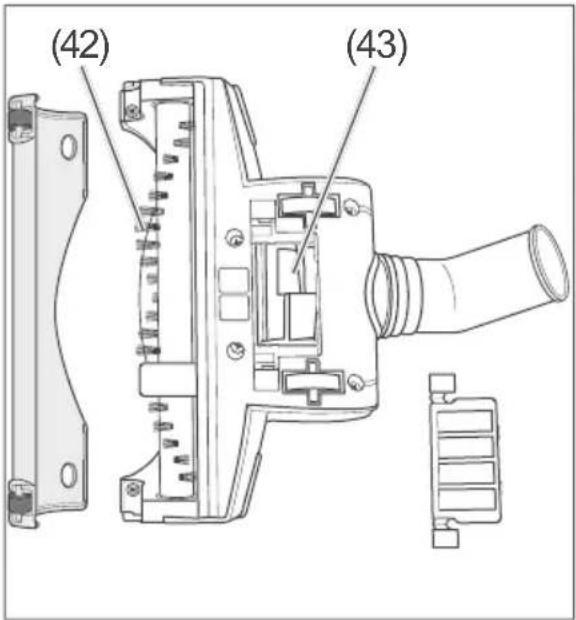

Cleaning the turbo brush.... EN-30

Troubleshooting table.... EN-32

Service ..... EN-34

General customer service ..... EN-34

Spare parts ..... EN-34

Waste prevention, free return

and disposal..... EN-35

Waste prevention ..... EN-35

Free return of old electrical appliances ..... EN-35

Disposal..... EN-36

Packaging ..... EN-38

Appendix EN-39

Technical specifications. EN-39

Explanation of terms/symbols

Please read through the safety notices and this user manual carefully

before using the appliance. This is the only way you can use all the functions safely and reliably.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the appliance.

Explanation of terms

The following terms/symbols can be found in this user manual.

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety

Intendeduse

The appliance is intended for vacuuming up loose and dry dirt, such as dust, lint, crumbs on floors and cushions around the home and car.

The appliance is designed for use in private households only and is not designed for commercial use or multiple use (e.g.: use by several families in an apartment building).

Persons who are unable to operate the appliance safely due to their physical, sensory or mental capabilities or lack of knowledge must be supervised during use.

No technical changes may be made to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance is not suitable for vacuuming up

• hazardous dust
  – water and other fluids
  – glowing ash, burning cigarettes or matches
• clay, plaster, cement, masonry dust or drilling dust

– sharp objects, such as glass splinters.

Use the appliance exclusively as described in this user manual.

Any other use is deemed improper and may result in damage to property or even personal injury.

The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter, you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the safety notices in the individual chapters on operation and cleaning.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths.

WARNING

Health hazard!

Even with the filters, the appliance exhaust air may still contain small quantities of dirt particles. If breathed in by small children, these can lead to allergic reactions.

■ Do not vacuum close to children.

WARNING

Health hazard!

The following precautionary measures apply to children of all ages.

• Keep batteries out of the reach of children.
  ■ Battery usage by children should be supervised. Especially keep small batteries out of reach of small children.
• Seek medical advice immediately if a cell or a battery has been swallowed.

WARNING

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabil-

ities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Never expose the appliance to the weather.
■ Connect the appliance only if the mains voltage at the socket corresponds to that

indicated on the name-plate.

■ Do not operate or continue to operate the appliance if it
– has visible damage,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.
In such cases, disconnect the appliance from the power supply. Turn the appliance off and have it repaired (Page EN-34).

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).

■ Connect the appliance only to an easily accessible socket, to allow you to disconnect it quickly from the mains in the event of a fault.

• Keep the appliance, mains plug and supply cord away from naked flames and hot surfaces.
  ■ Do not kink, pinch or run over the supply cord with the appliance. This can result in a break in the cable.
  ■ Never leave the appliance unattended while the mains plug is connected to the socket.
  ■ Never pull the mains plug out of the socket by the supply cord, always hold the mains plug itself.
  ■ Never touch the mains plug with wet hands.
  ■ Never immerse the mains cord or plug in water or any other liquids.
  ■ Ensure that water does not enter the electrical components.
  ■ Only insert the mains plug into the socket if all appliance components are completely dry.
  ■ Make sure that the plug is removed from the sock-

et before the appliance is cleaned or serviced.

■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ Never clean the appliance with a high-pressure cleaner or steam cleaner.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists.
■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair the appliance yourself.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire.

■ Only connect to a properly installed earthing contact socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

! NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Do not use sharp objects to unpack the appliance.

! NOTICE

Risk of damage to property! Unsuitable cleaning agents can damage the surfaces.

■ Never use soap or any harsh, granular, soda-based, acid-based, solvent-based or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Use only soft cloths.

Risks when handling the vacuum cleaner

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

• Hold the supply cord when winding it up. Forcefully retracting the supply cord can cause a ‘whipping effect’ (on account of the supply cord swinging uncontrollably).
  ■ Lay out the supply cord in such a way that it does not become a tripping hazard.

CAUTION

Fire hazard!

Vacuuming glowing ash, burning cigarettes, etc. will set the fi Iter on fi re.

■ Do not vacuum glowing ash, burning cigarettes or matches.
■ Do not vacuum any fl am-mable substances.

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or motor protection fi Iter is missing or damaged.
Otherwise, vacuumed dust can penetrate the appliance and escape into the ambient air.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ Never sit or stand on the appliance.
■ Use the appliance only if the motor protection fi lter is in place. The motor protection fi lter must not be damaged.
■ Only the original supplied accessories and the speci- fied dust bag, motor protec-

tion fi Iter and hygiene fi Iter may be used.

■ Never vacuum clay, plaster, cement, masonry dust or drilling dust. Vacuuming these materials blocks the filter.
■ Do not use the appliance to vacuum up water. Never vacuum wet carpets/rugs.
■ On freshly shampooed carpets, always wait until the detergent is completely dry before vacuuming.
■ Never vacuum sharp objects e.g. glass fragments.
■ If the suction hose, telescopic tube or nozzle are blocked, immediately switch off the appliance and remove the blockage.
■ When using the vacuum cleaner, always pull out the supply cord completely to the yellow marker.

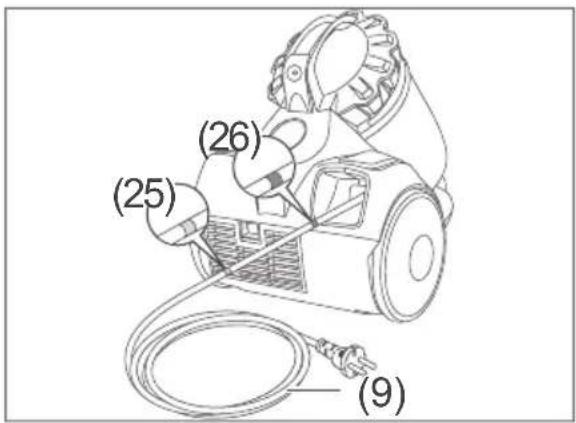

■ Never pull the supply cord out beyond the red marker. Pulling the cord out further can damage the cable reel.

■ Never place the vacuum cleaner directly next to a heater or oven.
■ Never dry the hygiene fi Iter on a heater or with a hair-dryer or tumble dryer. The hygiene fi Iter is porous and can be damaged.
■ Never wash the motor protection filter in a washing machine or dishwasher.
■ The filters must be air-dried only.
■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance and accessories. They could damage the surface of the appliance.
■ The hose must be checked regularly and must not be used if damaged.

Delivery

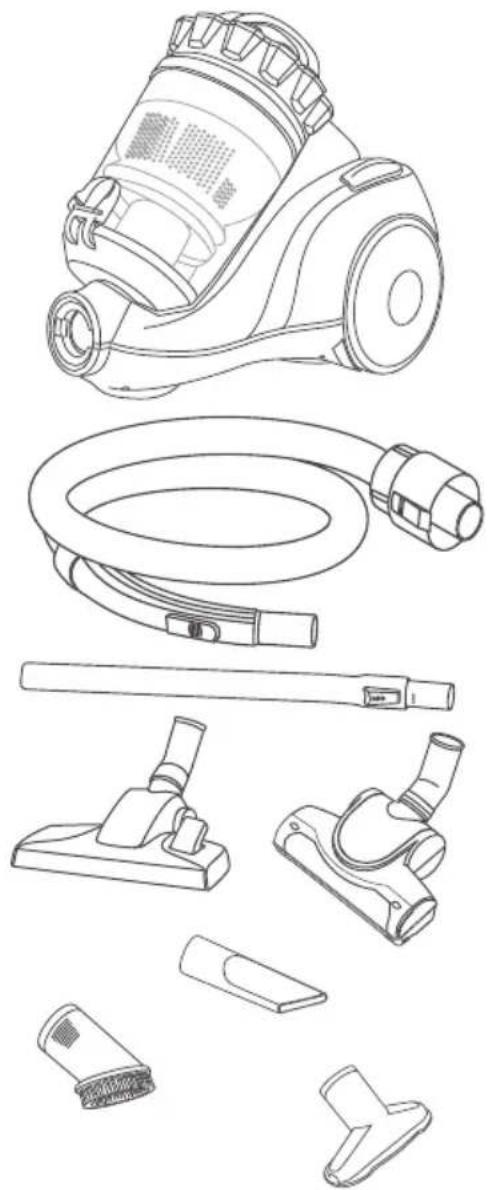

Line drawings of various vacuum cleaner components including a coiled hose, handle, and accessories (no text or labels)

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Package contents

– Cyclone vacuum cleaner
– Suction hose with telescopic tube handle
- Telescopic tube
– Universal floor nozzle
- Turbo brush
- Upholstery nozzle
- Crevice nozzle
- Furniture brush
- User manual

Checking the delivery

1. Move the appliance to a suitable place and unpack it.
2. Check that all parts have been delivered.
3. Check whether the appliance was damaged during transit.
4. If any parts are missing or the appliance has been damaged in transit, please contact our service team (see „Service“ on page EN-34).

Appliance parts, controls and nozzles

(1) Carrying handle
(2) Dust bin lid
(3) On/Off foot switch
(4) Dust bin
(5) Dust bin base
(6) Wheel
(7) Opening of the suction hose connector
(8) Foot switch for cable retractor
(9) Mains cord with mains plug
(10) Exhaust air outlet and exhaust air filter flap
(11) Exhaust air filter flap release button
(12) Storage holder
(13) Lock button for the dust bin
(14) Suction hose with telescopic tube handle
(15) Telescopic tube
(16) Universal floor nozzle
(17) Turbo brush
(18) Crevice nozzle
(19) Furniture brush
(20) Upholstery nozzle

Nozzles

The vacuum cleaner comes with various nozzles designed for a range of uses. Where required, before or during vacuuming, each nozzle can be attached to the telescopic tube handle on the suction hose (14) or the telescopic tube (15).

Universal floor nozzle

You will work with the universal floor nozzle (16) most of the time, as it is designed for large, flat surfaces.

Best vacuuming results are achieved when you adapt the appliance to the floor surface using the foot selector switch (21).

- For short-pile or smooth floors such as needle felt, PVC, parquet or tiles:

Set the foot selector switch (21) to the position.

- For long-pile rugs/carpets:

Set the foot selector

switch (21) to the position.

The foot selector switch (21) can also be switched during operation.

Turbo brush

Technical line drawing of a mechanical component with a pipe fitting and a labeled section (17), no readable text or symbols beyond the label.

The rotating turbo brush (17) is propelled by the vacuum air flow. It is particularly suitable for vacuuming hair and thread from rugs and carpeted floors.

Crevice nozzle

The crevice nozzle (18) is suitable for vacuuming material folds, joints, corners and niches that cannot be reached with the floor nozzle.

Furniture brush

With the furniture brush (19) you can dust books or fragile items such as picture frames.

Upholstery nozzle

The upholstery nozzle (20) is particularly suitable for cleaning furniture upholstery and mattresses.

Gettingstarted

Unpacking the appliance

NOTICE

Risk of damage! Improper handling of the appliance may result in dam- age.

■ Do not use sharp objects to unpack the appliance.

1. Unpack the appliance.
2. Carefully remove all parts of the packaging, plastic profiles, tape and foam padding.

Setting up the appliance

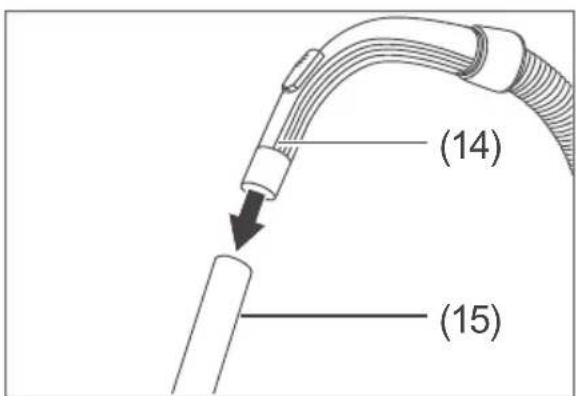

1. Connect the suction hose (14) and the telescopic tube (15).

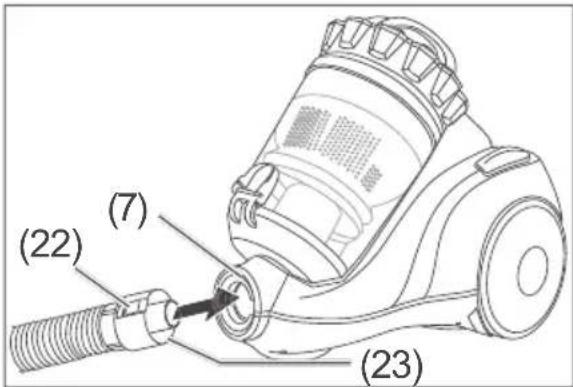

1. Gently squeeze both tabs (22) on the connecting piece (23) while inserting the connecting piece (23) into the opening (7).
2. Select the desired nozzle, e.g. the universal floor nozzle (16), and insert it into the telescopic tube (15). You can also insert all nozzles directly into the telescopic tube handle located on the suction hose (14).

1. To change the length of the telescopic tube (15) and thus adjust it to the user's height,

push the release button (24) down and pull the telescopic tube (15) apart or push it together.

An audible click will indicate that the telescopic tube (15) has been locked in place at the next notch.

All filters are prefitted in the factory, and your vacuum cleaner is now ready to use.

Operation

Before getting started

• Read the chapter ‘Safety’ and particularly the safety instructions (see “Intended use” on page EN-4).
• Set up the device as described in the chapter “Setting up the device” (see “Setting up the appliance” on page EN-15).

Vacuuming floors

CAUTION

Risk of electric shock! Improper use of the appliance can cause severe damage.

■ Do not vacuum glowing ash, burning cigarettes or matches, sharp objects, glass fragments, water or other liquids. Glowing ash, burning cigarettes, etc. set the fi liter on fi re; moisture can cause short circuits; sharp objects damage the fi liter and can cause short circuits.

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or motor protection fi lter is missing or damaged. Otherwise, vacuumed dust can penetrate the appliance and escape into the ambient air.

NOTICE

Risk of damage to property! Vacuuming unsuitable materials blocks the fi Iter and can damage the appliance.

■ Never vacuum clay, plaster, cement, masonry dust or drilling dust.

NOTICE

Risk of damage to property! Failure to unplug the supply cord in an appropriate way may damage the appliance.

■ When using the vacuum cleaner, always pull out the

supply cord completely to the yellow marker.

■ Never pull the supply cord out beyond the red marker. Pulling the cord out further can damage the cable reel.

1. Pull the mains cord (9) out until the yellow marking (25) is visible on the mains cord (9).

If the red marking (26) is visible, the mains cord (9) has been pulled out too far. Allow the mains cord (9) to retract slightly (see “Finishing vacuuming” on page EN-19).

1. Insert the mains plug (9) into a properly installed socket.

1. To switch the appliance on, use your foot to operate the On/Off foot switch (3).
2. To vacuum, push and pull the nozzle across the surface you are vacuuming. Rotate the telescopic tube handle (14) slightly to reach corners more effectively. This positions the nozzle diagonally.

In rare cases there can be a whistling noise initially. This is not a malfunction and stops after a while.

Setting the suction force

Air by-pass vent

You can adjust the suction force as needed by using the air bypass vent (27). The covering of the air by-pass vent (27) can be adjusted as desired.

Should the vacuum cleaner accidentally vacuum up an object, opening the air bypass vent immediately reduces the suction force. This remedial action will prevent such items from being drawn into the dust-bin.

Finishingvacuuming

CAUTION

Risk of injury!

Forcefully retracting the supply cord can cause the supply cord to swing uncontrollably ('whipping effect'). This could result in injury.

■ Hold the supply cord when winding it up.

1. To switch the appliance off, use your foot to operate the On/Off foot switch (3).

2. Pull the mains plug (9) out of the socket.

1. To retract the mains cord (9), press your foot down on the foot switch for the cable retractor (8). To avoid a 'whipping effect', hold the mains plug on the mains cord (9) in your hand.

Shutdown and storage

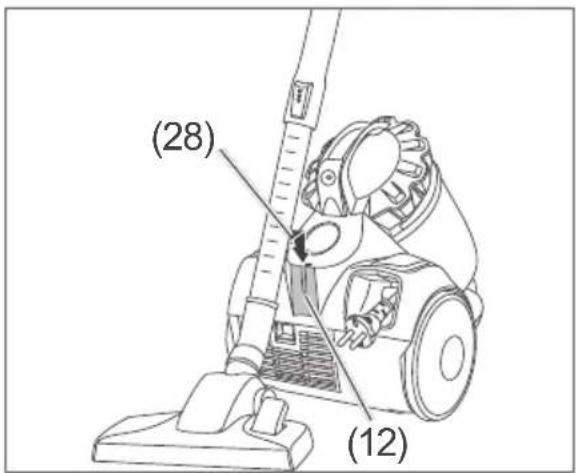

- Insert the mounting bracket (28) found on the nozzle into the storage holder (12).

Emptying the dust bin

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Before emptying the dust bin, always pull the mains plug out of the socket.

CAUTION

Health hazard! Improper handling of the appliance may result in health hazards.

■ Do not empty the dust bin in enclosed spaces. Empty the dust bin on a balcony, or outdoors directly into the waste bin.

We recommend emptying the dust bin (4) after each vacuuming, but at the latest when the lower third of the dust bin (4) is full.

1. Pull the mains plug (9) out of the socket.

1. Push the dust bin lock button (13) and lift the dust bin (4) by the carrying handle (1) up from the appliance.
2. Hold the dust bin (4) over a waste bin.

1. Slide the latch (29) down. The dust bin base (5) folds down.
2. Shake the dust out of the dust bin (4).

1. Fold the dust bin base (5) back so that the lock tab (30) clicks firmly into place.

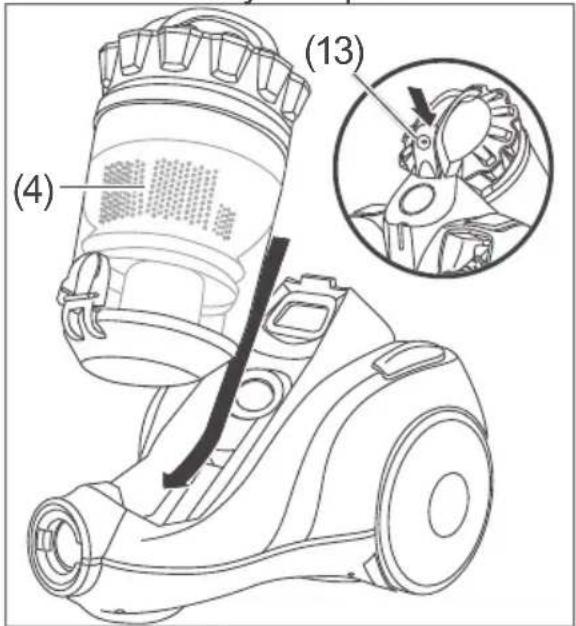

1. Insert the dust bin (4) back into the vacuum cleaner so that the lock button (13) clicks into place.

Cleaning/changing the filter

Your cyclone vacuum cleaner is fitted with a motor protection filter, a hygiene filter, a coarse dust filter and an exhaust air filter. To ensure that your vacuum cleaner works properly, you will need periodically to clean or change the filters.

Cleaning/changingthe motor protection filter

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Always pull the mains plug out of the socket prior to changing or cleaning the motor protection fi lter.

NOTICE

Risk of damage! Improper handling of the appliance may result in dam- age.

■ Always use the correct filter for the appliance, otherwise the appliance may not function optimally.

■ Never vacuum without fi liters or with damaged fi liters. The vacuumed dust would penetrate the appliance and damage the motor.
■ Do not wash the filter in a washing machine or a dish-washer.

The motor protection filter consists of foam and should be cleaned regularly, at the latest when the suction force diminishes.

1. Pull the mains plug (9) out of the socket.

1. Push the dust bin lock button (13) and lift the dust bin (4) by the carrying handle (1) up from the appliance.

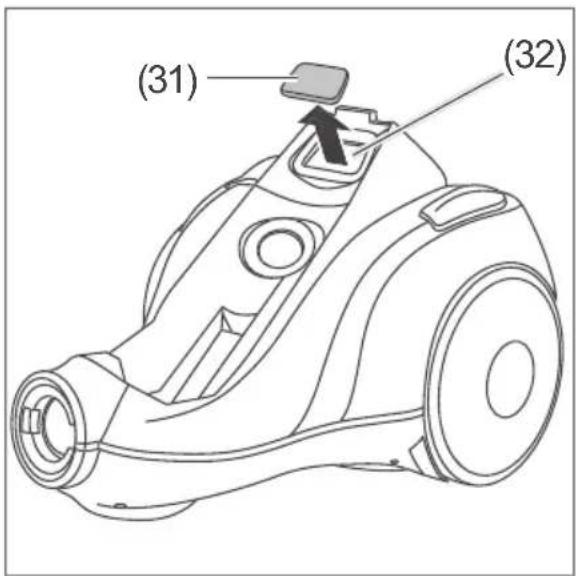

1. Pull the motor protection filter (31) out of the holder (32) and tap it out over a waste bin.
2. If very dirty, clean the motor protection filter (31) under warm running water. Squeeze the water out of the motor protection filter carefully (31) – do not wring it out!
3. Let the motor protection filter (31) dry completely.
4. Insert the motor protection filter (31) back into the vacuum cleaner in reverse order.
5. Insert the dust bin (4) back into the vacuum cleaner so that the lock button (13) clicks into place.

Cleaning/changingthe hygiene filter

WARNING

Risk of electric shock! Improper use of the appli- ance may lead to serious injury or death.

■ Before changing or cleaning the hygiene fi lter, always pull the mains plug out of the socket.

NOTICE

Risk of damage! Improper handling of the appliance may result in dam- age.

■ Only use the appliance with the fi Iters installed.
■ Never dry the hygiene fi Iter on a heater or with a hair-dryer or tumble dryer, etc. It will become porous and can be damaged.
■ Never wash the hygiene filter in a washing machine.
■ Let the hygiene filter air-dry only.

If odours cannot be removed by cleaning or the hygiene filter is

too heavily soiled, it must be re-placed.

1. Pull the mains plug (9) out of the socket.
2. Remove the dust bin (4) as described in the section "Emptying the dust bin".

1. With each hand, hold the dust bin lid (2) and dust bin (4). Then turn the dust bin lid (2) anticlockwise until the ▲ mark on the dust bin (4) points to the symbol 🔍.

1. Lift the dust bin lid (2).
2. Remove the hygiene filter (33).
3. Tap the hygiene filter (33) over a waste bin.
4. If very dirty, clean the hygiene filter (33) with clear water (max. 40 °C) or clean it with compressed air. Never use detergent or washing-up liquid to clean the hygiene filter (33).
5. Let the hygiene filter (33) dry completely (at least 24 hours).
6. Place the dust bin lid (2) on the dust bin (4) with the ▲ mark on the symbol 🔍.
7. With each hand, hold the dust bin lid (2) and dust

bin (4). Then turn the dust bin lid (2) clockwise until the ▲ mark on the dust bin (4) points to the symbol 🔒 Make sure the dust bin lid (2) clicks into place.

1. Reinsert the dust bin as described in the "Emptying the dust bin" section.

The item numbers for re-ordering motor protection and hygiene fiters are listed in chapter "Service" on page EN-34.

Cleaning the coarse dust filter

The coarse dust filter (34) is inside the dust bin lid (2).

1. Pull the mains plug (9) out of the socket.
2. Remove the dust bin (4) as described in the section "Emptying dust bin".
3. Remove the dust bin lid (2) as described in the section 'Emptying the dust bin'.
4. Remove the hygiene filter (33) and set it aside.
5. Unfold the dust bin base (5) as described in the section "Emptying the dust bin".

1. To loosen the coarse dust filter (34), place the dust bin (4) on a sturdy worktop with the hole facing down. The dust bin base (5) hangs down from the side.
2. Hold the dust bin (4) with both hands, and press firmly down on the worktop to release the coarse dust filter (34).
3. Remove the coarse dust filter (34) from the dust bin (4) and gently tap out any leftover dust over a waste bin.
4. Close the dust bin base (5) as described in the section "Emptying the dust bin".

1. Place the coarse dust filter (34) on the worktop with its head down.

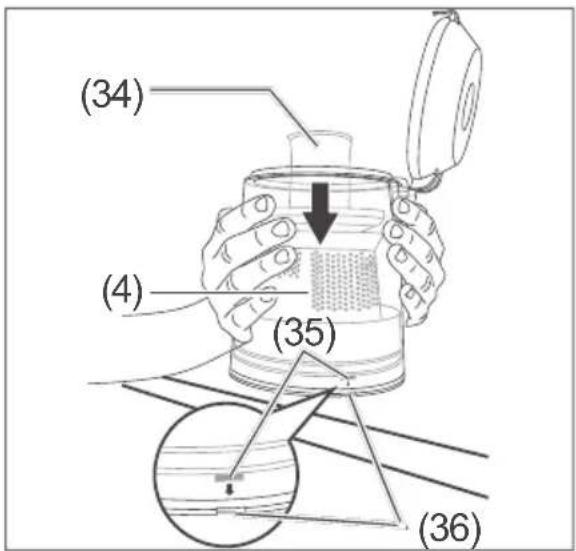

2. Place the dust bin (4) on the coarse dust filter (34) so that the tab (35) on the dust bin (4) fits into the recess (36) on the coarse dust filter (34).
3. Reinstall the hygiene filter (33) and replace the dust bin lid (2) as described in the section "Cleaning/Replacing the hygiene filter".

Cleaning the exhaust air filter

The exhaust air filter is located behind the exhaust air filter flap (10).

1. Push the exhaust air filter flap release button (11) and remove the exhaust air filter flap (10).

1. Pull out the exhaust air filter (37) and tap it out over a waste bin.
2. If the exhaust air filter is very dirty, clean it thoroughly with water (max. 40 °C) and al-

low it to dry completely at room temperature (at least 24 hours).

1. Reinstall the exhaust air filter (37) with the recess (38) up, and reinstall the exhaust air filter flap (10). Make sure that the exhaust air filter flap (10) clicks into place.

Cleaning the vacuum cleaner

WARNING

Risk of electric shock!

Improper use of the appli- ance may lead to serious injury or death.

■ Before cleaning the appliance, pull the mains plug out of the socket.
■ Ensure that no water seeps into the appliance.
■ Never immerse the appliance in water.
■ Only insert the mains plug into the socket if all appliance components are completely dry.

NOTICE

Risk of damage!

Improper cleaning of the appliance can impair the surface.

■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance.

- Wipe

– the housing,
– the inside of the exhaust air outlet
– the accessories

with a damp cloth as required. Never allow liquid to penetrate the vacuum.

- Occasionally, clean the exhaust air outlet with a soft brush.

Cleaning the universal floor nozzle

- Vacuum the underside of the universal floor nozzle (16) now and again with the crevice nozzle (18).

Cleaning the turbo brush

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ Never touch moving parts of the appliance and accessories, for example, turbo brushes. There is a risk of fingers becoming trapped.
■ Always remove the turbo brush from the telescopic tube or suction hose before cleaning.

If the turbo brush is no longer working properly:

1. Pull out the mains plug (9) and pull the turbo brush (17) off the telescopic tube (15) or from the suction hose's telescopic tube handle (14).

1. Open the maintenance flap (40) on the bottom of the turbo brush.

1. Remove lint and hair from the brush (42) and from the air blade wheel (43) underneath the maintenance flap.

1. Close the maintenance flaps (40) and (41) again.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair! Never attempt to repair the defective or supposed defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips
Appliance is not working.	On/Off foot switch does not actuate.	Switch the appliance on.
	Mains plug is loose.	Check that the mains plug is firmly inserted into the socket.
	The socket is defective.	Try the appliance with a different socket.
		Check fuses and/or circuit breakers.
	Mains cord is defective.	Check mains cord for damage. Contact our Service Centre, where necessary (see “Service” on page EN-34).
Appliance switches itself off.	Brush/nozzle blocked.	Actuate On/Off foot switch, pull out mains plug, clean brush/ nozzle.
	Motor protection filter blocked. Over-heat protection has been activated.	Actuate On/Off foot switch, pull out mains plug, leave appliance to cool for at least 1/2 hour and clean motor protection filter.
	Telescopic tube / suction hose is blocked.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for block-age, and clean if necessary.
Suction force is weak.	Dust bin is not positioned correctly.	Insert the dust bin correctly.
	Dust bin full. Empty	the dust bin.
	Brush / nozzle is not positioned correctly.	Position the brush / nozzle correctly.
	Object is blocking the nozzle.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for blockage. Remove object.
	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean them.
	Air by-pass vent is open.	Close the air by-pass vent.
Dust is escaping from the appliance.	Dust bin is full. Empty	the dust bin.
	Dust bin is not positioned correctly.	Insert the dust bin correctly.
	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean them.

In rare cases there can be a whistling noise initially. This is not a malfunction and stops after a while.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Model Order number
HanseaticCyclone vacuum cleaner	CJ132WT-060	829 951 (Purple)
	CJ132	21551158 (Black/white)

Name of appliance Order number
1 × hygiene filter	594380 (Purple)
	53596542 (Black/white)

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact Hermes Fulfilment GmbH.

Tel. [phone]

Mon-Thurs 8 am to 3 pm, Friday 8 am to 2 pm

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure ‘Waste Prevention Programme – of the German Government with the Involvement of the Federal Länder’.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Environmentally friendly disposal of old electrical devices

Electrical appliances contain harmful sub- stances as well as val- uable resources.

Every consumer is

therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries may not be disposed of with the household

waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or to a retailer so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

Charge your batteries properly and fully to maximize their lifespan. If necessary, fully discharge them using a suitable charger before recharging.

Always use the correct type of batteries for your devices. Incorrect use can shorten the life of the batteries and possibly cause harmful effects.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable ma-

terials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Technicalspecifications

Manufacturer Hanseatic
Name of appliance Cyclone vacuum cleaner
Model CJ132WT-060
Sound power level in dB(A) 80
Output in W 600
Supply voltage in V~ / 50/60 Hz 220–240
Protection class II
Weight (assembled) in kg, ca. 5.25
Order number	829 951
	21551158

Notice: The vacuum cleaner was tested as a universal vacuum cleaner.
