Product Type	Upright Freezer
Model	HFZE 5485 WE
Brand	Hoover
Dimensions (H x W x D)	168.0 x 59.5 x 65.0 cm
Weight	68 kg
Power Supply	220-240 V, 50 Hz, 1.2 A
Energy Class	E (revised EU energy label)
Annual Energy Consumption	285 kWh/year
Net Capacity	250 L
Star Rating	4 stars (freezing capacity)
Freezing Capacity	20 kg per 24 hours
Storage Time in Case of Power Failure	18 hours
Noise Level	42 dB
Climate Class	SN-T (10 °C to 43 °C)
Refrigerant	R600a (isobutane)
Temperature Control	Electronic with display
Fast Freeze Function	Yes
Door Alarm	Yes
Adjustable Shelves	5 wire shelves
Door Reversibility	Yes
Defrosting Method	Manual (drain plug)
Spare Parts Availability	At least 7 years after last unit produced

Frequently Asked Questions - HFZE 5485 WE HOOVER

What is the recommended temperature setting for this freezer?

The recommended temperature for storing frozen food is -18°C. Use the electronic control panel to set this value. The fast freeze function can be used for rapid freezing of fresh food.

How do I defrost the freezer?

This freezer requires manual defrosting. Turn off the appliance, remove all food, open the door, and let the ice melt. Use the drain plug at the bottom to drain the water. Never use sharp tools to remove ice.

Why is my freezer making unusual noises?

Normal sounds include a hum from the compressor and gurgling from the refrigerant. If you hear clicking or knocking, check if the freezer is level. Also ensure it is not touching walls or cabinets. If noise persists, consult the manual.

What should I do if the door does not close properly?

First, check if the door shelves are overloaded or if food is blocking the seal. Clean the door gasket with warm water and ensure it is not damaged. If necessary, adjust the door hinges or level the freezer.

How long can food stay frozen during a power cut?

This model has a storage time of 18 hours in case of power failure. To maximize this, keep the door closed and cover the appliance with a blanket. Do not refreeze thawed food without checking its condition.

Can I change the door opening direction?

Yes, the door is reversible. Consult the user manual for step-by-step instructions. You will need a screwdriver and the help of another person. Door reversibility allows installation in tight spaces.

How do I clean the freezer?

Unplug the freezer and remove all food. Wash interior surfaces with a mild detergent and warm water. Do not use abrasive cleaners. Dry thoroughly before restarting. Clean the external condenser (if accessible) annually with a vacuum cleaner.

What is the energy consumption of this freezer?

The annual energy consumption is approximately 285 kWh, based on standard testing conditions. Actual consumption depends on usage, ambient temperature, and how often the door is opened. It is rated energy class E.

How much frozen food can I store?

The net capacity is 250 liters, which holds about 175-200 kg of frozen food, depending on packaging. Use wire shelves and baskets to organize items efficiently. Do not exceed the maximum load per shelf.

Where can I find spare parts for this freezer?

Spare parts are available through Hoover's official website or authorized service centers. The repairability of this model is supported for at least 7 years after production ends. Common parts include shelves, door gaskets, and temperature sensors.

USER MANUAL HFZE 5485 WE HOOVER

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent usage or other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• For catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a:isobutene) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

• Before performing any operation, unplug the power cord from the power socket.
• The refrigeration system positioned behind and inside the appliance contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inflammable materials.
  • Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Do not use or store inflammable sprays, such as spray paint, near the appliance, it could cause an explosion or fire.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not store medicine or research materials in the appliance. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not place objects and/or containers filled with water on the top of the appliance.
• Do not perform repairs on this appliance. All interventions must be performed solely by qualified

personnel.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

•Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

Scrapping old appliance

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose

properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the man

k on this product, we are confirming compliance to all relevant

European safety, health and environmental requirements which are applicable in legislation for this product.

Energy Saving

For better energy saving we suggest :

Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.

Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.

Do not excessively stuff foods so as to ensure proper air circulation.

Defrost the appliance in case there is ice to facilitate the transfer of cold.

In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.

Open or keep the doors of the appliance open as little as possible

Avoid adjusting the setting to temperatures too cold.

Remove dust present on the rear of the appliance

SINGLE DOOR FREEZER

Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.

CONTROL PANEL

DEFROSTING and FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see "gure 2). Freezing is guaranteed with any knob setting.

(Figure 2)

NB. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the surface of the evaporator tubes and wires. In this case, turn the knob to lower settings (MIN).

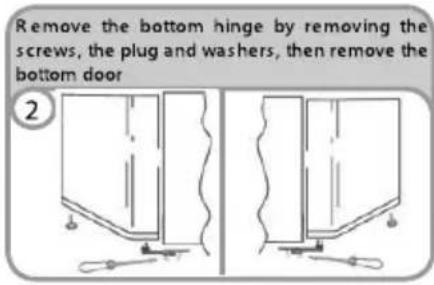

In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.

Line drawing of a four-tiered cabinet with an open door (no text or symbols)

Pure technical line drawing of two identical mechanical components with no text or symbols

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of two identical mechanical components with no text or symbols

Simple line drawing of a rectangular container with two side rectangles and a wavy top edge, no text or symbols present.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a rectangular object with two horizontal lines at the base (no text or symbols)

Pure technical line drawing of a door or cabinet with no text, numbers, or symbols

Line drawing of a cabinet with four drawers and an open door (no text or symbols)

OVEN KÄTISYYDEN KÄÄNTÖ

Pure technical line drawing of two mechanical components with no text or symbols

Simple line drawing of a rectangular box with two small squares inside, no text or symbols present.

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

VEDLIKEHOLD OG RENGJ∅RING:

Line drawing of a cabinet or drawer with a handle and door, no text or symbols present

Line drawing of a double-door refrigerator with open door and side compartments (no text or symbols)

OMHENGLING AV D∅R:

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Technical line drawing of a mechanical assembly with bolts and a base plate (no text or symbols)

Simple line drawing of a rectangular frame with two legs and a base, no text or symbols present.

Simple line drawing of a mechanical or electrical component with no text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a rectangular frame with two legs and a base, no text or symbols present.

- in Bed and Breakfasts
