USER MANUAL 24EB23TM-W LG

Please read this manual carefully before operating your set and retain it for future reference.

IPS LED MONITOR MODEL

24EB23TM

CONTENTS

3 ASSEMBLING AND PREPARING

3 Unpacking
4 Parts and buttons
5 Setting up the Monitor set
5 - Attaching the Stand Base
5 - Detaching the Stand Base
6 - Mounting on a table
6 - Using the cable holder
8 - Mounting on a wall

9 USING THE MONITOR SET

9 Connecting to a PC
9 - D-SUB connection
9 - DVI-D connection
11 - Peripheral device connection

12 CUSTOMIZING SETTINGS

13 Customizing Settings
13 - Menu Settings
14 - Picture
15 - Color

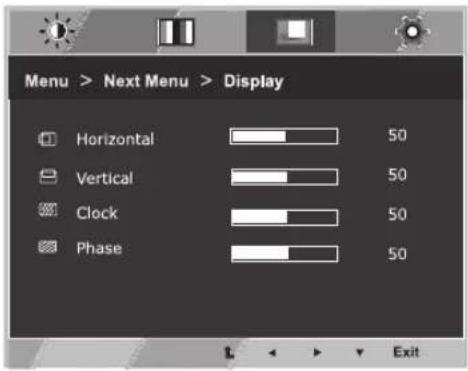

16 - Display

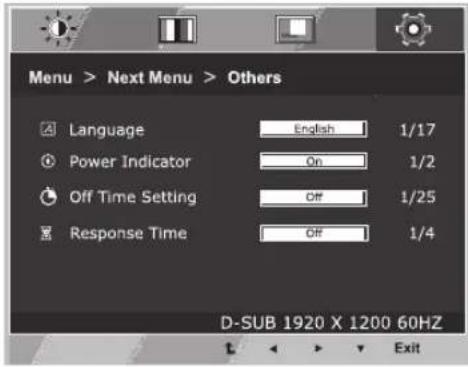

17 - Others

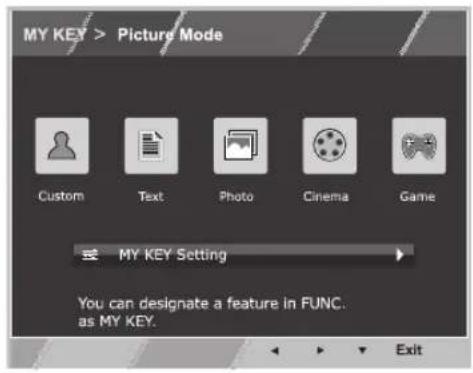

18 MY KEY Setting
19 FUNC. Setting

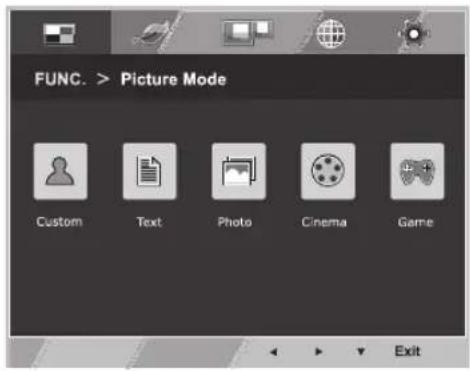

19 - Picture Mode

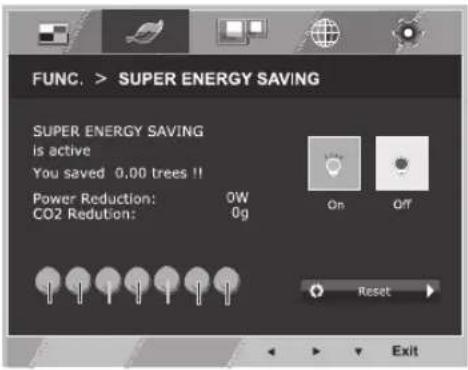

20 - SUPER ENERGY SAVING

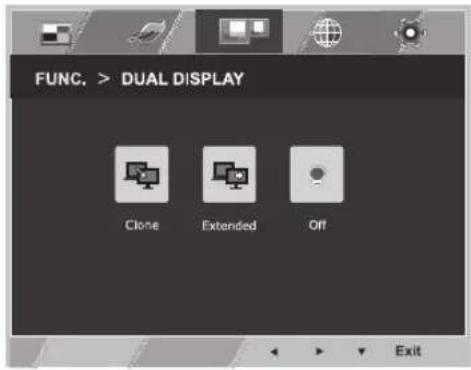

21 - DUAL DISPLAY

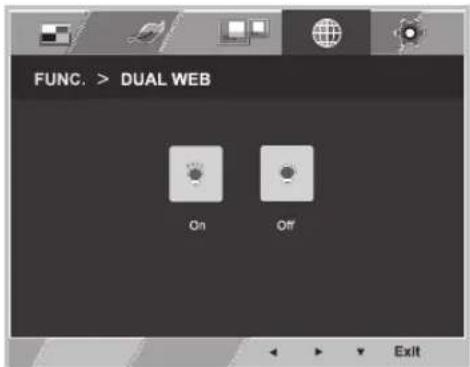

21 - DUAL WEB

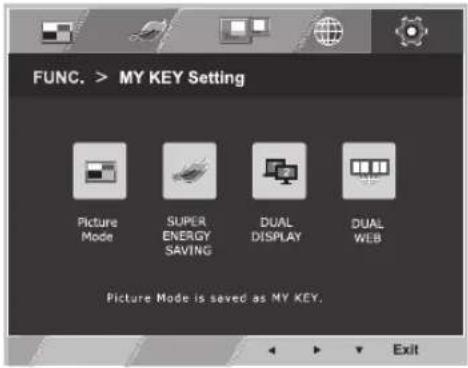

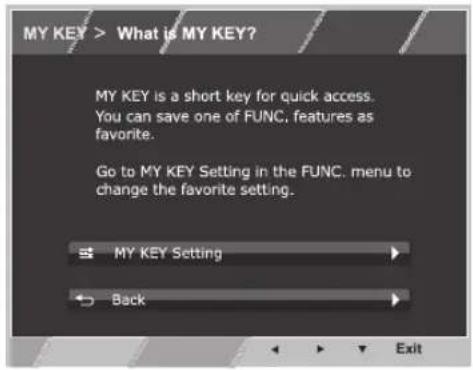

22 - MY KEY Setting

23 TROUBLESHOOTING

25 SPECIFICATIONS

25 24EB23TM
26 Preset Modes (Resolution)
26 Indicator

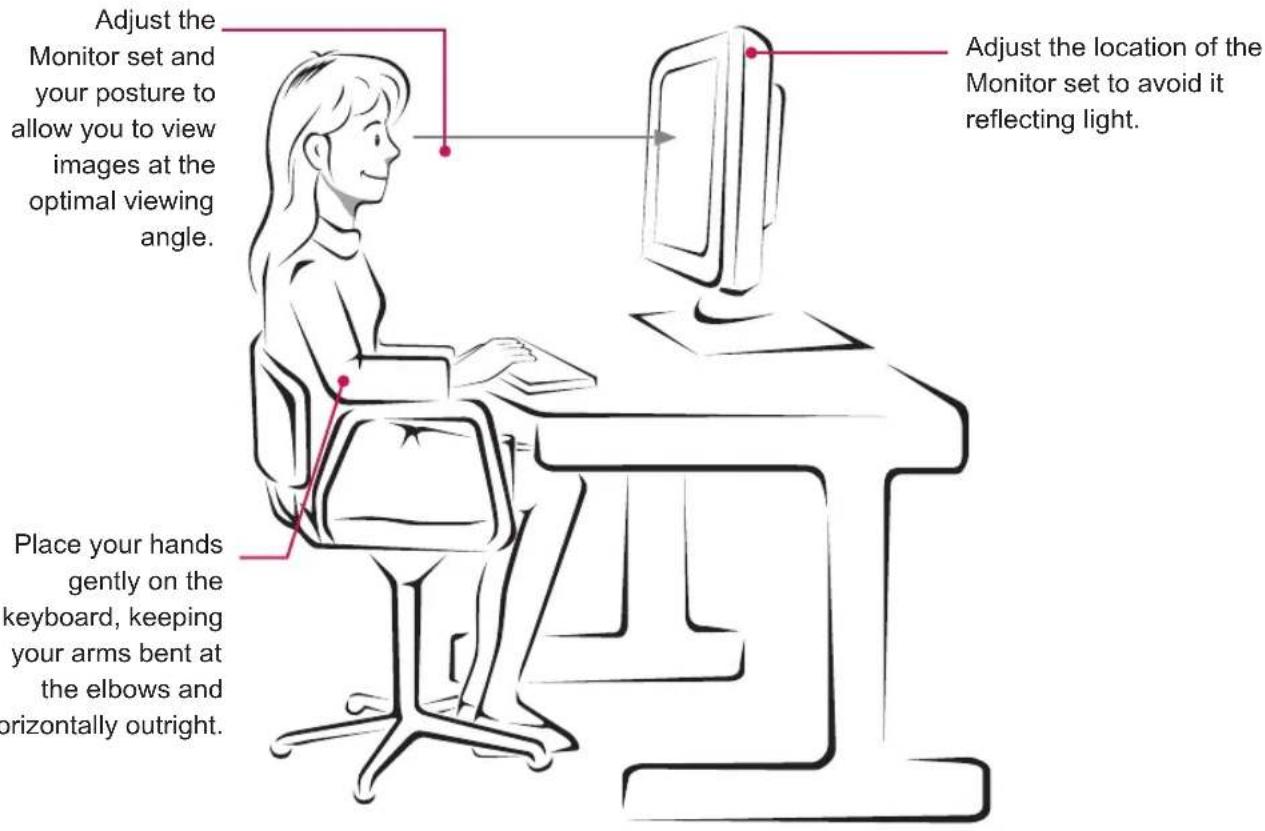

27 PROPER POSTURE

27 Proper posture for using the Monitor set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Illustration of a CD or DVD disc and its corresponding blank card (no text or symbols)

CD(Owner's Manual) / Card

D-SUB Cable
(This cable is not included in all countries.)

DVI-D Cable
(This cable is not included in all countries.)

Power Cord

Stand Body

Stand Base

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

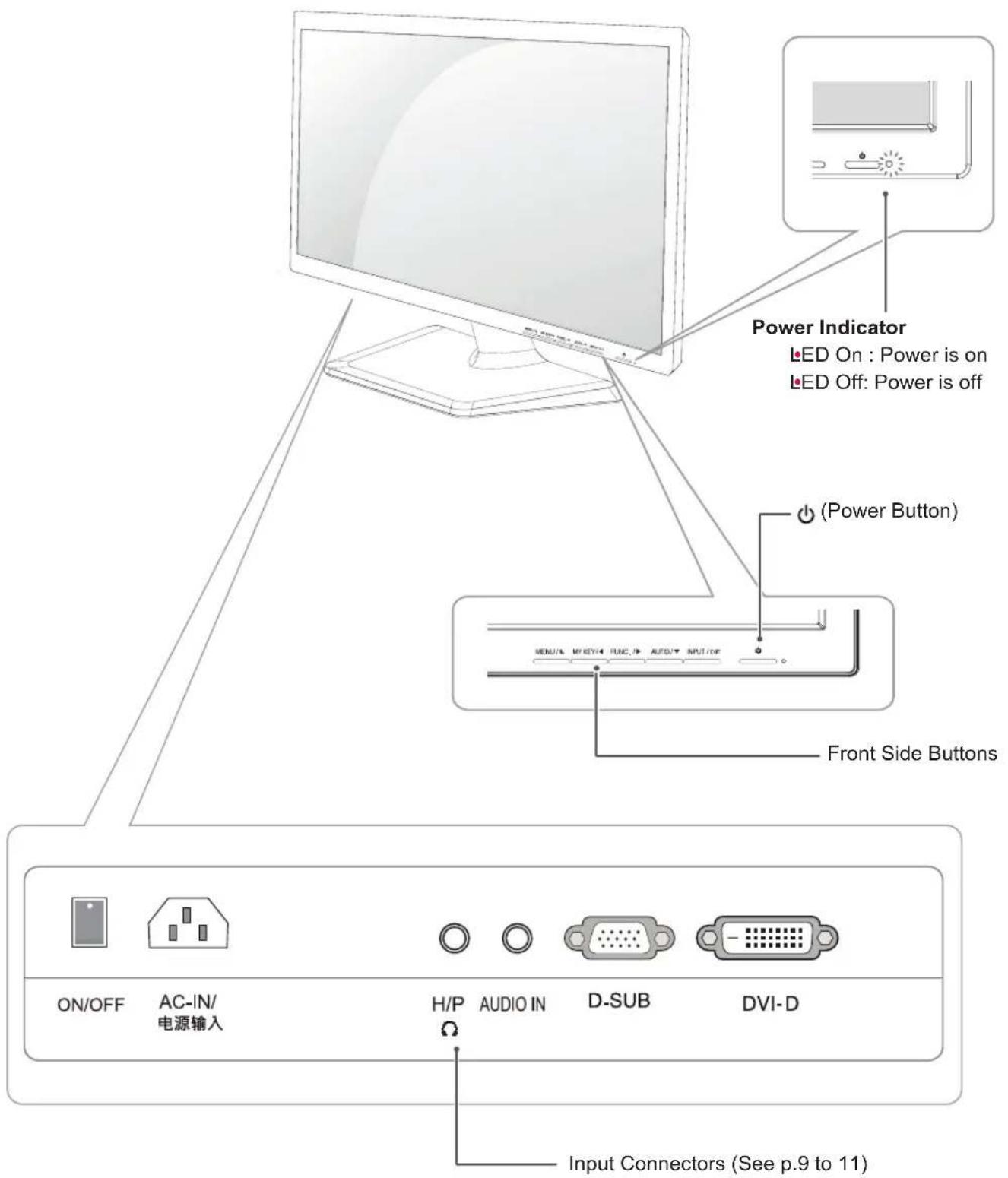

Parts and buttons

Power Indicator LED On : Power is on LED Off: Power is off (Power Button) Front Side Buttons ON/OFF AC-IN/电源输入 H/P AUDIO IN D-SUB DVI-D Input Connectors (See p.9 to 11)

Setting up the Monitor set

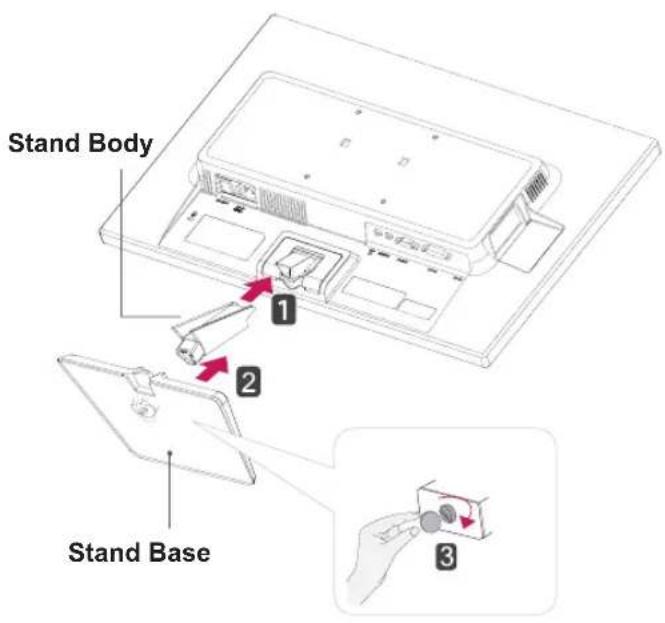

Attaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

2 1 Attach the Stand Body to the monitor set.

2 Attach the Stand Base.

3 Tighten the screw to the right with a coin.

Stand Body 1 2 Stand Base 3

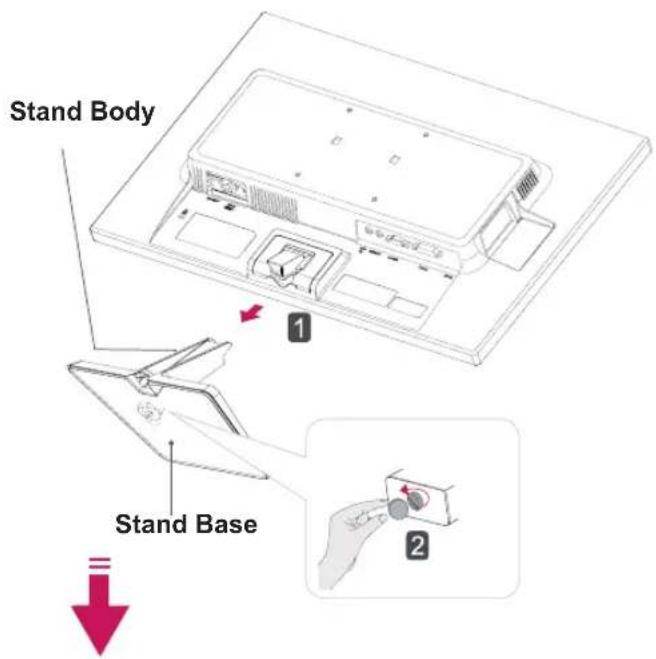

Detaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

2 1 Pull out the Stand Body and Stand Base from the monitor set.

2 Turn the screw to the left with a coin.

3 Pull out the Stand Base.

Stand Body Stand Base

Stand Body Stand Base

CAUTION

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.

Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

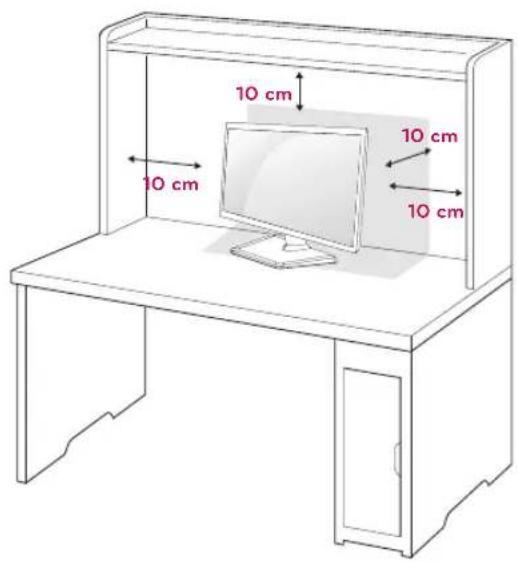

Mounting on a table

1 Lift and tilt the Monitor set into its upright position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

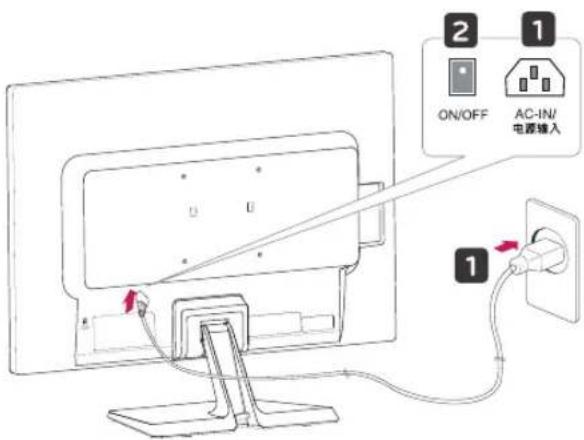

2 1 Connect the Power cord to the monitor, then plug the power cord into the wall outlet. (Before connect please check the "ON/OFF" knob in "O" state).

2 Press the "ON/OFF" knob in "☐" state (Open the power).

2 1 ON/OFF AC-IN/ 电源输入 1

3 Press the (Power) button on the front of the monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.

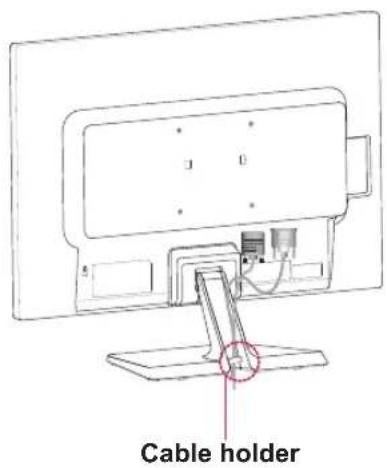

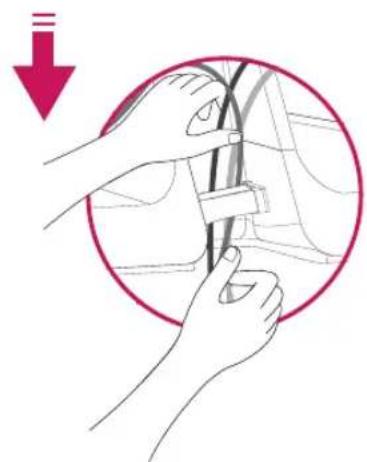

Using the cable holder

Cable holder

Illustration of hands connecting cables to a device inside a circular frame, with a red downward arrow indicating action (no text or symbols)

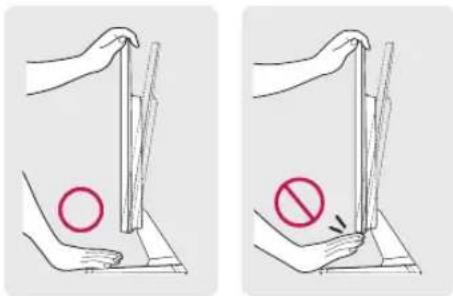

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Diagram illustrating two methods of removing a circle and an arrow, showing hand positioning and prohibition symbols.

Do not touch or press the screen when adjusting the angle of the monitor.

Line drawing of two hands holding a blank computer monitor with a red prohibition symbol (no text or labels)

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Simple line drawing of hands holding a small object above a rectangular plate, with a red prohibition symbol (no text or labels)

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

-5° 20° Front Rear

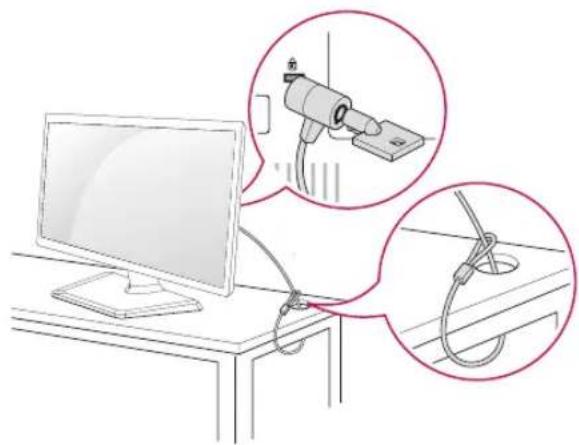

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing cable installation details (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

Mounting on a wall

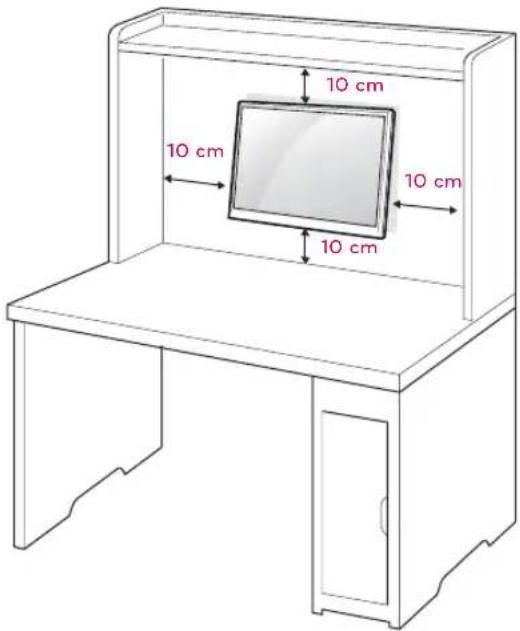

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.

2 If you use screw longer than standard, the monitor might be damaged internally.

3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

4 VESA compatible.

5 Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

Model	24EB23TM
VESA (A x B) 100 x 200
Standard screw M4
Number of screws 8

CAUTION

Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.

If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.

Use only an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.

Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit will include an installation manual and necessary parts.

The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Be sure to use the proper length.

For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

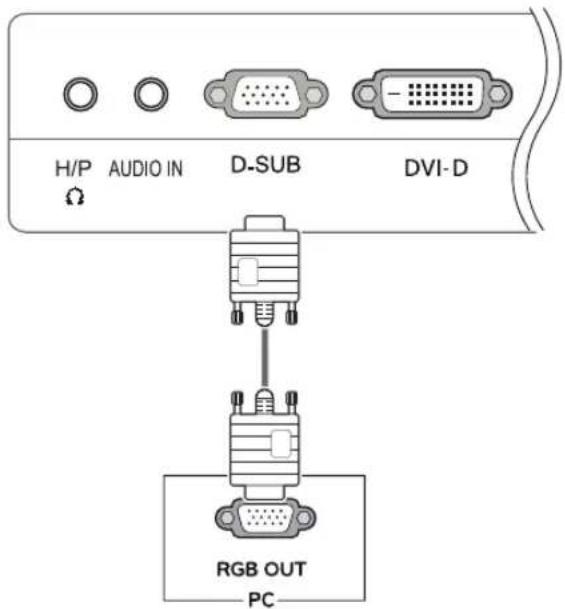

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

H/P AUDIO IN D-SUB DVI-D RGB OUT PC

NOTE

When using a D-Sub signal input cable connector for Macintosh

Technical line drawing of two electronic component packages (no text or symbols)

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

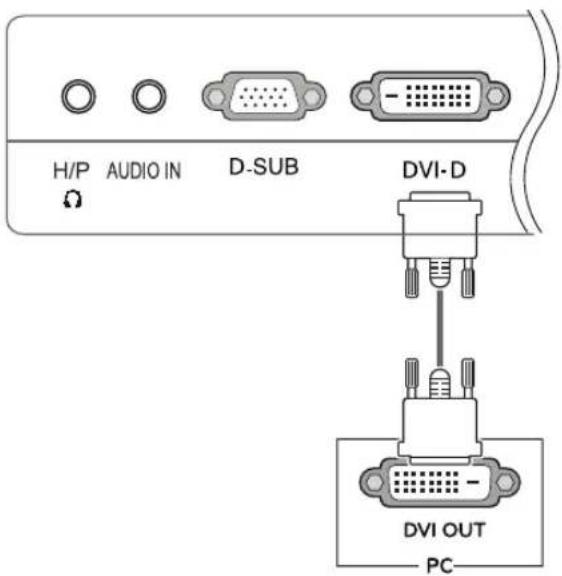

DVI-D connection

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

H/P AUDIO IN D-SUB DVI-D DVI OUT PC

NOTE

If you use HDMI PC, it can cause compatibility problem.

When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/DVI-D) respectively in Monitor set.

If you turn the Monitor set on while it is cold, the screen may flicker. This is normal.

Some red, green, or blue spots may appear on the screen. This is normal.

CAUTION

Connect the signal input cable and tighten it by turning the screws clockwise.

Do not press the screen

with your finger for a long time as this may result in temporary distortion on the screen.

Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode)

FUNC. /► AUTO /▼ INPUT / EXIT

NOTE

"Self Image Setting" Function.

This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. (Only supported in Analog Mode)

'AUTO' Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

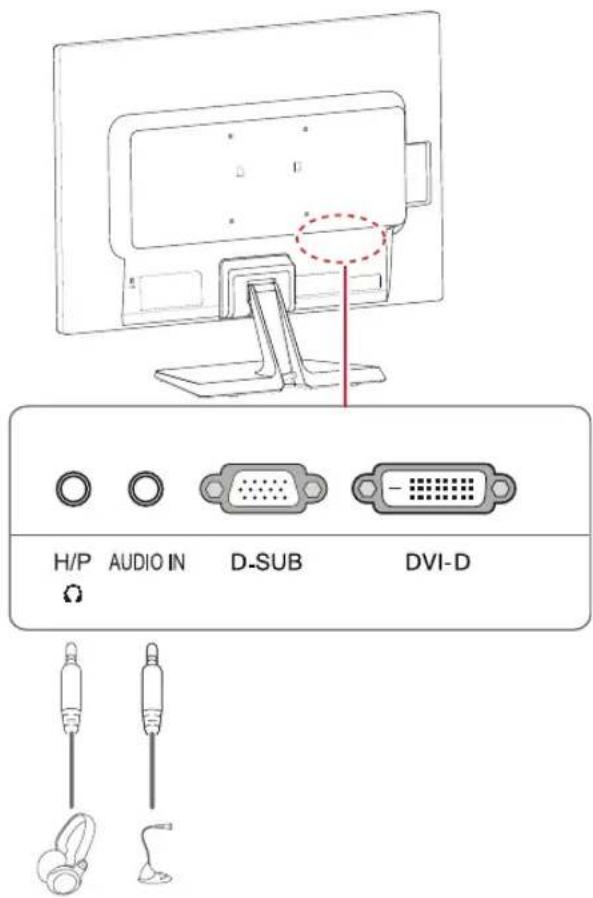

Peripheral device connection

Connect peripheral devices to the monitor using microphone and headphone ports.

H/P AUDIO IN D-SUB DVI-D

NOTE

Peripheral devices are sold separately. Cables with angled plugs may have clearance issues, use straight plugs when possible.

Angle Type Straight Type

NOTE

Headphones, speakers or microphone may not work normally, depending on the server PC settings.

CUSTOMIZING SETTINGS

1 Press the desired button on the bottom of the Monitor set.
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

3 Select Exit to leave the OSD menu.

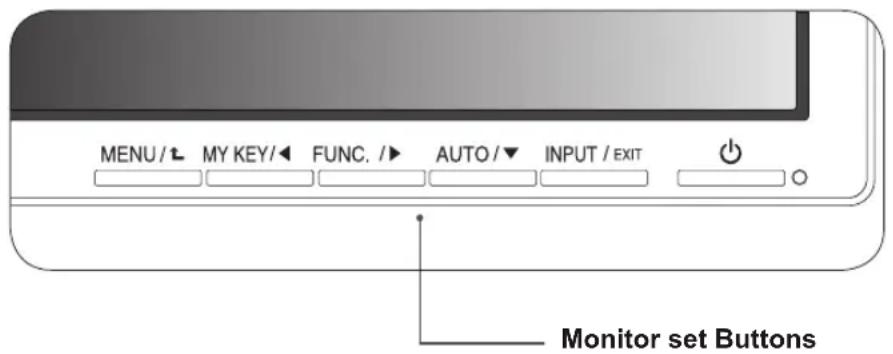

MENU /← MY KEY/◄ FUNC. /► AUTO/▼ INPUT / EXIT Monitor set Buttons

Button Description
MENU /t	Accesses the main menus.(See p.13)
	OSD Locked/OSD Unlocked	This function allow you to lock the current control settings, so that they cannot be inadvertently changed.Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button.If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.
MY KEY/◄	Use this button to enter MY KEY menu.For more information.(See p.18)
FUNC./►	Use this button to enter Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY, DUAL WEB,MY KEY Setting menus.(See p.19)
AUTO /▼	When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)
	The best display mode 24EB23TM:1920 x 1200
INPUT /EXIT	You can choose the input signal.When two input signals are connected, you can select the input signal (D-SUB/DVI) you want.When only one signal is connected, it is automatically detected. The default setting is D-SUB.
	Exit
	Exit the OSD(On Screen Display).
◀ (Power Button)	Turns the power on or off.
	Power Indicator The power indicator stays red if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks red.

Customizing Settings

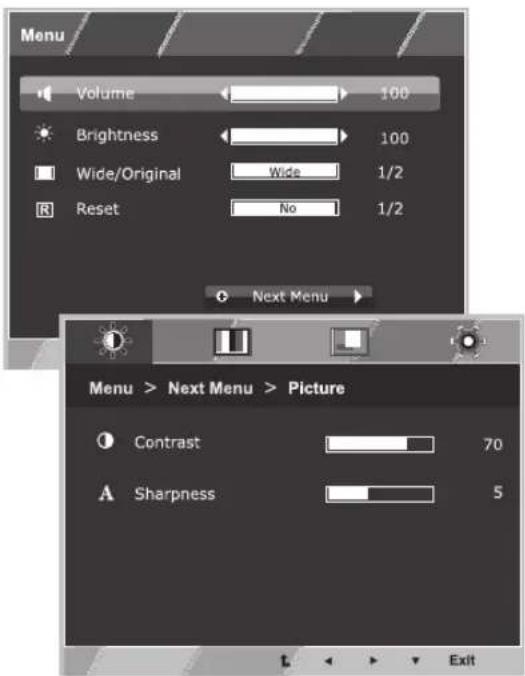

Menu Settings

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Set the options by pressing the ◀ or ▶ or ▼ buttons.
3 Select the "Next Menu" button to enter the more option settings.
4 Select Exit to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Menu Volume 100 Brightness 100 Wide/Original Wide 1/2 Reset No 1/2 Next Menu Menu > Next Menu > Picture Contrast 70 Sharpness 5 Exit

Each option is explained below.

Menu	Analog	Digital	Description
Volume	●	●	To adjust the volume
Brightness	●	●	To adjust the brightness of the screen
Wide/Original	●	●	Wide
			Switch to full screen mode according to input image signal.
			Original
			Change the input image signal ratio to original.* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset	●	●	Restore all factory default settings. Press the◀, ▶buttons to reset immediately.

Menu > Next Menu Analog		Digital Description
Picture Contrast • • To adjust the contrast of the screen
	Sharpness • • To adjust the clearness of the screen
Color Gamma		• •	To customize the color of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To Adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal		• To adjust the position of the screen
Display Horizontal
Display Horizontal		• •
Display Horizontal
Display Horizontal
Display Horizontal

• Analog: D-SUB(Analog signal) input.
• Digital: DVI-D(Digital signal) input.


1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ or ▼ buttons.
5 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (↑) button.

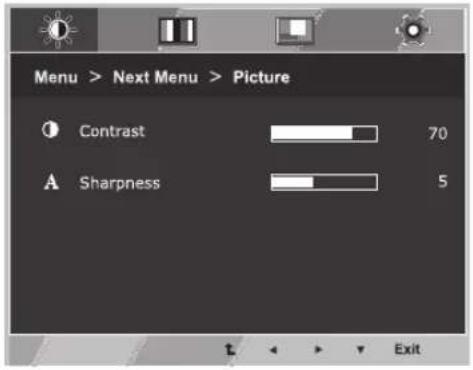

Menu > Next Menu > Picture Contrast 70 Sharpness 5 Exit

Each option is explained below.

Menu > Next Menu > Picture Description

Contrast To adjust the contrast of the screen.

Sharpness To adjust the clearness of the screen.

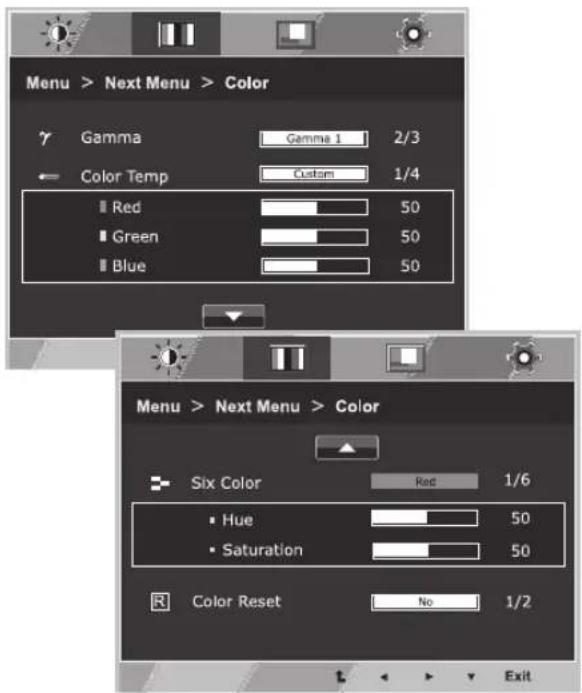

Color

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Color by pressing the ▶ button.
4 Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button.

Menu > Next Menu > Color γ Gamma Gamma 1 2/3 ← Color Temp Custom 1/4 ■ Red 50 ■ Green 50 ■ Blue 50 Menu > Next Menu > Color ■ Six Color Red 1/6 ■ Hue 50 ■ Saturation 50 R Color Reset No 1/2 Exit

Each option is explained below.

Menu > Next Menu > Color Description
Gamma Set your own gamma value. :	Gamma 0, Gamma 1, Gamma 2 on the monitor, high gamma values display whitish images and low gamma values display blackish images.
Color Temp Custom
	Red:Set your own red color levels.Green:Set your own green color levels.Blue:Set your own blue color levels.
	Select the screen color.Warm:Set the screen to warm color temperature (more red).Medium:Set the screen to medium color temperature.Cool:Set the screen to cool color temperature (more blue).
Six Color Sets and stores the hue and	saturation for six colors(Red/Green/Blue/Cyan/Magenta/Yellow) to satisfy the color requirements of a user.
	Hue Adjusts the screen hue.
	Saturation Adjusts the color sharpness on the screen. Lower values make the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark.
Color Reset Resets the color settings to the factory default settings for the current input device.

Display

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Display by pressing the ▶ button.
4 Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

Menu > Next Menu > Display Horizontal 50 Vertical 50 Clock 50 Phase 50 Exit

Each option is explained below.

Menu > Next Menu > Display Description

Horizontal To move image left and right.

Vertical To move image up and down.

Clock To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.

Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Others

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Others by pressing the ▶ button.
4 Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button.

Menu > Next Menu > Others Language English 1/17 Power Indicator On 1/2 Off Time Setting Off 1/25 Response Time Off 1/4 D-SUB 1920 X 1200 60HZ Exit

Each option is explained below.

Menu > Next Menu > Others Description
Language To choose the language in	which the control names are displayed.
Power Indicator	Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off.If you set On at any time, the power indicator will automatically be turned on.
Off Time Setting	The monitor set will switch to power off mode after the time to be chosen by user (1 ~ 24 hours)
Response Time You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'Low/Middle/High'.

MY KEY Setting

1 Press MY KEY button on the bottom of the Monitor set to display the MY KEY OSD.
2 Set the options by pressing the ◀or▶or▼buttons.
3 Select Exit to leave the OSD menu.

MY KEY > Picture Mode Custom Text Photo Cinema Game MY KEY Setting You can designate a feature in FUNC. as MY KEY. Exit

MY KEY > What is MY KEY? MY KEY is a short key for quick access. You can save one of FUNC, features as favorite. Go to MY KEY Setting in the FUNC. menu to change the favorite setting. MY KEY Setting Back Exit

Each option is explained below.

MY KEY Description
MY KEY Setting MY KEY is short key.	You can select one of FUNC. (Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY, DUAL WEB) as your favorite feature.
Back Select Back to return MY KEY menu.

FUNC. Setting

Picture Mode

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Enter to Picture Mode by pressing the ▼ button.
3 Set the options by pressing the ◀ or ▶ buttons.
4 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow(↑)button.

FUNC. > Picture Mode Custom Text Photo Cinema Game Exit

Each option is explained below.

Picture Mode Description
Custom	It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Text It is a mode that	the screen is adjusted to the best for the textworks.
Photo It is a mode that	at the screen is adjusted to the best to view pictures.
Cinema It is a mode that	that the screen is adjusted to the best to view the videos.
Game It is a mode that	at the screen is adjusted to the best to play a game.

SUPER ENERGY SAVING

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select SUPER ENERGY SAVING by pressing the button.
3 Enter to SUPER ENERGY SAVING by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ or ▼ buttons.
5 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > SUPER ENERGY SAVING SUPER ENERGY SAVING is active You saved 0,00 trees!! Power Reduction: 0W CO2 Reduction: 0g On Off Reset Exit

Each option is explained below.

SUPER ENERGY SAVING Description
On	Enables SUPER ENERGY SAVING you can save energy with this energy- efficient function
Off Disables SUPER ENERGY $AVING.
Reset Resets the values of total	energy consumption reduction and CO2 emission reduction estimates.

NOTE

TOTAL POWER REDUCTION: How much power is saved while using the monitor. TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2. SAVING DATA(W/h)

	609 mm(24 inch)
SUPER SAVING 6 W/h

Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor.

LG calculated these values by using "broadcast video signal"

(including broadcast video: IEC 62087)

SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING function.

* Before using below functions, please install DUAL SMART SOLUTION programme.

DUAL DISPLAY

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select DUAL DISPLAY by pressing the ▶ button.
3 Enter to DUAL DISPLAY by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > DUAL DISPLAY Clone Extended Off Exit

Each option is explained below.

DUAL DISPLAY Description

Clone By selecting Clone,user can use secondary monitor as done mode of primary monitor.

Extended By selecting Extended,user can use secondary monitor as extended mode of primary monitor.

Off If select Off,DUAL DISPLAY is off.

* Before using below functions, please install DUAL SMART SOLUTION programme.

DUAL WEB

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select DUAL WEB by pressing the ▶ button.
3 Enter to DUAL WEB by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > DUAL WEB On Off Exit

Each option is explained below.

DUAL WEB Description

On Help user to browse web efficiently by dividing in half. Help to arrange and move windowson screen. Help user to control dividedwindows ratio.

Off If select Off,DUAL WEB is off.

NOTE

When monitor goes to power saving mode with pc saving option->Pressing any button -> OSD appear and user should press dual button -> User can bring back to normal mode.

MY KEY Setting

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select MY KEY Setting by pressing the ▶ button.
3 Enter to MY KEY Setting by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select Exit to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (↑) button.

FUNC. > MY KEY Setting Picture Mode SUPER ENERGY SAVING DUAL DISPLAY DUAL WEB Picture Mode is saved as MY KEY. Exit

Each option is explained below.

MY KEY Setting Description
Picture Mode Picture Mode	adjust the Monitor set for the best picture appearance.
SUPER ENERGY SAVING	Enables SUPER ENERGY SAVING you can save energy with this energy-efficient function.
DUAL DISPLAY User can use	Clone or Extended in another monitor.
DUAL WEB Help user to browse web efficiently by dividing in half and some other convenience in browsing dual pages.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Is the power on and the power indicator Red?	Adjust the brightness and the contrast.
Is the power indicator flickering?	If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	When the monitor is on "No-Signal" in 5 minutes, the monitor goes to DPM mode.

Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when you push MENU button?	You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect
Display Position is incorrect.	Press the AUTO button to automatically adjust your display image to the ideal setting.
On the screen background, vertical bars or stripes are visible.	Press the AUTO button to automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO button to automatically adjust your display image to the ideal setting.Check Control Panel ▶ Display ▶ Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

CAUTION

Check Control Panel ▶ Display ▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

SPECIFICATIONS

24EB23TM

Display Screen Type	60.9 cm (24 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size: 60.9 cm
	Pixel Pitch 0.27 mm x 0.27 mm (Pixel Pitch)
Sync Input Horizontal Frequency	30 kHz to 83 kHz (Automatic)
	Vertical Frequency 56Hz to 75Hz (D-SUB,DVI-D)
	Input Form Separate Sync. Digital
Video Input Signal Input	15 pin D-SUB Connector /DVI-D Connector (Digital)
	Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1200 @ 60 HzDVI (Digital) : 1920 x 1200 @ 60 Hz
Plug & Play	DDC 2B(Analog,Digital)
Power Consumption	On Mode : 28 W(Typ.)Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input	AC 100-240V ~ 50/60Hz 1.2A
Dimensions (Width x Height x Depth)	With Stand 55.8 cm x 44.5 cm x 23.9 cm
	Without Stand	55.8 cm x 37.0 cm x 5.8 cm
Weight	5.1 kg
Tilt Range	-5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Preset Modes (Resolution)

24EB23TM

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 -/-
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+
1920 x 1200 74.038 59.95 +/-	Recommend Mode

Indicator

Mode LED Color
On Mode Red
Sleep Mode Blinking Red
Off Mode Off

PROPER POSTURE

Proper posture for using the Monitor set.

Adjust the Monitor set and your posture to allow you to view images at the optimal viewing angle. Place your hands gently on the keyboard, keeping your arms bent at the elbows and orizontally outright. Adjust the location of the Monitor set to avoid it reflecting light.

Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.

LG

Life's Good

Declaration of Conformity

Trade Name: LG

Model : 24EB23TMC

Responsible Party: LG Electronics Inc.

Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A

TEL: [phone]

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the SET is located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL

ENERGY STAR is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency(EPA).

As an ENERGY STAR Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
