USER MANUAL KSDD90VN SMEG

EN pursuant to art. 26 of the Italian Legislative Decree dated 14 March 2014, no. 49 "Implementation of directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)" The crossed out wheeled bin symbol on the equipment or its packaging indicates that the product at the end of its useful life must be collected separately from other waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specializing in separate collection of waste electrical and electronic equipment. As an alternative to autonomous disposal, the device you want to dispose of can be given back to the retailer at the time of purchasing new similar equipment. At electronic product retailers with a sales area of at least 400m^2 , it is possible to return, without any obligation to buy, electronic products to dispose of with dimensions below 25cm free of charge. The separate collection for the deliver of the equipment to recycling, to treatment and environmentally compatible disposal helps avoid possible negative effects on the environment and health and promotes the reuse and/or recycling of materials that make up the equipment.

Attention: The downdraft must only be installed from a qualified technician. Every responsibility regarding installations from unauthorized persons will be declined.

Before proceeding with the downdraft installation, please read carefully these instructions.

Keep this booklet together with the downdraft.

WARNING

Attention: When the downdraft is closed, do not put pots or other containers on it, in order to avoid eventual spills in phase of opening.

The downdraft is equipped of a security system of micro-switches that blocks the movement of the downdraft in case the cover would raise. In phase of closure of the downdraft, if some object is between the cover and the work top, the raising of the cover will block the movement.

In order to reactivate the movement it will be sufficient to replace the cover and activate the desired command.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Before cleaning or performing any periodic maintenance of the downdraft always ensure the electric power is turned off by removing the plug from the socket and turning the main switch to position D (OFF).

Do not connect the downdraft to any piping used for combustion appliances, such as burners, boilers or fireplaces.

The downdraft should only be used with the power supply unit CONTROL BOX, supplied together with it.

The downdraft should only be used with the supplied suction unit and specified by the manufacturer with a maximum power of 690 W.

Check that the main power supply corresponds to the voltage required by the downdraft (see silver label on the electric box).

Ensure that the electric system is correctly earthed and that the earth discharge works correctly.

When cooking do not use materials that could form high or unusual flames. Oil and fat used twice are particularly dangerous and could easily catch on fire.

Do not prepare flambé dishes under the hood.

Attention: accessible parts may become hot when the downdraft is used with cooking appliances

We recommend that you turn the hood on a few minutes before use and turn off 10 minutes after use.

Once the installation is complete, the electrical components (cables, connectors, motor and control box) will no longer be accessible to the user. To allow access to those parts place a removable panel secured with screws.

Respect local legislation and regulations issued by the relative authorities regarding the exhaust air when the suction is operating. Failure to respect and perform all the maintenance and cleaning operations described in this booklet could cause a fire hazard.

INSTALLATION AND ASSEMBLY INSTRUCTIONS

The suction of the downdrafts, regarding the traditional hoods, is penalized in the suction of the cooking vapors of the front pots. For this reason the use of a panoramic glass ceramic top is suggested.

The hood can be combined with gas hob with maximum total power of back heaters equal to 4.7 Kw.

Warning: We decline all responsibility for damages to hoods with gas installations with higher powers.

Once the installation is complete, the electrical components (cables, connectors, motor and control box) will no longer be accessible to the user. To allow access to those parts place a removable panel secured with screws.

The downdraft can be used for both filtering and suction. When the filtering function is operating, with air recycle, carbon filters must be used. When the downdraft is used in the filtering function, there must be a suitable section for spillage of the air suction on the base of the kitchen.

When the suction function is operating, exhausting the filtered air on the outside, a suitable compensation system must be used according to current standards in force. The diameter of the fume exhaust pipe must be the same or greater than the diameter of the downdraft pipe union.

There must be sufficient ventilation in the room where the downdraft is installed, to allow the simultaneous use of other appliances that use gas or other fuels.

Make a hole in the downdraft approximately 50mm from the work top hole.

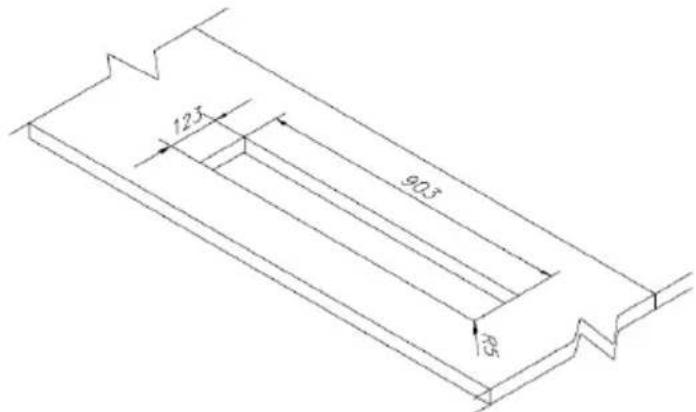

For the dimensions of the hole, see drawing here below.

12.5 90.3 R5

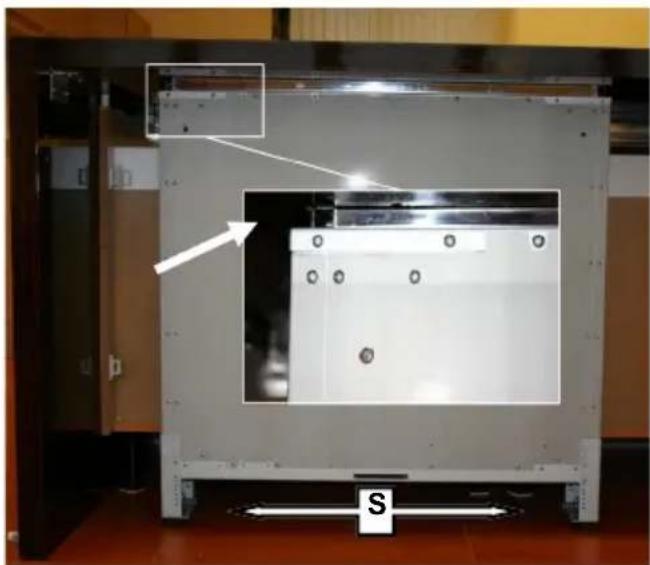

To install the hood, adjust the height of the leg support "S" so you can place the hood under the kitchen top.

Interior view of a mechanical or electronic device with a labeled component 'S' and an inset showing a magnified view (no readable text or symbols)

Raise the hood with the legs up until the structure of the hood leans on the kitchen top.

The downdraft allows a height adjustment of the structure from 820mm to 900mm from the floor to under the work top. This adjustment is possible by working on the feet and on the feet supports (Fig. 1).

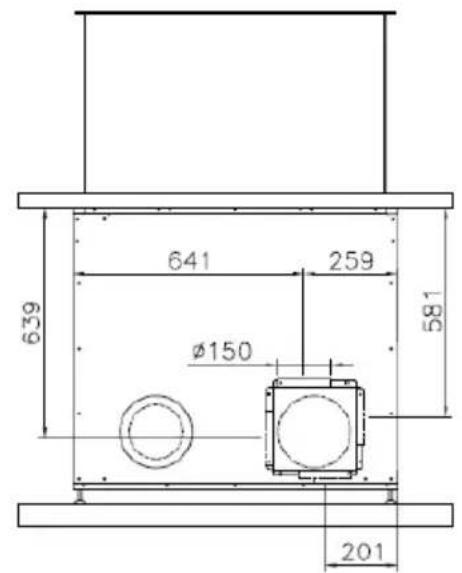

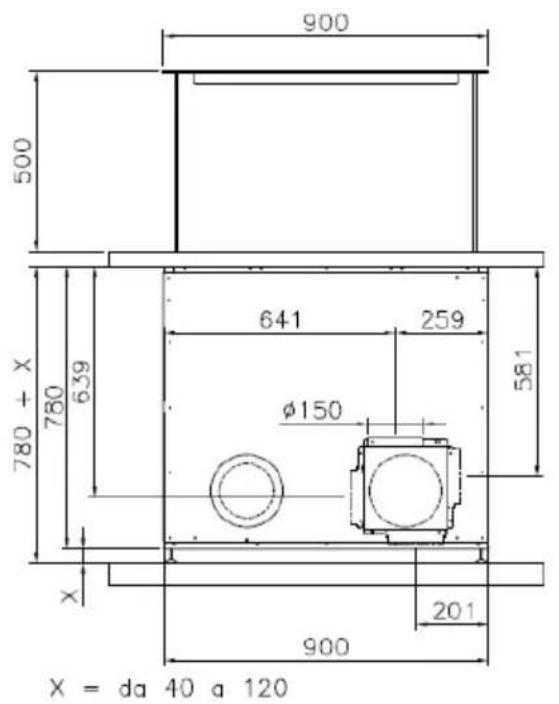

900 500 780 + X 780 639 641 259 φ150 581 X 201 900 X = da 40 a 120

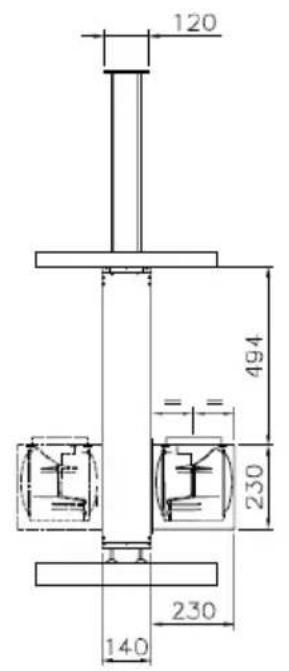

120 494 230 230 140

639 641 259 Ø150 581 201

Fig. 1

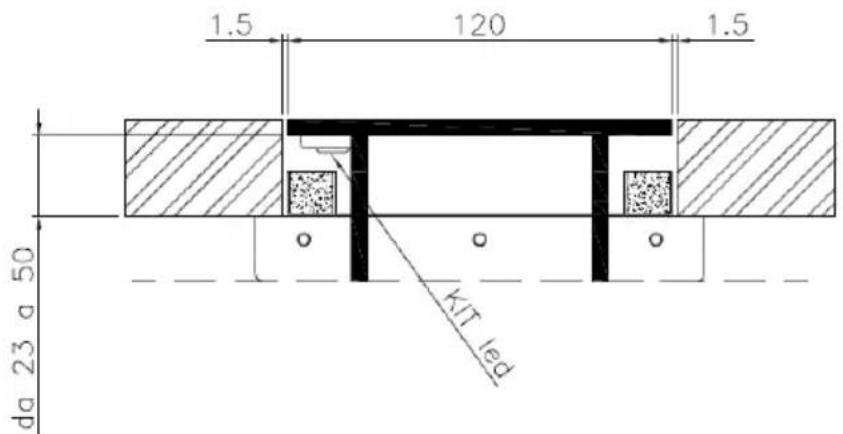

As for the height adjustment of the moving part of the downdraft, see Fig. 2.

According to the thickness of the work top and the cover, it is possible to adjust of 33mm.

The difference in thickness between the work top and the cover must be at least 23mm

1.5 120 1.5 da 23 a 50 KI T led

Fig. 2

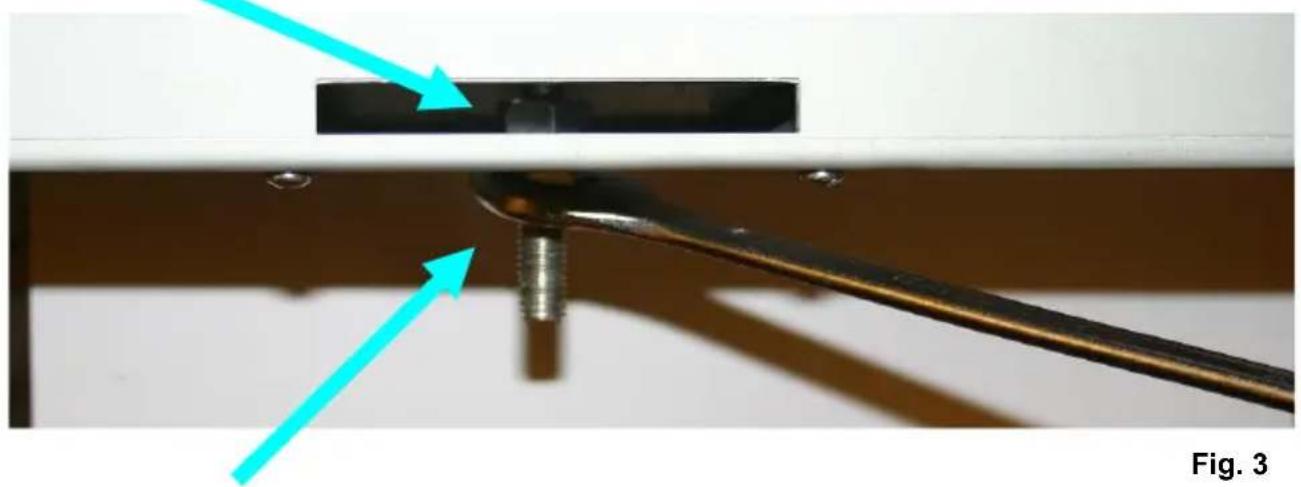

This adjustment is possible by acting on the two nuts that secure the central pivot of the actuator (Fig. 3).

Close-up of a mechanical component with two blue arrows pointing to a central black rectangular block and a threaded rod, labeled Fig. 3 (no text or symbols on the main subject)

The hood is supplied with a side hinged cover support. The cover is available in steel (supplied with the stainless steel downdraft models), in glass (supplied with the glass downdraft models) or in the same material used for the kitchen tops (not supplied, MAX 7Kg).

The gluing of the cover of the downdraft, must be performed in the same place after finishing the assembly of the downdraft. The space between the lid and hole on the top should be about 1.5mm long the whole perimeter.

The model and technical data labels can be attached to the cover on the downdraft unit and behind the metal filters.

Caution: In the kitchen furniture, provide in front or behind of the downdraft a removable wall to allow technicians to remove the front or rear panel of the hood in case of assistance. The assistance must be performed by authorized specialists. Failure to comply with this condition, significant increased costs could be charged in the case of assistance.

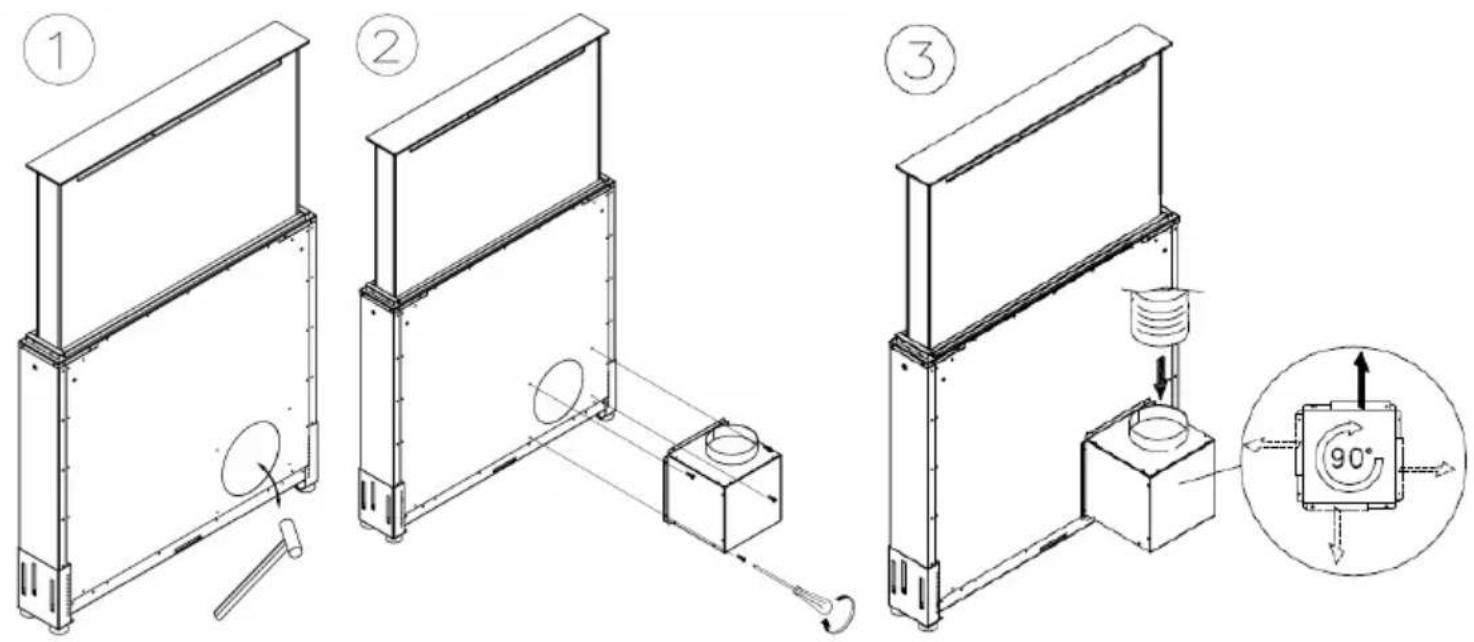

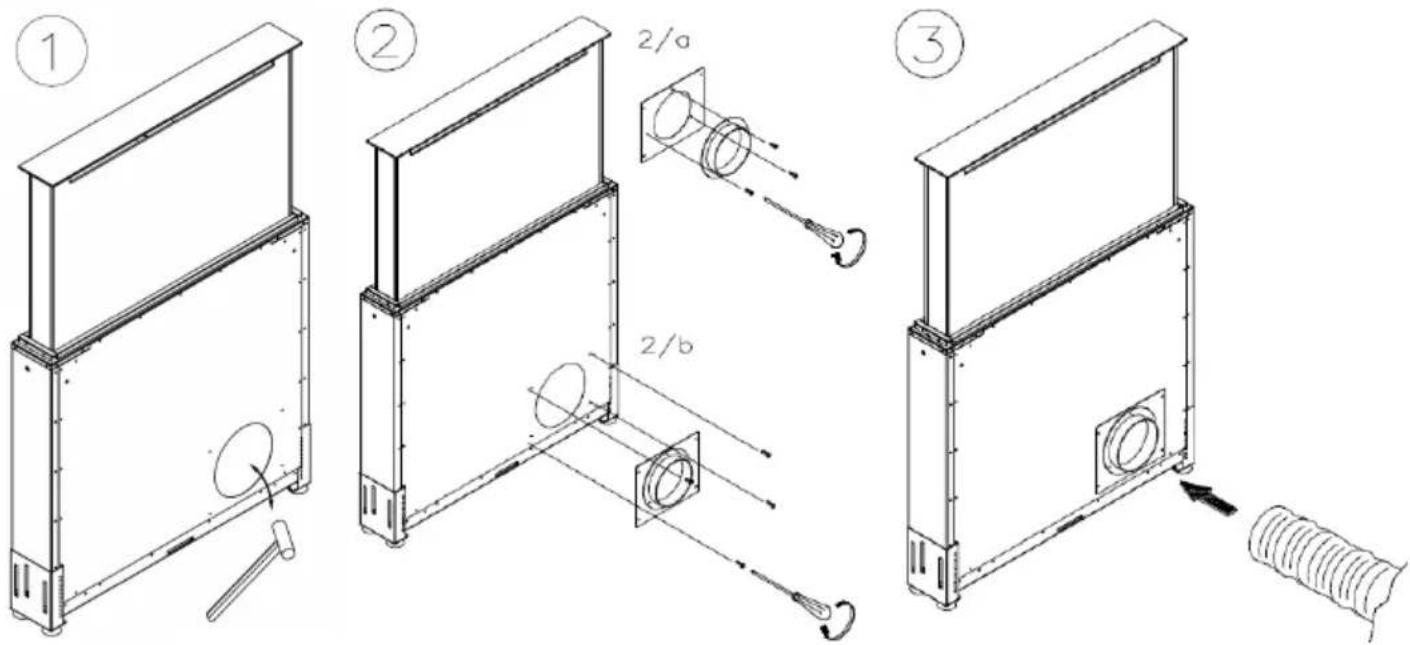

OPTION "A"

Technical diagram illustrating three steps of a mechanical assembly with labeled components and a 90° angle indicator.

OPTION "B"

Technical diagram showing three-step assembly of a mechanical component with labeled parts and dimensions

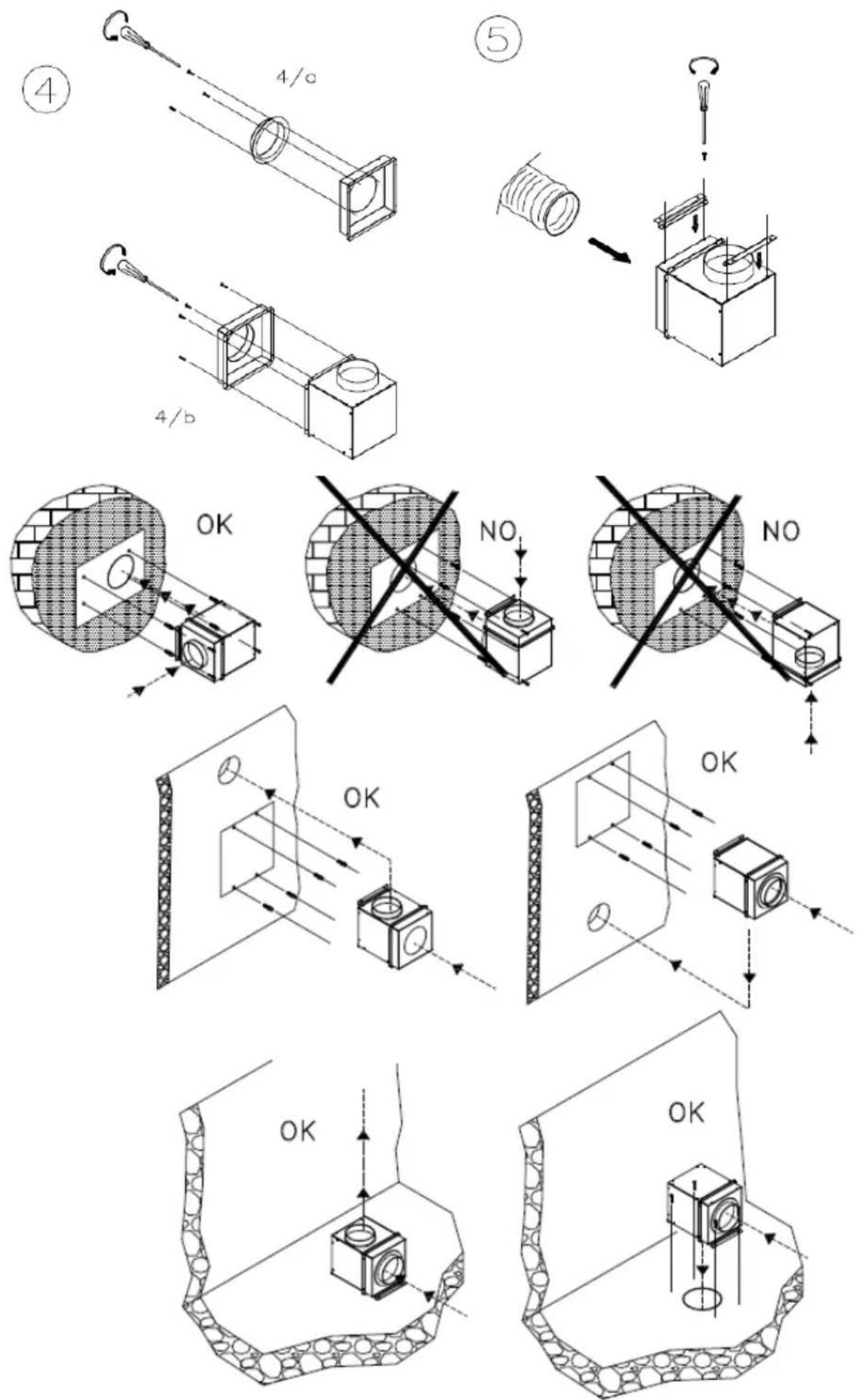

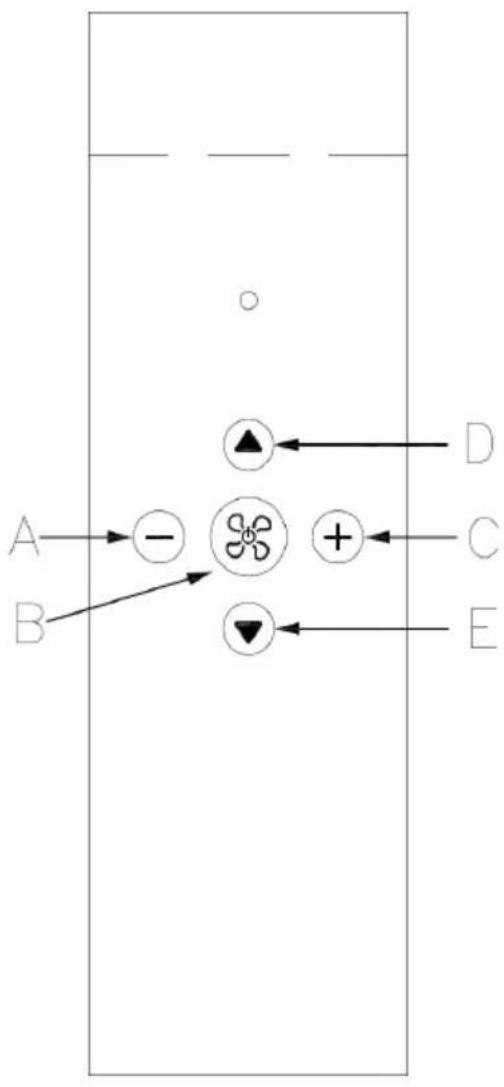

REMOTO CONTROL

CONTROL FUNCTIONS

BUTTON "A"

With suction motor turned on, every time the button is pressed the motor speed will be reduced of one step.

BUTTON "B"

With the downdraft extracted from 20 to 50 cm, the suction motor can be turned on and/or off.

Hood with LED lighting: With the downdraft extracted, each press of the button, in sequence: turns on the motor at the second speed, turns on the lights, turns off the motor, turns off the lights.

BUTTON "C"

With suction motor turned on, every time the button is pressed the motor speed will be increased of one step. At the 4th motor speed (intense) after 5 minutes the 2nd speed is automatically set.

BUTTON "D"

By pressing the button once, the downdraft is of 20cm extracted. By pressing the button one more time the downdraft is completely extracted. If the button is pressed while the downdraft is moving, the downdraft automatically stops. To restart the movement, it is necessary to press button "D" or "E".

BUTTON "E"

By pressing the button once, the downdraft returns in completely. If the button is pressed while the downdraft is moving, the downdraft automatically stops. To restart the movement, it is necessary to press button "D" or "E".

If the button is pressed when the suction motor is on, the motor automatically turns off.

NOTES:

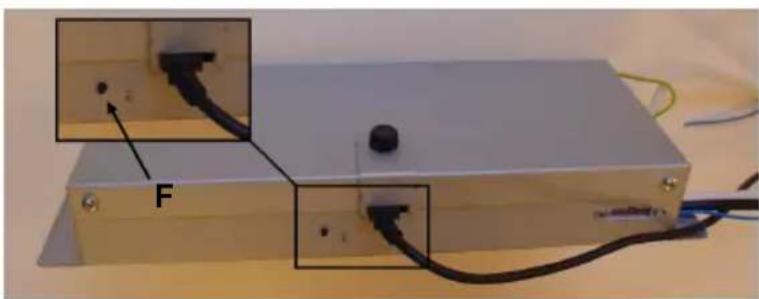

- At first use it is necessary to start the remote control learning.

When the downdraft is turned off, keep button "F" pressed for 3-8 sec.

The remote control learning is indicated with the flashing led.

If, within one minute there is a valid remote control code (sent by pressing any button of the remote control), the led will be on continuously for 3 seconds and then it will turn off, indicating the proper learning.

Exterior view of a metallic electronic device with labeled components and wiring (no readable text or symbols)

ELECTRIC WIRING

CONTROL BOX

Safety Instructions:

Yellow triangular warning sign with black lightning bolt symbol indicating electrical hazard

• Before any manipulation of the controller power cord (230 volt)
• Before each operation, all devices connected
  • Electrical connections must be performed by professionals
• For direct connection to the electrical mains is necessary to provide a device that ensures disconnection from the electrical mains, with an opening distance of the contacts that allows the complete disconnection under the conditions of overvoltage category III, in accordance with the rules of installation.
• The plug or omnipolar switch must be accessible when the unit is installed
• If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. The cable used must be of type H05VV-F 3 x 0.75 mm2 minimum cross-section.

Warning : Make all wiring connections to the wiring box before connecting the power supply 230V.

Failure to observe this procedure can cause severe damages to electronics.

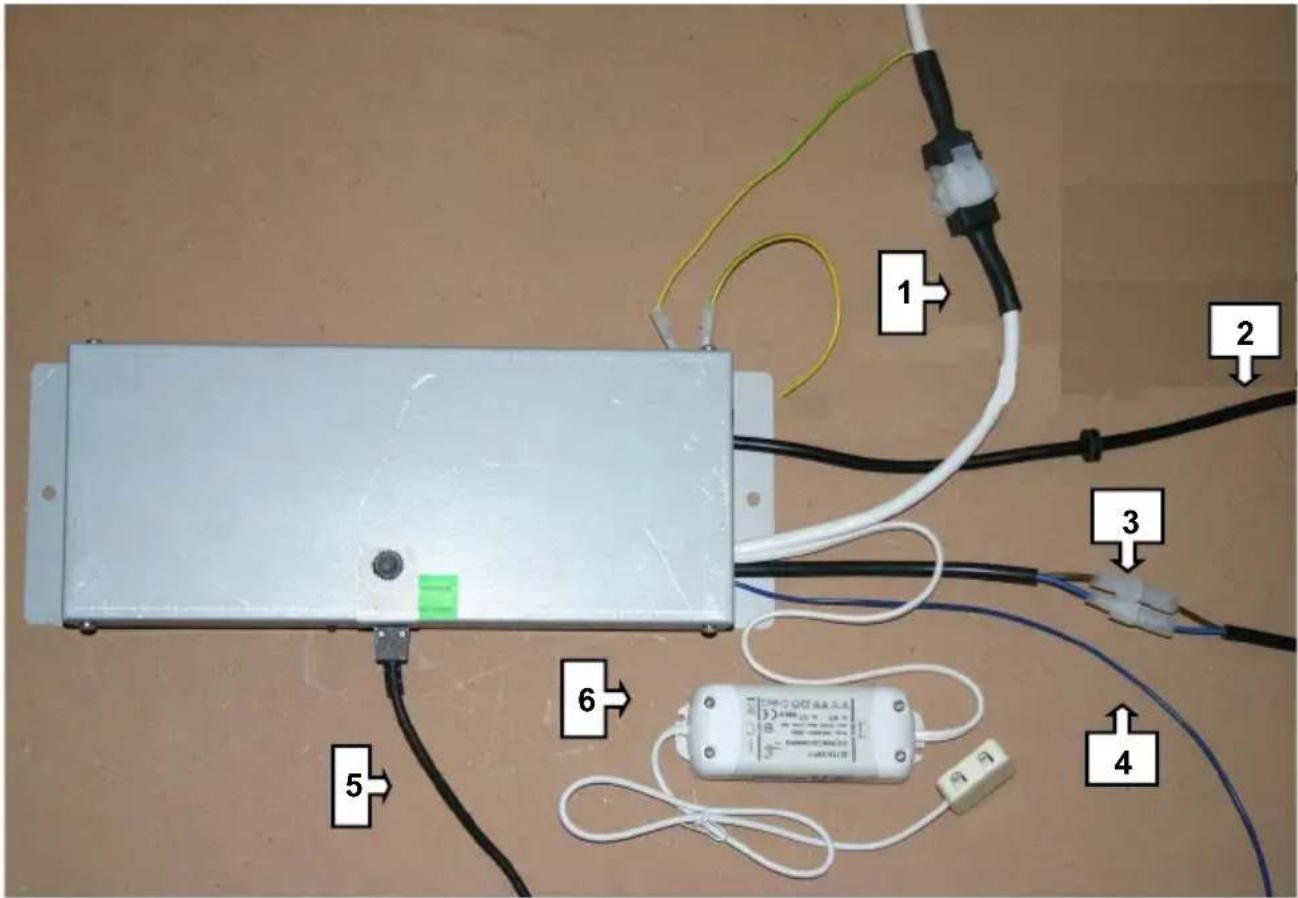

For connections between hood and wiring box, refer to the following indications :

Labeled diagram of an electronic device with numbered components and wiring connections

1) External motor connector
2) Power supply 230V
3) Cable with faston for microswich hood
4) Remote control antenna cable (it must remain away from metal parts and / or electrical parts)
5) Hood activator cable
6) Light cable

After connecting the activator connector (5), close the opening of the box with the lid already included.

USE AND MAINTENANCE

Before beginning any sort of cleaning and maintenance work, turn off the power of the downdraft by turning the main switch to 0 (OFF).

3D mechanical component with a highlighted arrow indicating direction (no text or symbols)

Cleaning the metal filters

The metal filters fitted in the downdraft should be washed every 2-3 months depending on how much they are used, using hot water and a non aggressive liquid detergent.

To access the metal filters, you must remove the cover from the downdraft. In order to remove the cover, take the cover out from the downdraft and take off the cover lifting it upwards. The metal filters can be removed using the special handle unhooking first the filter in the front part and pulling up. After washing the filters, they must be thoroughly dried and reassembled correctly.

3D mechanical component with a highlighted arrow indicating direction (no text or symbols)

Carbon filters

If the downdraft is used with the internal recycle filtering system, then active carbon filters must be used. The active carbon in the filters traps the cooking smells.

The carbon filters are placed underneath the metal filters.

For replacement, first remove the metal filters and then remove the carbon filters by using the handle of the filter and pushing it towards the back. Then remove it by pulling upwards.

POLYESTER carbon filters cannot be reused or washed and must be periodically changed (every 4 months if the hood is used for 2 hours every day). Saturate filters could be a fire hazard.

Depending on the hood model, the carbon filters are round or rectangular.

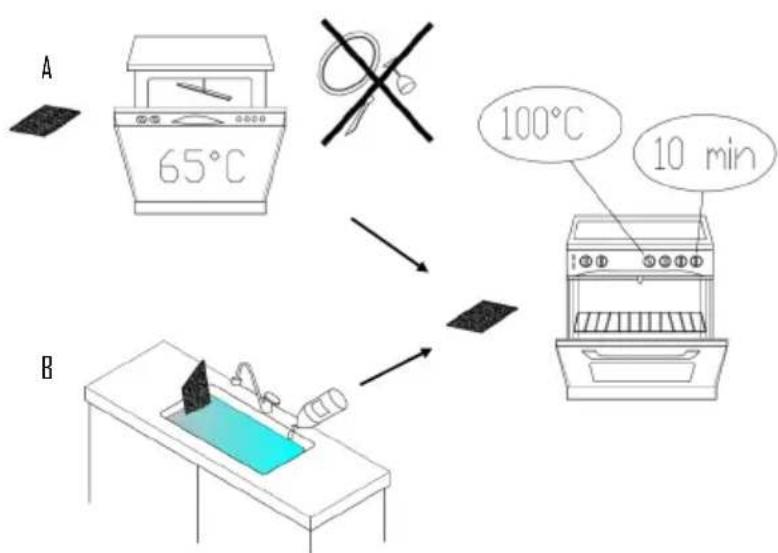

LONG LIFE carbon filter can be cleaned and reactivated. The filter should be cleaned every other month if used normally. The filter is best cleaned in a dishwasher at the highest temperature using normal washer detergent. The filter should be washed on its own to prevent particles of food from fastening in it and then causing an unpleasant smell later on. To reactivate the carbon the filter should be dried in the oven. Chose upper/ lower heat and maximum 100 °C and try the filter for 10 minutes. The filter must be changed when it no longer absorbs the cooking smells sufficiently.

Cleaning the hood

If the downdraft is stainless steel, use specific products and rags for satin stainless steel (non-abrasive and / or corrosive detergents free of chlorine), ensuring to clean in the same direction as the satin finish.

Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause oxidation and polymerization.

The manufacturer is not responsible for damage to the surface of the downdraft due to failure to respect these instructions.
