USER MANUAL L1520P LG

Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference.

See the label attached on the back cover and quote this information to your dealer when you require service.

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

■ There are no user serviceable components inside.
■ There are Dangerous High Voltages inside, even when the power is OFF.
- Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

• Do not place the display on a sloping shelf unless properly secured.
  ■ Use only a stand recommended by the manufacturer.

To Prevent Fire or Hazards:

■ Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
- Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
- Do not add accessories that have not been designed for this display.
■ During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
■ Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
■ Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

■ The fluorescent lamp used in this product contains a small amount of mercury.
■ Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

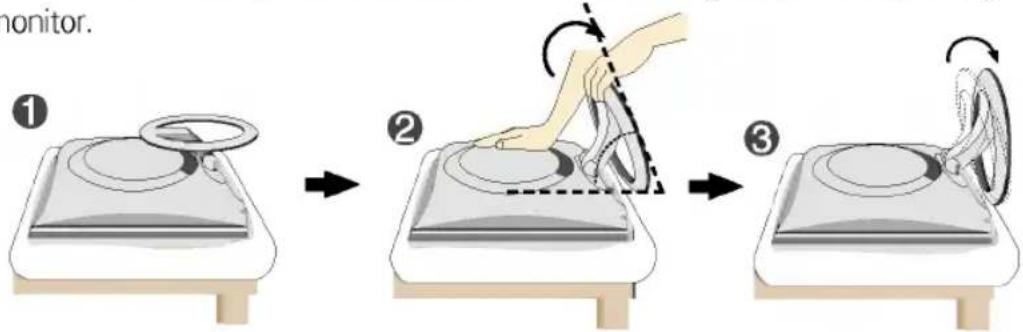

Unfolding the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. Expand the stand base to its first step degree (65°) pulling it outward with two hands.

3. Further expand the stand base to 90 degrees with slightly more force. Do not apply excessive force to expand the stand base to over 90 degrees, or it may damage the monitor.

monitor. ① ② ③

1. Place the monitor upright and adjust the stand base angle as desired. Adjust the stand base angle holding the monitor head part with both hands.

Illustration of a hand holding a tablet device with a stand (no text or symbols)

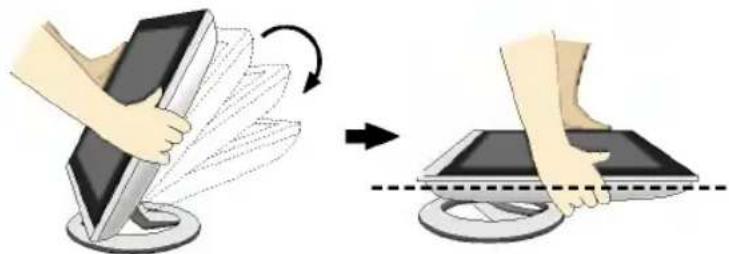

folding the stand base

1. Face the front of the monitor and push it backwards, following the sequence shown in the picture.

Illustration showing a hand holding a tablet with a curved arrow indicating rotation (no text or symbols present)

Do not push it over 180 degrees. It may damage the stand base.

■ This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.

Do not touch or apply force to the monitor screen while expanding or folding the stand base.

Using the Computer

Illustration of hands holding a circular device with a ring, no text or symbols present

1. Separate the back cap by sliding its lower section downward as shown in the picture.

2. Connect the signal input cable and the power cord. (see next page)

Three-panel diagram showing internal components with no visible text, numbers, or symbols.

Illustration of hands performing a circular motion on a computer monitor (no text or symbols visible)

1. After the cables are connected, set the back cap into the groove of the upper section and reassemble by pushing upward.

Illustration of hands using a computer monitor to press a circular component (no text or symbols visible)

1. Insert the back cap along the bottom grooves on both sides, holding the bottom.

Using the Computer

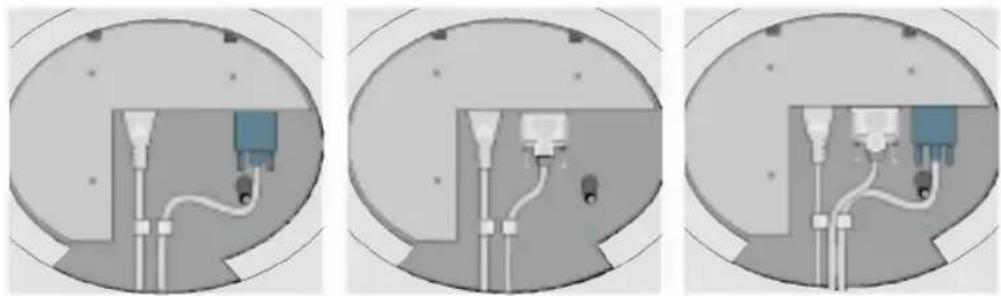

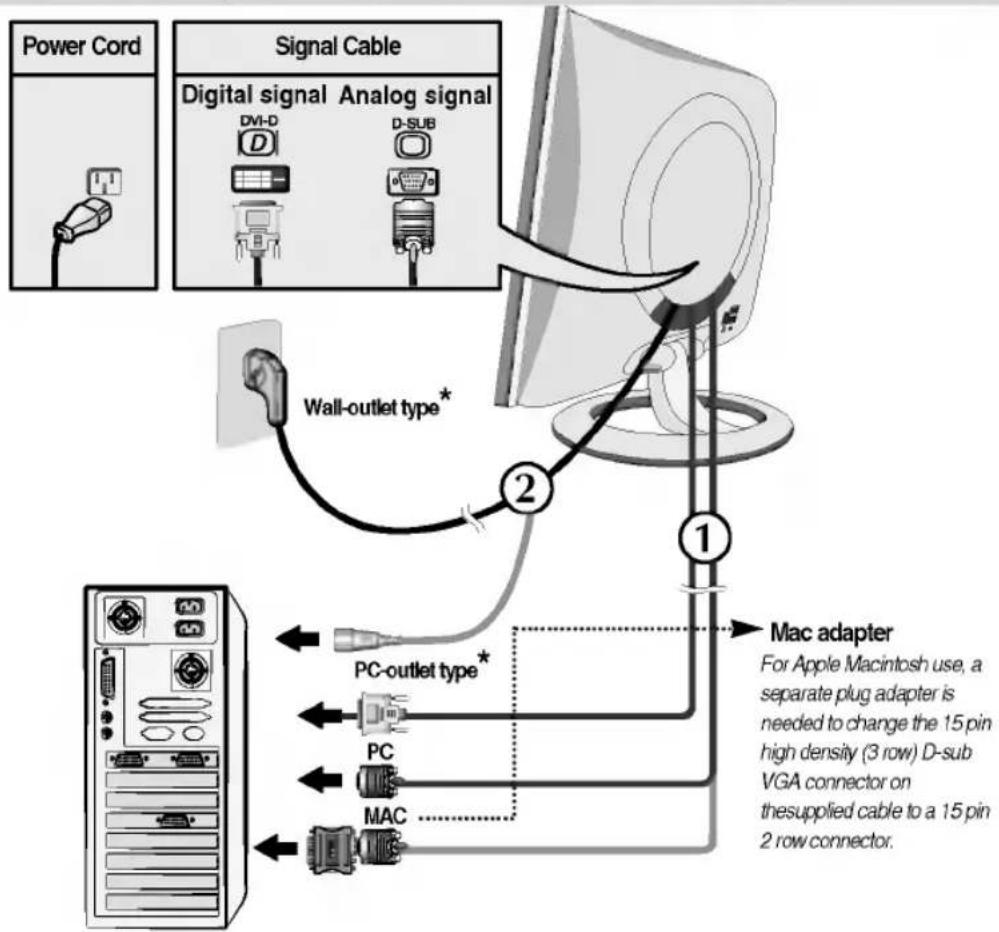

1. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and close to the display.

NOTE

■ This is a simplified representation of the rear view.
■ This rear view represents a general model; your display may differ from the view as shown.

1. Press ⏻ button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.

NOTE

'Self Image Setting Function'? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the 'AUTO' button on the front panel of the monitor. Otherwise, you may execute the 'Factory reset' option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except 'Language'.

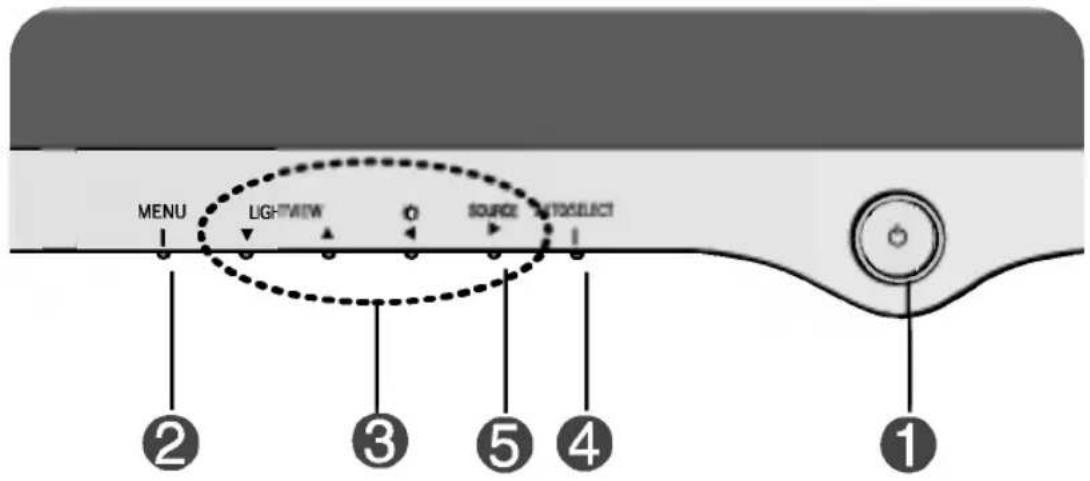

Front Panel Controls

MENU LIGHTVIEW SOURCE TOSELECT ② ③ ⑤ ④ ①

Control		Function
1	Power Button	Use this button to turn the display on or off.
	Power (DPMS) Indicator	This Indicator lights up blue when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber.
2	MENU Button	Use this button to enter or exit the On Screen Display.
3	▼▲◀▶ Buttons	Use these buttons to choose or adjust items in the On Screen Display.
4	AUTO/SELECT Button	Use this button to enter a selection in the On Screen Display.

Control Panel Functions

Control	Direct Access Function
	3 LIGHTVIEW▲
	DAY This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc).
	·DAY: Bright ambient illumination·NIGHT: Dark ambient illumination·TEXT: For text images (Word processing etc.)·MOVIE: For animation images in videos or movies·PHOTO: For pictures or drawings·NORMAL: This is under normal operating conditions
	LIGHTVIEW → LIGHTVIEW → MENU
	Bring up Contrast and Brightness adjustment.: → ▼▲ ◀▶ → MENU
	4 AUTO IMAGE ADJUSTMENTWhen adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).The best display mode is 15 inch monitor: 1024x76817 inch monitor: 1280x1024
	5 SOURCETo select DSUB ANALOG, DVI DIGITAL as the active input. This feature is used when two computers are connected to the display. The display automatically detects the proper input when only one video source is connected.
	OSD LOCKED/UNLOCKED: MENUThis function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for 5 seconds: the message “OSD LOCKED” appears.You can unlock the OSD controls at any time by pushing the MENU button for 5 seconds: the message “OSD UNLOCKED” will appear.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

NOTE

- Allow the display to stabilize for at least 30 minutes before making image adjustments.

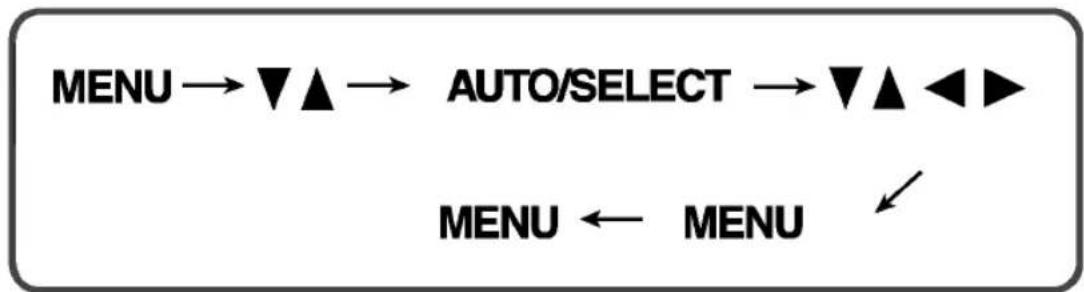

To make adjustments in the On Screen Display, follow these steps:

1 Press the MENU Button, then the main menu of the OSD appears.
2 To access a control, use the ▼ or ▲ Buttons. When the icon you want becomes highlighted, press the AUTO/ SELECT Button.
③ Use the ▼▲◀▶ Buttons to adjust the item to the desired level.
4 Accept the changes by pressing the MENU Button.
5 Exit the OSD by Pressing the MENU Button.

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment, and setting menus.

Main menu	Sub menu		A	D	Reference
PICTURE	BRIGHTNESS		●	●	To adjust the brightness,contrast and gamma of the screen
	CONTRAST		●	●
	GAMMA		●	●
COLOR	PRESET	6500K	●	●	To customize the color of the screen
		9300K	●	●
	RED		●	●
	GREEN		●	●
	BLUE		●	●
POSITION	HORIZONTAL		●		To adjust the position of the screen
	VERTICAL		●
TRACKING	CLOCK		●		To improve the clarity and stability of the screen
	PHASE		●
SETUP	LANGUAGE		●	●	To customize the screen status for a user's operating environment
	OSD POSITION	HOLRZONTAL	●	●
		VERTICAL	●	●
	WHITE BALANCE		●
	POWER INDICATOR		●	●
	FACTORY RESET		●	●
●: AdjustableA: Analog InputD: Digital Input

NOTE

■ The order of icons may differ depending on the model (A9\~A11).

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

NOTE

■ OSD (On Screen Display) menu languages on the monitor may differ from the manual.

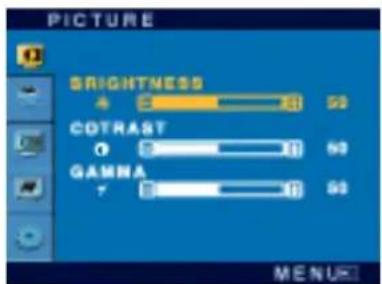

To adjust the brightness and contrast of the screen

OSD Adjust

PICTURE SIGHTNESS 4 20 50 COTRAST 0 5 11 50 GAMNA 7 5 11 50 MENU

Description

BRIGHTNESS

To adjust the brightness of the screen.

CONTRAST

To adjust the contrast of the screen.

GAMMA

Set your own gamma value. (-50\~50) On the monitor, high gamma values display whitish images and low gamma values display high contrast images.

To customize the color of the screen

OSD Adjust

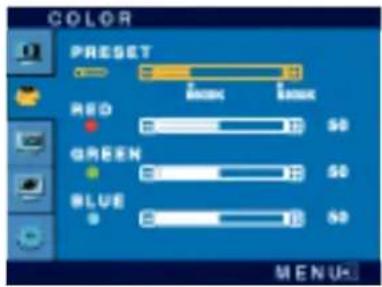

COLOR PRESET RED GREEN BLUE MENU:

Description

PRESET

6500K/9300K

Select the screen color.

• 6500K: Slightly reddish white.

• 9300K: Slightly bluish white.

RED

GREEN

Set your own color levels.

BLUE

To adjust the position of the screen

OSD Adjust

POSITION HORIZONTAL 50 VERTICAL 50 MENU

Description

Horizontal Position

To move image left and right.

Vertical Position

To move image up and down.

To improve the clarity and stability of the screen

OSD Adjust		Description
	CLOCK	To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.
	PHASE	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

To customize the screen status for a user's operating environment

OSD Adjust		Description

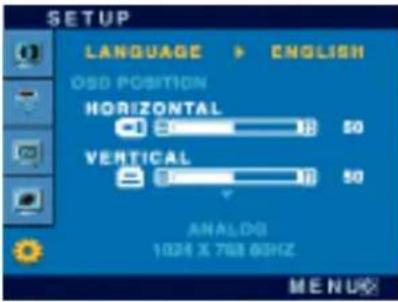

	LANGUAGE	To choose the language in which the control names are displayed.
	OSD POSITION	To adjust position of the OSD window on the screen.

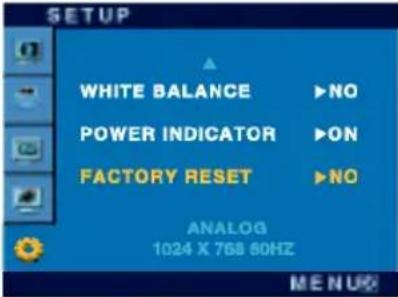

	WHITE BALANCE	If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image. Activate this function when white and black colors are present in the screen.
	POWER INDICATOR	Use this function to set the power indicator on the front side of the monitor to ON or OFF.If you set OFF, it will go off after 15 seconds. If you set ON at any time, the power indicator will automatically be turned on.
	FACTORY RESET	Restore all factory default settings except "LANGUAGE."Press the ▶ button to reset immediately.

If this does not improve the screen image, restore the factory default settings.

If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.

Check the following before calling for service.

No image appears
● Is the power cord of the display connected?	· Check and see if the power cord is connected properly to the power outlet.
● Is the power indicator light on?	· Press the Power button.
● Is the power on and the power indicator blue?	· Adjust the brightness and the contrast.
● Is the power indicator amber?	· If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.· Make sure if the power is on.· Try to turn on the PC.
● Do you see an "OUT OF RANGE" message on the screen?	· This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
● Do you see a "CHECK SIGNAL CABLE" message on the screen?	· This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?
● Do you see “OSD LOCKED” when you push MENU button?	· You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing theMENUbutton for 5 seconds: the message“OSD UNLOCKED” will appear.
Display image is incorrect
● Display Position is incorrect.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.Check Control Panel -> Display -> Settings and see if the frequency or the resolution were changed.If yes, readjust the video card to the recommend resolution.
● On the screen background, vertical bars or stripes are visible.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
● Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.Check Control Panel -> Display -> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).
● The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
● The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.Make sure the power voltage is high enough, It has to be higher than AC100-240V 50/60Hz.

Troubleshooting

Have you installed the display driver?
● Have you installed the display driver?	· Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.
● Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?	· Make sure to check if the video card supports Plug&Play function.

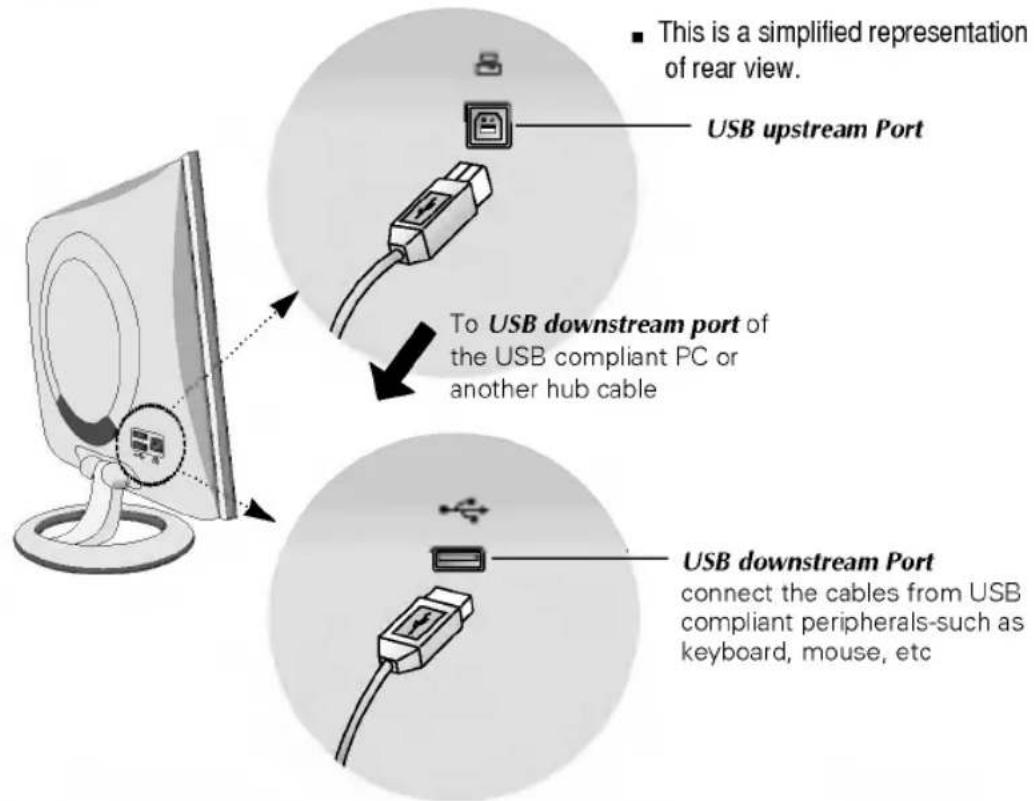

USB function
USB function cannot be setup.	Check if the USB cable is correctly connected.Check if the PC and OS are USB compliant.For verification of USB support, consult the manufacturer of each system.
Display	15 inches (38.1cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 15 inches viewable 0.297 mm pixel pitch
Sync Input	Horizontal Freq. Vertical Freq.	30 - 63kHz (Automatic) 56 - 75Hz (Automatic)
	Input Form	Separate TTL, Positive/Negative SOG (Sync On Green) Digital
Video Input	Signal Input	15 pin D-Sub Connector DVI-D connector(Digital)
	Input Form	RGB Analog (0.7Vp-p/75ohm), Digital
Resolution	Max	Digital : VESA 1024 x 768@75Hz Analog : VESA 1024 x 768@75Hz
	Recommend	VESA 1024 x 768@60Hz
Plug&Play	DDC 2B
Power Consumption	Normal : 25W Stand-by/Suspend ≤ 2W DPMS Off ≤ 2W
Dimensions &Weight (with tilt stand)	Full Up Position Width 36.38 cm / 14.32 inches Height 33.07 cm / 13.02 inches Depth 22.00cm / 8.66 inches		Folded Position 36.38 cm / 14.32 inches 35.80 cm / 14.09 inches 11.37 cm / 4.48 inches
	Net	3.2 kg (7.05lbs)
Tilt Range	Tilt	0°~25°
Power Input	AC 100-240V~ 50/60Hz 0.6A
Environmental Conditions	Operating Conditions Temperature 10°C to 35 °CHumidity 10 % to 80 % non-Condensing
	Storage Conditions Temperature -20°C to 60 °CHumidity 5 % to 95 % non-Condensing
Tilt Stand	Attached( O ), Detached ( )
Signal cable	Attached( ), Detached ( O )
Power cord	Wall-outlet type or PC-outlet type

NOTE

■ Information in this document is subject to change without notice.

Display	17 inches (43.2cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.264 mm pixel pitch
Sync Input	Horizontal Freq.	Analog : 30 - 83kHz (Automatic) Digital : 30 - 71kHz (Automatic)
	Vertical Freq.	56 - 75Hz (Automatic)
	Input Form	Separate TTL, Positive/Negative SOG (Sync On Green) Digital
Video Input	Signal Input	15 pin D-Sub Connector DVI-D connector (Digital)
	Input Form	RGB Analog (0.7Vp-p/75ohm), Digital
Resolution	Max	DVI Digital: VESA 1280 x 1024@60Hz D-sub Analog: VESA 1280 x 1024@75Hz
	Recommend	VESA 1280 x 1024@60Hz
Plug&Play	DDC 2B
Power Consumption	Normal : 43W Stand-by/Suspend ≤ 2W DPMS Off ≤ 2W
Dimensions &Weight (with tilt stand)	Full Up Position		Folded Position
	Width 39.40cm/15.51inches Height 37.90cm/14.92inches Depth 23.20cm/9.13inches		39.40cm/15.51inches 41.20cm/16.22inches 12.70 cm/5.00inches
	Net 4.5 kg (9.92 lbs)
Tilt Range	Tilt 0°~25°
Power Input	AC 100-240V~ 50/60Hz 1.0A
Environmental Conditions	Operating Conditions Temperature 10°C to 35 °CHumidity 10 % to 80 % non-Condensing
	Storage Conditions Temperature -20°C to 60 °CHumidity 5 % to 95 % non-Condensing
Tilt Stand	Attached( O ), Detached ( )
Signal cable	Attached( ), Detached ( O )
Power cord	Wall-outlet type or PC-outlet type

NOTE

■ Information in this document is subject to change without notice.

Preset Modes (Resolution)

• 15 inch monitor

Display Modes (Resolution)			Horizontal Freq. (kHz)	Vertical Freq. (Hz)
1	VGA	640 x 350	31.468	70
2	VGA	720 x 400	31.468	70
3	VGA	640 x 480	31.469	60
4	VESA	640 x 480	35.000	66.67
5	VESA	640 x 480	37.861	72.8
6	VESA	640 x 480	37.500	75
7	VESA	800 x 600	35.156	56.25
8	VESA	800 x 600	37.879	60
9	VESA	800 x 600	48.077	72
10	VESA	800 x 600	46.875	75
11	MAC	832 x 624	49.725	75
12	VESA	1024 x 768	48.363	60
13	VESA	1024 x 768	56.476	70
14	VESA	1024 x 768	60.023	75

● 17 inch monitor

Display Modes (Resolution)			Horizontal Freq. (kHz)	Vertical Freq. (Hz)
1	VGA	640 x 350	31.469	70
2	VGA	720 x 400	31.468	70
3	VGA	640 x 480	31.469	60
4	VESA	640 x 480	37.500	75
5	VESA	800 x 600	37.879	60
6	VESA	800 x 600	46.875	75
7	MAC	832 x 624	49.725	75
8	VESA	1024 x 768	48.363	60
9	VESA	1024 x 768	60.023	75
10	MAC	1152 x 870	68.681	75
11	VESA	1152 x 900	61.805	65
12	VESA	1280 x 1024	63.981	60
13	VESA	1280 x 1024	79.976	75

Indicator

MODE	LED Color
Normal	bule
Stand-by/Suspend	amber
DPMS Off	amber

Signal Connector Pin Assignment

1 9 17 8 16 24

■ DVI-D Connector

Pin	Signal(DVI-D)
1	T. M. D. S. Data2-
2	T. M. D. S. Data2+
3	T. M. D. S. Data2/4 Shield
4	T. M. D. S. Data4-
5	T. M. D. S. Data4+
6	DDC Clock
7	DDC Data
8	Analog Vertical Sync.
9	T. M. D. S. Data1-
10	T. M. D. S. Data1+
11	T. M. D. S. Data1/3 Shield
12	T. M. D. S. Data3-
13	T. M. D. S. Data3+
14	+5V Power
15	Ground (return for +5V, H. Sync. and V. Sync.)

Pin	Signal(DVI-D)
16	Hot Plug Detect
17	T. M. D. S. Data0-
18	T. M. D. S. Data0+
19	T. M. D. S. Data0/5 Shield
20	T. M. D. S. Data5-
21	T. M. D. S. Data5+
22	T. M. D. S. Clock Shield
23	T. M. D. S. Clock+
24	T. M. D. S. Clock-

T. M. D. S. (Transition Minimized Differential Signaling)

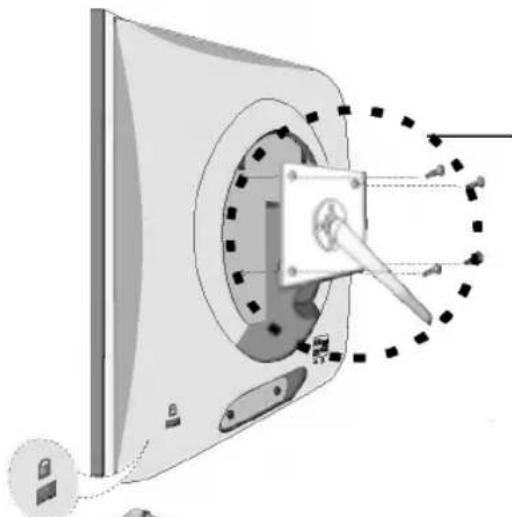

This monitor meets VESA-compliant mounting interface pad specifications.

1. Please the monitor on a piece of cloth or other soft surface with the front side facing downward and remove the rear cap.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Slide off the lower section of the cover base with two hands as shown in the picture.

Illustration of a hand using a tool to adjust or install a device (no text or symbols visible)

1. Separate the stand base using a screwdriver as shown in the picture.

2. Install the VESA standard wall mounting.

Diagram of a mechanical device with a central component and surrounding components, showing alignment lines (no text or symbols)

VESA wall mounting

Connected to another object (stand type and wall-mounted type. This monitor accepts a VESA-compliant mounting interface pad.-optional) For further information, refer to the VESA Wall Mounting Instruction Guide.

Coiled medical or electrical device with two connectors and a cable (no visible text or symbols)

Kensington Security Slot- optional

Connected to a locking cable that can be purchased separately at most computer stores

USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on a single USB port; and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining the Plug and the Plug auto detection and configuration. This display has an integrated BUS-powered USB hub, allowing up to 2 other USB devices to be attached it.

USB connection

1. Connect the upstream port of the display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port)
2. Connect the USB compliant peripherals to the downstream ports of the display.

This is a simplified representation of rear view. USB upstream Port To USB downstream port of the USB compliant PC or another hub cable USB downstream Port connect the cables from USB compliant peripherals-such as keyboard, mouse, etc

NOTE

■ To activate the USB hub function, the display must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed).
■ When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side.
■ Even if the display is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the display.

USB Specifications

USB standard	Rev. 1.1 complied BUS-powered hub
Downstream power supply	100mA for each (MAX)
Communication speed	12 Mbps (full), 1.5 Mbps (low)
USB port	1 Upstream port2 Downstream ports

IMPORTANT: These USB connectors are not designed for use with high-power USB devices such as a video camera, scanner, etc. LGE recommends connecting high-power USB devices directly to the computer

Digitally yours ■■■■■■

LG
