USER MANUAL L1710P LG

Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference.

See the label attached on the back cover and quote this information to your dealer when you require service.

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

■ There are no user serviceable components inside.
■ There are Dangerous High Voltages inside, even when the power is OFF.
■ Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

■ Do not place the display on a sloping shelf unless properly secured.
■ Use only a stand recommended by the manufacturer.

To Prevent Fire or Hazards:

■ Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.

- Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.

■ Do not add accessories that have not been designed for this display.

■ During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
■ Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
■ Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

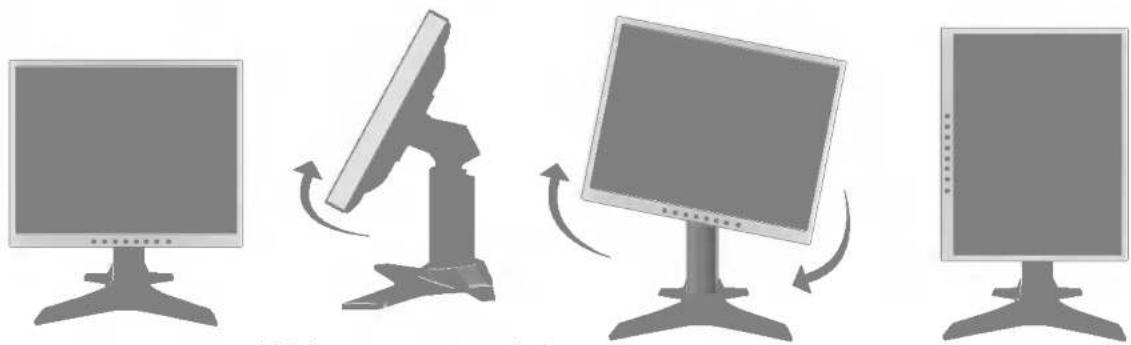

1. Adjust the position of the panel in various ways for maximum comfort.

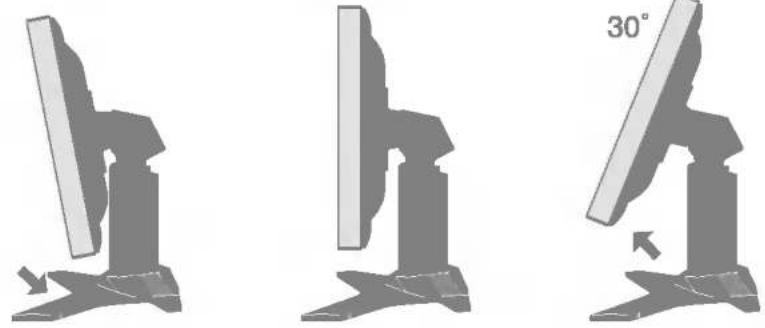

■ Tilt Range : -5°\~30°

-5°

Three 3D mechanical components with angular annotation '30°' indicating a 30-degree angle (no text or symbols on components)

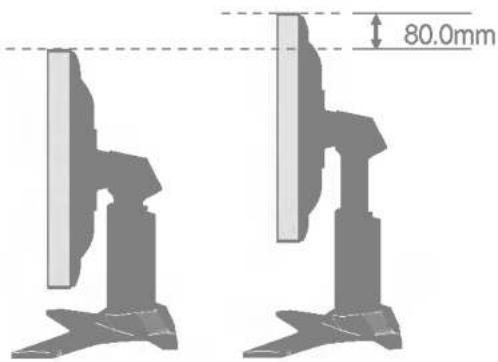

■ Height Range : maximum 3.15 inch (80.0mm)

Technical diagram showing two mechanical components with a 80.0mm dimension标注 (no text or symbols beyond measurement)

■ Landscape & Portrait : You can rotate the panel 90° clockwise.

(* For detailed information, please refer to the Pivot Software CD provided.)

Four grayscale images showing a person using a computer monitor to interact with each other, illustrating the process of moving or changing the screen (no text or symbols present)

* Make sure not to touch the floor when the head rotates to use the Pivot function.

Ergonomic

It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Positioning your display

To Adjust Height of Monitor

① While pushing down the top of monitor,

Pure mechanical diagram showing a lever and pivot (no text or symbols)

② Unfasten the stand lock.

Diagram showing a mechanical or architectural component with a dashed circular inset highlighting a detail (no text or symbols present)

③ And adjust the height.

Pure mechanical component diagram without any text, numbers, or symbols

Using the Computer

1. Place the monitor in a convenient, well-ventilated location near your computer. To adjust height of your monitor, unlock the stand lock on top of the stand.

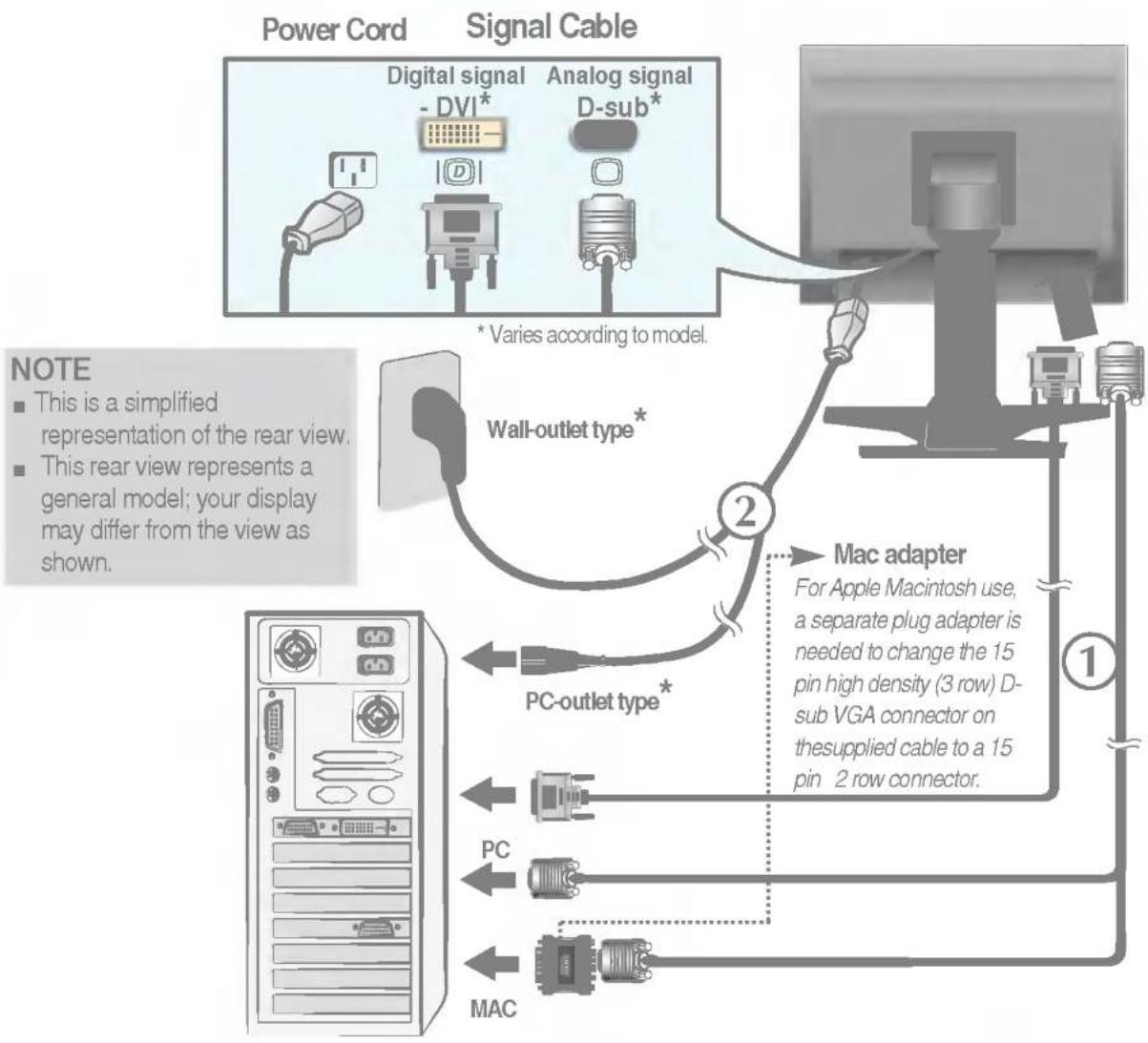

2. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection.
3. Connect the power cord into a proper power outlet that is easily accessible and close to the display.

1. Press ⏻ button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.

PROCESSING SELF IMAGE SETTING

NOTE

'Self Image Setting Function'? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the 'AUTO' button on the front panel of the monitor. Otherwise, you may execute the 'Factory reset' option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except 'Language'.

To arrange cables in order

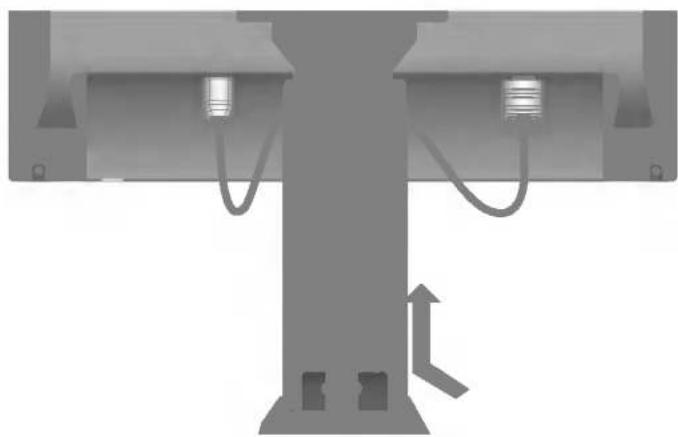

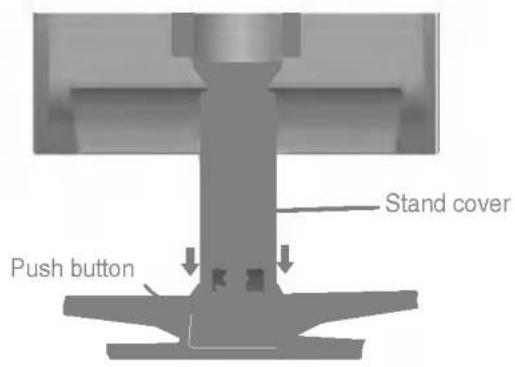

1. Press the push button, and pull the stand cover down to separate it from the stand.

Push button Stand cover

Pure mechanical assembly diagram showing a lever and pivot mechanism without any text or symbols

1. After connecting cables, put the stand cover correctly into the holes on the stand. If securely connected, you can hear the click sound from the latch.

Mechanical assembly diagram showing two vertical supports connected to a central column with internal components and directional arrows (no text or symbols)

Front Panel Controls

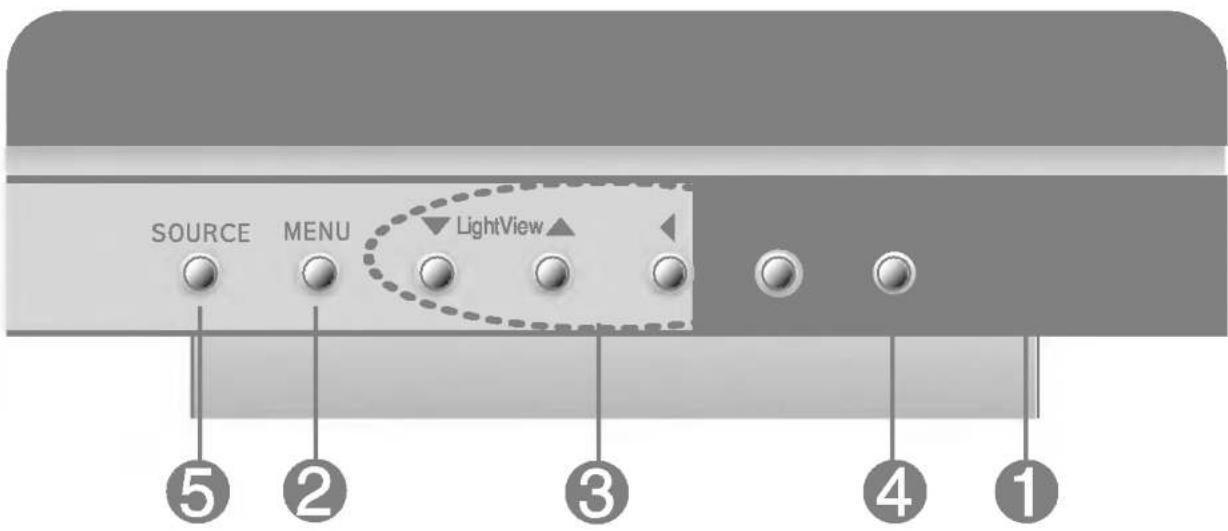

SOURCE MENU LightView ⑤ ② ③ ④ ①

Control		Function
1	Power Button	Use this button to turn the display on or off.
	Power (DPMS) Indicator	This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber.
2	MENU Button	Use this button to enter or exit the On Screen Display.
3	▼▲◀▶ Buttons	Use these buttons to choose or adjust items in the On Screen Display.
4	AUTO/SELECT Button	Use this button to enter a selection in the On Screen Display.

Control	Direct Access Function
	This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc.).DAY: Bright ambient illuminationNIGHT: Dark ambient illuminationTEXT: For text images (Word processing etc.)MOVIE: For animation images in videos or moviesPHOTOFor pictures or drawingsUSER MODE: For use under user setup image conditions (Brightness, contrast and color tint are selected by the user in OSD Screen Setup Menu.)▼LightView▲→▼LightView▲→MENU
	◄►Bring up Contrast and Brightness adjustment.:◄►→▼▲◄►→MENU
	When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).The best display mode is 1280x1024.
	Use this button to make Dsub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is Dsub.
	CONTROLS LOCKED/UNLOCKED: MENU and ►This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and ►button for 3 seconds: the message “CONTROLS LOCKED” appears.You can unlock the OSD controls at any time by pushing the MENU button and ►button for 3 seconds: the message “CONTROLS UNLOCKED” will appear.

CONTROLS LOCKED/UNLOCKED

: MENU and ▶

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

NOTE

- Allow the display to stabilize for at least 30 minutes before making image adjustments.

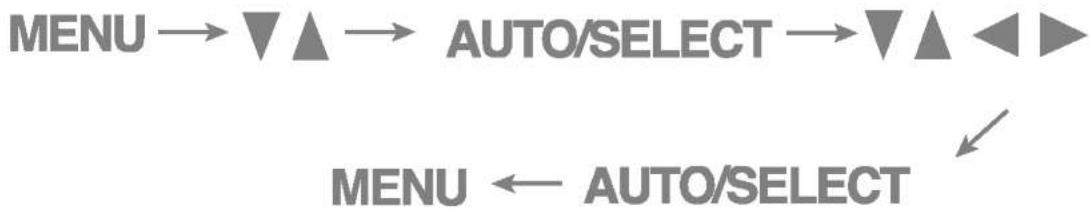

To make adjustments in the On Screen Display, follow these steps:

1 Press the MENU Button, then the main menu of the OSD appears.
2 To access a control, use the ▼ or ▲ Buttons. When the icon you want becomes highlighted, press the AUTO/SELECT Button.
③ Use the ▼▲◀▶ Buttons to adjust the item to the desired level.
4 Accept the changes by pressing the AUTO/SELECT Button.
5 Exit the OSD by Pressing the MENU Button.

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment, and setting menus.

Main menu	Sub menu		A	B	Reference
BRIGHTNESSCONTRAST	BRIGHTNESS		●	●	To adjust the brightness and contrast of the screen
	CONTRAST		●	●
COLOR	PRESET	9300K	●	●	To customize the color of the screen
		6500K	●	●
	R/G/B(User Color)		●	●
	GAMMA		●	●
POSITION	V POSITION		●		To adjust the position of the screen
	H POSITION		●
TRACKING	CLOCK		●		To improve the clarity and stability of the screen
	PHASE		●
SETUP	LANGUAGE		●	●	To customize the screen status for a user's operating environment
	OSD POSITION		●	●
	SIGNAL		●	●
	FACTORY RESET		●	●
	WHITE BALANCE		●
●: AdjustableA: Analog InputD: Digital Input

NOTE

■ The order of icons may differ depending on the model (A10\~A12).

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

NOTE

■ OSD (On Screen Display) menu languages on the monitor may differ from the manual.

To adjust the brightness and contrast of the screen

BRIGHTNESS / CONTRAST RGB 88 100

BRIGHTNESS

To adjust the brightness of the screen.

CONTRAST

To adjust the contrast of the screen.

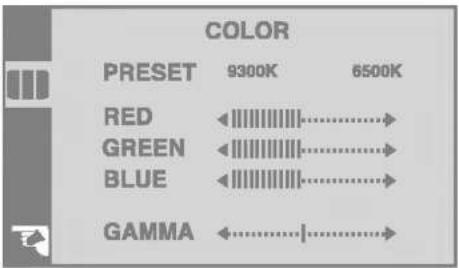

To customize the color of the screen

COLOR PRESET 9300K 6500K RED ←|||||||||----------------→ GREEN ←|||||||||----------------→ BLUE ←|||||||||----------------→ GAMMA ←......|----------------→

PRESET 9300K/6500K

Select the screen color.

• 9300K: Slightly bluish white.

• 6500K: Slightly reddish white.

RED

GREEN

Set your own color levels.

BLUE

GAMMA

Set your own gamma value. (-30\~30)

On the monitor, high gamma values display whitish images and low gamma values display high contrast images.

To adjust the position of the screen

POSITION RGB 61 39

Vertical Position

To move image up and down.

Horizontal Position

To move image left and right.

To improve the clarity and stability of the screen

TRACKING
CLOCK	←
PHASE	←

CLOCK To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.

PHASE To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

To customize the screen status for a user's operating environment

RGB	SETUP
	LANGUAGE	ENGLISH
	OSD POSITION	■
	SIGNAL	DSUB ANALOG
	FACTORY RESET	NO
	WHITE BALANCE	NO
	1280x1024@60Hz
	PRESET MODE
	DSUB ANALOG

LANGUAGE To choose the language in which the control names are displayed.

OSD POSITION To adjust position of the OSD window on the screen.

SIGNAL To select DSUB ANALOG, DVI DIGITAL as the active input. This feature is used when two computers are connected to the display. The display automatically detects the proper input when only one video source is connected.

FACTORY RESET Return to all factory default settings except "LANGUAGE". If you don't want to reset the monitor, use the ◀▶ button to select NO and then press the AUTO/SELECT button.

WHITE BALANCE If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image. Activate this function when white and black colors are present in the screen. If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.

For example

Check the following before calling for service.

No image appears
● Is the power cord of the display connected?	· Check and see if the power cord is connected properly to the power outlet.
● Is the power indicator light on?	· Press the Power button.
● Is the power on and the power indicator green?	· Adjust the brightness and the contrast.
● Is the power indicator amber?	· If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.· Make sure if the power is on.· Try to turn on the PC.
● Do you see an "INPUT SIGNAL OUT OF RANGE" message on the screen?	· This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
● Do you see a "NO SIGNAL "message on the screen?	· This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "CONTROLS LOCKED" message on the screen?
Do you see “CONTROLS LOCKED” when you push MENU button?	You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing theMENUbutton and ▶button for 3 seconds: the message “CONTROLS UNLOCKED” will appear.
Display Position is incorrect.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
On the screen background, vertical bars or stripes are visible.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO/SELECT button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.Make sure the power voltage is high enough, It has to be higher than AC100-240V 50/60Hz.
Have you installed the display driver?
● Have you installed the display driver?	● Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.
● Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?	● Make sure to check if the video card supports Plug&Play function.

USB function
USB function cannot be setup.	Check if the USB cable is correctly connected.Check if the PC and OS are USB compliant.For verification of USB support, consult the manufacturer of each system.

Display	17 inches (43.2cm)	Flat Panel Active matrix-TFT LCD
	Anti-Glare coating
	17 inches viewable
	0.26mm pixel pitch
Sync Input	Horizontal Freq.	Analog:30 - 83kHz (Automatic)
		Digital:30 - 71kHz (Automatic)
	Vertical Freq.	56 - 75Hz (Automatic)
	Input Form	Separate TTL, Positive/NegativeComposite TTL Positive/NegativeSOG (Sync On Green)Digital
Video Input	Signal Input	15 pin D-Sub ConnectorDVI -D connector (Digital)
	Input Form	RGB Analog (0.7Vp-p/75ohm), Digital
Resolution	Max	DVI Digital:VESA 1280 x 1024@60HzD-sub Analog:VESA 1280 x 1024@75Hz
	Recommend	VESA 1280 x 1024@60Hz
Plug&Play	DDC 2B
Power	Normal	: 43W
Consumption	Stand-by/Suspend	≤ 1W
	DPMS Off	≤ 1W
Dimensions	Width	37.0 cm / 14.57 inches
&Weight	Height	42.0 cm / 16.54 inches (Min)
(With the Swivel)		50.0 cm / 19.69 inches (Max)
	Depth	23.7 cm / 9.3 inches
	Net	6.7kg (14.77 lbs)
Tilt/Swivel Range	Tilt	-5°~30°
	Swivel	90°
	Height range	80.0mm / 3.15 inches
	Rotate	90° clockwise (Landscape -> Portrait)
	AC 100-240V~ 50/60Hz 1.0A
	Operating Conditions
	Temperature	10°C to 35 °C
	Humidity	10 % to 80 % non-Condensing
	Storage Conditions
	Temperature	-20°C to 60 °C
	Humidity	5 % to 95 % non-Condensing

NOTE

■ Information in this document is subject to change without notice.

Tilt/Swivel Stand

Attached( O ), Detached ( )

Standard

Attached( ), Detached ( O )

Wall-outlet type or PC-outlet type

Preset Modes (Resolution)

Display Modes (Resolution)			Horizontal Freq. (kHz)	Vertical Freq. (Hz)
1	VGA	640 x 350	31.469	70
2	VGA	720 x 400	31.468	70
3	VGA	640 x 480	31.469	60
4	VESA	640 x 480	37.500	75
5	VESA	800 x 600	37.879	60
6	VESA	800 x 600	46.875	75
7	MAC	832 x 624	49.725	75
8	VESA	1024 x 768	48.363	60
9	VESA	1024 x 768	60.123	75
10	MAC	1152 x 870	68.681	75
11	VESA	1152 x 900	61.805	65
12	VESA	1280 x 1024	63.981	60
13	VESA	1280 x 1024	79.976	75

Indicator

MODE	LED Color
Normal	green
Stand-by/Suspend	amber
DPMS Off	amber

VESA wall mounting

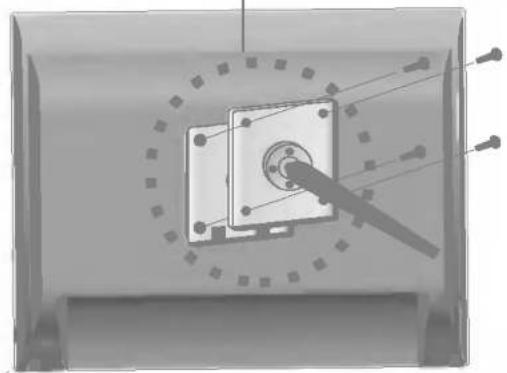

Connected to another object (stand type and wall-mounted type. This monitor accepts a VESA-compliant mounting interface pad.- optional) For further information, refer to the VESA Wall Mounting Instruction Guide.

Kensington Security Slot- optional Connected to a locking cable that can be purchased separately at most computer stores

Technical diagram of a mechanical assembly with a central component and surrounding components (no visible text or symbols)

Simple line drawing of a medical or laboratory device with a bulb and cable (no text or symbols)

Signal Connector Pin Assignment

Simple gray rectangular object with grid pattern and two circular ends (no text or symbols)

■ DVI-D Connector

1	T. M. D. S. Data2-	16	Hot Plug Detect
2	T. M. D. S. Data2+	17	T. M. D. S. Data0-
3	T. M. D. S. Data2/4 Shield	18	T. M. D. S. Data0+
4	T. M. D. S. Data4-	19	T. M. D. S. Data0/5 Shield
5	T. M. D. S. Data4+	20	T. M. D. S. Data5-
6	DDC Clock	21	T. M. D. S. Data5+
7	DDC Data	22	T. M. D. S. Clock Shield
8	Analog Vertical Sync.	23	T. M. D. S. Clock+
9	T. M. D. S. Data1-	24	T. M. D. S. Clock-
10	T. M. D. S. Data1+
11	T. M. D. S. Data1/3 Shield
12	T. M. D. S. Data3-
13	T. M. D. S. Data3+
14	+5V Power
15	Ground (return for +5V, H. Sync. and V. Sync.)

T. M. D. S. (Transition Minimized Differential Signaling)

USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on a single USB port; and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining the Plug and the Plug auto detection and configuration. This display has an integrated BUS-powered USB hub, allowing up to 2 other USB devices to be attached it.

USB connection

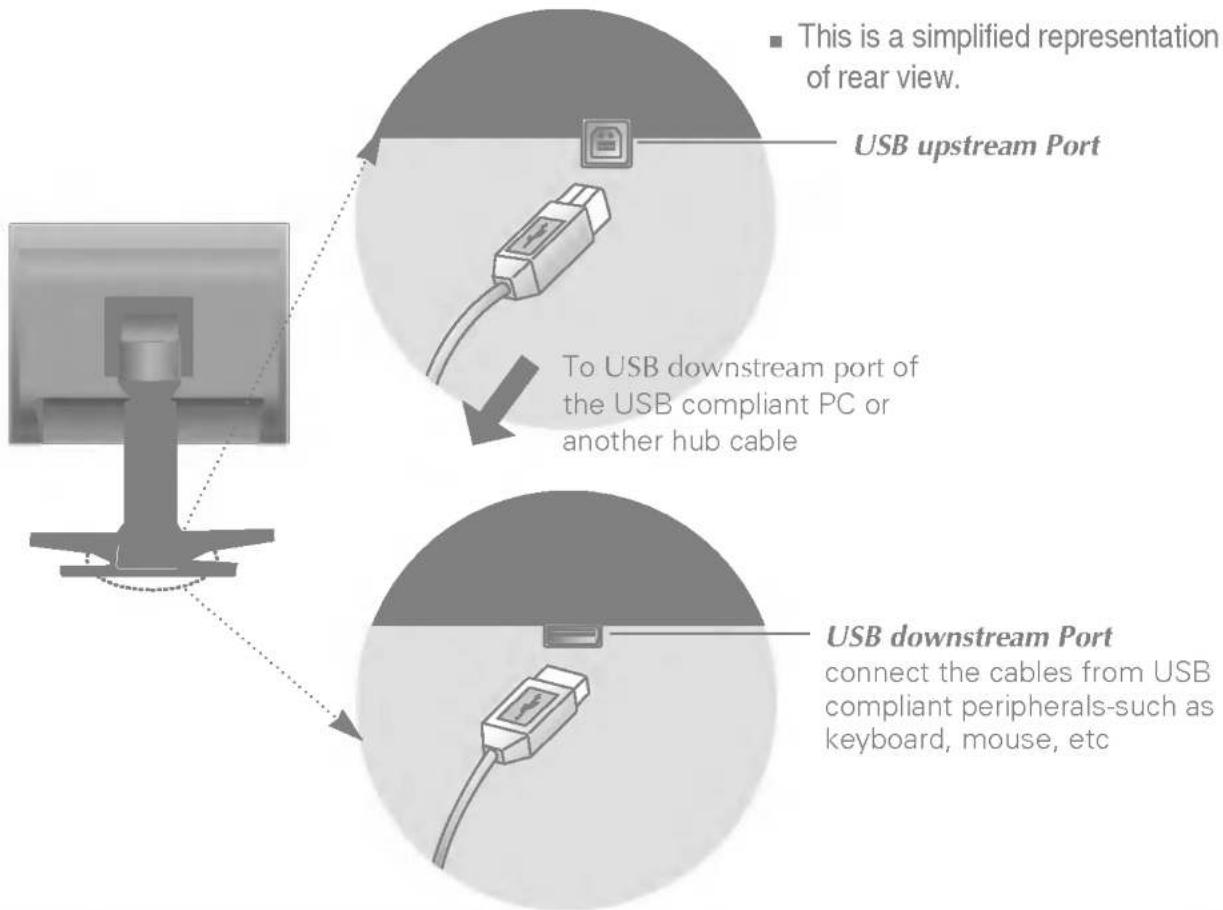

1. Connect the upstream port of the display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port)
2. Connect the USB compliant peripherals to the downstream ports of the display.

NOTE

■ To activate the USB hub function, the display must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed).
- When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side.
■ Even if the display is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the display.

USB Specifications

USB standard	Rev. 1.1 complied BUS-powered hub
Downstream power supply	100mA for each (MAX)
Communication speed	12 Mbps (full), 1.5 Mbps (low)
	1 Upstream port2 Downstream ports

IMPORTANT: These USB connectors are not designed for use with high-power USB devices such as a video camera, scanner, etc. LGE recommends connecting high-power USB devices directly to the computer

Digitally yours

LG
