Product Type	Monitor (Flat Panel Active Matrix TFT LCD)
Screen Size	19 inches (48.26 cm) viewable
Resolution (Recommended)	1280 x 1024 @ 60 Hz
Pixel Pitch	0.294 mm
Input Signal	RGB Analog (0.7 Vp-p / 75 ohm), 15-pin D-Sub Connector
Horizontal Frequency	30 - 83 kHz (Automatic)
Vertical Frequency	56 - 75 Hz (Automatic)
Power Consumption (Normal)	45 W
Power Consumption (Stand-by/Suspend)	≤ 2 W
Power Input	AC 100-240 V ~ 50/60 Hz 1.0 A
Dimensions (Width x Height x Depth)	44.44 cm x 43.83 cm x 22.00 cm (17.50" x 17.25" x 8.66")
Weight (Net)	6.5 kg (14.33 lbs)
Tilt Range	-5° to 30°
Swivel Range	300°
Plug & Play	VESA DDC 2B
Operating Temperature	10°C to 35°C
Operating Humidity	10% to 80% non-condensing
Key Features	FLATRON F-ENGINE (Text/Movie/User modes), Auto Image Adjustment, OSD control, Kensington Security Slot, VESA mount compatible
Cleaning Instructions	Unplug before cleaning; use a slightly damp cloth; do not use aerosol sprays
Safety Precautions	Do not open display; use only supplied power cord; keep ventilation openings clear; disconnect during lightning storms

Frequently Asked Questions - L1930SSFT LG

Why is there no image on the screen?

Check if the power cord is connected properly and the power indicator is on. If the indicator is amber, the monitor may be in power-saving mode; move the mouse or press a key. If you see an 'OUT OF RANGE' message, adjust the resolution to the recommended 1280 x 1024 @ 60 Hz. If you see 'CHECK SIGNAL CABLE', ensure the signal cable is securely connected.

What does 'OSD LOCKED' mean and how do I unlock it?

The OSD LOCKED function prevents accidental changes. Press and hold the MENU button for 5 seconds to unlock. The message 'OSD UNLOCKED' will appear.

How do I adjust the screen position?

Press the SET/AUTO button first for automatic adjustment. If needed, use the On Screen Display (OSD) menu: select POSITION and adjust H-POSITION and V-POSITION using the -/+ buttons.

Why are there vertical bars or stripes on the screen?

Press the SET/AUTO button for automatic adjustment. If bars persist, use the OSD TRACKING menu and adjust the CLOCK setting to minimize them.

How do I fix horizontal noise or blurry characters?

Press the SET/AUTO button first. If noise remains, go to OSD TRACKING and adjust the PHASE setting to sharpen the image.

Why is the screen color abnormal or monochrome?

Check the signal cable connection. Ensure the video card is set to a color depth higher than 24 bits (true color) in Control Panel > Display > Settings. Also, verify the monitor's COLOR preset (9300K or 6500K) is appropriate.

What should I do if the screen blinks?

Check that the screen is not set to interlace mode and set the resolution to the recommended 1280 x 1024 @ 60 Hz. Ensure the power voltage is sufficient (AC 100-240V). Also, try adjusting the PHASE setting in the OSD.

How do I install the display driver?

Use the driver CD that came with the monitor or download the latest driver from the LG website (http://www.lge.com). Install it via your computer's device manager if prompted with 'Unrecognized monitor'.

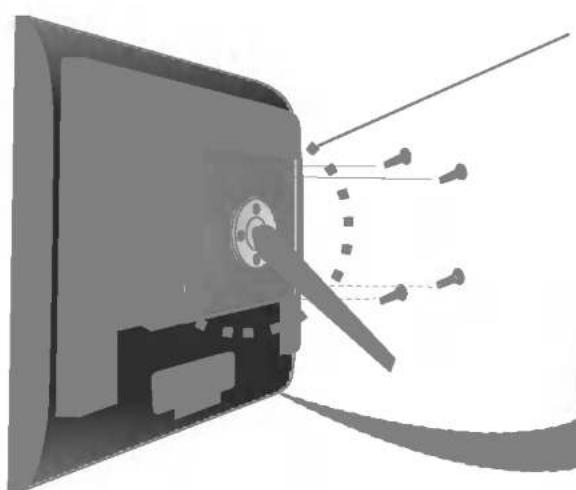

Can I mount this monitor on a wall?

Yes, the monitor is VESA-compliant. Remove the stand base, attach a VESA wall mount kit (optional). Refer to the VESA Wall Mounting Instruction Guide for details.

How do I clean the monitor screen?

Unplug the monitor before cleaning. Use a slightly damp (not wet) soft cloth. Do not use aerosol sprays or abrasive cleaners to avoid electrical shock or damage.

USER MANUAL L1930SSFT LG

L1730S \*FT L1930S \*FT L1930SQ

Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference.

See the label attached on the back cover and quote this information to your dealer when you require service.

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

■ There are no user serviceable components inside.
■ There are Dangerous High Voltages inside, even when the power is OFF.
■ Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

■ Do not place the display on a sloping shelf unless properly secured.
■ Use only a stand recommended by the manufacturer.

To Prevent Fire or Hazards:

■ Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
- Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
■ Do not add accessories that have not been designed for this display.
■ During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
■ Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
■ Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

■ The fluorescent lamp used in this product contains a small amount of mercury.
■ Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

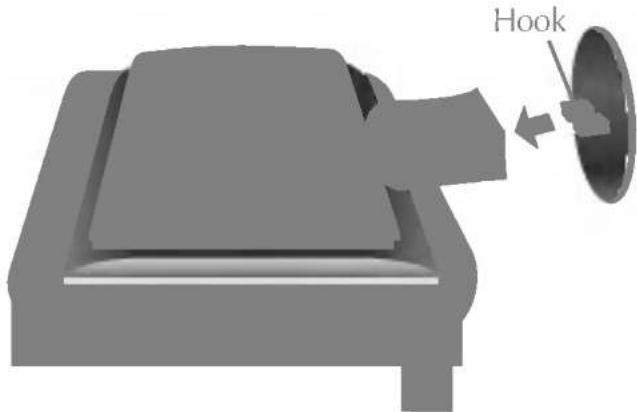

Connecting the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. Align the hooks on the stand base with the matching slots in the base of the monitor.

3. Insert the hooks into slots.

3D diagram of a mechanical component with a labeled 'Hook' component (no other text or symbols)

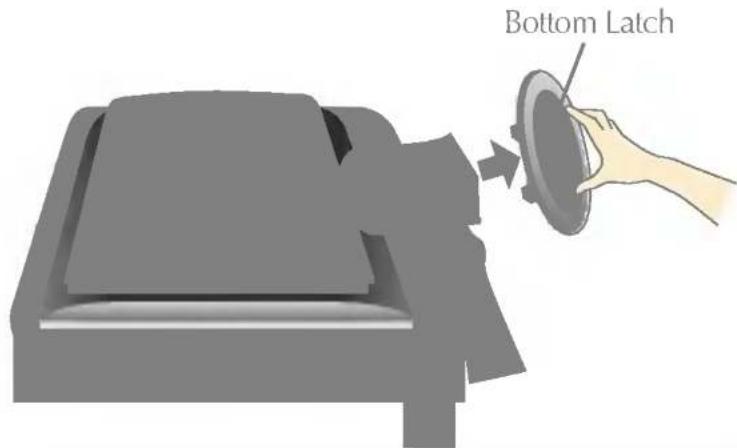

Removing the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. To remove the stand base, hold the bottom of the stand with one hand and pull the base bottom latch with the other hand, as shown in the figure.

Bottom Latch

Important

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
■ Once you connect the stand base, try not to disconnect it.
- Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.
In order to prevent injury, watch that your fingers are not caught when moving a sliding door or attaching/detaching a stand cover.

Using the Computer

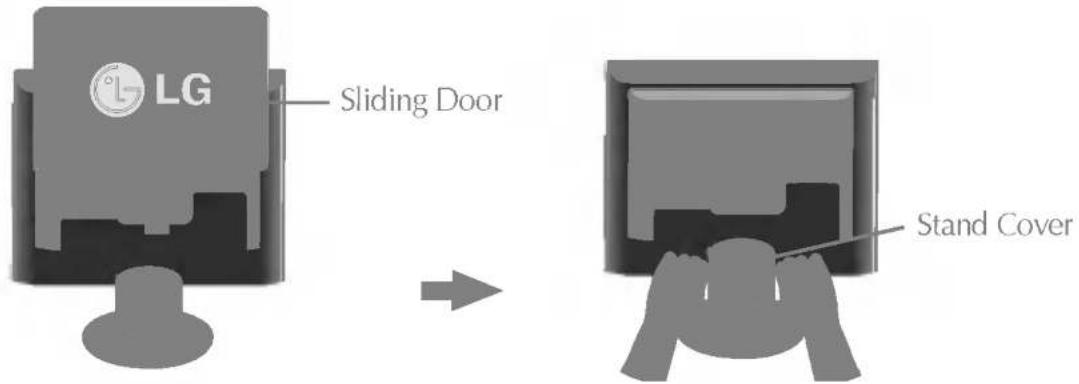

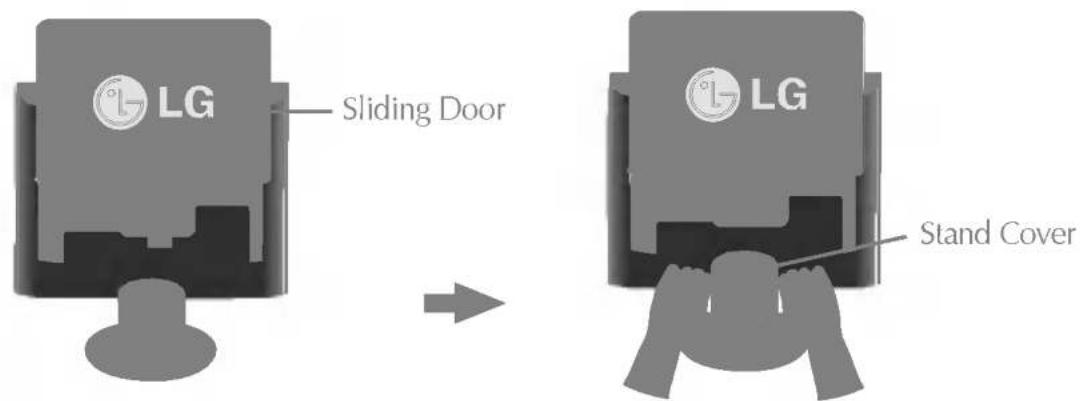

1. Open the Sliding Door and remove the Stand Cover.

LG Sliding Door LG Stand Cover

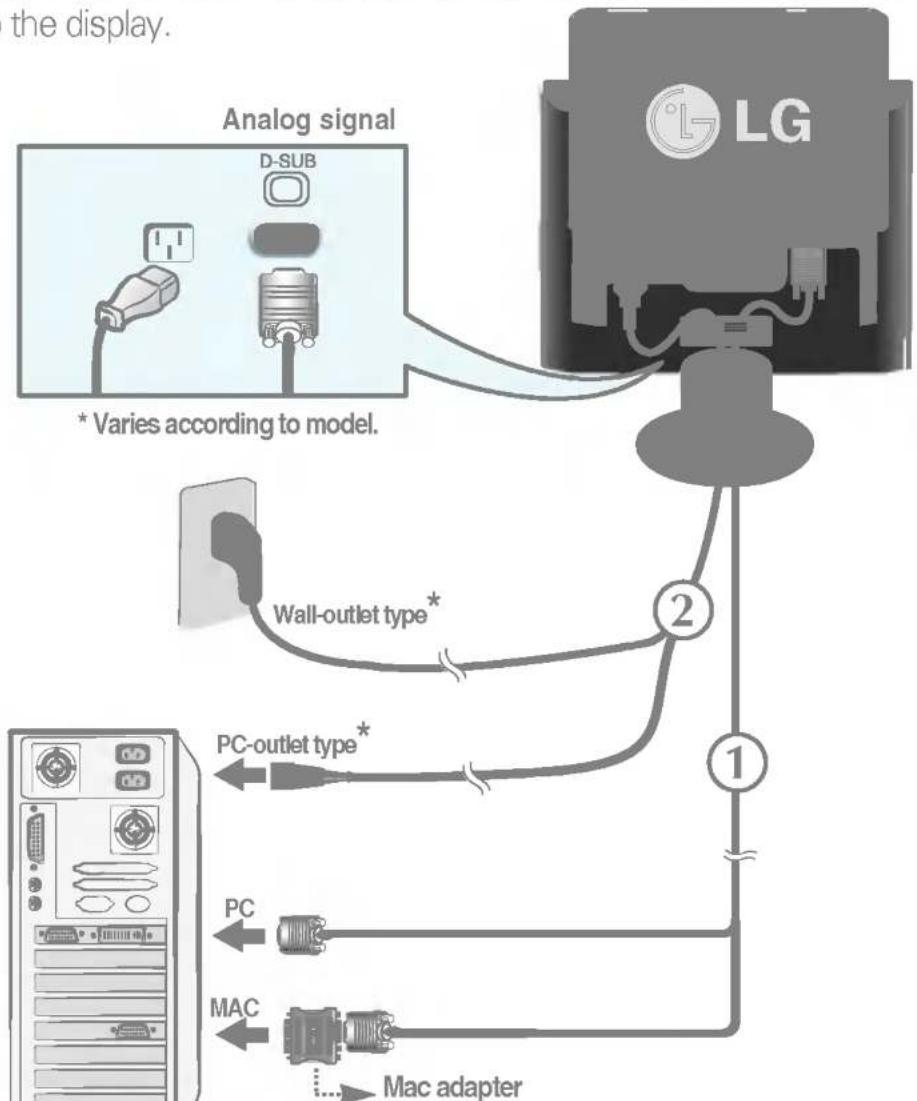

1. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and close to the display.

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.

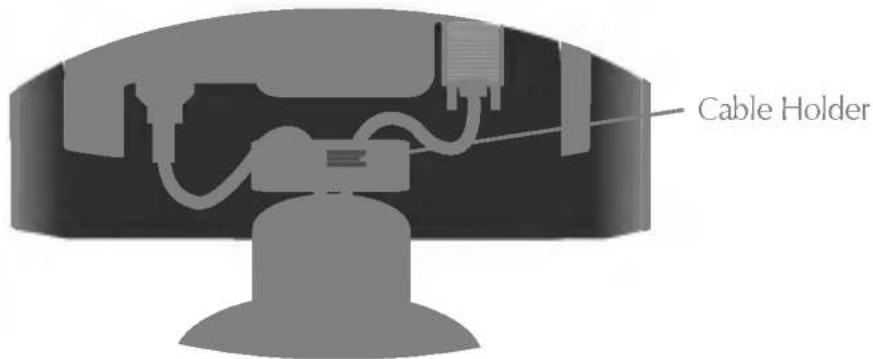

1. Connect the cables as shown in the figure to the cable holder to arrange it neatly.

Cable Holder

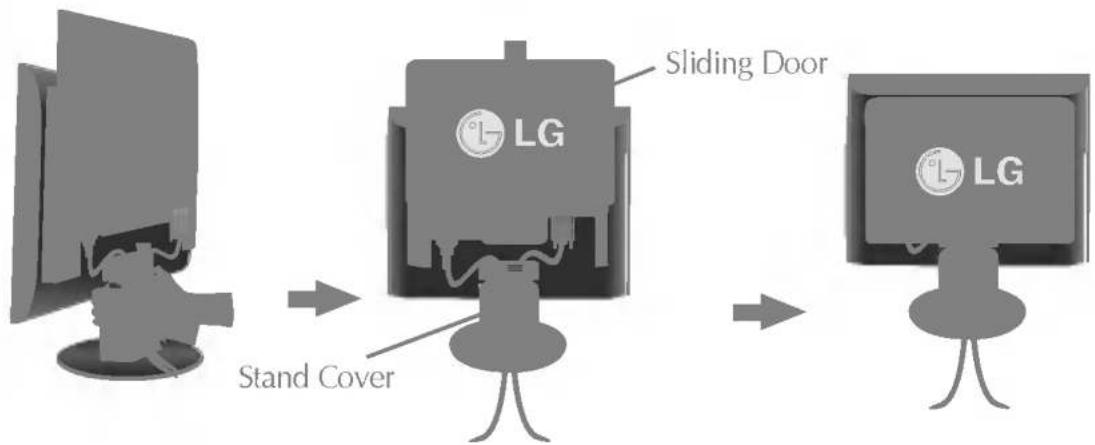

1. Connect the Stand Cover and then pull down the Sliding Door.

Sliding Door LG Stand Cover LG

1. Press ⏻ button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.

Solid gray image with no visible content, text, or symbols.

NOTE

' Self Image Setting Function'? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the 'AUTO' button on the front panel of the monitor. Otherwise, you may execute the 'FACTORY RESET' option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except 'LANGUAGE'.

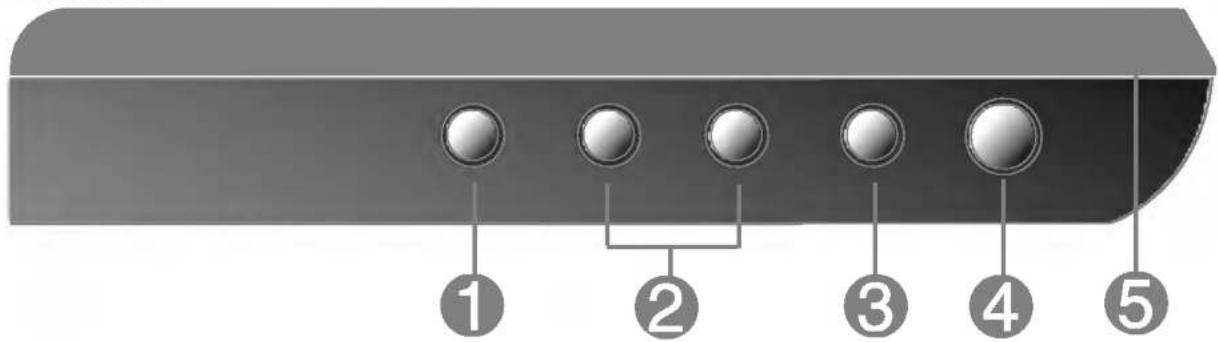

Front Panel Controls

Abstract geometric shape with gray and white blocks, no text or symbols present

Bottom

1 2 3 4 5

Control Function
1 MENU Button	Use this button to enter or exit the On Screen Display.
	OSD LOCKED/UNLOCKEDThis function allows you to lock the current control settings, so that they cannot be inadvertently changed.Press and hold theMENU buttonfor 5 seconds. The message "OSD LOCKED" should appear.You can unlock the OSD controls at any time by pushing theMENU buttonfor 5 seconds. The message "OSD UNLOCKED" should appear.
2 - + Buttons	Use these buttons to select or adjust functions in the On Screen Display.
	fEngine hot keyFor more information, refer to page A13

Control		Function
	SET/AUTO Button	Use this button to enter a selection in the On Screen Display.
		AUTO IMAGE ADJUSTMENTWhen adjusting your display settings, always press the SET/AUTO button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).The best display mode is17 inch monitor : 1280x102419 inch monitor : 1280x1024
	Power Button	Use this button to turn the display on or off.
	Power (DPMS) Indicator	This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

NOTE

- Allow the display to stabilize for at least 30 minutes before making image adjustments.

To make adjustments in the On Screen Display, follow these steps:

MENU → - + → SET/AUTO → - + → MENU

1 Press the MENU Button, then the main menu of the OSD appears.
2 To access a control, use the - or + Buttons. When the icon you want becomes highlighted, press the SET/AUTO Button.
③ Use the - / + Buttons to adjust the image to the desired level. Use the SET/AUTO Button to select other sub-menu items.
4 Push the MENU Button once to return to the main menu to select another function. Push the MENU Button twice to exit from the OSD.

Automatic save

With the OSD open, once you have made an adjustment the monitor automatically save any adjustments you have made, even if you exit the menu or open another menu. If you make an adjustment and then wait for the OSD to disappear, the adjustment will also been saved.

The following table indicates all the On Screen Display control, adjustment, and setting menus.

Main menu	Sub menu		Reference
PICTURE	BRIGHTNESS	●	To adjust the brightness, contrast and gamma of the screen
	CONTRAST	●
	GAMMA	●
COLOR	PRESET	●	To customize the color of the screen
	RED	●
	GREEN	●
	BLUE	●
POSITION	H POSITION	●	To adjust the position of the screen
	V POSITION	●
TRACKING	CLOCK	●	To improve the clarity and stability of the screen
	PHASE	●
FACTORY RESET	FACTORY RESET	●	To restore the default settings
	WHITE BALANCE	●
SETUP	LANGUAGE	●	To customize the screen status for a user's operating environment
	OSD H POSITION	●
	OSD V POSITION	●
FLATRON F-ENGINE(-)	TEXT/MOVIE	●	To select or customize desired image settings
	USER	●
	NORMAL	●
●: Adjustable

NOTE

■ The order of icons may differ depending on the model (A9\~A13).

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

Press the MENU Button, then the main menu of the OSD appears.

Menu Name Icons Sub-menus Button Tip MENU : Exit - + : Adjust (Decrease/Increase) SET ← : Enter ↓ : Select another sub-menu

NOTE

■ OSD (On Screen Display) menu languages on the monitor may differ from the manual.


■ MENU : Exit
- : Decrease
■ + : Increase
■ SET : Select another sub-menu

BRIGHTNESS

CONTRAST

GAMMA

To adjust the brightness of the screen.

To adjust the contrast of the screen.

Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display high contrast images.

COLOR

■ MENU : Exit
■ - : Decrease
■ + : Increase
■ SET : Select another sub-menu

PRESET

RED
GREEN
BLUE

Select the screen color.

• 9300K: Slightly bluish white.
• 6500K: Slightly reddish white.

Set your own red color levels.

Set your own green color levels.

Set your own blue color levels.

POSITION

■ MENU : Exit
- : Decrease
■ + : Increase
■ SET : Select another sub-menu

H POSITION

V POSITION

To move image left and right.
To move image up and down.

TRACKING

Five gray icons on a white background: document, refresh, monitor, gear, and file (no text or symbols)

CLOCK

To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.

PHASE

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

■ MENU : Exit
■ - : Decrease
■ + : Increase
■ SET : Select another sub-menu

FACTORY RESET

Four gray icons representing documents, tools, and computer monitors on a white background (no text or symbols)

FACTORY RESET

Restore all factory default settings except "LANGUAGE."

If you want to reset the monitor, select the YES and then press the - or + button to execute.

WHITE BALANCE

If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image. Activate this function when white and black colors are present in the screen.

■ MENU : Exit
■ - :Adjust
■ + :Adjust
■ SET : Select another sub-menu

For example

Two solid color blocks side by side, white on top and gray on bottom (no text or symbols)

If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.

If you want to adjust, select the YES and then press the - or + button to execute.

SETUP

LANGUAGE

To choose the language in which the control names are displayed.

OSD H POSITION

To adjust horizontal position of the OSD window on the screen.

OSD V POSITION

To adjust vertical position of the OSD window on the screen.

■ MENU : Exit
- : Decrease
■ + : Increase
■ SET : Select another sub-menu

■■ The OSD screen will appear when you press the F-ENGINE (-) button at the front side of the monitor.

Menu Name Icons USER Sub-menu Name

FLATRON F-ENGINE

When you execute F-ENGINE, two tones will appear on the screen as shown. The applied screen will appear on the left side, whereas the non-applied screen will appear on the right side. Press the SETbutton to use the adjusted screen.

Screen when applied Screen when not applied

TJPR ■ - + : Select another sub-menu

MOVIE TEXT

This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc).

MOVIE: For animation images in videos or movies

TEXT: For text images (Word processing etc.)

USE To adjust the USER sub-menu function, Press the SET Button ■ MENU : Exit ■ - : Decrease ■ + : Increase ■ SET : Select another sub-menu

USER

User

You can manually adjust brightness, ACE or RCM. You can save or restore the adjusted value even when using a different environment setting.

(Brightness): Adjusts screen brightness.
...ACE(Adaptive Clarity Enhancer): Selects the clarity mode.
...RCM(Real Color Management): Selects the color mode.

Not applied Green enhance Flesh tone Color Enhance

Select the 📋 sub-menu using the SET button and save the YES value using the -buttons.

Diagram showing a gray bar with four icons: a folder, a square labeled 'USER', and four icons below with navigation arrows.

NORMAL This is under normal operating conditions.

Check the following before calling for service.

No image appears
● Is the power cord of the display connected?	· Check and see if the power cord is connected properly to the power outlet.
● Is the power indicator light on?	· Press the Power button.
● Is the power on and the power indicator green?	· Adjust the brightness and the contrast.
● Is the power indicator amber?	· If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.· Make sure if the power is on.· Try to turn on the PC.
● Do you see an "OUT OF RANGE" message on the screen?	· This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
● Do you see a "CHECK SIGNAL CABLE"message on the screen?	· This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?
Do you see "OSD LOCKED" when you push MENU button?	You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing theMENU buttonfor 5 seconds. The message "OSD UNLOCKED" should appear.

Display image is incorrect

- Display Position is incorrect.

On the screen background, vertical bars or stripes are visible.

- Any horizontal noise appearing in any image or characters are not clearly portrayed.

The screen color is mono or abnormal.

The screen blinks.

- Press the SET/AUTO button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.

- Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

- Press the SET/AUTO button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.

- Press the SET/AUTO button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.

- Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

- Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.

- Make sure the video card is properly inserted in the slot.

- Set the color setting higher than 24 bits (true color) at Control Panel - Settings.

- Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

- Make sure the power voltage is high enough, It has to be higher than AC100-240V 50/60Hz.

Have you installed the display driver?
● Have you installed the display driver?	● Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.
● Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?	● Make sure to check if the video card supports Plug&Play function.
Display	17 inches (43.2cm) Flat Panel Active matrix-TFT LCD
	Anti-Glare coating
	17 inches viewable
	0.26 mm pixel pitch
Sync Input	Horizontal Freq.	30 - 83kHz (Automatic)
	Vertical Freq.	56 - 75Hz (Automatic)
	Input Form	Separate TTL, Positive/Negative
		SOG (Sync On Green)
Video Input	Signal Input	15 pin D-Sub Connector
	Input Form	RGB Analog (0.7Vp-p/75ohm)
Resolution	Max	VESA 1280 x 1024@75Hz
	Recommend	VESA 1280 x 1024@60Hz
Plug&Play	DDC 2B
Power Consumption	Normal	: 43W
	Stand-by/Suspend	≤ 2W
	DPMS Off	≤ 2W
Dimensions &Weight (with tilt stand)	Width	39.80 cm / 15.67 inches
	Height	40.33 cm / 15.88 inches
	Depth	22.00 cm / 8.66 inches
	Net	4.90 kg (10.80 lbs)
Power Input	Tilt	-5°~30°
	AC 100-240V~ 50/60Hz 1.0A
	Operating Conditions
	Temperature	10°C to 35 °C
	Humidity	10 % to 80 % non-Condensing
	Storage Conditions
	Temperature	-20°C to 60 °C
	Humidity	5 % to 95 % non-Condensing
	Attached( ), Detachable ( O )
	Attached( ), Detachable ( O )
	Wall-outlet type or PC-outlet type

NOTE

■ Information in this document is subject to change without notice.

Display	19 inches (48.26cm) Flat Panel Active matrix-TFT LCD
	Anti-Glare coating
	19 inches viewable
	0.294mm pixel pitch
Sync Input	Horizontal Freq.	30 - 83kHz (Automatic)
	Vertical Freq.	56 - 75Hz (Automatic)
	Input Form	Separate TTL, Positive/Negative
		SOG (Sync On Green)
Video Input	Signal Input	15 pin D-Sub Connector
	Input Form	RGB Analog (0.7Vp-p/75ohm)
Resolution	Max	VESA 1280 x 1024@75Hz
	Recommend	VESA 1280 x 1024@60Hz
Plug&Play	DDC 2B
Power Consumption	Normal	: 45W
	Stand-by/Suspend	≤ 2W
	DPMS Off	≤ 2W
Dimensions &Weight (with tilt stand)	Width	44.44 cm / 17.50 inches
	Height	43.83 cm / 17.25 inches
	Depth	22.00 cm / 8.66 inches
	Net	6.5 kg (14.33 lbs)
Tilt Range	Tilt	-5°~30°
	Swivel	300°
	AC 100-240V~ 50/60Hz 1.0A
Environmental	Operating Conditions
	Temperature	10°C to 35 °C
	Humidity	10 % to 80 % non-Condensing
	Storage Conditions
	Temperature	-20°C to 60 °C
	Humidity	5 % to 95 % non-Condensing
	Attached( ), Detachable ( O )
	Attached( ), Detachable ( O )
	Wall-outlet type or PC-outlet type

NOTE

■ Information in this document is subject to change without notice.

Preset Modes (Resolution)

● 17 inch monitor

1	VGA	640 x 350	31.469	70
2	VGA	720 x 400	31.468	70
3	VGA	640 x 480	31.469	60
4	VESA	640 x 480	37.500	75
5	VESA	800 x 600	37.879	60
6	VESA	800 x 600	46.875	75
7	MAC	832 x 624	49.725	75
8	VESA	1024 x 768	48.363	60
9	VESA	1024 x 768	60.123	75
10	MAC	1152 x 870	68.681	75
11	VESA	1152 x 900	61.805	65
12	VESA	1280 x 1024	63.981	60
13	VESA	1280 x 1024	79.976	75

19 inch monitor

1	VGA	640 x 350	31.469	70
2	VGA	720 x 400	31.468	70
3	VGA	640 x 480	31.469	60
4	VESA	640 x 480	37.500	75
5	VESA	800 x 600	37.879	60
6	VESA	800 x 600	46.875	75
7	MAC	832 x 624	49.725	75
8	VESA	1024 x 768	48.363	60
9	VESA	1024 x 768	60.123	75
10	MAC	1152 x 870	68.681	75
11	VESA	1152 x 900	61.805	65
12	VESA	1280 x 1024	63.981	60
13	VESA	1280 x 1024	79.976	75

Indicator

Normal	green
Stand-by/Suspend	amber
DPMS Off	amber

This monitor meets VESA-compliant mounting interface pad specifications.

1. Remove the Sliding Door and Stand Cover.

LG Sliding Door Stand Cover

1. Please the monitor on a piece of cloth or other soft surface with the front side facing downward.
2. Separate the stand base using a screwdriver as shown in the picture.

Illustration of a hand inserting a card into a device (no text or symbols visible)

1. Install the VESA standard wall mounting.

Diagram of a device with lens and optical components, showing light rays interacting with a screen (no text or symbols)

Kensington Security Slot- optional

Connected to a locking cable that can be purchased separately at most computer stores

VESA wall mounting

Connected to another object (stand type and wall-mounted type. This monitor accepts a VESA-compliant mounting interface pad.-optional) For further information, refer to the VESA Wall Mounting Instruction Guide.

Illustration of a medical pressure monitor with attached tubing (no text or symbols)

Digitally yours

LG
