USER MANUAL LC-40CFF4041K SHARP

LED TV with Freeview HD, Saorview & USB PVR

User Guide

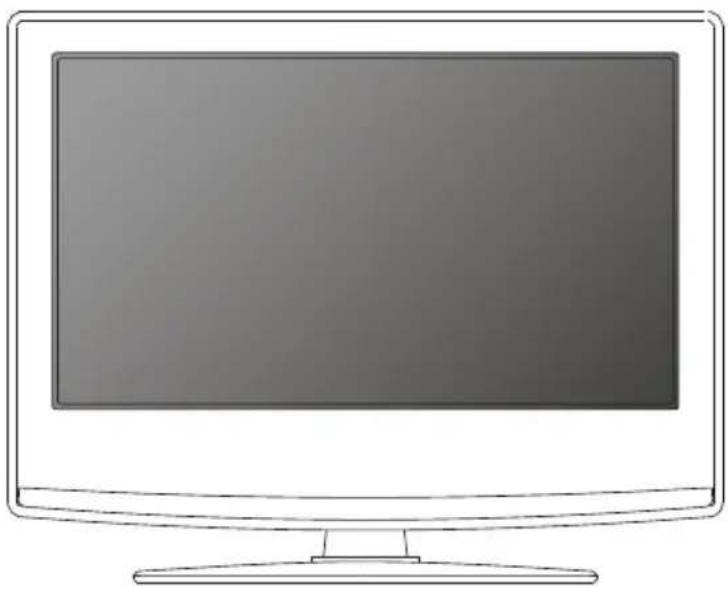

Line drawing of a flat-screen computer monitor with a blank screen (no text or symbols)

Model No

LC-32CHF4041K

LC-32DHF4041K

LC-40CFF4041K

LC-48CFE4041K

LC-48CFE4042K

Important safety instruction

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• Television sets with 40" screen size or more must be lifted and carried by at least 2 people.
• This television does not contain any parts that are serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

To prevent spread of fi re, keep candles or other open fl ames away from this product at all times

• To reduce the risk of fi re, electric shock or damage to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects fi lled with liquids on or near the TV.
• Do not connect any external devices (DVD player, games console etc) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.
• Do not place the television in a confined space and do not obstruct the ventilation openings at the rear of the television.
• When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation.
• Always ensure that the TV's ventilation openings are not covered with items such as newspapers, table-cloths, curtains, etc.
• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.
• Ensure this TV is used in moderate climates only.

WARNING: Never place a television set on an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Use cabinets or stands recommended by the manufacturer of the television set.
• Only use furniture that can safely support the television set.
• Ensure the television set is not overhanging the edge of the supporting furniture.
• Do not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Do not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Please educate children about the dangers of climbing on furniture to reach the television set or its controls.
• If your existing television set is being retained and relocated, the same considerations as above should be applied.

Safety

• For your safety, this appliance is fitted with a fused 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
  • Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
• The ideal distance to watch the television is approximately five times the length of the diagonal measurements of the TV screen.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the mains plug located on the underside/rear of the TV.
• Ensure that the mains plug is always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Important safety instruction

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need the original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important information regarding use of video games, computers, captions or other fixed image displays

The extended use of fi xed image program material can cause a permanent "shadow image" on the LCD/LED panel, also known as "screen burn".

This "shadow image" can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in use.
   Examples of images that are more likely to cause "screen burn" are as follows (this is not an exhaustive list):

- TV channel logos: e.g. shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

• Time displays.
• Teletext: Do not view a stationary page for a long period of time
  • TV/DVD menus: e.g. listings of DVD disc content.
• Pause mode: Do not leave the TV in pause mode for long periods of time, e.g. when watching DVDs or videos.

Important: Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Please dispose of the product at a designated collection point for recycling of WEEE. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
  Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries. Please consult your local authority.

Trademarks

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

HDTV

The "HD TV" Logo is a trademark of DIGITALEUROPE.

HDTV 1080p

The "HD TV 1080p" Logo is a trademark of DIGITALEUROPE.

HD READY

The "HD Ready" Logo is a trademark of DIGITALEUROPE.

HD READY 1080p

The "HD Ready 1080p" Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.

FREEVIEW

The FREEVIEW words and logos are trade marks of DTV Services LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

DOLBY AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

The "CI plus" Logo is a trademark of CI Plus LLP.

TV Models with built in DVD players

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CONTENTS

Manufacturers guarantee information....3

Important safety instructions....4-5

What is included in the box 8

Attaching / detaching the stand 9

Securing the TV to a wall / wall mounting 10

Remote control 11

TV buttons and Input Source menu....12

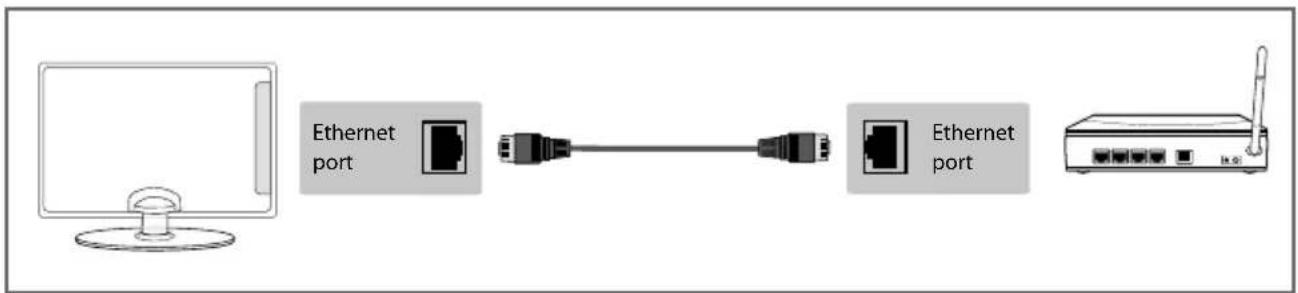

Connections....13-15

TV menu operation....16-23

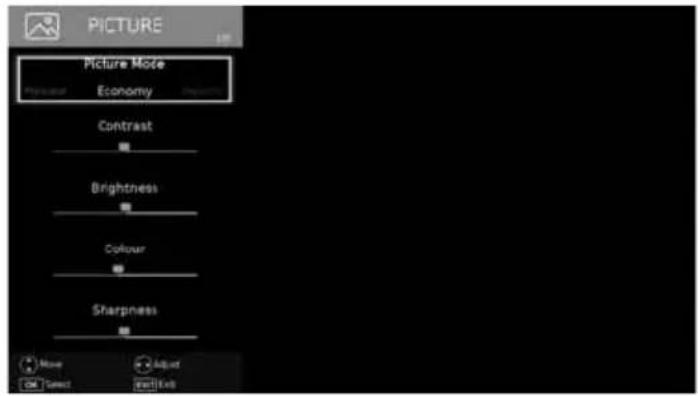

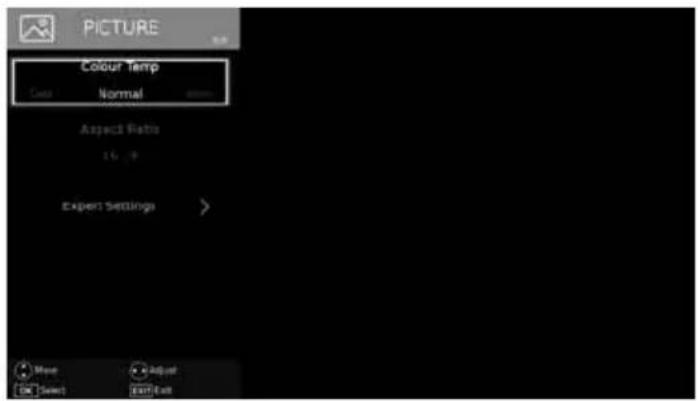

Picture menu 16-17

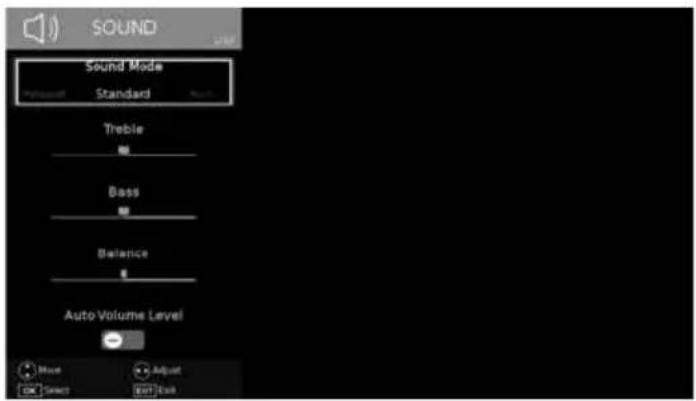

Sound menu....18-19

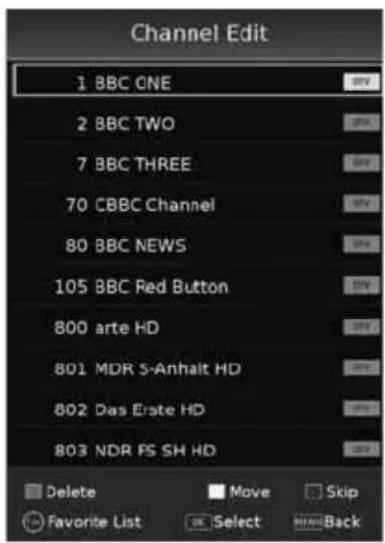

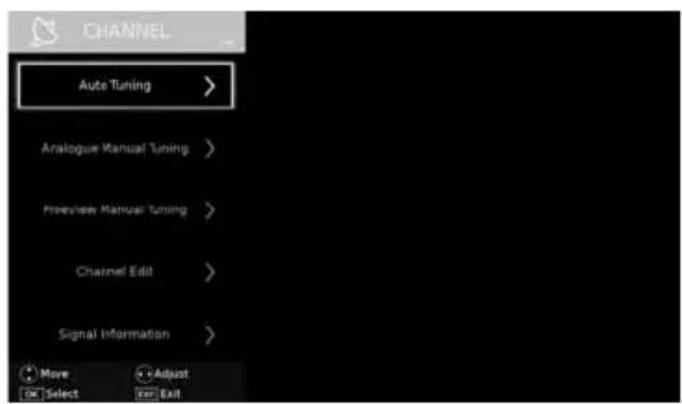

Channel menu 20

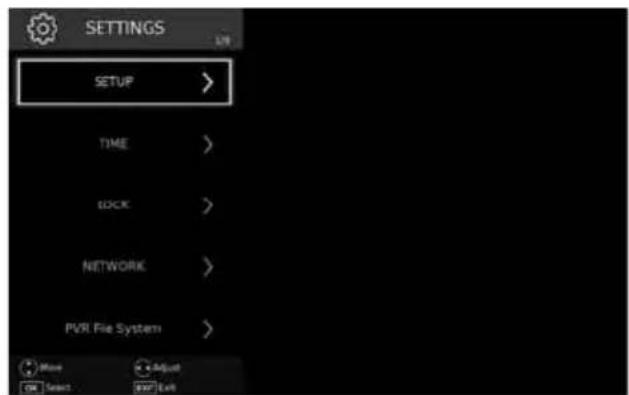

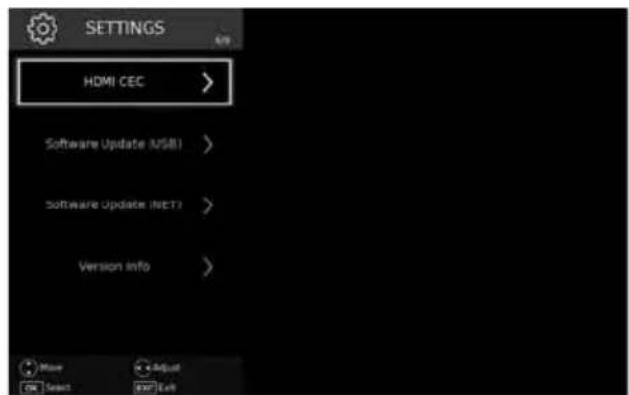

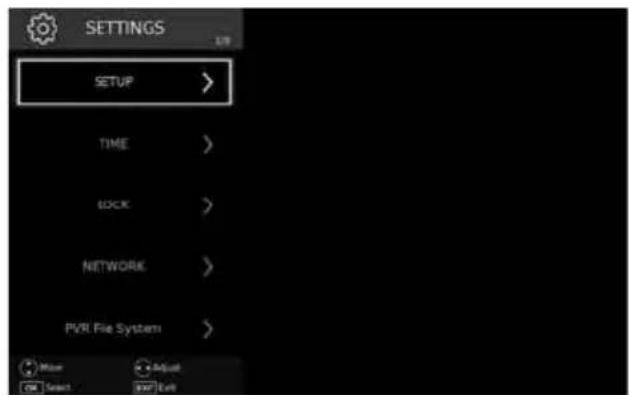

Settings menu....21-23

Lock menu 22

Time menu 22

Network menu....23

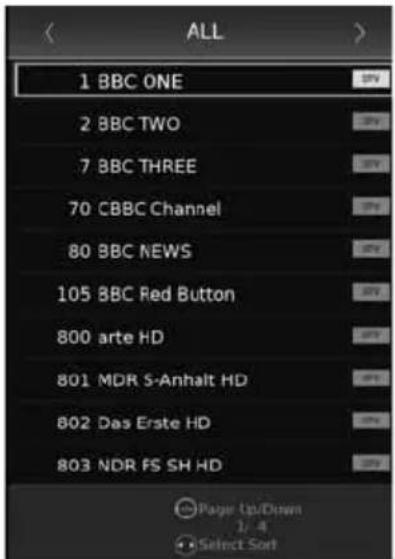

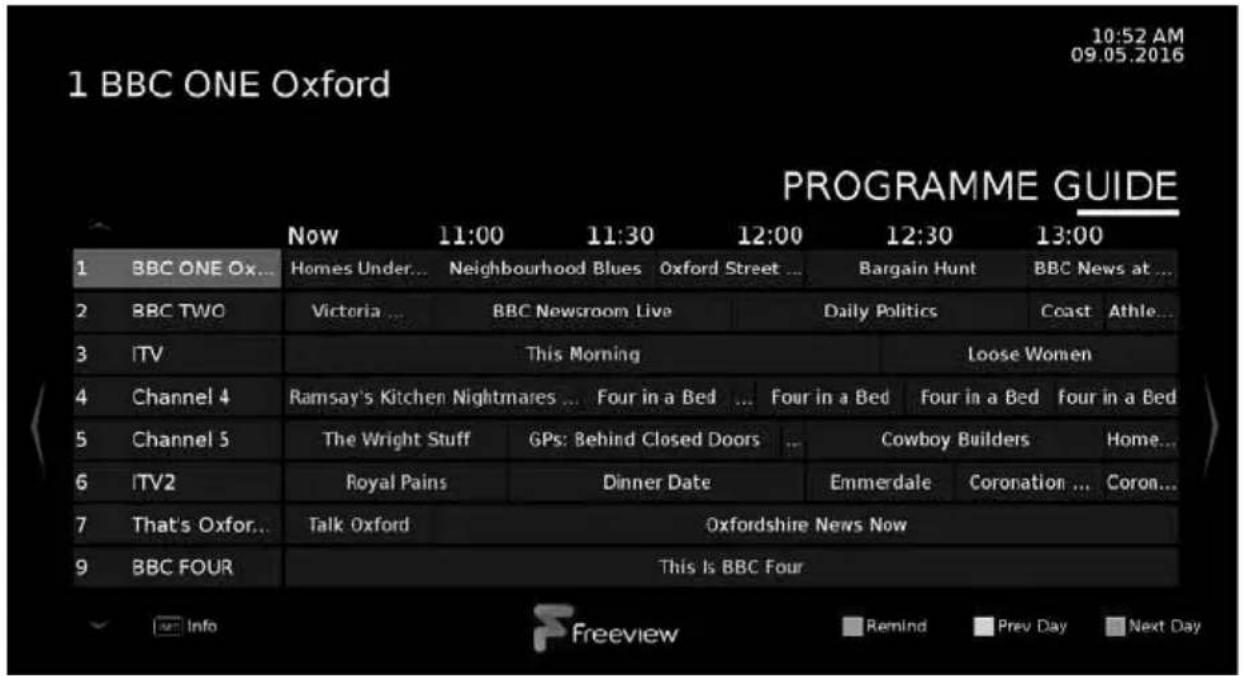

7 day TV guide and channel list....24

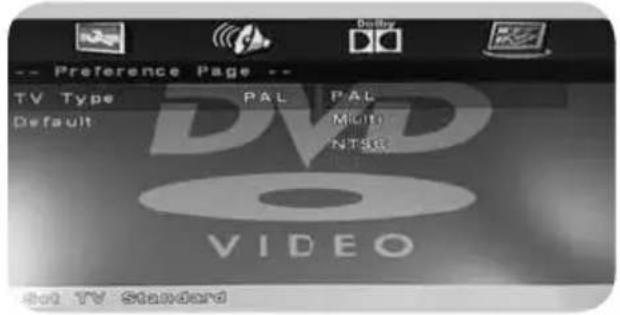

DVD setup 25

USB record - Freeview / Saorview....26

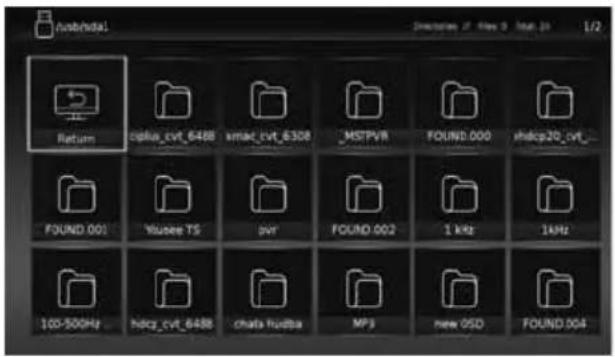

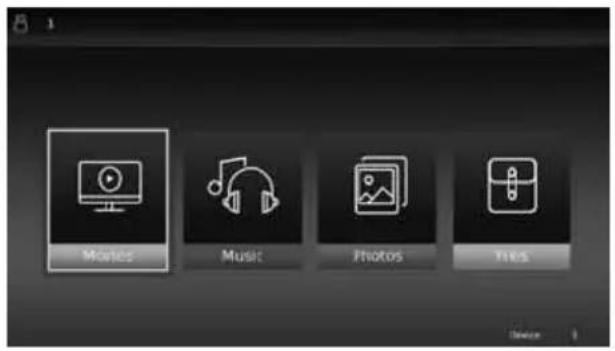

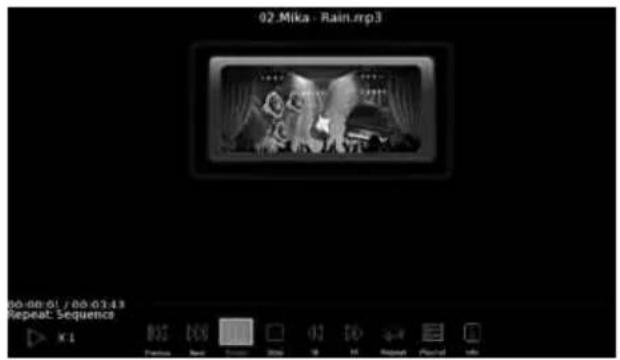

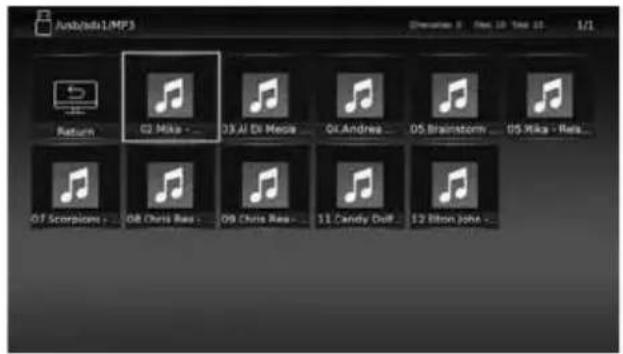

USB mode / media player 27

General information....29-37

Using your TV with a Sky digital set top box 29

Frequently asked questions 30-31

Technical specifications 32-37

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories.

1 x User guide

User guide

1 x Quick start guide

Quick start guide

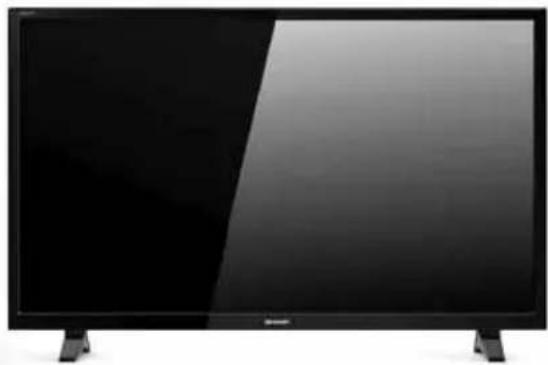

1 x TV

Front view of a black flat-screen television displaying a blank screen (no text or symbols visible)

1 x RF cable

Coiled black cable with connectors, no visible text or symbols

1 x Remote Control

2 x AAA Batteries

1 x Stand installation pack

1 x L (left) 1 x R (right)

Screw quantity will vary, see below.

(Included with LC-32CHF4041K, LC-32DHF4041K and LC-40CFF4041K models only).

(Included with LC-48CFE4041K and LC-48CFE4042K models only).

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING THE STAND

Attaching the stand

To complete the stand feet installation you will require a cross head screw driver.

Screws that are included.

For LC-32CHF4041K, LC-32DHF4041K and LC-40CFF4041K models only.

For LC-48CFE4041K, LC-48CFE4042K models only.

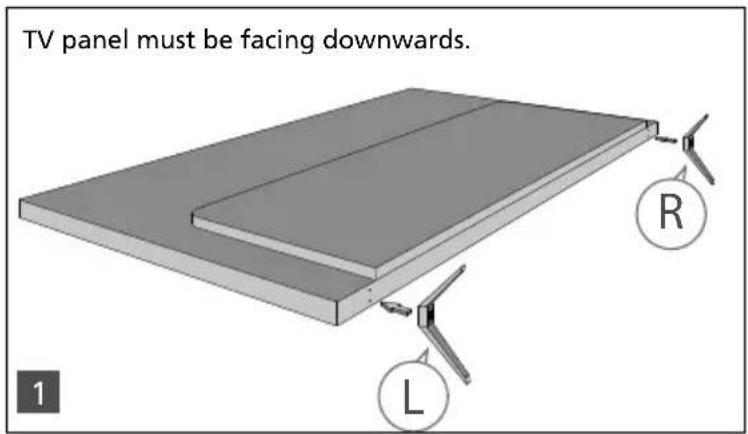

TV panel must be facing downwards. R L 1

(fi g.1) Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage, then fi x the stand feet shown. The feet are marked L (left) and R (right).

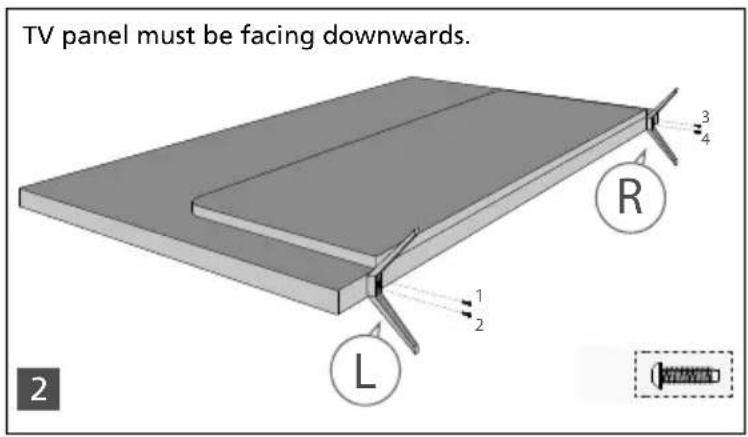

TV panel must be facing downwards. R 1 2 L 3 4 2

(fi g.2) Secure the stand feet to the underside of the TV set using the screws provided.

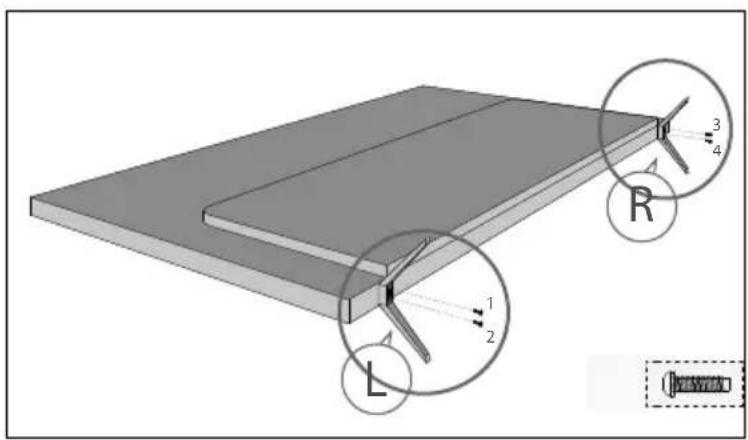

Detaching the stand

Remove the screws highlighted then remove the stand feet from the underside of the TV set.

Technical diagram of a layered structure with labeled components L, R, and numbered parts 1-4

SECURING THE TV TO A WALL

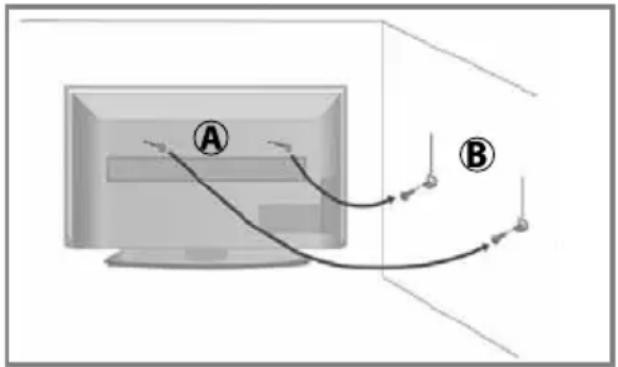

Securing the TV to a wall with anti-tip straps

For maximum security in the home when using a TV with its stand anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening cord/s to the TV.

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores).

Diagram showing two labeled points (A and B) connected by curved lines, possibly indicating a path or connection between them.

Diagram of a vertical panel or screen mounted on a base, with no visible text or symbols.

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions. RoSPA stated in 2010 that "Toddlers are particularly at risk of pulling fl at-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images." The risk is increased as televisions become lighter.

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electrical wires, water or gas pipes.

Simple line drawing of a rectangular frame with four dots and two small symbols at the bottom (no text or labels)

1) Remove the four screws highlighted that are supplied in the wall mounting holes.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV.

For VESA wall mounting information please refer to the Technical Specification page.

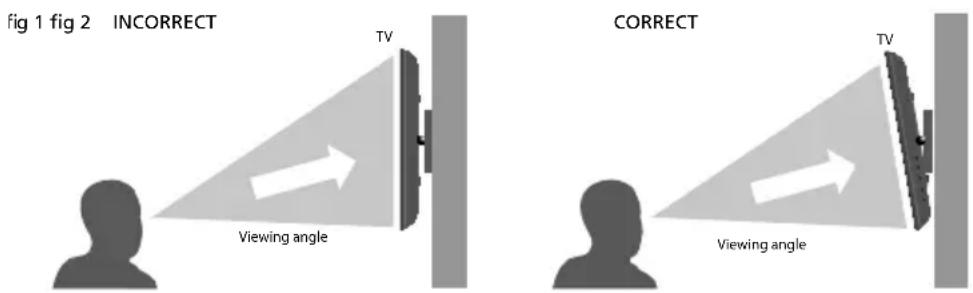

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2.

fig 1 fig 2 INCORRECT TV Viewing angle CORRECT TV Viewing angle

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

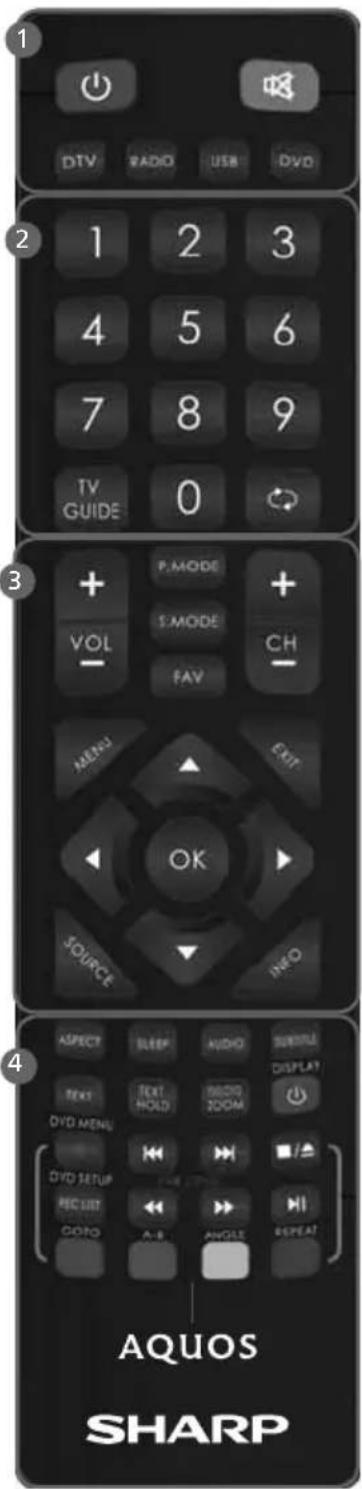

REMOTE CONTROL

Key

For models with integrated DVD players.

For models with PVR Function.

For models with USB Playback.

STANDBY - Switch on TV when in standby or vice versa.

MUTE - Mute the sound or vice versa.

DTV - Switch to digital source.

RADIO - Switch to radio whilst in digital TV source.

USB - Switch to USB source.

DVD - Switch to DVD source.

NUMBER BUTTONS - 0-9 to select a TV channel directly.

TV GUIDE - Opens the 7 day TV guide (digital TV mode).

- To return to the previous channel viewed.

VOL (+/-) - To increase/decrease the sound level.

P.MODE - Scrolls through picture mode options.

S.MODE - Scrolls through sound mode options.

FAV - To display favourites menu.

CH (+/-) - To increase or decrease the channel being watched.

MENU - To display OSD menu.

EXIT - To exit all menus.

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust .the system settings to your preference.

SOURCE - To display the input/source menu.

INFO - Press once for now/next channel information.

- Press twice for information about the current programme.

ASPECT - To switch the screen between the different picture formats.

SLEEP - Press repeatedly to cycle through the sleep options.

AUDIO - To change the audio language (if available).

SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).

TEXT - To enter/exit Text.

TEXT HOLD - Teletext mode - Holds current page which is displayed (Analogue TV).

DISPLAY - To switch off the screen when listening to radio.

TEXT/DVD ZOOM - Zoom function for Teletext and DVD.

DVD MENU/RECORD - Access the DVD menu and USB record function.

- To restart the current chapter

▶ To advance forward to the next chapter

■/▲ - To stop the playback/Eject Disc

(To EJECT the disc press/hold the ▪ button for 4 seconds)

◀ - To play in fast rewind mode

▶▶ - To play in fast forward mode

▶ - To play/pause

DVD SETUP/REC LIST - Opens up DVD menu or opens the list of what has been previously recorded.

GOTO - To go to a specific chapter.

A-B - Press once to set point, press a second time to return to point.

ANGLE - Select different angle of DVD.

REPEAT - To repeat playback.

1 DTV RADIO USB DVD 2 1 2 3 4 5 6 7 8 9 TV GUIDE 0 3 + VOL P.MODE S.MODE CH FAV MENU EXIT OK SOURCE INFO 4 ASPECT SLEEP AUDIO SURITU TEXT TEXT MOLD VIDEO DISPLAY DVD MENU DVD SETUP ■/▲ RECIUT ■/▲ COTO A-B ANGLE REPEAT AQUOS SHARP

TV BUTTONS AND INPUT SOURCE MENU

STANDBY SOURCE MENU CH- CH+ VOL- VOL+ 1 2 3 4 5 6 7

1 Standby Power On/Off
2 Displays the input source menu
3 Displays Menu/OSD
4 Programme/Channel down and menu down
5 Programme/Channel up and menu up
6 Volume down and menu left
7 Volume up and menu right

Note: The shape of the TV buttons may vary by model.

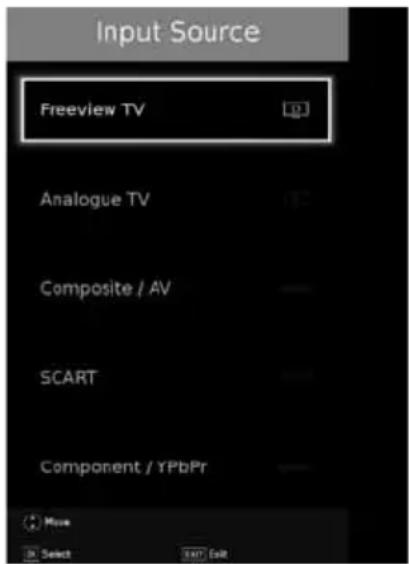

Choosing Mode Input/Source

Use the source menu to switch between input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.
2) Press [V] or [A] to select the input you require.
3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].
2) Scroll up / down using CH+/CH- buttons to the input/source you require.
3) Press Vol+ to change input/source to the one selected.

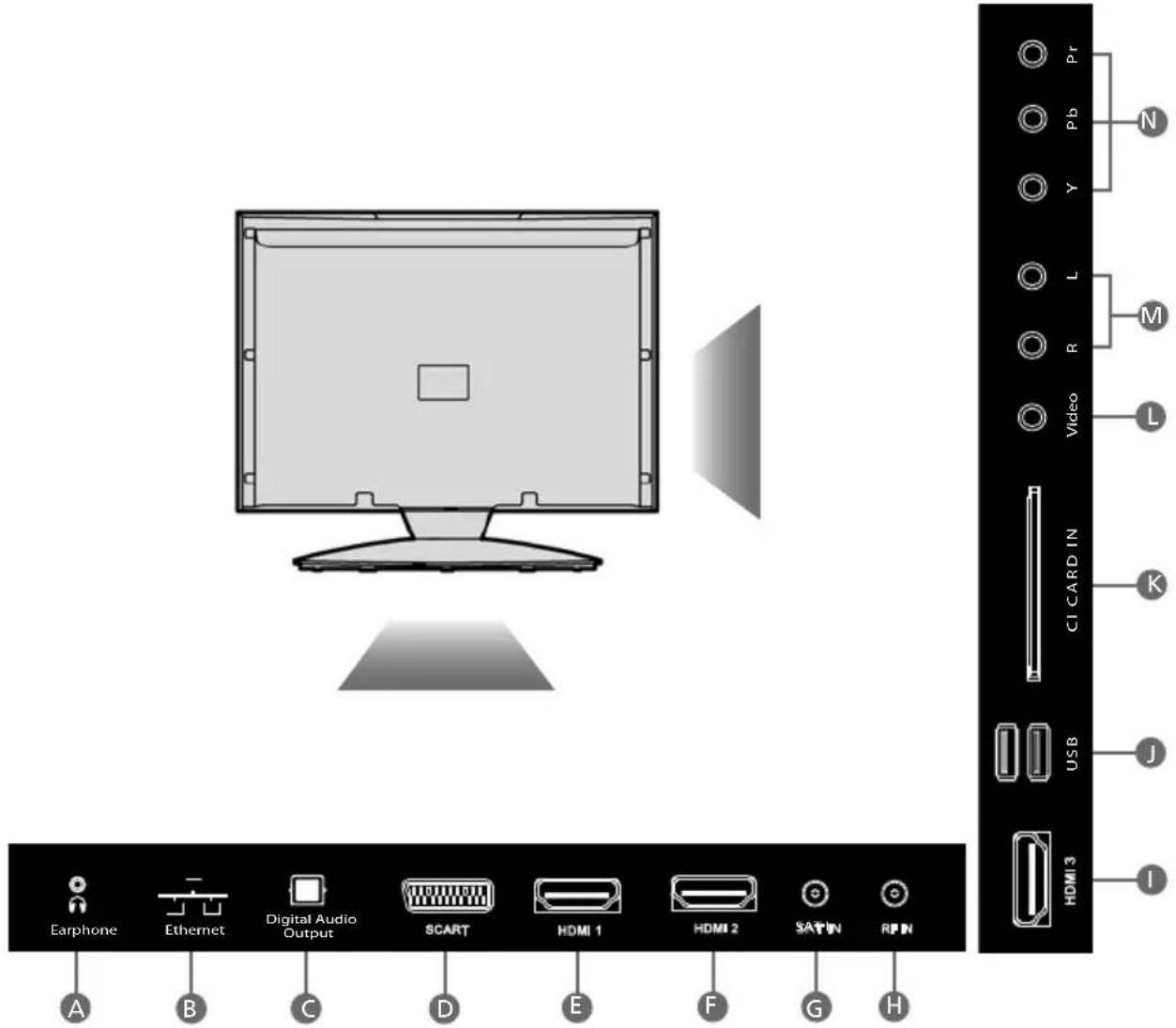

For further information on input/connections please view 'Connections' pages.

Input Source Freeview TV Analogue TV Composite / AV SCART Component / YPbPr Move Select ADD Select

An example of the 'Input Source' menu (will vary by model)

CONNECTIONS

Earphone Ethernet Digital Audio Output SCART HDMI 1 HDMI 2 SATIN RPN CI CARD IN USB J L Video M Y Pb Pr A B C D E F G H

EARPHONE Earphone socket

B LAN* Network connected USB port Digital audio Digital optical audio output CI car/Sin Common interface module D SCART SCART input Video Composite Video/CVBS input HDM E (ARC) HDMI input M L/R L/R Audio shared for Composite Video/CVBS and component/YPbPr HDM F HDMI input RF IN GRF/TV Aerial Input YPbFN HD input (Ypbpr) SAT H+ Satellite input

*The LAN/Ethernet port is used for Freeview HD services.
** Satellite input for the LC-48CFE4042K model only.

CONNECTIONS

Note: Connecting cables are shown for example only and may not be included. Please check 'What Is Included In The Box' page.

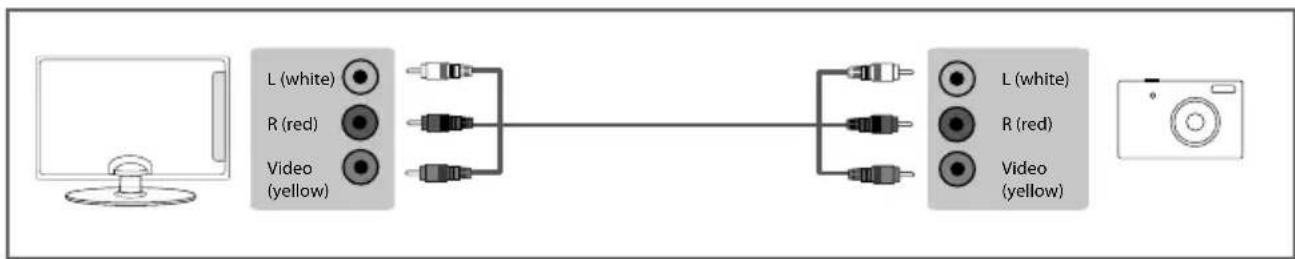

Connecting to a device with Composite AV/Video output TV source should be set to Composite/AV


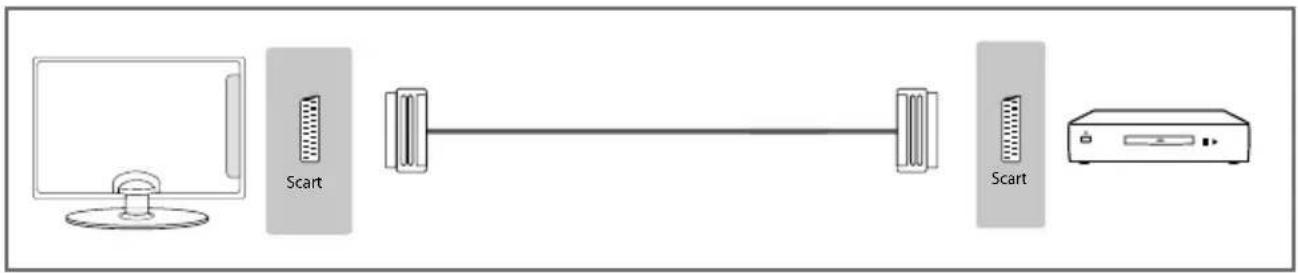

Connecting to a device with SCART output

TV source should be set to SCART

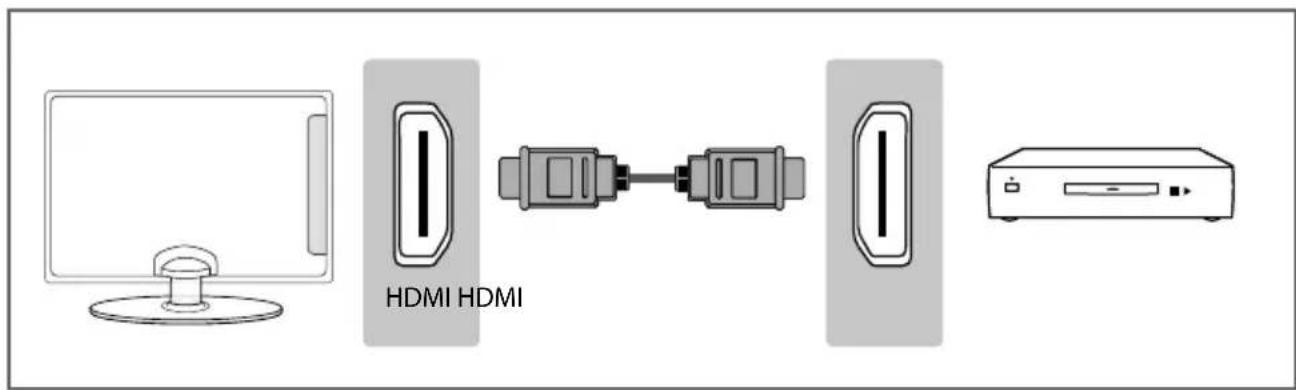

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TV source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

HDMI HDMI

CONNECTIONS

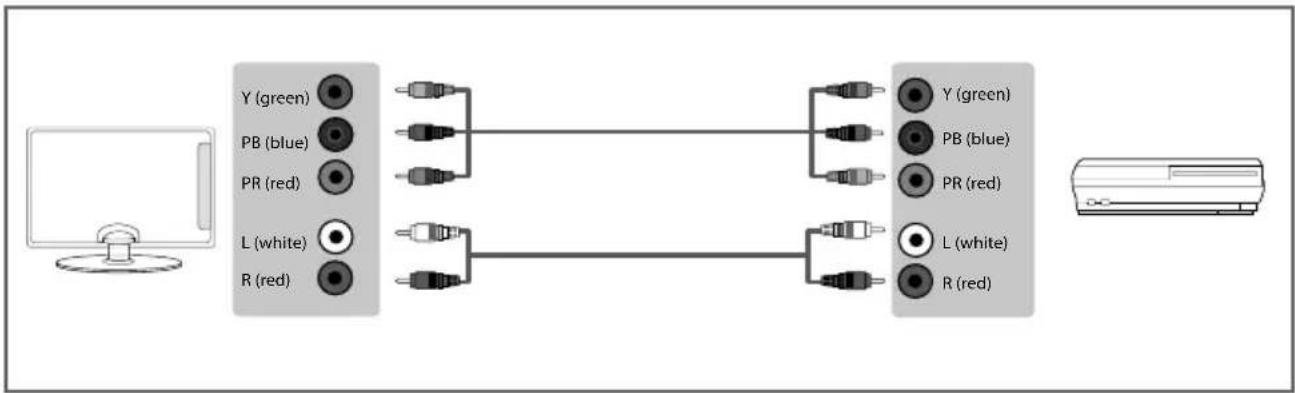

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has red, green, blue, red & white connectors you must connect via Component (for picture) and by phono cable (for sound).

TV source should be set to Component/YPbPr


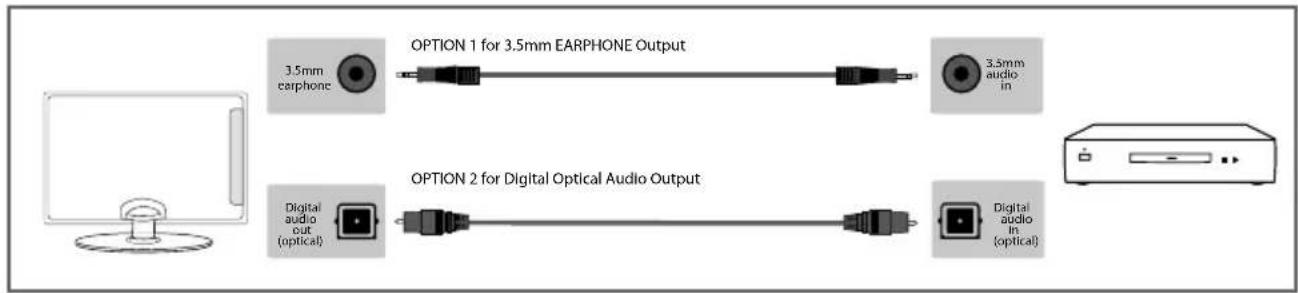

Connecting to an external audio device (Amplifi ers, Surround Sound, Sound Bars etc)

When connecting via the TV's 3.5mm earphone output, this will disable the TV speakers.

OPTION 1 for 3.5mm EARPHONE OUTPUT 3.5mm carphone 3.5mm audio in OPTION 2 for Digital Optical Audio Output Digital audio out (optical) Digital audio in (optical)

Connecting an Ethernet/Network cable

The LAN/Ethernet port is used for Freeview HD services.

PICTURE MENU

PICTURE Picture Mode Economy Contrast Brightness Colour Sharpness Move Adjust Close Watt-Ext

MENU EXP OK SOURCE INFO

To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures
Standard	Standard settings
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Economy Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

You can make the following adjustments in Personal mode:

• Contrast - Switch the balance between black and white.
• Brightness - Increase or decrease the brightness of the picture.
  • Colour - Increases the colour from black and white.
• Tint - Lets you increase or decrease the level of tint within the picture (only available for NTSC input signal).
• Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature Choose from the following presets:

Normal	Default settings
Warm	Increases red within the picture
Cold	Increases blue within the picture

PICTURE MENU

PICTURE Colour Temp Case Normal Aspect Ratio 15.9 Expert Settings > Move OK (Start) Adjust EXPExt

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶▲ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs. Choose from the following settings:

Auto

Automatically displays the best picture format so the picture is in the correct position, black lines maybe viewable at the top/bottom and/or sides.

4:3

Illustration of a computer monitor with a central screen and surrounding circular elements (no text or symbols)

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen

Full Screen

Computer monitor with five circular windows on a gray background (no text or symbols)

Displays a picture in the full screen mode without overscan. 16:9 signal will be displayed in original proportion. Other picture format will be stretched to fill the screen.

Illustration of a computer monitor with five circular windows on the left (no text or symbols)

Fills the screen with a regular 16:9 signal and 4:3 picture format will be stretched to fi ll the screen

Zoom1 and Zoom 216:9

Illustration of a computer monitor with a central blank screen and surrounding circular design (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

Noise Reduction - Allows you to switch noise reduction ON or OFF.

SOUND MENU

SOUND Sound Mode Standard Treble Bass Balance Auto Volume Level Move Adjust Select OK Add Exit User

MENU EXIT OK SOURCE HFO

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Sports	Emphasises sound for sports
Personal	Selects your personal sound settings

You can make the following adjustments in Personal mode:

• Treble - Allows you to adjust treble levels to suit your listening preferences.
• Bass - Allows you to adjust bass levels to suit your listening preferences.
  • Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When 'on' is selected, the volume will attempt to stay at a constant level regardless of TV programme and advertisements.

DTS TruSurround - Choose from the following presets

Off	Off
On	On - TruSurroundTM creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

SOUND MENU

SOUND DTS YuSurround Digital Output PCM Audio Description All Options AudioTrack Move Adjust Select Next Cut

MENU EXIT OK SOURCE INFO

Digital Output - This is the digital optical audio output. Choose from the following options:

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via optical cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

Audio Description - This allows the user to switch Audio Description ON or OFF. (Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired).

AD Volume - This allows the user to increase and decrease the AD (Audio Description) volume level.

CHANNEL MENU

CHANNEL Auto Tuning > Analogue Manual Tuning > Preview Manual Tuning > Channel Edit > Signal Information > More + Adjust Select Add Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue devices.

Analogue Manual Tuning - Allows you to manually tune your analogue signal.

Freeview/Saorview Manual Tuning* - Allows you to manually tune your digital signal.

Channel Edit - Allows you to delete, move, skip and select favourite channels.

Channel Edit 1 BBC CNE 2 BBC TWO 7 BBC THREE 70 CBBC Channel 80 BBC NEWS 105 BBC Red Button 800 arte HD 801 MDR S-Anhalt HD 802 Das Erste HD 803 NDR PS SH HD Delete Move Skip Favorite List Select Move Back

Important: To receive Freeview/Saorview channels, in particular HD channels, you will need a Digital TV aerial and be in a good Freeview/Saorview coverage area. You can check the coverage for your area at www.freeview.co.uk or www.saorview.ie

Please note that any Freeview HD channels found during tuning will be placed in channel positions above 100. For example, 101 (BBC1 HD) 102 (BBC2 HD) etc.

*Freeview channels are only available in the UK, Saorview channels are only available in the ROI.

Signal Information - Allows you to view signal frequency, signal quality and signal strength.

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Recorded List - Shows a list of recorded TV programmes.

Schedule List - Lists your programme reminders.

OAD (Software Update) - Switch on/off OAD (over air download) software updates.

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu

SETTINGS MENU

SETTINGS SETUP > TIME > LOCK > NETWORK > PVR File System > More Adjust OK Select OK Use

MENU EXIT OK SOURCE INFO

Set Up - Choose from the following options:

• Language - Allows you to change the language of the menu.
  • Audio Language - Select your preferred primary audio language.
  • Audio Language 2 - Select your preferred secondary audio language.
• Subtitle Language - Select your preferred primary subtitle language.
• Subtitle Language 2 - Select your preferred secondary subtitle language.

- Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

- Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).

- LED Status - Allows the user to switch the LED power indicator light ON or OFF when the TV being operated. (When this option is set to OFF the LED power indicator light will flash when the remote control is used).

- First Time Installation - Allows you to access the First Time Installation menu and retune the TV set.

- Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.

- Store Mode - switch ON/OFF shop demonstration mode (available only if store mode was selected during first time installation).

Time Menu - Choose from the following options:

TIME AUTO SYNC OFF On Change Off OFF Timer > On Time > Sleep Timer OFF Noise On Tumor On Time On Time On Time

• Auto Sync - When this option is set to ON the TV will automatically set the time, select OFF to access the 'Time' option and manually set the time.
• Time - Allows you to manually set the time, only available when Auto Sync is set to OFF.
• Off Time - Allows you to set a specific time for your TV to turn off.
• On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.
• Sleep Timer - Lets you set the sleep timer so the television automatically switches

off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

- OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing. Off -> 5secs -> 15secs -> 30secs -> 60secs.

• Auto standby - Set 'Auto Standby' to OFF, 3 hours, 4 hours or 5 hours.

• Time Zone - Change your current time zone.

SETTINGS MENU

SETTINGS SETUP > TIME > LOCK > NETWORK > PVR File System > More Adjust OK Select OK Use

MENU EXIT OK SOURCE INFO

Lock menu - Choose from the following options:

LOCK System/Metal Lock Change Password > Channel Lock > Parental Guidance Off Move Select Adjust Exit

• System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit passwordUse the ◀ button to quit the password input or use the ▶ button to clear. Default password is 0000.
• Change Password - Allows you to change the password.
• Channel Lock - Allows you to lock certain channels manually.

• Parental Guidance - Allows you to set the rating to block certain content based on age information.
  • TV Button Lock - Allows you to lock the buttons on the side of the TV set.

• Default Source - Allows the user to set the default source. The default source is the source the TV starts on when first switched on.

• Default Channel - Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when fi rst switched on.
• Max Volume - Allows you to adjust and set the maximum volume.
• Source Lock - Allows you to lock the source menu.

Network menu - Choose from the following options:

IP Config Network Info Network Text Move Adjust Select Exit

The Network connection is only intended to access Pay TV services from your Freeview/Saorview broadcaster. Please note, the TV cannot be used for internet access.

For the network configuration to work the TV will need to be connected to your home network via an ethernet cable, with these requirements in place the TV will connect to the network automatically.

Choose from the following options:

- IP Config - Allows you to access LAN network connection settings. choose from the following options:

Auto Will automatically connect the TV to your home network(this is the default setting and is highly recommended)

Manual Allows you to manually change the IP, Netmask, Gateway and DNS information.

• Network Info - Allows you to view Information about network settings
• Network Test - Allows you to test the network connection.

SETTINGS MENU

SETTINGS HDMI CEC > Software Update (USB1) > Software Update (NET2) > Version info > More Select Adjust OK Select OK Left

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll button. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

PVR File System - PVR Recording options:

Select disk Select USB port and disk partition

TimeShift Size Set size time of shift buffer.

Format Start You can format connected USB storage device to FAT 32 file system.

WARNING: ALL DATA ON THE USB DEVICE WILL BE DELETED

Speed check Tests write speed of connected USB storage devices.

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices).

Software Update (USB) - Allows you to update your TV with the newest software using a USB memory stick. Software and instructions are available on our website.

Software Update (NET) - Allows you to update your TV with the newest software via your internet connection. This will require the TV to be connected to the internet and have a blank USB memory stick inserted in to the USB input of the TV. The software will be downloaded on to the blank USB memory stick and then complete the update process.

Version Info - Allows you to view the version/information of the software installed on the TV set.

Note: For further support with software updates, contact our technical support team or refer to the 'product support' section of the website. If the TV is using the newest software available it will not attempt to update the software.

7 DAY TV GUIDE

TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming programmes (where supported by the Saorview/Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE] on the remote control, the following 7 Day TV Guide will appear.

1 BBC ONE Oxford 10:52 AM 09.05.2016 PROGRAMME GUIDE Now 11:00 11:30 12:00 12:30 13:00 1 BBC ONE Ox... Homes Under... Neighbourhood Blues Oxford Street ... Bargain Hunt BBC News at ... 2 BBC TWO Victoria ... BBC Newsroom Live Daily Politics Ceast Athle... 3 ITV "This Morning Loose Women 4 Channel 4 Ramsay's Kitchen Nightmares ... Four in a Bed ... Four in a Bed Four in a Bed four in a Bed 5 Channel 5 The Wright Stuff GPs: Behind Closed Doors Cowboy Builders Home... 6 ITV2 Royal Pains Dinner Date Emmerdale Coronation ... Coron... 7 That's Oxford... Talk Oxford Oxfordshire News Now 9 BBC FOUR "This Is BBC Four ✓Info Freeview Remind Prev Day Next Day

2) Navigate through the menu using

You can now:

Record a programme by pressing RED (USB device must be connected)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide

Channel List

To view the channel list, please ensure that the TV is set to either the analogue or digital source and no menus or TV notifications are displayed.

ALL 1 BBC ONE 2 BBC TWO 7 BBC THREE 70 CBBC Channel 80 BBC NEWS 105 BBC Red Button 800 arte HD 801 MDR S-Anhalt HD 802 Das Erste HD 803 NDR FS SH HD Page Up/Down 1:4 Select Sort

1) Press [OK] on the remote control and the channel list menu will appear.
2) Press LEFT / RIGHT arrow to fi Iter desired channel types (Digital TV, Radio, All).
3) Scroll through the channel list by using ▲buttons then press [OK] to view the channel that is currently highlighted.
4) Press [EXIT] to exit the channel list.

DVD SETUP

Applies to TV models with built in DVD player only.

-- Preference Page -- TV Type PAL PAL Default Mio NTSC VIDEO Hot TV Standard

MENU EXIT OK SOURCE INFO

To enter this menu please ensure the TV is in DVD source & press [DVD SETUP]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [DVD SETUP] button.

TV Display - Choose from the following options

4:3 Pan scan	PS Traditional picture format, often used on old fi lm
4:3 Letter box	LB Traditional picture which has been adapted for widescreen
Wide 16:9 Widescreen picture format

Speaker Setup - Choose from the following options

LT/RT	Converts from multi-channel sound to mono
Stereo	Converts from multi-channel sound to stereo

Dual Mono - Choose from the following options

Stereo	Outputs 2 channels of sound both left and right
Mono L	Outputs left side sound
Mono R	Outputs right side sound
Mix Mono	Outputs a single channel of sound but mix between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full	Set this to	listen with the range recorded on the disc
3/4	Set this to	listen with a range equivalent to a normal television
1/2	Set this to	listen with a smaller difference between the maximum and minimum volume
1/4	Set this to	listen with a smaller difference between the maximum and minimum volume
Off		Set dynamic range to off

TV Type - Choose from the following options

PAL For discs from UK/Europe, Asia, Australia etc

Multi For both NTSC and PAL

NTSC For discs from North America, Japan etc

Default - Choose from the following options

Reset Resets all options in the 'DVD setup' menu back to the default settings

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk. Select 'Product Support', 'Changing Region'.

USB RECORD - FREEVIEW/SAORVIEW MODE

Built into this television is a USB record facility. This function is available in Freeview/Saorview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
• One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/website.

Minimum specification - USB Memory Stick

Read Speed 80 Mb/s (Megabit Per Second)

Write Speed 40 Mb/s (Megabit Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause live TV (time shift)

Pausing Live TV is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the time shift memory is wiped. To restart time shift you must press play/pause button.

One button record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Freeview/Saorview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB MODE/MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi le type.

Movies Music Photos Flats

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons on the remote control, to confirm the item you wish to play/view press the [OK] button.

roshital Return come_cvt_6488 xmac_cvt_6308 MSTPVR FOUND.000 rhdcp20_cvt_ FOUND.001 Yousee TS Syr FOUND.002 1 kHz 1kHz 100-500Hz hdcp_cvt_6488 chata_fudbla MP3 new OSD FOUND.004

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

Ausbada LIMP3 Return 02 Mike - 13 Al El Meira 01 Andres 05 Brainstorm 05 Mike - Ries 07 Scorpions - 08 Chris Ris - 09 Chris Ris - 11 Candy Doll - 12 Simon John -

3) You can now access the item. Press OK to view.

02.Mika - Rain.rrp3 10:00:01 / 00:03:43 Repeat Sequence x1 815 2.08 42 D +/- +/-

4) Whilst viewing your media, you can control the item by using the remote control buttons (below) or by pressing (Info) to access the on-screen playback menu, you can now make your selection by using the ▲and(OH) buttons on the remote control.
Fig.A

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound) See technical specification page for compatible file types

Note: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately).

If connecting by SCART, select the 'Input source' on the TV as SCART. If your TV does not have SCART, please refer to 'Connections' pages in this user guide for alternative ways to connect.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV).

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to program a 4 digit code into it. See bottom of this page.

SCART or HDMI cable Sky Box

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See below.

Using a Sky remote or a universal remote to operate your TV

Sky remote control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to program a 4 digit code into it. Please note - you will need a Sky Revision 9 remote control (or later). The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our website.

Universal remote control - If you wish to use a Universal remote control to operate your TV, please refer to the website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

FREQUENTLY ASKED QUESTIONS

General I would	like to have louder sound by connecting additional speakers. For TV models with digital optical audio output.	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a digital optical audio cable from the TV's digital optical audio output to your amplifi er/surround systems digital optical audio input.
General Why are some options in the menu unavailable and greyed out.		Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no aff ect.
General Can I stop	my TV automatically turning off after 4hrs?	Yes, in the 'Time' menu settings, scroll down to Auto standby and select OFF.
TV I have tuned in	Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Freeview/Saorview, visit www.freeview.co.uk or www.saorview.ie2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/ indoor type aerial.
TV I have re-tuned	my television but when I switch it off it is not storing the channels.	If the TV does not save the channels when you power it off, it's likely the channel database has become corrupt.1) Turn off the TV.2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/first time installation menu.4) Press OK (let the TV run the full tuning process).5) Once completed, turn off the TV, reconnect the RF/Aerial cable then turn the TV back on again.6) Repeat steps 3 & 4.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
Game Consoles I have connected my Playstation/Xbox to the TV via HDMI, but I am not receiving any pictures or sound on my TV		1) Ensure the TVs' source is set to HDMI.2) Check your settings on your Playstation/Xbox are as per the Playstation/Xbox instruction manual.
Game Consoles I have connected my Playstation/Xbox to the TV via Component cables (red, green & blue) but I am not receiving any sound.		Component cables only provide HD pictures. For the sound you will need to connect the red & white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini AV input where fitted) on the rear of the TV. Please refer to the 'Connections' pages.
System Lock I have changed the password on the television and now forgotten it.		There is a master password of 4711, to gain access to the TV menu and reset the normal password.
Freeview HD I cannot access all Freeview channels.		Some data channels for Freeview can only be obtained when the TV's ethernet port is connected to your router.
Freeview HD I cannot find the Freeview HD channels.		Freeview HD channels found during tuning will be placed in channel positions above 100. For example, 101 (BBC1 HD), 102 (BBC2 HD) etc.

FREQUENTLY ASKED QUESTIONS

USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive / larger than 32GB.	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 file system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives.Please refer to the website, www.umc-uk.co.uk, for more information.
USB Record I cannot change the channel, access the menu or use the red button.	During time shift you cannot change the channel, access the menu or use the red button.
USB Record When using the USB to record the picture ‘breaks up’ or experience loss of sound.	Check the USB memory stick meets the minimum read speed requirements. Standard definition channels require a read speed of 20 MB/s (Mega Byte per second) and a write Speed of 6 MB/s (Mega Byte per second) HD channels require the read speed of 80 MB/s (Mega Byte per second) and a write speed of 40 MB/s (Mega Byte per second). USB 3.0 sticks should be used where possible.

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-32CHF4041K
Energy efficiency class A+
Visible screen size (diagonal) 81 cm / 32 inches
On mode power consumption 31.0 W
Annual energy consumption *1 45 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	n/a
Screen resolution	1366 (H) x 768 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

Tuner 75 ohm Antenna / Analog / DVB-T2
Inputs 3 x HDMI, 2 x USB,1 x RJ45 (Ethernet),	1 x SCART, 1 x Component/YPbPr,1 x Composite Video/CVBS, 1x L/R Audio shared forComposite Video/CVBS & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone, 1 x Optical digital audio out
Speaker / Sound Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50/60Hz	31/45/70W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	740W x 467H x 182D
Net weight (Kgs) 4.9
Wall Mounting VESA 200 x 100 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-32DHF4041K
Energy efficiency class A+
Visible screen size (diagonal) 81 cm / 32 inches
On mode power consumption 31.0 W
Annual energy consumption *1 45 kWh
Standby power consumption *2	<0.50 W
Off mode power consumption	n/a
Screen resolution	1366 (H) x 768 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

Tuner 75 ohm Antenna / Analog / DVB-T2
Inputs 3 x HDMI, 2 x USB,1 x RJ45 (Ethernet),	1 x SCART, 1 x Component/YPbPr,1 x Composite Video/CVBS, 1x L/R Audio shared forComposite Video/CVBS & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone, 1 x Optical digital audio out
Speaker / Sound Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50/60Hz	31/45/80W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	740W x 467H x 182D
Net weight (Kgs) 4.9
Wall Mounting VESA 200 x 100 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-40CFF4041K
Energy efficiency class A+
Visible screen size (diagonal) 100 cm / 40 inches
On mode power consumption 45.0 W
Annual energy consumption *1 66 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	n/a
Screen resolution	1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

Tuner 75 ohm Antenna / Analog / DVB-T2
Inputs 3 x HDMI, 2 x USB,1 x RJ45 (Ethernet),	1 x SCART, 1 x Component/YPbPr,1 x Composite Video/CVBS, 1x L/R Audio shared forComposite Video/CVBS & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone, 1 x Optical digital audio out
Speaker / Sound Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50/60Hz	45/65/80W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	929W x 601H x 203D
Net weight (Kgs) 7
Wall Mounting VESA 200 x 200 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-48CFE4041K
Energy efficiency class A+
Visible screen size (diagonal)	121 cm / 48 inches
On mode power consumption 66.0 W
Annual energy consumption *1 96.0 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	n/a
Screen resolution	1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

Tuner 75 ohm Antenna / Analog / DVB-T2
Inputs 3 x HDMI, 2 x USB,1 x RJ45 (Ethernet),	1 x SCART, 1 x Component/YPbPr,1 x Composite Video/CVBS, 1x L/R Audio shared forComposite Video/CVBS & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone, 1 x Optical digital audio out
Speaker / Sound Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption 220-240V 50Hz	66/95/110W (ecomode/standard/max)
Dimensions including stand (mm)	1098W x 692H x 230D
Net weight (Kgs) 11.7
Wall Mounting VESA 400 x 400 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-48CFE4042K
Energy efficiency class A+
Visible screen size (diagonal)	121 cm / 48 inches
On mode power consumption 66.0 W
Annual energy consumption *1 96.0 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	n/a
Screen resolution	1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

Tuner 75 ohm Antenna / Analog / DVB-T2 / Satellite
Inputs 3 x HDMI, 2 x USB,1 x RJ45 (Ethernet),	1 x SCART, 1 x Component/YPbPr,1 x Composite Video/CVBS, 1x L/R Audio shared forComposite Video/CVBS & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone, 1 x Optical digital audio out
Speaker / Sound Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption 220-240V 50Hz	66/95/110W (ecomode/standard/max)
Dimensions including stand (mm)	1098W x 692H x 230D
Net weight (Kgs) 11.7
Wall Mounting VESA 400 x 400 (mm)

TECHNICAL SPECIFICATION

Compatible fi les

Media	File Ext.	Codec		Remark
		Video	Audio
MOVIE	.mpg	MPEG-1, MPEG-2	MP3, AAC, AC3, PCM, DTS	Max Resolution: 1920x1080
				Max Data Rate: 40 Mbps
	.avi	Xvid, MJPEG		Max Resolution: 1920x1080Max Data Rate: 20 Mbps
		MPEG-4 SP/ASP, H.263/H.264
	.ts	MPEG-2, H.264, HEVC
	.mov.mkv	MPEG-4 SP/ASP, H.263/H.264, HEVC
	.dat MPEG-1
	.mp4	MPEG-4 SP/ASP, H.263/H.264, HEVC
		MPEG-1, MPEG-2		Max Resolution: 720x576Max Data Rate: 40 Mbps
	.vob MPEG-2
MUSIC	.mp3 -- MP3			Sample Rate: 8K~48KHzBit Rate: 32K~320Kbps
	.m4a/.aac -- AAC			Sample Rate: 16K~48KHzBit Rate: 32K~442KbpsChannel: Mono/Stereo
PHOTO	.jpg/	Progressive JPEG		Max Resolution: 1024x768
	.jpeg	Baseline JPEG		Max Resolution: 15360x8640
	.bmp	BMP		Max Resolution: 9600x6400
				Pixel Depth: 1/4/8/16/24/32 bpp
	.png	Non-Interlaced		Max Resolution: 9600x6400
		Interlaced		Max Resolution: 1280x800
SUBTITLE	.srt	SubRip
	.ssa/.ass	SubStation Alpha
	.smí	SAMI
	.sub	SubViewerMicroDVDDVDSubtitleSystemSubIdx(VobSub)		SubViewer 1.0 & 2.0 Only
	.txt	TMPlayer

UMC Poland sp. z o.o.

Ostaszewo 57B, 87-148 Łysomice, Poland

Assembled in Europe

This is Why

www.sharp.eu

SHARP

CE

SHA/MAN/0151
