LC-50CFE5101K - TV SHARP - Free user manual and instructions

Product Type	LED TV
Brand	Sharp
Model	LC-50CFE5101K
Screen Size (Diagonal)	127 cm / 50 inches
Screen Resolution	1920 x 1080 (Full HD)
Energy Efficiency Class	A+
On-mode Power Consumption	58.0 W
Annual Energy Consumption	85 kWh
Standby Power Consumption	<0.50 W
Dimensions with Stand (W x H x D)	1130 x 700 x 229 mm
Net Weight	12.1 kg
VESA Wall Mount Pattern	200 x 200 mm
Speaker Power (RMS)	2 x 10 W
HDMI Inputs	3
USB Ports	2
Ethernet (LAN) Port	1
Digital Optical Audio Output	1
Headphone Jack	1 (3.5mm)
VGA/PC Input	1
Component/YPbPr Input	1 (Mini)
Composite/AV Input	1 (Mini, shared with Component)
RF Input	1 (75 ohm)
Tuner	Freeview HD / Saorview
USB Record (PVR)	Yes

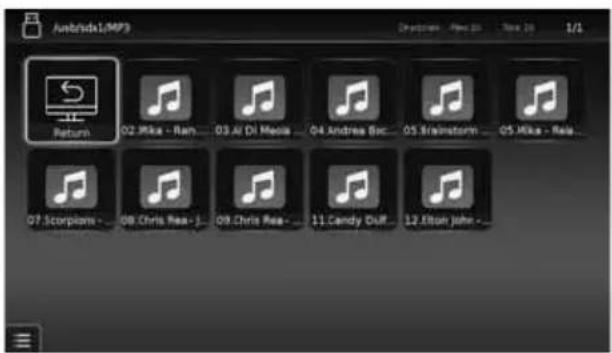

Media Player (USB)	Photo, Music, Movie, Text
Remote Control	Yes (with pairing function)
Stand Included	Yes

Frequently Asked Questions - LC-50CFE5101K SHARP

Why are some menu options greyed out?

Some options are only available in certain input sources (e.g., HDMI). They are greyed out when they have no effect.

Can I stop the TV from automatically turning off after 4 hours?

Yes. Go to Time menu, scroll to Auto Standby, and select OFF.

I tuned in digital TV but am missing channels or have break-up. What can I do?

Check Freeview/Saorview coverage at www.freeview.co.uk or www.saorview.ie. Use a good outdoor digital aerial. A loft aerial may need a booster.

The TV does not save channels after retuning. How to fix?

Turn off TV, remove RF cable, turn on, press Menu then 8888 to enter first time installation, run tuning. Turn off, reconnect RF, turn on, repeat tuning.

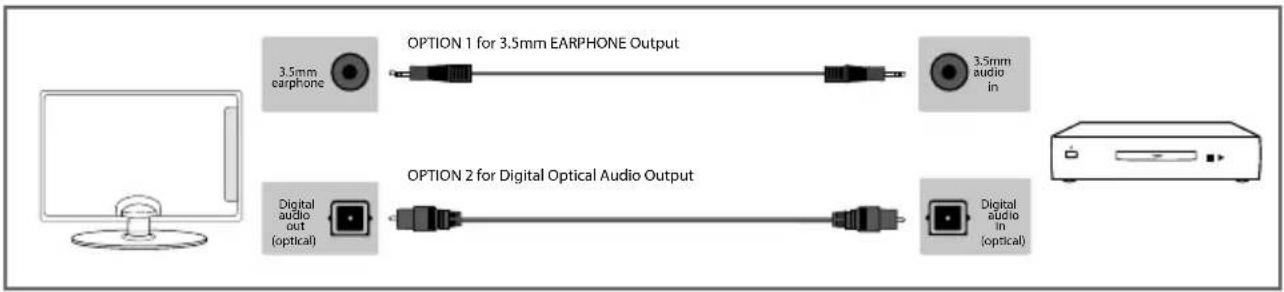

How do I connect external speakers for louder sound?

Use the 3.5mm headphone output with a 3.5mm to phono cable, or use the digital optical audio output. Note: headphone output disables TV speakers.

My remote control does not work with the TV. How to pair?

During first time installation, press and hold GREEN and YELLOW buttons on remote for a few seconds. Power light blinks 5 times to confirm pairing. If not in setup, turn TV on using standby button on TV, then press standby again to open pairing menu.

Can I record TV programmes with this TV?

Yes. Connect a USB memory stick (minimum read 80 MB/s, write 40 MB/s for HD) and use the USB record function in Freeview/Saorview mode. You can pause live TV, one-button record, or schedule from the 7-day TV guide.

Why does my USB memory stick not work?

Ensure the USB stick is formatted to FAT32. For hard drives larger than 32GB, use a utility to format to FAT32. Check read/write speeds meet minimum requirements.

I forgot the system password. How to reset?

Use the master password 4711 to access the menu and change the password.

Why can't I find Freeview HD channels after tuning?

Freeview HD channels are placed above channel 100, e.g., 101 for BBC One HD. Also ensure the TV is connected to your router via Ethernet for some data channels.

USER MANUAL LC-50CFE5101K SHARP

LED TV with Freeview HD, Saorview & USB PVR

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Model No

LC-32CHE5111K

LC-40CFE5111K

LC-32DHE5111K

LC-43CFE5111K

LC-32CHE5111KW

LC-49CFE5001K

LC-32DHE5111KW

LC-50CFE5101K

LC-32CFE5111KW

LC-50CFE5111K

LC-32CFE5111K

Important safety instruction

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• Television sets which weigh 20kg or more must be lifted and carried by at least 2 people.
• This television does not contain any parts that are serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

To prevent spread of fi re, keep candles or other open fl ames away from this product at all times

• To reduce the risk of fi re, electric shock or damage to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects fi lled with liquids on or near the TV.
• Do not connect any external devices (DVD player, games console etc) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.
• Do not place the television in a confined space and do not obstruct the ventilation openings at the rear of the television.
• When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation.
• Always ensure that the TV's ventilation openings are not covered with items such as newspapers, table-cloths, curtains, etc.
• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.
• Ensure this TV is used in moderate climates only.

WARNING: Never place a television set on an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Use cabinets or stands recommended by the manufacturer of the television set.
• Only use furniture that can safely support the television set.
• Ensure the television set is not overhanging the edge of the supporting furniture.
• Do not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Do not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Please educate children about the dangers of climbing on furniture to reach the television set or its controls.
• If your existing television set is being retained and relocated, the same considerations as above should be applied.

Safety

• For your safety, this appliance is fitted with a fused 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
• The ideal distance to watch the television is approximately five times the length of the diagonal measurements of the TV screen.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the mains plug located on the underside/rear of the TV.
• Ensure that the mains plug is always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Important safety instruction

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild

detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need the original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important information regarding use of video games, computers, captions or other fixed image displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD/LED panel, also known as "screen burn".

This "shadow image" can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.

2. Do not display the fixed image for extended periods of time.

3. Turn the power off when not in use.

Examples of images that are more likely to cause "screen burn" are as follows (this is not an exhaustive list):

• TV channel logos: e.g. shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time displays.
• Teletext: Do not view a stationary page for a long period of time
  • TV/DVD menus: e.g. listings of DVD disc content.
• Pause mode: Do not leave the TV in pause mode for long periods of time, e.g. when watching DVDs or videos.

Important: Once 'shadow image/screen burn'

occurs, it will never disappear and is not

repairable under warranty.

How do I dispose of this product?

Cd

UK: Waste electrical products should not be disposed of with household waste. Please dispose of the product at a designated collection point for recycling of WEEE. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
  Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries. Please consult your local authority.

TV Models with built in DVD players

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Trademarks

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

HDTV

The "HD TV" Logo is a trademark of DIGITALEUROPE.

HDTV 1080p

The "HD TV 1080p" Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.

Dolby

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

FREEVIEW

The FREEVIEW words and logos are trade marks of DTV Services LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

CE Statement:

Hereby, Universal Media Corporation I.t.d. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Dirrective 1999/5/EC.

http://www.sharp.eu/av/documents-of-conformity

CONTENTS

Manufacturers guarantee information 3

Important safety instructions....4-5

What is included in the box 8

Attaching / detaching the stand 9

Securing the TV to a wall / wall mounting 10

Remote control 11

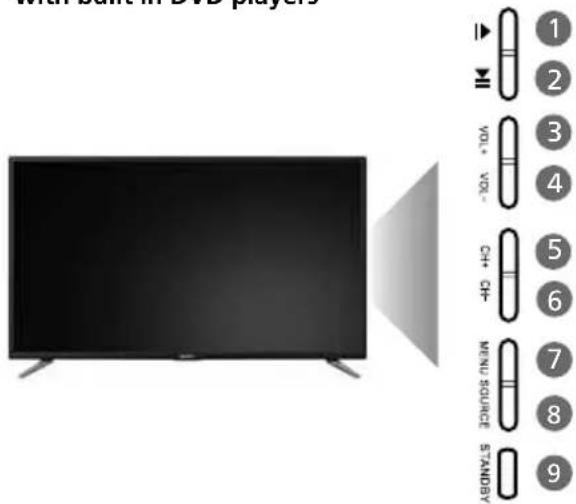

TV buttons and Input Source menu....13

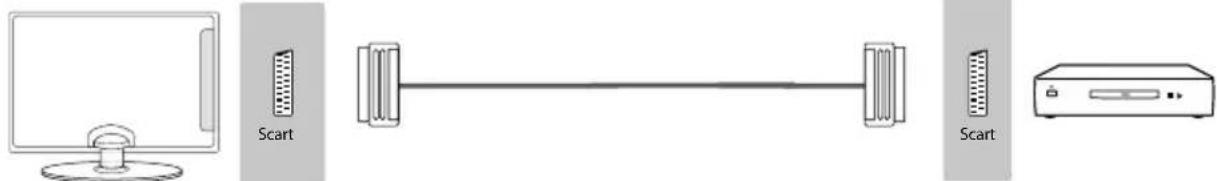

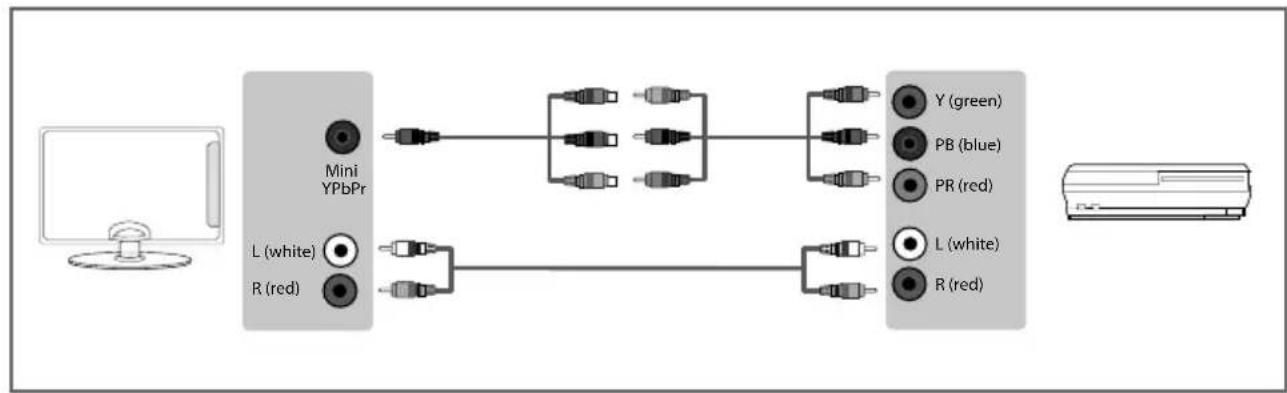

Connections....14-19

TV menu operation....20-27

Picture menu 20-21

Sound menu....22

Channel menu 23

Lock menu 24

Time menu 25

Network configuration 26

Settings menu. 27

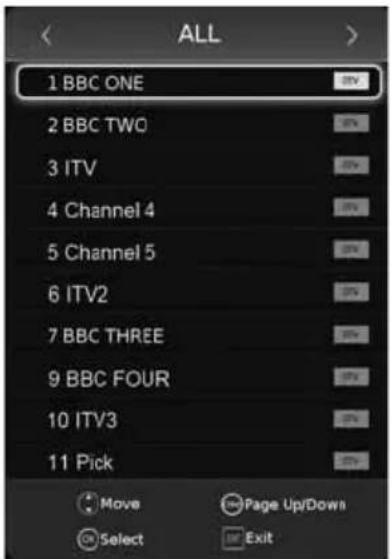

7 day TV guide and channel list....28

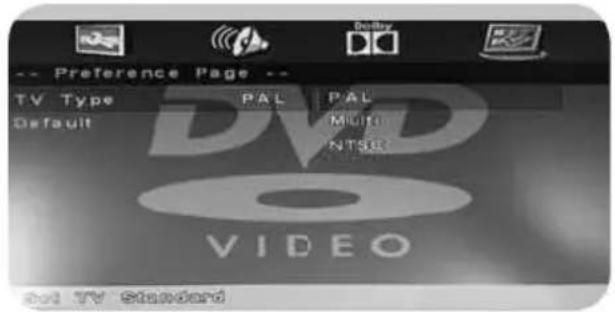

DVD setup 29

USB record - Freeview / Saorview....30

USB mode / media player 31

General information....32-41

Frequently asked questions 32-33

Technical specifications 34-41

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories.

1 x User guide

User guide

1 x Quick start guide

Quick start guide

1 x TV

Front view of a modern black flat-screen TV with visible screen edges and stand (no text or symbols)

1 x RF cable

Coiled black cable with connectors, no visible text or symbols

1 x Remote control and 2 x AAA batteries

Black remote control with keypad and two cylindrical batteries (no visible text or symbols)

1 x SCART to AV adapter cable

(For LC-49CFE5001K & LC-50CFE5101K models only)

(For LC-32CFE5111K, LC-32DHE5111K & LC-32DHE5111KW models only)

Black electronic device with a cable and connector (no visible text or symbols)

Black and gray electronic device with two leads (no visible text or symbols)

1 x Mini composite / AV cable (For LC-32CHE5111K, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, C-50CFE5111K & LC-50CFE5101K models only)

Close-up of a black USB cable with multiple connectors (no text or symbols visible)

1 x Mini component / YPbPr cable

Close-up of a black audio jack cable with multiple connectors (no text or symbols visible)

1 x Stand installation pack

4 x

1 x L (left)

1 x R (right)

Two identical metallic L-shaped metal bracket components (no text or symbols)

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING THE STAND

Attaching the stand/feet

To complete the stand/feet installation you will require a cross head screw driver.

Screws that are included.

4x

TV panel must be facing downwards. R L 1

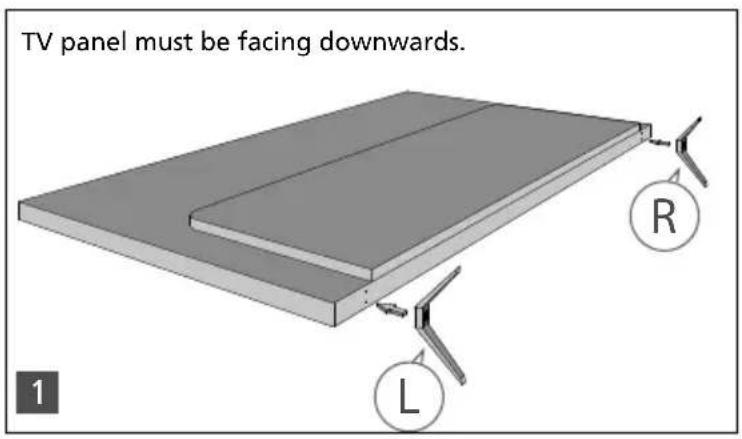

(fi g.1) Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage, then fi x the stand/feet shown. The feet are marked L (left) and R (right).

2 L 1 2 3 4 R 4 x (图例)

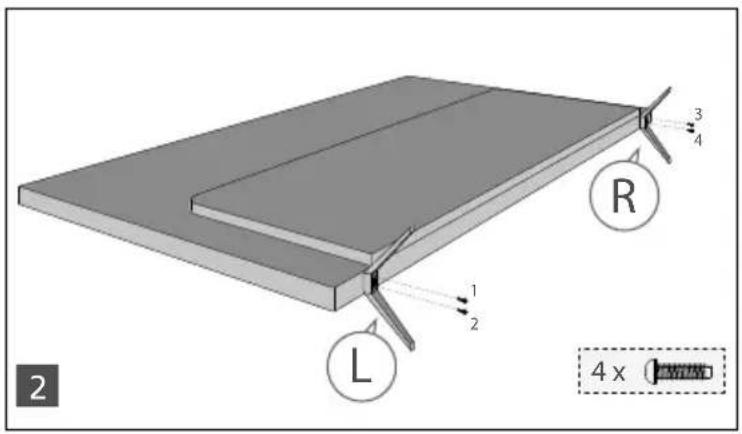

(fi g.2) Secure the stand/feet to the underside of the TV set using the 4 screws provided.

Detaching the stand

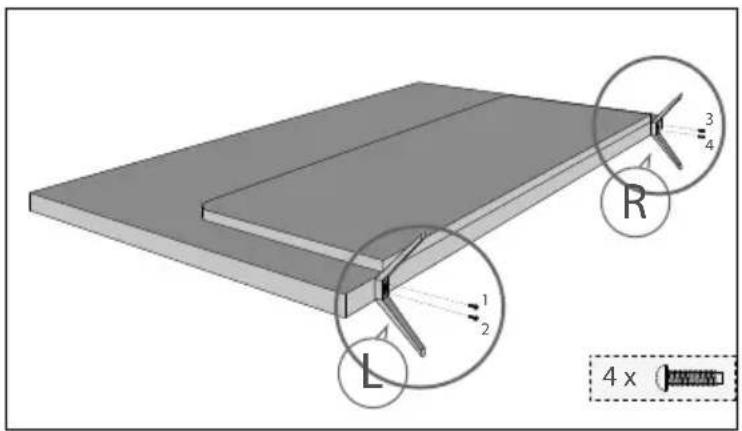

Remove the screws highlighted then remove the stand/feet from the underside of the TV set.

L 1 2 R 3 4 4 x

SECURING THE TV TO A WALL

Securing the TV to a wall with anti-tip straps

For maximum security in the home, when using a TV with its stand, anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on, these are fitted as follows.

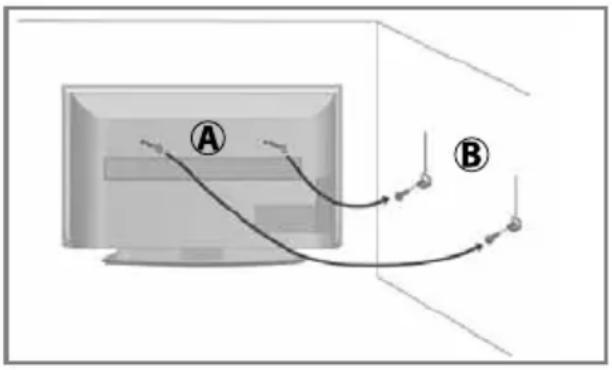

A) Using one or both of the top wall-mounting holes and screws fasten one end of the fastening cord/s to the TV. (the screws are already supplied in the wall mounting holes)

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores).

Diagram showing two labeled points (A and B) connected by curved lines, possibly indicating a path or flow between them.

Diagram of a vertical computer monitor with a stand, showing front and side views (no text or symbols)

Note - Please ensure that children do not climb on the TV set.

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions. RoSPA stated in 2010 that "Toddlers are particularly at risk of pulling fl at-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images." The risk is increased as televisions become lighter.

Wall mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electrical wires, water or gas pipes.

Simple line drawing of an oval shape with four diamond marks inside, mounted on a rectangular base (no text or symbols)

1) Remove the four screws located at the back of the TV set.
2) The wall mount can now be easily attached to the mounting holes, located on the back of the TV, using the same four screws removed.

For VESA wall mounting information please refer to the Technical Specification page.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2.

fig 1 fig 2 INCORRECT

fig 2 INCORRECT TV Viewing angle

CORRECT TV Viewing angle

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes located at the back of the TV, using other screws which are longer could cause irreparable damage to internal parts.

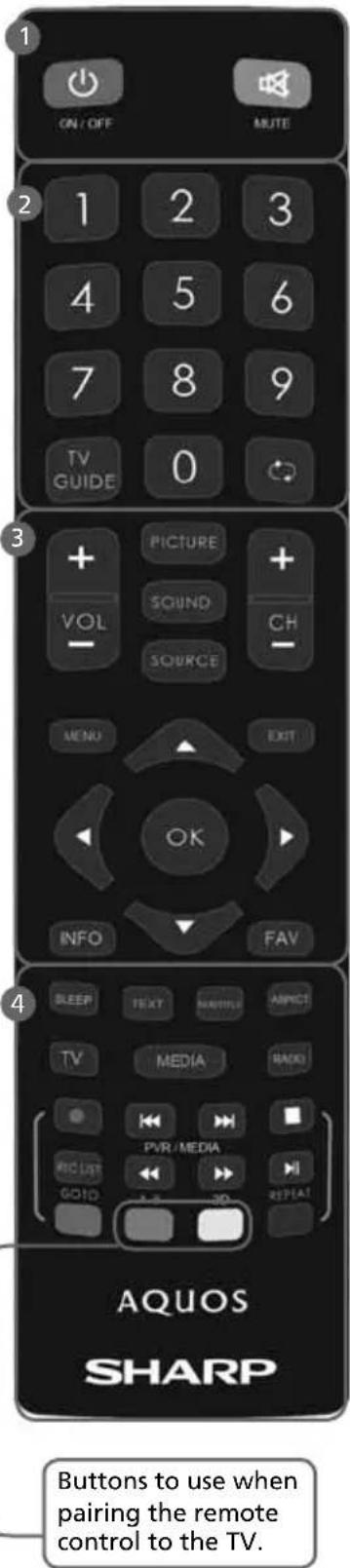

REMOTE CONTROL

Key

For models with integrated DVD players.

For models with PVR Function.

For models with USB Playback.

For models with 3D functions.

1

STANDBY - Switch on TV when in standby or vice versa.

MUTE - Mute the sound or vice versa.

2

NUMBER BUTTONS - 0-9 to select a TV channel directly.

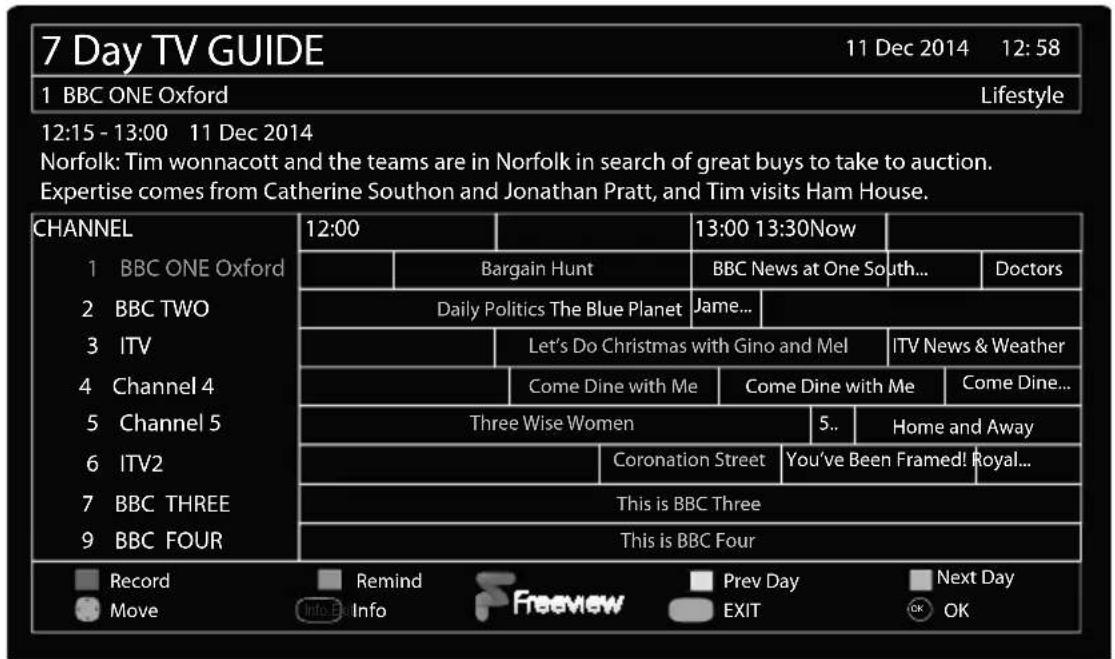

TV GUIDE - Opens the 7 day TV guide (digital TV mode).

- To return to the previous channel viewed.

3

VOL (+/-) - To increase/decrease the sound level.

PICTURE - Scrolls through picture mode options.

SOUND - Scrolls through sound mode options.

SOURCE - To display the input/source menu.

CH (+/-) - To increase or decrease the channel being watched.

MENU - To display OSD menu.

EXIT - To exit all menus.

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference.

INFO - Press once for now/next channel information.

- Press twice for information about the current programme.

FAV - To display favourites menu.

4

SLEEP - Press repeatedly to cycle through the sleep options.

TEXT - To enter/exit Teletext (Analogue TV).

SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).

ASPECT - To switch the screen between the different picture formats.

TV - Switch to digital source.

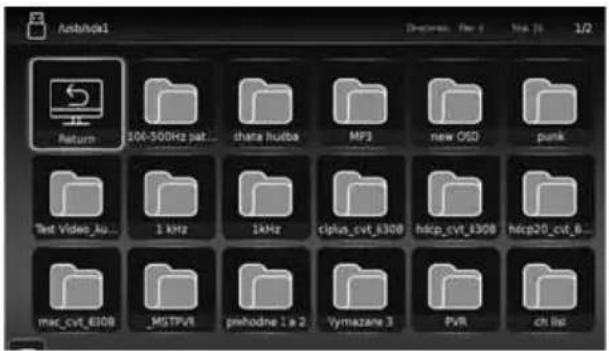

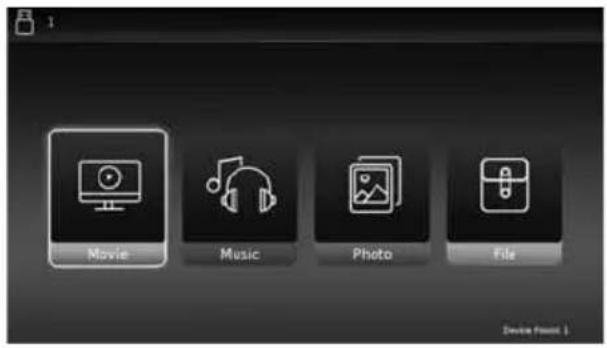

MEDIA - Access the USB media function.

RADIO - Switch to radio whilst in digital TV source.

RECORD - Access the USB record function.

- To restart the current chapter

▶ To advance forward to the next chapter

■/▲ - To stop the playback/Eject Disc

(To EJECT the disc press/hold the □ button for 4 seconds)

- To play in fast rewind mode

▶▶ - To play in fast forward mode

▶ - To play/pause

REC LIST - Opens the list of what has been previously recorded.
GOTO - To go to a specific chapter.
A-B - Press once to set point, press a second time to return to point.
3D - Press repeatedly to cycle through the 3D options.
REPEAT - To repeat playback.

1 ON / OFF 2 1 2 3 4 5 6 7 8 9 TV GUIDE 0 3 + VOL - PICTURE SOUND SOURCE + CH - EXIT OK INFO FAV 4 SLEEP TEXT HAPPLE APPLET TV MEDIA RADIO PVR/MEDIA PICUSET GOLD 3D REPEAT AQUOS SHARP Buttons to use when pairing the remote control to the TV.

If the remote control does not function with the TV, the remote control may need to be paired with the TV set, please refer to the 'Frequently Asked Questions' page for more information.

TV BUTTONS AND INPUT SOURCE MENU

This information is for models without built in DVD players

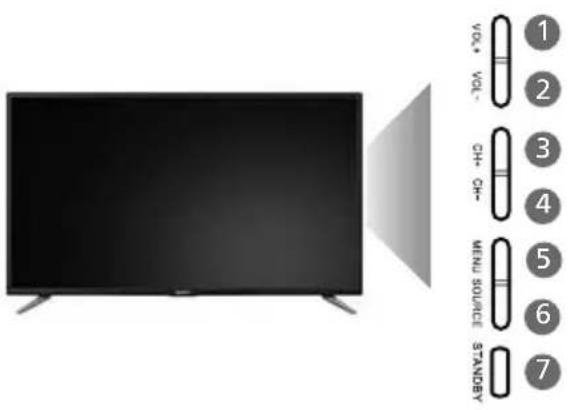

VOL• VOL- CH- CH- MENU SOURCE STANDBY 1 2 3 4 5 6 7

1 Volume up and menu right
2 Volume down and menu left
3 Programme/channel up and menu up
4 Programme/channel down and menu down
5 Displays menu/OSD
6 Displays the 'Input Source' menu
7 Standby power On/Off

This information is for models with built in DVD players

with built-in DVD players 1 2 3 4 5 6 7 8 9 VOL+ VOL- CH+ CH- MENU SOURCE STANDBY

1 Stop/Eject Disc
2 Play/Pause Disc
3 Volume up and menu right
4 Volume down and menu left
5 Programme/Channel up and menu up
6 Programme/Channel down and menu down
7 Displays Menu/OSD
8 Displays the input source menu
9 Standby Power On/Off

Note: The shape of the TV buttons may vary by model.

Choosing Mode Input/Source

Use the source menu to switch between input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [V] or [A] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].

2) Scroll up / down using CH+/CH- buttons to the input/source you require.

3) Press Vol+ to change input/source to the one selected.

For further information on input/connections please view 'Connections' pages.

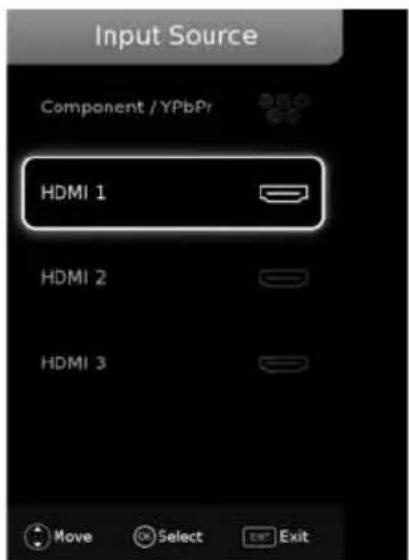

Input Source Component /YPbPr HDMI 1 HDMI 2 HDMI 3 Move Select Exit

An example of the 'Input Source' menu (will vary by model)

CONNECTIONS

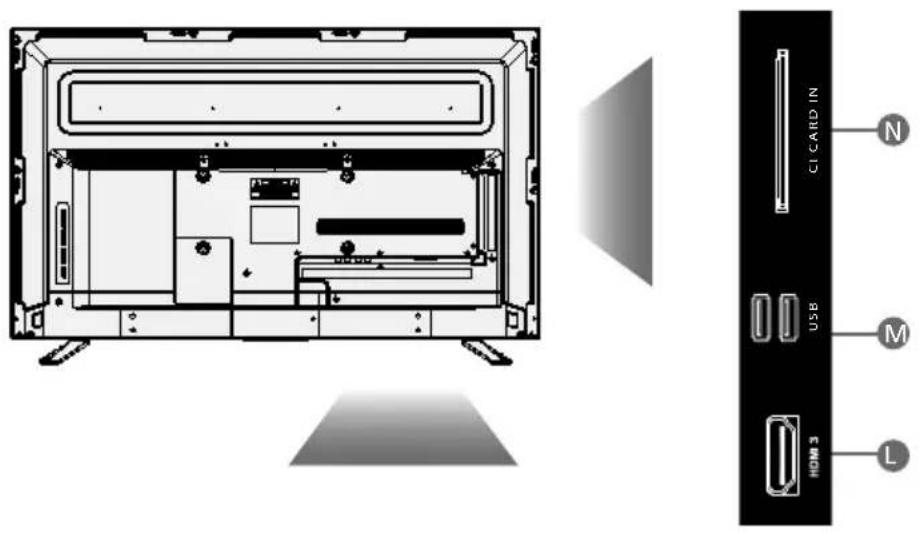

The following input/outputs for the following models only:

LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW

CI CARD IN USB M HDMI 3 L N

EARPHONE LAN VIDEO L R Y Pb Pr HDMI 1 HDMI 2 VGA/PC IN VG A /PC (A audio in) RPM Digital Audio Output A B C D E F G H I J K

ones

CONNECTIONS

The following input/outputs for the following models only:

LC-49CFE5001K and LC-50CFE5101K.

USB CI CARD IN M L AV IN K Y Pd Pr J HDMI 3 I EARPHONE H Digital Audio Output HDMI 1 HDMI 2 VGA/PC IN VG A /PC (Audio in) RPN LAN A B C D E F G

LAN*	Network	connectiEarphones Earphone input
Digital audio Digital optical audio output		HDMI 3 HDMI input
HD CI 1 HDMI input		YPbPr HD input (Ypbpr)
HD CI 2 HDMI input (ARC)		AV K Audio/video input
VGA PC VGA-PC Input		CI crd in Common interface module
VGA PC audio in 3.5mm PC audio input		USIM2 USB port
RF G RF / TV aerial input

*The LAN/Ethernet port is used for Freeview HD services only.

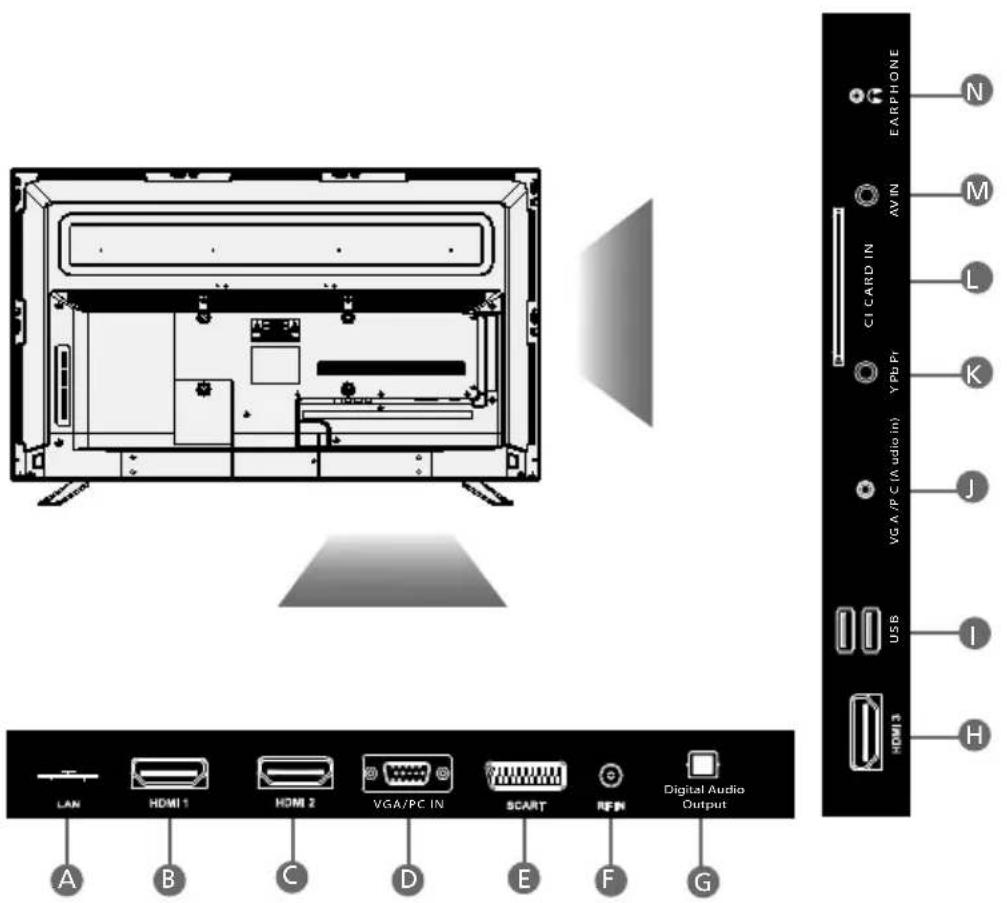

CONNECTIONS

The following input/outputs for the following models only:

LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K and LC-50CFE5111K.

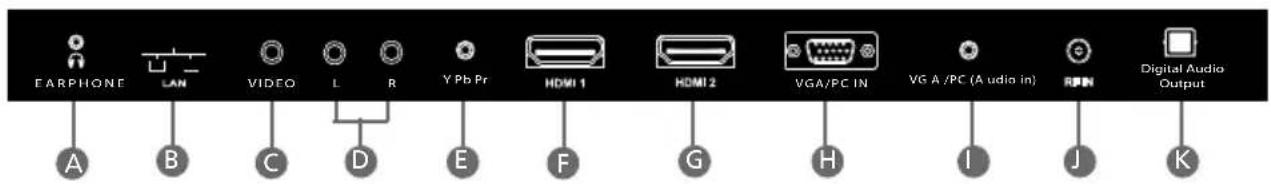

LAN HDMI 1 HDMI 2 VGA/PC IN SCART RFN Digital Audio Output A B C D E F G CI CARD IN YPP-Pr VGA/PC (Audio in) J USB I HDMI 3 EARPHONE N M L K I H

LAN*	Network	connect HDI 3 HDMI input
HDMI 1 HDMI input		USB k2 USB port
HDMI 2 HDMI input (ARC)		VGA PC audio in 3.5mm PC audio input
VGA PC VGA-PC input		YPbKY HD input (Ypbpr)
SCART	SCART	input CI card in Common interface module
RF in RF / TV aerial input		AVIM Audio/video input
Digital audio Digital optical audio output		EaNones Earphone input

*The LAN/Ethernet port is used for Freeview HD services only.

CONNECTIONS

Note: Connecting cables are shown for example only and may not be included. Please check 'What Is Included In The Box' page.

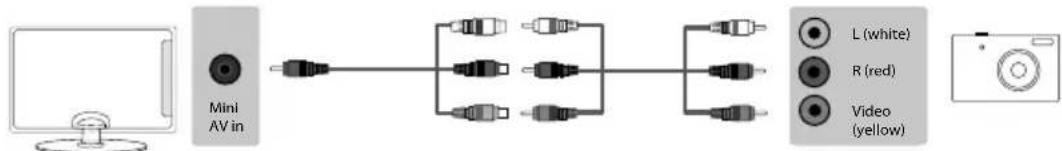

Connecting to a device with Composite AV/Video output

TV source should be set to Composite/AV

Connection option for LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only.

Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only.


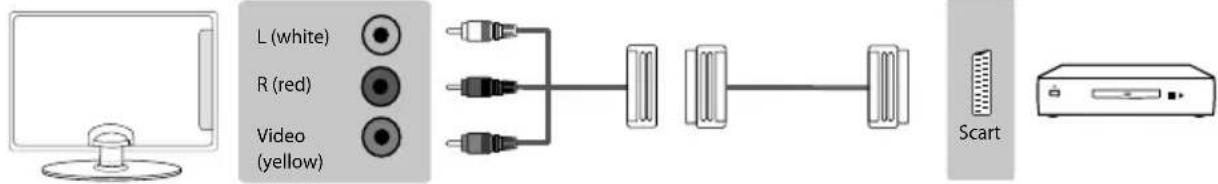

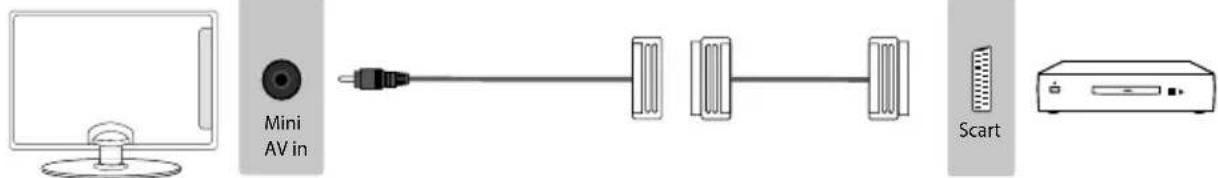

Connecting to a device with SCART output (using SCART to AV cable)

TV source should be set to Composite/AV

Option for LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only

L (white) R (red) Video (yellow) Scart

Connection option for LC-49CFE5001K and LC-50CFE5101K models only

Mini AV in Scart

Connecting to a device with SCART output

TV source should be set to SCART

Connection option for LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K and LC-50CFE5111K models only:

Scart Scart

CONNECTIONS

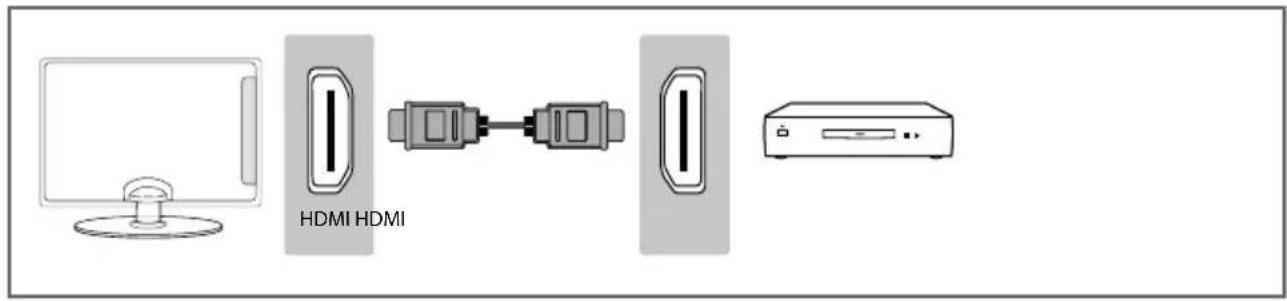

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TV source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

HDMI HDMI

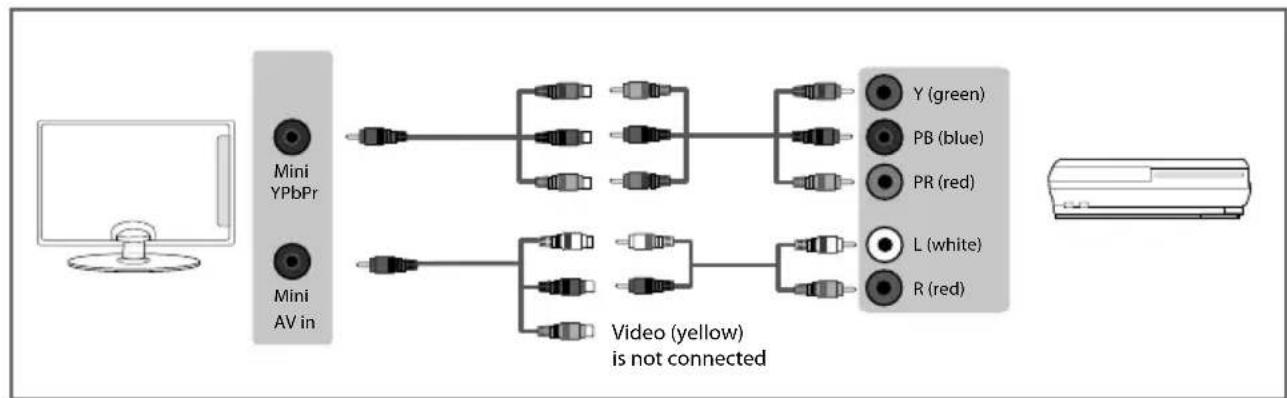

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has red, green, blue, red and white connectors you must connect via Component (for picture) and by phono cable (for sound).

TV source should be set to Component/YPbPr

Connection option for LC-32CFE5111K, LC-32CFE5111KW, LC-32DHE5111K and LC-32DHE5111KW models only.

Connection option for models only LC-32CHE5111K, LC-32CHE5111KW, LC-40CFE5111K, LC-43CFE5111K, LC-49CFE5001K, LC-50CFE5111K and LC-50CFE5101K models only.

CONNECTIONS

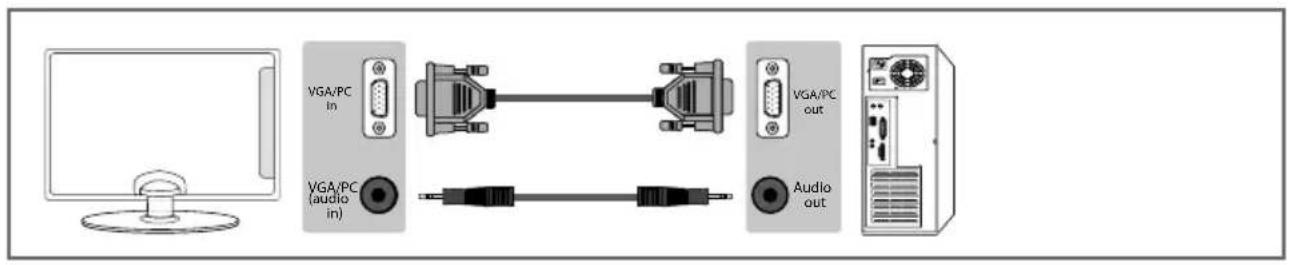

Connecting to a device with VGA/PC output (Laptop or Desktop Computer) TV source should be set to VGA/PC

VGA/PC in VGA/PC (audio in) VGA/PC out Audio out

Connecting to an external audio device (Amplifi ers, Surround Sound, Sound Bars etc)

When connecting via the TV's 3.5mm earphone output, this will disable the TV speakers.


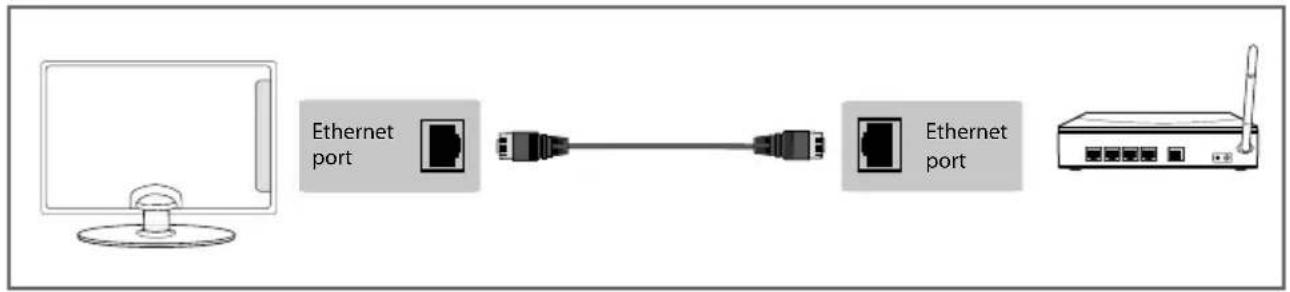

Connecting an Ethernet/Network cable

The LAN/Ethernet port is used for Freeview HD services only.

PICTURE MENU

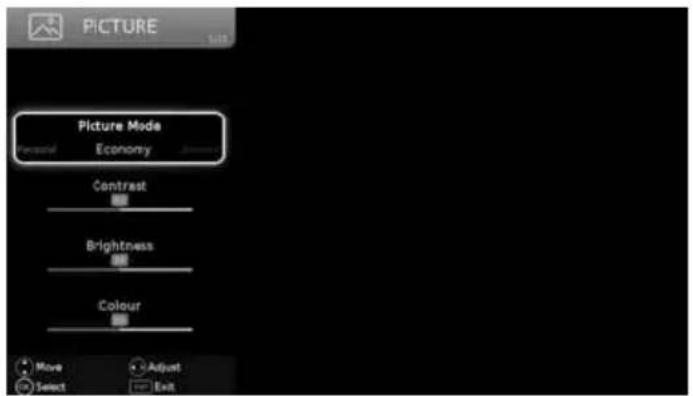

PICTURE Picture Mode Economy Contrast Brightness Colour None Select Adjust Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control.

To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures
Standard	Standard settings
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Economy Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

You can make the following adjustments in Personal mode:

• Contrast - Switch the balance between black and white.
• Brightness - Increase or decrease the brightness of the picture.
  • Colour - Increases the colour from black and white.
• Tint - Lets you increase or decrease the level of tint within the picture (only available for NTSC input signal).
• Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature Choose from the following presets:

Normal	Default settings
Warm	Increases red within the picture
Cold	Increases blue within the picture

PICTURE MENU

PICTURE Picture Mode Personal Economy Contrast Brightness Colour Move Adjust Select Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs. Choose from the following settings:

Auto

Automatically displays the best picture format so the picture is in the correct position, black lines maybe viewable at the top/bottom and/or sides.

4:3

Computer monitor with a grid of white circles on the left side (no text or symbols visible)

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen

Full Screen

Illustration of a computer monitor with a central blank circle and surrounding circular elements (no text or symbols)

Displays the full picture in the correct proportion. As a result bars are shown on the screen

Illustration of a computer monitor with five circular windows on the left (no text or symbols)

Fills the screen with a regular 16:9 signal and 4:3 picture format will be stretched to fi ll the screen

Zoom1 and Zoom 216:9

Illustration of a computer monitor with a circular screen and eight surrounding geometric shapes (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

Noise Reduction - Allows you to switch noise reduction ON or OFF.

SOUND MENU

SOUND Sound Mode Normal Treble Bass Balance Move Select Adjust Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Sports	Emphasises sound for sports
Personal	Selects your personal sound settings

You can make the following adjustments in Personal mode:

• Treble - Allows you to adjust treble levels to suit your listening preferences.
• Bass - Allows you to adjust bass levels to suit your listening preferences.
  • Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When 'on' is selected, the volume will attempt to stay at a constant level regardless of TV programme and advertisements.

Surround Sound - Allows you to turn the surround sound settings ON or OFF.

Digital Output - This is the digital optical audio output. Choose from the following options:

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via optical cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

Audio Description - This allows the user to switch Audio Description ON or OFF. (Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired).

AD Volume - This allows the user to increase and decrease the AD (Audio Description) volume level.

Audio Delay - Enables the user to adjust setting to sync picture and audio.

SPDIF Delay - Enables the user to adjust sound setting to sync picture and audio for external speakers connected via digital audio output.

CHANNEL MENU

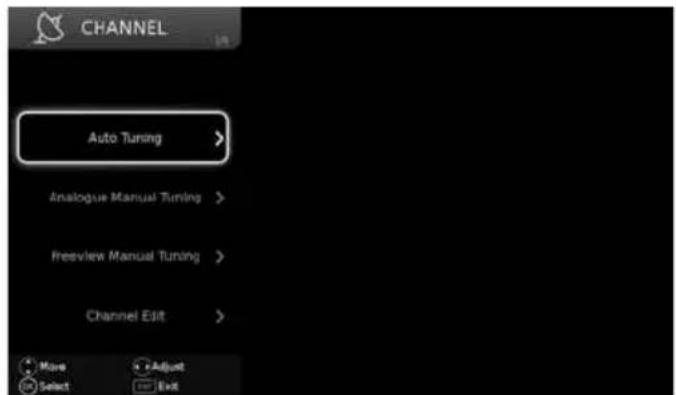

CHANNEL Auto Tuning > Analogue Manual Tuning > Freeview Manual Tuning > Channel Edit > More Select Adjust Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue devices.

Analogue Manual Tuning - Allows you to manually tune your analogue signal.

Freeview/Saorview Manual Tuning* - Allows you to manually tune your digital signal.

Channel Edit - Allows you to delete, move, skip and select favourite channels.

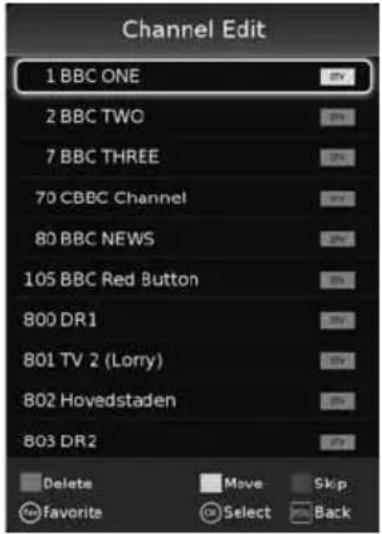

Channel Edit 1 BBC ONE 2 BBC TWO 7 BBC THREE 70 CBBC Channel 80 BBC NEWS 105 BBC Red Button 800 DR1 801 TV 2 (Lorry) 802 Hovedstaden 803 DR2 Delete Move Skip Favorite Select Back

Important: To receive Freeview/Saorview channels, in particular HD channels, you will need a Digital TV aerial and be in a good Freeview/Saorview coverage area. You can check the coverage for your area at www.freeview.co.uk or www.saorview.ie

Please note that any Freeview HD channels found during tuning will be placed in channel positions above 100. For example, 101 (BBC1 HD) 102 (BBC2 HD) etc.

*Freeview channels are only available in the UK, Saorview channels are only available in the ROI.

Signal Information - Allows you to view signal frequency, signal quality and signal strength.

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Recorded List - Shows a list of recorded TV programmes.

Schedule List - Lists your programme reminders.

OAD (Software Update) - Switch on/off OAD (over air download) software updates.

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu

LOCK MENU

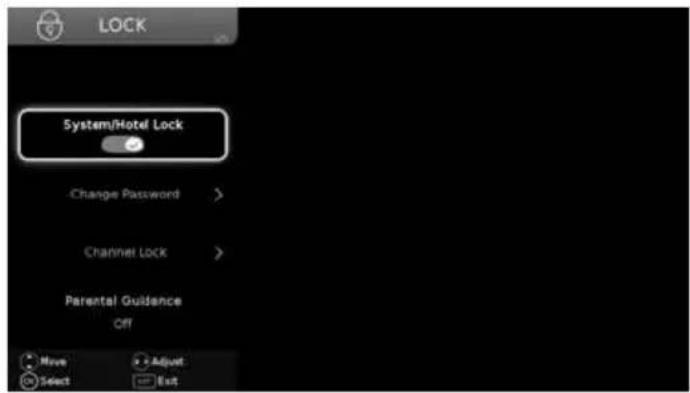

LOCK System/Hotel Lock Change Password > Channel Lock > Parental Guidance Off Move Adjust Select Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password Use the ◀ button to quit the password input or use the ▶ button to clear. Default password is 0000.

Change Password - Allows you to change the password.

Channel Lock - Allows you to lock certain channels manually.

Parental Guidance - Allows you to set the rating to block certain content based on age information.

TV Button Lock - Allows you to lock the buttons on the side of the TV set.

Default Source - Allows the user to set the default source. The default source is the source the TV starts on when first switched on.

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when first switched on.

Max Volume - Allows you to adjust and set the maximum volume.

Source Lock - Allows you to lock the source menu.

TIME MENU

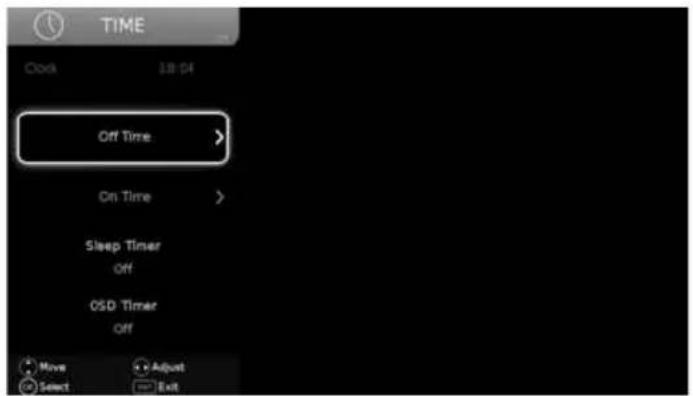

TIME Clock 18:04 Off Time > On Time > Sleep Timer off OSD Timer off Move Adjust Select Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Off Time - Allows you to set a specific time for your TV to turn off.

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

Auto standby - Set 'Auto Standby' to OFF, 3 hours, 4 hours or 5 hours.

Time Zone - Change your current time zone.

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶▲ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

The Network connection is only intended to access Pay TV services from your Freeview/Saorview broadcaster. Please note, the TV cannot be used for internet access.

For the network configuration to work the TV will need to be connected to your home network via an ethernet cable, with these requirements in place the TV will connect to the network automatically.

IP Config - Allows you to access LAN network connection settings. choose from the following options:

Auto Will automatically connect the TV to your home network(this is the default setting and is highly recommended)

Manual Allows you to manually change the IP, Netmask, Gateway and DNS information.

Network Info - Allows you to view Information about network settings

Network Test - Allows you to test the network connection.

SETTINGS MENU

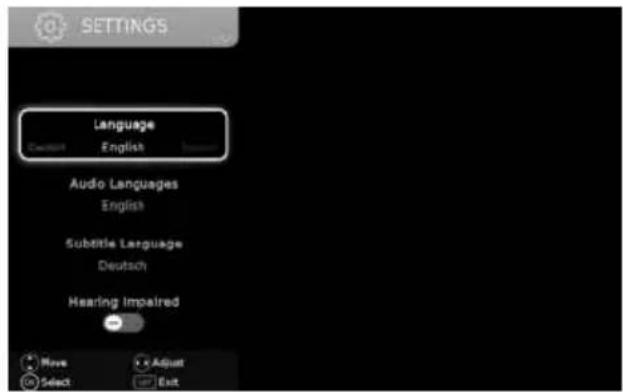

SETTINGS Language English Audio Languages English Subtitle Language Deutsch Hearing Impaired Move Select x Adjust Exit

MENU EXIT OK SOURCE INFO

Language - Allows you to change the language of the menu.

Audio Language - Select your preferred primary audio language.

Audio Language 2 - Select your preferred secondary audio language.

Subtitle Language - Select your preferred primary subtitle language.

Subtitle Language 2 - Select your preferred secondary subtitle language.

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).

PVR File System - PVR Recording options:

Select disk Select USB port and disk partition

TimeShift Size Set size time of shift buffer.

Format Start You can format connected USB storage device to FAT 32 fi le system.

WARNING: ALL DATA ON THE USB DEVICE WILL BE DELETED

Speed check Tests write speed of connected USB storage devices.

First Time Installation - Allows you to access the First Time Installation menu and retune the TV set.

Software Update (USB) - Allows you to update your TV with the newest software using a USB memory stick.

Software and instructions are available on our website.

Software Update (NET) - Allows you to update your TV with the newest software via your internet

connection. This will require the TV to be connected to the internet and have a blank USB memory stick inserted in to the USB input of the TV. The software will be downloaded on to the blank USB memory stick and then complete the update process.

Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices).

LED Status - Allows the user to switch the LED power indicator light ON or OFF when the TV being operated.

(When this option is set to OFF the LED power indicator light will flash when the remote control is used).

Version Info - Allows you to view the version/information of the software installed on the TV set.

Store Mode - switch ON/OFF shop demonstration mode (available only if store mode was selected during first time installation).

Note: For further support with software updates, contact our technical support team or refer to the 'product support' section of the website. If the TV is using the newest software available it will not attempt to update the software.

7 DAY TV GUIDE

TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming programmes (where supported by the Saorview/Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE] on the remote control, the following 7 Day TV Guide will appear.

7 Day TV GUIDE 11 Dec 2014 12:58 1 BBC ONE Oxford Lifestyle 12:15 - 13:00 11 Dec 2014 Norfolk: Tim wonnacott and the teams are in Norfolk in search of great buys to take to auction. Expertise comes from Catherine Southon and Jonathan Pratt, and Tim visits Ham House. CHANNEL 1 BBC ONE Oxford 2 BBC TWO 3 ITV 4 Channel 4 5 Channel 5 6 ITV2 7 BBC THREE 9 BBC FOUR 12:00 Bargain Hunt Daily Politics The Blue Planet Let's Do Christmas with Gino and Mel Come Dine with Me Three Wise Women Coronation Street This is BBC Three This is BBC Four 5.. Home and Away You've Been Framed! Royal... Prev Day Next Day EXIT OK

2) Navigate through the menu using

You can now:

Record a programme by pressing RED (USB device must be connected)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide

Channel List

To view the channel list, please ensure that the TV is set to either the analogue or digital source and no menus or TV notifications are displayed.

1 BBC ONE 2 BBC TWO 3 ITV 4 Channel 4 5 Channel 5 6 ITV2 7 BBC THREE 9 BBC FOUR 10 ITV3 11 Pick Move Page Up/Down Select Exit

1) Press [OK] on the remote control and the channel list menu will appear.
2) Press LEFT / RIGHT arrow to fi Iter desired channel types (Digital TV, Radio, All).
3) Scroll through the channel list by using ▲buttons then press [OK] to view the channel that is currently highlighted.
4) Press [EXIT] to exit the channel list.

DVD SETUP

(Applies to models with built in DVD player)

-- Preference Page -- TV Type PAL PAL Default Multi NTSE VIDEO Hot TV Standard

MENU EXIT OK SOURCE INFO

To enter this menu please ensure the TV source mode is set to the DVD source & press [DVD SETUP]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [DVD SETUP] button.

TV Display - Choose from the following options

4:3 Pan scan	PS Traditional picture format, often used on old fi lm
4:3 Letter box	LB Traditional picture which has been adapted for widescreen
Wide 16:9 Widescreen picture format

Speaker Setup - Choose from the following options

LT/RT	Converts from multi-channel sound to mono
Stereo	Converts from multi-channel sound to stereo

Dual Mono - Choose from the following options

Stereo	Outputs 2 channels of sound both left and right
Mono L	Outputs left side sound
Mono R	Outputs right side sound
Mix Mono	Outputs a single channel of sound but mix between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full	Set this to	listen with the range recorded on the disc
3/4	Set this to	listen with a range equivalent to a normal television
1/2	Set this to	listen with a smaller difference between the maximum and minimum volume
1/4	Set this to	listen with a smaller difference between the maximum and minimum volume
Off		Set dynamic range to off

TV Type - Choose from the following options

PAL For discs from UK/Europe, Asia, Australia etc

Multi For both NTSC and PAL

NTSC For discs from North America, Japan etc

Default - Choose from the following options

Reset Resets all options in the 'DVD setup' menu back to the default settings

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk. Select 'Product Support', 'Changing Region'.

USB RECORD - FREEVIEW/SAORVIEW MODE

Built into this television is a USB record facility. This function is available in Freeview/Saorview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
• One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/website.

Minimum specification - USB Memory Stick

Read Speed 80 MB/s (Mega Byte Per Second)

Write Speed 40 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause live TV (time shift)

Pausing Live TV is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the time shift memory is wiped. To restart time shift you must press play/pause button.

One button record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Freeview/Saorview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB MODE/MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

Movie Music Photo File

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons on the remote control, to confirm the item you wish to play/view press the [OK] button.

Anbird1 Return 10X-500Hz pat... chara hviba MP3 new OSD punk Test Video_lu... 1 kHz 1kHz cplus_cvt_8308 hscp_cvt_8308 hscp20_cvt_8... mac_cvt_8308 _MSTPVR prehodne 1 a 2 Vymazane 3 PVR ch list

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

Auto1dx1/MP3 Development - New Job - New Job 1/1 Return 02 Mike - Ram 03 Al Di Media 04 Andrea Boc 05 Brainstorm 05 Mike - Rea 07 Scorpio - 08 Chris Rea - J 09 Chris Rea - 11 Candy Duff 12 Elton John -

3) You can now access the item. Press OK to view.

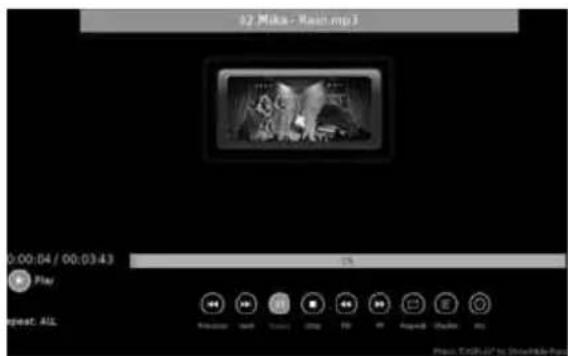

52 Moka - Make.mp3 0:00:04 / 00:03:43 Play Repeat: A/L 1% +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/- +/-

4) Whilst viewing your media, you can control the item by using the remote control buttons (below) or by pressing (Info) to access the on-screen playback menu, you can now make your selection by using the ▲ and ▶(OK) buttons on the remote control.

Fig.A

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound) See technical specification page for compatible file types

Note: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

FREQUENTLY ASKED QUESTIONS

General I would	like to have louder sound by connecting additional speakers. For TV models with digital optical audio output.	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a digital optical audio cable from the TV's digital optical audio output to your amplifi er/surround systems digital optical audio input.
General Why are some options in the menu unavailable and greyed out.		Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no aff ect.
General Can I stop	my TV automatically turning off after 4hrs?	Yes, in the 'Time' menu settings, scroll down to Auto standby and select OFF.
TV I have tuned in	Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Freeview/Saorview, visit www.freeview.co.uk or www.saorview.ie2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/ indoor type aerial.
TV I have re-tuned	my television but when I switch it off it is not storing the channels.	If the TV does not save the channels when you power it off, it's likely the channel database has become corrupt.1) Turn off the TV.2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/first time installation menu.4) Press OK (let the TV run the full tuning process).5) Once completed, turn off the TV, reconnect the RF/Aerial cable then turn the TV back on again.6) Repeat steps 3 & 4.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
Game Consoles I have connected my Playstation/ Xbox to the TV via HDMI, but I am not receiving any pictures or sound on my TV		1) Ensure the TVs' source is set to HDMI.2) Check your settings on your Playstation/Xbox are as per the Playstation/Xbox instruction manual.
Game Consoles I have connected my Playstation/ Xbox to the TV via Component cables (red, green & blue) but I am not receiving any sound.		Component cables only provide HD pictures. For the sound you will need to connect the red & white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini AV input where fitted) on the rear of the TV. Please refer to the 'Connections' pages.
System Lock I have changed the password on the television and now forgotten it.		There is a master password of 4711, to gain access to the TV menu and reset the normal password.
Freeview HD I cannot access all Freeview channels.		Some data channels for Freeview can only be obtained when the TV's ethernet port is connected to your router.
Freeview HD I cannot find the Freeview HD channels.		Freeview HD channels found during tuning will be placed in channel positions above 100. For example, 101 (BBC1 HD), 102 (BBC2 HD) etc.

FREQUENTLY ASKED QUESTIONS

USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive larger than 32GB.	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives.Please refer to the website, www.umc-uk.co.uk, for more information.
DVD (For TV models with DVD only)	I have inserted a disc but it is not playing.1) Ensure you have inserted the disc facing the correct way.2) Ensure the disc is clean and is not scratched.3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to www.umc-uk.co.uk, select ‘Changing DVD Region’ in the ‘Product Support’ section
DVD (For TV models with DVD only)	I have pressed the eject button but the disc is not coming out.To eject the disc hold the stop/eject button for 4 seconds.
USB Record I cannot change the channel, access the menu or use the red button.	During time shift you cannot change the channel, access the menu or use the red button.
USB Record When using the USB to record the picture ‘breaks up’ or experience loss of sound.	Check the USB memory stick meets the minimum read speed requirements. Standard definition channels require a read speed of 20 MB/s (Mega Byte per second) and a write Speed of 6 MB/s (Mega Byte per second) HD channels require the read speed of 80 MB/s (Mega Byte per second) and a write speed of 40 MB/s (Mega Byte per second). USB 3.0 sticks should be used where possible.
Pairing the remote control	Remote control does not work with the TV set when fi rst time installation is on the TV screenDuring fi rst time installation press and hold the GREEN and YELLOW buttons on the remote control for a few seconds. The power light will blink 5 times to confi rm the TV and remote control are paired.
Pairing the remote control	Remote control does not power on the TV setSwitch the TV on using the standby button on the TV set (not the remote control), once switched on, press the standby button on the TV set once, this will prompt the ‘pairing menu’ to appear, scroll through and highlight ‘Pair your remote’ by pressing the CH+/CH- TV button (scroll up/down function in the menu) then press the TV set’s standby button (OK function in the menu) to confi rm your selection, then with the remote control, press and hold the GREEN and YELLOW buttons for a few seconds, the power light will blink 5 times to confi rm the TV and remote control are paired.

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID	LC-32CHE5111K, LC-32CHE5111KW	LC-32DHE5111K, LC-32DHE5111KW (Models with built-in DVD player)
Energy efficiency class A+
Visible screen size (diagonal) 81 cm / 32 inches
On-mode average power consumption 31.0 W
Annual energy consumption *1 45 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	n/a
Screen resolution 1366 (H) x 768 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF 75 ohm Antenna / Analog / DVB
Inputs 3 x HDMI, 1 x SCART,	1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet),1 x 3.5mm jack for PCaudio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video &L/R Audio shared forComposite/Video &Component/YPbPr	3 x HDMI,1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet),1 x 3.5mm jack for PCaudio input,1 x Mini Component/YPbPr,1 x Composite/Video, 1 x L/RAudio shared forComposite/Video &Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz31/45/70 (home mode/standard/max)(<0.5W in Standby)	AC 220V ~ 240V; 50/60Hz31/45/80 (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	733W x 467H x 160D
Net weight (Kgs)	4.5	4.9
Wall Mounting	VESA 200 x 100 (mm)

TECHNICAL SPECIFICATION

Product fiche

Trademark	Sharp
Model ID LC-32CFE5111K,	LC-32CFE5111KW
Energy efficiency class A+
Visible screen size (diagonal) 81 cm / 32 inches
On-mode average power consumption 31.0 W
Annual energy consumption *1 45 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet), 1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Composite/Video, 1 x L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz31/45/70 (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	733W x 467H x 160D
Net weight (Kgs)	4.5
Wall Mounting	VESA 200 x 100 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID LC-40CFE5111K
Energy efficiency class A+
Visible screen size (diagonal) 100 cm / 40 inches
On-mode average power consumption 45.0 W
Annual energy consumption *1 66 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x SCART, 1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet), 1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz45/65/80W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	906W x 554H x 184D
Net weight (Kgs)	7.5
Wall Mounting	VESA 200 x 100 (mm)

TECHNICAL SPECIFICATION

Product fiche

Trademark	Sharp
Model ID LC-43CFE5111K
Energy efficiency class A+
Visible screen size (diagonal) 109 cm / 43 inches
On-mode average power consumption 41.0 W
Annual energy consumption *1 60 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x SCART, 1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet),1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz41/50/70W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	966W x 596H x 184D
Net weight (Kgs)	8
Wall Mounting	VESA 400 x 200 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID LC-49CFE5001K
Energy efficiency class A+
Visible screen size (diagonal) 123 cm / 49 inches
On-mode average power consumption 67.0 W
Annual energy consumption *1 98 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x VGA/PC, 2 x USB, 1 x RJ45 (Ethernet),1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz67/95/110W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	1104W x 688H x 229D
Net weight (Kgs)	11.4
Wall Mounting	VESA 200 x 200 (mm)

TECHNICAL SPECIFICATION

Product fiche

Trademark	Sharp
Model ID LC-50CFE5101K
Energy efficiency class A+
Visible screen size (diagonal) 127 cm / 50 inches
On-mode average power consumption 58.0 W
Annual energy consumption *1 85 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional technical information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x VGA/PC, 2 x USB, 1 x RJ45 (Ethernet),1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz58/80/100W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	1130W x 700H x 229D
Net weight (Kgs)	12.1
Wall Mounting	VESA 200 x 200 (mm)

TECHNICAL SPECIFICATION

Product fi che

Trademark	Sharp
Model ID LC-50CFE5111K
Energy efficiency class A+
Visible screen size (diagonal) 127 cm / 50 inches
On-mode average power consumption 58.0 W
Annual energy consumption *1 85 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption n/a
Screen resolution 1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

RF	75 ohm Antenna / Analog / DVB
Inputs	3 x HDMI, 1 x SCART, 1 x VGA/PC, 2 x USB,1 x RJ45 (Ethernet), 1 x 3.5mm jack for PC audio input,1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared forComposite/Video & Component/YPbPr
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x Digital OpticalAudio Out
Speaker / Amplifier Watts (RMS)	2 x 10 / 2 x 8
Voltage and power consumption	AC 220V ~ 240V; 50/60Hz58/80/100W (home mode/standard/max)(<0.5W in Standby)
Dimensions including stand (mm)	1130W x 700H x 229D
Net weight (Kgs)	12.1
Wall Mounting	VESA 200 x 200 (mm)

TECHNICAL SPECIFICATION

Compatible fi les in USB Mode

Media File Ext.		Video Decoder		Remark
		Video Audio
Movie	.mpg/.mpeg/.dat	MPEG-1, MPEG-2	MP3, WMA, AAC, LPCM, AC3	Max Solution: 1920×1080Max Data Rate: 40 Mbps
	.ts/.trp/.tp/.m2ts	MPEG-2, H.264,VC1,AVS
	.vob	MPEG-2
	.mp4	MPEG-4, Xvid, H.264
	.rm/.rmvb	Rm codec
	.mkv	MPEG-1, MPEG-2, MPEG-4, H.264
	.avi	MPEG-2, MPEG-4, Xvid, H.264
	Motion JPEG	JPEG		Max Solution: 640×480Max Data Rate: 10 Mbps
	.asf,wmv	VC1		Max Solution: 1920×1080Max Data Rate: 40 Mbps
	.flv/.swf	H.264, AVC, Sorenson H.263
Music	.mp3	--	MPEG1/2 (Layer1, Layer2, Layer3)	SampleRate: 16KHz~48KHzBitRate: 32K~448Kbps
	.wma/.asf	--	WMA	BitRate: 128Kbps~320KbpsSampling rate :8KHz-48KHz
			WMA pro	BitRate: <768KbpsSampling rate : ~96KHz
	.ogg	--	OGG	Sample Rate: ~48KHz
	.m4a/.aac	--	AAC HEAAC	Sample Rate: 8K~48KHzBit Rate: 24K~384Kbps
Photo	.jpg/.jpeg	Progressive JPEG		Max Resolution: 1024×768
		Baseline JPEG		Max Resolution:1920×8×1088×8
	.bmp	BMP		Max Resolution:9600×6400
	.png	Non-Interlaced		Max Resolution:9600×6400
		Interlaced		Max Resolution: 1200×800

UMC Poland sp. z o.o.

Ostaszewo 57B, 87-148 Łysomice, Poland

Assembled in Europe

This is Why

www.sharp.eu

SHARP

CE

SHA/MAN/0084
