USER MANUAL MZ-42PZ14K LG

Please read this owner's manual carefully before operating the Monitor.

Retain it for future reference.

Record model number and serial number of the

Monitor

See the label attached on the back of the Monitor

and quote this information to your dealer when you

and quote this information to your dealer when you

require service.

Model number

Serial number

PLASMA MONTOR

MZ-42PZ10/B/G/K/S

MZ-42PZ14/B/G/K/S

MZ-42PZ24/B/G/K/S

MT-42PZ10/B/G/K/S

MT-42PZ12/B/G/K/S

MT-42PZ14/B/G/K/S

MT-42PZ22/B/G/K/S

OWNER'S MANUAL

Blank image with a diagonal gradient bar on the left and a small logo at the bottom right (no text or symbols)

LG Plasma Monitor

What is a Plasma Monitor?

If voltage is inputted to gas in glass panels, ultraviolet rays is outputted and fused with a fluorescent substance. At this moment, light is emitted. A Plasma Monitor is a next generation flat Display using this phenomenon.

160° - Wide angle range of vision

A Plasma Monitor provides more than 160^ angle range of vision so that you can get a picture without distortion from any direction.

Easy installation

A Plasma Monitor is much lighter and smaller than other same class products so that you can install the Plasma Monitor at the desired place.

Big screen

The screen of a Plasma Monitor is 42" so that you can get vivid experience as if you are in a theatre.

Multimedia Plasma Monitor

A Plasma Monitor can be connected with a computer so that you can use it as a screen for conference, game, internet and so on.

The explanation about coloured dots may be present on PDP screen

The PDP which is the display device of this product is composed of 0.9 to 2.2 million cells and a few cell defects can occur in the manufacture of the PDP. Several coloured dots visible on the screen would be acceptable, in line with other PDP manufacturers and would not mean that the PDP is faulty. We hope you will understand that the product which corresponds to this standard is regarded as acceptable. It means that it could not be changed or refunded.

We promise that we'll do our best to develop our technology to minimize the cell defects.

WARNING

This is Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Blank grayscale image with diagonal gradient and corner shadow (no text or symbols)

When connecting the PDP tuner with its exclusive cable, most functions work with the tuner and the PDP only functions as monitor. (For further information, refer to the PDP Tuner Guide)

Contents

First step

Safety Instructions....4

Composition

Controls of the Monitor 8

Controls of the remote control....12

Installation of the Monitor 14

Connection

Watching VCR 16

Watching Cable TV....17

Watching external AV source....18

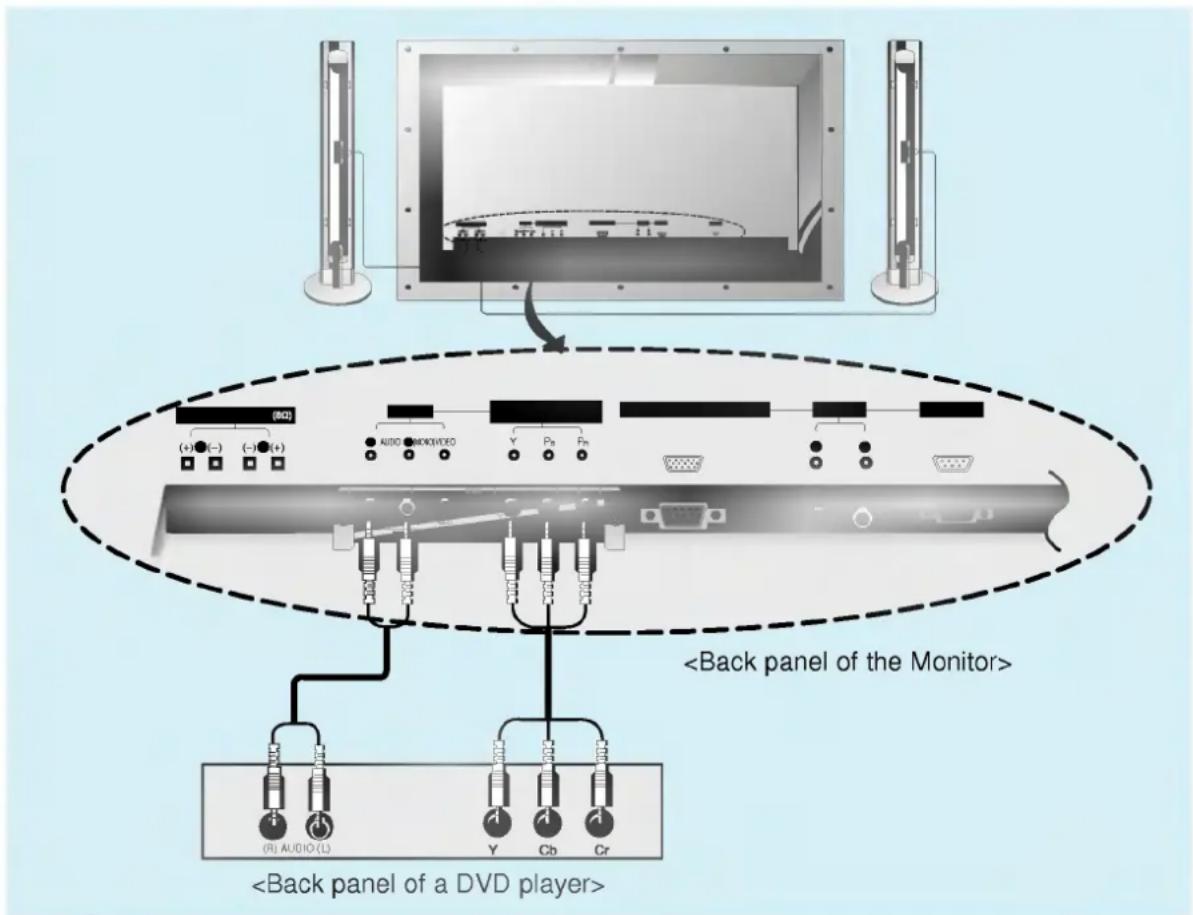

Watching DVD 19

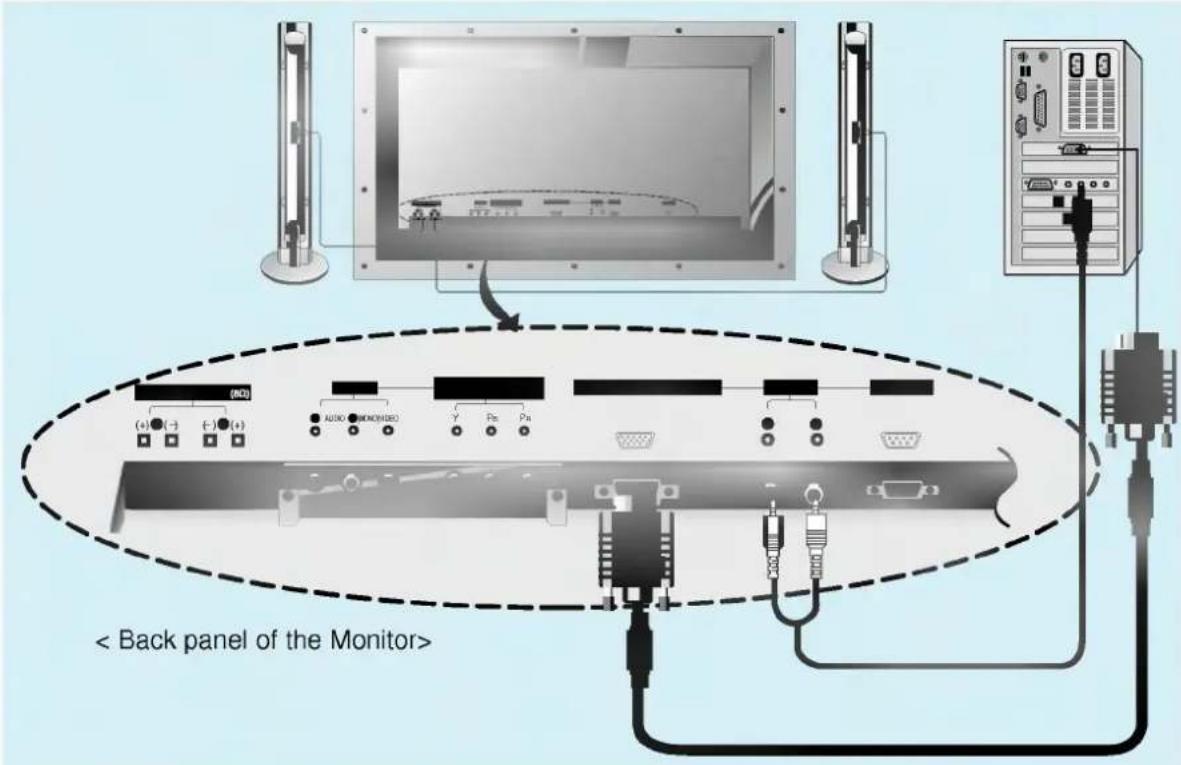

Connecting PC 20

Function checking in PC mode 22

Adjusting in PC mode....23

Using the remote control 26

Basic function

Turning on the Monitor 27

Selecting the on screen language....28

Function checking....29


Picture adjustment....30

Picture format....31

Sound

Sound adjustment....32

Special function

Child lock....33

Auto sleep....34

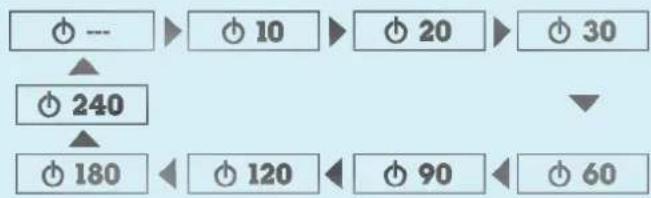

Sleep timer 35

Others

Troubleshooting check list....36

Product specifications....39

After reading this manual, keep it in the place where the user can always contact easily.

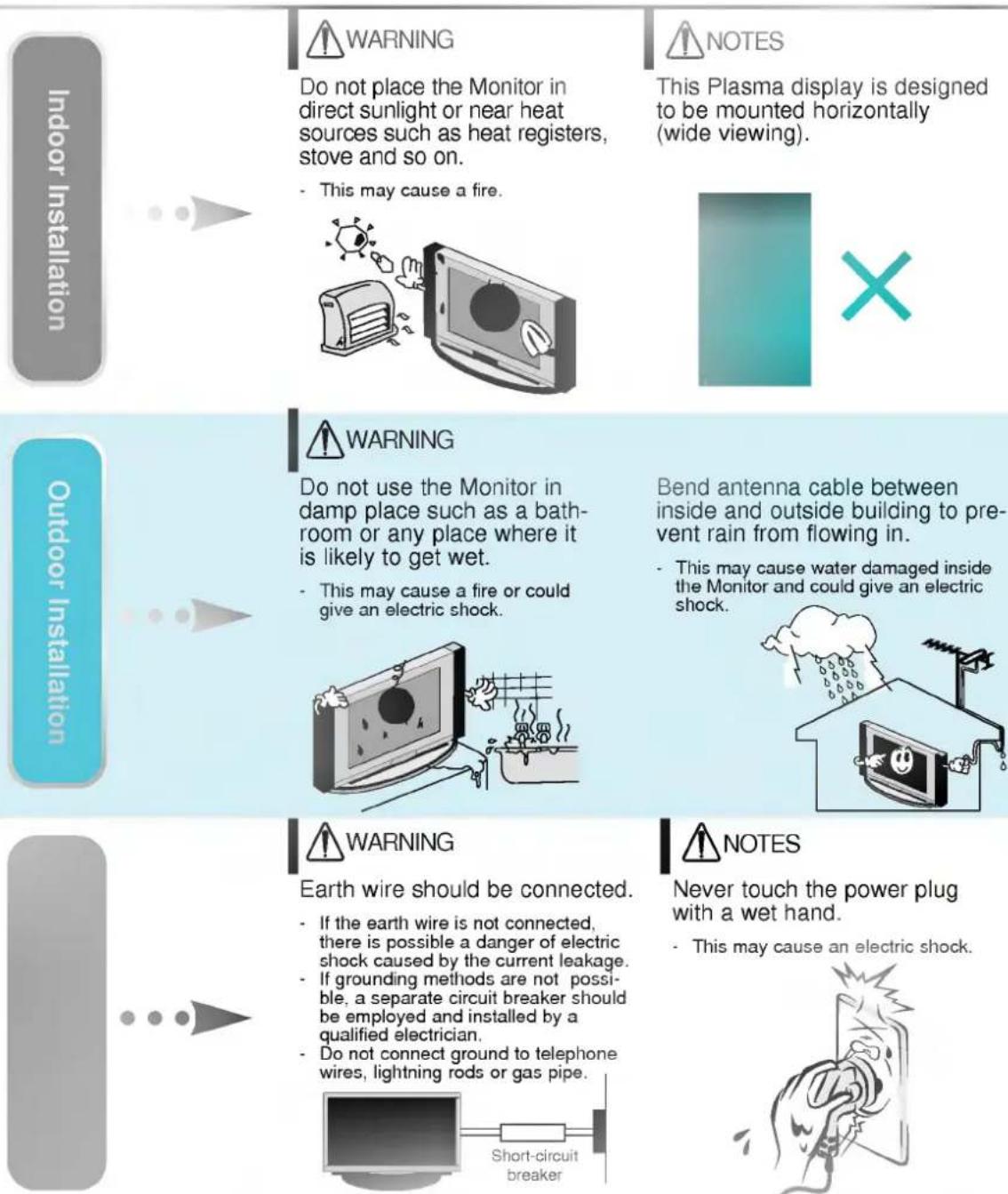

Safety Instructions

- Use the Monitor at the place lower than the altitude of 6562 feet (2000m) to get the best quality of picture and sound.

WARNING

Do not place the Monitor in direct sunlight or near heat sources such as heat registers, stove and so on.

- This may cause a fire.

NOTES

This Plasma display is designed to be mounted horizontally (wide viewing).

WARNING

Do not use the Monitor in damp place such as a bathroom or any place where it is likely to get wet.

- This may cause a fire or could give an electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in.

- This may cause water damaged inside the Monitor and could give an electric shock.

WARNING

Earth wire should be connected.

- If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

- If grounding methods are not possible, a separate circuit breaker should be employed and installed by a qualified electrician.

- Do not connect ground to telephone wires, lightning rods or gas pipe.

NOTES

Never touch the power plug with a wet hand.

- This may cause an electric shock.

* Safety instructions have two kinds of information, and each meaning of it is as below.

WARNING

The violation of this instruction may cause serious injuries and even death.

NOTES

The violation of this instruction may cause light injuries or damage of the product.

Take care of danger that may happen under specific condition.

NOTES

Disconnect from the mains and remove all connections before moving.

Illustration of a mechanical clamp securing an electrical plug with lightning bolts (no text or symbols)

NOTES

Do not place the Monitor in a built-in installation such as a bookcase or rack.

- Ventilation required.

Simple line drawing of a monitor with a circular button and a cross symbol below (no text or labels)

When installing the Monitor on a table, be careful not to place the edge of its stand.

- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.

Cartoon illustration of a person reacting to a screen showing a dark circular object, with motion lines indicating speed (no text or symbols)

NOTES

Do not place an outside antenna in the vicinity of overhead power lines or other electric light or power circuits.

- This may cause an electric shock.

Simple line drawing of a utility pole with a house and lightning bolt above it (no text or symbols)

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls.

- This may cause an electric shock.

Cartoon illustration of a smiling house with steam rising from a utility pole (no text or symbols)

NOTES

Do not pull the cord but the plug when unplugging.

- This may cause a fire.

Illustration of a hand using a power plug to test electrical shock (no text or symbols)

Ensure the power cord doesn't trail across any hot objects like a heater.

- This may cause a fire or an electric shock.

Cartoon illustration of a broken phone with a fuse, no text or symbols present

Do not plug when the power cord or the plug is damaged or the connecting part of the power outlet is loose.

- This may cause a fire or an electric shock.

Safety Instructions

Simple gray arrow pointing right from a vertical gradient bar (no text or symbols)

WARNING

Do not place anything containing liquid on top of the Monitor.

- This may cause a fire or could give an electric shock.

Cartoon illustration of a computer monitor with flowers and clouds around it (no text or symbols)

Do not insert any object into the exhaust vent.

- This may cause a fire or could give an electric shock.

Cartoon illustration of a person pointing at a computer monitor (no text or symbols present)

WARNING

Do not use water the Monitor while cleaning.

- This may cause damaged the Monitor or could give an electric shock.

Illustration of a cartoon-style monitor with a bomb and a falling object, accompanied by a crossed-out flag (no text or symbols)

In case of smoke or strange smell from the Monitor, switch it off, unplug it from the wall outlet and contact your dealer or service center.

- This may cause a fire or could give an electric shock.

Illustration of a cartoon-style monitor with a surprised face and question marks, no text or symbols present.

WARNING

Do not attempt to service the Monitor yourself. Contact your dealer or service center.

- This may cause damaged the Monitor or could give an electric shock.

During a lightning thunder, unplug the Monitor from the wall outlet and don't touch an antenna cable.

- This may cause damaged the Monitor or could give an electric shock.

Illustration of a cartoon-style computer monitor with a bomb icon and lightning bolts, no text or symbols present.

WARNING

Do not place heavy objects on the Monitor.

- This may cause serious injury to a child or adult.

Illustration of a computer monitor with a stack of books above it, no text or symbols present

Dispose of used batteries carefully to protect a child from eating them.

- In case that it eats them, take it to see a doctor immediately.

Cartoon illustration of a child reacting to a distressed computer monitor displaying a sad face (no text or symbols present)

NOTES

When moving the Monitor assembled with the Speakers do not carry holding the Speakers.

- This may cause the Monitor to fall, causing serious injury to a child or adult, and

serious damage to the Monitor.

Illustration showing a hand holding a computer monitor with a circular button and a cross symbol, possibly indicating a control or action.

NOTES

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

- This may cause damaged the Monitor or could give an electric shock.

Illustration of a computer monitor with a screen, emitting exhaust smoke, and a bottle and a cross symbol (no text or labels)

Contact the service center once a year to clean the internal part of the Monitor.

- Accumulated dust can cause mechanical failure.

Illustration of a person operating a computer monitor with a cartoon character on the screen (no text or symbols present)

NOTES

The distance between eyes and the screen should be about 5 \~ 7 times as long as diagonal length of the screen.

- If not, eyes will strain.

Illustration of a person using a handheld device to interact with a screen (no text or symbols present)

Unplug the Monitor from the wall outlet when it is left unattended and unused for long periods of time.

- Accumulated dust may cause a fire or an electric shock from deterioration or electric leakage.

Only use the specified batteries.

- This make cause damaged the remote control or could give an electric shock.

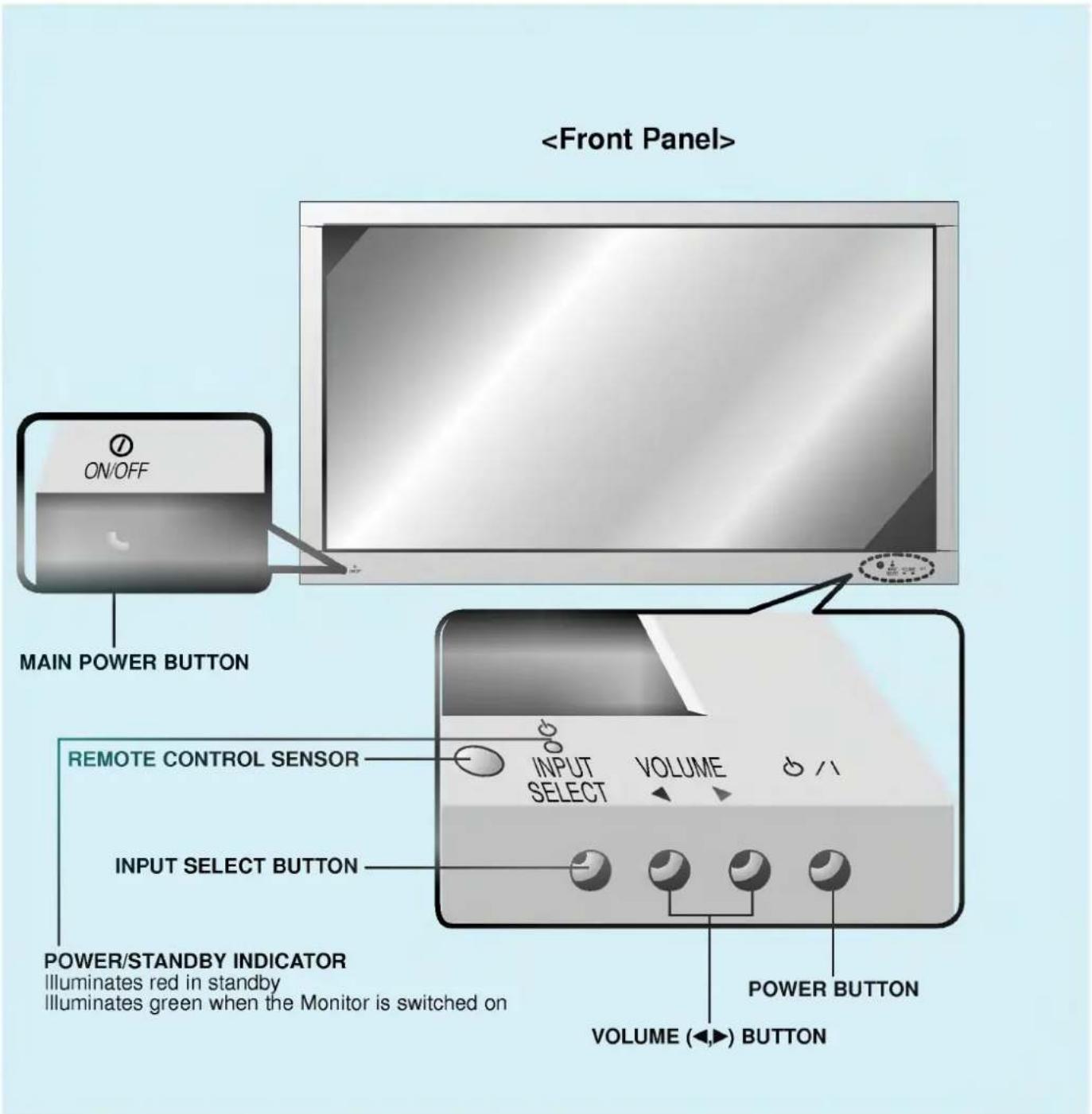

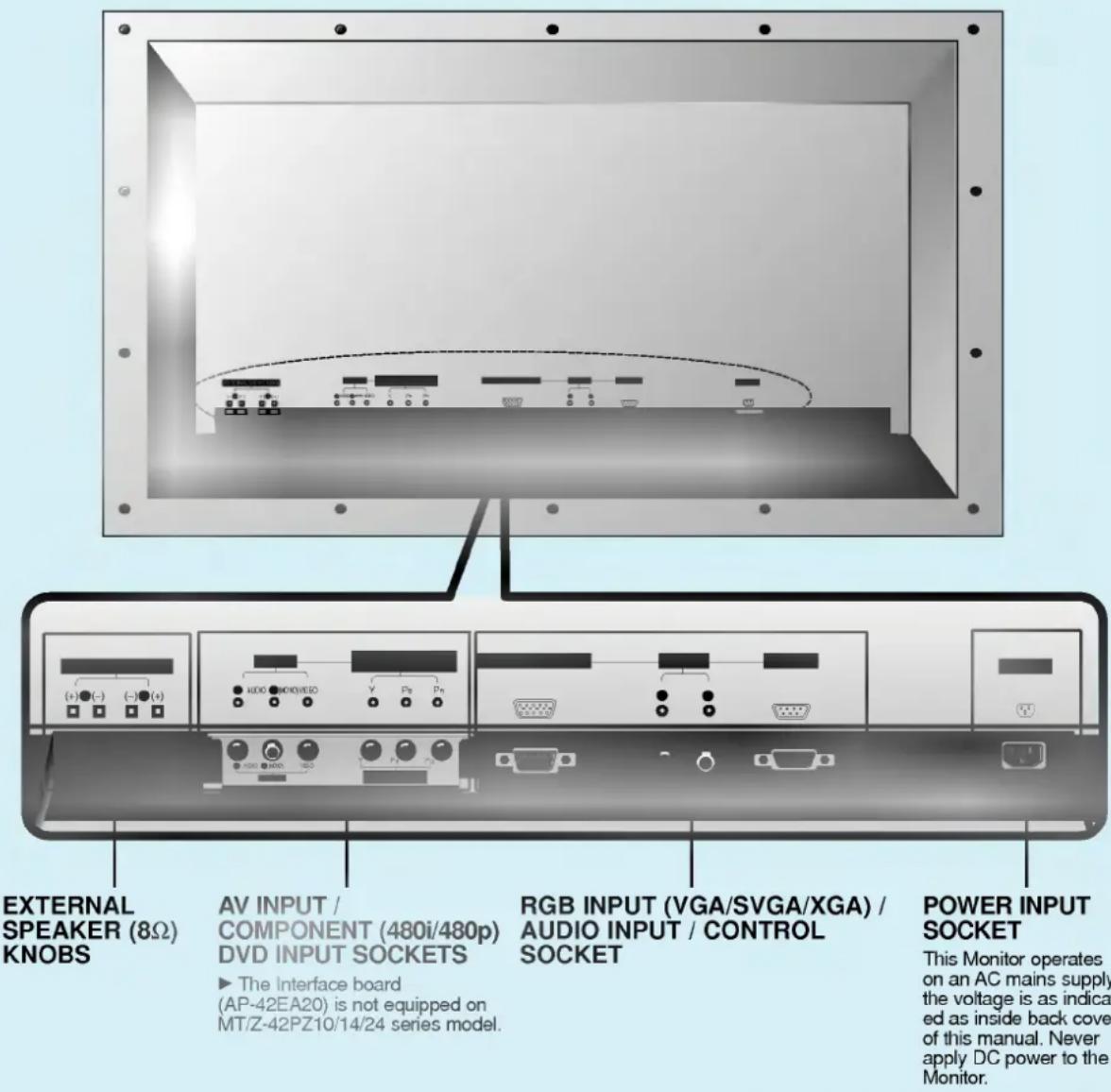

Controls of the Monitor

ON/OFF MAIN POWER BUTTON REMOTE CONTROL SENSOR INPUT SELECT VOLUME /1 INPUT SELECT BUTTON POWER/STANDBY INDICATOR Illuminates red in standby Illuminates green when the Monitor is switched on POWER BUTTON VOLUME (◄►) BUTTON

EXTERNAL SPEAKER (8Ω) KNOBS AV INPUT / COMPONENT (480i/480p) DVD INPUT SOCKETS ► The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model. RGB INPUT (VGA/SVGA/XGA) / AUDIO INPUT / CONTROL SOCKET POWER INPUT SOCKET This Monitor operates on an AC mains supply the voltage is as indicated as inside back cover of this manual. Never apply DC power to the Monitor.

Accessories

D-sub 15 pin cable

Power cord

Remote control

Owner's Manual

Alkaline batteries (Optional)

Phone scart cable (Optional)

Optional Extras

• Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added.
• Contract your dealer for buying these items.

RT/RZ-BA10 (PDP Tuner)

AP-42EA20 (Interface board)

Exterior view of a metal frame structure with mounting holes and structural supports (no text or symbols)

AP-42WA20M series (Tilt wall mounting bracket)

Metal frame with two vertical slots and mounting holes, no text or symbols visible

AP-42WA10 series (Wall mounting bracket)

Optional Extras

• Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added.
• Contract your dealer for buying these items.

Metallic rectangular panel with circular holes and a mounting bracket (no text or symbols visible)

AP-42CA10 series (Ceiling mounting bracket)

3D rendered mechanical component with two vertical posts and a curved base (no text or symbols)

AP-42FA10 series (Floor type stand)

3D rendered model of a submarine or submarine with visible hull, fins, and tail (no text or symbols)

AP-42DA10 series (Desktop stand)

AP-42SA10 series (Speakers)

AP-42SA10D series (Speaker stand)

AP-42SA10F series (Floor type speaker stand)

Video cables

Audio cables

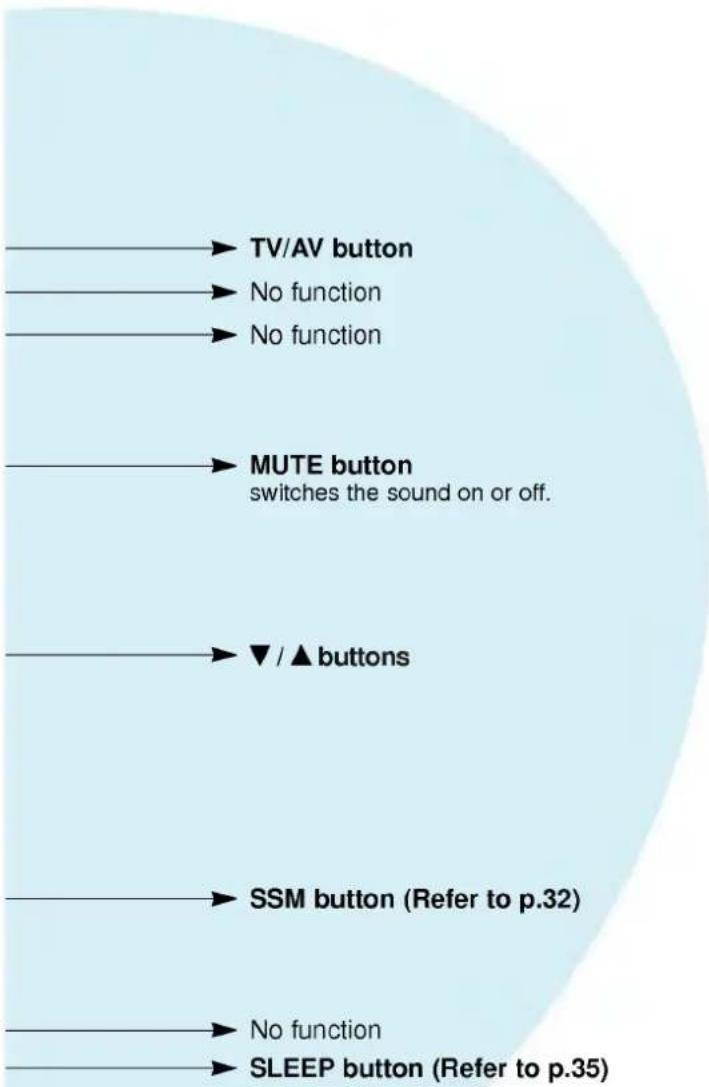

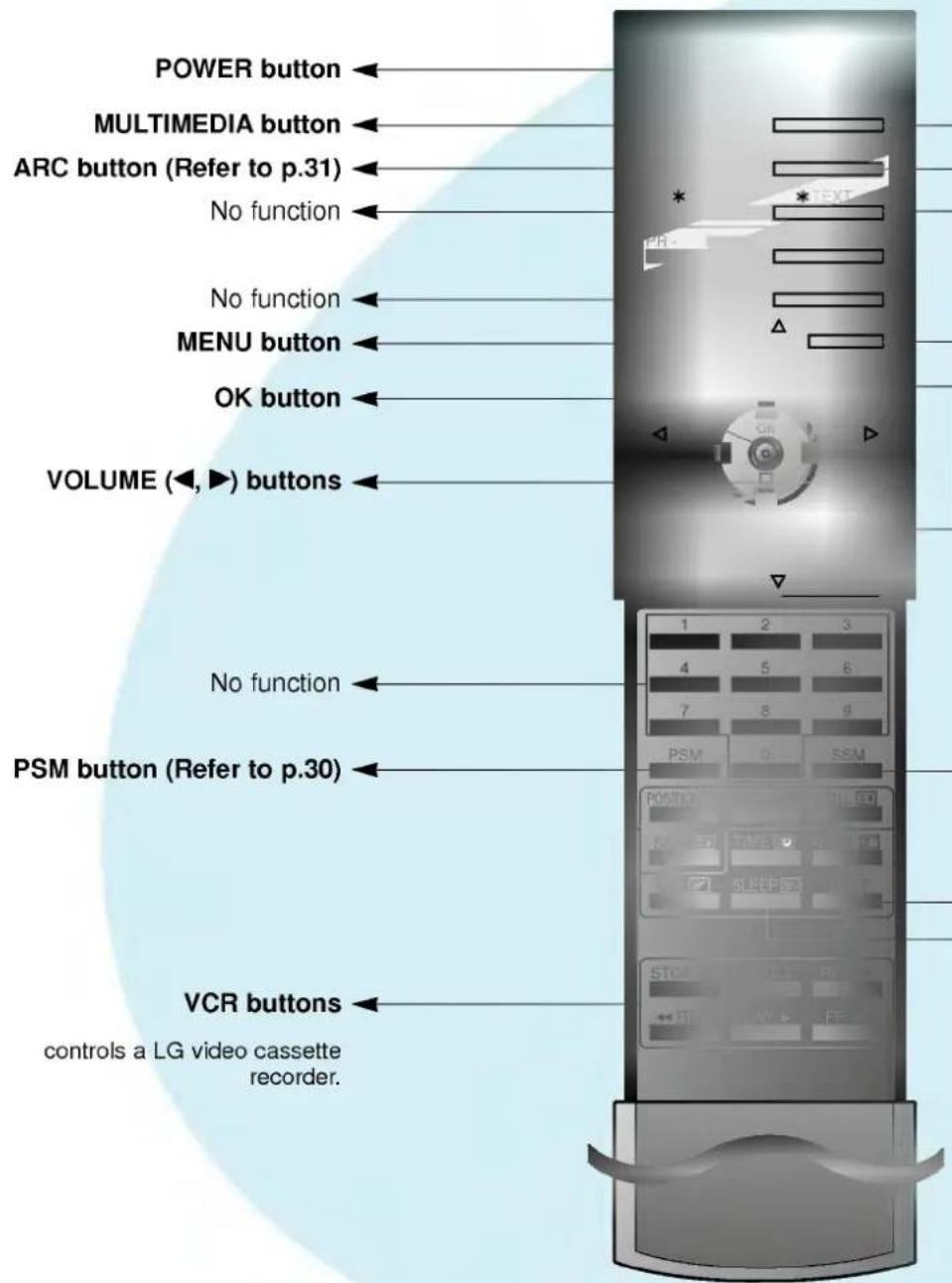

Controls of the remote control

• Some buttons on this remote control does function only when the Monitor is connected with RT/RZ-BA10 (the PDP tuner).
• When using the remote control aim it at the remote control sensor of the Monitor.

POWER button MULTIMEDIA button ARC button (Refer to p.31) No function No function MENU button OK button VOLUME (◀, ▶) buttons No function PSM button (Refer to p.30) VCR buttons controls a LG video cassette recorder.

TV/AV button No function No function MUTE button switches the sound on or off. ▼ / ▲ buttons SSM button (Refer to p.32) No function SLEEP button (Refer to p.35)

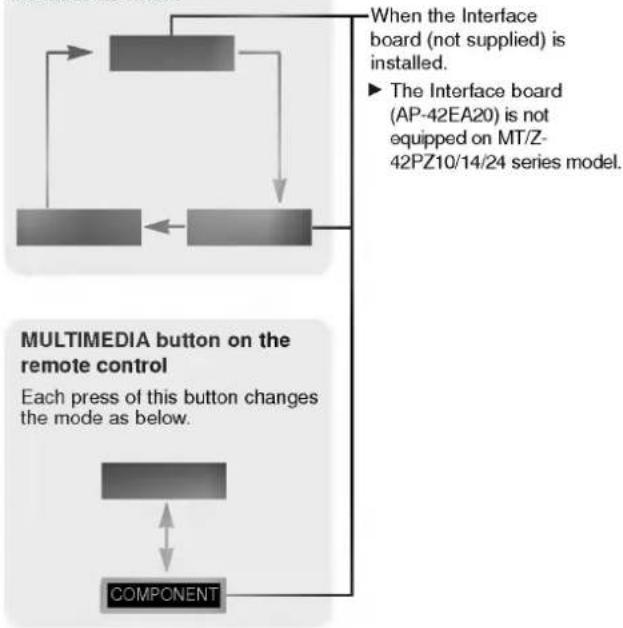

TV/AV button on the remote control
Each press of this button changes the mode as below.

Installation of the Monitor

- The Monitor can be installed in various ways such as wall mounting type, desktop type, etc..

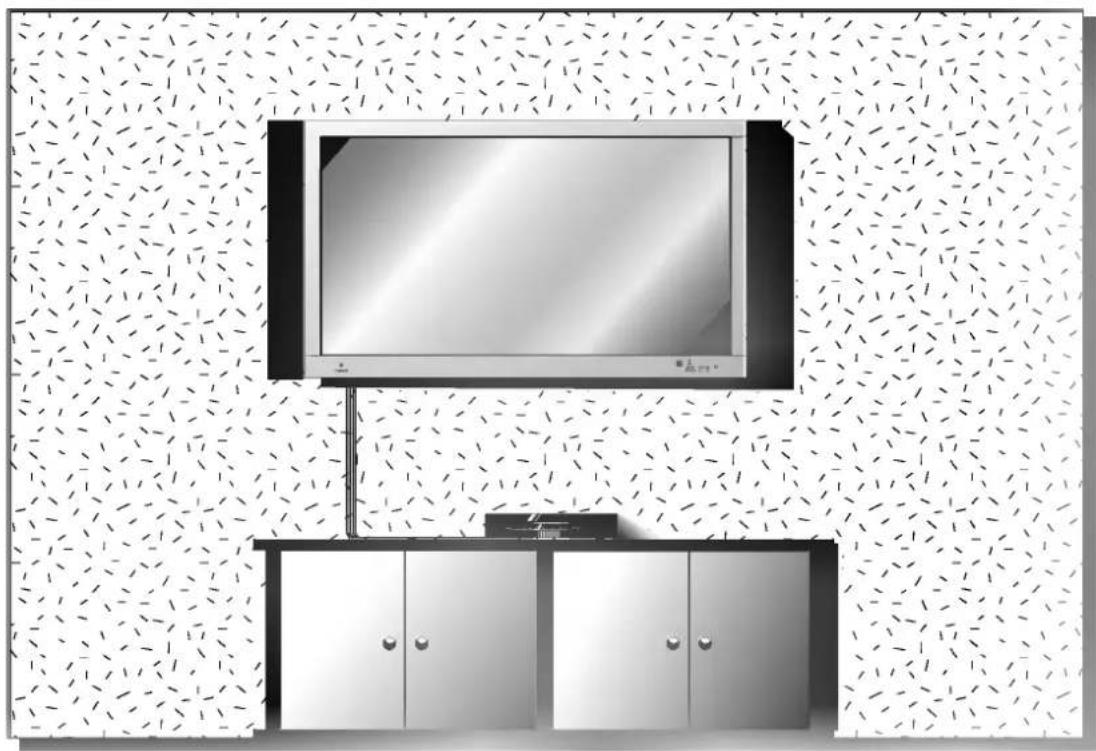

To install as wall mounting type

Interior view of a modern home appliance with a mounted TV and cabinet, set against a patterned wall (no text or symbols visible)

- The monitor can be installed on the wall as the picture above. (For further information, refer to 'Tilt' wall mounting bracket owner's manual')

Tips

• Install this monitor only in a location where adequate ventilation is available.

a. (Wall mount minimum allowable clearances for adequate ventilation)

Technical illustration of a square window mounted on a wall, with a side view showing a 1.16mm height measurement (no text or symbols present)

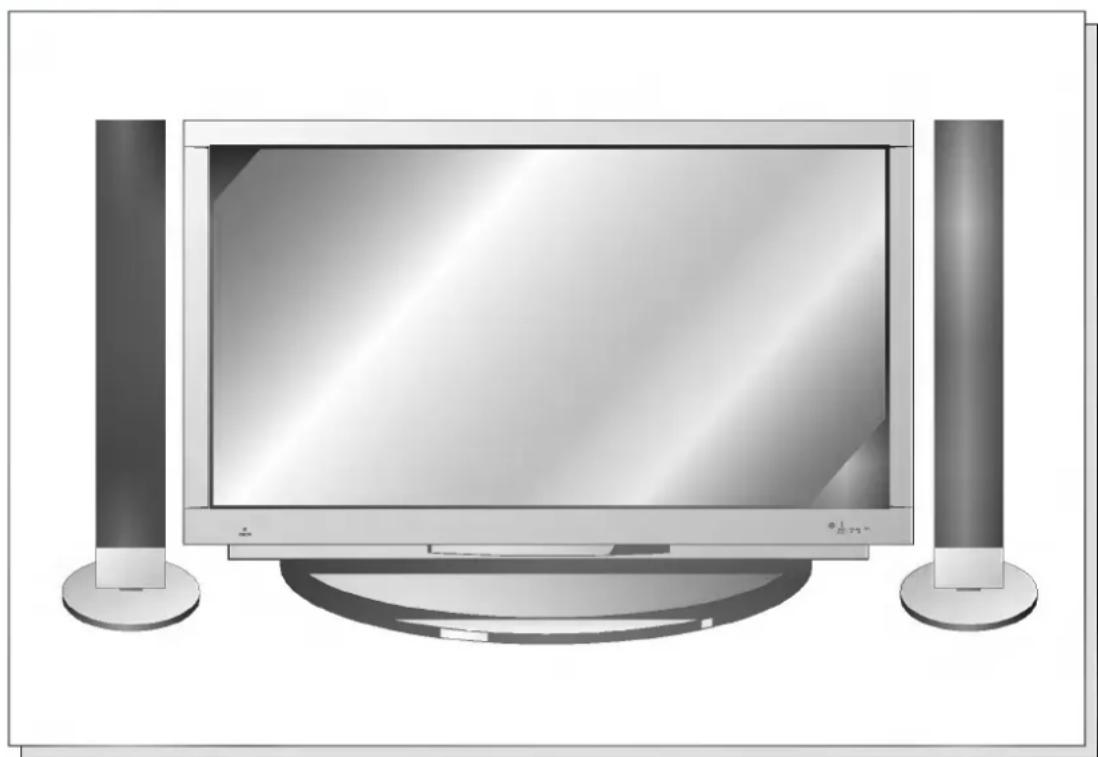

To install as desktop type

Illustration of a flat-screen CRT monitor mounted on two speakers (no text or symbols visible)

• The monitor can be installed on the desk as the picture above. (For further information, refer to 'Desktop stand owner's manual'.)
  (Pedestal mount minimum allowable clearances for adequate ventilation)

b.

Exterior view of a modern flat-screen monitor with a curved screen and stand (no text or symbols visible)

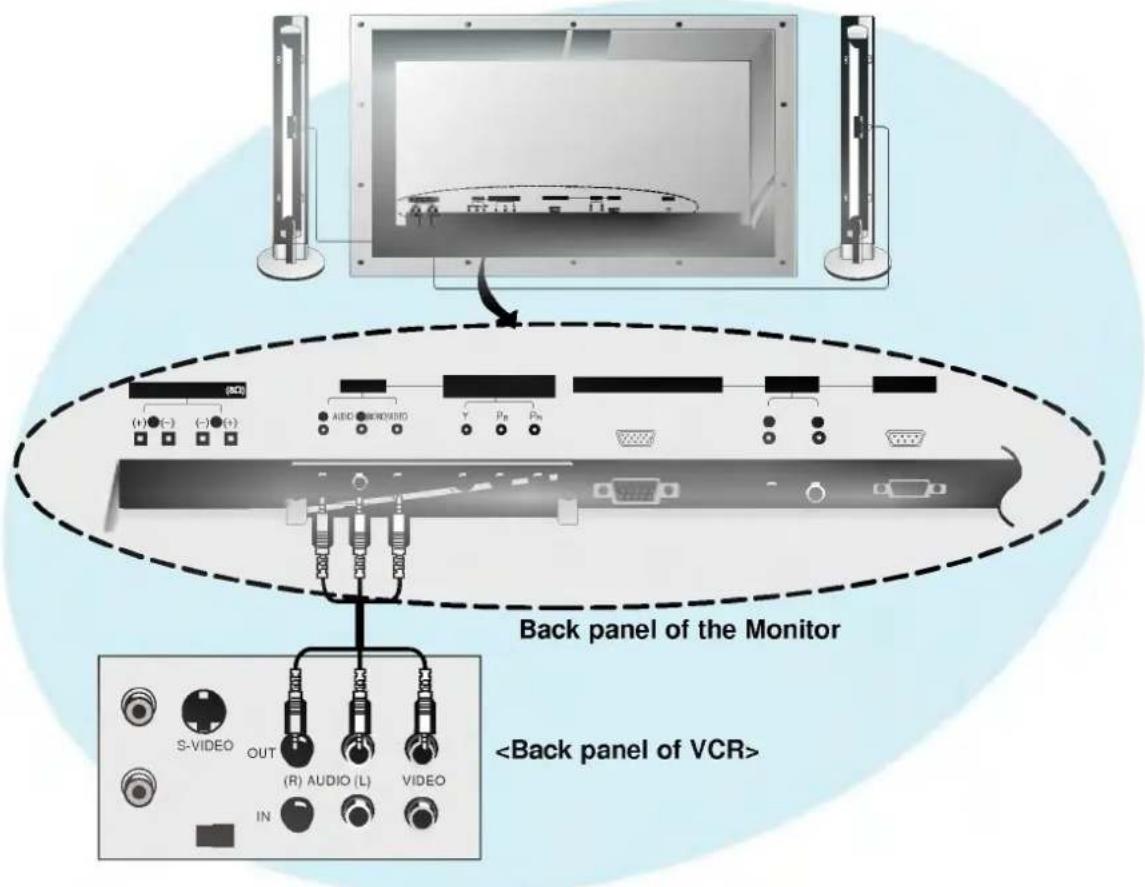

Watching VCR

• When connecting the Monitor with external equipments, match the colours of connecting ports (Video - yellow, Audio(L) - white, Audio(R) - red).
• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the Monitor.
• Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR, 4:3 picture format or if a CH label is present; the fixed image may remain visible on the screen.

Back panel of the Monitor

To watch VCR (When the Interface board is installed.)

The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

1

Press TV/AV button on the remote control to select AV. (Select AV if AV INPUT is connected.)

2

Insert a video tape into the VCR and press the PLAY button on the VCR.

Tips

• To prevent picture noise, place the VCR more than 50cm away from the Monitor.

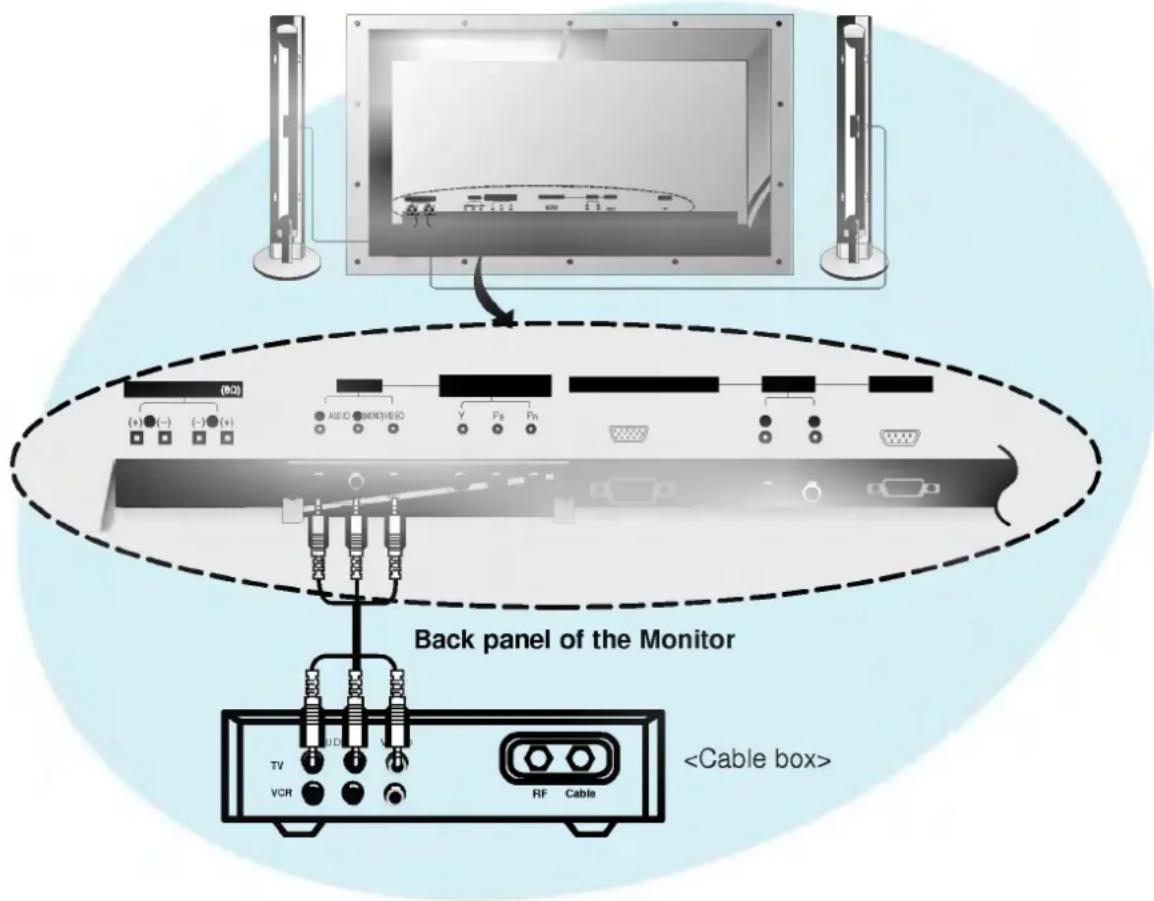

Watching Cable TV

- After subscribing for a local cable TV station and installing a converter you can watch cable TV.

Back panel of the Monitor

To watch cable TV (When the Interface board is installed.)

The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

1 Press TV/AV button on the remote control to select AV. (Select AV if AV INPUT is connected.)

2 Select your desired programme with the remote control for cable box.

Tips

- For further information of cable TV, contact the local cable TV station.

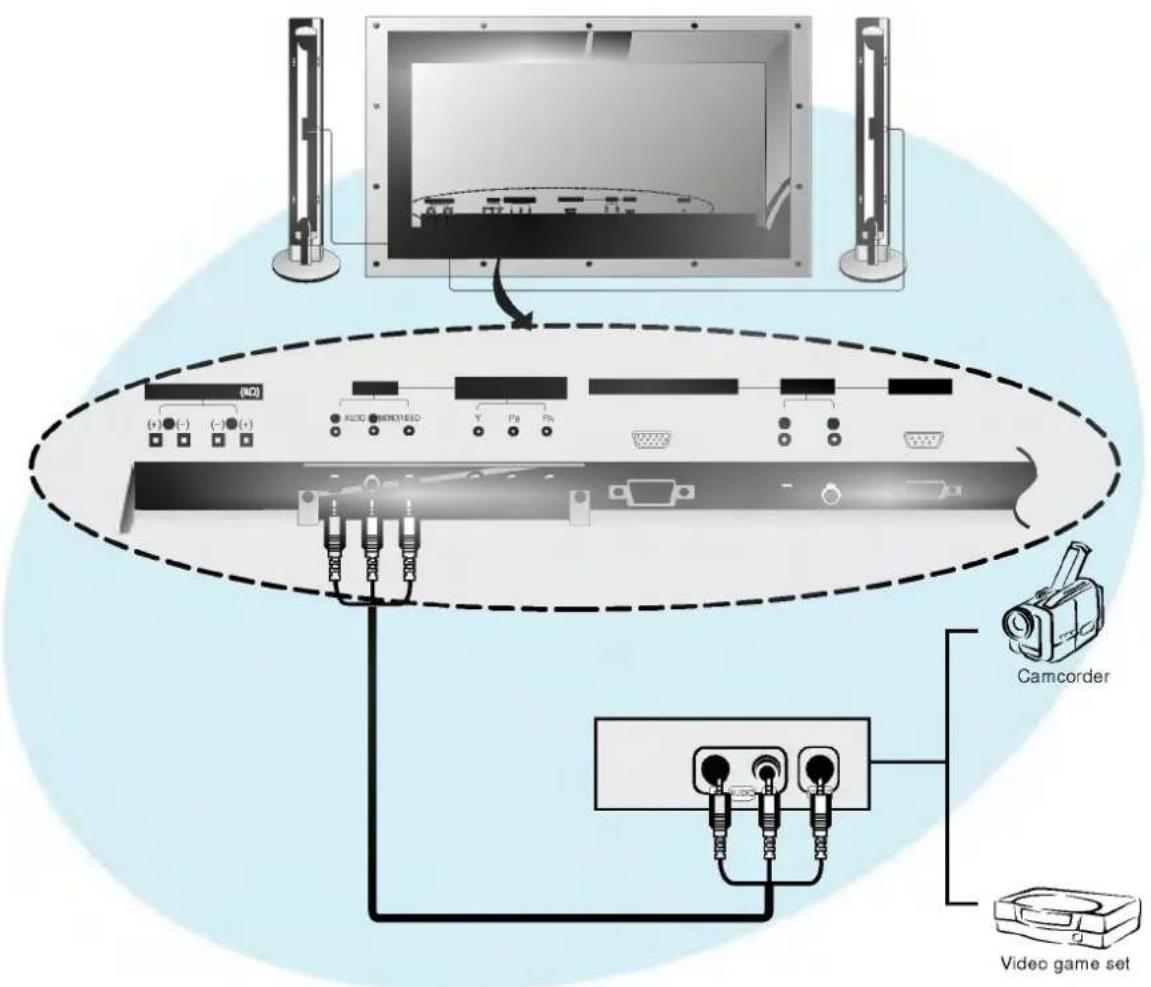

Watching external AV source

- When counting the Monitor with external equipments, match the colours of connecting ports.

Diagram showing video setup with monitor, camera, and video game set connected to audio/video ports and connectors

To watch external AV source

(When the Interface board is installed.)

The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

1 Press TV/AV button on the remote control to select AV.

2 Operate the corresponding external equipment.

Watching DVD

How to connect (When the Interface board is installed.)

The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

• DVD input is set as 480i/480p mode.
- Connect DVD video inputs to Y, P_B , P_R of COMPONENT (480i/480p) (DVD INPUT) and audio inputs to Audio sockets of AV INPUT.

How to use

(When the Interface board is installed.)

The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

• Press MULTIMEDIA or TV/AV button on the remote control to select COMPONENT.
• Try this after turning on the DVD player.

- Component Input ports

You can get better picture quality if you connect DVD player with component input ports as below.

Component ports of the Monitor

Y

Video output ports of DVD player	Y	Pb
	Y	B-Y
	Y	Cb

Connecting PC

- You can enjoy vivid picture and sound with connecting a PC with the Monitor.

• Set the video mode of PC to VGA/SVGA/XGA to obtain the best picture quality for the Monitor.
• If the resolution of PC is over XGA, there will be no picture on the Monitor.
• Connect the signal cable from the monitor output port of the PC to the RGB INPUT(VGA/SVGA/XGA) port of the Monitor.
• Connect the audio cable from the PC to the Audio ports of the Monitor. (Audio cables not included with the Monitor)
  • In case of using a sound card adjust PC sound properly.

< Back panel of the Monitor>

• Press POWER button on the PC and press ON/OFF button on the Monitor. After this press o/l button on the Monitor or press POWER button on the remote control.
• Press MULTIMEDIA or TV/AV button on the remote control to select RGB-PC.
• Set the resolution of PC under XGA (1024x768). (Refer to page 21.)

Tips

• If still picture is on the screen for a long period time, Screen Burn!
• If the resolution of PC is over XGA, connect to the RGB INPUT(VGA/SVGA/XGA) port of the Monitor after changing the resolution of PC under XGA.
• If picture isn't be displayed properly by conneting a non-standard PC, contact your dealer for more information.

Displayable Monitor Specification

Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
640x400	37.861	85.08
720x400	31.469	70.08
640x480 (VGA)	31.469	59.94
	35.000	66.66
	37.861	72.80
	37.500	75.00
	43.269	85.00
800x600 (SVGA)	35.156	56.25
	37.879	60.31
	48.077	72.18
	46.875	75.00
	53.674	85.06
832x624	49.725	74.55
1024x768 (Compressed XGA)	48.363	60.004
	56.476	70.069
	60.023	75.029

Tips

- Synchronization input form : separate

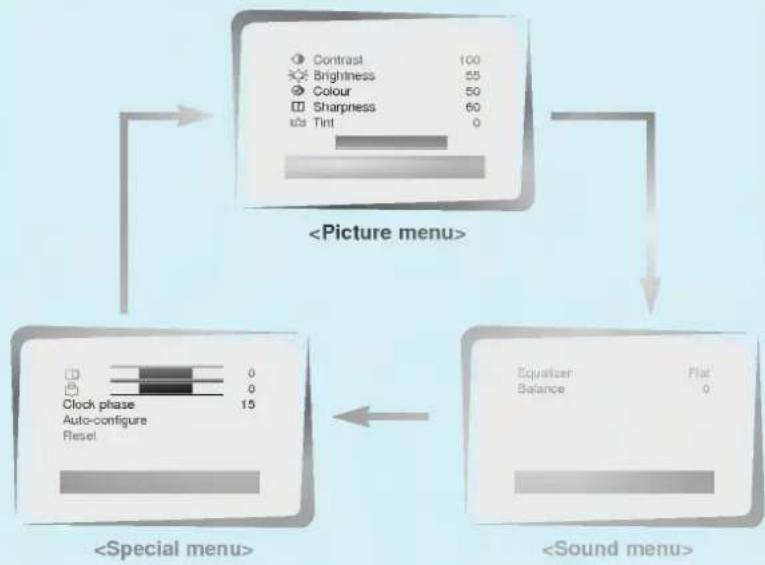

Function checking in PC mode

- Make sure to select RGB-PC before operating.

Repeatedly press the MENU button.

Press the ▲ / ▼ button to select a menu item.

• The selected menu item changes from white to purple.

3 Press the ◀/▶ button to change the setting of a menu item.

- Press the TV/AV button to exit.

Tips

• Only when Equalizer is set to User, Treble and Bass are displayed and can be adjusted.
• Language is displayed only in PC mode (special menu) when the Interface board is not installed and you can select your desired Language.
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Adjusting in PC mode

- Only adjust auto configure, horizontal / vertical position and clock phase in 16:9 picture format.

Auto configure

- This function is for the automatic adjustment of the screen position and clock phase.

Repeatedly press the MENU button to select the special menu.

Clock phase Auto-configure Reset

Press the ▲ / ▼ button to select Autoconfigure and then press the ◀ / ▶ button.

PR PR VOL VOL

Clock phase Auto-configure Reset

Press the OK button.

- If picture needs to be adjusted more after auto adjustment, adjust your Monitor's position and clock phase manually.

Adjusting in PC mode

Adjusting horizontal / vertical position

Repeatedly press the MENU button to select the special menu.

Clock phase Auto-configure Reset

Press the ▲ / ▼ button to select □ or □.

PR PR VOL VOL

Clock phase Auto-configure Reset

• Select ☐ for horizontal position adjustment.
• Select ☐ for vertical position adjustment.

Press the ◀ / ▶ button to adjust until you get desired horizontal or vertical position and then press the OK button.

Adjusting clock phase

- In case that picture isn't clear after auto adjustment and especially that characters are trembling, adjust phase manually.

Repeatedly press the MENU button to select the special menu.

Clock phase Auto-configure Reset

Press the ▲ / ▼ button to select Clock phase.

Clock phase Auto-configure Reset

Press the ◀ / ▶ button to adjust phase and then press the OK button.

Initializing

- To initialize the adjusted value, select Reset with the ▲ / ▼ button and then press the ◀ / ▶ button.

Using the remote control

Illustration of two hands holding a handheld device (no text or symbols visible)

• Open the battery compartment cover on the back side and insert the batteries with correct polarity.
• Apply two 1.5V alkaline batteries of AAA type. Don't mix the used batteries with new batteries.
  • Install the batteries with the correct polarities.

Notes for using the remote control

Make sure there are no objects between the remote control and its sensor.

Don't place the remote control near a heater or damp place. Strong impact on the remote control may cause operation failure.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, turn the set to other direction.

Cartoon illustration of a sad computer character standing on a box with arrows indicating motion (no text or symbols)

Cartoon illustration of a computer monitor with a screen and a remote, no text or symbols present

Tu

- When using the remote control, aim it at its sensor on the Monitor.

1 Connect power cord correctly.

2 Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby mode. Press the 6/1 , INPUT SELECT button on the Monitor or press the TV/AV, MULTIMEDIA button on the remote control and then the Monitor will be switched on.

If the Monitor is turned off with the 0/1 button on the Monitor

- Press the 6/1, INPUT SELECT button on the Monitor or press the TV/AV, MULTIMEDIA button on the remote control to turn on the Monitor.

If the Monitor is turned off with the ON/OFF button on the Monitor

- Press the ON/OFF button on the Monitor to turn on the Monitor.

3 If the Monitor is turned off with the remote control and also the ON/OFF button on the Monitor

- Press the ON/OFF button on the Monitor and then press the ♂/1, INPUT SELECT button on the Monitor or press the TV/AV, MULTIMEDIA button on the remote control to turn on the Monitor.

Tips

- Adjusting volume level Volume(▶) button increases the level of sound and volume(◀) button decreases the level of sound.

Selectin

① Repeatedly press the MENU button to select the special menu.

Child lock Auto sleep Language Off Off

2 Press the ▲ / ▼ button to select Language and then press the OK button.

PR PR OK

Child lock Auto sleep Language Off Off

3 Press the ▲ / ▼ or ◀ / ▶ button to select the desired language.

Press the TV/AV button to exit.

Tips

• You can select your desired language only in AV mode (when the Interface board is installed) or PC mode (when the Interface board is not installed).
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Simple line drawing of a TV set on a screen (no text or symbols)

1

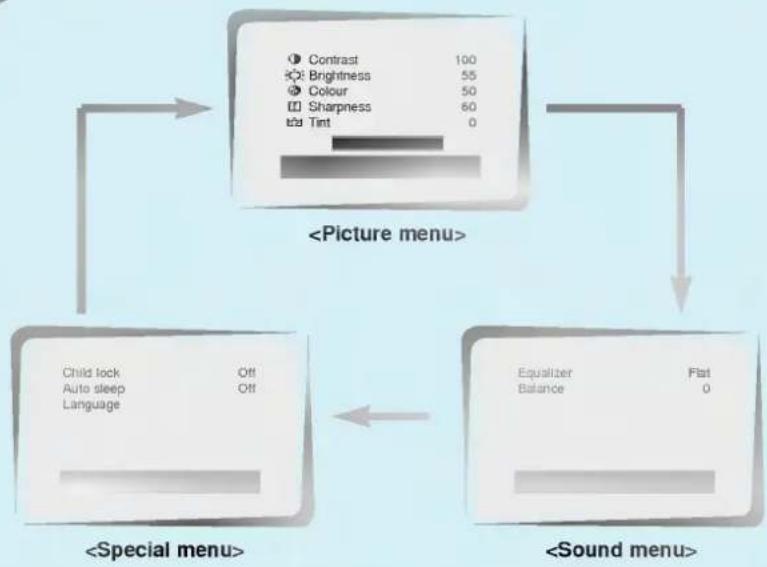

Repeatedly press the MENU button.

②

Press the ▲ / ▼ button to select a menu item.

- The selected menu item changes from white to purple.

③

Press the ◀ / ▶ button to change the setting of a menu item.

- Press the TV/AV button to exit.

Tips

• Only when Equalizer is set to User, Treble and Bass are displayed and can be adjusted.
• When the Interface board is installed, the special menu is displayed in AV/COMPONENT mode.
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Simple line drawing of a smiling face inside a square frame, with no text or symbols present.

- You can adjust picture contrast, brightness, colour intensity, sharpness and tint (COMPONENT, RGB-PC mode or NTSC input only) to the levels you prefer.

Repeatedly press the MENU button to select the picture menu.

Contrast 100 Brightness 55 Colour 50 Sharpness 60 test Test 0

Press the ▲ / ▼ button to select the desired picture item and then press the ◀ / ▶ button to make appropriate adjustments.

PR PR VOL VOL

Contrast 100 Brightness 55 Colour 50 Sharpness 60 the Tin 0

Press the OK button to store it for the picture User and then press the TV/AV button.

Contrast 100 Brightness 55 Colour 50 Sharpness 60 Tint 0

- To recall your preferred setting, press the PSM button until the desired picture (Dynamic, Standard, Mild or User) appears. The picture Dynamic, Standard and Mild are programmed for good picture reproduction at the factory and cannot be changed.

Simple line drawing of a computer monitor with a smiling face, set against a teal gradient background (no text or symbols)

• You can watch Plasma Display in various picture formats; 16:9 (Wide), 4:3 (Standard), Zoom 1 or Zoom 2 in AV mode.
• Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR, 4:3 picture format or if a CH label is present; the fixed image may remain visible on the screen.

ARC (Aspect Ratio Control)

Repeatedly press the ARC button to select your desired picture format.

• 16:9

You can enjoy the cinema (the picture format of 16:9) or general Plasma Display programme through the 16:9 mode.

The screen 16:9 is viewed just like that but the screen 4:3 is magnified to the left and right so that the screen 16:9 is full.

• 4:3

This picture format is 4 to 3 of general Plasma Display.

- Zoom 1

You can enjoy the cinema in a vast screen through the Zoom mode. The screen 4:3 is magnified to the upper/lower sides so that the screen 16:9 is full. The bottom and top of the picture may be lost.

You can move the screen up/down with ▲ / ▼ button.

- Zoom 2

You can enjoy a larger magnified screen in this mode. The screen Zoom 2 is viewed just like that but the screen 16:9 is magnified more and more to the left and right so that the screen Zoom 2 is full.

- Zoom

Only when receiving over SVGA (800X600), you can select Zoom.

You can move the screen up/down or left/right with ▲ / ▼ or ◀ / ▶ button.

Tips

• When you switch the Monitor to standby or off, the picture format is reset to the 16:9.
  • In COMPONENT mode only you can select 4:3.
• Only when receiving RGB-PC signal (over 800 x 600) in RGB-PC mode, you can select Zoom.

Simple line drawing of a smiling face on a light blue background with a blurred teal background (no text or symbols)

- You can select your preferred sound setting; Flat, Music, Movie or Speech and you can also adjust balance, treble and bass.

Repeatedly press the MENU button to select the sound menu.

Equalizer Balance Flat 0

Press the ▲ / ▼ button to select the desired sound item and then press the ◀ / ▶ button to make desired adjustments.

- In case of Equalizer User, you can adjust Treble and Bass.

PR PR VOL VOL

Equalizer Balance Flat 0

Equalizer User Balance 0 Treble 50 Base 50

- To recall your preferred setting, press the SSM button until the desired sound (Flat, Music, Movie, Speech or User) appears. The sound Flat, Music, Movie and Speech are programmed for good sound reproduction at the factory and cannot be changed.

Press the TV/AV button to exit.

Simple line drawing of a smiling TV set against a teal background (no text or symbols)

- The Monitor can be set so that the remote control is needed to control it. This feature can be used to prevent unauthorized viewing.

Repeatedly press the MENU button to select the special menu.

Child lock Auto sleep Language Off Off

Press the ▲ / ▼ button to select Child lock.

Child looks Auto sleep Language Off Off

Press the ◀ / ▶ button to select On.

Child lock Auto sleep Language On Off

- With the lock on, the display Child lock on appears on the screen if any button on the Monitor is pressed while viewing the Plasma Display.

Press the TV/AV button to exit.

Tips

• Child lock is displayed in AV/COMPONENT mode when the Interface board is installed.
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Simple line drawing of a smiling TV with a small antenna, set against a teal gradient background (no text or symbols)

- If you select Auto sleep On, the Monitor will automatically switch itself to standby mode approximately ten minutes after no input signal.

Repeatedly press the MENU button to select the special menu.

Child lock Auto sleep Language Off Off

Press the ▲ / ▼ button to select Auto sleep.

Child lock Auto sleep Language Off Off

Press the ◀ / ▶ button to select On.

Child lock Auto sleep Language Off On

Press the TV/AV button to exit.

Tips

• Auto sleep is displayed in AV/COMPONENT mode when the Interface board is installed.
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Simple line drawing of a smiling TV with a small icon, set against a teal gradient background (no text or symbols)

- You don't have to remember to switch the Monitor off before you go to sleep. The sleep timer automatically switches the Monitor to standby after the preset time elapses.

Press the SLEEP button to set sleep time. Each time you press this button setting time is changed as below.

Blank white rectangular area with a small circular icon and ellipsis (no text or symbols)

- To release sleep time setting, press the SLEEP button repeatedly to select ⏻ ---.

Tips

• To view the remaining sleep time, press the SLEEP button once.
• When you switch the Monitor off, the Monitor releases the preset sleep time.
  The Interface board (AP-42EA20) is not equipped on MT/Z-42PZ10/14/24 series model.

Abstract grayscale shape on light blue background (no text or symbols)

Troubleshooting check list

No picture & No sound

• Check whether the Monitor is turned on.
• Check the power cord.
• Plug another product's power cord into the wall outlet where the Monitor's power cord was plugged in.

Picture OK & No sound

- Press the VOLUME (▶) button.

The remote control doesn't work

• Check to see if there is any object between the Monitor and the remote control causing obstruction.
• Check to see if the batteries are installed with the correct polarities. (Refer to p.26)
• Replace new batteries. (Refer to p.26)

No or Poor colour or Poor picture

• Adjust picture items in the picture menu. (Refer to p.30)
• Keep a certain distance between the Monitor and the VCR.
• Activate any function to restore the brightness of the picture. (If still picture is on the screen for more than 5 minutes, the screen gets dark.)

Poor stereo sound

- Check the kind of input signal.

No output from one of the Speakers

- Adjust Balance in the sound menu. (Refer to p.32)

Strange sound from the Monitor

- The reason strange sound comes from the Monitor when turning the Monitor on or off is due to the signals being input or output to the Monitor. This strange noise does not mean that the Monitor is faulty.

Simple line drawing of a smiling TV with a small screen, set against a blurred teal background (no text or symbols)

Simple line drawing of a smiling face on a light blue background (no text or symbols)

Pr

MODEL	MZ-42PZ10/B/G/K/SMZ-42PZ14/B/G/K/SMZ-42PZ24/B/G/K/S	MT-42PZ10/B/G/K/SMT-42PZ12/B/G/K/SMT-42PZ14/B/G/K/SMT-42PZ22/B/G/K/S
Width (inches)	41.6
Height (inches)	25
Depth (inches)	3.2
Weight (pounds)	72.1
Power requirement	230V~ 50Hz	110-240V~ 50/60Hz
Resolution	852 x 480 (Dot)
Colour	16,770,000 (256 steps of each R, G and B)

• This product specifications above can be changed without notice for quality improvement.

Solid blue background with a small red glow in the top-left corner (no text or symbols)

P/NO:3828VA0293E

(MP00MC, 067G TX, 373-026H)

Abstract graphic with a glowing circular shape and gradient background (no text or symbols)
