TFB4402GB - Contact grill BOSCH - Free user manual and instructions

Product Type	Contact Grill
Brand	Bosch
Model	TFB4402GB
Electrical Connection	220-240 V~, 50/60 Hz
Power Output	1800 W
Dimensions (H x W x D)	115 mm x 400 mm x 330 mm
Cooking Positions	Contact grilling, open grilling, au gratin (upper plate suspended)
Grill Plates	Two removable, dishwasher-proof plates with non-stick coating
Fat Drain System	Fat drain with two collecting cups (dishwasher-proof)
Controls	Rotary knob for temperature selection, indicator light
Safety Features	Automatic shut-off? Not specified; manual says pull plug after use, never leave unattended
Storage	Can be stored horizontally or vertically with locking slides
Cleaning	Plates and fat cups dishwasher-proof; base wiped with damp cloth; no abrasive cleaners
First Use	Heat without food 3 times at highest setting, then cool, clean plates, oil surface
Warranty	Subject to country-specific conditions; proof of purchase required
Intended Use	Domestic indoor use only, up to 2000 m altitude
Included Accessories	Grill plates (2), fat collecting cups (2), plate locks (4), locking slides (2)

Frequently Asked Questions - TFB4402GB BOSCH

How do I clean the grill plates?

The grill plates and fat collecting cups are dishwasher-proof. For best results, clean them by hand while still lukewarm. Do not use abrasive cleaners or oven spray.

Can I use the grill without plates?

No, never operate without grill plates. The appliance is designed to work exclusively with the plates inserted.

What should I do before first use?

Move locking slides to , plug in, open appliance, set rotary knob to highest setting and heat without food for at least 3 cycles in a well-ventilated room. Then let it cool, remove plates, wash and dry, and lightly oil the coated surface.

How do I store the contact grill?

After cooling, close the grill plates and move both locking slides to the locked position (☑). The appliance can be stored horizontally or vertically.

What are the different cooking positions?

Three positions: Contact grilling (upper plate directly on food), open grilling (fully open, turn food), and au gratin (upper plate suspended horizontally, not touching food).

Why does the indicator light turn off?

The indicator light turns off when the set temperature is reached. It will cycle on and off to maintain the temperature during cooking.

Is the grill safe for children?

Children aged 8 and above can use it under supervision. Children under 8 must be kept away from the appliance and cable. Cleaning should not be done by children unless supervised and over 8.

Can I use an extension cord or timer?

No. Do not connect via a time switch or remote control socket. Always plug directly into a properly earthed wall socket.

What do I do if the appliance won't lock for storage?

Check the locking slides: they must be open (☐) to lock. If still not locking, the lock may be dirty – clean it as shown in the manual (Fig. 5 and 6).

How long should I grill different foods?

Cooking time depends on thickness and size. The manual’s fold-out pages provide recommended grilling times and settings. Adjust temperature during use for best results.

USER MANUAL TFB4402GB BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Contact grill

TFB4402GB

[en] Instruction manual

Illustration of a stretching exercise setup with three stages: forward bend, curved arm, and flat base (no text or symbols)

Illustration of a mechanical device with a magnified view of its internal structure (no text or symbols)

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

⚠️ Risk of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing.
Ensure that the protective conductor system of the domestic supply has been correctly installed.
■ Connect and operate the appliance only in accordance with the specifications on the rating plate.
■ Do not use the appliance if the power cord and/or appliance are damaged.
■ Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Never immerse the appliance or mains cable in water or place it in the dishwasher.
■ The power cord must not come into contact with hot parts or be pulled across sharp edges.
■ If there is a fault, pull out the mains plug immediately or switch off the power supply.

Risk of fire!

■ Do not connect the appliance to or operate it by means of a time switch or remote control socket.
■ Always pull out the mains plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
■ Never leave the appliance unattended while it is switched on!

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of injury!

Improper use of this appliance may result in injury.

Risk of burns!

During operation of the appliance the temperature of exposed surfaces may become very high. Take hold of the appliance by the handle only, do not transport the appliance until it has cooled down!

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Parts and controls

Fig. 1

1 Rotary knob
2 Indicator light
3 Handle
4 Plate holder (4x)
5 Grill plates *
6 Plate lock (4x)
7 Locking slide (2x)
8 Fat drain
9 Fat collecting cups * (2x)
* dishwasher-proof

Before using your appliance for the first time

■ Move locking slides to 🔒.
■ Insert the power cord of the contact grill into the socket.
■ Open the appliance.
■ Turn rotary knob to the highest setting and heat up appliance without any food at least 3x in a well ventilated room (open window), then leave to cool down.
■ When using for the first time, a slight odor and a little smoke may appear during the first few minutes of use.
This is not a threat nor any evidence of malfunction of the product. In this case open the window and ventilate the room until there is no more smoke or odor.

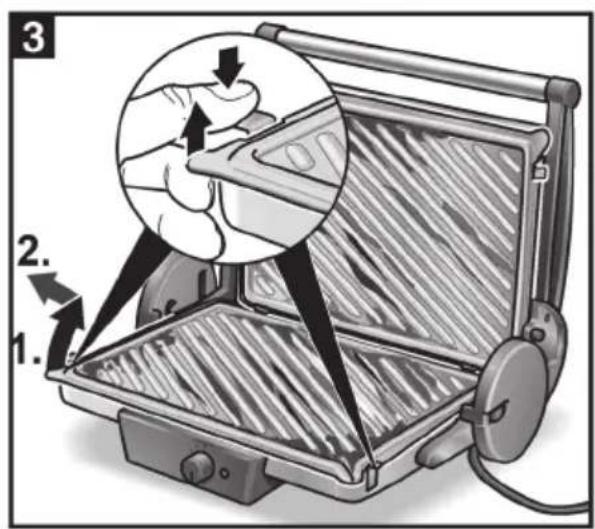

■ Fig. 3: Remove grill plates, wash and dry. Lubricate the coated surface with a little cooking oil.

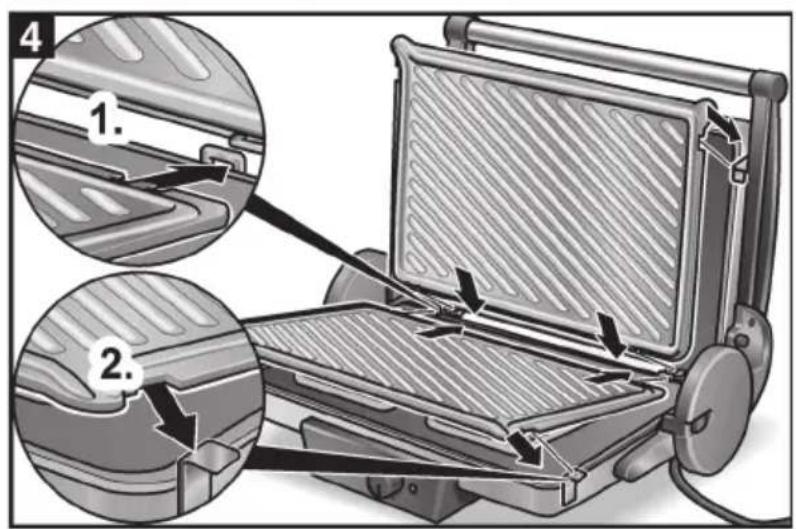

■ Fig. 4: When inserting the grill plates, ensure that the lugs are inserted into the plate locks at the back and that the plate holders are engaged.

Using the appliance

Risk of burns!

Fat may splash during grilling.

Important: Do not operate without grill plates! Do not scratch the coated plates with sharp-edged objects!

As the contact grill can be used in different positions, various cooking methods are possible. The fold-out pages at the front of the instruction manual illustrate recommended grilling times and grill settings for different foods.

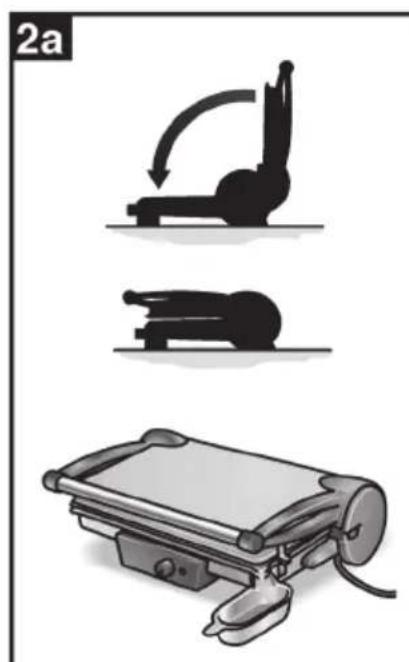

Contact grilling (Fig. 2a)

The corrugated side of the upper grill plate is placed directly on the food. The food is cooked evenly from above and below. Especially suitable for quick grilling at high temperatures, e.g. rump steaks, chops or paninis.

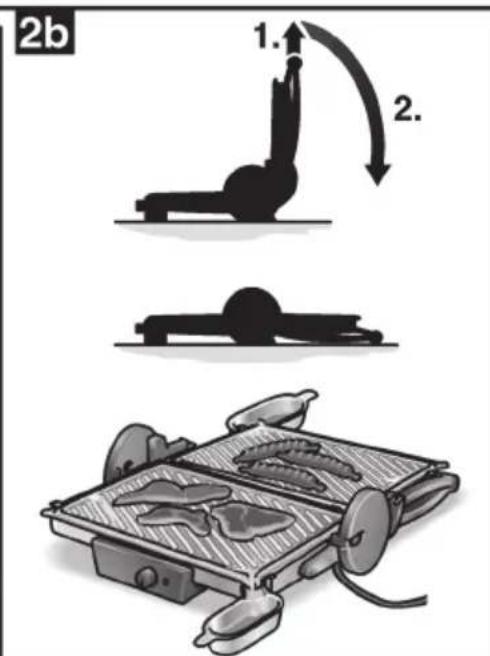

Grilling (Fig. 2b)

The grill is opened fully. The food is distributed over the whole area and must be turned.

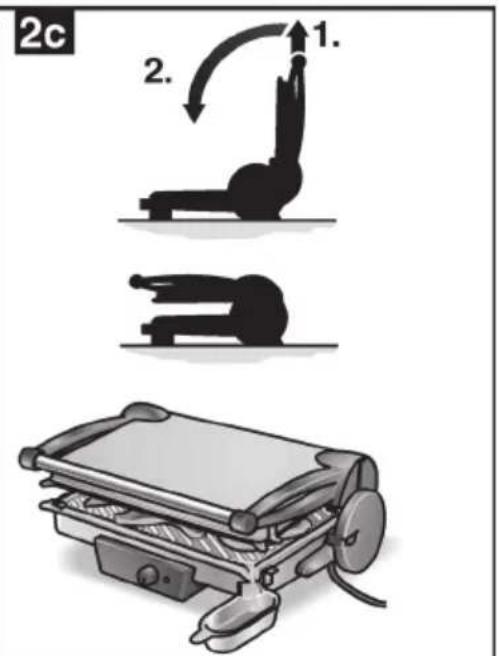

Au gratin dishes (Fig. 2c)

The upper plate is pulled up and is suspended horizontally in the highest position. The upper grill plate must not touch the food. Especially suitable for cooking “au gratin” and for baking toppings.

Preparation

■ Position the contact grill according to the cooking method.
■ Insert grill plates with the coated side towards the food.
■ Place the fat collecting cup under the fat drain.
■ Close the appliance and select the required temperature using the rotary knob.
■ The indicator light lights up. This extinguishes as soon as the set temperature has been reached.
■ Now place the food on the grill.
■ The cooking time depends on the thickness and size of the food.

Tip: To obtain optimum results, adjust the temperature during use.

General

Grill food so it is light instead of dark or brown, remove burnt remnants. Do not overgrill starchy foods, especially potato and cereal products (production of acrylamides minimised).

Before placing food on the grill plates, preheat the grill. Place food on the grill plates. Before placing new food on the plates, wipe them with kitchen roll. Frozen food items must be fully defrosted and dry. Only add salt to meat and fish after grilling.

Eliminating minor faults yourself

The appliance cannot be locked for storage.

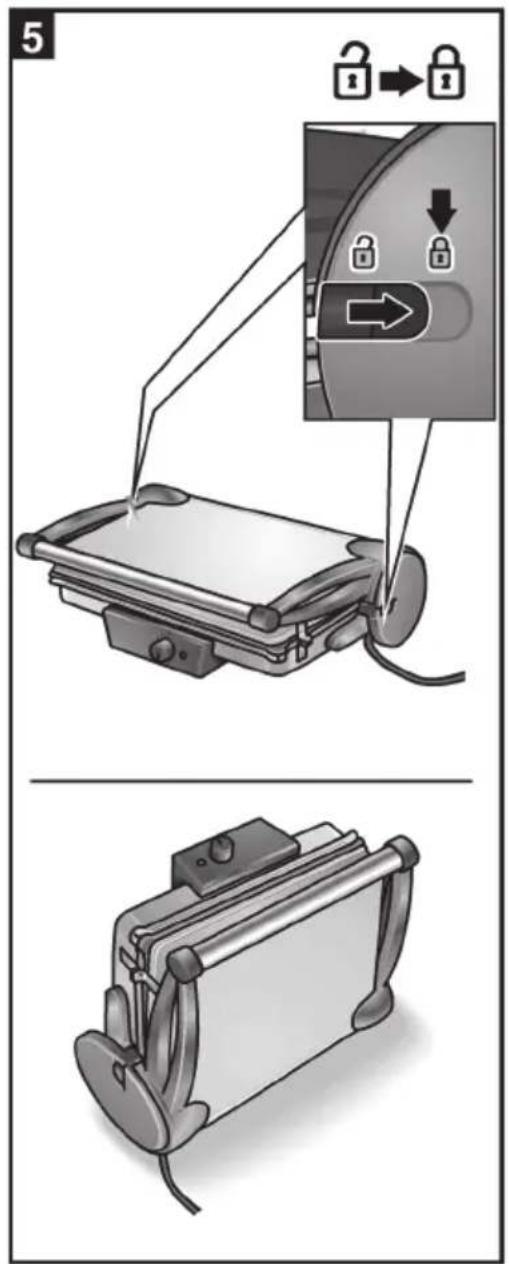

■ Fig. 5: The locking slide is already closed (☐). Open the slide (☐).
or

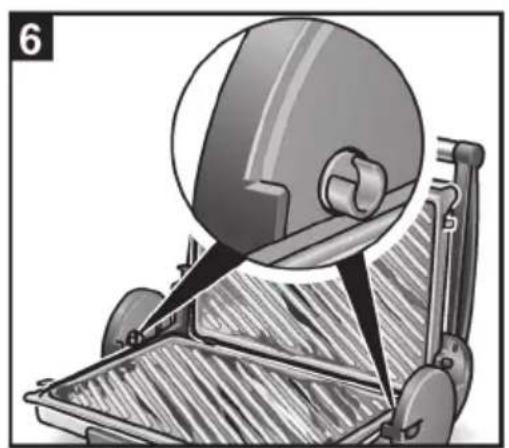

■ Fig. 6: The lock is dirty. Clean the lock.

Cleaning

Risk of electric shock!

Before cleaning the appliance, pull out the mains plug.

Never immerse the appliance in water, wipe with a damp cloth only! Do not use a steam cleaner. Leave the appliance to cool down.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents. Do not clean with oven/grill spray.

■ Take out the grill plates. The grill plates and fat collecting cups are dishwasher-proof.

■ Clean the base of the appliance regularly.

Tip: Clean grill plates by hand while they are still lukewarm.

Storage

Fig. 5

■ Before storing the appliance, leave it to cool down and close the grill plates.
■ To do this, move both locking slides to ☑.

Tip: The appliance can be stored horizontally or vertically.

Technical specifications

Electrical connection 22	0-240 V~50/60 Hz
Output 1800 W
Appliance height 115 mm
Appliance width 400 mm
Appliance depth 330 mm

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
