Product Type	Built-in Freezer
Brand	Gaggenau
Model	RB282303
Energy Supply	220–240 V, 50 Hz AC
Climate Class	SN (10–32 °C), N (16–32 °C), ST (16–38 °C), T (16–43 °C)
Refrigerant	R600a (flammable)
Refrigerator Temperature Range	+2 °C to +8 °C
Freezer Temperature Range	−16 °C to −24 °C
Fast Cooling	Yes, approx. 15 hours
Fast Freezing	Yes, automatic shut-off after approx. 2½ days
Holiday Mode	Yes, sets refrigerator to +14 °C
Door Alarm	Continuous sound after door open >1 minute
Temperature Alarm	Alerts if freezer is too warm
Defrosting Method	Automatic in refrigerator compartment; manual in freezer compartment
Interior Light	LED (maintenance-free)
Vegetable Container	Yes, with humidity controller
Ice Cube Tray	Included
Ice Pack	Included (quantity varies)
Wine/Champagne Rack	Yes, foldable
Extendable Glass Shelf	Yes, in refrigerator compartment
Bottle Holder	Yes, in door
Installation Cavity Depth	Minimum 550 mm, recommended 560 mm

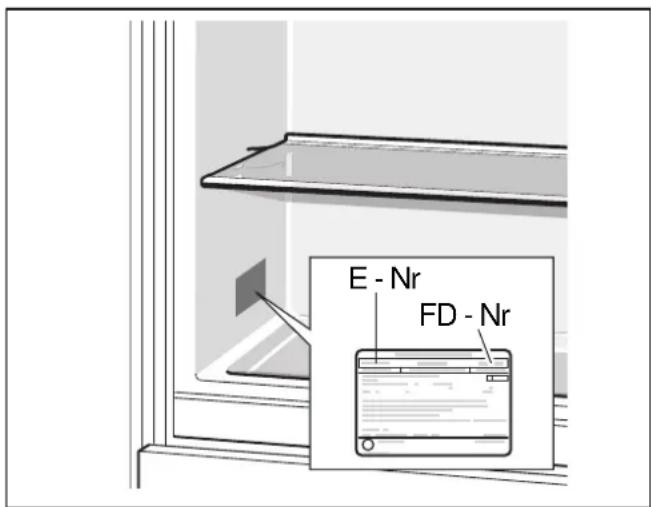

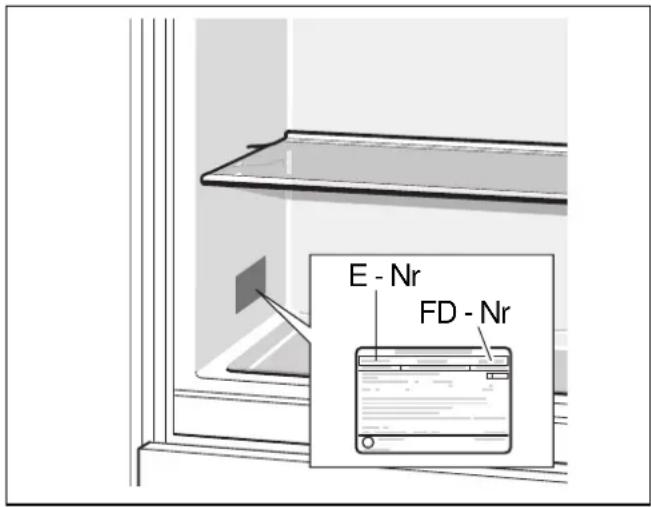

Net Capacity	Refer to rating plate inside appliance

Frequently Asked Questions - RB282303 GAGGENAU

How do I set the temperature in the freezer compartment?

Press the temperature setting buttons +/- for the freezer compartment until the desired temperature appears on the display. The range is from −16 °C to −24 °C.

What does the door alarm do?

The door alarm emits a continuous sound if the appliance door is left open for more than one minute. Closing the door stops the alarm.

How do I defrost the freezer compartment?

Approximately 4 hours before defrosting, switch on fast freezing. Remove frozen food and store temporarily in a cool place. Switch off the appliance, unplug it, and place a pan of hot water on a trivet inside to speed up defrosting. Wipe up condensation and dry thoroughly before restarting.

How should I clean the appliance?

Use a soft cloth, lukewarm water, and a little pH-neutral detergent. Avoid abrasive, chloride, or acidic cleaners. Never clean shelves or containers in the dishwasher. Rinse water must not enter the light or drainage hole. Wipe the door seal with clear water only.

When should I use fast freezing?

Activate fast freezing several hours before placing fresh food in the freezer (4–6 hours normally, 24 hours for maximum capacity). It automatically switches off after approximately 2½ days.

What is holiday mode?

Holiday mode sets the refrigerator compartment to a warmer temperature (+14 °C) to save energy when you are away for a long period. Do not store food in the refrigerator compartment during this time. Press the Holiday button to activate.

How do I use the ice cube tray?

Fill the ice cube tray ¾ full with drinking water and place it in the freezer compartment. To release the cubes, twist the tray slightly or hold it briefly under running water.

What should I do if the temperature alarm sounds?

Press the Alarm button to silence the warning. Check if the door is closed, ventilation openings are unblocked, or too much fresh food was added at once. The alarm will go out shortly after the fault is resolved.

How can I save energy with this freezer?

Install the appliance in a dry, well-ventilated room away from heat sources. Allow hot food to cool before storing. Defrost regularly, keep the door closed, and use a cavity depth of 560 mm for optimal efficiency.

What are the installation requirements?

The appliance requires a dry, well-ventilated location with a level floor. The cavity depth should be at least 550 mm (560 mm recommended). Electrical connection must be 220–240 V/50 Hz with a correctly installed earthed socket and a 10–16 A fuse. Do not use extension cables except those supplied by customer service.

USER MANUAL RB282303 GAGGENAU

Safety and warning information 4

Before you switch ON the appliance 4

Technical safety 4

Important information when using

the appliance 4

Children in the household 5

General regulations 5

Information concerning disposal 5

Disposal of packaging 5
Disposal of your old appliance 6

Scope of delivery 6

Room temperature, ventilation and cavity depth 6

Ambient temperature 6

Ventilation 7

Cavity depth 7

Installation location 7

Connecting the appliance 7

Electrical connection 7

Getting to know your appliance 8

Controls 9

Switching on the appliance 9

Operating tips 9

Setting the temperature 10

Refrigerator compartment 10

Freezer compartment 10

Holiday mode 10

Switching on and off 10

Alarm functions 10

Door alarm 10

Temperature alarm 10

Switching off the alarm 11

Usable capacity 11

Fully utilising the freezer volume 11

Refrigerator compartment 11

Storing food 11

Note the chill zones in the

refrigerator compartment 11

Vegetable container with humidity controller 12

Fast cooling 12

Switching on and off 12

Freezer compartment 12

Use the freezer compartment 12

Max. freezing capacity 13

Prerequisites for max. freezing capacity 13

Freezing and storing food 13

Purchasing frozen food 13

Note when loading products 13

Storing frozen food 13

Freezing fresh food 13

Packing frozen food 14

Shelf life of frozen food 14

Fast freezing 14

Switching on and off 14

Thawing frozen food 14

Interior fittings 15

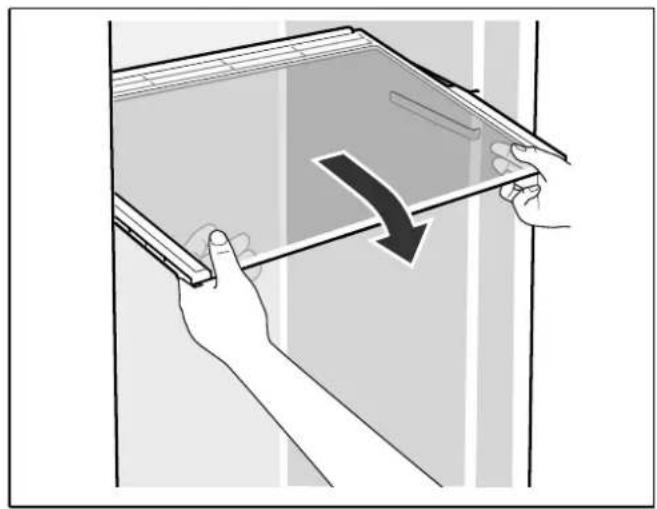

Glass shelves 15

Extendable glass shelf 15

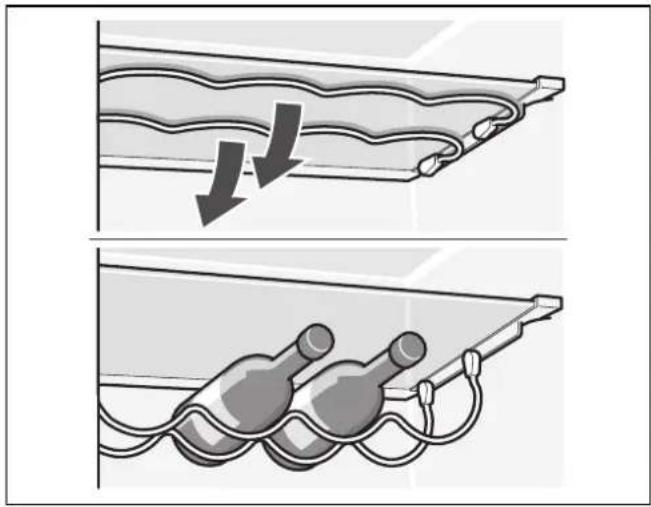

Wine and champagne rack 15

Bottle holder 15

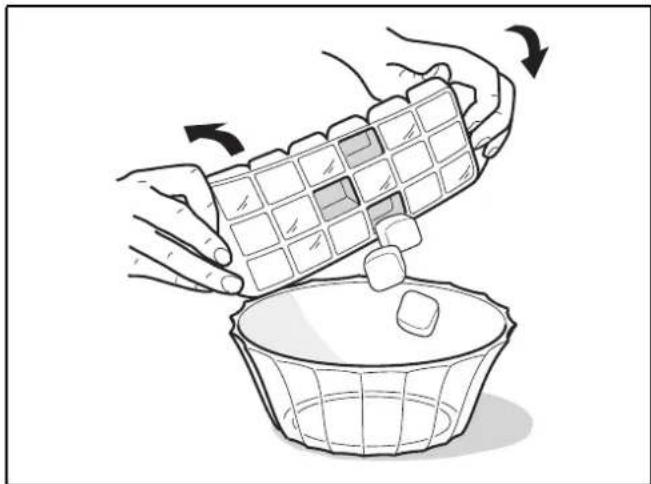

Ice cube tray 16

Ice pack 16

Sticker "OK" 16

Switching off and disconnecting the appliance 16

Switching the appliance off 16

Disconnecting the appliance 16

Defrosting 17

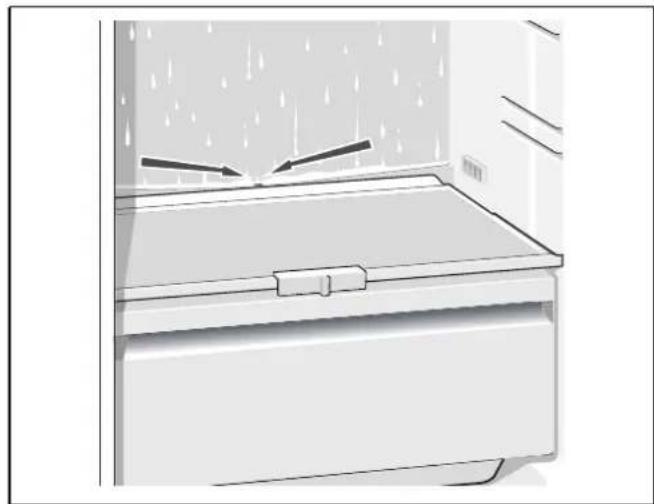

Refrigerator compartment 17

Defrosting the freezer compartment 17

Cleaning the appliance 18

Interior fittings 18

Odours 20

Light (LED) 20

Tips for saving energy 20

Operating noises 20

Quite normal noises 20

Preventing noises 20

Eliminating minor faults yourself 21

Appliance self-test 22

Starting the appliance self-test 22

Ending the appliance self-test 22

Customer service 22

Repair order and advice on faults 22

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

The appliance contains a small quantity of environmentally friendly but flammable refrigerant R600a. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance,
• thoroughly ventilate the room for several minutes,
• switch off the appliance and pull out the mains plug,
  • inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1 m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
• Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
• Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand on or lean heavily against base of appliance, drawers or doors, etc
• For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.
• Store high-percentage alcohol tightly closed and standing up.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Never cover or block the ventilation openings of the appliance!

- Avoiding placing children and vulnerable people at risk:

At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Ensure that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children from 8 years and above may use the appliance.

Supervise children who are cleaning and maintaining the appliance.

Never allow children to play with the appliance.

• Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
• Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!
• Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

• Keep children away from packaging and its parts.
  Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
• If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable

• for refrigerating and freezing food,
- for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

Built-in appliance
- Interior fittings (depending on model)
- Bag containing installation materials
- Operating instructions
• Installation manual
- Customer service booklet
- Warranty enclosure
• Information on the energy consumption and noises

Room temperature, ventilation and cavity depth

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following room temperatures.

Climate class	Permitted ambient temperature
SN +10 °C to 32 °C
N +16 °C to 32 °C
ST +16 °C to 38 °C
T +16 °C to 43 °C

The climate class can be found on the rating plate.

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Cavity depth

A cavity depth of 560 mm is recommended for the appliance. If the cavity depth is smaller – at least 550 mm – the energy consumption increases slightly.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

3 cm to electric or gas cookers.
- 30 cm to an oil or coal-fired cooker.

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. These specifications can be found on the rating plate.

Warning

Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

The features of the models may vary.

The diagrams may differ.

These operating instructions refer to several models.

* Not all models.

1-9 Controls

10* Fan

11 Light

12 Glass shelf in the refrigerator compartment

13 Extendable glass shelf

14 Vegetable container

15* Berry tray

16 Frozen food container

17 Door shelf

18 Shelf for large bottles

A Refrigerator compartment

B Freezer compartment

Controls

1 On/Off button ①

Serves to switch the whole appliance on and off.

2 "Fast" button freezer compartment **.

Switches fast freezing on and off (see chapter "Fast freezing").

3 Temperature setting buttons for the freezer compartment +/-

These buttons set the temperature in the freezer compartment.

4 Temperature display freezer compartment

The numbers correspond to the set freezer compartment temperatures in °C.

5 Alarm button

Used to switch off the warning signal, (see chapter "Alarm function").

6 Holiday button

Is used to switch holiday mode on and off (see chapter "Holiday mode").

7 Temperature setting buttons for the refrigerator compartment +/-

These buttons set the temperature in the refrigerator compartment.

8 Temperature display refrigerator compartment

The numbers correspond to the set refrigerator compartment temperatures in ^ C.

9 Fast button refrigerator compartment *

Switches fast cooling on and off (see chapter "Fast cooling").

Switching on the appliance

1. Switch on the appliance with the On/Off button ①. A warning signal sounds, the temperature display for the freezer compartment flashes and the alarm button is lit.

2. The warning signal is switched off by pressing the alarm button ☑.

The appliance begins to cool. Light is switched on when the door is open.

The factory has recommended the following temperatures:

• Refrigerator compartment: +4 °C

• Freezer compartment: -18 °C

Operating tips

• When the appliance has been switched on, it may take several hours until the set temperatures have been reached.
  Do not put any food in the appliance beforehand.
• The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal.
• If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.

Setting the temperature

Refrigerator compartment

The temperature can be set from +2 °C to +8 °C.

Keep pressing temperature setting button +/- until the required refrigerator compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display for the refrigerator compartment.

Freezer compartment

The temperature can be set from -16 °C to -24 °C.

Keep pressing temperature setting button +/- until the required freezer compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display for the freezer compartment.

Holiday mode

If leaving the appliance for a long period of time, you can switch the appliance over to the energy-saving holiday mode.

The temperature of the refrigerator compartment is automatically switched to +14 °C.

Do not store any food in the refrigerator compartment during this time.

Switching on and off

Press the holiday button ☐.

If holiday mode is switched on, the button is lit and the temperature display for the refrigerator compartment no longer indicates a temperature.

Alarm functions

Door alarm

The door alarm (continuous sound) switches on if the appliance door is open for longer than one minute. Close the door to switch off the warning signal.

Temperature alarm

The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing.

When the alarm button is pressed, the temperature display for the freezer compartment indicates for five seconds the warmest temperature reached in the freezer compartment.

Then this value is deleted. The temperature display for the freezer compartment indicates the set freezer compartment temperature without flashing.

Henceforth the "warmest temperature" will be redefined and saved.

The alarm may switch on without any risk to the frozen food:

• when the appliance is switched on,
• when large quantities of fresh food are placed in the appliance,
• if the freezer compartment door is open too long.

Note

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen. No longer store the frozen produce for the max. storage period.

Switching off the alarm

Press the alarm button ⚠ to switch off the warning signal.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate (see diagram at chapter "Customer service").

Fully utilising the freezer volume

The maximum amount of food can be placed in the freezer by removing all fittings. The food can be stacked directly on the shelves and in the bottom of the freezer compartment.

Removing the fittings

Pull out the frozen food container all the way, lift at the front and remove.

Illustration of a refrigerator with a door open, showing a curved arrow indicating motion (no text or symbols)

Refrigerator compartment

The refrigerator compartment is the ideal storage location for meat, sausage, fish, dairy products, eggs, ready meals and pastries.

Storing food

• Store fresh, undamaged food. The quality and freshness will then be retained for longer.
  In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment.
• Allow warm food and drinks to cool down before placing in the appliance.

Note

Avoid contact between food and rear panel. Otherwise the air circulation will be impaired. Food or packaging could freeze to the rear panel.

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones:

- Coldest zone is between the arrow stamped on the side and the glass shelf situated below.

Note

Store perishable food (e.g. fish, sausage, meat) in the coldest zone.

- Warmest zone is at the very top of the door.

Note

Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its flavour and the butter will still be easy to spread.

Line drawing of a refrigerator interior showing the front and side panels (no text or symbols)

Vegetable container with humidity controller

The vegetable container is the optimum storage location for fresh fruit and vegetables. A humidity controller and a special seal can be used to adjust the air humidity in the vegetable container. This allows fresh fruit and vegetables to be stored twice as long as with conventional storage.

The air humidity in the vegetable container can be set according to the type and amount of products to be stored:

• Mainly fruit as well as for a large load – lower air humidity
• Mainly vegetables as well as for a mixed load or small load – higher air humidity

Diagram of a refrigerator shelf with horizontal bars and directional arrows indicating movement or flow (no text or symbols)

Notes

• Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8 °C to +12 °C for optimum preservation of quality and flavour.
• Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.

Fast cooling

Fast cooling sets the refrigerator compartment to the coldest temperature setting for approx. 15 hours. Then the original temperature set before fast cooling mode is automatically restored.

Switch on fast cooling mode, e.g.:

• before placing large quantities of food in the refrigerator compartment.
  • for the fast cooling of drinks.

Note

When fast cooling is switched on, increased operating noises may occur.

Switching on and off

Press "fast" button refrigerator compartment *.

The button is lit when fast cooling is switched on.

Freezer compartment

Use the freezer compartment

• To store deep-frozen food.
• To make ice cubes.
• To freeze food.

Note

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate (see diagram at chapter "Customer service").

Prerequisites for max. freezing capacity

• Switch on fast freezing before placing fresh products in the compartment (see chapter "Fast freezing").
• Remove the fittings. The food can be stacked directly on the shelves and in the bottom of the freezer compartment.
• Large quantities of food are frozen most quickly in the top compartment. If the top compartment is not adequate for the freezing capacity indicated on the rating plate, you can place the remaining quantity in the compartment underneath starting at the front right side.
• Freeze fresh food as close as possible to the side panels.

Freezing and storing food

Purchasing frozen food

● Packaging must not be damaged.
- Use by the "use by" date.
- Temperature in the supermarket freezer must be -18 °C or lower.
- If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Note when loading products

• Preferably freeze large quantities of food in the top compartment, where food freezes particularly quickly and therefore also gently.
• Place the food over the whole area of the compartments or the frozen food containers.

Note

Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to other frozen food containers.

Storing frozen food

Insert frozen food container all the way to ensure unrestricted air circulation.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and date of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.

Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Shelf life of frozen food

Storage duration depends on the type of food.

At a temperature of -18 °C:

• Fish, sausage, ready meals and cakes and pastries: up to 6 months
• Cheese, poultry and meat: up to 8 months
  • Vegetables and fruit: up to 12 months

Fast freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

Several hours before placing fresh food in the freezer compartment, switch on fast freezing to prevent an unwanted temperature rise.

As a rule, 4-6 hours is adequate.

This appliance runs constantly and the freezer compartment drops to a very low temperature.

If you would like to use the max. freezing capacity, switch on fast freezing for 24 hours before placing the fresh produce in the freezer compartment.

You can place smaller quantities of food (up to 2 kg) in the top compartment without fast freezing.

Note

When fast freezing is switched on, increased operating noises may occur.

Switching on and off

Press "fast" button freezer compartment **.

If the fast freezing has been switched on the button is lit.

Fast freezing automatically switches off after approx. 2½ days.

Thawing frozen food

Depending on the type and application, select one of the following options:

at room temperature
- in the refrigerator
- in an electric oven, with/without fan assisted hot-air
in the microwave

Caution

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen. No longer store the frozen produce for the max. storage period.

Interior fittings

(not all models)

Glass shelves

You can reposition the inner shelves as required: lift shelf, pull forwards, lower and swivel out to the side.

Illustration of hands holding a clipboard with a directional arrow indicating movement (no text or symbols)

Extendable glass shelf

The extendable glass shelf can be pulled out for a better overview of the food.

Illustration of a shelf with two compartments and a downward arrow indicating a drop or direction (no text or symbols)

Wine and champagne rack

You can store bottles securely in the wine and champagne rack. If you require space for other food, you can fold the metal clips upwards.

Two-panel diagram showing a cable being lifted by two different types of objects, with no text or symbols present.

Bottle holder

The bottle holder prevents bottles from falling over when the door is opened and closed.

Ice cube tray

Fill the ice cube tray 34 full of drinking water and place in the freezer compartment.

If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Illustration of hands placing a grid cube into a bowl with an ice cubes, showing rotation arrows (no text or symbols)

Ice pack

(if enclosed, quantity varies)

If a power failure or malfunction occurs, the ice packs can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment.

The ice pack can also be used to cool food temporarily, e.g. in a cold bag.

Line drawing of a refrigerator drawer with handle and drawer slot (no text or symbols)

Sticker "OK"

(not all models)

The "OK" temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate "OK".

Note

When the appliance is switched on, it may take 12 hours until the temperature is reached.

Correct setting

Switching off and disconnecting the appliance

Switching the appliance off

Press the On/Off button ①.

Temperature display goes out, refrigeration unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.

Defrosting

Refrigerator compartment

While the appliance is running, condensation droplets or frost form on the rear panel of the refrigerator compartment. As the rear panel defrosts automatically, it is not necessary to remove the frost or the condensation droplets. The condensation runs through the condensation channel and the drainage hole to the evaporation pan where it evaporates.

Note

Keep the condensation channel and drainage hole clean, so the condensation can drain off.

Illustration of a kitchen sink with shower spraying and a hanging tool, no text or symbols present

Defrosting the freezer compartment

The freezer compartment does not defrost automatically, otherwise the frozen food would start thawing. A layer of frost in the freezer compartment impairs refrigeration of the frozen food and increases power consumption. Remove the layer of hoarfrost regularly.

Caution

Do not scrape off hoarfrost or ice with a knife or pointed object. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.

Proceed as follows:

Note

Approx. 4 hours before defrosting the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period.

1. Remove the frozen food and place temporarily in a cool location.
2. Switch off the appliance.
3. Pull out the mains plug or remove the fuse.
4. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.

Illustration of a kitchen appliance with a hand cleaning a pot and a lid, showing no text or symbols.

1. Wipe up condensation with a cloth or sponge.
2. Wipe dry the freezer compartment.
3. Switch the appliance on again.
4. Put the frozen food back in the freezer compartment.

Cleaning the appliance

Caution

• Do not use abrasive, chloride or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces could corrode.
• Never clean the shelves or containers in the dishwasher. The parts may become deformed!

Proceed as follows:

1. Before cleaning: Switch off the appliance.
2. Pull out the mains plug or switch off the fuse!
3. Take out the food and store in a cool location. Place ice pack (if available) on the food.
4. Wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light or through the drainage hole into the evaporation area.
6. Wipe the door seal with clear water only and then wipe dry thoroughly.
7. After cleaning reconnect and switch the appliance back on.
8. Put the food back into the appliance.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

To do this, pull out shelf, lift at the front and take out.

Illustration of hands holding a tablet and pen, with a downward arrow indicating a process (no text or symbols present)

Taking out the extendable glass shelf

Hold down levers on the underside on both sides, pull glass shelf forwards, lift and swivel out to the side.

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Taking out glass shelf above vegetable container

The glass shelf can be taken out and disassembled for cleaning.

Note

Before taking out the glass shelf, pull out vegetable container.

Condensation channel

Regularly clean the condensation channel and drainage hole with a cotton bud or similar implement to ensure that the condensation can drain.

Illustration of a kitchen sink with water droplets and a hanging handle (no text or symbols)

Taking out the bottle holder

Press bottle holder together and take out.

Two mechanical diagrams showing a U-shaped bracket assembly with directional arrows, no text or symbols present.

Take out shelves in the door

Lift shelves upwards and take out.

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Removing the container

Pull out the container all the way, lift at the front and remove.

Diagram of a refrigerator with an open door and directional arrow indicating airflow or movement (no text or symbols)

Odours

If you experience unpleasant odours:

1. Switch off the appliance with the On/Off button ①.
2. Take all food out of the appliance.
3. Clean interior (see chapter "Cleaning the appliance").
4. Clean all packages.
5. Seal strong smelling food in order to avoid odours from forming.
6. Switch the appliance on again.
7. Store food in the appliance.
8. Check whether the formation of odours is still occurring after 24 hours.

Light (LED)

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy

• Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
  If required, use an insulating plate.
• Select 560 mm cavity depth.
  A smaller cavity depth will result in a higher energy consumption.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.

• Open the appliance as briefly as possible.

• Regularly defrost the freezer compartment to remove the layer of frost.
  A layer of hoarfrost will impair refrigeration of the frozen food and increase power consumption.

• Ensure that the freezer compartment door is always closed properly.
• To avoid increased power consumption, occasionally clean the back of the appliance.
• The arrangement of the fittings does not affect the energy rating of the appliance.

Operating noises

Quite normal noises

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. If required, place something underneath.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice – even if the appliance is still under guarantee!

Fault Possible cause Remedial action
Temperature differs greatly from the set value.		In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly.		Connect mains plug. Check whether the power is on, check the fuses.
Temperature display indicates “E..”.	Electronics have detected a fault. Call customer service.
Warning signal sounds, alarm button is lit.The freezer compartment is too warm!Frozen food is at risk!		To switch off the warning signal, press the alarm button .
	Appliance is open. Close the appliance.
	Ventilation openings have been covered.	Ensure that there is adequate ventilation.
	Too much food was placed in the freezer compartment at once.	Do not exceed max. freezing capacity.
		When the fault has been eliminated, the alarm button goes out shortly afterwards.
The temperature display for the freezer compartment flashes, a warning signal sounds and the alarm button is lit.The freezer compartment is too warm!Frozen food is at risk!		To switch off the warning signal, press the alarm button .
	Appliance is open. Close the appliance.
	Ventilation openings have been covered.	Ensure that there is adequate ventilation.
	Too much food was placed in the freezer compartment at once.	Do not exceed min. freezing capacity.
		When the fault has been eliminated, the alarm display goes out shortly afterwards.
Temperature display for the freezer compartment flashes.	A fault caused the freezer compartment to become too warm in the past.	When the alarm button is pressed, the temperature display stops flashing.The temperature display indicates for 5 seconds the warmest temperature which was reached in the freezer compartment.
Appliance is not cooling, temperature display and light are lit.	Showroom mode is switched on. Start appliance self-test (see chapter “Appliance self-test”).When the programme has ended, the appliance switches over to normal operation.

Appliance self-test

Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.

Starting the appliance self-test

1. Switch off the appliance with the On/Off button ① and wait 5 minutes.
2. Switch on the appliance with the On/Off button ①.
3. Within the first 10 seconds, press and hold the freezer compartment "fast" button * for 3 to 5 seconds until an audible signal sounds. The self-test programme starts. While the self-test is running, a long audible signal sounds in the meantime.

If 2 audible signals sound and the set temperature is displayed after the self-test has ended, your appliance is OK.

If, at the end of the self-test, 5 audible signals sound and the freezer compartment "quick" button ** flashes for 10 seconds, there is a fault. Inform customer service.

Ending the appliance self-test

When the programme has ended, the appliance switches over to normal operation.

Customer service

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).

These specifications can be found on the rating plate.

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0344 892 8988 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 877 442 4436 toll-free
