USER MANUAL RF200 GAGGENAU

enOperating instructions

Line drawing of a refrigerator with three drawers and an open door (no text or symbols)

Illustration of hands placing a grid cube into a bowl with an eraser, showing rotation arrows (no text or symbols)

Line drawing of a two-compartment box with lid and drawer (no text or symbols)

Diagram of a refrigerator with doors open, showing airflow direction (no text or symbols)

Illustration of a kitchen appliance with a pot and steam rising from the side window (no text or symbols)

Illustration of hands operating a computer monitor with a keyboard (no text or symbols visible)

Connecting the appliance 21

Switching on the appliance 21

Interior fittings 22

Freezing and storing food 22

Max. freezing capacity 23

Freezing fresh food 23

Freezing food 23

Super 24

Thawing frozen food 24

Switchingoffanddisconnecting the appliance 24

Defrostingandcleaningthe freezer compartment 25

How to save energy 25

Operating noises 26

Eliminatingminorfaultsyourself 26......

Customer service 27

Informationconcerningdisposal

Disposalofpackaging

The packaging protects your appliance from damage during transit. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposalofyouroldappliance

Oldappliancesarenotworthlessrubbish! Valuablerawmaterialscanbereclaimedbyrecyclingold appliances.

This appliance has been identified in accordance with the Europe and Directive 2002/96/EGonWaste Electrical and Electronic Equipment-WEEE).

The directives specifiesthe framework for an EU-wide valid return and recycling of fold appliances.

Warning

Redundantappliances

1. Pulloutthemainsplug.
2. Cutoff the power cord and discard with themains plug.

Refrigeratorscontainrefrigerantsandtheinsulation containsgases. Refrigerantandgasesmustbedisposed ofproperly.Ensurethattubingoftherefrigerantcircuit is notdamagedpriortoproperdisposal.

Safetyandwarninginformation

BeforeyouswitchONtheappliance

Pleasereadtheoperatingandinstallationinstructions carefully.

They contain important information on how to install, use and maintain the appliance.

Keepalldocumentationforsubsequentuseorfor the nextowner.

Technicalsafety

- This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of there refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

Ifdamagehasoccurred

-Keepnakedflamesand/orignitionsourcesaway fromtheappliance,
-Pulloutthemainsplug,
—thoroughlyventilatetheroomforseveralminutes,
-Notifycustomerservice.

Themorerefrigerantanappliancecontains,thelarger theroommustbeinwhichtheapplianceissituated. Leakingrefrigerantcanformaflammablegas-air mixtureinroomsswhicharetoosmall.

Theroommustbeatleast1 m ^3 per8gofrefrigerant. Theamountofrefrigerantinyourapplianceis indicatedontheratingplateinsidetheappliance.

- Onlycustomerservicemaychangethepowercord andcarryoutanyotherrepairs.Improperinstallations andrepairsmayputtheuseratconsiderablerisk.

Importantinformationwhenusing the appliance

• Neveruseelectricalappliancesinsidetherefrigerator (e. g. heater,electricicemaker,etc.). Explosion hazard!
• NEVERuseasteamcleanertodefrostorcleanthe appliance. Thesteammaypenetrateelectricalparts and causeashort-circuit. Riskofelectricshock!
• Donotusepointedorsharp-edgedimplementstoremovefrostorlayersof ice. Youcoulddamagetherefrigeranttubing.Leaking refrigerantmayigniteor causeeyeinjuries.
• Donotstoreproductswhichcontainflammable propellants(e. g. spraycans)orexplosivesubstances intheappliance.Explosionhazard!
• Donotstandorsupportyourselfonthebase, drawersordoors,etc.
• Beforedefrostingandcleaningtheappliance,pullout themainsplugorswitchoffthefuse. Donotpulloutthemainsplugbytuggingthecable.
• Bottleswhichcontainahighpercentageofalcohol mustbesealedandstoredinanuprightposition.
• Keepplasticpartsandthedoorsealfreeofoiland grease. Otherwise, partsanddoorsealwillbecome porous.
• Nevercoverorblocktheventilationopeningsfor the appliance.
• Peoplewhohavelimitedphysical,sensory ormental abilitiesorinadequateknowledgemustnotusethis applianceunlesstheyaresupervisedorgiven meticulousinstructions.
• Donotstorebottledorcanneddrinks(especially carbonateddrinks)inthefreezercompartment. Bottlesandcansmayexplode!
• Neverputfrozenfoodstraightfromthefreezer compartmentintoyourmouth. Riskoflow-temperatureburns!
• Avoidprolongedtouchingoffrozenfood,iceorthe evaporatorpipes,etc. Riskoflow-temperatureburns!

Childreninthehousehold

• Keepchildrenawayfrompackaginganditsparts. Dangerofsuffocationfromfoldingcartonsandplastic film!
• Donotallowchildrentoplaywiththeappliance!
• If the appliance features a lock, keep the key out of thereof children.

Generalrequirements

Theapplianceissuitable

•forfreezingfood,
•formakingice.

The appliance is designed for domestic use.

The appliance has been interference-suppressed in compliance with EUDirective 89/336/EEC.

Therefrigerantcircuithasbeentestedforleaks.

Thisproductcomplieswiththerelevantsafetyregulationsforelectricalappliances(EN 60335/2/24).

Gettingtoknowyourappliance

Theseoperatinginstructionsrefertoseveralmodels.

Theillustrationsmaydiffer.

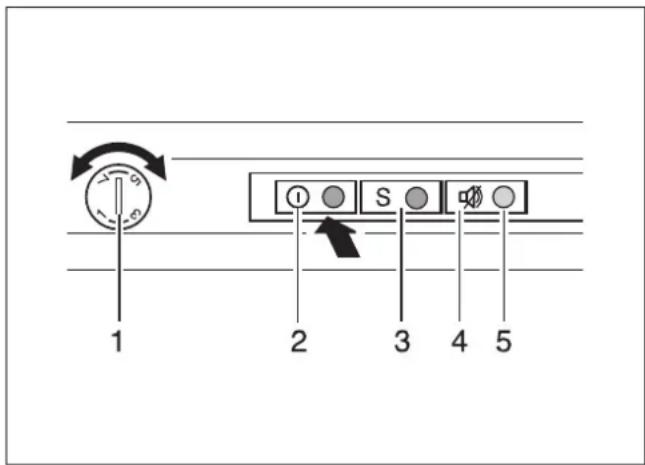

1-5Controlpanel

6Freezershelf

7Freezerdrawer

8Ventilationgrille

Fascia

1 Temperatureselector

Thetemperatureinthefreezercompartmentcanbe setbyturningthetemperatureselectorwithacoin.

Position1:highesttemperature

Position7:lowesttemperature

RefrigeratorcompartmentOn/Off-button

Agreenindicatorlightshowsthatthefreezerison.

3Super-button

Switchessuperfreezingon andoff.

Ayellowindicatorlightshowsthatthefreezerison.

Toswitchoff, pressthe "QuickFreeze" button.

4Alarm-button

Thealarmsignalsoundssimultaneouslywith illuminationoftheredalarm-indicator.Thealarm stopswhentheredindicatorlightextinguishes or the alarm-buttonispressed.

5Alarmdisplay

Theredindicatorlightilluminateswhenthe temperatureinthefreezercompartmentistoolow, so thattheproductsinthecompartmentareatrisk of defrosting.

Itcantemporarilylightupwithoutanyrisktothe frozenproducts:

•Theapplianceisswitchedon
- Loadinglargequantitiesoffreshfood
• Thefreezercompartmentdoorisopenfor too long
- If the temperature selector is moved to a higher setting (lower temperature)

Observeambienttemperature

and ventilation

The appliance is designed for specific climatic class. Ir respective of the climatic class, the appliance can be operated at the following room temperatures.

The climatic class can be found on the rating plate at the bottom left-hand side in the appliance.

Climaticclass	Roomtemperature
SN+10°Cto32°C
N+16°Cto32°C
ST+16°Cto38°C
T+16°Cto43°C

Ventilation

Theairontherearpaneloftheapplianceheatsup.

The warmairmustbeabletoescape. Otherwise, the refrigerator must work harder. This will increase the power consumption.

Therefore: Nevercoverorblockventilationopenings!

Connectingtheappliance

Afterinstallingtheappliance, waitatleast 1 / 2 houruntilthe appliancestartsup. Duringtransportationtheoilinthe compressormayhaveflowedintotherfrigeration system.

Beforeswitchingontheapplianceforthefirsttime, clean theinterior(seeCleaning).

Thesocketshouldbefreelyaccessible.

Connecttheapplianceto220-240V/50Hzalternating currentviaacorrectlyinstalledearthedsocket.

The socketmustbefusedwitha10to16Afuse.

If the appliance is to be operated in an on-European country, check on the rating plate whether the indicated voltage and current type corresponds to the values of your main supply. The rating plate is situated in the bottom left-hand side of the appliance. The power cord may be replaced by an electrician only.

Switchingontheappliance

Pressthemainswitch2: thegreenandredindicator lampslightup. You will hearawarningsignal (some modelsonly).

Switchingoffthewarningsignal

(notallmodels).

Pressthealarmbutton4.

Sothatthesignalcancontinuetowarnofamalfunction, pressthealarmbuttonagainaftertheredcontrollamp goesout.

Selectingthetemperature

Setthetemperatureselector1 to anumber. The higher thenumber, the lower the temperature. Were recommend a medium setting (ofe g.3–4).

Note

• If you cannot open the freezer compartment door immediately after closing it, wait 2–3 minutes until the partial vacuum hasequalised.
• Therefrigerationsystemmaycauseseveralareas of thefreezershelvestofrostquickly. Thisdoesnot affectfunctionorpowerconsumption. The appliance doesnotrequiredefrostinguntiltheentiresurface of thefreezershelfiscoveredwithmorethan5 mm of frostorice.
• Thesidesofthehousingaresometimesheated slightly. Thispreventscondensationinthearea of the doorseal.

Interiorfittings

notallmodels

Makingicecubes

Illustration of hands placing a grid-based object into a bowl with an arrow indicating rotation (no text or symbols)

Filltheicetray ^3/4 fullofwaterandplaceinthebottom of thefreezercompartment. If theicetrayisstucktothe freezercompartment, loosenwithabluntimplementonly (spoon-handle).

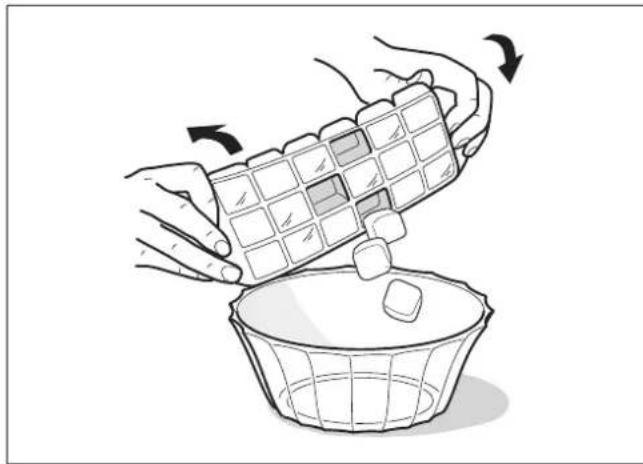

Toloosentheicecubes, twist theicetrays slightly or hold briefly underflowing water.

Iceblock

Line drawing of a box with a lid and handle, shown from an open to closed (no text or symbols)

Ifapowerfailureormalfunctionoccurs, theiceblocks canbeusedtoslowdownthethawingprocess. Theice blockscanalsobeusedtocoolfoodtemporarily, e. g.in acoldbag.

Freezingandstoringfood

Purchasingdeep-frozenfood

Packagingmustnotbedamaged.

Usebythe"best-before"date.

Temperatureinthesupermarketfreezer-18 °Corlower.

If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storingfrozenfood

- Toensuregoodaircirculationintheappliance, insert thefreezerdrawersalltheway.

Diagram of a refrigerator with doors open, showing airflow direction (no text or symbols)

- Ifalargequantityoffoodistobeplacedinthefreezer compartment, thefoodcanbestackeddirectlyon thewireshelvesandonthefloorofthefreezer compartment. Todothis, removeallthefreezer drawers. Pulloutthefreezerdrawersalltheway, lift at thefrontandremove.

Max.freezingcapacity

Inordertoretainthevitamins,nutritionalvalue, appearanceandflavourfoodshouldbefrozenasquickly aspossible.Donotexceedthemax.freezingcapacity. freezethefoodasquicklyaspossible.Donotexceed the max.freezingcapacityofyourappliance.

Informationaboutthemax.freezingcapacitywithin 24 hourscanbefoundontheratingplate.

Themax. freezing capacity is reached on the upper wire shelf.

Freezingfreshfood

Freezingfoodyourself

If you are freezing food yourself, use only fresh, undamaged food.

The following foods aresuitable for freezing:

Meatandsausageproducts,poultryandgame,fish,vegetables,herbs,fruit,cakesandpastries,pizza,ready meals,leftovers,eggyolkandegg-white.

The following foods are not suitable for freezing:

Eggsinshells, souredcream and mayonnaise, green salads, radishes and onions.

Blanchingvegetablesandfruit

Toretaincolour, flavour, aroma and vitamin C, vegetables and fruit should be blanched prior to freezing. Blanchingisthebriefimmersion of vegetables and fruit in boiling water. Literature on freezing and blanching is available in bookshops.

Freezingfood

Freezefresh, undamaged food only.

Keepfoodwhichistobefrozenawayfromfoodwhichis alreadyfrozen.

Topreventfoodfromlosingitsflavouror dryingout,place inairtightcontainers.

Howtowrapfoodcorrectly:

1. Placethefoodinthewrapping.
2. Pressoutalltheair.
   3.Sealthewrapping.
   4.Labelthewrappingwiththecontentsanddate.

The following products are not suitable for wrapping food:

Wrappingpaper, greaseproofpaper, cellophane, refuse bags and used shopping bags.

The following products are suitable for wrapping food:

Plasticfilm,polyethyleneblownfilm,aluminiumfoil and freezertins. Theseproductscanbepurchasedfromyourdealer.

The following products are suitable for sealing the wrapped food:

Rubberbands, plasticclips, string, cold-resistant adhesivetapeorsimilar. Bags and polyethyleneblownfilm can be sealed with a filmsealer.

Storagedurationofthefrozenfood

Dependsonthetypeoffood.Atameantemperature:

• Fish, sausage, readymeals and cakes and pastries: upto 6 months
• Cheese, poultry and meat: upto 8 months
  •Vegetablesandfruit: upto12months.

Storingfoodintheappliance

Foodwhichisalreadyfrozenmustnotcomeintocontact withthefoodwhichistobefrozen.Ifrequired,movethe frozenfoodtothefreezerdrawers.

Whenfreshfoodisfrozen, the temperature in the freezer compartment can increase to the extent that thered indicator light illuminates.

However, the food which is already frozen is not at risk of thawing. After 24 hours at the latest the set temperature is reached again.

Topreventfoodfromthawingintheeventofapower failureorafault,placeiceblocksdirectlyonthefood in thetopcompartment.

Usablecapacity

Informationontheusablecapacitycanbefoundinside yourapplianceontheratingplate.

Super

Foodshouldbefrozensolidasquicklyas possible in ordertoretainvitamins,nutritionalvalue,appearance and flavour.

Smallerquantitiesoffoodcanbefrozenwithoutfast freeze.

Topreventanundesirabletemperaturerisewhenplacing freshfoodinthefreezercompartment,switchonfast freezeseveralhoursbeforehand.

Asarule,4–6 hoursisadequate.

lfmax.freezingcapacityistobeutilised,24 hours are required.

SwitchfastfreezeonandoffbypassingtheFastfreeze button(yellow).3

They yellow indicator lamplights up when this mode is active. There refrigerating machines now operates constantly, and a low temperature is obtained in the appliance.

Thefoodisfrozenafterapprox.24hours.

Assoonasthefoodisfrozen, switchofftheFastfreeze button. They yellowindica-torlightgoesout.

Thawingfrozenfood

Dependingonthetypeoffoodandintendeduse, frozen producecanbethawedasfollows:

- Atroomtemperature

•Intherefrigerator

• Inanelectricoven, with/without fan assisted hot-air

•Inthemicrowave

Note

DoNOTrefreezefoodwhichisbeginningtothawor whichhasalreadythawed.Itcanonlyberefrozenwhen it hasbeenusedtoprepareareadymeal(boiledorfried).

Nolongerstorethefrozenproduceforthemax.storage period.

Switchingoffanddisconnecting the appliance

Switchingofftheappliance

Pressthebutton2.Greenindicatorlightgoesout.

Disconnectingtheappliance

If the appliance is not used for a prolonged period:

1. Switchingofftheappliance.
2. Pulloutthemainsplugorswitchoffthe fuse.
3. Cleaning the appliance.
4. Leavetheappliancedooropen.

Defrostingandcleaning the freezer compartment

Proceedasfollows:

• Switchofftheapplianceandpulloutthemainsplug.
• Placethefreezerdrawerscontainingthefoodin a coollocation.Placeiceblock(ifavailable)onthe food.
• Thebottommosttrayservestocollectdefrosting water:emptythis,butleaveitintheappliance.

Diagram of a refrigerator interior showing a pan with a lid and cooling rack, no text or symbols present

• To acceleratethedefrostingprocess, placetwopans of hotwateronabaseintheappliance. Closethe appliancedoortopreventheatfromescaping.
- Whenthefreezercompartmenthasdefrosted, pour thewateroutofthefreezerdrawer.Wipeany remainingwateroffthebottomofthefreezer compartmentwithasponge.
- Cleanthefreezercompartmentwithwaterandalittle washing-upliquid.
• Switching on the appliance

Warning

Donotuseabrasiveoracidiccleaningagents and solvents.

Cleanthedoorsealwithwateronlyandthendry thoroughly.

Waterusedforcleaningmustnotdripintothecontrol panel.

Neveruseadishwashertocleantheappliance'sparts. Thepartsmaywarp!

Illustration of hands operating a computer monitor with a keyboard (no text or symbols visible)

Ifappliancesfeatureadetachableventilationgrilleinthe base, thepanelcan betakenoutforcleaning. Todo this, depresstheclipsintheventilationslotsand simultaneouslyremovethebase panelforwards.

Howtosaveenergy

• Thefreezershouldbeinstalledinadry,wellventilated room,notexposedtodirectsunlightandnotplaced nearaheatsource(radiator,etc.).
• Donotblocktheventilationopeningsinthe appliance.
• Allowwarmfoodtocooldownbeforeplacingitinthe freezer.
• Thawfrozenfoodbyplacingitintherefrigerator. The lowtemperatureofthefrozenfoodcoolsthe foodintherefrigerator.
• Defrosttheappliancewheniceforms. Athicklayeroficeimpairsrefrigerationofthefrozen foodandincreasesthepowerconsumption.
• Whenloadingorunloadingthefreezer, openthe appliancedoorasbrieflyaspossible. Thebriefertheappliancedoorisopened, thelower theiceformationonthefreezershelves.
• Topreventthefoodfromwarmingupquicklyinthe eventofapowerfailureormalfunction,takeice blocksfromthefreezertrayandplacetheminthe top compartmentdirectlyonthefood.

Operatingnoises

Normalnoises

Humming–refrigerating unitisrunning.

Bubbling, gurgling or whirring noises—refrigerant is flowing through the tubing.

Clicking-motorisswitchingonoroff.

Noiseswhichcanbeeasilyrectified

Theapplianceisnotlevel

Please align the appliance with aspiritlevel. Use the height-adjustable feet or places something under the feet.

The applianceistouchingadjacentunits or appliances

Pleasemovetheapplianceawayfromadjacentunits or appliances.

Drawers, basketsorstorageareasareloose or sticking

Pleasechecktheremovablepartsand, ifrequired, reinsertthem.

Receptaclesaretouchingeachother

Pleasemovebottlesorreceptaclesawayfromeach other.

Eliminatingminorfaultsyourself

Beforecallingcustomerservicepleasecheckwhether the followinglisthelpsyoutoeliminatethefaultyourself.

Inadvisorycasesyouareobligedtoassumethefullcosts forthefitter's deployment,alsoduringthewarranty period.

Whatshouldyoudowhen ...

...itistoocoldinthefreezercompartment.

• Temperaturehasbeensettoolow.

- YouhaveforgottentoswitchoffSuperFreeze (yellow indicatorlampislit).SwitchoffSuperFreeze.

...noindicatorlampslightup.

Check

- whether the appliance is switched on.

- whetherthereisamainsfailure.

- whetherthedomesticwiringfusehastripped.

- whether the appliance's mains plugs its firmly in the socket.

...the(red)indicatorlampisconstantlylit.

Itistoowarminthefreezercompartmentbecause:

- thedoorhasbeenopenedfrequentlyorlarge quantitiesoffreshfoodhavebeenfrozen.

- thetemperatureselectorhasbeensettoahigher number.

•theventilationaperturesarecovered.

Whenthefaulthasbeeneliminated, theindicatorlight goesoutshortlyafterwards. If not, callcustomerservice.

Customerservice

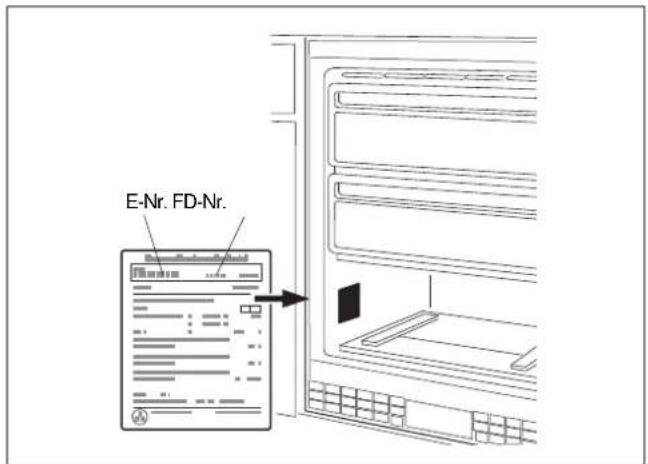

Yourlocalcustomerservicecanbefoundinthe telephonedirectoryorinthecustomer-serviceindex. Pleaseprovidecustomerservicewiththeappliance productnumber(E-no.)andproductionnumber(FD).

Désactiverlesignalsonore

(selonlemodèle).

Illustration of hands placing a small cube into a bowl with an arrow indicating rotation (no text or symbols)

Line drawing of a box with a lid and handle, shown from an open to closed (no text or symbols)

Diagram of a refrigerator with doors open, showing a directional arrow (no text or symbols)

Illustration of a refrigerator interior with a pot and lid, showing liquid level inside (no text or symbols)

Illustration of hands operating a computer monitor with a keyboard (no text or symbols visible)

Illustration of hands placing a small cube into a bowl with an arrow indicating rotation (no text or symbols)

Line drawing of a box with a lid and handle, shown from an open to closed position (no text or symbols)

Diagram of a refrigerator with doors open, showing airflow direction (no text or symbols)

Illustration of a refrigerator interior showing a pan with liquid and steam rising from the side (no text or symbols)

Line drawing of hands operating a computer monitor with a keyboard (no text or symbols)

Illustration of hands placing a grid-based object into a bowl with an eraser, showing rotation arrows (no text or symbols)

Line drawing of a box with a lid and handle, shown from an open to closed (no text or symbols)

Diagram of a refrigerator with doors open, showing airflow direction (no text or symbols)

Illustration of a refrigerator interior with a lid and cooling pan (no text or symbols)

Illustration of hands operating a computer monitor with a keyboard (no text or symbols visible)
