USER MANUAL 23MD53D-PZ LG

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your TV and retain it for future reference.

23MD53D

27MD53D

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 - Separate purchase

9 Parts and buttons

10 Lifting and moving the TV

11 Setting up the TV

11 - Attaching the Stand

15 - Mounting on a table

16 - Tidying cables

16 - Using the Kensington security system

17 - Detaching the Stand

19 - Mounting on a wall

21 WATCHING TV

21 Turning the TV on for the first time

23 MAKING CONNECTIONS

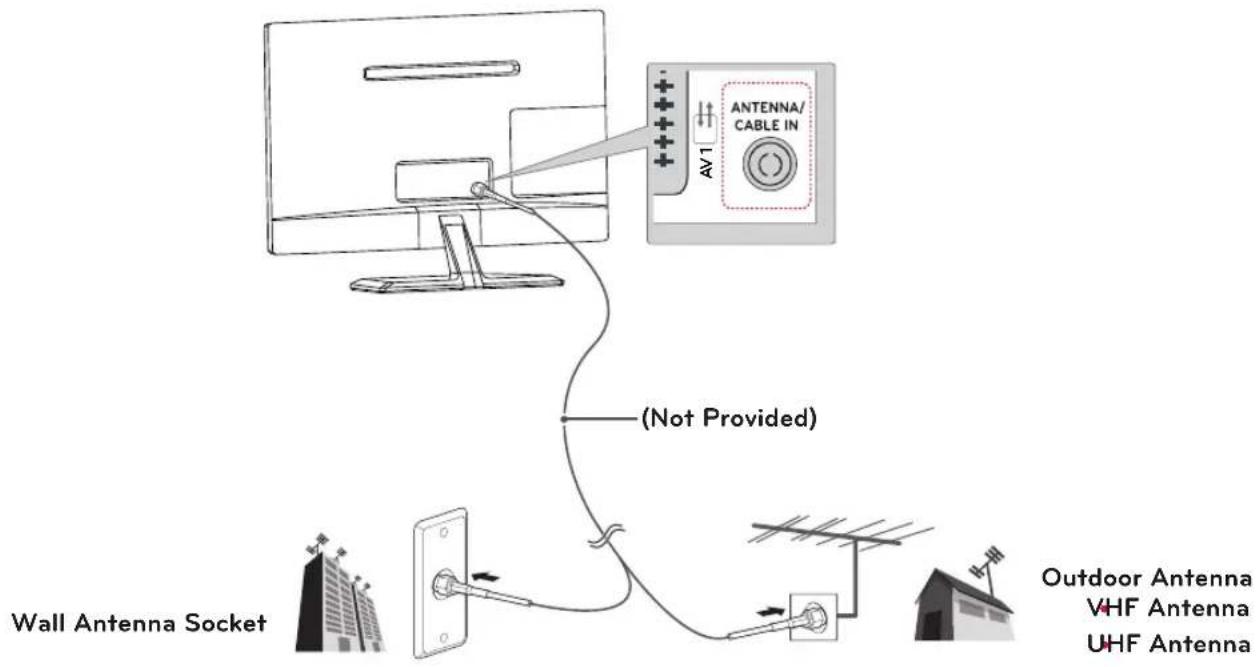

23 Connecting an antenna

24 Connecting to a HD receiver, DVD, VCR player or Gaming device

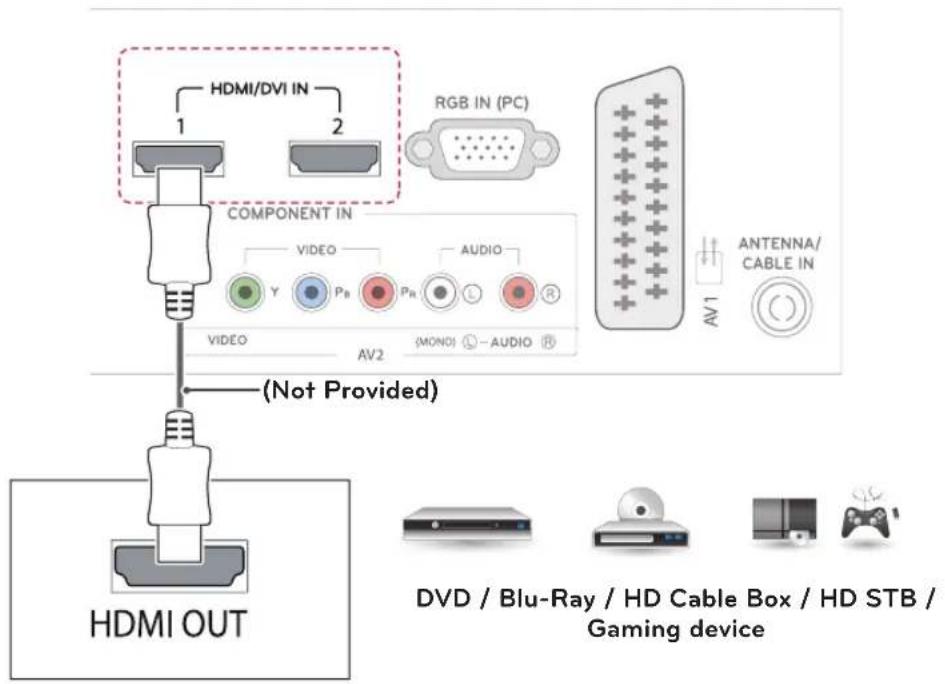

24 - HDMI connection

25 - HDMI to DVI connection

26 - Component connection

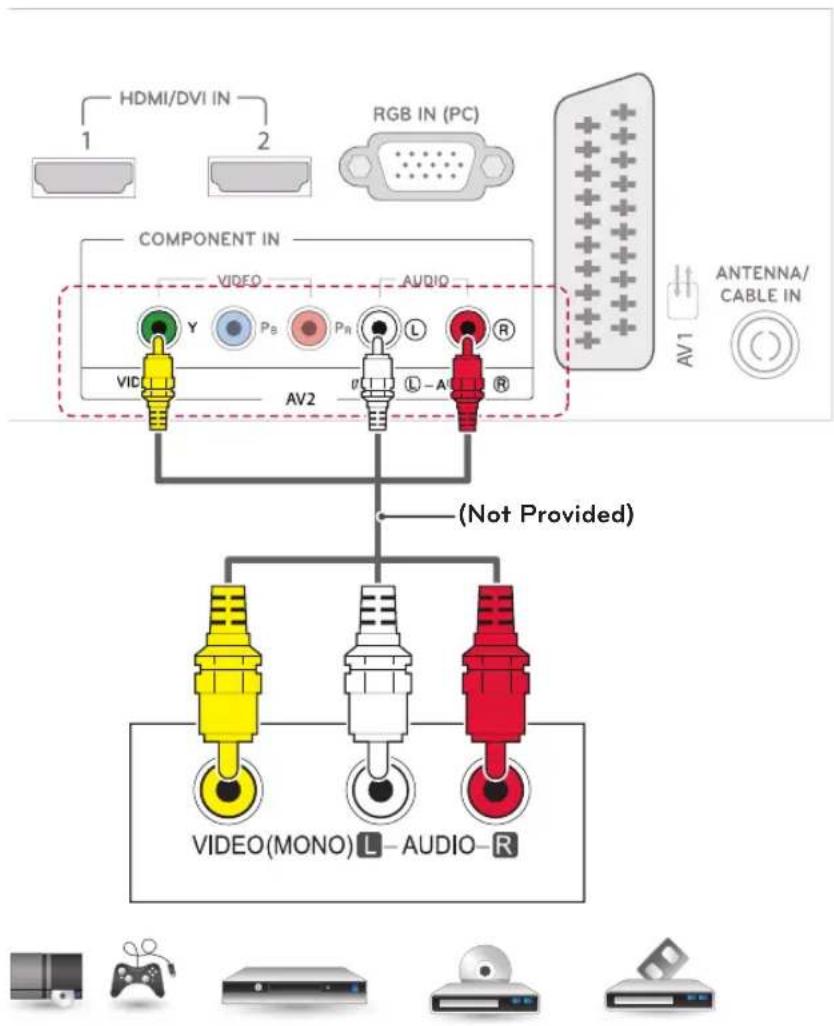

27 - Composite connection

28 - Euro Scart connection

29 Connecting to an audio system

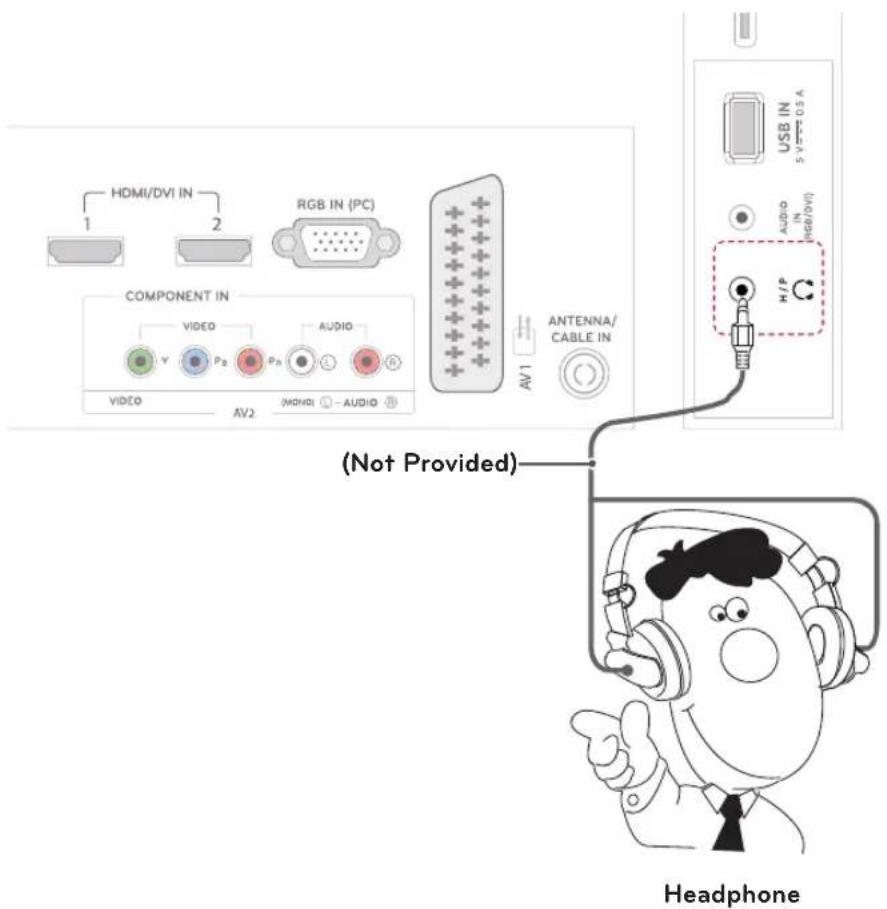

29 - Headphone connection

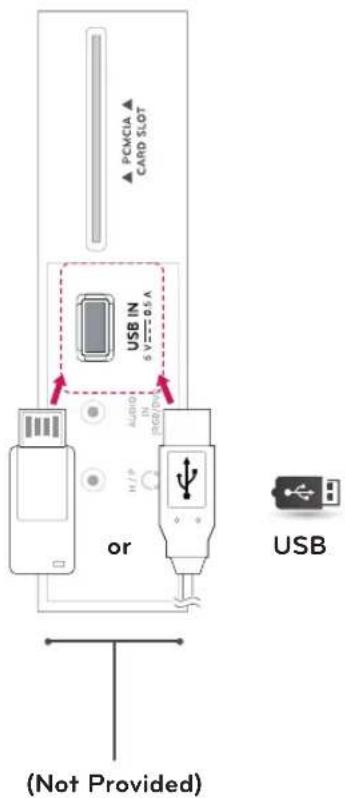

30 Connecting to a USB

30 Connecting to a CI Module

31 Connecting to a PC

32 - HDMI connection

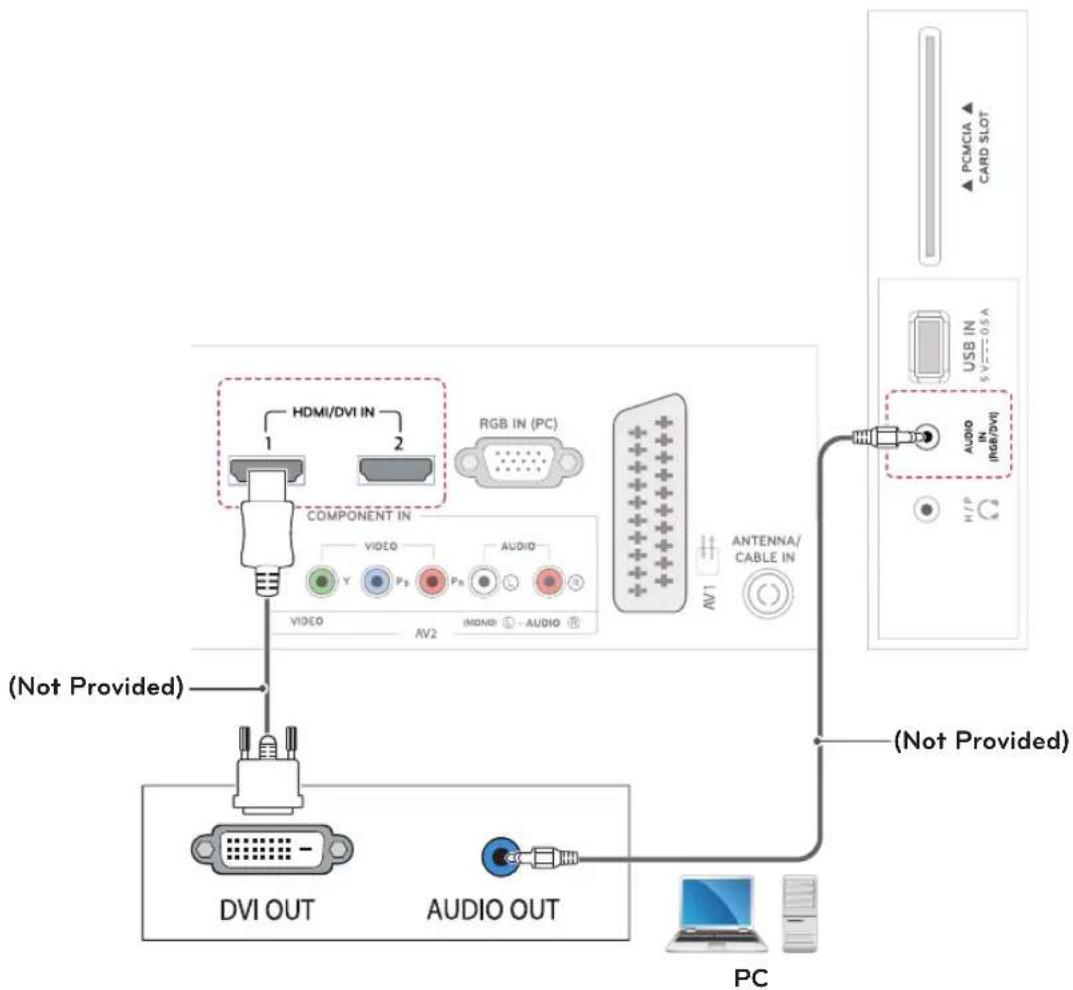

33 - HDMI to DVI connection

34 - RGB connection

35 REMOTE CONTROL

37 CUSTOMIZING SETTINGS

37 Accessing main menus

38 USING THE USER GUIDE

38 Accessing User Guide menu.

38 - Using the TV menu

39 3D IMAGING

39 3D Technology

40 MAINTENANCE

40 Cleaning Your TV

40 Screen and frame

40 Cabinet and stand

40 Power cord

41 Preventing "Image burn" or "Burn-in" on your TV screen

42 IF THE QUALITY OF THE 3D IMAGE IS NOT ACCEPTABLE, CHECK THE FOLLOWING

43 VIEWING 3D IMAGING

45 TROUBLESHOOTING

45 General

45 Using 3D mode

46 SPECIFICATIONS

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX ^® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.

NOTE

Image shown may differ from your TV.

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are using.

New features may be added to this TV in the future.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

CAUTION

Do not use any pirated items to ensure the safety and product life span.

Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

Illustration of a remote control with two batteries (1.5V and 2.0V) beside it, no text or symbols present.

Remote control Batteries (AAA)

(See p.35, See p.36)

Illustration of a CD or DVD disc and its corresponding physical case (no text or symbols)

CD (Owner's Manual) Cards

Illustration of two coaxial cables with connectors (no text or symbols)

RGB Cable

(See p.34)

Line drawing of a coiled cable or hose with connectors (no text or symbols)

Power Cord

(See p.15) (See p.15)

Line drawing of a cable and rectangular device with a connector (no text or symbols)

AC-DC Adapter

Cable Tie

(See p.16)

Line drawing of a rectangular tray with a curved top and bottom (no text or symbols)

Stand Base

(23MD53D: See p.11, See p.17 27MD53D: See p.13, See p.18)

Line drawing of a mechanical component or bracket (no text or symbols)

Stand Body

(Only 23MD53D model)

(See p.11, See p.17)

Simple line drawing of two overlapping rectangular panels (no text or symbols)

Stand Body

(Only 27MD53D model)

(See p.13, See p.18)

Screws for Assembly 2 EA

(Only 27MD53D model)

(See p.13, See p.18)

or

Isolator

(Depending on the country)

Illustration of two types of eyeglasses, one plain and one with a pair of lenses (no text or symbols)

3D Glasses(Normal type / Clip type)

- The number of 3D glasses may differ depending on the model or country. - Image shown may differ from your TV.

Separate purchase

Line drawing of a pair of eyeglasses with lenses and straps (no text or symbols)

Dual play glasses

AG-F2**DP, AG-F3**DP

NOTE

The illustrations in this manual may differ from the actual product and accessories.

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buying these items.

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

NOTE

• Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.

• You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
• Before starting, be sure that the TV antenna is connected.

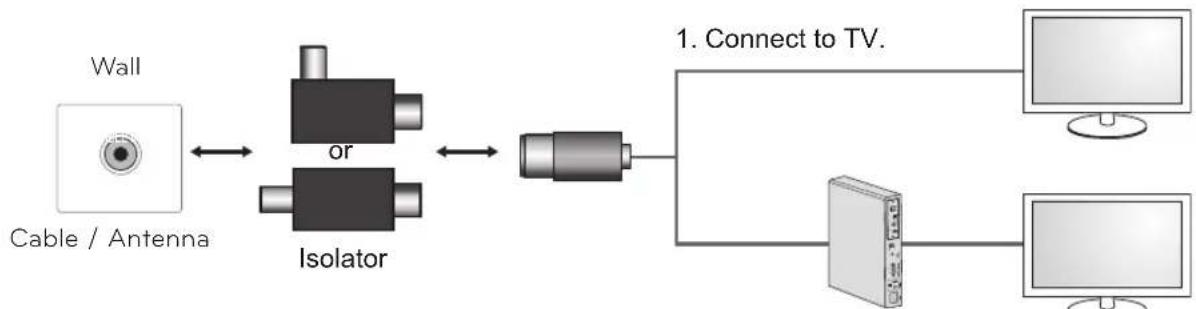

1. Connect to Set-Top box.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

Parts and buttons

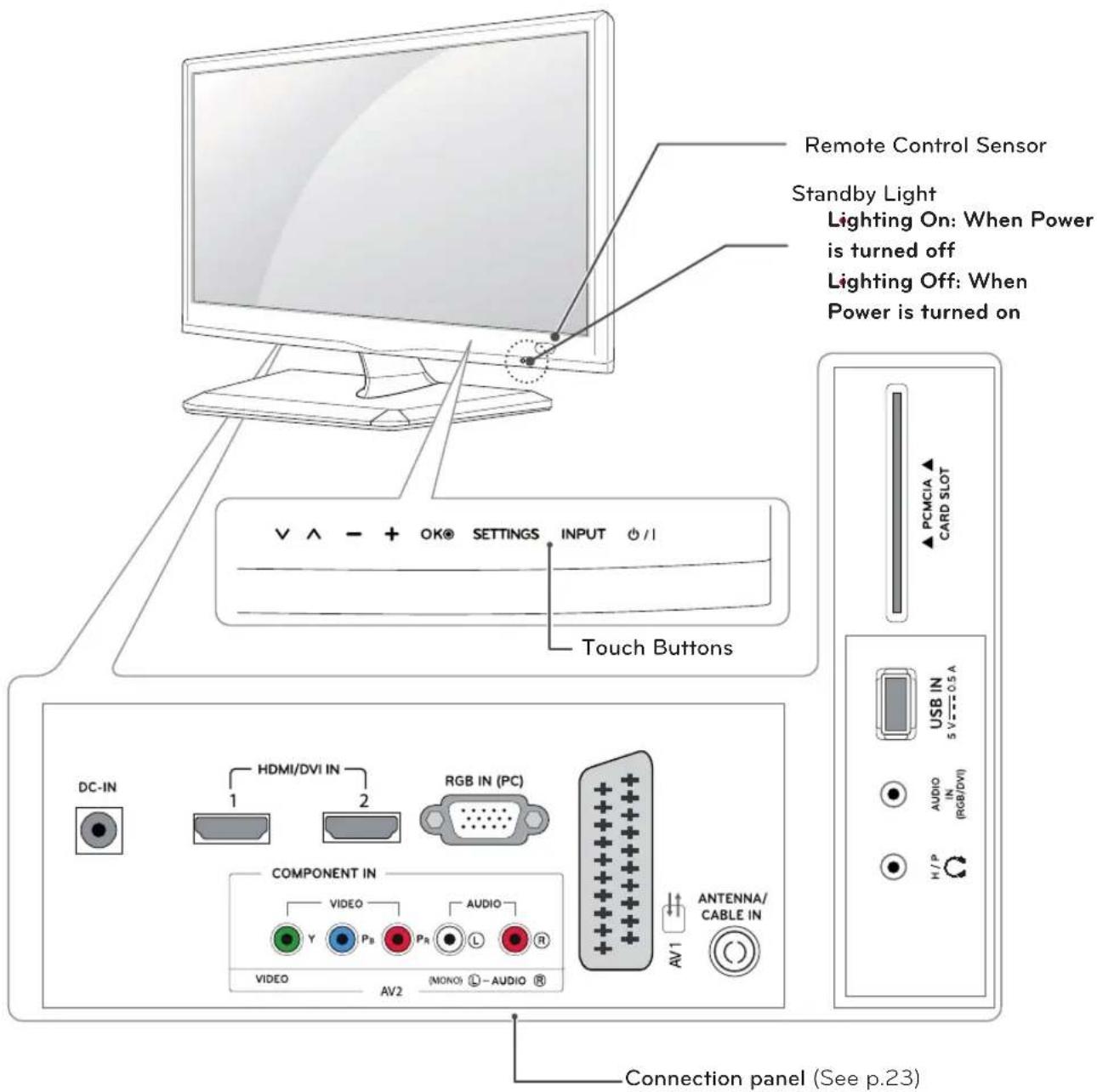

Remote Control Sensor Standby Light Lighting On: When Power is turned off Lighting Off: When Power is turned on Touch Buttons V A - + OK® SETTINGS INPUT /I PCMCIA ▲ CARD SLOT DC-IN HDMI/DVI IN 2 RGB IN (PC) COMPONENT IN VIDEO AUDIO Y P_B P_R L R VIDEO AV2 MONO AUDIO AV1 ANTENNA/ CABLE IN USB IN 5 V 0.5A AUDIO IN (RGB/DVI) H/P Connection panel (See p.23)

Touch button Description
∨ ∧	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
○ / I	Turns the power on or off.

NOTE

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for save transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen or some of the pixels used to create images.

It is recommended to move the TV in the box or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

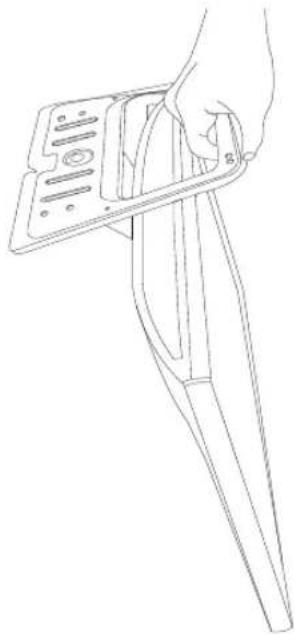

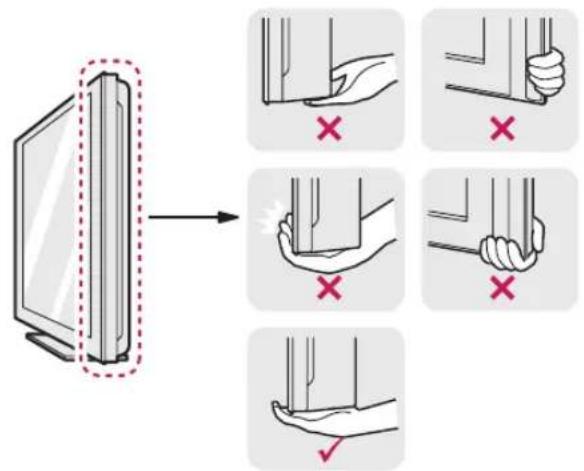

Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating hand positioning and cleaning steps of a computer monitor, with red X marks indicating correct or incorrect states.

When holding the TV, the screen should face away from you to prevent the screen from scratches.

Prohibition sign with silhouette of person holding a monitor and crossed out by a diagonal line

When transporting the TV, do not expose the TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright, never turn the TV on its side, or tilt towards the left or right.

Setting up the TV

Attaching the Stand

23MD53D

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

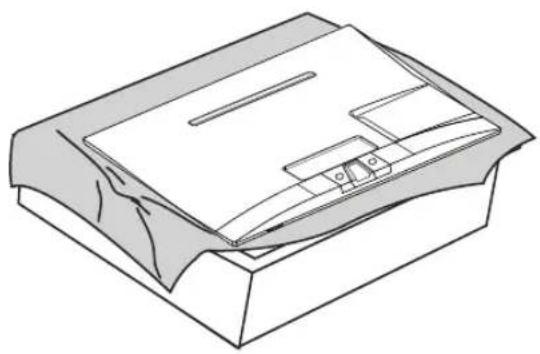

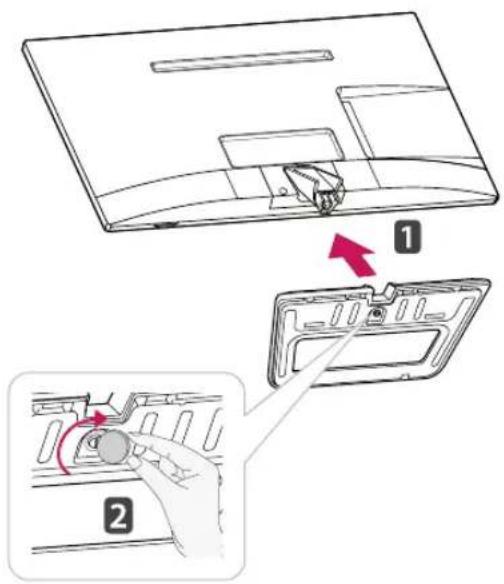

1 Place the TV with the screen side down on a flat and cushioned surface.

Isometric line drawing of a mechanical component or assembly (no text or symbols)

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

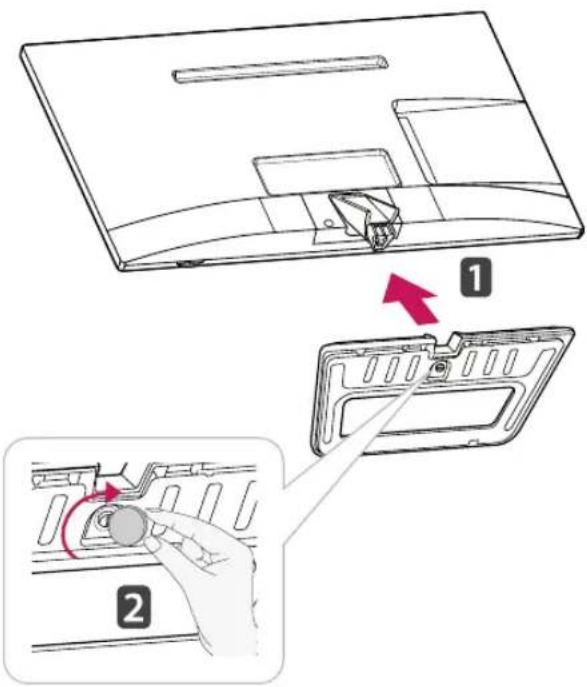

3 Attach the Stand Base from the Stand Body by turning the screw to the right with a Coin.

Diagram showing a device component being inserted into a panel, with labeled parts and directional arrows indicating assembly steps.

CAUTION

Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

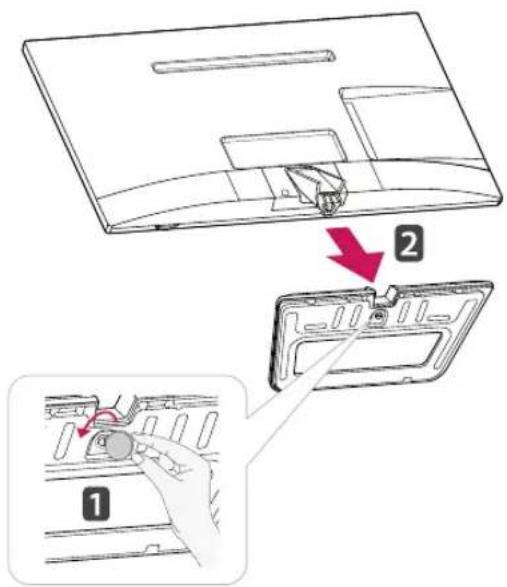

2 Attach the Stand Body from the TV.

Technical line drawing of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

CAUTION

Line drawing of a hand holding a metal tool, no text or symbols present

Do not carry the monitor upside-down as this may cause it to fall off its stand, resulting in damage or injury.

The illustration shows a general example of installation and may look different from the actual product.

Line drawing of a hand holding a blade, no text or symbols present

Do not carry the monitor upside-down by holding the stand body as this may cause it to fall off, resulting in damage or injury.

The illustration shows a general example of installation and may look different from the actual product.

27MD53D

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

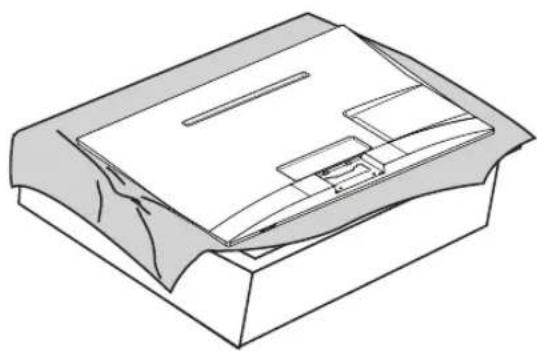

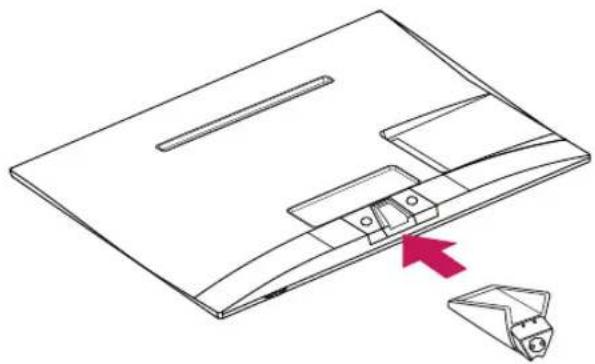

1 Place the TV with the screen side down on a flat and cushioned surface.

Technical line drawing of a mechanical component or assembly (no text or symbols)

2 Attach the Stand Body from the TV.

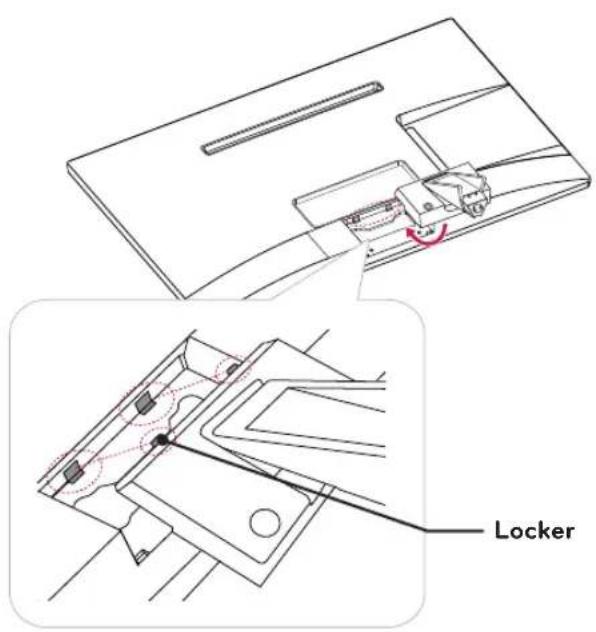

Insert the two Lockers of the Stand Body right into the groove of the TV head and secure them by pressing the left and right bottom sides.

Locker

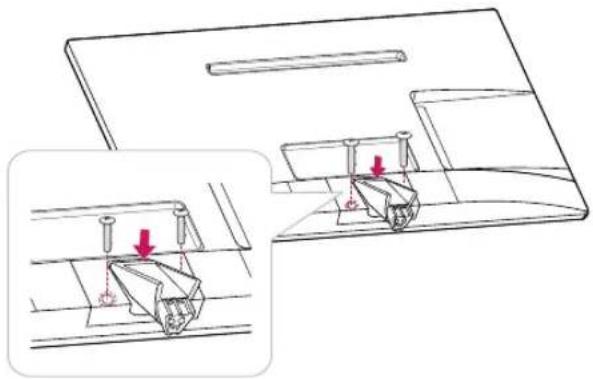

3 Secure the TV and the Stand Body with the 2 screws.

Technical illustration of a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

WARNING

If you don't fasten the screw tightly, TV will fall down and get damaged.

4 Attach the Stand Base from the Stand Body by turning the screw to the right with a Coin.

Diagram showing a device component being inserted into a panel, with step 1 indicating the process and step 2 highlighting the insertion.

CAUTION

Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

CAUTION

Line drawing of a hand holding a metal tool, no text or symbols present

Do not carry the monitor upside-down as this may cause it to fall off its stand, resulting in damage or injury.

The illustration shows a general example of installation and may look different from the actual product.

Line drawing of a hand holding a blade, no text or symbols present

Do not carry the monitor upside-down by holding the stand body as this may cause it to fall off, resulting in damage or injury.

The illustration shows a general example of installation and may look different from the actual product.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

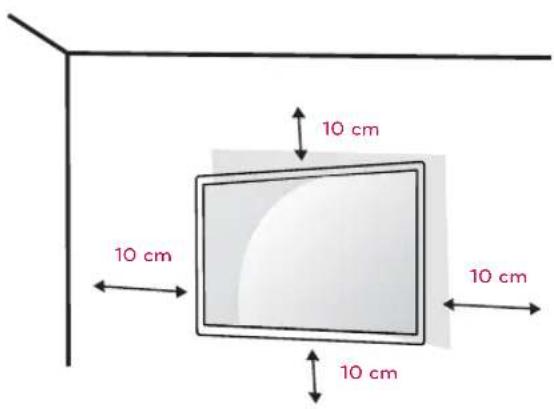

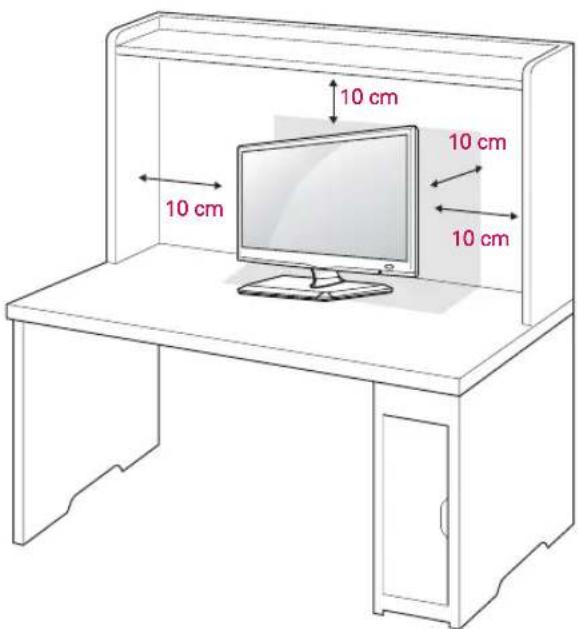

Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

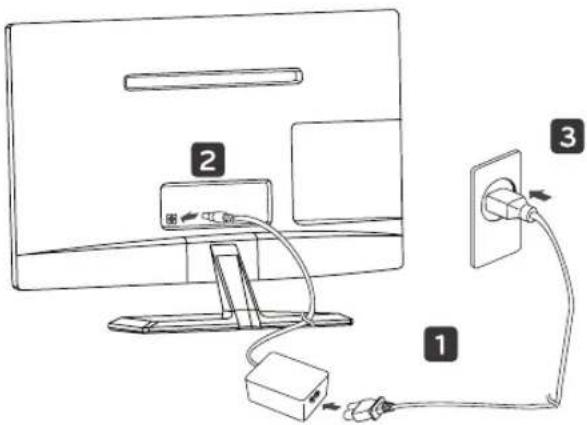

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

Diagram showing cable installation and connection to a monitor, labeled with components 1, 2, and 3.

CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage.

WARNING

When you adjust the angle, do not hold the bottom of the TV frame as shown on the following illustration, as may injure your fingers.

Illustration of a hand holding a tool with a red circle on the base (no text or symbols)

Illustration of a hand holding a curved object with a red prohibition symbol (no text or labels)

CAUTION

Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.

NOTE

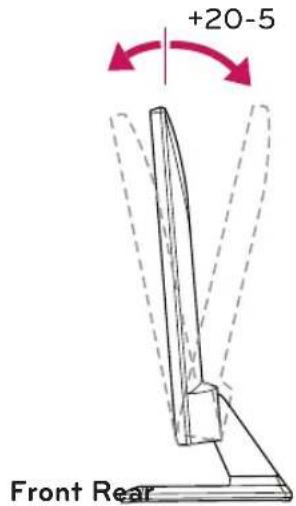

Tilt from +20 to -5 degrees up or down to adjust the angle of the TV to suit your view.

+20-5 Front Rear

Tidying cables

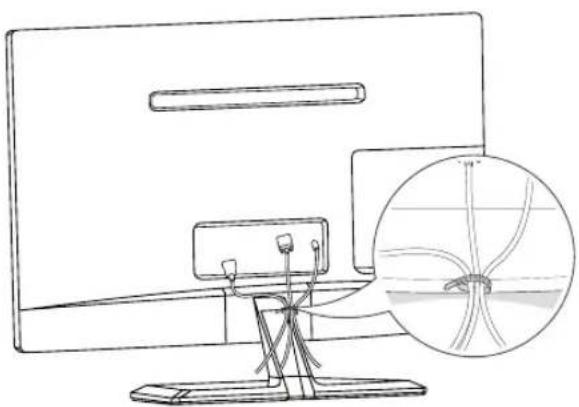

Gather and bind the cables with the supplied cable tie.

Line drawing of a monitor setup with an inset showing a circular diagram of a curved structure (no text or symbols present)

Using the Kensington security system

The Kensington security system connector is located at the back of the TV. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

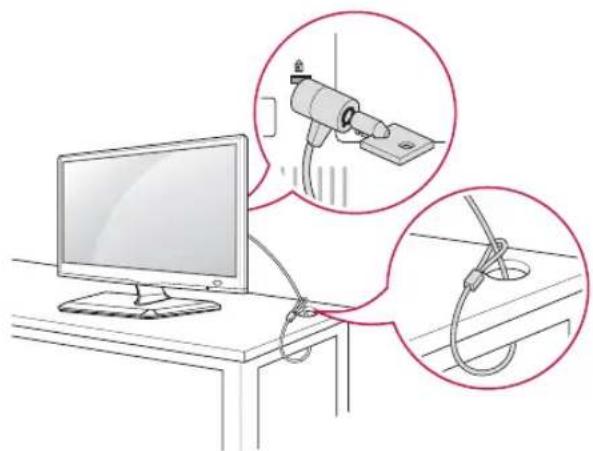

Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing a device and cable (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain additional accessories from most electronics stores.

Detaching the Stand

23MD53D

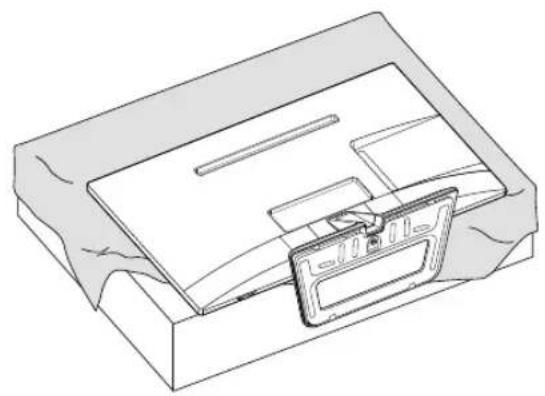

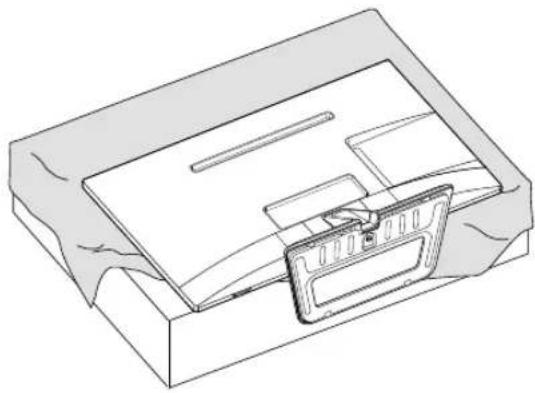

1 Place the TV with the screen side down on a flat and cushioned surface.

Technical line drawing of a mechanical component or housing assembly (no text or symbols visible)

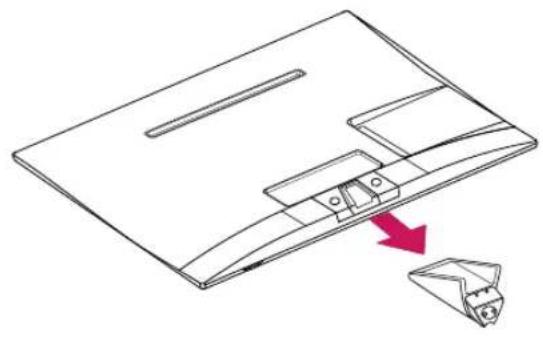

3 Pull out the Stand Body from the TV.

Technical line drawing of a mechanical component with a red arrow indicating a process or assembly (no text or symbols present)

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body.

Diagram showing a device with labeled parts and a hand interacting with a button, illustrating a process of change or adjustment.

27MD53D

1 Place the TV with the screen side down on a flat and cushioned surface.

Technical line drawing of a mechanical component or housing assembly (no text or symbols visible)

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

3 Remove 2 screws and pull out the Stand Body from the TV.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body.

Diagram showing a device panel being inserted into a device with a close-up view of the component being inserted.

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the TV to a wall, attach Wall mounting interface (optional parts) to the back of the TV.

When you install the TV using the wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.
2 If you use screw longer than standard, the TV might be damaged internally.
3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.
4 VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications.

5 Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

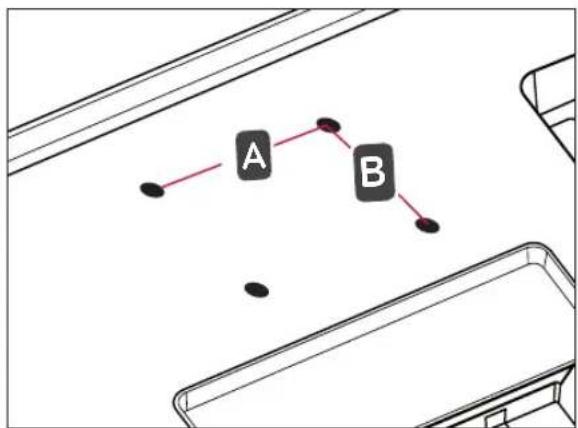

VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket (optional)	RW120

VESA (A × B)

CAUTION

Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.

If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.

Use an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the TV and void your warranty.

Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit includes an installation manual and necessary parts.

The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Be sure to use the proper length.

For more information, refer to the instructions supplied with the wall mount.

WATCHING TV

Turning the TV on for the first time

When you access the TV for the first time, the initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.
2 Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.

NOTE

When the TV is in Power saving mode, the Standby Light turns amber.

3 The initial setting screen appears if you access the TV for the first time.

NOTE

If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting menus will disappear.

4 Follow the on-screen instructions to customize your TV according to your preferences.

    style A fill:#f9f,stroke:#333
    style H fill:#f9f,stroke:#333

    note1["Selects a language for the display."]
    note2["Selects Home Use for the home environment."]
    note3["Selects the Standby Light. If you select On, the TV turns on the Standby Light in the front panel when the TV is off."]
    note4["Selects a country to display."]
    note5["Selects the time zone and daylight saving. (When Russia is selected for Country)"]
    note6["Set the password. (When France/Italy is selected for Country)"]
    note7["Shows how to use User Guide and FAQ."]
    note8["Scans and saves available programmes automatically."]

NOTE

For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.

When France is selected for Country, the initial password is not 'O', 'O', 'O', 'O' but '1', '2', '3', '4'.

To display images in the best quality for your home environment, select Home Use mode.

Store Demo mode is suitable for the retail environment.

If you select Store Demo mode, the previously customized settings will switch to the default settings of Store Demo mode in 2 minutes.

5 When the basic settings are complete, press OK.

NOTE

If you do not complete the initial setting, it will appear whenever you access the TV.

6 To turn the TV off, press down the TV.

The Standby Light is turned on.

CAUTION

Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

NOTE

You can also access Factory Reset by accessing OPTION in the main menus.

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information about an external device's connection, refer to the manual supplied with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, camcorders or cameras, gaming devices, and other external devices.

NOTE

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual supplied with the connected device.

The external device connection may differ from the model.

Connect external devices to the TV regardless of the order of the TV port.

Connecting an antenna

Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ from the actual accessories and an RF cable is optional.

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

AV1 ANTENNA/ CABLE IN (Not Provided) Wall Antenna Socket Outdoor Antenna VHF Antenna UHF Antenna

NOTE

Use a signal splitter to use more than 2 TVs. If the image quality is poor, install a signal amplifier properly to improve the image quality.

If the image quality is poor with an antenna connected, aim the antenna to the proper direction.

Visit http://AntennaWeb.org for more information about the antenna and cable connection.

CAUTION

Make sure not to bend the copper wire of the RF cable.

Copper wire

Complete all connections instructions between devices, and then connect the power cord to the power outlet to prevent damages to your TV.

Connecting to a HD receiver, DVD, VCR player or Gaming device

Connect a HD receiver, DVD, VCR player or Gaming device to the TV and select an appropriate input mode.

HDMI connection

HDMI is the best way to connect a device.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown on the following illustration.

NOTE

Use a High Speed HDMI™ Cable.

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

Supported DTV Audio: MPEG, Dolby Digital.

Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz /

88 kHz / 96 kHz / 176 kHz / 192 kHz, DTS Not supported.)

Choose any HDMI input port to connect.

It does not matter which port you use.

HDMI/DVI IN 1 2 RGB IN (PC) COMPONENT IN VIDEO AUDIO Y PB PR L R VIDEO AV2 (MONI) - AUDIO ® (Not Provided) HDMI OUT DV/D Blu-Ray / HD Cable Box / HD STB / Gaming device

HDMI to DVI connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an optional audio cable.

NOTE

If you do not use an optional external speaker, connect the external device to the TV with the optional audio cable.

HDMI/DVI IN COMPONENT IN VIDEO AUDIO VIDEO AV2 (MONI) ① - AUDIO ⑤ ANTENNA/CABLE IN (Not Provided) (Not Provided) DVI OUT AUDIO OUT PCMCIA ▲ CARD SLOT USB IN (HG/DVI) AUDIO IN H/P C B

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

Component connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown on the following illustration. To display images by using progressive scan, make sure to use the component cable.

NOTE

If cables are installed incorrectly, it could case the image to display in black and white or with distorted color.

Check to ensure the cable are matched with the corresponding color connection.

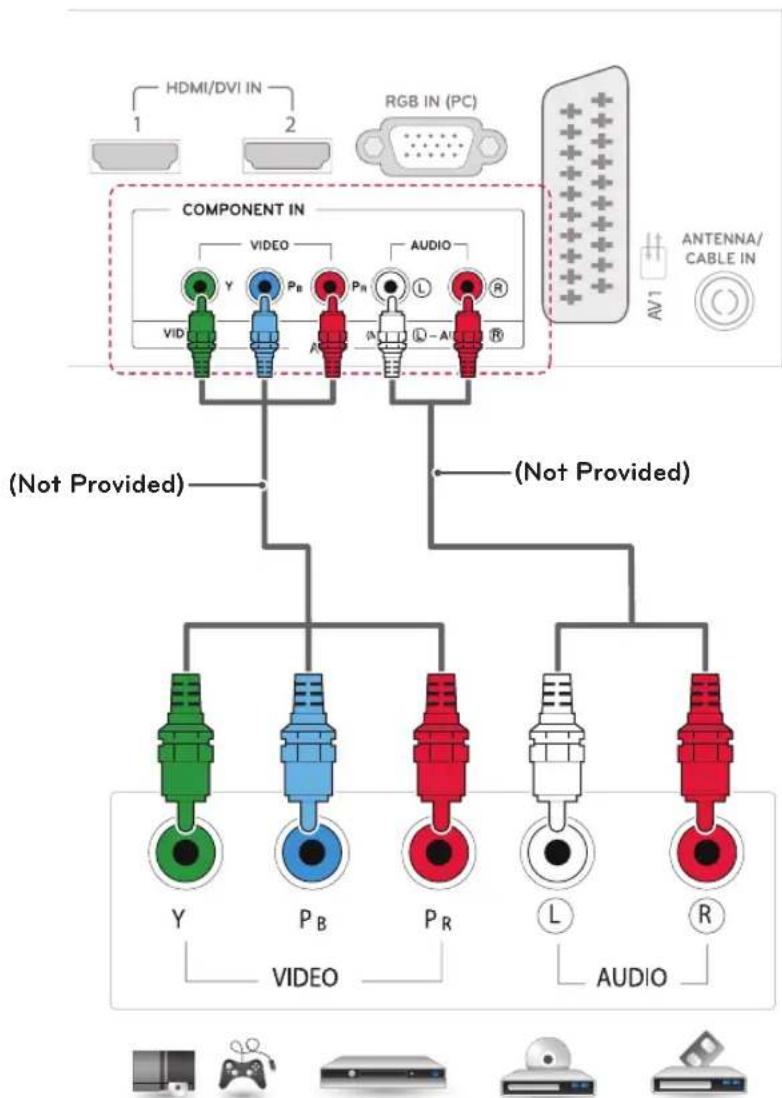

HDMI/DVI IN RGB IN (PC) COMPONENT IN VIDEO AUDIO (Not Provided) (Not Provided) Y P_B P_R L R AV1 ANTENNA/ CABLE IN VIDEO P_B P_R L R AUDIO

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

Composite connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown on the following illustration.

NOTE

Check to ensure the cable are matched with the corresponding color connection.

HDMI/DVI IN 1 2 RGB IN (PC) COMPONENT IN VIDEO AUDIO Y Ps PA L R VID AV2 L-A R (Not Provided) VIDEO(MONO)L AUDIO-R ANTENNA/ CABLE IN AV1

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

Euro Scart connection

Transmits the video and audio signals from an external device to the TV. Connect the external device and the TV with the Euro Scart cable as shown on the following illustration. To display images by using progressive scan, make sure to use the Euro Scart cable.

OutputTypeCurrentinput mode	AV1 (TV Out ^3 )
Digital TV Digital TV
Analogue TV, AV Analogue TV
Component/RGB
HDMI

NOTE

Any Euro scart cable used must be signal shielded.

When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable.

HDMI/DVI IN 1 2 RGB IN (PC) COMPONENT IN VIDEO Y Pa Pa VIDEO AV2 (MON) AUDIO AV1 ANTENNA/ CABLE IN (Not Provided) AUDIO/VIDEO DVD / Blu-Ray / HD Cable Box

Connecting to an audio system

Use an optional external audio system instead of the built-in speaker.

Headphone connection

Transmits the headphone signal from the TV to an external device. Connect the TV with the headphone as shown on the following illustration.

NOTE

AUDIO menu items are disabled when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 9 mW to 15 mW

Headphone jack size: 0.35 cm

HDMI/DVI IN 1 2 RGB IN (PC) COMPONENT IN VIDEO AUDIO AV2 (MON/O) - AUDIO (Not Provided) ANTENNA/ CABLE IN USB IN 5 V 0.5 A Audio IN (HSB/TW) H/P Headphone

Connecting to a USB

Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB memory card reader to the TV and access the MY MEDIA menu to use various multimedia files.

PCNCIA CARD SLOT USB IN 6 V 8.4 A or USB (Not Provided)

Connecting to a CI Module

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

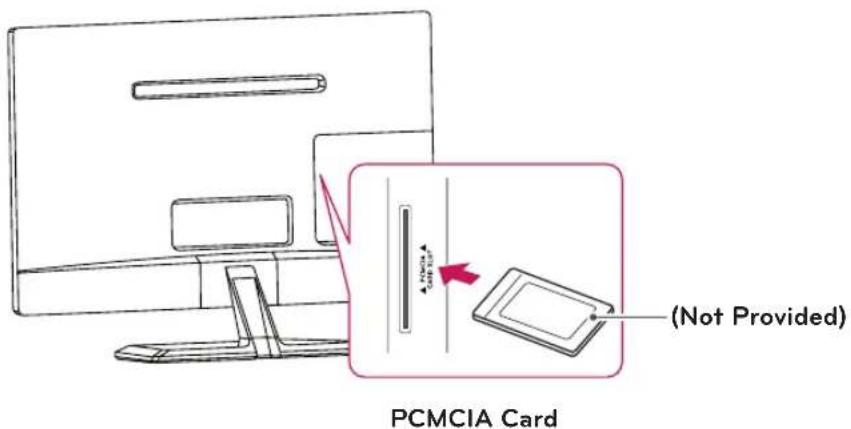

Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

PCMCIA Card (Not Provided)

Connecting to a PC

Your TV supports the Plug & Play* feature and has the built-in speakers with Virtual Surround that reproduces sound clearly with a rich bass.

* Plug & Play: The function when a PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

NOTE

It is recommended to use the TV with the HDMI connection for the best image quality.

If you turn the TV on when the set becomes cold, the screen may flicker. This is normal.

Some red, green, or blue spots may appear on the screen. This is normal.

Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.

Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

NOTE

If you want to use HDMI-PC mode, you must set the input label to PC mode.

The OSD (On Screen Display) is displayed on the screen as shown below.

» When turning the product on in HDMI input.
» When switching to HDMI input.

Is the input connected to your PC? Yes No Do not show message again.

If you select "Yes" the size and image quality are optimised for your PC.

If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top box, gaming device).

If you select "Do not show message again" this message does not appear until the TV is reset. You can change the set value in SETTINGS ▶ INPUT ▶ Input Label.

The values set for HDMI1/HDMI2 are saved independently.

HDMI connection

Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with the HDMI cable as shown in the following illustrations. You should set PC as an input label to connect the PC to the TV with an HDMI connection.

NOTE

Use a High Speed HDMI™ Cable.

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

If you want to use HDMI-PC mode, you must set the input label to PC or DVI mode.

Supported DTV Audio: MPEG, Dolby Digital.

Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz / 88 kHz / 96 kHz / 176 kHz / 192 kHz, DTS Not supported.)

Choose any HDMI input port to connect.

It does not matter which port you use.

HDMI/DVI IN 1 2 RGB IN (PC) COMPONENT IN VIDEO AUDIO Y Pa Pa L R VIDEO AV2 (MONO) - AUDIO - (Not Provided) HV1 ANTENNA/ CABLE IN HDMI OUT PC

HDMI to DVI connection

Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with the HDMI to DVI cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

NOTE

If you want to use HDMI-PC mode, you must set the input label to DVI mode.

If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.

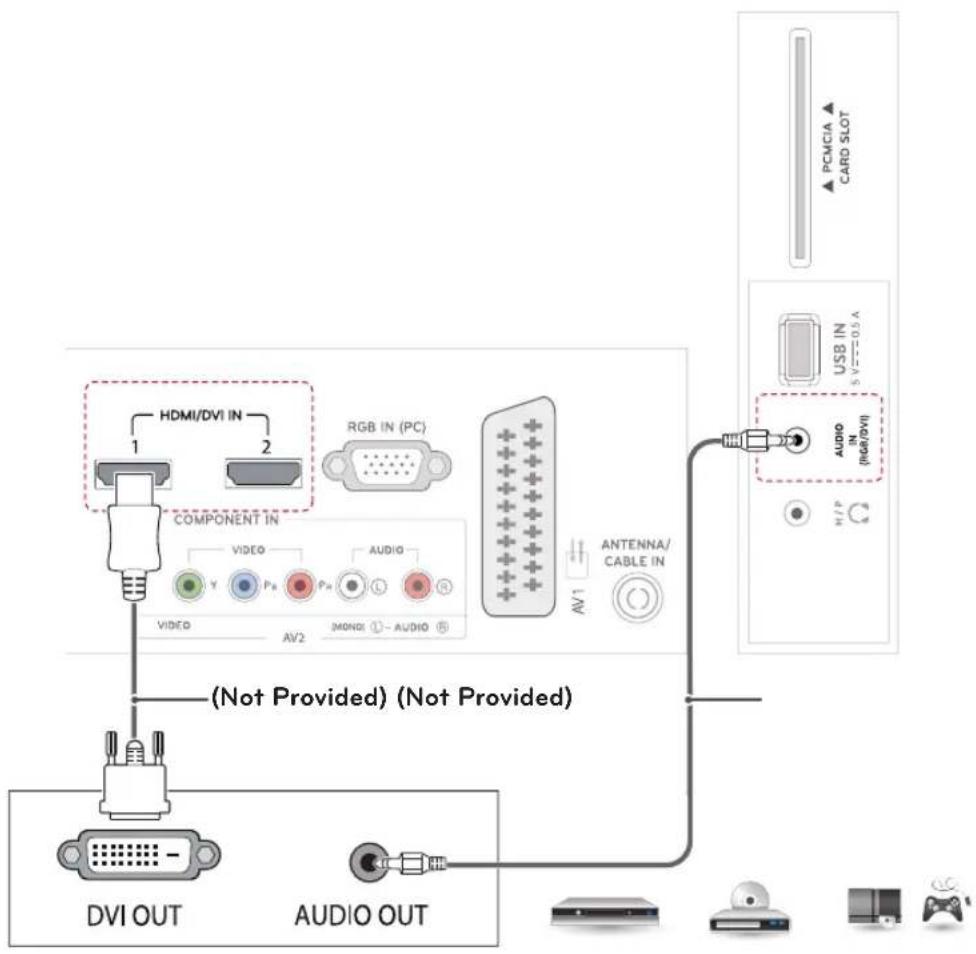

HDMI/DVI IN COMPONENT IN VIDEO AUDIO AV2 (Not Provided) DVI OUT AUDIO OUT PC ANTENNA/CABLE IN AV1 VY Ps Ph MONO AUDIO (Not Provided) PCMCIA CARD SLOT USB IN 5V-0.5A AUDIO IN (RGB/DVI)

RGB connection

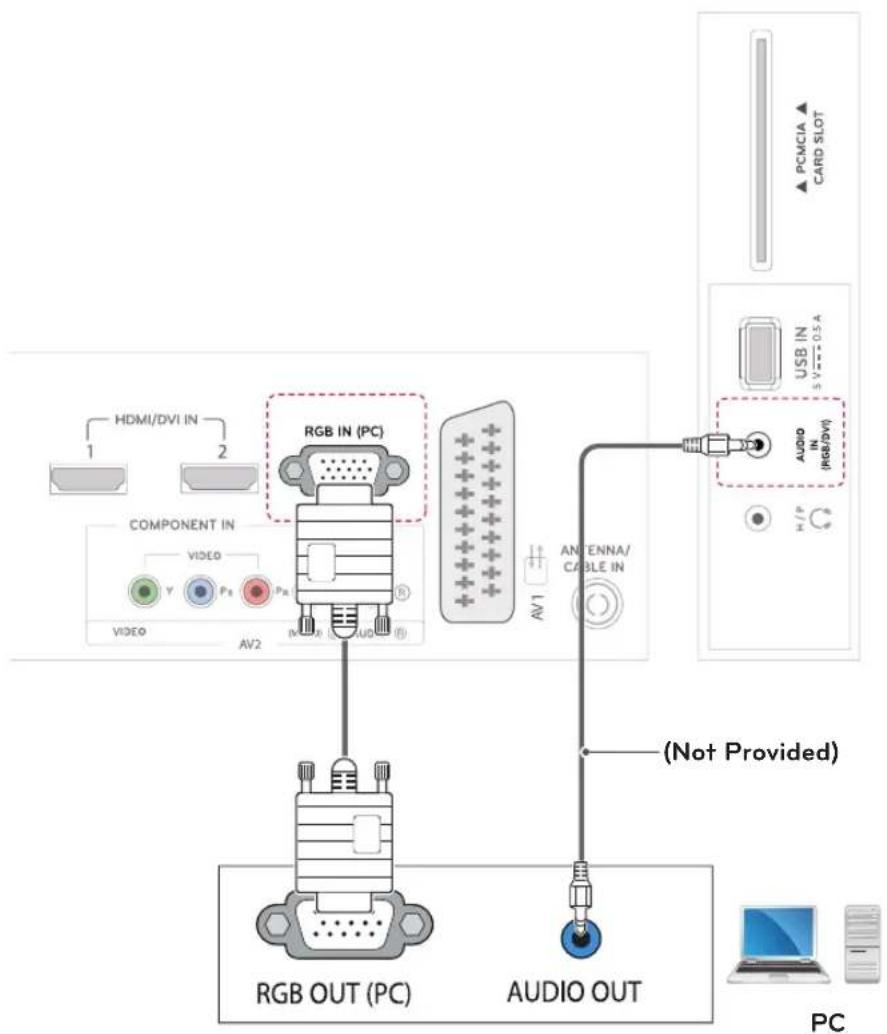

Transmits the analog video signal from your PC to the TV. Connect the PC and the TV with the D-sub 15 pin cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

NOTE

If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Diagram of a mechanical component with labeled parts 1 and 2, showing a tool interacting with a circular component (no text or symbols present)

Make sure to point the remote control to the remote control sensor on the TV. Image shown may differ from your TV.

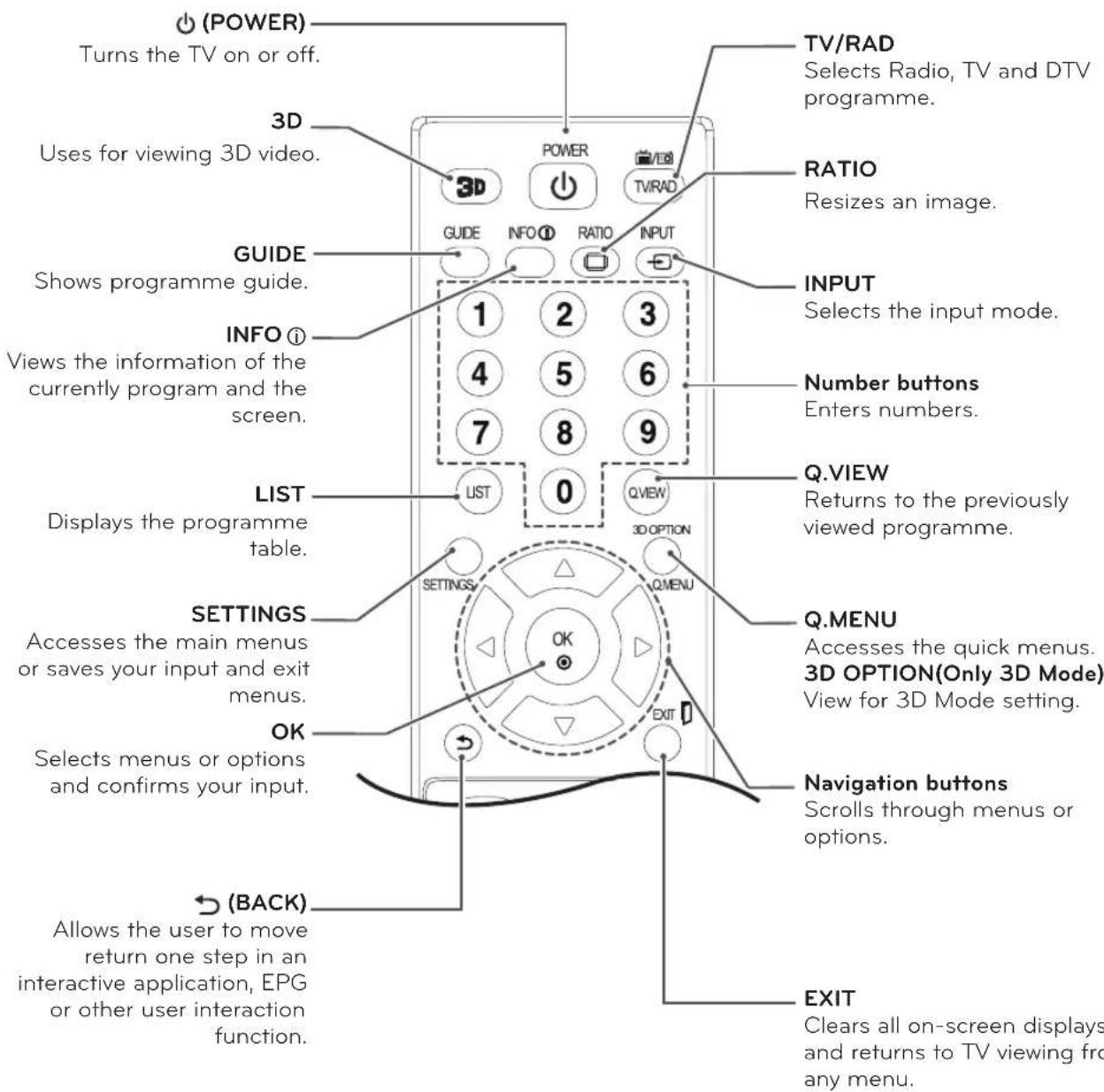

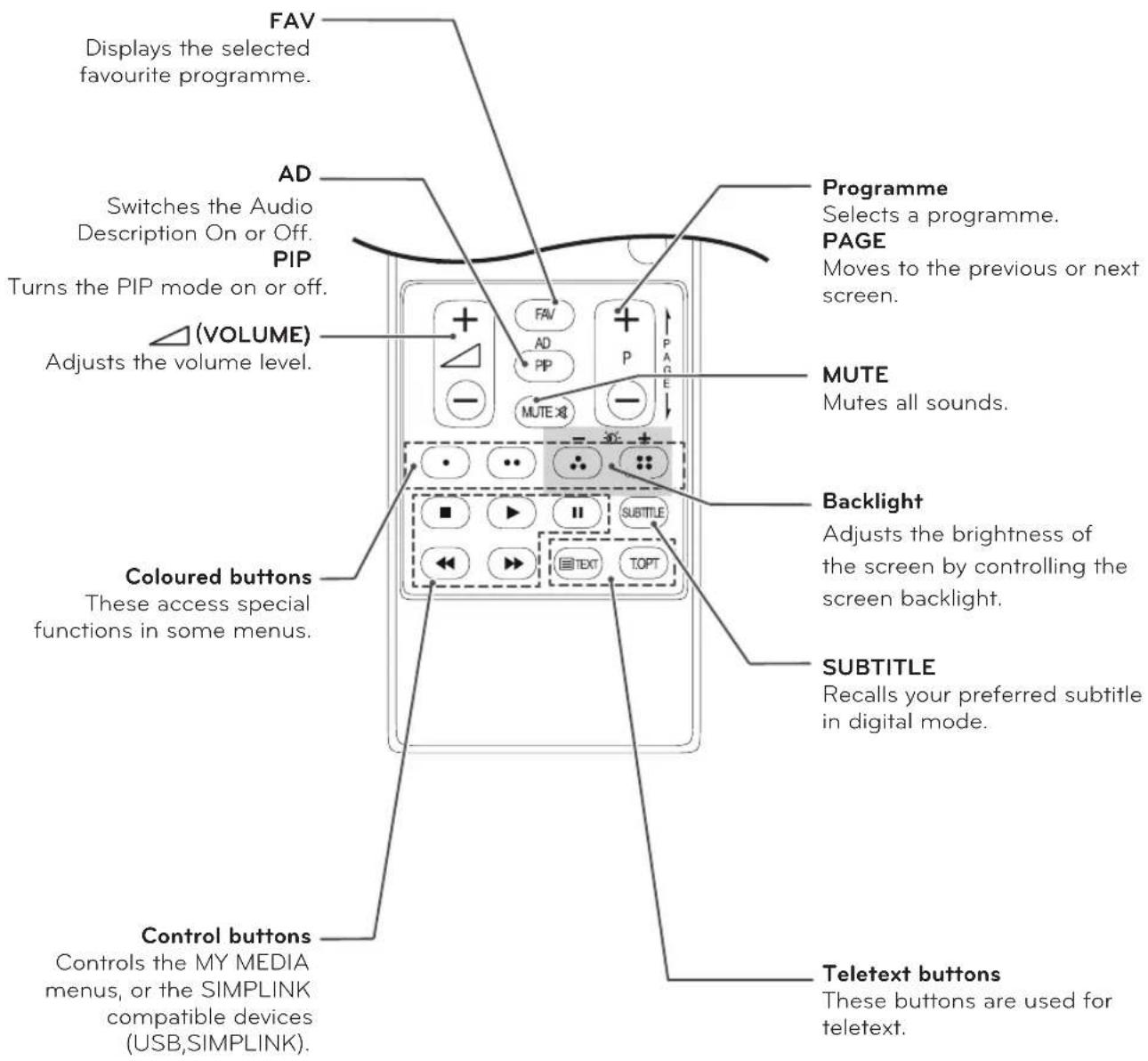

(POWER) Turns the TV on or off. 3D Uses for viewing 3D video. GUIDE Shows programme guide. INFO① Views the information of the currently program and the screen. LIST Displays the programme table. SETTINGS Accesses the main menus or saves your input and exit menus. OK Selects menus or options and confirms your input. (BACK) Allows the user to move return one step in an interactive application, EPG or other user interaction function. TV/RAD Selects Radio, TV and DTV programme. RATIO Resizes an image. INPUT Selects the input mode. Number buttons Enters numbers. Q.VIEW Returns to the previously viewed programme. Q.MENU Accesses the quick menus. 3D OPTION(Only 3D Mode) View for 3D Mode setting. Navigation buttons Scrolls through menus or options. EXIT Clears all on-screen displays and returns to TV viewing from any menu.

FAV Displays the selected favourite programme. AD Switches the Audio Description On or Off. PIP Turns the PIP mode on or off. (VOLUME) Adjusts the volume level. Coloured buttons These access special functions in some menus. Control buttons Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK). Programme Selects a programme. PAGE Moves to the previous or next screen. MUTE Mutes all sounds. Backlight Adjusts the brightness of the screen by controlling the screen backlight. SUBTITLE Recalls your preferred subtitle in digital mode. Teletext buttons These buttons are used for teletext.

NOTE

On MHEG channel, you cannot adjust the backlight with the yellow or blue key.

CUSTOMIZING SETTINGS

Accessing main menus

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

4 When you are finished, press EXIT. When you return to the previous menu, press BACK.

PICTURE	Adjusts the image size, quality or effect.
AUDIO	Adjusts the sound quality, effect or volume level.
SETUP	Sets up and edit programmes.
TIME	Sets the time, date or Timer feature.
LOCK	Locks or unlocks channels and programs.
OPTION	Customizes the general settings.
INPUT	Views the input sources with their labels.
MY MEDIA	Using integrated media feature.

Press RED button to access the Customer Support menus.

Press GREEN Button to access the FAQ menus.

Press OK(☐) to set programme settings.

Exit

Customer Support

Using Customer Support feature.

Software Update

Picture Test

Sound Test

Signal Test

Product/Service Info.

User Guide

FAQ

Shows answers to frequently asked questions about TV viewing and sets the related menus.

USING THE USER GUIDE

Accessing User Guide menu.

Using the TV menu

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation button to scroll to User Guide and press OK.
4 Press the Navigation buttons to scroll to the option you want and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press (BACK).

Image shown may differ from your TV.

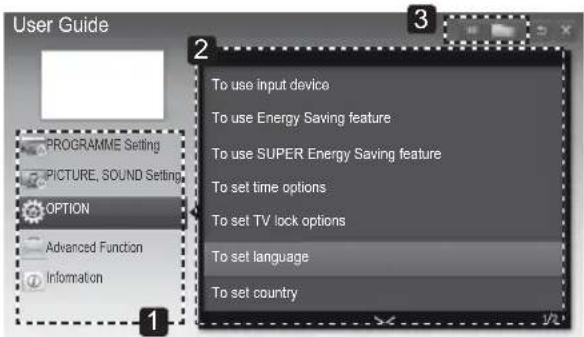

User Guide PROGRAMME Setting PICTURE, SOUND Setting OPTION Advanced Function Information To use input device To use Energy Saving feature To use SUPER Energy Saving feature To set time options To set TV lock options To set language To set country

1 Allows to select the category you want.
2 Allows to select the item you want. You can use ^/√ to move between pages.
3 Allows to browse the description of the function you want from the index.

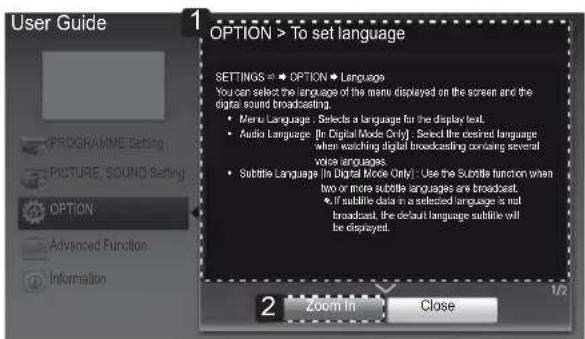

User Guide PROGRAMME Setting PICTURE: SOUND Setting OPTION Advanced Function Information 1 OPTION > To set language SETTINGS = ➕ OPTION ➕ Languages You can select the language of the menu displayed on the screen and the digital sound broadcasting. • Menu Language : Selects a language for the display text. • Audio Language [In Digital Mode Only] : Select the desired language when watching digital broadcasting containing several voice languages. • Subtable Language (In Digital Mode Only) : Use the Subtable function when two or more subtable languages are broadcast. • If subtable data in a selected language is not broadcast, the default language subtile will be displayed. 2 Zoom In Close 1/2

SETTINGS → OPTION → Language You can select the language of the menu displayed on the screen and the digital sound broadcasting. • Menu Language : Selects a language for the display text. • Audio Language [In Digital Mode Only] : elect the desired language when watching digital broadcasting containing several voice languages. • Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. • If subtitle data in a selected language is not broad- cast, the default language subtitle will be displayed.

1 Shows the description of the selected menu. You can use ∧/∨ to move between pages.

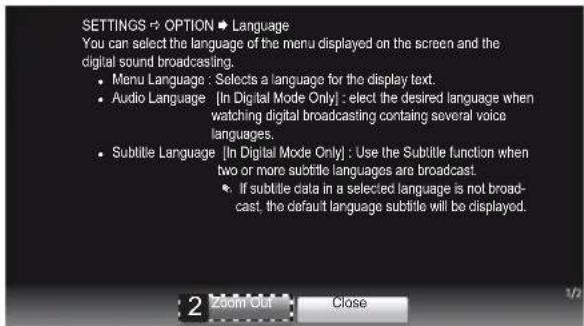

2 Zooms in or out the screen.

3D IMAGING

3D Technology

This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. The viewer must wear compatible 3D glasses in order to see these images in 3D format.

NOTE

After powering on the TV, a few seconds may be needed for your TV to calibrate.

When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable.

If 3D TV broadcast standard changes in the future and it is not supported by this TV, you may need a separate device, such as a set-top box.

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust, wipe the surface with a dry and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a clean and dry cloth.

CAUTION

Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.

Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen's finish and cause discolorations.

Cabinet and stand

To remove dust, wipe the cabinet with a dry and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent.

CAUTION

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Preventing "Image burn" or "Burn-in" on your TV screen

Illustration of several tomatoes with stems, shown in grayscale without any text or symbols.

Black-and-white illustration of a cluster of tomatoes with stems, enclosed in a red dashed bounding box (no text or symbols)

Illustration of a cluster of tomatoes with dashed lines indicating measurement or alignment (no text or symbols)

If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is "image burn" or "burn-in" and not covered by the warranty.

If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.

Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD) to prevent image burn.

IF THE QUALITY OF THE 3D IMAGE IS NOT ACCEPTABLE, CHECK THE FOLLOWING

1) Viewing distance

For optimal 3D viewing distance, please see the table below.

Please maintain the optimal viewing distance for the best 3D experience.

2) Viewing angle

For optimal 3D viewing angles, see the table below.

3) Check the 3D display sequence (L-R, R-L)

The display method may vary due to the 3D content type. Try changing the display method to L-R or R-L for a better viewing experience

Remain at the optimal viewing distance from the Cinema 3D TV. Adjust the Cinema 3D TV angle and your position to achieve the optimal viewing angle. Adjust the position of the screen to minimise reflections. Keep your lower arms horizontal and gently rest your hands on the keyboard.

Model Mode	Dimension		Monitor's allowed 3D viewing distance	Monitor's optimal 3D viewing distance	Optimal viewing angle
23MD53D	When viewing 3D images to 50 cm	58.0 cm 50 cm to 400 cm 90 cm			12°
27MD53D 69 cm	0 cm 100 cm

VIEWING 3D IMAGING

WARNING

Viewing Environment

- Viewing Time

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Viewing Age

- Infants/Children

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

- Teenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

- Elderly

- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

Those that have a photosensitive seizure or chronic illness

- Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.

- Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

- 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

- If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

- If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

- Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

- When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

- Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
- Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
- Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
- The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

TROUBLESHOOTING

General

Problem Resolution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed(⊕ to ⊕ ⓞ ).⊖
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Using 3D mode

Problem Resolution
If you can see a swirling oil-like pattern on the TV when the TV is turned off.	This is caused by the interference of external light in the air layer between the LCD surface and 3D filter. The pattern becomes almost invisible when you turn on the power again.
If you are not using the glasses provided with the TV.	When you view 3D images with this TV, it is very important that you use the glasses provided with the TV. The glasses are designed to compensate optically for the 3D filter attached to the surface of the TV. If you wear third-party glasses, you may not see 3D images properly on the TV.
If you view 3D images outside the optimal viewing angle or distance.	The optimal viewing angle of this TV is between 12^ degrees; the optimal viewing distance is between 50 cm to 150 cm from the TV. When you view 3D images outside the optimal viewing angle or viewing distance, the images may look overlapped or not be displayed properly in 3D.

Notes for Viewing 3D Image with 3D Digital Brodcating

*In Analogue Brodcating, 3D Imaging does not work.

Problem Resolution
When switching the 2D image display to the 3D image display with the 3D button on the remote control, the overlapped image may be displayed.	Disable the 3D imaging mode with the 3D button.
If the screen is divided into left/right or top/bottom when you change the channel	This channel supports the 3D imaging mode. Select the 3D imaging type displayed on the screen by pressing the 3D button on the remote control.
If your eyes are sore or the screen looks blurry while viewing 3D images.	Select Left/Right or Right/Left option, which you find better for viewing 3D images.

SPECIFICATIONS

23MD53D

Panel Screen Type	580 mm Wide (23 inch)	Visible diagonal size : 580 mm
	Pixel Pitch 0.27 mm (H) x 0.27 mm (V)
Video Signal Max.	Resolution 1920 × 1080 @ 60 Hz
	Recommended Resolution	1920 × 1080 @ 60 Hz
	Horizontal Frequency	30 kHz to 83 kHz
	Vertical Frequency 56 Hz to 75 Hz
	Synchronization Type Separate Sync, Digital
Input Connector TV, D-Sub Analog, SCART, PC Audio In, Component, CVBS, HDMI*2, USB, PCMCIA
Power Rated Voltage	age 19 V 2.0 A	---
	Power Consumption	On Mode : 33 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: LITE-ON, Model PA-1650-64Manufacturer: LG Innotek, Model PSAB-L101A
Tilt	Tilt Range	-5 to 20°
Dimensions (Width x Depth x Height)Weight		With Stand
		544.1 mm x 182.8 mm x 406.2 mm3.9 kg
		Without Stand
		544.1 mm x 62.9 mm x 334.6 mm3.4 kg
Environmental conditions	Operating Temperature Operating Humidity	10 °C to 35 °C20 % to 80 %
	Storage Temperature Storage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

27MD53D

Panel Screen Type	690 mm Wide (27 inch)	Visible diagonal size : 690 mm
	Pixel Pitch 0.31 mm (H) x 0.31 mm (V)
Video Signal Max.	Resolution 1920 × 1080 @ 60 Hz
	Recommended Resolution	1920 × 1080 @ 60 Hz
	Horizontal Frequency 30 kHz to 83 kHz
	Vertical Frequency	56 Hz to 75 Hz
	Synchronization Type	Separate Sync, Digital
Input Connector TV, D-Sub Analog, SCART, PC Audio In, Component, CVBS, HDMI*2, USB, PCMCIA
Power Rated Voltage	19 V 2.0 A	---
	Power Consumption On Mode : 35 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: LITE-ON, Model PA-1650-64Manufacturer: LG Innotek, Model PSAB-L101A
Tilt	Tilt Range	-5 to 20°
Dimensions (Width x Depth x Height)Weight		With Stand
		641.3 mm x 199.4 mm x 458.8 mm5.55 kg
		Without Stand
		641.3 mm x 53 mm x 391.1 mm4.6 kg
Environmental conditions	Operating Temperature	10 °C to 35 °C
	Operating Humidity	20 % to 80 %
	Storage Temperature	-10 °C to 60 °C
	Storage Humidity	5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

RGB (PC) / HDMI (PC) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400 31.468	70.080
640 x 480 31.469	59.940
640 x 480 37.500	75.000
800 x 600 37.879	60.317
800 x 600 46.875	75.000
1024 x 768 48.363	60.004
1024 x 768 Only HDMI(PC)	56.476 70.069
1024 x 768 60.023	75.029
1152 x 864 67.500	75.000
1280 x 720 45.000	60.000
1280 x 800 49.702	59.810
1280 x 1024 63.9812	60.020
1280 x 1024 79.976	75.025
1400 x 1050	65.317 59.978
1440 x 900 55.935	59.887
1600 x 900 60.000	60.000
1680 x 1050	64.674	59.883
1680 x 1050	65.290 59.954
1920 x 1080	67.500 60.000

NOTE

The optimal display resolution is 1920 x 1080 @ 60 Hz. The optimal timing is vertical frequency 60Hz in each mode.

HDMI (DTV) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	31.469	59.940
	31.500	60.000
720 x 576	31.250 50.000
1280 x 720 37.500	50.000
1280 x 720 44.960	45.000	59.940
		60.000
1920 x 1080	33.720	59.940
	33.750	60.000
1920 x 1080	28.125 50.000
1920 x 1080	27.000 24.000
1920 x 1080	33.750 30.000
1920 x 1080	56.250 50.000
1920 x 1080	67.430	59.940
	67.500	60.000

Component supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	15.730 59.940
720 x 480	15.750 60.000
720 x 576	15.625 50.000
720 x 480	31.470 59.940
720 x 480	31.500	60.000
720 x 576	31.250	50.000
1280 x 720 44.960	59.940
1280 x 720 45.000	60.000
1280 x 720 37.500	50.000
1920 x 1080	33.720 59.940
1920 x 1080	33.750 60.000
1920 x 1080	28.125 50.000
1920 x 1080	56.250 50.000
1920 x 1080	67.432 59.940
1920 x 1080	67.500 60.000

Component port connecting information

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y Cb	Cr
	Y	Pb Pr

NOTE

Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen. Use a screen saver when possible.

There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

The synchronization input waveform for Horizontal and Vertical frequencies are separate.

Connect the signal cable from the RGB output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI/DVI IN port on the TV.

Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).

If using a sound card, adjust PC sound as required.

If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI/DVI IN to display the PC output on the TV.

If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to either RGB or HDMI. (The other mode is set to Plug and Play automatically by the TV.)

DOS mode may not work depending on the video card if you use an HDMI to DVI cable.

If you use too long an RGB-PC cable that is too long, there may be interference on the screen. We recommend using under 5 m of cable. This provides the best picture quality.

3D video input format supported.

	Signal Resolution Horizontal		Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p 128	0 x 720 89.9	90	59.9460	Frame Packing
			45 60 Side	by Side(half),	Top & Bottom
	1080i 192	0 x 1080 33.7	60 Side by Side(half), Top & Bottom
	1080p 192	0 x 1080 53.95	54	23.9824	Frame packing
			67.5 60 Side by Side, Top & Bottom, Single Frame Sequential
			27 24 Side by Side(half), Top & Bottom
			33.7 30 Side by Side(half), Top &Bottom
RGB	1080p 192	0 x 1080 67.5	60 Side by Side, Top & Bottom
USB	1080p 192	0 x 1080 33.75	30 Side by Side, Top & Bottom, MPO(Photo), JPS(Photo)
	Signal Playable 3D video format
DTV	720p, 1080i Side by Side, Top & Bottom

NOTE

• If HDMI input is received in HDMI 3D format, images are automatically converted into 3D.
• 2D → 3D mode is available to watch for all signals.
• If you change 2D → 3D mode, the left and right edges of the screen are clipped.
• If you select HDMI 3D, 3D mode is automatically enabled, which may cause the delay of screen turning on.
• For some 3D content files, if a 3D file is converted into 2D, the left and right edges of the screen may appear truncated.

LG

Life's Good

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service.

MODEL

SERIAL

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail].

This offer is valid for three (3) years from the date on which you purchased the product.
