USER MANUAL W2386V-PF LG

Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask for service.

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Do not Open the Display:

• There are no user serviceable components inside.
  ■ There are Dangerous High Voltages inside, even when the power is OFF.
• Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

• Do not place the display on a sloping shelf unless properly secured.
  ■ Use only a stand recommended by the manufacturer.
• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
  It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

• Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
• Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
• Do not add accessories that have not been designed for this display.
• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
- Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
- Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the product. Burn-in and related problems are not covered by the warranty on this product.

Do not shock or scratch the front and sides of the screen with metallic objects. Otherwise, it may cause damage to the screen.

Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

Avoid high temperatures and humidity.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

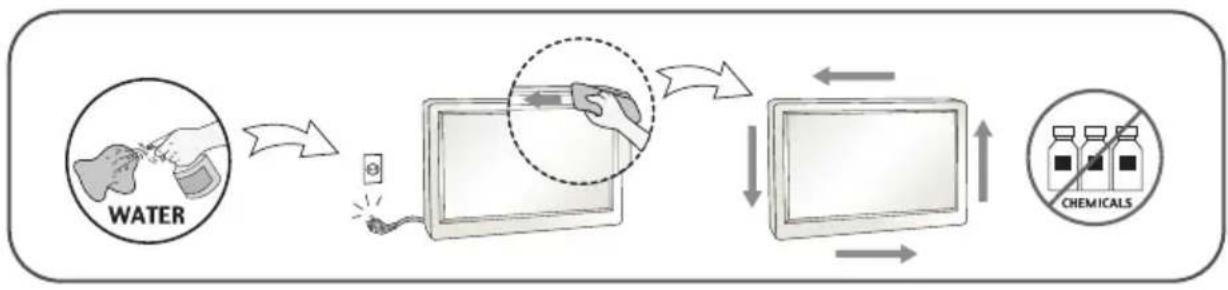

- When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
- Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal (Only, Hg lamp used LCD Monitor)

■ The fluorescent lamp used in this product contains a small amount of mercury.
■ Do not dispose of this product with general household waste.
■ Disposal of this product must be carried out in accordance to the regulations of your local authority.

!!! Thank for selecting LGE products !!!

- Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.

User's Guide/Cards

Power Cord

DVI-D Signal Cable
(This feature is not available in all countries.)

15-pin D-Sub Signal Cable
(To set it up, this signal cable may be attached to this product before shipping out.)

Cable Holder

NOTE

■ This accessories may look different from those shown here.
- User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard compliance for the product.

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Connecting and Disassembling the stand

1. Place the monitor face down on the soft cloth.

Black plastic mechanical component with a recessed handle and mounting bracket (no text or symbols visible)

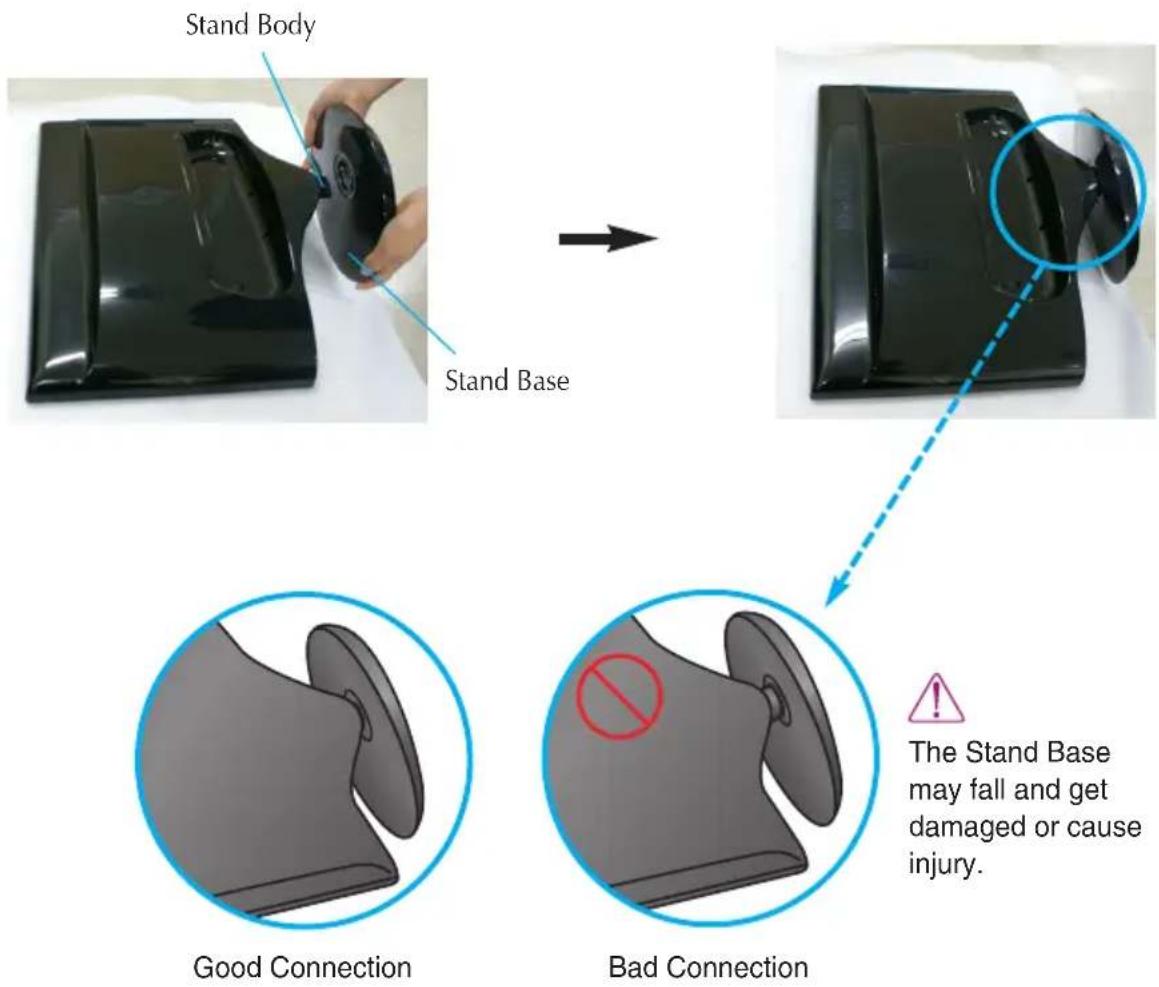

1. Assemble the Stand Base into the Stand Body in the correct direction. Make sure you push the Stand Base until the end.

Stand Body Stand Base Good Connection Bad Connection The Stand Base may fall and get damaged or cause injury.

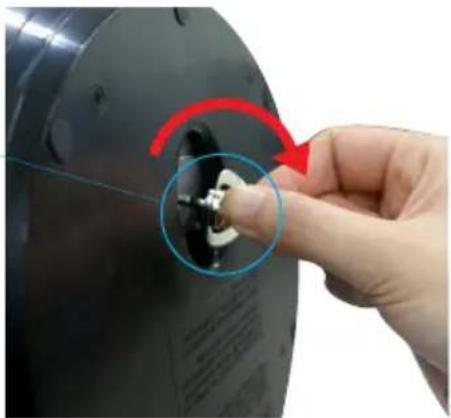

1. Turn the screw to the right to fix the Stand Body to the Stand Base.

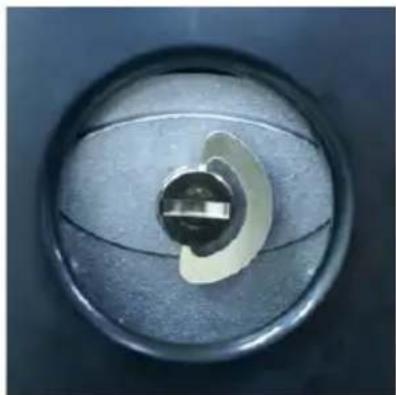

Screw

Turn the screw by using the screw handle.

Close-up of a hand inserting a small mechanical component into a black cylindrical device, with a red curved arrow indicating rotation (no text or symbols visible)

1. Then fold the screw handle flat.

Close-up of a metallic mechanical knob or dial on a circular blue surface (no text or symbols visible)

1. Once assembled take the monitor up carefully and face the front side.

Front view of a modern flat-screen computer monitor with a curved base (no text or symbols visible)

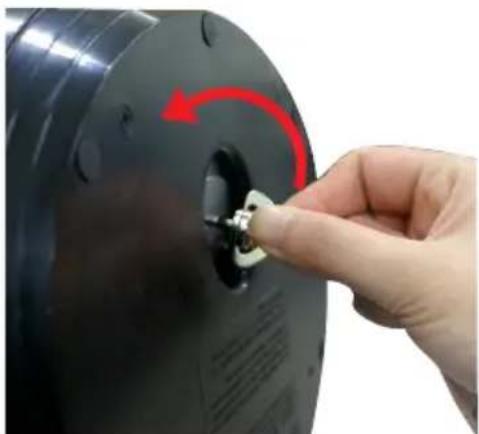

1. To disconnect the Stand Base from the Stand Body, unfold the screw handle and turn it to the left.

Close-up of a hand inserting a small mechanical component into a black cylindrical housing with a red circular arrow indicating rotation (no text or symbols visible)

IMPORTANT

This picture depicts the general model of connection. Your monitor may differ from the items shown in the picture.
- Do not carry the product upside down holding only the stand base. The product may fall and get damaged or cause injury.

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

After installation, adjust the angle as shown below.

1. Adjust the position of the panel in various ways for maximum comfort.

- Tilt Range: -2^ 15^

Illustration of a hand holding a device with a blue arrow indicating rotation (no text or symbols)

Diagram of a monitor with an 15° rotation indicator and dashed lines indicating motion (no text or symbols)

■ Do not touch or press the screen when adjusting the angle of the monitor.
- When adjusting the angle of the screen, do not put your finger(s) in between the head of the monitor and the stand body. You can hurt your finger(s).

Illustration showing a computer monitor with a red prohibition symbol above it, indicating no restrictions on screen.

Illustration of hands holding a computer monitor with a red prohibition symbol (no text or labels)

ERGONOMIC

- It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Connecting with the PC/AV equipment

1. Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

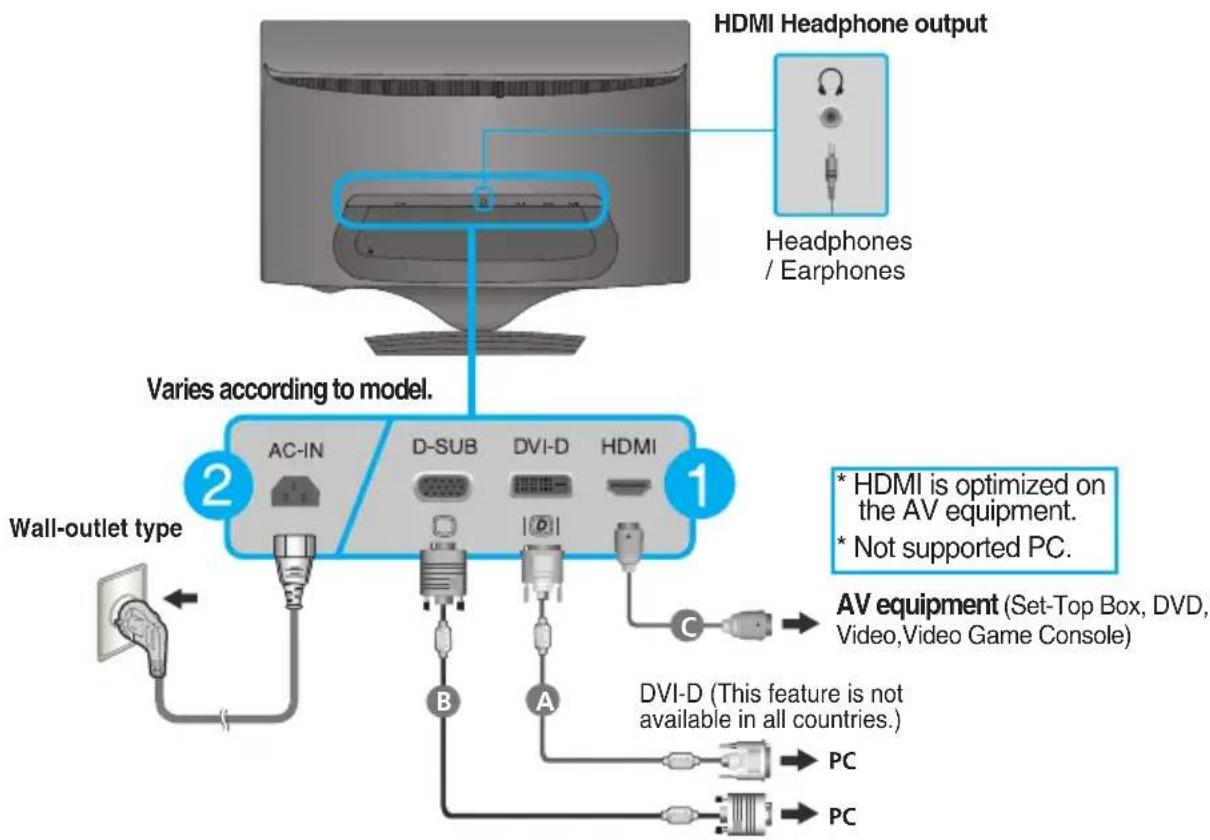

2. Connect signal input cable ① and power cord ② in order, then tighten the screw of the signal cable.

A Connect DVI-D(Digital signal) Cable
B Connect D-sub(Analog signal) Cable
© Connect HDMI Cable

NOTE

■ This is a simplified representation of the rear view.
■ This rear view represents a general model; your display may differ from the view as shown.

When using a D-Sub signal input cable connector for Macintosh

Mac adapter : For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.

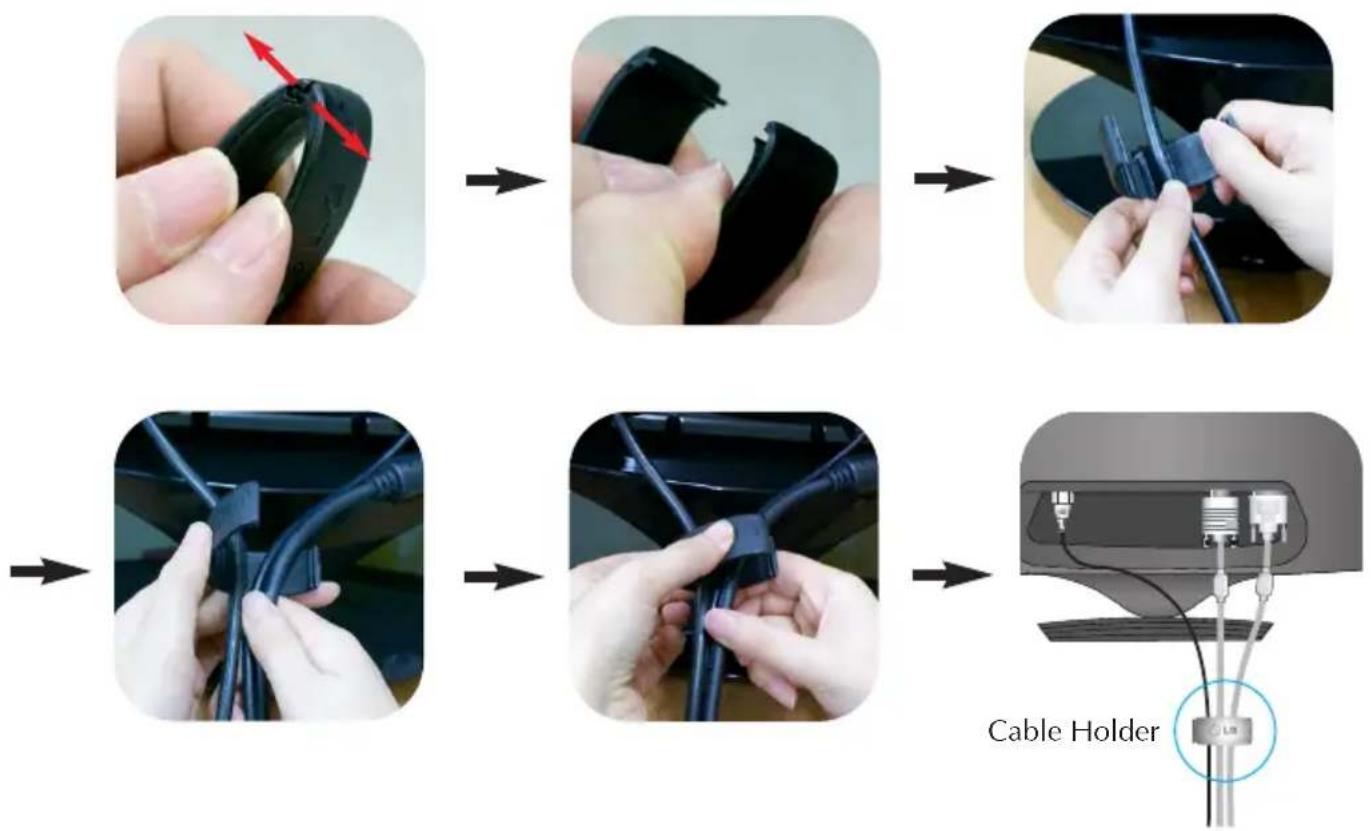

1. Gather the cables together and use the Cable Holder to arrange them as shown in the picture.

1. Press the Power Button ( ⏻ ) on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only for D-SUB input)

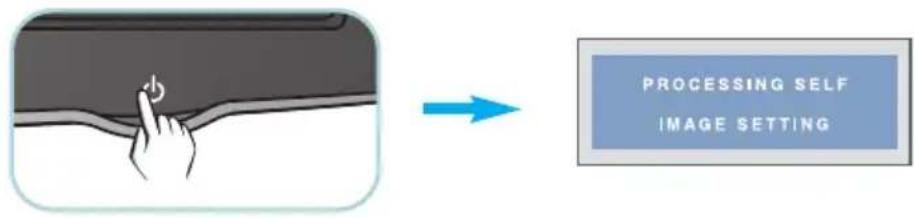

PROCESSING SELF IMAGE SETTING

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.

'AUTO/SET' Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.

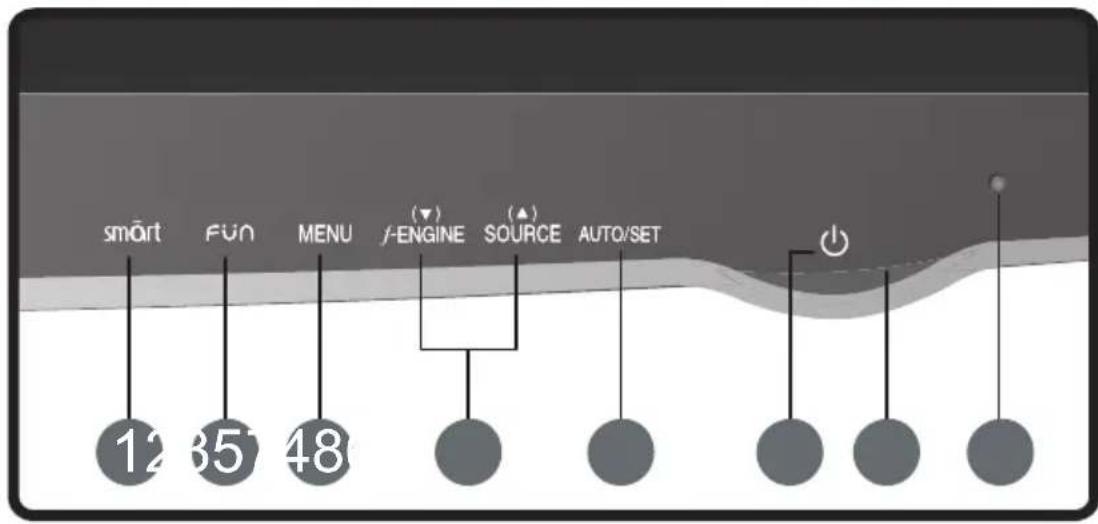

Front Panel Controls

smart FUN MENU (/-ENGINE SOURCE AUTO/SET 12 35 48

1 smart Button

Use this button to enter CINEMA MODE, AUTO BRIGHT, TIME CONTROL, LIVE SENSOR or SMART menus.

For more information, refer to page 15.

② FUN Button

Use this button to move to EZ ZOOMING, 4:3 IN WIDE and PHOTO EFFECT for D-SUB/DVI signal input.

Use this button to move to 4:3 IN WIDE, PHOTO EFFECT and VOLUME for HDMI signal input.

For more information, refer to page 16.

3 MENU Button

Use this button to enter or exit the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.

4	▼▲ Buttons	Use these buttons to select or adjust functions in the On Screen Display.
	f·ENGINE▼	Use this function to select optimal image conditions in accordance with the surrounding environment (Brightness, Image type). For more information, refer to page 18.
	SOURCE ▲(SOURCE Hot key)	When two or more input signals are connected, you can select the input signal (D-SUB/DVI/HDMI) you want. When only one signal is connected, it is automatically detected. The default setting is D-SUB.
5	AUTO/SET Button	Use this button to enter a selection in the On Screen Display.
		AUTO IMAGE ADJUSTMENTWhen adjusting your display settings, always press the AUTO/SET button before entering the On Screen Display(OSD). (Only for D-SUB input)This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).The best display mode is 1920 x 1080
	PROCESSING AUTOIMAGE ADJUSTMENT
6	Power Button	Use this button to turn the display on or off.
7	Power Indicator	The power indicator stays red if the display is running properly (On Mode). If the display is in Sleep Mode (Energy Saving), the power indicator is blinking red.
8	Light Sensor	This is the sensor to measure the external brightness. Makes the screen brighter or darker, depending on the surrounding brightness, when AUTO BRIGHT is set to ON. The default setting is OFF.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

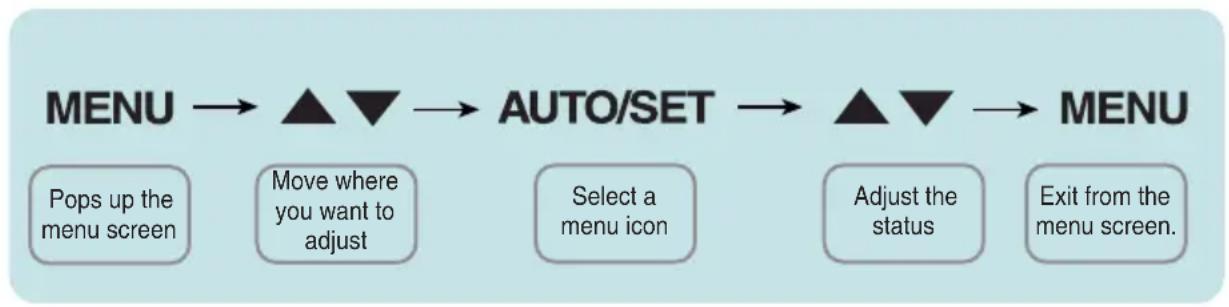

To make adjustments in the On Screen Display, follow these steps:

1 Press the MENU Button, then the main menu of the OSD appears.
2 To access a control, use the ▼ or ▲ Buttons. When the icon you want becomes highlighted, press the AUTO/SET Button.
3 Use the ▼ / ▲ Buttons to adjust the image to the desired level. Use the AUTO/SET Button to select other sub-menu items.
4 Press the MENU Button once to return to the main menu to select another function. Press the MENU Button twice to exit from the OSD.

On Screen Display(OSD) Selection and Adjustment

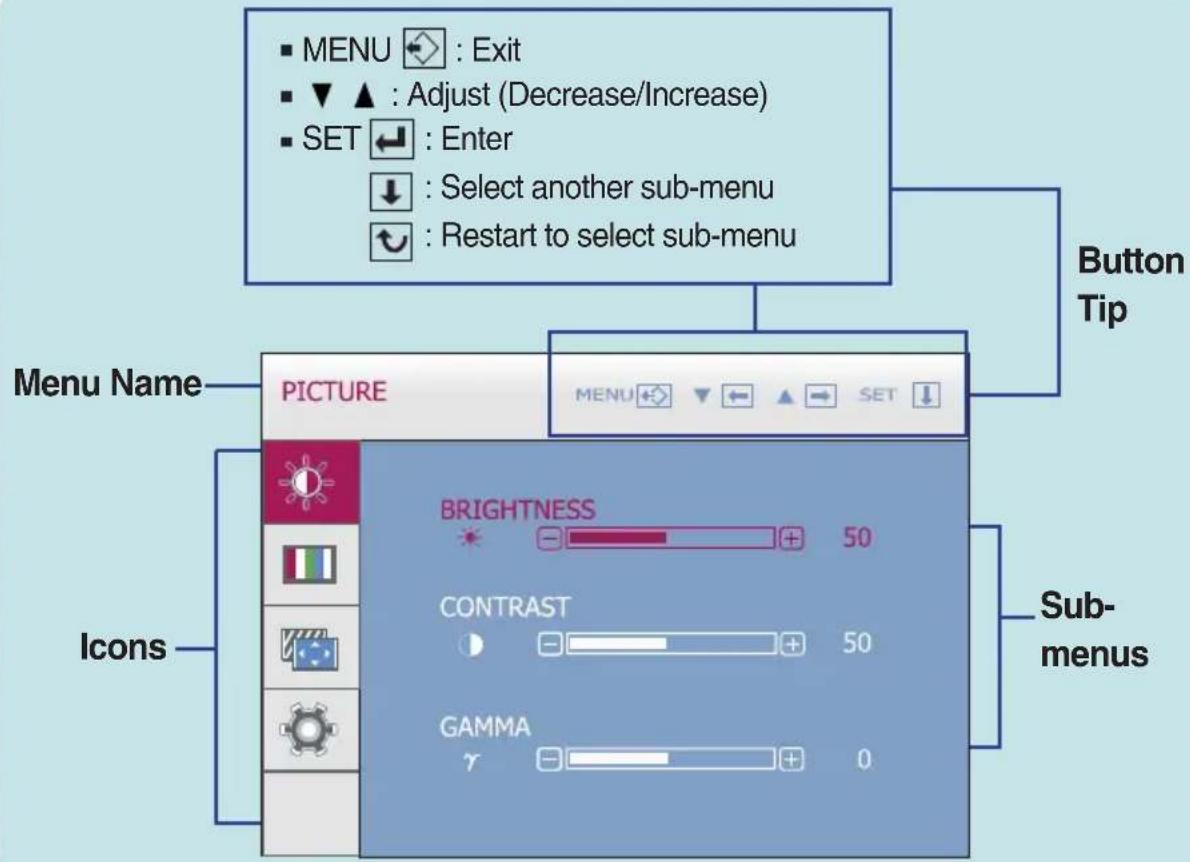

The following table indicates all the On Screen Display control, adjustment, and setting menus.

DSUB : D-SUB(Analog signal) input

DVI : DVI-D(Digital signal) input

HDMI : HDMI input

Main menu Sub-menu		Supported input	Description
CINEMA MODE		DSUBDVI	To focus on the moving picture selected
AUTO BRIGHT		DSUBDVIHDMI	To control screen brightness automatically
TIME CONTROL		DSUBDVIHDMI	To notify the user of a specified time
LIVE SENSOR		DSUBDVIHDMI	To turn the live sensor of the touch button LED on or off
SMART		DSUBDVIHDMI	To adjust the SMART button menus
EZ ZOOMING		DSUBDVI	To adjust the resolution
4:3 IN WIDE		DSUBDVIHDMI	To adjust the image size

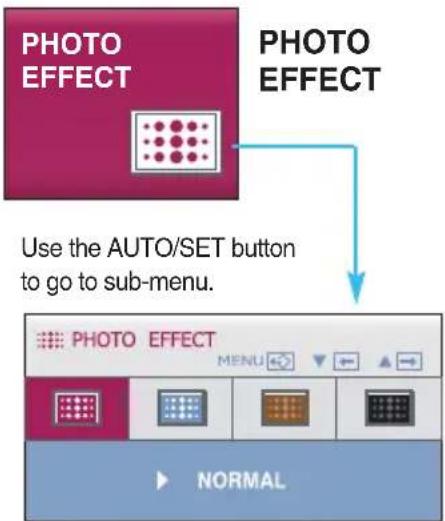

PHOTO EFFECT	NORMALGAUSSIAN BLURSEPIAMONOCHROME	DSUBDVIHDMI	To adjust the screen color mode

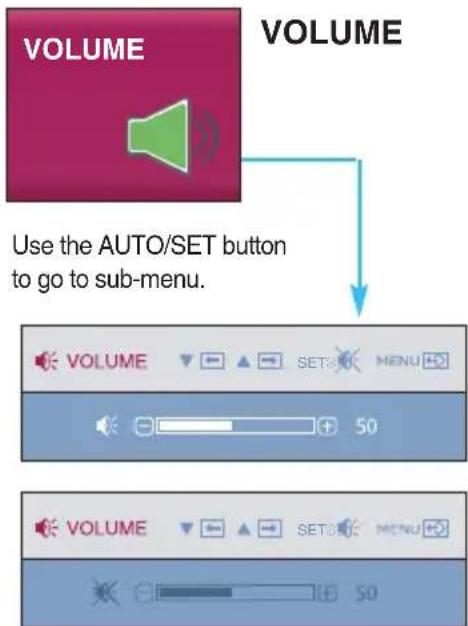

VOLUME		HDMI	To adjust the headphone/earphone volume

On Screen Display(OSD) Selection and Adjustment

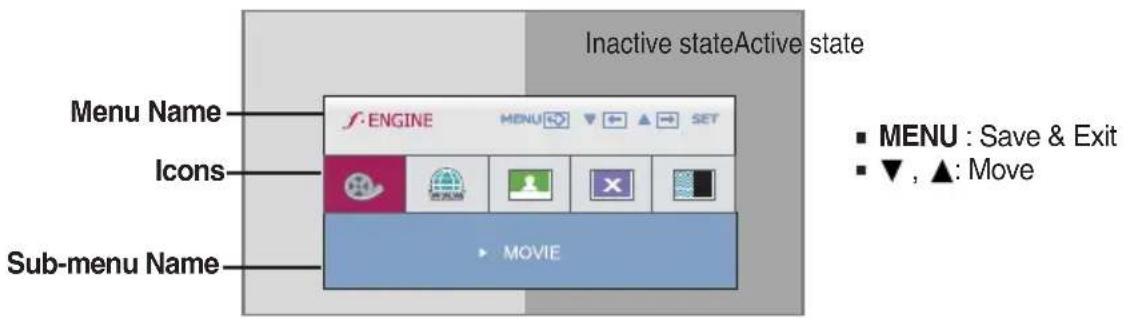

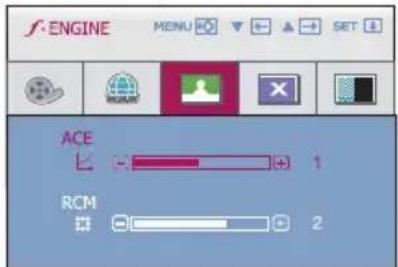

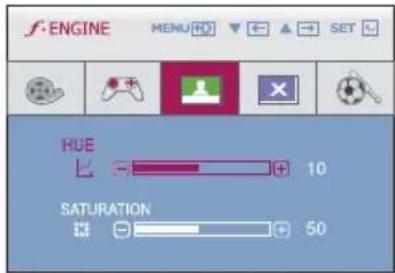

F-ENGINE	MOVIEINTERNETUSERNORMALDEMO	DSUBDVI	To select or customize desired image settings
	MOVIEGAMEUSERSTANDARDSPORTS	HDMI

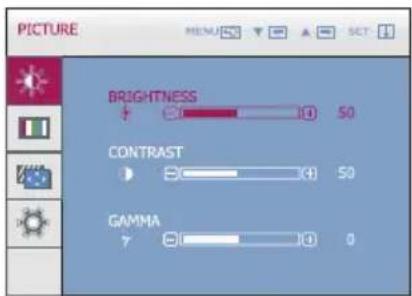

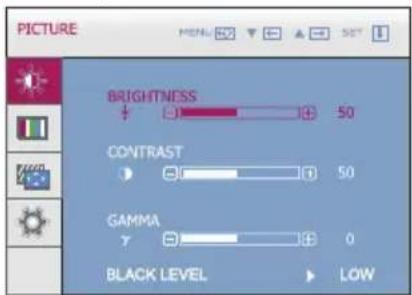

PICTURE	BRIGHTNESSCONTRASTGAMMA	DSUBDVIHDMI	To adjust the brightness, contrast and gamma of the screen
	BLACK LEVEL	HDMI

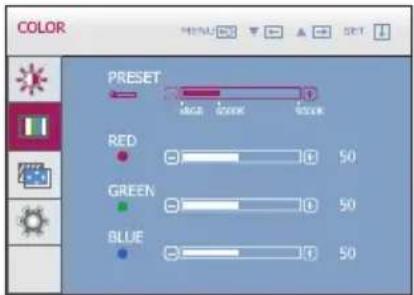

COLOR	PRESET(sRGB / 6500K / 9300K)REDGREENBLUE	DSUBDVIHDMI	To customize the color of the screen

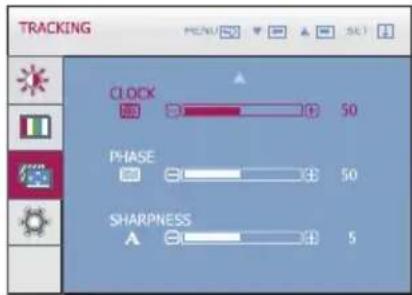

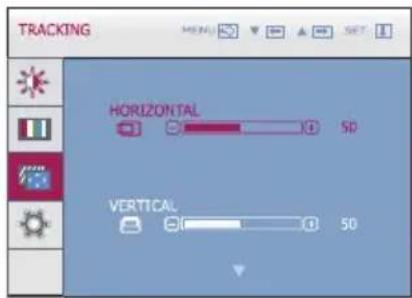

TRACKING	HORIZONTALVERTICAL	DSUB	To adjust the position of the screen
	CLOCKPHASE	DSUB	To improve the clarity and stability of the screen
	SHARPNESS	DSUBDVIHDMI

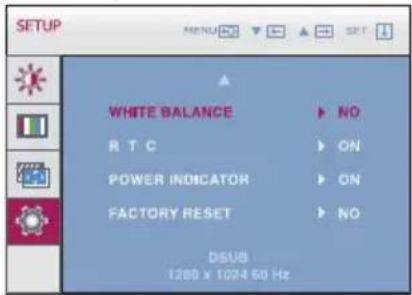

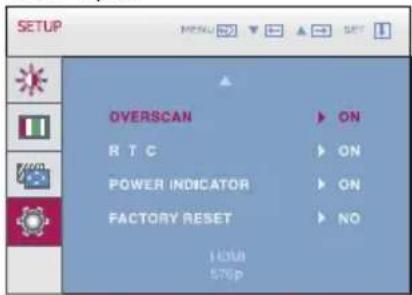

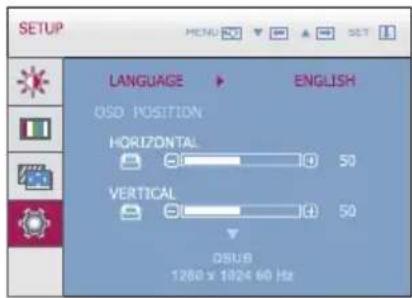

SETUP	LANGUAGEOSD POSITION(HORIZONTAL / VERTICAL)	DSUBDVIHDMI	To customize the screen status for a user's operating environment
	WHITE BALANCE	DSUB
	OVERSCAN	HDMI
	RTCPower INDICATORFACTORY RESET	DSUBDVIHDMI

NOTE

■ The order of icons may differ depending on the model (13\~23).

On Screen Display(OSD) Selection and Adjustment

The OSD screen will appear when you press the switch on the front of the monitor.

MODE

■ MENU : Exit ,

AUTO BRIGHT OFF

• Move

TIME CONTROL OFF

: Select

LIVE SENSOR ▶ ON

LIVE SENSOR ▶ ON

SMARTCINEMA USER ALL

Main menu Description

CINEMAMODE	CINEMA MODE	To focus on the moving picture selected.This function adjusts the brightness of areas other than the user-selected area to provide an environment and image quality optimized for videos or moving picture on the web browser.* This function is operated only if the 'forteManager' is installed to PC.* HDMI input does not support.
	AUTO BRIGHT	To control screen brightness automatically.When ON is selected, this function adjusts the screen brightness automatically, depending on the surrounding environment, to provide optimal viewing conditions. When OFF is selected, this function is turned off.
	TIME CONTROL	To notify the user of a specified time.This function notifies the user that a user-specified time (1 or 2 hours) has passed, which is done by displaying the Alarm OSD and the LED blinking.Time Option: OFF/1HOUR/2HOURS
	LIVE SENSOR	To turn the live sensor of the touch button LED ON or OFF. This function senses the user's fingers and turns on the button LEDs before users presses the buttons, for easier operation.* LED may start to work when an electrical environment is formed (i.e. human body proximity).
	SMART	To adjust the SMART button menus.This function adjusts AUTO BRIGHT, TIME CONTROL and LIVE SENSOR.When ON is selected, AUTO BRIGHT and LIVE SENSOR are turned on and TIME CONTROL is set to 1HOUR. When OFF is selected, all these functions are turned off. When AUTO BRIGHT, TIME CONTROL and LIVE SENSOR are set individually, each setting is changed to USER automatically.

On Screen Display(OSD) Selection and Adjustment

The OSD screen will appear when you press the button on the front of the monitor.

D-SUB/DVI input

EZ ZOOMING

4 : 3 IN WIDE

PHOTO EFFECT

Main menu Description

EZ ZOOMING

EZ ZOOMING

To select the display resolution.

When you select 'EZ ZOOMING' in OSD, display resolution goes one step down so characters and images look bigger. When you select EZ ZOOMING once again, it goes back to the original resolution.

* This function is operated only if the 'forteManager' is installed to PC.
* HDMI input does not support.

4 : 3 IN WIDE

4:3 IN WIDE

To select the image size of the screen.

• WIDE : Switch to full screen mode according to input image signal.
  • 4:3 : Change the input image signal ratio to 4:3.

Main menu Description

PHOTO EFFECT PHOTO EFFECT Use the AUTO/SET button to go to sub-menu. PHOTO EFFECT MENU NORMAL

To select the color effects of the screen.

• NORMAL

The PhotoEffect function is disabled.

• GAUSSIAN BLUR

This menu changes the screen to be more colorful and smoother.

• SEPIA

This menu changes the screen to be Sepia tone (brown color).

• MONOCHROME

This menu changed the screen to be Gray tone(black-and-white Picture).

NORMAL

GAUSSIAN BLUR

SEPIA

MONOCHROME

* For HDMI input, the PHOTO EFFECT function may not work depending on the connected device.

VOLUME VOLUME Use the AUTO/SET button to go to sub-menu.

To adjust the headphone/earphone volume.

Press the AUTO/SET button to MUTE ON and press it once again to MUTE OFF. (Only for HDMI input)

MUTE OFF

MUTE ON

On Screen Display(OSD) Selection and Adjustment

The OSD screen will appear when you touch the f·ENGINE button on the left bottom of the monitor. These features let you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc).

Inactive stateActive state Menu Name f-ENGINE MENU SET Icons Sub-menu Name ■ MENU : Save & Exit ■ ▼ , ▲: Move MOVIE

When F-ENGINE is executed, two kinds of tone are displayed as shown in the image. The active state is on the left and the inactive state is on the right side of the screen. Select the function you want and press the [MENU] button to save the setting.

Main menu	Sub menu	Description
	MOVIE	Select this when you are watching a video or movie.
D-SUB/DVI input
	INTERNET	Select this when you are working on the document (Word etc.)
HDMI input
	GAME	Select this when you are playing a game.
D-SUB/DVI input
	NORMAL	Select this when you want to use the product in the most general using environment.
HDMI input
	STANDARD	Select this when you want to use the original standard video.* In the General (Standard) mode, the f·ENGINE is turned off.

Main menu Sub menu Description

D-SUB/DVI input

f-ENGINE MENU SET ▶ DEMO

DEMO

This is used for advertising in the store. The screen will be divided to show the standard mode on the left and video mode on the right so that the consumers can check the difference after applying the video mode.

HDMI input

ENGINE MENU SET SPORTS

SPORTS Select this when you watching general sports.

F-ENGINE MENU SET ▶ USER

USER

To adjust the USER sub-menu function, press the AUTO/SET Button.

D-SUB/DVI input

F-ENGINE MENU SET ACE - + 1 RCM - + 2

HDMI input

F·ENGINE MENU SET HUE 10 SATURATION 50

This allows users to adjust ACE, RCM (Only for D-SUB/DVI input), HUE or SATURATION (Only for HDMI input).

You can save or restore the adjusted value even when using a different environment.

- ACE (Adaptive Clarity Enhancer): Selects the clarity mode.

Not applied

Weak clarity and luminosity contrast.

Strong clarity and luminosity contrast.

• RCM (Real Color Management): Selects the color mode.

Not applied

Green enhance

Flesh tone

Color Enhance

• HUE : Adjust the screen hue.
- SATURATION: Adjusts the intensity of colors. Higher intensity makes colors darker while lower intensity makes colors lighter.

■ MENU : Exit
■ ▼ : Decrease
■ ▲ : Increase
■ AUTO/SET: Select another sub-menu

On Screen Display(OSD) Selection and Adjustment

■■■ You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

N MENU f-B

Press the MENU Button, then the main menu of the OSD appears.

Main Menu


COLOR

TRACKING

SETUP

MENU : Exit Adjust (Decrease/Increase) SET : Enter Select another sub-menu Restart to select sub-menu Menu Name PICTURE MENU SET Button Tip BRIGHTNESS 50 CONTRAST 50 GAMMA γ Sub- menus Icons

NOTE

- OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Main menu Sub menu Description


D-SUB/DVI input

PICTURE BRIGHTNESS 50 CONTRAST 50 GAMMA 7 0 0

HDMI input

PICTURE BRIGHTNESS 50 CONTRAST 50 GAMMA 0 BLACK LEVEL LOW

■ MENU : Exit
- ▼ : Decrease
■ ▲ : Increase
■ SET : Select another sub-menu

BRIGHTNESS To adjust the brightness of the screen.

CONTRAST To adjust the contrast of the screen.

GAMMA Set your own gamma value.

:-50 / 0 / 50

On the monitor, high gamma values display whitish images and low gamma values display blackish images.

BLACK LEVEL You can set the offset level. If you select 'HIGH', the screen will be bright and if you select 'LOW', the screen will be dark. (Only for HDMI input)

* Offset? As the criteria for video signal, it is the darkest screen the monitor can show.

COLOR

COLOR PRESET RGB GREEN BLUE CMYK RGB 50 50 50

■ MENU : Exit
■ ▼ : Decrease
■ ▲ : Increase
■ SET : Select another sub-menu

PRESET

Select the screen color.

• sRGB: Set the screen color to fit the sRGB standard color specification.
  • 6500K: Slightly reddish white.
  • 9300K: Slightly bluish white.

Set your own red color levels.

Set your own green color levels.

Set your own blue color levels.

Main menu Sub menu Description

TRACKING

TRACKING HORIZONTAL 50 VERTICAL 50

HORIZONTAL To move image left and right.

VERTICAL To move image up and down.

TRACKING CLOCK 50 PHASE 50 SHARPNESS A 5

CLOCK To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.

PHASE To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

■ MENU : Exit
■ ▼ : Decrease
■ ▲ : Increase
- SET : Select another sub-menu

SHARPNESS To adjust the clearness of the screen.

Main menu Sub menu Description

SETUP

SETUP LANGUAGE ENGLISH OSD POSITION HORIZONTAL 50 VERTICAL 50 DSUB 1260 x 1024 60 Hz

D-SUB input

SETUP WHITE BALANCE ▶ NO R T C ▶ ON POWER INDICATOR ▶ ON FACTORY RESET ▶ NO D/SUB 1289 x 1024.60 Hz

HDMI input

SETUP OVERSCAN R T C POWER INDICATOR FACTORY RESET ON ON ON NO 100% STOP

■ MENU : Exit
■ ▼ : Adjust
■ ▲ : Adjust
■ SET : Select another sub-menu

LANGUAGE

To choose the language in which the control names are displayed.

OSD POSITION

To adjust position of the OSD window on the screen.

WHITE BALANCE

If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image.

Activate this function when white and black colors are present in the screen. (Only for D-SUB input)

OVERSCAN

It is the function to filter out the noise which may be generated around the edge of the image when connecting the HDMI and the external device.

When it is set to ON, the original image is enlarged with no noise.

When it is set to OFF, the original size is displayed as it is regardless the noise. (Only for HDMI input)

RTC

If you set ON, you enable the Response Time Control function and reduce the afterimage of the screen.

If you set OFF, you disenable the Response Time Control function and operate at panel response time.

POWER INDICATOR

Use this function to set the power indicator on the front side of the monitor to ON or OFF. If you set OFF, it will go off. If you set ON at any time, the power indicator will automatically be turned on.

FACTORY RESET

Restore all factory default settings except "LANGUAGE."

Press the ▲,▼ buttons to reset immediately.

NOTE

If this does not improve the screen image, restore the factory default settings. If necessary, execute the white balance function again. This function will be enabled only when the input is a D-SUB input.

Check the following before calling for service.

No image appears
●Is the power cord of the display connected?	·Check and see if the power cord is connected properly to the power outlet.
●Is the power indicator light on?	·Press the Power button.
●Is the power on and the power indicator red?	·Adjust the brightness and the contrast.
●Is the power indicator blinking?	·If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.·Try to turn on the PC.
●Do you see an "OUT OF RANGE" message on the screen?	·This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
●Do you see a "CHECK SIGNAL CABLE" message on the screen?	·This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?
● Do you see “OSD LOCKED” when you push MENU button?	● You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.
Display image is incorrect
●Display Position is incorrect.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
●On the screen background, vertical bars or stripes are visible.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
●Any horizontal noise appearing in any image or characters are not clearly portrayed.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.●Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

IMPORTANT

• Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
●The screen color is mono or abnormal.	·Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.·Make sure the video card is properly inserted in the slot.·Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
●The screen blinks.	·Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
● Have you installed the display driver?	● Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.● Make sure to check if the video card supports Plug&Play function.

The Audio function is not working
● Picture OK & No sound.	·Check whether volume is "0".·Check sound muted.·HDMI cable installed properly.·Head phone cable installed properly.·Check sound format. Not supply to compressed sound format.
Display	23 inches (58.42 cm) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size : 58.42 cm0.265 x 0.265 mm (Pixel Pitch)
Sync Input	Horizontal Freq. 30 - 83 kHz (Automatic)Vertical Freq. 56 - 75 Hz (Automatic)Input Form Separate Sync.SOG (Sync On Green) / Digital
Video Input	Signal Input 15 pin D-Sub Connector (Analog)DVI-D Connector (Digital)HDMI Connector (Digital)Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital, HDMI
Resolution	Max VESA 1920 x 1080 @ 60 HzRecommend VESA 1920 x 1080 @ 60 Hz
Plug&Play	DDC 2B
Power Consumption	On Mode : 42 W(Typ.)Sleep Mode ≤1 WOff Mode ≤1 W
Dimensions & Weight	With StandWidth 55.58 cm/ 21.88 inchesHeight 42.9 cm/ 16.89 inchesDepth 19.84 cm/ 7.81 inches	Without StandWidth 55.58 cm/ 21.88 inchesHeight 41.85 cm/ 16.48 inchesDepth 8.49 cm/ 3.34 inches
	Weight(excl. packing) 5.5 kg (12.13 lbs)
Range	Tilt : -2°~15°
Power Input	AC 100-240V~ 50/60Hz 0.8A
Environmental Conditions	Operating ConditionsTemperature 10°C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20°C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type

NOTE

■ Information in this document is subject to change without notice.

Preset Modes (Resolution) - D-sub(Analog) / DVI(Digital) INPUT

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1	VGA	720 X 400	31.468	70
2	VESA	640 x 480	31.469	60
3	VESA	640 x 480	37.500	75
4	VESA	800 x 600	37.879	60
5	VESA	800 x 600	46.875	75
6	VESA	1024 x 768	48.363	60
7	VESA	1024 x 768	60.123	75
8	VESA	1152 x 864	67.500	75
9	VESA	1280 x 1024	63.981	60
10	VESA	1280 x 1024	79.976	75
11	VESA	1680 x 1050	65.290	60
*12	VESA	1920 x 1080	67.500	60

*Recommend Mode

HDMI Vedio INPUT

Display Modes (Resolution)		Horizontal Freq. (kHz)	Vertical Freq. (Hz)
1	480p	31.50	60.00
2	576p	31.25	50.00
3	720P	37.50	50.00
4	720p	45.00	60.00
5	1080i	28.12	50.00
6	1080i	33.75	60.00
7	1080P	56.25	50.00
8	1080P	67.50	60.00

Indicator

MODE	LED Color
On Mode	Red
Sleep Mode	Red Blinking
Off Mode	Off

Digitally yours

LG
