CW1599 - Coffee maker Coline - Free user manual and instructions

Product Type	Coffee Maker
Brand	Coline
Model	CW1599
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1000 W
Capacity	1.5 L (approx. 12 cups)
Water Tank	Fixed with lid, maximum level mark
Filter Type	1x4 paper filters
Carafe Material	Glass with lid
Hotplate	Yes, keeps coffee warm
Automatic Shut-off	After 40 minutes
Keep-Warm Function	Activates automatically after brewing
Drip-Stop Mechanism	Yes, activates when carafe is removed
Dimensions (approx.)	25 x 18 x 30 cm (HxWxD)
Weight (approx.)	1.5 kg
Cord Length (approx.)	0.8 m
Material	Plastic body, glass carafe, metal hotplate
Cleaning	Wipe exterior with damp cloth; hand wash carafe
Descaling	Use vinegar/water solution every 30-40 uses
Usage	Indoor, domestic use only
Safety Features	Auto shut-off, drip-stop, overheat protection

Frequently Asked Questions - CW1599 Coline

What is the capacity of the Coline CW1599 coffee maker?

The coffee maker has a capacity of 1.5 liters, which makes approximately 12 cups of coffee.

How do I descale the coffee maker?

Mix 2-3 tablespoons of white vinegar (12%) with cold water up to the maximum fill line. Pour into the tank, insert a paper filter (no coffee), and run a full brewing cycle. Repeat if needed, then run 2-3 cycles with clean water to rinse. Perform descaling every 30-40 uses.

Does the coffee maker have an automatic shut-off?

Yes, the coffee maker automatically switches off 40 minutes after being turned on. It enters keep-warm mode after brewing until shut-off.

Can I use other filter sizes?

The coffee maker is designed for 1x4 paper filters. Using other sizes may cause overflow or poor brewing.

How do I clean the coffee maker?

Unplug and let it cool. Wipe the exterior with a soft, damp cloth and mild detergent. Hand wash the glass carafe with dish soap and dry thoroughly. Do not immerse the base in water.

What should I do if the coffee maker does not turn on?

Check that the plug is securely connected to a working outlet. Ensure the power button is pressed. If it still does not work, the mains lead or plug may be damaged; contact customer service.

Is the coffee maker suitable for commercial use?

No, it is designed for domestic use and similar environments like staff rooms, cabins, or hotel rooms. Not for continuous commercial use.

Can I brew coffee without a filter?

No, the filter basket requires a paper filter to hold the coffee grounds. Without it, grounds may enter the carafe and clog the machine.

What type of coffee grounds should I use?

Use medium grind coffee suitable for automatic drip coffee makers. Adjust the amount according to taste, typically 1-2 tablespoons per cup.

How do I prevent the coffee from overflowing?

Ensure the carafe lid is properly closed and the carafe is centered on the hotplate. Do not exceed the maximum water level mark in the tank. Use the recommended filter size.

USER MANUAL CW1599 Coline

Exterior view of a modern coffee maker with clear glass and black handle (no visible text or symbols)

Coffee Maker

Art.no 18-4751, 44-1599, 44-1599-1, -2, -3, -4 Model HB93511

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Place the product on a dry and stable surface away from children's reach to prevent anyone from being scalded.
• The product should be used only as described in this manual.
• Always disconnect the plug from the wall socket before cleaning or when not in use.
• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.
• Do not pull or carry the product by the lead. Do not use the lead as a handle or let it fasten in door jambs. Do not pull it around sharp corners and edges or over warm surfaces, such as warm hobs.
• Never immerse the product in water and do not expose it to knocks, blows or high temperatures.
• Never use the product if you have dropped it on the floor, left it outdoors or dropped it into water.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or qualified tradesman.
• The product should only be used and kept indoors.

- The product is only designed for domestic use or similar circumstances such as:

• staff canteens, offices or other staff rooms
• cabins and cottages
• hotel rooms and other forms of residency
• bed and breakfast facilities

- Do not open the housing. Certain components inside the casing carry dangerous electrical current. Contact with these components could result in electric shock.

- The product should only be repaired by qualified service personnel.

- The product should not be taken apart or modified.

- The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

- Never let children play with the product.

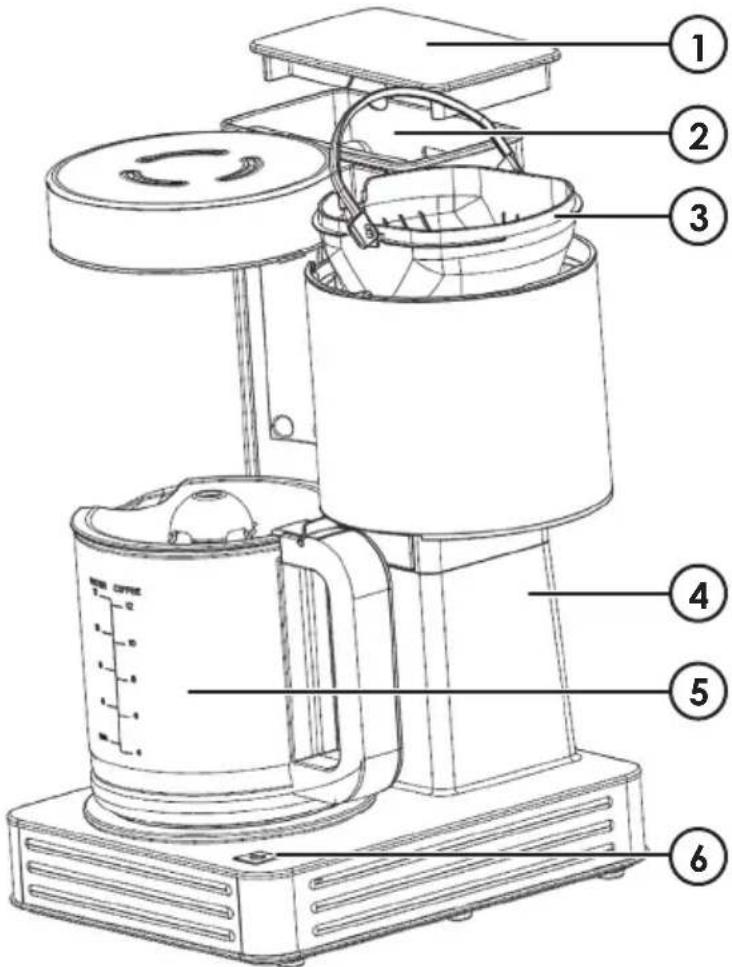

Product description

1. Tank lid
2. Water tank
3. Filter basket
4. Base
5. Glass carafe
6. Power button

Operating instructions

Before initial use

• Rinse out the glass carafe and filter basket with water before use.
• Before using the coffee maker you should run the machine through two to three filtration cycles at full water capacity, but without coffee grounds. This should also be done when the coffee maker has not been used for a long time, and after descaling.
• The measuring scale on the water reservoir allows for easy and accurate filling. Make sure not to exceed the maximum water level.

Brewing

1. Open the lid and fill the water tank with the desired amount of water.
2. Swing the filter basket holder out and insert a 1x4 filter into the filter basket.
3. Fill the filter with the desired amount of coffee grounds and swing the filter holder back into position so that it locks into place.
4. Close the carafe lid and slot the carafe securely onto the hotplate. Make sure the carafe lid is slotted in place to prevent the filter holder's drip-stop mechanism from operating during brewing.
5. Plug the coffee maker's plug into a wall socket and press the power button (6) to turn the coffee maker on. The power button should shine red when pressed and connected to the mains.
6. Wait until all the water has run through the filter before trying to remove the carafe from the hotplate.
7. The coffee maker switches off automatically 40 minutes after it was switched on. It automatically enters keep-warm mode once brewing is complete.
8. The coffee maker can be switched off before the 40 minutes has elapsed by pressing the power button.
9. Always turn the coffee maker off after use and unplug it from the wall socket.

Care and maintenance

Cleaning

• Always unplug the lead from the power point and let the coffee maker cool down properly before cleaning it.
• Clean the coffee maker's exterior using a soft, moist cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Hand wash the glass carafe with a little washing up liquid and hand dry it with a kitchen towel.

Descaling

• For optimal performance, your coffee maker should be descaled regularly.
• If a substantial amount of scale is allowed to build up removal will be extremely difficult even when using a descaling agent. Scale can also cause leaks in the brewing mechanism. We recommend that the coffee maker be descaled after every thirty to forty uses. For descaling you can use a mixture of white vinegar and water:
• Mix 2–3 tablespoons of white vinegar (12%) with an amount of cold water equal to the coffee maker's maximum capacity.
• Pour this solution into the tank. Insert a filter into the filter basket without coffee.
• Turn on the coffee maker and allow it to run through a complete filtering cycle. Repeat if necessary. Conduct this descaling process in a well ventilated area and avoid breathing in the resulting fumes.
• To clean the coffee maker after descaling you should run the machine through 2–3 filtration cycles using clean water filled to full capacity.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Power supply 220–240 V, 50/60 Hz

Power 1000 W

Capacity 1.5 l (approx 12 cups)

Kaffebryggare

Art.nr 18-4751, 44-1599, 44-1599-1, -2, -3, -4 Modell HB93511

Användning

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V, 50/60 Hz

Effekt 1000 W

Kapacitet 1,5 l (ca 12 koppar)

Kaffetrakter

Art.nr. 18-4751, 44-1599, 44-1599-1, -2, -3, -4 Modell HB93511

Les brukerveiledningen grundig før produktet tas i bruk, og ta vare på den for framtidig bruk. Vi reserverer oss mot eventuelle feil i tekst og bilder, samt endringer av tekniske data. Ved tekniske problemer eller spørsmål, ta kontakt med vårt kundesenter. (Se opplysninger på baksiden).

Sikkerhet

Bruk

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V, 50/60 Hz

Effekt 1000 W

Kapasitet 1,5 l (ca. 12 kopper)

Kahvinkeitin

Tuotenro 18-4751, 44-1599, 44-1599-1, -2, -3, -4 Malli HB93511

Käyttö

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Benutzung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
