MX-HU2094 - Humidifier Mx Onda - Free user manual and instructions

Product Type	Ultrasonic Cool Mist Humidifier
Brand	Mx Onda
Model	MX-HU2094
Power Input	100-240 V ~ 50/60 Hz
Power Adapter Output	24 V DC, 1 A
Power Consumption	20 W
Water Tank Capacity	1.3 liters
Autonomy	More than 8 hours
Humidification Rate	0.15 L/hour
Noise Level	< 35 dB
Dimensions (L x W x H)	190 x 110 x 330 mm
Weight (without water)	1.1 kg
Steam Flow Levels	2 levels (low and high)
Safety Features	Auto shut-off when water level low or tank not attached; red indicator and acoustic alarm
Operating Mode Indicators	Green (low steam), Blue (high steam)
Swivel Spout	Yes, for directional mist output
Ultrasonic Technology	Yes, piezoelectric transducer for cool mist
Tank Type	Removable tank with drip valve
Cleaning Frequency	Weekly: clean tank and transducer membrane
Transducer Membrane Cleaning	Use vinegar and cotton swab; do not use metal objects
Adapter Cord	Detachable, plugs into rear connector
Certifications	RoHS, EMC (2004/108/EC), LVD (2006/95/EC)
Intended Use	Ideal for rooms with children/babies, all year round

Frequently Asked Questions - MX-HU2094 Mx Onda

How do I turn on the Mx Onda MX-HU2094 humidifier?

Touch the on/off button (item 2) with your fingertip. The indicator will light green, a melody will play, and steam will start coming out of the lid. Touch again to switch between low and high steam flow (blue indicator), and a third touch turns it off.

What type of water should I use in the humidifier?

Only fresh, clean cold water (temperature below 40°C). Do not use alcohol, essential oils, or any other liquids. Never fill with hot water.

How long does the humidifier run on a full tank?

The autonomy exceeds 8 hours with a full 1.3-liter tank, depending on the selected steam flow level.

How do I clean the transducer membrane?

First, unplug the humidifier and drain the base. Dry the inside, then pour a few drops of vinegar on the membrane. Wait a few minutes, then use a cotton swab to gently remove deposits. Wipe with a damp cloth and dry thoroughly. Do not use metal or pointed objects.

Is the humidifier safe for children and babies?

Yes, this model generates cool mist (no heating) and is safe for children. It helps improve respiratory comfort. However, keep the appliance out of reach of children under 8 years old and always supervise use.

What does the red indicator light mean?

The red indicator lights up when the water tank is empty or not properly attached. The humidifier will emit three acoustic signals and automatically stop producing steam. Refill or reattach the tank to resume operation.

Can I use essential oils or scented products in this humidifier?

No. The manual explicitly states that you should never add alcohol, balsamic oils, or any other liquids to the tank or base. Only use clean water.

What are the dimensions and weight of the humidifier?

The dimensions are 190 x 110 x 330 mm (length x width x height) and it weighs 1.1 kg without water.

How do I drain the humidifier after use?

Unplug the power adapter. Remove the lid and empty the tank by unscrewing the cap, then invert the tank to pour out water. For the base, tilt it to drain water through the steam outlet (use a sink). Dry all parts with a cloth before storing.

Is the humidifier noisy?

The noise level is less than 35 dB, which is very quiet – comparable to a whisper. It is suitable for use in bedrooms or nurseries.

USER MANUAL MX-HU2094 Mx Onda

Exterior view of a modern cylindrical device with a black lid and 'Mn Deni' branding (no additional text or symbols visible)

C €

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

3D model of a mechanical component with labeled parts (5 and 6), no readable text or symbols beyond labels

MANUAL DE INSTRUÇÕES

Mx Onda

UMIDIFICADOR ULTRA-SÔNICO

MODELO: MX-HU2094

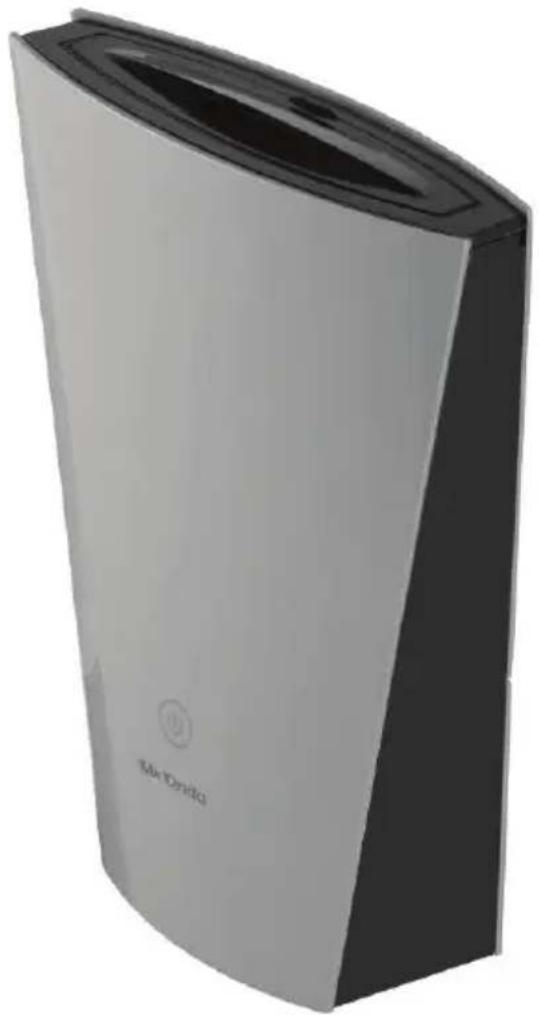

Exterior view of a modern, sleek gray electronic device with a black lid and 'Mia Dendg' branding (no other text or symbols visible)

C €

ANTES DE SEU USO LEIA ATENTAMENTE ESTE MANUAL

ATENÇÃO

3D model of a mechanical component with labeled parts (5 and 6), no readable text or symbols beyond labels

Exterior view of a modern cylindrical device with a black lid and 'Mn Deni' branding (no additional text or symbols visible)

C €

VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIESE

ACHTUNG

3D model of a mechanical component with labeled parts (5 and 6), no readable text or symbols beyond labels

Exterior view of a modern cylindrical device with a black lid and 'Mr DeniQ' branding (no additional text or symbols visible)

C €

PLEASE READ THIS MANUAL BEFORE OPERATION

WARNING

The power adapter of this device works with a voltage of 100-240 V, to prevent a possible electrical shock do not try to open it. This adapter has no part that can be repaired by yourself, in case of a malfunction not manipulate it and contact an authorized service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

INTRODUCTION

MX ONDA Thank You deference has had to purchase this product.

This device uses a piezoelectric ultrasonic transducer technology, which generates high-frequency vibrations that produce cool mist. The micro mist generated is not condensed, but it remains suspended in the air for long. With swivel spout, cold steam is rapidly distributed throughout the room, eliminating the dryness of the air and creating a healthier environment for the whole family.

The effects produced by this device are beneficial to health and their use is indicated for people with problems or diseases in the respiratory tract, throat or eye irritation. Its use is also recommended for those sites that required to maintain a high level of moisture in the atmosphere, such as places with flowers and plants, wooden furniture or certain artworks, smoking rooms, etc.

With the use of this apparatus to provide a sufficient level of moisture in the environment, thus improving breathing and reducing the risk of colds and respiratory problems.

Ideally, to achieve a healthy environment is to get the room is well ventilated, with an ambient temperature between 20 \~ 22 °C and the humidity is between 45 and 65 percent. It is considered that an environment is dry when its relative humidity is below 45 percent.

This device is ideal for use in rooms of children or babies. With use will get an improvement in her airway and remove the dry throat. This equipment generates cold running water vapor and is heated as it is not dangerous to children.

This product can be used all year round. In winter it will eliminate the annoying effects of home heating often results in our body: obstruction of the nasal passages, dry throat, cough, dry mucous membranes, etc. This is because the heat generated by radiators absorbs moisture from the atmosphere and substantially dry. In summer, its use can also be very useful, since the moisture in the air becomes unbalanced by the use of air conditioners and decreasing the humidity can cause the above symptoms.

This device incorporates the following features:

• Humidifier with ultrasound technology (produce cold vapor), with micro mist that stays longer in the air.
  • 1.3 liter removable tank with drip valve.
  • More than 8 hours of autonomy.
• Two levels of steam flow.
• Sensor minimum water level, which automatically disconnects the humidification system.
• Quiet operation and low power consumption.

BEFORE CONNECTING THE HUMIDIFIER

When using electrical appliances, they should always be followed basic safety measures to reduce the risk of fire, electric shock and / or personal injury. These measures include the following:

• Read these instructions and save them for later use carefully.
• Packaging materials (plastic bags, etc.) must not be left within reach of children under age 8 as they are a potential source of danger.
• To protect against risk of electric shock and personal injury, do not insert the adapter or the appliance itself in water or any other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use the device; contact the technical support staff.
• Although the device has a protection system is not recommended to turn on the humidifier with empty water tank.
• The manufacturer is not liable for damages resulting from improper, incorrect or careless use of the appliance.

SECURITY MEASURES

• This device can not be used by children under 8 years or people with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they have received appropriate instructions on the use of the device and be supervised by an adult or responsible person.

• Use this device only for the purpose it was developed.

• MX ONDA not accept any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.

• Do not touch the power adapter with wet or damp hands or feet.
• Do not leave the appliance exposed to the weather (rain, sun, frost ...).
• Keep away from heat sources humidifier, radiators, stoves, etc.
• While the humidifier is connected, do not neglect their vigilance and keep out of reach of children. After use, store it out of reach of children.
• Do not use the humidifier near furniture or electrical or electronic equipment.
• To disconnect the power adapter network pull the housing thereof. you do never pull on the cable.
• Unplug the power adapter humidifier, provided that:

- Do not use.

- A power failure occurs, or "skip" a fuse or automatic.

- Before cleaning the proper maintenance or refueling.

- Do not use not recommended by the manufacturer.

- The power adapter is the disconnect the equipment. The base socket must be near the equipment and easily accessible.

- Children should not play with this appliance and cleaning and / or maintenance should be performed by children under 8 years unless they are older than 8 years and are supervised by an adult.

- In case of failure, anomalies, if the humidifier is dropped, the plug or other parts have impaired, or the cord is damaged, turn off the appliance and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.

Attention:

This device incorporates a safety device which automatically switches off the steam generator system when it detects that the water in the tank is insufficient or when the water tank is not properly attached to the base. When this occurs, the indicator light will illuminate operation 2 red and three acoustic signals sound.

CONTROLS AND ELEMENTS

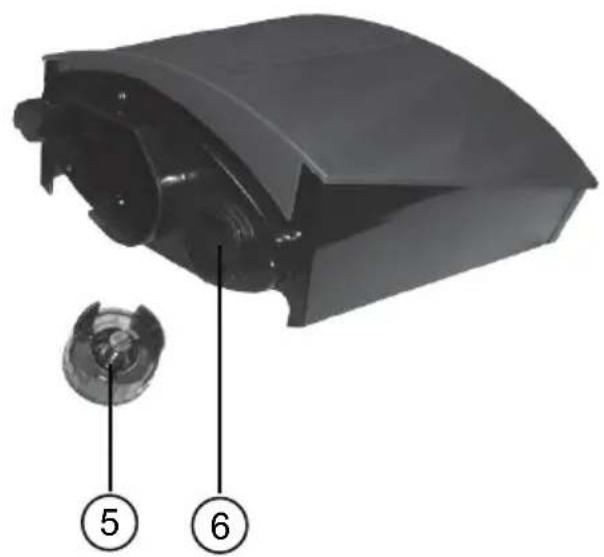

Technical illustration of a mechanical component with numbered parts (5 and 6), no visible text or symbols beyond labels

1. Cover with hole for cold vapor outlet
2. On and off, control steam flow and operating mode indicator
3. Water tank
4. Power connector
5. Water tank cap with drip valve
6. Water filling hole

USE OF HUMIDIFIER

Advance preparation

1. Place the humidifier on a dry, stable and level surface.
2. Check that the adapter plug cord is not attached to the humidifier and that the power adapter is unplugged from the mains.
3. Separate the water tank 3 of the base, pulling it up.
4. Turn the water tank so that the cap 5 is up.
5. Remove the tank cap 5 by turning it counterclockwise to clockwise.
6. Fill the reservoir 3 with clean water.
7. Replace the cap 5 in the fill hole 6 and turn it clockwise clockwise until the tank is closed.
8. Invert the tank and place it back on the humidifier base. Use a dry cloth to wipe the water droplets on the surface of the base and the tank.

Attention:

• NEVER fill the tank with water temperature above 40^ .
• Add only water through the filling orifice 6.
• Use only fresh, clean water. Never add in the tank or inside the base, alcohol, or balsamic scented oil or any other liquid.
• Do not use this appliance without water in the tank.

Start up

1. Connect the plug from the power adapter into the connector 4 on the rear of the humidifier. Insert the power adapter into an electrical outlet network.
2. If the water tank is not properly attached to the base or empty the operation mode indicator 2 it will light red.
3. To turn on the humidifier momentarily touch with the fingertip button on / off 2 and the operating mode indicator will light green color, you will hear a melody and steam it will start to come through the hole in the lid 1.
4. If you want to increase the steam flow again to play with the fingertip button on / off 2 will sound an audible warning and the mode indicator will light up in blue.
5. To turn off the humidifier again touch with the fingertip button on / off 2 will sound a melody and the operating mode indicator will go out.

Notes:

• Before moving the water tank for example; to fill it, take care to remove the lid 1 and with a cloth or paper towel collect water from the interior, the remains of water accumulated inside come from the steam that has not gone through the outlet port and does not mean a bad operation.
• The autonomy of the humidifier with a full tank of water exceeds 8 hours, this duration varies depending on the regulation of steam flow.
• For best results, there should be no drafts in the room where the humidifier is located.
• During operation of the humidifier, never move the appliance, do not obstruct the steam outlet of the lid 1, do not lift the reservoir 3 and do not touch the transducer membrane (metal area the size of a coin that is located at the base). If the humidifier is tilted, disconnect the power adapter from the mains before placing it correctly.

Draining

After using the humidifier, we recommend not to leave water in the tank or inside the base, to empty the water tank base and proceed as follows:

1. Unplug the power adapter and disconnect the mains plug of the humidifier.

2. Remove the cover 1 and with a clean, dry cloth, wipe off water from the steam outlet of the lid 1, the outside of the shell and the base. With all the dry elements place the tank on the base.

3. Lift the reservoir 3 and invert, remove the cap 5 as indicated above and pour the water into a sink. Replace the plug.
4. Before draining the water contained within the base, check that the humidifier is disconnected from the power adapter. Otherwise the membrane could be damaged. Pour the water from the base in a sump.

FAN

The fan generates a constant flow of air exiting the outlet of steam, and thus obtain a homogeneous flow of steam. The air inlet fan is located in the humidifier base. For this reason it is very important that in order not to obstruct the air intake, do not place the humidifier on a towel, carpet, carpeting, etc.

CLEANING AND MAINTENANCE

Before cleaning or maintenance of the humidifier make sure the power adapter is not plugged into the mains.

Cleaning the base

Clean the plastic surface of the base with a damp cloth and dry with a dry. Do not use alcohol or abrasive products.

Tank cleaning

• Tank cleaning should be done once a week.
• Unscrew the tank cap 5 to drain the water as noted above.
• Fill the tank half full with clean fresh water. Put the cap 5 and shake the tank a few seconds. Remove the cap and pour the water into a sink.
• Thoroughly clean the plug and part of the thread of the vessel with a damp cloth and dry with a dry. Do not use alcohol or abrasive products. Clean the surface of the tank with a damp cloth and dry with a dry.

Transducing membrane cleaning

• The membrane cleaning should be done once a week, but if you see dirt in the same or cold steam flow decreases, cleaning this part must be carried out immediately.
• Check that the power adapter is disconnected from the mains. Pour into a drain the water contained within the humidifier base.
• Thoroughly dry the inside of the base unit with a dry cloth, then pour a few drops of vinegar on the transducer membrane, and wait a few minutes. After this time, use a cotton swab to release the remains of the membrane, then with a cloth moistened with water remove the debris.
  • After the membrane cleaning, dry thoroughly with a dry cloth.

Note: DO NOT touch the transducing membrane directly not use any metal and / or pointed object, use only a cloth and cotton swabs.

TECHNICAL SPECIFICATIONS

Power adapter 100 - 240V \~ 50/60 Hz - 24 V DC 1 A

Consumption 20 W

Water tank capacity 1.3 liters

Autonomy > 8 hours

Humidifying 0.15 l/hour

Noise level <35 dB

Dimensions 190 x 110 x 330 mm (L, W, H)

Weight without water 1.1 Kg.

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC – Electromagnetic Compatibility) and the 2006/95/EC (LVD – Low Voltage Directive) relative to Low Tension Security.

“MX, MX ONDA” and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

E-MAIL: [e-mail] http://www.mxonda.es
