SVVE01180R - Fan SVAN - Free user manual and instructions

Product Type	High-Velocity Floor Fan
Brand	SVAN
Model	SVVE01180R
Speed Settings	3 speeds: Slow, Medium, Fast
Tilt Adjustment	Yes, via tilt-guard for any elevation
Oscillation	Yes, with oscillation knob
Blade Design	Precision fan blades for powerful wind and low noise
Stand Material	Chrome stand, solid construction
Motor Features	Energy-saving, high velocity, thermal protection
Height Adjustment	Yes, with height adjust knob on inner/outer pole
Base	Includes heavy weight and locking screw for stability
Assembly Required	Yes, grill, blade, and base assembly; tools included
Cleaning Instructions	Disconnect power; remove guards and blades; clean with soft cloth and light soap; dry thoroughly
Safety Features	Thermal protection; do not use near windows or in damp areas; place on flat surface
Power Cord	Replace only by qualified person if damaged
Disposal	Do not dispose with household waste; recycle per EU directives
Warranty	Exchange not entertained if instructions not followed; test before purchase

Frequently Asked Questions - SVVE01180R SVAN

How do I assemble the fan?

Assembly involves attaching the rear grill to the motor, installing the blade, securing the front grill, and assembling the base with the stand. Refer to the illustrated steps in the manual.

How do I adjust the fan speed?

Turn the speed control knob to select from 3 speeds: 1 (Slow), 2 (Medium), or 3 (Fast). Position 0 turns the fan off.

Can I tilt the fan to direct airflow?

Yes, by pushing the tilt-guard you can adjust the fan to any elevation you prefer.

How do I clean the fan?

First disconnect the power cord. Then remove the guard and blades carefully. Clean with a soft cloth and mild soap, then wipe dry. Never use polish or corrosive liquids. Reassemble securely before use.

What should I do if the power cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair it yourself.

Is the fan safe to use near children?

This appliance is not intended for use by persons (including children) with reduced capabilities without supervision. Supervise children to ensure they do not play with the fan.

Can I use the fan in a bathroom or damp area?

No, the fan should not be placed in a damp place or where humidity is high, such as a bathroom, to prevent risk of fire or electric shock.

Does the fan oscillate?

Yes, the fan features an oscillation knob that can be used to enable or disable side-to-side oscillation for wider air circulation.

How does the thermal protection work?

The motor has built-in thermal protection that prevents overheating by automatically shutting off if the motor becomes too hot. This helps avoid damage and fire hazards.

How should I dispose of the fan at the end of its life?

Do not dispose of it with household waste. Follow local recycling guidelines or return it to the retailer for environmentally safe recycling, as per EU directives.

USER MANUAL SVVE01180R SVAN

SVVE01160PC & SVVE01180R

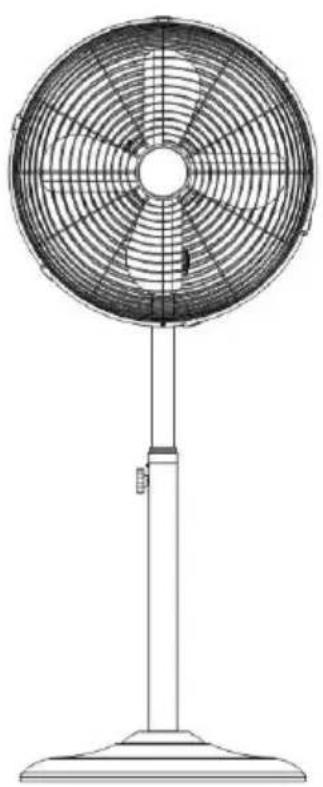

Line drawing of a standard office fan with radial blades and a stand (no text or symbols)

LEA Y GUARDE ESTE MANUAL DE INSTRUCCIONES

SVVE01160PC & SVVE01180R

USERS MANUAL

Line drawing of a standard office fan with radial blades and a stand (no text or symbols)

REMARKS: ELECTRICAL CONNECTIONS SHALL BE IN ACCORDANCE WITH NATIONAL OR LOCAL CODES.

READ AND SAVE THIS INSTRUCTION MANUAL

Sleek & modern high-velocity fan provides more powerful wind than ordinary plastic fans. Draws air off the floor and circulate through the entire room keeping room cool and breezy.

Put near the windows and it helps exhaust hot indoor stuffy air and pulls in fresh outdoor air.

• Energy-saving, high velocity motor for maximum air circulation
• Tilt-adjustment for flexible use
• Triple speed selection
• Precision fan blades for powerful wind but low-noise
• Chrome-stand, solid construction with thermal-protection to prevent motor overheat.

INSTRUCTION FOR INSTALLING

WARNING: IF THE SUPPLY CORD IS DAMAGED, MUST BE REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR SIMILAR QUALIFIED PERSON IN ORDER TO AVOID THE HAZARD.

BE SURE TO SHUT OFF ELECTRIC SUPPLY AT MAIN SWITCH OR CIRCUIT BREAKER BEFORE INSTALLATION.

THE IMPORTANT SAFEGUARDS AND INSTRUCTION APPEARING IN THIS MANUAL ARE NOT MEANT TO COVER ALL POSSIBLE CONDITIONS AND SITUATION THAT MAY OCCUR.IT MUST BE UNDERSTOOD THAT COMMON SENSE, CAUTION AND CARE ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PROCDUCT.THESE FACTORS MUST BE SUPPLIED BY THE PERSON(S) CARING FOR AND OPERATING THE UNIT.

NO RESPONSIBILITY WILL BE ACCEPTED FOR ANY DAMAGEWHICH MAY OCCUR DURING TRANSPORT OR BY IMPROPER INSTALLATION OR VOLTAGE FLUCTUATION OR IF ANY PORTION OF THE PRODCT HAS BEEN ALTERED OR MODIFIED.

Safety Instructions:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Improper installation may result in the risk of fire, electric shock, or injury to persons.
5. To present risk of fire and electric shock, do not use the unit near windows.
6. The fan should be placed on a flat and stable surface when operating to avoid overturning.
7. The fan should not be placed in a damp place or where humidity is high (such as in a bathroom).

ASSEMBLY

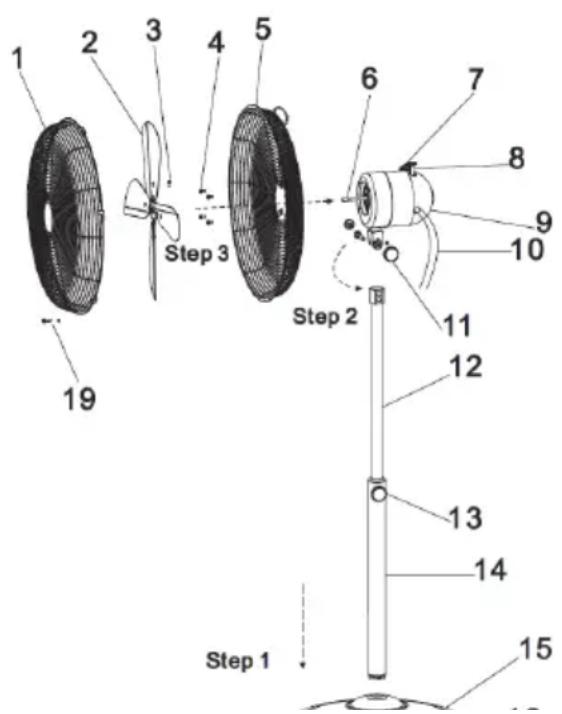

Explode view

1. Front Guard
2. Fan Blade
3. Fan Blade Screw
4. Rear Guard Screw
5. Rear Guard
6. Motor shaft
7. Oscillation Knob
8. Speed Control Knob
9. Motor Unit
10. Power Cord Lead

1. Connector Screw and Nut
2. Inner Pole
3. Height adjust Know
4. Outer Pole
5. Base
6. Heavy Weight
7. Fastener
8. Locking Screw
9. Grill Locking Screw

Fan Grill Assembly

1. Fasten the rear grill onto the motor with four screws.
2. Install the Blade onto the Motor Shaft by tightening the blade screw.
3. Centre the Front Grill by aligning the logo on the grill Hub so it is horizontal and parallel to the floor. Then secure the Front and Rear Grills completely together by snapping grill clips into place. Lastly, tighten the grill locking screw at the bottom of the Rear Grill.

Base Assembly

1. Unscrew the Fasten Ring and Base Locking Nut from the Stand Assembly.
2. Insert the Stand Assembly through the hole in the center of the Base and twist into position.
3. Turn the Stand Base upside down with the Stand Assembly facing the floor and place the Base Weight Support to the bottom of the Base. Tighten the Base Weight Support to the Stand Base by the fastener and locking screw.
   Finally, connect the assembled fan head and stand with the connector screw and nuts, ensure it's strong enough

Operating Instructions:

a) Ensure voltage used corresponds with the voltage indicated.
b) Turn the speed control to selected speeds: 0(off) and speeds1, 2, 3 is Slow, Middle, Fast.

c) Tilting angles-By pushing the tilt-guard, you can adjust the fan to any elevation preferred.
d) Never touch the blades with hand or any object!
e) Do not pull the cord too hard. If damaged after pro-long use, get it repaired by any electrical repairman.
f) To clean: Disconnect the power cord from the mains. Remove the guard and the blades carefully. Do not drop the blades! First use soft cloth with light soap to clean off oil stains. Then wipe and polish with dry cloth. Never use polish or any corrosive liquid that will damage the paint, metal or plastic! Put back the blades and lock the guard securely before use.

NO exchange will be entertained if the above instructions are not followed. Always Test the product first before purchase.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
