USER MANUAL Cato Habitat

Assembly Instructions - Please keep for future reference

CATO-DE-AW14-A

Dimensions

Width - 75 cm

Depth - 45 cm

Height - 76cm

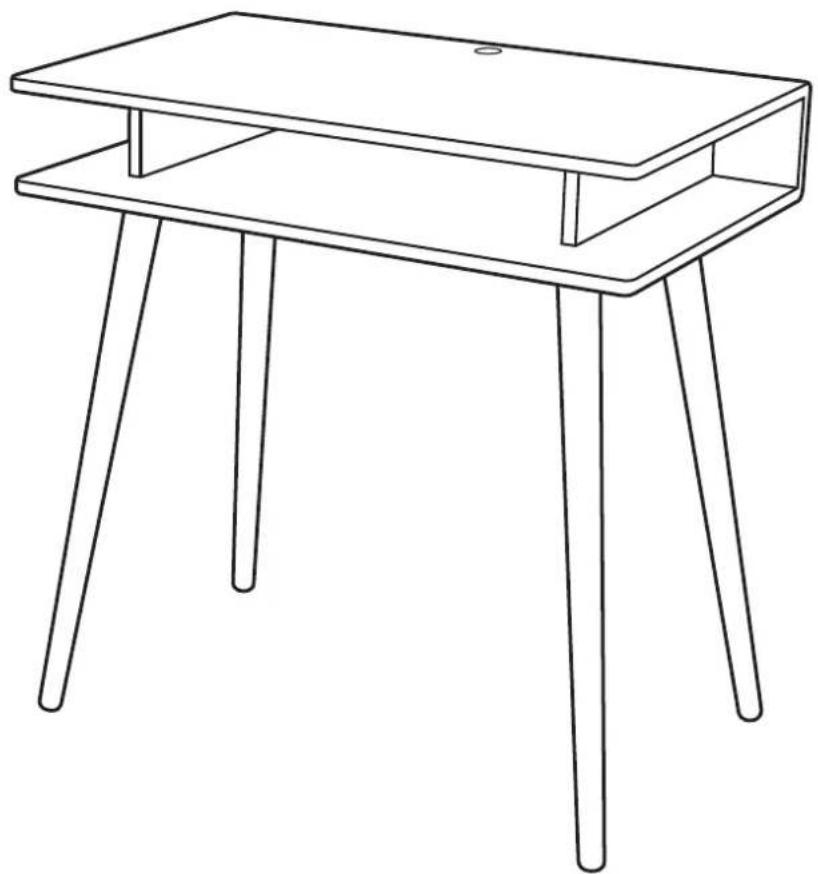

Line drawing of a simple wooden table with four legs and a matching front panel (no text or symbols)

Important – Please read these instructions before assembly

If you need help or have damaged or missing parts, email:

[e-mail] or call: 0344 499 4686

habitat

Safety and Care Advice

Important – Please read these instructions fully before starting assembly

DO NOT TIGHTEN UNTIL ALL PARTS ARE IN POSITION.

Plan to assemble the furniture as near as possible to the place you intend it to be used. Do not place your furniture directly in front of radiators, fires, or any source of direct heat. Ensure that the surface on which you are assembling furniture is clean and flat. Before commencing assembly, please identify all components. Do not discard the packaging until the unit is fully assembled to ensure that no fittings or components are disposed of.

Cleaning of Solid Timber / Veneers and Lacquered Surfaces. Any spillage should be removed immediately by using a damp cloth, then wiping dry the surface with a clean dry duster. Repeat this procedure for periodic cleaning. The use of furniture polishes or sprays is not necessary or recommended.

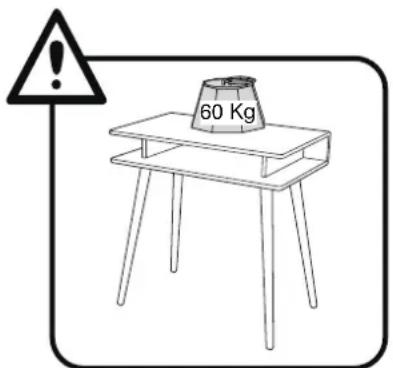

60 Kg

General information

If for any reason you should have problems with your Habitat product, please contact the store from which you purchased it.

Please retain your receipt as proof of purchase.

If you have any comments or suggestions regarding this product, assembly instructions or service

received, please contact the store or Habitat Head Office via its web site: www.habitat.co.uk or write directly to: Habitat Retail Ltd. 489-499 Avebury Boulevard, Milton Keynes MK9 2NW

Components - Panels

If you need help or have damaged or missing parts, email: [e-mail] or call: 0344 499 4686

Please check you have all the panels listed below

Note: There are 'Batch Code' labels where shown on the indicated items, these should be retained.

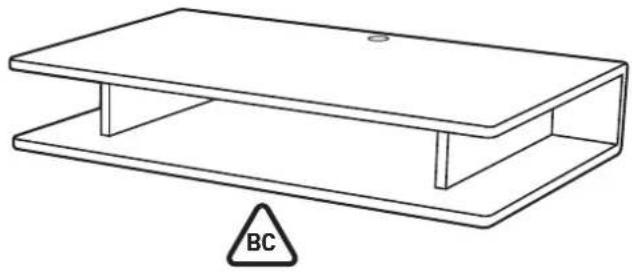

Line drawing of a two-tiered rectangular electronic device with a warning triangle labeled 'BC' at the base (no text or symbols on the device itself)

A 1PC

Simple line drawing of a cylindrical object with a flat end (no text or symbols)

B 4PCS

Assembly Instructions

Step 1

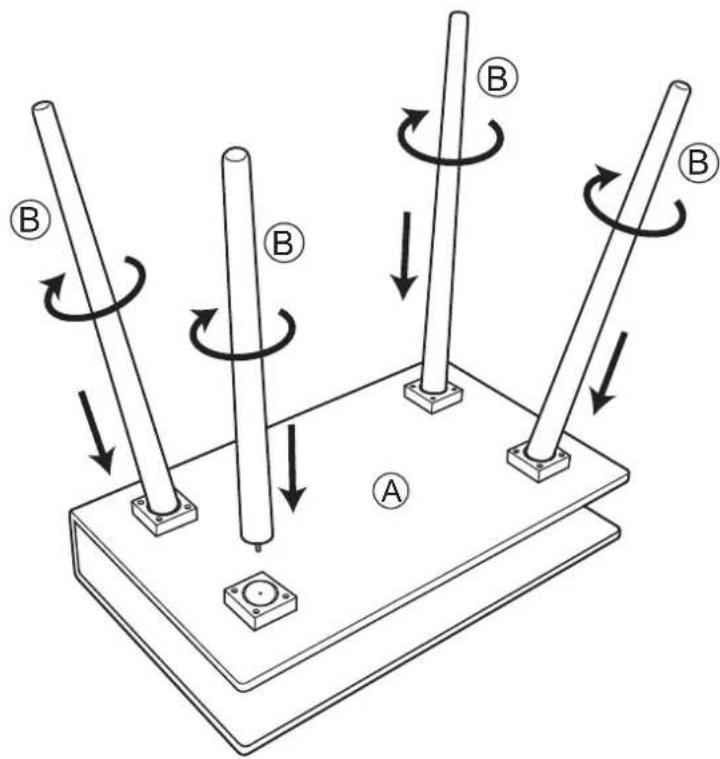

Diagram illustrating magnetic field lines around poles labeled A and B, showing rotational motion with arrows indicating direction.

Step 2

Be careful when turning desk upright - 2 person lift!

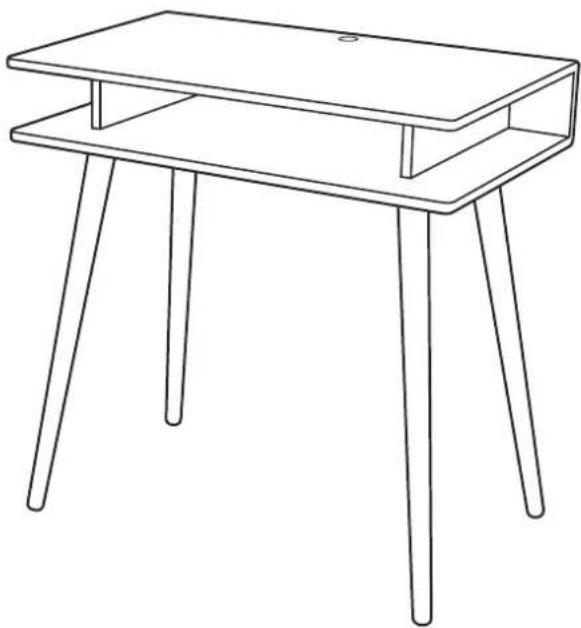

Line drawing of a simple wooden side table with four legs and a matching front panel (no text or symbols)
