Before Use

Congratulations on your purchase of this Sony VAIO ^® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing.

Notice

© 2005 Sony Corporation. All rights reserved.

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof.

In the manual, the ^TM or marks are not specified.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

ENERGY STAR

As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving through the use of computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations.

ENERGY STAR is a U.S. registered mark.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Guides are provided in PDF format, which you can easily browse through and print out.

To see the user guides, click the Documentation icon on the desktop and then click Documentation in the Documentation folder.

Printed Documentation

☐ A Setting Up Poster — Describes the process from unpacking to starting up your VAIO.
Specifications Guide — Contains a table of specifications and a list of bundled software.
☐ Troubleshooting Guide — Contains solutions to common problems.
☐ Recovery Guide — Contains an explanation of how to recover your computer's system if you need to.

Booklets containing the following information: Sony Guarantee conditions, Safety Regulations, Modem Regulations, Wireless LAN Regulations and Bluetooth Regulations.

Non-printed Documentation

Help and Support Center

Help and Support Center is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use Microsoft Windows XP and your computer.

Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the Internet.

To access Help and Support Center, click Start and then Help and Support. Or go to the Help and Support Center by

pressing the Microsoft Windows key and the F1 key.

Further Sources

Consult the Online Help files of the software you are using for detailed information on features and troubleshooting.
☐ Go to www.club-vaio.com to find online tutorials about your favorite VAIO software.

Ergonomic Considerations

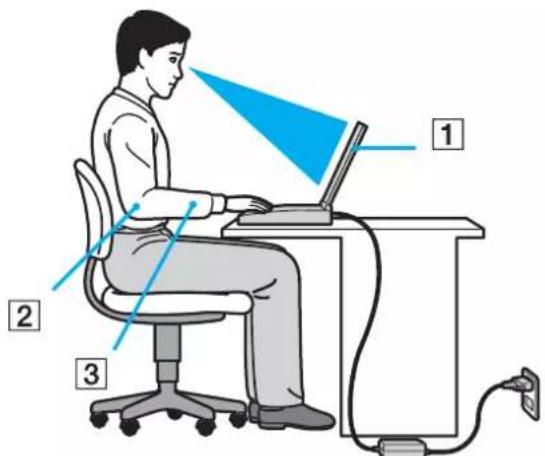

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments:

Illustration of a person using a laptop with labeled parts including head, arm, and cable, showing instructional or technical instructions.

☐ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.

VAIO

☐ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.
☐ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
☐ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.
☐ Positioning an external display – When using an external display, set the display at a comfortable viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started with using your VAIO computer.

☐ Locating Controls and Ports (page 12)
☐ About the Indicator Lights (page 19)
□ Connecting a Power Source (page 20)
☐ Using the Battery Pack (page 22)
□ Shutting Down Your Computer Safely (page 28)

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

! The following illustrations may appear different from your model, depending on the LCD size as well as the country or area of your residency.

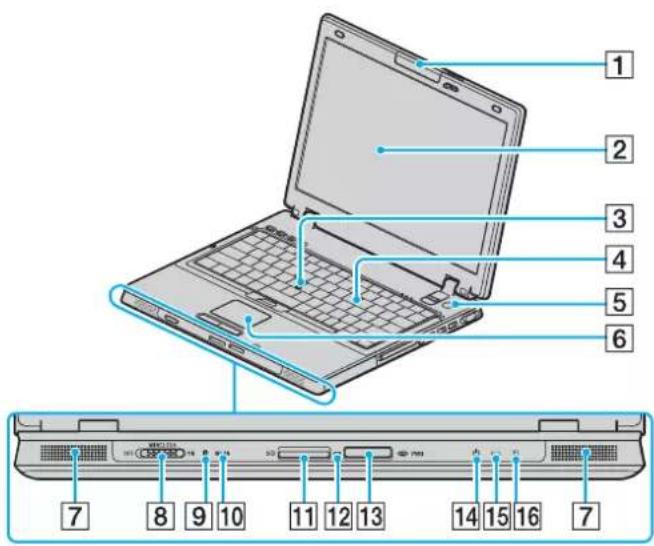

Front

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 7

1 Built-in MOTION EYE camera ^*1 (page 38)
2 LCD screen (page 139)
3 Pointing stick (page 35)
4 Keyboard (page 30)
5 Power button
6 Touch pad (page 34)
7 Speaker
8 WIRELESS switch (page 55)
9 Bluetooth indicator ^1 (page 19)
10 WLAN (Wireless LAN) indicator (page 19)
11 SD card slot (page 51)
12 Media Access indicator (page 19)
13 Memory Stick media slot ^2 (page 48)
14 Power indicator (page 19)
15 Battery indicator (page 19)
16 Hard disk drive indicator (page 19)
*1 On selected models only.
*2 Your computer supports Memory Stick Duo media and Memory Stick Pro high speed and high capacity capabilities.

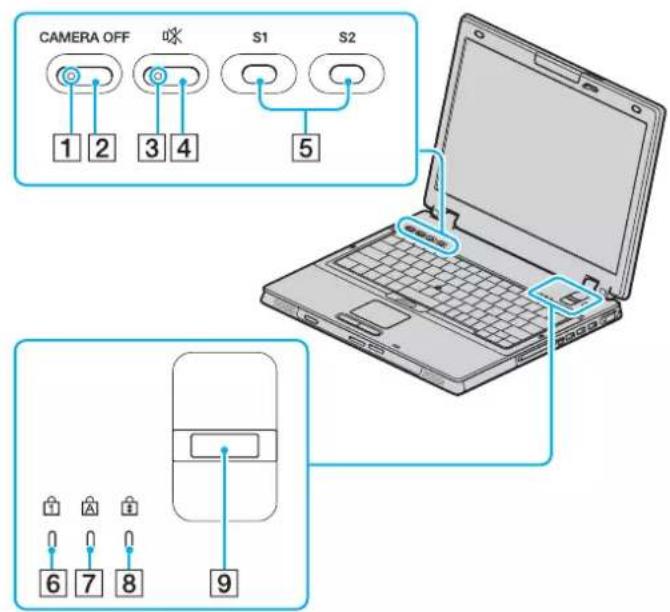

CAMERA OFF 1 2 3 4 S1 S2 6 7 8 9

1 CAMERA OFF indicator* (page 19)
2 CAMERA OFF button* (page 38)
3 Mute indicator (page 19)
4 Mute button (page 37)
5 S1/S2 buttons (page 37)
6 Num lock indicator (page 19)
7 Caps lock indicator (page 19)
8 Scroll lock indicator (page 19)
9 Fingerprint sensor See the printed Security Features Guide for more information.

* On selected models only.

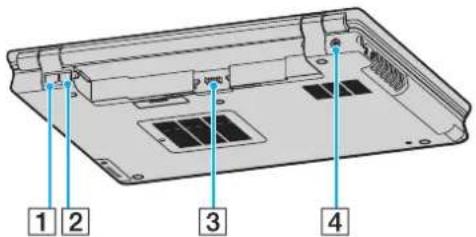

Back

1 2 3 4

1 Network (Ethernet) port (page 114)
2 Modem port (page 53)
3 Battery connector (page 22)
4 DC In port (page 20)

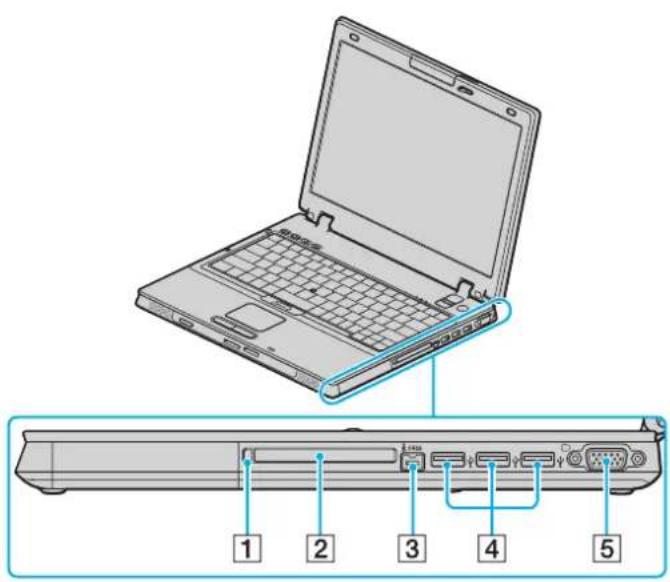

Right

Laptop screen diagram with labeled ports and connectors, showing front and rear views with numbered labels

1 PC Card eject button (page 44)
2 PC Card slot (page 44)
3 i.LINK® (IEEE1394) S400 port (page 112)
4 Hi-Speed USB (USB 2.0) port* (page 107)
5 Monitor (VGA) port (page 96)

* Supports high-/full-/low- speeds.

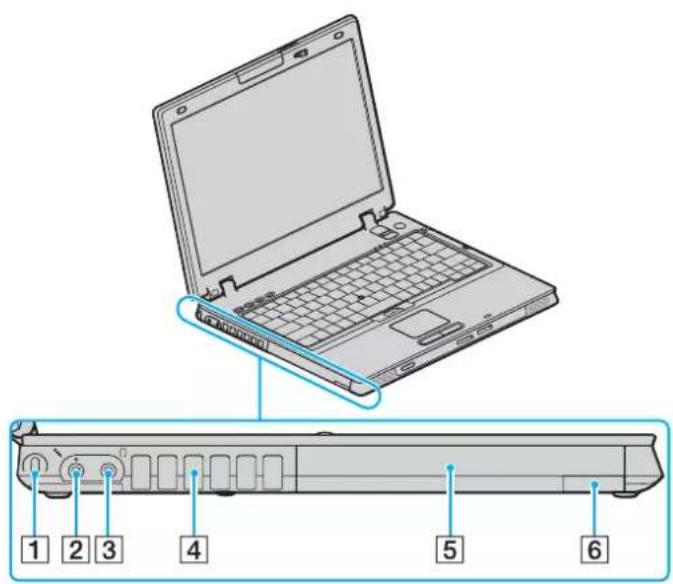

Left

Laptop diagram with labeled ports and cable connections, showing front and rear views of the device.

1 Security slot
2 Microphone jack (page 106)
3 Headphones jack (page 94)
4 Air vent
5 Multi function bay (page 39)
6 Multi function bay unit eject button (page 39)

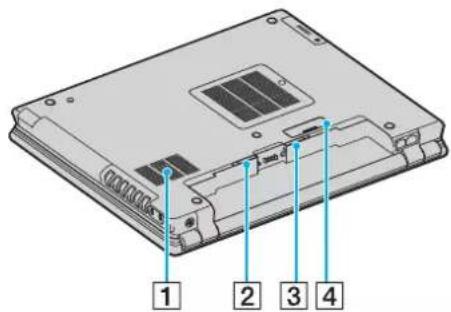

Bottom

1 2 3 4

1 Air vent
2 RELEASE latch (page 27)
3 LOCK/UNLOCK switch (page 22)
4 Multi function bay docking station connector (page 84)

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions
Power ⏻	Illuminates when the power of the computer is on, blinks in Standby mode, and turns off when the computer is in Hibernate mode or off.
Battery ☐	Illuminates when the computer is using battery power, blinks when the battery is running out of power, and double-blinks when the battery is charging.
Media Access	Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.
Mute ⏻ Illuminates when the volume is turned off.
Hard disk 📋	Illuminates when data is read from or written to the hard disk. Do not enter Standby mode or turn off the computer when this indicator is on.
Num lock 📌	Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is off.
Caps lock 🗑	Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps Lock indicator is off.
Scroll lock 🖱	Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scr Lk indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.
Bluetooth ⚙^	Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.
CAMERA OFF^	Illuminates when the Built-in MOTION EYE camera is off.
WIRELESS LAN Illuminates when the wireless LAN function is running.

* On selected models only.

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

Use the computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter.
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable attached to the AC adapter (3) into the DC In port (4) on the computer or on the optional multi function bay docking station.

The shape of the DC In plug varies depending on the AC adapter.

To disconnect the computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use the AC adapter for a long period of time, put the computer into Hibernate mode. See Using Hibernate Mode (page 124). This power saving mode saves you the time of shutting down in the normal way.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

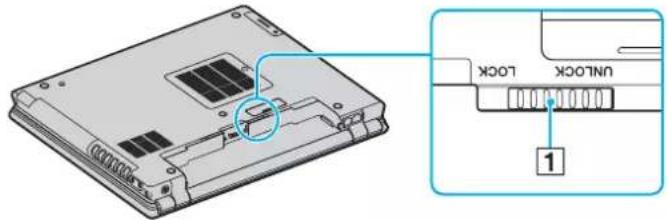

2 Slide the LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position.

Diagram showing a laptop with labeled lock and unlock ports, highlighting a key component '1'

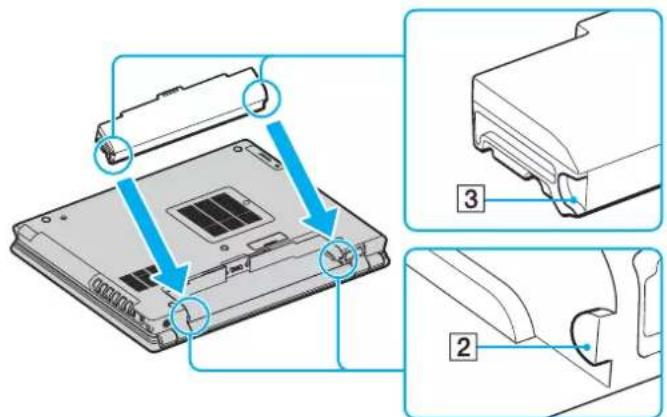

3 Slide the battery diagonally into the battery compartment until the projection (2) at either side of the battery compartment fits into the U-shaped cut (3) on the respective side of the battery.

Diagram showing a laptop's internal structure with labeled parts and blue arrows indicating assembly or insertion steps.

4 Rotate the battery in the direction of the arrow, and push the battery down into the compartment until it clicks into place.

Illustration of a laptop with a partially open lid and a blue logo on the cover (no text or symbols)

5 Slide the LOCK/UNLOCK switch to the LOCK position to secure the battery on the computer.

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack.

2 Connect the AC adapter to the computer.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is about 85% charged, the battery indicator turns off.

Battery indicator light status Meaning
On The computer is using battery power.
Blinks The battery is running out of power.
Double blinks The battery is charging.
Off The computer is using AC power.

When the battery is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.

The battery pack supplied with the computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power indicator lights start flashing.

For some software applications and some peripheral devices, the computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or Hibernate. If the battery wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Removing the Battery Pack

! You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.
2 Slide the LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position.

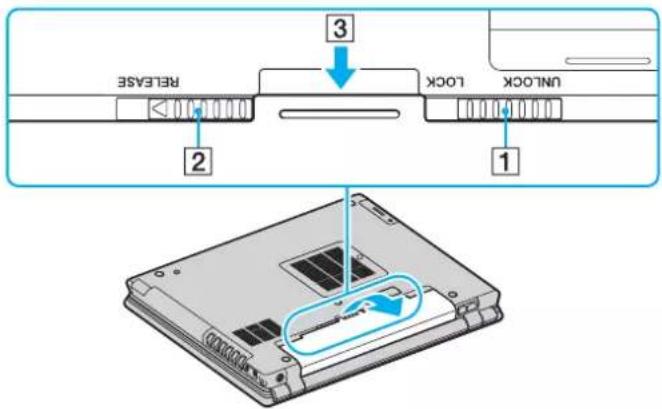

3 Slide and hold the RELEASE latch (2), hook your fingertip under the tab (3) on the battery, and turn the battery in the direction of the arrow, and then slide it away from the computer.

RELEASE 2 3 LOCK 1 UNLOCK

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start and then Turn Off Computer.

The Turn off computer window appears.

3 Click Turn Off.

4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.

The power indicator light turns off.

See the printed Troubleshooting Guide if you have problems shutting down the computer.

Using Your VAIO Computer

Once you have read and followed the information in the printed Specifications Guide, you can start using your computer safely and confidently.

Read on to get the most out of using your computer.

□ Using the Keyboard (page 30)
□ Using the Pointing Device (page 34)
☐ Using Special-function Buttons (page 37)
☐ Using the Built-in MOTION EYE Camera (page 38)
□ Using the Multi Function Bay (page 39)
□ Using PC Cards (page 44)
□ Using the Memory Stick Media (page 48)
□ Using Other Memory Cards (page 51)
□ Using the Internet (page 53)
□ Using Wireless LAN (WLAN) (page 55)
□ Using the Bluetooth Functionality (page 65)

VAIO

30

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

For more information on the standard keys, see Help and Support Center and click on the Customizing your computer link.

The VAIO-Link web site (www.vaio-link.com) also contains glossary information to help you use the keyboard.

Combinations and Functions with the Fn Key

[NO TEXT]

Some functions are not available until Windows is launched.

Combinations/Feature Functions
Fn + (F3/F4) : speaker volume	Adjusts the built-in speaker volume.To increase volume, press Fn+F4 and then ↑ or →, or keep pressing Fn+F4.To decrease volume, press Fn+F3 and then ↓ or ←, or keep pressing Fn+F3.
Fn + ⚙ (F5/F6): brightness control	Adjusts the brightness of the LCD.To increase lightness intensity, press Fn+F6 and then ↑ or →, or keep pressing Fn+F6.To decrease lightness intensity, press Fn+F5 and then ↓ or ←, or keep pressing Fn+F5.
Fn + LCD / → (F7): switch to the external display	Toggles between the LCD, external device (e.g. monitor) and both LCD and external device.

Fn + (F10): zoom

Changes the screen resolution to magnify/restore the screen view.

The default resolutions of the standard view and the magnified view are as follows:

XGA LCD models

Standard view: 1024 x 768 pixels

Magnified view: 800 x 600 pixels

WXGA LCD models

Standard view: 1280 x 800 pixels

Magnified view: 1024 x 600 pixels

SXGA+ LCD models

Standard view: 1400 x 1050 pixels

Magnified view: 1024 x 768 pixels

WXGA+ LCD models

Standard view: 1440 x 900 pixels

Magnified view: 1280 x 768 pixels

WSXGA+ LCD models

Standard view: 1680 x 1050 pixels

Magnified view: 1280 x 768 pixels

WUXGA LCD models

Standard view: 1920 x 1200 pixels

Magnified view: 1280 x 768 pixels

The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the LCD screen with a higher resolution.

This key combination is disabled during video playback. Make sure to quit such software before pressing the key combination.

This key combination may not work with graphic images as it magnifies the screen view by changing the resolution.

The location and size of software windows may change when the screen view is magnified or the standard view is restored because pressing this key combination changes the resolution.

When the LCD screen view is magnified, switching the view to the external display disables the function and restores the standard view.

Fn + ^72 (F12): Hibernate

Provides for the lowest level of power consumption. When you execute this command, the states of the system and the peripheral devices are written to the hard disk and the system power is turned off. To return the system to its original state, use the power switch to turn on the power.For details on power management, see Using the Power Saving Modes (page 121).

Using the Pointing Device

Your computer is equipped with two types of the pointing device: the touch pad and the pointing stick.

By default, both pointing devices are enabled but you can disable one of the devices to suite your preference. To change the pointing device settings, see Disabling a Pointing Device (page 36).

Using the Touch Pad

The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description
Point Slide one finger on the	touch pad to place the pointer (2) on an item or object.
Click Press the left button (3)	once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide one finger while pressing the left button.
Scroll	Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

Using the Pointing Stick

The keyboard contains a cursor-pointing device, the pointing stick (1). You can point to, select, drag, and scroll objects on the screen using the pointing stick in combination with the buttons located below the space bar.

The pointer (2) moves in the direction that you push the pointing stick. The stronger you push the pointing stick, the faster moves the pointer.

Diagram illustrating a hand interacting with a digital interface, showing a curved path and labeled points 1 through 5.

Action Description
Point Push the pointing stick	to place the pointer on an item or object.
Click Press the left button (3)	once.
Double-click Press the left button twice.
Right-click Press the right button (5) once. In many applications, this action displays a shortcut menu.
Drag Push the pointing stick	while pressing the left button.
Scroll	Push the pointing stick up and down or sideways while pressing the center button (4). (The scroll function is available only with applications that support a pointing stick scroll feature.)

The tip on the pointing stick is a consumable. You can replace it with a supplied spare cap when necessary.

Disabling a Pointing Device

You can change the pointing device settings to disable the pointing devices.

To disable a pointing device

1 Click Start and then Control Panel.
2 Click Printers and Other Hardware.
3 Click Mouse.

The Mouse Properties window appears.

4 Click the Device Select tab.
5 Select radio buttons to disable the desired pointing device.
6 Click OK.

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Special-function button Functions
S1[S1] S2	By default, the S1 button toggles the display output between the LCD and external device and the S2 button places the computer in Standby mode. You can also link to these shortcut buttons another action that you execute often.See Setting Up Your Computer with VAIO Control Center (page 120).
CAMERA OFF button	Turn the camera on and off. The LED turns on when the camera is turned off.
Mute button	Turns the volume on and off. The LED turns on when the volume is turned off.

Using the Built-in MOTION EYE Camera

Your computer is equipped with an built-in MOTION EYE camera to add video functionality to interactive communication software, for example Windows Messenger and Windows MovieMaker.

Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using such software. To turn off the camera, press the CAMERA OFF button located above the keyboard. The CAMERA OFF indicator illuminates to indicate the off-line state.

Note that launching or exiting your interactive communication software does not activate or deactivate the MOTION EYE camera, respectively. Make sure that the camera is activated before using the software.

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera.

The viewer window may show some noises, for example horizontal lines, if you view a rapid-moving object. This is normal and does not indicate a malfunction.

Using the Multi Function Bay

Your computer is equipped with a component bay, called multi function bay, for hardware enhancement. You can purchase a bay unit and install it in the computer.

Available bay units are:

☐ HDD adapter bay unit (for installing your PATA hard disk drive)
☐ 80GB HDD bay unit
☐ DVD+R Double Layer/DVD±RW drive bay unit — See Using the Optical Disc Drive (page 73).

The multi function bay contains a weight saver at the time of delivery.

To change a bay unit

1 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
2 Select the hardware you want to unplug.
3 Click Stop.
The Stop a Hardware Device window appears.
4 Confirm that the device can be safely removed from the system.
5 Click OK.
A window appears, explaining that it is safe to remove the device.
6 Click OK.
7 Click Close.

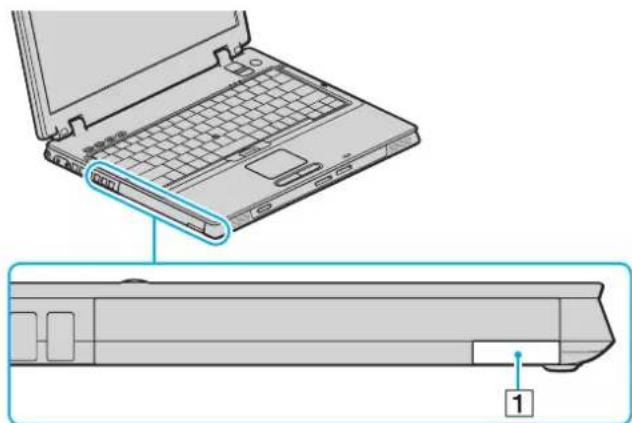

8 Push the multi function bay unit eject button (1) to pop it out.

Diagram of a laptop keyboard and its rear panel showing the front view with labeled component (no text or symbols present)

9 Gently pull the button to pop out the installed bay unit.

10 Gently take hold of the unit and pull it out of the bay.

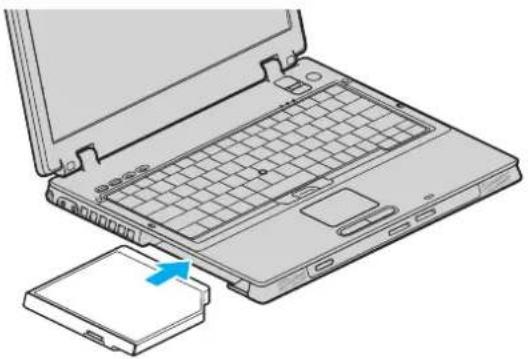

11 Insert another bay unit with the label facing up into the bay until it clicks into place.

Line drawing of a laptop with a separate physical device showing a blue arrow pointing to the screen (no text or symbols present)

About bay unit protection against theft

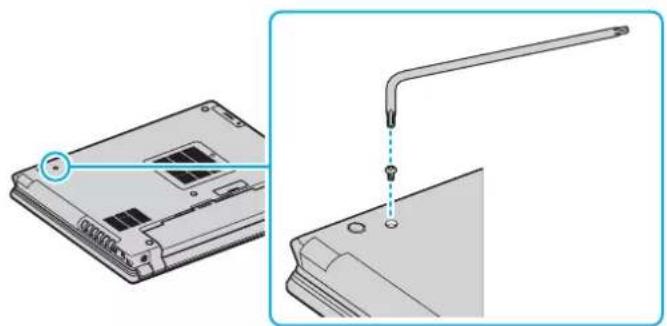

To protect the HDD bay unit against theft, secure the bay unit on the computer using a security screw ^ and L-shaped screwdriver ^ .

Diagram showing a laptop with a screwdriver inserted into a hard drive, alongside its open panel (no text or symbols present)

* Supplied with optional or supplied HDD bay unit accessories. See the Specifications for details about accessories.

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

Inserting a PC Card

! Some PC Cards or their functions may not be compatible with the computer.

You do not need to shut down the computer before inserting or removing a PC Card.

To insert a PC Card

1 Insert the PC Card into the PC Card slot with the front label facing up.
2 Gently push the PC Card into the slot.
The PC Card is automatically detected by your system.
The Safely Remove Hardware icon appears on the taskbar.

Simple diagram showing a rectangular object with a blue arrow pointing to a rectangular block (no text or symbols)

Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not recognized. Restart your system to correct the problem. Restarting will restore the original state of the computer.

While the card is inserted, the computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you remove the card before the computer enters Hibernate mode.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC Card in the correct direction. See the manual supplied with your PC Card for more information on use.

Do not carry the computer while touching the head of a PC Card, because pressure or shock may damage the connector pins.

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly.

To remove a PC Card

To remove a PC Card when the computer is off, skip steps 1 to 7.

If you remove the PC Card from the computer when it is still turned on, your system could malfunction and you might lose any unsaved data.

Before you remove the PC Card, click the PC Card icon on the taskbar and close the card. Close any applications that use the PC Card before removing the card. Otherwise, data may be lost.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug.

3 Click Stop.

The Stop a Hardware Device window appears.

4 Confirm that the device can be safely removed from the system.

5 Click OK.

A window appears, explaining that it is safe to remove the device.

6 Click OK.

7 Click Close.

8 Push the PC Card release button so that the release button pops out.

9 Push the PC Card release button a second time so that the PC Card pops out.

VAIO

47

Using Your VAIO Computer

10 Gently take hold of the Card and pull it out of the slot.
11 If the PC Card release button is still out, push it back in.

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile device especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it can be used for external data storage.

See the printed Specifications Guide to see which Memory Stick media types are compatible with your model and if there are any limitations.

☐ You can purchase Memory Stick media from the Sony Style website (www.sonystyle-europe.com), or from your local Sony dealer.
Detailed information about which VAIO computers are compatible with which Memory Stick media can be found at www.vaio-link.com.

Write-protecting a Memory Stick Media

Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.

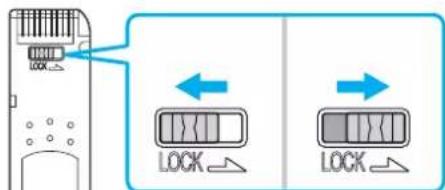

Move the tab horizontally or vertically * to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the Memory Stick media.

LOCK LOCK

* Some versions of Memory Stick media do not have an erasure prevention switch.

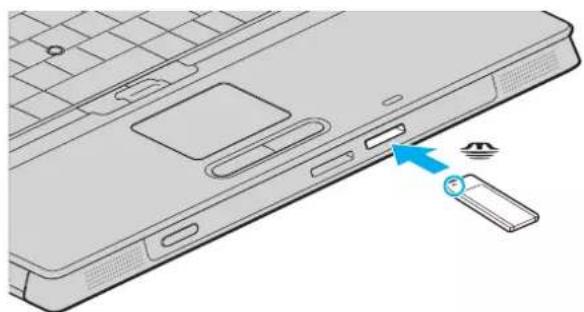

Inserting a Memory Stick Media

There are two ways you can insert a Memory Stick media into your computer:

□ Using the Memory Stick media slot;

☐ Using a PC Card slot. To do this, you need an optional PC Card adapter.

You can only insert one Memory Stick media at a time.

To insert a Memory Stick media using the Memory Stick media slot

1 Insert the Memory Stick media with the arrow facing up and toward the Memory Stick media slot.

2 Carefully slide the Memory Stick media into the slot until it clicks in place.

The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).

Diagram of a laptop keyboard with a mouse cursor pointing to the right side (no text or symbols present)

! Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer or the Memory Stick media, do not force the Memory Stick media into the slot if it does not insert smoothly.

Do not insert more than one Memory Stick media into the Memory Stick media slot. Inserting the media improperly may damage the computer.

The computer supports Memory Stick Duo media and is equipped with the Memory Stick combo slot that is compatible with both standard- and duo-size media. For more information on Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/.

To view the contents of the Memory Stick media

1 Click Start and then My Computer to open the My Computer window.
2 Double-click the Memory Stick media icon 📄 to view the list of data files saved in the Memory Stick media.

To format a Memory Stick media

Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.

Removing a Memory Stick Media

To remove a Memory Stick media using the Memory Stick media slot

1 Check that the Memory Stick media indicator is off.
2 Push the Memory Stick media in toward the computer. The Memory Stick media ejects.
3 Pull the Memory Stick media out of the slot.

!

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Memory Stick media indicator is turned on. If you do, you may lose data. Large volumes of data may take time to load, so be sure the indicator is off before removing the Memory Stick media.

Using Other Memory Cards

In addition to the Memory Stick media slot, your computer is equipped with an SD card slot to accommodate other memory cards. You can use this slot to transfer data between digital cameras, camcorders, music players, and other audio/video devices.

Before You Use Memory Cards

Your computer supports the following memory cards:

□ Multi Media Card (MMC)
□ Secure Digital (SD)

For the latest information on compatible memory cards, visit the Sony online support Web site regularly.

! Always insert the correct memory card into the appropriate memory card slot.

Do not attempt to insert a different memory card or memory card adapter into a different memory card slot. An incompatible memory card or adapter may be difficult to remove from the wrong slot and can cause damage your computer.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

Inserting a Memory Card

To insert a memory card

1 Locate the SD card slot on the front of the computer.

SD PRO

2 Insert the memory card into the slot, in the direction of the arrow on the media.

Do not force the card into the slot.

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing a Memory Card

Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.

To remove a memory card

1 Press the extended part of the memory card, causing it to extend out from the slot.
2 When the card extends, carefully pull it out of the slot.

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (not supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer.

2 Plug the other end into the wall jack (2).

The computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem. If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard. The New Connection Wizard appears.
2 Click Next. If the Location Information window appears, follow the on-screen instructions.
3 If it is not already selected, click to select Connect to the Internet, and click Next.
4 Follow the on-screen instructions.

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an Access Point, which means that you can communicate between a limited number of computers (ad-hoc). Or you can communicate through an Access Point, which allows you to create a full infrastructure network (infrastructure).

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the WLAN functionality, read the Regulations Guide carefully. Channel selection is explained further in this manual (see Wireless LAN Channel Selection (page 63)).

WLAN uses the IEEE802.11b/g standard, which specifies the used technology. The standard includes the encryption method: Wired Equivalent Privacy (WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a specification of standards based, interoperable security enhancements that increase the level of data protection and access control for existing WiFi networks. WPA has been designed to be forward compatible with the IEEE802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible Authentication Protocol)). Data encryption protects the vulnerable wireless link between clients and Access Points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication.

Wireless LAN devices using the IEEE802.11a standard and the ones using the IEEE802.11b or g standard cannot communicate because the frequencies are different.

IEEE802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.

IEEE802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE802.11b standard.

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

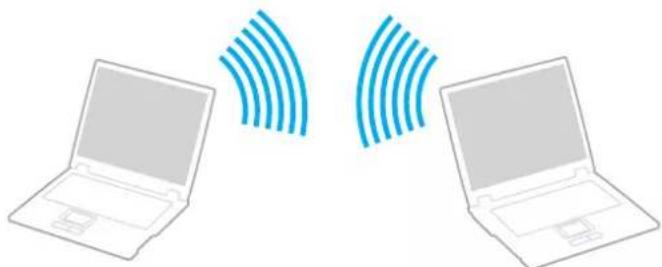

Illustration of two laptops with signal waves between them, no text or symbols present

To communicate without an Access Point (ad-hoc)

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality *1, double-click / on the taskbar to display the Wireless Device Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.

2 Click Start and then Control Panel.

3 Click Network and Internet Connections.

4 Click Network Connections.

The Network Connections window appears.

5 Right-click Wireless Network Connection, then click Properties.

The Wireless Network Connection Properties window appears.

6 Select the Wireless Networks tab.

7 Click the Add... button.

The Wireless network properties window appears.

8 Enter a Network name (SSID) ^*2 .

You can choose a 32-digit alphanumeric name.

9 Select Open from the Network Authentication drop-down box.

10 Select WEP from the Data Encryption drop-down box.

11 Deselect the The key is provided for me automatically option button.

Some information becomes visible.

12 Enter the Network key ^*2 .

The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal ^3 characters long. You can choose whatever you want.

VAIO

59

Using Your VAIO Computer

13 Enter exactly the same Network key again, for confirmation.

14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the bottom of the screen.

15 Click OK.

Your Network name appears in the Preferred networks.

16 Click Advanced.

The Advanced window appears.

17 Select the Computer-to-computer (ad hoc) networks only option button.

18 Click Close.

19 Click OK.

The computer is ready to communicate with another computer.

*1 See the printed Specifications Guide to see whether your model supports the Bluetooth functionality.
^*2 If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same Network name and the same Network key on all computers as on the first computer you configure.
*3 Hexadecimal: A number representation using the digits 0-9, with their usual meaning, plus the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal) 10 to 15.

An ad-hoc network does not support WPA.

!

In France, only certain channels are legally allowed when using WLAN outdoors. For more information, see the Regulations Guide.

To disconnect from a computer-to-computer (ad-hoc) network

1 Click Start and then Control Panel.
2 Click Network and Internet Connections.
3 Click Network Connections.

The Network Connections window appears.

4 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.
The Wireless Network Connection Status window appears.
5 Click Properties.
The Wireless Network Connection Properties window appears.
6 On the Wireless Networks tab, click Advanced.
The Advanced window appears.
7 Click to select Any available network (access point preferred), and click Close.
8 Click OK.
9 Click Close.
10 Turn off the WIRELESS or WIRELESS LAN switch.

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices within a specific range.

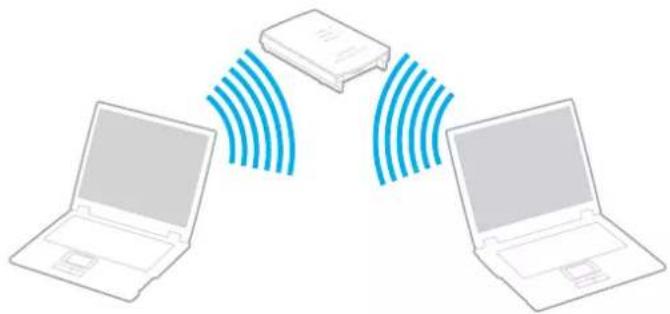

Illustration of two laptops connected via a wireless router, with no text or symbols present.

To connect to a wireless network

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality ^* , double-click ( ) on the taskbar to display the Wireless Device Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.

2 Click Start and then Control Panel.

3 Click Network and Internet Connections.

4 Click Network Connections.

The Network Connections window appears.

5 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection window appears.

6 Select the network you want to use.

7 Enter the Network Key.

8 Click Connect.

After 30 seconds, the connection is established.

* See the printed Specifications Guide to see whether your model supports the Bluetooth functionality.

For more information about setting up an access point, see the documentation supplied with your Access Point.

The WPA key needs to contain at least 8 characters.

Wireless LAN Channel Selection

In an 802.11b/g configuration, channel 1 to 13 can be used.

(a) With an Access Point ("Infrastructure")

☐ The channel used will be the channel selected by the Access Point.

! For details on how to select the channel that will be used by the Access Point, see the access point manual.

(b) Without an Access Point ("ad-hoc")

☐ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.

In France, only certain channels are legally allowed when using WLAN outdoors. For more information, see the Regulations Guide.

☐ If the Wireless connection is initiated by a peer Wireless LAN equipment, the Wireless LAN communication will make use of the channel selected by the peer Wireless LAN equipment.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE802.11b and IEEE802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE802.11g products are designed to reduce the communication speed to ensure communications with IEEE802.11b products.

When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

In France, only certain channels are legally allowed when using WLAN outdoors. For more information, see the Regulations Guide.

Using the Bluetooth Functionality

The Bluetooth functionality is available on selected models only. See the printed Specifications Guide to see whether your model supports the Bluetooth functionality.

You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables and up to 10 meters range in open space.

To connect to a Bluetooth device

1 Turn on the WIRELESS switch.
2 Double-click (B / L) on the taskbar to display the Wireless Device Switch window.
3 Select the Enable Bluetooth Device option.
4 Click OK.

Notes on using the Bluetooth functionality

☐ The data transfer rate varies, depending on the following conditions:

☐ Obstacles, such as walls, located between devices
☐ Distance between devices
□ Material used in walls
☐ Proximity to microwaves and cordless telephones
☐ Radio frequency interference and other environmental conditions
□ Device configuration
□ Type of software application
□ Type of operating system
☐ Use of both Wireless LAN and Bluetooth functionalities at the same time on the computer
☐ Size of file being exchanged

Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer due to electromagnetic interference from the environment.
☐ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.
☐ The 2.4 GHz band with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth devices use the technology to minimize the interference from other devices that use the same wave length. Communication speed and distances can be inferior to the standard values. Interference from other devices may also stop communications. Do not simultaneously use the Bluetooth functionality and wireless communication devices which use the 2.4 GHz band, such as a wireless LAN PC Card.

Read the Regulations Guide before using the Bluetooth functionality.

☐ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party companies.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine whom you choose to communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.

The first time two Bluetooth devices communicate, a common Passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the Passkey.

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

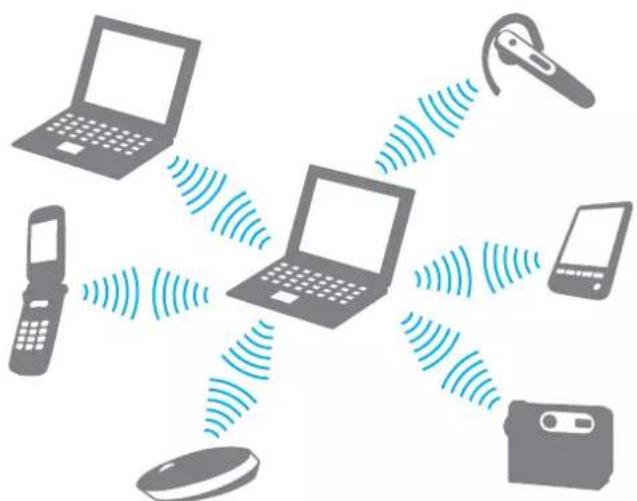

Diagram showing five connected devices (laptop, remote, phone, radio, and monitor) with wireless signal lines between them (no text or labels)

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, see the help file on the Bluetooth Utility software.

To see the help file

1 Right-click the Bluetooth icon 📋 on the taskbar and select Bluetooth Settings from the menu.

2 Select Help from the Help menu.

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Stopping the Bluetooth Connection

To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.

Using the Bluetooth Headset

Your computer may be supplied with the Bluetooth headset for a video conference over the Internet using interactive communication software, for example Windows Messenger. For details on using the Bluetooth headset, see the manual that came with the Bluetooth headset.

See the printed Specifications Guide to see whether your model is supplied with a Bluetooth headset.

To connect the headset with a computer

1 Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.

2 Press and hold the volume buttons until the indicator light blinks in red.

3 Right-click the Bluetooth icon 📋 on the taskbar and select Bluetooth Settings from the menu. The Bluetooth Settings window appears.

4 Click New Connection.

The Add New Connection Wizard window appears.

5 Select Express Mode [Recommended] and then click Next.

The wizard searches for Bluetooth devices in range and lists available devices, if any.

6 Select HBH-608 and then click Next.

The Bluetooth Manager-Bluetooth Security window appears when a connection is established.

7 Enter "0000" for Bluetooth Passkey (PIN) and then click OK.

8 Press the headset power button.

9 Click Finish.

The headset icon appears in the Bluetooth Settings window.

10 Click the headset icon and then press the headset power button.

The computer should now be ready to communicate with the Bluetooth headset.

To disconnect the headset from the computer

1 Right-click the Bluetooth icon 📋 on the taskbar and select Bluetooth Settings from the menu. The Bluetooth Settings window appears.
2 Select Disconnect from the Bluetooth menu.
3 Click Yes.

Using Peripheral Devices

You can add functionality to your computer by using the various ports on the computer.

☐ Using the Optical Disc Drive (page 73)
☐ Connecting a Multi Function Bay Docking Station (page 81)
□ Connecting External Speakers (page 94)
□ Connecting an External Display (page 95)
☐ Selecting Display Modes (page 100)
☐ Using the Multiple Monitors Function (page 103)
☐ Connecting an External Microphone (page 106)
☐ Connecting a Universal Serial Bus (USB) Device (page 107)
□ Connecting a Printer (page 110)
☐ Connecting an i.LINK Device (page 112)

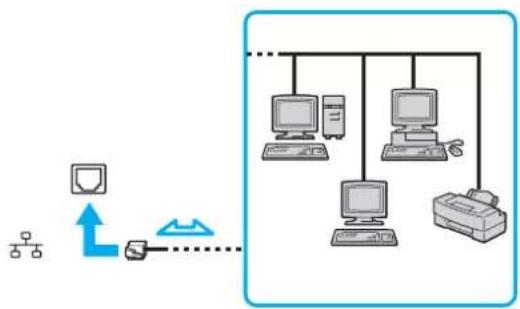

☐ Connecting to a Network (LAN) (page 114)

Using the Optical Disc Drive

If you purchase an optional disc drive bay unit, it will be supplied with your computer.

When playing or recording on CDs or DVDs, replace the installed weight saver with the disc drive bay unit. See Using the Multi Function Bay (page 39) for the detailed instructions.

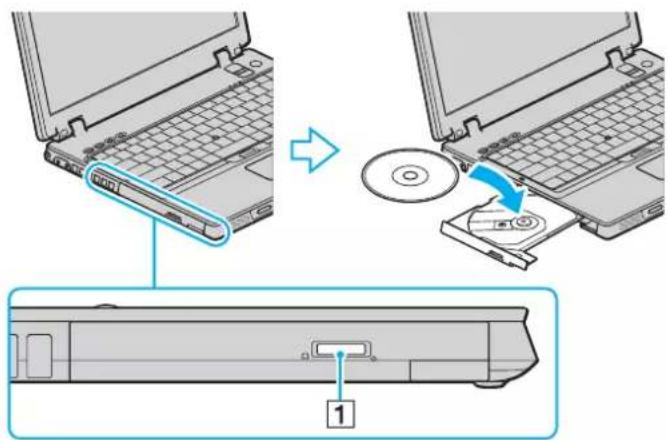

To insert a disc

1 Turn on the computer.
2 Press the drive eject button (1) to open the drive. The tray slides out.

3 Place a disc in the middle of the tray with the label side facing up until the disc clicks into place.

Diagram illustrating the process of inserting a CD into a laptop, showing file transfer and component insertion steps.

4 Close the tray by pushing it in gently.

Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction.

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.

See the printed Troubleshooting Guide if you have problems using discs.

The location of the drive eject button depends on the model you purchased. See Locating Controls and Ports (page 12).

Reading and Writing CDs and DVDs

Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.

Optical disc drive Plays Records to
CD-ROM CD, CD-R, and CD-RW —
DVD-ROM DVD and most DVD-R, DVD-RW, DVD+R, DVD+RWand DVD+R DL (Double Layer)*		—
CD-RW/DVD-ROM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,DVD+R, DVD+R DL (Double Layer)* and DVD+RW		CD-R and CD-RW
DVD±RW CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,DVD+R, DVD+R DL (Double Layer)* and DVD+RW		CD-R, CD-RW, DVD-R, DVD-RW, DVD+R,DVD+R DL (Double Layer)* and DVD+RW

* On selected models only.

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two-sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side (non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2.

Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1.

Supports 8cm disc reading, but does not support 8cm disc writing.

Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Notes on writing data onto a disc

☐ To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete this process, follow the instructions included with your software.
☐ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc drive.
☐ Do not strike or shake the computer while writing data onto a disc.
☐ Deactivate the screen saver and exit anti-virus software before writing data onto a disc.
☐ Do not use memory-resident utility software while writing data to a disc. This may cause the computer to malfunction.
☐ When using your software application to burn discs, make sure you exit and close all other applications.
☐ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
☐ Do not switch power modes while using the pre-installed software and while using the CD burning software.
☐ Never put stickers on discs. This will affect the use of the disc irreparably.
☐ Connect and use the AC adapter to power the computer or make sure your battery is at least 50 percent charged.
☐ Some DVD players and computer's DVD drives may not be able to play DVDs created on applicable models using the VAIO Zone software.

Notes on playing DVDs

To achieve optimum performance when playing DVDs, you should follow these recommendations.

☐ You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the help file on such software for details.
☐ Close all open applications before playing a DVD movie.
☐ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer to malfunction.
☐ Deactivate the screen saver and exit anti-virus software before playing a disc.
☐ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may damage your hearing and the speakers. Reduce the volume before playing a DVD.
☐ Do not switch power saving modes while the computer is playing a DVD.
☐ Region codes indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the disc. Unless a "2" (Europe belongs to region "2") or "all" (this means that you can play this DVD in most regions of the world) is labeled on your DVD disc or on the packaging, you cannot play the disc on this player.
! If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting effective.
☐ Do not try to change the region code settings of the DVD drive. Any difficulties caused by changing the region code settings of the DVD drive are out of warranty.
☐ If the computer has Wireless LAN and Wireless LAN is activated, playing DVDs may cause some interruptions in audio and video.
☐ When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers, make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause a malfunction.

Playing CDs

To play an audio CD

1 Insert the disc into the optical disc drive.

2 If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to open a CD program, such as the SonicStage software.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To determine which type of CD your computer supports, see Reading and Writing CDs and DVDs (page 75).

To copy files to a CD-RW or CD-R

! Do not strike or shake the computer while writing data onto a disc.

1 Insert a blank CD-R or CD-RW disc into the optical disc drive.

If the CD Drive window appears, click Take no action.

2 Open Windows Explorer by pressing the Windows key and the E key simultaneously.

3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy and either:

☐ Right-click the file(s) or folder(s), point to Send To, and click the optical disc drive* name.
☐ Drag the file(s) or folder(s) onto the optical disc drive icon in the Files Stored on This Computer panel.

4 Close Windows Explorer.

5 Click Start and then My Computer.
6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7 In the CD Writing Tasks box, click Write these files to CD.
8 Follow the instructions in the CD Writing Wizard.

Playing DVDs

To play a DVD

1 Close all open programs.
2 Insert the DVD into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program to play the DVD.
For instructions on how to use a program, see the help guide included with the DVD software program.

Copying Files to DVDs

The DVD writing function is available on selected models only. See the printed Specifications Guide to see whether your model is equipped with an optical disc drive capable of DVD writing.

To copy files to a DVD-R or DVD-RW

1 Connect the AC adapter to the computer.
2 Insert the disc into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program you want to use from the submenu.
For instructions on how to use a program, see the help guide included with the DVD software program.

Connecting a Multi Function Bay Docking Station

Attaching a multi function bay docking station enables you to connect additional peripherals to your computer, such as a printer and an external display.

A multi function bay docking station is not supplied with your computer and is available as an optional accessory.

Locating Ports on the Multi Function Bay Docking Station

Right

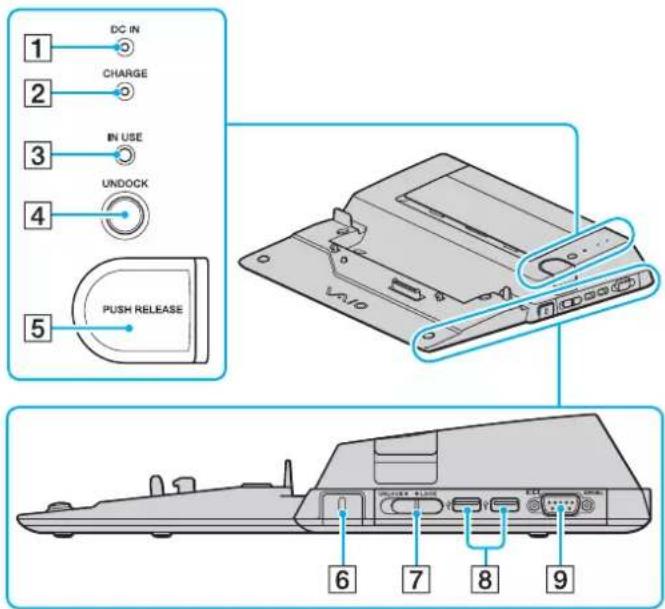

1 DC IN 2 CHARGE 3 IN USE 4 UNDOCK 5 PUSH RELEASE 6 7 8 9

1 DC IN indicator Illuminates when the power of the multi function bay docking station is on.
2 Battery CHARGE indicator Fast blinks: The battery is improperly inserted or incompatible with the computer. Double blinks: The battery is charging. Off: The battery is fully charged.
3 IN USE indicator (page 88)
4 UNDOCK button (page 88)
5 PUSH RELEASE button (page 88)
6 Security slot Insert an optional Kensington lock to lock the LOCK/UNLOCK switch.
7 LOCK/UNLOCK switch (page 84)
8 Hi-Speed USB (USB 2.0) ports (page 107)
9 Serial port Connect a serial device, such as an external modem or a terminal adapter.
* Supports high-/full-/low- speeds.

Left/Back

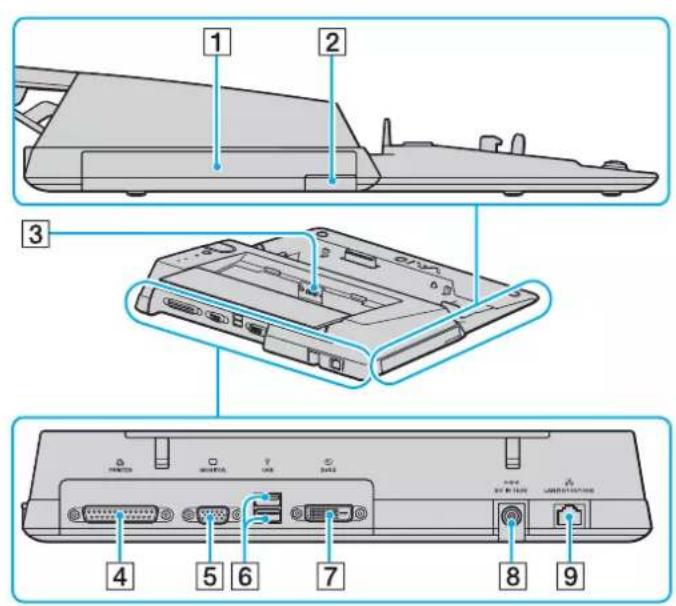

Diagram of a device rear panel with labeled ports and components in Chinese

1 Multi function bay (page 39)
2 Multi function bay unit eject button (page 39)
3 Battery charger Insert a spare battery pack to charge the battery.
4 Printer port (page 111)
5 Monitor (VGA) port (page 96)
6 Hi-Speed USB (USB 2.0) ports* (page 107)
7 DVI-D port (page 96)
8 DC IN port (page 20)
9 Network (Ethernet) port (1000BASE-T / 100BASE-TX / 10BASE-T) (page 114)

* Supports high-/full-/low- speeds.

The printer port on this multi function bay docking station is intended for printer connections only.

The multi function bay docking station can be powered only through the AC adapter supplied with the multi function bay docking station. Do not unplug the AC adapter from the multi function bay docking station and the AC outlet while using the multi function bay docking station; this may cause data damage or hardware malfunctions.

Attaching Your Computer to the Multi Function Bay Docking Station

When the computer has no battery inserted, do not attach the computer to the multi function bay docking station.

To attach your computer to the multi function bay docking station

1 Disconnect all peripherals from the computer.

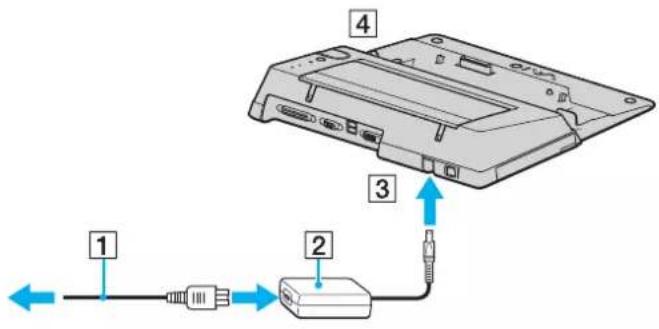

2 Plug the power cord (1) into the AC adapter and an AC outlet.
3 Plug the cable attached to the AC adapter (2) into the DC In port (3) on the multi function bay docking station (4).

Diagram showing cable connection between a device with labeled components and directional arrows

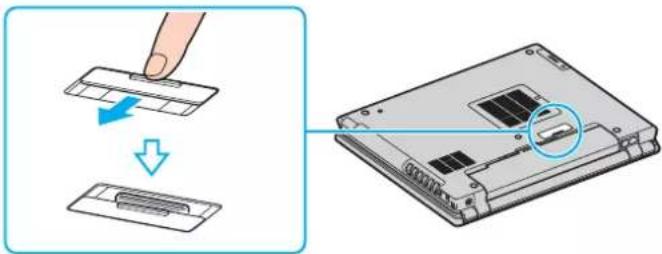

4 Slide open the multi function bay docking station connector cover on the bottom of the computer.

Diagram illustrating the process of inserting a physical component into a memory drive, with Chinese labels indicating step-by-step states.

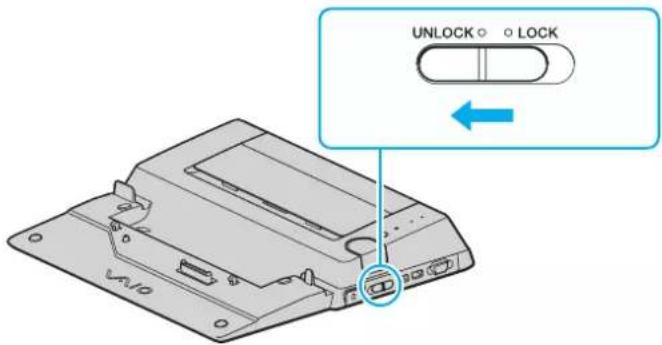

5 Slide the LOCK/UNLOCK switch on the multi function bay docking station to UNLOCK.

UNLOCK ◦ ○ LOCK LAVO

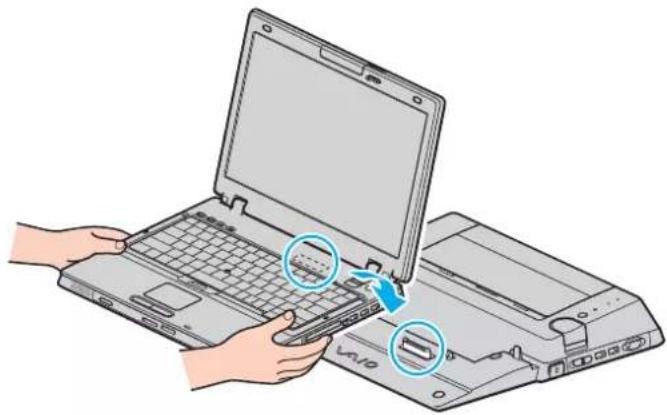

6 Place the computer on the multi function bay docking station. Bring the arrows on the back of the LCD and the multi function bay docking station together so that the connector on the bottom of the computer comes in contact with that on the docking station.

Illustration of hands installing a laptop keyboard into an open device (no text or symbols visible)

7 Gently push down the computer until it clicks into place.

Illustration of hands installing or adjusting a laptop keyboard with blue arrows indicating the process (no text or symbols present)

8 Slide the LOCK/UNLOCK switch to LOCK.

9 Turn on the computer.

Use the AC adapter supplied with the multi function bay docking station.

Do not move the computer while attached to the multi function bay docking station; this may detach the multi function bay docking station and cause damage to the multi function bay docking station and the computer.

Disconnecting Your Computer from the Multi Function Bay Docking Station

To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the multi function bay docking station.

Be sure that no devices connected to the multi function bay docking station are in use before disconnecting the computer.

Do not disconnect the computer from the multi function bay docking station when the IN USE indicator is lit. Disconnecting the computer while the IN USE indicator is lit may result in loss of unsaved data or a failure of the computer.

When the battery is running out of power, disconnecting the computer from the multi function bay docking station may result in loss of unsaved data.

Do not disconnect the computer from the multi function bay docking station during video playback. Be sure to close video playback software before disconnection.

To disconnect your computer from the multi function bay docking station

1 Turn off the computer and the connected peripherals; and then disconnect all connected peripherals.

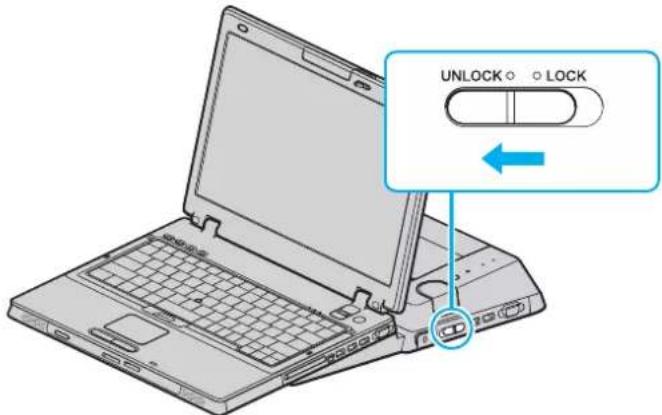

2 Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position.

UNLOCK ◦ ○ LOCK

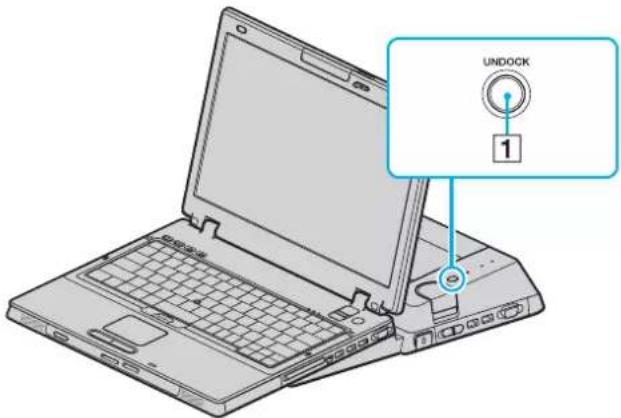

3 Press the UNDOCK button.

UNDOCK 1

If the IN USE indicator is unlit, you do not have to press the UNDOCK button.

Pressing the UNDOCK button while the computer is in a power saving mode returns the computer to Normal mode first, and then initiates the disconnection process.

If you press the UNDOCK button while the computer is Hibernate, you may be prompted for password entry or fingerprint authentication when the computer returns to Normal mode. In such a case, enter the password or swipe your finger across the fingerprint sensor. See the printed Security Features Guide for more information on fingerprint authentication.

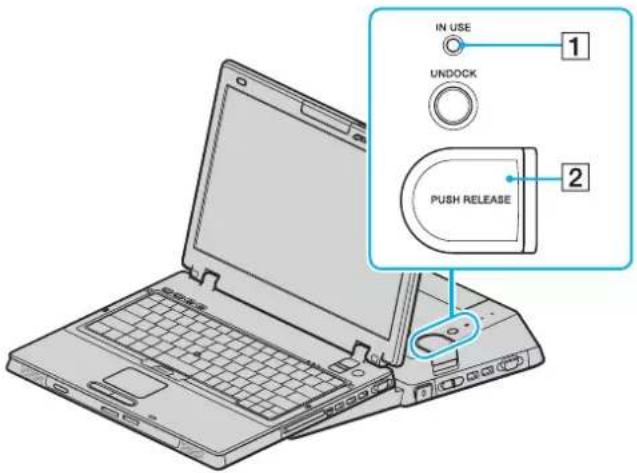

4 Wait until the IN USE indicator (1) turns off and then press the PUSH RELEASE button (2).

IN USE 1 UNDOCK 2 PUSH RELEASE

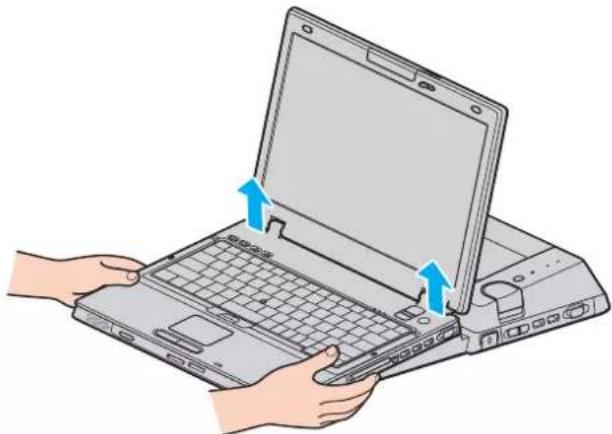

5 Lift the computer away from the multi function bay docking station.

Illustration of hands installing or adjusting a laptop keyboard with blue arrows indicating the process (no text or symbols present)

6 Close the multi function bay docking station connector cover on the bottom of the computer.

Alternatively, you can disconnect the computer from the multi function bay docking station as follows:

1 Turn off the computer and the connected peripherals; and then disconnect all connected peripherals.

2 Slide the LOCK/UNLOCK switch on the multi function bay docking station to UNLOCK.

3 Click Start and then Undock Computer.

4 Make sure that a message balloon appears and the IN USE indicator turns off, and then press the PUSH RELEASE button.

5 Lift the computer away from the multi function bay docking station.

6 Close the multi function bay docking station connector cover on the bottom of the computer.

It is extremely important to close the multi function bay docking station connector cover after disconnecting the computer from the multi function bay docking station. If the cover is left open, dust may get inside and damage the computer.

To disconnect the multi function bay docking station completely from AC power, unplug the AC adapter.

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers.

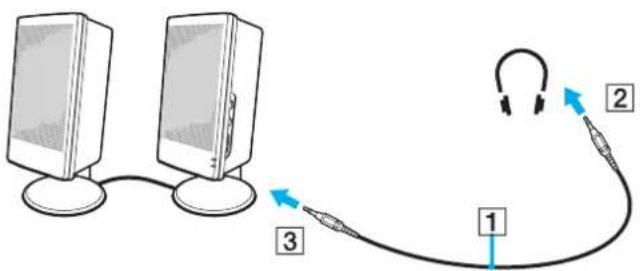

To connect external speakers

1 Plug the speaker cable (1) into the headphones jack (2) ☐.
2 Plug the other end of the speaker cable to the external speaker (3).
3 Turn down the volume of the speakers before you turn them on.

Diagram showing two computer monitors connected to a cable with labeled components, including ear and connector pin connections.

Make sure your speakers are designed for computer use.

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

Connecting an External Display

You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector.

☐ Connecting a Computer Display (page 96)
□ Connecting a Multimedia Computer Display (page 98)
□ Connecting a Projector (page 99)

Connect the power cord after connecting all other cables.

Connected external displays are used as second screens.

On Windows systems only, you can also use an external display to set up multiple monitors.

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the optional multi function bay docking station.

To connect a computer display

The monitor (VGA) port on the computer is disabled when attached to the multi function bay docking station.

1 If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet.
2 If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) □ on the computer or on the multi function bay docking station.
3 If you want to connect a TFT/DVI monitor, plug the display cable (not supplied) into the DVI-D port on the multi function bay docking station.

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI connector that supports only digital video signals (no analog video signals). It has 24 pins.

A DVI-I connector (Digital Visual Interface - Integrated) supports digital video and analog video signals. It has 29 pins.

! You can use a TFT/DVI monitor only with a model with the ATI video controller. A video adapter device is required to connect a VGA monitor using the DVI-D port.

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the optional multi function bay docking station.

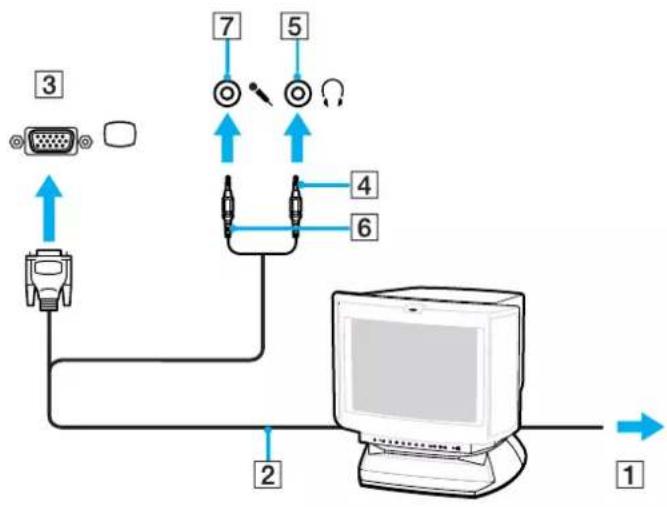

To connect a multimedia computer display

1 Plug the power cord of the multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) ☐ on the computer or on the multi function bay docking station.
3 Plug the speaker cable (4) into the headphones jack (5) ☐ on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) ⚪ on the computer.

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the optional multi function bay docking station.

To connect a projector

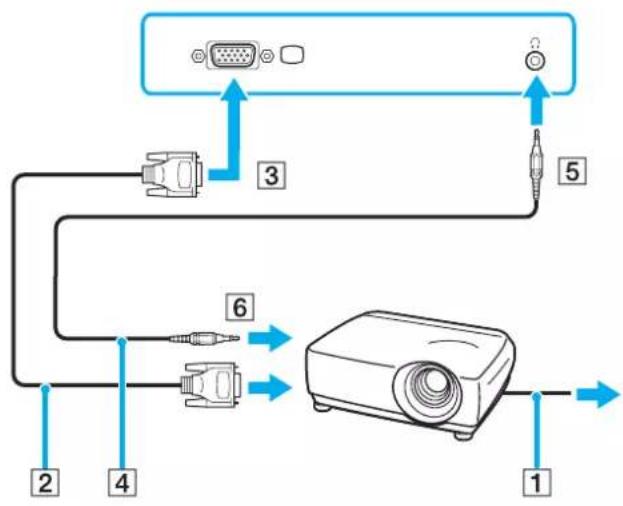

1 Connect the power cord (1) of the projector into an AC outlet.
2 Plug the RGB signal cable (2) into the monitor (VGA) port (3) □ on the computer or on the multi function bay docking station.
3 Plug the audio cable (4) (not supplied) into the headphones jack (5) ☐.
4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer.

The procedure for selecting a display depends on the video controller used in the computer. See the printed Specifications Guide for detailed information on the video controller.

If you want to work on the computer's LCD and the external display at the same time, see Using the Multiple Monitors Function (page 103) for more information.

To select a display

! The monitor (VGA) port on the computer is disabled when attached to the multi function bay docking station.

Models with the ATI video controller

Use the Fn+F7 keys to select a display. See Combinations and Functions with the Fn Key (page 31) for more information.

When the computer has an external display connected, you can change the Main/Clone setting as follows:

1 Click Start and then Control Panel.
2 Click Appearance and Theme.
3 Click Display.
4 Click the Settings tab.
5 Click Advanced.
6 Click the CATALYST Control Center tab.
7 Click ATI CATALYST™ Control Center.

The ATI CATALYST™ Control Center window appears.

8 Click Displays Manager under Graphics Settings.
9 Right-click the main or clone display icon under Desktop and Display Setup.
10 Select Swap display mapping from the menu.
11 Click Yes in the Displays Manager Notification window.

Models with the Intel Graphics Media Accelerator

1 Click Start and then Control Panel.
2 Click Appearance and Themes.
3 Click Display.
4 Click the Settings tab.
5 Click Advanced.
6 Click the tab with its name beginning with Intel(R).
7 Click Graphic Properties.
8 Select a display from the Display Devices menu.
9 Click OK.

You may not be able to display on the computer's LCD and the external display or projector at the same time, depending on the type of your external display or projector.

Before turning on the computer, turn on the peripheral devices.

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer's LCD and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

Three identical black silhouette figures of an airplane arranged in a V-shape, enclosed within rectangular frames (no text or symbols)

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that the computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not return to Normal mode.

If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

To select the Multiple Monitors mode

To find which video controller your model includes, see the printed Specifications Guide.

Models with the ATI video controller

1 Click Start and then Control Panel.
2 Click Appearance and Themes.
3 Click Display.
4 Select the Settings tab.
5 Click the monitor icon marked 2.
6 Select the Extend my Windows desktop onto this monitor option.
7 Click Apply and then OK. If the Monitor Settings window appears, click YES.

Models with the Intel Graphics Media Accelerator

1 Right-click on the desktop to display the context menu.
2 Point to Graphics Options and click Graphics Properties.
3 Select Extended Desktop from the Display Devices menu.

To change the primary and secondary device settings, use the Primary Device and Secondary Device drop-down lists under Multiple Display.

4 Click OK.

If the Monitor Settings window appears, click OK.

To deactivate the Multiple Monitors mode, deselect the check box in Step 6.

You can also select and deactivate the Multiple Monitors mode just by pressing one of the S buttons if you have changed the button assignment to Multiple Monitors with VAIO Control Center. For details on changing the button assignment, see Setting Up Your Computer with VAIO Control Center (page 120).

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.

Connecting an External Microphone

If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2).

Diagram showing a medical or surgical procedure with labeled points 1 and 2, including a needle inserted into the second point.

Make sure your microphone is designed for computer use.

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

☐ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
☐ Do not put the computer into a bag or carrying case when it has USB devices connected.

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use.

2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (3).

1 2 3

The VAIO USB mouse software driver is preinstalled on the computer. As a result, you only need to plug the USB mouse into the USB port and you can start working.

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port you prefer to use.
2 Plug the USB floppy disk drive cable into the USB port. The VAIO logo on the disk drive should be facing up. Your USB floppy disk drive is now ready for use.

Simple line drawing of a USB cable connected to a CD-ROM drive (no text or symbols)

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

If the computer is off, you can unplug the USB cable directly from the computer.

To disconnect a USB floppy disk drive

1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware window appears.

3 Select the floppy disk drive you want to unplug.

4 Click Stop. The Stop a Hardware device window appears.

5 Make sure the floppy disk drive is selected, and click OK. A message appears stating it is now safe to remove the hardware device.

6 Remove the floppy disk drive from the computer.

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

To connect a printer using the USB port

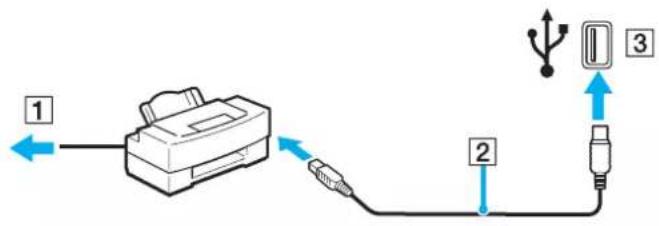

1 Plug the printer power cord into an AC outlet (1).
2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) into the USB port and the other end to your printer.

1 2 3

Connecting a Printer Using the Printer Port

To connect a printer using the printer port

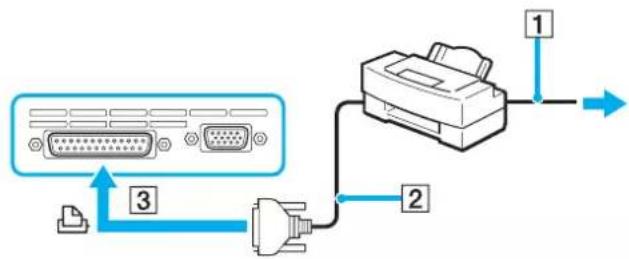

1 Plug the printer power cord (1) into an AC outlet.

2 Plug the printer cable (2) supplied with your printer into the printer port (3) 📋 on the optional multi function bay docking station.

Before connecting the printer, turn off the computer and the printer, and unplug the AC adapter and the power cord.

Connecting an i.LINK Device

Notes on connecting i.LINK devices

☐ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital video camera recorder or to connect two VAIO computers in order to copy, delete or edit files.
☐ The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.
☐ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of the external device.
☐ i.LINK cables compatible with the computer include cables with the following part numbers: VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408 Series (a 0.8 meter cable with a 4-pin connector at each end).
☐ An i.LINK connection with other compatible devices is not fully guaranteed.
☐ The i.LINK connection varies depending on the software applications, operating system and i.LINK compatible devices you use. Refer to the manual that came with your software for more information.
☐ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or CD-RW drive) before you connect them to the computer.

Connecting a Digital Video Camera Recorder

To connect a digital video camera recorder

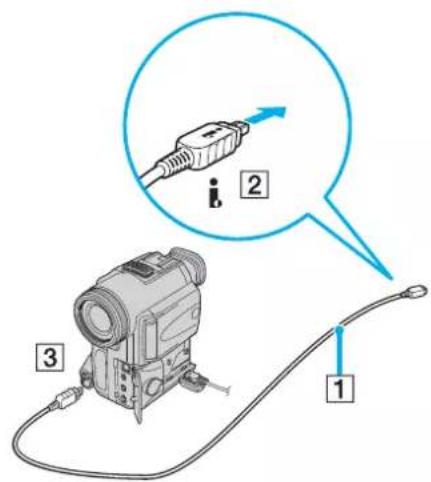

1 Plug one end of the i.LINK cable (1) into the i.LINK port (2) on the computer and the other end into the DV In/Out ports (3) on the digital video camera recorder.

2 Launch the DVgate Plus software.

Diagram showing a device connected to a cable with labeled parts 1, 2, and 3, including an arrow pointing to component 2.

On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible.

The Sony digital video camera recorder shown here is an example; your digital video camera recorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

Connecting to a Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the Network (Ethernet) port on the computer or the optional multi function bay docking station and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.

The computer can be connected to the network with the default settings.

! Network and telephone lines cannot be connected to the Network (Ethernet) port on the computer. If the following connectors are connected to the telephone lines mentioned below, high electric current to the connectors may cause damage, overheating or fire.

• Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
• Network lines such as 1000BASE-T, 100BASE-TX, and 10BASE-T lines
• Public telephone subscriber line
• PBX (private branch exchange)
• Lines other than those mentioned above

! Do not plug a telephone cable into the network port.

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to prepare your modem for use, how to use and customize the look of your Sony software and utilities, etc.

☐ Setting the Password (page 117)
☐ Setting Up Your Computer with VAIO Control Center (page 120)
□ Using the Power Saving Modes (page 121)
□ Managing Power with VAIO Power Management (page 126)
Setting Up Your Language with Windows XP Professional (page 128)

Setting the Password

Use one of the BIOS functions to set the password.

Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. In this way, you can protect your computer from unauthorized access.

Adding the Power-on Password

You cannot start the computer without entering the power-on password. Make sure not to forget the password. Write down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for depot service for password reset.

To add the power-on password

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when VAIO logo appears.

3 Use the ← or → key to select Security to display another screen, select Set Machine Password, and then press the Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password should be up to 32 alphanumeric characters (including spaces) long.

The following is to configure the computer to prompt password entry when you turn it on or display the BIOS setup screen.

5 Select Password When Power ON under Security.

Press the space bar to change the setting from Disabled to Enabled.

6 Use the or key to select Exit and then Exit (Save Changes); and press the Enter key.

On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.

If you have set the power-on password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint authentication for password entry when turning on the computer. For more information, see the printed Security Features Guide.

Changing/Removing the Power-on Password

To change or remove the power-on password

1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears. The BIOS setup screen appears.
3 Enter the current password for Enter Password:
4 Use the or key to select Security to display another screen, select Set Machine Password, and then press the Enter key.
5 On the password entry screen, enter the current password once and then a new password twice; and press the Enter key. To remove the password, leave Enter New Password and Confirm New Password blank and press the Enter key.
6 Use the or key to select Exit and then Exit (Save Changes); and press the Enter key. On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.

Setting Up Your Computer with VAIO Control Center

The VAIO Control Center utility allows you to consult system information and specify preferences for system behavior.

To use VAIO Control Center

1 Click Start, point to All Programs, and click VAIO Control Center. The VAIO Control Center window appears.

2 Select the desired control item and change the settings.

3 Once finished, click OK. The setting of the desired item has been changed.

For more information about each option, click Help on the VAIO Control Center window to display the help file. Some of the control items will not be visible if you open VAIO Control Center as a limited user.

Using the Power Saving Modes

When you use a battery as the power source for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate. When using battery power, you should be aware that the computer automatically enters Hibernate mode when the remaining battery charge becomes short, regardless of the power management setting you select.

If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.

Using Normal Mode

This is the normal state of the computer when it is in use. The green power indicator light is on in this mode. To save power while not working, you can turn off a specific device such as the LCD or the hard disk.

Using Standby Mode

Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode.

To activate Standby mode

1 Click Start and then Turn Off Computer.

2 Click Stand By.

To return to Normal mode

Press any key.

! If you press the power button for more than four seconds, the computer will switch off automatically. You will lose any unsaved data.

When the computer is in Standby mode, you cannot insert a disc.

The computer comes out of Standby mode quicker than out of Hibernate mode.

Standby mode uses more power than Hibernate mode.

! If the battery runs down when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

If the computer is not used for 25 minutes, it will enter Standby mode. To avoid this, you can change the Standby mode settings.

To change the Standby mode settings

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.
The Power Options Properties window appears.
4 Select the Power Schemes tab.
5 Change the System Standby settings.

Using Hibernate Mode

In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode.

To activate Hibernate mode

Press the Fn+F12 keys.

The Hibernating screen appears and the computer enters Hibernate mode.

Alternatively,

1 Click Start and then Turn Off Computer.

2 Click Hibernate.

To return to Normal mode

Turn on the computer by pressing the power button.

The computer returns to its previous state.

! If you press the power button for more than four seconds, the computer will switch off automatically.

If you do not use the AC adapter for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting down in the normal way.

When the computer is in Hibernate mode, you cannot insert a disc.

Hibernate mode requires more time than Standby mode to be activated.

It takes more time to return to Normal mode from Hibernate mode than from Standby mode.

Hibernate mode uses less power than Standby mode.

Do not move the computer until its power indicator turns off.

Managing Power with VAIO Power Management

Power management helps you to set up power schemes for running on AC power or batteries to suit your requirements for power consumption.

VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operations of your computer and for longer battery life. For more information on VAIO Power Management, see the help file on the VAIO Power Management software.

Activating VAIO Power Management

When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you are using at that time, for example, AC power. If you double-click this icon, the Power Meter window appears showing you the power status.

VAIO Power Management functionalities are added to the Windows Power Options Properties.

To activate VAIO Power Management

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.

The Power Options Properties window appears.

4 Select the VAIO Power Management tab.

To restore the default settings

1 On the VAIO Power Management tab, click Advanced. The VAIO Power Management window appears.
2 Follow the on-screen instructions to change the settings.

Activating VAIO Power Management Power Schemes

VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management goals, ranging from maximum power management to no power management.

To activate a VAIO Power Management power scheme

1 Click Start and then Control Panel.
2 Click Performance and Maintenance.
3 Click Power Options.

The Power Options Properties window appears.

4 Select the Power Schemes tab.
5 Select a power scheme from the Power schemes drop-down list.
6 If you now select the VAIO Power Management tab, you see that the selected power scheme appears to the right of Power Scheme.
7 If necessary, you can change the items in the list, for example, the brightness of the LCD.

8 Click OK.

The power scheme has been activated.

You must have administrator rights on the computer to set up a power scheme.

For more information on VAIO Power Management and Power Schemes, see the help guide of the VAIO Power Management software.

Setting Up Your Language with Windows XP Professional

Windows XP Professional computers include the Multilingual User Interface (MUI) feature. It allows you to change the English operating system, some software applications and the keyboard layout into the language of your choice: French, German, Japanese, Dutch, Italian, Spanish, Czech, Finnish, Greek, Portuguese and Swedish.

It is important that you select the correct keyboard settings during the Windows Setup.

To select the correct keyboard settings during Windows Setup

1 At first boot, click Next, then Next again in the Windows XP Setup Wizard window. The Select Your System Settings window appears.

2 Fill in these three questions:

☐ I live the closest to this region.
☐ I type mostly in this language.
☐ I use this type of keyboard.

3 In the End User License Agreement, accept the License Agreement and click Next.

4 Continue your Windows setup until it is finished.

You can also change the country and language settings into your language as soon as Windows has been restarted.

To change the country and language settings

1 Click Start and then Control Panel.
2 In the Control Panel window, double-click the Regional and Language Options icon.
If you do not see this icon, click Switch to Classic View on the left side.
3 In the Regional Options tab of the Regional and Language Options window, select your language from the Standards and formats drop-down menu.
4 In the Advanced tab of the Regional and Language Options window, select your language from the Language for non-Unicode programs drop-down menu.
5 To change the language of the Windows menus, windows and online help files provided by Microsoft Windows, select the Languages tab of the Regional and Language Options window.

Non-Microsoft Windows applications stay in English, even if you change these settings.

6 Select your language from the drop-down list.

7 Click Apply to apply the changes. You are prompted to log off and log on again. Only then, the changes to the new language will take effect.

8 Click Start, and select Log Off.

9 Click Log Off in the Log Off Windows window. If necessary, enter your password to log on again. All the menus, help files and icons are then displayed in your selected language. However, some parts may remain in English.

To change the keyboard layout

1 Click Start and then Control Panel.
2 In the Control Panel window, double-click the Regional and Language Options icon.
If you do not see this icon, click Switch to Classic View on the left side.
3 In the Languages tab of the Regional and Language Options window, click the Details button.
The Text Services and Input Languages window appears.
4 In the Settings tab of the Text Services and Input Languages window, select your keyboard from the Default input language drop-down menu.
5 If your keyboard is not available, click the Add button.
The Add Input Language window appears.
6 Select the input language and keyboard from the drop-down menu.
7 Click the OK button to close the Add Input Language window.
8 Click the OK button to close the Regional and Language Options window.

Upgrading Your VAIO Computer

Your computer and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee due to mishandling, we recommend that:

☐ You contact your dealer to install a new memory module.
☐ You do not install it yourself, if you are not familiar with upgrading memory on a computer.
☐ You do not touch the connectors or open the memory panel.

For the type of module and amount of memory installed on your model, refer to the printed Specifications.

Contact VAIO-Link if you need assistance.

Adding and Removing Memory

If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.

Notes on adding/removing memory modules

☐ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This damage may void your manufacturer's warranty.
☐ Only use memory modules that are compatible with the computer. If a memory module is not detected by the computer or Windows becomes unstable, contact your sales dealer or the manufacturer of your memory module.
Electrostatic discharge can damage electronic components. Before touching a memory module, ensure the following:

☐ The procedures described in this document assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
☐ Turn off the computer and disconnect the system from its power source (that is, battery or AC adapter) and from any telecommunication links, networks, or modems before you open the computer. Failure to do so may result in personal injury or equipment damage.
☐ Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.
☐ Do not open the memory module package until you are ready to change the module. The package protects the module from ESD.

VAIO

133

Upgrading Your VAIO Computer

☐ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge.
☐ Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and any repair costs will not be covered by the warranty.
☐ Do not place the memory module in places subject to:

☐ Heat sources such as radiators or air ducts
□ Direct sunlight
□ Excessive dust
□ Mechanical vibration or shock
☐ Strong magnets or speakers that are not magnetically shielded
☐ Ambient temperature of more than 35^ C or less than 5^ C
□ High humidity

☐ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the components and circuit boards inside the computer.

Removing and Installing a Memory Module

To change or add a memory module

1 Shut down the computer and disconnect all peripheral devices.
2 Unplug the computer and remove the battery.
3 Wait until the computer cools down.
4 Unscrew the screw at the bottom of the computer.

Illustration of a laptop rear panel showing the front panel and internal components (no text or symbols)

5 Touch a metal object (such as the connector panel on the back of the computer) to discharge static electricity.

6 Remove the memory module:

☐ Pull the tabs in the direction of the arrows (1). The memory module is released.

Diagram of a device with numbered components and directional arrows indicating flow or movement

☐ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).

7 Remove the new memory module from its packaging.

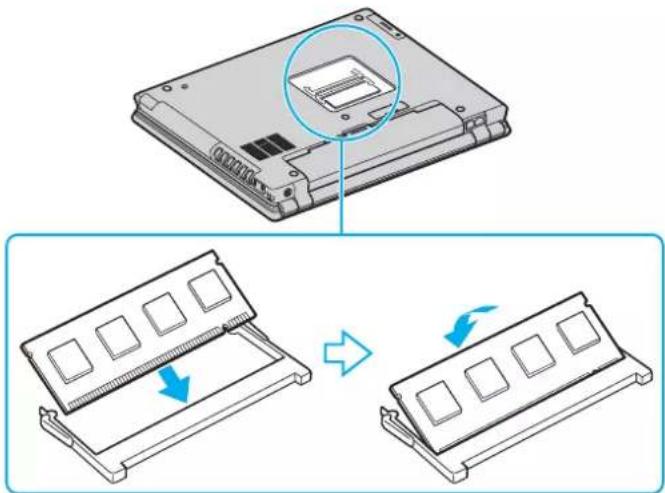

8 Slide the memory module into the memory module slot and push it in until it clicks into place.

Diagram illustrating the process of inserting a memory into a rack, showing step-by-step assembly and rotation.

Do not touch any other components on the motherboard.

Make sure to insert the memory module edge with a notch into the memory module slot.

9 Close the module cover and then tighten the screws on the bottom of the computer.

10 Reinsert the battery and turn on the computer.

Viewing the Amount of Memory

To view the amount of memory

1 Turn on the computer.
2 Click Start, point to All Programs, and click VAIO Control Center.
3 Double-click the System Information folder in the VAIO Control Center window.
4 Double-click the System Information icon in the System Information folder.

You can view the amount of system memory. If the additional memory does not appear, repeat the whole procedure and restart the computer.

Precautions

This section describes safety guidelines and precautions to help you protect your computer from potential damage.

☐ On Handling the LCD Screen (page 139)
☐ On Using the Power Source (page 140)
☐ On Handling Your Computer (page 141)
☐ On Using the Built-in MOTION EYE Camera (page 143)
☐ On Handling Floppy Disks (page 144)
☐ On Handling Discs (page 145)
☐ On Using the Battery Pack (page 146)
☐ On Using Headphones (page 147)
☐ On Handling Memory Stick Media (page 148)
☐ On Handling the Hard Disk (page 149)

On Handling the LCD Screen

☐ Do not leave the LCD facing the sun. This could damage the LCD. Be careful when using the computer near a window.
☐ Do not scratch the LCD or exert pressure on it. This could cause a malfunction.
☐ Using the computer in low temperature conditions may produce a residual image on the screen. This is not a malfunction. When the computer returns to normal temperature, the screen returns to normal.
☐ A residual image may appear on the screen if the same image is displayed for a lengthy period of time. The residual image disappears in a while. You can use a screen saver to prevent residual images.
☐ The screen becomes warm during operation. This is normal and does not indicate a malfunction.
☐ The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.
☐ Avoid rubbing the LCD screen. This could damage the screen. Use a soft, dry cloth to wipe the LCD screen.

On Using the Power Source

☐ See the printed Specifications Guide to check the power operation of your model.
☐ Do not share the AC outlet with other power-consuming equipment, such as a photocopier or shredder.
☐ You can purchase a power strip with a surge protector. This device prevents damage to the computer caused by sudden power surges, in an electrical storm, for example.
☐ Do not place heavy objects on the power cord.
☐ To disconnect the cord, pull it out by the plug. Never pull the cord itself.
☐ Unplug the computer from the AC outlet if you are planning to not use the computer for a long time.
☐ Make sure that the AC outlet is easily accessible.
☐ When the AC adapter is not used, unplug it from the AC outlet.
☐ Use the AC adapter supplied with the computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.

On Handling Your Computer

☐ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of the computer.
☐ If you drop a solid object or any liquid onto the computer, shut down the computer and then unplug it. You may want to have the computer checked by qualified personnel before operating it again.
☐ Do not drop the computer or place heavy objects on top of the computer.
☐ Do not place the computer in a location subject to:

□ Heat sources, such as radiators or air ducts
□ Direct sunlight
□ Excessive dust
□ Moisture or rain
□ Mechanical vibration or shock
☐ Strong magnets or speakers that are not magnetically shielded
☐ Ambient temperature of more than 35^ C or less than 5^ C
□ High humidity

☐ Do not place electronic equipment near the computer. The electromagnetic field of the computer may cause a malfunction.
☐ Provide adequate air circulation to prevent internal heat from building up. Do not place the computer on porous surfaces such as rugs or blankets, or near material such as curtains or draperies that may block its ventilation slots.
☐ The computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs, relocate the computer a suitable distance away from the set.
☐ Use only specified peripheral equipment and interface cables; otherwise, problems may occur.

VAIO

142

Precautions

☐ Do not use cut or damaged connection cables.
☐ If the computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact VAIO-Link.
☐ Make sure you disconnect the power cord before cleaning the computer.
☐ To avoid losing data if the computer is damaged, back up your data regularly.

On Using the Built-in MOTION EYE Camera

☐ Do not touch the front mirror plate over the lens of the built-in MOTION EYE camera, as it may make scratches on the plate and such scratches will appear on the captured images.
☐ Do not let the direct sunlight get into the scope of the built-in MOTION EYE camera regardless of the computer's power state, as it may cause a malfunction of the camera.
☐ The built-in MOTION EYE camera is disabled while videos or still images are imported from an i.LINK-compatible device connected to the S400 (i.LINK) connector.
☐ Clean the front mirror plate over the lens of the built-in MOTION EYE camera with a blower brush or a soft brush. If the lens is extremely dirty, wipe it off with a soft dry cloth. Do not rub the plate, as it is force-sensitive.

On Handling Floppy Disks

☐ Do not open the shutter manually or touch the surface of the floppy disk.
□ Keep floppy disks away from magnets.
- Keep floppy disks away from direct sunlight and other sources of heat.

☐ Keep the floppy disk away from any liquid. Do not let the floppy disk get wet. When you are not using the floppy disk, always remove it from the floppy disk drive and use a storage case.

☐ If the floppy disk comes with a label, make sure that the label is properly attached. If the edge of the label is curled up, the label may stick to the inside of the floppy disk drive and cause a malfunction or damage your floppy disk.

On Handling Discs

☐ Do not touch the surface of the disc.
☐ Do not drop or bend the disc.
☐ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below:

☐ Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol, commercially available cleaners, or anti-static spray) which may cause damage to the disc.
☐ For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center out.
☐ If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.
☐ Never put stickers on discs. This will affect the use of the disc irreparably.

On Using the Battery Pack

☐ Do not leave the battery pack in temperatures above 60^ C, such as in a car parked in the sun or under direct sunlight.
☐ Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
☐ Charge the batteries at temperatures between 10^ C to 30^ C. Lower temperatures require a longer charging time.
☐ While the battery is in use or being charged, the battery pack heats up. This is normal and is not cause for concern.
☐ Keep the battery pack away from all sources of heat.
□ Keep the battery pack dry.
☐ Do not open or try to disassemble the battery pack.
☐ Do not expose the battery pack to any mechanical shock.
☐ If you are not using the computer for an extended period of time, remove the battery pack from the computer to prevent damage to the battery.
☐ If, after fully charging the battery pack, the battery power is still low, the battery pack may be reaching the end of its life and should be replaced.
☐ You do not need to discharge the battery before recharging.
☐ If you have not used the battery pack for a considerable amount of time, recharge the battery.

On Using Headphones

Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
☐ Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.

On Handling Memory Stick Media

☐ Do not use the media in locations that are subject to static electricity or electrical noise.
☐ Do not touch the Memory Stick media connector with your finger or metallic objects.
☐ Use only the label supplied with the Memory Stick media as a label.
☐ Do not bend, drop, or apply strong shock to the Memory Stick media.
☐ Do not disassemble or modify Memory Stick media.
☐ Do not let Memory Stick media get wet.
☐ Do not use or store Memory Stick media in a location subject to:

☐ Extremely high temperatures, such as in a car parked in the sun
□ Direct sunlight
□ High humidity or
□ Corrosive substances

☐ Use the storage case supplied with the Memory Stick media.

On Handling the Hard Disk

The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust.

Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling the computer.

To avoid damaging your hard disk

☐ Do not subject the computer to sudden movements.

□ Keep the computer away from magnets.

☐ Do not place the computer in a location subject to mechanical vibration or in an unstable position.

☐ Do not move the computer while the power is on.

☐ Do not turn off the power or restart the computer while reading or writing data to disk.

☐ Do not use the computer in a place subject to extreme changes in temperature.

If the hard disk is damaged, the data cannot be restored.

Troubleshooting

This section describes how to solve common problems you might encounter when using your computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link.

☐ Troubleshooting the optical disc drive (page 151)
☐ Troubleshooting PC Cards (page 155)
□ Troubleshooting the modem (page 156)
Troubleshooting the Bluetooth functionality (page 158)
☐ Troubleshooting Wireless LAN (page 161)
□ Troubleshooting Power Management (page 164)
☐ Troubleshooting External Displays (page 165)
☐ Troubleshooting Sound (Speaker) (page 167)
☐ Troubleshooting Sound (Microphone) (page 168)
☐ Troubleshooting Floppy Disks (page 169)
☐ Troubleshooting Printers (page 170)
☐ Troubleshooting i.LINK Devices (page 171)
Troubleshooting the Built-in MOTION EYE Camera (page 172)
Troubleshooting the Multi Function Bay Docking Station (page 174)

Troubleshooting the optical disc drive

My optical disc drive tray does not open

☐ Make sure the computer is turned on and press the disc eject button.
☐ Click Start and then My Computer. Right-click the optical disc drive and select Eject.
☐ Make sure the computer is not in Standby or Hibernate mode.
☐ If this does not work, try the following:

Turn off the computer and insert a sharp, pointed object (for example a paperclip) into the manual eject hole* on the optical disc drive to slide out the tray.

* The location of the eject button and hole depends on your model of your computer. See Locating Controls and Ports (page 12).

I cannot play a disc

☐ After inserting the disc, wait for a few seconds for the system to detect it before you try to access it.
☐ Make sure the label of the disc is facing up.
☐ If the disc requires software, make sure the software is installed according to the instructions of the program.
☐ Check the volume of your speakers.
□ Clean the disc with an appropriate cleaner.
☐ Make sure the computer is running on AC power supply only and try the disc again.
☐ There may be condensation in the drive. Remove the disc and leave the drive open for approximately one hour. Remove the battery while you wait for the condensation to disappear.

I cannot play a DVD

☐ If a region code warning appears when you are using your DVD player, it could be that the DVD you are trying to play is incompatible with the optical disc drive on the computer. The region code is listed on the packaging of the disc.
☐ Change the resolution under Control Panel - Display to a lower resolution.
☐ If you see video but cannot hear sound, check all of the following:

☐ Make sure the mute setting is off on your DVD player.
☐ Check the Master Volume settings of the Sounds and Audio Device Properties.
☐ If you have connected speakers externally, check the volume settings of the computer speakers and check the connections between your speakers and the computer.
☐ In the Device Manager, check that the correct drivers are installed properly. To display the Device Manager, click Start, Control Panel, and Performance and Maintenance. Click the System icon and then the Device Manager button on the Hardware tab.

☐ A dirty or damaged disc may cause the computer to "hang" while it tries to read the disc. If necessary, reboot the computer, remove the disc and then check that it is not dirty or damaged.

☐ Check your PG settings (Parental Guidance) in the DVD software as they might be preventing you from playing certain DVDs when they are activated.

The default DVD region code is 2. Do not change this setting using the Region Code Change function in Windows, or using any other software applications. System malfunctions originating from the user changing the DVD region code are beyond the scope of your warranty and will result in service charges for repair.

If you do not immediately see the Display icon after clicking Control Panel, click Switch to Classic View on the left.

I cannot play a DVD when using two screens

☐ You will not have a problem in the following situations:

☐ When you use a CRT or an LCD display on its own.
☐ When you play MPEG files which are recorded on the hard disk drive with Windows Media Player 10 or VAIO Zone.

The reading speed of CD/DVD-RWs is very slow

Generally, the reading speed of a CD/DVD-RW is slower than that of a -ROM or -R. The reading speed can also vary depending on the type of format.

The disc tray does not eject even when the eject button is pressed

☐ Check that the computer is turned on.
☐ The CD-writing application software may be stopping the disc from being ejected.
☐ Make sure the computer is not in Standby or Hibernate mode.

The disc tray ejects even when it has been locked into place

☐ Ensure that the disc is placed with the label side facing up.
☐ Clean the disc and the optical disc drive lens with an appropriate cleaner.
☐ The disc may be scratched. Place another disc to see if that is the reason.
☐ There may be condensation in the drive. Remove the disc and leave the drive open for approximately one hour. Remove the battery while you wait for the condensation to disappear.

VAIO

155

Troubleshooting

Troubleshooting PC Cards

My PC Card is not working

Make sure the PC Card is compatible with your version of Windows.

Troubleshooting the modem

My modem does not work or cannot establish a connection

☐ Check that the phone line is plugged into the computer.
☐ Make sure that the modem is the only device connected to your phone line.
☐ Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.
☐ Check that the phone number the program is dialing is correct. The modem dialing mode may be incompatible with your telephone line.
☐ The modem may not work properly if you are with a Private Automatic Branch eXchange (PABX).
☐ In the Phone and Modem Options window (Control Panel / Printers and Other Hardware / Phone and Modem Options), check that your modem is listed on the Modems tab, and that the location information is correct on the Dialing Rules tab.

If you do not see the Phone and Modem Options icon, click Switch to Classic View on the left side.

☐ We recommend you use country-specific phone plug to plug the phone line into the wall jack, because use of any other phone plug can decrease the connection quality.
☐ The computer cannot be connected to a coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX). If you connect the modem to a parallel connected phone line, the modem or the other connected device may not function properly. Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.
☐ Only DTMF (Dual Tone Multi Frequency) signaling (tone dialing) is supported.
☐ The internal modem is intended to be used for data and fax communications using DTMF (Dual Tone Multi Frequency) signaling (tone dialing) on the PSTN (Public Switched Telephone Network) networks in the following countries: Austria, Belgium, Czech Republic, Denmark, Finland, France, Greece, Germany, Iceland, Ireland, Italy, Luxembourg, Norway, Portugal, Spain, Sweden, Switzerland, the Netherlands and the United Kingdom.
☐ If the computer is equipped with the flexible modem connector cover, do not pull it too forcefully.

My modem connection is slow

Many factors influence modem connection speed, including telephone line noise or compatibility with telephone equipment (such as fax machines or other modems). If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following:

☐ Have your phone company check that your phone line is free from any line noise.
☐ If your problem is fax-related, check that there are no problems with the fax machine you are calling and that it is compatible with fax modems.
☐ If you are having a problem connecting with your Internet Service Provider, check that the ISP is not experiencing technical problems.
☐ If you have a second phone line available, try connecting the modem to that line.

Troubleshooting the Bluetooth functionality

I cannot use the Bluetooth functionality

☐ If the Bluetooth indicator is off, turn on the WIRELESS switch.
☐ You cannot use the Bluetooth functionality when the computer is in a power saving mode. Return to normal mode, then turn on the WIRELESS switch.

The connected device does not appear in the Bluetooth Device List

If the connected device is also connected to other devices, it may not appear in the Bluetooth Utility software or you may not be able to communicate with the device.

I cannot find the Bluetooth device with which I want to communicate

☐ Check that the Bluetooth functionality of the device with which you want to communicate is on. See the other device's manual for more details.
☐ If the device with which you want to communicate is already communicating with another Bluetooth device, it may not be found or it may not be able to communicate with the computer.
☐ To allow other Bluetooth devices to communicate with your computer, right-click the Bluetooth icon 📋 on the taskbar and select Device Properties and Security from the menu to open the Device properties and Security window. Then, check if proper security modes are selected on the Security tab. For details on the security modes, see the help file on the Bluetooth Utility software.

The data transfer speed is slow

The data transfer speed depends on the obstacles and/or the distance between the two devices, but also on the radio wave quality, the operating system or the software used. Try to move the computer or try to place the two devices closer.

I cannot communicate with the other device although the distance between both devices is within 10 meters

☐ The data transfer distance can be shorter than 10 meters depending on existing obstacles between the two devices, on radio wave quality, on the operating system or the software used. Try to move the computer or to place both devices closer.
☐ If the device with which you want to communicate is already communicating with another Bluetooth device, it may not be found or it may not be able to communicate with the computer.
☐ Check that the Bluetooth functionality of the device with which you want to communicate is on. See the other device's manual for more details.

I cannot connect to service supported by target Bluetooth device

Connection is only possible for services also supported by the computer with the Bluetooth functionality. For more details, see the help file on the Bluetooth Utility software.

I cannot connect to a Bluetooth device by specifying its IP address on a Personal Area Network (PAN)

The Bluetooth utility uses Dynamic Host Configuration Protocol (DHCP) to assign IP addresses to active wireless devices. If you specify a fixed IP address for the device to which you want to connect, the utility cannot assign a dynamic IP address to the device and fails. Do not specify IP addresses when using a PAN.

I cannot use the Bluetooth functionality when I log on to my computer as a limited user

The Bluetooth functionality may not be available to users with limited rights on the computer. Log on to the computer with a user with administrator rights.

I cannot connect to a Bluetooth device in Personal Area Network User mode

If the device to which you want to connect supports Bluetooth communication in Personal Area Network User mode only, you cannot establish a connection from your computer.

I cannot use the Bluetooth Utility software when I switch a user

If you switch a user without logging off from your system, the Bluetooth Utility software will not work successfully. Make sure to log off before switching a user. To log off from your system, click Start and then Log Off.

Troubleshooting Wireless LAN

I cannot use the Wireless LAN functionality

Check if the WIRELESS or WIRELESS LAN switch is turned on and the WIRELESS LAN indicator is lit.

The Wireless LAN Access Point and your computer cannot communicate

☐ Check if the WIRELESS or WIRELESS LAN switch is turned on and the WIRELESS LAN indicator is lit.
☐ Check if the power of the Access Point is turned on.
☐ Check if the Access Point is displayed in the Available networks window.

☐ To check this, click Start and then Control Panel.
☐ Click Network and Internet Connections.
☐ Click the Network Connections icon.
☐ Right-click the Wireless Network Connection icon and select Properties.
☐ Select the Wireless Networks tab.
☐ Check if the Access Point is displayed in Available networks.
☐ Connection availability is affected by distance and obstructions. You may need to move the computer away from obstructions or neared to any Access Point you may be using.

The data transfer speed is slow

☐ The maximum communication speed can vary depending on the obstacles or the distance between the communication devices, the radio waves, the operating system or the software you use. Remove the obstacle or make the distance between the Access Point and your machine smaller.
☐ It is possible that your Access Point communicates at the same time with another Access Point. Read the manual of the Access Point.
☐ If several computers communicate with the same Access Point, the concentration may be too high. Wait a few minutes and try to access again.
☐ If a Wireless LAN device using the IEEE802.11g standard communicates with a device using the IEEE802.11b standard, then it is normal that the speed reduces. Devices using the IEEE802.11g standard are 5 times faster than the ones using the IEEE802.11b standard.

I cannot access the Internet

☐ Check the settings of the Access Point. See the manual of the Access Point.
☐ Check if the computer and the Access Point are communicating.
☐ Make the distance between the Access Point and your machine smaller.

I cannot use a Wireless LAN network

Check if the Wireless Zero Configuration service is active.

To check the status of the Wireless Zero Configuration service

1 Click Start and then Control Panel.
The Control Panel window appears.
2 Click the Performance and Maintenance icon.
3 Click the Administrative Tools icon.
4 Double-click the Services icon.
The Services window appears.
5 Check Status and Startup Type for Wireless Zero Configuration.
When Started and Automatic are shown under Status and Startup Type, respectively, the Wireless Zero Configuration service is active.

To activate the Wireless Zero Configuration service

1 On the Services window, right-click Wireless Zero Configuration and click Properties.
The Wireless Zero Configuration Properties window appears.
2 Select Automatic for Startup type and click Apply.
3 Click Start under Service status.
4 Click OK to close the window.

Troubleshooting Power Management

The power management setting is not responding

The computer's operating system may become unstable if a lower power state, such as Hibernate is initiated, and then changed before the computer completely enters the lower power state.

To restore the computer to its normal operating stability

1 Close all open applications.
2 Press the Ctrl+Alt+Delete keys simultaneously and select Restart from the shut down menu drop-down list. The computer restarts.
3 If the procedure does not work, press and hold the power button for four seconds or longer to shut down the computer.

Troubleshooting External Displays

I cannot use the Plug and Display function

Depending on the external display or the way it is connected, the Plug and Display function may not be available. Use the Fn+F7 keys to select the output destination.

I cannot display contents on two or more displays at the same time

You cannot display contents on multiple external displays at the same time.

Select one of the external displays.

The external display with the DVI-D port does not display properly

This troubleshooting entry applies to selected models only. See Locating Controls and Ports (page 12) to see whether your model is equipped with the DVI-D port. If your computer is supplied with an optional multi function bay docking station, the multi function bay docking station has a DVI-D port.

See the printed Troubleshooting Guide first to solve your problems. If the problem persists, proceed as follows:

1 Click Start and then Control Panel.

2 Click Appearance and Theme.

3 Click Display.

4 Click the Settings tab.

5 Click Advanced.

6 Click the CATALYST Control Center tab.

7 Click ATI CATALYST™ Control Center.

The ATI CATALYST™ Control Center window appears.

8 Click Digital Panel Properties under Graphics Settings.

9 Click Attributes.

10 Select the Reduce DVI frequency on high-resolution displays check box under DVI Settings.

11 Click Apply.

! Click to check the above button only if the external display with the DVI-D port does not display properly with the default settings.

The external display with the DVI-D port does not display the boot-up screen and the BIOS setup screen at startup. To change the BIOS settings, use the computer's LCD screen.

Troubleshooting Sound (Speaker)

My speakers are not producing sound

☐ If you use external speakers, check that the speakers are properly connected and the volume is turned up. If the speakers have a mute button, make sure it is off. If batteries power the speakers, check that the batteries are inserted properly and that they are charged.
☐ If you have connected an audio cable to the headphones jack, disconnect the cable.
☐ If the computer is powered by battery, check that the battery pack is properly installed and charged.
☐ If you are using an application that has its own volume control, check that the volume is turned up.
☐ Check the volume controls in Windows.

Troubleshooting Sound (Microphone)

My microphone does not work

If you are using an external microphone, check that the microphone is plugged into the microphone jack correctly.

My microphone volume is too high or too low

Proceed as follows to adjust the volume.

1 Click Start and then Control Panel. The Control Panel window appears.
2 Click Sounds, Speech, and Audio Devices and then Sounds and Audio Devices.
3 Click Volume under Sound recording on the Audio tab.
4 See if the Select check box for Microphone Balance is selected. If not, click the check box.
5 Move the slider up or down to adjust the volume.
6 If the volume is still too high or too low, select Advanced Controls from the Options menu. The Advanced button appears for Microphone Balance.
7 Click the Advanced button and select/deselect Microphone Boost or +20db Gain under Other Controls to adjust the volume.

Troubleshooting Floppy Disks

My USB floppy disk drive cannot write to a floppy disk

☐ The floppy disk is write-protected. Disable the write-protect feature or use a floppy disk that is not write-protected.
☐ Check that the disk is properly inserted into the floppy disk drive.
☐ Your disk may be corrupt. Try to insert another floppy disk.

The optional USB floppy disk drive is not recognized as drive A

To set the floppy disk drive to A

1 Turn the system power on.
2 Connect the floppy disk drive.
3 Select Control Panel from the Start menu.
4 Click Performance and Maintenance.
5 Click System.
6 Select the Hardware tab, then click Device Manager.
7 Select Universal Serial Bus controllers, then Y-E Data USB Floppy.
8 From the Action menu, click Uninstall.
9 Keep clicking OK until the Confirmation of deletion of device message appears.
10 Select Scan for hardware changes from the Action menu. The floppy disk drive is recognized as drive A.

Troubleshooting Printers

☐ Make sure that the printer driver supports Windows XP.

Ask the manufacturer of your printer for the driver that supports Windows XP.

☐ If the bidirectional communication functions are provided with your printer, disabling the functions on the computer may enable printing. Proceed as follows:

1 Click Start and then Control Panel.
2 Click the Printers and Other Hardware icon.
3 Click the Printers and Faxes icon.
4 Right-click the printer to select Properties.
5 Click the Ports tab.
6 Click the check box for Enable bidirectional support to deselect it.
7 Click OK.

1

This change to the settings will disable the bidirectional communication functions of your printer, such as data transfer, status monitoring, and remote panel.

☐ Check the physical connections between the computer and printer, the AC adapter and the power cord, and the power cord and an AC outlet, and then restart the computer.

Troubleshooting i.LINK Devices

I cannot establish an i.LINK connection between two VAIO computers

☐ You must have administrator rights on the computer to be able to link the two.
☐ Disconnect then reconnect the i.LINK cable.
☐ If you still have no connection after waiting for a while, restart both computers.
☐ If either computer has just returned from a power saving mode, the connection may be affected. In this case, make sure you perform a full restart before connecting them.

When I record images to a digital video device using DVgate Plus, I see an error message

☐ Close all open applications and restart the computer. Frequent recording of images to a digital video device while using DVgate Plus sometimes causes this error.
☐ Your DV device will need to have DV In/Out in order to be able to transfer your files to the DV device.

I cannot use digital devices

☐ Check that the DV device is turned on and that the cables are properly connected.
☐ If you are using multiple i.LINK devices, the combination of the connected devices may cause unstable operation. If this is the case, turn off all connected devices and disconnect unused devices. Check the connection and then turn on the power again.
☐ You are strongly advised to use only Sony i.LINK cables, as using other brands may cause problems with the i.LINK devices.

Troubleshooting the Built-in MOTION EYE Camera

The viewer window shows no images or poor-quality images

☐ Make sure that the CAMERA OFF indicator is unlit.
☐ The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera.
☐ The video memory of the computer may have become insufficient for displaying images from the built-in MOTION EYE camera. Lowering the resolution or reducing the colors of the LCD might help.
☐ The viewer window may show some noises, for example horizontal lines, if you view a rapid-moving object. This is normal and does not indicate a malfunction.
☐ If the problem persists, restart the computer.

Captured images are poor in quality

☐ The images captured under the fluorescent lamp may show reflection of the light.
☐ A dark portion in captured images may appear as a noise.
☐ If the front mirror plate over the lens is dirty, you cannot take a clear shot. Clean the lens. See On Using the Built-in MOTION EYE Camera (page 143).

Captured images contain dropped frames and audio interruptions

☐ The effect settings on your software application may have caused dropped frames. See the help file on your software application for more information.
☐ There may be more software applications running than your computer can handle. Exit the applications that you are not currently using.
☐ The power management function of your computer is activated. Check the CPU performance.

Movie playback shows dropped frames when my computer is running on the battery

The battery is running out of power. Connect the computer to an AC power source.

The video input from the built-in MOTION EYE camera is suspended for a few seconds

The video input may be suspended for a few seconds if

☐ a shortcut key with the Fn key is used.

□ the CPU load increases.

This is normal and does not indicate a malfunction.

I cannot use the built-in MOTION EYE camera

☐ The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera.

☐ If the problem persists, you must reinstall the driver software for the camera. Proceed as follows to reinstall the driver software.

1 Click Start and then Control Panel.
2 Click the Performance and Maintenance icon.
3 Click the System icon.
4 Click Device Manager on the Hardware tab.
5 Double-click Imaging devices.
6 Right-click Sony Visual Communication Camera VGP-VCC1 and click Update Driver.

Troubleshooting the Multi Function Bay Docking Station

I cannot use the devices connected to the multi function bay docking station

Make sure to use the AC adapter supplied with the multi function bay docking station to connect the docking station to a power source. The multi function bay docking station does not work on the battery installed in the computer.

I cannot use the device connected to the printer port

The printer port 📋 on the multi function bay docking station is internally connected to the USB and should be used for a printer only.

I cannot use the TFT/DVI monitor connected to the DVI-D port

The DVI-D port is enabled only when a model with the ATI video controller is attached to the multi function bay docking station.

I cannot print a document

☐ Make sure that the printer driver supports Windows XP.

Ask the manufacturer of your printer for the driver that supports Windows XP.

☐ The printer port 📋 on the multi function bay docking station is internally connected to the USB. Proceed as follows to check the printer port settings.

1 Click Start and then Control Panel.
2 Click the Printers and Other Hardware icon.
3 Click the Printers and Faxes icon.
4 Right-click the printer to select Properties.

5 Click the Ports tab.

6 Check if the check box for USB001 is selected. If another check box is selected, click the box for USB001.

7 Click OK.

If the above procedure does not work, right-click the printer and select Delete on the window in step 3 above to delete the printer. Then, install the printer driver once again.

☐ If the bidirectional communication functions are provided with your printer, disabling the functions on the computer may enable printing. Proceed as follows:

1 Click Start and then Control Panel.
2 Click the Printers and Other Hardware icon.
3 Click the Printers and Faxes icon.
4 Right-click the printer to select Properties.

5 Click the Ports tab.

6 Click the check box for Enable bidirectional support to deselect it.

7 Click OK.

This change to the settings will disable the bidirectional communication functions of your printer, such as data transfer, status monitoring, and remote panel.

☐ Check the physical connections between the multi function bay docking station and printer, the AC adapter and the power cord, and the power cord and an AC outlet, and then restart the computer.

An error message appears when I press the UNDOCK button or select Undock Computer from the Start menu

When any device inserted or connected to the multi function bay docking station is in use, you cannot disconnect the computer form the docking station. Save unsaved data, exit applications using such devices, and then try again.

If the above does not work, shut down the computer and disconnect it from the multi function bay docking station.

Support Options

The section contains information on where to go for answers to questions about your computer.

Sony Support Information

See the following sources for answers in the sequence listed below.

See Documentation (page 8) for details on the printed and online documentation supplied with your computer, as well as further sources of reference.

☐ Go to the online help files that accompany your software for instructions on using the software.
☐ Use the search functionality in Help and Support Center by pressing the Microsoft Windows key and the F1 key.
☐ VAIO-Link web site: if you have any problem with the computer, you can access the VAIO-Link web site for troubleshooting. Go to http://www.vaio-link.com.
☐ e- Support: This interactive part of our web site http://www.vaio-link.com allows you to get in contact with our dedicated support team over the internet. Using a personalized account, you can log your technical queries with ease.
☐ VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the online and printed documentation.
□ Visit the other Sony web sites:

□ www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
□ www.sonystyle-europe.com for online purchases.
□ www.sony.net for other Sony products.

[Non-Text]

You need to set up an Internet connection before you can access the online features described here.

e-Support

What is e-Support?

You have searched our user guides and web site (www.vaio-link.com) but have not found an answer to your question/issue? e-Support is the ideal solution for you!

Our e-Support Web Portal is an interactive web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.

Every submitted query will result in a unique 'case number' to ensure smooth communication between yourself and the e-Support Team.

Who can use e-Support?

All registered VAIO customers are entitled to unlimited access to the VAIO-Link e-Support Web Portal.

How can I access the e-Support portal?

When you register your computer, you will automatically receive an email with the link to the e-Support Web Portal, your Customer ID and some basic explanation a few hours later.

All you need to do is activate your account by clicking on the provided link in the email.

You are now ready to create your first case!

You can access the e-Support Web Portal from any computer with an active Internet connection.

A complete help file is available on the e-Support Web Portal to help you use our e-Support Service.

Can I submit questions in my native language?

Since you are interacting with our e-Support Team through a portal, which connects you directly to our central database, e-Support will only accept and deal with queries submitted in English, French or German.

Can I submit my questions at any time?

Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm.

Is there a cost involved for using e-Support?

No, this is a complete free of charge service offered to all registered VAIO customers!

How do I know when the e-Support Team has handled my query/case?

As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has been updated.

Trademarks

Sony, Battery Checker, Click to DVD, DVgate Plus, HotKey Utility, Keyboard Utility, Memory Stick Formatter, PictureGear Studio, Prepare your VAIO, SonicStage, SonicStage Mastering Studio, VAIO Control Center, VAIO Edit Components, VAIO Launcher, VAIO Media, VAIO Power Management, Image Converter, VAIO Zone, My Club VAIO, VAIO Update, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.

Intel, Pentium, and Intel SpeedStep are trademarks or registered trademarks of Intel Corporation.

Microsoft, Internet Explorer, Windows Movie Maker, Windows Media Player, Windows XP Professional, Windows XP Home Edition, MS Works 8.0, Microsoft Office 2003 SBE (Try & Buy) and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.

i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394 connection.

Adobe, Adobe Acrobat Elements, Adobe Acrobat Professional, Adobe Reader, Adobe Premiere Standard and Adobe Photoshop Elements are trademarks of Adobe Systems Incorporated.

MoodLogic is a trademark of MoodLogic, Inc.

Norton Internet Security 2005 AntiSpyware Edition and Norton Password Manager 2004 are trademarks or registered trademarks of Symantec Corporation.

Roxio DigitalMedia SE is a trademark of Sonic Solutions.

WinDVD for VAIO is a trademark of InterVideo, Inc.

Sun Java VM is a trademark of Sun Microsystems, Inc.

Google Toolbar is a trademark of Google.

Yahoo! Messenger is a trademark of Yahoo!.

SafeGuard PrivateDisk is a trademark of Utimaco Software.

My Club VAIO uses Macromedia Flash™ Player software by Macromedia, Inc., Copyright © 1995-2003 Macromedia, Inc. All rights reserved. Macromedia and Flash are trademarks of Macromedia, Inc.

VAIO

181

Support Options

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

All other names of systems, products and services are trademarks of their respective owners. In the manual, the ^TM or ^ marks are not specified.

Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners.

Please see the printed Specifications Guide to see what software is available for your model.
