Brand	Infiniton
Model	DIW-CT6
Product Type	Freestanding Dishwasher
Dimensions (Width x Depth x Height)	60 x 57 x 85 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A+
Annual Energy Consumption	265 kWh
Water Consumption per Cycle	10 L
Noise Level	49 dB(A)
Number of Place Settings	12
Number of Programs	6
Control Type	Electronic Push Button
Display Type	LED
Programs	Eco, Intensive, Normal, Quick, Glass, Pre-Wash
Additional Features	Half Load, Delay Start (3h/6h/9h), Self-Cleaning Filter
Safety Features	Child Lock, Water Leakage Protection, Overfill Protection
Interior Material	Stainless Steel
Color	White
Warranty	2 Years

Frequently Asked Questions - DIW-CT6 Infiniton

How do I install the Infiniton DIW-CT6 dishwasher?

Ensure the water inlet and drain hoses are connected correctly. The dishwasher must be leveled using the adjustable feet. For detailed instructions, refer to the installation manual.

What detergent should I use?

Use dishwasher detergent in powder, gel, or tablet form. For better drying performance, use a rinse aid. The detergent compartment is located on the door.

How do I start a wash cycle?

Load the dishes, add detergent, select the desired program using the panel, and press the start button. Make sure the water supply is open.

Why is my dishwasher not draining?

Check the drain hose for kinks or clogs. Clean the filter inside the dishwasher. Also, ensure the sink drain is not blocked. If the problem persists, contact support.

What does the error code E1 mean?

Error code E1 indicates a water filling issue. Check that the water tap is open and the inlet hose is not kinked. If the error continues, the water inlet valve may be faulty.

How often should I clean the filter?

Clean the filter after every few cycles to prevent clogs. Remove the lower basket, twist the filter assembly, rinse under running water, and replace it securely.

Can I use dishwasher tablets?

Yes, dishwasher tablets are compatible. Place them in the main detergent compartment. For best results, use tablets with rinse aid built-in or add separate rinse aid.

Why are my dishes not drying?

Ensure rinse aid is filled. Use a drying cycle or high temperature program. Also, leave the door slightly open after the cycle to allow steam to escape.

How do I add salt and rinse aid?

Locate the salt cap inside the dishwasher (usually near the filter) and fill with dishwasher salt. The rinse aid compartment is on the door, fill until the indicator shows full.

What is the recommended maintenance?

Regularly clean the filter, spray arms, and door seals. Run an empty cycle with a dishwasher cleaner monthly to remove grease and limescale.

USER MANUAL DIW-CT6 Infiniton

Simple line drawing of a 3D printer or scanner device inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

PART I: Generic Version

ENGLISH

Please read this manual carefully before using the dishwasher. Keep this manual for future reference.

CONTENTS

01	3	SAFETY INFORMATION
02	8	PRODUCT OVERVIEW
03	9	USING YOUR DISHWASHER
	9	Loading The Salt Into The Softener
04	11	MAINTENANCE AND CLEANING
	11	External Care
	11	Internal Care
	13	Caring For The Dishwasher
05	15	INSTALLATION INSTRUCTION
	15	About Power Connection
	16	Water Supply And Drain

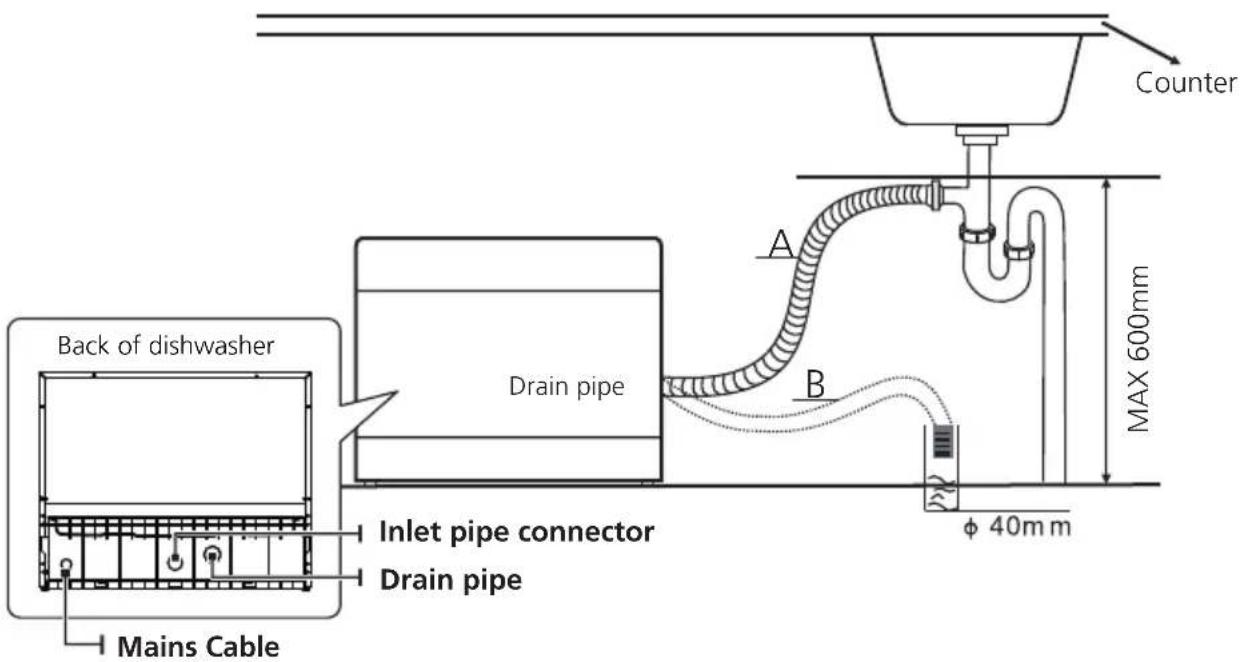

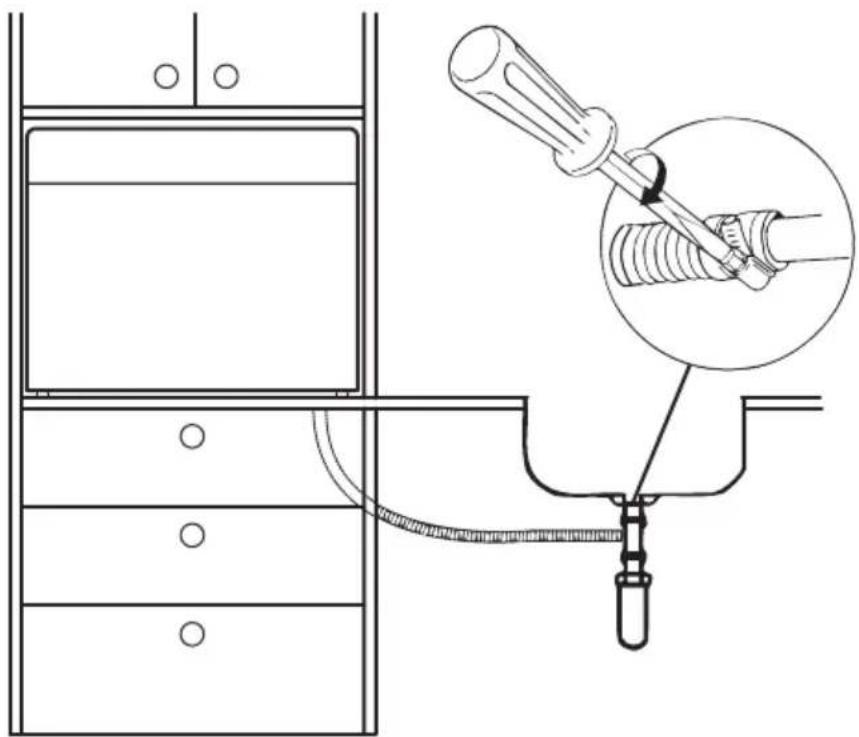

	17	Connection Of Drain Hoses
	18	Position The Appliance

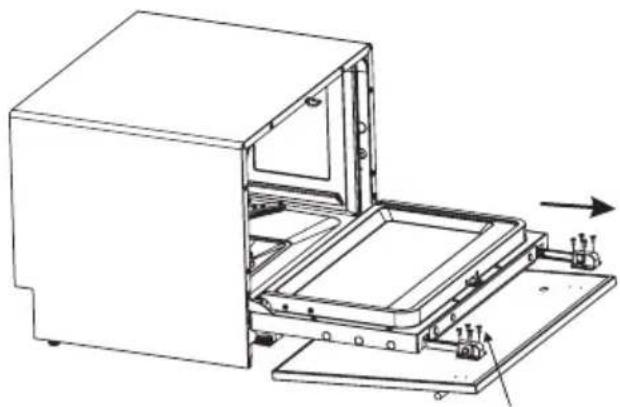

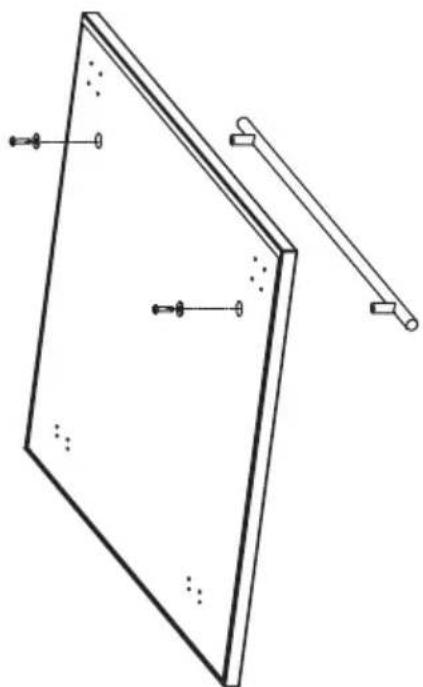

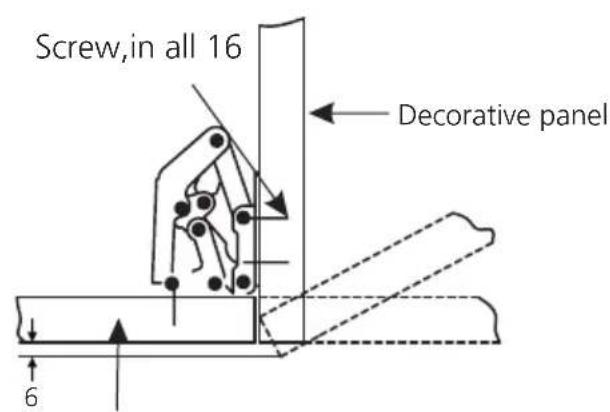

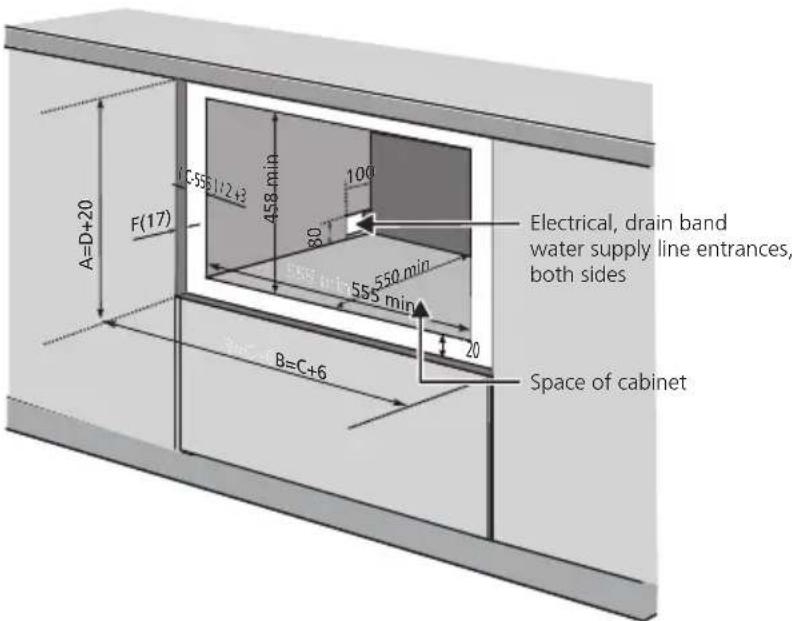

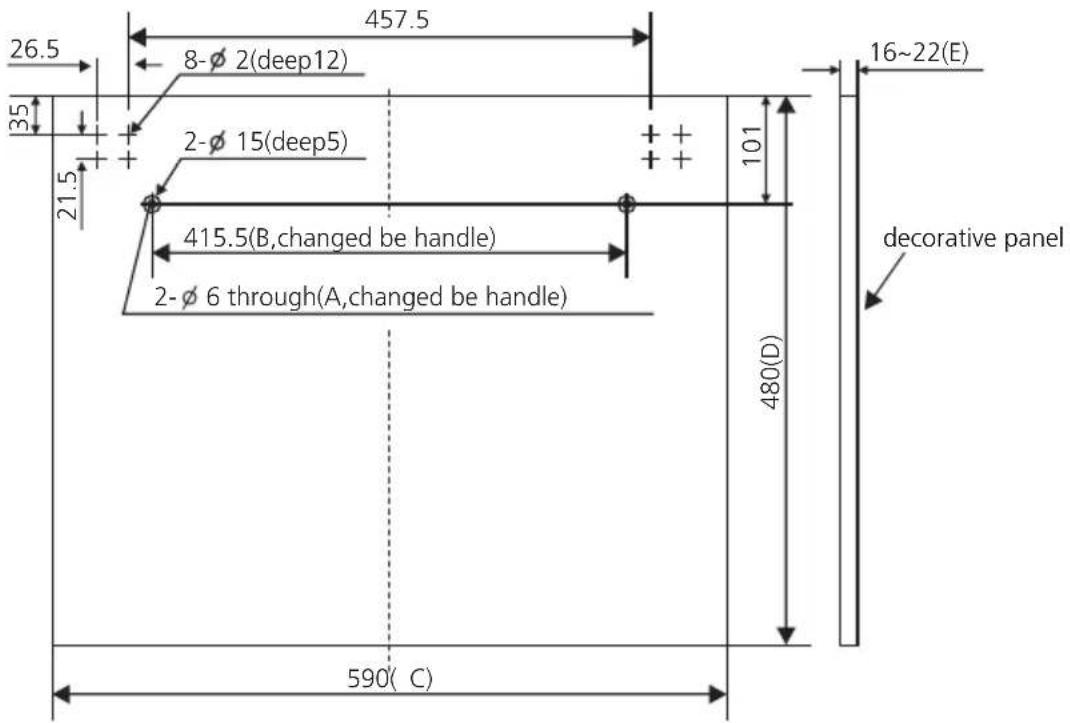

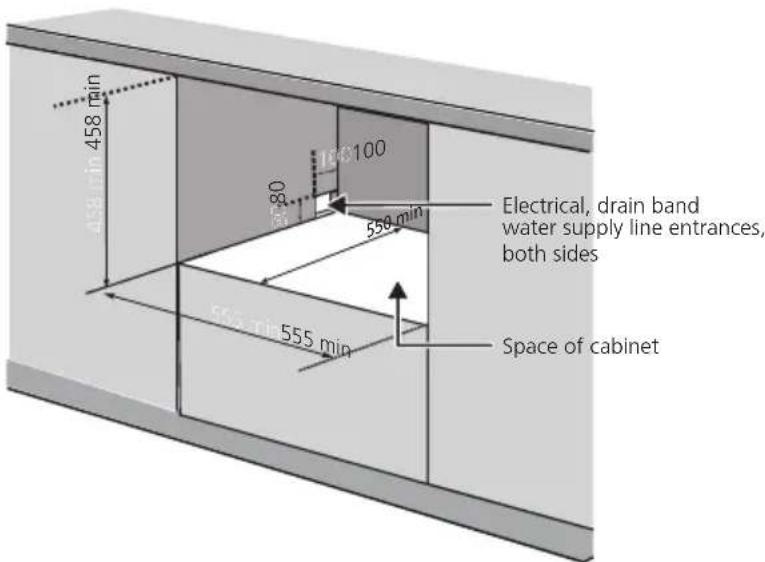

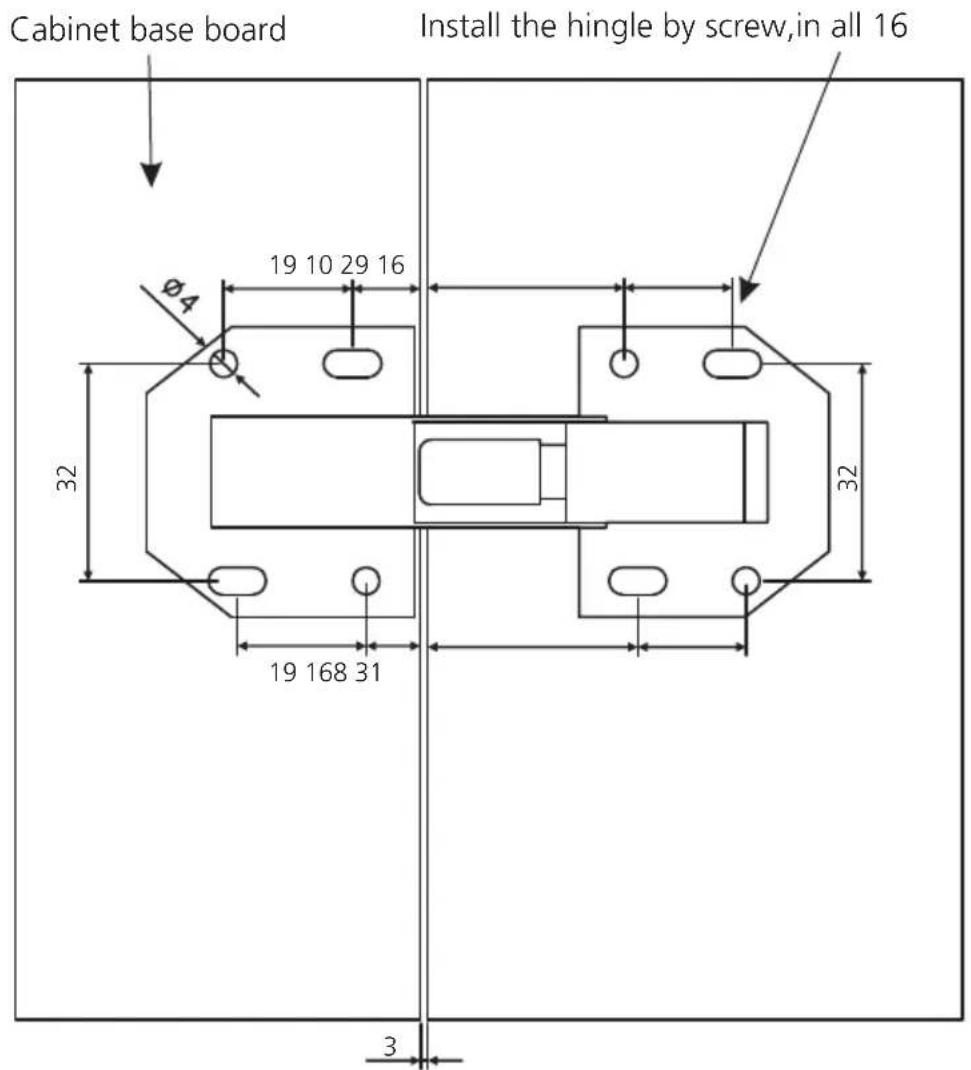

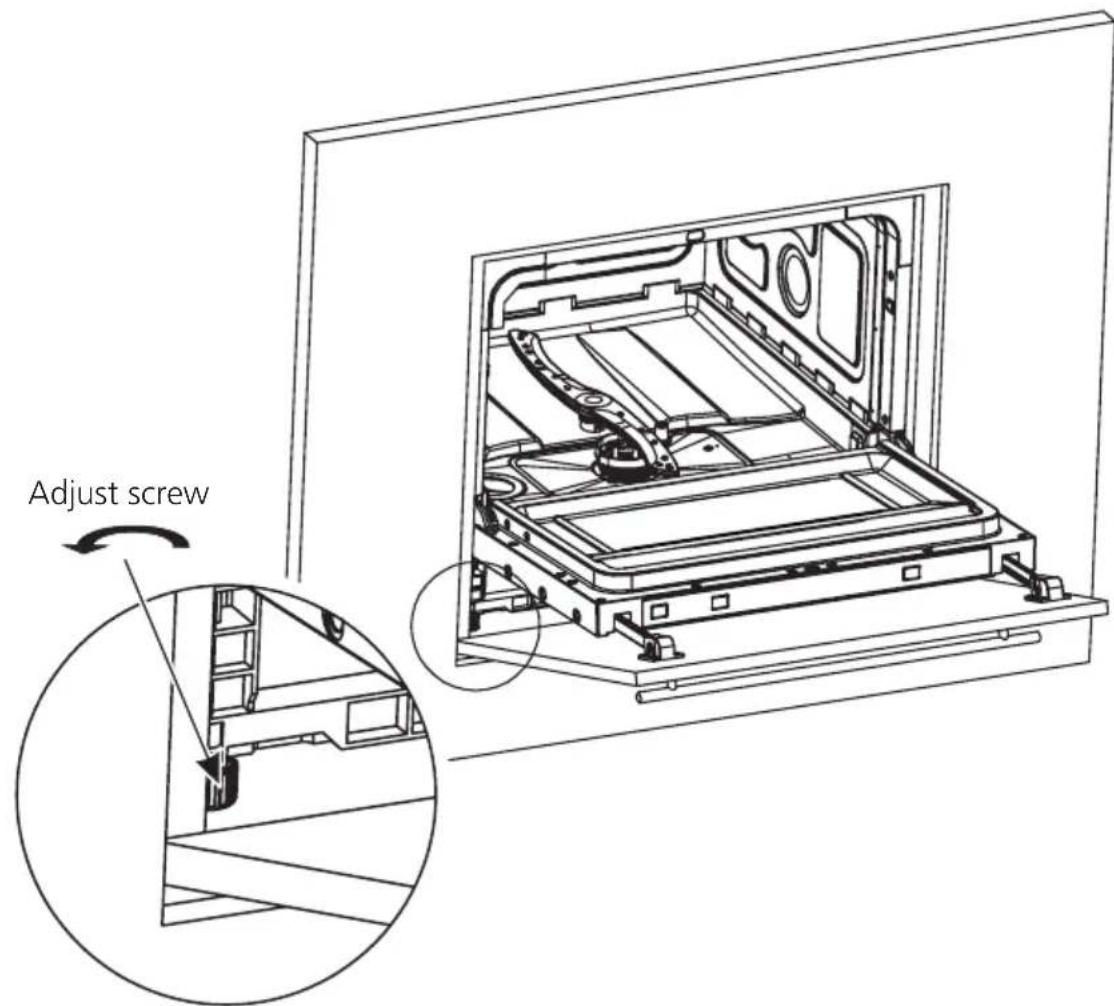

	18	Built-In Installation
06	23	TROUBLESHOOTING TIPS

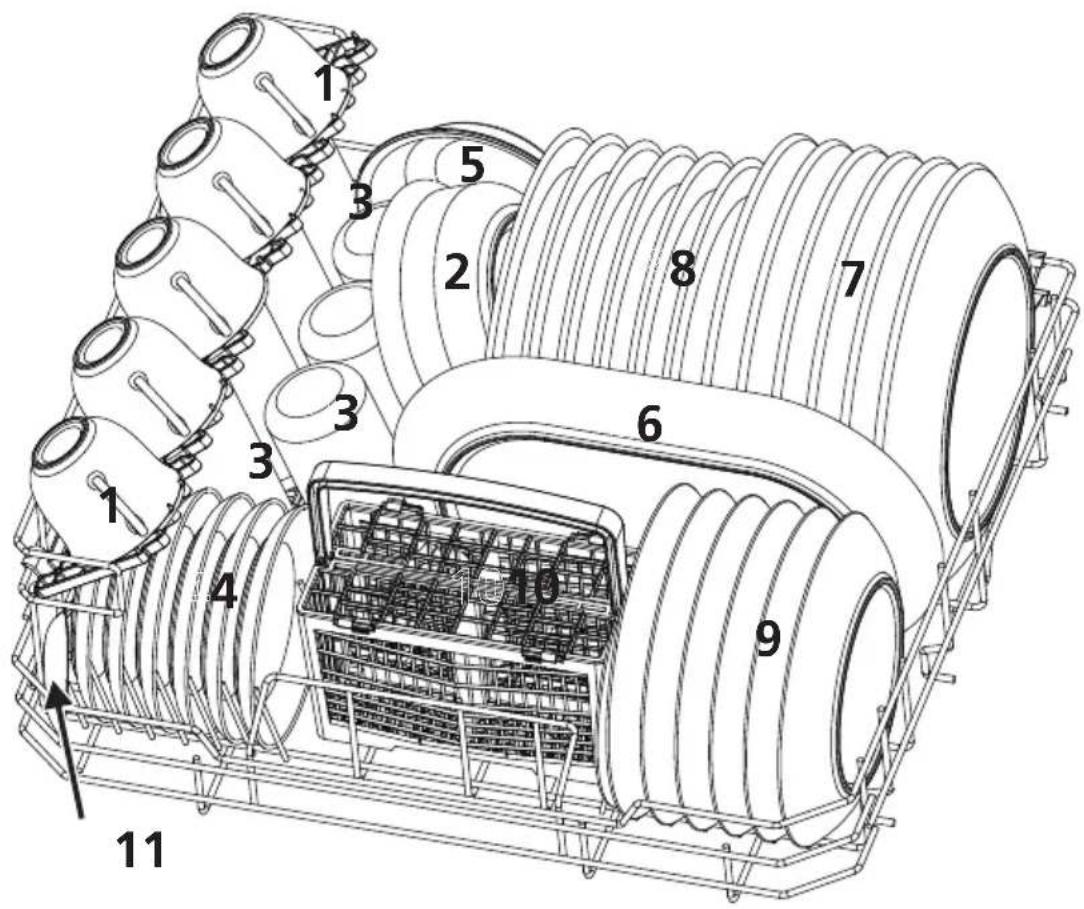

07	26	LOADING THE BASKETS ACCORDING TO EN50242

NOTE:

• Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

- This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.(For EN60335-1)

- This appliance is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.(For IEC60335-1)

• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance; If it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

- Check that the detergent powder is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, in stand by mode, the appliance will switch off automatically while there is no any operation in 30 minutes.

Disposal

- For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Cardboard packaging is manufactured from

• recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you

- will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this

- product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as

- unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

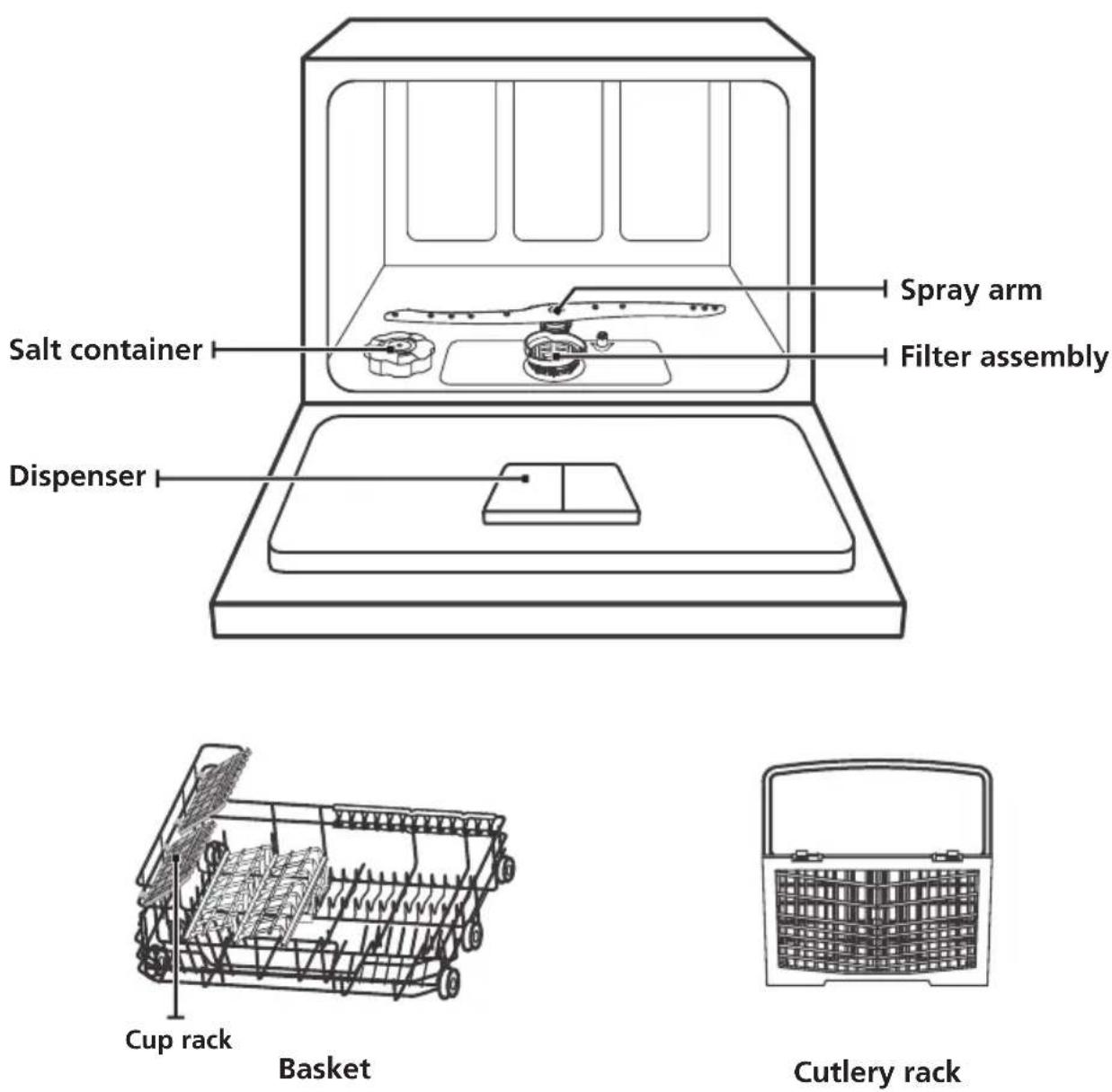

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

NOTE:

Pictures are only for reference, different models may be different.

Please prevail in kind.

USING YOUR DISHWASHER

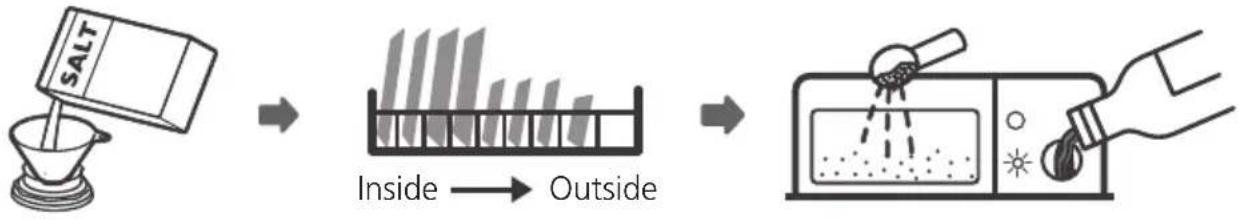

Before using your dishwasher :

1. Set the water softener
2. Loading the Salt Into the Softener
3. Loading the basket
4. Fill the dispenser

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section.

Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
• Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

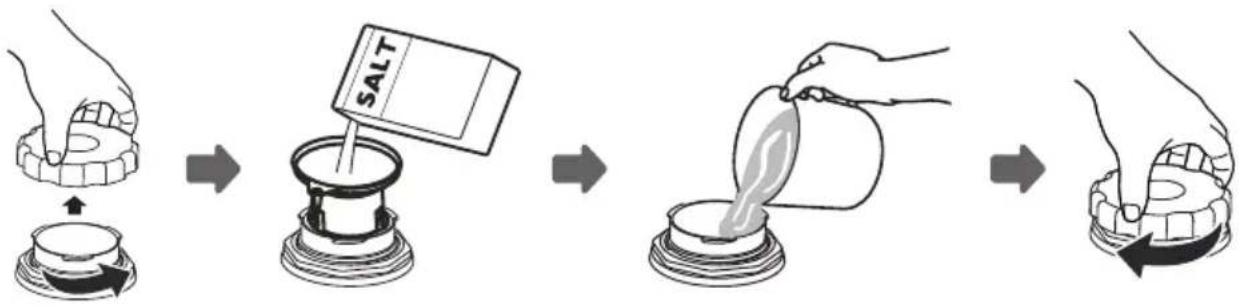

Please follow the steps below for adding dishwasher salt:

1. Remove the basket and unscrew the reservoir cap.

2. Place the end of the funnel (supplied) into the hole and pour in about 1kg of dishwasher salt.

3. Before first wash, fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will stop being after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light ( ≈ ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different. Please prevail in kind.

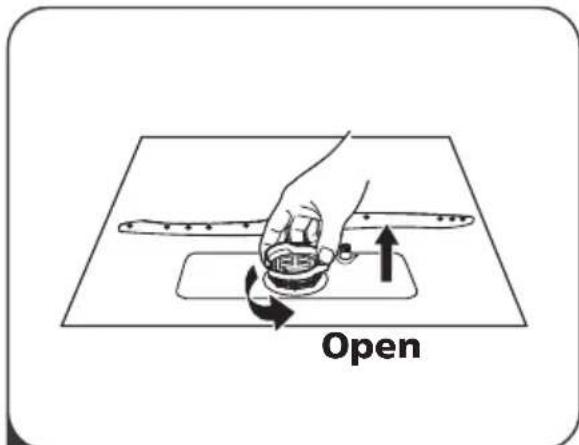

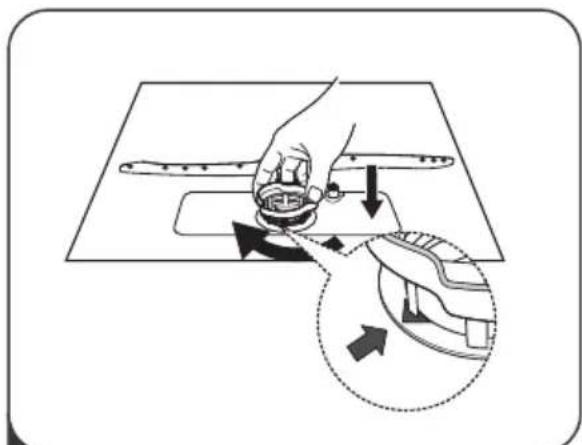

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

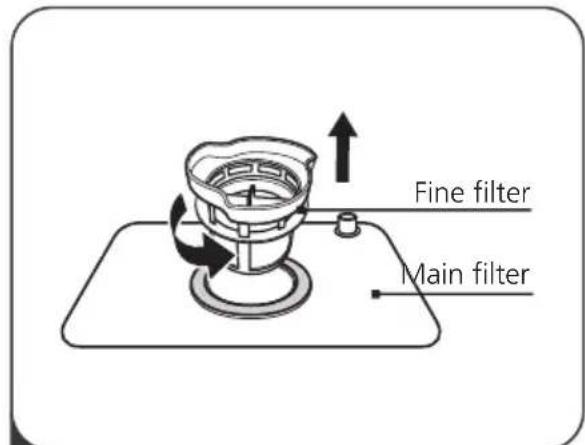

2 Lift fine filter up from main filter.

Illustration of a hand washing a pipe with a tool, no text or symbols present

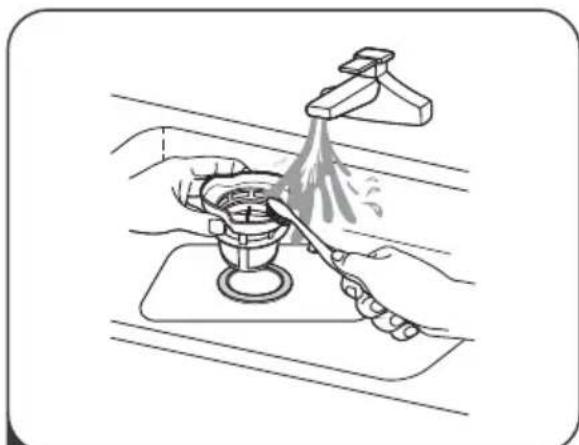

3 Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

Illustration of a hand turning a valve on a cutting board, with an inset showing the mechanism (no text or symbols)

4 Reassemble the fi Iters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Illustration of a hand using a tool to cut a mechanical component on a flat surface (no text or symbols)

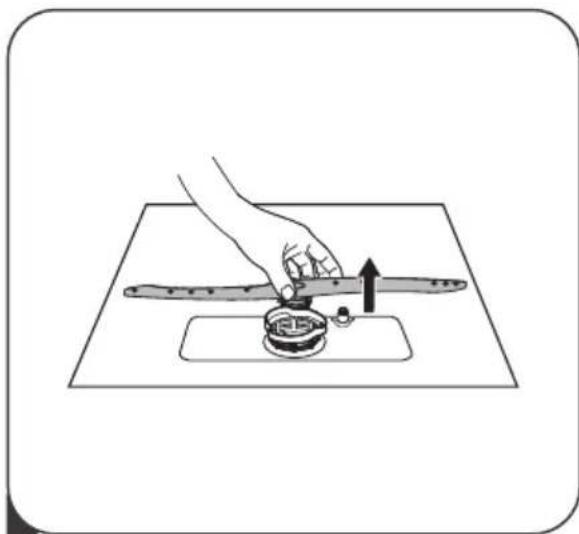

1 To remove the lower spray arm, pull out the spray arm upward.

Illustration of hands using a spray gun to clean or spray a small object on a kitchen sink (no text or symbols)

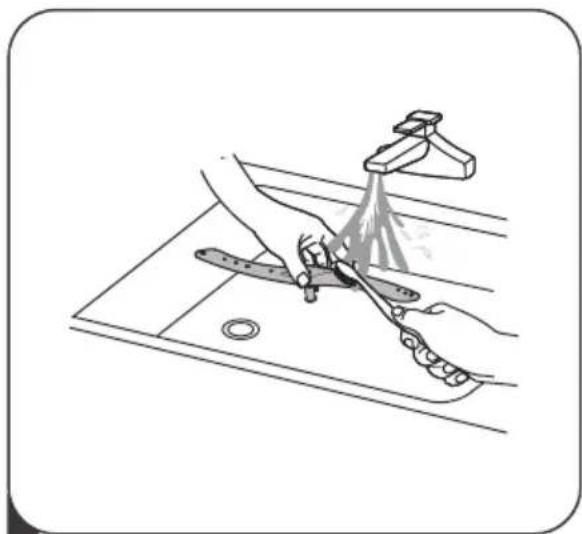

2 Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Caring For The Dishwasher

Frost precaution

please take frost protection measures on the dishwasher in winter. Every fter washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher,do not use solvents or abrasive cleaning products.Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and serrated line, representing electrical hazard or electrical contact (no text present)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

ordinary supply hose

Line drawing of a faucet with a valve and handle (no text or symbols)

safety supply hose

About the safety supply hose

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 600mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

How to drain excess water from hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed .

Position The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Built-In Installation

Freestanding

Fully-integrated

Step 1a:

If only the body into cabinets, please make this map the size of the cabinet hole.

Step 1b:

If the entire decorative panel into the cabinet also, the size of A should be equal to D+9.5; size B should be equal to C+6;

Meanwhile, the cabinet around the inward booster:

both sides of the (C-555)/2 +3; C, D and E as the second step within the relevant size decorative panels.

Step 2: Aesthetic panel's dimensions and installation

Weight of the decorative panel should be min 3Kg-max 4Kg.

Dim.A and B could be alterable by handle,

Dim.C, D and E could be alterable by fact,

Dim.E should be in range 16\~22mm, besides the appliance assembling decorative panel.

(Unit: mm)

Step 3: Assemble the decorative panel

NOTE:

If the machine with a decorative plate, no this step.

Line drawing of a rectangular panel with a diagonal support and two small protrusions, no text or symbols present.

Step 4:

Assemble the decorative door on the dishwasher, as figure. First install screw between the cabinet base board and decorative panel, in all 16; then pull glide from out door groove, case 8-screw between decorative panels and glide.

Decorative panel

Cabinet base board

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Screw, in all 8

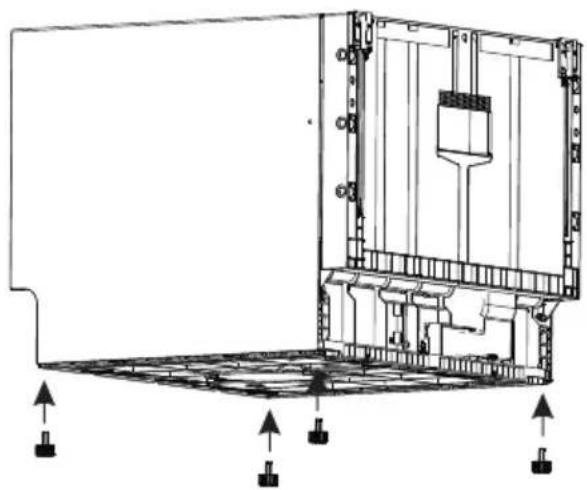

Step 5: Install the adjust screw into the base

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 6:

Install the dishwasher in aperture, but not full, as figure, adjust screw, let its bottom align aperture's base, then push dishwasher full.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible causes Solution
Dishwasher doesn't start	Fuse blown, or the circuit breaker tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Door of dishwasher not properly closed.	Make sure to close the door property and latch it.
Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged.	Check the coarse filter.(see section titled "Internal Care")
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurred, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub.Close and latch the dishwasher, then Start any wash cycle to drain out the water. Repeat if necessary.
	Spilled rinse-aid. Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant may have been used.	Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Problem Possible Causes What To Do
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run the quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the lip. Ensure the fix is fine.
Knocking noise in the wash cabinet	The spray arm is knocking against an item in a basket.	Interrupt the program, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Item of crockery are loose in the wash cabinet.	Interrupt the program, and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The programme was not powerful enough.	Select a more intensive programme.
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Item are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups	Dishes block detergent dispenser cups	Re-loading the dishes properly.
The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
	Wrong program has been selected.	In short programmes the washing temperature is lower. This also lowers cleaning performance. Choose a programme with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

LOADING THE BASKETS ACCORDING TO EN50242:

1. Upper basket:

Number	Item
1	Cups
2	Medium serving bowl
3	Glasses
4	Saucers
5	Dish
6	Oval platter

Number	Item
7	Dinner plates
8	Soup plates
9	Dessert dishes
10	Cutlery basket
11	Serving spoons

2.Cutlery basket:

Information for comparability tests in accordance with EN 50242

• Capacity: 6 place settings
- Program: ECO
- Rinse aid setting: 6
- Softener setting: H4

Number	Item
1	Forks
2	Soup spoons
3	Dessert spoons
4	Teaspoons
5	Knives
6	Serving spoons
7	Gravy ladles
8	Serving forks

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot
  • A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

CE Certificate

It has been determined that this product complies with the LOW VOLTAGE directive (2006/95/ec), Electromagnetic

Compatibility directive (2004/108/EC), and RoHS directive.

For more information related to declarations and certificates of conformity, please contact us through the mail

[e-mail] and in the web www.infiniton.es

TECHNICAL SERVICE

If you have any questions regarding this device, please contact us:

[e-mail] and www.infiniton.es

You can also contact our official technical service - MEGAEXIT, S.L

tel: [phone]

Repairs e-mail: [e-mail]

www.megaexit.com

Simple line drawing of a 3D printer or scanner device inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of hands using a tool to clean or wash a pipe on a sink (no text or symbols)

Diagram showing a hand adjusting a mechanical component with an inset close-up of the mechanism (no text or symbols)

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. NEVER
• use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Illustration of a hand using a tool to cut a cylindrical object on a flat surface, with an arrow indicating upward motion (no text or symbols)

Illustration of hands using a spray gun to clean a small aircraft on a kitchen sink (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and serrated line, representing electrical hazard or electrical contact (no text present)

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

manguera de suministro ordinario

Line drawing of a faucet with a valve and handle (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a threaded component (no text or symbols present)

Paso 1b:

Technical line drawing of a rectangular panel with mounting holes and a diagonal support (no text or symbols)

Etapa 4:

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Paso 6:

Simple line drawing of a 3D printer or scanner device inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Line drawing of hands using a tool to clean or wash a pipe on a surface (no text or symbols)

Diagram showing a hand adjusting a mechanical component with an inset close-up of the mechanism (no text or symbols)

Illustration of a hand using a tool to cut a cylindrical object on a flat surface, with an arrow indicating motion (no text or symbols)

Illustration of hands cleaning a kitchen sink with a spray gun (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or numbers)

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical line drawing of a rectangular panel with mounting holes and a diagonal support (no text or symbols)

Estágio 4:

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Passo 6:
