USER MANUAL WP4210IDTV Walker

Safety Precautions .... 3

Power Source 3

Power Cord 3

Moisture and Water 3

Cleaning....3

Ventilation 3

Heat and Flames 3

Lightning 3

Replacement Parts 3

Servicing 3

Waste Disposal 3

Information for Users in European Union

Countries 3

Disconnecting the Device 3

Headphone Volume 3

Installation....4

LCD Screen 4

Warning 4

Overview of the Remote Control 5

LCD TV and Operating Buttons 6

Viewing the Connections- Back Connectors ...... 6

Viewing the Connections - Side Connectors ..... 8

Aerial Connection 8

Power Connection 8

Connecting the LCD TV to a PC 8

Connecting to a DVD Player....9

Using Side AV Connectors 9

Using Other Connectors 9

Connecting Other Equipment via Scart 10

Inserting Batteries in the Remote Control

Handset....10

Switching the TV On/Off 10

To Switch the TV On 10

To Switch the TV Off 10

Input Selection 10

Basic Operations 10

Operation with the Buttons on the TV 10

Operation with the Remote Control .....11

Initial Settings 11

General Operation 12

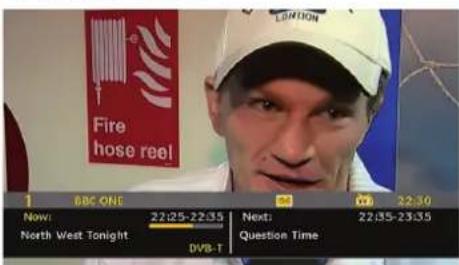

Information Banner 12

Electronic Programme Guide (EPG) 12

Displaying Subtitles 13

Digital Teletext ( ^** for UK only) 13

Analogue Teletext 13

Widescreen....13

IDTV Menu System 13

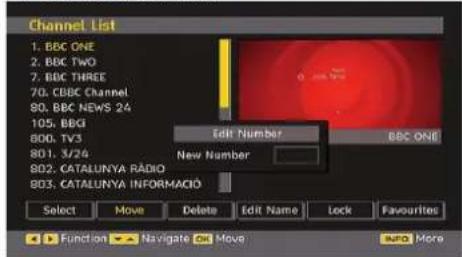

Channel List 13

Timers....15

Conditional Access 15

TV Setup 16

Setup 16

Analogue TV Menu System 20

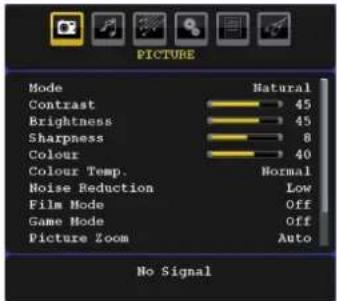

Picture Menu....20

Sound Menu 21

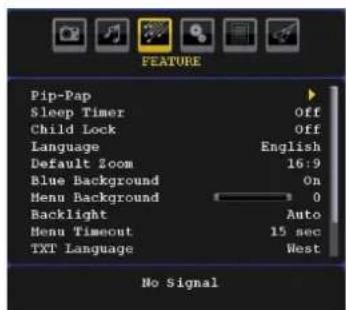

Feature Menu 22

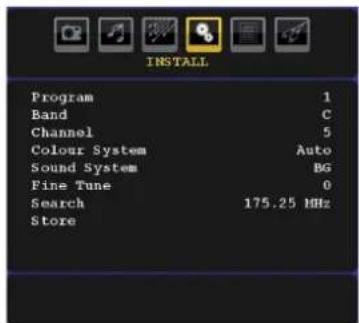

Install Menu 23

Source Menu 25

PC Mode Menu System.... 25

PC Position Menu 25

Displaying TV Information 26

Mute Function 26

PIP (Picture-in-Picture) and PAP (Picture-and-

Picture) Modes 26

Picture Mode Selection 26

Freezing Picture 26

Zoom Modes....26

Teletext 27

Tips....28

Appendix A: PC Input Typical Display Modes ..... 29

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) 29

Appendix C: Supported DVI Resolutions.... 30

Appendix D: PIP/PAP Mode Combinations ..... 30

Specifications 31

Important Instruction 32

English - 1 -

Features

• Remote controlled colour LCD TV.
  • Fully integrated digital TV (DVB-T).
• HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
  • 200 programmes from VHF, UHF(analogue).
  • 300 programmes for digital mode (IDTV).
• OSD menu system.
• Two scart sockets for external devices (such as video, video games, audio set, etc.).
• Stereo sound system. (SRS TruSurround XT)
• Teletext, fastext, TOP text.
• Headphone connection.
  • Automatic programming system.
• Forward or backward manual tuning.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
• PIP / PAP / PAT functions.
  • AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista.
• Audio line out.
  • Game Mode (optional).
  • Active antenna power (optional).

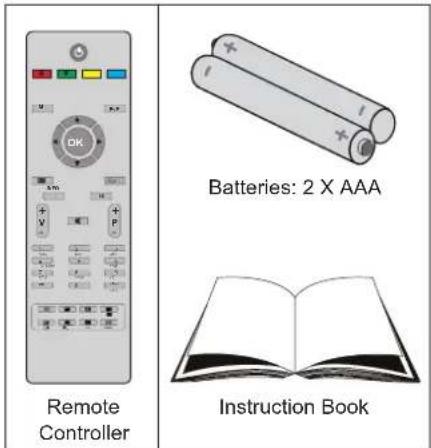

Accessories

Remote Controller Batteries: 2 X AAA Instruction Book

Introduction

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly.

Please do keep this manual in a safe place for future references.

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this device in moderate climates.

10 cm 10 cm 10 cm

English -2-

Safety Precautions

Please read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.

Information for Users in European Union Countries

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU.

For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

English - 3 -

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning

Do not leave your TV in standby or operating mode when you leave your house.

Weather and household climate symbol diagram showing crossed lines for rain, raindrops, and household items

English -4-

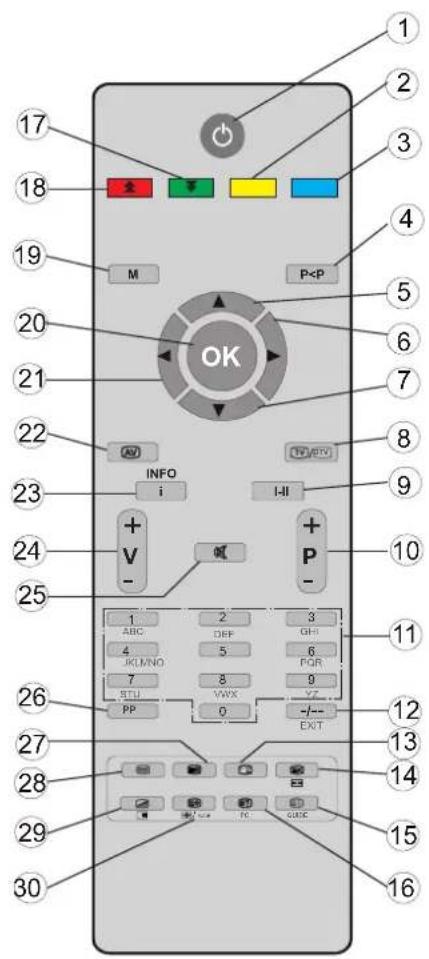

Overview of the Remote Control

Standby1.

Yellow (Feature menu)2.

Blue (Install menu)3.

Previous programme4.

Cursor up5.

Cursor right6.

Cursor down7.

TV / Digital TV8.

Mono/Stereo - Dual I-II 9.

Programme up/down10.

Numeric buttons11.

Exit (in DTV mode)12.

Hold (in TXT mode) / PIP position13.

1. Update (in TXT mode) / PAP mode

2. Index page / Guide (in DTV mode)

3. Reveal (in TXT mode) / Switch from TV to PC

4. Green (Picture menu) / Page down (in DTV mode)

5. Red (Sound menu) / Page up (in DTV mode)

6. Menu on/off

7. Ok - Confirm

8. Cursor Left

AV / Source22.

1. Info

2. Volume up/down

3. Mute

4. Personal preferences

5. Time / Subtitle on-off (in DTV mode)

6. Teletext

7. Mix (in TXT mode) / PIP mode

8. Expand (in TXT mode) / Image size

Diagram of a remote control device with numbered labels pointing to function keys and buttons

English - 5 -

LCD TV and Operating Buttons

Line drawing of a flat-screen monitor with blank screen (no text or symbols)

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

① ② ③ ④ TV/AV ^ PICH ^ PICH

Diagram of a vertical mechanical component with an arrow indicating rotational motion (no text or symbols)

Standby button1.

TV/AV button2.

Programme Up/Down buttons3.

Volume Up/Down buttons4.

Note: Press "→/→" + buttons at the same time to view main menu.

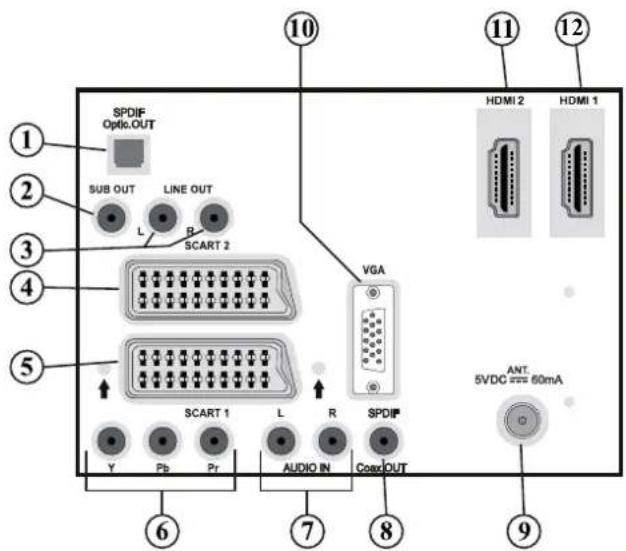

Viewing the Connections- Back Connectors

SPDIF Optic.OUT SUB OUT LINE OUT L B SCART 2 VGA SCART 1 L R SPDIF Y Pb Pr AUDIO IN CoaxOUT ANT. 5VDC === 60mA ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ HDMI 2 HDMI 1

S/PDIF Digital Out1. outputs digital audio signals of the currently watched source. Use a digital optic cable to transfer audio signals to a device that has S/PDIF input.

1. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass effect.
   Use an appropriate RCA cable to connect the set to a subwoofer unit.

2. Audio Line Outs output audio signals to an external device such as an optional sound system. To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.

SCART 24. inputs or outputs for external devices.

SCART 15. inputs or outputs for external devices.

English -6-

Connect the SCART cable between SCART sockets on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode. If both sockets are employed at the same time, SCART 1 will override SCART 2 unless manually selected.

Note: You should connect the decoder to EXT-1, if you are planning to watch a scrambled channel. The decoder might not function properly if you do not connect the decoder to the Scart 1 (Ext-1) socket. Note: Picture state can be affected by scart cable quality.

Component Video Inputs (YPbPr)6. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output.

Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

1. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr.

Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio.

Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

S/PDIF Coaxial Out8. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has S/PDIF input.

RF Input9. connects to an antenna or a cable.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

PC Input10. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

HDMI 2: 11. HDMI Input

HDMI 1: 12. HDMI Input

HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection.

English - 7 -

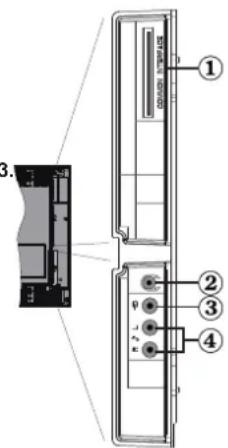

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the 1 channels that you subscribe to. For more information, see "Conditional Access" section.

Headphone jack is used for connecting an external headphone to the 2. system. Connect to the HEADPHONE jack to listen to the TV from headphones (optional).

Video Input is used for connecting video signals of external devices. Connect 3. the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.

Audio Inputs are used for connecting audio signals of external devices. 4. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device. Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

Technical diagram of a device rear panel with labeled components and a close-up view of the front panel.

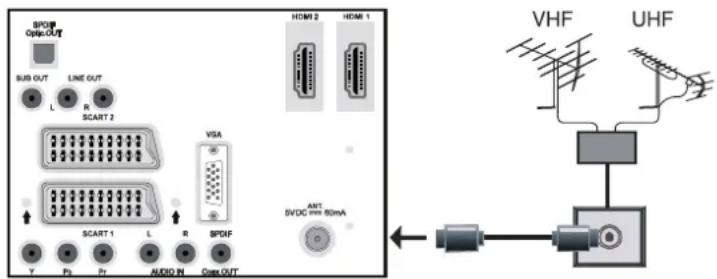

Aerial Connection

- Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

SPDF OP-OUT SUB OUT LINE OUT L R SCART 2 VSA SCART 1 L R SPDIF Y Pi Pr AUDIO IN COS OUT HDMI 2 HDMI 1 ANT SVDC 80mA VHF UHF

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
• Plug the power cable to the mains socket outlet.

Connecting the LCD TV to a PC

For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.
• Use 15-pin D-sub display cable to connect a PC to the LCD TV.
• When the connection is made, switch to PC source. See "Input selection" section.
• Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

English - 8 -


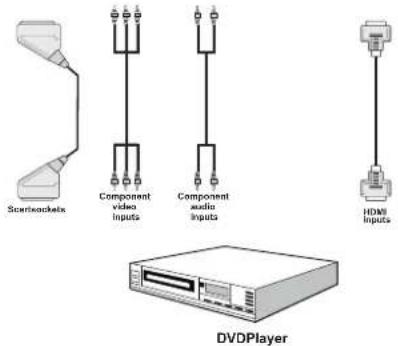

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
• Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.
• You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Startxackets Component video Inputs Component audio Inputs HDMI Inputs DVDPlayer

REAR VIEW

Using Side AV Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. Do not connect the camcoder to VIDEO IN socket at the same time since it can cause noise in the picture. For selecting the related source, see the section "Input selection" in the following parts.
  • To listen the TV sound from headphones, connect to the HEADPHONE jack of the TV.

Hodiphone Camcorder

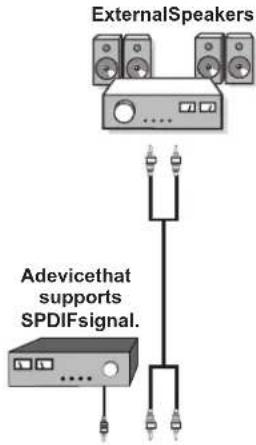

Using Other Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set's manual for further queries.
• For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection.

ExternalSpeakers Adevicethat supports SPDIFsignal.

English - 9 -

Connecting Other Equipment via Scart

Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied.

Power off both the TV and the devices before making any connections.

For more information, refer to your device's own instruction book.

Inserting Batteries in the Remote Control Handset

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
• Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.

Diagram showing three steps of a remote control panel with labeled components and an arrow indicating the process.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

Remote range is approximately 7m/23ft.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC, 50 Hz.
• Press STANDBY switch. Then the standby LED lights up.
  • To switch on the TV from standby mode either:
• Press the "○" button, P+ / P- or a numeric button on the remote control.

- Press the -P/CH or P/CH+ button on the TV. The TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Press the "button" on the remote control or press the STANDBY switch, so the TV will switch to standby mode.
  • To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources.

• Press "AV" button on your remote control for directly changing sources.
  or,
• Select "Source" option from the main menu by using "◀" or "▼" button. Use then "▼or "▲button to highlight an input and press ""●" button to select.

Note: You can mark desired source options by pressing the OK button. Therefore, when "AM button is pressed, only the marked source options will be available (except for the TV source).

SOURCE : TV TV DTV EXT-1 EXT-2 FAV HDMI-1 HDMI-2 YFbPz PC-VGA

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

- Press "button to decrease volume or " button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

- Press "P/CH+" button to select the next programme or "P/CH-" button to select the previous programme.

Viewing Main Menu

- Press “-” button at the same time to view main menu. In the Main menu select sub-menu using "P/CH -" or "P/CH +" buttons and enter the sub-menu using “-” or “.” buttons. To learn the usage of the menus, refer to the menu system sections.

AV Mode

- Press the "TV/AV" button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

- The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV. - Functions of the menu system are described in the following sections.

Volume Setting

- Press "V+" button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

- Press "P -" button to select the previous programme. - Press "P +" button to select the next programme.

Programme Selection (Direct Access)

- Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 - 299 (for IDTV) or 10 - 199 (for analogue), press the numeric buttons consecutively. The limit of the delay time is 3 seconds. - Press directly the programme number to reselect single digit programmes.

Initial Settings

When the TV is turned on for the first time, the menu for the language selection appears on the screen. The message "Welcome please select your language!" is displayed in all language options sequentially in the OSD.

By pressing the "▼" or "▲" buttons highlight the language you want to set and press OK button. After then, "First time installation" OSD will appear on the screen.

By pressing “◀ or “▶buttons, select the country you want to set and press OK button. button ( ^** for EU countries).

Note: Country selection OSD will not be available for UK.

After then, the active antenna selection OSD appears on the screen:

By pressing “◀” or “▶” buttons, set active antenna mode as on or off.

If an active antenna is connected to your TV, you can select this option as On. Antenna power should be "Off" when standard antenna is used instead of the active antenna. See Confi guration Menu in the following sections for more information.

Press OK button on the remote control to continue and the following message will be displayed on the screen:

Do you want to start an automatic channel scan? Yes No

- To select the "Yes" or "No" option, highlight the item by using "◀or "▶buttons and press the OK button.

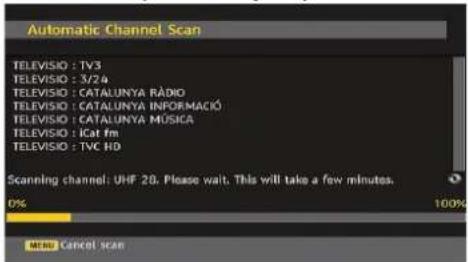

The IDTV will automatically tune to the UHF or VHF ( ^** for EU countries) transmission channels, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about a few minutes. To cancel searching, you can press the "M" button at any time during the process.

Automatic Channel Scan TELEVISIO : TV3 TELEVISIO : 3/24 TELEVISIO : CATALUNYA RÁDIO TELEVISIO : CATALUNYA INFORMACIÓ TELEVISIO : CATALUNYA MÚSICA TELEVISIO : Icat fm TELEVISIO : TVC HD Scanning channel: UHF 2G. Please wait. This will take a few minutes. 0% 100% MENU Cancel scan

After Automatic Search is completed, the following message asking for analogue channel search appears on the screen:

English - 11 -

To search for analogue channels, select "Yes". TV switches to the analogue TV mode. The menu below is displayed to search for analogue channels:

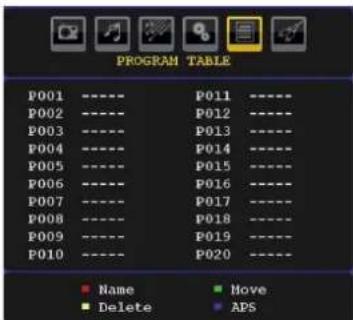

PROGRAM TABLE Language English Country UK TXT Language Nest PLEASE CHECK ANTENNA CABLE AUTO. PROGRAMMING SYSTEM Ok Cancel

Select your Country, Language and Text language by using "◀ or " ▶ and " "▼ or " " buttons. Press OK or RED button to continue. To cancel, press the BLUE button.

For more information on this process, see "Install Menu" section.

Note: For proper functioning of digital teletext in DTV mode, you should set country as UK in analogue AUTO PROGRAM (for UK only).

General Operation

Pressing the "TV/DTV" button at any time while watching television programmes will switch the TV set between the digital terrestrial television broadcasting and its normal analogue broadcasting.

Information Banner

• Whenever you change channel, using the P-/P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen (available only in DTV mode). This will remain on the screen for a few seconds.
• The information banner can also be displayed at any time while watching TV by pressing the INFO button on the remote control:

BBC ONE Now: 22:25-22:35 North West Tonight DVB-T Next: 22:35-23:35 Question Time

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four numeric code to view the channel. "Enter PIN" will be displayed on the screen in such a case:

Enter PIN

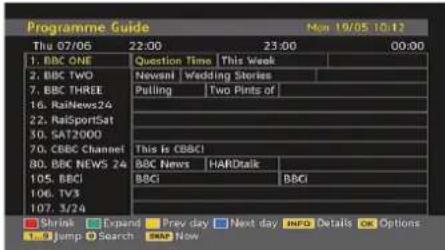

Electronic Programme Guide (EPG)

• Some, but not all, channels send information about the current and next events.
• Please note that event information is updated automatically. If there is no event information data available in channels, EPG will be displayed with blanks.
• Press GUIDE button to view the EPG menu.
• Electronic Programme Guide appears on the screen. It is able to get Information of the channel - programs weekly by means of 7-DAY-EPG. All programs of channels are displayed. On the bottom of the screen; info bar, showing all the available commands, will be displayed.

Programme Guide Thu 07/06 22:00 23:00 00:00 1. BBC ONE Question Time This Week 2. BBC TWO News/Wedding Stories 7. BBC THREE Pulling Two Pints of 16. RaiNews24 22. RaiSportSat 30. SAT2000 70. CBC Channel This is CBBC1 80. BBC NEWS 24 BBC News HARDtalk 105. BBC1 BBC1 BBC1 106. TV3 107. 3/24 Shrink Expand Prev day Next day INFO Details Options Jump Search Show Now

RED button (Shrink): makes the info boxes smaller.

GREEN button (Expand): makes the info boxes larger.

YELLOW button (Prev. Day): displays the programmes of previous day.

BLUE button (Next day): displays the programmes of the next day.

INFO (Details): displays the programmes in detail.

Numeric buttons (Jump): go to preferred channel directly via numeric buttons.

OK : views options for future programmes.

SWAP : jumps to the current boradcast.

- Press "0" button to view Guide Search menu. Using this feature, you can search the programme guide

database in accordance with the genre selected or with name match.

Note: Searching process can be performed by the desired date rate or by the channel basis.

Displaying Subtitles

With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles.

Note: You can enable subtitles by pressing the 📄 (**) for UK) or GREEN (* for EU countries) buttons.

Press the "M" button to display the main menu, highlight the Setup and then Language menu using "▼" or "▲button and press the OK button to display the "Language settings" menu.

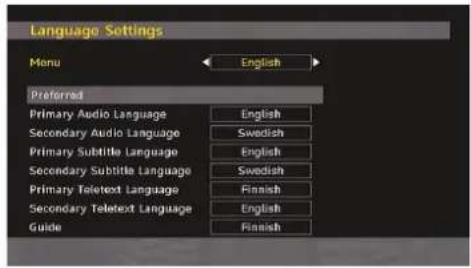

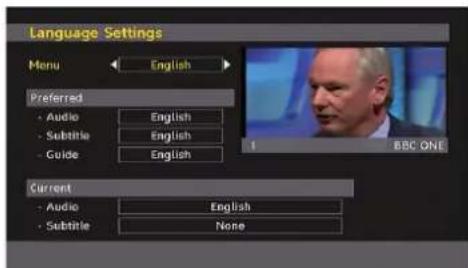

Highlight the "Subtitle" item in "Language settings" menu and use ◀ or ►button to set Subtitle to the desired language.

If "Subtitle" is on and a language option is set, pressing the TELETEXT (☐) button causes the following warning message display on the screen (* for UK only):

Interactive services are not available while subtitles are on. Would you like to turn subtitles off now? Yes No

Digital Teletext ( ^** for UK only)

• Press the TELETEXT (button.
  • The digital teletext information appears.
• Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on digital teletext screen.

• When Press "SELECT" button or similar message appears on the screen, press the OK button.
• When the TELETEXT (button is pressed, the TV returns to television broadcasting.
• With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.
• The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.
• When you press the TELETEXT (☐) button again, the digital teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to the analogue text system. Please do refer to the "TELETEXT" explanations.

Widescreen

Depending on the type of the broadcast being transmitted, programmes can be viewed in a number of formats. Press the "SCREEN" button repeatedly to select between to change zoom mode.

When Auto is selected, the format being displayed is determined by the picture being broadcast.

PLEASE NOTE: Menu size changes depending on the chosen image size.

IDTV Menu System

The IDTV menu can only be viewed when watching digital terrestrial broadcasting. Press the "TV/DTV" button to turn IDTV on while the TV is in analogue mode.

Press the "M" button. The menu below appears on the screen:

Menu Channel List Programme Guide Timers Conditional Access TV Setup Setup

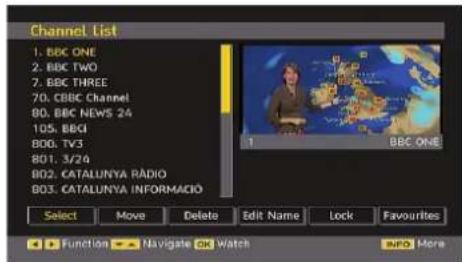

Channel List

Using the "▼ or " " button on the remote control, make sure that the first item, Channel List, is highlighted and press the OK button to display the Channel List.

Channel List is the place where the channels are managed.

Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBCI 800. TV3 801. 3/24 802. CATALUNYA RADIO 803. CATALUNYA INFORMACIO Select Move Delete Edit Name Lock Favourites Function Navigate or Watch supd More

Navigating the Entire Channel List

Press "▼or " " ▲button for selecting the previous or next channel. You can press P+ or P- button to move page up or page down.

English - 13 -

To watch a specific channel, highlight it using "▼" or "▲button and then press "OK" button, while the "Select" item on Channel List menu is highlighted by using "◀or "▶button.

Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively.

Moving the channels in the channel list

• Press "▼or " "▲buttons to select the channel that will be moved.
• Press "◀" or "▶" buttons to select the "Move" item on Channel List menu.

Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBCI 800. TV3 801. 3/24 802. CATALUNYA RADIO 803. CATALUNYA INFORMACIO Edit Number New Number BBC ONE Select Move Delete Edit Name Lock Favourites Function Navigate Move surcMore

Note: If you enter the same programme number of the channel that you want to move, “... channel services will be replaced. Do you want to continue?” OSD will be displayed. Press OK to confirm or select “No” to cancel.

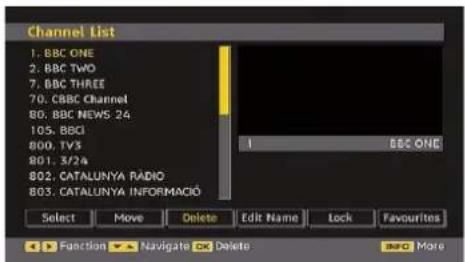

Deleting the Channels in the Channel List

• Press "▼ or " " button to select the channel that will be deleted.
• Press "◀" or "▶" button to select the "Delete" item on Channel List menu.

Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBC 800. TV3 801. 3/24 802. CATALUNYA RADIO 803. CATALUNYA INFORMACIÓ Select Move Delete Edit Name Lock Favourites Function Navigate Delete Info More

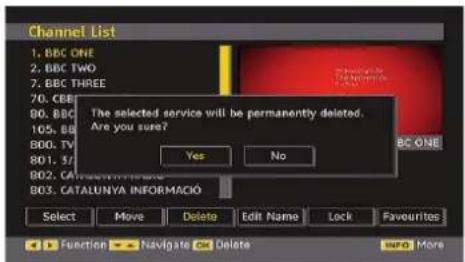

Press the OK button to delete the highlighted channel in the channel list. Then the message below appears on the screen:

Channel List 1. BBC ONE 2. BBC TWO 3. BBC THREE 70. CBB 80. BBC 105. BB 800. TV 801. S/ 802. CA B03. CATALUNYA INFORMACIÓ The selected service will be permanently deleted. Are you sure? Yes No Select Move Delete Edit Name Lock Favourites 1 Function → Navigate Go Delete info More

Press "or " button to highlight the desired option. If OK button is pressed while "Yes" is highlighted, the highlighted channel is deleted. Selecting "No" cancels the deletion.

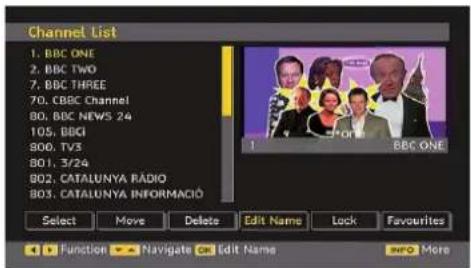

Renaming Channels

To rename a specific channel, the channel must be highlighted by pressing "▼ or " "▲ button. Then highlight the Edit Name item by pressing "◀ or " ▶" button as illustrated below. Press the OK button to activate the rename feature.

Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBCI 800. TV3 801. 3/24 802. CATALUNYA RADIO 803. CATALUNYA INFORMACIÓ Select Move Delete Edit Name Lock Favourites Function Navigate Edit Name INFO More

Now pressing "or" button moves to the previous/next character. Pressing "or" button toggles the current character, i.e., 'b' character becomes 'a' by "and 'c' by "Pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

Press the "M" button to cancel the editing or OK button to save the new name.

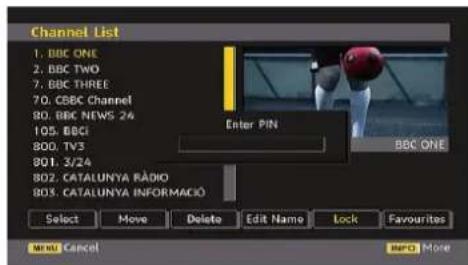

Adding Locks to Channels

Channel locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the parental lock password (default value is set to 0000 in the factory and can only be changed from the Configuration menu).

Select the channel to be locked by highlighting it and select the Lock option by pressing "◀" or "▶" button. When the OK button is pressed, a dialog OSD asking for the password will be displayed.

Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBC 800. TV3 801. 3/24 802. CATALUNYA RADIO 803. CATALUNYA INFORMACIO Enter PIN BBC ONE Select Move Delete Edit Name Lock Favourites MENU Cancel Help More

Enter the password by using the numeric buttons on the remote control. The lock icon "s" will now be displayed next to the selected channel. Repeat the same operation to cancel the lock.

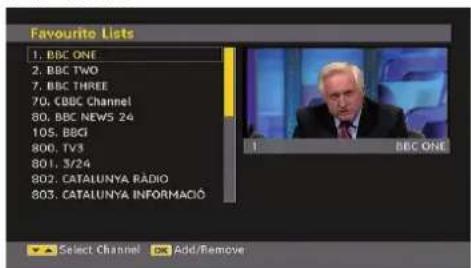

Setting Favourites

To set a favourite you should highlight the "Favourites" item at the bottom of the Channel List menu. Then press OK button and Edit Favourite List menu appears on the screen.

Favourite Lists 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBG 800. TV3 801. 3/24 802. CATALUNYA RÁDIO 803. CATALUNYA INFORMAÓ Select Channel Add/Remove

How to Add a Channel to a Favourites List

• By pressing “▼” or “▲buttons, highlight the channel that you want to add to the favourite list.
• By pressing OK button, the highlighted channel is added to the Favourite List.
• F icon indicates that a channel is added to Favourite List.

Removing a Channel from Favourite List

• Highlight the channel that you want to remove from the favourite list and press OK button to remove. You can press OK button again to re-add a channel.
• To activate Favourites, go to the Configuration menu and select Favourite mode. Use “◀” / “▶” to set Favourite mode as on. To cancel Favourites, set Favourite Mode to Off.

On Screen Help

For all menus, press the INFO button to display the help information about the menu functions.

Program Guide

This section is same with the instructions given in the General Operations page. Please see Electronic Programme Guide (EPG) section in the General Operations part.

Timers

Timers Date 07/06 22:47 Name Start Length BBC ONE 07/06/07 22:42 1h 0m Delete Edit Add

To display timers window, activate the item from the main menu. To add a timer, press the YELLOW button on the remote control. Then "Add Timer" window appears.

Channel: “◀” or “▶” keys will navigate the user through the TV or Radio list.

Date: Starting date is entered via the Left/Right or the numeric buttons.

Start: Starting time is entered via the Left/Right or the numeric buttons.

End: Ending time is entered via the Left/Right or the numeric buttons.

Duration: Duration between Start and End time.

Repeat: You can set a timer to be repeated as Once, Daily or Weekly.

Change/Delete: permits or prohibits any modifications for other users.

You can save the adjustments by pressing the GREEN key or cancel the process by pressing the RED button. You can edit the list via GREEN key and delete with the RED button.

Conditional Access

- Press the M button to display the main menu and use the "▼ or " ▲button to highlight the "Conditional Access" line and press the OK button:

Menu Channel List Programme Guide Timers Conditional Access TV Setup Setup

Some Digital Terrestrial channels operate on a Pay Per View basis. These require a subscription and a hardware decoder.

English - 15 -

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

• Switch off the TV and unplug from the mains.
• Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the left-hand side of the TV (from front view).
• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

- Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

- Some CAMs may require the following set up. Please set the CAM by entering the IDTV menu, Conditional Access then pressing the OK button. (CAM set up menu is not displayed when it is not required.)

- To see the viewing contract information: enter IDTV; press the "M" button, then highlight Conditional Access and press the OK button.

- When no module is inserted, "No Conditional Access module detected" message appears on the screen.

- Refer to the module instruction manual for details of the settings.

NOTE: Insert or remove the CI module only when the TV is in STAND-BY mode or SWITCHED OFF.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from the main menu. Press the "M" button to display the main menu and use "▼" or "▲" button to highlight "TV Setup", press the OK button to display TV Setup menu screen.

Menu Channel List Programme Guide Timers Conditional Access TV Setup Setup

You can find detailed information for all menu items in "Analogue TV Menu System" section.

Setup

The adjustments in this menu are given as the following:

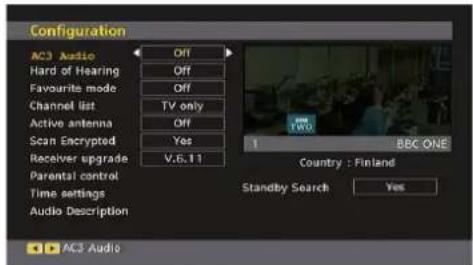

Configuration

You can configure the settings of your TV. Select Configuration from Setup menu and press OK to view this menu. Press the RETURN button on the remote control to exit.

Configuration AC3 Audio Off Hard of Hearing Off Favourite mode Off Channel list TV only Active antenna Off Scan Encrypted Yes Receiver upgrade V.G.11 Parental control Time settings Audio Description 1 BEC ONE Country : Finland Standby Search Yes AC3 Audio

AC3 Audio (\* for EU countries only)

In the Configuration Menu, highlight the AC3 Audio item by pressing "▼" or "▲buttons. Use the "◀" or "▶" buttons to set the AC3 Audio as On or Off.

If the channel that you are watching supports AC3 Audio, turn this setting on.

Hard of Hearing (\* for EU countries only)

Use "▼or " " button to select Hard of Hearing and then press "◀ or " ▶ button to set this setting as On or Off.

If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Favourite Mode

Use this function to enable or disable favourite mode. Press "◀/ " ▶button to set this function as on or off.

Channel List

Use "▼" or "▲buttons to go to Channel List option. Use "◀or "▼" buttons to toggle Channel List Mode. If you select "TV Only", with the "◀or "▼" buttons, you navigate through only TV channels. If you select "Radio Only", with the "◀or "▼" buttons, you navigate through only radio channels. If you select "Text Only", with the "◀or "▼" buttons, you navigate through only text channels. To save the recent changes and exit; press the "M" button.

Active Antenna

Use "▼" or "▲buttons to highlight Active Antenna option.

When antenna power option is set as On by pressing "◀ or " ▶ button, +5V will be transmitted to the antenna output.

This feature enables the use of active antenna.

Note: Antenna power should be "Off" when standard antenna is used instead of the active antenna.

Scan Encrypted (\*\*)

(**) For UK only.

Scan Encrypted Channel feature will always be ON after performing first time installation. When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search.

Use "▼" or "▲button to select Scan Encrypted and then press "◀or "▶button to set this setting as On or Off.

Receiver Upgrade

Over Air Download (OAD)

To ensure that your TV always has the most update information, use this setting. Please ensure that the TV is set to standby mode. The TV automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcast and will download this to your receiver automatically. This operation will normally take approximately 30 minutes. If you have an important recording to be carried out at 3.00 A.M. and you do not want to interrupt it, disable auto OAD search by performing the following:

Software upgrade This software was built on 2008-10-31 at 20:38:17. Searching for new software... Search progress:

• Press "M" button and using the "▼or " " buttons to choose Setup and press the OK button.
• Highlight Configuration menu with ▼ or “▲keys and press OK.
• Use "▼" or "▲" buttons to choose "RECEIVER UPGRADE" and press OK button.

Upgrade options Automatic scanning Scan for upgrade Enabled

• Using the◀ or “▶button change “Automatic scanning” from Enabled to Disabled.

• Highlight "Scan for upgrade" menu with "▼" or "▲" keys and pres OK to commence upgrade.

• After the search progress is completed, the message "Completed searching for upgrade. No new software was found" appears on the screen if no new software is found.

• Do not forget to re enable the automatic OAD function after you have made your recording by repeating the above instructions but this time selecting ENABLE.

Note: Your TV may start in First Time Installation mode after OAD update.

Parental Control

Use "▼" or "▲buttons to go to Parental Lock option. Press OK button to enter the menu. A dialog box asking for the lock key will be displayed. The key is set to "0000" initially. Enter PIN. If it is incorrect, "Wrong Pin" OSD will be displayed. If it is correct, the Parental Control menu will be displayed:

Parental Control Maturity Lock Off Menu lock Disabled Set PIN

Maturity Lock (\*\*)

(**) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible.

When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, does not show video-audio.

Menu Lock

In menu lock you can set locking for all menus, or the Installation Menu to restrict access to these menus. If the menu lock is disabled, there will be free access to the menu system. Use "▼" or "▲" buttons to go to Menu Lock option. Use "◀" or "▼" buttons to choose Menu Lock Mode.

DISABLED : All menus are unlocked.

ALL MENUS : All Menus are accessible only with the correct lock key. So the user cannot add, delete, rename, channels, cannot set timers.

INSTALLATION MENU: Installation menu is locked. So the user can't add channels. Changes will be updated after exiting 'Configuration Menu'.

Set PIN

Use "▼" or "▲buttons to go to "Set PIN" option. Press OK to display the "Set PIN" window. Use numeric buttons to enter new pin number you will need to input your new pin a second time for verification purposes. The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

English - 17 -

Time Settings (\*\*)

(**) If you set Country option as UK in the first time installation, Time Settings option will not be visible.

In the configuration menu, highlight the Time Settings item by pressing "▼" or "▲" buttons. Press OK and Time Settings sub menu will be displayed on the screen. Current Time, Time Zone Setting and Time Zone will be available.

Use "▼" or "▲" buttons to highlight the Time Zone Setting. Time Zone Setting is set using "◀" or "▶" buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone Setting, Time Zone can be altered:

- By pressing “▼” or “▲buttons select Time Zone. Use “◀or” ▶buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone.

Audio Description (Optional)

Audio description refers to an additional narration track for blind and visually impaired viewers of visual media. You can use this feature, only if the broadcaster supports that additional narration track. Use "▼ or "▲ buttons to select an item. Then use "◀ or "▼▶ buttons to set.

Audio Description Audio Description Preferred Language Off Finnish Relative Volume -100 +100

Audio Description (Optional)

This function enables or disables the audio description feature by pressing the “◀” or “▶” buttons.

Preferred Language (Optional)

By pressing the “◀” or “▶” buttons the preferred audio description language is being changed.

This setting can be used, only if it is available.

Relative Volume (Optional)

Using this option, the Audio Description volume level can be increased or decreased relatively, according to the general volume.

Standby Search (\*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use "▼or " " Button to select Standby Search and then press "▼or " " Button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.

To use Standby search please make sure that you select Standby Search as On.

Language

In this menu the user can adjust the preferred language. Language is changed by pressing OK button.

Language Settings Menu English Preferred • Audio English • Subtitle English • Guide English Current • Audio English • Subtitle None BBC ONE

Menu: shows the language of the system

Preferred

These settings will be used if available. Otherwise the current settings will be used.

• Audio: by pressing "◀ or "▶ keys change the audio language.
• Subtitle: alter the subtitle language with "◀" or "▶" keys. The chosen language will be seen in subtitles.
• Guide: By pressing “◀” or “▶” buttons change the guide language.

Current

• Audio: if audio language is supported change the audio language by pressing “◀” or “▶” buttons
• Subtitle: if subtitle is backed up, alter the subtitle language with "◀" or "▶" buttons. The chosen language will be seen in subtitles.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

Language Settings Menu English Preferred Primary Audio Language English Secondary Audio Language Swedish Primary Subtitle Language English Secondary Subtitle Language Swedish Primary Teletext Language Finnish Secondary Teletext Language English Guide Finnish

In the confi guration menu, highlight the Language Settings item by pressing "▼or " "▲buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use "▼" or "▲" buttons to highlight the menu item that will be adjusted and then press "◀" or "▼" button to set.

Notes:

• System Language determines the on-screen menu language.
  • Audio Language is used for selecting the soundtrack of a channels.
• Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Installation

The Installation menu is mainly intended to help you for creating a Channel Table in the most efficient way. Select Installation from the Configuration menu by pressing "▼or " " buttons.

Installation Automatic Channel Scan Channel Search Clear Service List First Time Installation

Automatic Channel Scan

Automatic channel scan is started by pressing OK button while Automatic channel scan item is highlighted.

The following message appears on the screen:

Highlight Yes or No by using "◀ or "▶buttons and press OK button to confirm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Press the OK button to search for analogue channels. The following menu appears on the screen for analogue channel search:

PROGRAM TABLE Language English Country UK TXT Language West PLEASE CHECK ANTENNA CABLE AUTO. PROGRAMMING SYSTEM Ok Cancel

Select your Country, Language and Text language by using "▼ or " " and " " or " " buttons. Press OK or RED button to continue. To cancel, press BLUE button. The following menu will be displayed during the automatic tuning:

APS is running... UK 89.00 MHz 5% Cancel

After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names, you can change them via the program table.

Manual Channel Scan

In manual channel scan, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For every valid channel number, signal level and signal quality are shown on the screen.

In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.

Clear Service List (\*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

English - 19 -

Use this setting to clear channels stored. Press "▼or "▲button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen:

Are you sure you want to delete all channels? Yes No

Press OK to cancel. Select Yes by pressing "◀or" button and press OK to delete all of the channels.

First Time Installation

The user can use this item to load default settings, which were loaded to the receiver at the factory.

To install factory settings, highlight "First Time Installation" menu item and press OK button, then you will be asked whether or not to delete the settings. Selecting "Yes" by pressing OK button while the "Yes" is highlighted will delete the existing channel table.

Then you will be asked to confirm for deleting all channels and settings:

Do you want to delete all channels and settings for first time installation? Yes No

By selecting Yes and pressing the OK button, the existing channel table will be deleted.

After factory settings are loaded, "First Time Installation" menu will be displayed.

The menu which is displayed for language selection appears on the screen at first. By using ▼ or “▲ buttons, select the desired language option, and press OK button to activate.

After then, "First time installation" OSD will appear on the screen. By pressing "◀" or "▶" buttons, select the Country you want to set and press OK button (* only for EU countries).

- Next, active antenna mode selection OSD will appear on the screen. Use "◀" or "▶" to set and press OK to continue. See the section, "Initial Settings" for more information.

After active antenna mode option is selected, a message asking for automatic search appears on the screen:

Press the OK button to start installation. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen: This process is same as described in Automatic Search section.

Analogue TV Menu System

Picture Menu

PICTURE Mode Natural Contrast 45 Brightness 45 Sharpness 8 Colour 40 Colour Temp. Normal Noise Reduction Low Film Mode Off Game Mode Off Picture Zoom Auto No Signal

Mode

For your viewing requirements, you can set the related mode option.

Press "▼" or "▲ button to select Mode. Press "◀" or "▶ button to choose from one of these options: Cinema, Dynamic and Natural.

Brightness/Contrast/Colour/Sharpness/Hue

Press "▼or " " button to select the desired option. Press "◀or " " button to set the level.

Note: Hue option can only be visible when the TV receives an NTSC signal.

Colour Temp

Press "▼or" "▼ button to select Colour Temp. Press "▼or" "▼to choose from one of these options: Cool, Normal and Warm.

Note:

• Setting Cool option gives white colours a slight blue stress.
• Setting Warm option gives white colours a slight red stress.
• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount.

Press "▼" or "▲" button to select Noise Reduction. Press "◀" or " "to choose from one of these options:

Low, Medium, High or Off.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

Press "▼" or "▲button to select Film Mode.

Press "◀" or "▶" button to set this feature On or Off.

Turn this feature on when you are watching.

fi lms to see the fast motion scenes clearly.

English - 20 -

Game Mode

Select Game Mode by pressing "▼or " "▲button.

Use "◀ or " ▶ button to set Game Mode as On or Off. When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.

Note:

Picture mode selection button on the remote control will have no function while Game Mode is on.

If the TV is switched to PIP/PAP mode, Game Mode setting will be disabled and be removed from the Picture menu.

Picture Zoom

Select Picture Zoom by pressing "▼" or "▲" button.

Use "◀" or "▶" buttons, to change picture zoom to Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle or Zoom.

Reset

Press "▼ or " "button to select Reset. Press

◀ or ▶ or OK button to reset the picture modes to factory default settings.

Store

Press "▼ or " " button to select Store. Press " " ▶ or OK button to store the settings. "Stored..." will be displayed on the screen.

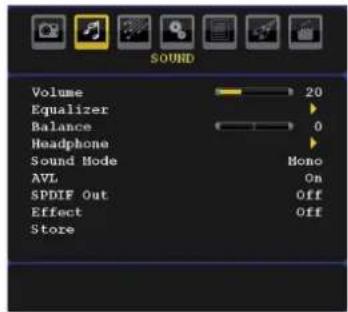

Sound Menu

SOUND Volume 20 Equalizer Balance 0 Headphone Sound Mode Hono AVL On SPDIF Out Off Effect Off Store

Volume

Press “▼” or “▲” button to select Volume. Press “◀” or “▶” button to change the level of the Volume.

Equalizer

Press "▼or " " ▲ button to select Equalizer. Press " ▶" button to view equalizer menu.

SOUND Equalizer Preset 120 Hz 500 Hz 1.5 kHz 5 kHz 10 kHz Stoke User 0 0 0 0 0

Press "◀ or "▶ button to change the preset. In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User.

Select the desired frequency by pressing "▼" or "▲ button and increase or decrease the frequency gain by pressing "◀or "▶button.

Press the "M" button to return to the previous menu.

Note: Equalizer menu settings can be changed only when the Equalizer Mode is in User.

Balance

This setting is used for emphasizing left or right speaker balance.

Press "▼" or "▲button to select Balance. Press "◀" or "▼" button to change the level of the balance. Balance level can be adjusted between -32 and +32.

Headphone

Press "▼or " " button to select Headphone. Press "▶ button to view the headphone menu.

Headphone sub-menu options are described below:

Volume

Press “▼” or “▲button to select Volume. Press “▶” button to increase headphone volume level. Press “◀button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.

Headphone Sound (optional)

Press "▼" or "▲button to select Headphone Sound. Using "◀or " " button, you can select Main, PIP/PAP, Active or Inactive.

Main : Main window sound.

PIP/PAP : PIP/PAP window sound.

Active : Sound of the current selection.

Inactive : Sound of the currently inactive window.

Sound Mode (optional)

Press "▼or" "▲ button to select Sound Mode. Using "◀or" "button, you can select Mono, Stereo, Dual I

English - 21 -

or Dual II mode, only if the selected channel supports that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Press "▼" or "▲button to select AVL. Press "◀" button to set the AVL as On or Off.

Spdif Out

Press "▼or " " button to select Spdif Out. Press " " or "►" button to set the Spdif Out. as On or Off.

Note: If Spdif Out is set to On, headphone will be disabled.

Effect

If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereolike. If the current sound system is stereo, switching this effect on will give a more spatial effect.

Press "▼" or "▲button to select Effect. Press "◀" or "▶button to set as On or Off.

Store

Press "▼ or " "▲ button to select Store. Press " ▶" or OK button to store the settings. "Stored..." will be displayed on the screen.

Feature Menu

FEATURE Pip-Pap Sleep Timer Off Child Lock Off Language English Default Zoom 16:9 Blue Background On Menu Background 0 Backlight Auto Menu Timeout 15 sec TXT Language West No Signal

Pip-Pap

In the Feature menu, highlight PIP item by pressing "▼ or " " buttons. Press " " button to enter PIP submenu:

FEATURE Pip-Pap ▶ Pip-Pap Off

Using "◀or " " button, you can switch to PIP, PAP mode or turn off the feature.

If the TV is switched to PIP or PAP mode, Pip-Pap submenu will change accordingly and the following settings will appear on the same menu screen.

Note that if you switch to PAP mode by using Pip-Pap setting, only Source and Swap options will be active among the menu settings.

Pip-Pap

This line controls Pip/Pap modes. Use "◀" or "▶" buttons to switch the TV to Pip, Pap or Off.

Pip Size

Using this setting, you can set the size of the Pip window. Press "▼" or "▲" button to highlight Pip Size item. Use "◀" or "▶" button to set Pip Size to Small or Large.

Note: This setting will be inactive if the TV is set to Pap mode.

PIP Position

This setting is used for moving the sub picture.

Select PIP Position item by using "▼" or "▲button. Use "◀or "▼" button to adjust PIP position.

Positions available are: Bottom Right, Bottom Left, Top Left and Top Right.

Source

PIP Source setting enables you to select the source of the sub picture.

Select PIP Source item by using “▼” or “▲” button. Use “◀or ” “▶button to set PIP source.

Program

This setting will be unavailable to be used.

Swap

Select Swap item by using "▼" or "▲button. Use "◀" or "▶button to set. This function enables to swap between the main and the PIP picture.

Note: See Appendix E for all PIP/PAP modes.

Sleep Timer

Press "▼or " "▲ button to select Sleep Timer. Use "◀or " "▲ button to set the Sleep Timer.

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.

Child Lock

Press "▼or " "▲button to select Child Lock.

Use "◀" or "▶" button to set the Child Lock On or Off. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons (except for the STANDBY button) will not work.

Hence, if one of those buttons is pressed, Child Lock On will be displayed on the screen when the menu screen is not visible.

Language

Press "▼or " " button to select Language. Use "◀" or "►button to select the Language.

Default Zoom

While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press "▼ or " " button to select Default

Zoom. You can set Default Zoom to Panoramic, 16:9, 4:3 or 14:9 by pressing "◀" or "▶" button.

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.

By pressing "▼" or "▲" button, select Blue Background. Press "◀or "▶button to set Blue Background as On or Off.

Menu Background

Press "▼or " " button to select Menu Background. You can set menu background level by pressing "◀" or "▶" button.

Backlight

This setting controls the backlight level. Select Backlight by pressing "▼ or " ▲button. Press" ◀ " or "▼" button to set Backlight to Auto, Medium, Maximum or Minimum.

Menu Timeout

To set a specific display timeout for menu screens, set a value for this option.

Press "▼" or "▲button to select Menu Timeout. Use "◀or "▼" button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

Press "▼or " " button to select Teletext Language. Use "◀or " " button to change Teletext Language to West, East, Turk/Gre, Cyrillic, Arabic or Persian

Ext Out

Press "▼or " " button to select Ext Out. Use " " or "► button to set the Ext Out as On or Off.

Note:

For copying from a DVD or VCR device, you should choose desired source from source menu and turn "On" to EXT Out from feature menu.

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using external connection, HDMI PC FULL MODE option should be On to adjust the screen ratio correctly. This item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the TV to HDMI mode, this feature will be visible (except for 1080i/1080P resolution).

Full Mode (optional)

If you connect a device via HDMI or YPbPr connectors and set 1080i/1080P resolutions, Full Mode item will be visible. You can set Full Mode as 1:1 or Normal by using “◀or” “If you select 1:1, screen ratio will be adjusted correctly. If you set Normal, screen ratio may expand.

Install Menu

INSTALL Program 1 Band C Channel 5 Colour System Auto Sound System BG Fine Tune 0 Search 175.25 MHz Store

Program

Press "▼or " "▲button to select Program. Use " " ▲ or ►button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199.

Band

Band can be selected either C or S. Press "◀or " ▶" button to set Band.

English - 23 -

Channel

Channel can be changed by "◀ or " ▶ button or numeric buttons.

Colour System

Press "▼or " " ▲utton to select Colour System. Use "◀or " " button to change the colour system to PAL, PAL 60, SECAM or AUTO.

Sound System

Press "▼ or " ▲button to select Sound System. Press "◀ or " ▲button to change the sound system to BG, DK, I, L or L'.

Fine Tune

Press "▼or " "▲ button to select Fine Tune. Press "◀" or "►" button to adjust the tuning.

Search

Press "▼ or " ▲ button to select Search. Use " " ◀ or ► button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.

Store

Press "▼ or " " button to select Store. Press " " ▶ or OK button to store the settings. "Stored..." will be displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will be available. Switch to TV mode for viewing complete version of the Install menu.

INSTALL Colour System Auto Store

Colour System

Press "▼" or "▲button to select Colour System. Use "◀or " "button to change the colour system to PAL, SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

Store

Press "▼ or " ▲button to select Store Program. Press "▶ or OK button to store the settings. "Stored..." will be displayed on the screen.

Program Table

Select Program Table by pressing "◀" or "▶" button.

PROGRAM TABLE P001 ---- P011 ---- P002 ---- P012 ---- P003 ---- P013 ---- P004 ---- P014 ---- P005 ---- P015 ---- P006 ---- P016 ---- P007 ---- P017 ---- P008 ---- P018 ---- P009 ---- P019 ---- P010 ---- P020 ---- ■ Name ■ Move ■ Delete ■ APS

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.

Name

To change the name of a programme, select the programme and press the RED button.

The first letter of the selected name will be highlighted. Press "▼or " " ▲button to change that letter and " " ◀ or "►button to select the other letters. By pressing the RED button, you can store the name.

Move

Select the programme which you want to insert by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:

PROGRAM TABLE Country UK WARNING! All Prestored Programs will be deleted Ok Cancel

Country

Press "◀" or "▶" button to select your country. If you want to exit from A.P.S. function, press the BLUE button.

When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function stops and Program Table appears on the screen.

If you wait until the end of APS, Program Table will be displayed with the programmes found and located.

Source Menu

Press "▼ or " ▲button and select the sixth icon. Then press "▶or OK button. Source menu appears on the screen:

SOURCE : TV TV ✓ DTV ✓ EXT-1 ✓ EXT-2 ✓ FAV ✓ HDMI-1 ✓ HDMI-2 ✓ YPbPr ✓ PC-VGA ✓

In source menu, highlight a source by pressing "▼ or "▲" button and switch to that mode by pressing "▶" button. Source options are; TV, DTV, EXT-1, EXT-2, FAV, HDMI-1, HDMI-2, YPbPr or PC-VGA.

Note: Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.

PC Mode Menu System

See "Connecting the LCD TV to a PC" section for connecting a PC to the TV set.

For switching to PC source, press "SOURCE" button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode.

Note that PC mode menu settings are available only while the TV is in PC source.

PC Position Menu

Select the first icon by pressing "◀" or "▶" button. PC Position menu appears on the screen:

PC POSITION Autoposition H Position 50 V Position 33 Phase 31 Dot Clock 50 No Signal

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.

Select Autoposition item by using "▼" or "▲buttons. Press OK or "◀" "▶button.

Warning: Please ensure auto adjustment is performed with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

Select H Position item by using "▼" or "▲button. Use "◀or "▼" button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

Select V Position item by using "▼" or "▲" button. Use "◀" or "▶" button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy

English - 25 -

picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Select Phase item by using "▼" or "▲buttons. Use "◀or "▶button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Select Dot Clock item by using "▼" or "▲buttons. Use "◀or "▼" button to adjust the value.

PC Picture Menu

For adjusting PC picture items, do the following:

Press "◀" or "▶" button to select the second icon. PC Picture menu appears on the screen.

Brightness, Contrast, Colour and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".

Note: If you set Colour Temp as User, you can define R, G, B settings manually.

Sound, Feature and Source settings are identical to the settings explained in Analog TV menu system.

Displaying TV Information

Programme Number, Programme Name, Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or "INFO/i" button is pressed.

Mute Function

Press "D" button to disable sound. Mute indicator will be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the first one is pressing the "×" button and the second one is increasing the volume level.

PIP (Picture-in-Picture) and PAP (Picture-and-Picture) Modes

Press the "button once to switch to PIP mode.

At PIP Mode, a small picture (PIP picture) is displayed on the main picture. There are 1 size and 4 positions (upper left, upper right, bottom left and bottom right) available for the PIP window.

When PIP Mode is entered, the default active window is the PIP window and the active window is indicated by a yellow frame around it. The active window can be changed by pressing "◀" or "▶" button. The status info OSD belongs

to active window. The place of the status OSDs are same for both windows.

Press the "☐/☐-button again to activate PAP mode.

At PAP Mode, two pictures with equal sizes are displayed on the screen. Aspect Ratios of the windows are fixed.

When you switch to PAP Mode, main window in PAP Mode will be displayed on the right side of the screen. The active window can be changed by pressing “◀” or “▶” button.

Press the "☐" button again to exit the PAP mode.

Picture Mode Selection

By pressing PRESET button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural and Cinema.

Freezing Picture

You can freeze the picture on the screen by pressing the "OK" button on the remote control. Press the "OK" button to freeze picture. Press again to quit freeze mode.

Note: This feature is available for analogue TV mode only.

Zoom Modes

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

Press "button to directly change the zoom mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available.

In PC mode, only 16:9 mode is available.

Auto

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

- When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

- For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Diagram showing transformation of a square with circular holes into a larger square (no text or symbols)

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

Diagram showing transformation of a square with four circles into a larger square with four circles (no text or symbols)

The top and bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Diagram showing transformation of a square with a circle and surrounding circles into a larger square (no text or symbols)

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Diagram showing a square with a circle inside and a square with a circle inside, both rotated to form a larger square (no text or symbols)

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

SUBTITLE SUBTITLE

Zoom

This option zooms to the picture.

Diagram showing a square with a circle inside and a circular frame with corner holes, connected by an arrow (no text or symbols)

Note: You can shift to screen up or down by pressing "▼/ " " buttons while picture zoom is selected as panaromic, 14:9, Cinema or Subtitle.

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

" Teletext On-Off / PAT Mode

Activates teletext mode when pressed once. Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode.

ndex

Selects the teletext index page.

Mix

Places the teletext screen over the programme.

" Expand

Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.

" Reveal

Shows hidden information (e.g. solutions of games).

Hold

Holds a text page when convenient. Press again to resume.

Subcode Pages / Time

Selects subcode pages if available when the teletext is activated. When the teletext is not activated, displays time info if the programme has teletext transmission.

P+ / P- and numbers (0-9)

Press to select a page.

Note: Most TV stations use code 100 for their index pages.

English - 27 -

Coloured Buttons

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics.

When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs.

The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing P - or P + commands will request the next or previous page respectively.

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence

Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power

If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please return the channels.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial

cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Also make sure the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that no device is connected.

Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Note: Resolution modes indicated with (*) are not available for PIP/PAP modes.

Index	Resolution Frequency				Standard
	Hor Ver	Ver (Hz)		Hor (KHz)
1 640	350 85 37.9	VESA
2 640	400 85 37.9	VESA
3 640	400 70 31.5	IBM VGA
4 640	480 60 31.5	VESA
5 640	480 66 35.0	MAC
6 640	480 72 37.9	VESA
7 640	480 75 37.5	VESA
8 640	480 85 43.3	VESA
9 800	600 56 35.2	VESA
10 800	600 60 37.9	VESA
11 800	600 70 43.8
12 800	600 72 48.1	VESA
13 800	600 75 48.9	VESA
14 800	600 85 53.7	VESA
15 832	624 75 49.7	MAC
16 1024	768 43 35.5				VESA (interlace)
17 1024	768 60 48.4	VESA
18* 1024	768 70 56.5	VESA
19* 1024	768 72 57.7
20* 1024	768 75 60.0
21* 1024	768 85 68.3
22 1152	864 60 53.8
23* 1152	864 70 64.2	VESA
24* 1152	864 75 67.5	VESA
25* 1152	864 85 77.1	VESA
26* 1152	870 75 68.9	MAC
27 1280	768 60 47.7	VESA
28 1380	768 60 47.7
29* 1280	768 75 60.2	VESA
30 1280	960 60 60.0	VESA
31* 1280	960 75 75.0	VESA
32* 1280	960 85 85.9	VESA
33 1280	1024 60 64.0	VESA
34* 1280	1024 75 80.0	VESA
35* 1280	1024 85 91.1	VESA
36 1480	1050 60 65.3
37* 1480	1050 75 82.3
38 1440	900 60 55.9
39* 1440	900 75 70.6
40* 1680	1200 60 75.0	VESA
41 1680	1050 60 65.3
42* 1920	1200 60 74.5

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source Supported Signals Available
EXT-1(SCART 1)	PAL 50/60 O
	NTSC 60		O
	RGB 50		O
	RGB 60		O
EXT-2(SCART-2)	PAL 50/60 O
	NTSC 60		O
	RGB 50		X
	RGB 60		X
FAV	PAL 50/60 O
	NTSC 60		O
YPbPr	480I	60Hz	O
	480P	60Hz	O
	576I	50Hz	O
	576P	50Hz	O
	720P	50Hz	O
	720P	60Hz	O
	1080I	50Hz	O
	1080I	60Hz	O
	1080P 50Hz		O
	1080P 60Hz		O
HDMI1HDMI2	480I	60Hz	O
	480P	60Hz	O
	576I	50Hz	O
	576P	50Hz	O
	720P	50Hz	O
	720P	60Hz	O
	1080I	50Hz	O
	1080I	60Hz	O
	1080P 50Hz		O
	1080P 60Hz		O
	1080P	24 HZ	O

(X: Not Available, O: Available)

Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

English - 29 -

Appendix C: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	24Hz 25	Hz 30Hz 50	Hz 60Hz
480i					☑
480p					☑
576i				☑
576p				☑
720p				☑	☑
1080i				☑	☑
1080p	☑	☑	☑	☑

Appendix D: PIP/PAP Mode Combinations

MAIN	TV DTV	Scart1	Scart2 FAV	HDMI1	HDMI2 YPbPr			PC-VGA
TV	x	x	(RGB)	x		x	√	√
DTV	x		x		√	√	√	√
Scart1	(RGB)	√	x	(RGB)	(RGB)	√	√	√
Scart2	x	√	(RGB)	x		x	√	√
FAV	x	√	(RGB)	x		x	√	√
HDMI1	√		√		√	√	√	x
HDMI2	√		√		√	√	√	x
YPbPr	√		√		√	√	√	√
PC-VGA	√		√		√	√	√	√

(RGB): This indicates that, selection is possible only if Scart-1 has a RGB signal.

Restrictions: Scart-1 source must have RGB signal to perform PIP\PAP with sources TV, Scart-2, FAV.

If these sources are set to main window, and Scart-1 does not have a RGB signal, Pip\Pap source can not be switched to the Scart-1 source.

If scart-1 source is set to main window, and scart-1 does not have a RGB signal, Pip\Pap source can not be switched to TV, Scart-2 and FAV sources.

Products

Battery

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

English - 30 -

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

Digital Reception	MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1	for UK
	Object carousel support compliant with ISO/IEC 135818-6 and UK DTT profile
	Frequency range: 474-850 MHz for UK models
	170-862 MHz for EU models
	Transmission standard: DVB-T. MPEG-2
	Demodulation: COFDM with 2K/8K FFT mode
	FEC: all DVB modes
	Video: MP@ML, PAL, 4:3/16:9
	Audio: MPEG Layer I&II 32/44.148kHz.

NUMBER OF PRESET CHANNELS

200

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W _RMS. ) (10% THD)

2 × 8

POWER CONSUMPTION (W)

210 W (max)

< 1W (Standby)

PANEL

16:9 display, 42" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 246 x 1011 x 690

Weight (Kg): 18,80

DxLxH (Without foot): 68 x 1011 x 650

Weight (Kg): 18

English - 31 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

The wires in the mains lead are coloured in accordance with the following code :

GREEN & YELLOW (Earth) (if there is earth cable) FUSE BLUE (Neutral) BROWN (Live)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 32 -
