BASIC OPERATION

Adjust the Eyecups

The eyecups on the Diamondback® HD binocular twist up and down so any viewer can see the full field and enjoy comfortable viewing—with or without eyeglasses.

When not using eyeglasses or sunglasses, keep the eyecups fully extended. For the best viewing when wearing glasses, twist eyecups down.

Close-up of two black thermosorbents with caps, no visible text or symbols

Adjust the Interpupillary Distance

The interpupillary distance (IPD) is the distance between the center of your left and right pupils. Match the IPD of your eyes and your binocular by rotating the barrels in or out until you see a single image free of shading.

Black binoculars with visible lenses and a scale bar (no text or symbols)

IPD

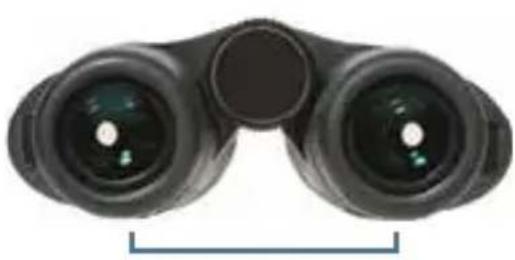

Distance between the centers of the ocular lenses.

Black binoculars with directional arrows indicating rotation (no text or symbols)

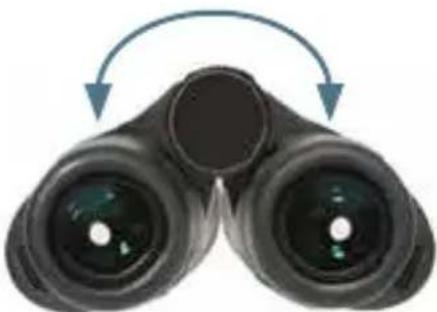

Rotate the barrels in or out to match the IPD of your eyes with that of the binocular.

Properly Focus the Binocular

For the best results, follow this two-step process to properly adjust the center focus and diopter. Choose an object about 20 yards away and stay in the same spot until you have adjusted the binocular for your eyes.

1. Adjust the center focus: Start by closing your right eye or covering the right objective lens with your hand. Focus your left eye on the object and adjust the center focus wheel until the image is in focus. Leave the center focus in this position as you adjust the diopter.

Person holding a camera lens, no visible text or symbols

1. Adjust the diopter: Start by closing your left eye or covering the left objective lens with your hand. Look through your right eye and adjust the diopter ring (found on the right eyepiece) until the object is in focus. Make

Man holding a small optical device, covering face with hand (no visible text or symbols)

note of this diopter setting in case you need to set it again. From this point on, you will only need to use the center focus wheel.

ACCESSORIES

GlassPak™ Binocular Harness (Not included with all models)

The GlassPak™ Binocular Harness stores and protects your binoculars while keeping them close at hand for quick deployment. Tethers attach to your binocular for added security against accidental drops while the fully adjustable straps create a comfortable fit.

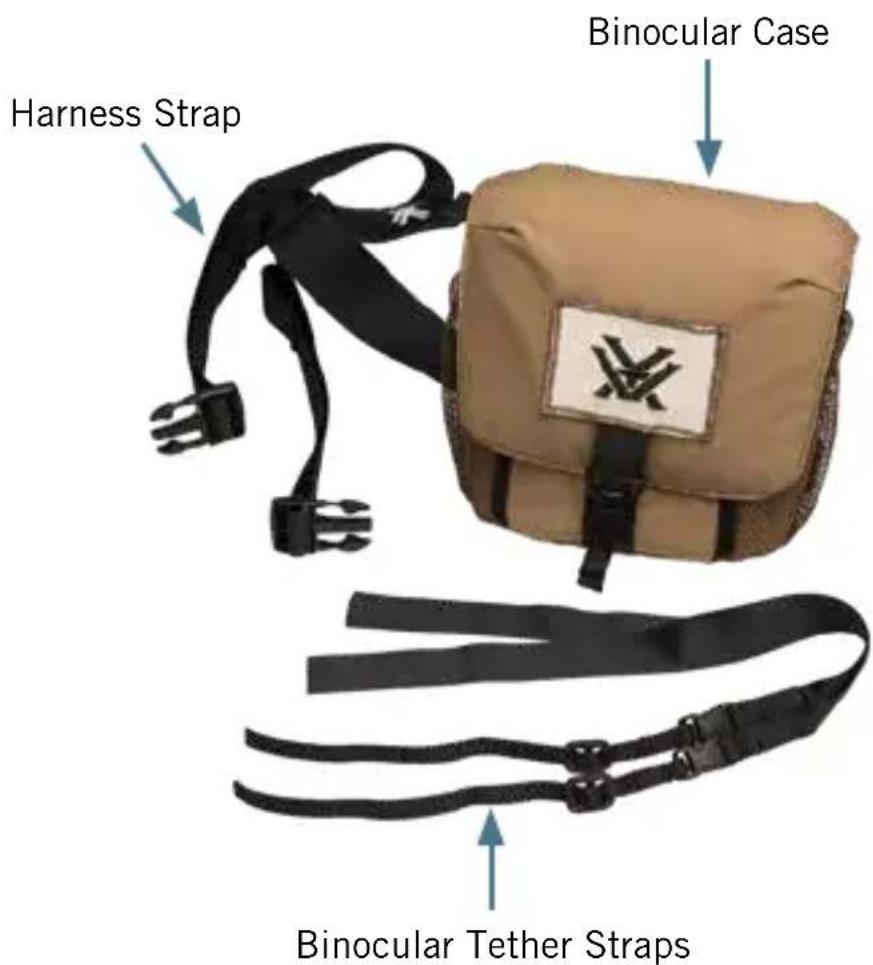

Harness Strap Binocular Case Binocular Tether Straps

Follow these steps to attach the binocular tether straps.

1. Thread the wide end of the binocular tether straps through the harness strap buckles.

Close-up of hands adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of hands adjusting a black fabric or zipper, with a close-up of the fabric being held (no visible text or symbols)

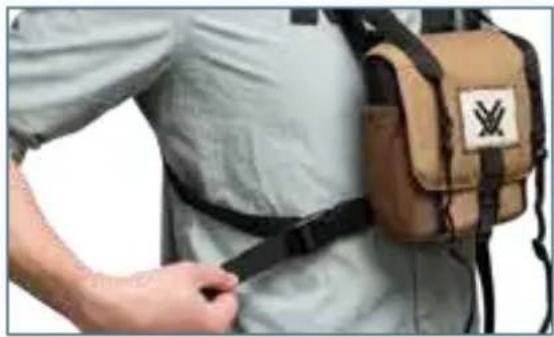

1. Size to fit by adjusting the one-size-fits-all harness strap.

Person wearing a beige backpack with a visible warning symbol (no text or symbols on the bag itself)

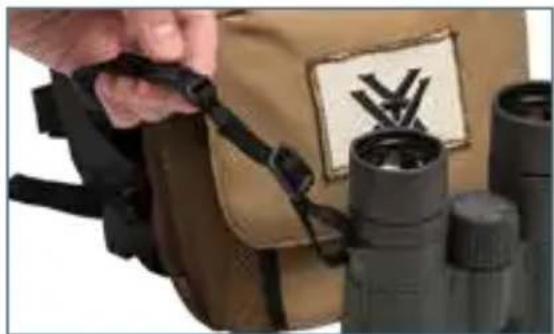

1. Thread the binocular tether straps through the strap attachments on binocular.

Hand holding a small object next to binoculars and a beige bag with a cross symbol (no text or labels visible)

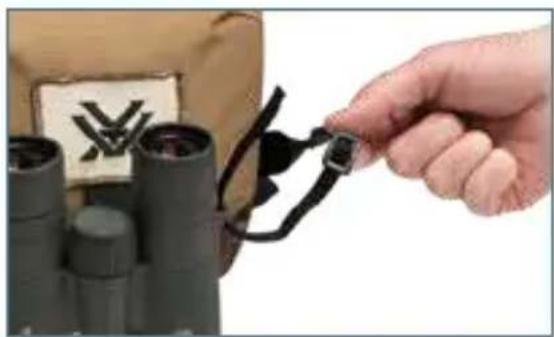

1. Thread the binocular tether straps back through the tether strap buckles to secure.

Close-up of a hand holding a black strap attached to a beige backpack with a visible logo (no text or symbols on the device itself)

Lens Covers

The Diamondback® HD comes with tethered objective lens covers and a rainguard for the ocular lenses. Use these covers to protect the lenses whenever you are not using your binocular.

Neck Strap

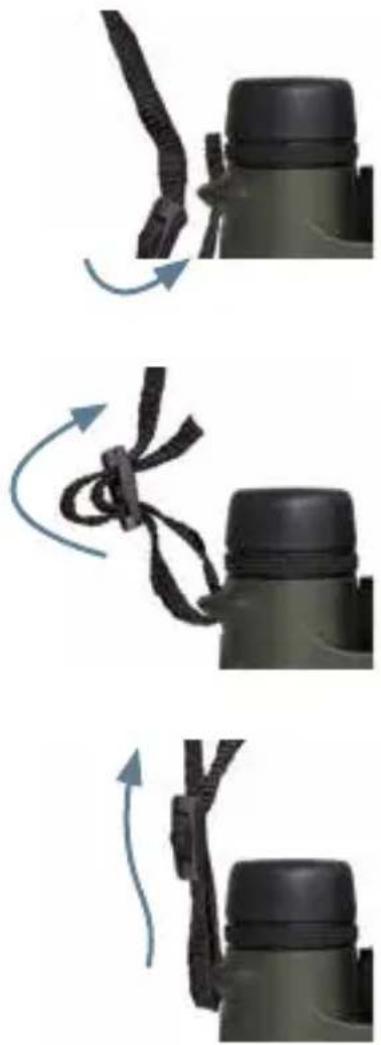

Attach the padded neck strap in these three simple steps.

1. Push a few inches of the strap through the strap attachment on the binocular.

2. Hold the buckle and thread the end of the strap through the buckle.

3. Adjust the overall length, then pull tight until strap secured within the buckle.

Three-step diagram showing a mechanical assembly with a strap and rope, no text or symbols present.

Note: If using another type of strap, never attach metal o-rings directly onto the strap attachment.

LENS CARE

Maintain the optical brilliance of your binocular by keeping lens surfaces free of dirt, oils, and dust.

Protect Lenses While Out in the Field

Make use of the provided eyepiece and tethered objective lens covers to protect the lenses when not viewing. If the optics are exposed to moisture, keep the caps off and allow the optics to dry out completely before putting them in the case for storage.

Keep Lenses Clean

In order to enjoy the best views through your binocular, take time to regularly clean the exterior lenses:

1. Remove any dust or grit from lenses before wiping. Use a can of pressurized air, soft camel hair brush, or an acrylic optical brush.

2. Clear lenses of smudges, fingerprints, or eyelash oil.

Fog the lenses with your own breath, then use a non-abrasive lens cloth to clean the lenses.

Note: Use lens cleaning fluid and optical paper to clean lenses. Never use facial tissue, heavy cotton, or flannel clothing on lenses—these materials can scratch the surface of a lens.

Caution: Binoculars are not intended for looking at the sun, or any other intense light source. Such viewing could damage the retina and cornea of your eyes—even to the point of causing blindness.
