Product Type	Digital Single-Cable Multi-Switch (Loop-through)
Brand	Kathrein
Model	EXD 258 Twin
Order Number	20510143
Subscriber Connections	2 x 8 (16 user bands total)
Inputs	1 x terrestrial, 4 x satellite
Frequency Range (Terrestrial)	5–862 MHz
Frequency Range (Satellite)	950–2150 MHz
Through Loss (Terrestrial)	3 dB
Through Loss (Satellite)	1.5 dB
Sat AGC Output Level	94 dBμV
Horizontal/Vertical Decoupling	30 dB
Trunk Decoupling	40 dB
Satellite Input Level Range	60–90 dBμV
User Band Frequencies	1284–2096 MHz (8 frequencies, see manual)
Supply Voltage at Subscriber Output	12–14 V DC
Max Current per Subscriber	20 mA (with PSU) / 450 mA (without PSU)
Max Voltage at Subscriber Connection	19 V
Max Remote Feed Current per Trunk	1000 mA
Protection Class	IP 30
Ambient Temperature	-20°C to +55°C
Connections	F-type (75 Ω)
Dimensions (W x H x D)	111.5 x 148 x 44 mm
Weight	Approx. 0.4 kg
Power Supply (Optional)	NCF 18, input 100–240 V AC, output 18 V DC
Cascadable	Up to 8 units
Supported Standards	EN 50494, EN 50607 (SCD 2)
Special Features	AGC, PIN code protection, Kathrein Power Saving, LED installation aid
Installation Environment	Indoor only
Maintenance and Cleaning	Clean with a dry, lint-free cloth; avoid exposure to moisture. No cleaning agents required.
Safety	Follow all instructions in the manual. Disconnect power before servicing. Do not open the unit or power supply.
Spare Parts and Repairability	No user-serviceable parts. For repairs, contact a certified service center.

Frequently Asked Questions - EXD 258 Twin KATHREIN

How many user bands does the EXD 258 Twin provide?

The EXD 258 Twin provides 2 x 8 user bands, allowing up to 16 independent receivers to be connected via a single cable.

Can I protect a user band from other users?

Yes, each user band can be protected with a PIN code. The default PINs for UB 1 to UB 8 are: 151, 052, 133, 124, 205, 196, 187, 178. Enter the PIN in the receiver settings to access the band.

How many EXD 258 Twin switches can be cascaded?

You can cascade up to 8 multi-switches. This allows you to expand the system to serve more subscribers.

What does the Kathrein Power Saving feature do?

When all receivers are switched off, the EXD 258 Twin generates a signal on the vertical low trunk to turn off the LNB power supply, saving energy. The feature must be enabled via the rotary switch.

What do the LEDs indicate?

A green LED indicates that the LNB is powered. A flashing red LED means the multi-switch has received and understood a single-cable command.

What should I do if I get a 'Poor or no signal' message?

Check that the receiver is in single-cable mode and that the user band frequency matches the setting on the receiver. Also ensure no short circuit exists and that the correct PIN code is used if protected.

How do I set the correct user band frequency on my receiver?

Refer to the Frequency Assignment table in the manual. Each user band (UB 1 to UB 8) has a fixed frequency from 1284 MHz to 2096 MHz. Assign each receiver a unique band to avoid interference.

Is the EXD 258 Twin compatible with DiSEqC?

Yes, it supports DiSEqC™ control signals. Note that the power supply briefly switches to 18 V DC when transmitting DiSEqC; continuous 18 V would block the system.

Do I need a separate power supply for the EXD 258 Twin?

The EXD 258 Twin can be powered via the subscriber outputs, but for full functionality and to power the LNB in larger installations, use the optional NCF 18 power supply unit (order no. 205500004).

Can I install the EXD 258 Twin outdoors?

No, the device is rated IP 30 and is designed for indoor installation only. It must be placed in a dry indoor area with adequate ventilation.

USER MANUAL EXD 258 Twin KATHREIN

EXD 158 TWIN, BN: 20510142/EXD 258 TWIN, BN: 20510143

Sat IF Distribution System (4 x Sat IF) Digital Single-Cable Multi-Switch

About This Guide

This document is part of the product.

▶ Do not install or use the device until you have read and understood this document.
▶ Keep this document for reference throughout the service life of the device. Pass this document on to any new owner or user.

For the most up-to-date version of this document, go to www.kathrein-ds.com.

Features

• Third-generation single-cable multi-switch – digital channel-stacking switch (dCSS) with the newest Full-Band Capture technology
  ■ Cascadable twin multi-switch
  ■ User-band frequencies compatible with the previous Kathrein models
  ■ EN 50494 single-cable command set and the new, extended EN 50607 (SCD 2) command set are supported
  ■ The integrated AGC (Automatic Gain Control) ensures that the Sat IF signals have a constant output level and more reserve in the distribution
  ■ Multi-tuner devices can be supplied with a multitude of user bands on one drop cable
  ■ PIN code: User frequency protection from being accessed by another user. This enables installation across more than one residence
  ■ Up to eight multi-switches can be cascaded

■ Due to the energy-saving concept, the multi-switch consumes no energy from the NCF 18 if all receivers are switched off. If Kathrein Power Saving is active, the power supply for the LNBs is also turned off.
■ LED as an installation aid and for trouble-shooting
■ For indoor installation

EXD 158 Twin

■ Single-cable multi-switch with 2 x 8 user bands and external power supply unit for the LNB supply
■ Kathrein Power Saving can be switched on and off using the rotary switch

NCF 18

■ Highly efficient, short-circuit-proof switched-mode power supply unit

EXD 258 Twin

■ Loop-through multi-switch to extend the system by adding two single-cable connections with 8 user bands each
■ Kathrein Power Saving: As soon as there are no longer any receivers active, a signal is generated at the last multi-switch via the vertical low trunk. This signal then switches the LNB power supply off.
■ Optional power supply of the multi switch using the NCF 18 (LNB is not supplied!)

Scope of Delivery

EXD 158 Twin • EXD 158 Twin

• NCF 18
  • Instructions for Use

EXD 258 Twin • EXD 258 Twin

- Instructions for Use

Transport and Storage

▶ Transport and store the device in its original packaging.
▶ Make sure there is no water condensation build-up.

Simplifi ed EU Declaration of Conformity

Hereby, KATHREIN Digital Systems GmbH declares that the radio equipment type EXD 158 TWIN, order no.: 20510142/EXD 258 TWIN, order no.: 20510143

is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.kathrein-ds.com

Installation Instructions

The devices described are intended solely for the installation in satellite receiver systems and may only be installed by trained specialist personnel.
▶ Any other use, or failure to comply with these instructions, will result in voiding of warranty cover.
The equipments may only be installed in dry indoor areas. Do not install on or against highly combustible materials.
The equipments must be provided with an earthing wire (Cu, at least 4 mm ² ).
The safety regulations set out in the current EN 60728-11 and EN 62368-1 standards must be complied with.
▶ Fasteners for concrete substrates and masonry: 4 suitable plugs and associated screws with half-round or cylindrical head, outer thread diameter 4.5 - 5 mm, head diameter ≥ 9 mm and a screw length ≥ 30 mm For other types of wall, use the appropriate screws or screw-dowel systems, which offer the same or better fastening
▶ Connector: RF plug 75 Ω (series F) to EN 61169-24.
▶ Unused subscriber ports should be closed off with 75 Ω resistors (e.g. EMK 03).
▶ To meet EMC requirements, the only power supply unit allower to be used is the NCF 18.

Risk of damage to property!

An inner cable conductor with a diameter greater than 1.2 mm, or the presence of burrs may damage the device inputs/outputs beyond repair.

Safety Instructions

Current-carrying device NCF 18

WARNING

Danger to life due to electric shock!

▶ Do not open the unit or tamper with it.
When working on the system, always unplug the power supply unit from the wall socket.
The device is intended only for wall mounting. All other installation positions are prohibited.
▶ Ensure adequate clearance. Clearance all round must be at least 5 cm.
Risk of overheating! Make sure there is free circulation of air to dissipate the heat from the unit.
▶ Operate the device/power supply unit only in the permissible ambient temperature range of -20 to +55 °C.

CAUTION

▶ No liquid-fi lled items may be placed on top of the power supply unit.
The power supply unit must not be exposed to dripping or splashing water.
▶ Ensure that the power supply unit is easily accessible and operable.
▶ Disconnect the unit from the mains by pulling the plug of the power supply unit out of the mains socket.

FrequencyAssignment

	UB Frequency	Location
		Bottom Connection Top Connection
UB 1 1284	MHz
UB 2 1400	MHz
UB 3 1516	MHz
UB 4 1632	MHz
UB 5 1748	MHz
UB 6 1864	MHz
UB 7 1980	MHz
UB 8 2096	MHz

PIN Code Protection

To prevent the set user band from being used or disturbed by another subscriber, it is possible to protect the user band by means of a PIN code. This must be input when accessing the receiver settings. Each user band is assigned a fixed PIN.

UB 1 UB	2 UB 3 UB	4 UB 5 UB	6 UB 7 UB	8
151 052	133 124 205	196 187 178

Notes

Only use splitters with no diodes (EBC 110 or EBC 114). The required diode protection is provided by outlets of the ESU series.

It is especially important to make sure that each user band is assigned only once, since otherwise the receivers will generate mutual interference. The frequencies are allocated on the receiver's setting menu. Depending on the type, this assignment may be manual or automatic.

It is recommended to assign those outlets with the shorter length connections to the higher frequencies. By definition, the system is designed so that single-cable devices are supplied with 14 V DC.

The power supply is briefly switched to 18 V DC if DiSEqC™ control signals have to be transmitted. Continuous application of 18 V would block the system. For this reason, we recommend the use of the ESU series outlets which are equipped with an electronic switch-off system.

Kathrein Power Saving

If an EXD 158 Twin is operated as a stand-alone device or in conjunction with other multi-switches which bear the Kathrein Power Saving logo, Kathrein Power Saving can be activated by setting the rotary switch to "ON". If a receiver is included in the cascade, the LNB is supplied from the end multi-switch.

NOTE

Multi-switches without Kathrein Power Saving do not give signalling to the end multi-switch. For permanent powering of the LNB, the rotary switch must be set to "OFF".

SAT IF Splitter

Type Kathrein Power Saving Switch setting
VWS 2551 Amplifi er Unrestrictedly usable ON
EBX 2520 Two-way splitter	Unrestrictedly usable if each trunk is terminated by the Kathrein Power Saving-capable end multi-switch		ON
EAX 2512 Two-way splitter Not Kathrein Power Saving-capable OFF
VWS 2500 Amplifi er	BN 20510098 is Kathrein Power Saving-capable; older models are not		ON/OFF

System Example (Symbolic Representation)

ESU 5er-Series

The new programmable Single-cable Outlets for apartment across installation.

Further information at www.kathrein-ds.com/produkte

Technical Data

Type EXD 158 Twin EXD 258 Twin
Order no. 20510142 20510143
Subscriber connections 2 x 8 2 x 8
Inputs 1 x terr. 4 x Sat 1 x terr. 4 x Sat
Frequency range MHz 5 - 862 950 - 2150	5 - 862	950 - 2150
Through loss	dB	-	-	3	1.5
Connection loss (terrestrial)	dB	11	-	11	-
Sat (AGC) output level	dBμV	-	94	-	94
Horiz./vert. decoupling dB	30	-	30
Trunk decoupling	dB	-	-	-	40
Sat input level	dBμV	-	60 - 90	-	60 - 90
Subscriber frequency/user band	MHz	see Frequency Assignment, p. 4
Permissible supply voltage at the subscriber output	V	12 - 14		12 - 14
Max. current consumption at the subscriber connection	mA	20		20 (With power supply unit)450 (without power supply unit)
Max. permissible voltage at the subscriber connection	V	19		19
Max. permissible remote feed current (horiz. low input)	mA	500		-
Max. permissible remote feed current per trunk	mA	-		1000
Max. supply voltage at DC connection	V	18.6		18.6
Protection class		IP 30		IP 30
Permissible ambient temperature	°C	-20 to +55		-20 to +55
Connections		F connectors		F connectors

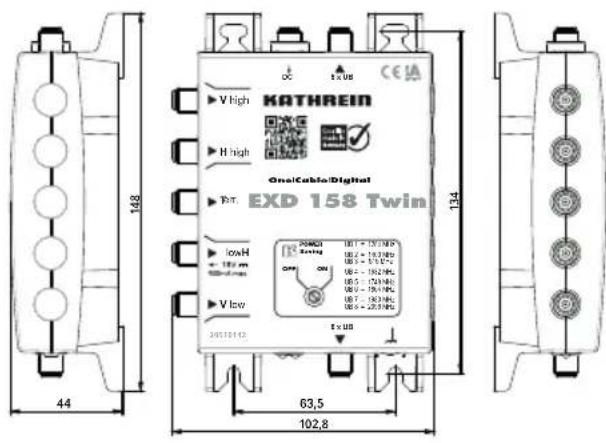

Dimensions	mm	102.8 x 148 x 44		111.5 x 148 x 44
Packing unit/weight	pc./kg	1 (10)/0.51		1(10)/0.4

Power supply unit NCF 18
Order number		205500004
Permissible input voltage range	V	100 – 240	-
Nominal input power at 0/150/500 mA load*)	W	5.4/8.7/15.5	-
Secondary voltage (DC) V	18	-
Protection class		II (double insulated)

* All user bands in operation

Possible Causes of Failure and Troubleshooting

There are two LEDs near the bottom subscriber connection to be able to narrow down causes of failure (installation assistance):

LED colour	Signal	Description
Green	LED is on	The LNB is powered
Red	LED is flashing	The multi-switch has received and understood the single-cable command
Problem Possible Cause	Solution
Permanent message: "Poor or no signal"	No voltage from receiver	Make sure there is no short circuit on the receiver - multi-switch connection.Make sure the receiver is in the single-cable mode.
	Incorrect operation mode	Frequency range and user bands on the receiver and multi-switch must match.
	Incorrect single-cable command	Make sure the receiver is in the single-cable mode.
	Poor DiSEqCTM signal	Use distribution material without diodes to reduce the power consumption.Use the NCF 18 power supply unit with the EXD 258 Twin.
	Incorrect PIN code	Check or deactivate the PIN code.
	Incorrect assignment	Make sure that user band and frequency match.Note: SCR address is smaller than the user band number by 1.
	No voltage on the LNB	Plug the power supply unit NCF 18 into the EXD 158 Twin.Make sure there is no short circuit on the receiver - LNB connection.
		Connect DC block EMU 12, order no. 273281, to the cascade input to reduce the load placed on the VL trunk from the LNB.
Short message: "Poor or no signal" or picture stutters at regular intervals.	Another subscriber has accessed the same user band	Check the menu settings of all the connected receivers.Make sure that the frequencies are assigned to one receiver only.
Loop-through multi-switches without Kath-rein Power Saving do not function or function only sometimes	Rotary switch is set to Kathrein Power Saving "ON"	Switch off Kathrein Power Saving. Set the rotary switch to "OFF".

Disposal

Electronic equipment

Electronic equipment is not domestic waste – in accordance with directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 4th July 2012 concerning used electrical and electronic appliances, it must be disposed of properly. At the end of its service life, take this unit for disposal at a designated public collection point.
