DI-390AHDVF+ - Security Camera Provision-ISR - Free user manual and instructions

Product Type	Security Camera
Model	DI-390AHDVF+
Image Sensor	1/3" 2MP CMOS Sensor
Effective Pixels	1984(H) x 1225(V)
Resolution	Digital 1920x1080P, Analog 960H
Minimum Illumination	0.01 Lux (0 Lux IR On)
Day/Night	Auto (ICR), Color, B/W, EXT
IR LED	3 LED Array (25m range)
Lens	2.8-12mm varifocal, DC drive
Video Output	AHD/TVI/CVI/CVBS selectable via DIP switch
OSD Menu	Available via CoC (Control over Coax) up to 200m
Backlight Compensation	OFF / BLC / HSBLC
White Balance	AWB, ATW, AWC, Indoor, Outdoor, Manual
Noise Reduction	2D-DNR and 3D-DNR
Privacy Mask	Up to 4 areas
Motion Detection	Up to 4 areas
Defog	Auto / OFF
Power Supply	DC 12V ±10%, ~410mA
Dimensions (W x H x D)	129.5 x 90 x 119 mm
Net Weight	476 g
Operating Temperature	-20°C to +50°C (-4°F to 122°F)
Weatherproof	Not waterproof; use in dry indoor/outdoor with protection
Certification	FCC (per manual reference)
Video Transmission Distance	Up to 400m on RG59 coaxial cable

Frequently Asked Questions - DI-390AHDVF+ Provision-ISR

How do I set the video output type (AHD/TVI/CVI/CVBS)?

Use the DIP switch located on the cable. Refer to the diagram in the manual: positions 1 and 2 determine the output: 1=ON,2=ON for AHD; 1=ON,2=OFF for TVI; etc. Power cycle after changing.

How to access the OSD menu?

For AHD/TVI: press the 'Iris+' button on the DVR's PTZ interface. For CVI: press the '▶' button then '' and Enter. The CoC function works up to 200m on RG59 cable.

What is the maximum IR range?

The DI-390AHDVF+ has 3 LED arrays with a range of approximately 25 meters (82 feet) under ideal conditions.

Can this camera be used outdoors?

The manual states the camera is not waterproof. For outdoor use, it must be installed in a weatherproof housing or under an eave to protect from rain and moisture.

What power supply is required?

The camera requires DC 12V ±10% with a current draw of approximately 410mA. Use a regulated power supply.

How to clean the lens?

Use a cotton swab or lens paper. For stubborn dirt, dilute a neutral detergent with water and apply gently. Avoid touching the sensor surface.

Does the camera support privacy masking?

Yes, it supports up to 4 privacy mask areas. Configure via the OSD menu under SPECIAL > PRIVACY.

What is the minimum illumination?

0.01 Lux in color mode, and 0 Lux with IR LEDs on, allowing visibility in complete darkness.

Is this camera compatible with my DVR?

It outputs AHD/TVI/CVI/CVBS signals. Most modern DVRs supporting these standards will work. Ensure your DVR's firmware is up-to-date for CoC functions.

How to install the camera on a wall?

Mount the bracket using expansion screws for concrete or self-tapping screws for wood. Adjust the lens to aim at the desired area and tighten all screws to prevent movement.

USER MANUAL DI-390AHDVF+ Provision-ISR

Four technical line drawings of mechanical components, including a cylindrical component and a flanged housing (no text or symbols)

FCC

www.provision-ISR.com

Solid red rectangular shape with a curved gray border (no text or symbols)

Now you can see!

AHD

USER MANUAL

■ 1080P 4 in 1 Pro Series

Contents

1) Cautions:
2) Product Introduction

2.1 Camera Introduction
2.2 Product Features

3) Menu Setup
4) Product Installation

4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Setting the video output type
4.5 Setting the Camera
4.6 Connection
4.7 OSD Control

5) Technical Specification

1 Cautions:

1. To reduce the risk of electric shock, do not open the camera or perform internal maintenance by yourself. Please consult a professional service person if needed.

2. To prevent fire or electrical shock hazard, make sure that the input voltage, current, polarity and operating temperature meet the requirements of the camera.

3. Please note the operating temperature and environmental limits of the camera. Do not install in higher/lower temperatures than -20^ +50^ ( -4^ 122^ ). These cameras are not waterproof! Minimize dust and moisture erosion, otherwise camera would be damaged.

4. Avoid directing the camera to sunlight while powered on, otherwise the sensor will be damaged.

5. Do not touch the sensor surface. If any foreign objects exist use a cotton swab or lens paper to clean, if it is difficult to remove, use a neutral detergent diluted with water.

6. In order to ensure smooth and satisfactory image, the power and video cables shouldn't be too long. Please follow general AHD/Analog sepcifications for cables types and lenghts.

7. In order to prevent the camera from falling, please install the camera on a stable surface.

8. The camera should not be placed near a radiator or heating resistor.

2 Product Introduction

2.1 Camera Introduction

PROVISION-ISR's new series of cameras have adopted a high performance CMOS image sensor which provides HD resolution and supports high resolution video output. The cameras support video transmission distance of around 400M base on Rg59 standard coaxial cable. This series can support AHD/TVI/CVI/CVBS 960H analog output.

2.2 Product Features

• Coaxial Cable with BNC Connector
- DIP Switch
• Auto Day/Night (ICR)
• Auto Defog, HBLC
• Digital WDR, 2D/3D NR
- Motion Detection, Privacy Mask
- AHD/TVI/CVI/CVBS Signal Selectable (by jumper)

3 Menu Setup

AHD/TVI: Click on "Iris+" button from the DVR's PTZ interface to call the OSD Menu. Use the PTZ interface to scroll through the menu and "Iris+" to confirm.

CVI: Click "▶" button from the DVR's PTZ interface, then click "💡" and press "Enter" to call the OSD Menu.

4 Product Installation

4.1 General Notes

1. Make sure the unit is powered off before installation.
2. Check that power supply voltage complies with the camera requirement to prevent damage to the camera.
3. The installation and maintenance of this product should be done by a professional. Please do not remove or modify the camera in any way.

4.2 Installation Tools and Information:

Prepare the required tools and instructions. Before installation please prepare the following tools: A straight or a Phillips-head screwdriver, multi-meter, cutter, needle nose pliers, measuring tape, pencil.

4.3 Installation Method:

1. Check the camera for any external damage.

2. Mount the bracket or base:

① For cement wall, install the expansion screws, and then mount the bracket/base.
② For wooden wall use self-tapping screws to mount.

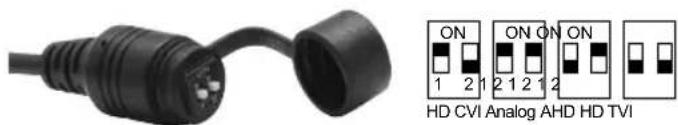

4.4 Setting the video output type:

The camera supports AHD/TVI/CVI/CBVS video output. Choosing the output type is done by setting a DIP switch on the cable as illustrated:

ON 1 2 1 ON ON ON 2 2 1 2 HD CVI Analog AHD HD TVI

4.5. Setting the camera:

a. Dome Camera

Adjust the lens position so it aims at the main monitoring point and gives a clear picture.

b. Bullet Camera

Adjust the body so that the lens aims at the main monitoring point and gives a clear picture. Tighten the screws to ensure that it does not move.

Note:

The wall needs to bear at least 3 times the weight of the camera.

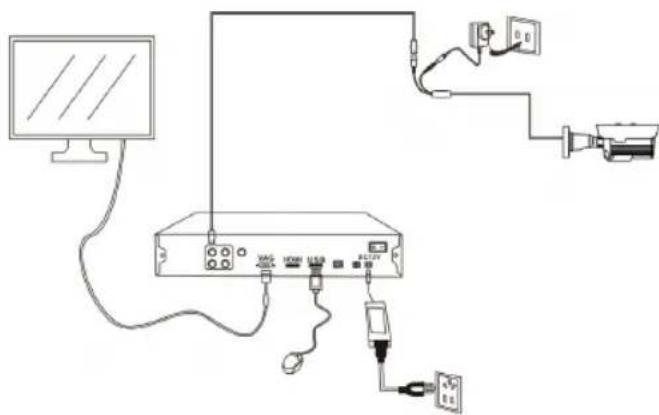

4.6 Connection

Connection as shown in the figure below:

Diagram showing connections between a computer, network device, and electronic devices with labeled ports and cables

4.7 OSD Control

The OSD control is available by CoC (Control over Coax). If your AHD/TVI/CVI DVR supports this function*, use the DVR's PTZ interface to press on "Iris+" or "☐" to open the OSD menu.

Navigate through the OSD menu using the PTZ direction arrows.

* Notice: CoC function works no more than 200M by Rg59 coaxial cable
* All of Provision-ISR's DVRs support CoC Starting from version 3.4.4

OSD Menu List

Main Menu		Second Menu		Third Menu
LENS	DC	Indoor
		Outdoor	↓	MIN_SHU
				MAX_SHU
	Manual
EXPOSURE	↓	SHUTTER	AUTO1/25s-1/50000sX2-X30
		AGC	0-15
		SENS-UP	AUTO	SENS-UP	x2-x30
		BRIGHTNESS	1-100
		D-DWR	OFF
			AUTO
			ON
		DEFOG	OFF
			AUTO	POS/SIZE
				GRADATION
				DEFAULT
BACKLIGHT	OFF
	BLC	LEVEL
		AREA
		DEFAULT
	HSBLC	SELECT	AREA1-4
		DISPLAY	OFF
			ON	POS/SIZE
		BLACK MASK	ON/OFF
		LEVEL	1-100
		MODE	ALL DAY
			NIGHT	AGC LEVEL	0-255
		DEFAULT
WHITE BAL	ATW
	AWB
	MANUAL	BLUE	1-100
		RED	1-100
	OUTDOOR
	INDOOR
	AWC-SET
DAY/NIGHT	AUTO
	COLOR
	B/W
	EXT	↓	D-N(DELAY)	0-60
			N-D(DELAY)	0-60

NR	↓	2DNR	LOW/MID/
			HIGH
		3DNR	LOW/MID/
			HIGH
SPECIAL	↓	CAM TITLE
		D-EFFECT	↓	FREEZE
				MIRROR	OFF
					ROTATION
					V-FLIP
					MIRROR
				NEG IMAGE
		MOTION	SELECT	AREA1-4
			DISPLAY	ON/OFF
			SENSITIVITY	0-100
			ALARM	ON/OFF
		PRIVACY	SELECT	AREA1-4
			COLOR	W/R/B/G
			TRANS	0.25-1.0
		LANGUAGE		12 choices
		DEFECT	↓	WHITE	ON/OFF
				BLACK	ON/OFF
		RS485
ADJUST	↓	SHARPNESS	↓	LEVEL	1-10
				VALUE	0-255
		VIDEO OUT		PAL/NTSC
		Monitor		CRT/LCD and LSC
EXIT		SAVE&END

5 Specifications:

4 in 1 Pro camera (1080P)

DI-390AHD36+ / DI-390AHDVF+ / DAI-390AHDVF+ I3-390AHD36+ / I4-390AHDVF+

Model	DI-390AHD36+	DI-390AHDVF+	DAI-390AHDVF+
Image Sensor	1/3" 2MP CMOS Sensor
Effective Pixels	1984(H)×1225(V)
Scanning System	Progressive
Resolution	Digital: 1920×1080P, Analog:960H
Min. Illumination	0.01Lux / (0Lux IR On)
Day & Night	EXT, Color, B&W, AUTO
IR LED	2 LED Array (20m)	3 LED Array (25m)	35 LED (20m)
OSD Menu	Available by CoC Only
CoC Support	Yes
Backlight Compensation	OFF/BLC/HSBLC
S/N Ratio	≥80dB (AGC Off)
White Balance	AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
Noise Reduce	3D-DNR (For Analog HD), 2D-DNR (For Analog)
Video Output	AHD/TVI/CVI/CVBS (Signal Selectable by DIP switch)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror, Negative Image
Lens	3.6mm	2.8-12mm	2.8-12mm
Power	DC12V±10%, ~310mA	DC12V±10%, ~410mA	DC12V±10%, ~310mA
Operation temp.	-20°C~+50°C (-4°F~122°F)
Dimension	104*70.8*93.2mm	129.5*90*119mm	Φ145×119.5mm
Net Weight	269g	476g	810g

Model	I3-390AHD36+	I4-390AHDVF+
Image Sensor	1/3" 2MP CMOS Sensor
Effective Pixels	1984(H)×1225(V)
Scanning System	Progressive
Resolution	Digital:1920×1080P, Analog:960H
Min. Illumination	0.01Lux / (0Lux IR On)
Day & Night	EXT, Color, B&W, AUTO
IR LED	3 LED Array (25m)	4 LED Array (40m)
OSD Menu	Available by CoC Only
CoC Support	Yes
Backlight Compensation	OFF/BLC/HSBLC
S/N Ratio	≥80dB (AGC Off)
White Balance	AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
Noise Reduce	3D-DNR (For Analog HD), 2D-DNR (For Analog)
Video Output	AHD/TVI/CVI/CVBS (Signal Selectable by DIP switch)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror, Negative Image
Lens	3.6mm	2.8-12mm
Power	DC12V±10%, ~410mA	DC12V±10%, ~480mA
Operation temp.	-20°C~+50°C (-4°F~122°F)
Dimension	206.5*67.6*68.5mm	286*77*85.6mm
Net Weight	380g	836g
