Product Type	Interactive Touch Monitor
Brand	Swedx
Model	SWLT-32K8-A1
Screen Size	32 inches (diagonal)
Display Resolution	3840 x 2160 (4K UHD) @ 60Hz (HDMI 1/2); 3840 x 2160 @ 36Hz (HDMI 3)
Panel Technology	LED-backlit LCD
Touch Technology	Infrared touch overlay via USB 2.0 connection
Video Inputs	3x HDMI 2.0, 1x VGA (PC), 1x Component, 1x AV (composite)
Audio Inputs	PC Audio (3.5mm), shared Component/AV audio
Audio Output	Coaxial (digital), built-in stereo speakers
USB Ports	2x USB 2.0 (Media Player 1 & 2)
Remote Control	Dual-band 2.4 GHz & IR, included with pairing function
Power Supply	AC 100-240V, 50/60Hz
VESA Mounting	200 x 200 mm (compatible with standard wall mounts)
OSD Languages	English, German, Spanish, French, Italian, Japanese, Swedish, Arabic, Simplified Chinese
Media Player Support	Video formats: AVI, MP4, MKV, etc.; Image: JPEG, PNG, BMP; Audio: MP3, WAV, AAC
Cooling System	Built-in fans with adjustable speed (Off, Low, Medium, High) and temperature activation
Special Features	Local Dimming, MEMC (Motion Estimation/Motion Compensation), Auto Sleep Timer, HDMI CEC
Safety & Compliance	FCC Part 15, RoHS, overheat protection
Included Accessories	Remote control, 2x AAA batteries, AC power cord, IR cable (for MX/UMX), user manual

Frequently Asked Questions - SWLT-32K8-A1 Swedx

How do I connect my computer to the SWLT-32K8-A1 monitor?

Use an HDMI cable from your computer's HDMI output to any of the three HDMI inputs (HDMI1, HDMI2, or HDMI3). For VGA connection, use the PC input with a VGA cable and the PC audio input for sound. Ensure the monitor is set to the correct source by pressing the SOURCE button on the remote.

What is the touch functionality and how do I enable it?

The SWLT series includes an infrared touch overlay. Connect the touch USB cable to a media player (e.g., Mini PC or Android box) that supports touch input. The touch function works via USB 2.0 and requires compatible software.

How do I pair the remote control with the monitor?

Ensure the remote is in 2.4 GHz mode (press and hold 0 + OK for 5 seconds until blue LED flashes). Press and hold the pairing key on the monitor (if available) for 2 seconds while the remote's blue LED is flashing, or press and hold INFO + RECALL on the remote simultaneously for 5 seconds.

How can I clean the monitor safely?

Unplug the monitor before cleaning. Use a soft, dry cloth to gently wipe the screen and casing. Do not use solvents, liquids, or abrasive materials. Avoid spraying liquids directly onto the screen.

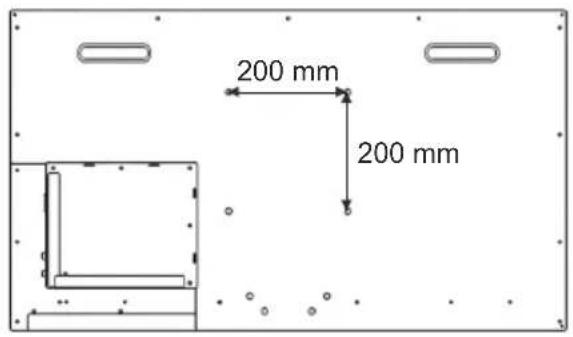

What is the VESA mount pattern and how do I wall mount it?

The VESA mount pattern is 200 x 200 mm. Use a compatible wall mount bracket and follow the instructions in the manual. Ensure the mount is securely attached to a wall stud and the monitor is properly fastened.

How do I update the firmware on this monitor?

Firmware updates are performed via the Media Player 1 USB port. Save the update file (provided by SWEDX) to a USB flash drive formatted as FAT32. Insert the drive into Media Player 1, then navigate to the Media Player menu and follow the on-screen instructions. Note: Do not turn off power during update.

What are the supported resolutions for each input?

HDMI1 and HDMI2 support up to 3840x2160 @ 60Hz. HDMI3 supports up to 3840x2160 @ 36Hz. VGA (PC) input supports up to 1920x1080 @ 60Hz. Component supports up to 1080p @ 60Hz. For best quality, use HDMI inputs with 4K sources.

How do I use the built-in media player?

Connect a USB flash drive with media files to Media Player 1 or 2 input. Press the SOURCE button and select MEDIA PLAYER 1 or 2. Use the remote to navigate. You can set play mode (Automatic or Program), slide time, background music, and repeat mode via the OSD menu.

Why is there no picture or sound?

Check that the power cord is connected and the monitor is turned on. Verify the correct input source is selected. For sound, ensure volume is not muted and audio cables are properly connected. If using HDMI, ensure the device is outputting audio. For PC, check the PC audio input.

How do I reset the monitor to factory settings?

Press the MENU button on the remote to open OSD. Navigate to the Settings menu and select Restore Factory Default. Confirm the action. This will erase all customized settings including picture, sound, and timer preferences.

USER MANUAL SWLT-32K8-A1 Swedx

58" Direct SWEDX Direct

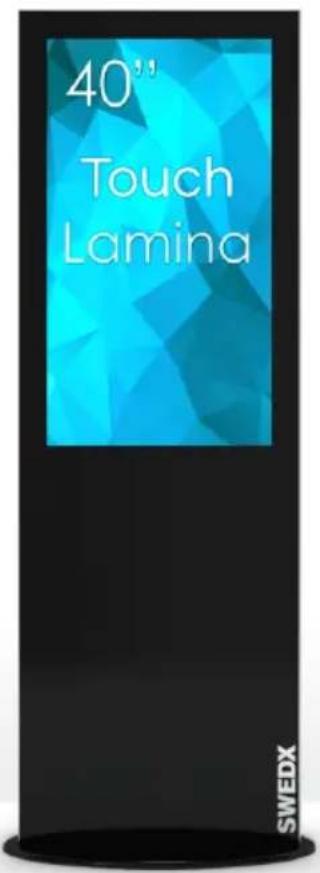

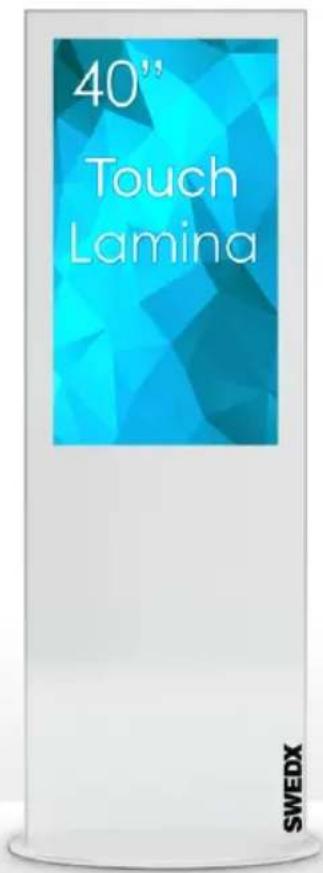

58" Lamina SWEDX Lamina

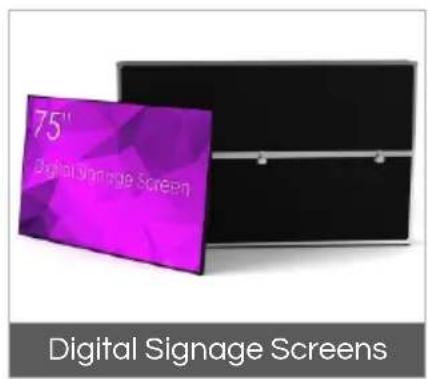

75" Digital Signage Screen Digital Signage Screens

SWEDX offers a wide range of LED-TVs and digital signage products and its accessories. For more information please visit www.swedx.com

50" v SWEDX V

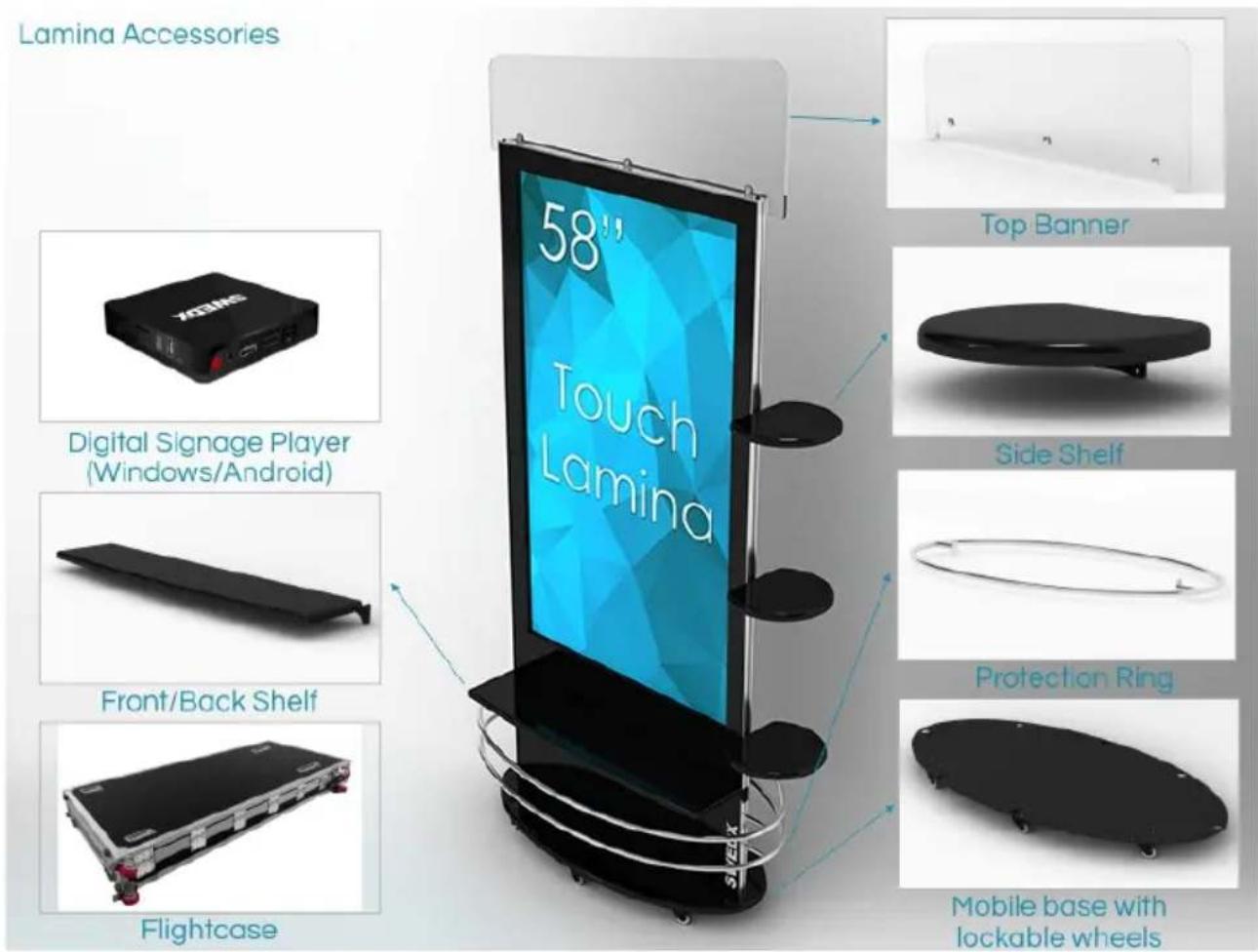

Lamina Accessories 58" Touch Lamina Top Banner Digital Signage Player (Windows/Android) Side Shelf Front/Back Shelf Protection Ring Flightcase Mobile base with lockable wheels

INDEX Page

Introduction 4

Safety precaution 4

Basic operation 5

Contents 6

Inputs 6

SWL/SWLT specific information 7

Remote Control For SDS/SWL/SWLT 8

Remote control buttons (FR4) 9

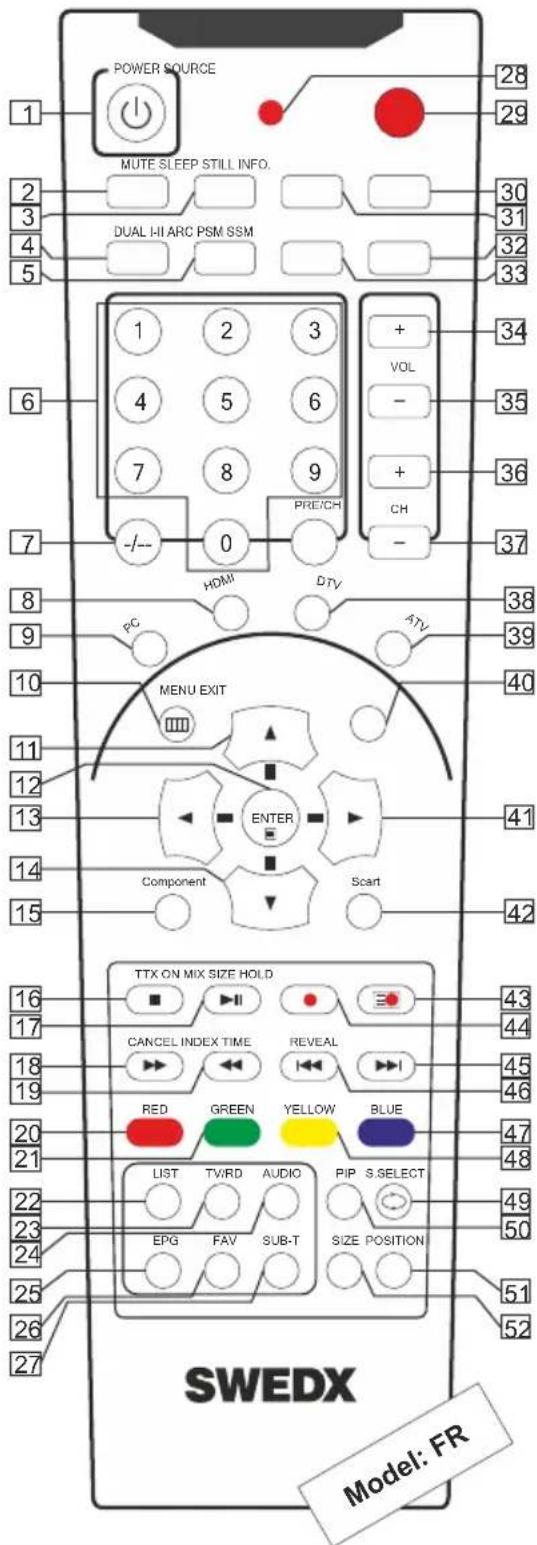

Remote control buttons (FR) 10

Main Operations 11

Volume Control 11

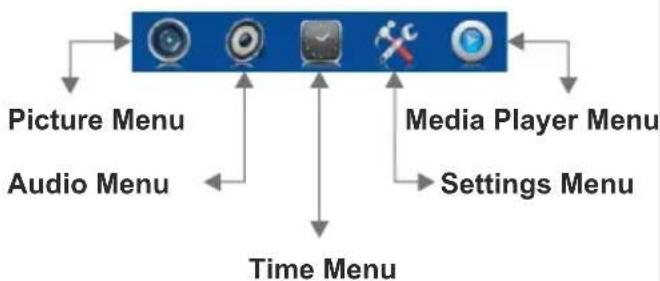

OSD Menu Operations 11

OSD Menu Structure: 11

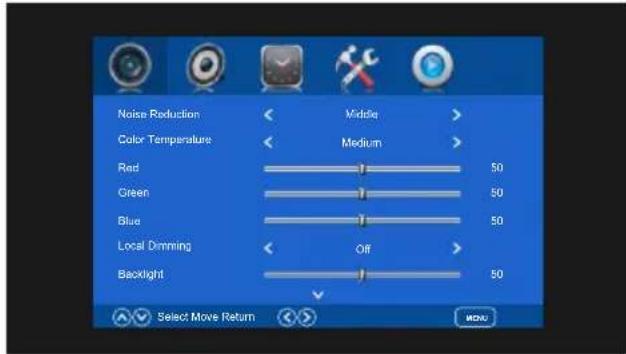

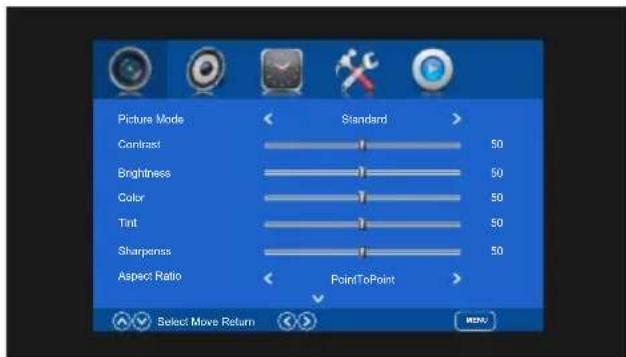

Picture Menu 12

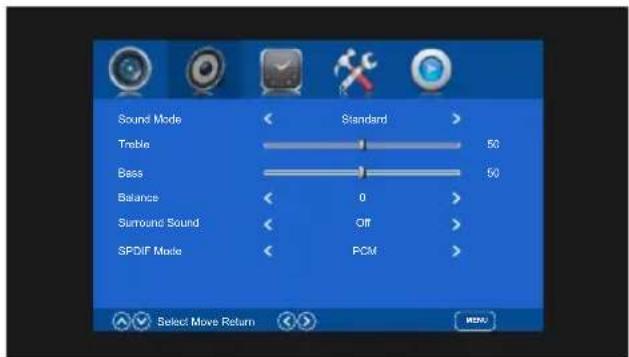

Sound Menu 13

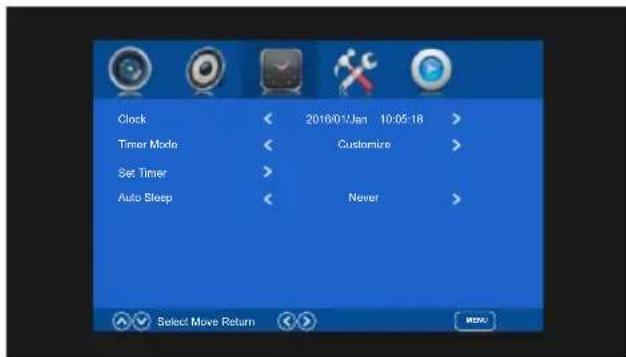

Time Menu 14

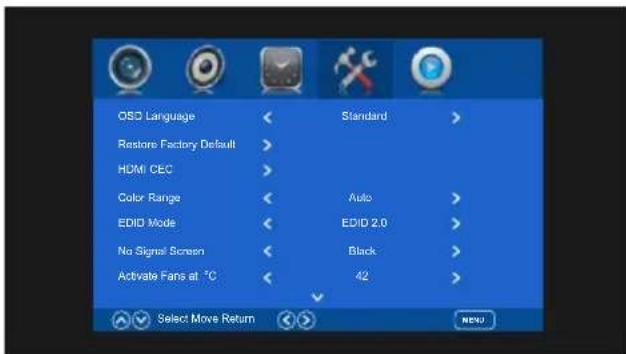

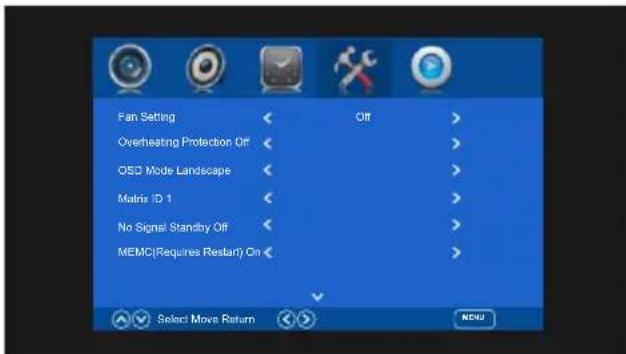

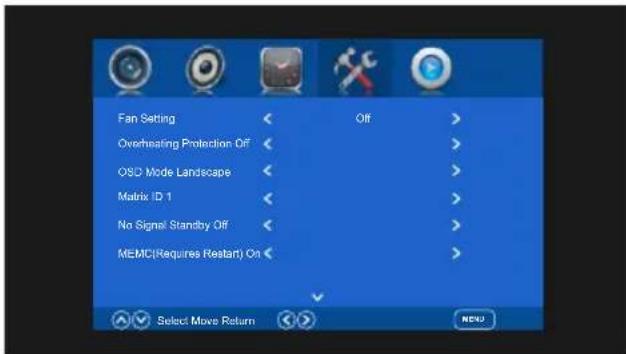

Settings Menu 15

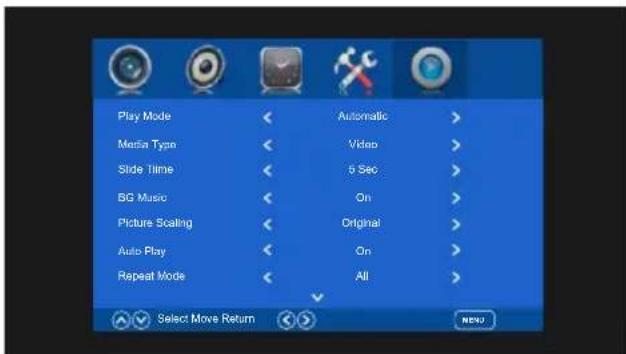

Media Player 1/2 17

Supported Formats and Codes 18

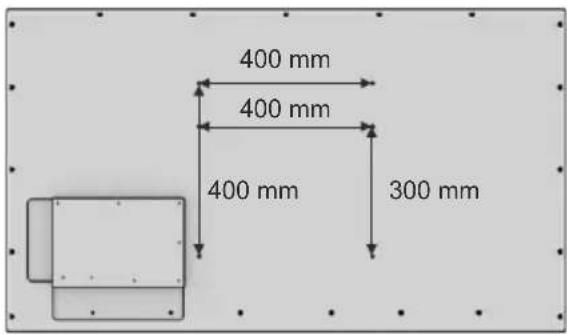

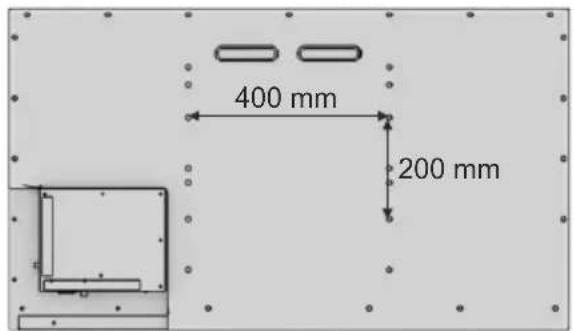

Wall mount assembly 19

Troubleshooting 20

Warranty and Service 21

How to get service 22

Limitation of liability 22

Design and specifications are subject to change without notice.

Introduction

Thank you for choosing SWEDX Digital Signage products. Please read this manual thoroughly before operating the product. Make sure the display was not damaged in transit. Should the product be damaged, please contact your dealer and do not install it. Check that you have all the accessories according to the model.

Safety precaution

• Do not place the product on unstable places, from which it may fell off
• Do not expose the product to extreme temperature and humid environment
• Avoid subjecting the product to direct sunlit or other heat sources
• Do not put the product into any liquid
• Do not put anything inside the product, or place water container on top of the it
• In thunder rainy days (especially with lightening), please unplug the power and antenna cables
• Do not step on the power cable, or tangle them together
• Avoid overload of the exterior electric outlet to prevent fire hazard of electric shock
• Clean the product with dry and soft fabric
• If your product is broken, do not repair it by yourself, but contact the maintenance personnel
• If the remote control is left unused for a longtime, please take the batteries out and store them in dry places
• Avoid dropping the remote control
• If the product is installed for exhibition purpose, please do not place the overheated part on the ground or carpet to prevent accident
• The apparatus shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on the apparatus
• Where the MAINS plug or an appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like
• Excessive sound pressure from earphones and headphone can cause hearing loss

Please install the product at proper position, such as wall or ceiling. Please install it under the guidance of professional staff.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired operation

Please disconnect the power cord if this equipment will not be used for a long time.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the screen

• Do not display a still image on the screen for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image
• Watching the screen in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images

Prohibition sign with a candle and crossed-out circle, indicating no lighting or toxicity

WARNING

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Basic operation

• Use AC 100-240V 50\~60 Hz power outlet for the product power supply
• If the screen of the product is not on, please press the power button on the remote control or on the product
• If you want to shut off the product temporary, please press the power button on the remote control or on the product
• If you want to shut off the product completely, please disconnect the power cable
• In Component and AV modes the product will shut off if there is no signal input for 30 minutes
• In PC-RGB and HDMI modes the product will enter idle state if there is no signal input after 30 seconds
• In Media Player 1/2 modes the product will remain On if there is no signal input
• The setting and tuning of picture and sound will be saved when the product is shut off, which will be working in the pre-shut off state when the product is turned on again
• If PC signal source is used, please first set the resolution of the PC display card as the following modes:
  For HDMI 1/2/3 (3840x2160 @ 60Hz)
  For PC (1920 x 1080 @ 60Hz)
• If there is progressive output of the signal used by the user, signal source with progressive output is recommended
• Put the product on a stable surface
• Do not fix the product with others fixations than those provided or suggested by the manufacturer
• If you have a wall mount, check that it is steady.
• Do not place any material on the product.
• Do not block or cover the ventilation openings on the product
• The product must be plugged with a tension source of 110-240 volts and 50\~60 Hz
• Power cord and cables must be properly routed and protected to prevent from stepping on them
• Keep the power cord away from any heat source. Possible fire hazard

Preparation

Heating sources and humidity

• Keep the product dry and away from humidity
• Keep the product away from heat sources Cleaning and maintenance
• Unplug the product before cleaning it. Do not use solvents or liquids to clean the product
• Only clean the product with a soft and dry fabric
• In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire

or others incidents. Please contact a technical authorized by SWEDX

Departure in holidays

- Unplug the product during lightning storms or when unused for long periods of time

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE

Contents

Included items:

2 x AAA Battery

Notice

AC Cable

Remote Control

LED Screen

IR Cable*
MX/UMX only

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type

AAA Battery

CAUTION

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like

AAA Battery

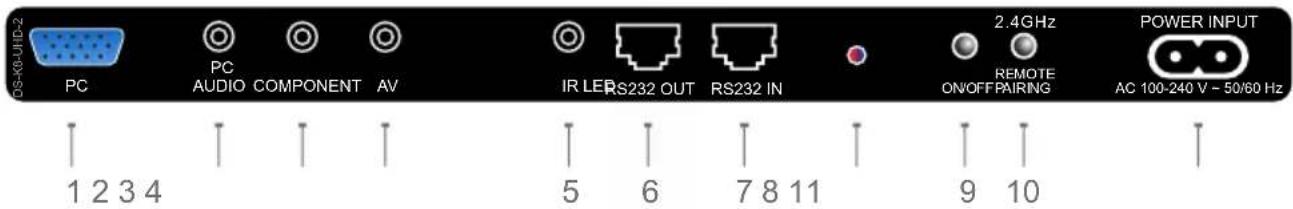

Inputs

1. PC

Input for PC (VGA) sources

2. PC AUDIO

Input for PC audio when PC (Personal Computer) is connected

3. COMPONENT

Input for Component (YPBPR) sources.

Supports maximum resolution 1080p @ 60 Hz *Component/YPBPR and AV shares the same audio input

4. AV

Input for AV (Audio/Video) sources

5. IR\*

Input for external infrared receiver. See Matrix function

6. RS232 OUT\*

Output for RS232 signal. See Matrix function

6. RS232 IN\*

Input for RS232 signal. See Matrix function

8. LED

LED indicator for power status

9. On/OFF

Key to power the product On/Off

10. Remote Pairing

Key to pair the remote control with the product

11. POWER INPUT

Input for 100-240 V power 50\~60Hz

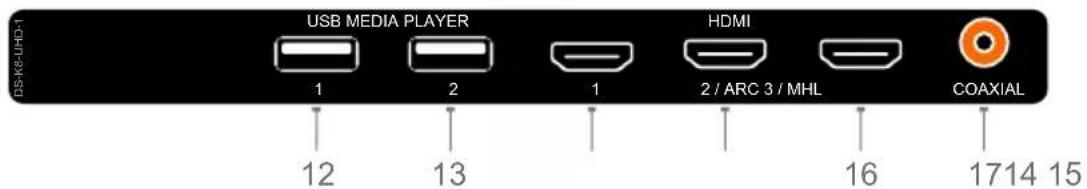

12. MEDIA PLAYER 1

Input for USB Media Player 1/Firmware upgrade

13. MEDIA PLAYER 2

Input for USB Media Player 2

14. HDMI1

Input for HDMI1 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 60 Hz

15. HDMI2 (ARC)

Input for HDMI2 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 60 Hz HDMI2 supports ARC (Audio Return Channel)

16. HDMI3 / MHL

Input for HDMI3 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 36 Hz. HDMI3 supports MHL (Mobile High-definition Link)

17. COAXIAL

Output for digital audio signal (Coaxial)

* Inputs 5, 6 and 7 are available only in MX/UMX series

DS-108-UNID-2 PC PC AUDIO COMPONENT AV IR LERS232 OUT RS232 IN 2.4GHz REMOTE ON/OFFPAIRING POWER INPUT AC 100-240 V - 50/60 Hz 1 2 3 4 5 6 7 8 11 9 10

USB MEDIA PLAYER HDMI COAXIAL 1 2 1 2 / ARC 3 / MHL DS-RS-UHD-1 12 13 16 1714 15

SWL/SWLT specific information

The SWL/SWLT series are equipped with external inputs to provide easy access.

The external inputs are

1. USB external input. It can be connected to Media Player 1 or 2. It can also be connected to a media player such as Mini PC or Android box

1. RJ45 input. It could be connected to a Mini PC or Android box to access the network in case WiFi is not available or LAN connection is preferred.

The SWL/SWLT series are also equipped with cooling fans. The fans can be controller in the OSD menu.

The SWLT (Touch) series are equipped with a Touch overlay. The connection interface is USB 2.0. The Touch USB cable must be connected to a media player such as Mini PC or Android box etc which supports touch function.

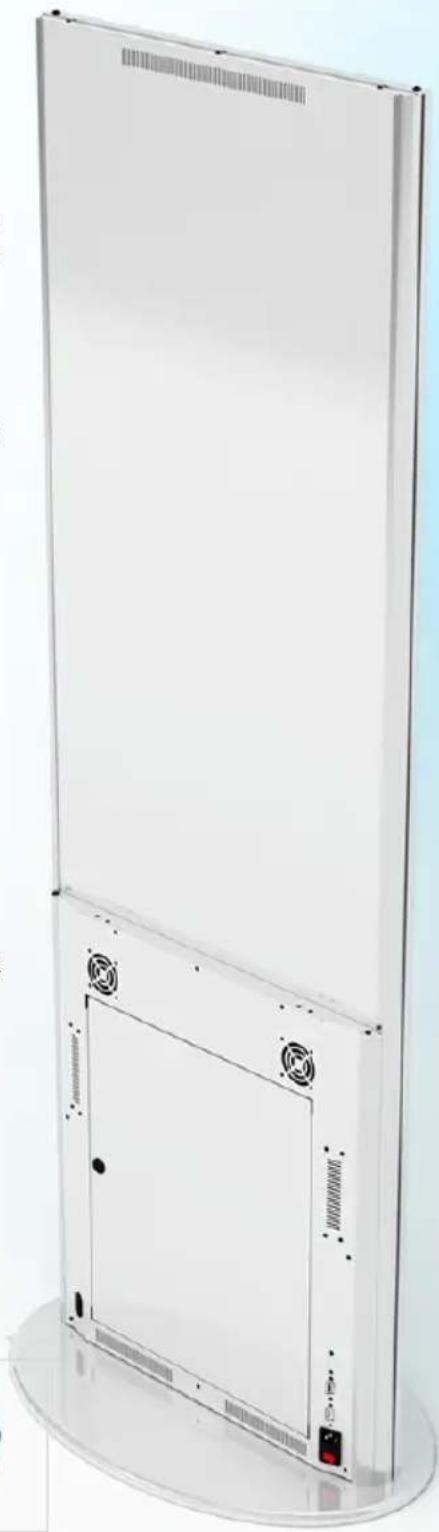

SWL/SWLT Contents

Included items for SWL/SWLT series:

2 x AAA Battery

Notice

Two black electrical plugs with wires, labeled 'AC Cable' below (no other text or symbols visible)

Remote Control S

drawwise with Base

Red-handled tool with multiple screws, no visible text or symbols

Exterior view of a modern office building (no signage)

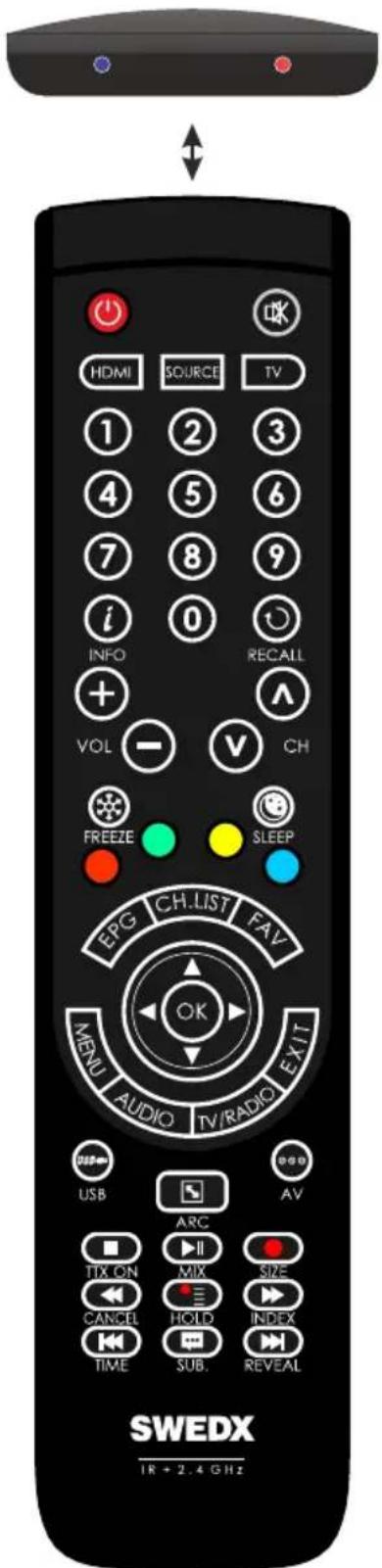

Remote Control for SDS/SWL/SWLT-series (FR4)

The remote control is based on both 2.4 GHz and Infrared.

The remote control is equipped with LED indicators. The RED indicator states that the remote is in Infrared mode and the BLUE indicator is for 2.4 GHz mode. Recent products from SWEDX uses 2.4 GHz receivers.

The 2.4 GHz technology allows the remote to control the TV without targeting it because the receiver is built inside the TV. Each SWEDX TV has a pre-configured remote control meaning that if you have several SWEDX TVs then the remote control for one of the TVs will function only with that particular TV and not with the other TVs.

To switch between Infrared and 2.4 GHz mode press and hold the

buttons for 5 seconds. The Red LED will flash 3 times and switch from the current mode to the other one.

To pair the remote with the TV follow the steps below

1. Connect the product (e.g screen) to power outlet
2. Make sure that the remote is in 2.4 GHz mode
3. Press and hold the

buttons on the remote control simultaneously for about 5 seconds. The BLUE LED will flash 5 times indicating that the remote is now paired with the TV.

Recent 2.4 GHz based products from SWEDX are equipped with a pairing key in order to avoid pairing more than one product when more than one SWEDX products is close by. A On/Off key is also available in recent SWEDX products.

If your product is equipped with paring key please press and hold the paring key for 2 second when the Blue LED light is flashing after pressing

HDMI SOURCE TV 1 2 3 4 5 6 7 8 9 i INFO RECALL + VOL CH FREEZE SLEEP EPG CH.LIST FAV OK MENU AUDIO TV/RADIO EXIT USB AV ARC TTX ON II SIZE CANCEL HOLD INDEX TIME SUB. REVEAL SWEDX IR + 2.4 GHz

The cemote control "FR4" is included in the SDS-series (digital signage screens). For the MX/UMX-series the included remote control is model "FR" (see page 9)

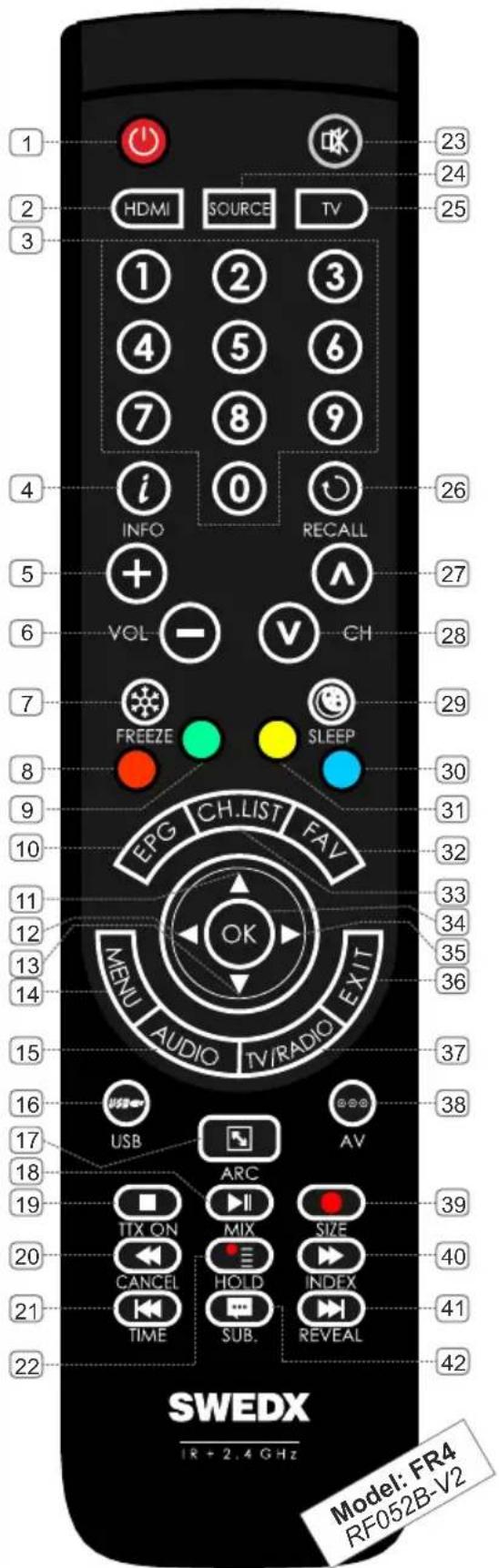

Remote control buttons (FR4)

1. On/Off button
2. Shortcut to HDMI1,2,3
3. Number buttons for direct channel access
4. Display additional information
5. Volume increase
6. Volume decrease
7. Picture freeze
8. RED
9. GREEN
10. Not applicable for this product
11. Navigation button UP
12. Navigation/adjust button LEFT
13. Navigation button DOWN
14. Menu display. In OSD sub-menu press to access previous menu
15. Not applicable for this product
16. Shortcut to Media Player 1,2
17. Aspect Ratio toggling
18. Start/Pause play
19. Stop play
20. Fast backward
21. Previous Title
22. Not applicable for this product
23. Mute the built-in speakers
24. Available sources selection
25. Not applicable for this product
26. Not applicable for this product
27. Not applicable for this product
28. Not applicable for this product
29. Enter sleep mode in certain chosen time
30. Blue
31. Yellow
32. Not applicable for this product
33. Not applicable for this product
34. Confirm/activate button
35. Navigation/adjust button RIGHT

36. Exit the OSD

37. Not applicable for this product

38. Shortcut to AV
39. Not applicable for this product
40. Fast forward
41. Next Title
42. Not applicable for this product

1 2 3 HDMI SOURCE TV 1 2 3 4 5 6 7 8 9 i INFO RECALL 5 + VOL CH 7 FREEZE SLEEP 8 EPG CH.LIST FAV 9 30 10 31 11 32 12 33 13 34 14 MENU AUDIO EXIT 15 TV/RADIO 16 USB AV 17 ARC 18 TIX ON MIX SIZE 19 CANCEL HOLD INDEX 20 TIME SUB. REVEAL 21 SWEDX 1R + 2.4 GHz Model: FR4 RF052B-V2

Remote control (FR) buttons

1. On/Off button
2. Mute the built-in speakers
3. Enter sleep mode in certain chosen time
4. Not applicable for this product
5. Aspect Ratio toggling
6. Number buttons for direct channel access
7. Not applicable for this product
8. Shortcut to HDMI 1,2,3
9. Shortcut to PC input
10. Menu display. In OSD sub-menu press to access previous menu
11. Navigation button UP
12. Confirm/activate button
13. Navigation/adjust button LEFT
14. Navigation button DOWN
15. Shortcut to Component
16. Stop play
17. Start/Pause play
18. Fast forward
19. Fast backward
20. RED
21. GREEN
22. Not applicable for this product
23. Not applicable for this product
24. Not applicable for this product
25. Not applicable for this product

26. Not applicable for this product

27. Not applicable for this product

28. LED indicator
29. Available sources selection
30. Display additional information
31. Picture freeze
32. Alter sound mode
33. Alter picture mode
34. Volume increase
35. Volume decrease
36. Not applicable for this product
37. Not applicable for this product
38. Not applicable for this product
39. Not applicable for this product
40. Exit the OSD
41. Navigation/adjust button RIGHT
42. Not applicable for this product
43. Not applicable for this product
44. Not applicable for this product
45. Next Title
46. Previous Title
47. Blue
48. Yellow
49. Not applicable for this product
50. Not applicable for this product
51. Not applicable for this product
52. Not applicable for this product

POWER SOURCE MUTE SLEEP STILL INFO. DUAL I-II ARC PSM SSM + VOL - + CH - HDMI DTV -/-- 0 7 8 9 30 31 32 33 1 2 3 4 5 6 7 8 9 -/- 0 VOL - + CH 34 35 36 37 38 39 40 PC MENU EXIT ENTER Component Scart 41 42 16 TTX ON MIX SIZE HOLD CANCEL INDEX TIME REVEAL RED GREEN YELLOW BLUE LIST TV/RD AUDIO PIP S.SELECT EPG FAV SUB-T SIZE POSITION SWEDX Model: FR

The remote control “FR” is included in the UMX/MX-series (Matrix video wall screens). For the SDS-series the included remote control is model “FR4” (see page 7)

In order to control the UMX/MX screens with the "FR" remote control an external Infrared receiver must be connected to the screens IR input (see page 6 input No. 5)

Main Operations

Turning On And Off

The product turns on automatically when it is connected to power. When the product is in Stand-by mode press POWER on the remote control or the On/Off button on the control buttons. The product will turn on and will be ready to be used.

Select Source

SOURCE

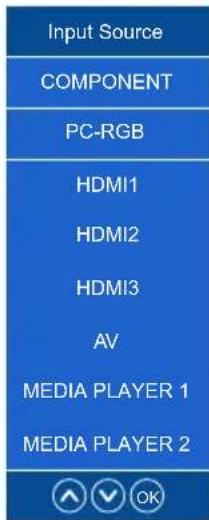

Press SOURCE on the remote control. The source list menu will appear. Navigate the list with

Up/Down on the remote control to select the source and confirm by pressing OK.

Input Source COMPONENT PC-RGB HDMI1 HDMI2 HDMI3 AV MEDIA PLAYER 1 MEDIA PLAYER 2

Volume Control

Press VOL+ / VOL- on the remote control to adjust the volume level.

Press the MUTE on the remote control to mute the sound.

OSD Menu Operation

- Press MENU on the remote control to access the OSD Menu. Pressing the same button again will move you backward in the OSD structure.

- Press OK button to onfirm/select.

- Use LEFT & RIGHT buttons to navigate or change the parameters of the current

sub-menu.

• Use UP & DOWN buttons to navigate in the OSD Menu.
• Press EXIT button to exit the OSD Menu.

OSD Menu Structure

• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with desired preferences.
• Press the MENU button on the remote control to see the main OSD menu.

EPG CH.LIST FAV OK MENU AUDIO TV/RADIO EXIT

OSD Menu Operation:

• Main Menu: Press MENU on the remote control to enter the main OSD menu. First, choose Main menu item you need with the buttons ◀ & ▶. To select a Main menu items, just press OK.
• Sub Menu: Each menu item has its own sub menu items to set.
• Sub Menu items:

A: If there is no value to adjust it means there is a sub menu which you can access by pressing OK and modify the menu values. B: If there is no ▶ part, the item has adjustable values. Use ◀ & ▶ to adjust the values.

C: If the sub-menu item is grey colored, it means this item is not available in the particular mode.

Picture Mode Contrast Brightness Color Tint Sharpness Aspect Ratio Standard 50 50 50 50 50 PointToPoint Select Move Return NCNU


Picture Mode Contrast Brightness Color Tint Sharpness Aspect Ratio Standard 50 50 50 50 50 PointToPoint Select Move Return MENU

Noise Reduction Color Temperature Red Green Blue Local Dimming Backlight Middle Medium 50 50 50 Off 50 Select Move Return OK

Use the Picture menu to adjust the picture settings to meet your requirements:

Picture mode

Standard: Suitable for a normal room

Mild: Suitable for a dark room

User: In User mode you can adjust the Contrast, Brightness, Color, Sharpness to meet your requirements

Dynamic: Suitable for a bright room

Aspect Ratio

Set the various picture options such as picture size and aspect ratio.

Depending on the input source, the picture size options may vary.

The connected device to the controller may have its own set of screen sizes as well. However, it is highly recommended to use PointToPoint / Just Scan mode.

Auto

Automatically adjusts the picture size to the signal

Zoom1&2

Magnifies the picture size.

4:3

Sets the picture to basic (4:3) mode.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

PointToPoint

Displays the signal without any cut-off when HDMI (720p / 1080i / 1080p / 2160p) signals. The PointToPoint mode will display without scaling

which means if the signal resolution is lower than 3840x2160 then the picture will be shown according to its original size.

Just Scan

Just Scan mode will display crispier picture with scaling to fill the entire screen.

Noise Reduction

Choose to activate noise reduction. Available options are Off, Low, Middle and High.

If the signal received by the input controller is weak, you can activate the Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Color Temperature

Choose between predefined settings User, Warm, Medium and Cold). In User mode you can adjust the Red, Green and Blue color temperature.

Screen (only in PC mode)

When the TV is in PC-Mode additional settings are available for PC-Setup.

H-Offset: Adjust the PC's screen positioning horizontally

V-Offset: Adjust the PC's screen positioning vertically

Size: Adjust the screen size

Phase: Adjust the signal phase

Local Dimming

Local dimming is a feature that dims the backlight behind parts of the screen that are displaying black. This makes blacks appear deeper and darker on those parts of the screen, which can be a big bonus when watching video with darker scenes.

Backlight

Adjust the backlight intensity.

Sound

Sound Mode Treble Bass Balance Surround Sound SPDIF Mode Standard 50 50 0 Off PCM Select Move Return MENU

Use the Sound menu to adjust the sound settings to meet desired requirements:

Sound Mode

Choose between predefined settings:

Standard: Suitable for normal programs

Music: Suitable for music program

Movie: Suitable for movies

Sports: Suitable for sport programs

User: In User mode you can adjust the Treble and Bass to meet desired requirements.

Balance

Adjust the sound output balance between left and right speaker.

Surround Sound

In TrueSurround or SRS TrueSurround mode the screen delivers a compelling, virtual surround sound experience through the internal television speakers. It is fully compatible with all multichannel formats.

SPDIF Mode

Choose the output mode for the SPDIF signal.

Choose between Auto or PCM.

Time

Clock 2016/01/Jan 10:05:18 Timer Mode Customize Set Timer > Auto Sleep Never Select Move Return

Clock

Clock Date 01 Month Jan Year 2016 Hour 10 Minute 20 Second 35 New Exit

Use the Time menu to set the date and time for the product. The date and time are important for usage of the timer function.

Set the date and time under the Clock option by choosing the clock option and pressing the ▶ button. Change the values to the correct time by pressing the ◀ & ▶ buttons. Press Menu to exit and save the new date and time settings.

Timer Mode

The product is equipped with advanced timer settings. When activated, the timer settings provide 3 modes for the timer function. Only one mode can be activated at time. Each mode has 5 timer sets (Time 1, 2, 3, 4 and 5). It is possible to activate one or more time sets

Once: The product will turn on/off once according to the defined On Time and Off Time.

Everyday: The product will turn on/off everyday according to the On Time and Off Time. This function is suitable of the product is used everyday.

Customize: In customize mode you can define the on/off time for Monday\~Friday and/or Saturday and/or Sunday.

Timer Mode: Mon ~ Fri Time 1 On On Time: 00 : 00 On Time: 00 : 00 No Entry Exit

Timer example:

Timer Mode: Customize

Mode: Mon\~Fri

Time 1: ON

On Time: 08:00

Off Time: 13:00

Mode: Saturday

Time 1: ON

On Time: 10:00

Off Time: 13:00

Mode: Sunday

Time 1: ON

On Time: 11:00

Off Time: 13:00

Mode: Mon\~Fri

Time 2: ON

On Time: 14:00

Off Time: 21:00

Mode: Saturday

Time 2: ON

On Time: 14:00

Off Time: 20:00

Mode: Sunday

Time 2: ON

On Time: 14:00

Off Time: 19:00

Monday	Tuesday	Wednesday	Thursday	Friday	Saturday	Sunday
00	00	00	00	00	00	00
01	01	01	01	01	01	01
02	02	02	02	02	02	02
03	03	03	03	03	03	03
04	04	04	04	04	04	04
05	05	05	05	05	05	05
06	06	06	06	06	06	06
07	07	07	07	07	07	07
08	08	08	08	08	08	08
09	09	09	09	09	09	09
10	10	10	10	10	10	10
11	11	11	11	11	11	11
12	12	12	12	12	12	12
13	13	13	13	13	13	13
14	14	14	14	14	14	14
15	15	15	15	15	15	15
16	16	16	16	16	16	16
17	17	17	17	17	17	17
18	18	18	18	18	18	18
19	19	19	19	19	19	19
20	20	20	20	20	20	20
21	21	21	21	21	21	21
22	22	22	22	22	22	22
23	23	23	23	23	23	23

On Time On Time Off Time

Auto sleep

This function will put the product into Off mode in given time. Choose between Never, 4, 6 or 8 hours.

Settings

OSD Language Restore Factory Default HDMI CEC Color Range EDID Mode No Signal Screen Activate Fans at °C Standard Auto EDID 2.0 Black 42 Select Move Return NEW

Fan Setting Overheating Protection Off OSD Mode Landscape Matrix ID 1 No Signal Standby Off MEMC(Requires Restart) On Off Select Moves Return NEU

OSD Language:

Choose the OSD language. Available languages are English, Deutsch, Spanish, French, Italian, German, Japanese, Swedish, Arabic, Simplified Chinese.

This function will restore the product to the factory defaults and will erase any customized settings.

HDMI CEC

Activate the HDMI CEC function.

HDMI ARC

Activate HDMI ARC (Audio Return Channel) function.

Auto Standby

When activated the product will be put into standby mode when a HDMI CEC compatible device is connected and turned off.

Auto On

When activated the product will be put into On mode when a HDMI CEC compatible device is connected and turned on.

Device Control

When activated the HDMI CEC compatible device can be controlled using the product's remote control.

Device List

Displays connected HDMI CEC compatible devices.

Color Range

Choose the scope of the color range. Available options

EDID Mode

This is an informative feature to display the HDMI mode of the connected product to the HDMI input. Available options are HDMI 1.4 or HDMI 2.0. Products with support for HDMI 2.0 are recommended to take full advantage of the 4K feature in Swedx product.

No Signal Screen

Change the background color of the display when no signal is detected. Available options are black or blue.

Activate Fans at °C

Activate the product's ventilation/cooling fans (if available) at the defined degree.

Fan Setting

Choose the setting for the product's ventilation/cooling fans (if available). Available options are Off, low, medium, high. Choose low or medium when the product is used in quite environment and choose high when the maximum cooling is desired due to the environment.

Overheating Protection

When activated this function will turn off the product in order to protect it from damages if it reaches too high temperature. Available options are Off, 80 or 85°C.

OSD Mode

Choose the orientation for the OSD menu.

Choose landscape for horizontal mode and portrait for vertical mode.

Matrix ID

Set the screen's ID when the product is used in Matrix video wall configuration. See next page for details.

No Signal Standby

The product is equipped with Smart HDMI function. When the product is in HDMI mode you can activate the Smart HDMI function by setting the No Signal Standby to On mode and the product will go into sleep mode in 30 seconds if no HDMI signal is detected. The product will automatically wake up when the HDMI signal is detected. This function is useful if you want to control the product's sleep/wake up mode by the source connected to the HDMI inputs.

To deactivate the function set the No Signal Standby to Off mode.

MEMC (Motion Estimation/Motion Compensation)

Fan Setting Overheating Protection Off OSD Mode Landscape Matrix ID 1 No Signal Standby Off MEMC(Requires Restart) On Off Select Move Return MENU

Enhancement to compensate the difference between the screens refresh rate and signal frame rate. Active for smoother motion and deactivate for shorter input lag.

MEDIA PLAYER 1/2

Play Mode Media Type Slide Time 5G Music Picture Scaling Auto Play Repeat Mode Automatic Video On Original On All Select Move Return MENU

This product is equipped with an advanced and user friendly media player. The Media player can display videos and images stored in a USB flash drive connected to the Media Player 1 or 2 inputs. See next page for which formats and codecs are supported.

Play Mode

In Play Mode you can choose between Automatic or Program.

Automatic will display all files stored in the USB flash drive connected automatically.

Program will allow to create a play list of selected files stored in the USB flash drive.

USB 1 Start Video01.mp4 Image01.jpg Select All Delete Save

To create a play list select all files by pressing GREEN button on the remote or select the files to be displayed by highlighting the file and pressing OK button on the remote. When the file/files is/are selected a check mark will appear beside the file name. To save the play list press the YELLOW button on the remote control.

To run the play list press the play button on the remote or highlight the Start and press OK. To stop running the play list press the STOP or EXIT button on the remote.

To delete a file from the USB flash drive highlight it and press the RED button on the remote.

Media Type

Available options are All, Video and Picture. When the Play Mode is Automatic it allows to choose between All, Video or Picture. When All

is chosen the product will display automatically all video and picture files stored in the USB flash drive.

When Video is chosen the product will display automatically only all video files stored in the USB flash memory.

When Picture is chosen the product will display automatically only all picture files stored in the USB flash memory.

When the Play Mode is Program you can choose to display in the play list either videos or pictures that are stored in the USB flash drive.

Slide Time

Select the time duration for the picture to be displayed before next picture is displayed. The options are:

Seconds: 5, 10, 15, 20, 25, 30, 45

Minutes: 1, 5, 10, 30

Hours: 1, 3, 12, 24

BG Music

Allows to play background music while displaying pictures. See next page for supported audio files.

Picture Scaling

For picture where the aspect ratio is not 16:9 you can choose how the product will display the picture. In Original mode the picture will be displayed in full screen while keeping the picture's proportion. In Full Screen mode the picture will be displayed to cover the whole screen ignoring the picture's proportion. See the illustration below

Colorful geometric shapes including a red sphere, a multicolored square, and a triangular pyramid (no text or symbols)

Colorful geometric shapes including a red oval, a multicolored pyramid, and a blue diamond (no text or symbols)

Original Full Screen

Auto Play

Available options are On and Off. When the Auto Play mode is On the product will start to display the files automatically when the product is turned on. When the Auto Play mode is Off the product will show the content of the connect USB flash drive when the product is turned on.

Repeat Mode

Allows to choose the repeat mode of the files. Available options All, Once, Cancel.

All will repeat displaying the files continuously Once will repeat displaying the files once Cancel will not repeat displaying the files

Supported Formats and Codecs

	Format	Video Codec	Audio Codec	Resolution	Frame Rate	Mbit/s
Video	AVI	MJPEG	MP3, WMA, AAC, MP2, PCM	640x480	23,976~30≤16Mbps	≤ 10Mbps
		DIVX.311/DIVX4/DIVX5		720x576		≤ 10Mbps
		XVID/MPEG-2/MPEG4/H.264		1920x1080		≤ 20Mbps
	MP4	MPEG-2/MPEG-4/H.264
	TS	MPEG-2				≤ 40Mbps
	TRP
	MPG	MPEG-1/MPEG-2				≤ 20Mbps
	NOV	MPEG-4/H.264
	MKV
	DAT	MPEG1	MP2	352X288		≤ 16Mbps
	VOB	MPEG2		720x576
	Format	Max resolution	Colors
Picture	BMP	1000 x 1000 pixels	16, 256, 16 bit, 24 bit och 32 bit.
	JPEG	3840x2160 / Recommended resolution is 3840x2160 pixels
	PNG	1000x1000 pixels
Audio	MP3	8K-48K. 32K+320K
	WAV	32K-48KHz 32K-320Kbps
	M4A, AAC	16K-48K. 32K+192K

Information:

The Media Player inputs supports:

USB Flash Drive and Hard disks are supported. Supported formatting formats are, NTSF, FAT32,

FAT16. NTSF Compressed is not supported.

The files must be saved in the root folder. Folder structure is not supported.

Max 5000 files.

Wall mount assembly

SWEDX offers several wall mount devices which can be purchased from your dealer or www.swedx.com

See the Wall mounting parameters in the illustrations

40/42 inch

200 mm 200 mm

65 inch

400 mm 400 mm

75 inch

600 mm 400 mm

50 inch

400 mm 200 mm

58 inch

400 mm 400 mm 400 mm 300 mm

Troubleshooting

Before contacting SWEDX service or your dealer, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of your product and contact your local dealer

No sound or picture

• Check that the mains lead has been connected to a wall socket
• Check the picture contrast and brightness settings
• Check the volume

Normal picture but no sound

• Check the volume
• Check whether the MUTE button has been pressed on the remote control

No picture or black and white picture

• Adjust the color settings
• Check that the broadcast system selected is correct

Sound and picture interference

• Try to identify the electrical appliance that is affecting the set and move it further away.
• Plug your set into a different mains socket

Blurred or snowy picture, distorted sound

• Check the direction, location and connections of your aerial
• This interference is often due to the use of an indoor aerial

Remote control malfunctions

• Ensure that the remote is in correct mode
• Replace the remote control batteries
• Clean the upper edge of the remote control (transmission window)
• Check the battery terminals
• Turn off the product and unplug the AC cable from the wall socket and then plug the AC cable and turn on the product

“No signal” message is displayed

• Check that the signal cable is firmly connected to the source input
• Check that the source is turned on

On PC mode, "Not Supported Mode" message is displayed

- Check the maximum resolution and the frequency of the video adapter. For HD models the recommended resolution is 1366x768 and for Full HD models the recommended resolution is 1920x1080 (for PC mode). In HDMI mode the

recommended resolution is 3840x2160@60Hz

The image is too light or too dark

- Adjust the Brightness and Contrast

Pixel Mapping

- It is recommended to choose aspect ratio PointToPoint or JUST SCAN to achieve pixel mapping in HDMI modes

Warranty and Service

The following terms apply only to new "in the original carton" SWEDX products marketed and distributed by SWEDX, which are purchased and used by the original consumer purchaser.

Depending on the model, your terms and conditions may be different from those shown below, and this information is subject to change without prior notice. Unless specifically stated otherwise, used and reconditioned products that are resold have no warranty from SWEDX and are considered sold "AS-IS", however, the selling dealer may offer additional service options.

Warranty for SWEDX products:

Check with your dealer for the warranty period.

What the warranty covers:

SWEDX warrants your SWEDX display(s) against defects in material and workmanship during the warranty period from SWEDX factory delivery date shown in the shipping documents. If a product proves to be defective in material or workmanship during the warranty period, SWEDX will, at its sole option repair or replace the product with a similar product, provided the purchaser adheres to certain return authorization procedures and guidelines. SWEDX reserves the right to charge customer in case of warranty conditions not are fulfilled.

Who the warranty protects:

This warranty is valid only for the first purchaser.

What the warranty does not cover:

1. Any product which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
B. Repair or attempted repair by anyone not authorized by SWEDX.
C. Any damage of the product due to shipment.
D. Removal or installation of the product.
E. Causes external to the product, such as electric power fluctuations or failure.
F. Use of supplies or parts not meeting SWEDX specifications.
G. Normal wear and tear.
H. Any other cause which does not relate to a product defect.

1. Cosmetic damage by purchaser, such as markings, discoloration, scratches, dents, anti-theft devices markings, gouges or any

other defacement.

1. Physically damaged products by purchaser, such as broken PCB, Housing, damaged LCD Module.
2. No Defect Found (product returned to SWEDX as defective but failure is not duplicated by SWEDX's test method.)
3. The product is not in accordance with the fault in the application
4. Timber is a lifelike natural material which can cause some little changes in the precision of the produced product such as small openings line beside the connecting point and some other small changes which are out of SWEDX control and don't make any effect for the product functionality.

Dead on Arrival (DOA)

If the product fails within the manufacturer's DOA period, a replacement product will be offered.

Before contacting us:

In many cases, your product may not need repair. Before you contact us, please consult the troubleshooting section in your user's manual or SWEDX's FAQ web pages at http://www.swedx.com to see if you can easily remedy the problem yourself.

How to get service:

For information on obtaining warranty service, contact SWEDX dealer (the place where you bought your product) in first choice. If for any reason you can not contact your dealer, please contact SWEDX Customer Service by visiting http://www.swedx.com.

SWEDX technical support services:

During the period of product warranty, we support your basic configuration, setup and troubleshooting questions, and when required, we provide you with all instructions on how to return your product for repair. For support inquiries, please visit http://www.swedx.com.

SWEDX reserves the right to make final decisions regarding problem determination and the appropriate service option. Exchange units assume the remaining warranty of the original product. Please refer to your SWEDX Limited Warranty Statement for complete terms and conditions, as some models have other terms and conditions. Some limitations and restrictions apply and these programs are subject to change without prior notice.

Limitation of liability

If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repairing or replacement of any hardware components that malfunction in conditions of normal use. SWEDX is not liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. SWEDX is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or a claim made, under this limited warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised SWEDX.

SWEDX

Your Digital Signage Partner

40" Touch Lamina SWEDX

40" Touch Lamina SWEDX

50" Touch Lamina SWEDX

50" Touch Lamina SWEDX

58" Touch Lamina SWEDX

58" Touch Lamina
