Product Type	55-inch Interactive Touchscreen Display
Brand	Iiyama
Model	ProLite TF5538UHSC-W2AG
Screen Size	55 inches (diagonal)
Resolution	3840 x 2160 (4K UHD)
Touch Technology	Projected Capacitive (PCAP), 10-point multi-touch
Brightness	500 cd/m² (typical)
Contrast Ratio	4000:1 (typical)
Response Time	8 ms (gray-to-gray)
Viewing Angles	178° horizontal / 178° vertical
Interfaces	HDMI 2.0 x2, DisplayPort 1.2, USB-C (with DP Alt), USB 3.0 x2, RS-232C, Audio Out
Power Consumption	150 W (typical), <0.5 W standby
Dimensions (W x H x D)	1243 x 715 x 77 mm (without stand)
Weight	28.5 kg (without stand)
VESA Mount	400 x 400 mm (compatible)
Anti-Glare	Yes, hard coating (3H)
Operating Temperature	0°C to 40°C
Speakers	Built-in 2 x 10W
Features	Touch via USB, OSD controls, Kensington lock, Energy Star, TCO certified

Frequently Asked Questions - ProLite TF5538UHSC-W2AG IIYAMA

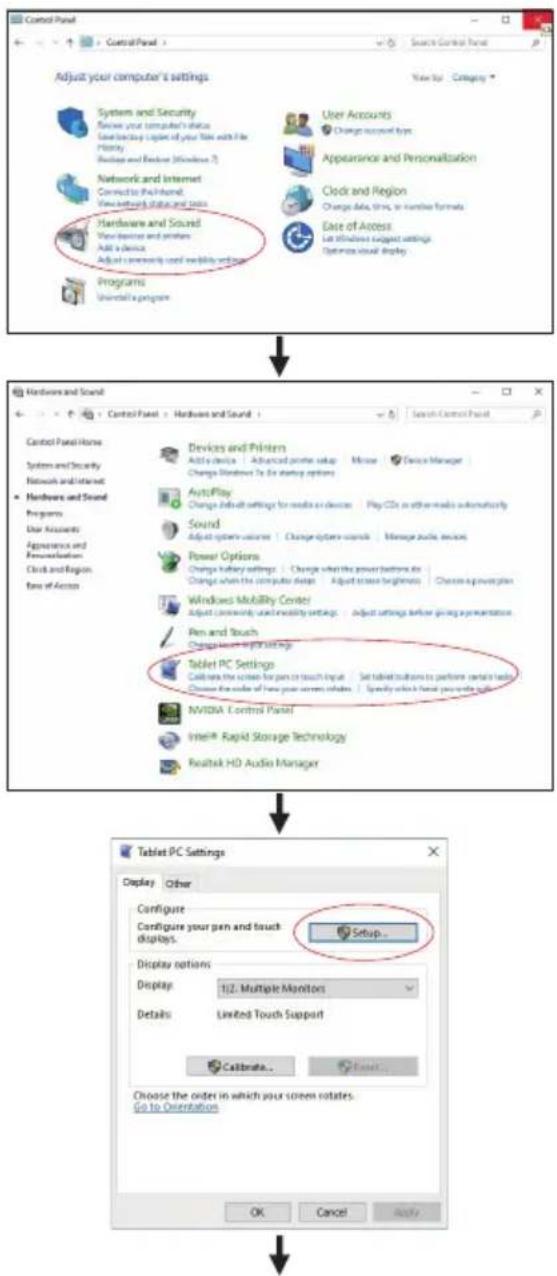

How do I calibrate the touchscreen?

Calibration is typically done via the operating system. For Windows, go to Tablet PC Settings in Control Panel and select Calibrate. Follow the on-screen instructions.

Can I mount this display on a wall?

Yes, the monitor supports a 400x400 mm VESA mount. Use a compatible wall mount bracket (not included) and follow the mounting instructions.

What cleaning products are safe for the touchscreen?

Use a soft, lint-free cloth slightly dampened with water or a mild screen cleaner. Avoid abrasive cleaners, alcohol, or ammonia-based products. Spray the cloth, not the screen.

How many touch points does it support?

The screen supports 10-point multi-touch, allowing multiple fingers or users to interact simultaneously.

Can I connect a laptop via USB-C?

Yes, the USB-C port supports DisplayPort Alt Mode, power delivery (up to 65W), and data transfer. Connect your laptop to display video and charge simultaneously.

How do I adjust the brightness?

Use the On-Screen Display (OSD) buttons on the monitor. Press the Menu button, navigate to Brightness/Contrast, and adjust using the arrow keys.

Is the screen suitable for outdoor use?

The monitor has a brightness of 500 cd/m², suitable for bright indoor environments. For direct sunlight, a higher brightness model is recommended.

What should I do if the touch is not responsive?

Ensure the USB touch cable is connected from the monitor to the computer. Restart the device and check if drivers are installed. If the issue persists, try calibrating the touchscreen.

Can I use this display in portrait orientation?

Yes, the monitor can be rotated to portrait mode (90° clockwise/counterclockwise) if mounted on a compatible VESA stand that allows rotation. Adjust the display orientation in your operating system settings.

How can I update the firmware?

Check the Iiyama support website for the latest firmware for model TF5538UHSC-W2AG. Download the file and follow the provided instructions. Typically, a USB drive is used for the update.

USER MANUAL ProLite TF5538UHSC-W2AG IIYAMA

Thank you very much for choosing the iiyama LCD monitor.

We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

Abstract geometric pattern with blue dot matrix and white rectangle, no text or symbols present

refully monitor. ce for

Pure geometric lines forming an L-shape with no text, numbers, or symbols

Two geometric shapes: a blue square with a halftone dot pattern on the left and a white square on the right, both without any text or symbols.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive” and 2011/65/EU “RoHS Directive”.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Model No.: PLT4938, PLT5538

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com

You can access the Web page of different countries from there.

■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.

TABLE OF CONTENTS

FOR YOUR SAFETY....1

SAFETY PRECAUTIONS....1

SPECIAL NOTES ON LCD MONITORS....3

CUSTOMER SERVICE ....5

CLEANING....5

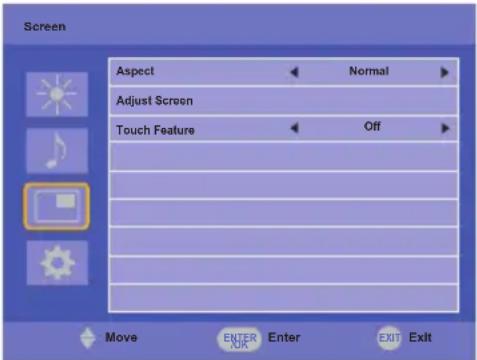

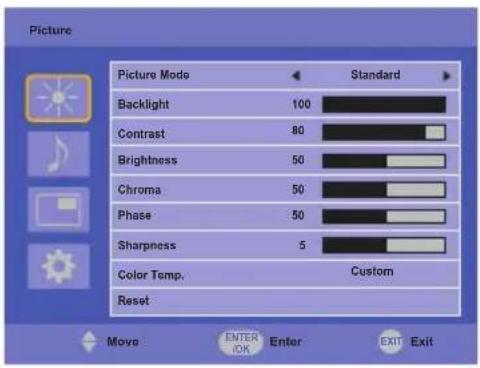

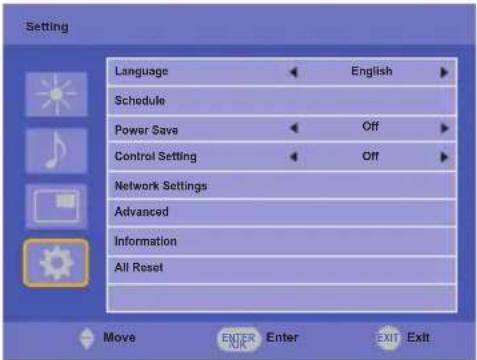

ADJUSTMENT MENU CONTENTS....26

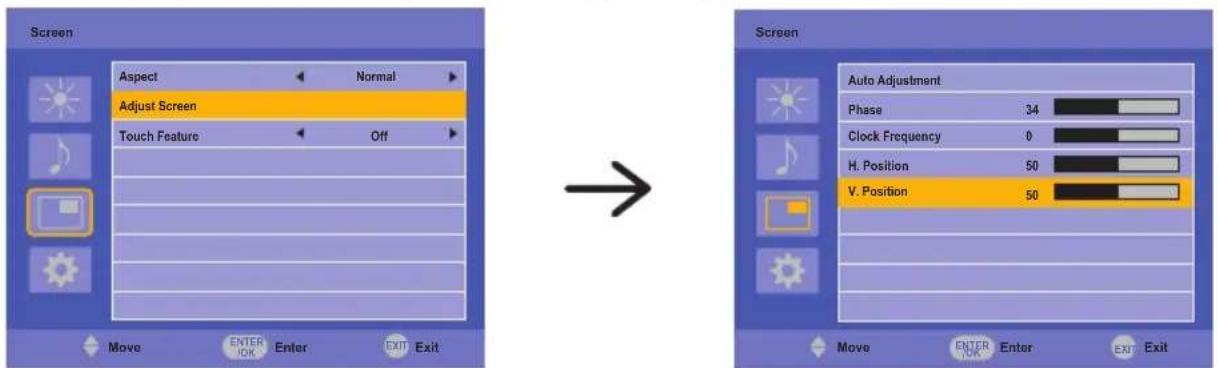

SCREEN ADJUSTMENTS 31

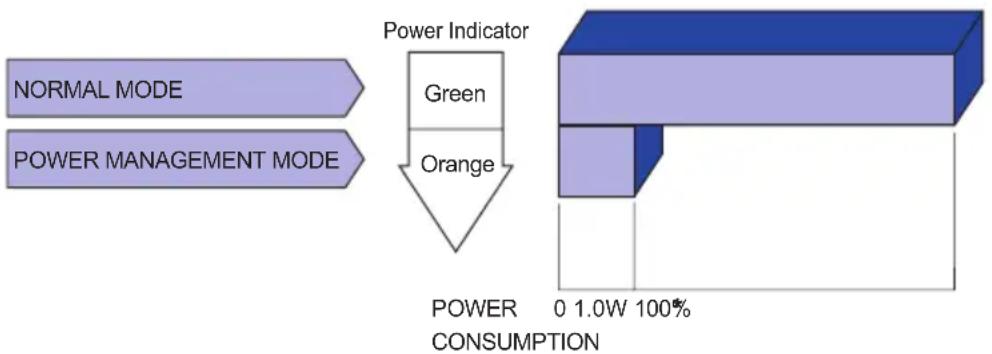

POWER MANAGEMENT FEATURE....34

TROUBLE SHOOTING 35

RECYCLING INFORMATION....36

APPENDIX 37

SPECIFICATIONS : ProLite TF4938UHSC-B2AG 37

SPECIFICATIONS :

ProLite TF5538UHSC-B2AG / ProLite TF5538UHSC-W2AG .....39

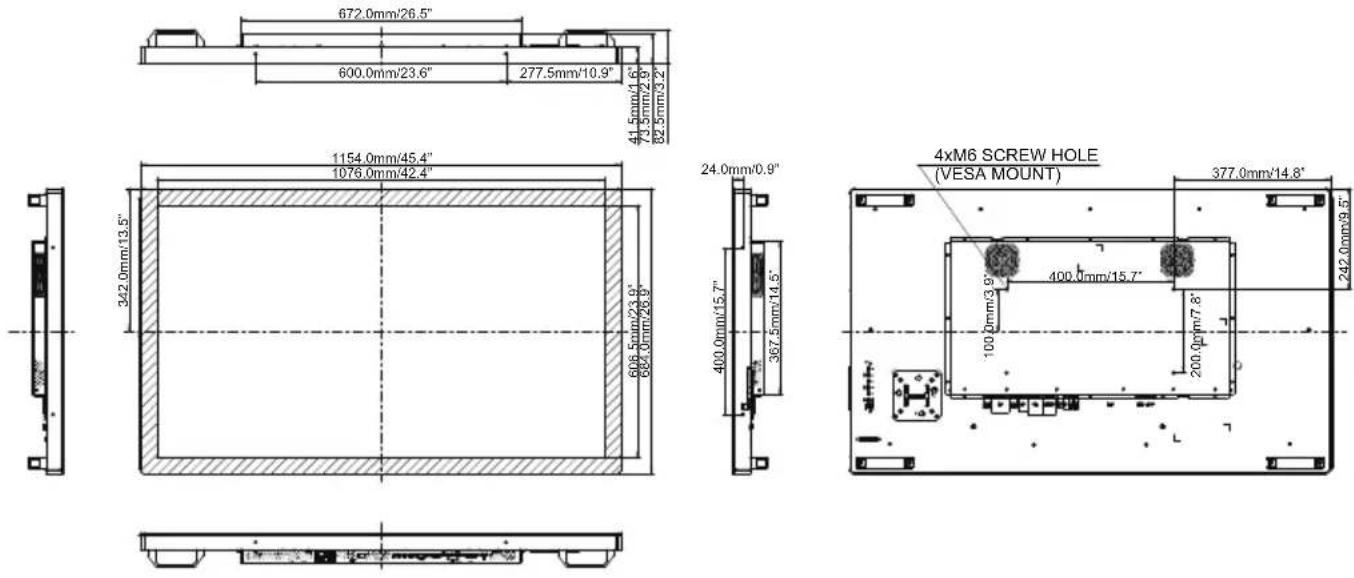

DIMENSIONS : ProLite TF4938UHSC-B2AG....41

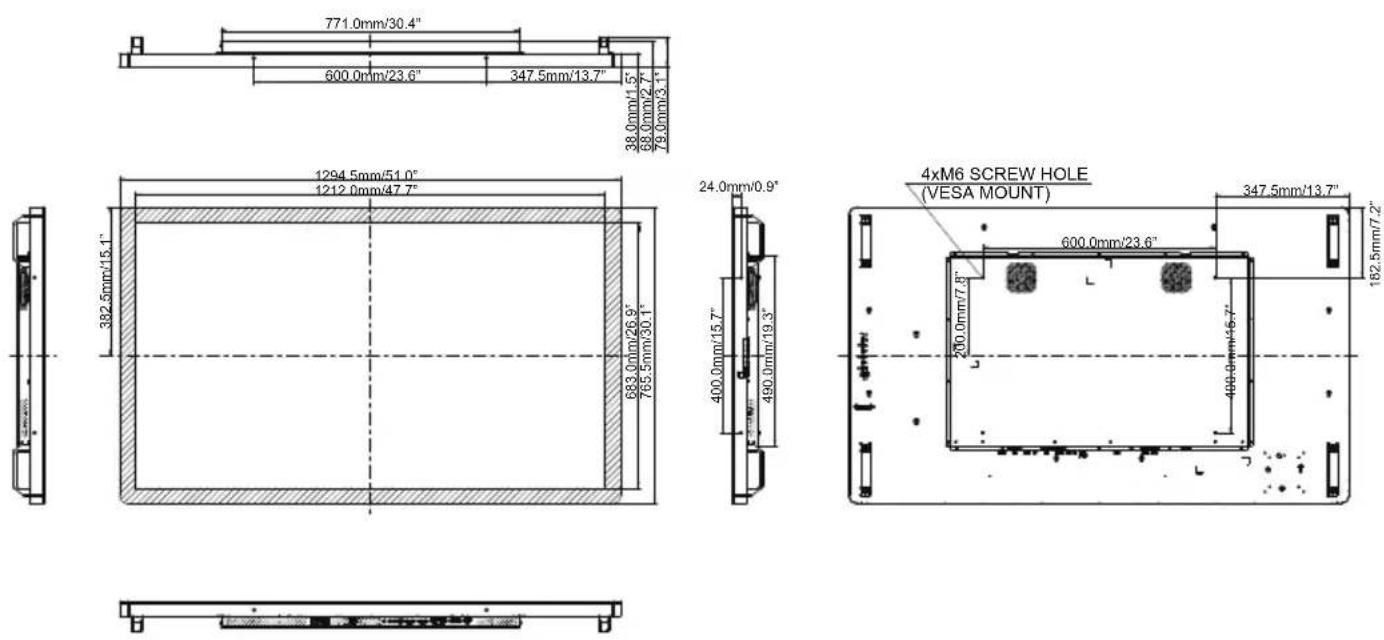

DIMENSIONS :

ProLite TF5538UHSC-B2AG / ProLite TF5538UHSC-W2AG .....41

COMPLIANT TIMING....42

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

■ The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

• When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.

■ This LCD cannot be used outdoors.
■ If you use a cable longer than the supplied one, the picture quality is not guaranteed. Touch function can be disrupted if the USB cable length exceeds 3m.

USAGE CONFIRMATION

This product is designed for optimum usage at 24 hours per day.

The monitor is compatible for usage in Landscape/Portrait and Tabletop (face-up) app being used in Tabletop application, please utilise the Fan-on function.

IMAGE PERSISTENCE / IMAGE STICKING

Please be aware that all LCD screens can experience Image Persistence or Image Sticking. This occurs when a residual image remains visible on a screen when static images are displayed for long periods of time. LCD Image Persistence is not permanent but constant images being displayed for a long period of time should be avoided.

To counteract Image Persistence, turn off the monitor for as long as the previous image was displayed, so if an image was on the monitor for 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image.

For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.

Other ways to reduce the risk of Image Persistence will be to utilise the FAN-on function (if available), Low Backlight and Low Brightness settings.

FOR EXTENDED USE AS A PUBLIC DISPLAY

■ Image Sticking on LCD Panel

When a static image is displayed for hours, an electric charge trace remains near the electrode inside the LCD producing a “ghost” image. (Image Persistence).

Image Persistence is not a permanent feature.

■ Recommendations

To prevent Image Sticking and promote longer life expectancy of display, we recommend the following:

1. Avoid static images displayed for long periods – change static images on continuous loop.
2. Turn off monitor when not in use, either by remote control or use Power Management or Schedule functions.
3. When monitor is installed in high ambient temperature environment(s) or in an enclosed position, utilise the Cooling Fan, Screen Saver and Low Brightness functions.
4. Suitable ventilation for any monitor is an expectation of any installation – climate control systems may need to be employed.
5. We strongly recommend utilisation of active cooling with fans for long operation times or high ambient temperature environments.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

■ For safety reasons, turn off the power switch and unplug the clean it.

NOTE

■ To protect the LCD panel, do not scratch or rub the screen with a hard object.

■ Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.

Thinner Benzine Abrasive cleaner Spray-type cleaner Wax Acid or Alkaline solvent

■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

LCD

Periodic cleaning with a soft dry cloth is recommended.

SCREEN

Don't use tissue paper etc. because these will damage the LCD screen.

◆ Supports Resolutions up to 3840 × 2160
◆ High Contrast 1100:1 (Typical) / Brightness 500cd/m² (Typical)
◆ Digital Character Smoothing
◆ Automatic Set-up
Stereo Speakers
2 × 8W Stereo Speakers
Power Management (VESA DPMS Compliant)
◆ VESA Mounting Standard (400mm×200mm) Compliant : ProLite TF4938UHSC
♦ VESA Mounting Standard (600mm×400mm) Compliant : ProLite TF5538UHSC
◆ Glass with AG coating

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Power Cable*

■ HDMI Cable

■ DisplayPort Cable

■ USB Cable

■ IR Extender Cable

■ Remote Control

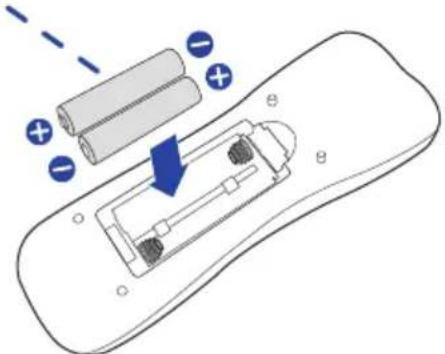

■ Battery (2pcs)

■ Clamper

■ Safety Guide

■ Quick Start Guide

CAUTION

* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

An approved power cable greater or equal to H05VVF, 3G, 0.75mm ^4 must be used.

Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch.

This could invalidate any remaining warranty.

We recommend to use conductive rubber tip type stylus (tip R8.0 or over) or finger.

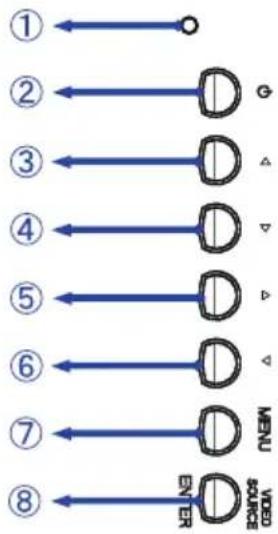

CONTROLS AND CONNECTORS : MONITOR

1	Power Indicator	Green Normal Operation
		Orange Power Management
2		Power Button
3	▲ Left / - Button
4	▼ Right / + Button
5	▶Up Button
6	◀Down Button
7	MENU Menu Button
8	VIDEO SOURCE / ENTER	Input Select / Enter Button

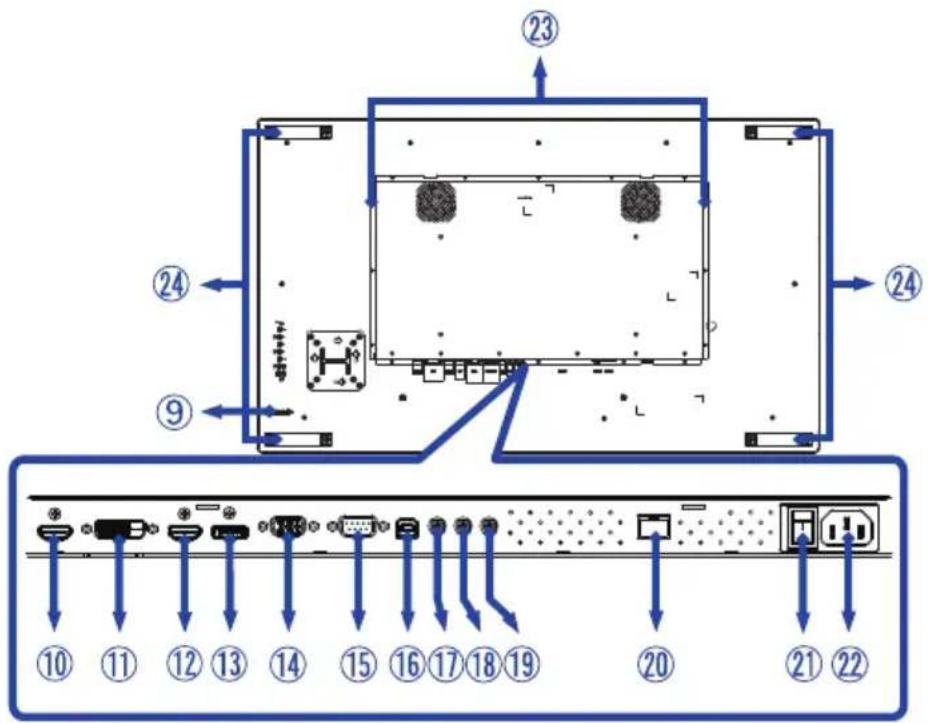

■ ProLite TF4938UHSC

Technical diagram of a device layout with numbered components and labeled connectors

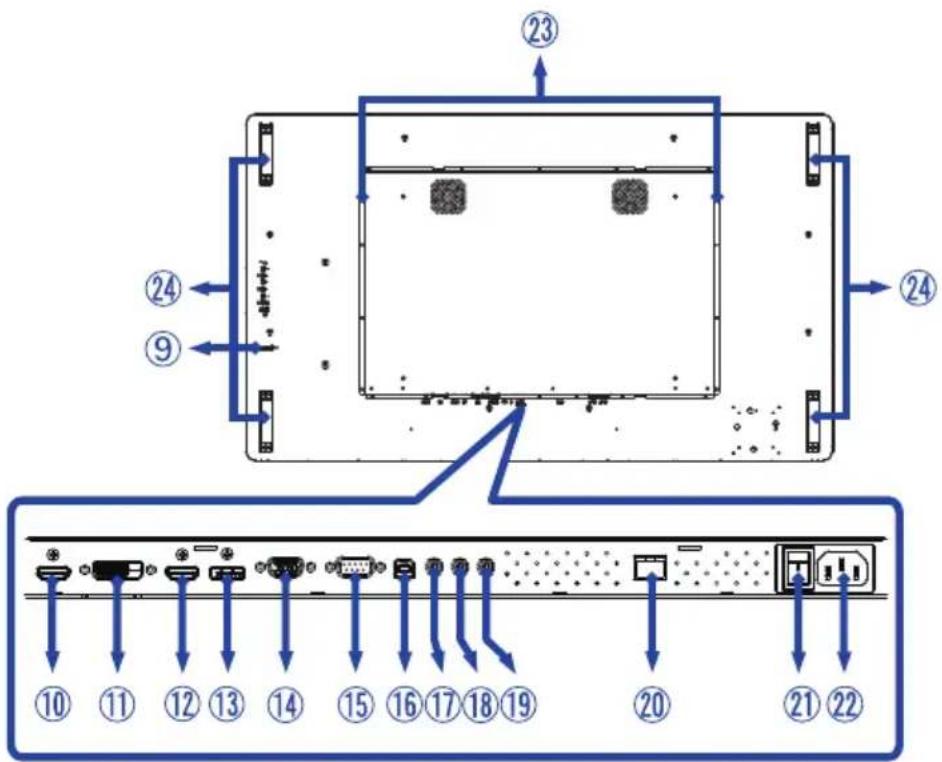

■ ProLite TF5538UHSC

Technical diagram of a device layout with numbered components and directional arrows indicating flow or assembly.

9	IR Sensor Remote Sensor
10	HDMI2 HDMI HDM	Connector
11	DVI DVI-D DVI-D	Connector
12	HDMI1 HDMI HDM	Connector
13	DP DisplayPort DisplayPort Connector
14	VGA VGA VGA Connector
15	RS232C RS232C RS232C Connector
16	USB USB Touch USB Connector
17	IR Mini jack	IR Connector
18	AUDIO IN Mini Jack	Audio Input Connector
19	AUDIO OUT *	Mini Jack	Headphone connector
20	RJ45 RJ45	RJ45 Connector
21	AC-SW I(ON) / ○ (OFF)	MAIN POWER	Main Power Switch
22	AC IN	AC-INLET	AC Connector (~ : Alternating current)
23	Speakers		Speakers
24	Handles		Handles

* Available for HDMI and DisplayPort input only.

INSTALLATION

CAUTION

■ Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel.
■ Moving the monitor requires at least two people.
■ Before installation, please make sure the wall is strong enough to hold the necessary weight of the monitor and the mount.

[WALL MOUNTING]

Mounting Stage Screw L Chassis

CAUTION

When using the wall mounting, consideration of thickness of the mounting stage needs to be taken. Tighten the M6 Screws (4pcs) with washer which “L” length is 10mm to fasten the monitor. Using a screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

[FAN]

CAUTION

If the screen is used in face-up position, please be sure to turn on the FAN function.

If you do not use the FAN, the internal temperature rises and the product life cycle may get shorter.

If the screen is built into an external cabinet, please be sure to implement a cooling unit inside of the cabinet.

Dirt and dust may stick to the FAN, reducing the cooling effect which may res cycle of the product. Please clean regularly.

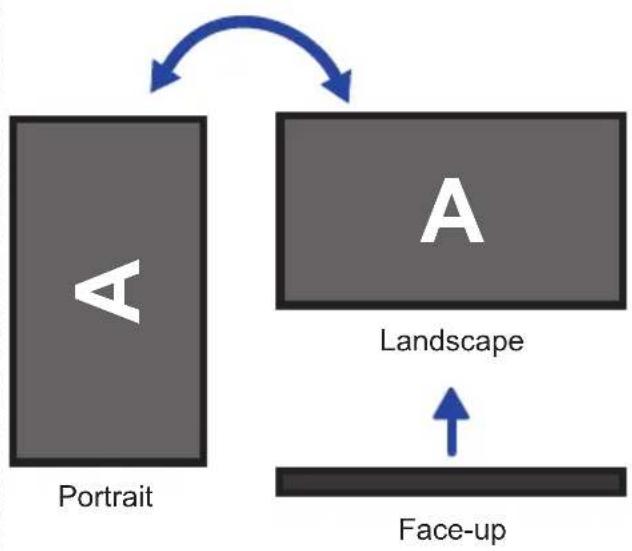

[ROTATING THE MONITOR]

This monitor is designed to be compatible in landscape, portrait and face-up modes.

Available

Not Available

Two gray rectangular blocks with white symbols: one containing a large 'A' and another with a large triangle.

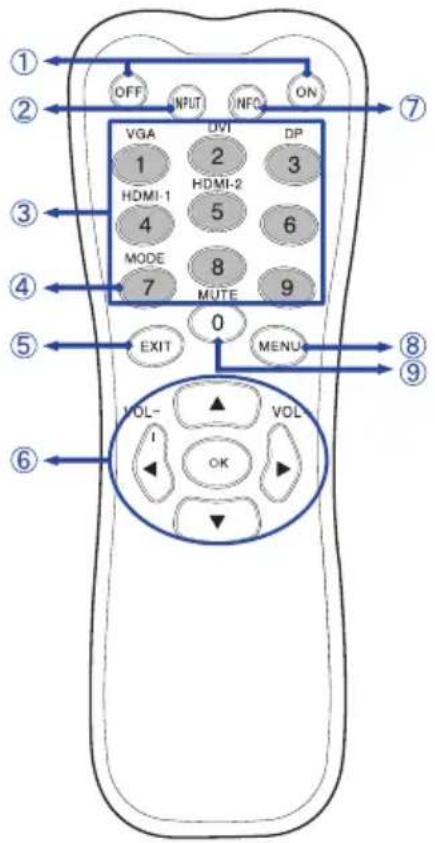


1	ON/OFF Turn the	monitor ON and OFF.
2	INPUT Select the	source.
3	Number (1-9) / Input source	Serve as input source buttons when the Menu is not displayed.(VGA/DVI/HDMI-1/HDMI-2/DP)
4	Number (7) / MODE	Select the Picture mode.
5	EXIT	Return to a previous menu or closes the OSD Menu.
6	▲▼◀▶	Navigate through submenus and settings.▲: Up Button▼: Down Button◀: Left Button▶: Right Button◀ (VOLUME-): Decrease the sound volume.▶ (VOLUME+): Increase the sound volume.
	OK	Confirm your selection or save changes.
7	INFO	Provide source and resolution information.Press and hold this button for 3 seconds to minimize the brightness.The brightness returns to its previous level by repeating the above button operation again.
8	MENU	Open the monitor's on-screen menu systems. When the menu system is already open, pressing this button will select the previous submenu.
9	Number (0) / MUTE	Turn on or off the mute function when the Menu is not displayed.

PREPARING THE REMOTE CONTROL

To use the remote control, insert the two dry batteries.

CAUTION

■ Do not use any other batteries other than those specified in this manual for the Remote Control.
■ Do not insert old and new batteries together in the Remote Control.
■ Make sure that the terminals match the "+" and "-" indications in the battery compartment.
■ Remove the dead batteries immediately to prevent them from liquid leaking into the battery compartment.
■ Burst batteries or the electrolyte from these batteries may cause stains, fire or injury.

① Slide back and remove the battery cover in the direction of the arrow.

Diagram of a remote control device with blue arrows indicating directional movement (no text or symbols)

② Align and insert two AAA batteries according to their plus and minus ports (as indicated remote control). Battery x 2

Diagram of a remote control device with battery and capacitor symbols, showing internal components and directional arrow

③ Replace the battery cover in the direction of the arrow and snap it back into place.

Diagram of a remote control device with blue arrows indicating movement or force (no text or symbols)

NOTE

■ Refer to the above instructions when taking out the batteries.
■ Replace with new batteries when the Remote Control does not work close to the monitor. Use AAA dry batteries. Risk of explosion if battery is replaced by an incorrect type.
■ Operate the Remote Control by pointing it toward the Remote Sensor on the monitor.
■ Other manufacturers remote control will not work with this monitor. Use the provided Remote Control ONLY.
■ Used batteries needed to follow the city rule to be discarded. (suggestion: to dispose of used batteries please follow correct policy as per your council regulations)
■ Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
■ If you do not intend to use the remote control for a long period, remove the batteries.

BASIC OPERATION

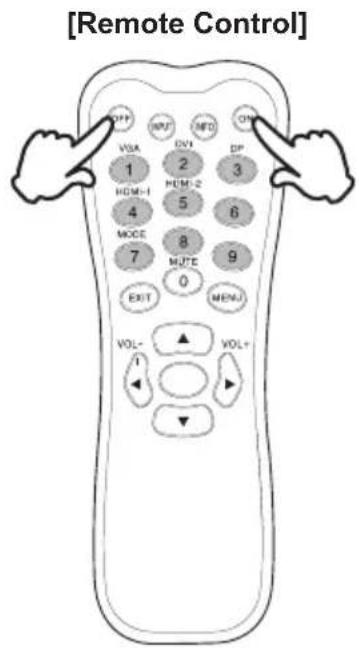

■ Turning the monitor ON

The monitor is turned On and the Power Indicator turns to Green when you press the POWER Button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Orange when you press the POWER Button on the monitor or the Remote Control. Press again to turn On the monitor.

NOTE

Even when using the power management mode or turning OFF the Power Switch, the monitor will consume a small amount of electricity. Disconnect the Power Cable from the power supply whenever the monitor is not in use or during the night, to avoid unnecessary power consumption.

[Monitor] D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D

[Remote Control] OFF NUT MEO ON VSA 1 HDMI-1 2 HDMI-2 3 DP 4 MODE 5 8 MUTE 6 9 0 EXIT MENU VOL- I VOL+ ↓

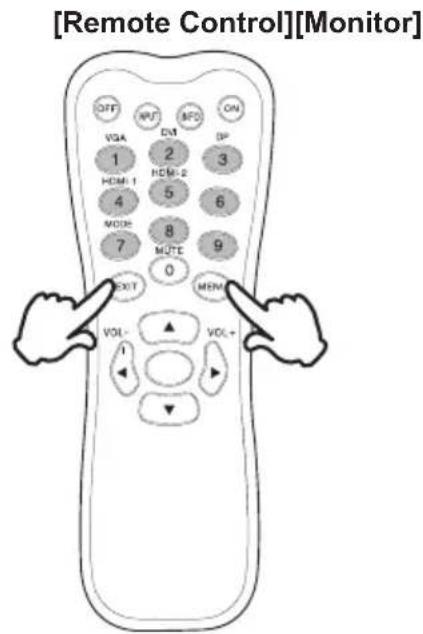

■ Display the adjustment menu page

The menu page appears on the screen when you press the MENU Button on the monitor or the Remote Control.

The menu page disappears when you press the EXIT Button on the Remote Control again.

SOLD CHANGE

[Remote Control][Monitor] OFF MUT MOS ON VGA 1 2 3 HDMI-1 HDMI-2 4 5 6 MODE 8 7 MUTE 9 0 EXIT MEM VOL+ I VOL+

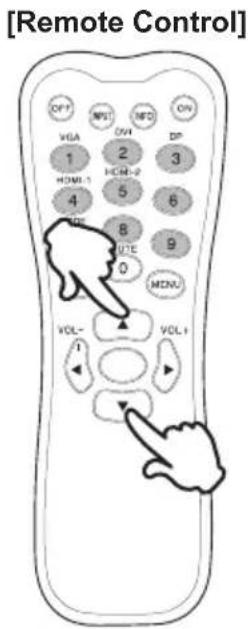

■ Move the cursor vertically

Select adjustment by pressing the ▲ Button while the menu page is displayed on the screen.

[Monitor] MINI

[Remote Control] OFF MVI NFC ON VGA 1 HDMI-1 2 HDMI-2 3 4 5 6 VOL- 8 UTE 9 0 MDNU VOL- I VOL+

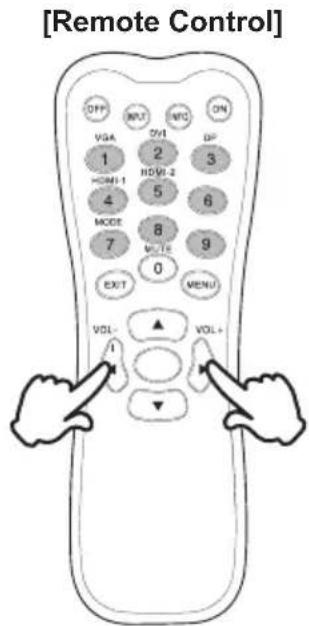

■ Move the cursor horizontally

Select menu or setting, or perform the adjustment by pressing the ◀ Button while the menu page is displayed on the screen.

[Monitor] HOLDEN WHOLE

[Remote Control] OFF RUT NFG ON VGA 1 HDMI-1 2 HDMI-2 3 4 MODE 5 6 7 8 9 MODE 0 EXIT MENU VOL- ▲ VOL+ ▼

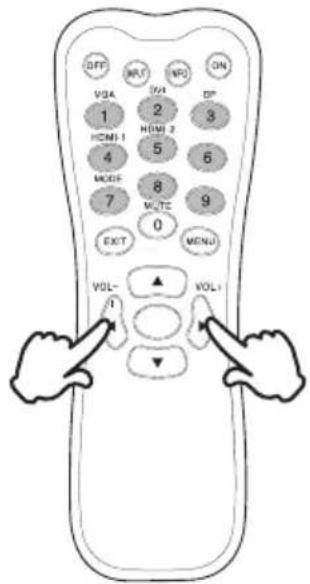

■ Adjust the volume of sound

Press the Button to adjust the volume of sound when the menu page is not displayed on the screen.

SELLING ONION FROZEN HAPPY

[Remote Control][Monitor]

OFF VGA 1 HDMI 1 4 MODE 7 EXT VOL- 1 MUT 2 HDMI 2 5 MODE 8 0 MUTE 9 ON DV1 3 6 MENU VOL- 1 VOL-

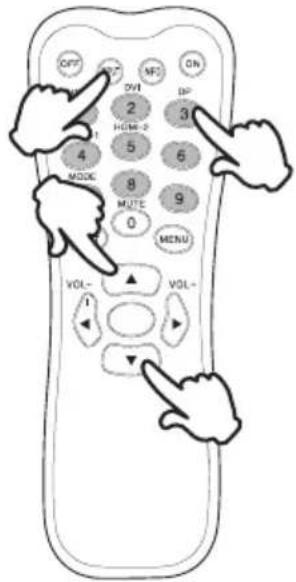

■ Switch the input signal

Press the VIDEO SOURCE Button on the monitor or INPUT Button on the Remote Control to display the Input signal menu when the menu page is not displayed on the screen. Press the ▲ / ▼ Button or Input source Button to switch the Input signal.

MINI

[Remote Control][Monitor]

OFF ON VOL- MND ON 2 3 4 5 6 7 8 9 0 MENU VOL- I VOL- 1

CONNECTING YOUR MONITOR

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer to the monitor with the USB Cable.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor (Main Power Switch and Power Button) and computer.

NOTE

■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
■ Make sure you tighten the finger screws at each end of the Signal Cable.
■ The touch function is ready for use about 8 seconds after connecting the USB cable and can be operated with a pen, finger or any other pointer.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

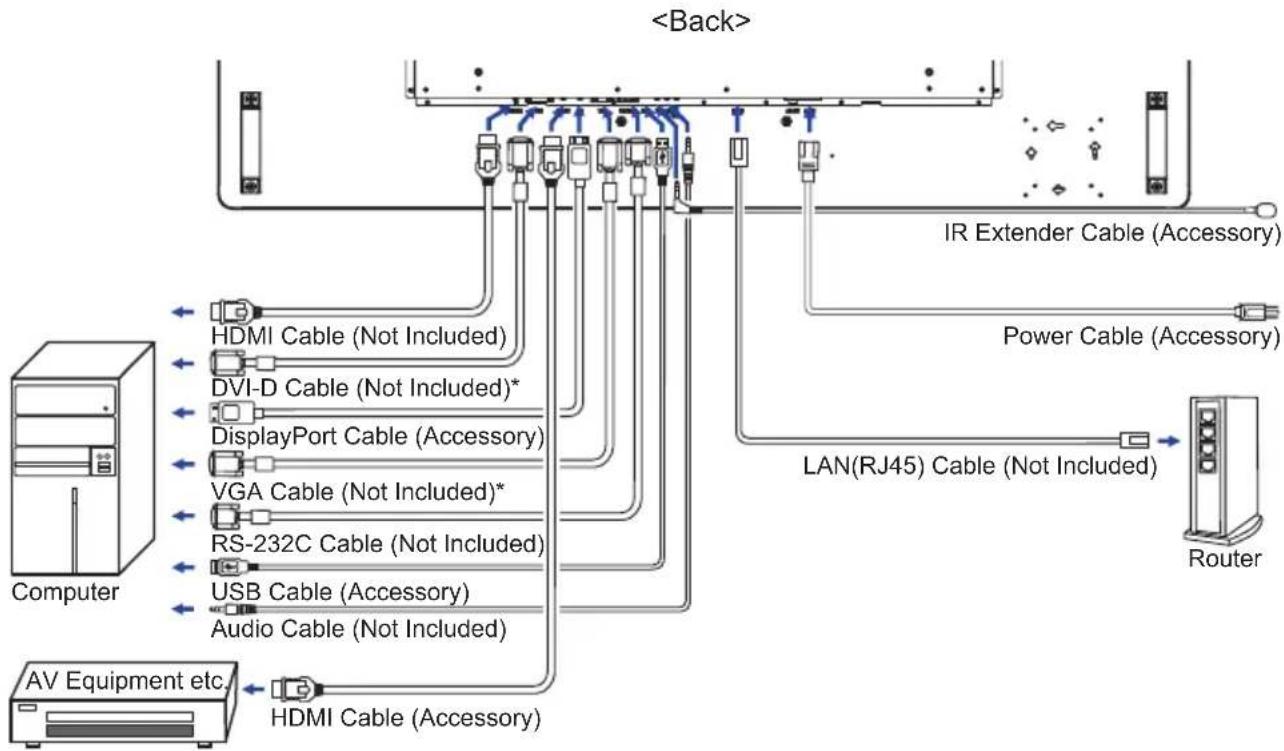

[Example of Connection]

* Cable is not supplied with the monitor. If you use low quality Cable, it may cause a result of electromagnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA or DVI input.

[ Network Connection ]

●Connecting to a LAN

To set the monitor to connect to a local area network.

1. Connect a RJ45 cable to the corresponding ports on the monitor and your LAN switch or router.
2. Enter the OSD menu Setting > Control Setting. Select LAN.
3. Enter the next OSD menu Setting > Network Settings > IP Address DHCP or Manual

Setup

• If you are in a DHCP environment, highlight Auto Setup and select On. Once done, the IP Address, Subnet Mask, Default Gateway, and Primary DNS settings will be displayed.
• If you are not in a DHCP environment, highlight Auto Setup and select Off. Contact your ITS administrator for information on the IP Address, Subnet Mask, Default Gateway, and Primary DNS settings and enter it accordingly.

●Controlling the Monitor

Once you have the correct IP Address for your monitor and the monitor is on or in standby mode, you can use any computer that is on the same local area network to control the monitor.

NOTE

• You can not control the monitor via the RS-232C connector when LAN control is in use.

• It is recommended that you use Google Chrome versions 51.0.2704.103 or higher browser.

• Enter the IP Address of the monitor in the address bar of your browser and press ENTER button.

• The setting page appears.

INFORMATION / PICTURE&SOUND / SCREEN / SETTING / SCHEDULE / NETWORK

Network Control

INFORMATION PICTURE & SOUND SCREEN SETTING SCHEDULE NETWORK

Information

Display

Model Name:	RX-32
Serial Number:	DSDMYXXXXXPP0

Status

Power Status:	Power On
Video Source:	DVI

Network

IP Address:	192.168.1.202
Subnet Mask:	255.255.255.0
Gateway:	192.168.1.1
Primary DNS:	192.168.1.1
Secondary DNS:	0.0.0.0
MAC Address:	44.37.E6.64.04

Other Information

Scaler F/W Version:	1.04
Lan F/W Version:	1.05 Rev6
Operation Time:	0000122 H

COMPUTER SETTING

■ Signal Timing

Change to the desired signal timing listed on page 42: COMPLIANT TIMING.

■ Windows XP/Vista/7/8/8.1/10 Plug & Play

The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

For installation on Windows XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

■ For additional information on how to download the driver for your touch screen monitor, please access the internet site noted above.
■ Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

■ Procedure for turning ON the Power Switch

Turn ON the monitor first, and then the computer.

■ MULTI-TOUCH :

This monitor complies with DDC2B of VESA standard. (Plug&play compliant)

The MULTI-TOUCH function runs on Windows7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the USB cable supplied.

■ TOUCH support operation system :

OS Version(Windows)	Windows
	Win 10 Win	8 Win7 XP
Supported touches multi-touch
Note	Windows inbox driver(No Need SiS driver)			Single-touch

OS Version(Linux Distribution)	Android				Linux7.0 6.0
Supported touches multi-touch
Supported Kernel version	4.4 3.18	3.0~3.14	3.0~4.4
Note	Driver supports multi-touch

5.0\~5.1 4.0\~4.4

OS Version (Mac OS)	Mac OS
	10.9 (Mavericks)	10.10 (Yosemite)	10.11 (El Capitan)	10.12 (Sierra) 10.13 (High Sierra)
Supported touches	Single-touch
Note	Similar to Apple Trackpad gesture: 2-finger gesture: zoom in/out, swipe 4-finger gesture: show desktop	Similar to Apple Trackpad gesture: 2-finger gesture: zoom in/out, swipe 4-finger gesture: show desktop Our service team provides you with the driver and the operation guide.	Similar to Apple Trackpad gesture: 2-finger gesture: zoom in/out, swipe 4-finger gesture: show desktop Our service team provides you with the driver and the operation guide.	Our service team provides you with the driver and the operation guide.

■ Touch Input Settings in Dual Screen Mode

① Connect the primary monitor to the computer first.

Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup.

Control Panel Adjust your computer's settings. Systems and Security Remove your computer's keys Use listening to a list of your links with the Memory. Bluetooth and Linux (Windows 7) User Accounts Change account types Appearance and Personalization Networks and Internet Connect to the Internet View network status and status Hardware and Sound View devices and programs Add a device Adjust a community tool availability and tools Programs Uninstalling a program Access Hardware and Sound Control Panel > Control Panel > Hardware and Sound > Search Control Panel Control Panel Home System and Security Network and Internet Hardware and Sound Programs User Accounts Appearance and Personalization Clock and Region Time of Access Devices and Printers Add a device > Advanced printer setup > Mirror > Device Manager Change Windows To Be starting options AutoPlay Change default settings for reads or devices > Play CDs as other media automatically Sound Adjust system volumes > Change system volume > Manage audio devices Power Options Change battery settings > Change when the power buttons do Change when the computer setup > Adjust stress brightness > Choose a presentation Windows Mobility Center Adjust continuously using mobility settings > Adjust settings before giving a presentation Pen and touch Change with access settings Tablet PC Settings Calculate the screen for pen or touch input > Set tablet buttons to perform panel lists Choose the code of how your screen relates > Specify which is format you write instructions NVIDIA Control Panel Intel® Rapid Storage Technology Realtek HD Audio Manager Tablet PC Settings Display Other Configure Configure your pen and touch displays. Setup... Display options Display: 1/2. Multiple Monitors Details: Limited Touch Support Calculate... Reset... Choose the order in which your screen rotates. Go to Orientation OK Cancel Apply

The following message will appear on the screen. Please follow the instructions.

Tap this screen with a single finger to identify it as the touchscreen. If this is not the Tablet PC screen, press Enter to move to the next screen. To close the tool, press Esc.

② After setting, connect a second monitor and perform the setup as in. ①

NOTE

The monitors are recognized as dual-display, and touch operation cannot be performed on two monitors at the same time.

You can perform touch operation on only one of the monitors.

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 42. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 31 for SCREEN ADJUSTMENTS.

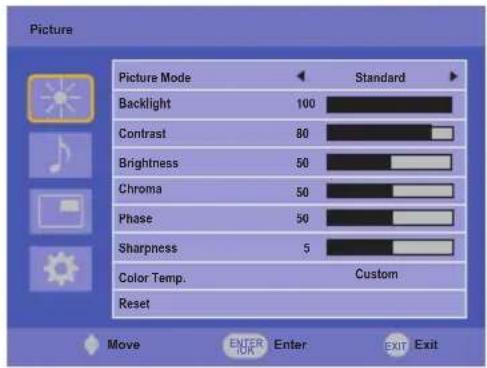

① Press the MENU button to start the On Screen Display feature. There are additional Menu items which can be switched by using the ▲ / ▼ buttons.

Picture Picture Mode Standard Backlight 100 Contrast 80 Brightness 50 Chroma 50 Phase 50 Sharpness 5 Color Temp. Custom Reset Move ENTER OK Enter EXIT Exit

② Select the Menu item of the adjustment you want to make. Press the OK button on the remote control or ENTER button on the monitor and enter the menu page. Then, use the ▲ / ▼ buttons to highlight the desired adjustment item.
③ Press the OK button on the remote control or ENTER button on the monitor again. Use the ◀/▶buttons to make the appropriate adjustment or setting.
④ Press the EXIT button to leave the menu, and the settings you just made would be automatically saved.

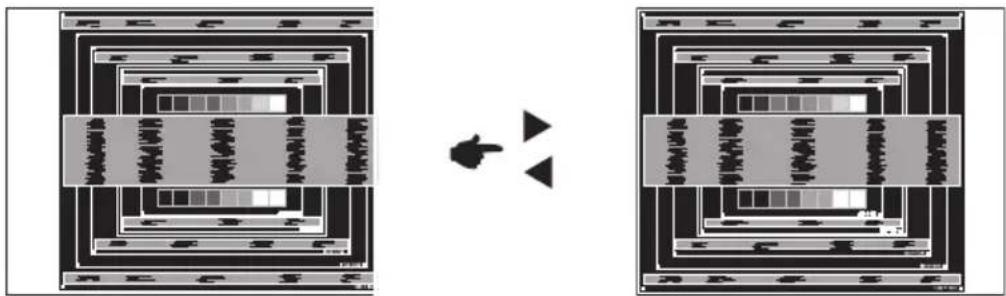

For example, to correct for vertical position, select Menu item of Screen. Select "Screen" by using the ▲ / ▼buttons. Press the OK button on the remote control. Next, select "Adjust Screen" by using the ▲ / ▼buttons. Press the OK button on the remote control. Then, select "V. Position" by using the ▲ / ▼buttons.

Use the ◀ / ▶ buttons to change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this.

Screen Aspect Normal Adjust Screen Touch Feature Off Move ENTER IDK Enter EXIT Exit Screen Auto Adjustment Phase 34 Clock Frequency 0 H. Position 50 V. Position 50 Move ENTER IDK Enter EXIT Exit

Press the EXIT button on the remote control lastly, it ends, all changes are saved in the memory.

NOTE

■ The EXIT button on the remote control can be used to return previous menu item.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
■ Adjustments for Image Position, Clock Frequency and Phase are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

[LOCK MODE] * Available Back Controller only.

● Back Controller Button:

Pressing and holding the MENU and ▲ buttons for about 5 seconds, will lock/unlock the Back Controller Button Lock function.

● Power Button:

Pressing and holding the MENU and ENTER buttons for about 5 seconds, will lock/unlock the Power Button Lock function.

- Remote Control Button:

Pressing and holding the MENU and ▶ buttons for about 5 seconds, will lock/unlock the Remote Control Button Lock function.

● PALM REJECTION FUNCTION:

Palm rejection is a way to disregard touch made with “a large contact area” while finger modes.

A large contact area : palm, clenched fist, elbow, arm, etc.

When you touch the screen with a finger, palm rejection is activated and the recognize touch made with the large contact area.

ADJUSTMENT MENU CONTENTS

Adjustment Item Problem	/ Option	Button to Press
Picture Mode*3	Vivid	For displaying outdoor scenery images.
	Standard	For general windows environment and monitor default setting.
	Cinema	For movie and video environment.
	Custom	Displays a picture on a screen set by Image Settings adjustments.
Backlight	Brightness of back light is reduced.
Contrast*3	Too dull
	Too intense
Brightness*1,3	Too dark
	Too bright
Chroma*2	Too weak
	Too strong
Phase	Purplish
	Greenish
Sharpness	Too soft
	Too sharp
Color Temp.*3	Cool	Cool color
	Neutral	Neutral color
	Warm	Warm color
	Custom	R	Too weak
		G	Too strong
		B
Reset	Cancel	Return to Menu.
	OK	Resets all settings in the Picture menu.

*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
*2 Only HDMI and DisplayPort inputs.
*3 Contrast, Brightness, Color Temp. and Picture Mode cannot be adjusted and selected while Adv. Contrast is active.

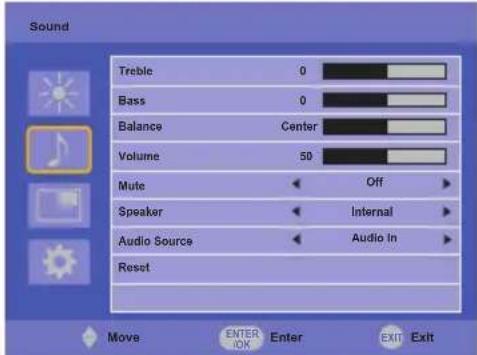

Sound
Adjustment Item Problem	/ Option	Button to Press
Treble	Too weakToo strong
Bass	Too weakToo strong
Balance	Left side speaker louderRight side speaker louder
Volume	Too softToo loud
Mute	Off	Return the sound volume to the previous level.
	On	Turn off the sound temporarily.
Speaker	Internal	Select the Internal Speaker.
	Line-out *	Select the External Speaker or Headphone.
Audio Source	Auto Select the audio input automatically.
	Audio-In	Select the Line-In input.
Reset	Cancel	Return to Menu.
	OK	Resets all settings in the Sound Settings menu.

* Available for HDMI and DisplayPort input only.

Screen
Adjustment Item Problem to Press
Aspect*5	Normal*2	Enlarges the picture to fill the screen in the vertical direction, keeping the same aspect ratio.
	16:10*1	Displays all picture in 16:10 aspect ratio.
	5:4*1	Displays all picture in 5:4 aspect ratio.
	4:3*1	Displays all picture in 4:3 aspect ratio.
	Real*2	Displays the picture dot by dot.
Adjust Screen*3	Auto Adjustment*4	Cancel	Return to Menu.
		OK	Adjusts Position, Clock Frequency and Phase automatically.
	Phase	To correct flickering text or lines
	Clock Frequency	Too narrowToo wide
	H. Position	Too far to the leftToo far to the right
	V. Position	Too lowToo high
Touch Feature	Off	Return to Menu.
	On	Enable the touch function.NOTE Display wall will be disabled to optimize touch performance.

*1 Only HDMI(Video) and DisplayPort inputs.
^*2 Only VGA and HDMI(PC) inputs.
*3 Only VGA input.
*4 For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 31 for SCREEN ADJUSTMENTS.
*5 If the Touch Feature is enabled, this feature is not available.

Setting

Setting Language English Schedule Power Save Off Control Setting Off Network Settings Advanced Information All Reset Move Enter Enter Exit Exit

Adjustment Item Problem	/ Option Button to Press
Language	English	English			Dutch Nederland
	Français French			Polski Polish
	Español Spanish			Русский	Russian
	Deutsch	German			Italian Italiano
Schedule	Today *1	Displays the current date and time.Year/Month/Day/Hour/MinuteTime set / Date set
	Clock Display	Off	Clock Display is turned off.
		On	Displays time.
	On/Off Timer	Sets when to turn on or off the monitor.Off/On(Date Set/Input/On Timer/Off Timer)
Power Save *2	Off	Power Save is turned off.
	Low	All input sources can activate entering the power saving mode, but only the VGA signal can deactivate it. If an another input source is connected you have to press the POWER button.
Control Setting	Off	Control Setting is turned off.
	RS-232C	Selects the RS-232C to control the monitor.
	LAN	Selects this option to control the monitor via LAN.
Network Settings *6	DHCP	Cancel		Return to Menu.
		Execute		Once you are connected, the IP Address, Subnet mask, Default gateway, Primary DNS and Secondary DNS settings are displayed automatically.
	Manual	If you are not connected, contact your IT administrator for information on the IP Address, Subnet mask, Default gateway, Primary DNS and Secondary DNS settings and enter them accordingly.
Advanced	Auto Search	Off		Auto Search is turned off.
		On		Automatically detects available input sources.
	Auto Adjustment *3	Off		Auto Adjustment is turned off.
		On		Adjusts Position, Clock Frequency and Phase automatically.

Setting
Adjustment Item Problem / Option Button to Press
Advanced		OSD Rotation	Landscape	Landscape display
			Portrait	Portrait display
		OSD Info Box	Off	OSD Info Box is turned off.
			On	Switching signal inputs, or changing timing, the current input source and resolution information will be displayed on the screen.
		Adv. Contrast	Off	Typical Contrast Ratio
			On	Increased Contrast Ratio
		DP	Set the version of the DisplayPort. 1.1 / 1.2
		Opening Logo	Off	iiyama Logo does not display when the monitor is turned on.
			On	iiyama Logo displayed when the monitor is turned on.
		Anti Image Retention	Dot Wash	Off Dot wash is turned off.
				On Draw a 4×4 pixel block on the screen.
			White Wash	To prevent burn-in, set the display time of all white pattern after Sleep mode with no signal. Off / 15min / 30min
		Fan *4	Auto	The fan turns on automatically when the monitor's internal temperature reaches 60°C or higher.
			Off	Fan is turned off.
			On	Fan is turned on.
		Model Name/Operation Time/Software Version/LAN Version/IP Address*5NOTE Infor your graphic card user guide for more information about changing the resolution and refresh.
All Reset		Cancel	Return to Menu.
		OK	Factory-preset data is restored.

*1 You must set this item when using "On/Off Timer".

^*2 RS-232C can bring any mode out of the power saving status.

*3 For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 31 for SCREEN ADJUSTMENTS.

*4 If the screen is used in face-up position, please be sure to turn on the FAN function.

^*5 IP adress is displayed only when LAN is connected.

^*6 It can be used when LAN of Control Setting is selected.

SCREEN ADJUSTMENTS

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

■ The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use.
■ The monitor is designed to provide the best performance at resolution of 1920 × 1200 , but can not provide the best at resolutions of less than 1920 × 1200 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1920 × 1200 in normal use.
■ Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
■ Perform adjustments after a warm-up period of at least thirty minutes.
■ Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
■ The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock Frequency and Phase. The other way is performing each adjustment manually.

Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).

Adjust the image by following the procedure below to get the desired picture. This manual explains adjustment under Windows ^® OS.

① Display the picture at the optimum resolution.
② Enter the Test.bmp (screen adjustment pattern) to wallpaper.

NOTE

■ Consult the appropriate documentation for doing this.
■ Set the display position to center in the wallpaper setting dialogue box.

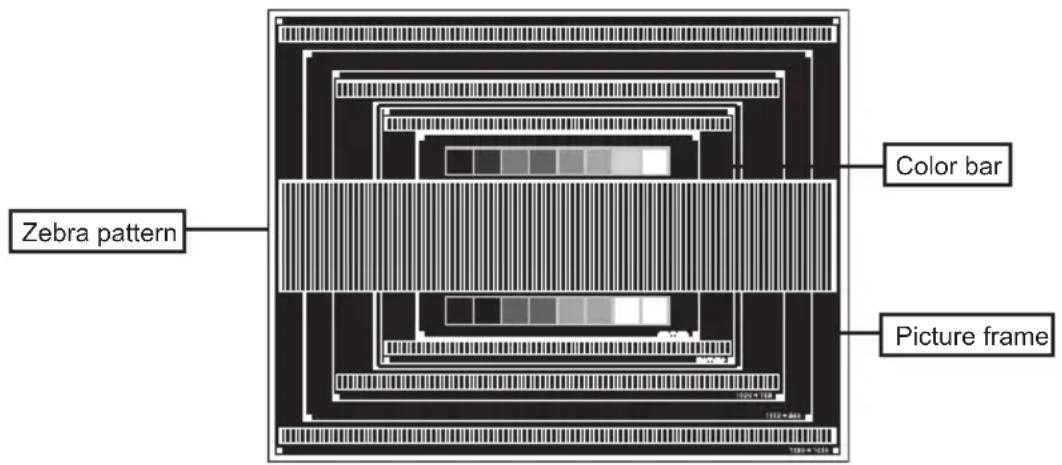

[Adjustment pattern]

Zebra pattern Color bar Picture frame

③ Adjust the Auto Adjustment.
④ Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.

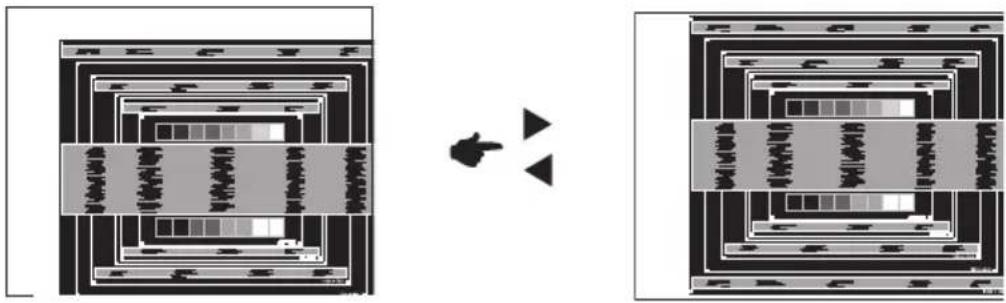

⑤ Adjust the V-Position so that the top and bottom of the picture frame will fit to the display area.


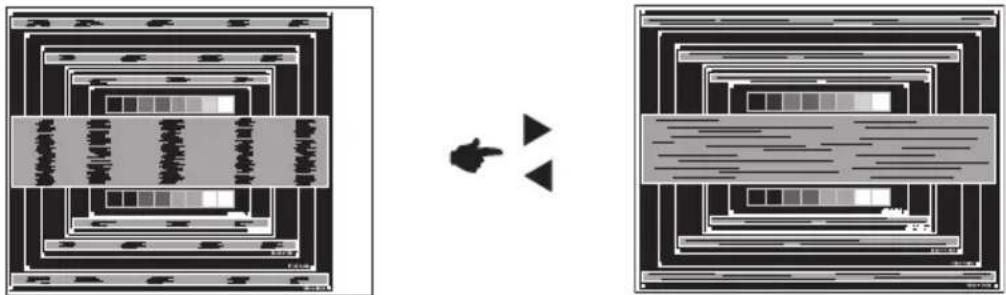

⑥ 1) Adjust the H-Position so that the left side of the picture frame will move to the left edge of the display area.

2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock Frequency.

NOTE

■ When the left side of the picture frame moves apart from the left edge of the display area during the Clock Frequency adjustment, adjust steps 1) and 2).
■ Another way to make the Clock Frequency adjustment is to correct the vertical wavy lines in the zebra pattern.
■ The picture may flicker during the Clock Frequency, H/V-Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the Clock Frequency adjustment, repeat steps from ③.

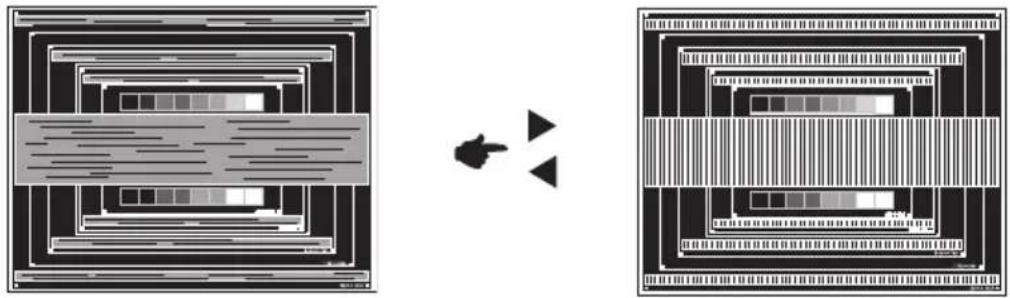

⑦ Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.

Two abstract diagrams showing a grid-like structure transforming into a structured layout with directional arrows (no text or symbols)

NOTE

In case the strong flicker or blurs remain on a part of the screen, repeat steps ⑥ and ⑦ because the Clock Frequency may not be adjusted correctly.
■ Adjust the H-Position after the Phase adjustment if the horizontal position moves during the adjustment.

⑧ Adjust the Brightness and Color to get the desired picture after you complete the Clock Frequency and Phase adjustments.

Put back your favorite wallpaper.

POWER MANAGEMENT FEATURE

The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

■ Power Management Mode

When the video signal from the computer is off, the monitor enters into Power Management Mode which reduces the power consumption to less than 1.0W*. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

* USB peripherals and audio equipment are not connected.

NOTE

Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

1 The picture does not appear.
(Power indicator does not light up.)	☐ The Power Cable is firmly seated in the socket.
	☐ The Power Switch is turned ON.
	☐ The AC socket is live. Please check with another piece of equipment.
(Power indicator is green.)	☐ If the blank screen saver is in active mode, touch the keyboard or the mouse.
	☐ Increase the Contrast and/or Brightness.
	☐ The computer is ON.
	☐ The Signal Cable is properly connected.
	☐ The signal timing of the computer is within the specification of the monitor.
(Power indicator is orange.)	☐ If the monitor is in power management mode, touch the keyboard or the mouse.
	☐ The computer is ON.
	☐ The Signal Cable is properly connected.
	☐ The signal timing of the computer is within the specification of the monitor.

2 The screen is not synchronized.	□ The Signal Cable is properly connected.
	□ The signal timing of the computer is within the specification of the monitor.
	□ The video output level of the computer is within the specification of the monitor.

3 The screen position is not in the center.

□ The signal timing of the computer is within the specification of the monitor.

4 The screen is too bright or too dark.

☐ The video output level of the computer is within the specific monitor.

5 The screen is shaking.	□ The power voltage is within the specification of the monitor.
	□ The signal timing of the computer is within the specification of the monitor.

6 No sound.	☐ The audio equipment (computer etc.) is ON.
	☐ The Audio Cable is properly connected.
	☐ The Volume is turned up.
	☐ The Mute is OFF.
	☐ The audio output level of the audio equipment is within the specification of the monitor.

7 The sound is too loud or too quiet.

☐ The audio output level of the audio equipment is within the specification of the monitor.

Problem Check

⑧ A strange noise is □The Audio Cable is properly connected. heard.
⑨ The touch screen shows no response. ☐ The USB Cable is firmly seated in the socket. ☐ Touch screen driver software is installed.
⑩ The touch position □The calibration function set up correctly does not deviate.

RECYCLING INFORMATION

For better environment protection please don't dispose your monitor.

Please visit our web site: www.iiyama.com for monitor recycling.

APPENDIX

Design and specifications are subject to change without prior notice.

SPECIFICATIONS : ProLite TF4938UHSC-B2AG

Touch Screen	Technology Projected	capacitive 15points
	Light transmission	84%
	Hardness 7H
	Thickness 4mm
	Communication system	USB serial transfer
Size Category 49"
LCD Panel	Panel technology	IPS
	Size Diagonal: 49" (123cm)
	Pixel pitch 0.27963mm	H × 0.27963mm V
	Brightness	500cd/m2(Typical)420cd/m2(with Touch panel)
	Contrast ratio 1100 : 1	(Typical)
	Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
	Response time 8ms (Gray to Gray)
	Pixel format 3840(H), 2160(V) Pixels
Display Colors Approx.16.7M
Sync Frequency		VGA: Horizontal: 30.0-83.0kHz, Vertical: 50-76HzDVI/HDMI2: Horizontal: 30.0-83.0kHz, Vertical: 23-76HzHDMI1/DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 23-76Hz
Supported max. resolution		VGA/DVI: 1920 × 1200, 60HzHDMI1/DisplayPort: 3840 × 2160, 60HzHDMI2: 3840 × 2160, 30Hz
Input Connector		VGA, DVI-D, HDMI×2, DisplayPort
Input Audio Connector		mini jack
LAN		RJ45
Serial Port		RS-232C In
Plug & Play		VESA DDC2BTM
Input Sync Signal		Separate sync: TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: DVI (Digital Visual Interface Standard Rev.1.0) complianceDigital: HDMI1, HDMI2, DisplayPort
Input Audio Signal		2Vrms maximum
External IR Connector		mini jack
Headphone Connector		mini jack
Speakers		8W×2 (Stereo speakers)
Maximum Screen Size		1073.8mm W × 604.0mm H / 42.3" W × 23.8" H
Power Source 100-240VAC, 50-60Hz, 1.75A
Power Consumption*		135W typical, Power management mode: 1.0W maximumEnergy Efficiency Class: C
Dimensions / Net Weight	1154.0 × 684.0 × 73.5mm / 45.4 × 26.9 × 2.9" (W×H×D)33.3kg / 73.4lbs
Environmental Considerations	Operating:	Temperature	0 to 40°C / 32 to 104°F
		Humidity	10 to 90% (No condensation)
	Storage:	Temperature	-20 to 60°C / 4 to 140°F
		Humidity	10 to 90% (No condensation)
Approvals CE, EAC, TÜV-Bauart, cULus

SPECIFICATIONS : ProLite TF5538UHSC-B2AG / ProLite TF5538UHSC-W2AG

Touch Screen	Technology Projected	capacitive 15points
	Light transmission	84%
	Hardness 7H
	Thickness 4mm
	Communication system	USB serial transfer
Size Category 55"
LCD Panel	Panel technology	IPS
	Size Diagonal: 55" (139cm)
	Pixel pitch 0.315mm H	× 0.315mm V
	Brightness	500cd/m2(Typical)420cd/m2(with Touch panel)
	Contrast ratio 1100 : 1	(Typical)
	Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
	Response time 8ms (Gray to Gray)
	Pixel format 3840(H), 2160(V) Pixels
Display Colors		Approx.16.7M
Sync Frequency		VGA: Horizontal: 30.0-83.0kHz, Vertical: 50-76HzDVI/HDMI2: Horizontal: 30.0-83.0kHz, Vertical: 23-76HzHDMI1/DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 23-76Hz
Supported max. resolution		VGA/DVI: 1920 × 1200, 60HzHDMI1/DisplayPort: 3840 × 2160, 60HzHDMI2: 3840 × 2160, 30Hz
Input Connector		VGA, DVI-D, HDMI×2, DisplayPort
Input Audio Connector		mini jack
LAN		RJ45
Serial Port		RS-232C In
Plug & Play		VESA DDC2BTM
Input Sync Signal		Separate sync: TTL, Positive or Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: DVI (Digital Visual Interface Standard Rev.1.0) complianceDigital: HDMI1, HDMI2, DisplayPort
Input Audio Signal		2Vrms maximum
External IR Connector		mini jack
Headphone Connector		mini jack
Speakers		8W×2 (Stereo speakers)
Maximum Screen Size		1209.6mm W × 680.4mm H / 47.6" W × 26.8" H
Power Source 100-240VAC, 50-60Hz, 1.9A
Power Consumption*		155W typical, Power management mode: 1.0W maximumEnergy Efficiency Class: B
Dimensions / Net Weight		1294.5 × 765.5 × 68.0mm / 51.0 × 30.1 × 2.7" (W×H×D)41.0kg / 90.4lbs

Environmental Considerations	Operating:	Temperature	0 to 40°C / 32 to 104°F
		Humidity	10 to 90% (No condensation)
	Storage:	Temperature	-20 to 60°C / 4 to 140°F
		Humidity	10 to 90% (No condensation)
Approvals CE, EAC, TÜV-Bauart, cULus

DIMENSIONS : ProLite TF4938UHSC-B2AG

ENGLISH

DIMENSIONS : ProLite TF5538UHSC-B2AG / ProLite TF5538UHSC-W2AG

Video Mode			Horizontal Frequency	Vertical Frequency	Dot Clock
VESA	VGA	640 × 480 31	.469kHz 59.94	0Hz 25.175MHz
		720 × 400 31	.467kHz 70.08	0Hz 28.320MHz
	SVGA 80	0 × 600 37.879kHz	60.317Hz 4	0.000MHz
	XGA	1024 × 768 48	.363kHz 60.00	4Hz 65.000MHz
		1280 × 720 44	.720kHz 60.00	00Hz 74.500MHz
	SXGA 12	80 × 1024	63.981kHz 6	0.020Hz 108.00	00MHz
			79.976kHz 7	5.025Hz 135.00	00MHz
	WSXGA+	1680 × 1050 65.2	90kHz 59.954	Hz 146.250MHz
	Full HD 19	20 × 1080 67.50	0kHz 60.000Hz	148.500MHz
	WUXGA 19	20 × 1200 74.03	8kHz 59.950Hz	154.000MHz
	UHD 38	40 × 2160	67.430kHz 2	9.970Hz 296.7	00MHz *
			133.313kHz	59.997Hz 533.2	250MHz *
SD	480p 60	Hz 31.469kHz 59	.940Hz 27.000	MHz *
	576p 50	Hz 31.250kHz 50	.000Hz 27.000	MHz *
HD	720p 50	Hz 37.500kHz 50	.000Hz 74.250	MHz *
	720p 60	Hz 45.000kHz 60	.000Hz 74.250	MHz *
	1080p 24	Hz 27.000kHz 24	.000Hz 74.250	MHz *
	1080p 30	Hz 33.750kHz 30	.000Hz 74.250	MHz *
	1080p 50	Hz 56.250kHz 50	.000Hz 148.5	00MHz *
	1080p 60	Hz 67.500kHz 60	.000Hz 148.5	00MHz *

^1 HDMI1/HDMI2/DisplayPort input only.
^2 HDMI1/DisplayPort input only.
