Product Type	Security Camera
Brand	Ubiquiti Networks
Model	UVC-G3-PRO-3
Sensor	4MP (2560x1440) CMOS
Lens	2.8mm fixed, f/2.0
Field of View	102.4° (H), 54.7° (V), 120° (D)
Video Compression	H.265 / H.264
Max Resolution & Frame Rate	4MP (2560x1440) at 30fps
Night Vision	IR LEDs, up to 30m (98ft)
Power Supply	PoE (802.3af), 24V passive PoE
Power Consumption	6W max
Dimensions (Ø x H)	Ø70 x 125 mm (2.76 x 4.92 in)
Weight	320 g (11.3 oz)
Ingress Protection	IP67 (weatherproof)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Mounting	Wall or ceiling mount included
Audio	Built-in microphone
Storage	MicroSD card slot (up to 128GB), NVR support
Network Interface	10/100/1000 Mbps Ethernet
Supported Protocols	IPv4, IPv6, HTTP, HTTPS, FTP, NTP, SMTP, RTSP, RTP
Security Features	WPA2-PSK, HTTPS, user authentication, password protection
Maintenance	Clean lens with dry microfiber cloth; avoid solvents
Spare Parts & Repairability	No user-serviceable parts; professional repair only
Warranty	2 years limited warranty

Frequently Asked Questions - UVC-G3-PRO-3 Ubiquiti Networks

What is the resolution of the UVC-G3-PRO-3?

The camera features a 4MP sensor delivering 2560x1440 resolution at up to 30 frames per second.

Does it support night vision?

Yes, it has IR LEDs providing 30 meters of night vision in complete darkness.

What type of power supply does it need?

The camera uses Power over Ethernet (PoE) standard 802.3af or 24V passive PoE. A PoE switch or injector is required.

Is the camera weatherproof?

Yes, it has an IP67 rating, making it dust-tight and protected against temporary submersion in water. Suitable for outdoor installation.

Can I use it without a Ubiquiti NVR?

Yes, it supports RTSP and RTP protocols, so you can connect it to third-party NVRs or software. It also has a MicroSD slot for local recording.

What is the field of view?

The 2.8mm lens provides a 102.4° horizontal, 54.7° vertical, and 120° diagonal field of view.

How do I clean the camera?

Use a dry microfiber cloth to gently wipe the lens and housing. Avoid using harsh chemicals or abrasive materials.

What is the operating temperature range?

The camera operates reliably from -20°C to 50°C (-4°F to 122°F).

Does it have audio?

Yes, it includes a built-in microphone for audio capture. Note: no audio output (speaker).

What is the warranty?

Ubiquiti offers a 2-year limited warranty covering defects in materials and workmanship.

USER MANUAL UVC-G3-PRO-3 Ubiquiti Networks

White showerhead with black lens and handle, no visible text or symbols

UniFi VIDEO

1080p Indoor/Outdoor IP Camera with Infrared and Optical Zoom

Model: UVC-G3-PRO

QUICK START GUIDE

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi Video® G3 Pro Camera. This Quick Start Guide is designed to guide you through installation and also includes warranty terms.

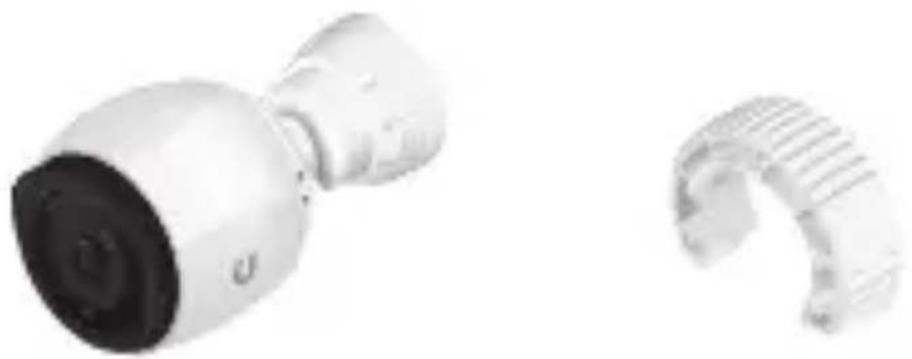

Package Contents

Two white showerheads, one circular and one curved, shown against a plain background (no text or symbols visible)

UVC-G3-PRO Tightening Tool

Screw Anchors (Qty. 2)

Self-Tapping Screws (Qty. 2)

Pole Mount Bracket

Machine Screws (Qty. 2)

Quick Start Guide

Installation Requirements

• Pole-mounting: Two metal straps (not included)
• Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable

- Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the camera and the other at the entry point to the building. The ETH-SP will absorb power surges and safely discharge them into the ground.

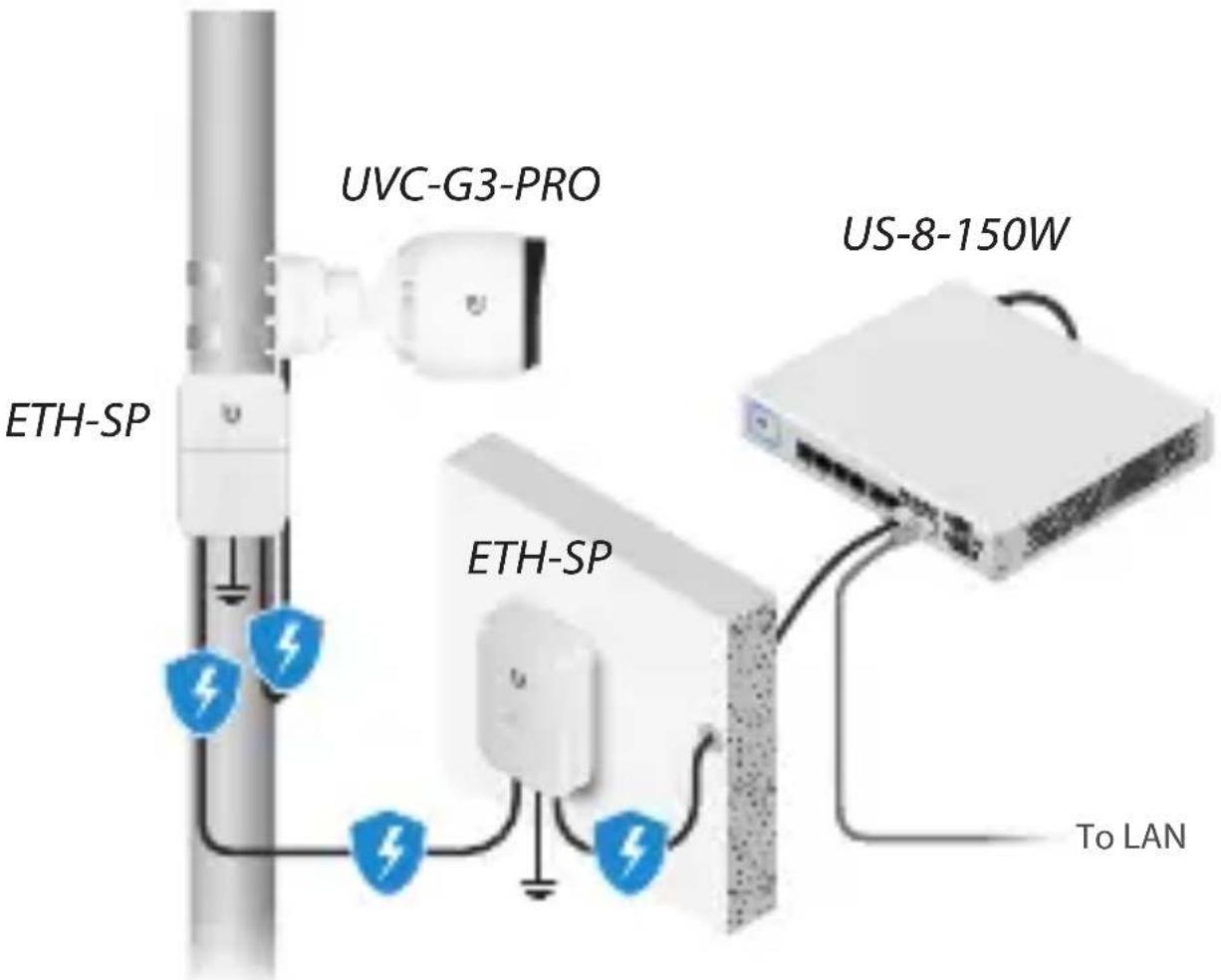

UVC-G3-PRO US-8-150W ETH-SP ETH-SP To LAN

Diagram Showing Use of Ethernet Surge Protectors

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). Shielded Ethernet cable and earth grounding must be used for outdoor installations as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the professional installer's responsibility to follow local country regulations.

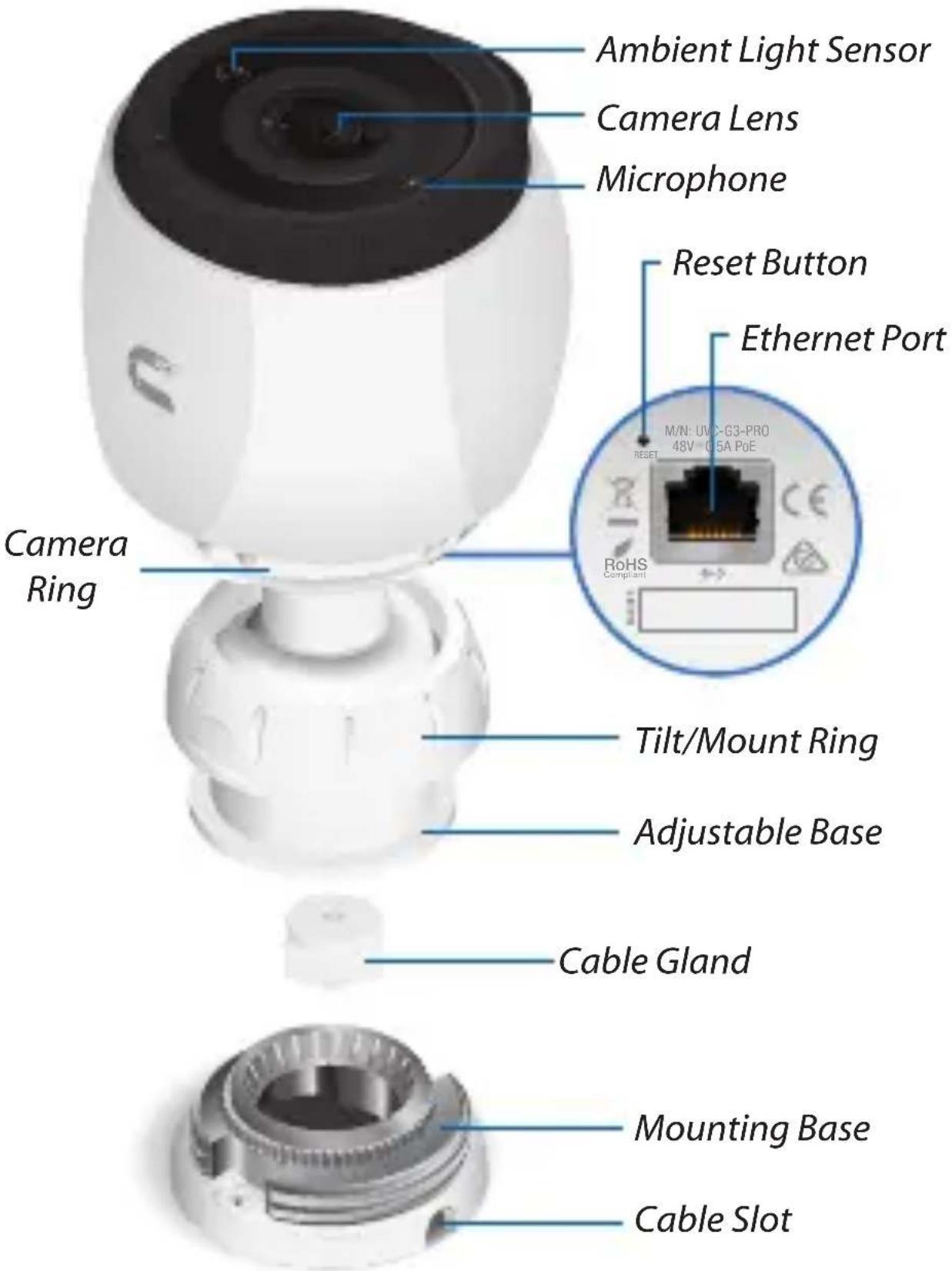

Hardware Overview

Ambient Light Sensor Camera Lens Microphone Reset Button Ethernet Port M/N: UVC-G3-PRO 48V 0.5A PoE RoHS Compliant Camera Ring Tilt/Mount Ring Adjustable Base Cable Gland Mounting Base Cable Slot

Ethernet 10/100 RJ45 port connects to an 802.3af/802.3at PoE switch for PoE power and data.

Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the camera is powered on.

Before You Begin

Remove the sticker from the bottom of the Mounting Base.

Installation Overview

To install the camera, please follow the instructions of the following sections in this order:

1. Hardware Installation
2. Connecting Power over Ethernet
3. UniFi Video
4. Adjusting the Camera View

Hardware Installation

The camera can be mounted on a wall, ceiling, or pole. Follow the appropriate steps for your installation:

Wall/Ceiling Mount

1. Remove the Mounting Base from the camera by turning the Tilt/Mount Ring counterclockwise.

Exploded view diagram of a showerhead showing internal components and assembly (no text or symbols)

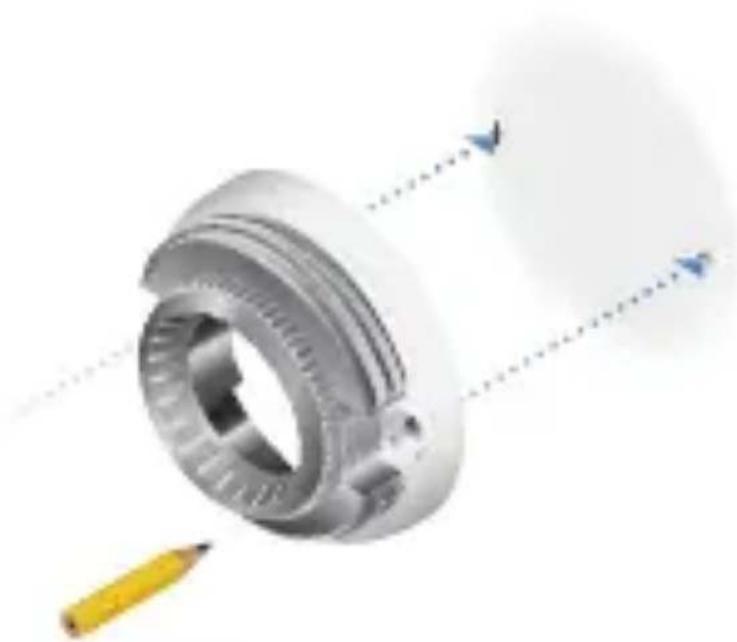

1. Mark the mounting holes on the wall or ceiling.

Mechanical component with highlighted shaft and yellow pencil, no visible text or symbols

Note: If you are running the cable along the wall or ceiling, position the Cable Slot towards the direction you want the cabling to run. For outdoor installations, position the Cable Slot downward.

1. Use a 7 mm ( 14 ) drill bit to drill the mounting holes in the wall or ceiling.

Note: If you are running the Ethernet cable through the wall, cut a hole centered between the mounting holes that is large enough to feed the cable through.

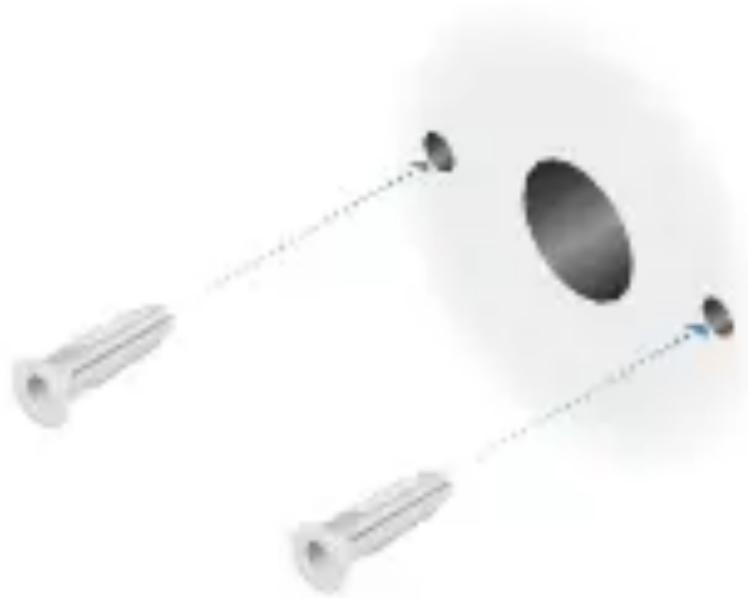

1. Insert a Screw Anchor into each mounting hole.

Diagram showing two metallic pins connected to a central oval object, with no visible text or symbols

1. If you are feeding the Ethernet cable through the wall or ceiling, do so now and feed it through the Mounting Base.

Close-up of a mechanical assembly with a blue connector inserted into a metallic gear-like component (no text or symbols visible)

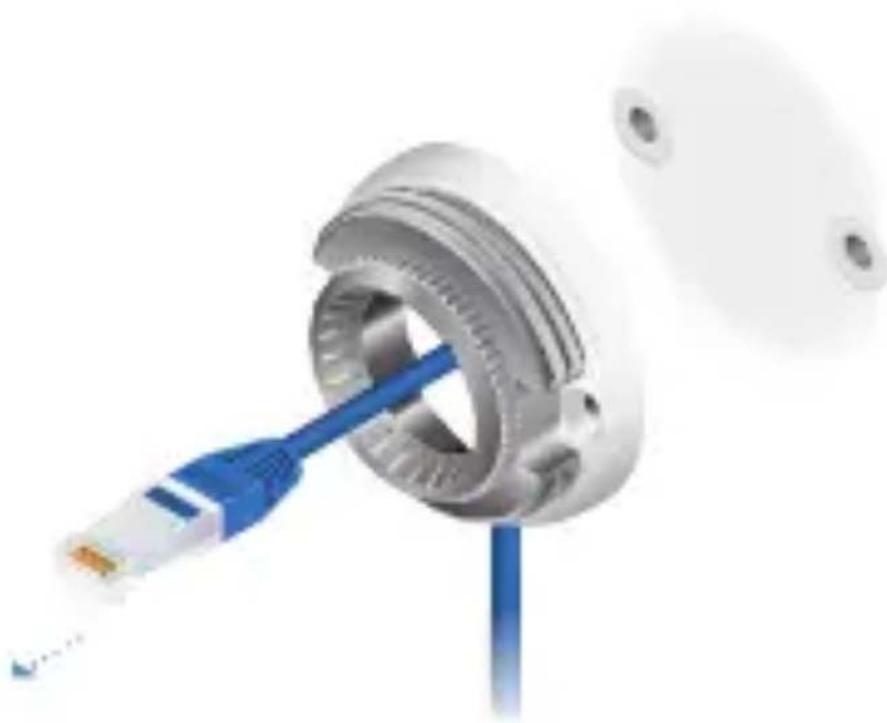

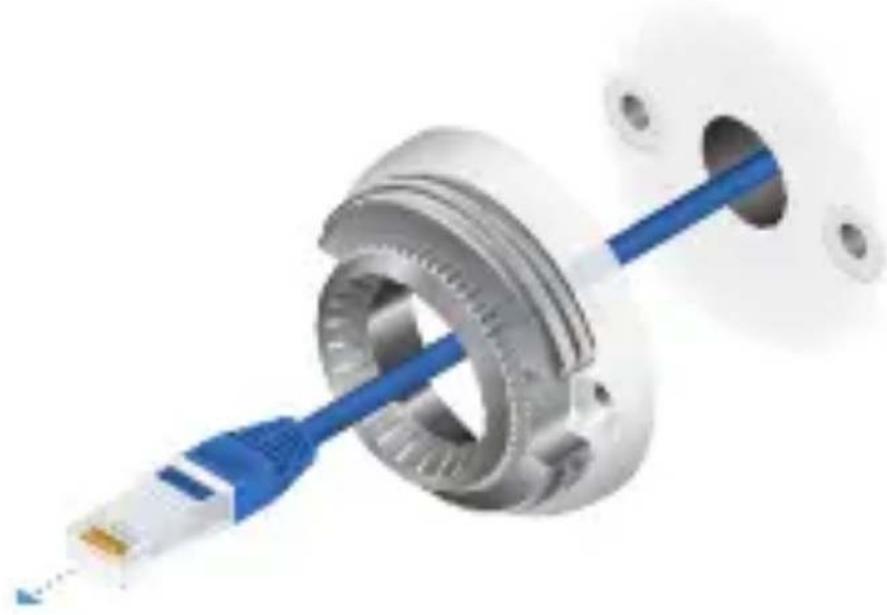

If not, feed the Ethernet cable through the Mounting Base and place the cable in the Cable Slot.

Close-up of a mechanical component with a blue cable inserted into a gear-like housing (no visible text or symbols)

IMPORTANT: If you are installing your camera outdoors, create a drip loop for the cable below the camera to prevent water ingress.

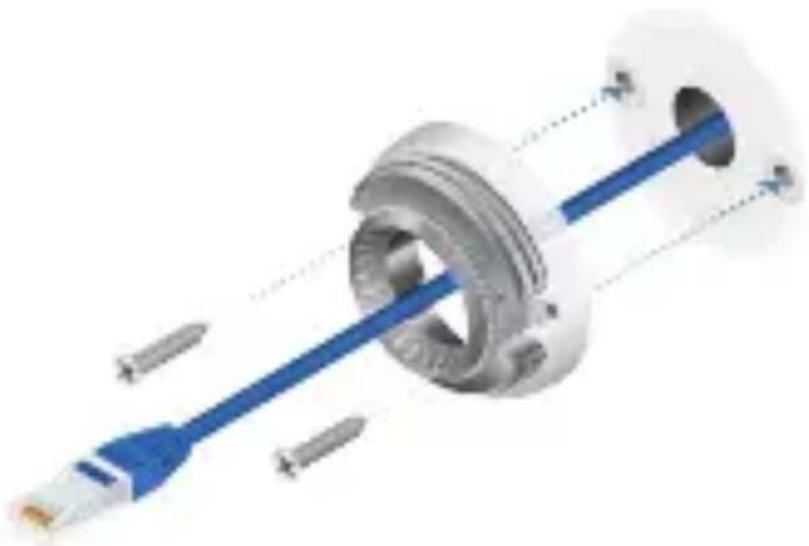

1. Fasten the Mounting Base to the wall or ceiling using two Self-Tapping Screws.

3D mechanical assembly diagram showing a shaft and housing with screw fasteners (no text or symbols)

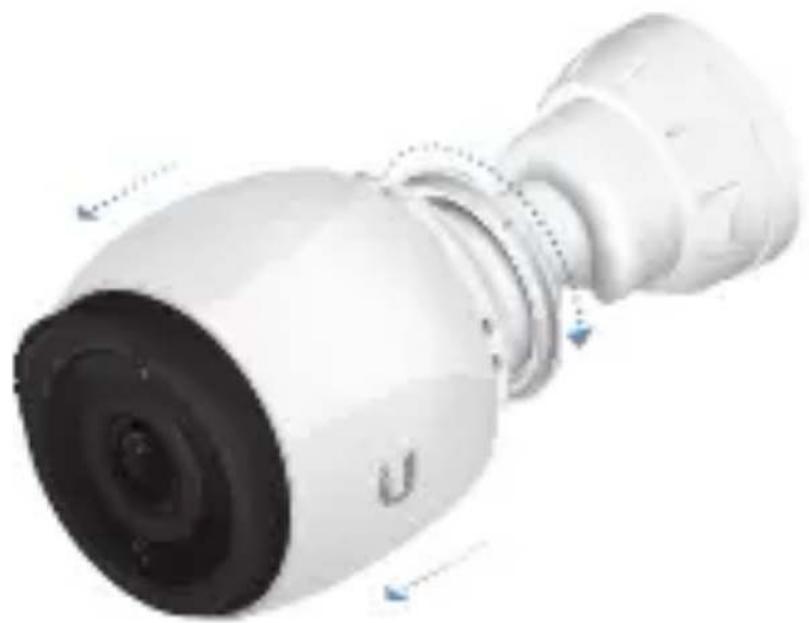

1. Remove the camera from the Adjustable Base by turning the Camera Ring in the direction shown.

3D rendering of a white showerhead with black lens and blue control buttons, shown in isometric view (no text or symbols)

1. Remove the Cable Gland from the Adjustable Base.

White plastic mechanical component with a flanged circular top and internal mesh structure (no text or symbols visible)

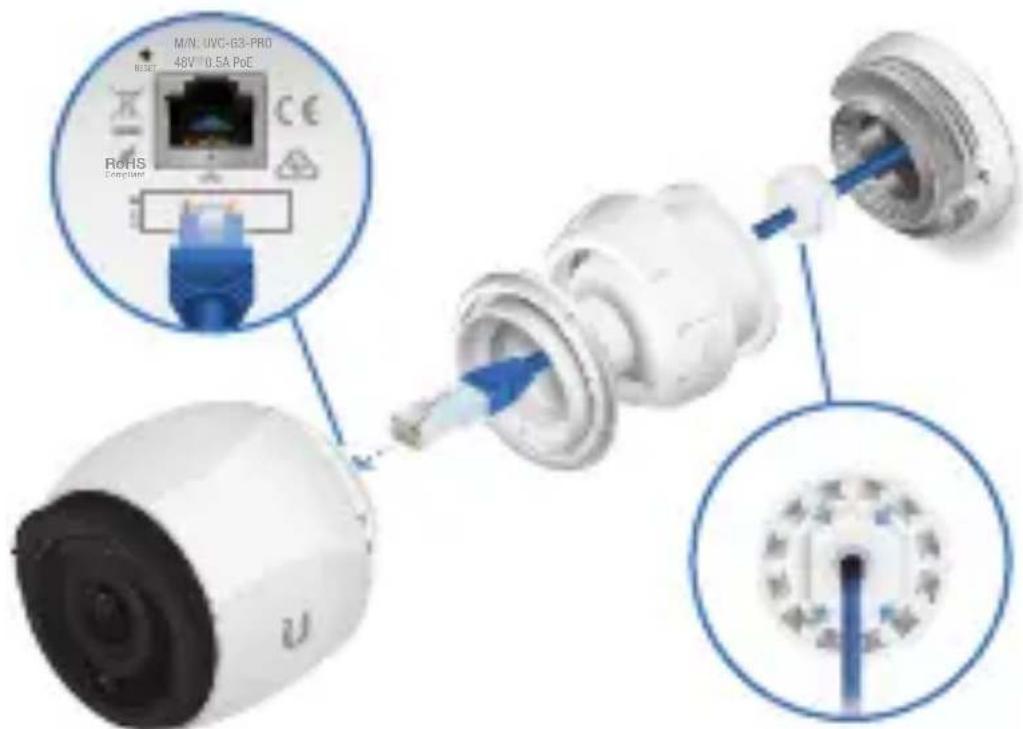

1. Feed the Ethernet cable through the Cable Gland and Adjustable Base. Seal the Cable Gland in place by firmly pressing around its edges. Then connect the cable to the Ethernet Port on the camera.

M/N: UVC-63-PRO 48V 0.5A PoE RoHS Cerplicar

IMPORTANT: For proper weather sealing, the Cable Gland must fit securely within the Adjustable Base when the camera is mounted. Ensure that the Cable Gland is securely seated during installation and cable routing.

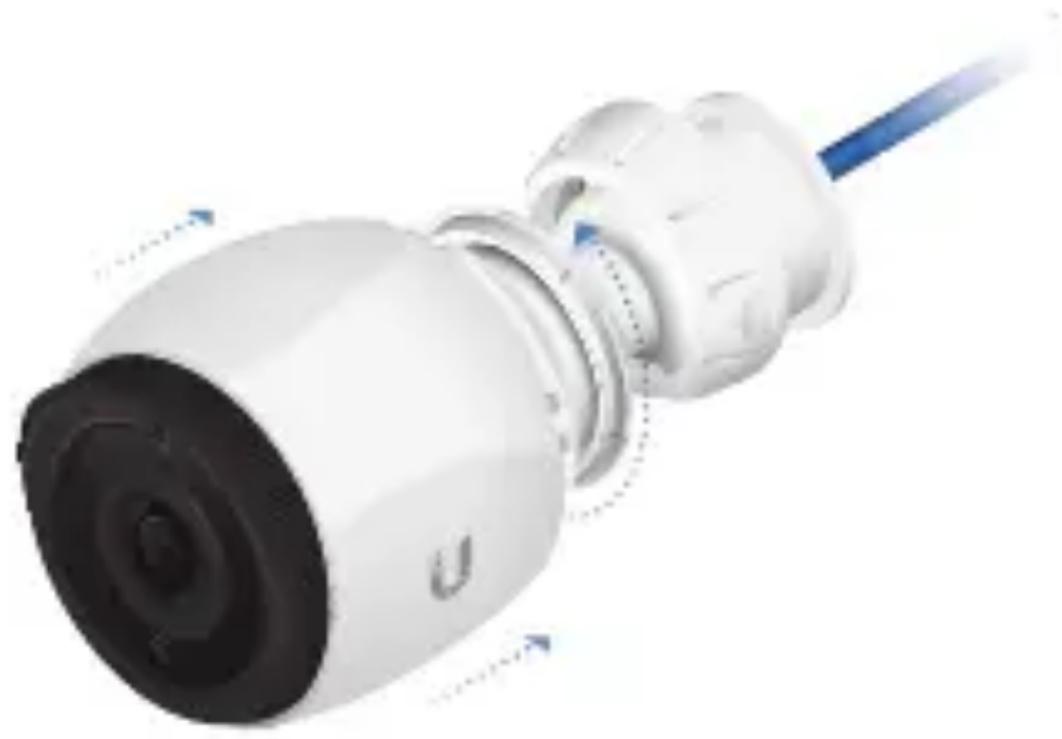

1. Connect the camera back to the Adjustable Base by turning the Camera Ring in the direction shown.

Close-up of a white electrical plug with a blue cable, showing internal components and airflow direction (no text or symbols)

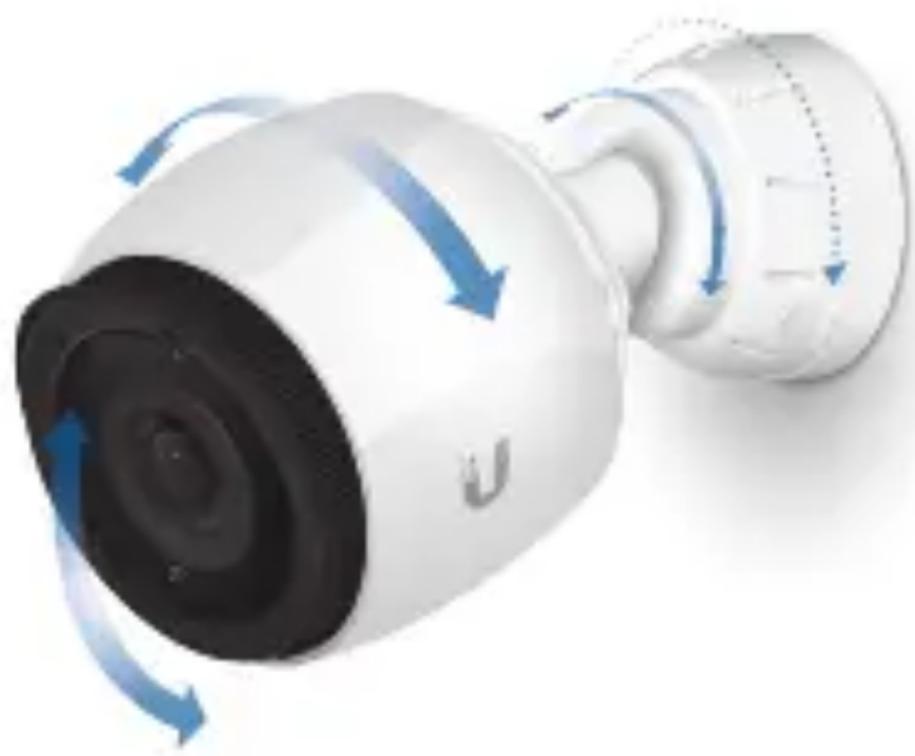

1. Orient the camera to the desired position while connecting the Adjustable Base to the Mounting Base.

Note: You will fine-tune and then lock the positioning after you check the camera view in the UniFi Video software.

White cylindrical device with blue directional arrows indicating rotation or flow, no visible text or symbols

1. Proceed to the Connecting Power over Ethernet section.

Pole Mount

To mount the camera on a pole, two metal straps are required (not included).

1. Feed the metal straps through the slots on the Pole Mount Bracket.

Mechanical component with curved shaft and flange, no visible text or symbols

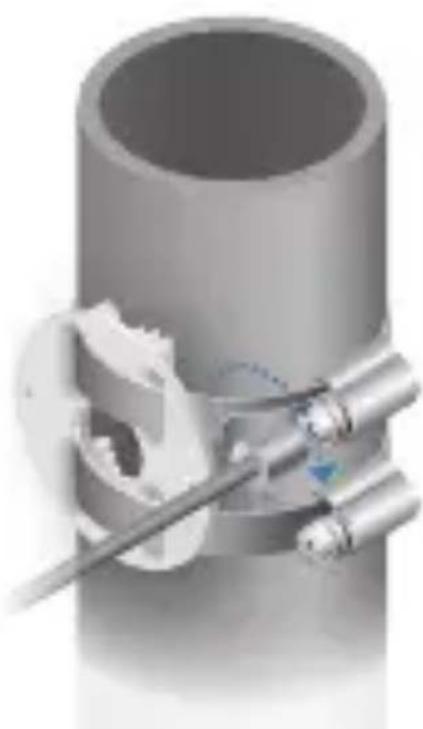

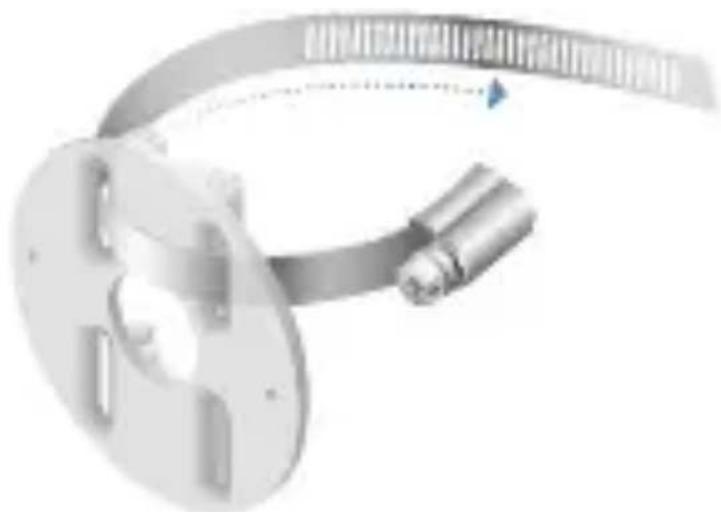

1. Wrap a metal strap around the pole and tighten it by turning the screw clockwise. Repeat for the second strap.

Mechanical assembly diagram showing a cylindrical pipe with attached metal components and a tool (no text or symbols visible)

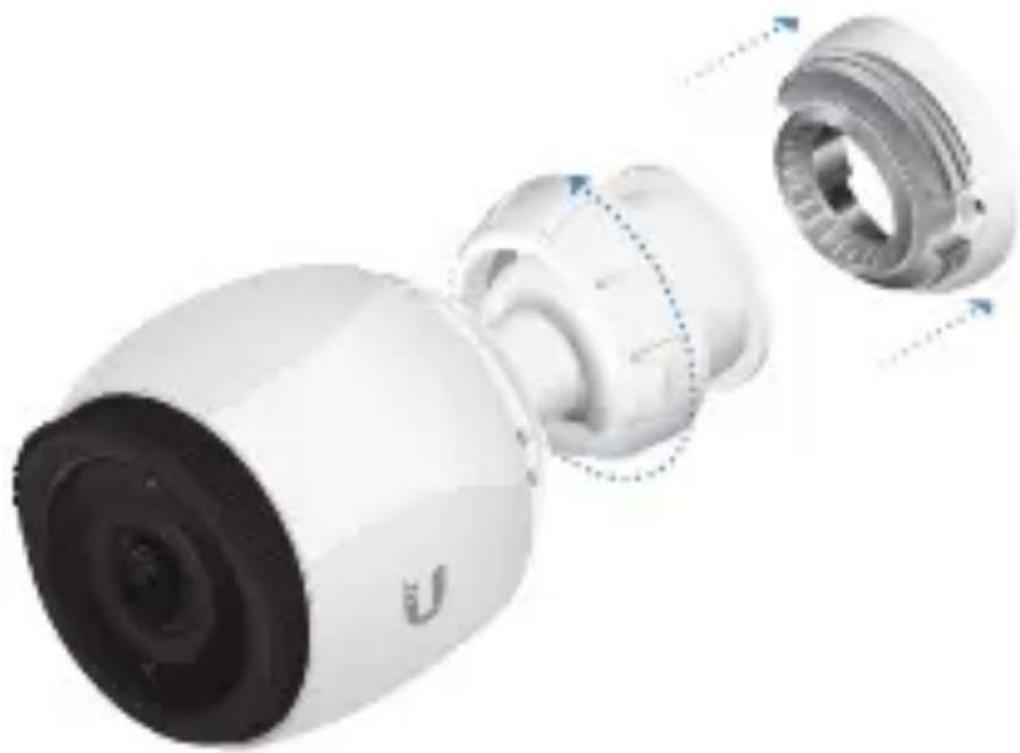

1. Remove the Mounting Base from the camera by turning the Tilt/Mount Ring counterclockwise.

Exploded view of a white showerhead with internal components and a dotted arrow indicating rotation (no text or symbols)

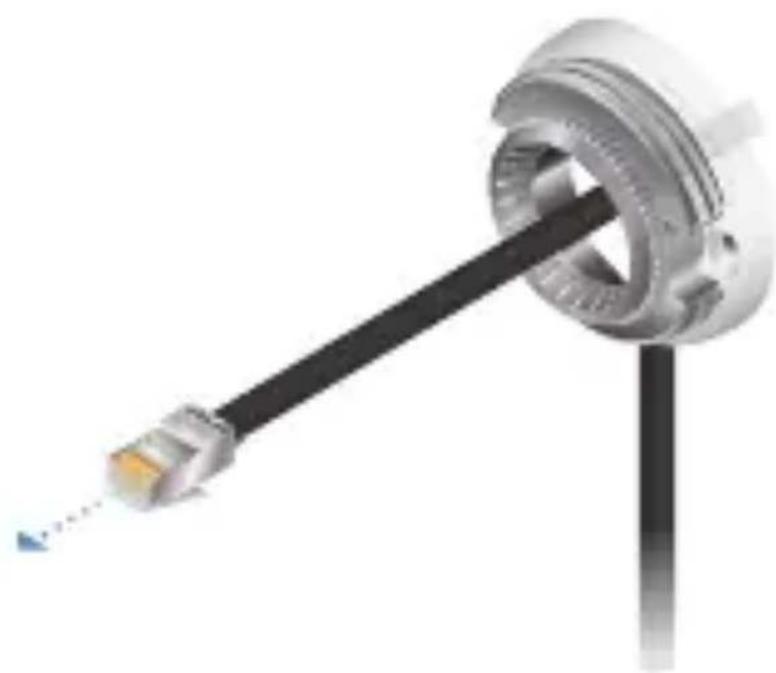

1. Feed the Ethernet cable through the Mounting Base.

Mechanical component with a black cable inserted into a circular housing, showing internal structure and shaft (no text or symbols visible)

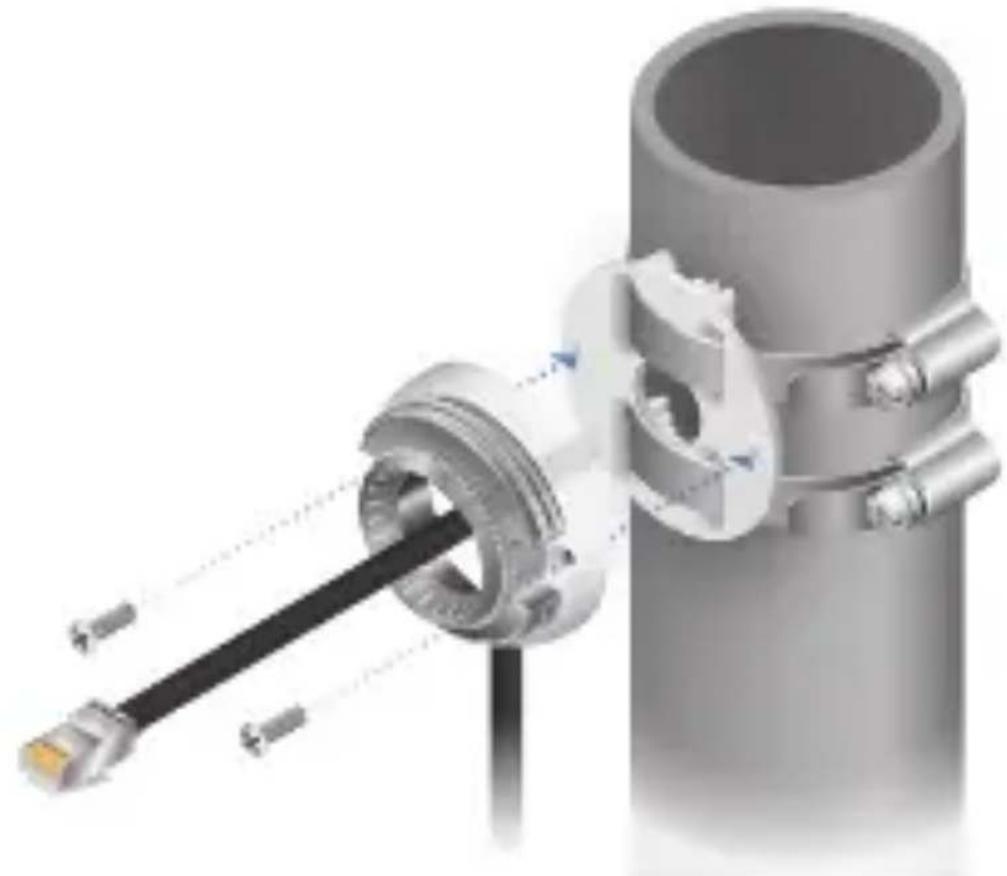

1. Fasten the Mounting Base to the Pole Mount Bracket using two Machine Screws.

Mechanical assembly diagram showing a shaft connected to a cylindrical component with internal gears and connectors (no text or symbols visible)

1. Remove the camera from the Adjustable Base by turning the Camera Ring in the direction shown.

Close-up of a white showerhead with black filter and blue control buttons (no text or symbols visible)

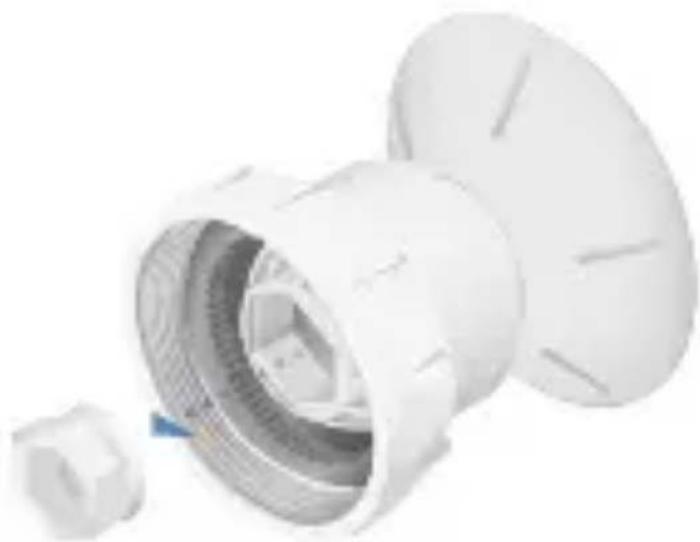

1. Remove the Cable Gland from the Adjustable Base.

Close-up of a white plastic showerhead with internal mesh and a small inset showing a blue object (no text or symbols visible)

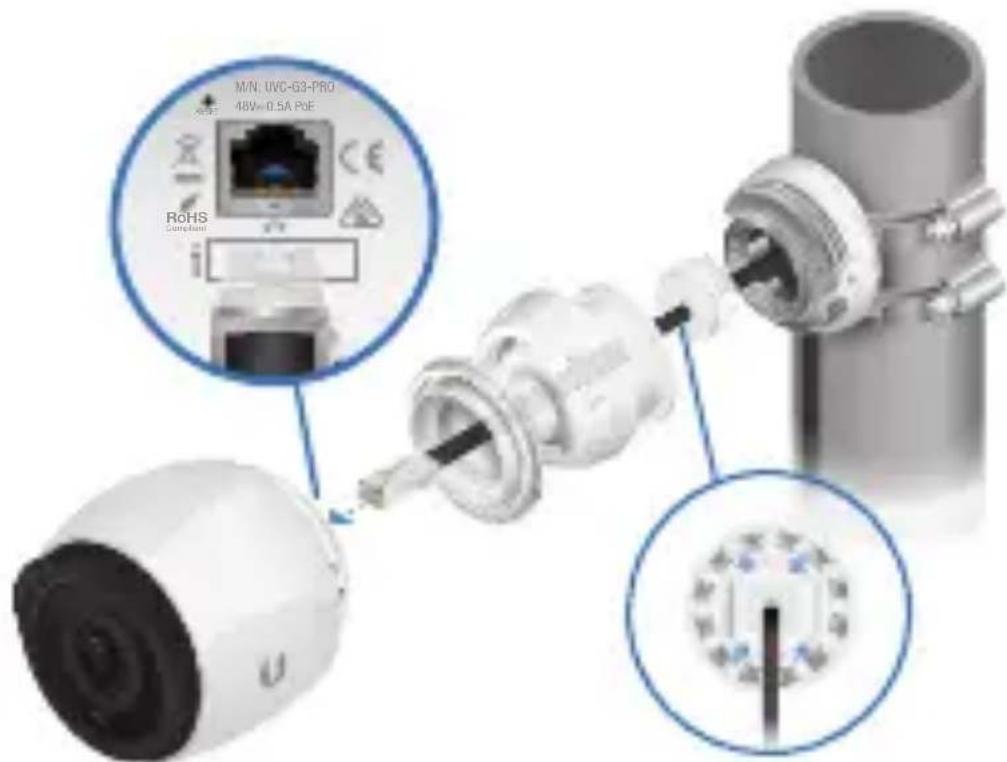

1. Feed the Ethernet cable through the Cable Gland and Adjustable Base. Seal the Cable Gland in place by firmly pressing around its edges. Then connect the cable to the Ethernet Port on the camera.

M/N, UVC-63-PRO 48V=0.5A PoE RoHS Compliant

IMPORTANT: For proper weather sealing, the Cable Gland must fit securely within the Adjustable Base when the camera is mounted. Ensure that the Cable Gland is securely seated during installation and cable routing.

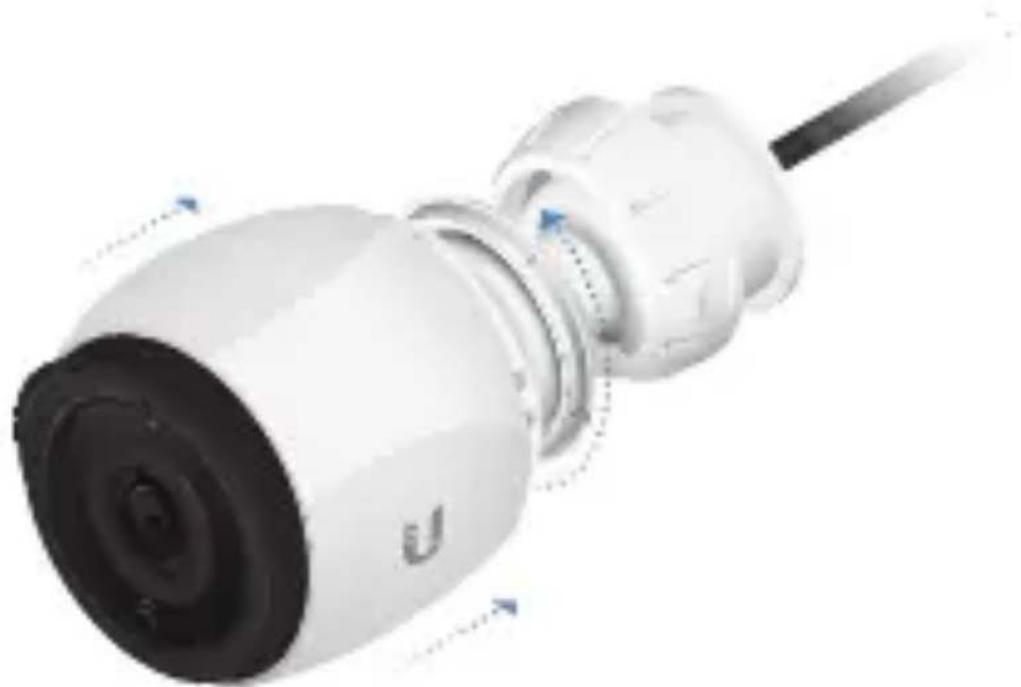

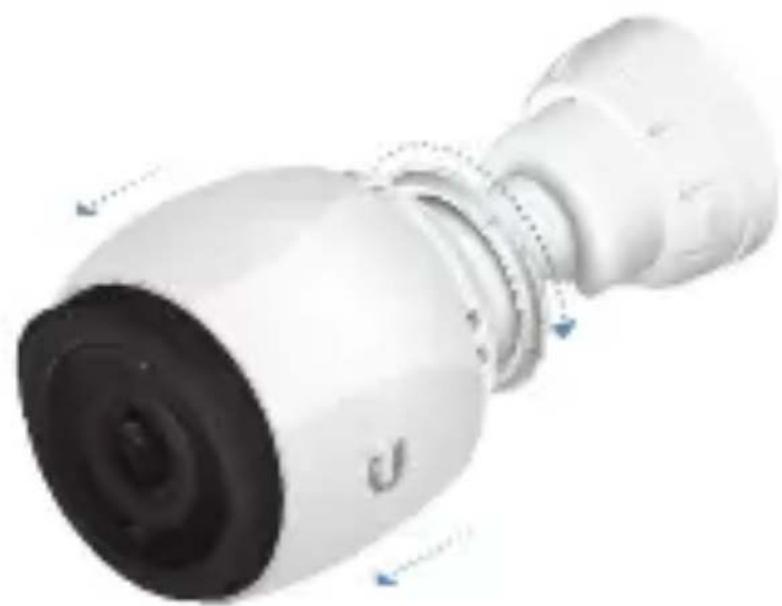

1. Connect the camera back to the Adjustable Base by turning the Camera Ring in the direction shown.

Close-up of a white electronic device with a black cable, showing internal components and directional arrows (no text or symbols visible)

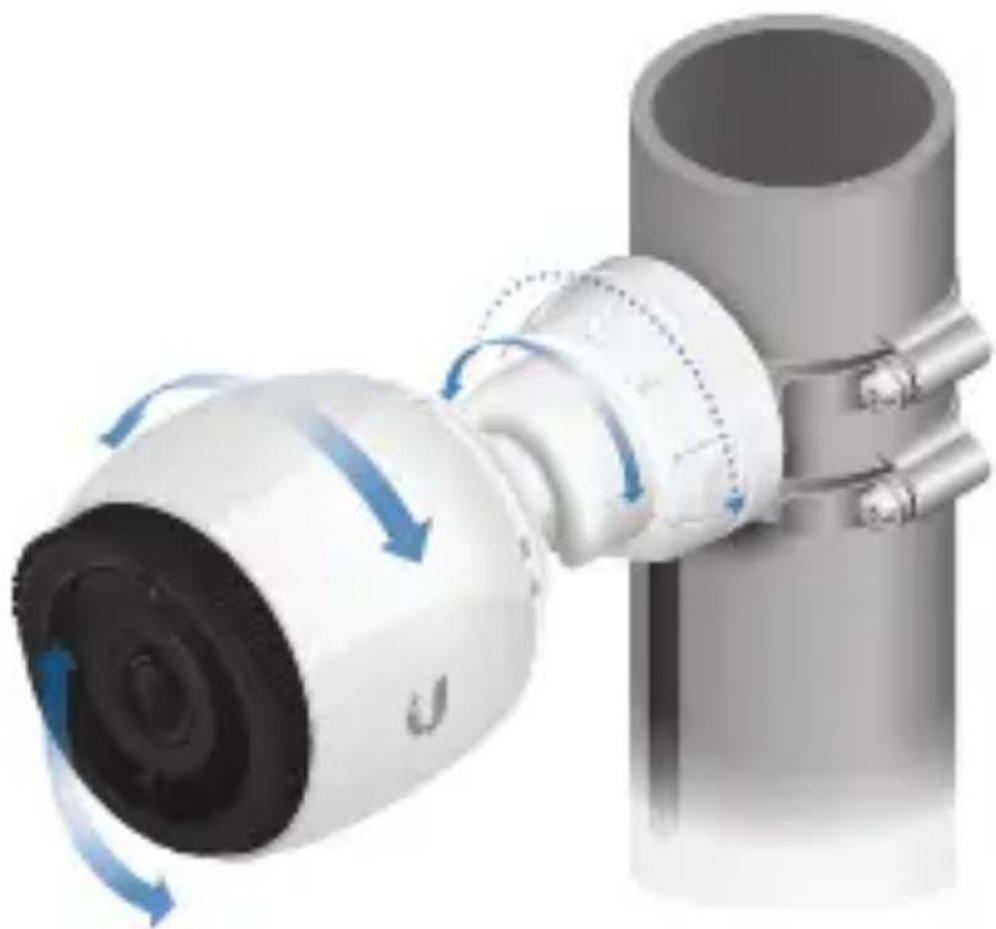

1. Orient the camera to the desired position while connecting the Adjustable Base to the Mounting Base.

Note: Fine-tune and then lock the positioning after you check the camera view in the UniFi Video software.

Diagram of a mechanical device with blue arrows indicating rotational flow, no text or symbols present

Connecting Power over Ethernet

The camera features auto-sensing

802.3af/802.3at PoE and can be powered by any 802.3af/802.3at PoE compliant switch, such as a UniFi PoE Switch.

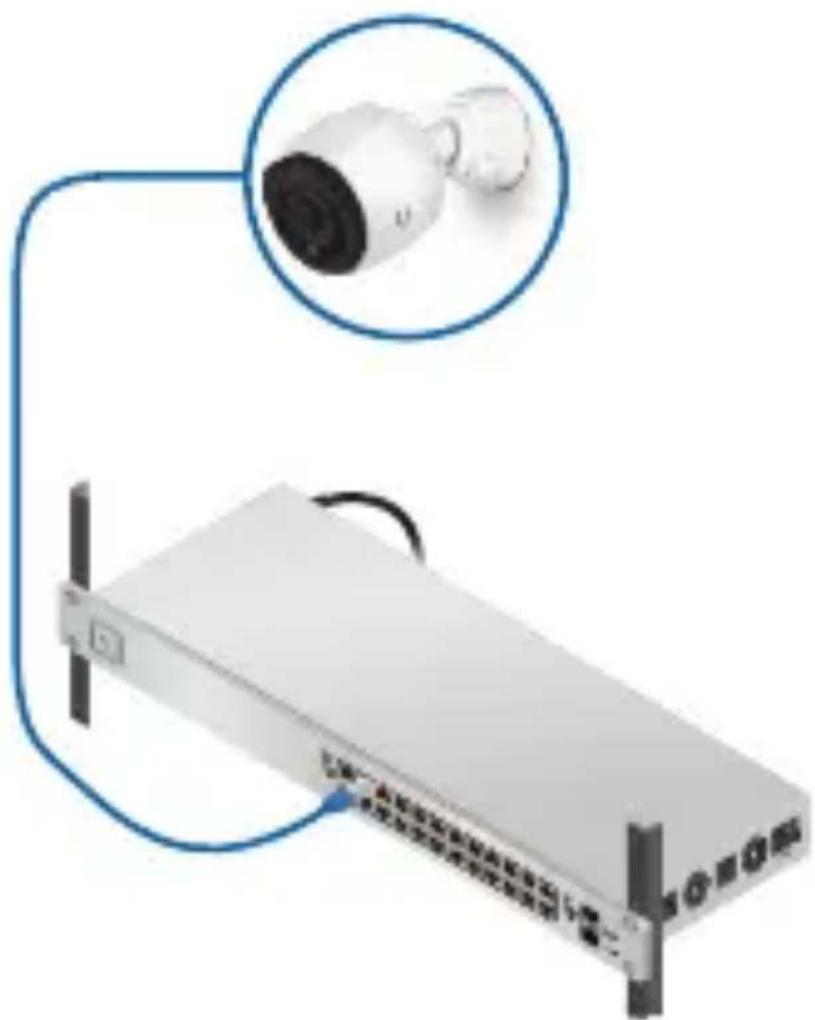

Connect the Ethernet cable from the camera directly to a PoE port on the switch.

Illustration of a server rack connected to a security camera, with an inset showing the camera lens (no text or symbols present)

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

640-00316-06

UniFi Video

Ensure that you are running UniFi Video software version 3.9 or newer. The latest version of the UniFi Video software is available at www.ubnt.com/download/unifivideo

The UniFi Video auto-management feature should automatically detect your new camera(s). To manage the camera:

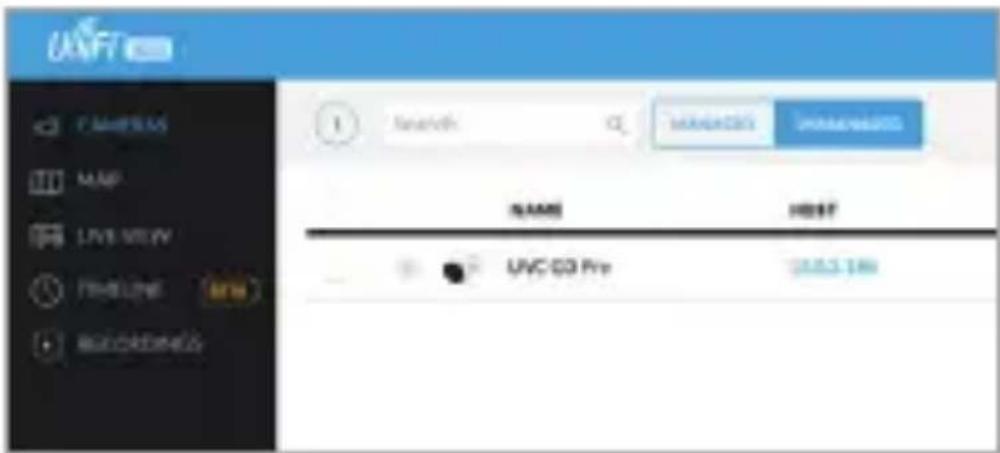

1. Click the Unmanaged tab.

UAVI T-NAME:US MAP LIVE VIEW FINDLINE NEW ADDRESS:US 1 Search MANAGE UNIVERSITY NAME HOST UVC 03 Pre US$3.1M

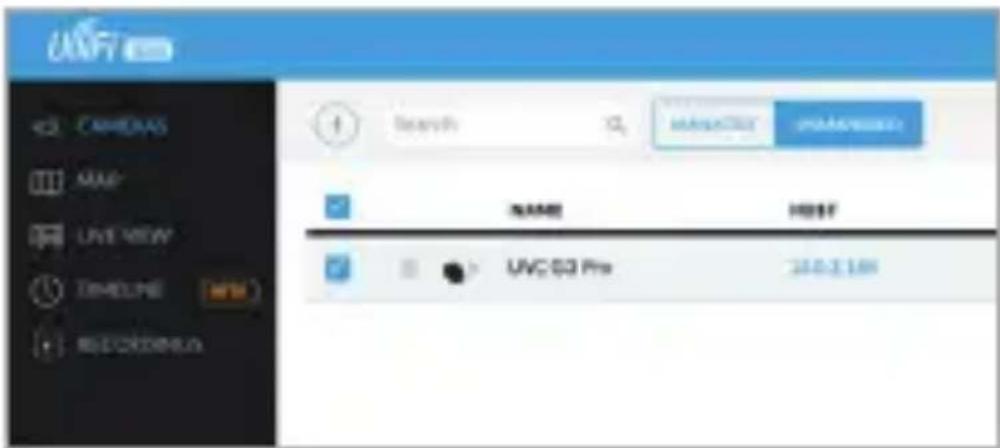

1. Select the camera row.

UNIFI CAMERA MAY LIVE VIEW TIMELINE RECYCRIME Search USENCE HUAAN NAME HOST UVC 03 Pro 24.0.2.16x

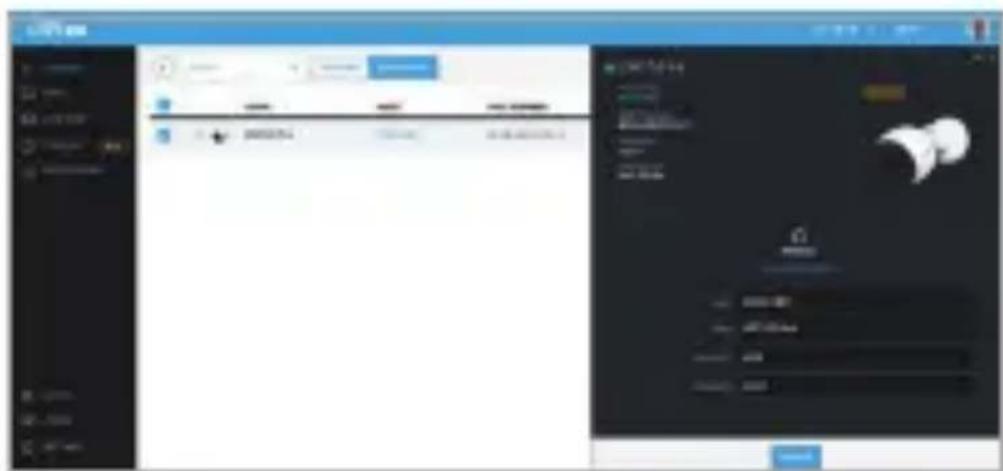

1. The Camera Details window will appear on the right side of the screen. Enter ubnt in the Username and Password fields and click Manage.

Screenshot of a Chinese web interface showing a login panel with input fields, a search bar, and a user profile section.

1. UniFi Video will automatically update the camera's firmware (this may take up to five minutes). Then the camera will appear in the Managed cameras list. Check the camera view and proceed to the Adjusting the Camera View section.

Screenshot of a software interface displaying a list of categories with checkboxes and a sidebar panel showing file paths and status.

UniFi Video App

Blue square icon with a white megaphone symbol (no text or numbers)

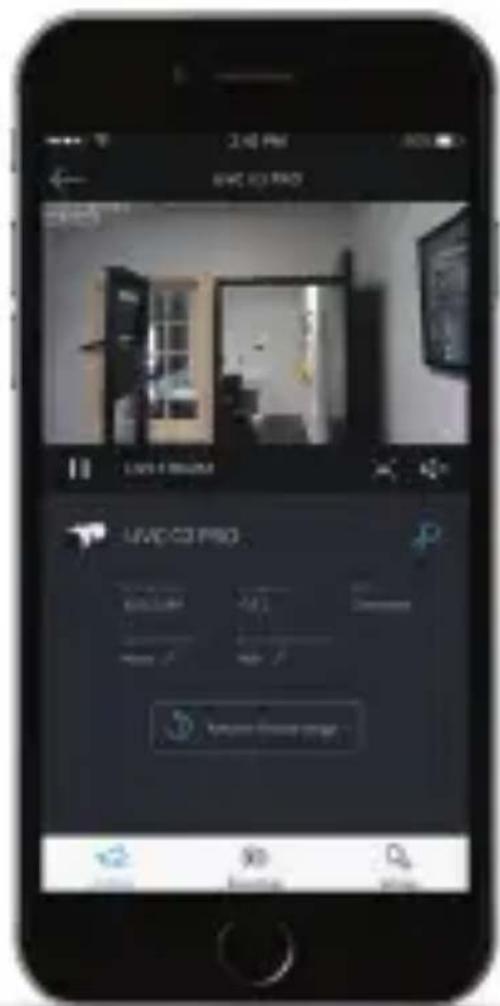

The UniFi Video app is available from the App Store (iOS) or Google Play™ (Android).

Smartphone screen displaying a live streaming app interface with 'Live C3 Pro' status and configuration fields.

For details on using the UniFi Video software, refer to the User Guide at:

www.ubnt.com/download/unifivideo

Adjusting the Camera View

1. Fine-tune the positioning as you check the camera preview in the software.

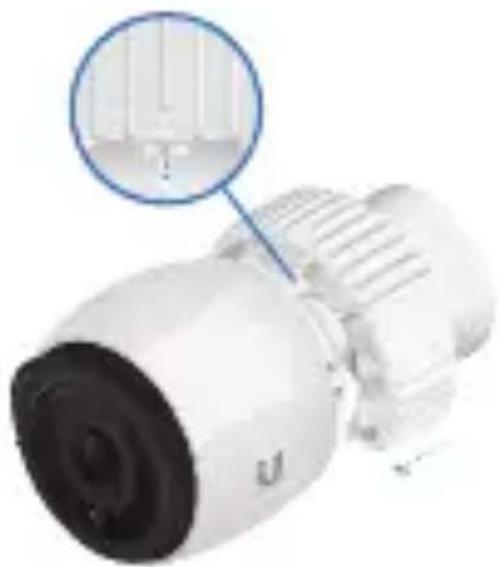

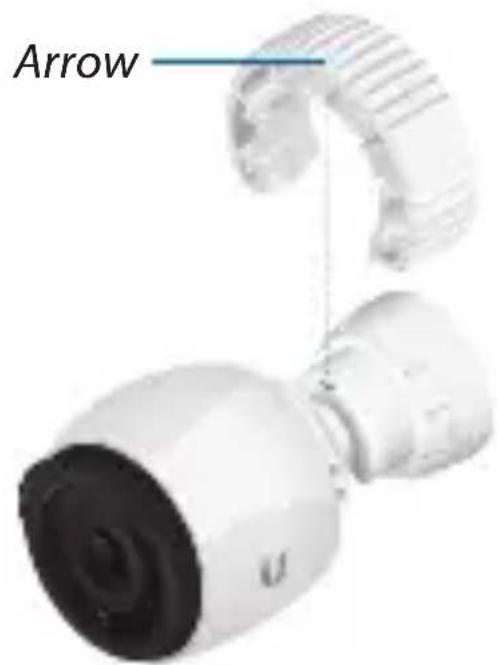

2. Ensure that the arrow side of the included Tightening Tool faces the camera. Then insert the Tightening Tool between the camera and Adjustable Base.

Arrow

1. Fit the Tightening Tool to the camera.

Close-up of a white industrial air purifier component with a magnified inset showing internal structure (no text or symbols visible)

1. Turn the Tightening Tool to tighten the Camera Ring.

Close-up of a white industrial filter or valve component with no visible text or symbols

1. Move the Tightening Tool to fit the Tilt/Mount Ring.

Close-up of a white showerhead with black filter and 'U' label (no other text or symbols)

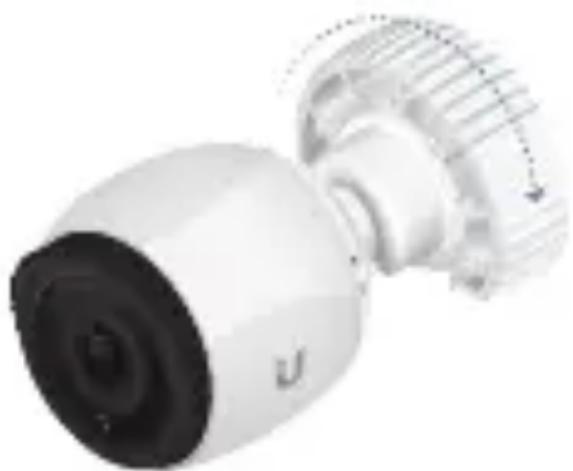

1. Secure the Tilt/Mount Ring to lock the positioning and complete installation.

Close-up of a white showerhead with a circular lens and metallic handle (no text or symbols visible)

Specifications

UVC-G3-PRO
Dimensions(Without Mounting Plate)	∅ 86 x 153 mm (∅ 3.39 x 6.02")
Weight(Without Mounting Plate)	700 g (1.54 lb)
Enclosure UV Stabilized Polycarbonate and Die-Cast Aluminum
Networking Interface	(1) 10/100 Ethernet Port
Sensor Sony IMX290, 1/2.8"
Lens 3-9 mm, f/1.2-f/2.1 Powered Zoom Lens
Field of ViewWideTele	108° (H), 58° (V), 125° (D)37° (H), 20° (V), 43° (D)
Night Mode IR LEDs with Mechanical IR Cut Filter
Video Compression H.264
Resolution 1080p Full HD (1920 x 1080)
Maximum Frame Rate	30 FPS
Image Settings Flip, Brightness, Contrast,WDR, Hue, Infrared,Sharpness, Saturation,Denoise, 50/60 Hz FlickerReduction
ManagementInterfaceManaged ModeStandalone Mode	UniFi Video v3.9 or NewerCamera Integrated Web UI
Microphone Yes
Max. PowerConsumption	12.5W
Power Method IEEE 802.3af/802.3at PoE
Power Supply 802.3af/802.3at PoE Switch
Buttons Factory Reset Button
Mounting Wall/Ceiling (Kits Included)Pole (Bracket Included)
OperatingTemperature	-20 to 50°C-4 to 122°F
Operating Humidity 0 to 90% Noncondensing

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

WARNING: This product may become hot during operation. Exercise caution when handling.

WARNING: Do not use this product in a location that can be submerged by water.

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.

Limited Warranty

UBIQUITI NETWORKS, Inc ("UBIQUITI NETWORKS") warrants that the product(s) furnished hereunder (the "Product(s)") shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS' sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or Ubiquiti Networks' authorized representatives, or as approved by Ubiquiti Networks in writing;

(II) has been painted, rebranded or physically modified in any way;

(III) has been damaged due to errors or defects in cabling;

(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress, including lightning strikes, or accident;

(V) has been damaged or impaired as a result of using third party firmware;

(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or

(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS' facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS

AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER'S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer's selection of products (including the Products) for buyer's application and/or failure of products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

This Class A digital apparatus complies with Canadian CAN ICES-003.

CAN ICES-3(A)/NMB-3(A)

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Australia and New Zealand

Warning: This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste.

The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Declaration of Conformity

www.ubnt.com/compliance

English Hereby, UBIQUITI NETWORKS, declares that this UVC-G3-PRO device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

Online Resources

Website www.ubnt.com

Support help.ubnt.com

Community community.ubnt.com

Downloads downloads.ubnt.com

UBIQUITI

N 21 W O R E S

Ubiquiti Networks, Inc.

685 Third Avenue, 27th Floor

New York, NY 10017

USA

©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, UniFi, and UniFi Video are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google Inc. All other trademarks are the property of their respective owners.
