USER MANUAL Irma Plus La Nordica

Abstract geometric shape with a white square cutout and gray curved background (no text or symbols)

attENtIoN

SurfacES caN BEcoME VEry Hot! aLWayS uSE protEctIVE GLoVES!

During combustion, thermal energy is released that significantly increases the heat of surfaces, doors, handles, controls, glass, exhaust pipes, and even the front of the appliance. Avoid contact with those elements if not wearing protective clothing (protective gloves included). Make sure children are aware of the danger and keep them away from the stove during operation.

ENGLISH....7

WarNINGS....7

SafEty 7

routine MaINtENaNcE 9

INStaLLatioN....10

MINIMUM DISTANCES....10

PREPARATIONS FOR MAINTENANCE....10

SouVENir aNd ILENla - aNNaBELLa SpacErS 12

Hot air ductING....12

SOUVENIR - ILENIA - ANNABELLA 12

GRAZIOSA PLUS, IRMA PLUS, NOVELLA PLUS & SIBILLA PLUS ....13

EMMA PLUS & TOSCA PLUS 13

ADDITIONAL Thermostat for Ducting Motor Control 14

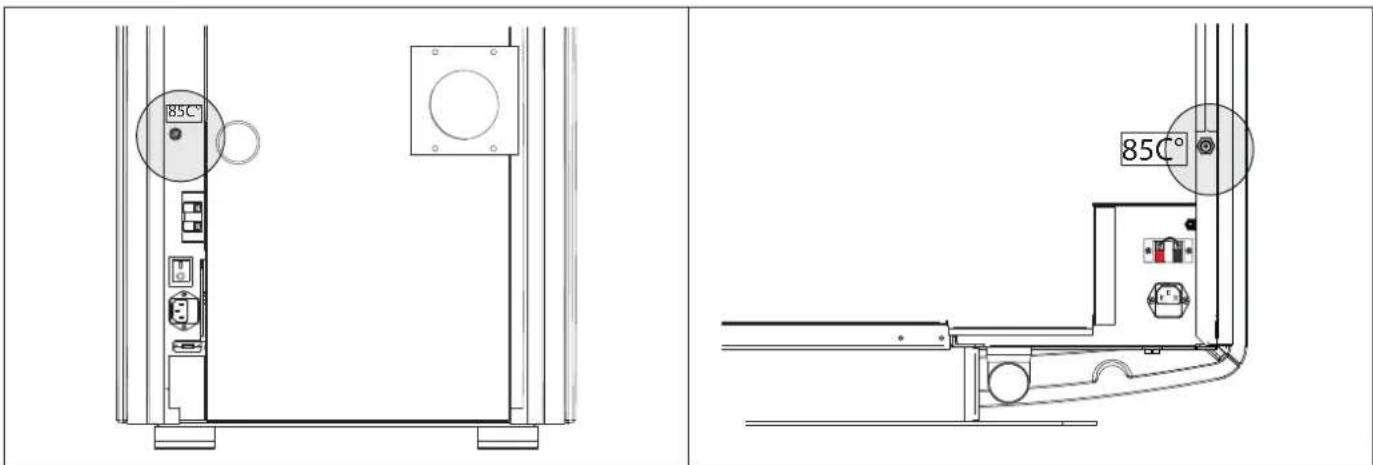

rEarMS....14

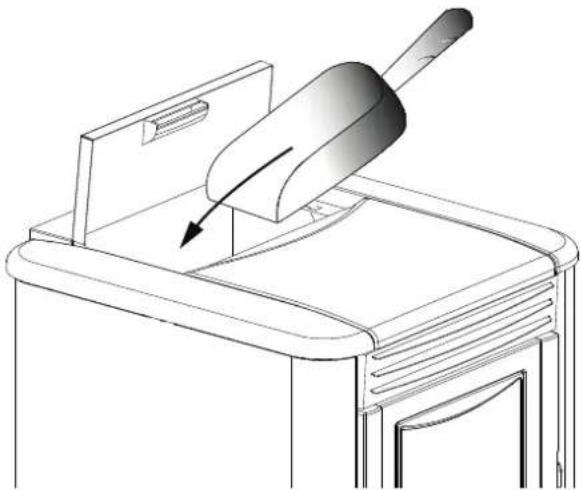

pELLEtS aNd fEEdING....15

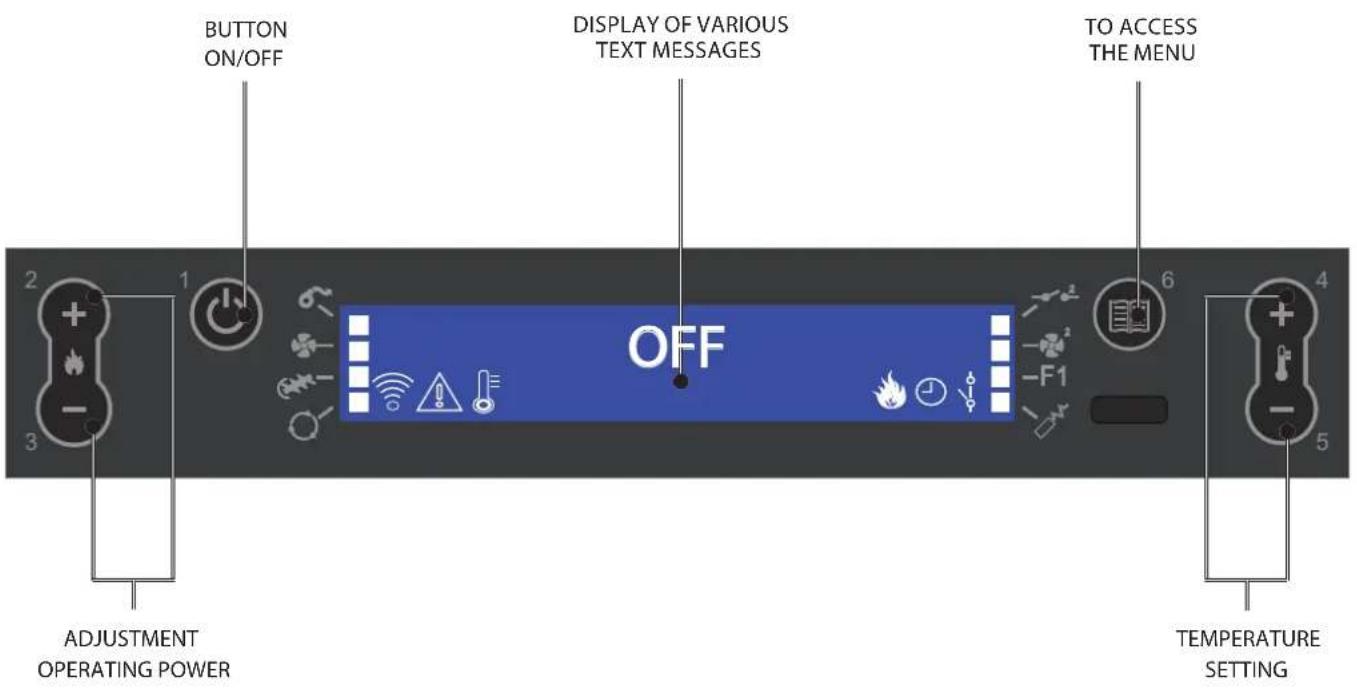

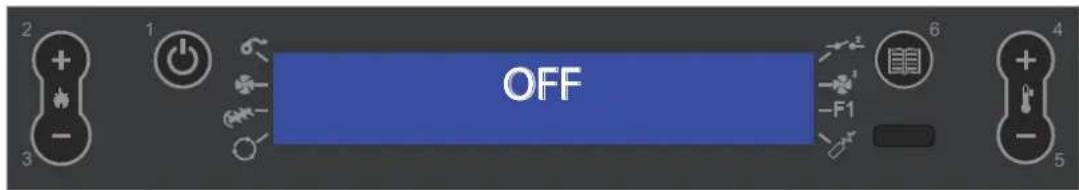

coNtroL paNEL 16

DISPLAY ICONS kEy....16

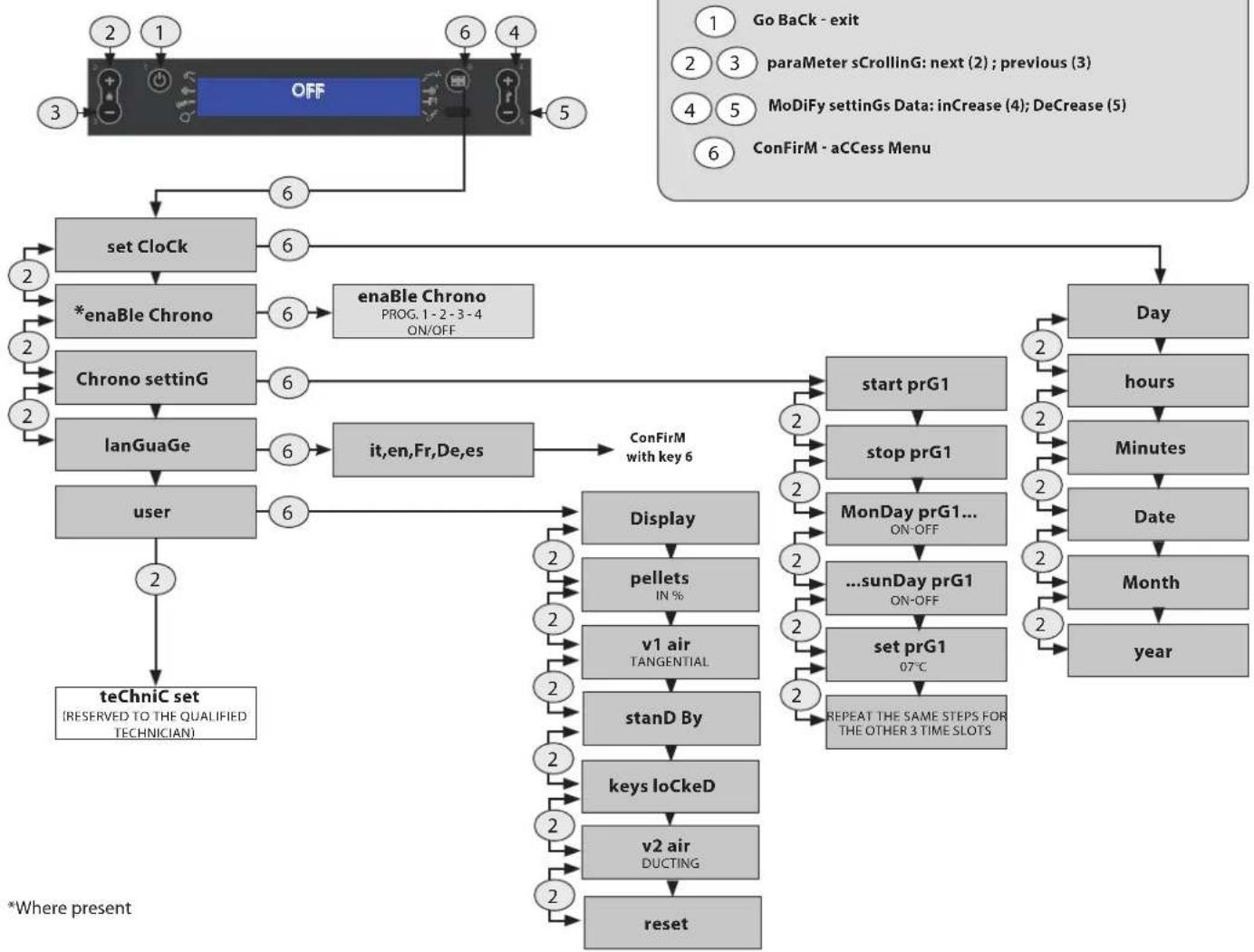

GENEraL MENu 17

GENERAL WARNINGS....17

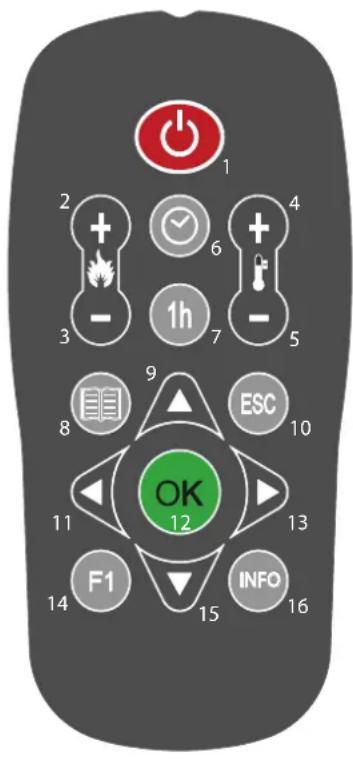

tHE rEMotE coNtroL....18

DELAyED SwITCh-OFF ENABLING 18

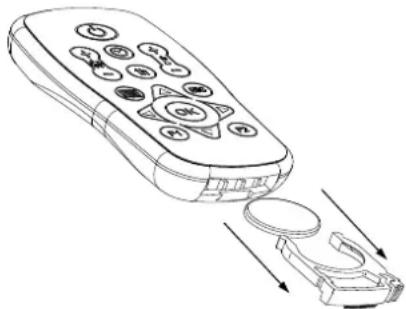

Type AND REPLACEMENT OF BATTERIES....18

coMMISSIoNING SEttINGS....18

MAINS FREQUENCy 50/60hZ....19

ADJUSTING TIME, DAy, MONTH AND yEAR....19

ADJUSTING LANGUAGE....19

opEratIoN aNd LoGlc 20

addltloNaL tHErMoStat (optloNaL) 21

uSEr MENu....21

DISPLAY 21

PELLET FEED ADJUSTMENT 21

V1-AIR....22

STAND By 22

"kEyS LOCkED" 23

V2 - AIR....24

RESET 24

ENaBLE cHroNo 24

cHroNo....24

PROGRAMMING EXAMPLE 25

cLEaNING aNd MaINtENaNcE....26

MaINtENaNcE 26

CLEANING AND MAINTENANCE By The USER 26

routINE MaINtENaNcE carrlEd out By autHorlSEd tEcHNlcIaNS 30

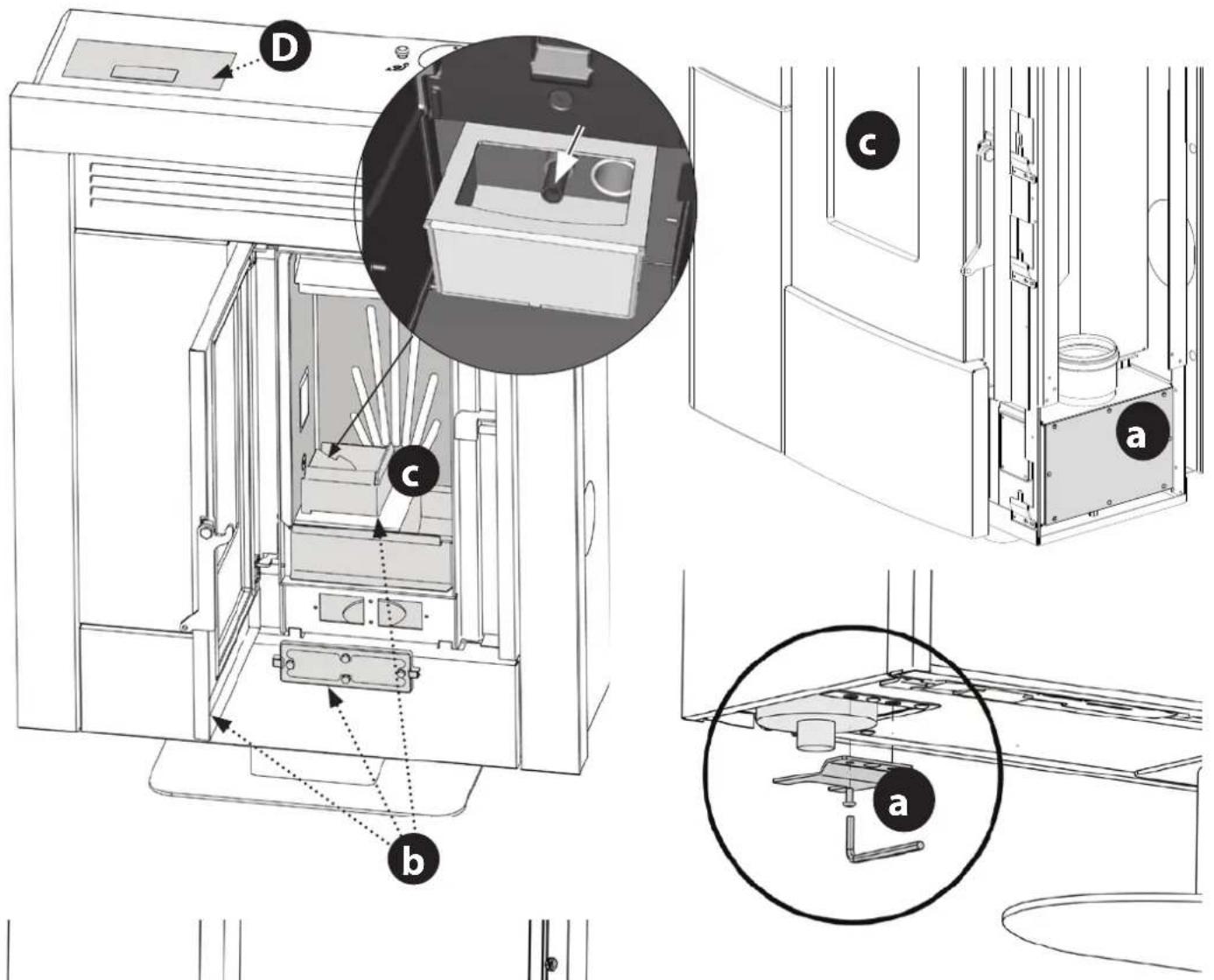

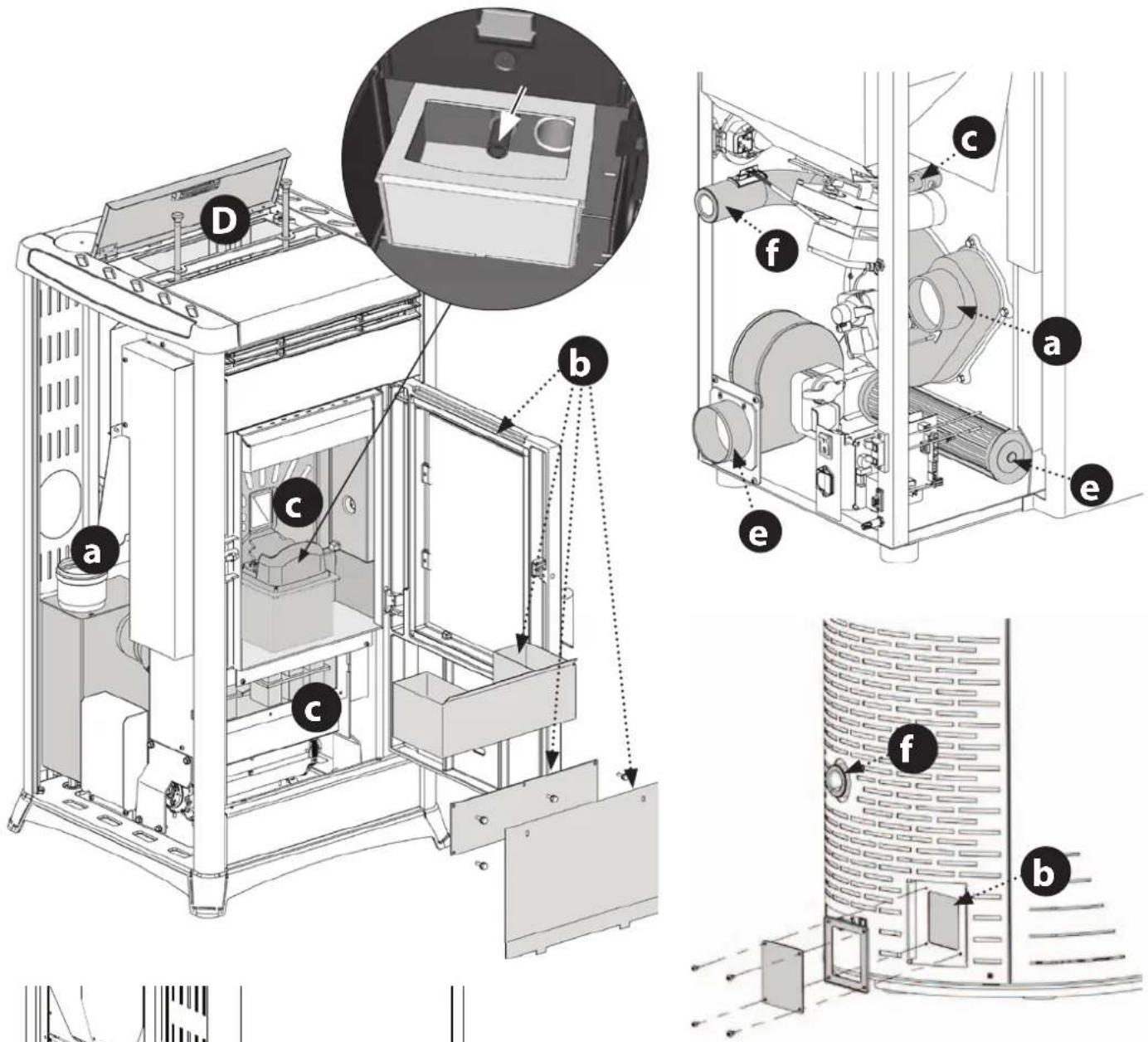

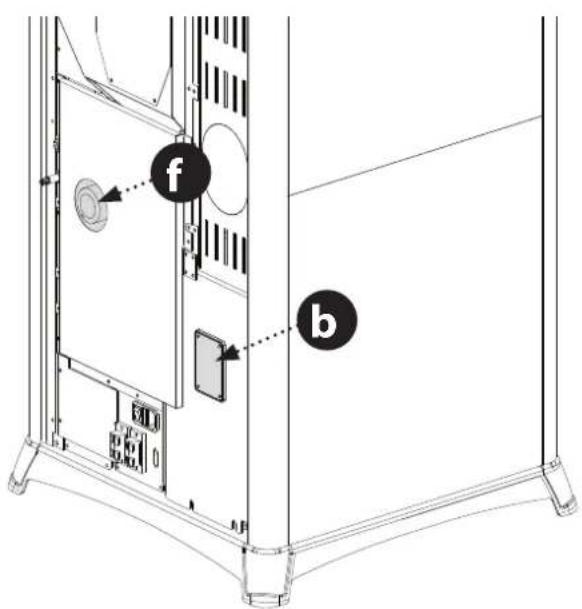

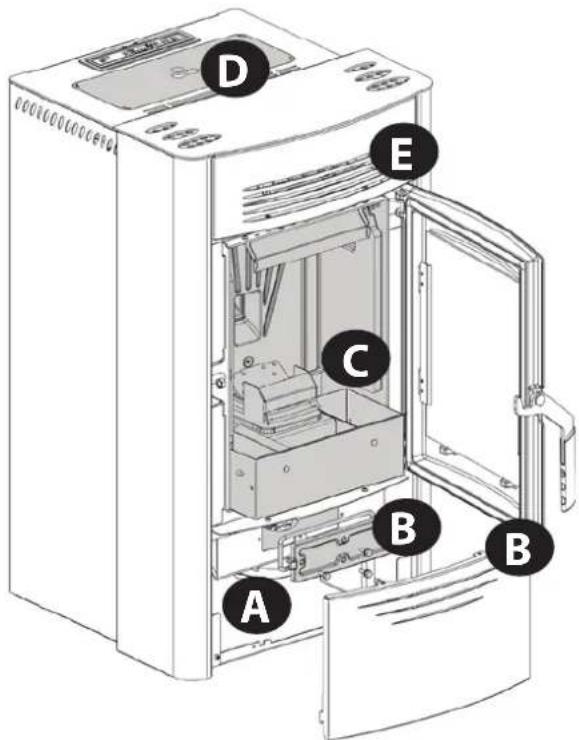

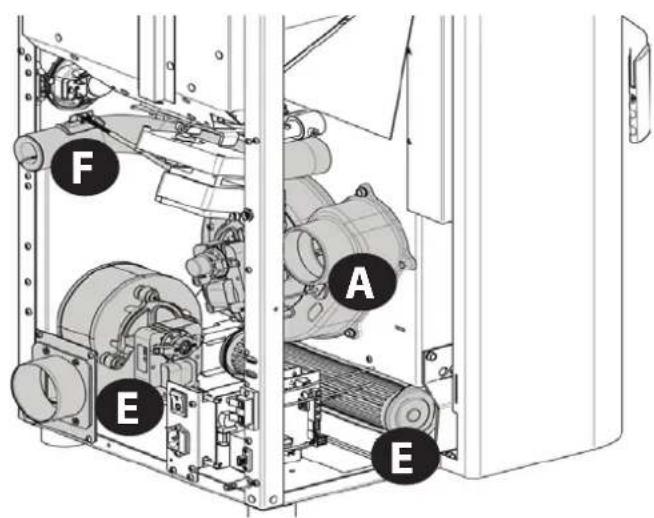

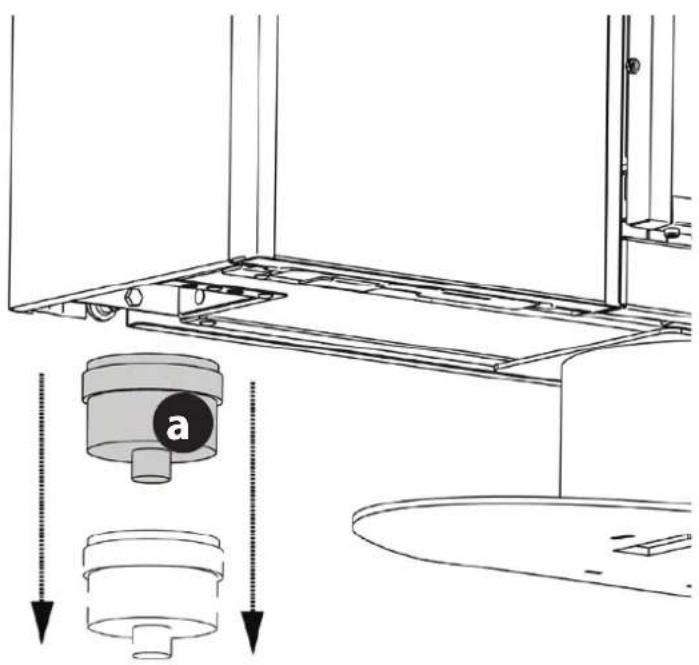

PUTTING The Equipment Out of Service (END OF The SEASON) 30

dISpLayS 33

aLarMS 34

GuaraNtEE tErMS 35

dISpoSaL....36

ILENIA

Silicone

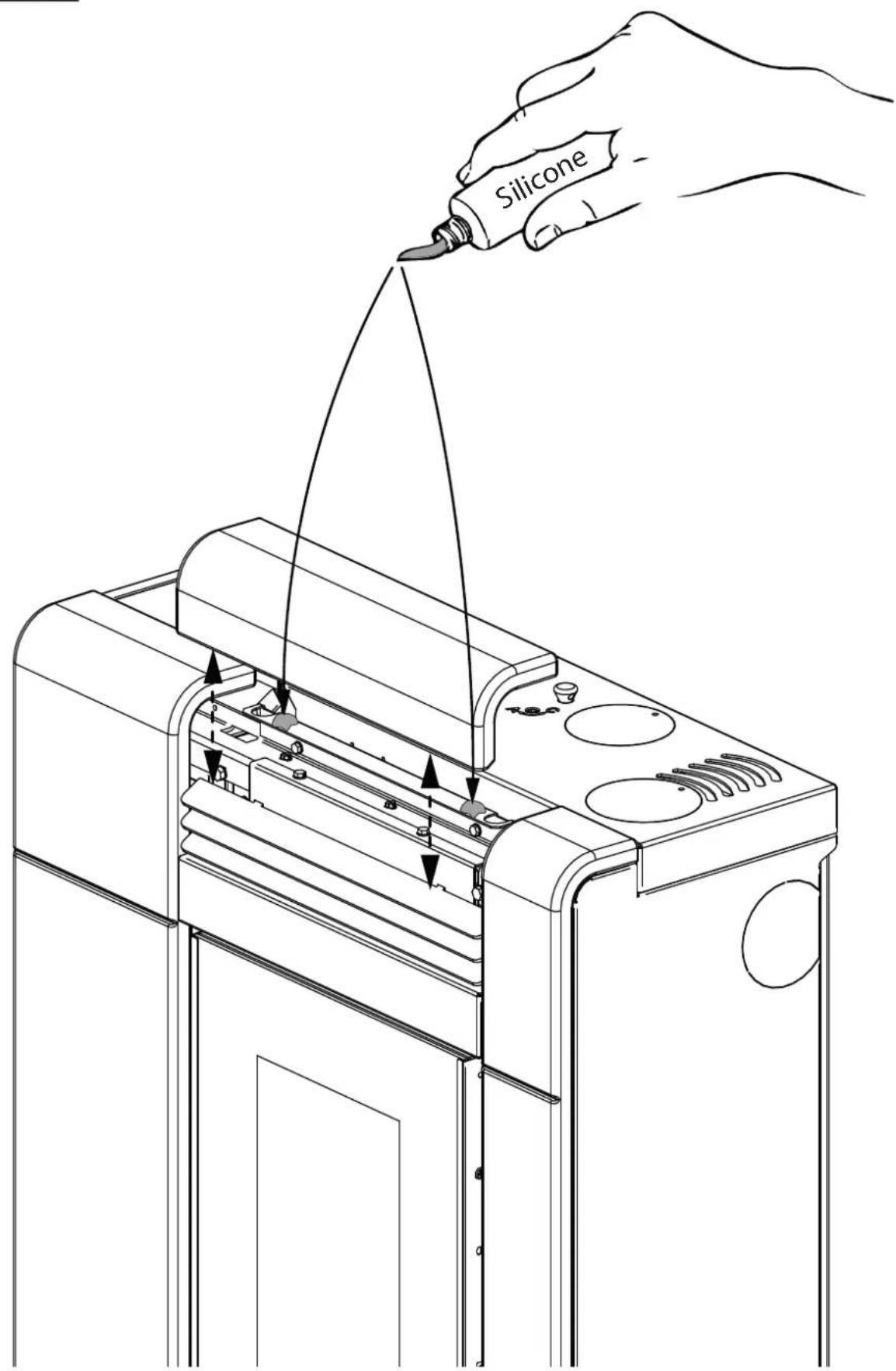

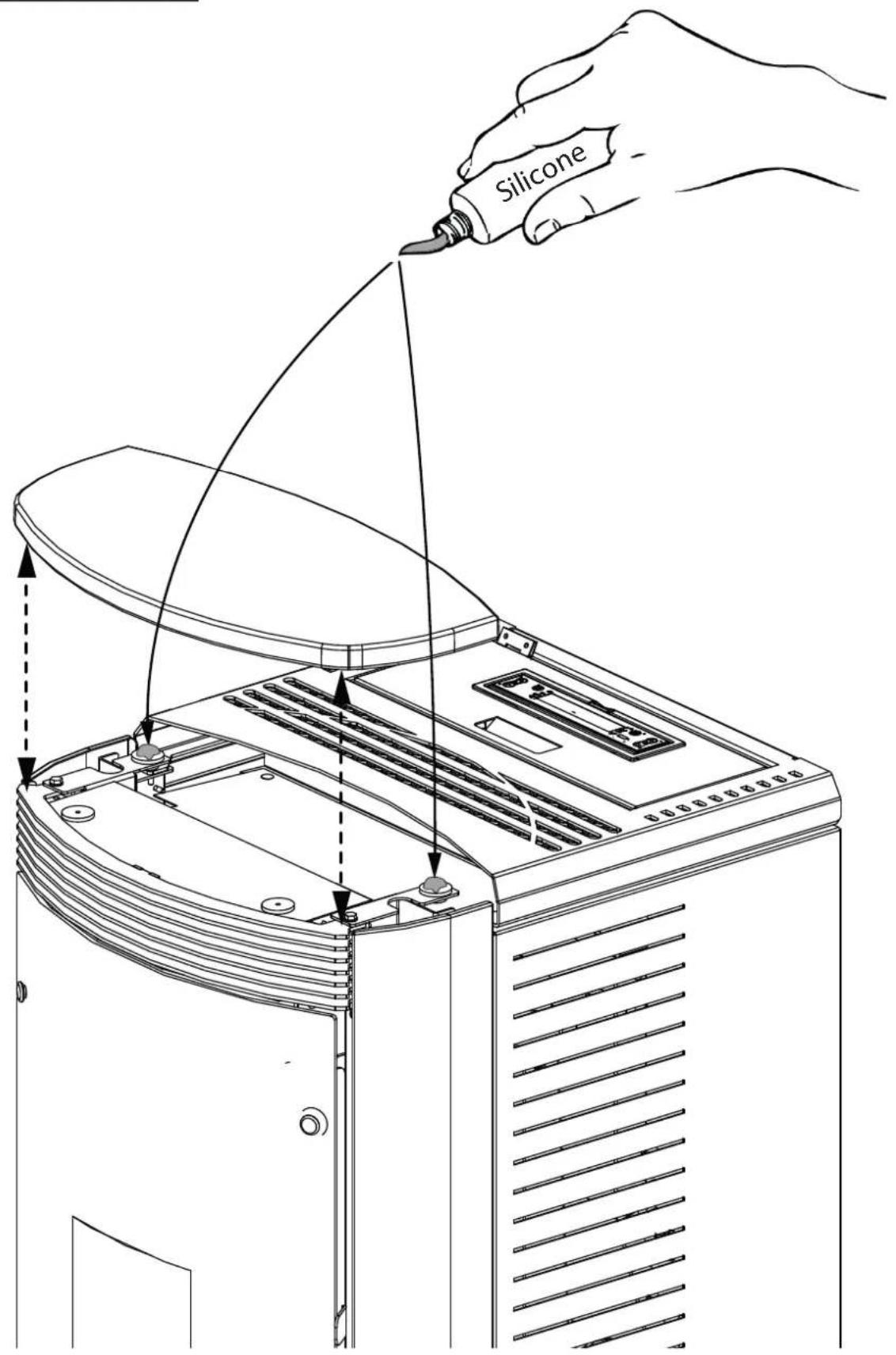

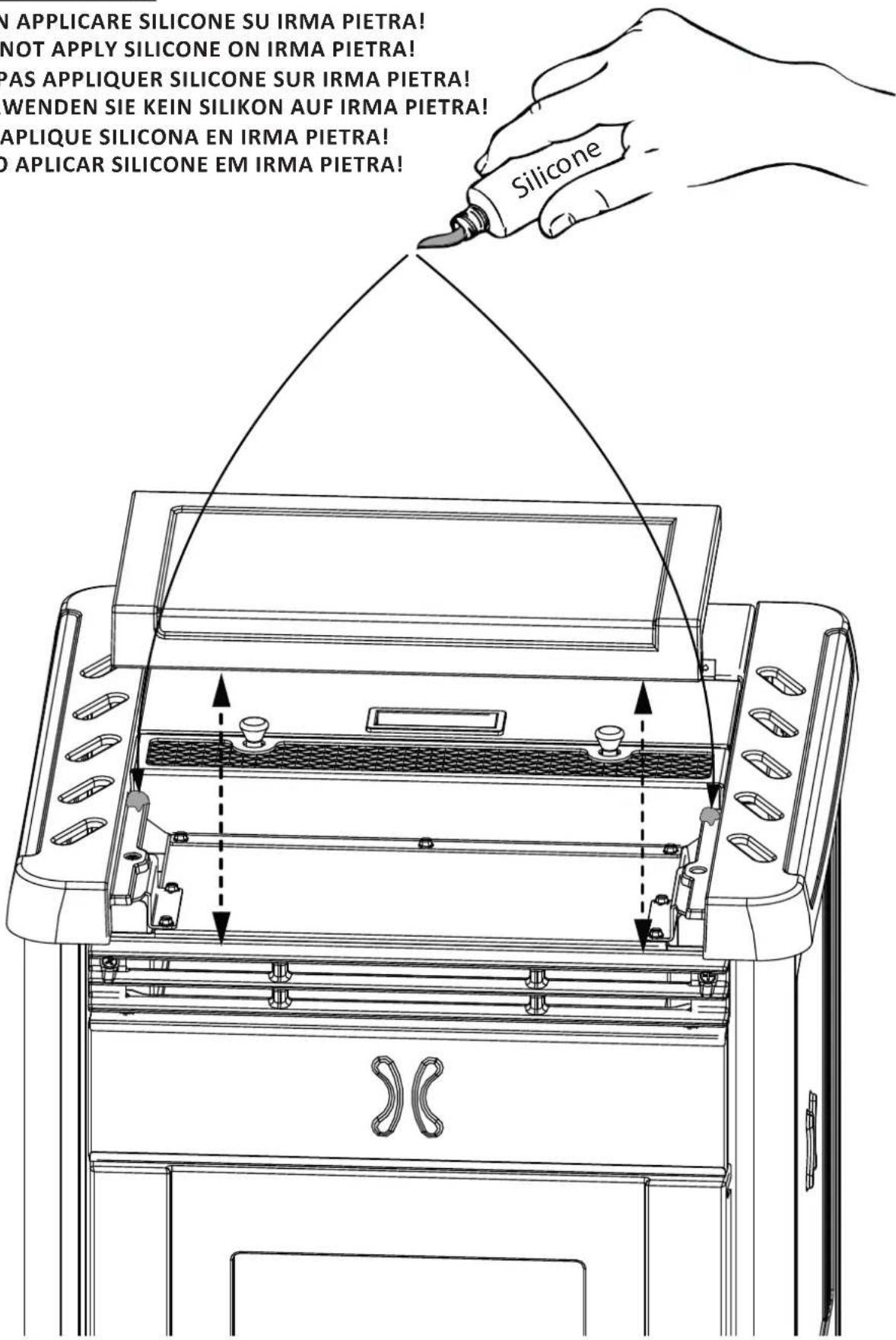

IRMA - IRMA PLUS

NON APPLICARE SILICONE SU IRMA PIETRA! DO NOT APPLY SILICONE ON IRMA PIETRA! NE PAS APPLIQUER SILICONE SUR IRMA PIETRA! VERWENDEN SIE KEIN SILIKON AUF IRMA PIETRA! NO APLIQUE SILICONA EN IRMA PIETRA! NÃO APLICAR SILICONE EM IRMA PIETRA!

N APPLICARE SILICONE SU IRMA PIETRA! NOT APPLY SILICONE ON IRMA PIETRA! PAS APPLIQUER SILICONE SUR IRMA PIETRA! WENDEN SIE KEIN SILIKON AUF IRMA PIETRA! APLIQUE SILICONA EN IRMA PIETRA! O APLICAR SILICONE EM IRMA PIETRA!

SIBILLA-SIBILLA PLUS

Silicone

We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety.

Warnings

This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner or user, or if transferred to another place. If it is damaged or lost, request another copy from the area technician. This product is intended for the use for which it has been expressly designed. The manufacturer is exempt from any liability, contractual and extracontractual, for injury/damage caused to persons/animals and objects, due to installation, adjustment and maintenance errors and improper use.

Installation must be performed by qualified staff, which assumes complete responsibility for the definitive installation and consequent good functioning of the product installed. One must also bear in mind all laws and national, regional, provincial and town council Standards present in the country in which the appliance has been installed, as well as the instructions contained in this manual.

The Manufacturer cannot be held responsible for the failure to comply with such precautions.

After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the dealer where the appliance was purchased.

All electric components that make up the product must be replaced with original spare parts exclusively by an authorised after-sales centre, thus guaranteeing correct functioning.

safety

- THE APPLIANCE MAY BE USED BY CHILDREN 8 YEARS OF AGE OR OLDER AND INDIVIDUALS WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPACITIES OR WITHOUT EXPERIENCE OR THE NECESSARY KNOWLEDGE, PROVIDED THAT THEY ARE SUPERVISED OR HAVE RECEIVED INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT DANGERS.

- THE GENERATOR MUST NOT BE USED BY PERSONS (INCLUDING

CHILDREN) WITH REDUCED PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

• THE CLEANING AND MAINTENANCE REQUIRED BY THE USER MUST NOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION.
  CHILDREN MUST BE CHECKED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
• DO NOT TOUCH THE GENERATOR WHEN YOU ARE BAREFOOT OR WHEN PARTS OF THE BODY ARE WET OR DAMP.

- THE SAFETY AND ADJUSTMENT DEVICES MUST NOT BE MODIFIED WITHOUT THE AUTHORISATION OR INDICATIONS OF THE MANUFACTURER.

- DO NOT PULL, REMOVE, TWIST THE ELECTRICAL CABLES COMING OUT OF THE PRODUCT EVEN IF IT IS DISCONNECTED FROM THE MAINS. - IT IS ADVISED TO POSITION THE POWER SUPPLY CABLE SO THAT IT DOES NOT COME INTO CONTACT WITH HOT PARTS OF THE APPLIANCE.

- THE POWER SUPPLY PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

- DO NOT CLOSE OR REDUCE THE DIMENSIONS OF THE AIRING VENTS IN THE PLACE OF INSTALLATION. THE AIRING VENTS ARE ESSENTIAL FOR CORRECT COMBUSTION.

- DO NOT LEAVE THE PACKAGING ELEMENTS WITHIN REACH OF CHILDREN OR UNASSISTED DISABLED PERSONS.

- THE HEARTH DOOR MUST ALWAYS BE CLOSED DURING NORMAL FUNCTIONING OF THE PRODUCT.

- WHEN THE APPLIANCE IS FUNCTIONING AND HOT TO THE TOUCH, ESPECIALLY ALL EXTERNAL SURFACES, ATTENTION MUST BE PAID

- CHECK FOR THE PRESENCE OF ANY OBSTRUCTIONS BEFORE SWITCHING THE APPLIANCE ON FOLLOWING A PROLONGED PERIOD OF INACTIVITY.

- THE GENERATOR HAS BEEN DESIGNED TO FUNCTION IN ANY CLIMATIC CONDITION. IN PARTICULARLY ADVERSE CONDITIONS (STRONG WIND, FREEZING) SAFETY SYSTEMS MAY INTERVENE THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTER-SALES SERVICE AND ALWAYS DISABLE THE SAFETY

SYSTEMS.

IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES OR REQUEST HELP FROM THE FIRE BRIGADE.

- THIS APPLIANCE MUST NOT BE USED TO BURN WASTE

- DO NOT USE ANY FLAMMABLE LIQUIDS FOR IGNITION

◆ DURING THE FILLING PHASE DO NOT PUT THE BAG OF PELLETS TO INTO CONTACT WITH THE PRODUCT

- THE MAJOLICAS ARE TOP QUALITY ARTISAN PRODUCTS AND AS SUCH CAN HAVE MICRO-DOTS, CRACKLES AND CHROMATIC IMPERFECTIONS. THESE FEATURES HIGHLIGHT THEIR VALUABLE NATURE. DUE TO THEIR DIFFERENT DILATION COEFFICIENT, THEY PRODUCE CRACKLING, WHICH DEMONSTRATE THEIR EFFECTIVE AUTHENTICITY. TO CLEAN THE MAJOLICAS, IT IS RECOMMENDED TO USE A SOFT, DRY CLOTH. IF A DETERGENT OR LIQUID IS USED, THE LATTER COULD PENETRATE INSIDE THE CRACKLES, HIGHLIGHTING THEM.

- SINCE THE PRODUCT CAN TURN ON AUTOMATICALLY THANKS TO THE TIMER, OR REMOTELY USING THE DEDICATED APPLICATIONS, IT IS STRICTLY FORBIDDEN TO LEAVE ANY COMBUSTIBLE OBJECT WITHIN THE SAFETY DISTANCES INDICATED ON THE TECHNICAL DATA PLATE.

- INTERNAL COMBUSTION CHAMBER PARTS CAN BE SUBJECT TO EXTETICAL WARN, IT DOESN'T AFFECT THE FUNCTIONALITY

routine Maintenance

Based on Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing degradation due to normal use, as well as dealing with accidental events entailing the need of first interventions, which however do not modify the structure of the system upon which one is intervening or its intended use according to the requirements laid down by the technical standards in force and by the manufacturer's use and maintenance manual.

INSTALLATION

GENERAL

The flue gas exhaust and hydraulic connections must be carried out by qualified personnel who must issue installation conformity documentation compliant with national standards.

The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with:

1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);
2) photocopy or photograph of the chimney plaque;
3) system booklet (where applicable).

The installer must ask to be issued with a receipt stating that the documentation has been provided, and must keep it with a copy of the technical documentation relating to the installation.

For installation in a condominium, prior approval from the condominium's administrator must be requested.

Where required, check the exhaust gas emissions after installation. Should a sampling point be installed, it must be airtight.

COMPATIBILITY

Do not install in rooms with a fire hazard. It is also forbidden to install it in living areas with the following characteristics:

1. where there are liquid fuel appliances with continuous or discontinuous operation that draw the combustion air into the room in which they are installed.
2. where there are type B gas appliances intended for heating, with or without domestic hot water production and in adjacent and communicating rooms.
3. where the depression measured in situ between the external and internal environment is greater than 4 Pa.

N.B.: Watertight appliances can also be installed in the cases indicated in points 1, 2 and 3 of this paragraph.

INSTALLATIONS IN BATHROOMS, BEDROOMS AND STUDIO FLATS

Installation in bathrooms, bedrooms and studio flats is only allowed for sealed or closed hearth appliances with ducted combustion air taken from the outside.

POSITIONING AND SAFETY DISTANCES

The support surfaces and/or points must have a suitable capacity to bear the overall weight of the appliance, accessories and coverings. If the floor is made of a combustible material, we recommend using a non-combustible material to protect the front part from any burnt material which might fall during routine cleaning operations. The generator must be level to function properly. The side walls, the rear walls and the floor support surface should be made of non-combustible material.

MINIMUM DISTANCES

Installation next to flammable or heat-sensitive materials is permitted only if the special safety distances specified on the label at the beginning of the manual (pag.2) are observed. If the materials are not flammable, you must keep a side and rear distance of at least 100 mm (without the inserts). For products equipped with rear spacers, wall-mounting installation is permitted exclusively for the rear side.

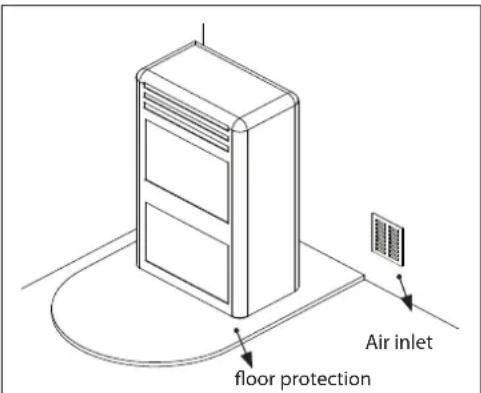

PREPARATIONS FOR MAINTENANCE

Air inlet floor protection

One must also bear in mind all laws and national, regional, provincial and town council regulations in force in the country in which the appliance has been installed, as well as the instructions contained in this manual.

To carry out extraordinary maintenance operations on the product, it may be necessary to move it away from the adjacent walls. This must be done by a technician authorised to disconnect the combustion product evacuation ducts and then reconnect them. For heaters connected to the hydraulic system, the connection between the system itself and the product must be made in such a way that, when an authorised technician is about to carry out extraordinary maintenance operations, it is possible to move the heater at least 1 metre away from the adjacent walls.

INSTALLING INSERTS

When installing inserts, access must be prevented to the internal parts of the appliance and it must not be possible to access live parts during extraction operations.

Any wiring, for example the power cable or room probe, must be positioned so as not to be damaged during movement of the insert and must not come into contact with hot parts. If a cavity made of combustible material is installed, we recommend taking all the safety precautions indicated by the installation standards.

VENTILATION AND AERATION OF INSTALLATION ROOMS

In case of non-airtight heater and/or installation, the ventilation must respect the minimum area indicated below (considering the highest value among those provided):

Appliance categories Reference standard	Percentage of the net opening section with respect to the appliance fumes outlet section	Minimum net opening value of the ventilation duct
Pellet stoves UNI EN 14785 - 80 cm ^2
Boilers UNI EN 303-5 50% 100 cm ^2

Under any condition, including in the presence of extractor hoods and/or of controlled forced ventilation systems, the pressure difference between the generator installation rooms and the outside must always be equal to or less than 4 Pa.

Extraflame®

In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening.

The air inlets must meet the following requirements:

◆ they must be protected with grids, metal mesh, etc., but without reducing the net useful section;
◆ they must be made so as to make the maintenance operations possible;
- positioned so that they cannot be obstructed;

The clean and non-contaminated air flow can also be obtained from a room adjacent to that of installation (indirect aeration and ventilation), as long as the flow takes place freely through permanent openings communicating with the outside.

The adjacent room cannot be used as a garage, or to store combustible material or for any other activity with a fire hazard, bathroom, bedroom or common room of the building.

Flue gas eXhaust

The heat generator works in depression and is equipped with an outlet fan for flue gas extraction. There must be a single exhaust system for the generator. Using a flue that is shared with other devices is not allowed.

The components of the flue gas exhaust system must be chosen in relation to the type of appliance to be installed in compliance with:

• UNI/TS 11278 in the event of metal chimneys, with particular attention to that stated in the specification;
  ♦ UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI EN 1806 in the event of non-metallic chimneys.
  The length of the horizontal section must be minimal and, in any case, no longer than 3 metres, with a minimum upward slope of 3%
  There must not be more than 4 direction changes including the one due to the use of the "T" element.
  A "T" fitting with a condensation collection cap must be provided at the base of the vertical section.
  If the exhaust is not inserted in an existing flue, a vertical section with a windproof end piece is required (UNI 10683).
  The vertical duct can be inside or outside the building. If the smoke duct is inserted in an existing flue, it must be certified for solid fuel.
• If the smoke duct is outside the building, it must always be insulated.
• The smoke ducts must have at least one airtight inlet for flue gas sampling.
• All the sections of the flue gas duct must be accessible to inspection.
• Inspection openings must be provided for cleaning.
  If the generator has a fume temperature lower than 160^ C+ ambient temperature caused by the high yield (contact technicians) it MUST be resistant to humidity.
  A flue system that does not respect the previous points or, in general, that does not comply with the regulations, may cause condensation phenomena inside it.

ChIMneY CaP

The chimney caps must meet the following requirements:

◆ they must have a useful outlet section no less than double that of the chimney/ducted system on which it is installed;
◆ they must be adapted in order to prevent the penetration of rain and snow in the chimney/ducted system;
- they must be built so that, in the event of winds coming from all directions and from any angle, the expulsion of combustion products is in any case ensured;

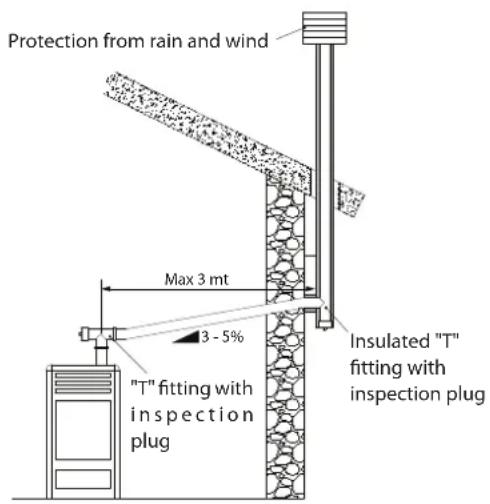

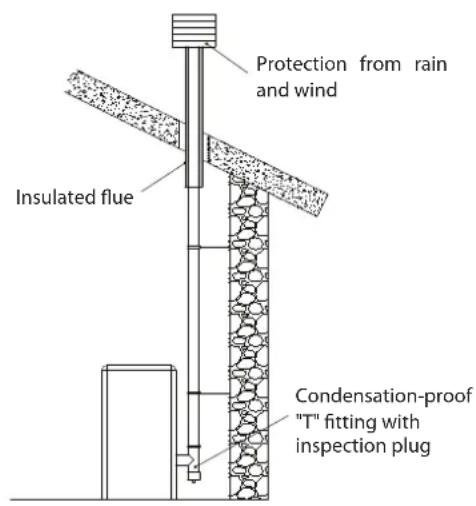

ExAMPIEs of coRREcT connEcTion To ThE chiMnEy

Protection from rain and wind Insulated flue Condensation-proof "T" fitting with inspection plug

Protection from rain and wind Max 3 mt Insulated "T" fitting with inspection plug "T" fitting with inspection plug 3 - 5%

COnneCtlOn tO the Mains eleCtrlC suPPIY

The generator is supplied with an electric power cable to be plugged into a 230V 50 Hz socket, possibly with a circuit breaker switch. The socket must be easily accessible.

The electrical system must be compliant with standards. The efficiency of the earthing circuit must be checked. Unsuitable earthing of the system can cause malfunctioning for which the manufacturer will not be held liable.

Power supply variations beyond 10% can cause faulty operation of the product.

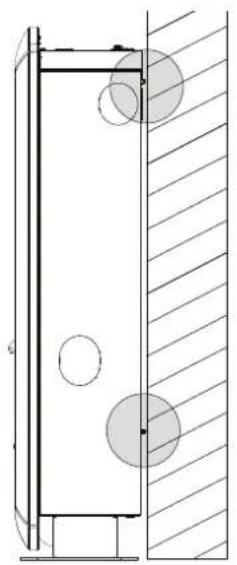

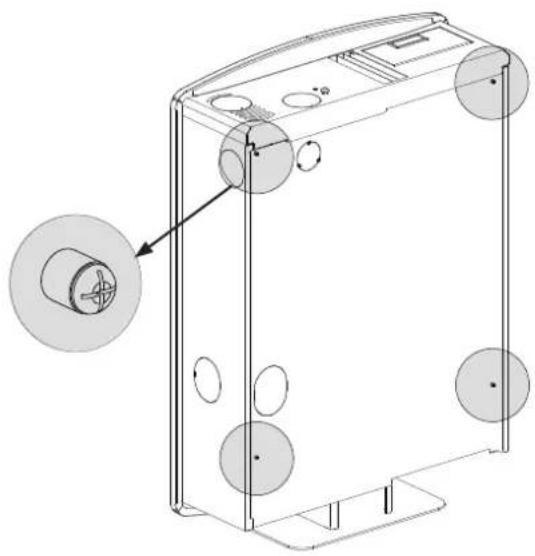

sOUveNIR AND IleNIA - ANNAbelIA spACeRs

Models " SOUVENIR" and "ILENIA - ANNABELLA" feature 4 spacers at the back which delimit the minimum distance to be maintained from any rear support.

The spacers must not be removed.

Technical diagram of a door with circular components and hatched walls, no text or symbols present

Technical line drawing of a mechanical housing or enclosure with circular components and a magnified inset showing a cylindrical component (no text or symbols)

HOT AIR DUCTING

The pipe used for ducting the hot air must have an internal diameter of 80 mm, be insulated and protected against heat loss.

INsTALIATION Of THE Relevant pIpes UseD fOR DUCTING THE HOT AIR mUsT be peRfORmeD by qUALIfleD sTAff AND/OR THE mANUfACTURE's TeCHNICAL AfTeR-sAles AssIsTANCE

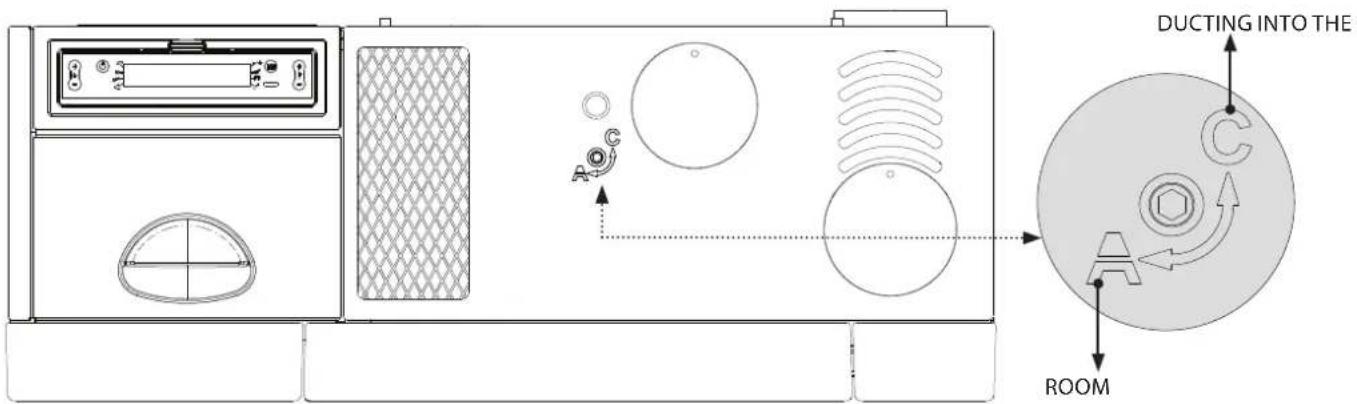

sOUveNIR - IleNIA - ANNAbellA

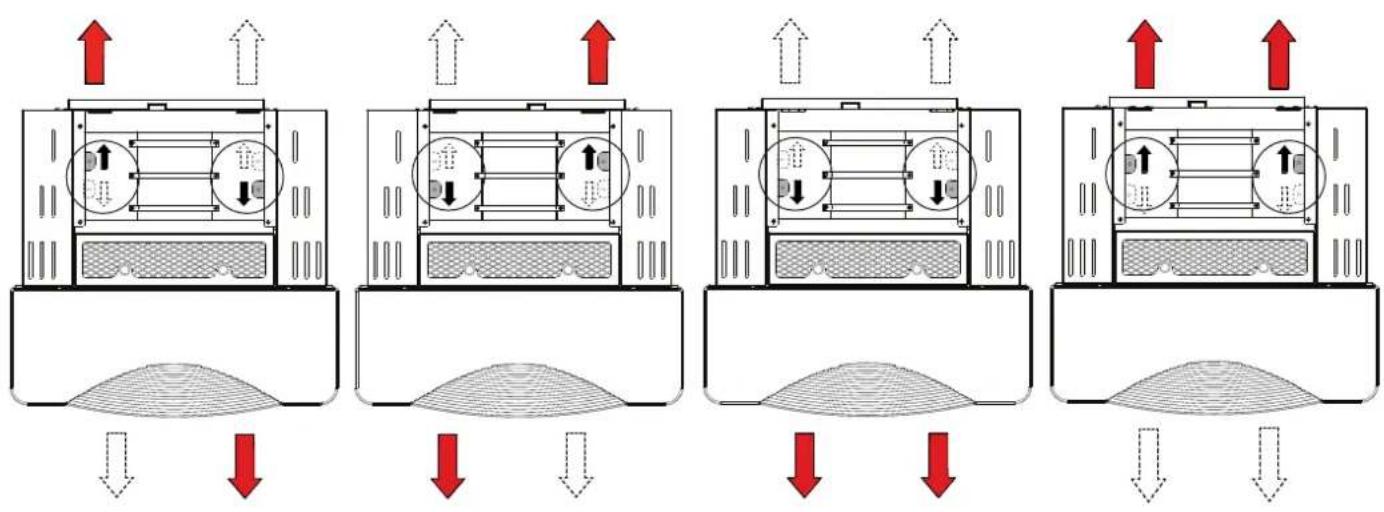

Models "SOUVENIR" and "ILENIA - ANNABELLA" can be ducted at the back (1), to the side (2) or at the top (3), for further details relating to installation refer to the instruction sheet included in the machine.

There is the possibility to decide when to use the ducting by manually diverting the hot air flow, using a key, supplied, which can be inserted in the relevant housing located on the upper part of the stove.

DUCTING INTO THE ROOM

- SOUVENIR

By turning it counterclockwise (position "C") part of the air is conveyed into the ducting, by turning it clockwise (position "A") the ducting is conveyed into the room.

It is possible to use single ducting as required.

- ILENIA - ANNABELLA

By turning it counterclockwise (position "C") the air is conveyed into the ducting, by turning it clockwise (position "A") the air is conveyed into the room.

It is possible to use single ducting as required.

12 ENGLISH

Extraflame®

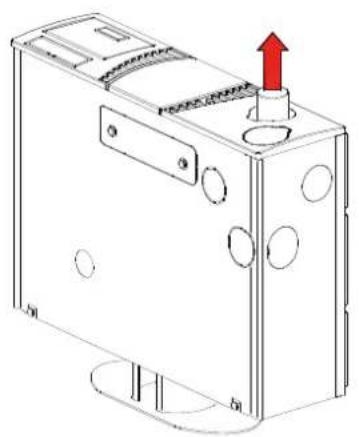

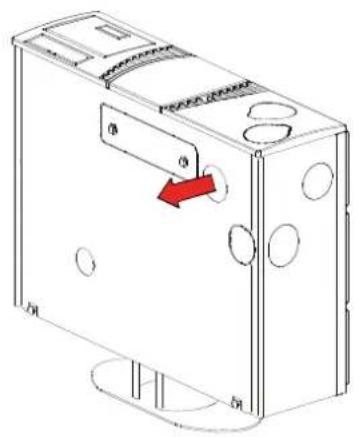

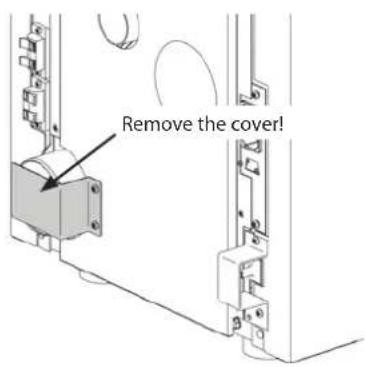

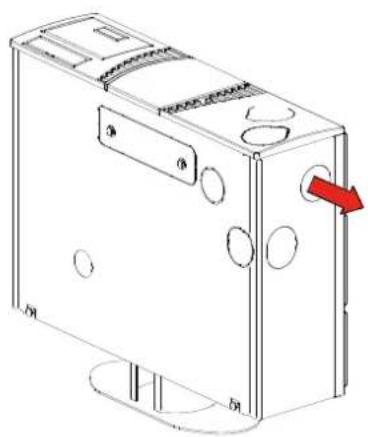

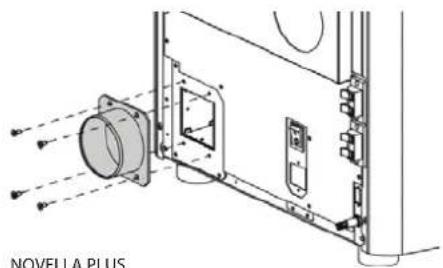

Features:

• ducting outlet diameter: 80 mm
  ◆ maximum recommended ducting length 6m
• it is not possible to thermostat the ducting
  ♦ possibility to adjust the fan speed in percentage.

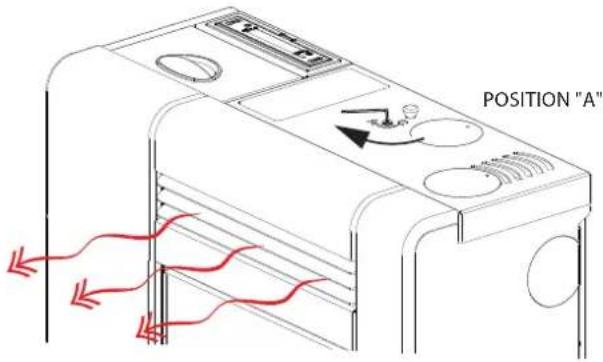

POSITION "A"

POSITION "C"

Technical line drawing of a mechanical housing or enclosure with mounting holes and a red upward arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with circular cutouts and a red arrow indicating a directional component (no text or symbols present)

Technical line drawing of a mechanical housing or enclosure with circular cutouts and a red arrow indicating a component (no text or symbols present)

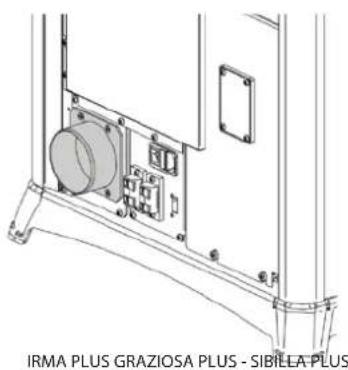

GRAZIOsA pIUs, IRmA pIUs, NOvelIA pIUs & sIbIIIA pIUs

For GRAZIOSA PLUS, IRMA PLUS, NOVELLA PLUS & SIBILLA PLUS model it is mandatory to duct the hot air.

Features:

• ducting outlet diameter: 80 mm
  ◆ maximum recommended ducting length 6m GRAZIOSA PLUS, IRMA PLUS & SIBILLA PLUS
  ◆ maximum recommended ducting length 8m NOVELLA PLUS
• possibility to thermostat the ducting via an additional thermostat
• possibility to adjust the fan speed in percentage.

The ducting extension is found in the accessory pack inside the stove. It is mounted by means of the 4 supplied screws.

NOVELLA PLUS

IRMA PLUS GRAZIOSA PLUS - SIBILEA PLUS

Remove the cover!

fOR THIs pPRODUCT IT Is mANDATORY TO DUCT THE HOT AIR. IT Is NOT pOssible TO DIsAble THE DUCTING mOTOR. DO NOT COveR OR CIOse THE DUCTING!

emmA pIUs & TOsCA pIUs

The EMMA PLUS & TOSCA pLUS model offer the possibility to decide where to aim the hot air flow thanks to 2 gate valves moved by 2 levers positioned inside the pellet tank, which must be activated via the poker supplied (see figures below). One can use both outlets on the back of the appliance

Extraflame®

Features:

• ducting outlet diameter: 2x80 mm
  • maximum recommended ducting length 2m
• it is not possible to thermostat the ducting
• possibility to adjust the fan speed in percentage

Diagram illustrating four stages of a mechanical or electrical device with red arrows indicating upward and downward motion, showing internal components and load distribution.

ADDITIONAL THeRmOsTAT fOR DUCTING mOTOR CONTROL

For models with ducting motor there is also the possibility of thermostatting the motor itself. The connection of an external thermostat will allow to control the ducting motor independently from stove functioning.

At this point just set the desired temperature on the thermostat; the thermostat will control the functioning of the second motor:

• with temperature to be reached (closed contact) the second motor will follow the trend of the stove.
  when the temperature has been reached (open contact), it takes the ducting motor to 1st speed and will be displayed by the flashing LED relating to the ducting motor.

The ducting thermostat clamp is fitted with a jumper as standard.

See the example drawing to the side.

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ReARms

The figures below illustrate the positions of the tank (85°C) rearms. Contact the qualified technician if one of the rearms should be triggered, so as to verify the cause.

85°C 85°C°

PELLETS AND FEEDING

Pellets are made by applying high pressure to sawdust, or wood waste products (not containing paint) from sawmills, carpentry and other activities related to processing and working with wood.

Given that it does not use any glue to hold it together this type of fuel is completely environmentally friendly. In fact the compactness of the pellets over time is guaranteed by a natural substance found in the wood itself: wood coal. In addition to being an environmentally friendly fuel in that it pushes wood residues to the limits pellets also have technical advantages.

While wood has a calorific value of 4.4kWh/kg. (with 15% humidity after around 18 months of seasoning) the calorific value of pellets is 5 kWh/kg.

Pellet density is 650kg/m3 and the water content is equal to 8% of its weight. For this reason they do not require seasoning in order to arrive at a sufficiently adequate degree of heat yield.

The pellets used must comply with the characteristics described by the following standards:

EN PLUS class A1, ISO 17225-2 class A1

and

UNI EN 303-5 with the following characteristics: water content ≤ 12% , ash content ≤ 0.5% and lower calorific value >17MJ / kg (in the case of boilers).

The manufacturer always recommended using pellets with a diameter of 6 mm with its products.

PELLET STORAGE

In order to ensure problem-free combustion pellets must be stored in a dry place.

Open the tank lid and load the pellets using a scoop.

Line drawing of a kitchen appliance with a spatula lifting a tray (no text or symbols)

THE USE OF EXPIRED PELLETS OR ANY OTHER MATERIAL WILL AFFECT THE FUNCTIONALITY OF YOUR GENERATOR AND MAY LEAD TO THE TERMINATION OF THE WARRANTY AND CESSATION OF ANY ACCOMPANYING RESPONSIBILITY ON THE PART OF THE MANUFACTURER

Control panel

BUTTON ON/OFF DISPLAY OF VARIOUS TEXT MESSAGES TO ACCESS THE MENU 2 1 OFF 6 4 3 -2 -F1 5 ADJUSTMENT OPERATING POWER TEMPERATURE SETTING

Display iCons key
	Indicates the receipt of the radio signalOn = during radio communicationOff = no radio communicationFixed on = serial input disabled		Indicates the status of the additional thermostat input (GND - I3)
	It indicates fumes motor operation.Off = fumes motor disabledOn = fumes motor activeFlashing = breakdown		It indicates ducted motor operationOff = Motor disabledOn = Motor activeFlashing = the motor is running at minimum and in modulation mode (additional input open)
	It indicates tangential fan operation (where applicable)Off = not workingOn = workingFlashing = motor at minimum		Indicates the activation of the F1 function (future set-up)Off = function disabledOn = function active
	It indicates pellet feed motor operationOff = pellet feed motor disabledOn = pellet feed motor active	[YAYS]	It indicates weekly programming functioningIndicator on = weekly programming activeIndicator off = weekly programming disabled
	Indicates the compensation functionOff = the function is disabledOn = the function is active		Indicates the stove modulationOn = the stove is working at the set powerFlashing = the power at which the stove is working is different to the power set, the stove is modulating (for various reasons)
	Indicates the contact of the external additional thermostat		Indicates the presence of an alarm.On: indicates the presence of an alarmOff: indicates the absence of alarms
	Contact closed: the contact of the external additional thermostat is closed and the STBY function is disabled
	Contact open: the contact of the external additional thermostat is open and the STBY function is disabled	[###]	Indicates the room temperature statusOff = the T^ read by the probe is above the set temperatureOn = the T^ read by the probe is below the set temperature
	Flashing with closed contact: the contact of the external additional thermostat is closed and the STBY function is active
	Flashing with open contact: the contact of the external additional thermostat is open and the STBY function is active		Tank probeOff = probe okOn = broken probe (short circuit or open)Flashing = modulation due to tank

General Menu

    subgraph Data Details
        U["Go BaCk - exit"] --> V["paraMeter sCrollInG: next (2) ; previous (3)"]
        V --> W["MoDiFy settinGs Data: inCrease (4); DeCrease (5)"]
        W --> X["ConFirM - aCCess Menu"]
    end

General warningGs

Advice to follow for the first start-ups of the product:

During the first hours of operation, there may be some smoke or odours, but they are due to the normal "thermal break-in" process. During this process, the duration of which changes depending on the product, it is recommended to:

• Ventilate the room well
• If present, remove any majolica parts from the top of the product
  ◆ Activate the product at the maximum power and temperature
• Avoid remaining in the room for a long time
• Do not touch the surfaces of the product

Notes:

The process is completed after a few heating/cooling cycles.

Do not use for the combustion of elements or substances other than those indicated in the manual.

Before turning on the product, it is necessary to perform the following checks:

If it is intended to be connected to a hydraulic system, it must be complete and fully functional and in compliance with the instructions given in the product manual and with the relevant regulations in force.

◆ The pellet hopper must be completed loaded
- The combustion chamber and the burn pot must be clean
Make sure that the fire holder, the ash pan and the pellet hopper close hermetically (if present in the hermetic version); they must be closed and there must be no foreign bodies in the sealing elements and gaskets.
- Check that the power cord is properly connected
The bipolar switch (if present) must be set to position "1".

it is ForBiDDen to use the applianCe without the DiviDer anD/ or Glass proteCtion (see the FiGure to the siDe).

its reMoval JeoparDises the saFety of the proDuCt anD iIMMeDiately voiDs the warranty perioD.

in the event of wear or Deterioration ContaCt the assistantCe serviCe to replaCe the part

(the replaCeMent is not CovereD By the proDuCt warranty as it is a part suBJeCt to wear).

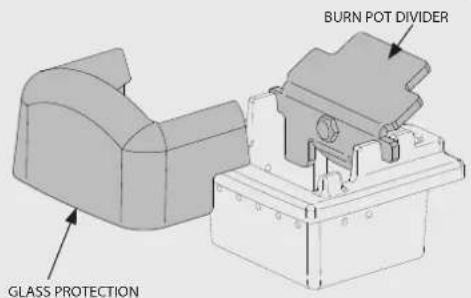

BURN POT DIVIDER GLASS PROTECTION

the reMote Control

All that can normally be implemented through the LCD can be adjusted using the remote control.

The table below provides a detailed description of the various functions:

1 2 + 4 3 - 6 + - 1h 7 - 5 9 8 ESC 10 11 OK 12 F1 INFO 14 15 16

1	on / oFF	Pressing the key for three seconds, the stove will switch on or off
2	power inCrease	Pressing the key will increase the operating power
3	power DeCrease	Pressing the key will decrease the operating power
4	t° inCrease	The temperature setting can be increased by pressing this key
5	t° DeCrease	The set temperature can be decreased by pressing this key
6	enaBle / DisaBle Chrono	Pressing the key once will enable or disable the chrono
7	DelayeD switCh-oFF enaBlinG	The delayed switch-off can be set by pressing this key.For example, if the stove is set to switch-off in an hour, it shall switch-off automatically once the set time elapses, displaying the countdown every minute for delayed automatic shutdown.
8	Menu	This key allows to access the user and technical menu (the technical menu is reserved for assistance)
9	inCrease	The temperature setting can be increased by pressing this key
10	esC key	The key allows the user to exit any program or display and returns to the main menu without saving the data
11	BaCk The key returns to the display of the various menus
12	ConFirMation key	This key confirms the adjustments made during the user menu programming phase
13	ForwarD	The key allows to go forward in the various menus
14	enaBle FunCtion F1 Pre-set key for future applications
15	DeCrease The key decreases the value to be set
16	stove status	Pressing this key will display the general status of the stove

Important note: the numbers shown on the remote control are purely indicative and are not present on the remote control supplied with the product.

type anD replaCeMent of Batteries

The batteries are housed in the lower part of the remote control.

To replace them, remove the battery holder (as indicated in the figure at the back of the remote control), remove or

insert the battery following symbols on the remote control and on the battery.

For operation, 1 CR2025, 3V lithium buffer battery is required.

Line drawing of a remote control device with scroll and handle components (no text or symbols)

If the remote control is off because it has no batteries, the stove can be controlled from the control panel on top of it. While replacing the battery, pay attention to the polarity by observing the symbol on the inside compartment of the remote control.

The batteries used contain metals harmful for the environment. They must therefore be disposed of separately in appropriate containers.

Once the power cable at the back of the stove has been connected, move the switch, also located on the back, to (1).

The switch at the back of the stove powers the stove board.

The stove remains off and a first screen appears on the panel

reading OFF.

Mains FrequenCy 50/60hZ

In the event the stove is installed in a country with 60Hz frequency, the stove will display "frequenza rete errata" ("mains frequency incorrect"). Vary the frequency as described below.

CONTROLS PROCEDURE

• Press key 6,
• Select the frequency required using key 4 or 5.
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

aDJustinG tiMe, Day, Month anD year

Set clock allows to adjust the time and date

CONTROLS PROCEDURE

• Press key 6 and set CloCk will appear.
• Confirm using key 6.
  Use keys 4 and 5 to select the day.
• Proceed by pressing key 2.
  With the same procedure, use keys 4 or 5 to set and key 2 to move forward, to adjust the hours, minutes, day, month and year
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

set CloCk
DAY MON, TUE, WED, ...SUN
HOURS 0...23
MINUTES 00...59
DATE 1...31
MONTH 1...12
YEAR 00...99

aDJustinG IanGuaGe

It is possible to select the preferred language to display the various messages.

CONTROLS PROCEDURE

• Press key 6 and set CloCk will appear.
• Press key 2 until set IanGuaGe appears.
• Confirm using key 6.
• Select the language using key 4 or 5.
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

set IanGuaGe
LANGUAGE	ITALIAN
	ENGLISH
	GERMAN
	FRENCH
	SPANISH

no iGnition

First iGnition CouID even Fail as the auGer is eMpty anD is not always aBLE to loaD the Burn pot with the requireD aMount of pellets on tiMe to reGularly start the FlaMe.

iF the proBleM oCCurs aFter only a Few Months workingG, CheCk that routine CleaninG stateD in the stove Booklet, has Been CarrieD out CorreCtly.

Clean CheCk up 1 -2

in the event the "all no Flusso - all Clean CheCk up" alarM is triGGereD, Make sure that the BottoM of the Burn pot is Free of ResiDues or sCales. the holes at the BottoM Must Be CoMpletely Free to Guarantee CorreCt CoMBustion. one Can use the Function "pellet FeeD aDJustMent" to aDJust CoMBustion aCCorDinG to the DesCriBeD requireMents. if the alarM persists and the aBove listeD ConDitions have Been CheCkeD, ContaCt the qualiFieD after-sales assistanCe Centre.

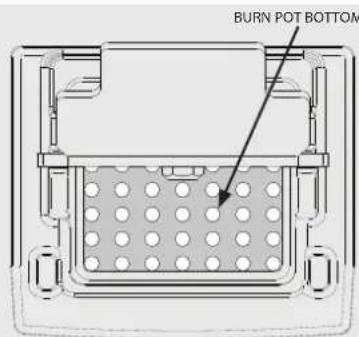

BURN POT BOTTOM

OPERATION AND LOGIC

OFF - F1

IGNITION

Once the points listed previously have been checked, press key 1 for three seconds to ignite the stove. 15 minutes are given for the ignition stage, after ignition and once the control temperature has been reached, the stove interrupts the ignition phase and switches to the START-UP mode.

STARTING

During the start-up stage, the stove stabilises combustion, increasing it gradually, to then start ventilation and switch to the WORK mode.

WORK

During the work stage, the stove reaches the set power and works to reach the set room temperature. See following item.

SET THERMOSTAT ADJUSTMENT

The room temperature setting can be set using buttons 4 and 5, from Low-07 to 40°C -Hot

LOW - HOT

If the temperature setting is on "Low" (set below the 7°C threshold) the stove will always function at minimum. If the setting is on "Hot" (set above the 40°C threshold) the stove will not modulate, always functioning and only at the set power.

SET POWER ADJUSTMENT

Set the functioning power from 1 to 5 (settable using keys 2 - 3). Power 1 = minimum level - Power 5 = maximum level.

WORK WITH ROOM PROBE (STANDARD)

The appliance controls the room temperature via a probe fitted on the appliance.

Once the the set temperature has been reached, it will automatically go to minimum or switch off activating the Stand by function, reducing pellet consumption to a minimum.

By default the STBY function is always set on OFF (light o- on).

For its activation and logic, follow the indications on the next page, chapter: Stand by.

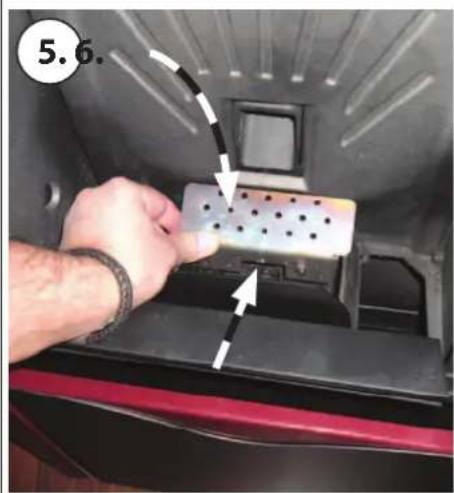

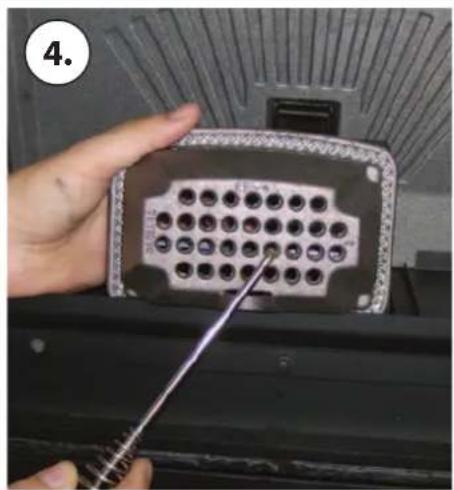

BURN POT CLEANING

During the work stage, the stove has an internal counter which cleans the burn pot after a set amount of time.

This stage will be shown on the display, it will bring the stove to a lower power level and will increase the fumes motor for a programmed amount of time.

When the cleaning stage is finished, the stove will continue its work, going back to the selected power level.

SWITCH-OFF

Press key 1 for three seconds.

When the operation has been performed, the appliance automatically enters the switch-off phase, blocking the supply of pellets.

The fumes motor and the hot air ventilation motor will remain on until the temperature of the stove has dropped below the factory parameters.

RE-IGNITION

The stove can only be re-ignited if the flue gas temperature has lowered and the preset timer has been reset to zero.

DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION! DO NOT ALLOW THE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE DURING THE FILLING PHASE! IN THE EVENT OF CONTINUOUS NO IGNITION, CONTACT AN AUTHORISED TECHNICIAN.

ADDITIONAL THERMOSTAT (OPTIONAL)

The appliance can control the room temperature using an additional external thermostat (optional).

After ignition (pressing key 1 or via chrono mode), the stove will work to reach the setting set on the thermostat, displaying WORK (contact closed). The standard room probe is automatically ignored.

When the room temperature has been reached (open contact) the stove will go to minimum, displaying MODULATE.

TO INSTALL AND ENABLE IT:

• A mechanical or digital thermostat is required.
• Remove the plug from the socket.
  ♦ Referring to the figure to the side, connect the two thermostat wires (dry contact - not 230 V!) on the relative terminals at the back of the machine, one is red and the other one is black.
  Power the stove.
• Press key 5, setting the temperature on LOW.

20 18 22 16 24

The stove is now configured correctly.

It will work controlling the additional external thermostat.

INSTALLATION MUST BE PERFORMED BY QUALIFIED STAFF AND/OR THE MANUFACTURER'S TECHNICAL AFTER-SALES ASSISTANCE

THERE ARE TWO STOVE OPERATING MODES, WHICH ARE DIFFERENT ACCORDING TO THE STAND- BY FUNCTION. SEE "STAND - BY" CHAPTER.

USER MENU

DISPLAY

This menu allows to adjust the brightness of the display. The possible settings range from OFF - 10 to 31.

Activating OFF, the back light of the display will go off after a preset delay.

By adjusting it between 10 and 31 the lighting intensity will be adjusted. (10 = minimum brightness 31 = maximum brightness).

The back light will go on as soon as a key is pressed or if an alarm should be triggered in the machine.

CONTROLS PROCEDURE

• Press key 6 and SET CLOCK will appear.
• Press key 2 several times until USER is displayed.
• Press key 6.
  ◆ "DISPLAY" will appear.
• Use keys 4 -5 to select the brightness of the display.
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

OFF

OFF

PELLET FEED ADJUSTMENT

The following menu allows to adjust the percentage of pellet feed.

If the stove has functioning problems owing to the quantity of pellets, adjust pellet feeding directly from the control board.

The problems correlated to the amount of fuel can be divided into 2 categories:

NO FUEL:

the stove can never develop a suitable flame, tending to remain very low even at high powers.
at minimum power the stove tends to almost switch-off taking the stove into "no pellets" alarm condition.
- when the stove displays the "no pellets" alarm, there may be non-burned pellets inside the burn pot.

EXCESS FUEL:

• the stove develops a very high flame even at low power.
• the panoramic glass is very dirty, obscuring it almost totally.
  the burn pot tends to become encrusted, blocking the holes for air intake due to the excessive pellet feed, as it is only burned partially.

The adjustment to be performed is in percentage. Therefore changing this parameter will lead to a proportional variation of all stove feeding speeds. Feeding is from -20% to +30%.

Follow the procedure on the display to perform this adjustment:

CONTROLS PROCEDURE

• Press key 6 and set CloCk will appear.
• Press key 2 several times until user is displayed.
• Press key 6.
  ◆ "Display" will appear.
• Press key 2 until "pellet" appears.
• Use keys 4 - increase 5 to(4) or decrease (5) the load during the WORK stage.
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

v1-air

The menu allows to adjust the speed of the front fan in percentage.

CONTROLS PROCEDURE

• Press key 6 and set CloCk will appear.
• Press key 2 several times until user is displayed.
• Press key 6.
  ◆ "Display" will appear.
• Press key 2 until "v1 air" appears.
  ◆ Use keys 4 -5 to increase (4) or decrease (5)
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

stanD By

stanD - By with DiGitaltherMostat (stanDarD)

STBY FUNCTION SET AT ON

If the Stby function is active (ON), when the stove reaches the set room temperature and exceeds it by 2^ C, it will switch off after a default delay time, displaying stand - by.

When the room temperature is 2^ C lower than the setting and once the stove has cooled, it will start to work again at the set power and displaying work.

STBY FUNCTION SET AT OFF (DEFAULT SETTING)

If the Stby function is not active (OFF), if the stove reaches the set room temperature, it will go to minimum, modulating and displaying modulate. When the room temperature is below the setting, it will start to work again at the set power and displaying work.

STAND - BY WITH ADDITIONAL THERMOSTAT

The STBY function is used if immediate stove switch-off is required when the set temperature has been reached.

By default the STBY function is always set on OFF (light ○—○— on).

STBY FUNCTION SET AT OFF (DEFAULT SETTING)

If the STBY function is not active (OFF), if the stove reaches the set room temperature, it will go to minimum, modulating and displaying MODULATE. When the room temperature is below the setting, it will start to work again at the set power and displaying WORK.

STBY FUNCTION SET AT ON

When the STBY function is activated (ON), the stove, upon reaching the set room temperature and exceeding it by 2^ C, will switch off after a pre-set default delay, displaying STAND - BY.

When the room temperature is 2^ C lower than the setting, the stove will start to work again at the set power displaying WORK.

CONTROLS PROCEDURE

• Press key 6 and SET CLOCK will appear.
• Press key 2 several times to reach SET USER.
• Confirm using key 6.
• Press key 2 several times to reach STAND BY.
  ◆ Using key 4 or 5 select at ON.
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

The STAND-BY function is active

"KEYS LOCKED"

The menu allows to lock the display keys (like with mobile phones).

With the function engaged, every time a key is pressed, "KEYS LOCKED" will appear.

CONTROLS PROCEDURE

◆ Press key 6 and SET CLOCK will appear.
- Press key 2 several times until USER is displayed.
- Press key 6.
♦ "DISPLAY" will appear.
- Press key 2 until "KEYS LOCKED" appears.
◆ Use keys 4 -5 to select enable/disable.
- Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

ONCE THE FUNCTION IS ACTIVATED, USE KEYS 1 AND 5 AT THE SAME TIME TO LOCK OR UNLOCK THE KEYBOARD

V2 - AIR

The menu allows to adjust the speed of the ducted fan in percentage.

CONTROLS PROCEDURE

• Press key 6 and SET CLOCK will appear.
• Press key 2 several times until USER is displayed.
• Press key 6.
• Press key 2 until "V2 AIR" appears.
  Use keys 4 -5 to increase (4) or decrease (5)
• Press key 6 to confirm and key 1 to return to the previous menus up to the initial status.

RESET

Allows to reset all values modifiable by the user to the default values. The modified data is the following:

CONTROLS PROCEDURE

• Press key 6 and SET CLOCK will appear.
• Press key 2 several times until USER is displayed.
• Press key 6.
• Press key 2 until "RESET" appears.
• Press keys 4-5 to select ON and press key 6.
  ♦ "DONE" will appear on the display to confirm

ENABLE CHRONO

It allows to enable/disable the chrono and the various time slots.

CONTROLS PROCEDURE

• Press key 6 and SET CLOCK will appear.
• Press key 2 several times until ENABLE CHRONO is displayed.
• Press key 6, to confirm and use keys 4-5 to enable "ON" or disable "OFF" the chrono.
  ◆ Use keys 2 -3 to select the desired time slot
  Use keys 4-5 to enable "ON" or disable "OFF" the selected time slot.
• Press key 1 several times to confirm and exit the menu.

CHRONO

The chrono allows to program 4 time spans within a day to use every day of the week.

The switch-on and switch-off time can be set in every time slot, along with the days of use of the programmed time slot and the desired room temperature (07 - 40°C).

RECOMMENDATIONS

The ignition and switch-off times must be within the arc of one day, from 0 to 24 and not over several days:

Before using the chrono function, set the current day and time. Therefore check that the points listed in the "Set clock" sub-chapter have been followed, so that the chrono function works. Aside from programming it, activate it as well.

EXAMPLE:

SWITCH-ON TIME 07:00 SWITCH-OFF TIME 18:00

CORRECT

IGNITION 22:00

SWITCH-OFF 05:00

INCORRECT

PROGRAMMING EXAMPLE

Let's suppose that the weekly Programmer function is to be used and 4 time slots are to be used in the following way:

• 1st time slot: from 08:00 to 12:00 every day of the week, with room temperature at 19°C, excluding Saturday and Sunday
• 2nd time slot: from 15:00 to 22:00 only on Saturday and Sunday, with room temperature at 21°C

CONTROLS PROCEDURE:

Press key 6 and SET CLOCK will appear.

Press key 2 until enable chrono appears

Enable the chrono

Enable slot 1 and 2.

Press key 1 to exit

SET CLOCK

ENABLE CHRONO

1ST TIME SLOT SWITCH-OFF

Use keys 4 - 5 to enter the time "12:00", which corresponds to the switch-off time of the 1st time slot.

To confirm and continue programming, press button 6. Press button 3 to go back to the previous parameter.

STOP PRG1 12:00

* Where "ENABLE CHRONO" is not present in the menu, enabling is done directly in SET CHRONO.

CONTROLS PROCEDURE:

Press key 2 and SET CHRONO will appear.

SET CHRONO

ENABLING THE 1ST TIME SLOT DAYS

To enable/ disable the days use keys 4 and 5; key 2 and 3 to scroll the various days, the day of the week will appear, followed by OFF

select from Monday to Friday on ON, excluding Saturday and Sunday (OFF)

MONDAY..PRG1 ON-OFF

Press key 6 to confirm and continue programming.

START PRG1 OFF will appear.

START PRG1 OFF

1ST TIME SLOT TEMPERATURE SETTING

Press key 6 to confirm and continue programming.

Using buttons 4 - 5 select the desired temperature.

(Low -07 - 40°C Hot)

SET PRG1 19°C

To confirm and proceed press key 6.

1ST TIME SLOT SWITCH-ON

Use keys 4 - 5 to enter the time "08:00", which corresponds to the switch-on time of the 1st time slot.

To confirm and continue programming, press button 6. Press button 3 to go back to the previous parameter.

START PRG1 08:00

2ND TIME SLOT SWITCH-ON*

At this point, the second time slot must be programmed.

The sequence to be followed is the same and is repeated as per the 1ST TIME SLOT SWITCH-ON.

START PRG2 OFF

*2ND TIME SLOT SWITCH-ON

At this point, the second time slot must be programmed.

The sequence to be followed is the same and is repeated as per the 1ST TIME SLOT SWITCH-ON.

On this occasion simply enter the time, for example start at 15:00 and Stop at 22:00 and to activate the days Saturday and Sunday by setting them at "ON".

WHEN THE WEEKLY PROGRAMMER IS ACTIVE, A BOX OF THE RELATIVE ICON WILL APPEAR ON THE CONTROL BOARD.

CLEANING AND MAINTENANCE

ALWAYS FOLLOW THE INSTRUCTIONS IN MAXIMUM SAFETY CONDITIONS!

Make sue the power cable is unplugged since the generator could be programmed to start.
◆ That the generator is cold in its entirety.
• The ashes are completely cold.
- Ensure an effective exchange of air in the room during the cleaning of the product.
◆ A poor cleaning is detrimental to the proper functioning and safety!

MAINTENANCE

For correct operation, the generator must undergo routine maintenance by a qualified technician at least once a year.

The routine checks and maintenance operations must always be performed by qualified trained technicians in accordance with the applicable regulations in force and with the instructions provided in this use and maintenance manual.

EVERY YEAR MAKE THE EXHAUST FUMES, SMOKE DUCTS AND "T"-FITTINGS, INCLUDING CAPS AND INSPECTION DOORS BE CLEANED - IF ANY CURVES AND ANY HORIZONTAL SECTIONS!

THE CLEANING OF THE GENERATOR FREQUENCY IS APPROXIMATE! THEY DEPEND ON THE QUALITY OF THE PELLETS USED AND THE FREQUENCY OF USE.

IT CAN HAPPEN THAT THESE OPERATIONS SHOULD BE PERFORMED MORE FREQUENTLY.

CLEANING AND MAINTENANCE BY THE USER

Routine cleaning operations, as specified in this use and maintenance manual, must be performed with the utmost care according to the instructions, procedures and frequency intervals described in this use and maintenance manual

CLEANING THE SURFACES AND COVERING

Never use abrasive or chemically aggressive detergents for cleaning!

The surface cleaning must take place when both the generator and the coating are completely cold. For the maintenance of surfaces and metal parts, simply use a damp cloth with water or mild soap and water.

Failure to observe the instructions may damage the surface of the generator and invalidate the warranty.

CLEANING THE CERAMIC GLASS

Never use abrasive or chemically aggressive detergents for cleaning!

The cleaning of the ceramic glass is allowed only when the latter is completely cold.

To clean the ceramic glazing, simply use a dry brush and some damp newspaper dabbed in the ash. If the glazing is very dirty, only use a specific ceramic glazing detergent. Spray a modest amount onto a cloth and wipe the ceramic glazing.

Do not spray cleaner or any other liquid directly on the glass or on the gaskets.

Failure to observe the instructions may damage the surface of the ceramic glass and invalidate the warranty.

CLEANING THE TANK PELLETS

When the tank empties completely, unplug the power cord from the generator and remove residues (dust, chips, etc.) from the tank empty, before filling it.

DAILY

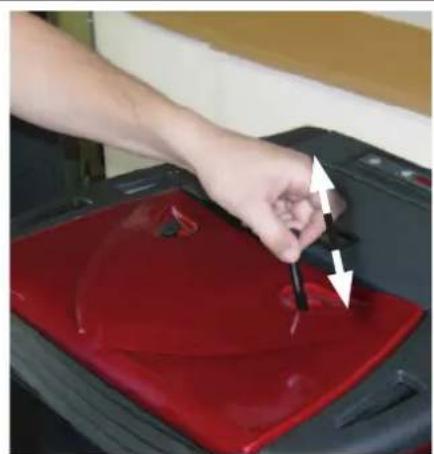

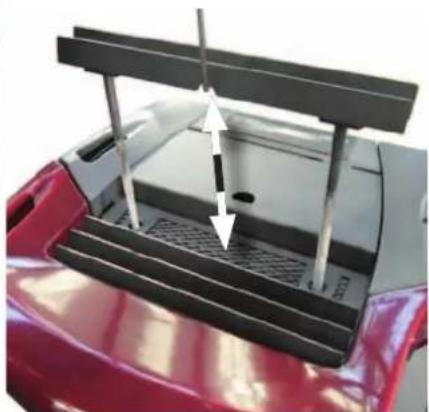

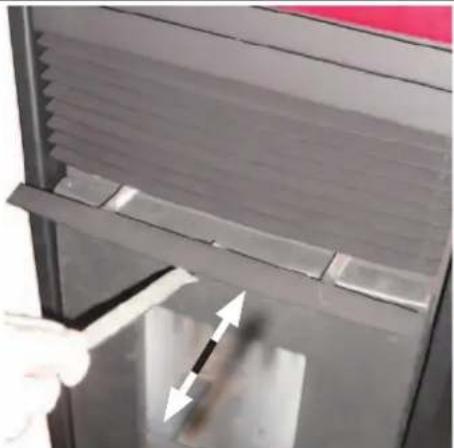

SCRAPERS:

Use the scrapers, moving upwards (for models with upper scrapers) or pulling and pushing them (for the inserts and models with front scrapers).

Please note: scrapers are preferably used when the stove is cold; if used when the stove is hot, it is recommended to use special gloves to protect against the heat as they can get very hot.

Close-up of a hand holding a red plastic object with arrows pointing to it, no visible text or symbols

Close-up of a metal panel with a hand holding a tool, showing internal structure and directional arrows (no text or symbols)

Close-up of a red car front bumper with black plastic grilles and a white directional arrow indicating movement (no text or symbols)

Open the door - Clean the glass with a damp cloth

Never spray the detergent or any other liquid used for cleaning directly on the ceramic glass

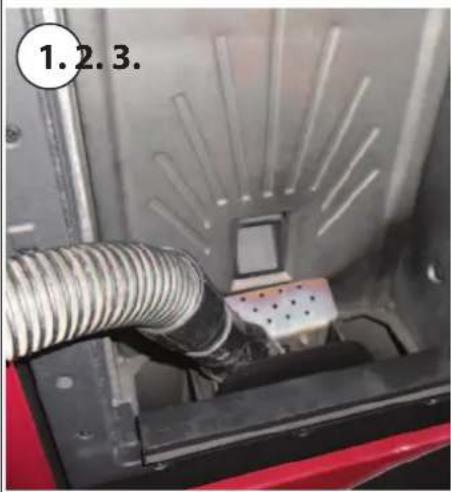

cLeaning the burn pot anD coMbuStlon chaMber

1. Vacuum the residues in the burn pot

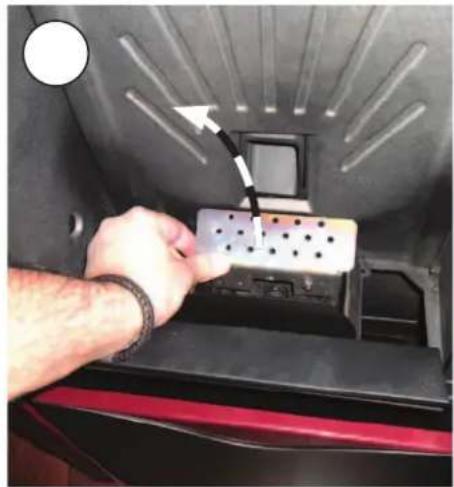

2. Take out the burn pot from the designated compartment;

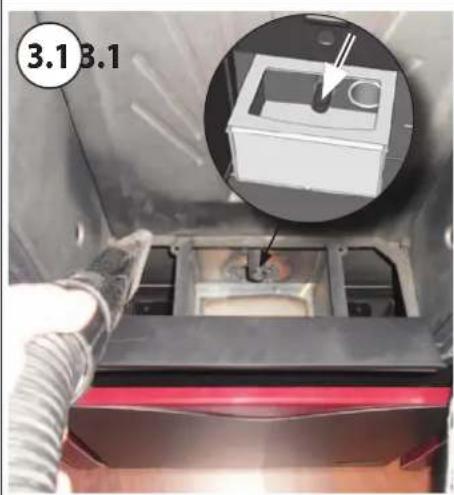

3. Vacuum the ash from the burn pot's seat and the combustion chamber (3.1)
4. Use the special poker supplied to clear the holes in the burn pot.
5. Place back the burn pot and push it towards the hearth wall.
6. If there is an ash collector tray, vacuum the ash deposits

pLeaSe note: uSe a SultabLe vacuum cLeaner with a SpeciaL container to Separate the coLLecteD aSh.

Close-up of a mechanical assembly with coiled tubing and a control panel (no visible text or symbols)

Close-up of a hand inserting a component into a vehicle chassis (no visible text or symbols)

Close-up of a hand inserting a plastic into a black plastic container (no visible text or symbols)

3.1 3.1

Close-up of a hand operating a mechanical device inside a vehicle (no visible text or symbols)

Close-up of a hand holding a connector panel with pins, being adjusted by a wire (no visible text or symbols)

5.6.

Close-up of a hand inserting a plastic into a device component (no visible text or symbols)

everY 3/4 DaYS - weekLY

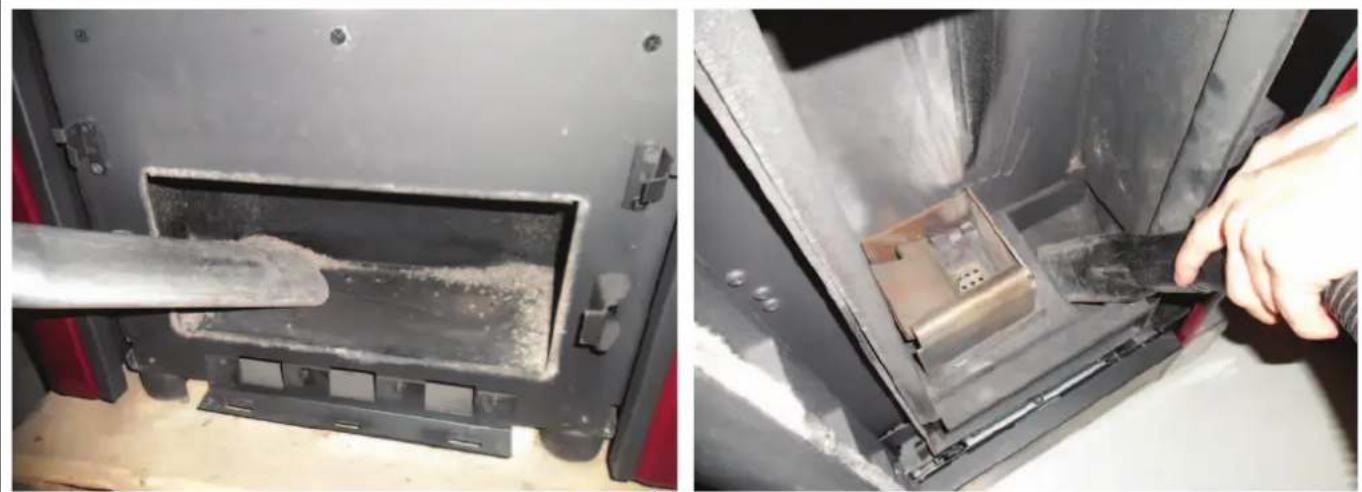

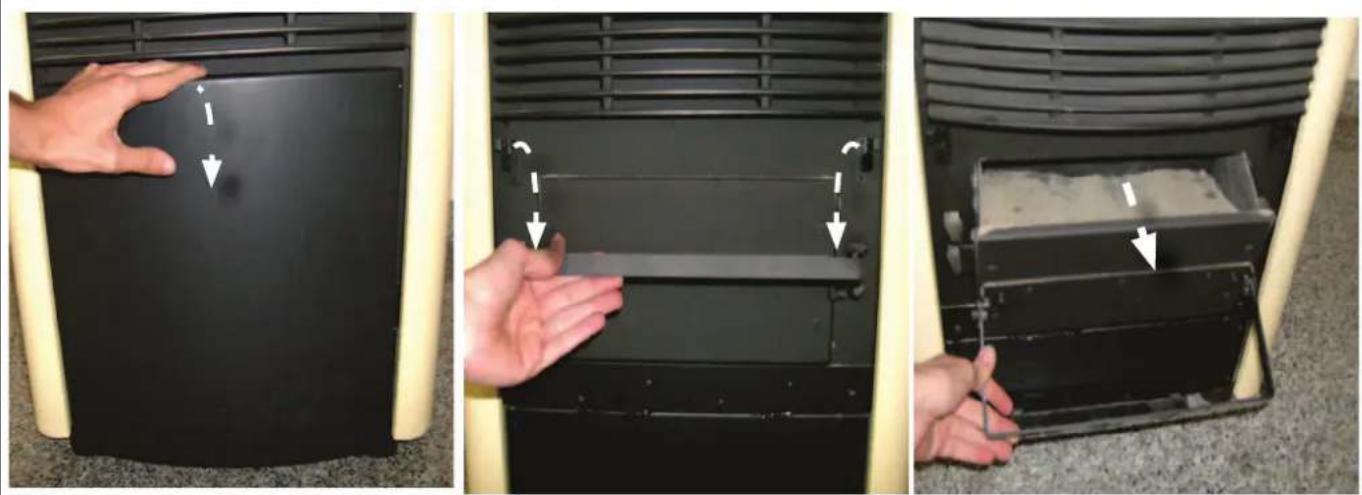

aSh Drawer

Every 3-4 days check the ash drawer and empty it at least one/twice a week.

If there is a lower door, open/remove it.

Take out the removable ash drawer and empty it in a special container.

Vacuum the area underneath the removable ash drawer. Once you have cleaned it, place back the removable drawer and close/place back the external door.

In some stoves the ash collector tray is located in the combustion chamber. In this case, just open the door and vacuum the ash from the tray.

Three-panel photo showing hands installing or adjusting a black appliance panel, with arrows indicating movement and assembly steps (no text or symbols visible)

Two-panel image showing a black metal enclosure with a pipe inserted, and a hand holding a small device inside a container (no visible text or symbols)

MonthLY

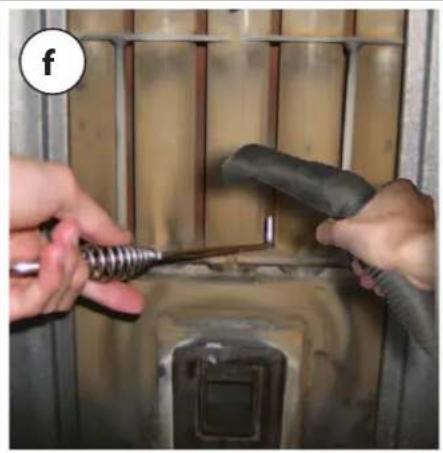

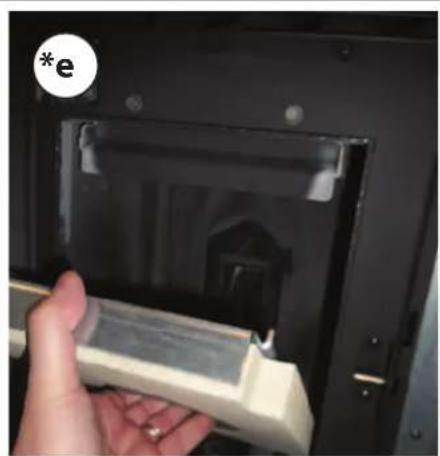

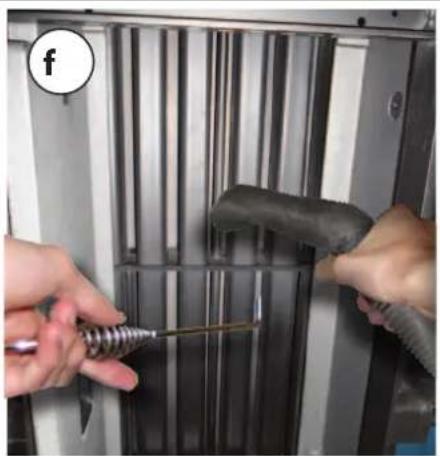

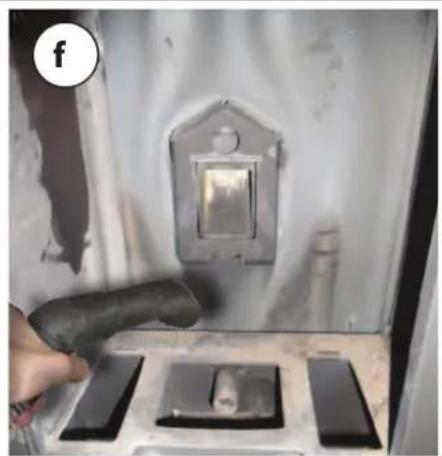

cLeaning the heat exchanger:

The heat exchangers chamber must be cleaned every month as the soot deposited on the rear of the hearth wall obstructs the regular flow of fumes, thereby affecting the performance and regular operation of the stove.

Open the door to access the combustion chamber. Take out the burn pot.

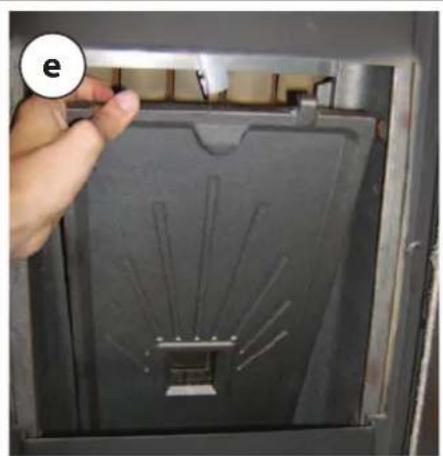

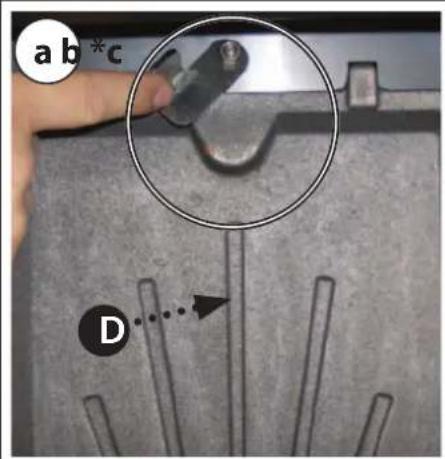

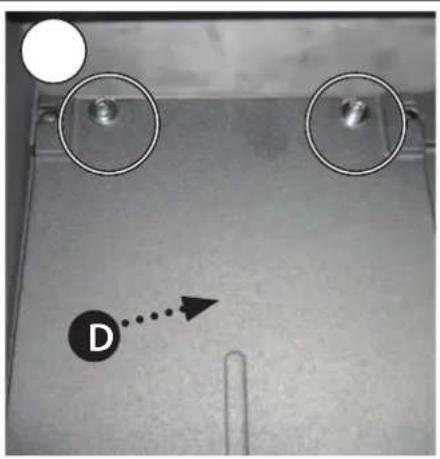

Remove or rotate, depending on the model, the upper lockbolt (A) the screws (B) or the wall lock (C) of the hearth wall (D), take out the hearth wall (E) and clean with the poker and a suitable vacuum cleaner (F).

When cleaning has been completed, reposition the removable hearth wall (D) and secure it again with the designated screws by turning the lockbolt in the opposite direction in relation to the one used to remove it or by placing back the hearth wall lock.

Place back the burn pot.

a b *c D...

Close-up of a metallic surface with two circular features and a labeled point D, no readable text or symbols present.

*D

Close-up of a hand opening a black plastic tray with radial blades, no visible text or symbols

Close-up of a hand holding a white rectangular object with radial white lines, possibly a tool or diagram (no text or symbols visible)

Hand inserting a plastic component into a black device (no visible text or symbols)

Close-up of hands using a tool to adjust or install a metal component, no visible text or symbols

Close-up of hands using a tool to adjust or install a metal bracket (no visible text or symbols)

Close-up of a hand using a tool to clean or store floor tiles, with no visible text or symbols.

ROUTINE MAINTENANCE CARRIED OUT BY AUTHORISED TECHNICIANS

Routine maintenance must be performed at least once a year.

As the generator uses pellets as solid fuel, it needs an annual routine maintenance interval that needs to be performed by an authorised Technician by only using original spare parts.

Failure to do so can affect the appliance's safety and you may no longer be entitled to the warranty conditions.

By following the cleaning schedule reserved to the user and reported in the user and maintenance manual, one ensures correct combustion in the generator over time, thereby preventing any anomalies and/or malfunctions that may require more work to be performed by the technician. Requests for routine maintenance are not covered by the product's warranty.

DOOR, ASH DRAWER AND BURN POT GASKETS

The gaskets ensure the tightness of the stove and its consequent proper operation.

They must be checked periodically: in the event they are worn or damaged they must be replaced immediately.

These operations must be carried out by a qualified technician.

CONNECTION TO THE FLUE

Vacuum and clean the pipe that leads to the flue yearly or whenever necessary. If there are horizontal sections, any residue must be removed before it obstructs the flue.

PUTTING THE EQUIPMENT OUT OF SERVICE (END OF THE SEASON)

At the end of every season, before turning off the stove, we recommend completely emptying the pellet tank and using a vacuum cleaner to clear up any pellets and dust residue inside it.

You should also disconnect the generator from the mains and, to ensure greater safety especially if there are any children around, remove the power supply cable.

Routine maintenance must be performed at least once a year.

IF THE POWER SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY THE AFTER-SALES SERVICE OR BY A SIMILARLY QUALIFIED PERSON, SO AS TO AVOID ALL RISKS.

D E C A B B

The images are for illustration purposes

F A E E

A	Fumes motor (disassembly and cleaning and fumes pipe), new silicone in required points
B	Inspection of gaskets, ash drawer and burn pot door (replace them and apply silicone where required)
C	Combustion chamber (total cleaning of the entire chamber) and ignition plug pipe cleaning
D	Tank (complete emptying and cleaning)
E	Room air fan disassembly and removal of dust and any pellet debris
F	Air intake pipe inspection and any flow sensor cleaning

The images are for illustration purposes.

Technical diagram of a bathroom sink assembly with a labeled component (a) and directional arrows indicating parts of the sink (no text or symbols present)

a	Fumes motor (disassembly and cleaning and fumes pipe), new silicone in required points
b	Inspection of gaskets, ash drawer and burn pot door (replace them and apply silicone where required)
c	Combustion chamber (total cleaning of the entire chamber) and ignition plug tube cleaning
D	Tank (complete emptying and cleaning).
e	Room air fan disassembly and removal of dust and any pellet debris
f	Air intake pipe inspection and of flow sensor cleaning

The images are for illustration purposes.

f b

a	Fumes motor (disassembly and cleaning and fumes pipe), new silicone in required points	√
b	Inspection of gaskets, ash drawer and burn pot door (replace them and apply silicone where required)	√
c	Combustion chamber (total cleaning of the entire chamber) and ignition plug tube cleaning	√
D	Tank (complete emptying and cleaning).	√
e	Room air fan disassembly and removal of dust and any pellet debris	√
f	Air intake pipe inspection and of flow sensor cleaning	√

Displays
Display Reason solution
off	Stove off -
staRt	The start-up phase is in progress -
pellet feeDing	The feeding of the pellet during the ignition phase is in progress
ignition	The ignition phase is in progress -
BuRning	The start-up phase is in progress -
opeRant	The normal work phase is in progress -
MoDulation	The stove is modulating -
BuRn pot Cleaning	The automatic burn pot cleaning is in progress.	The automatic burn pot cleaning (not in 1st power) is performed at pre-established intervals of continued working.
final Cleaning	When the stove is switched-off, final cleaning is in progress. The final cleaning phase lasts about 10 minutes.
stanD-By	Stove off due to temperature reached and in stand-by for re-ignition.	To deactivate the STAND-BY function see the specific chapter.
stanD By ext	Stove off due to an external thermostat, waiting for re-ignition	To deactivate the STAND-BY function see the specific chapter.
Cooling stanD-By	A new ignition is attempted when the stove has just been switched-off	When the stove switches off, it is necessary to wait for the complete shutdown of the fumes motor before cleaning the burn pot.The stove can only be re-ignited when these operations have been performed.
Cool. stDBy - BlaCk out	The stove is cooling due to black out On completion of the cooling phase, it will re-ignite automatically.
low	Room thermostat set at minimum value.	In this way the stove only works at 1st power independently from the power set. To exit this function just raise the room temperature using button 4 and then key 2.
Hot	Set room thermostat set at maximum value.	The stove works at set start, without ever modulating. To escape this function just lower the set temperature using key 4 and then key 1.
alaRMs
Display	explanation solution
	Indicates the presence of an alarm.	On: indicates the presence of an alarmOff: indicates the absence of alarmsFlashing: indicates the deactivation of the depression sensor.The alarm can be reset by pressing key 1 for 3 seconds only if the fumes motor has stopped and if 15 minutes have passed from displaying the same alarm.
fuMes failuRe	Fault related to the flue gas exhaust motor.	The restoration operations must be carried out by an authorised technician.
fuMes pRoBe	Fault related to the fumes probe.	The restoration operations must be carried out by an authorised technician.
fuMes oVeRteMp al.	The flue gas temperature has exceeded 310°C	Check the pellet flow (see “Pellet feed adjustment”).Check that the machine is clean, including the fumes route.Do not rest cloths on the machine.Other restoration operations must be carried out by an authorised technician.
Clean CHeCk up 1 - 2(1 = in BuRning pHase)(2 = in opeRant pHase)	The combustion chamber or burn pot bottom are dirty.The door is not closed correctly.The ash pan is not closed correctly.The depression sensor is faulty.The flue exhaust pipe is blocked.Incorrect installation	Make sure the holes at the burn pot bottom are completely free.Check cleanliness of the fumes pipe and the combustion chamber.Check hermetic door closure.Check hermetic closure of the ash drawer.Other restoration operations must be carried out by an authorised technician.
DepRession alaRM	The mechanical depression sensor has tripped	Contact after-sales centre
no ignition	The pellet feed-box is empty.Pellet feed calibration inadequate.Incorrect installation	Check for the presence of pellets in the feed-box.Adjust the pellet flow (see “Pellet feed adjustment”).Check the procedures described in the “Ignition” chapter.Other restoration operations must be carried out by an authorised technician.
BlaCk-out no ign.	No power during the ignition phase.	Switch the stove to OFF using key 1 and repeat the procedure described in the "Ignition" chapter.Other restoration operations must be carried out by an authorised technician.
no pellet	In the work phase, the t° of the flue gases has dropped below factory parameters	Check for the presence of pellets in the feed-box.Regulate the pellet flow.Other restoration operations must be carried out by an authorised technician.
Cooling stanD-By	Attempt to release the alarm with stove still in cooling mode.	Every time the stove displays one of the alarms listed above it will switch-off automatically.The stove will block any release attempt during this phase, showing the alarm itself and STAND-BY alternately on the display.The alarm can be reset by pressing key 1 for 3 seconds only if the fumes motor has stopped and if 15 minutes have passed from displaying the same alarm.
DaMage DepR sensoR	Component disconnected or faulty Contact after-sales assistance
CoMManD augeR alaRM	Abnormal functioning of pellet feeding	Contact after-sales assistance

GUARANTEE TERMS

1. EXTRAFLAME S.p.A. products are guaranteed, within the European community, for 24 months from the date of purchase.

Purchase has to be proved by means of a valid fiscal document issued by the seller (receipt, invoice or shipment document) identifying the purchased product and its purchase and/or delivery date.

WARNING: This conventional guarantee does not replace the guarantee regulated by the European legislation on consumer rights.

The conventional guarantee is only applicable to the Italian region and to those areas, within the European Community, where the Authorised Technical Assistance Centres are active (see the www.lanordica-extraflame.com website)

It is also limited to the state of residence of the consumer, which must coincide with the premises and/or registered office of the seller of the EXTRAFLAME S.p.A. product

These regulations do not apply if the product is purchased within commercial, entrepreneurial, or professional circumstances. In these cases the product guarantee will be limited to a period of 12 months from the date of purchase.

ITALIAN GUARANTEE

What must be done if there is a product malfunction:

Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. When requesting the intervention of the Assistance service at the Authorised Assistance Centre, always specify: - type of malfunction - model of the appliance - complete address - phone number

EUROPEAN GUARANTEE

What must be done if there is a product malfunction:

Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. Request the intervention of the Assistance service or the address of the Authorised Technical Assistance Centre to the seller; always specify: type of malfunction, model of the appliance, complete address and phone number

If the malfunction arises in the first 6 months of the product's life, the consumer has the right to have the product repaired with no expense. From the seventh to the twenty-fourth month, if a malfunction arises, the consumer will bear the cost of the call, while the seller will pay for the manpower and for any spare parts used.

1. If the malfunction is linked to external events and/or conditions such as, including but not limited to, insufficient capacity of the systems; wrong installation and/or maintenance by the personnel which hasn't got the skills prescribed by the laws of the country of residence of the consumer; negligence; inability to use the product and wrong maintenance by the consumer, with respect to what is reported and recommended by the instructions manual of the product, which is part of the sales contract, this guarantee will be void.

Damage to the product that cannot be related to manufacturing defects are also not included in this guarantee. Similarly are excluded defects related to incorrect operation of the flue, according to the legislation in force in the country at the moment of purchase. Other exclusions include all product defects due to carelessness, accidental breakdown, tampering and/or damage during transport (scratches, dents, etc.), interventions carried out by unauthorised personnel and further damage caused by incorrect interventions by the consumer trying to arrange the initial malfunction.

The following consumables are excluded by the guarantee: gaskets, ceramic or tempered glasses, cast iron grilles or coatings, refractory materials (e.g. Nordiker or others), painted, chrome-plated or golden parts, majolica ware, handles, the brazier and its related components. For Idro products the heat exchanger is not covered by the guarantee if a suitable condensation-proof circuit is not set up to ensure a return temperature of the device of at least 55^ C. The guarantee excludes all the external components on which the consumer can directly operate during use and/or maintenance or that can be subject to wear and/or rust and stains on steel due to aggressive detergents.

If malfunctions are signalled which are not later confirmed during check by an authorised technician, the cost of the intervention will be borne entirely by the consumer.

1. If it is not possible to restore product conformity by repairing it, the product/component will be replaced, the guarantee expiration date and conditions will remain the same established when the product/component to be replaced has been purchased.

2. EXTRAFLAME S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding installation, use and maintenance of the product, that can also be downloaded on the website.

3. Interventions for adjusting and/or regulating the product for the type of fuel or other reasons are excluded by the guarantee.

4. If the product is repaired in one of the Authorised Technical Assistance Centres indicated by EXTRAFLAME S.p.A. and if the product is replaced, transport will be free of charge. If the technician can repair the product at the user's place of residence and they refuse, transport to the workshop and redelivery will be paid by the consumer.

5. After the 24 months of the guarantee have elapsed any repair intervention cost will be completely borne by the consumer.

6. In the case of disputes the only competent court is that of the EXTRAFLAME S.p.A. registered office - (Vicenza-Italy)

Additional warnings

• Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
• Do not use the product as a ladder or supporting structure.
  Do not place laundry on the product to dry it. Any clothes-horse or similar objects must be kept at due distance from the product. Danger of fire or damage to the coating.
  The user is fully liable for any incorrect use of the product. The manufacturer bears no civil or criminal liability for incorrect use.
• Unauthorised tampering of any nature or replacement of spare parts of the product with non-original parts may endanger the operator and the manufacturer bears no civil or criminal liability for this.
• Large parts of the surface of the product can get very hot (door, handle, glass, smoke outlet pipes, etc.). Please therefore avoid coming into contact with these parts without wearing suitable protective clothing or using appropriate measures, such as heat protective gloves.
• DO NOT use the product with the door open or if the glass is broken.
• The product must be electrically connected to a system equipped with an operational earthing system.
• Turn off the product in the event of a failure or malfunctioning.
• Unburned pellets that build up in the burner following each failed start-up must be removed before attempting to start up the product again. Make sure that the burner is clean and correctly positioned before starting it up again.
  Do not wash the product with water. Water may penetrate into the unit and cause faults in the electrical insulation. This can cause electric shocks.
• Installations not complying with the regulations in force, as well as incorrect use and failure to comply with the maintenance scheduled by the manufacturer, will invalidate the guarantee.

DiSpoSAI

INFORmATION FOR mANAGEmENT OF ELEcTRIc AND ELEcTRONIc APPLIANcE wAsTE cCONTAINING bATTERIEs OR AccUmULATORS

Warning symbol for a trash bin with crossed and unshaded cross-sections, indicating no waste or discharge.

This symbol, which is used on the product, batteries, accumulators or on the packaging or documents, means that at the end of its useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. For the purpose of preventing damage to health or the environment, users are kindly asked to separate this equipment and/or batteries or accumulators included from other types of waste and to arrange for disposal by the municipal waste service It is possible to ask your local dealer to collect the waste electric or electronic appliance under the conditions and following the methods provided by national laws transposing the Directive 2012/19/EU.

Separate waste collection and recycling of unused electric and electronic equipment, batteries and accumulators helps to save natural resources and to guarantee that this waste is processed in a manner that is safe for health and the environment.

For more information about how to collect electric and electronic equipment and appliances, batteries and accumulators, please contact your local Council or Public Authority competent to issue the relevant permits.

Extraflame®

Riscaldamento a Pellet

ExtraflamE S.p.a. Via Dell'Artigianato, 12 36030 - MONTECCHIO PRECALCINO (VI) - ITALY

+39.0445.865911 - +39.0445.865912 - [e-mail] - www.lanordica-extraflame.com

MADE IN ITALY

design & production

TO FIND THE SERVICE CENTRE NEAREST TO YOU

CONTACT YOUR DEALER OR CONSULT

THE SITE WWW.LANORDICA-EXTRAFLAME.COM

The manufacturer reserves the right to vary the characteristics and the data reported in this pamphlet at any moment and without notice, in order to improve its products.

This manual, therefore, cannot be regarded as a contract towards other parties.
