USER MANUAL Master Cook Arnica

Master - Master Cook

El Blenderi Set

Stick Blender Set

Product photo of a kitchen blender with three kitchen utensils (no visible text or labels)

Two kitchen utensils: a ladle and a whisk, both in blue plastic containers (no text or symbols visible)

Blue and gray cleaning brush tool with handle and control panel (no visible text or symbols)

Red kitchen utensil and blender with whisk, no visible text or symbols

Product photo of a pink electric shaver with three kitchen utensils (no text or symbols visible)

KULLANMA KILAVUZU

Labeled diagram of a food cleaning or kitchen appliance with numbered parts for identification.

C. TEKNiK ÖZELLIKLER

Markasi : ARNICA : ARNICA

Modeli : Master :Master Cook

Gerilimi : 220-240V :220-240V

Diagram illustrating four stages of a laboratory apparatus: dropping funnel, stirring rod, mixing bowl with chopsticks, and adding liquid.

Three-step illustration of a kitchen appliance: mixing, lifting, and pouring into a bowl (no text or symbols)

Diagram illustrating four stages of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Mutfak Robotu Hazne ( S Biçak):

Thank you for choosing our products. This instructions manual has been prepared for you to achieve complete satisfaction and maximum performance from you product.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions carefully.
• To protect against electrical shock, do not submerge the mixer or allow AC cord to come in contact with water or other liquids.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any matter. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
• Always unplug the appliance before assembling, disassembling, cleaning.

- Blades are sharp. Handle carefully.

- Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.

- Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.

- Don't allow children to use the blender without supervision.

- Don't let the motor unit, cord, or plug get wet.

- Don't place the appliance in the hot ingredients.

- The appliance is constructed to process normal household quantities.

- Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.

- If you press switch, you can run the inching switch to meet your request.

- Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

- It shall warn of potential injury from misuse

- They shall state that care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning.

- Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not allow children to use the blender without supervision.
• Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

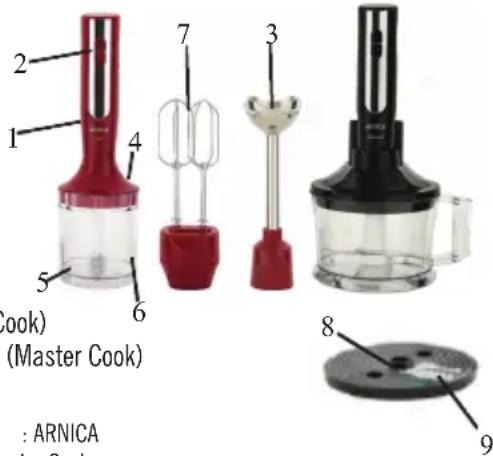

DESCRIPTIONS

1. Main body
2. On / Off Button
3. S/S blend stick
4. Chopper lid
5. Chopper blade
6. Chopper reservoir

7. S/S stick mixer

8. Grating disc (Master Cook)

9. Grating-slicing blades (Master Cook)

2 1 4 5 6 ook) (Master Cook) : ARNICA 7 3 8 9

SPECIFICATIONS

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

• Turn the blender stick on the motor unit until it locks.
• Introduce the hand blender in the vessel, then you can press the Turbo button to operate it.
• Use the hand blender for no longer than 1 minute.
• Caution: the blade is very sharp!
• Caution: Don't operate food without water!

How to use the double beater accessories

Use the double beater accessories you can easily make the preparations such as omelet, mayonnaise, mixing whipping cream, sponge cakes, beating egg whites and ready-mix desserts.

• Mount the beater accessories firstly by pushing until it fits well in its place in order to use the beater accessories.
• Turn the beater adapter to the motor block to mount without tightening too much.
• Place the double beaters in a vessel and only then choose speed "1" - "5" and press Normal Speed button or Turbo Speed to operate it.
• Use the double beater accessories for no longer than 2 minute.
• Turn the gear box off the motor unit after use. Then pull the double beaters out of the gear box.

How to use the "S"blade

Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc... Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

Before chopping;

- Carefully place the blade onto the central spindle in the bowl, holding it by the plastic part. Caution: the blade is very sharp! Always hold it by the upper plastic part.

• Put the foodstuffs into the bowl .never fill the bowl above the maximum limit indicated.
• Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopper bowl on the anti-slip base (Operation of the direction, please see the figure as show).
• Place the food in the chopper bowl.
• Place the chopping bowl lid on the chopper bowl.
• Turn the motor unit on the chopping bowl lid until it locks.
• Choose switch to operate the chopper. During processing, hold the motor unit with on hand and the chopper bowl the other.
  • After use, turn the motor unit off the chopping bowl lid.

CLEANING

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

• All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades right away.
• Also, be careful not to use an overdose of cleaner or decalcified in your dishwasher.
• When processing food with color, the plastic parts of the appliance may become discolored wipe these parts with vegetable oil before placing them in the dishwasher.
• The blades are very sharp, please attention.
• Unplug the appliance before cleaning.

TIPS FOR S BLADE

Processor bowl (for "S" blade)
Ingredients Maximum Operation times Preparation Speed

meat 500g 20-30 sec 1~2cm IInuts, almonds 300g 10-15 sec / cheese	200g	10 sec	1~2cm II
bread	160g	10sec 1~2cm II
onions	300g	10 sec	1~2cm II

Whisk

Egg white	2 eggs	2 minutes	/	II
Cream(37% fat)	250ml	2 minutes	/	II

Hand Blender

Vegetables soup	potatoes	100g	1 minute	2cm	II
	onion	100g		2cm	II
	carrots	100g		2cm	II
	Water	450g		/	II
Mayonnaise	Vegetable oil	150g	30 sec	/	II
	egg	1		/	II
	vinegar	14g		/	II
Carrot juice	Carrot	300g	1 minute	2cm	II
	sugar	20g		/	II
	water 480g		/	II

How to use the slicing/Grating

For preparing a maximum of 500g food stuffs at once. Blade

Slicing: potatoes for gratins dauphinois, carrots, cucumbers, etc

Blade Grating: grated carrots, celery.

• Put the blade into the Knife Bracket —holder disc. place the spindle drive onto the spindle in the middle of the bowl, then the blade —holder disc onto the spindle drive, and then put the blender lid adaptor on the lid.
• Position and lock the lid.
• Put the motor unit in place on the adaptor then start the appliance.
• Put the foodstuffs into the feeder tube and guide them using the pusher, never your fingers, or a utensil.
