Product Type	Digital Camera
Brand	Agfa
Model	DC-733s
Effective Pixels	7.33 Megapixels
Optical Zoom	3x
Digital Zoom	4x
LCD Screen Size	2.4 inches
Storage Media	SD/MMC card (up to 2GB)
Image Format	JPEG
Video Recording	640x480 @ 30fps (AVI)
Focus Range	Normal: 50cm to infinity; Macro: 10cm
Shutter Speed	1 to 1/2000 second
ISO Sensitivity	Auto, 50, 100, 200, 400
Flash Modes	Auto, Red-eye reduction, Forced, Off
Self-Timer	2 or 10 seconds
Power Source	2x AA alkaline or NiMH batteries
Dimensions (WxHxD)	94 x 62 x 31 mm (3.7 x 2.4 x 1.2 in)
Weight (without batteries)	130 g (4.6 oz)
Connectivity	USB 2.0, AV out
Maintenance	Clean lens with soft, dry cloth; avoid moisture and dust
Safety	Do not expose to water or extreme temperatures; use only specified batteries
Spare Parts / Repairability	Batteries, SD card, USB cable; limited user-replaceable parts

Frequently Asked Questions - DC-733s AGFA

What type of batteries does the Agfa DC-733s use?

The camera uses 2x AA batteries (alkaline or rechargeable NiMH).

What memory card is compatible with this camera?

It accepts SD or MMC cards up to 2GB capacity.

How do I transfer photos to my computer?

Connect the camera to your computer using the USB cable provided, then access the camera as a removable drive.

How can I reset the camera to factory settings?

Go to the Setup menu and select 'Reset All' or remove the batteries and wait 10 seconds.

Why are my pictures blurry?

Ensure the lens is clean, use focus lock by half-pressing the shutter button, and avoid moving the camera during exposure.

Can I use the camera while charging?

No, the camera does not support USB charging. It uses disposable or rechargeable AA batteries.

What is the maximum video resolution?

Video is recorded at 640x480 pixels at 30 frames per second in AVI format.

How do I enable the self-timer?

Press the Self-Timer button on the back of the camera repeatedly to select 2 or 10 seconds delay.

What should I do if the camera won't turn on?

Check if batteries are inserted correctly and have charge. Try new alkaline batteries to rule out power issues.

Does the camera have a tripod mount?

Yes, there is a standard tripod socket on the bottom of the camera.

USER MANUAL DC-733s AGFA

AGFAPHOTO DC-735 2.0 Magapixel

Thank you for purchasing this AgfaPhoto digital camera. Please read these operating instructions carefully in order to use the digital camera correctly. Keep the instructions in a safe place after reading so that you can refer to them later.

Precautions

• Before using the camera, please ensure that you read and understand the safety precautions described below. Always ensure that the camera is operated correctly.
• Do not aim the camera directly into the sun or other intense light sources which could damage your eyesight.
• Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. Maintenance and repairs should be carried out only by authorized service providers.
• Do not fire the flash too close to the eyes of animals or people, especially for young children. Eye damage may result. In particular, remain at least one meter away from infants when using flash.
• Keep the camera away from water and other liquids. Do not use the camera with wet hands. Never use the camera in the rain or snow. Moisture creates the danger of electric shock.
• Keep the camera and its accessories out of the reach of children and animals to prevent accidents or damage to the camera.
• If you notice smoke or a strange odor coming from the camera, turn the power off immediately. Take the camera to the nearest authorized service center for repair. Never attempt to repair the camera on your own.
• Use only the recommended power accessories. Use of power sources not expressly recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards.

Disclaimer

We assume no responsibility over and above the provisions of the Product Liability Law for damages suffered by the user or third parties as a result of inappropriate handling of the product or its accessories, or by their operational failure and by their use. We reserve the right to make changes to this product and its accessories without prior notice.

Warning! Never disconnect to open the camera or remove any parts of it. This will invalidate all guarantee claims.

Using your batteries

For best performance and prolonged battery life, we recommend the use of AA lithium or rechargeable Ni-MH batteries.

Extending battery life

The following functions use up a great deal of battery power and should therefore only be used occasionally

• Excessive use of flash
• Editing images on the camera display

The battery life can be affected by soiling. Please clean the contacts with a clean and dry cloth before putting the batteries in the camera. Battery performance drops at temperatures below 5°C (41°F). If you use the camera at low temperatures you should have replacement batteries to hand and ensure they do not get too cold. Please note: you should not dispose of cold and seemingly flat batteries because these batteries may work again at room temperature.

Contents

PRECAUTIONS I

DISCLAIMER I

USING YOUR BATTERIES II

EXTENDING BATTERY LIFE II

CONTENTS III

GETTING STARTED 1

USING THIS MENU 1

SCOPE OF DELIVERY 2

PARTS OF THE CAMERA 3

INSERTING THE BATTERIES 5

LOW BATTERY INDICATOR 5

ABOUT BATTERY TYPE 5

INSERTING THE MEMORY CARD 6

ABOUT CAMERA MEMORY 6

DCF PROTOCOL 6

SETTING THE DISPLAY LANGUAGE/ DATE &

TIME 7

SETTING DISPLAY LANGUAGE 7

SETTING DATE & TIME 7

USING THE LCD MONITOR 9

REC MODE 9

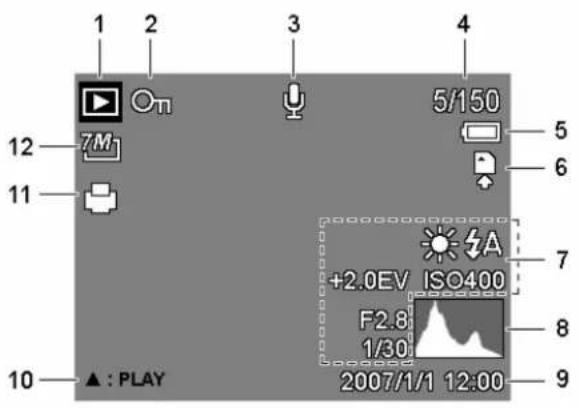

PLAYBACK MODE 10

CHANGING THE LCD STATUS 11

BASIC OPERATION 12

TURNING POWER ON AND OFF 12

POWER SAVING FUNCTION 12

CHANGING THE MODE 13

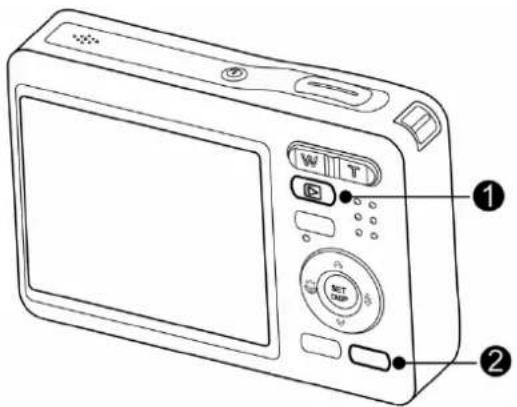

SWITCHING BETWEEN REC AND PLAYBACK

MODE 13

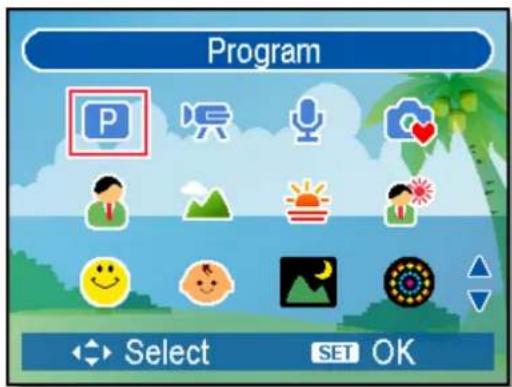

SELECTING THE REC MODE 13

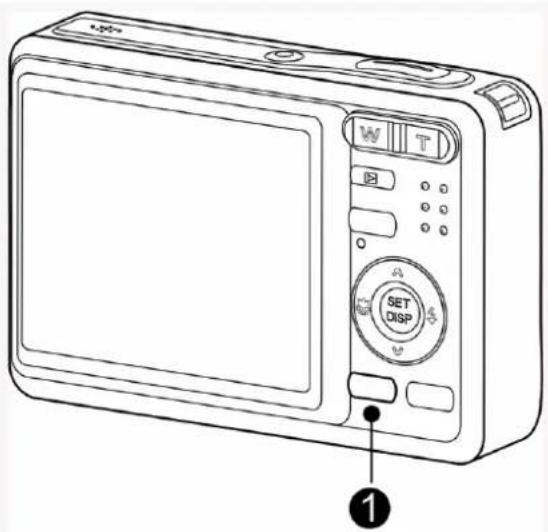

SELECTING THE ASM MODE 14

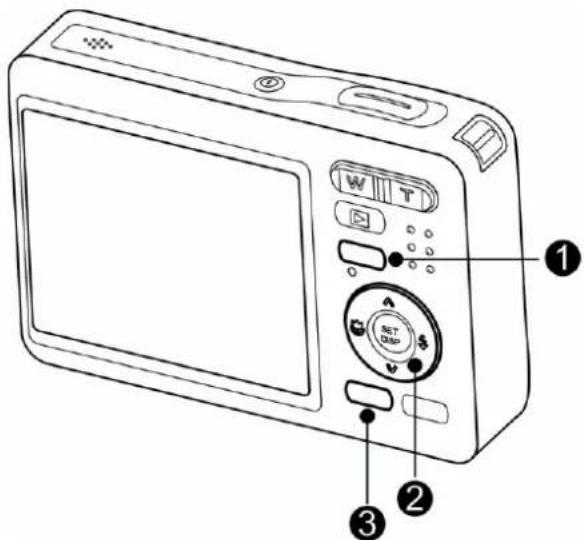

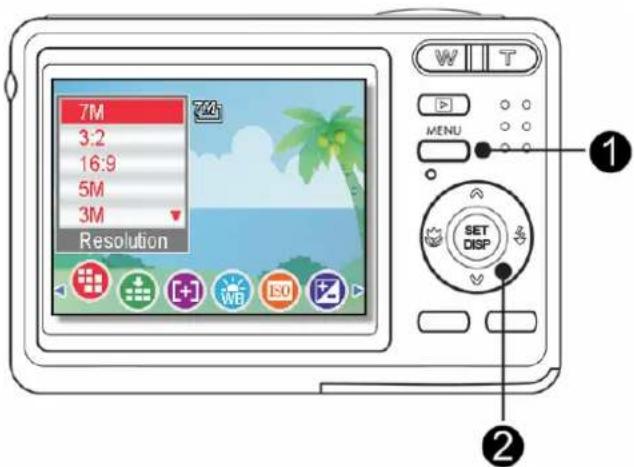

USING THE MENUS 15

REC MENU 15

SETUP MENU 17

BASIC RECORDING 20

RECORDING STILL IMAGES 20

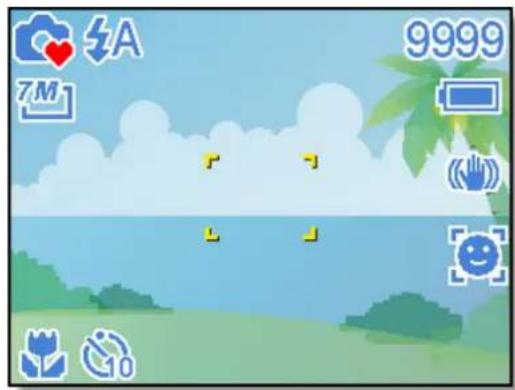

USING THE Q MODE 21

SETTING IMAGE SIZE AND QUALITY 22

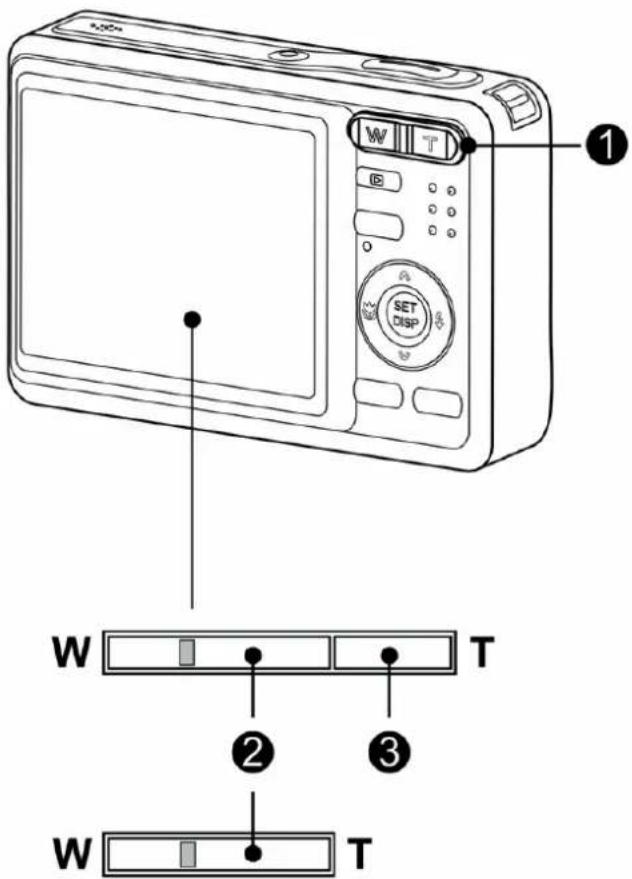

USING THE ZOOM FUNCTION 23

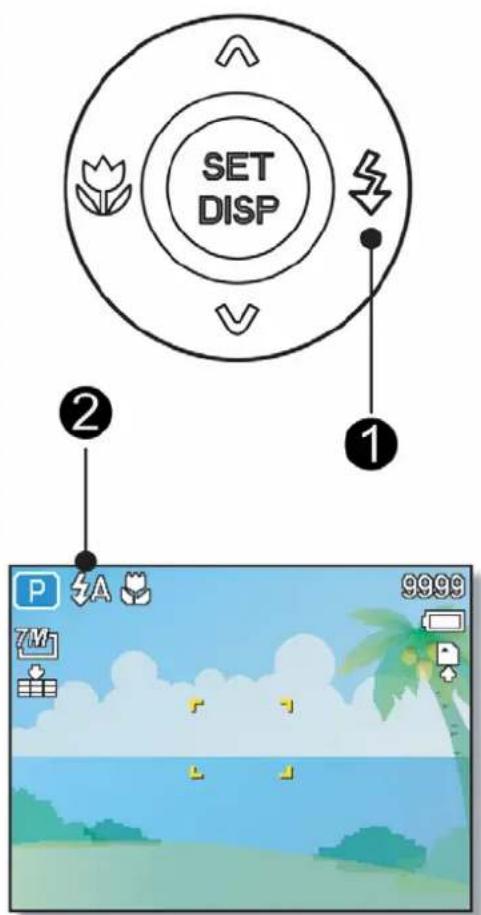

USING THE FLASH 24

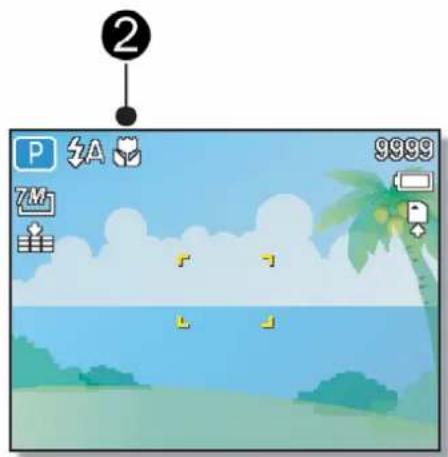

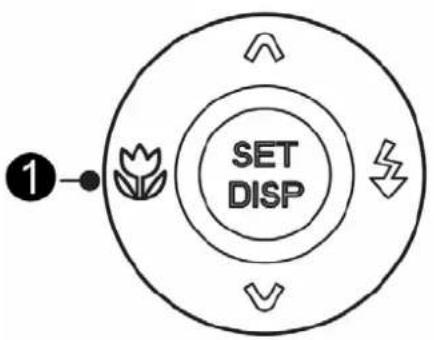

USING THE MACRO 25

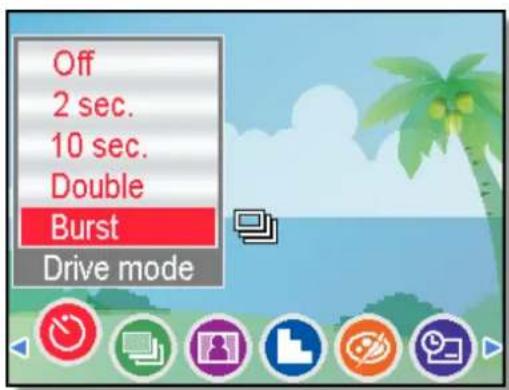

USING THE SELF-TIMER & BURST 26

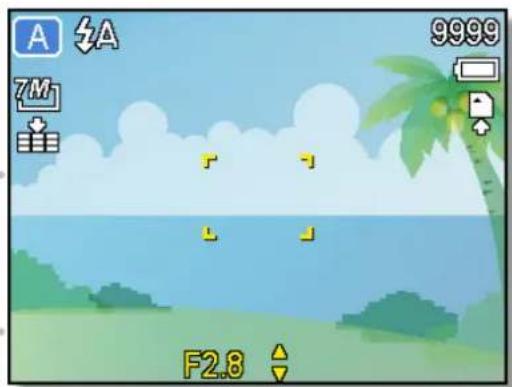

USING THE APERTURE PRIORITY 27

USING THE SHUTTER PRIORITY 27

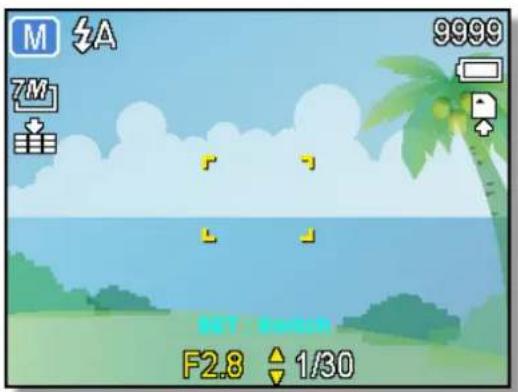

USING THE MANUAL EXPOSURE 28

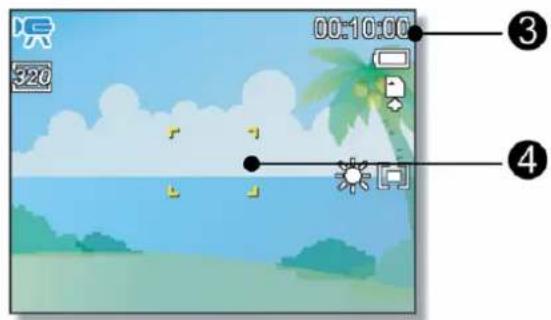

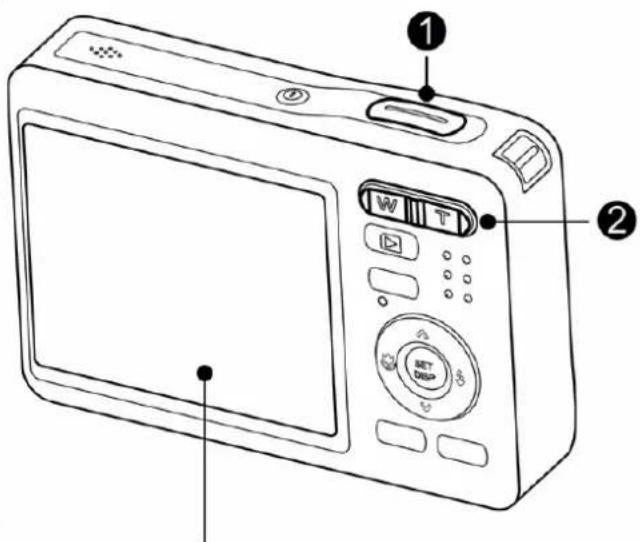

RECORDING MOVIE CLIPS 29

SETTING THE MOVIE SIZE 29

SETTING THE SHARPNESS 34

SETTING THE PHOTO EFFECT 34

SETTING DATE STAMP 35

SETTING STABILIZER 35

SETTING FACE TRACKING 35

SETTING PHOTO FRAME 35

PLAYBACK 36

PLAYING BACK IMAGES 36

PLAYING BACK MOVIE CLIPS 36

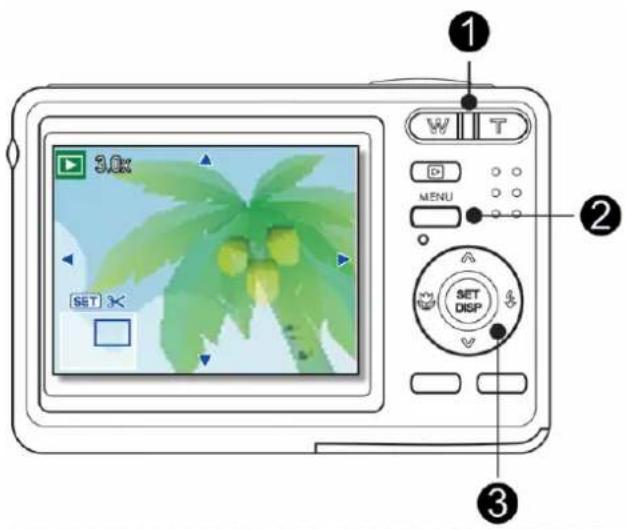

MAGNIFYING & TRIMMING STILL IMAGES 37

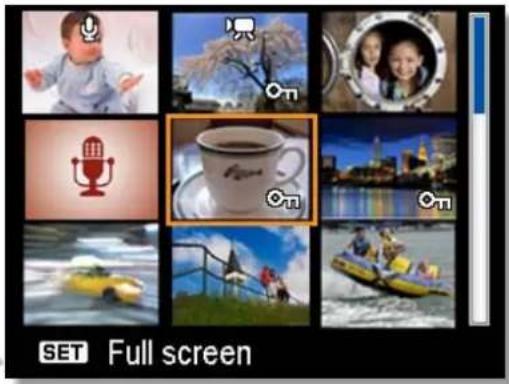

VIEWING IN THUMBNAIL 38

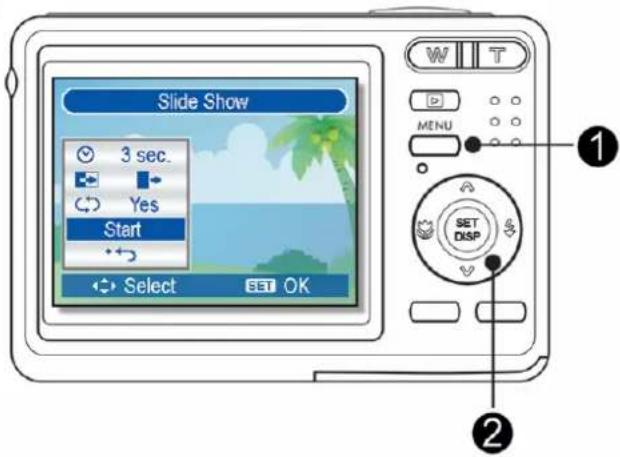

PLAYING A SLIDE SHOW 38

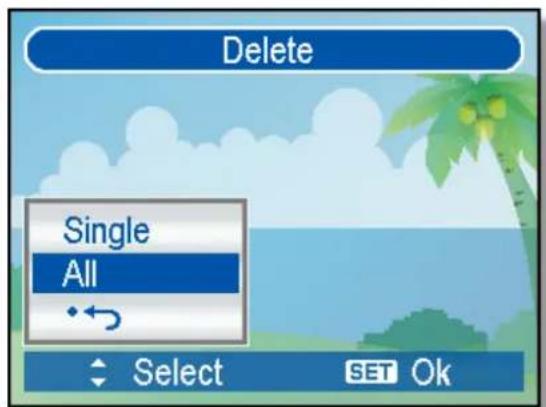

DELETING FILES 39

DELETING A SINGLE FILE 39

DELETING MULTIPLE FILES 40

DELETING ALL FILES 40

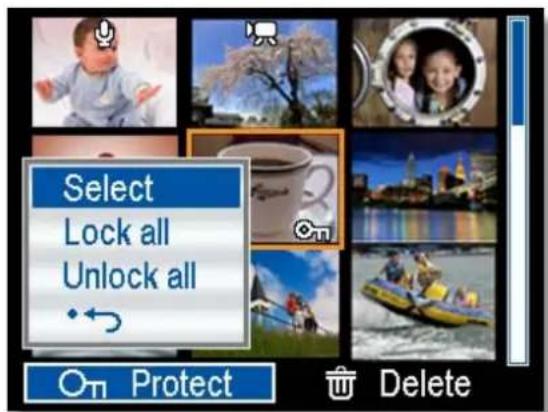

PROTECTING A SINGLE FILE 41

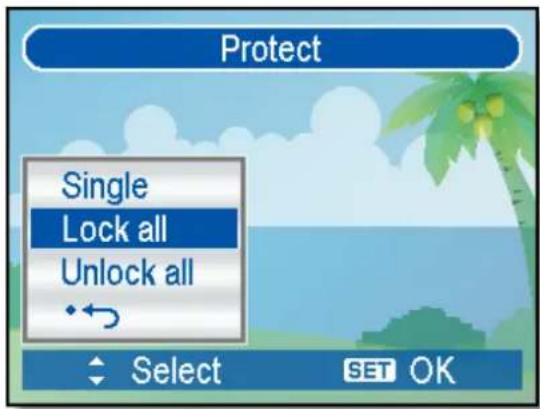

PROTECTING ALL FILES 41

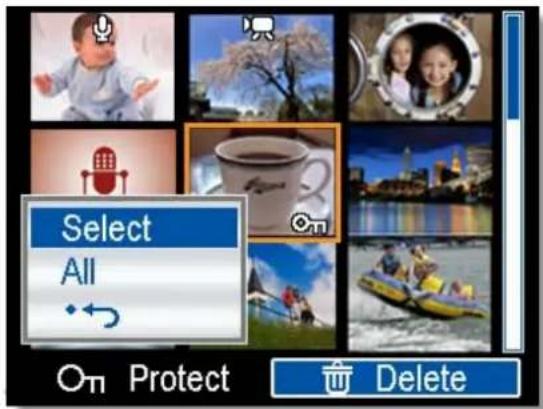

PROTECTING MULTIPLE FILES 42

EDITING IMAGES 43

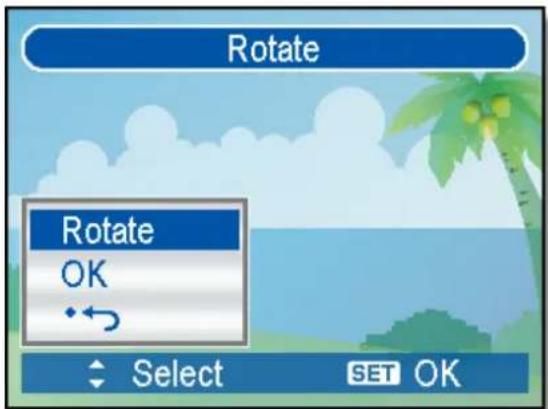

ROTATING STILL IMAGES 43

CHANGING THE IMAGE SIZE 43

CHANGING THE IMAGE WITH EFFECTS 44

CHOOSING THE IMAGE WITH PHOTO FRAME 44

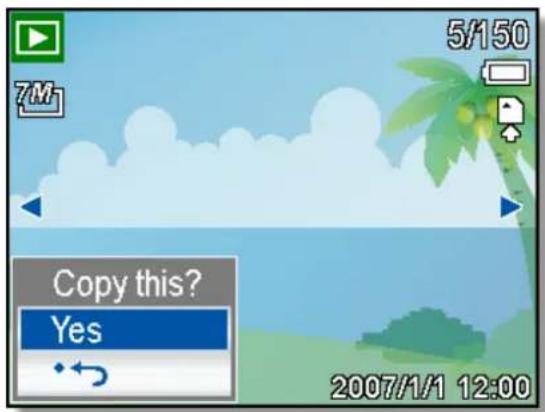

COPYING THE FILES 45

SETTING THE DPOF 46

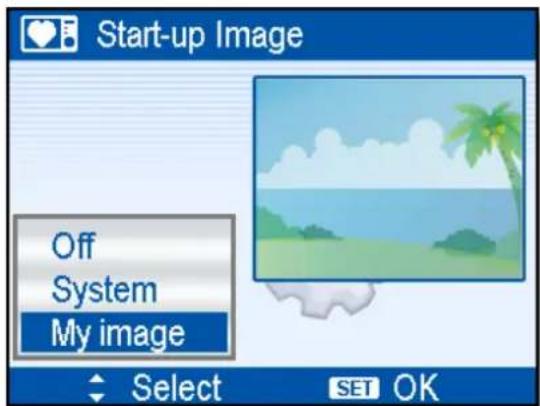

CHOOSING A START-UP IMAGE 47

MAKING CONNECTIONS 48

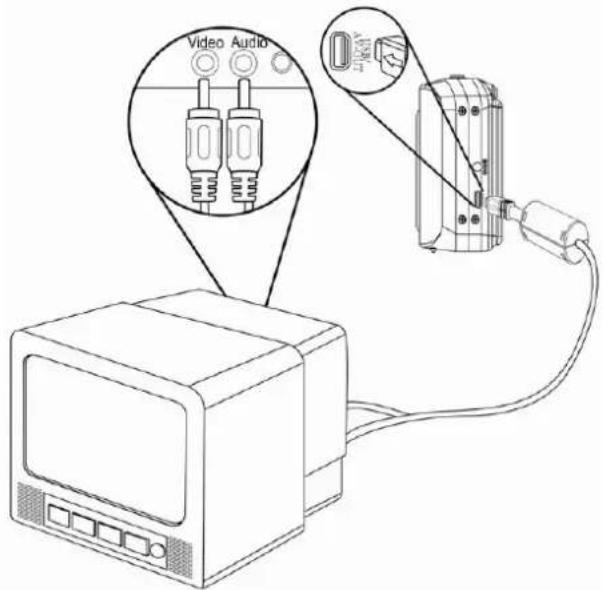

CONNECTING THE CAMERA TO A TV 48

CONNECTING THE CAMERA TO A PC 49

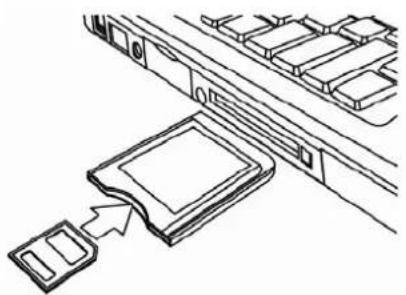

USING THE CARD READER 49

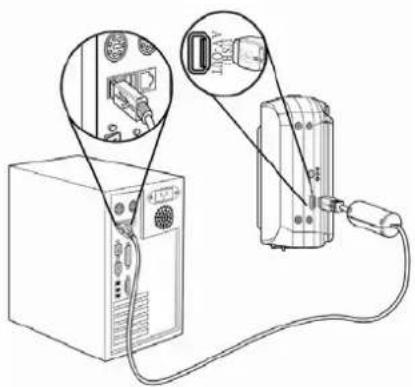

CONNECTING THE CAMERA TO A PC WITH THE USB CABLE 49

APPENDIX 50

FOLDER & FILE NAME 50

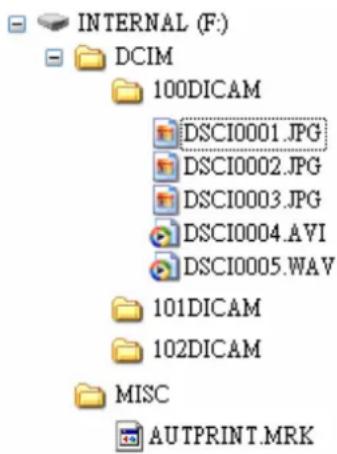

FOLDER STRUCTURE 50

FILE NAMING 50

TROUBLESHOOTING 51

SPECIFICATIONS 52

FUNCTION AVAILABLE LIST 53

CUSTOMER CARE 59

DISPOSAL OF WASTE EQUIPMENT BY USERS IN PRIVATE HOUSEHOLDS IN THE EUROPEAN

UNION 60

FCC COMPLIANCE AND ADVISORY 60

Getting Started

Using This Menu

Getting Started

This section contains information you should know before using this camera.

Basic Operation

This section explains all recording features of this camera.

Basic Recording

This section explains how to record still images, movies, and audio files.

Other Recording Functions

This section explains common operations about recording images.

Playback

This section explains playback, delete, and edit functions of still images, movies and audio files.

Making Connections

This section tells you how to connect this camera to a computer or TV.

Appendix

This section describes the troubleshooting and the camera specification.

The meanings of the symbols used in this user's manual are explained below:

	cautions that should be read before using these functions.
	This indicates the useful information when using this camera.
	This indicates the reference page.

Scope of delivery

Line drawing of a digital camera with no text or symbols

Coiled electrical cables with two connectors and a terminal connector (no text or symbols visible)

AgfaPhoto DC-733s USB Cable AV Cable

Simple line drawing of a rolled-up rectangular object with a textured surface (no text or symbols)

Soft Case Strap 2 x AA Batteries

Software Installation CD-ROM

Simple line drawing of a closed book (no text or symbols visible)

Quick Start Guide

Caution

- Do not swing the camera around by the strap.

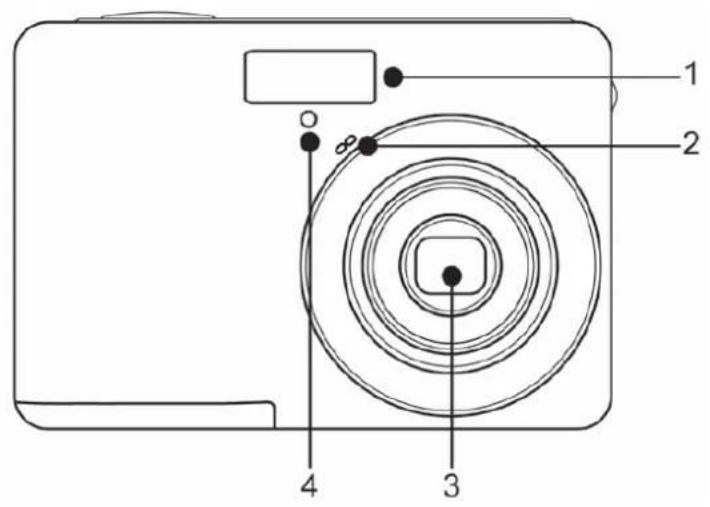

Parts of the Camera

1 2 3 4

1. Flash (page 24)
2. Microphone
3. Lens
4. Self-timer Lamp

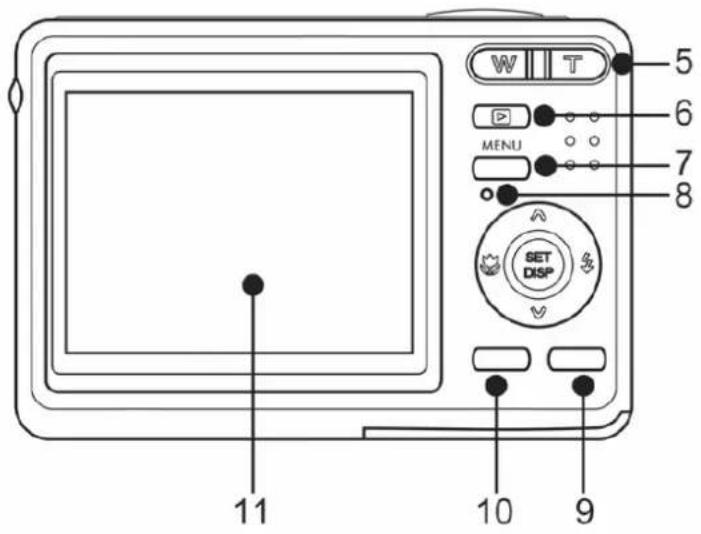

11 10 9 5 6 7 8 W T MENU SET DISP

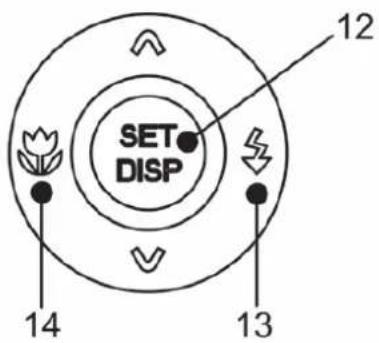

Four-way Control

SET DISP 12 14 13

1. Zoom Button (page 23)
   • Thumbnail (page 38)

2. Playback Zoom
   (page 37)

3. Playback Button (page 13)

4. Menu Button (page 15)

5. Operation Lamp

6. Mode Button (page 13)

7. ASM Button (page 14)

- Delete Button (page 39)

1. LCD Monitor (page 9)

2. SET/DISP Button (page 11)

3. Flash Button (page 24)

4. Macro Button (page 25)

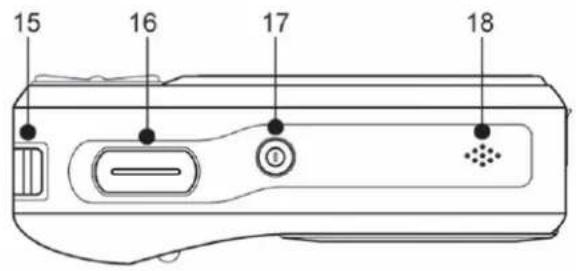

15 16 17 18

1. Strap Ring
2. Shutter Button

(page 20, 29)

1. Power Button (page 12)
2. Speaker

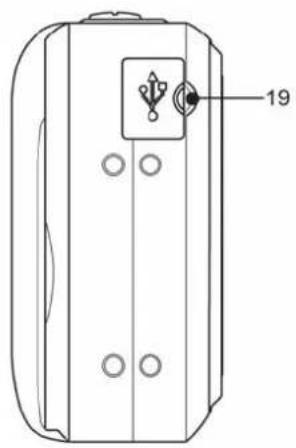

Technical line drawing of a device casing with a labeled component (no text or symbols beyond the number 19)

1. USB/AV Terminal

(page 19, 49)

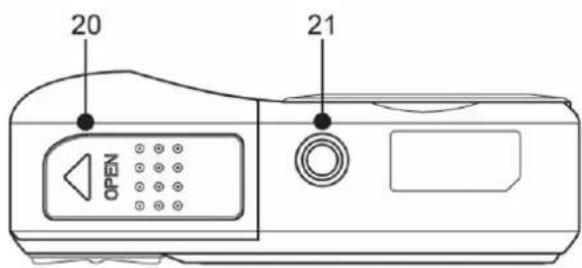

20 21 OPEN

1. Battery Cover (page 5)
2. Tripod Socket

Inserting the Batteries

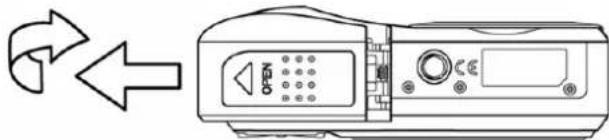

1 Open the battery cover.

- Slide the battery cover in the direction indicated by the arrow.

Diagram showing a device with an open button and directional arrow, indicating rotation or refresh.

2 Insert the batteries.

- Insert two AA-size batteries with the positive (+) and negative (-) poles matching the directions indicated inside the battery room.

Line drawing of a projector with two cylindrical components and an arrow indicating the blade (no text or symbols)

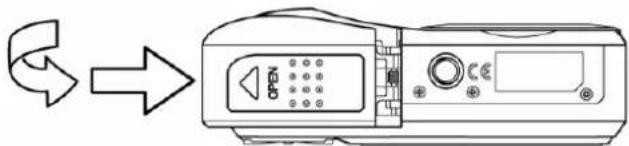

3 Close the battery cover.

Diagram showing a device with a rotary switch and open status pad, illustrating the process of rotation or signal processing.

Low Battery Indicator

A low battery indicator 📄 appears on the LCD screen when the batteries are nearly exhausted. Batteries should be replaced promptly when the low battery indicator appears.

Caution

• Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions.
• Be sure to turn off the camera power before insert or remove batteries.
• It is recommended to use the provided battery. For other compatible batteries, please refer to Battery types. ( page 19).
• Replace all batteries at the same time. Never mix old and new batteries.
• Remove batteries if you will not be using them for a long time.
• The camera body may feel warm after extended use. This is normal.

About Battery Type

After replacing the batteries, please check the battery type in the setup menu (§ page 19).

Inserting the Memory Card

You can use SD Card with this digital camera. The memory card slot is located beneath the battery cover, adjacent to the battery compartment.

1

Open the battery cover.

- Slide the battery cover in the direction indicated by the arrow.

Diagram showing a device with open status, leftward arrow indicating rotation, and control panel labeled 'OPEN'.

2

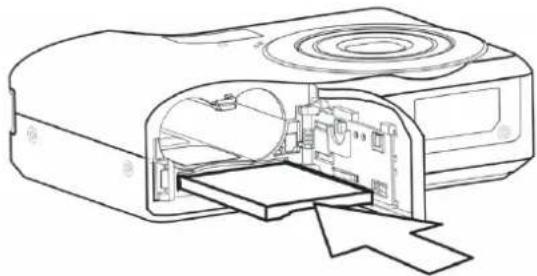

Insert the card.

- Insert the card with the label facing up and the arrow pointing in.

Line drawing of an open projector with internal components and a paper feed (no text or symbols)

?

Tips

- To remove the card, gently press on the edge of the card and release it. Pull the card out and close the battery cover.

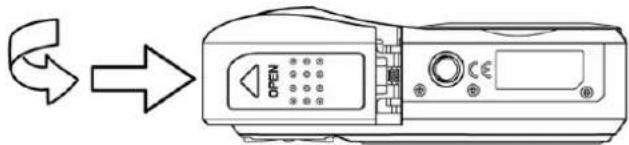

3

Close the battery cover.

Diagram showing a device with a 'OPEN' button and circular indicators, illustrating a process or operation.

Caution

• It may cause damage to the card if removed while the camera is on.
• Do not touch the connection terminals on the back side of the card.

About Camera Memory

This camera is equipped with internal memory. If the memory card is not inserted in the camera, all images and movie clips recorded by the camera will be stored in the internal memory. If the memory card is inserted, images and movie clips are stored on the memory card.

DCF Protocol

The DCF protocol defines the format for image file data as well as the directory structure for the memory card. Images that are taken by a DCF camera can be viewed on DCF-compatible cameras from other manufacturers.

Setting the Display Language/ Date & Time

When using the camera for the first time after purchasing, be sure to choose a language and set the date & time before using the camera.

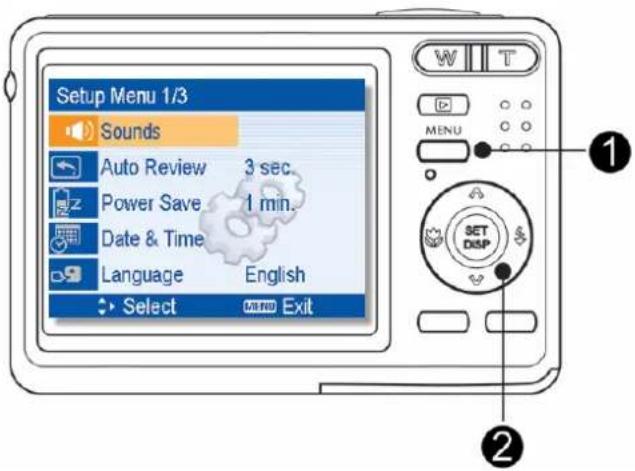

Setting Display Language

1

Turn the power on, and set the camera to the Setup Menu (page 17).

2

Select [09 Language].

- Press ▲ or ▼ to select [LANGUAGE] then press ▶ or the SET button to launch the submenu.

Setup Menu 1/3

Language

Select

English

Français

Español

Português

Italiano

SET OK

3

Select a language.

- Press ▲ or ▼ to select a language and press ◀ or the SET button to apply the setting.

4

Press the MENU button to close the menu.

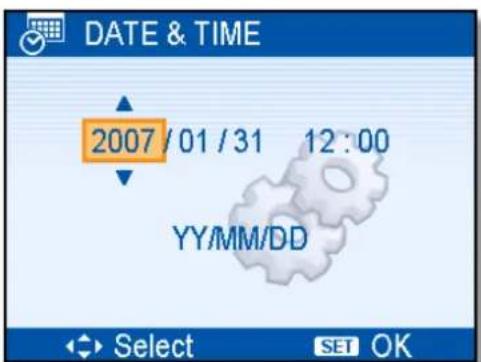

Setting Date & Time

1

Turn the power on, and set the camera to the Setup Menu ( finger pointing icon) page 17.

2

Select [√] Date & Time].

- Press ▲ or ▼ to select [Date & Time] then press ▶ or the SET button to launch the submenu.

DATE & TIME 2007/01/31 12:00 YY/MM/DD Select SET OK

3

Set date and time.

- Press ▲ or ▼ to change the value of the cursor located. Press ◀ or ▶ to move the cursor between settings.

Tips

• Holding down ▲ or ▼ changes the values continuously.
• For date stamp setting ( page 35).

4

Apply the setting.

- After adjusting the settings, press the SET or the MENU button to apply the setting.

Caution

- If the batteries are removed for longer than 48 hours, the date and time will need to be re-set.

Using the LCD Monitor

The LCD monitor is used to compose images while recording, adjust settings and replay images. The following indicators may appear on the LCD monitor while recording or playing back images.

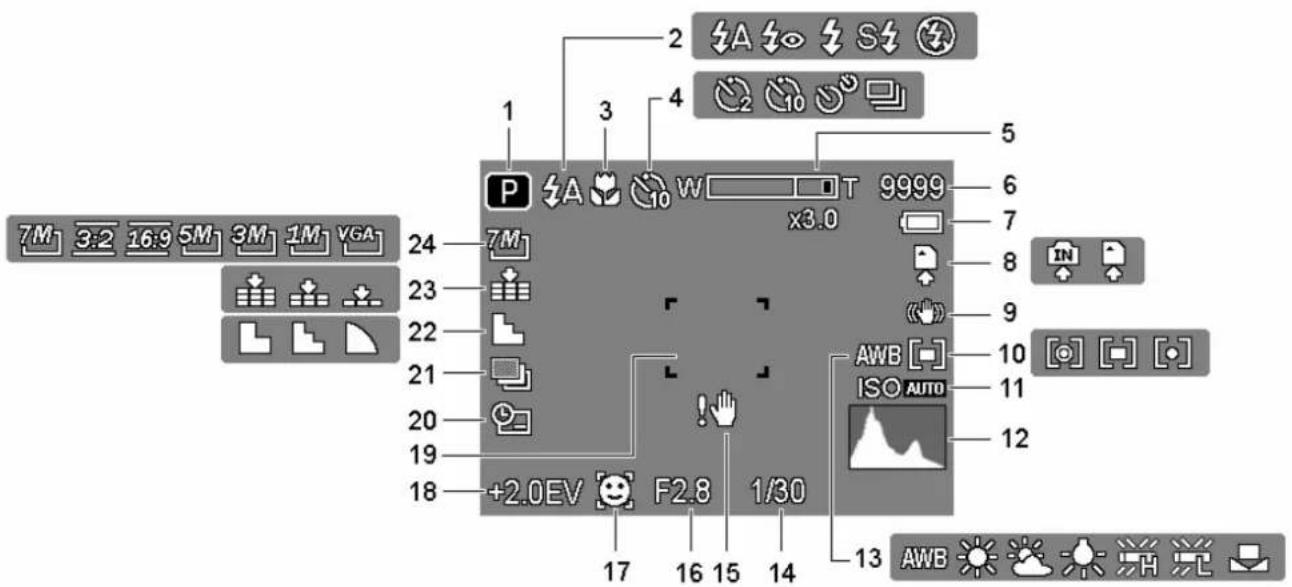

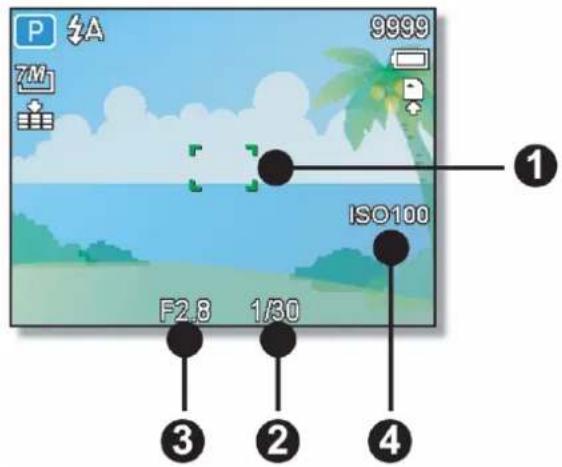

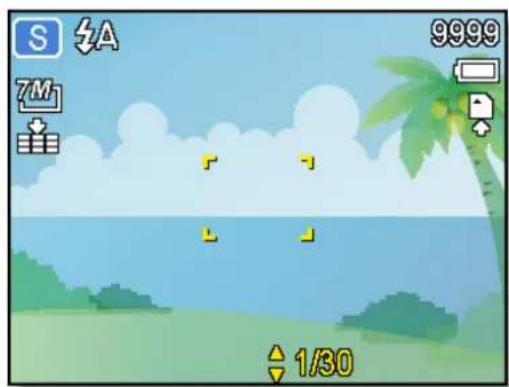

REC mode

7M 3:2 16:9 5M 3M 1M VGA 24 23 22 21 20 19 18 +2.0EV F2.8 1/30 17 16 15 14 2 3 4 P A 10 W T 9999 x3.0 5 6 7 8 9 AWB ISO AUTO AWB

1 Recording mode (page 13) 13 White balance (page 32)
2 Flash (page 24) 14 Shutter speed (page 20)
3 Macro (page 25) 15 Shake warning (page 20)
4 Self-timer / Burst (page 26) 16 Aperture value (page 20)
5 Zoom indicator (page 23) 17 Face tracking (page 35)
6 Shots remaining 18 Exposure (page 33)
7 Battery (page 5) 19 Focus area (page 20)
8 Storage media 20 Date stamp (page 35)
9 Stabilizer 21 AEB (page 33)
10 Metering (page 32) 22 Sharpness (page 34)
11 ISO (page 33) 23 Quality (page 22)
12 Histogram 24 Resolution (page 22)

1 2 3 4 5/150 7M 5 6 7 +2.0EV ISO400 F2.8 1/30 8 10 ▲ : PLAY 2007/1/1 12:00 9

1 Playback mode (page 13)
7 Recording info (page 11)
2 Protect (page 41)
8 Histogram

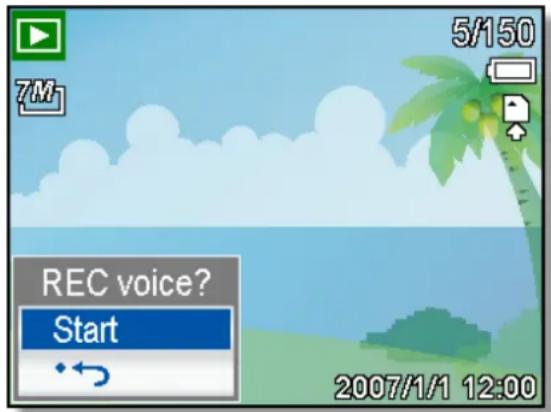

3 Voice memo (page 31)
9 Captured date & time
4 File number / Total
10 Voice memo control (page 31)
5 Battery (page 5)
11 DPOF (page 46)
6 Storage media
12 Resolution (page 22)

Caution

- Some information may not display correctly if you display images captured by other camera model.

Changing the LCD Status

Press the SET/DISP button changes the LCD status as shown below:

■ REC mode

Game scene with a palm tree on the horizon, sky, and clouds (no readable text or symbols)

(A)

Game interface screenshot showing a beach scene with trees, clouds, and UI elements (no readable text or symbols)

(B)

Illustration of a tropical beach scene with palm trees, sky, and distant hills (no text or symbols)

(C)

Illustration of a tropical beach scene with palm trees, sky, and distant clouds (no text or symbols)

(D)
(B) Full OSD
(C) Guide line
(D) OSD

(A) OSD on

Tips

- Use the "Guide line" to compose images easily before shooting images.

■ PLAYBACK mode

Game interface screenshot showing a beach scene with palm tree, ocean, and UI elements (no readable text or symbols)

(A)

On 3999/8999 M +0.15V ISO100 F0.8 YAO 2007/1/1 12:00

(B)

Illustration of a tropical beach scene with palm tree, green hills, and blue sky (no text or symbols)

(D)
(B) Full OSD
(D) OSD off

(A) OSD on

Caution

- You cannot change the LCD status in the following situation:

Manual exposure
Recording movie clips or audio files
Playing movie clips or audio files
Playing the slideshow
Viewing in thumbnail
。 Trimming a still image

Basic Operation

Turning Power On and Off

1

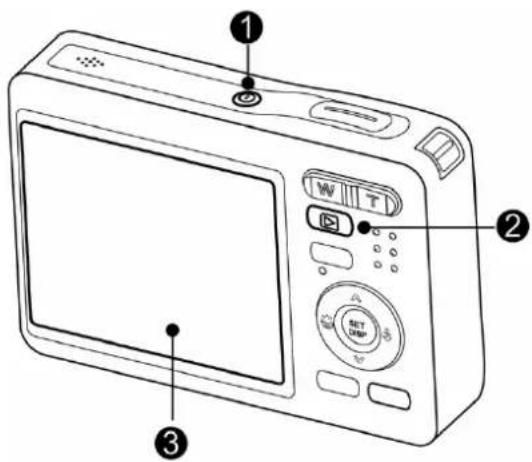

Press the POWER button (①) to turn on the camera in the REC mode.

- The power turns on, the lens extends and the LED lights in green.

Press the PLAYBACK button (②) to turn on the camera in the PLAYBACK mode.

- The power turns on, and an image displays on the LCD monitor (③).

Diagram of a digital camera with labeled parts including screen, buttons, and control panel

2

Press the POWER button (①) again to turn the power off.

- The power turns off, the lens retracts and the LED turns off.

?

Tips

• You can turn on the camera without the start-up and operating sound by pressing and holding the POWER (①) or the PLAYBACK (②) button over 1.5 seconds.
• Switch between REC mode and PLAYBACK mode ( page 13).

Power Saving Function

For saving the battery power, the LCD monitor automatically turns off 1 minute after the last control accessed (factory-preset setting). Press any other button than the POWER button to turn on the LCD monitor. You can change the power save setting in Setup menu (page 18).

After the power saving function has been active for 1 minute, the power will turn off completely. Press the POWER (①) or the PLAYBACK (②) button to restore the power.

The power save feature will not activate in the following situation:

• Recording movie clips or audio files
- Playing movie clips or audio files
- Playing the slideshow
- Connecting the camera to a computer or printer with the USB cable

Changing the Mode

You can record images and voices in the REC mode. And using the PLAYBACK mode to replay, delete, or edit images on the LCD monitor.

Switching between REC and PLAYBACK mode

In REC mode: press the PLAYBACK button (①) to switch to the PLAY mode.

Diagram of a digital camera with labeled buttons and control panel, showing front and back views with icons.

In PLAY mode: press the PLAYBACK (①) or the MODE (②) button to switch to the REC mode.

Selecting the REC mode

1

Set the camera to the REC mode (page 13).

2

Launch the mode palette.

- Press the MODE button (②) to show the scene mode palette.

3

Select a mode.

Program Select SET OK

- Use the four-way control to select a desired mode and press the SET button to confirm the setting.

Display	Title Description
	Program The camera makes settings suitable for the shooting conditions.
	Movie For recording movie clips.
	Voice REC For recording audio.
	Q Mode Allows beginners to take pictures easily.
	Portrait Blurring the background to focus on the subject.

Display	Title Description
	Landscape	Used for the wide scenic views.
	Sunset	Enhance the red hue for recording sunset images.
	Backlight	Shooting the image of backlight object by changing metering.
	Smile Capture	Capture the most brilliant smile of characters.
	Kids Take a still image to capture moving kids.
	Night Scene	Shooting the subject while keeping the background night scenery.
	Fireworks Slow shutter speed to take fireworks exploding.
	Snow Used for the beach or snow scenes.
	Food Higher saturation makes food more appetizing.
	Building Enhance the edges of the subject.
	Text Enhance the black & white contrast.

Selecting the ASM mode

1

Set the camera to the REC mode (page 13).

- It cannot be switch to ASM mode while in Movie or Voice REC mode.

2

Launch the ASM mode.

• Press the ASM button (①) to toggle switch between Aperture Priority, Shutter Priority, Manual Exposure mode.
• For detail operation (page 26).

W T SET DISP ①

Using the Menus

When a menu is displayed, the four-way control and the SET button are used to make the desired settings.

REC menu

1

Turn the power on, and set the camera to the REC mode (page 13).

2

Open the REC menu.

- Press the MENU button (①) to display the menu.

3

Select an item.

- Press ◀ or ▶ (②) to select a menu item.

7M 3:2 16:9 5M 3M Resolution MENU SET DISP ① ②

4

Change the setting.

- Press ▲ or ▼ (②) to change the setting.

5

Press the MENU (①) or the SET (②) button to save the settings and close the menu.

REC menu list (Still Image)

Menu Item Available Setting Page
Resolution / /									22
Quality		/	/						22
Metering		/	/						32
White Balance		/	/	/	/	/	/		32
ISO		/	50		/ IS	[100 H2CT]	O	ISO	33
		/	16
Exposure			+						33
Drive Mode		[3DZ]	[1 KAY4]						26
AEB									33
Highlight			/	/					34

Sharpness / /	L L D	34
Effect Off / B&W	/ Sepia / Negative / Red / Green / Blue	34
Date Stamp Off /	Date / Date & Time	35
Stabilizer Off / On 35
Face Tracking Off / On 35
Photo Frame Off /	Frame 1 ~ 10 35
Digital Zoom Off /	On 23

REC menu list (Movie)

Menu Item Available Setting Page
Movie Size	16:9/ 640/ 320	29
Metering	[◎] / [■] / [●]	32
White Balance	Auto / [IMAGE] / [IMAGE] / [IMAGE] / [IMAGE] / [IMAGE] / [IMAGE]	32

Setup menu

1

Turn the power on, and set the camera to the REC or PLAYBACK mode (page 13).

2

Press the MENU button (①) to open the REC or PLAYBACK menu.

- The menu displays depends on whether you are in the REC mode or the PLAY- BACK mode.

Setup Menu 1/3 Sounds Auto Review 3 sec. Power Save 1 min. Date & Time Language English Select Exit

3

Open the Setup menu.

- Press four-way control (②) to select SETUP ( ) and then press the SET (②) button to display the Setup menu.

4

Select an item.

- Press ▲ or ▼(②) to select a menu item and then press ▶ or the SET (②) button to launch the submenu.

5

Change the setting.

- Press ▲ or ▼ (②) to select an option and press ◀ or the SET (②) button to apply the setting.

6

Press the MENU (①) button to close the menu.

Setup menu list

Menu Item Functions
Sounds	[Shutter]: Sets the shutter sound on and off.[Start-up]: Sets a type of the start-up sound.[Beep]: Sets the operation sound on and off.[Volume]: Adjusts the volume of the shutter sound, start-up sound, beep and playback sound.
Auto Review	[Off]: The captured image will not automatically display after shooing.[3 sec.]: The captured image will display for 3 seconds after shooting.[5 sec.]: The captured image will display for 5 seconds after shooting.
Power Save	[1 min.] / [3 min.] / [5 min.]:For power consumption, the camera is turned off automatically for a period of time.• The power save feature will not activate in some situation (page 12).
Date & Time	Sets the date & time (page 7).
Language	Select a language for display menus and other information from the following 21 languages: (page 7)[English]: English [繁體中文]: T. Chinese[Deutsch]: German [Español]: Spanish[Italiano]: Italian [Français]: French[Nederlands]: Dutch [Português]: Portuguese[Magyar]: Hungarian [Čestina]: Czech[Türk]: Turkish [Polski]: Polish[Svenska]: Swedish [Русский]: Russian[Rumänisch]: Romanian [Еллнікá]: Greek[عَرْبِي] : Arabic [日本語]: Japanese['ɪŋʊ ]: Thai [体中文]: S. Chinese[한국어]: Korean
File No.	Use this function if the camera experiences a “Folder cannot be created” error or if you want to restart numbering, for example, after erasing all files.[Series]: Store the latest used file number no matter deleting files or inserting a new memory card.[Reset]: Reset file numbering each time the memory card is changed.
	Resetting the file number is useful for avoiding the file nameimages are downloaded to a computer( page 50).
duplication when
TV Out	You can review images on a television with a supplied AV cable (page 48). TV Out should be set to either NTSC or PAL depending on your region.[NTSC]: America, Japan and others[PAL]: Europe, Oceania and others
USB	[Computer] / [Printer]:Sets the USB mode to connect the camera with a printer or computer (page 49).
S.Image	Sets a recorded image as the start-up image (page 47).
Format	To erase all data stored in the memory card if you are using a card, or all data stored in the internal memory if there is no card inserted.A “BUSY...PLEASE WAIT” message displays and the memory card is starting format.A “COMPLETED” message displays when finish formatting.All data will be deleted including protected files. Be sure to download important files to your computer before formatting.
	To ensure the camera displays battery level correctly, set the type to match the batteries used. Battery TypeAlkaline / NiMH / Lithium / Qxyride
Reset All	Resets the entire menu and button operation settings to initial default.The following settings do not change after Reset All:Date & Time settingLanguage settingTV out settingBattery Type

Basic Recording

Recording Still Images

1

Turn the power on, and set the camera to the REC mode (page 13).

2

Compose the subject on the monitor.

- Aim the focus area (①) to the subject that you want to take.

P 3A 7M 9999 ISO100 F2.8 1/30 ① ③ ② ④

3

Half press the shutter button to focus the image.

• The focus area (①) becomes green while in focus, then shutter speed (②), aperture value (③) and ISO value (④) are displayed.
• If the shutter speed is slow or the possibility that image may be blurred, the shake warning icon ! ⏻ may appear on the LCD monitor. To avoid this, use a tripod to stabilize the camera when recording images.

4

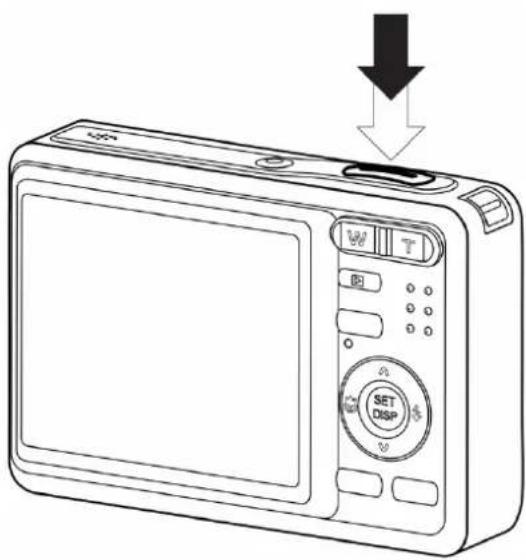

Take a picture.

- Press the shutter button fully to take a picture.

Caution

• Make sure that your fingers or the wrist strap does not block the lens.

Line drawing of a digital camera with a control panel and buttons, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Using the Q mode

The Q mode provides a simplified camera interface. Larger icons and fewer controls make it easier to take pictures anytime, especially for the beginners and elder users.

A 7M 9999

You can use only the basic settings in the Q mode:

Button	Flash: Auto / Red-eye / Force on / Slow sync / Force off
	Macro: Off / On
	SET/DISP: OSD on / Guide line / OSD off
Menu	Resolution: 7M / 3:2 / 16:9 / 5M / 3M / 1M / VGA
	Drive Mode: Off / 2 sec. / 10 sec. / Double / Burst
	Stabilizer: Off / On
	Face Tracking: Off / On
	Photo Frame: 10 frames can be selected
	Beep: Off / On
	Auto Review: Off / 3 sec. / 5 sec.

Rest of settings will not be controlled as below:

Fixed setting(*)	Quality: S.FineMetering: MultiWhite balance: AutoISO: AutoExposure: AutoAEB: Off	Highlight: OffSharpness: NormalEffect: OffDate Stamp: Date & TimeDigital Zoom: Off
Utility setting(**)	Shutter sound• Start-up sound• Power save• Date & Time• Language	File No.TV out• USB• Start-up image

(*)Fixed setting: Settings are fixed in Q mode.

(**)Utility setting: Use the same setting as last mode used.

Setting Image Size and Quality

You can select lower image resolution and quality to decrease the image size to capture more images. Choose a suitable setting according to the desired image quality and purpose. For details, see page 15.

Resolution Values

Image Size Print Size
7M	3072 x 2304 Printing larger than A4-size.		Larger
3:2	3072 x 2048
16:9	3072 x 1728
5M	2560 x 1920
3M	2048 x 1536
1M	1024 x 768
VGA	640 x 480 Printing to postcards or attaching to e-mail.		Smaller

Quality Values

Compression Purpose
	Super Fine Shoot higher quality images.		Higher Quality Lower Quality
	Fine Shoot normal quality images.
	Normal Shoot for more images.

Using the Zoom Function

Your camera has a combination of optical and digital zoom functions that allows you to zoom in on far away subjects or zoom out for a wide angle shot.

The optical zoom is achieved by mechanically adjusting the lens of the camera. The digital zoom enlarges or shrinks the image using a software process.

1

Select the zoom setting, and point the camera at the subject.

2

Press the zoom button (①) to compose the image.

[W]: zoom out for a wide-angle shot.

[T]: zoom in for a telephoto shot.

• When the zoom button is pressed, the zoom bar appears on the LCD monitor.
• When the optical zoom (②) factor is at maximum, zooming stops temporarily. Press the [T] again, the camera switches to the digital zoom (③) automatically and zooming continues.
• The digital zoom (③) will not activate in movie recording.

W T ① SET DISP W T ② ③ W T

3

Press shutter button to take a picture.

Tips

• Digital zoom works by enlarging the center portion of an image through a software interpolation process.
• The digital zoom is used to achieve magnification levels up to approx. 4 times.

Using the Flash

The flash is not only for taking pictures when there is insufficient light, but also when the subject is in shade or in backlight conditions. Press the flash button to cycle your camera through the various flash modes. The flash will not activate when continuous shooting or movie recording.

1

Turn the power on, and set the camera to the REC mode ( finger pointing to page 13).

2

Press the flash button (①) to change the flash mode.

• Each time the flash button is pressed, the flash icon (②) changes.

Auto flash:

Flash fires automatically when shooting conditions require extra lighting.

Red-eye reduction:

Flash strobes to let the subject's eyes adjust to the flash, then fires again to take the actual image. Your camera will detect the subject brightness and use the flash only when required.

Force on:

SET DISP ① ② P A 9999 7M

Flash fires every time you take a photo, regardless of lighting conditions.

Slow sync:

Flash fires with a slow shutter speed.

Force off:

The flash never fires even in dark situation.

3

Press shutter button to take a picture.

Caution

• The flash charging time may increase when the battery is low.
• The available flash settings are limited depending on the REC mode you selected (page 53).

Using the Macro

Your camera is equipped with a macro function that allows you to focus on very close subjects. In macro mode you can focus on subjects 15 cm from the lens when in the maximum wide angle setting and 40 cm in the maximum telephoto setting.

1

Turn the power on, and set the camera to the REC mode ( finger pointing to page 13).

2

Press the macro button (0) enters the macro mode.

• The macro icon (②) displays in the LCD monitor.
  • To leave the macro mode, press the macro button (①) again.

3

Press shutter button to take a picture.

Game interface screenshot showing a coastal scene with trees, clouds, and UI icons (no readable text or symbols)

Tips

- Distances referred to measure the distance between the camera lens surface and the subject.

Using the Self-timer & Burst

Use the self-timer to set a delay from the time the shutter button is pressed to the time the image is shot. Use the burst to record continuous still images shooting.

1

Turn the power on, and set the camera to the REC mode ( finger page 13).

2

Open the REC menu ( finger pointing to page 15).

- Use ◀ or ▶ to select [Drive mode] from the REC menu.

3

Change the setting.

- Press ▲ or ▼ to select a drive mode, then press the SET button.

Off:

Record a single image.

2 sec.:

The shutter release will be delay for 2 seconds.

10 sec.:

The shutter release will be delay for 10 seconds.

Double:

Record two images in a shot after pressing the shutter release button 10 and 12 seconds.

Burst:

Keep pressing the shutter button fully to take continuous shooting. Release the shutter button to stop shooting.

4

Press shutter button to take a picture.

?

Tips

- When using the self-timer function, be sure to use a tripod or place the digital camera on a level, stable surface.

Off 2 sec. 10 sec. Double Burst Drive mode

Using the Aperture Priority

In this mode, you can set an aperture value to match the brightness. A higher aperture value brings the background out of focus. Selecting a lower aperture value allows you to soft the background.

1

Turn the power on, and set the camera to the Aperture Priority (page 14).

2

Adjust the aperture value by pressing ▲ or ▼button.

3

Press shutter button to take a picture.

Game interface screenshot showing a beach scene with palm trees, sky, and UI controls (no readable text or symbols)

Tips

- The larger the aperture value the smaller the lens opening, allowing less light to enter the camera.

Using the Shutter Priority

In this mode, you can set a shutter speed to match the brightness. Faster shutter speeds allow you to take a sharp picture of a moving subject while slower speeds create a trail effect and allow you to shoot without a flash in dark areas.

1

Turn the power on, and set the camera to the Shutter Priority (page 14).

2

Adjust the shutter speed by pressing ▲ or ▼button.

3

Press shutter button to take a picture.

Game scene with palm tree, ocean, and sky (no readable text or symbols)

Using the Manual Exposure

You can manually set the shutter speed and aperture to achieve a particular effect.

1

Turn the power on, and set the camera to the Manual Exposure (page 14).

2

Use the SET button to switch between aperture value and shutter speed control. Press ▲ or ▼ to adjust the setting.

3

Press shutter button to take a picture.

- Press the shutter button halfway, the difference between the standard exposure and the selected exposure appears in red.

M A 9999 7M F2.8 1/30

Recording Movie Clips

1 Turn the power on, and set the camera to the Movie mode (page 13).

2 Compose the subject on the monitor.

• Aim the focus area (4) to the subject that you want to take.
• The LCD monitor displays the available recording time (③).

3 Start recording.

• Press the shutter button (①) to start recording.
• Using the zoom button (②) to adjust the image size.
• The White Balance is set and locked to the settings of the first frame

Line drawing of a digital camera with labeled buttons and screen interface

00:10:00 320 ③ ④

Caution

- Sound cannot be recorded while pressing the zoom button.

- The digital zoom cannot be used in Movie mode.

4 Finish recording.

• Press the shutter again to end recording.
• The camera will stop recording automatically when the memory capacity has been reached.

Setting the Movie Size

Movie Size and Frame Rate

Resolution Frame		Rate
16:9	720 x 400	30 frames/sec.	Higher Quality Lower Quality
640	640 x 480
320	320 x 240

Recording Audio Clips

1 Turn the power on, and set the camera to the Voice REC mode (page 13).

2 Press the shutter button (0) to start recording.

- The voices are recorded from the microphone (②) of the camera. Be careful to avoid touching the microphone while recording.

Diagram of a digital camera with numbered labels pointing to the front and side views

3 Press the shutter button again to end recording.

- The camera will stop recording automatically when the memory capacity has been reached.

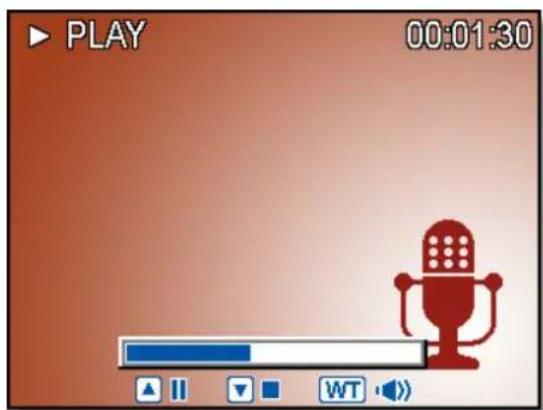

Playing Back Audio Clips

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2 Press ◀ or ▶ to select the audio clip that you want to playback.

PLAY 00:01:30 WT

3

Start playing back.

• Press ▲ to start playing the audio clip.
• Press ▼ to stop the audio clip, or press ▲ to pause it. When audio clip paused, press ▲ again to resume.

Recording a Voice Memo

You can add a voice memo to the still images after you record it.

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select a still image that you want to add a voice memo.

- If the image already has the voice memo recorded, the 🖼 appears on the LCD monitor. The new recording will replace the previous one.

5/150 7M REC voice? Start 2007/1/1 12:00

3

Open the PLAYBACK menu.

- Press the MENU button, using four-way control to select Voice Memo (☐) and press the SET button.

4

Press the SET button to start recording for 30 seconds.

- Press the SET button again to end recording.

Caution

• The voice memo cannot be added to a movie clip or a protected image.
• You cannot delete only the voice memo. When you delete the image, the attached voice memo is also deleted.

Playing Back a Voice Memo

1

Turn the power on, and set the camera to the PLAY mode (page 13).

2

Press ◀ or ▶ to select the image that has the voice memo recorded.

3

Start playing back.

• Press ▲ to start playing the voice memo.
• Press ▼ to stop the voice memo, or press ▲ to pause it. When voice memo paused, press ▲ again to resume.

Other Recording Functions

Setting the Metering

There are 3 different light metering options available on your camera.

Option Description
[◎]	Light is measured from the entire shooting screen, but gives more importance to the values near the center.
[■]	Selects an exposure based on readings from multiple points in the subject area.
[●]	Selects an exposure based on a single reading taken from the center of your picture.

Setting the White Balance

Adjust the white balance to match different light sources such as sunlight, incandescent (tungsten) lighting or, fluorescent lighting.

Option Description
AUTO	Automatically corrects white balance. Ideal for general photography.
	Adjusts for bright sun conditions, or natural light conditions.
	Adjusts for cloudy days or twilight conditions.
	Adjusts for normal indoor lighting conditions. Corrects the orange hue of household light bulbs. Ideal for indoor photos under tungsten or halogen lighting without a flash.
	Adjusts for fluorescent lighting. Corrects the green hue of fluorescent lighting. Ideal for indoor photos under fluorescent lighting without a flash.
	For more accurate adjustment or when the light source cannot be specified.

Tips

- Point the camera at a white piece of paper or similar object under the lighting conditions for which you want to set the white balance, and then press the Shutter button.

Setting the ISO

With the initial settings, the ISO sensitivity is automatically set according to the brightness of the subject.

Option Description

Auto Sets the ISO sensitivity automatically.

ISO 50 Sets the sensitivity to ISO 50 equivalent.

ISO 100 Sets the sensitivity to ISO 100 equivalent.

ISO 200 Sets the sensitivity to ISO 200 equivalent.

ISO 400 Sets the sensitivity to ISO 400 equivalent.

ISO 800 Sets the sensitivity to ISO 800 equivalent.

ISO 1600 Sets the sensitivity to ISO 1600 equivalent.

Tips

- Higher ISO speeds increase the image noise. To take clean images, use as low an ISO speed as possible.

Setting the Exposure

Set the exposure value manually to compensate for unusual lighting conditions such as indirect indoor lighting, dark backgrounds, and strong backlighting.

Setting the AEB

Sets the auto exposure bracketing (AEB) to shoot 3 continuous images, each with a different exposure setting: correctly exposed, underexposed, and overexposed.

Setting the Highlight

Make the subject stand out from its surroundings. The subject will be in focus in three

different ranges:

Tips

- The photo frame and face tracking cannot be used as using the highlight.

Setting the Sharpness

You can select whether you want the image to have sharp or soft outlines.

Option Description
[2HAC]	The edges of the image are emphasized. The edges will become sharp, but noise may occur in the recording image.
	The edges of the image are sharp. This is suitable for printing.
[6H4T]	The edges of the image are softened. This is suitable for editing images on PC.

Setting the Photo Effect

You can add special effects to your images in Record mode or in Playback mode.

Option Description
Off No effect is added to the image.
	Red-eye removal. (Playback only)
B&W Convert image to black & white.
Sepia Recorded image will be stored in a sepia tone.
Negative Opposite what they were in the original image.
Mosaic Add mosaic tiles to the images. (Playback only)
Red The image becomes reddish.
Green The image becomes greenish.
Blue The image becomes bluish.

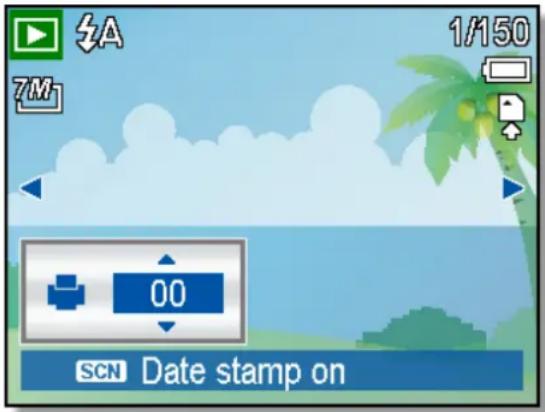

Setting Date Stamp

The Date Stamp function can be used to add a date to your pictures as you take them.

Option Description

Off Do not add the recorded date & time to printed images.

Date Only add the recorded date to printed images.

Date & Time Add the recorded date & time to printed images.

Setting Stabilizer

With more sensibility and faster shutter speed to bright up the pictures, effectively prevent blur image caused by hand shack or target movement, one can take good pictures with little effort.

Setting Face tracking

After initializing face tracking function, the lens will lock the main character in the picture and follow the movements. Also use auto digital zoom technology to retract and extract zoom lens that allows you to become the focus of lens.

Tips

• Pressing the shutter halfway showing green AF area means focus is complete.
• Face tracking is powered by Arcsoft.
• Under some environmental influences, face tracking function may be limited.
• The Highlight and photo frame cannot be used as using the face tracking.

Setting Photo Frame

You can add 10 kinds of frames to still images, making them more interesting.

Tips

• This feature only available with still images (except 3:2 and 16:9).
• The highlight and face tracking cannot be used as using the photo frame.

Playback

Playing Back Images

1

Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).

• The latest recorded image appears on the LCD monitor.
• If there are no images stored, a message [No image] appears.

5/1/50 2007/1/1 12:00 SET DISP ①

2

Press the four-way control ◀ or ▶(①).

• : displays the previous image.
• : displays the next image.

Tips

- Holding down ◀ or ▶ scrolls images in a high speed.

Playing Back Movie Clips

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select a movie clip that you want to playback.

3

Start playing back.

• Press ▲ to start playing the movie clip.
• Press ▼ to stop the movie clip, or press ▲ to pause it. When the movie paused, press ▲ again to resume.

Tips

• During movie playing back, press ▶ to fast forward or press ◀ to rewind it.
• Press the shutter to capture the still image from the movie clip while it had paused.

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Select an image.

• Press ◀ or ▶(③) to select the image that you want to magnify or trimming.
• Only still images can be magnified and trimmed.

3.0x SET K W T D MENU SET DISP ① ② ③

3

Magnify the image.

• Press [T] (①) to magnify the image and the central portion of the image is displayed. You can use the arrow button (②) to view different parts of the magnified image.
• Press the MENU button (②) to return to the normal size.

4

Trim the image.

- Press the SET button (③) to set the image trimming.

5

Save the image.

- Press the SET button (③) again to trim the selected image and save it as a new one.

Viewing in Thumbnail

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press the zoom button [W], a thumbnail screen is displayed.

3

Use the four-way control to select the desired image, and press [T] or the SET button to show the selected image in full screen.

Grid of nine grayscale images including children, music, coffee cup, city skyline, and amusement park (no text or symbols)

Tips

- You can protect or delete multiple images in thumbnail, see page 40, 42.

Playing a Slide Show

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Enter the slide show.

- Press the MENU button (①), use the four-way control (②) to select Slide Show (▶) and press the SET button (②).

Slide Show 3 sec. Yes Start Select SET OK

3

Change the slide show settings.

• Use the four-way control (2) to set the slideshow interval (○), effect (→) and repeat (→)
• You can set the interval between 1\~10 seconds.

4

Playing the slide show.

• Press the SET button (②) to start the slideshow.
• During the slideshow, press the SET button (②) to pause the slideshow and press the SET button again to resume.

Deleting Files

Deleting a Single File

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Open the menu.

- Press the MENU button (①), then use the four-way control (②) to select Delete (☑) and press the SET button (②).

Diagram of a digital camera with labeled buttons and control panel

3

Press ▲ or ▼(②) to select [SINGLE], and then press the SET button (②).

4

Press ◀ or ▶ (②) to select the image you want to delete.

5

Press the SET button (②) to delete the image.

- Repeat step 4\~5 to delete images.

?

Tips

• To quickly delete the current display image

1. Select the image you want to delete.
2. Press the Delete button (③) to show a confirmation.
3. Press the SET button (②) to delete the current display image.

- Protected images cannot be deleted with this function.

Deleting Multiple Files

1

Turn the power on, and set the camera to the thumbnail screen (page 38).

2

Open the menu.

- Press the MENU button, then press ◀ or ▶ to select to select Delete (☐) and press the SET button.

Select All Protect Delete

3

Press ▲ or ▼ to select [Select], and then press the SET button.

- The frame of the selected image turns green.

4

Select multiple images.

- Use the four-way control to select the image. - Press the SET button toggles the 📄 on and off. Repeat this step until all images that you want to delete are displayed with an icon 📄.

5

Delete images.

- Press the MENU button, then select [Yes] and press the SET button. All selected images will be deleted. - To cancel delete, press the MENU button in this step.

Deleting All Files

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Open the menu.

- Press the MENU button, then use the four-way control to select Delete (图标) and press the SET button.

Delete Single All Select SET Ok

- You can open the menu in full screen or in thumbnail.

3

Press ▲ or ▼ to select [ALL], and then press the SET button.

4

Press the SET button to delete all unprotected images.

Protecting a Single File

1 Turn the power on, and set the camera to the PLAYBACK mode ( page 13).
2 Open the menu.

- Press the MENU button, then use the four-way control to select Protect (On) and press the SET button.

3 Press ▲ or ▼ to select [SINGLE], and then press the SET button.
4 Press ◀ or ▶ to select the image you want to protect.
5 Press the SET button to protect the image.

• When the file is locked, the On displays on the LCD monitor.
• Repeat step 4\~5 to protect images.
• To unlock the file, press the SET button again in step 5. The On will disappear and the file is unlocked.

Protecting All Files

1 Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).

2 Open the menu.

• Press the MENU button, then use the four-way control to select Protect (On) and press the SET button.
• You can open the menu in full screen or in thumbnail.

Protect Single Lock all Unlock all Select SET OK

3 Press ▲ or ▼ to select [Lock all], and then press the SET button.

• To unlock all files, select [Unlock all] in this step, then press the SET button.

4 Press the SET button to protect all images.

1

Turn the power on, and set the camera to the thumbnail screen (page 38).

2

Open the menu.

- Press the MENU button, then Press ◀ or ▶ to select to select Protect ( ) and press the SET button.

Select Lock all Unlock all •← On Protect Delete

3

Press ▲ or ▼ to select [Select], and then press the SET button.

- The frame of the selected image turns green.

4

Select multiple images.

• Use the four-way control to select the image.
• Press the SET button toggles the On on and off. Repeat this step until all images that you want to protect are displayed with an iconOn

5

Protect images.

• Press the MENU button, then select [Yes] and press the SET button. All selected images will be protected.
  • To cancel protect, press the MENU button in this step.

Editing Images

Rotating Still Images

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select the image you want to rotate.

3

Open the menu.

Rotate Rotate OK Select SET OK

- Press the MENU button, then use the four-way control to select Rotate (☐) and press the SET button.

4

Press the SET button to rotate the image.

• Each press rotates the image 90 degrees in clockwise.

5

Press ▲ or ▼ to select OK, and then press the SET button to finish rotating.

Changing the Image Size

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select the image you want to resize.

3

Open the menu.

- Press the MENU button, then use the four-way control to select Resize (☐) and press the SET button.

4

Press ▲ or ▼ to select an option, and then press the SET button.

- The resized image will be saved as a new file.

Caution

- Only a large size image can be resize to a smaller one.

Changing the Image with Effects

You may use Red eye Removal remove the red eye caused by flash from original photo. Or use color filters to save as a new image.

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select the image you want to add the effect.

3

Open the menu.

- Press the MENU button, then use the four-way control to select Photo Edit (💡) and press the SET button.

4

Press ▲ or ▼ to select an option, and then press the SET button.

- The edited image will be saved as a new file.

Choosing the Image with Photo Frame

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select the image you want to add the photo frame.

3

Open the menu.

- Press the MENU button, then use the four-way control to select Photo Fames (☐) and press the SET button.

4

Press ▲ or ▼ to select the image you want, then press the SET button to apply the choice.

- The edited image will be saved as a new file.

Copying the Files

You may copy the data from the camera's internal memory to the memory card for convenience.

1

Be sure you have inserted a memory card into your digital camera. Set the camera to the PLAYBACK mode. ( page 13).

2

Open the menu.

- Press the MENU button, then use the four-way control to select Copy to card ( ) and press the SET button.

5/150 7M Copy this? Yes 2007/1/1 12:00

3

Press ▲ or ▼ to select [Single], then press the SET button.

• To copy all images to a memory card, select [All].

4

Press ◀ or ▶ to select the image you want to copy to a card.

5

Select [Yes] and then press the SET button to start copy.

• Repeat step 4\~5 to copy other images.
• Press the MENU button to complete the setting.

Setting the DPOF

The Digital Print Order Format (DPOF) setting allows you to select images on the memory card for printing and specify the number of print copies in advance using the camera. This is extremely convenient for sending the images to a photo developing service or for printing on a direct print function compatible printer.

1

Turn the power on, and set the camera to the PLAYBACK mode ( finger pointing to page 13).

2

Open the menu.

- Press the MENU button, then use the four-way control to select DPOF (▶) and press the SET button.

7M 1/150 00 SCN Date stamp on

3

Press ▲ or ▼ to select [Single], then press the SET button.

• To set the DPOF setting for all images, select [All] in this step.
• To reset all DPOF settings to initial default, select [Reset] in this step.

4

Press ◀ or ▶ to select the image you want to print out.

5

Set the number of copies.

• Press ▲ or ▼ to specify the number of copies.
• The number of copies can be set from 0 to 30.
• To cancel this image DPOF setting, set the number of copies to 0.

6

Print the date stamp out.

• Press SCN button to set the date stamp of current image. Press SCN button again to turn off date stamp.
• Repeat step 4\~6 to other images for printing.

7

After you finished all image settings, press the SET or MENU button to apply it.

Choosing a Start-up Image

1 Turn the power on, and set the camera to the PLAYBACK mode ( page 13).
2 Open the menu.

• Press the MENU button, then use the four-way control to select Start-up Image (❤️) and press the SET button.
  3 Press ◀ or ▶ to select the image you want, then press the SET button to apply the choice. • A message "Completed" appears.
  4 Set the camera to the Setup Menu (page 17).
  5 Press ▲ or ▼ to select Start-up Image (❤️) then press ▶ or the SET button.
  6 Press ▲ or ▼ to select a desired option and press the SET button to apply the setting.

[Off]: Disable the start-up image.

[System]: Use camera default image.

[My image]: Use the image that you just specified in step 3.

Start-up Image Off System My image Select SET OK

7 Press the MENU button to close the menu.

Caution

- The start-up image will not be deleted even if the original image is deleted or memory formatted.

Making Connections

Connecting the Camera to a TV

You can display recorded images on a television with a supplied AV cable.

Video Audio

1 Set the TV out to match the TV system that you are using ( finger pointing at page 19).
2 Turn off the camera and the TV.
3 Use the supplied AV cable to connect the camera to the TV set.
4 Set the TV input signal to Video In.

• Refer to the documentation included with your TV for more information.

5 Display on TV.

- Everything that would normally appear on the camera's LCD screen, such as photo and video clip playback, slide shows, and image or video capture, appears on the TV.

Connecting the Camera to a PC

There are two ways to download files from the camera's internal memory or memory card to a computer:

• Inserting the memory card into a card reader
• Connecting the camera to a computer using the supplied USB cable

Using the Card Reader

1

Eject the memory card from the camera and insert it in a card reader that is connected to a computer.

2

Open [My Computer] or [Windows Explorer] and double-click the removable drive icon that represents the memory card.

Diagram of a device being inserted into a rack, showing internal components and mounting brackets (no text or symbols)

3

Copy images from the card into a directory of your choice on the computer's hard disk.

Connecting the Camera to a PC with the USB Cable

1

Install the USB software driver included with the bundled CD-ROM.

2

Connect the supplied USB cable to the computer's USB port and turn on the camera.

- The LCD screen turns off when the connection to the computer has been successfully completed.

Diagram showing cable connection between a server and a device, with magnified insets highlighting internal components.

3

Open [My Computer] or [Windows Explorer]. A "Removable Disk" appears in the drive list.

4

Double-click the "Removable Disk" icon to view its contents.

- Files stored on camera are located in the folder name "DCIM".

Appendix

Folder & File Name

Your digital camera automatically creates a directory of folders in the internal memory or memory card that it uses to organize still images, movie clips and other information.

Folder Structure

Folder name begins with a 3-digit number from 100 to 999 and followed by "DICAM", each folder holds up to 9999 files. If new files are made, a new folder named in sequence will be made automatically.

INTERNAL (F:) DCIM 100DICAM DSCI0001.JPG DSCI0002.JPG DSCI0003.JPG DSCI0004.AVI DSCI0005.WAV 101DICAM 102DICAM MISC AUTPRINT.MRK

File Naming

File name begins with "DSCI" and are followed by a 4-digit number that increases in sequence. File numbering starts from 0001 when a new folder is created.

If the highest folder number is 999 and highest file number exceeds 9999, the camera will display the warning message "Folder cannot be created". When it appears, try one of the following ways:

• Reset the file number and plug in a new memory card.
• The folder number and file number are initialized and renumbered from 100 and 0001 respectively.

Caution

- Do not change the folder and file names in the memory card using your computer. It may be unable to playback the data using the digital camera.

Troubleshooting

Problem Cause Solution
Power does not turn on.	Battery is inserted in the wrong direction.	Reload battery in the correct direction.
	Batteries are dead. Replace or recharge batteries.
	The battery compartment door is open.	Make sure the battery compartment door is securely closed.
The camera does not take pictures.	The flash is charging. Wait for the flash to charge.
	Memory is full. Insert a new memory card.
	Memory card is not formatted correctly.	The card may be defective, use a new card.
the shutter button is pressed.	The flash is charge. Wait for the flash to charge. Image is not recorded when Memory is full. Insert a new memory card.
The flash does not fire. Flash is set to OFF. Set the flash to any mode except off.
Image is blurry or out of focus.	The camera was moving when the image was captured.	Hold the camera steady when shooting picture.
	The subject was beyond the range within which the camera can focus.	Turn the Macro mode on it the subject is within 15 cm or 40 cm.Do not use Macro mode when shooting distant subjects.
Image is not displayed on the LCD monitor.	A memory card with non-DCIF images (recorded with other camera) is loaded.	This camera cannot display non-DCIF images.
Recorded images are not saved in memory.	The camera was turned off / powered down before the image was stored in memory.	If the battery low indicator appears on the LCD monitor, replace the battery immediately.
Cannot transfer images to a computer after connecting the USB cable.	USB driver is not installed. Install the USB driver before you connect the camera to a computer / turn the camera on.
Card error The memory card format may not be correct.		Re-format the memory card to the FAT format using a card reader in Windows.

Specifications

Sensor 7 MegaPixels CCD, Size : 1/2.5 inch
Lens Focal length	: f = 6.2 (W) ~ 18.6 (T) mm ,3X optical zoom, 4X digital zoom
Display 2.5" LCD monitor
Focus range Normal	: 80 cm ~ Infinity, Macro: (W) 15 cm ~ 1 m / (T) 40 cm~ 1 m
Aperture F/ 2.8 ( W ), 5.2 ( T )
Shutter 8 ~ 1/2000 sec.
File format Still Image	: EXIF 2.2 compatible format ( JPEG compression ),DCF compatible. Support DPOF, PictBridgeVideo: AVI , Audio: WAV
Resolution Still Image	: 3072 x 2304 (7M) / 3072 x 2048 (3:2) / 3072 x 1728(16:9) / 2560 x 1920 (5M) / 2048 x 1536 (3M) / 1024 x 768 (1M) /640 x 480 (VGA), Video: 720 x 400 / 640 x 480 / 320 x 240
Scene mode	Program / Movie / Voice REC / Q. Mode / Portrait / Landscape /Sunset / Backlight / Smile Capture / Kids / Night scene / Fireworks /Snow / Food / Building / Text
Sensitivity Auto / ISO 50 / ISO 100 / ISO 200 / ISO 400 / ISO 800 / ISO 1600
White balance Auto / Daylight / Cloudy / Tungsten / Fluorescent (H) / Fluorescent(L) / Custom
Exposure control -2EV to +2EV in 1/3 step
Metering Center-weighted / Multi / Spot
Burst Depends on the capacity of the memory. (no limit)
Self-timer	2 sec. / 10 sec. / Double
Flash	Auto / Red-eye reduction / Always on / Always off / Slow sync
Photo effect	Black & White / Sepia / Negative / Mosaic / Red-eye removal / Red /Green / Blue
Storage	16 MB internal memory / SD card (4 GB)/ SDHC (8 GB)
TV system NTSC / PAL
Power supply	AA rechargeable battery x2 (option);AA alkaline battery x2
Ambienttemperature	Operating: 0°C to 40°CStorage: -20 to 60°C
Microphone	Built-in
Speaker	Built-in
Dimension Camera	Body ( W x H x T ) : 89.5 x 61.3 x 27 mm
Weight	Camera Body w/o battery : Approx. 140 (g)

*These specifications are subject to change without notice.

Function Available List

Function\Mode

Still Capture



P

A

S

M

Scene Mode

MENU

Exposure

+0.3 ~ +2.0

Og

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

-

-

-

-

-

-

-

-

-

-

-

-

-

-

✘

✘

0EV

◇

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

-0.3 ~ -2.0

Og

Og

Og

Drive mode

Off

◇

Og

Og

Og

Og

Og

Og

Og

Og

-

Og

Og

Og

Og

Og

Og

Og

2 sec.

Og

Og

Og

Og

Og

Og

Og

Og

Og

✘

Og

Og

Og

Og

Og

Og

Og

✘

✘

10 sec.

Og

Og

Og

Og

Og

Og

Og

Og

Og

✘

Og

Og

Og

Og

Og

Og

Og

✘

✘

Double

Og

Og

Og

✘

✘

✘

Burst

Og

Og

✘

✘

✘

mode

Off

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

✘

✘

On

Og

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

AEB Highlighted

Off

◇

Og

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

Og

Og

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

Og

Og

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

Og

Og

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

More information con the complete AgfaPhoto digital camera product range can be found under www.plawa.com / www.plawausa.com

Service & Repair (USA/ Canada):

1-866 475 2605

www.plawausa.com

Service & Repair Hotline (EU):

00800 752 921 00 (from a landline only)

Service & Support Hotline (Germany):

0900 1000 042 (1.49 Euro/ min. from a German landline only)

Online Service / International contact:

[e-mail]

Manufactured by

AgfaPhoto is used under license of Agfa-Gevaert NV & Co. KG. Agfa-Gevaert NV & Co. KG. does not manufacture this product or provide any product warranty or support. For service, support and warranty information, contact the distributor or manufacturer.

Contact: AgfaPhoto Holding GmbH, www.agfaphoto.com

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FCC Compliance and Advisory

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) this device may not cause harmful interference, and 2.) this device must accept any interference received, including interference that may cause unsatisfactory operation. This equipment has been tested and found to comply with the limits for a Class B peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. When shielded interface cables have

been provided with the product or when specified additional components or accessories have elsewhere been designated to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.
