Product Type	Cash Drawer
Brand	Posiflex
Model	CR-4000-B
Dimensions (W x D x H)	428 x 460 x 100 mm
Weight	7.0 kg
Power Source	Solenoid drive: 12-24 VDC, pulse 100-250 ms; optional 12VAC 1.5A adapter
Interface Compatibility	Printer drive (CR-4000), RS232C (CR-4001/4002/4004), Parallel (CR-4003), USB 1.1 (CR-4005-II)
Security Code	Configurable via DIP switches, 1-255, factory preset 07H (for non-dedicated RS232/Parallel models)
Keylock Positions	Lock (physical lock), Open (key open), Standby (auto open by signal)
Bill Compartments	5 adjustable (4 separators included)
Coin Compartments	9 fixed
Coin Roll Storage	1 underneath cash tray
Bill Clip	Plastic
Signal Cable	8-pin telephone plug to 6-pin (printer drive models)
Carton Contents	Pre-assembled drawer, user manual, 4 bill separators, 2 keys, signal cable per model
Maximum Current Consumption	0.75A @ 12VDC / 1.5A @ 24VDC (solenoid)
Drawer Open Sense	Pin 9 shorts to pin 5 when open (serial models CR-4001/4002/4101/4102/4211/4212)
UPOS Driver Support	UPOS 1.7 (CR-4000/4001/4002), UPOS 1.8 (CR-4005-II)
FCC Compliance	Class A digital device for commercial environment
Cable Wire Color Coding	Red (drawer open sense), Blue (return), Green (+24V to solenoid), Yellow (drawer kick pulse)
Power Supply Options	12VAC 1.5A adapter (serial/parallel/USB); PC power (CR-4004)

Frequently Asked Questions - CR-4000-B Posiflex

How do I connect the cash drawer to my POS printer?

For printer drive models (CR-4000/4020/4100/4210/6210), use the included signal cable with an 8-pin telephone plug on the drawer end and a 6-pin plug on the printer end. If your printer uses a different connector, you can cut the 6-pin end and wire it according to the printer's pinout. See the manual for wire colors: Red (drawer open sense), Blue (return), Green (+24V), Yellow (kick pulse).

How do I set the security code on the cash drawer?

For non-dedicated RS232 (CR-4002/4102/4212) and parallel (CR-4003/4103/4213) models, locate DIP switch S1 on the rear panel. Each switch bit adds a value: BIT1=1, BIT2=2, BIT3=4, BIT4=8, BIT5=16, BIT6=32, BIT7=64, BIT8=128. The security code is the sum of bits set to OFF. Factory default is 07H (bits 1-3 OFF, bits 4-8 ON).

What is the default security code?

The factory default security code is 07H (hexadecimal 7). This corresponds to DIP switch S1 with bits 1, 2, 3 set to OFF and bits 4, 5, 6, 7, 8 set to ON.

How do I change the keylock positions?

The keylock has three positions: Lock (physically locks the drawer), Open (manually open with key), and Standby (auto open by POS signal). Rotate the key to the desired position. In Standby, the drawer opens automatically when the POS system sends a kick-out pulse.

How do I install the USB interface model?

For CR-4005-II/4105-II/4215-II/6215, set the drawer number via DIP switch S1 (default drawer 7). Connect the USB cable from the drawer to the PC's USB port. Connect the power adapter to the 12VAC input. Install the USB utility driver from the Posiflex CD or website.

What are the dimensions and weight of the CR-4000-B?

The dimensions are 428 mm width, 460 mm depth, and 100 mm height. The weight is 7.0 kg.

How do I install the serial model (CR-4001/4101/4211)?

Connect the drawer's serial I/P port to the computer COM port using the provided cable. Connect the power adapter to the Power Input jack. Set DIP switch S2: position 3 OFF, position 4 ON for dedicated RS232. No other serial devices should be on the O/P port.

What is the maximum current consumption?

The solenoid drive draws a maximum of 0.75A at 12VDC or 1.5A at 24VDC. The pulse width is 100-250 ms with a max duty cycle of 10%.

How do I reset the security code if I forget it?

There is no reset button. You must manually set DIP switch S1 to a known code. If the code is lost, you can try sequential testing from 1 to 255 using a terminal program. Alternatively, contact Posiflex support for assistance.

What does the drawer open sense feature do?

On serial models (CR-4001/4101/4211, CR-4002/4102/4212), the drawer open sense signal shorts pin 9 to pin 5 of the DB9 connector when the drawer is open. This allows the POS system to detect the drawer status. For USB models (CR-4005-II/6215), status is reported through the USB driver.

USER MANUAL CR-4000-B Posiflex

CR-4000/6000 SERIES CASH DRAWER

USER'S MANUAL

FCC Notes:

Rev. A2

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures to correct the interference.

Isometric line drawing of a rectangular electronic device with a slot and ventilation slots (no text or symbols)

Warranty Limits:

Warranty terminates automatically when any person other than the authorized technicians opens the machine. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material.

This information is provided “as is” and Posiflex Inc. expressly disclaims any warranties, expressed, implied or statutory, including without limitation implied warranties of merchantability or fitness for particular purpose, good title and against infringement.

The information in this manual contains only essential hardware concerns for general user and is subject to change without notice. Posiflex reserves the right to alter product designs, layouts or drivers without notification. The system integrator shall provide applicative notices and arrangement for special options utilizing this product. The user may find the most up to date information of the hardware from web sites: http://www.posiflex.com or http://www.posiflex.com.tw

All data should be backed-up prior to the installation of any drive unit or storage peripheral. Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without prior express written consent from Posiflex Inc. the publisher of this documentation.

© Copyright Posiflex Inc. 2006

All brand and product names and trademarks are the property of their respective holders.

P/N: 19240901041

Part 1

MODEL NUMBERS

Model	CR400X	CR410X
Bill Compartment	5 Adjustable	5 Fixed	5 Fixed
Bill clip	Plastic	Metal	Metal
Coin compartment	9 Fixed 9 Fixed	5 Fixed
Coin Roll storage	1 Underneath Cash Tray	4 Behind	Cash Tray

Note: 1. CR-4020 series is a special model having 9 bill compartments with plastic bill clip and no coin compartment

1. CR-621X series is heavy duty metal casing

INTERFACE APPLICATION

Model Number Interface		Security Code	Power / Source
CR-4000/4020/4100/4210/CR-6210	Printer drive N. A.		12/24 V Pulse / Printer
CR-4001/4101/4211 Dedicated RS232 serial N. A.			12VAC / Adaptor
CR-4002/4102/4212	Non-dedicated RS232 serial	0 ~ 255
CR-4003/4103/4213	Parallel	0 ~ 255
CR-4004/4104/4214 CR-6214	Dedicated RS232 serial N. A.	12VDC / PC
CR-4005-II/4105-II /4215-II/ CR- 6215	USB	USB PID	12VAC / Adaptor

CARTON CONTENTS

1. Cash drawer pre-assembled.

2. User's manual.

3. Separators of bill compartment: 4 pcs (for CR4000\~4 and CR4005-II only).

4. Key 2pcs: There is a key serial No. sticker on the cash drawer bottom plate. If user lost the key he/she can order the key according to this number.

5. Signal Cable depend on model

a). For CR4000/4020/4100/4210/6210: The standard signal cable is 21863018010 which has a 8 pin plug at one end to connect to the cash drawer and a 6 pin plug at the other end to connect to the POS system/printer. This cable serves for most popularly used POS equipment such as all Posiflex POS terminals, all Posiflex POS printers, most Epson POS printers, most Star POS printers and all other

compatibles. The user may cut the 6 pin end and assemble this free end according to his POS printer specification if the POS printer used utilizes different connection. The cable connection on the wires is as below:

Wire color	RJ45	Function
Red Pin 1	Drawer open sense
Blue Pin 2	Drawer open sense return
Green Pin 7	+ 24V to solenoid
Yellow Pin	8 Drawer kick pulse

b). For CR4001/ 4101/ 4211/ 4002/ 4102/ 4212: 21863137210 /21863237210 with one 9PM and one 9PF connector.
c). For CR4003/ 4103/ 4213: 21863231810 with one 25PM and one 25PF connector.
d). For CR4004/ 4104/ 4214/ 6214: The serial signal cable is already built on.
e). For CR-4005-II/ 4105-II/ 4215-II/ 6215: USB cable is already built on.

1. Power Source depend on model

a). For CR-4000/ 4020/ 4100/ 4210/ 6210: not applicable
b). For CR-4001/ 4101/ 4211/ 4002/ 4102/ 4212/ 4003/ 4103/ 4213/ CR4005-II / 4105-II/ 4215-II/ 6215: Power adapter 12VAC 1.5A
c). For CR4004/ 4104/ 4214/ 6214: Power connector cable and I/O bracket plate.

INSTALLATION

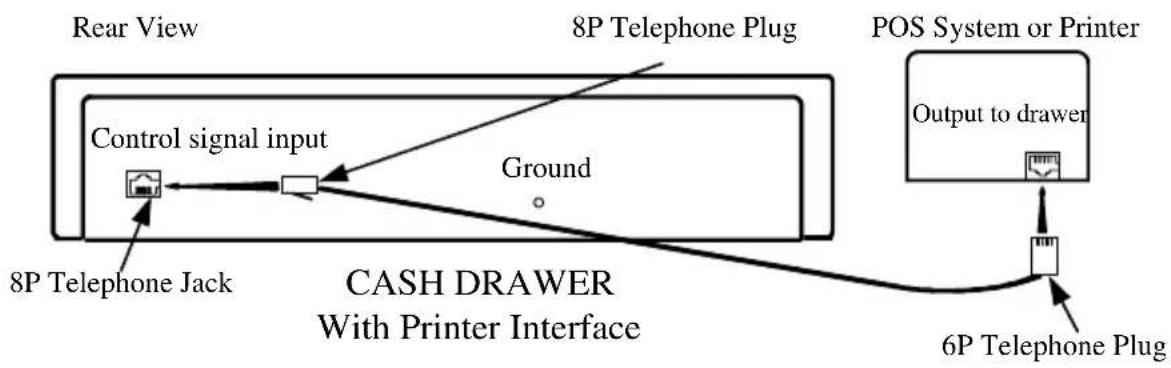

CR4000 / 4020 / 4100 / 4210 / 6210 Connect the drawer to POS

system/printer as shown below:

CR4001 / 4101 / 4211

1). Connect the drawer serial I/P port to the computer COM port. Connect the power adapter output to the Power Input jack

2). No other RS232C devices should be connected to the serial O/P port.

3). Set position 3 of S2 to OFF and position 4 of S2 to ON. Please refer to rear panel illustration.

CR4002 / 4102 / 4212

1). Connect the drawer serial I/P port to the computer COM port. Connect the power adapter output to the Power Input jack.

2). Other RS232C device can be connected to the serial O/P port when needed as long as the security code makes no influence to this RS232C device.

3). Set position 3 of S2 to ON and position 4 of S2 to OFF. Set S1 for security code to open cash drawer. In normal practice, the security code is suggested to be a non-displayable ASCII character, for example, a hexadecimal number between 01 to 1F. Please refer to rear panel illustration below.

CR4003 / 4103 / 4213

1). Connect the drawer parallel I/P port to the computer LPT port. Connect the power adapter output to the Power Input jack.

2). Other parallel device such as a printer can be connected to the parallel O/P port when needed as long as the Security code makes no influence to this parallel device.

3). Set S1 for security code to open cash drawer. In normal practice, the security code is suggested to be a non-displayable ASCII character. For example, a hexadecimal number between 01 to 1F. Please refer to rear panel illustration below.

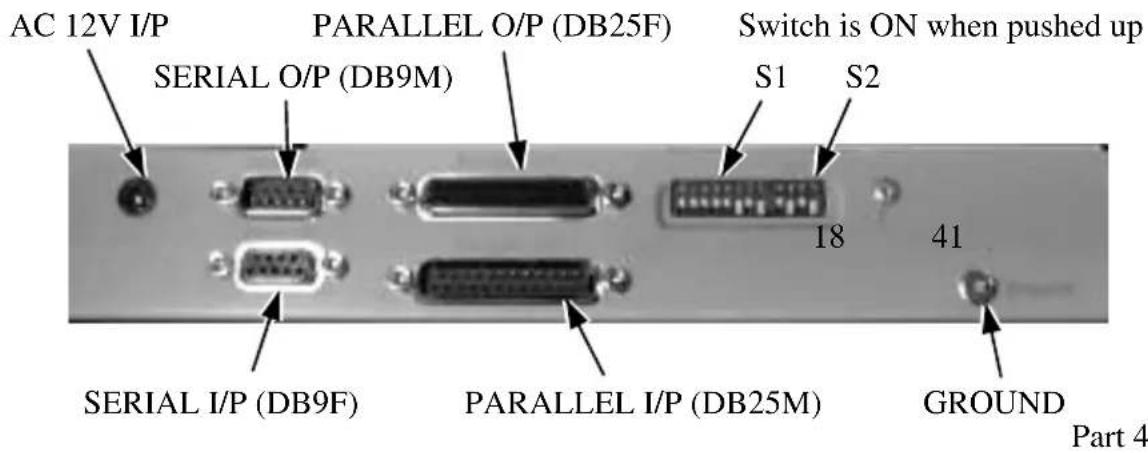

CR4001/ 4101/ 4211/ 4002/ 4102/ 4212/ 4003/ 4103/ 4213 Rear panel illustration.

AC 12V I/P PARALLEL O/P (DB25F) Switch is ON when pushed up SERIAL O/P (DB9M) S1 S2 18 41 SERIAL I/P (DB9F) PARALLEL I/P (DB25M) GROUND Part 4

S1 Set security code. (Default Setting: BIT 1,2,3 OFF and BIT 4,5,6,7,8 ON. Security code is 07H)

B I T			1	2	3	4	5	6
Number to be added to the security code if OFF.	1 2	4 8 1	6 32	64 12	8

S2 BIT1 ON and BIT2 OFF to receive security code via Pin2 of P4 (DB9F). BIT1 OFF and BIT2 ON* to receive security code via Pin3 of P4 (DB9F). BIT3 OFF and BIT4 ON for dedicated RS-232C. BIT3 ON and BIT4 OFF* for non-dedicated RS-232C. (* denotes factory default setting)

CR4004 / 4104 / 4214 / 6214

1). Open the PC case. Put the metal bracket with power connector into one of the I/O windows.

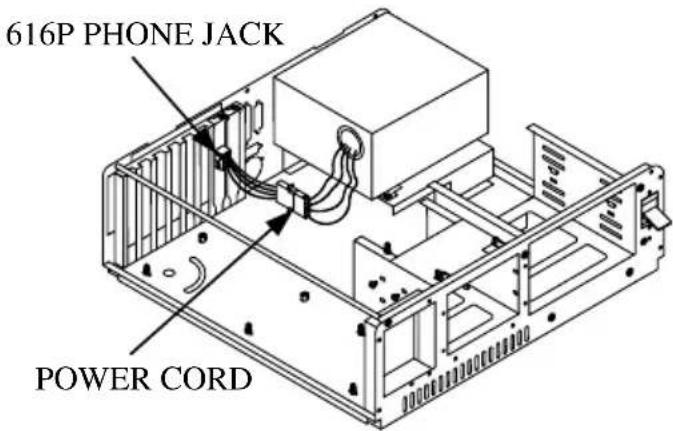

2). Connect the cable to the HDD type power connector of PC power supply. See illustration below. Then close the PC case.

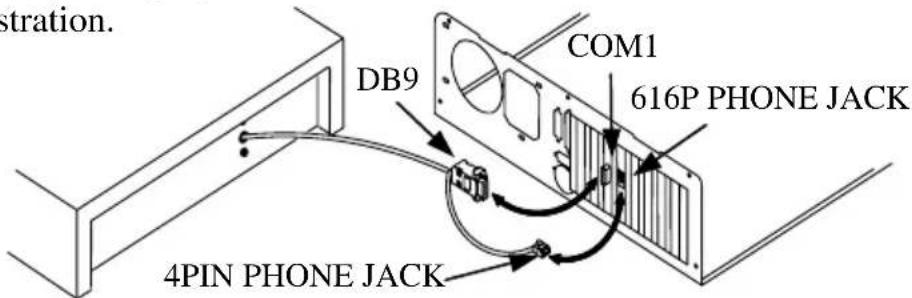

3). Connect the DB-9 connector to the computer's serial port of COM1 (or COM2). Connect the 4P phone plug connector to the added I/O bracket. See below illustration.

616P PHONE JACK POWER CORD

stration. DB9 COM1 616P PHONE JACK 4PIN PHONE JACK

CR4005-II / 4105-II / 4215-II / 6215

1). Define a drawer number for the cash drawer so that this cash drawer is going to respond accordingly in USB communication. Follow the table below for “Switch settings” to adjust the switch S1 according to this drawer number if it is not 7. Please note that within each system there

should never be any 2 USB interface cash drawers carrying the same drawer number.

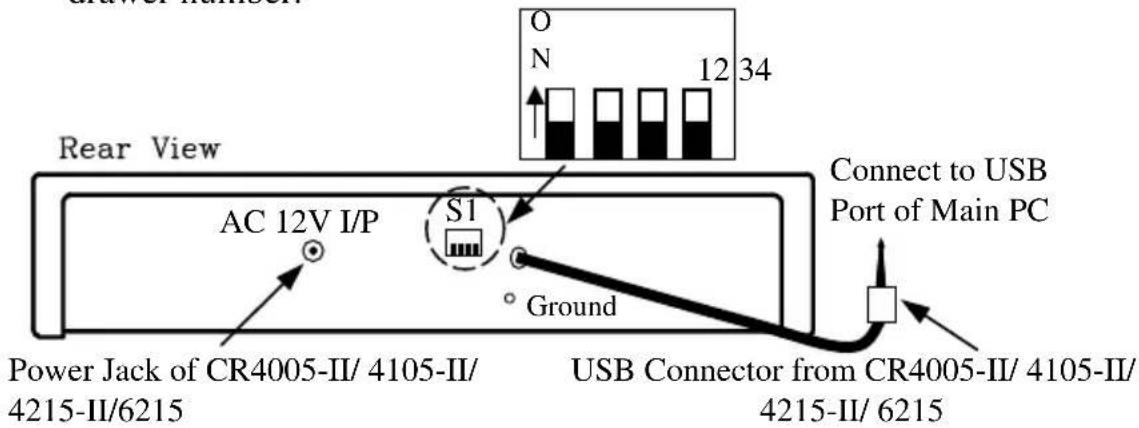

Rear View AC 12V I/P S1 Ground Power Jack of CR4005-II/ 4105-II/ 4215-II/6215 Connect to USB Port of Main PC USB Connector from CR4005-II/ 4105-II/ 4215-II/ 6215

Rear View of Model CR4005-II/ 4105-II/ 4215-II/ 6215 Cash Drawer with USB Interface

Switch settings:

Drawer	0	1	2	3	4	5	6	7
SW1	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW2	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW3	ON	ON	ON	ON	OFF	OFF	OFF	OFF
SW4	Reserved

Default setting: Drawer 7 (SW1: OFF; SW2: OFF; SW3: OFF)

2). Connect USB connector of cable coming out from the rear side of the USB interface cash drawer to USB port of main PC.

3). Check the specification of power adaptor on its nameplate. Insert the power adaptor into the correct power outlet. Insert the output plug to the jack at rear side of CR4005-II/ 4105-II/ 4215-II/ 6215 to supply power for drawer kickout.

4). Install the USB utility driver from Posiflex Product Information CD with Posiflex POS system or visit our web sites http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com for latest updates.

UPOS driver application (Applied for all Posiflex cash drawer)

Please first find in Posiflex Product Information CDROM or download from Posiflex web sites for UPOS driver setup. In this application CR4XX3 and CR4XX4/ 6214 respond to openDrawer command only; CR4XX0/ 6210, CR4XX1 and CR4XX2 are compliant to UPOS version 1.7 and CR4XX5-II/ 6215 are compliant to UPOS version 1.8.

SPECIFICATIONS

MECHANICAL: Dimensions:

428 (W) x 460 (D) x 100 (H) mm (CR-4000)

428 (W) x 456 (D) x 100 (H) mm (CR-6000)

Weight: 7.0 Kg (CR-4000)

8.8

Kg

Removable tray with a lock-on cover (option)

ELECTRICAL:

Power Source

Solenoid Drive (for CR-4000 / 4020 / 4100 / 4210 / 6210)

Pulse Amplitude 12 to 24 VDC

Pulse Width 100 to 250 msec

Pulse Duty Cycle 10% max.

Max. Current Consumption 0.75A @ 12 VDC/1.5A @ 24 VDC

Output Voltage 12 VAC at 1.5 A

DC Power Kit (for CR-4004 / 4104 / 4214 / 6214): +12 V DC and +5 V DC

Interface

Direct Drive: CR-4000/ 4020/ 4100/ 4210/ 6210

Serial (RS232C): CR-4001

CR-4002

CR-4004

CR-4101

CR-4102

CR-4104

CR-4211

CR-4212

CR-4214/6214

Baud rate 9600

9600

150 \~ 19200

Parity None

none

none, even, or odd

Data Bits 8

8 7 or 8

Stop Bits 1 or 2

1 or 2

1 or 2

Parallel (IEEE1284): CR-4003/ 4103/ 4213

USB (1.1): CR-4005-II/ 4105-II/ 4215-II/ 6215

Security Code

CR-4002/4102/4212/4003/4103/4213

1-255; factory preset

value = 7

CR-4005-II/ 4105-II/ 4215-II

USB PID

CR-6215

Drawer Open Sense

CR-4001/4101/4211/4002/4102/4212

Pin 9 shorts to pin 5 when drawer open

CR-4005-II/4105-II/4215-II

CR-6215

Through USB driver

KEYLOCK OPERATION

a I a

Keylock

Lock ( ): Physically lock the drawer.

Open (☐): Open the drawer by the key.

Standby (▼): Automatically open the drawer by POS printer or POS system or interface signal control

STRUCTURE

Check Slot

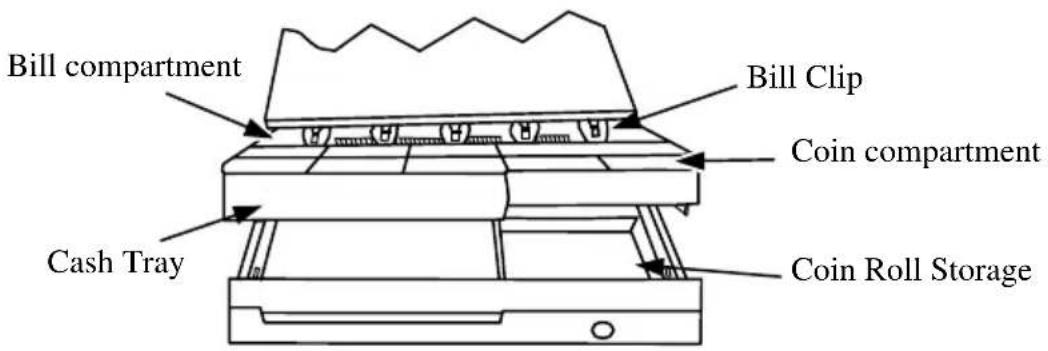

Inside CR-4000/ 4001/ 4002/ 4003/ 4004/ 4005-II/ 4100/ 4101/ 4102/ 4103/ 4104/4105-II

Bill compartment Cash Tray Bill Clip Coin compartment Coin Roll Storage

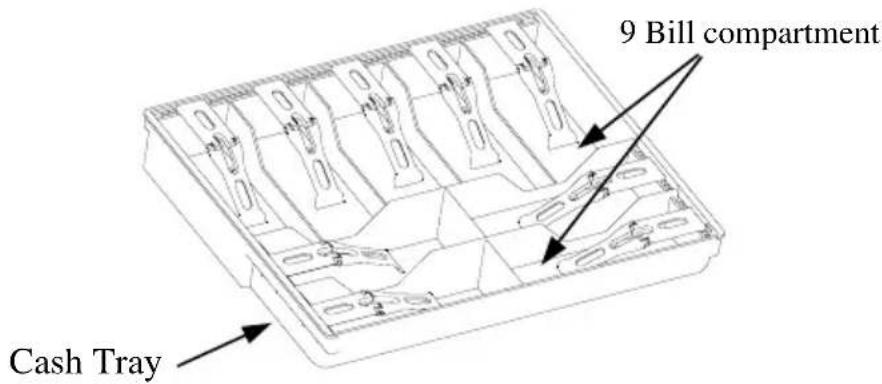

Tray for CR-4020

9 Bill compartment Cash Tray

Bill compartment Cash Tray Coin Roll Storage Bill Weight Coin compartment

POSIFLEX
