USER MANUAL Viera TX-32LXD700 PANASONIC

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate

waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Sales and Support Information

Customer Care Centre

• For customers within the UK : 0844 844 3852

• For customers within the Republic of Ireland: 01 289 8333

- visit our website for product information www.panasonic.co.uk

- E-mail: customer.care@pt

Direct Sales at Panasonic OR

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre
Monday – Thursday 9:00am – 5:30pm, Friday 9:30am – 5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory
- Most major credit and debit cards accepted,
1. All enquiries transactions and distribution facilities are provided directly by Panasonic GT Ltd.
- Also, nucleobics through one information in direct showing for a wide range of final blood samples. Take a lecture on the nucleobics for further details.
1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》，同意公司使用不超过人民币3,000万元的闲置募集资金进行现金管理。
Please call 0870 249 6284 or visit www.panasonic.co.uk/guarantee

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number

Serial Number

Panasonic (U. K.) Ltd.

Willoughby Road, Bracknell, Berks RG12 8FP Web Site: http://www.panasonic-europe.com

© 2007 Matsushita Electric Industria Co., Ltd. All Rights Reserved.

Printed in Czech Republic

Panasonic®

Operating Instructions

LCD Television

Model No. TX-32LXD700

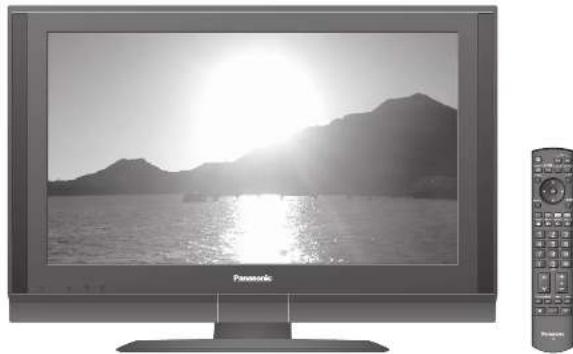

Black-and-white photo of a Panasonic TV displaying a scenic sunset over water with mountains in the background (no text or symbols visible on screen)

VIERA

Link

U.K. Standard

English

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

TQB0E0396

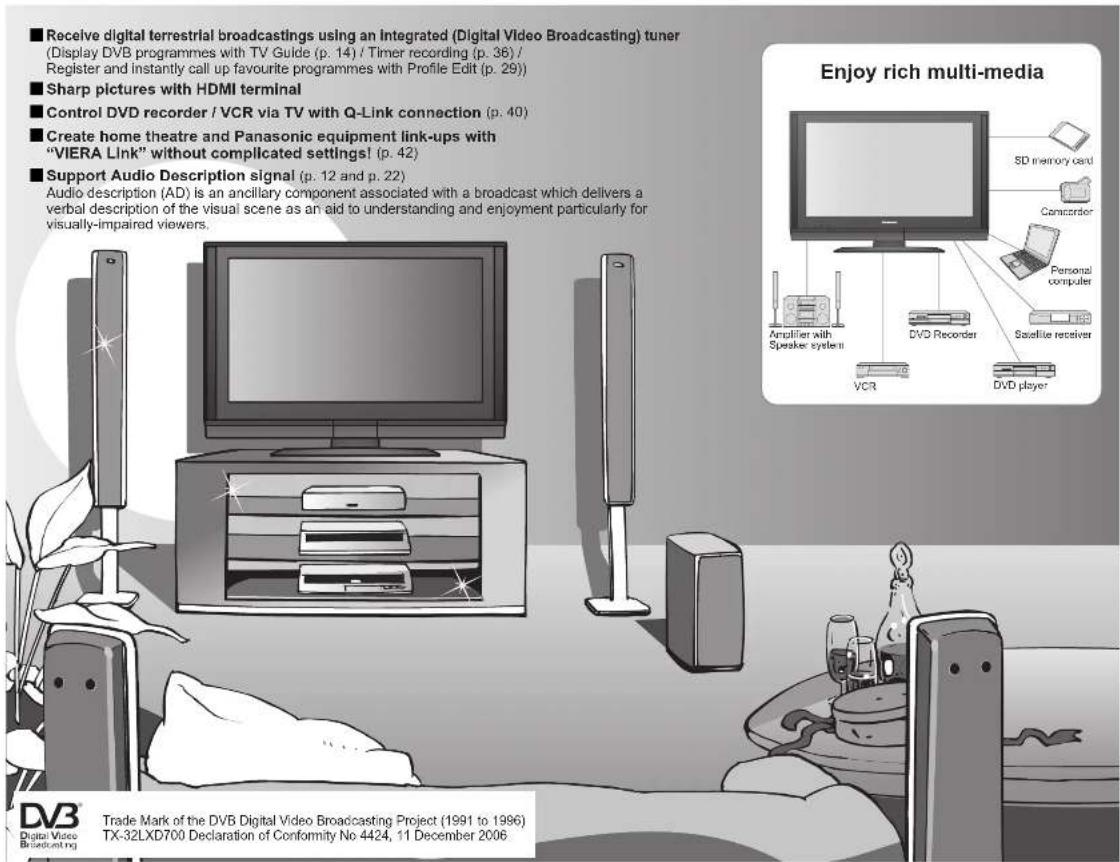

Turn your living room into a home theatre!

Experience an amazing level of multi-media excitement

Receive digital terrestrial broadcastings using an Integrated (Digital Video Broadcasting) tuner (Display DVB programmes with TV Guide (p. 14) / Timer recording (p. 36) / Register and instantly call up favourite programmes with Profile Edit (p. 29)) Sharp pictures with HDMI terminal Control DVD recorder / VCR via TV with Q-Link connection (p. 40) Create home theatre and Panasonic equipment link-ups with "VIERA Link" without complicated settings! (p. 42) Support Audio Description signal (p. 12 and p. 22) Audio description (AD) is an ancillary component associated with a broadcast which delivers a verbal description of the visual scene as an aid to understanding and enjoyment particularly for visually-impaired viewers. Enjoy rich multi-media SD memory card Camcorder Personal computer Amplifier with Speaker system DVD Recorder VCR Satellite receiver DVD player DVB Digital Video Broadcasting Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) TX-32LXD700 Declaration of Conformity No 4424, 11 December 2006

Contents

Be Sure to Read

● Safety Precautions 4

(Warning & Caution)

Notes 5

● Maintenance 5

Quick Start Guide

● Accessories / Options …… 6

● Identifying Controls 7

● Basic Connection 8

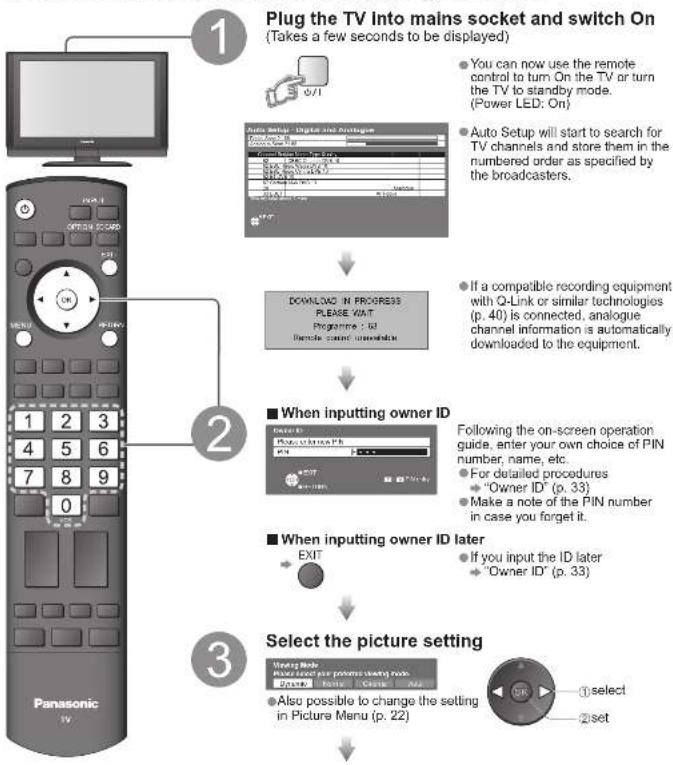

● Auto Setup 10

Enjoy your TV!

Basic Features

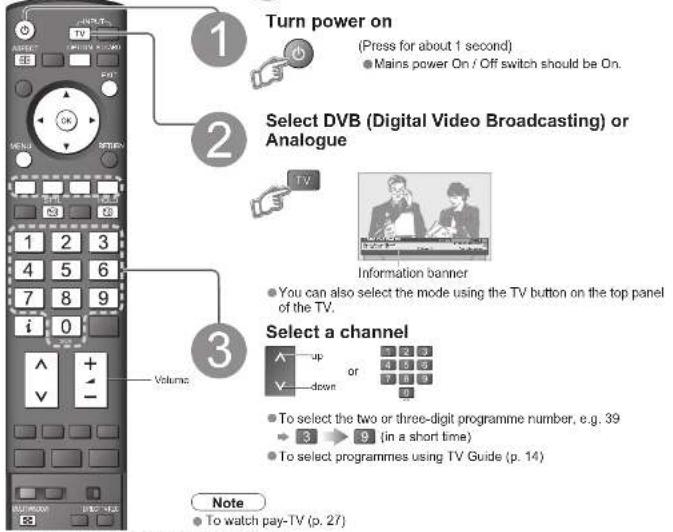

● Watching TV 12

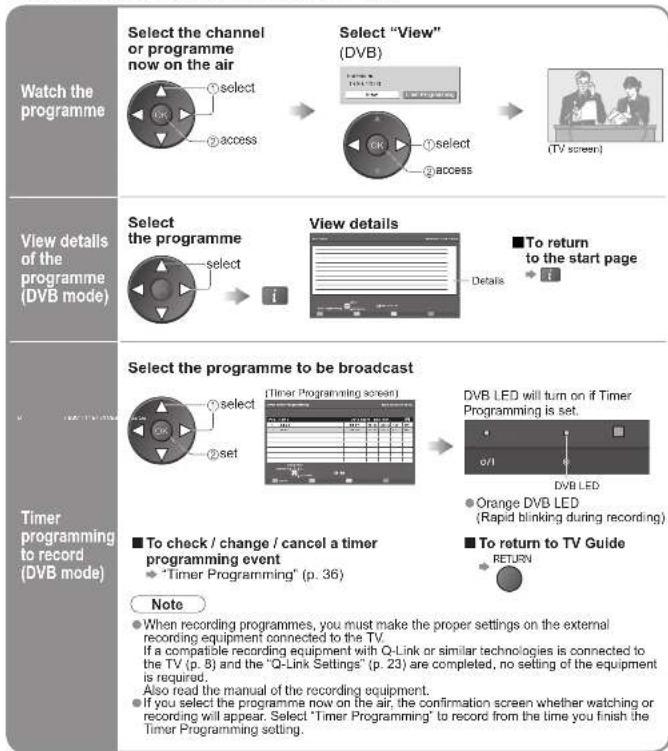

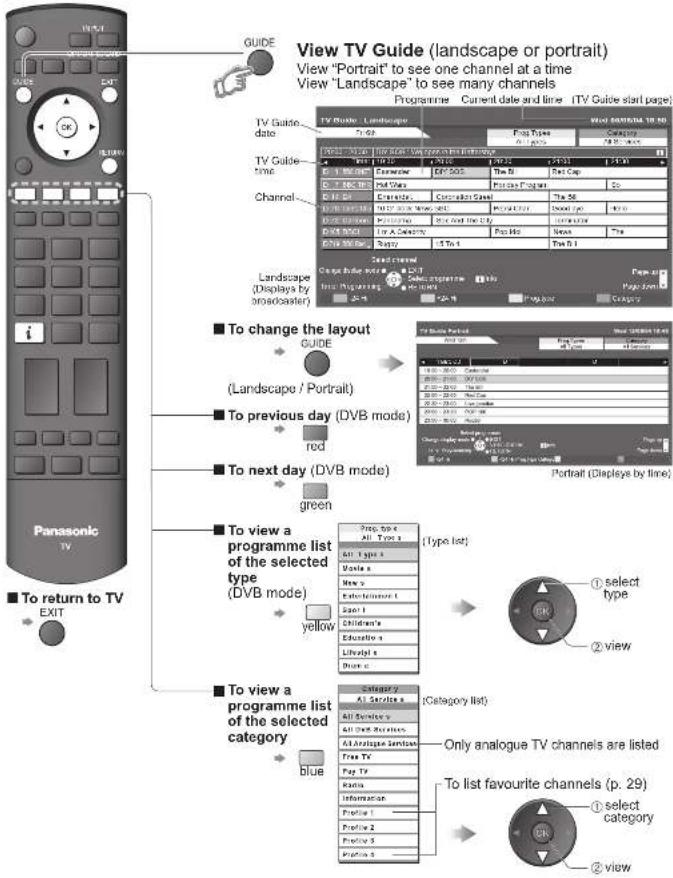

● Using TV Guide 14

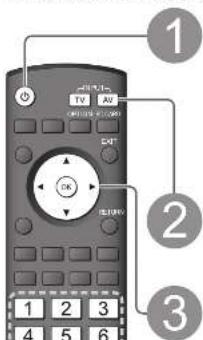

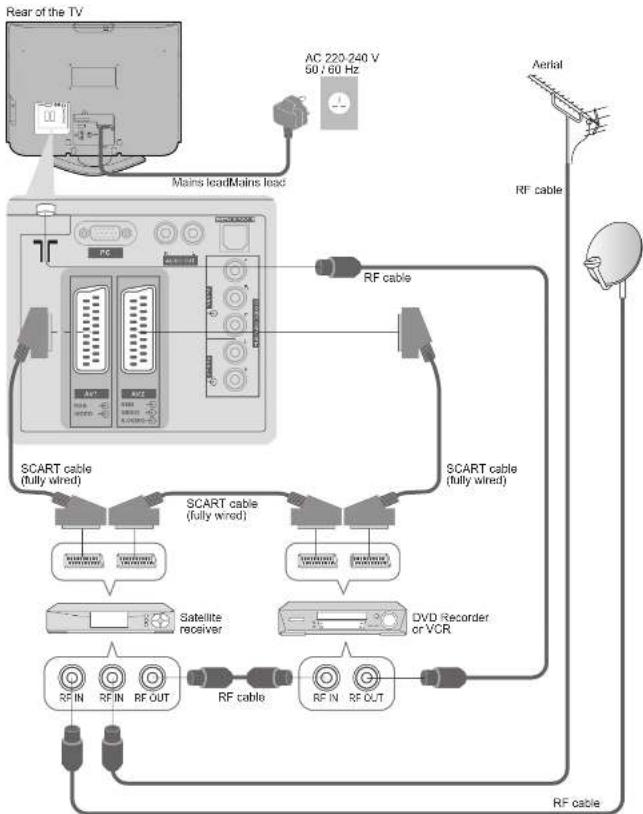

● watching VCR, DVD and Satellites …… 16

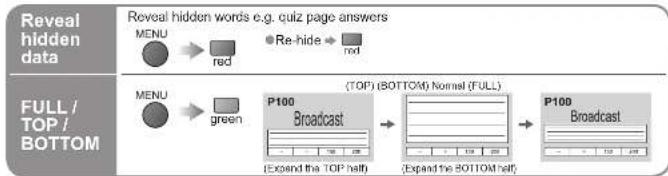

- Viewing Telegram

Advanced Features

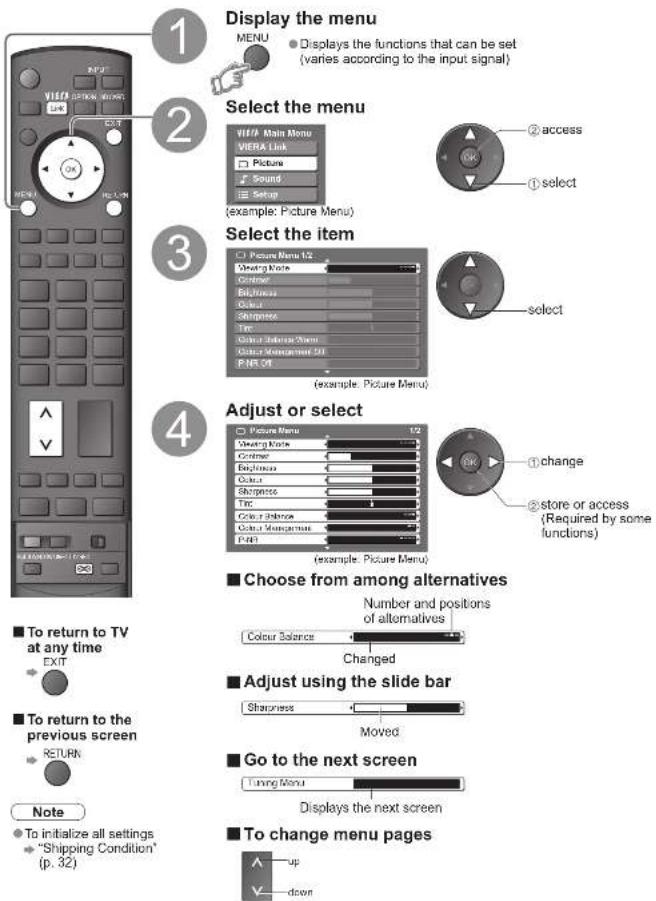

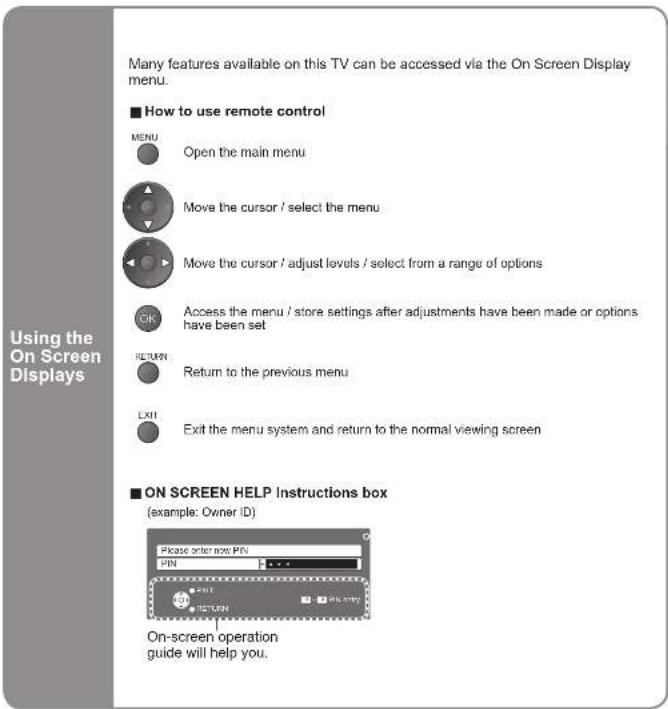

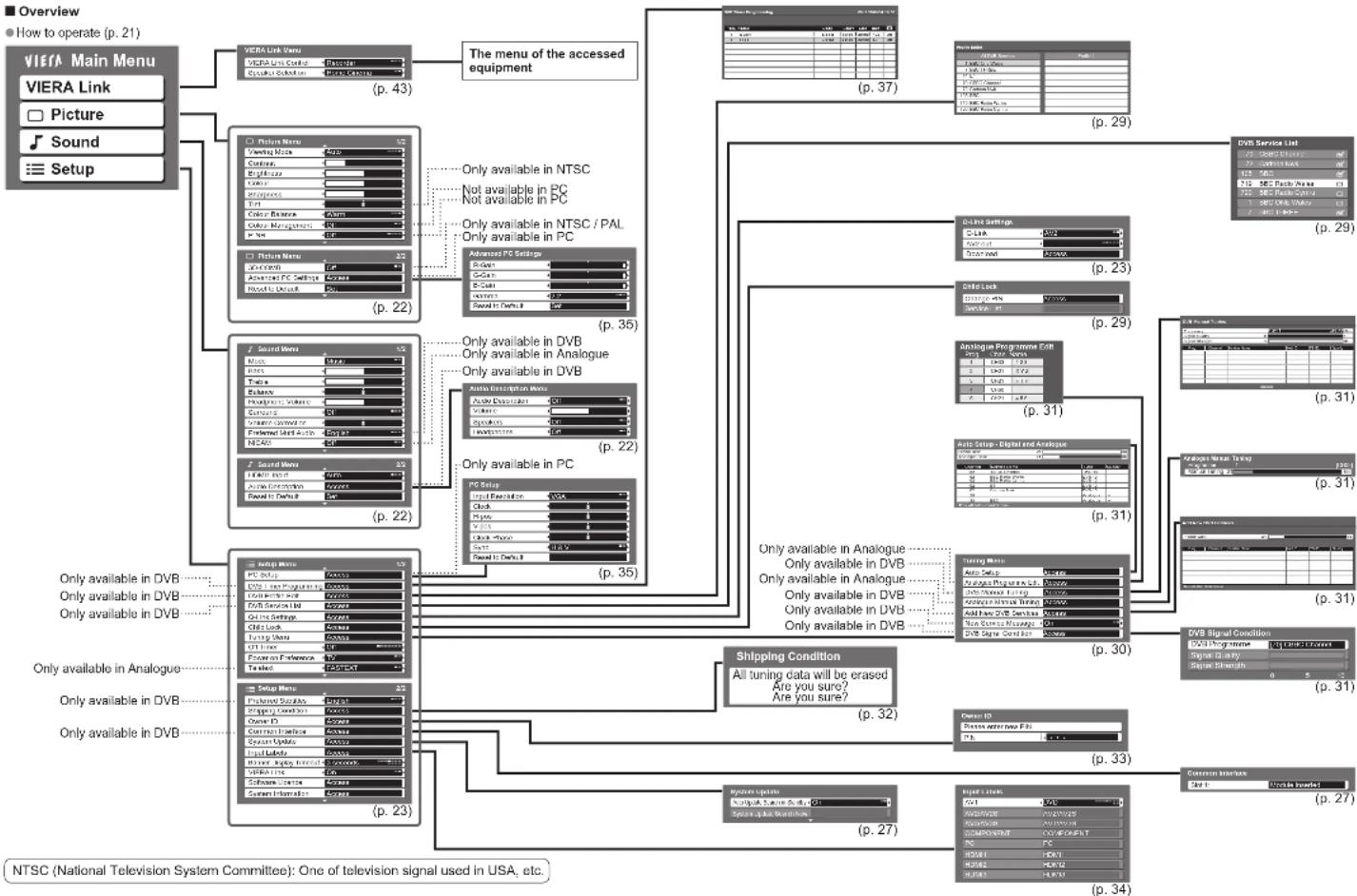

● How to Use Menu Functions ...... 21

(picture, sound quality, etc.)

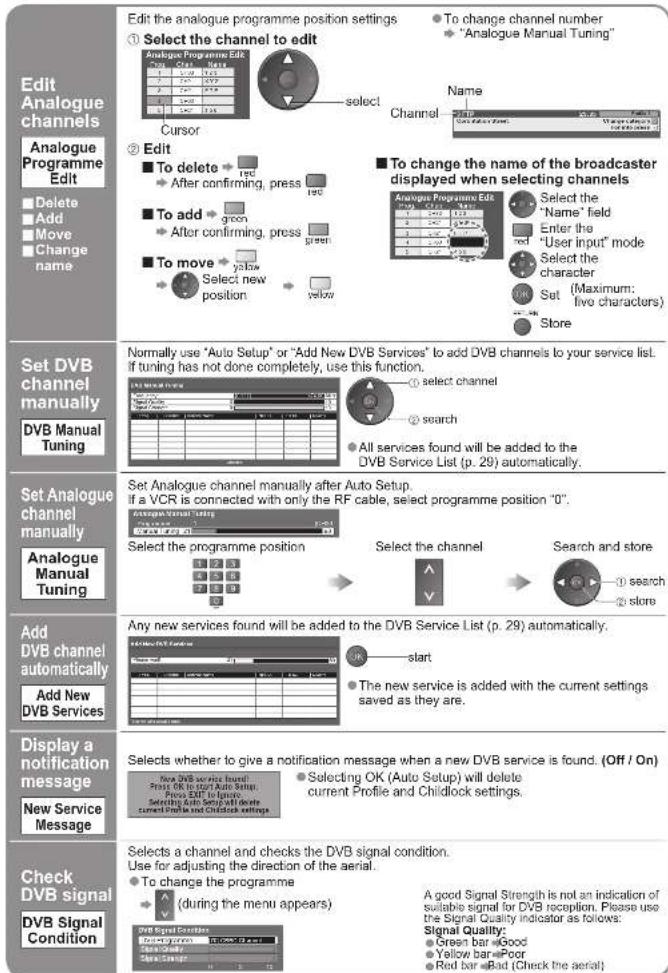

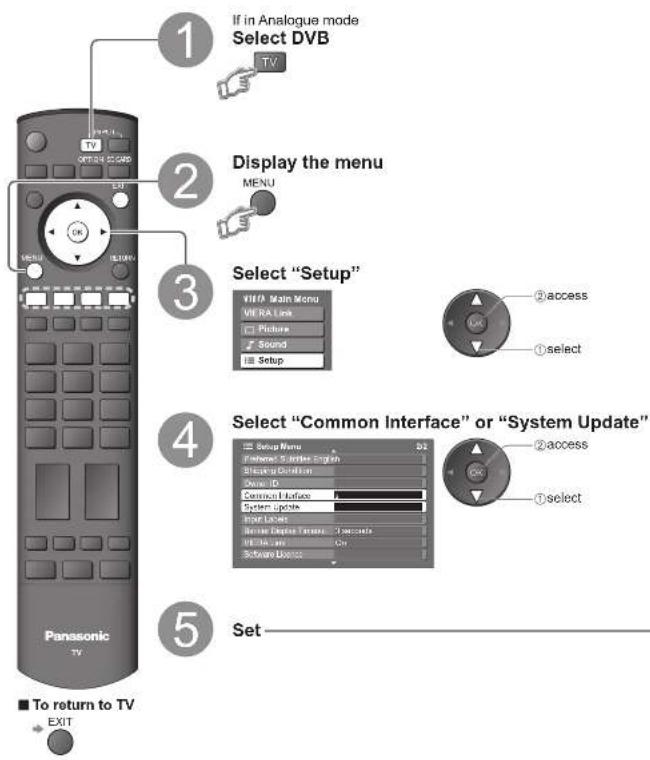

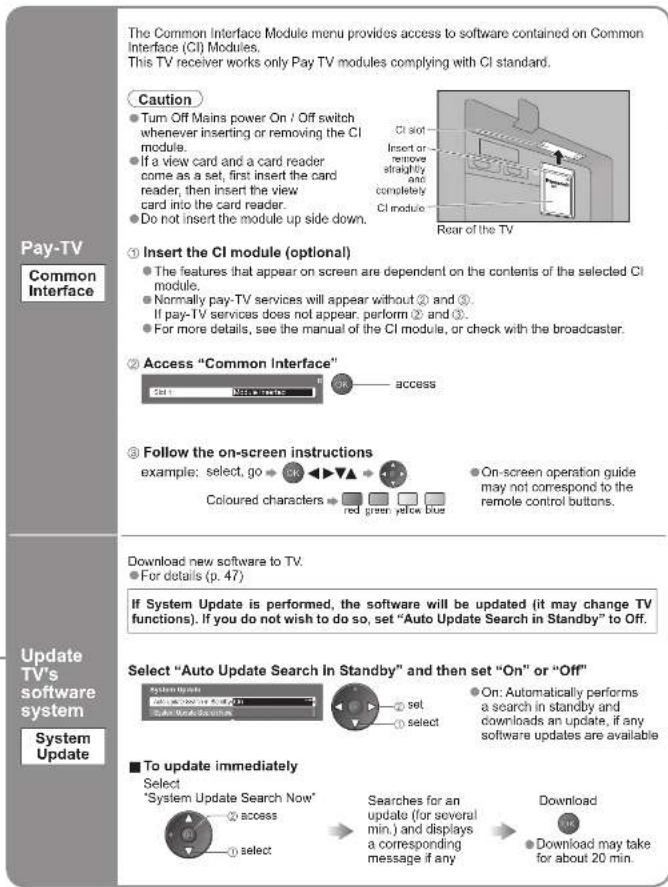

● DVB Settings (DVB) 26

(pay-IV, software update)

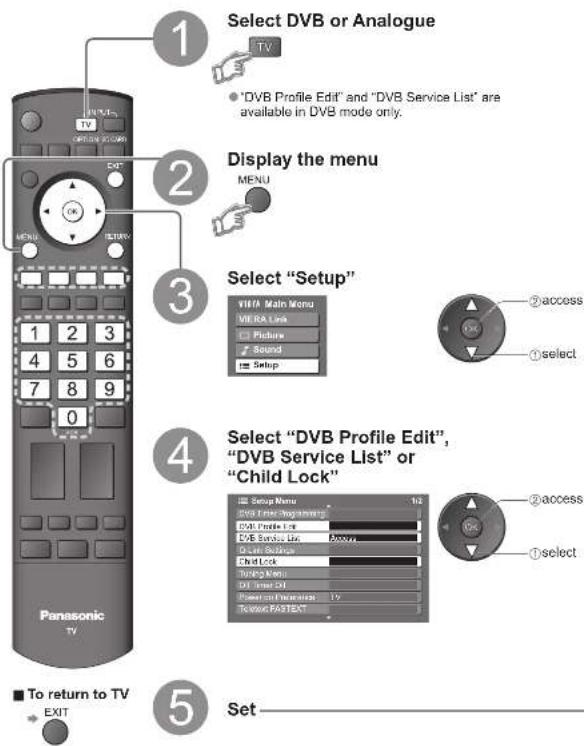

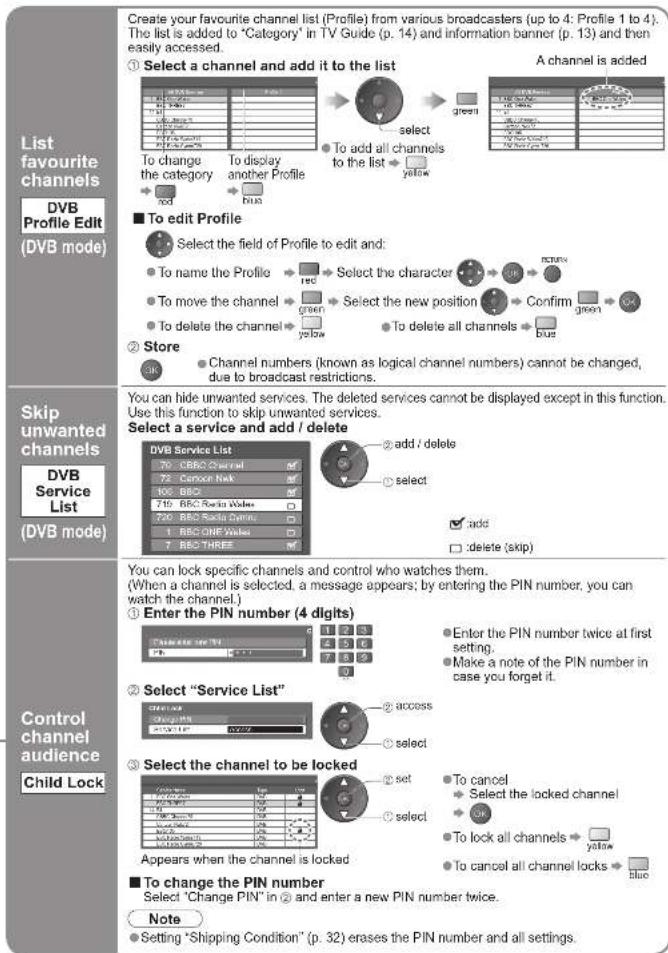

● Editing Channels 28

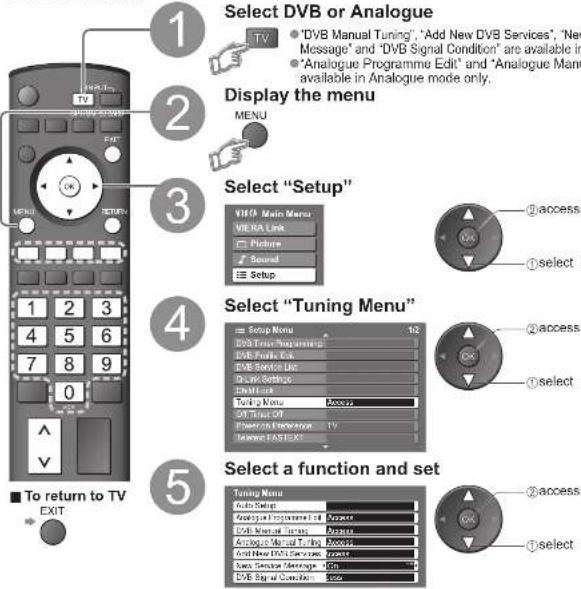

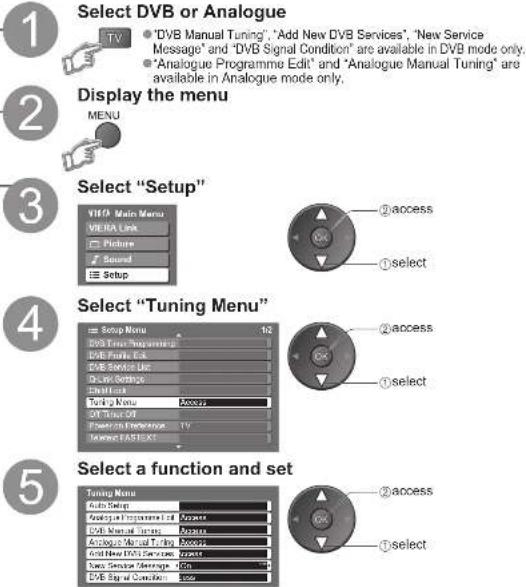

● Tuning Channels 30 ● Resting Settings 22

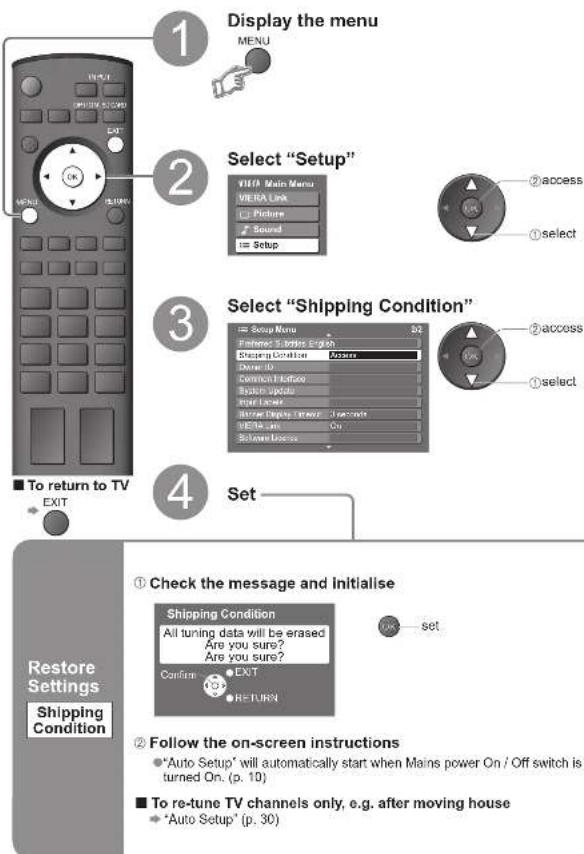

- Restore Settings 32 - Output/D 32

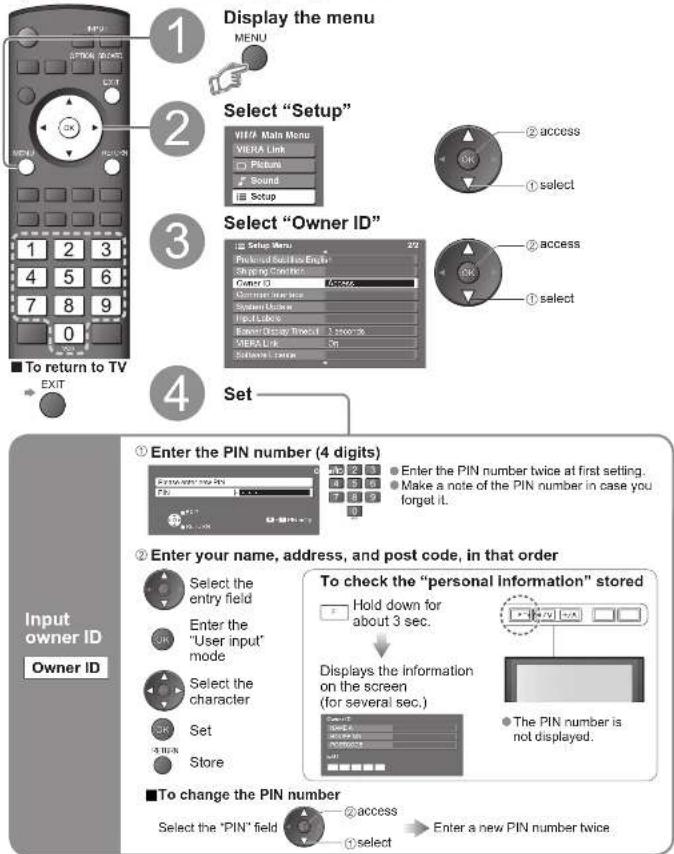

● Owner ID: 10-10-10-10-10-10-10-15 ● Invert Labels: 34

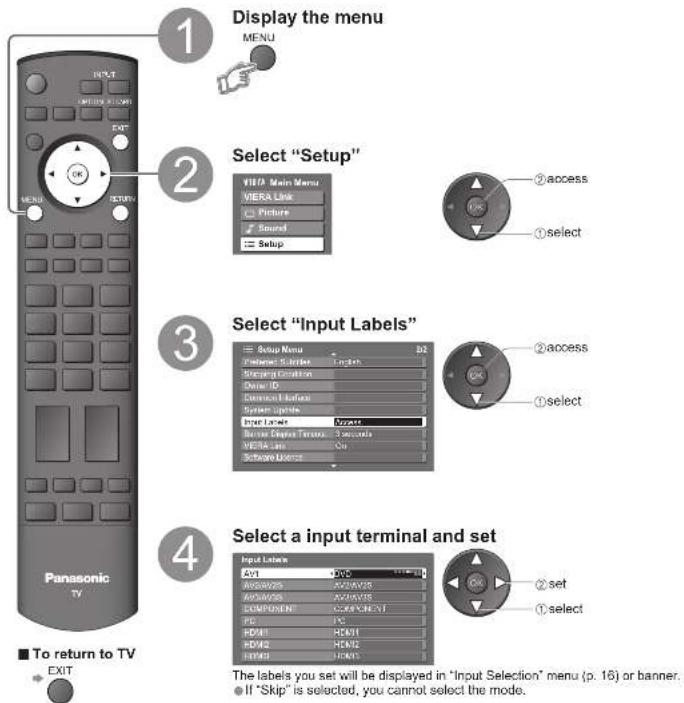

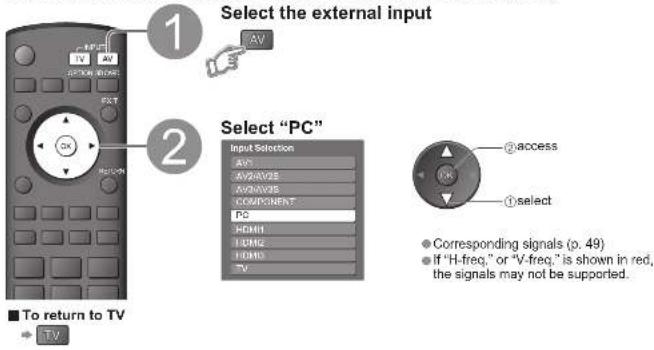

● Input Labels 54 ● Displaying PC Panels on TV 75

● Recording Controls (DVB) 26

● Viewing from card (Photos) 38

- Viewing from card (Notes) 40

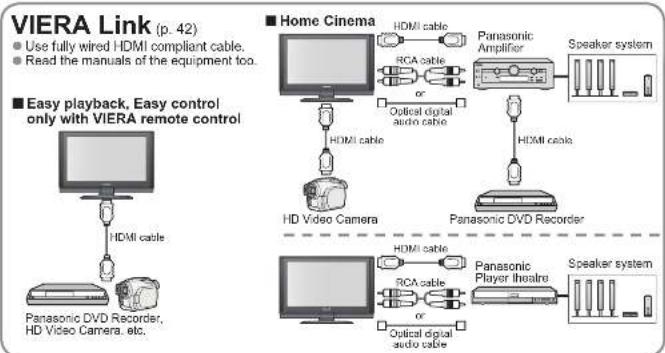

HDMI Functions 41

(HDMI terminal / VIERA Link)

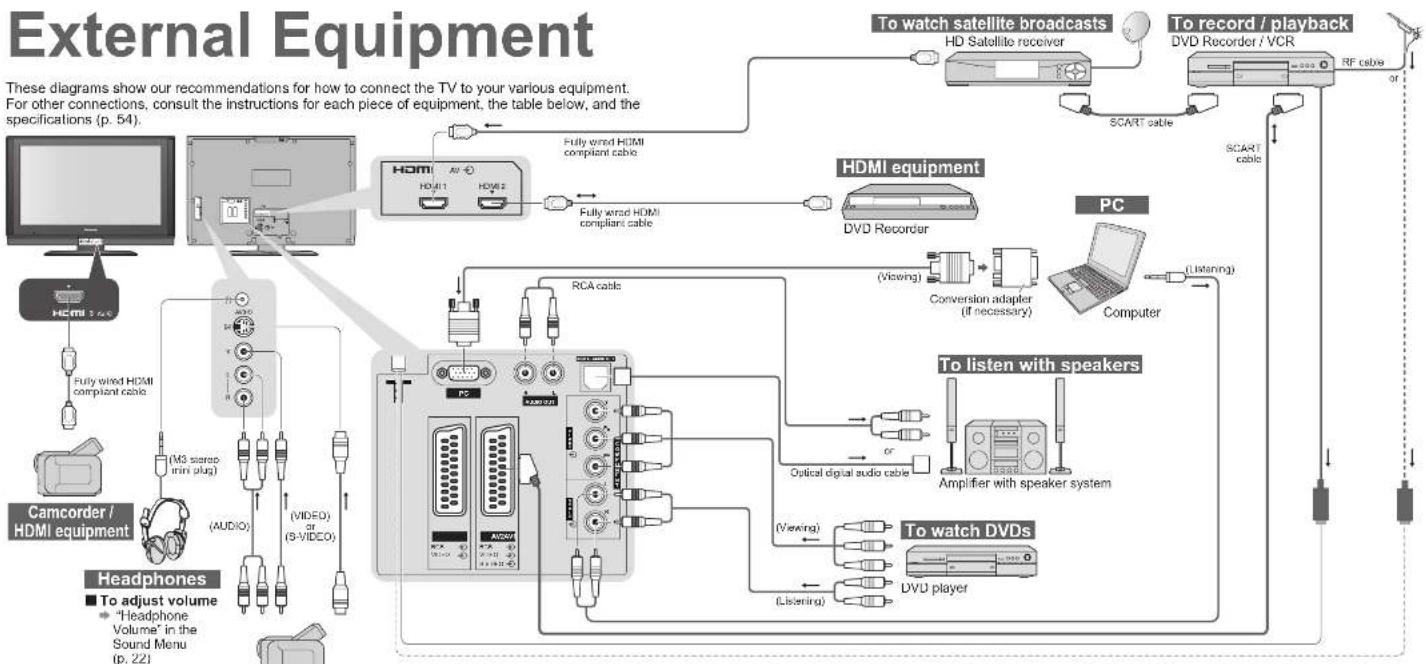

External Equipment 44

FAQs, etc.

● Technical Information 46

FAQs 50

On screen messages 52

Specifications 54

● Licence 55

Index 55

Safety Precautions

Warning & Caution

Handling the mains plug

- Ensure that the mains plug is easily accessible at all times. The On / Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV is not used for a prolonged period of time.

Power source

● This TV is designed to operate on 220-240V, 50 / 60 Hz AC.

Do not remove the cover

- Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

Do not expose to direct sunlight and other sources of he

● Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

AC 220-240 V 50 / 60 Hz

Front view of a flat-screen computer monitor (no visible text or symbols)

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark ◆ or the BSI mark ▼ on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local Panasonic Dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

IMPORTANT: - The wires in this mains lead are coloured in accordance with the following code:

Blue: Brown Naurstral

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the mains plug

which is marked with the letter N or coloured BLACK

The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol ⊙

How to replace the fuse.

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

Do not expose to rain or excessive moisture

● To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not block the rear ventilation openings

● Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

Allow sufficient space around the TV for radiated heat

Minimum distance

Do not place the TV on sloped or unstable surfaces

●The TV may fall off or tip over.

Use only the dedicated stands / mounting equipment

● Using an unauthorized stand or other fixtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup.

● Use optional stands / mounts (p. 6).

Do not allow children to handle SD card

● As with a small object, SD card can be swallowed by young children. Please remove SD card immediately after use.

Notes

■ Auto power standby function

- If no signal is received and no operation is performed in TV mode for 30 minutes, the TV will automatically go to standby mode.

■ Keep the TV away from these equipment

Electronic equipment

In particular, do not place video equipment near the TV (electromagnetic interference may distort images / sound).

● Equipment with an infrared sensor This TV also emits infrared rays (this may affect operation of other equipment).

■ Transport only in upright position

■ Adjust the LCD panel to your desired angle

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Regular care: Gently wipe the surface clean of dirt by using a soft cloth.

Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Caution

● The surface of the display panel has been specially treated and may be easily damaged.

Do not tap or scratch the surface with your fingernail or other hard object.

- Use care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances (this may degrade surface quality).

Cabinet

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Caution

- Use care not to subject the TV's surfaces to detergent.

(A liquid inside the TV could lead to product failure.) ● Use care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances

(this may deteriorate the surface by peeling the paint). - Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals (Moisture and dust may lead to fire or electrical shock.)

Accessories / Options

Standard accessories

□Remote Control

Transmitter

N2QAYB000114

Check that you have the accessories and items shown √

□Batteries for the Remote

Control Tr

□Clamper

• TMME203

□Operating Instructions

□Pan European Guarantee Card

□1 Year Guarantee Registration

□CRM (Customer Relationship Management)

Installing remote's batteries

Hook

Caution

• Incorrect installation may cause battery
  leakage and corrosion, resulting in
  damage to the remote control.
• Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
  as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd).
• Do not use rechargeable (N=36) bullpore.
• Do not burn or breakup batteries.

Using the clamper

Line drawing of an electrical circuit board with wires and components (no text or symbols)

Rear of the TV

Clamper

(Standard accessory)

To tighten:

To loosen:

• Do not bundle the RF cable and mains lead together (could cause
  distorted image).
  ● Fix cables with clampers as necessary
• When using the optional accessory, follow the option's assembly

manual to fix cables.

Please contact your nearest Panasonic dealer to purchase the

recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

Optional accessories

Wall-hanging

bracket

• TY-WK32LR2W

WARNING!

● Failure to use a Panasonic bracket or choosing to mount the unit

yourself will be done at the risk of the consumer

Any damage resulting from not having a professional installer mount your unit will void your warranty.

● Always be sure to ask a qualified technician to carry out set-up. Incorrect fitting may cause equipment to fall, resulting in injury an product damage.
- Do not mount the unit directly below ceiling lights (such as
spotlights, floodlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

■ How to remove the TV Stand
Remove four screws

Rear of the TV

Identifying Controls

Mains power On / Off switch

Function select

Volume / Contrast / Brightness / Colour

Sharpness / Tint (NTSC mode) / Bass / Triple / Balance / Auto Solver (p. 30)

Mobile + Balance + Auto Setup (p. 50)

Remote control

signal receiver

Lift door to open

C.A.T.S. (Contrast Automatic Tracking System) sensor

(senses brightness to adjust picture quality in "Auto" Mode in Picture Menu) (p. 22)

DVB LED

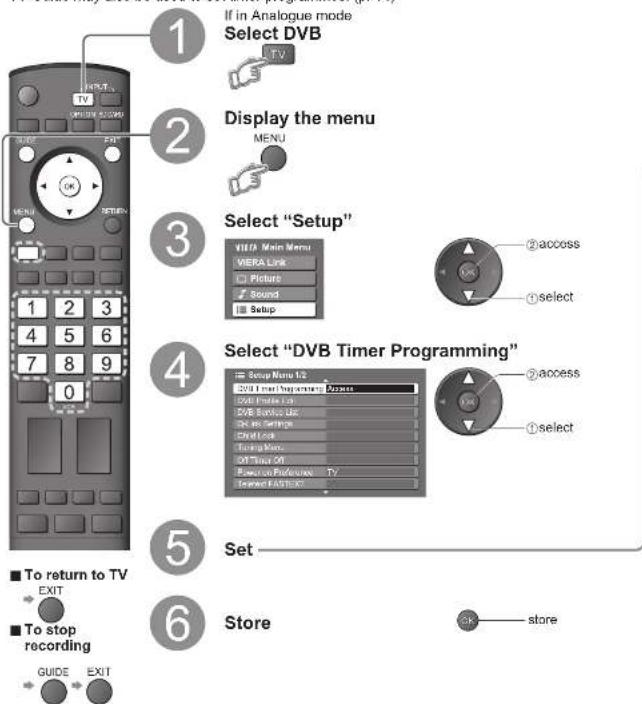

Active for Timer Programming or

Standby for Direct TV Recording :orange (flash)

Timer Programming On

Changes the

input mode

SD CARD slot (p. 39) HDMI3 terminal

Increases or

decreases the

programme position

by one. When a

function is already

displayed, press to

increase or decrease

the selected functi

When in Standby

mode, switches TV

On.

Power LED

Standby: red

On: green

ontrol, indicates the TV has received a command.

Standby On / Off switch

(Switches TV On or Off standby)

Changes aspect ratio (p. 13)

Access VIERA Link Menu (p. 43)

TV Guide (p. 14)

OK button to confirm selections and choices

Press after selecting programme positions to quickly change programme.

Main Menu

Press to access VIERALink, Picture,

Sound and Setup menus (p. 21)

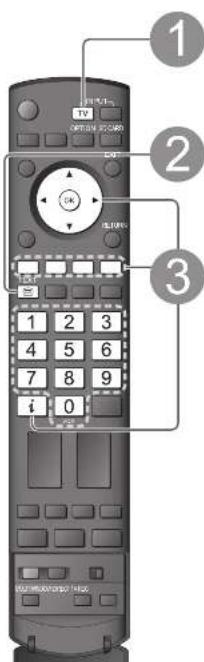

Teletext (p. 18)

2.1 title

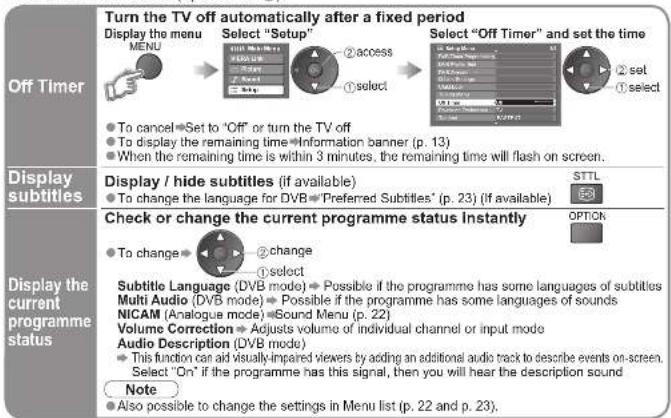

Showing subtitles (p. 12)

Programme / channel change buttons (0-9)

and Teletext page buttons. (p. 12 and p. 19)

When in Standby mode, switches TV On.

Programme Information (p. 13)

Selects programmes in sequence

VCR / DVD operations (p. 17)

Multi window (p. 13)

Surround (p. 22)

Scanned image of a remote control device with labeled buttons and function keys

Changes the input mode

TV - switches DVB (digital broadcasting)

/ Analogue mode (p. 12)

Av - changes Av input mode (p. 16)

Viewing SD Card (p. 38)

Option menu

Sets the selectable settings of viewing

and sound options easily (p. 12)

EXIT (Returns to TV screen)

Cursor buttons to make selections and adjustments

Returns to the previous menu

Coloured bullons used for the

selection, navigation and operation of

various functions

Still picture (p. 13)

Teletext Hold (p. 20)

Teletext Index in. 20

Sound mute On / Off

Volume

DIRECT TV Recording

To immediately record programme in VCR

BYD TECORDER WITH Q-LINK CONNECTION (p. 10)

(p. 40)

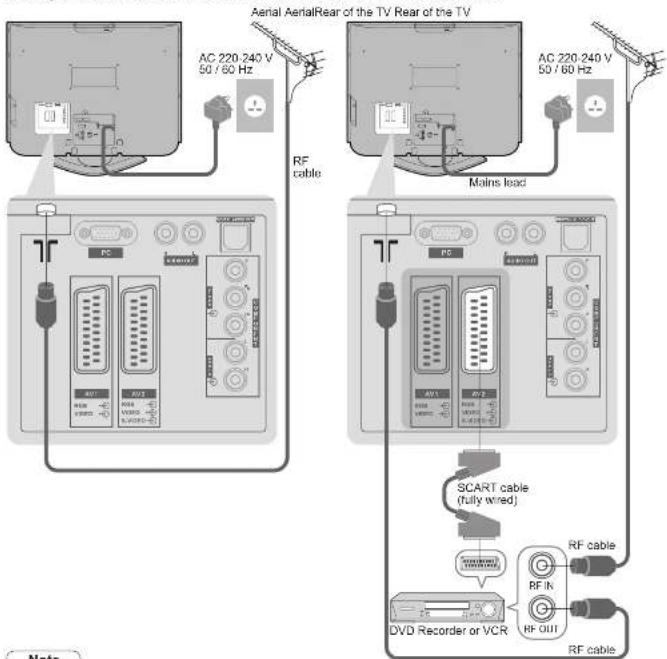

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads

Example

Connecting aerial

Example 2

Connecting DVD Recorder / VCR

TV only TV, DVD Recorder or VCR TV, DVD Recorder / VCR and Satellite

Aerial AerialRear of the TV Rear of the TV AC 220-240 V 50 / 60 Hz RF cable PC Mains lead PC SCART cable (fully wired) RF cable DVD Recorder or VCR RF OUT RF cable

Note

• Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 40).
• Connect to AV1 for a Satellite receiver.
• If connecting the TV and Satellite receiver with SCART cable, you can watch satellite broadcast by RGB input signal.
  • SCART: 21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel)
  • RF: Radio Frequency - Signal received from terrestrial aerial.
• RGB / S-Video / Video:
  Choose between these three video formats depending on personal preference and equipment requirement.
  (RGB - Red, Green and Blue)
  • VCR: Video Cassette Recorder
  • DVD: Digital Versatile Disc

Example 3

Connecting DVD Recorder / VCR and Sattelite receiver

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.

    subgraph Section 1
        D["You can now use the remote control to turn On the TV or turn the TV to standby mode. (Power LED: On)"]
        E["Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters."]
    end

    subgraph Section 2
        F["If a compatible recording equipment with Q-Link or similar technologies (p. 40) is connected, analogue channel information is automatically downloaded to the equipment."]
    end

    subgraph Section 3
        G["Following the on-screen operation guide, enter your own choice of PIN number, name, etc."]
        H["For detailed procedures → "Owner ID" (p. 33)"]
        I["Make a note of the PIN number in case you forget it."]
    end

    subgraph Section 4
        J["If you input the ID later → "Owner ID" (p. 33)"]
    end

    subgraph Section 5
        K["Select the picture setting"]
        L["Select the picture setting"]
        M["Select the picture setting"]
    end

    N["1 select"] --> O["2 set"]

Auto Setup is now complete and your TV is ready for viewing.

● To check programme list

at-a-glance

TV Guide (p. 14)

• To edit channels

→ Editing Channels (p. 28)

Analogue Programme Edit (p. 31)

Using the On Screen Displays Many features available on this TV can be accessed via the On Screen Display menu. ■ How to use remote control MENU Open the main menu Move the cursor / select the menu Move the cursor / adjust levels / select from a range of options OK Access the menu / store settings after adjustments have been made or options have been set RETURN Return to the previous menu EXIT Exit the menu system and return to the normal viewing screen ■ ON SCREEN HELP Instructions box (example: Owner ID) Please order more PIN PIN ON-screen operation guide will help you.

Note

- If tuning has failed "Auto Setup" (p. 30).

- If downloading has failed "Download" (p. 23).

- If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On

with Mains power On / Off switch.

Watching TV

Turn power on (Press for about 1 second) ● Mains power On / Off switch should be On. Select DVB (Digital Video Broadcasting) or Analogue TV Information banner ● You can also select the mode using the TV button on the top panel of the TV. Select a channel up down or 3 To select the two or three-digit programme number, e.g. 39 in a short time) To select programmes using TV Guide (p. 14) Note ● To watch pay-TV (p. 27)

■ Other useful functions (Operate after ③)

Turn the TV off automatically after a fixed period Display the menu Select "Setup" Select "Off Timer" and set the time MENU 2access 2 set To cancel=Set to "Off" or turn the TV off To display the remaining time=Information banner (p. 13) When the remaining time is within 3 minutes, the remaining time will flash on screen. Display / hide subtitles (if available) STTL To change the language for DVB=Preferred Subtitles' (p. 23) (if available) Check or change the current programme status Instantly To change 2change ①select Subtitle Language (DVB mode)→ Possible if the programme has some languages of subtitles Multi Audio (DVB mode)→ Possible if the programme has some languages of sounds NICAM (Analogue mode)→Sound Menu (p. 22) Volume Correction→Adjusts volume of individual channel or input mode Audio Description (DVB mode) This function can aid visually-impaired viewers by adding an additional audio track to describe events on-screen. Select "On" if the programme has this signal, then you will hear the description sound Note Also possible to change the settings in Menu list (p. 22 and p. 23).

■Other useful functions (Operate after ③)

Hold	Freeze / unfreeze pictureHOLD
Display information banner	Display programme informationiProgrammeDVB ProgrammeCurrent timeCategoryStar, French lineAnalogus: ProgrammeStatusSound muteScrambed broadcastingAudio descriptionTeletextTo change the category →BlueTo change the programme (p. 23)→XTo display timeout*Banner Display Timeout* (p. 23)→XTo hide →XTo watch the programme listed in the banner →XAppears also when changing channel. Information banner operation →i1st press →2nd pressDisplay banner →Banner + programme synopsis →3rd pressExit*AD*, "Subtitles", "TXT", "Multi-Audio" indications are displayed as available on particular channels or services, but may not be available for all individual programmes being broadcast.Press the i button twice to confirm availability of these functions.Example:
Change aspect ratio	Change the aspect ratio (p. 46)ASPECTEnjoy viewing the picture at its optimum size and aspect.To change the modeDisplay Aspect →ASPECT →During the list is displayed, →Store→Selection list →select the modeTo change the mode using the ASPECT button onlyASPECT(For 58 repeatedly until you reach the desired mode)
Watch TV, DVD, etc.In multi window	Multi WINDOW!View in multi window (p. 47)Enjoy viewing two images at once, such as a TV programme and a DVD.Picture-in-Picture mode (PinP)Picture-and-Picture mode (PandP)yellow→green→blue→Colour bar→Remote control operationsapply to the main screen.Operations in multi windowTo exit multi window (return to the single-screen view with main screen)→MLI WindowTo change the layout, images, first show the colour bar →iTo swap →blue→green yellowTo exit multi window →red→To change the input mode or position of sub screenSwap sub screen →blue →Change the input mode or position by the remote control (p. 12 or p. 16)→Swap againfor main screen

Using TV Guide

TV Guide—Electronic Programme Guide (EPG) provides an on-screen listing of programmes currently broadcast and future broadcasts over the next seven days (depending on the broadcaster). Analogue broadcasts will be listed after DVB broadcasts. "D" means DVB channel and "A" means Analogue channel.

■Other useful functions (Operate after viewing TV Guide)

Watch the programme Select the channel or programme now on the air ①select ②access Select "View" (DVB) ①select ②access (TV screen) View details of the programme (DVB mode) Select the programme select i View details ■To return to the start page Details ■To check / change / cancel a timer programming event ■To return to TV Guide RETURN Timer programming to record (DVB mode) Select the programme to be broadcast ①select ②set (Timer Programming screen) DVB LED will turn on if Timer Programming is set. 071 DVB LED ●Orange DVB LED (Rapid blinking during recording) ■To return to TV Guide RETURN Note ●When recording programmes, you must make the proper settings on the external recording equipment connected to the TV. If a compatible recording equipment with Q-Link or similar technologies is connected to the TV (p. 8) and the "Q-Link Settings" (p. 23) are completed, no setting of the equipment is required. Also read the manual of the recording equipment. ●If you select the programme now on the air, the confirmation screen whether watching or recording will appear. Select "Timer Programming" to record from the time you finish the Timer Programming setting.

Note

- When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.

Watching VCR, DVD and Satellites

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.

Connect the Satellite receiver and you can watch satellite broadcasts.

To connect the equipment (p. 8 and p. 9)

The Remote Control is capable of operating some functions of selected Panasonic external equipment.

1 TV AU 2 3 4 5 6

Turn the TV on

■ When connecting with SCART as example 2 or 3 (p. 8 and p. 9) - Receives input signals automatically when playback starts or satellite receiver is switched on

- Input signals are automatically identified by the SCART (pin 8) terminal.

● This function is also available for HDMI connections (p. 43).

■ If input mode is not switched automatically

Perform ② and ③

● Dependant on the setup of the equipment

Display the Input select menu

Select the input mode connected to the equipment

• You can also select the input using the AV button on the remote control or the top panel of the TV.
  Press the button repeatedly until the desired input is selected.
  ● You can label or skip each input modes → "Input Labels" (p. 34)

View

Displays the selected mode

AV2

■ To return to TV

Note

- If the external equipment has an aspect adjustment function, set to "16:9".

- For details, see the manual of the equipment or ask your local dealer.

Screen display

Terminal	AV1 AV2		Component PC HDMI11 HDMI2 HDMI3
Manual input(Default setting in 'Input Labels')	AV1AV1-RGB	AV2AV2-S-VideoAV2-RGB	Component PC HDMI11 HDMI2 HDMI3
Auto Input(EC mode of VIERA Link)	ECIAV1ECIAV1-RGB	ECIAV2ECIAV2-S-VideoECIAV2-RGB	—	—	ECHDMI1● Applicable for EC mode and VIERA Link	ECHDMI2● Applicable for VIERA Link

Panasonic equipment connected to the TV can be directly operated with the remote control.

VCR1 DVD	VCR / DVD switch*Select VCR to operate Panasonic VCR or DVD equipmentSelect DVD to operate Panasonic DVD equipment or Player home theatre
	StandbySet to Standby mode / Turn on
	PlayPlayback videocassette / DVD
	StopStop the operations
	Rewind / Skip / SearchVCR: Rewind, view the picture rapidly in reverseDVD: Skip to the previous track or titlePress and hold to search backward
	Fast-forward / Skip / SearchVCR: Fast-forward, view the picture rapidly forwardDVD: Skip to the next track or titlePress and hold to search forward
	PausePause / RestartDVD: Press and hold to play at slow speed
PROGRAMME	Programme Up / DownSelect programme
REC	RecordStart recording

*Setting your remote control to operate Panasonic VCR, DVD, etc.

① Set the VCR / DVD switch to the appropriate position

② Press and hold during the following operations

Enter the appropriate code for the

to be controlled, see table below

1 2 3

A E 6

7 8 9

Press

(1)基因通过控制 通过控制

"VCR" position

Equipment	Code
VCR	10 (default)
DVD	11

"DVD" position

Equipment	Code
DVD	70 (default)
Player home theatre	71

Note

• Confirm correct operation after the code changed.
  ● The codes will be reset to default values if batteries are replaced.
  ● "DVD" means DVD player, DVD recorders and Recorder home theatre.
  ● Some operations may not be possible on some equipment models.

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

DVB (digital broadcasting) mode

DVB teletext services

DVB teletext services differ greatly from analogue teletext. When you switch to a DVB teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster. ● You can check if the programme has teletext information

1 2 3

■ To change the channel

Switch to Teletext

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons. For example:

- When "select" or "go" is displayed

When “◀”, “▶”, “▲”, “▼” symbol is displayed

- When the key words are displayed on colour bar

- When options with numbers are displayed

- When 'T' is displayed → i (information)

■ To return to TV

Note

- As soon as you switch to a DVB channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a DVB channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, there will be a short delay before the text screen is displayed. - While navigating DVB teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example "Loading") to let you know that this is happening.

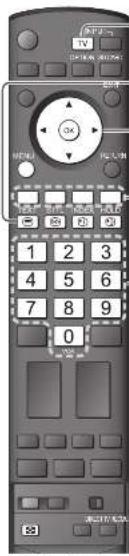

Analogue mode

What is FASTEXT mode (default)?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory. ("Store frequently viewed pages", p. 20)

■ To change mode → "Teletext" in Setup Menu (p. 23)

TV 40/761 H5V 21 23 23 1 2 3 4 5 6 7 8 9 0 通过方式开关

Switch to Teletext

● Displays the index page (content varies depending on the broadcasters)

Select the page

Colour bar

red green yellow blue (Corresponds to the colour bar)

As the blue bar is displayed

■Using Analogue teletext

(Continued)

Viewing Teletext

■ Using Analogue teletext (Continued)

HOLD	If you wish to hold the current page without updatingStop automatic updating(###) ■ To resume → HOLD
INDEX	Return to the main index page(###)
Subtitles	Vic titles by pressing STTL buttonFactory setting is "P888" (subtitle service) on blue button (List mode).
View in multi window	WTV and Teletext in two windows at onceMLTOW● Operations can be made only in Teletext screen.
Store frequently viewed pages	St frequently viewed pages in the colour bar(List mode only)As page is corresponding colour button→ press and holdP100BroadcastThe number changes to while.■ To change stored pagesEnter new page number1 2 34 5 67 8 900 press and hold
View sub page	Vic Ib page (Only when teletext is more than one page)<01 [02] [03] [04] [05] Appears at top of this screen■ w specific sub pageEnter the 4-digit number examples: P8T006pages numbers of sub pages varies depending on the broadcasters (up to 79 pages). If take some time for searching, during which time you can watch TV.
Watch TV while waiting for update	Vic e TV picture while searching for a teletext pageTek automatically updates itself when new information becomes available.MENI 1yellow→ yellow→ (You cannot change the channel.)ews page provides a function that indicates arrival of latest news ("News Flash").

[Non-Text]

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu MENU ● Displays the functions that can be set (varies according to the input signal) Select the menu VIER/ Main Menu VIERA Link Picture Sound Setup (example: Picture Menu) ② access ① select Select the item Picture Menu 1/2 Winning Mode Ctrlive Blockwise Quick Sharpness Tinc Quick Select Menu Quick Management 501 P.N.R. 501 (example: Picture Menu) ① change ② store or access (Required by some functions) Adjust or select Picture Menu 1/2 Winning Mode Ctrlive Blockwise Quick Sharpness Tinc Quick Select Menu Quick Management 501 P.N.R. 501 (example: Picture Menu) Choose from among alternatives Number and positions of alternatives Colour Balance Changed Adjust using the slide bar Sharpness Moved Go to the next screen Turning Menu Displays the next screen To change menu pages Up down To return to TV at any time EXIT To return to the previous screen RETURN Note To initialize all settings "Shipping Condition" (p. 32)

How to Use Menu Functions

■Menu list

Menu		Item Adjustments / Configurations (alternatives)
VIERALink		Controls the connected Panasonic equipment“Easy control only with VIERA remote control” (p. 43)Speaker control” (p. 43)● You can also access VIERA Link Menu directly using the VIERA Link button on theremote control.
		Speaker Selection
Picture	Viewing Mode	Selects four different screen settings (Dynamic / Normal / Cinema / Auto)In each Viewing Mode setting, Contrast, Brightness, Colour, Sharpness, Tint (in NTSConly), Colour balance, Colour Management and 3D-COMB can be adjusted and storedto suit your particular viewing requirement (e.g., you may require different settings forviewing sports, films, news etc.)Set for each input signalChanges will be stored automatically. By analysing and processing the incomingpicture, all four modes feature automatic enhancement
	Contrast, Brightness,Colour, Sharpness	Increases or decreases the levels of these options according to your personal preference
	Tint	With an NTSC signal source connected to the TV, the picture hue can be adjusted tosuit your taste
	Colour Balance	Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
	Colour Management	Automatically adjusts colours to vivid ones (Off / On)●Not valid on PC signal
	P-NR	Picture Noise ReductionAutomatically reduces unwanted picture noise (Off / Min / Mid / Max)●Not valid on PC signal
	3D-COMB	Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seenSet to “On” to display sharper and more accurate colours (Off / On)●For PAL or NTSC signal reception only●Not valid on RGB, S-Video, components, PC, HDMI and SD Card●Analogue mode adjusting
	Reset to Default	Press the OK button to reset the present Picture Mode to the default settings●P-NR is reset to Off (Analogue) or Min (DVB)
Sound	Mode	Select two different sound settings (Music / Speech)In each Sound Mode setting, Bass and Treble can be adjusted and stored to suit yourparticular sound requirementChanges to any settings in a mode will affect all signal sourcesSound quality can be improved
	Bass	Increases or decreases level to enhance or minimise lower, deeper sound output
	Treble	Increases or decreases level to enhance or minimise sharper, higher sound output
	Balance	Adjusts volume level of right and left speakers
	Headphone Volume	Adjusts the volume of the headphones
	Surround	Surround sound settings (Off / Simulated Surround / SRS TruSurround XT)Simulated Surround: Provides a dynamic enhancer to simulate improved spatial effectsSRS TruSurround XT: SRS TruSurround X® creates a high quality surround sound effectusing just two speakers from the source which can output surroundencoded signals●Switching is also possible by the Surround button on the remote control (p. 7)
	Volume Correction	Adjusts volume of individual channel or input mode
	Preferred Multi Audio	Selects the preferred language for DVB multi audio (depending on the broadcaster)
	NICAM	NICAM (Near Instantaneous Companded Audio Multiplex)A format for digital sound over televisionReproduces stereo sound (Off / On)●Off if reception is poor (FM monaural sound)●Analogue mode only
	HDMI1 Input	Select to fit the input signal (Auto / Digital / Analogue) (p. 41)Auto : Automatic deletion of digital or analogue sound sourceDigital : HDMI cable connectionAnalogue : HDMI-DVI adapter cable connection●HDMI input mode only●HDMI2 / 3 terminals are for digital signal only●No setting for HDMI2 / 3 available
	Audio	Audio for visually-impaired viewers (Off / On)
	Description	Select “On” to sound the description sound if the programme has the signal
	Volume	Adjusts the volume for audio description
	Speakers	Set to “On” to active the description sound track from TV speakers (Off / On)
	Headphones	Set to “On” to active the description sound track from headphones (Off / On)
	Reset to Default	Press the OK button to reset the present Sound Mode to the default settings●Effective to Bass, Treble, Balance and Headphone Volume

■ Menu list

Menu	Item Adjustments / Configurations (alternatives)

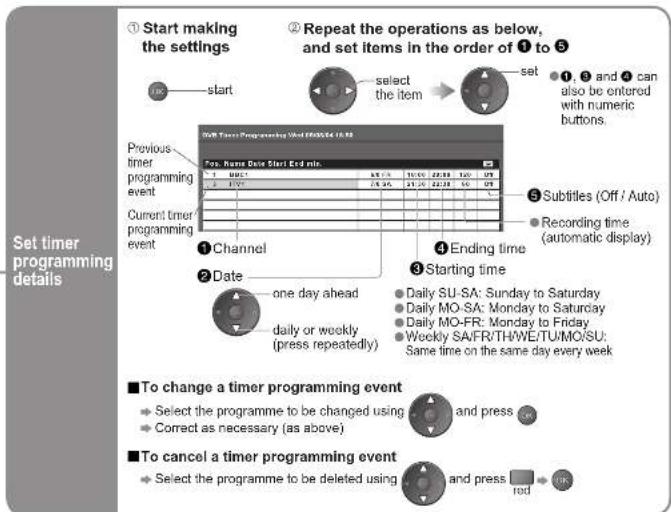

Setup	DVB Timer Programming	Records future programmes (p. 36)
	DVB Profile Edit	Creates list of favourite programmes (p. 29)
	DVB Service List	Skips the unwanted DVB channels (p. 29)
	Q-Link	Selects which AV terminal is to be used for data communication between this TV and a compatible recording equipment (AV1 / AV2) (p. 40)
	AV1 / AV2 out	Chooses the signal to be transmitted from the TV to Q-Link (Analogue / DVB / AV1 / AV2 / AV3 / Monitor)● Monitor: Image displayed on screen● Component, PC and HDMI signals cannot be outputted
	Download	Downloads analogue channel information to a Q-Link compatible equipment connected to the TV
	Child Lock	Locks a programme channel to prevent access to it (p. 29)
	Auto Setup	Automatically sets the channels received in the area (p. 30)
	Analogue Programme Edit	Edits analogue channels (p. 31)
	DVB Manual Tuning	Sets the DVB channels manually (p. 31)
	Analogue Manual Tuning	Sets the analogue channels manually (p. 31)
	Add New DVB Services	Adds new DVB services (p. 31)
	New Service Message	Selects whether to give a notification message when a new DVB service is found (p. 31)
	DVB Signal Condition	Checks the DVB signal condition (p. 31)
	Off Timer	Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
	Power on Preference	Set to “TV” to view picture from TV tuner. Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver (TV / AV)● The external equipment must be switched on and sending a control signal for automatic switching at power on to occur
	Teletext	Analogue telextel display mode (FASTEXT / List) (p. 19)
	Preferred Subtitles	Selects the preferred language for DVB subtitles (depending on the broadcaster)● To display subtitles «p. 12»
	Shipping Condition	Resets all settings, for example, when moving house (p. 32)
	Owner ID	Inputs the owner ID (p. 33)
	Common Interface	Uses include to watch pay-TV (p. 27)
	System Update	Downloads new software to TV (p. 27)
	Input Labels	Labels or skips each input terminals (p. 34)
	Banner Display Timeout	Sets how long the information banner (p. 13) stays on screen● 0 (No display) to 10 sec. in 1-sec. increments
	VIERA Link	Sets to use VIERA Link functions (Off / On) (p. 42)
	Software Licence	Displays the software licence information
	System Information	Displays the system information of this TV

• A different menu will be displayed while PC or SD Card is used. (p. 35 and p. 39)
• Only available items can be selected.

How to Use Menu Functions

DVB Settings (DVB mode)

DVB Settings provide access to various advanced features.

If in Analogue mode Select DVB TV Display the menu MENU Select "Setup" HIV/ Main Menu MERA Link Picture Sound Setup ②access ①select Select "Common Interface" or "System Update" Setup Menu D5 Functional Switch English Display Duration Name ID Common Interface System Update Inner Locks System Update Options 3 Monocable MERA Link: City Software Update ②access ①select Set To return to TV EXIT

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV receiver works only Pay TV modules complying with CI standard. Caution ● Turn Off Mains power On / Off switch whenever inserting or removing the CI module. ● If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader. ● Do not insert the module up side down. 1 Insert the CI module (optional) ● The features that appear on screen are dependent on the contents of the selected CI module. ● Normally pay-TV services will appear without ② and ③. If pay-TV services does not appear, perform ② and ③. ● For more details, see the manual of the CI module, or check with the broadcaster. 2 Access "Common Interface" ● Use: www.it ● Access 3 Follow the on-screen instructions example: select, go → OK ◄▼▲ ▲ Coloured characters → red green yellow blue ● On-screen operation guide may not correspond to the remote control buttons. Download new software to TV. ● For details (p. 47) If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set "Auto Update Search in Standby" to Off. Select "Auto Update Search in Standby" and then set "On" or "Off" System Update ● On: Automatically performs a search in standby and downloads an update, if any software updates are available ■ To update immediately Select "System Update Search Now" ● ② access → Searches for an update (for several min.) and displays a corresponding message if any ● Download may take for about 20 min.

Editing Channels

You can make your favourite channel lists, skip unwanted channels and control channel audience.

Select DVB or Analogue • "DVB Profile Edit" and "DVB Service List" are available in DVB mode only. Display the menu MENU Select "Setup" VISTA Main Menu VBA RA Link Picture Sound Setup ②access ①select ④ Select "DVB Profile Edit", "DVB Service List" or "Child Lock" Setup Menu 1/2 DVB Table Options DVB Profile Link DVB Service Link Downlink Open SubLine Child Lock Tuning Menu DJ Time 01 Powertrain Preferences 1y To Window FastElect ②access ①select ⑤ Set To return to TV EXIT

List favourite channels DVB Profile Edit (DVB mode) Create your favourite channel list (Profile) from various broadcasters (up to 4: Profile 1 to 4). The list is added to "Category" in TV Guide (p. 14) and information banner (p. 13) and then easily accessed. ① Select a channel and add it to the list A channel is added To change the category To display another Profile select to add all channels to the list green blue ■ To edit Profile Select the field of Profile to edit and: To name the Profile To move the channel To delete the channel ■ Store ② Store Channel numbers (known as logical channel numbers) cannot be changed, due to broadcast restrictions. Skip unwanted channels DVB Service List (DVB mode) You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted services. Select a service and add / delete DVB Service List 70: CBBQ Channel 72: Campan Nek 105: BCC 710: BBC/Roma Wales 720: BBC/Roda Damya 1: BBC ONE Wales 7: BBC THREE add / delete select ✓ add □ delete (skip) You can lock specific channels and control who watches them. (When a channel is selected, a message appears; by entering the PIN number, you can watch the channel.) ① Enter the PIN number (4 digits) Enter the PIN number twice at first setting. Make a note of the PIN number in case you forget it. Select "Service List" ② Select the channel to be locked ③ Select the channel to be locked ④ set To cancel Select the locked channel To lock all channels Appears when the channel is locked To cancel all channel locks ■ To change the PIN number Select "Change PIN" in ② and enter a new PIN number twice. Note ● Setting "Shipping Condition" (p. 32) erases the PIN number and all settings.

Tuning Channels

You can re-tune all TV channels when moving house or search for new services which may have recently started broadcasting.

Set DVB and

Analogue channels automatically

Auto Setup

Automatically set the DVB and Analogue channels received in the area. If a Child Lock PIN number (p. 29) has been set, it must be entered.

Start Auto Setup

Settings are made automatically

- All previous settings are erased. - The analogue settings are downloaded to a Q-Link compatible equipment connected to the TV.

- When the operation is completed, the digital service at programme position "1" will be displayed. If no DVB services are found, the first analogue service will be displayed.

- If tuning has not done completely - DVB Manual Tuning", "Analogue Manual Tuning"

For Auto Setup, using the buttons on the top of the TV

① Press repeatedly until "Auto Setup" appears

▶

Access "Auto Setup"

19

③ Start "Auto Setup"

19

■ To return to TV

Restore Settings

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than "Owner ID" (channels, picture, sound quality, etc.) are reset.

Display the menu MENU Select "Setup" VISTA Main Menu VISTA Link Picture Sound Setup ②access ①select Select "Shipping Condition" Setup Menu Set Fifeme 3.0 bits Enged Shipping Condition Dramed ID Common Interface Breaker update Reset location Window Display Time WE/TA Line On Between Access ②access ①select To return to TV EXIT Set Restore Settings Shipping Condition ① Check the message and Initialise Shipping Condition All tuning data will be erased Are you sure? Are you sure? Confirm EXIT RETURN ② Follow the on-screen instructions •"Auto Setup" will automatically start when Mains power On / Off switch is turned On. (p. 10) ■ To re-tune TV channels only, e.g. after moving house •"Auto Setup" (p. 30)

Owner ID

Entry of the security code (PIN number) and "personal information" (your name, address and post code). In the unfortunate event of theft it will help the Police to determine the owner. If you have skipped the Owner ID input in "Auto Setup" (p. 10), and input it later, start from ①. If you input the Owner ID in "Auto Setup" (p. 10), perform ②.

Display the menu MENU Select "Setup" VIFA Main Menu VIERA Link Pictures Sound Setup ② access ① select Select "Owner ID" Setup Menu 2/2 Prepared to Enter Sharing Colors Owner ID 500000000000000000000000000000000000000000000000000000000000000000000000000000000000 ③ Select "Owner ID" Software Link On ④ Set ① Enter the PIN number (4 digits) Enter the PIN number twice at first setting. Make a note of the PIN number in case you forget it. ② Enter your name, address, and post code, in that order To check the "personal information" stored Hold down for about 3 sec. Displays the information on the screen (for several sec.) The PIN number is not displayed. Select the entry field Enter the "User input" mode Select the character Set Store ■ To change the PIN number Select the "PIN" field ② access ① select Enter a new PIN number twice

Input Labels

For easier identification and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment. (To select the input mode ▶ p. 16)

1 Display the menu MENU 2 Select "Setup" VISTA Main Menu VERA Link Picture Sound Setup 3 Select "Input Labels" Setup Menu Dialent Sublinear Stepping Rotation Drive ID Transform Inset Software Input Input Label MICA Basis Display Tensue: 3 seconds MERA Link Go Software Input 4 Select a input terminal and set Input Labels AVI AVIC AVAVS AVAVS COMPONENT COMPONENT AVI AVI AVI1 AVI2 AVI3 AVI4 AVI5 AVI6 AVI7 AVI8 AVI9 AVI10 AVI11 AVI12 AVI13 AVI14 AVI15 AVI16 AVI17 AVI18 AVI19 AVI20 AVI21 AVI22 AVI23 AVI24 AVI25 AVI26 AVI27 AVI28 AVI29 AVI30 AVI31 AVI32 AVI33 AVI34 AVI35 AVI36 AVI37 AVI38 AVI39 AVI40 AVI41 AVI42 AVI43 AVI44 AVI45 AVI46 AVI47 AVI48 AVI49 AVI50 AVI51 AVI52 AVI53 AVI54 AVI55 AVI56 AVI57 AVI58 AVI59 AVI60 AVI61 AVI62 AVI63 AVI64 AVI65 AVI66 AVI67 AVI68 AVI69 AVI70 AVI71 AVI72 AVI73 AVI74 AVI75 AVI76 AVI77 AVI78 AVI79 AVI80 AVI81 AVI82 AVI83 AVI84 AVI85 AVI86 AVI87 AVI88 AVI89 AVI90 AVI91 AVI92 AVI93 AVI94 AVI95 AVI96 AVI97 AVI98 AVI99 AVI100

■ User Input
You can name each input terminals freely.

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV.

You can also listen to PC sound with the audio cable connected. To connect PC(p. 44)

1 Select the external input 2 Select "PC" Input Selection AV AVRASE AVRASE COMPONENT PC HDH1 LDM2 HDH3 TV ②access ①select Corresponding signals (p. 49) If "H-freq," or "V-freq," is shown in red, the signals may not be supported. To return to TV TV

■ PC menu setting (changed as desired)
To make settings → "How to Use Menu Functions" ① to ④ (p. 21)

Menu	Item Adjustments / Configurations (options)
Picture	Advanced PC Settings	R-Gain Adjusts the white balance for red areasG-Gain Adjusts the white balance for green areasB-Gain Adjusts the white balance for blue areas
		Gamma (2.0 / 2.2 / 2.5)
Setup	PC Setup	Input Resolution Switches to a wide viewVGA (540 × 450 pixels), WVGA (852 × 460 pixels), XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)Options change depending on signals
		Clock. Set to the minimum level if noise occurs
		H-posAdjusts horizontal position
		V-posAdjusts vertical position
		Clock Phase Eliminates flicker and distortionAdjust after Clock adjustmentSet to the minimum level if noise occurs
		SyncChooses another synchronous signal if the image is distorted (H & V / On G)H & V : by the horizontal and vertical signals from your PCOn G : by the green signal from your PC (if available)

● Other items → p. 22 and p. 23

Recording Controls (DVB mode)

Timer Programming from Menu

The Timer programming menu allows you to choose programmes that you wish to record. At the correct time, the DVB system will switch on and tune to the correct station (even if the TV is in Standby mode). If the recording equipment is compatible with Q-Link or similar technologies (p. 40) and connected to the TV's AV2 terminal using a SCART cable (p. 44), you do not need to programme the device – the DVB system will control the recording process. TV Guide may also be used to set timer programmes, (p. 14).

If in Analogue mode Select DVB TV Display the menu MENU Select "Setup" VISA Main Menu MERA Link Picture Sound Setup ②access ①select Select "DVB Timer Programming" Setup Menu 1/2 2011 Timer Programming Access 2011 Timer Bus 2011 Timer Bus 2011 Timer Bus 30000000000000000000000000000000000000000000000000000000000000000000000000 ②access ①select Set Store To return to TV EXIT To stop recording GUIDE EXIT

Caution

● The TV must either be On or in standby.
- For preparations of a recording equipment, read the manual of equipment.
- No other DVB channel can be selected during recording. However you can watch analogue channels.
- It may not be possible to record an encrypted programme (which is copy-protected).

Start making the settings ① Start start Previous timer programming event Current timer programming event ② Repeat the operations as below, and set items in the order of ① to ⑤ select the item → set ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ Web Timer Programming Word (WMS/SA) (WMS) For. Name Date Start End min. 1 Channel 2 Date Daily or weekly (press repeatedly) 3 Starting time 4 Ending time 5 Subtitles (Off / Auto) Recording time (automatic display) ■ To change a timer programming event Select the programme to be changed using Correct as necessary (as above) ■ To cancel a timer programming event Select the programme to be deleted using and press and press rod

■ Direct TV recording:

You can record the current programme to DVD Recorder or VCR immediately. (p. 40)

Note

• Confirm the DVB LED lights (Orange). If not, a timer programming is not available.
  ● A message will appear if you try to programme a timer event which overlaps an already programmed event.
• 2 min. before the starting time: a reminder message appears.
  (To remove the message → OK; To cancel the programming → ●)
• 10 sec, before the starting time: in DVB mode, the TV automatically selects the programmed channel.
  ● Cancelling the programming may not be valid immediately before the starting time. In this case, directly operate
  the recording equipment to cancel recording.

TV Guide—Electronic Programme Guide (EPG)—Timer Recording

① View TV Guide

GUIDE

② Select the programme

to be broadcast

② set

●There are two styles of display for TV Guide (Landscape / Portrait)

(Timer Programming screen)

DVB LED will turn on if Timer Programming is set.

DVB LED

- Orange DVB LED

(Rapid blinking during recording)

■ To check / change / cancel a timer programming event → "Timer Programming" (above)

Viewing from card (Photos)

The still images recorded by the digital camera will be displayed.

Insert the SD Card

● Warning message for output signal is displayed.

INPUT OPTIONAL ACCESS START OK SELECT Cancel

Enter SD mode (Photo View Mode)

Select the photo to be viewed

Error display (imgas that could not be loaded, etc.)

Selected photo

Photo Edit View 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

-Selected photo (Thunbrial screen) information is displayed
■ Slide show

→ red ● For details, see p. 39

View

■ To display the operation guide

Opera guide

Rotate 90°
[dockwise]

Displayed one at a time

Caution

● During the operation, no signals are output from the monitor output terminals.

- "Date" shows the date on which the recording was made by the digital camera.

It shows ^1 / ^2 / ^3 when recordings are made without date signal.

Cautions in handling SD Card

• Do not remove the card while the TV is accessing data (this can damage card or TV).
• Do not touch the pins on the back of the card.
• Do not switch the card to which necessary
• Do not subject the card to a high pressure or impact.
• Insert the card in the correct direction (otherwise, card may be damaged)
  ● Electrical interference, static electricity, or erroneous operation may damage the data or card.
• Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the
  IV. (Panasonic is not liable for any deterioration or damage of recorded data.)

● For details on SD Cards (p. 48)

■ To insert

■ To remove

Press the centre of the card

Slide show

■Start Slide show (operate in step or )

① Select the photo for the first view Start Slide show

• To pause → OK

■Slide show settings (operate in step or )

① Display the ② Select "Viewing setup" Select the functions and set

menu

- ② set

● "Picture Menu" (p. 22)

Menu	Item	Adjustments / Configurations (alternatives)
Vernung Setup	Interval	Select slide show interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)
	Repeat	Slide show repeat (Off / On)

On screen messages

Message	Meaning / Action
Is SD Card in?	Insert a SD card.
No valid file to play	The card has no data.
Cannot read file	The file is broken or unreadableThe TV does not support the format.(For the applicable formats and data, see p. 48.)

Q-Link Functions

Q-Link connects the TV and VCR / DVD recorder, enables easy recording and playback.

Condition

● Use the VCR / DVD recorder with the following logos:

"Q-Link", "NEXTVIEWLINK", "DATA LOGIC", "Easy Link", "Megalogic", or "SMARTLINK"

- Connect the equipment to this TV's AV1 or AV2 terminal via a "fully-wired" SCART cable. (p. 44) - Q-Link terminal setup in Setup menu (Q-Link, AV1 / AV2 out). (p. 23)

■ Download analogue channel settings

●Perform Auto Setup. (p. 30)

When first using this TV, see "Auto Setup". (p. 10)

●Perform download to the equipment. (p. 23)

■ Features available

Some recording equipments are not applicable. Read the manuals of the equipment.

What you see is What you record		Direct TV Recording:Recording the current programme in VCR / DVD recorder immediately.When Direct TV Recording is performed, the recording equipment is automatically turned on if it is in Standby mode.The recording equipment is recording from its own tuner. You can turn the TV off during recording (Analogue only).If you turn the TV off during recording from an AV source, the recording will be stopped.When Direct TV Recording is performed while watching DVB channel, the DVB programme position is locked and no other DVB channel can be selected. However you can watch analogue channels.■ To change DVB channel, stop recording
Information / Message	Recording information or if recording is not possible, a message is displayed. (Only when the programme number is "0" or "AV mode" for some equipment.)
Power on link and Easy playback	When VCR or DVD recorder starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)
Power off link	When TV is set to Standby mode, the recording equipment is also automatically set to Standby. (Only when the videocassette or DVD is not active.)

Direct TV Recording:

■ To change DVB channel, stop recording

- "DATA LOGIC" (a trademark of Metz Corporation) • "Megalogic" (a trademark of Grundig Corporation) - "Easy Link" (a trademark of Philips Corporation) • "SMARTLINK" (a trademark of Sony Corporation) Read the manuals of the equipment too.

HDMI Functions

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see "External Equipment" (p. 44).

Note

• HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.
• If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter cable (*2)
• When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use COMPONENT-AUDIO terminals).
  ● Audio settings can be made on the "HDMI1 Input" menu screen. (p. 22)
• Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
• HDMI2 / 3 terminals are for digital audio signal only.
  ● Use with a PC is not assumed.
• If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
  ● These HDMI connectors are "type A"
  ● These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
• An equipment having no digital output terminal may be connected to the input terminal of either "Component", "S-VIDEO", or "Video" to receive analogue signals.
  ● The HDMI input terminal can be used with only the following image signals:
  480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
  For details of the applicable HDMI signals, see p. 49. (*1): The HDMI logo is displayed on HDMI-compliant equipment. (*2): Enquire at your local digital equipment retailer shop.

■ Summary of Control functions

Connecting with an HDMI cable to Panasonic equipment with VIERA Link function, you can control the equipment (p. 42). You can use VIERA Link and Q-Link functions together.

Function\Connection	VIERA Link and Q-Link VIERA Link only Q-Link only (HDMI) (SCART) (HDMI) (SCART)
Easy playback	○	○	○
Power on link	○	○	○
Power off link	○	○	○
Speaker control	○(not via SCART)	○	-
Easy control only with VIERA remote control	○(not via SCART)	○	-
Direct TV Recording	○(not via HDMI)	-	○
Analogue channel download	○(not via HDMI)	-	○

HDMI Functions

VIERA Link "HDANtrol TM"

*Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control" function. This TV supports "HDAVI Control 2" function.

Connections to some Panasonic equipment (DVD Recorder DIGA, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cables allow you to interface them automatically.

The equipment with "HDAVI Control" function enables the following operations:

● Easy playback (p. 43)

● Power on link (p. 43)

● Power off link (p. 43)

● Speaker control (p. 43)

In addition, the equipment with "HDAVI Control 2" function enables the following operation: Easy control only with VIFRA remote control (n. 43).

- Easy control only with VIERA remote control (p. 43). These features are limited to models incorporating Ray

These features are limited to models incorporating Panasonic's HDAVI Control and VIERA Link.

VIERA Link HDAVI Control, based on the control functions provided by HDMI which is an industry clouded known as HDMI CEC (Consumes Electronic Control), in a unique function that we have

standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.

Refer to individual manuals for compatibility information. About applicable equipment, consult your local Panasonic dealer or refer to the URL: www.panasonic.co.uk

■HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic's HDMI cable. Recommended part number:

● RP-CDHG15 (1.5 m)

● RP-CDHG30 (3.0 m)

● RP-CDHG50 (5.0 m)

■ Preparations

Setup the equipment to enable this function. Read the manuals of the equipment.

About connections, see "External Equipment" (p. 45). Read the manuals of the equipment too.

For the first time / When adding new equipment, reconnecting equipment or changing setup. After connection turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 16), and make sure that an image is

displayed correctly.

INPUT SELECT OK MENU RETURN +/-

Display the menu

Select "Setup"

Select "VIERA Link"

Set to "On"
(default is On)

Access and control connect equipment by VIER remote control

You can control some functions of the connected Panasonic equipment with this TV remote control (point the remote control at the TV's signal receiver). ● If you cannot access the menu, check the settings and the equipment (p. 42).

Access and operate the menu of the equipment

① Display "VIERA Link Menu"

② Select "VIERA Link Control"

③ Select the equipment you want to access ● "Home Cinema" means Player theatre, Recorder theatre and Amplifier.

select
① select
② access

■ When the equipment with "HDAVI Control 2" function is connected

Recorder / Player / Home Cinema / Video Camera

Displayed the type of the connected equipment. Select the type of the equipment and access.

-① select -② access

The menu of the accessed equipment (Input mode will be changed automatically)

■ When the equipment with "HDAVI Control" function is connected

Recorder / Player / Home Cinema / Video Camera Displayed the type of the connected equipment. But you cannot access it. Use its own remote control to operate the equipment.

■ When other type or other manufacturer of the equipment is connected

Others

*Others* is displayed.
You cannot access it. Use its own remote control to operate the equipment.

④ Operate the menu of the equipment

● Available VIERA remote control buttons (depending on the connected equipment):

Move the cursor / select the menu

Move the cursor / access / adjust

Return to the previous menu

About the operations for the equipment, read the manual of the equipment.

Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

When the connected Panasonic equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when TV is in Standby mode.) When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby. This function will work even if the TV enters standby mode automatically by Off Timer function or auto power standby function.

You can control the theatre speaker with TV's remote control.

This function is available when Panasonic Amplifier or Player theatre is connected. If you cannot access the menu, check the settings and the equipment (p. 42) Home Cinema

① Display "VIERA Link Menu" → VIERA Link ② Select "Speaker Selection"

select

③ Set to "Home Cinema" or "TV"

set

Home Cinema

Amplifier or Player theatre will be automatically turned on (if it is in Standby mode) and the sound is from theatre speakers connected to the equipment.

● The sound of TV speakers is mute ● When the equipment is turned off, TV speakers will be active.

TV

TV speakers are active.

Camcorder / Game equipment

■ Types of connectable equipment to each connector

Recording / Playback(equipment)	AV1	AV2	AV3(Side of TV)	COMPONENT	DIGITALAUDIOOUT	HOMI
						1	2	3
■ To record / playback videocassettes / DVDs(VCR / DVD recorder)	○	○
■ To watch DVDs (DVD player)	○	○	○	○		○	○	○
■ To watch camcorder images (Video camera)	○	○	○			○	○	○
■ To watch satellite broadcasts (Set top box)	○	○	○			○
■ To play games (Game equipment)	○	○	○
■ To use amplifier with speaker system					○
■ Q-Link	○	○
■ Direct TV Recording	○	○
■ VIERA Link						○	○	○

○: Recommended Connection

Technical Information

Aspect Ratio

The optimum size and aspect can be chosen, and you can enjoy finer images. (p. 13)

■Auto: Auto aspect determines the best aspect ratio to use to fill your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing pleasure. The text shown on the screen indicates how Auto aspect determined which ratio to use:

"WIDE" appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal found through a SCART terminal. Auto aspect switches to the appropriate 16:9 or 14:3 widescreen ratio. This function will also work in any aspect mode. "Auto" appears in the top left of the screen if black stripes above and below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fill the screen. This process can take several minutes, depending on the darkness of the picture.

• The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands may appear at the top and bottom of the screen.
• If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.)
• Aspect mode can be memorized for SD (Standard definition) and HD (High definition) signals separately.
• To select the ratio manually: (Only "16:9" or "4:3" in PC mode)

The best ratio is chosen and the picture expanded to fill the screen.

Displays the image at the standard "14.9" without enlargement.

Displays a "16:9" letterbox or "4:3" image without distortion.

Displays a "2.35:1" letterbox (anamorphic) image full-screen without distortion. At "16:9", displays the image at its maximum (with slight enlargement).

Directly displays the image at '16:9' without distortion (anamorphic).

Displays the image at the standard "4:3" without distortion.

Displays a "16:9" letterbox (anamorphic) image full-screen without distortion.

Multi Window

You can watch two images at once. (p. 13)

●The same input mode cannot be displayed at once.

●The sound is active for main screen only in multi window.

●You cannot change the aspect ratio in multi window.

●Multi window cannot be used with PC, SD card or HDMI (available for main screen only).

● Some signals are reformatted for suitable viewing on your display.

●Multi window will be exited by pressing the GUIDE button to display TV Guide.

The display timeout for the input mode or programme position can be adjusted by "Banner Display Timeout" in Setup Menu (p. 23).

- If main screen has digital teletext signals, some key words may appear on colour bar. In this case the operations can be possible by using colour buttons on the remote control except for the colour bar is displayed by pressing the i button.

Updating the DVB software

From time to time, a new version of software for DVB mode may become available for download to enhance performance or operations of the TV.

A notification banner will appear when you tune to one of the BBC channels, or you can search for a new version software by using the "System Update Search Now" function (p. 27).

To start downloading press "OK", this may take up to 20 minutes to

complete.

To ignore the new software press "EXIT", but this banner will keep

appearing during the period of new software availability, usually 2 to 3 days.

To download any new software automatically, ensure that the "Auto Update Search in Standby" function in the System Update menu is set to "On" (p. 27).

The TV will then download new software automatically at night if it is left in standby without any timer programme in progress.

Note

●During software download and update, DO NOT switch off the TV.

VIERA Link "HDAVI Control™"

HDMI connections to some Panasonic equipment allow you to interface them automatically. (p. 42)

●This function may not work normally depending on the equipment condition.

- Image or sound may not be available for the first few seconds when the playback starts.

●Image or sound may not be available for the first few seconds when input mode is switched.

●Volume function will be displayed when adjusting the volume of the equipment

- If you connect the equipment that has "HDAVI Control 2" function to the TV with HDMI cable, the sound from DIGITAL AUDIO OUT terminal can support multi channel sound from the input source.

● Easy playback is also available by using the remote control for Amplifier or Player theatre. Read the manuals of the equipment.

- If more than one equipments of the same type are connected to the TV by HDMI cables, for example two DIGA DVD recorders to HDMI1 and 2. VIERA Link will only be available for the lower terminal number, in this case HDMI1.

●"HDAVI Control 2" is the newest standard (current as of February, 2007) for Panasonic's HDAVI Control

compatible equipment. This standard is compatible with Panasonic's conventional HDAVI equipment.

Technical Information

Data format for Card browsing

Photo: Still images recorded with digital still cameras compatible with JPEG files of

DCF ^® and EXIF standards

Data format : Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Max. number of files : 9.999

Image resolution : 160 × 120 to 10,000,000

● Compliant card type (maximum capacity): SDHC Card (4 GB), SD Card (2 GB), Multi Media Card (128 MB).

miniSD Card (1 GB) (requiring miniSD adapter)

- If miniSD Card is used, insert / remove it together with the adapter.

- Check the latest information on the card type at the following website. (English only)

http://panasonic.co.jp/pavo/global/cs/

"DCI" (Design rule for camera the system: United standard established by Japan Electronics and Information Technology Industries Association (JLTA)).

Note

● A JPEG image modified with a PC may not be displayed.

Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.

● Partly degraded files might be displayed at a reduced resolution.

- Only "JPG" extension can be read by this TV.

- The folder and file names may be different depending on the digital camera used.

- Do not use two-byte characters or other special codes.

The card may become unusable with this TV if file or folder names are changed.

SCART, S-VIDEO and HDMI terminal information

■ AV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Clear earth Blue in Blue earth Audio out (J) Audio out (F) 21 19 17 15 13 11 9 7 5 3 1 20 CVBS in (video) 18 RGB status earth 16 State RGB 14 Earth 12 - 10 QOLink circle 8 State CVBS 5 Audio in (L) 4 Audio earth 2 Audio in (I)

■ AV2 SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth 21 CVBS out (video) 19 CVBS with 17 Red in, S.C. in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 6 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB sides earth 16 Status RGB 14 Earth 12 - 10 Q-Link cells 8 Status CVBS 5 Audio in (L) 4 Audio earth 2 Audio in (R)

■ AV3 S-VIDEO 4 pin terminal

■ HDMI terminal

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

●PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency

59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

●A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.

Note

● Some PC models cannot be connected to this TV.

- When using PC, set the colour display quality of PC to the highest position.

●For details of the applicable PC signals, see below.

●Max. display resolution

Aspect	4:3	1.024 × 768 pixels
	16:9	1.366 × 768 pixels

●D-sub 15-pin connector signal

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	R	6	GND (Ground)	11	NC (not connected)
2	G	7	GND (Ground)	12	NC (not connected)
3	B	8	GND (Ground)	13	HD
4	NC (not connected)	9	NC (not connected)	14	VD
5	GND (Ground)	10	GND (Ground)	15	NC (not connected)

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI
- Mark: Applicable input signal

Signal name	COMPONENT	HDMI
525 (480) / 60l		×
525 (480) / 60p		×
625 (576) / 50l		×
625 (576) / 50p		×
750 (720) / 60p		×
750 (720) / 50p		×
1.125 (1,080) / 60		×
1.125 (1,080) / 50		×
1.125 (1,080) / 60p		×
1.125 (1,080) / 50p		×

PC (D-sub 15P)

Signal name	Horizontal frequency (kHz)	Vertical frequency (Hz)
640 × 400 @70 Hz	31.47	70.07
640 × 480 @60 Hz	31.47	59.94
640 × 490 @75 Hz	37.50	75.00
800 × 600 @60 Hz	37.88	60.32
800 × 600 @75 Hz	46.88	75.00
800 × 600 @65 Hz	53.67	85.08
852 × 480 @60 Hz	31.44	59.89
1,024 × 766 @60 Hz	48.36	60.00
1,024 × 766 @70 Hz	56.48	70.07
1,024 × 766 @75 Hz	60.02	75.03
1,024 × 768 @85 Hz	68.68	85.00
1,280 × 1,024 @60 Hz	63.98	60.02
1,366 × 768 @60 Hz	48.39	60.04
Macintosh13" (640 × 480)	35.00	66.67
Macintosh16" (832 × 624)	49.73	74.55
Macintosh21" (1,152 × 870)	68.68	75.06

Note ● Signals other than above may not be displayed properly.

● The above signals are reformatted for optimal viewing on your display.

● Applicable input signal for PC is basically compatible to VESA standard timing.

- PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 56)

White spots or shadow images (noise)

- Check the position, direction, and connection of the aerial.

Neither image nor sound is produced

●Is the TV in "AV mode"?

●Is the mains lead plugged into the socket outlet?

●Is the TV turned On?

- Check Picture Menu (p. 22) and volume. - Check all required SCART cables and connections are firmly in place.

Auto aspect

● Auto aspect is designed to provide you with the best aspect ratio to use to fill your screen. For user control please see p. 46.

S-Video / black and white picture

● Using AV button please confirm your selection is S-Video I.e. AV2/AV2S (p. 16).

No programmes shown on TV Guide

- Check the DVB transmitter. - Adjust the direction of the aerial to another transmitter installed nearby. - Check the analogue broadcast. If the image quality is poor, check the aerial and consult your nearest dealer.

Illustration of a flat-screen TV connected to a cable with an antenna, showing no text or symbols.

On Screen messages - I.e. EC/AV1

- You can simply clear these by pressing the i button. Press again to redisplay.

Direct TV record / Q-Link functions not recording

- Please confirm SCART cable and connection. Also please set "AV1 / AV2 out" in the Setup Menu (p. 23).

There may be red spots, blue spots, green spots and black spots on the screen

This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue or black. Please note this does not affect the performance of your LCD.

The LCD panel moves slightly when it is pushed with a finger

Clattered sound might be heard

There are some looseness around the panel to prevent the damage to the panel. The panel might move slightly when it is pushed with a finger, and clattered sound might be heard. This is not a malfunction.

Problem Actions
Chaotic image, noisy	Set "P-NR" in the Picture Menu (to remove noise). (p. 22)Check nearby electrical products (car, motorcycle, fluorescent lamp).
No image can be displayed	Is "Colour" or "Contrast" in the Picture Menu set to the minimum? (p. 22)
Blurry or distorted image (no sound or low volume)	Reset channels. (p. 30)
Unusual Image is displayed	Turn off the TV with Mains power On / Off switch, then turn it on again.
No sound is produced	Is "Sound mute" active? (p. 7)Is the volume set to the minimum?
Sound level is low or sound is distorted	Sound signal reception may be deteriorated.Set "NICAM" (p. 22) in the Sound Menu to "Off". (Analogue only)
Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in some cases, despite good reception of analogue programmes.
Interference or frozen / disappearing image in DVB	Check "DVB Signal Condition". (p. 31)If "Signal Quality" or "Signal Strength" are displayed in red, check aerial.If problem persists, consult your local Panasonic dealer.Turn the TV off with the Mains power On / Off switch, then turn it On again.
Sound is unusual	Set the sound setting of the connected equipment to "2ch L PCM".Check the "HDMI Input" setting in the Sound Menu. (p. 22)If digital sound connection has a problem, select analogue sound connection. (p. 41)
Pictures from external equipment are unusual when the equipment is connected via HDMI	Is the HDMI cable connected properly? (p. 44)Turn Off the TV and equipment, then turn them On again.Check an input signal from the equipment. (p. 49)Use an equipment compliant with EIA/CEA-861/861B.
TV goes into "Standby mode"	Off Timer function is activated.The TV enters "Standby mode" about 30 min. after broadcasting ends.
The remote control does not work	Are the batteries installed correctly? (p. 5)Has the TV been switched On?
An error message appears	Follow the message's instructions.If the problem persists, contact the authorized Service Centre.

On screen messages

Message Meaning / Act	Message Meaning / Action
All tuning data will be erased	● "Shipping Condition" will erase all tuning data (p. 32).● "Auto Setup" will be erased all present DVB and Analogue tuning datas (p. 30).
Are you sure ?	● Make sure the operation is with your desire.
Are you sure you want to delete this timer ?Press OK to delete timerPress Exit to return	● Make sure the deleting programme event is with your desire.
Bad Signal	● The signal is weak. Check the aerial.
DOWNLOAD IN PROGRESS PLEASE WAIT	● Q-Link channel download is in progress.
Feature not available	● Check the Q-Link connection and setting (p. 40).● The Impossible source (Component / HDMI / PC) to be record.
Invalid DVB Channel	● Invalid DVB channel is selected.
Invalid system time. Please exit !	● Cannot get the time information. Check the connection of the RF cable.
Key not available	● You cannot select the same input source between Main and Sub screen when you are viewing in multi window. (p. 12)
Max. number of Timers already set !	● Maximum timer programming event is 8.
New DVB Service Found!Press OK start Auto SetupPress EXIT to ignore.Selecting Auto Setup will delete current Profile and Childdock settings	● There is a new DVB station.
New version 1.90 found.Do you really want to update the software and reboot the system ?Press OK to download the new versionPress EXIT to ignore	● There is a new software available.
No DVB Service found	● No DVB signal can be found in Auto Setup.
No module Inserted	● Check the CI module inserted completely (p. 27).
No recording - Check Tape or Disc	● The tape or disc may be "write protected", missing or damaged.The equipment may already be recording.
No recording - UNKNOWN REASON	● The recording cannot be done by any reason. Check the equipment.● Disc or tape may be full.
No Service	● The station stops the services.
No Signal	● Check the connection of the RF cable.

No stations foundPlease insert the aerial	No analogue signal can be found in Auto Setup.
PIN Incorrect !	The PIN number you entered is wrong.
Please check aerial or local DVB service availability.Press OK to start Auto Setup	Please follow the message.If it is still failed, consult your local Panasonic dealer.
Please check settings and connections on HDMI devices.	Communication error in VIERA Link function (p. 42).
Please wait.	A function is in progress.
Recording in progress	The recording equipment is recording the programme signal from its own tuner. You can turn the TV off and leave the equipment recording in the normal way.
Shipping condition completed.TV can now be switched off.	"Auto Setup" will automatically start when Mains power On / Off switch is next turned On. (p. 10).
Software successfully updatedPress EXIT to continue	The software updating is finished.
Software Update failed. Please try again later.Press EXIT to continue	Perform "System Update Search Now" in System Update (p. 27).If it is still failed, there may not be the new software.
This service is locked!Press OK to enter PIN	The selected channel is locked in Child Lock (p. 29).
Timer already expired !	Starting time in Timer Programming is already past. Set correctly (p. 37).
Timer Event Due to StartDVB 1: BBC1 has been Programmed for recording at 20:00	This message will appear 2 minutes before timer programming event due to start.
Timer Incorrect !	Set Starting and Ending times in Timer Programming correctly (p. 37).
Timer overlap !	The timer programme events are oversapped. Cannot record other channel at the same time. Check the Starting and Ending times in Timer Programming (p. 37).
Tuner LockedPlease stop recording to operate	If you want to unlock, cancel Direct TV Recording (p. 40) or Timer Programming (p. 36).
Unable to download, Check Equipment	The tape or disc is active. Stop the equipment and try again.

Specifications

Power Source AC 220-240 V, 50 / 60 Hz
Power Consumption panel	Average use 140 W
	Standby condition 0.4 W (Without DVB recording) / 19 W (With DVB recording)
	Aspect Ratio 16.9
	Visible screen size		50 cm (diagonal)
			597 mm (W) × 392 mm (H)
Sound	Number of pixels 1,049,088 (1,366 (W) × 768 (H))
	Speaker Woofer (120 mm × 60 mm) × 2 pcs, Tweeler (23 mm × 100 mm) × 2 pcs
	Audio Output 20 W (2.5 W + 7.5 W, 2.5 W + 7.5 W)
	Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals			VGA, SVGA, XGA
			SXGA ---- (compressed)
			Horizontal scanning frequency 31 - 69 kHz
			Vertical scanning frequency 59 - 86 Hz
Receiving Systems / Band name			PAL I :UHF E21-68
			PAL 525/60 :Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc playback from DVD player and recorder.
			DVB :Digital terrestrial services via UHF aerial input.
			M.NTSC :Playback from M.NTSC Video recorders (VCR).
			NTSC (AV Input only) :Playback from NTSC Video recorders (VCR).
Aerial - Rear			UHF
Operating Conditions			Temperature : 0 °C - 35 °C
			Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals	AV1 (Scart terminal)		21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
	AV2 (Scart terminal)		21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
	AV3	VIDEO	RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
		S-VIDEO	Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
		AUDIO L - R	RCA PIN Type × 2 0.5 V[rms]
	COMPONENT	VIDEO	Y 1.0 V[p-p] (including synchronization)
		AUDIO L - R	Pb, Pr ±0.35 V[p-p]
			RCA PIN Type × 2 0.5 V[rms]
	Others	HDMI1 / 2 / 3	TYPE A Connectors ● This TV supports 'HDAVI Control 2' function.
		PC	HIGH-DENSITY D-SUB 15PIN R.G.B/0.7 V[p-p] (75 Ω) HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
		Card slot	SD CARD slot × 1
	Output	AUDIO L - R	RCA PIN Type × 2 0.5 V[rms] (high impedance)
		DIGITAL AUDIO OUT	PCM, Fiber optic
Dimensions (W × H × D)			836 mm × 592 mm × 248 mm (With TV Stand)
			836 mm × 540 mm × 110 mm (TV only)
Mass			18.5 kg Net

Note
- Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate
● This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.

Licence

Trademark Credits

● DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
● VGA is a trademark of International Business Machines Corporation
● Macintosh is a registered trademark of Apple Computer, USA
● S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
● SDHC Logo is a trademark.
● HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
● HDAVI Control™ is a trademark of Matsushita Electric Industrial Co., Ltd.
● TruSurround XT, SRS and (●) symbol are trademarks of SRS Labs, Inc
TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Index

A	Accessories	6
	Add New DVB Services	31
	Analogue Manual Tuning	31
	Analogue Programme Edit	31
	Aspect	13, 46
	Audio Description	12, 22
	Auto Setup	10, 30
	AV1 / AV2 out	23, 40

B Banner Display Timeout 23

Category list	14
Child Lock	29
CI module	27
Clamper	6
COMPONENT	44, 49
Connection	8, 44

D	Direct TV Recording	40
	Download to equipment	10, 23
	D-sub 1S-pin	49
	DVB LED	7, 15, 37
	DVB Manual Tuning	31
	DVB Profile Edit	29
	DVB Settings	26
	DVB Signal Condition	31
	DVB Timer Programming	36
	DVI	41
	DVDs	8, 16

E	EPG	14
	External equipment	8, 16, 44
	External input	16, 35

F	FAQs	50, 51
H	HDMI	41-43, 48
	Hold	13, 20
	Home Cinema	43, 45

I	Information banner	13
	Input Labels	34
	Input signal	49

L	Licence	55
M	Mains Lead	6
	Mains power On / Off switch	7, 12
	Maintenance	5
	Menu Functions	21-25
	Mode	22
	Multi Audio	12
	Multi window	13, 47

N	New Service Message	31
	NICAM	22
	NTSC	24, 54

Off timer	12, 23
Optional accessories	6
Owner ID	10, 33

P	PAL	54
	PC	35, 49
	PIN number	10, 29, 33
	P-NR	22
	Power LED	7, 10

Q-Link	23.40
Quick Start Guide	6-11

R	Remote control	6,7
	Reset to Default	22
	RGB	8

S	Sales and Support Information	56
	Satellite receiver	9, 16, 44
	SCART	8, 48
	SD Card	38, 48
	Shipping Condition	32
	Simulated Surround	22
	Slide Show	39
	Specifications	64
	SRS Tru/Surround XT	22
	Subtilies	12, 20
	Surround	22
	S Videon	8, 48
	System Update	27, 47

Teletext	18-20
Tuning Menu	30
TV Guide	14

	TV speaker	43
	Type list	14
U	Update the software	27, 47
	User input	34

V	Video	8, 16
	VIERA Link	42, 45, 47
	Viewing Mode	10, 22
	Volume Correction	22

W	WSS	46
Z	Zoom	46
