USER MANUAL Viera TX-49DSR500 PANASONIC
- Basic connection 18
- Selecting channel 21
• Information banner 23 - Option Menu 26
- Subtitle 28
- Last view 29
- Off Timer 30
• Energy saving functions 31 - Adjusting time 33
- Language 34
External equipment
- External connection 35
- Watching external input 38
- Operating with TV's remote control 40
• HDMI features 42 - Valid input signals 44
For best picture
- Viewing Mode 45
- Ambient Sensor 46
-
Aspect 47
-
Aspect Control Signal 49
- Basic settings 51
- Noise reduction settings 52
- Advanced Settings 53
- Option Settings 56
- Screen Settings 58
- Copy Adjustment 59
For best audio
- Sound mode 60
- Basic settings 61
• Volume settings 62
• Voice Guidance Settings 63
• Audio Description 64 - Advanced settings 65
TV Guide
• Using TV Guide 67
Teletext
- Viewing Teletext 70
- Teletext mode 72
- Teletext Character Set 73
Tuning and editing channels
- Setting menu 74
• Favourites Edit 75 - Channel List 77
• Auto Setup 79 - Manual Tuning 81
- Update Channel List 83
- New Channel Message 84
• Signal Condition 85 - Other settings 86
Media Player
Using Media Player
• Information 87
- Selecting device / mode 89
• Network device 91
Photo mode
- Selecting file 92
- Viewing photo 93
- Sorting photos 94
- Using Slideshow 95
Video mode
- Selecting file 100
- Watching video 101
- Video Setup 103
• Audio output settings 105
Music mode
- Selecting file 106
- Playing music 107
- Music Setup 108
Technical information
• Device handling caution 109
- USB devices 110
- Photo format 111
- Video format 112
- Music format 115
Network
Internet content
• Information 116
- Selecting internet content 117
- Note 118
DLNA
• In-House streaming 119
- Using DLNA 121
Network connections
- Internet connection 122
- Custom - Wired 131
- Custom - Wireless Access Point 133
• Network Status 134
- my Home Cloud Settings 135
• VIERA Name 136
• TV Remote App Settings 137
• Network Link Settings 138
- File Sharing Settings 139
- Mirroring Settings 140
- Software Update 141
- New Software Message 142
Photos
- Selecting file 143
- Viewing photo 144
• Using Slideshow 145
Videos
- Selecting file 147
- Watching video 148
- Video Setup 150
• Audio output settings 152
Music
- Selecting file 153
- Playing music 154
- Music Setup 155
Technical information
- Photo format 156
• Video format 157
- Music format 160
Functions
Mirroring
• How to use 161
- Mirroring Settings 162
DVB-via-IP
• DVB-via-IP client connection 163
• DVB-via-IP Server Selection 165
- Note 167
VIERA Link "HDAVI Control™"
• Summary of VIERA Link 168
• Preparations 173
- Easy playback 174
• Power on Link 175
• Power off Link 176
- Standby Power Save 177
• Intelligent Auto Standby 178
• VIERA Link Control 179
- Speaker Selection 181
- Note 182
Child Lock
• Using Child Lock 183
• PIN number 184
Data Service Application
• Using Data Service Application 185
- Cookie 186
- Note 187
Common Interface
- Caution 188
• Using Common Interface 189
Shipping Condition
• Shipping Condition 190
Updating the TV Software
• Information 191
- Auto update 192
- Manual update 193
Setting characters
• Using Numeric buttons 194
Keyboard
- Keyboard 195
Settings
Setting menu
• How to use 196
- Viewing Mode 198
- Basic settings 199
- Ambient Sensor 200
- Noise reduction settings 201
- Advanced Settings 202
- Option Settings 203
- Screen Settings 205
- Copy Adjustment 206
- Reset to Defaults 207
Sound
- Mode 208
- Basic settings 209
• Volume settings 210
• Voice Guidance Settings 211
• Audio Description 212
- Advanced settings 213
- Reset to Defaults 214
Network
• Network Connection 215
• Network Status 216
- my Home Cloud Settings 217
• VIERA Name 218
• TV Remote App Settings 219
• Network Link Settings 220
- File Sharing Settings 221
- Mirroring Settings 222
- Other settings 223
Timer
- Off Timer 224
• Time Zone 225
• Auto Standby 226 - No signal Power off 227
Setup
- Eco Navigation 228
- USB Device Setup 229
- Child Lock 230
- Tuning Menu 231
- Language 233
- Display Settings 234
- Common Interface 236
• VIERA Link Settings 237
• Data Service Application 238 - System Menu 239
- Other Settings 240
Support
Help menu
• Using Help menu 241
FAQs
• Picture 242
- Digital TV 244
- Analogue TV 245
- Sound 246
- HDMI 247
• Network 248 - Other 250
• Detailed information 251
Maintenance
• Care and Cleaning 252
Licence
• Licence 253
Letters enclosed in brackets indicate remote control buttons.
Menu Letters in cyan indicate on-screen display items.
References in this eHELP
•The images shown in this eHELP are for illustrative purposes only.
- This eHELP contains the pages for all models and some features are not available on all models.
- Refer to a paper manual, actual menu in TV set, etc. to confirm your model's features.
Home Screen
my Home Screen

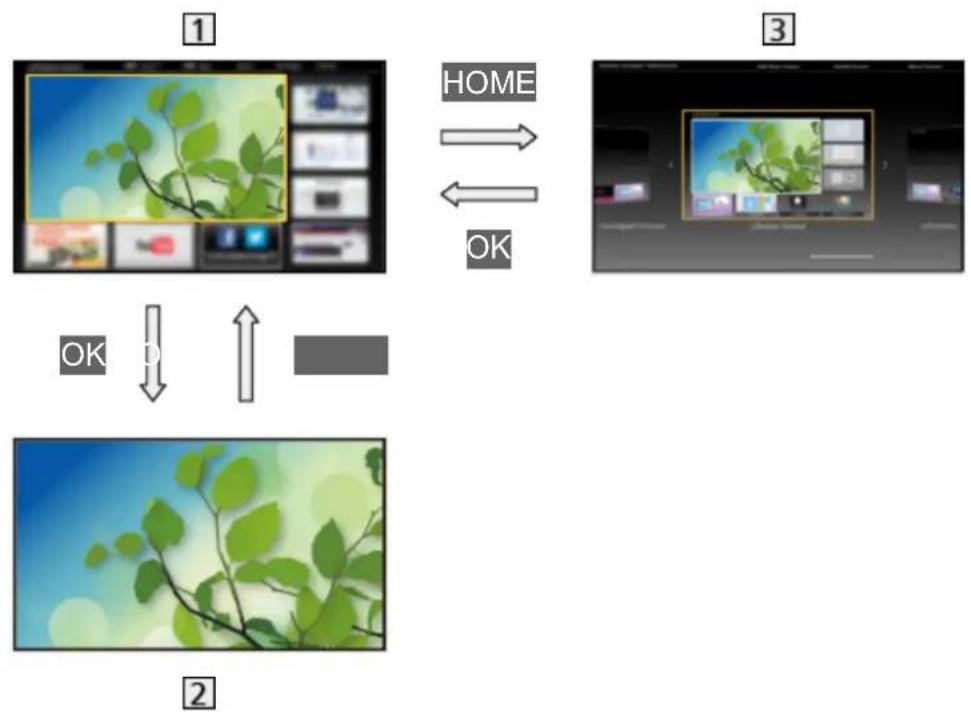

Information
"my Home Screen" is a gateway to the TV, applications, and more.
It provides easy access to special features such as Media Player, videos, games, communication tools, etc. as shown below (example).
① Home Screen
② Selected content screen (TV, application, etc.)
3 Home Screen Selection
- Your preferred Home Screen can be selected.
How to use
Home Screen provides access to special features such as Media Player, TV, internet content, data services, communication tools, etc.
- Display Home Screen with HOME.
(Example)
- Press again to select or add your preferred Home Screen layout.
Home Screen > my Home Screen > Settings
- Select a feature and press OK to access.
•To watch full-screen TV
1) Select the TV viewer.
(Example)
(Example)


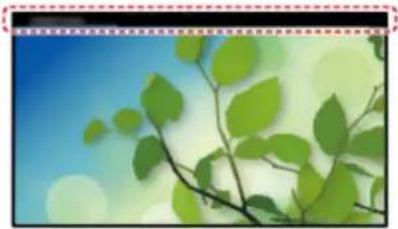

Settings
Select the setup menu from the tool guide on the top of the screen.
(Example)
■ Home Screen Selection
- Display Home Screen Selection with HOME.
(Example)
Full Screen TV:
Displays full-screen TV.
TV Home Screen:
To make your TV experience more convenient and comfortable
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
Settings
You can customise any Home Screen. (For example, changing the wallpaper, renaming freely, editing applications, setting the screen launched when the TV is turned on, etc.)
-
Select Settings from the tool guide.
-
Follow the on-screen instructions.
Search
You can search the content from various features.
- Select Search from the tool guide.
- Follow the on-screen instructions.
= Note =
- To change the colour type of on-screen displays, set OSD Colour.
Home Screen > my Home Screen > OSD Colour
- A broadband network environment is required to fully use this function. Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
- Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use my Home Screen. You can update the software later manually.
Network > Network settings > Software Update
OSD Colour
- Display the menu with MENU.
- Select Setup > Display Settings > OSD Colour and press OK to access.
- Set the item and press OK to store.
OSD Colour
(Jet black / Pale grey / Organic brown / Sand beige)
Selects the preferred colour type of on-screen displays.
- This function is available for the information banner, menu screen, Home Screen, etc.
APPS List
Information
Various applications (internet content, network content, Media Player, etc.) can be accessed easily from APPS List.
■ APPS List
(Example)
- APPS List is subject to change without notice.
How to use
You can access special features such as internet content, network content, Media Player, etc. from APPS List.
- Display APPS List with APPS.
(Example)
EXIT
- Select an icon of the features and press OK to access.
Internet content
Network > Internet content
Netflix
- You can also access the service pressing NETFLIX.
- A broadband network environment is required to fully use this function.
- This service may be stopped or changed without notice.
Media Player
Media Player > Using Media Player > Selecting device / mode
Media Server
Network > DLNA > Using DLNA
VIERA Link
Functions > VIERA Link "HDAVI Control™"
Settings
You can customise APPS List (screen settings, etc.).
- Display APPS List with APPS.
- Select the icon for settings on APPS List and press OK to access.
- Follow the on-screen instructions.
$$ = \text { Note } = $$
- Setup menu items may be changed without notice.
Watching
Basic

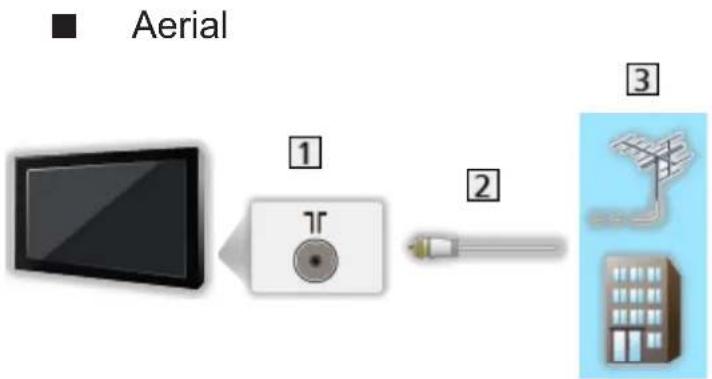

Basic connection
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
•External equipment and cables shown are not supplied with this TV.
1 Terrestrial / cable terminal
2 RF cable
3 Terrestrial aerial / Cable
•For DVB-C, DVB-T, Analogue


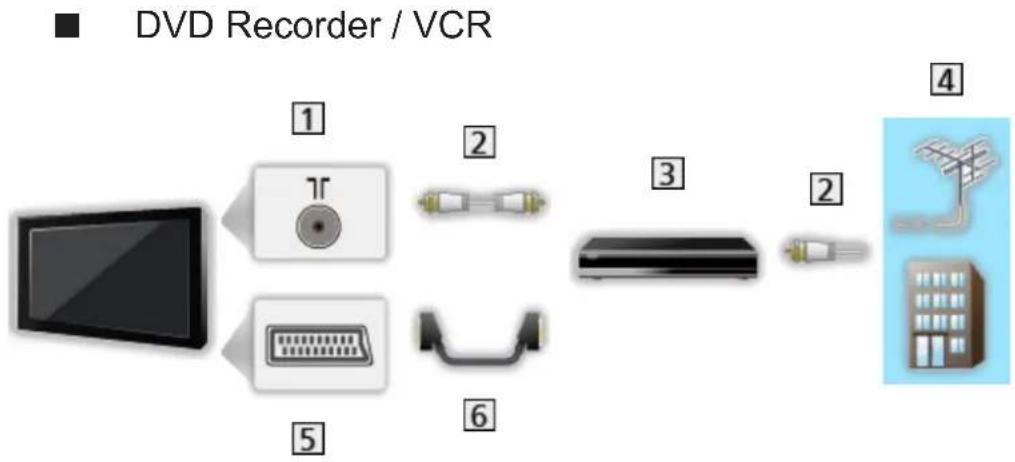

1 Terrestrial / cable terminal
2 RF cable
3 DVD Recorder / VCR
4 Terrestrial aerial / Cable
5 AV1 (SCART) terminal
6 SCART cable

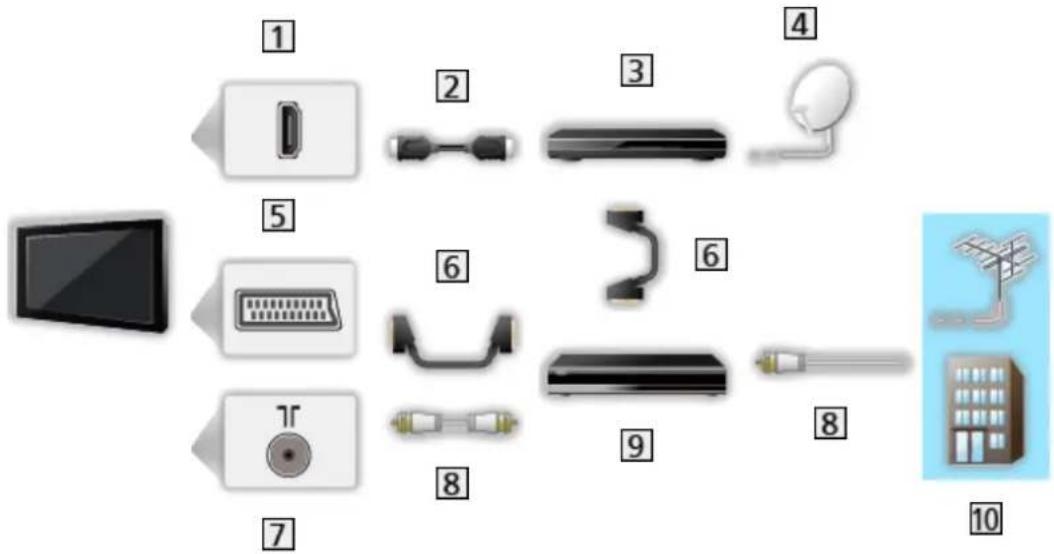

■ DVD Recorder (VCR) / Set top box
2 HDMI cable
3 Set top box
4 Satellite dish
5 AV1 (SCART) terminal
6 SCART cable
7 Terrestrial / cable terminal
8 RF cable
9 DVD Recorder / VCR
10 Terrestrial aerial / Cable
= Note =
- For details of DVB-via-IP connections
Functions > DVB-via-IP
•For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Please also read the manual of the equipment being connected.
- Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
- Use a fully wired HDMI compliant cable.
- Use a fully wired SCART cable.
- Check the terminal type and cable plugs are correct for connection.
Selecting channel
- Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
- Selectable modes vary depending on the channels stored.
- Select a channel with Channel Up / Down or Numeric buttons.
- Press Numeric buttons to select a channel position with 2 or more-digit (e.g. 399, press 3 9). 9
■ To select a channel from the channel list
- Display the channel list with OK.
- Select a channel from the list and press OK to watch.
• To sort channel names in alphabetical order
(red)
•To change the category
(blue)
■ To select a channel using information banner
- Display information banner with if it is not displayed.
- Select a channel and press OK to watch while the banner is displayed.
Watching > Basic > Information banner

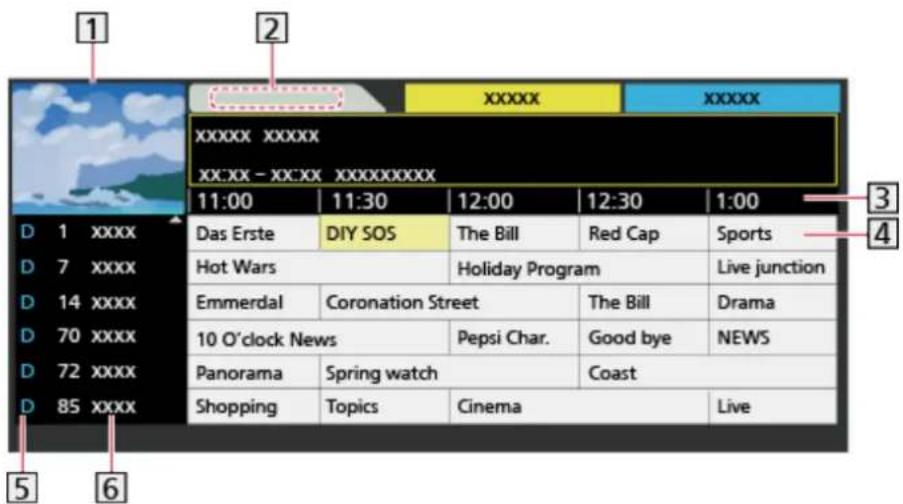

■ To select a channel using TV Guide
- Display TV Guide with GUIDE.
- Select the current programme and press OK to access.
- The current programme is displayed on the top left of the screen.
- Press Ok to exit TV Guide.
Watching > TV Guide > Using TV Guide
- Not valid in Analogue
■ To watch pay-TV
- For details of the encrypted channels
Functions > Common Interface > Using Common Interface
- Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.
Information banner
Display information banner with
•Also appears when changing a channel.
(Example)
② Channel type (Radio, HDTV, etc.) / Encrypted channel 📄/ TV mode ( ), 📋, 🌐
3 Programme
4 Start time / End time (except Analogue)
Channel position, etc. (Analogue)
Progress time indicator of the selected programme (except Analogue)
5 Category
•To change the category (DVB)
1) Display the category list with (blue).
2) Select the category and press OK to change.
6 Current time
⑦ Features available / message meanings
Bad signal:
Poor quality TV signal
Dolby D+, Dolby D, HE-AAC:
Dolby Digital Plus, Dolby Digital or HE-AAC audio track
AD:
Audio Description service available
- This function can aid visually-impaired viewers by providing an additional audio track to describe events on screen.
Watching > For best audio > Audio Description
：
Subtitle service available
Teletext service available
Multiple audio available
Multiple video available
Multiple audio and video available
Stereo, Mono:
Audio mode
Data service (Hybrid Broadcast Broadband TV application) available
Functions > Data Service Application > Using Data Service Application
1 - 90:
Off Timer remaining time
Watching > Basic > Off Timer
• To confirm another tuned channel
•To watch the channel listed in the banner
•Information on the next programme (DVB)
•Extra information (DVB)
- Press again to hide the banner.
•To hide the banner
• To adjust banner timeout, set Banner Display Timeout.
1) Display the menu with MENU.
2) Select Setup > Display Settings > Banner Display Timeout and press OK to access.
3) Set the item and press OK to store.
- To change the colour type of on-screen displays, set OSD Colour.
Home Screen > my Home Screen > OSD Colour
•To display the introduction banner for the internet service
1) Display the menu with MENU.
2) Select Setup > Display Settings > Smart Banner and press OK to access.
3) Select On / Off and press OK to set.
Option Menu
Confirm or change the current status.
- Display the option menu with OPTION.
- Select one of the following items and press OK to access.
Voice Guidance Settings / Audio Type / Multi Video / Multi Audio / Dual Audio / Sub Channel / Subtitle Language / Teletext Character Set / Teletext Language / MPX / Volume Correction
- The function items vary depending on the TV mode and country you select.
- Set the item and press OK to store.
Voice Guidance Settings
Guidance settings for visually impaired users
Watching > For best audio > Voice Guidance Settings
Audio Type
Set to Audio Description if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen (if available).
- For DVB
• To adjust the volume for Audio Description
Watching > For best audio > Audio Description
Multi Video
Selects from a group of multiple videos (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
Multi Audio
Selects between alternative language or Audio Description for sound tracks (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
Dual Audio
Selects stereo / monaural (if available).
- For DVB
Sub Channel
Selects the multifeed programme - sub channel (if available).
- For DVB
Subtitle Language
Selects between alternative subtitle languages or types (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
- For DVB
Teletext Character Set
Sets the teletext language font.
Watching > Teletext > Teletext Character Set
Teletext Language
Selects between alternative teletext languages (if available).
- This setting is not memorised and it returns to the default setting once you exit the current programme.
•For DVB
MPX
Selects multiplex sound mode (if available).
Watching > For best audio > Advanced settings
- For Analogue
Volume Correction
Adjusts the volume of each individual channel or input mode.
Subtitle
Display / hide subtitles (if available) with STTL.
- To select the preferred language for DVB subtitles (if available), set Preferred Subtitles.
Watching > Basic > Language
•To select the preferred subtitle type
1) Display the menu with MENU.
2) Select Setup > Display Settings > Preferred Subtitle Type and press OK to access.
3) Select Standard / Hard of Hearing and press OK to set.
- Hard of Hearing provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).
- Preferred Subtitles 1 / 2 in Language are given priority.
Watching > Basic > Language
= Note =
- If you press STTL in Analogue, the TV switches to teletext service and calls up a favourite page. Press EXIT to return to TV mode.
Last view
Switch to a previously viewed channel or input mode easily with LAST VIEW.
- Press again to return to the current view.
= Note =
- Switching channel may not be available depending on the condition.
- Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.
Off Timer
Switch to TV Standby mode automatically after a fixed period.
- Display the menu with MENU.
- Select Timer > Off Timer and press OK to access.
- Select the time in 15-minute increments and press OK to set. 90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)
• To cancel, set to Off or turn the TV off.
- The remaining time is displayed on the bottom right of the screen.
- The remaining time will flash on the screen when less than 3 minutes.
Energy saving functions
The TV can be eco-friendly using energy-saving functions.
The TV goes into Standby mode in the following conditions:
•Eco Navigation is set to Set to Eco.
- Off Timer is active.
Watching > Basic > Off Timer
- No operation is performed for 4 hours while Auto Standby is set to On.
- No signal is received and no operation is performed for 10 minutes while No signal Power off is set to On.
■ Auto Standby
- Display the menu with MENU.
- Select Timer > Auto Standby and press OK to access.
- Select On / Off and press OK to set.
Auto Standby
(On / Off)
Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
- Automatic input switching with the connected equipment affects this function and time-count resets.
- A notification message will appear 3 minutes before going into Standby mode.
- Changing the default configuration may result in higher energy consumption of the product.
■ No signal Power off
- Display the menu with MENU.
- Select Timer > No signal Power off and press OK to access.
- Select On / Off and press OK to set.
No signal Power off
(On / Off)
Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.
- A notification message will appear 3 minutes before going into Standby mode.
■ Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode.
The concerned items and their current settings are displayed. Select Set to Eco to set them to the energy-saving settings at once.
- Display the menu with MENU.
- Select Setup > Eco Navigation and press OK to access.
- Select Set to Eco and press Ok to set.
- Auto Standby and No signal Power off are active when Eco Navigation is set to Set to Eco.
Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is selected.
- Display the menu with MENU.
- Select Setup > Display Settings > Radio Mode and press OK to access.
- Select the time and press OK to set.
20 / 15 / 10 / 5 / Off (seconds)
- Sound is active even if the screen is turned off. This function is effective in reducing power consumption when listening to a radio channel.
- Press any buttons except Standby On / Off switch, Volume Up / Down and MUTE to turn the screen on.
- Not valid in Analogue
Adjusting time
Adjusts the time data.
- Display the menu with MENU.
- Select Timer > Time Zone and press OK to access.
- Set the item and press OK to store.
•The time data are corrected based on GMT.
Language
- Display the menu with MENU.
- Select Setup > Language and press OK to access.
- Select one of the following items and press OK to access.
OSD Language / Preferred Audio 1 / 2 / Preferred Subtitles 1 / 2 / Preferred Teletext - Set the item and press OK to store.
OSD Language
Changes language for on-screen displays.
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the broadcaster).
Preferred Subtitles 1 / 2
Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).
•To display subtitles
Watching > Basic > Subtitle
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster).
External equipment
External connection
These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.
- For details of basic connection
Watching > Basic > Basic connection
- Check the terminal type and cable plugs are correct for connection.
- External equipment and cables shown are not supplied with this TV.

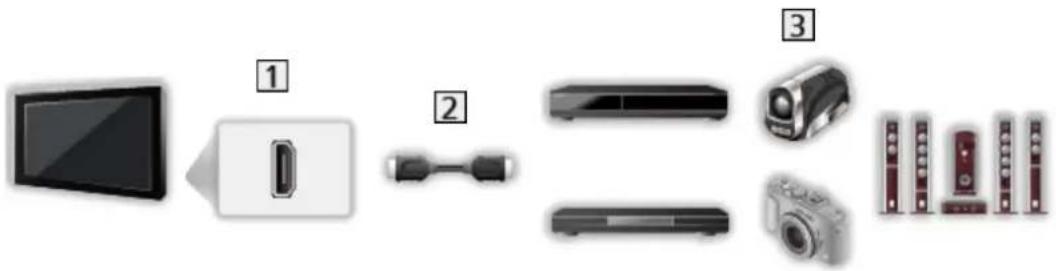

■ HDMI equipment
① HDMI terminal
2 HDMI cable
3 Recorder / Player / Set top box / Camcorder / Amplifier with speaker system
= Note =
- Use a fully wired HDMI compliant cable.
- For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Use HDMI2 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.


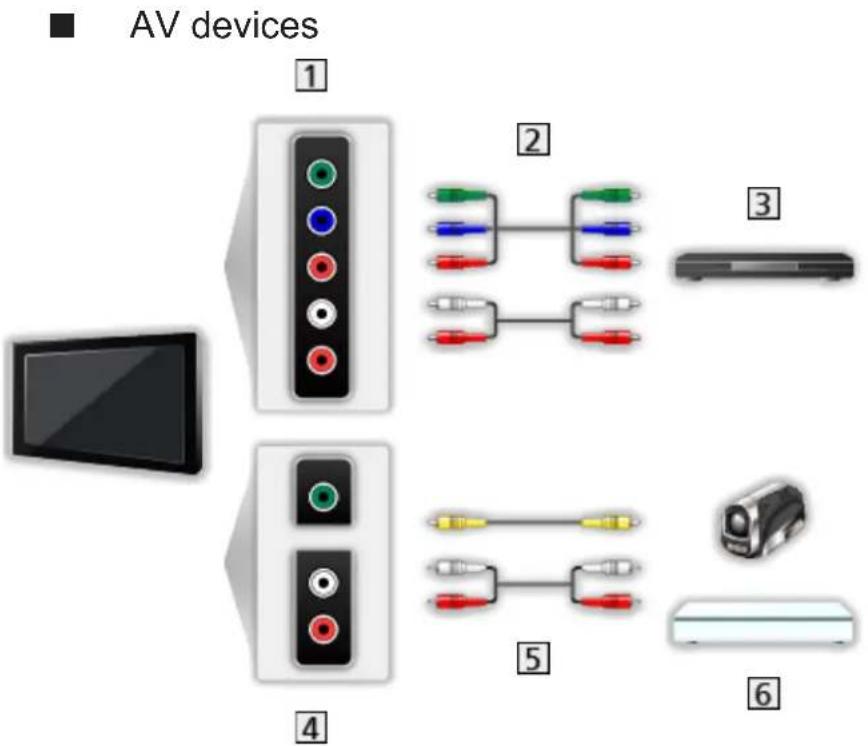

AV devices 1 2 3 4 5 61 AV2 (COMPONENT) terminals
② Component cables
3 DVD Player
4 AV2 (VIDEO) terminals
5 Composite cables
6 Camcorder / Game equipment
2 USB devices
= Note =
- It is recommended to connect the device to the TV's USB port directly.
- Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices by using USB card reader.
■ Listening with external speakers
1 DIGITAL AUDIO
2 Optical digital audio cable
③ Amplifier with speaker system
• To enjoy multi-channel sound from external equipment (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.
•To select the sound output to adjust volume, set Speaker Setting.
Watching > For best audio > Volume settings
Headphones
2 M3 stereo mini plug
3 Headphones
• To adjust volume, set Headphone Volume.
Watching > For best audio > Volume settings
• To select the sound output to adjust volume, set Speaker Setting.
Watching > For best audio > Volume settings
Watching external input
Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.
- Display the input selection menu with AV.
- Select the input mode connected to the equipment and press OK to watch. (The selected mode is displayed on the top left of the screen.)
- TV receives input signals automatically connecting with SCART when playback starts.
- Input signals are automatically identified by the SCART (pin 8) terminal.
- This function is also available for HDMI connections when VIERA Link is set to On.
Functions > VIERA Link "HDAVI Control™" > Easy playback
- When input mode is not switched automatically, perform as above or check the setup of the equipment.
- You can also select the input pressing AV. Press repeatedly until the desired input is selected.
- You can select COMPONENT and VIDEO in AV2.
- You can label or skip each input mode. Skipped inputs will not be displayed when AV is pressed. (Input Labels)
- The remote control is capable of operating the content or external equipment.
Watching > External equipment > Operating with TV's remote control
•To return to TV mode
TV
= Note =
- If the external equipment has an aspect adjustment function, set it to 16:9.
- For details, read the manual of the equipment or ask your local dealer.
■ Input Labels
Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner.
Watching > Basic > Information banner
- Display the menu with MENU.
- Select Setup > Display Settings > Input Labels and press OK to access.
- Set the item and press OK to set.
- To name each input mode freely, select User input and set characters (maximum 10 characters).
- To skip the input mode, select Skip.
Operating with TV's remote control
You can operate the content in Media Player / media server, recording functions or the connected equipment with the following buttons of this TV's remote control.
Playback (VCR / DVD / video content)
Stop the operations
Rewind, view the picture rapidly in reverse (VCR)
Skip to the previous track, title or chapter (DVD / video content)
Rewind, view the picture rapidly in reverse (VCR)
Search backward (DVD / video content)
Fast-forward, view the picture rapidly forward (VCR)
Skip to the next track, title or chapter (DVD / video content)
Fast-forward, view the picture rapidly forward (VCR)
Search forward (DVD / video content)
Pause / Resume
Press and hold to play at slow speed (DVD)
Start recording (DVD Recorder / VCR)
■ How to change the code
Each Panasonic product has its own remote control code. Change the code according to the product for operation.
- Press and hold Standby On / Off switch during the following operations.
- Enter the appropriate code as follows with Numeric buttons.
- Codes for each product and features
70: DVD Recorder, DVD Player, Blu-ray Disc Player
71: Player theatre, Blu-ray Disc theatre
72: VCR
73 (default):
Using in Media Player, DLNA features or VIERA Link
- Press ■ to change.
= Note =
- Confirm if the remote control works correctly after changing the code.
- The codes may be reset to defaults if batteries are replaced.
- Some operations may not be available depending on the equipment.
HDMI features
HDMI (high-definition multimedia interface) is the world's first complete digital consumer AV interface complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV to external equipment.
HDMI-compatible equipment * with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using a fully wired HDMI compliant cable.
Watching > External equipment > External connection
*: The HDMI logo is displayed on HDMI-compliant equipment.
■ Applicable HDMI features
- Input audio signal:
2ch LPCM
- Input video signal:
Matches the output setting of the digital equipment.
Watching > External equipment > Valid input signals
•VIERA Link (HDAVI Control 5)
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Content Type
•Audio Return Channel
- Audio Return Channel (ARC) is a function to send digital sound signals via an HDMI cable.
- For HDMI2
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable, connect the audio cable to the audio input terminal (use COMPONENT / VIDEO audio terminals).
- Enquire HDMI adaptor cable at your local digital equipment retailer shop.
= Note =
•Audio settings can be made on HDMI Input in the Sound Menu.
Watching > For best audio > Advanced settings
- If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
• These HDMI connectors are "type A".
• These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
- Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.
•This TV incorporates HDMI™ technology.
COMPONENT, HDMI
| Signal name COMPONENT HDMI | |
| 525 (480) / 60i, 60p ○ ○ | |
| 625 (576) / 50i, 50p ○ ○ | |
| 750 (720) / 60p, 50p ○ ○ | |
| 1 125 (1 080) / 60i, 50i ○ ○ | |
| 1 125 (1 080) / 60p, 50p, 24p ○ |
○: Applicable input signal
= Note =
- Signals other than above may not be displayed properly.
•The above signals are reformatted for optimal viewing on your display.
For best picture
Viewing Mode
- Display the menu with MENU.
- Select Picture > Viewing Mode and press OK to access.
- Select the mode and press OK to set.
Viewing Mode
(Dynamic / Normal / Cinema / True Cinema / Custom)
Selects your favourite picture mode for each input.
Dynamic:
Improves contrast and sharpness for viewing in a bright room.
Normal:
Normal use for viewing in a normal lighting condition.
Cinema:
Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.
True Cinema:
Reproduces the original image quality precisely without any revision.
Custom:
Adjusts each menu item manually to suit your favourite picture quality.
- The following items can be adjusted and stored for each mode.
Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control / Ambient Sensor / Noise Reduction / MPEG Noise Reduction
Ambient Sensor
- Display the menu with MENU.
- Select Picture > Ambient Sensor and press OK to access.
- Select On / Off and press OK to set.
Ambient Sensor
(On / Off)
•Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting condition.
Aspect
Change the aspect ratio (image size) with ASPECT.
■ To change the aspect ratio manually
- Display Aspect Selection with ASPECT.
- Select the mode and press OK to set.
- You can also change the mode pressing ASPECT.
(Press repeatedly until you reach the desired mode.)
Auto:
The best ratio is selected automatically according to the “Aspect Control Signal”.
Watching > For best picture > Aspect Control Signal
16:9:
Directly displays the image at 16:9 without distortion (anamorphic).
14:9:
Displays the image at the standard 14:9 without distortion.
Just:
Displays a 4:3 image full-screen. Stretching is only noticeable at right and left edges.
4:3:
Displays the image at the standard 4:3 without distortion.
Zoom:
Displays a 16:9 letterbox or 4:3 image without distortion.
4:3 Full:
Displays a 4:3 image enlarged horizontally to fit the screen.
- For HD (High definition) signals
Sidecut Just:
Displays a 16:9 letterbox (anamorphic) image full-screen. Stretching is only noticeable at right and left edges.
•For HD (High definition) signals
Sidecut Zoom:
Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.
•For HD (High definition) signals
= Note =
- Display the image (TV, external input, etc.) full-screen to use this function completely.
- Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.
- Aspect cannot be changed in teletext service.
Aspect Control Signal
Programmes usually contain an "Aspect Control Signal". (Widescreen signal, Control signal through SCART / HDMI terminal)
In Auto mode, aspect mode will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART (pin8) / HDMI terminal is found. The aspect switches to the appropriate ratio.
Watching > For best picture > Aspect
■ Available conditions
●terrestrial / cable terminal (WSS only)
Valid input signal format:
DVB-C
DVB-T / DVB-T2
PAL D, K
SECAM D, K
Invalid input signal format:
PAL 525/60 6.5 MHz
PAL 525/60 6.0 MHz
PAL 525/60 5.5 MHz
M.NTSC 6.5 MHz
M.NTSC 6.0 MHz
M.NTSC 5.5 MHz
▲V1 (SCART) terminal / AV2 (VIDEO) terminals
Valid input signal format:
PAL
SECAM
PAL 525/60*
M.NTSC*
NTSC*
*: Control signal through SCART (pin 8) / HDMI terminal only
▲V2 (COMPONENT) terminals (WSS only)
Valid input signal format:
625 (576) / 50i, 50p
Invalid input signal format:
525 (480) / 60i, 60p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
HDMI terminal
Valid input signal format:
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
1 125 (1 080) / 60p, 50p, 24p
- HDMI terminal does not receive WSS signal.
= Note =
- If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.
Basic settings
- Display the menu with MENU.
- Select Picture and press Ok to access.
- Select one of the following items and press OK to access.
Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control - Set the item and press OK to store.
Backlight, Contrast, Brightness, Colour, Tint, Sharpness
Adjusts the levels of these options according to your personal preference.
Colour Temperature
Sets the overall colour tone of the picture (bluer - redder).
Vivid Colour
(On / Off)
Automatically adjusts colours to vivid ones.
Adaptive Backlight Control
Automatically controls the level of backlight according to the images.
Noise reduction settings
- Display the menu with MENU.
- Select Picture > Noise Reduction / MPEG Noise Reduction and press to access.
- Set the item and press OK to store.
Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces unwanted picture noise.
- Not valid when 1080p Pixel Direct is set to On
MPEG Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces flicker noise in contoured parts of a picture and block noise.
- Not valid when 1080p Pixel Direct is set to On
Advanced Settings
You can adjust and set up the detailed picture settings when Viewing Mode is set to Cinema, True Cinema or Custom. The settings in True Cinema or Custom can be stored for each input.
Watching > For best picture > Viewing Mode
- Select the input mode with AV or TV.
- Display the menu with MENU.
- Select Picture > Viewing Mode and press OK to access.
- Select the mode and press OK to set.
Cinema / True Cinema / Custom
■ Adjust the detailed picture settings
- Display the menu with MENU.
- Select Picture > Advanced Settings and press OK to access.
- Select one of the following items and press OK to access.
Contrast Control / White Balance / Colour Management / Gamma / Reset to Defaults - Set the item and press OK to store.
Contrast Control
Contrast Control
(Custom / Auto / Off)
Automatically adjusts the detailed contrast settings. Select Custom to set Contrast Control Setting manually.
Contrast Control Setting
Adaptive Gamma Control:
Adjusts the gamma curve to make the image brighter.
Black Expander:
Gradually adjusts the shades of black.
Reset to Defaults:
Resets items for Contrast Control Setting.
White Balance
R-Gain / G-Gain / B-Gain
Adjusts the white balance of bright red / green / blue areas.
R-Cutoff / G-Cutoff / B-Cutoff
Adjusts the white balance of dark red / green / blue areas.
Reset to Defaults
Resets White Balance to the default settings.
■ Colour Management
R-Hue / R-Saturation / R-Luminance
Adjusts the picture hue / saturation / luminance of red areas.
G-Hue / G-Saturation / G-Luminance
Adjusts the picture hue / saturation / luminance of green areas.
B-Hue / B-Saturation / B-Luminance
Adjusts the picture hue / saturation / luminance of blue areas.
Reset to Defaults
Resets Colour Management to the default settings.
Gamma
Gamma
Switches the gamma curve.
- Please note the numerical values are reference for the adjustment.
Reset to Defaults
Resets Gamma to the default settings.
Reset to Defaults
Resets Advanced Settings to the default settings.
Option Settings
[Some features are not available on all models. Available menu items are displayed on your TV screen.]
- Display the menu with MENU.
- Select Picture > Option Settings and press OK to access.
- Select one of the following items and press OK to access.
Film Cadence Mode / 1080p Pixel Direct / HDMI Content Type / HDMI RGB Range / AV Colour System / 3D-COMB - Set the item and press OK to store.
Film Cadence Mode
(On / Off)
Improves vertical resolution for movie images.
- This function is available for interlaced signals (except in Network services).
1080p Pixel Direct
(On / Off)
Reproduces the original image quality in detail for 1080p (HDMI) input signal.
HDMI Content Type
(Graphics / Photos / Auto / Off)
Adjusts the picture settings of each HDMI input according to the selected content type.
Auto:
Automatically adjusts the picture settings according to the received HDMI content if the connected equipment supports HDMI Content Type.
- To set the availability of each content type for Auto mode, select Auto Detail Setting.
•For HDMI
HDMI RGB Range
(Auto / Full / Normal)
Adjusts the black level of the image for each HDMI input.
- When the black level is not suitable, select Full.
•For HDMI
AV Colour System
(Auto / PAL / SECAM / M.NTSC / NTSC)
Selects optional colour system based on video signals.
- For AV (VIDEO)
3D-COMB
(On / Off)
Makes still or slow moving pictures more vivid.
- Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to On to display sharper and more accurate colours.
- For PAL / NTSC signal reception in TV mode or from composite connection
Screen Settings
- Display the menu with MENU.
- Select Picture > Screen Settings and press OK to access.
- Select one of the following items and press OK to access.
16:9 Overscan / H-Size / Zoom Adjustments / Screen Display
- Set the item and press OK to store.
16:9 Overscan
(On / Off)
Selects the screen area displaying the image for 16:9 aspect.
On:
Enlarges the image to hide the edge of the image.
Off:
Displays the image in the original size.
- Set to On if noise occurs on the edge of the screen.
- This function can be memorised for SD (Standard definition) and HD (High definition) signals respectively.
•Not valid for photo content
H-Size
Switches horizontal picture size.
Zoom Adjustments
Adjusts the vertical position and size when aspect is set to Zoom.
Screen Display
(On / Off)
Turns the screen off when you select Off.
- This function is effective in reducing power consumption when listening to the sound without watching the TV screen.
- Press any buttons (except Standby On / Off switch) to turn the screen on.
Copy Adjustment
Copies the picture settings of True Cinema or Custom to those of the other input mode or Viewing Mode.
- Display the menu with MENU.
- Select Picture > Copy Adjustment > Destination Viewing Mode / Destination Input and press OK to access.
- Select the destination to copy to and press OK to set.
- Select Copy Start and press OK to copy.
- When a confirmation screen is displayed, select Yes and press OK to set.
= Note =
- Option Settings and Screen Settings are not copied.
For best audio
Sound mode
- Display the menu with MENU.
- Select Sound > Mode and press OK to access.
- Select the mode and press OK to set.
Mode
(Standard / Music / Speech / User)
Selects your favourite sound mode for each input.
Standard:
Provides the suitable sound quality for all types of scenes.
Music:
Improves sound quality for watching music videos, etc.
Speech:
Improves sound quality for watching news, drama, etc.
User:
Adjusts the sounds manually using the equaliser to suit your favourite sound quality.
- The following items can be adjusted and stored for each mode.
Bass / Treble / Surround
- For the User mode, Equaliser is available in the Sound Menu instead of Bass and Treble. Select Equaliser and adjust the frequency.
Watching > For best audio > Basic settings
- This function is effective only for the sound from TV speakers.
Basic settings
- Display the menu with MENU.
- Select Sound and press OK to access.
- Select one of the following items and press OK to access.
Bass / Treble / Equaliser / Balance / Surround - Set the item and press OK to store.
Bass
Adjusts level to enhance or minimise lower, deeper sound output.
Treble
Adjusts level to enhance or minimise sharper, higher sound output.
Equaliser
Adjusts the frequency level to suit your favourite sound quality.
- This function is available when Mode is set to User.
- Select the frequency and adjust the frequency level.
• To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency. - To reset the levels of each frequency to the default settings, select Reset to Defaults and press OK.
- This function is effective only for the sound from TV speakers.
Balance
Adjusts volume level of right and left speakers.
Surround
(On / Off)
Provides a dynamic enhancer of width to simulate improved spatial effects.
- This function is effective only for the sound from TV speakers.
Volume settings
- Display the menu with MENU.
- Select Sound and press OK to access.
- Select one of the following items and press OK to access.
Speaker Setting / Headphone Volume / Auto Gain Control / Volume Correction / Speaker Distance to Wall
- Set the item and press OK to store.
Speaker Setting
(TV Speaker / Headphones / Off)
Selects the sound output to adjust volume. Set to Off when using the external speakers.
- Sound from TV speaker turns off when Headphone or Off is selected.
Headphone Volume
Adjusts the volume of headphones.
Auto Gain Control
(On / Off)
Automatically regulates large sound level differences between channels and inputs.
Volume Correction
Adjusts the volume of each individual channel or input mode.
Speaker Distance to Wall
(Up to 30cm / Over 30cm)
Compensates for the low frequency sound due to the distance between the speakers and the wall.
- If the back space between the TV and wall is within 30 cm, Up to 30cm is recommended.
- If the back space between the TV and wall is over 30 cm, Over 30cm is recommended.
- This function is effective only for the sound from TV speakers.
Voice Guidance Settings
- Display the menu with MENU.
- Select Sound > Voice Guidance Settings and press OK to access.
- Select one of the following items and press OK to access.
Voice Guidance / Speed / Volume / Language / User Level / Web Browser - Set the item and press OK to store.
Voice Guidance
(On / Off)
Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users.
Speed
(Fast / Normal / Slow)
Selects the readout speed for the voice guidance.
Volume
(Max / Mid / Min)
Selects the volume for the voice guidance.
Language
Changes language for the voice guidance.
- All languages may not be available. When the selected language is not supported, Language is set to English automatically.
User Level
(Beginner / Expert)
Selects the level of verbosity for the voice guidance.
Web Browser
(On / Off)
Set to On to enable voice guidance of the network content in web browser function.
= Note =
•Voice guidance function may not correspond exactly.
Audio Description
- Display the menu with MENU.
- Select Sound > Audio Description and press OK to access.
- Select one of the following items and press OK to access.
Preferred Audio Type / Volume / Speakers / Headphones - Set the item and press OK to store.
Preferred Audio Type
(Audio Description / Standard)
Narration settings for visually impaired users
Set to Audio Description to activate the narration sound track when available on the broadcast.
- The availability of audio description sound track is indicated by AD in the information banner.
- For DVB
Volume
Adjusts the volume for Audio Description.
- For DVB
Speakers
(Mix / Standard)
Set to Mix to activate the description sound track from TV speakers.
- For DVB
Headphones
(Mix / Standard)
Set to Mix to activate the description sound track from headphones.
- For DVB
Advanced settings
- Display the menu with MENU.
- Select Sound and press OK to access.
- Select one of the following items and press OK to access.
MPX / Audio Preference / SPDIF Selection / SPDIF Delay / HDMI Input
- Set the item and press OK to store.
MPX
Selects multiplex sound mode (if available).
Stereo:
Use this normally.
Mono:
When stereo signal cannot be received
M1 / M2:
Available while mono signal is transmitted
- For Analogue
Audio Preference
(Auto / MPEG)
Selects the initial setting for audio tracks.
Auto:
Automatically selects the audio tracks if a programme has two or more tracks. The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.
MPEG:
The priority is given to MPEG.
- Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.
- HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.
- MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.
- Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.
•For DVB
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM:
Digital output signal is fixed to PCM.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
•For DVB, video content
Media Player > Video mode > Audio output settings
Network > Videos > Audio output settings
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.
- For DVB
HDMI Input
(Digital / Analogue)
Selects to fit the input signal.
Watching > External equipment > HDMI features
Digital:
When sound is carried via the HDMI cable connection
Analogue:
When sound is not carried via the HDMI-DVI adaptor cable connection
- For HDMI
TV Guide
Using TV Guide
TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcaster).
- Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
- Display TV Guide with GUIDE.
- Press again to change the layout. (Landscape / Portrait)
– View Landscape to see several channels.
- View Portrait to see one channel by time.
- You can select the default screen when pressing GUIDE. (Default Guide)
1) Display the menu with MENU.
2) Select Setup > Display Settings > Default Guide and press OK to access.
3) Select Channel List / TV Guide and press OK to set.
TV Guide:
Electronic Programme Guide (EPG) is available.
Channel List:
The channel list appears instead of EPG.
(Example)
② Date
3 Time
4 Programme
5 D (DVB-T) / A (Analogue)
6 Channel position and name
•To watch the programme
1) Select the current programme.
- The current programme is displayed on the top left of the screen.
2) Press Ok to watch.
•To the previous day
(red)
•To the next day
(green)
• To view a channel list of the selected type
1) Display the type list with □ (yellow).
2) Select the type and press OK to view.
- To search programme titles and view a list of the searched programmes (if available)
1) Display the search list with □ (yellow).
2) Select Search and press OK to access.
3) Enter characters with Cursor buttons or Numeric buttons, and press OK to set.
4) Press (green) to start searching.
- All the programme titles including the word you set are listed.
- Searching without any characters lists all programmes including current programmes.
•To view a channel list of the selected category
1) Display the category list with □ (blue).
2) Select the category and press OK to view.
- To list favourite channels, set Favourites Edit.
Watching > Tuning and editing channels > Favourites Edit
•To view more details of the programme
1) Select the programme.
2) Press i to view.
- Press again to return to TV Guide.
•To exit TV Guide
EXIT
= Note =
- When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
- DVB-T and Analogue channels are displayed on the same TV Guide screen. D and A may be displayed to distinguish DVB-T and Analogue channels. There is no programme listings for Analogue channels.
Teletext
Viewing Teletext
-
Switch to teletext with TEXT.
-
Displays the index page (content varies depending on the broadcaster).
- Current / sub page numbers are displayed on the top left of the screen.
- Time / date is displayed on the top right of the screen.
-
Colour bar is displayed on the bottom of the screen.
-
Select the page with Cursor buttons, Numeric buttons or (coloured buttons).
•To adjust contrast
1) Press MENU three times to display Contrast.
2) Adjust and press OK to set.
•To exit teletext
EXIT
■ Reveal hidden data
-
Press MENU.
-
Reveal with □ (red).
- Press again to hide.
■ To view a favourite page stored
Press STTL to view a favourite page.
- Call up the page stored on (blue). (List mode)
- Factory setting is "P103".
■ FULL / TOP / BOTTOM
-
Press MENU.
-
Press (green) to change the layout.
■ Watch TV and teletext in two windows at once
- Press MENU twice.
- Set Picture and text to On / Off.
- Operations can be made only in teletext screen.
■ Store frequently viewed pages in the colour bar (List mode)
- Press ■ (coloured buttons) while the page is displayed.
- Press and hold OK.
•The stored page number changes to white.
•To change stored pages
1) Press ■ (coloured buttons) to change.
2) Enter a new page number with Numeric buttons.
3) Press and hold OK.
■ View sub page
The number of sub pages is displayed on the top of the screen. Press ◀ to view sub page. (Only when teletext has more than one page.)
- The number of sub pages varies depending on the broadcaster (up to 79 pages).
- Searching may take time while you are watching TV.
• To view a specific sub page
1) Press MENU.
2) Press (blue).
3) Enter the 4-digit number (e.g. P6, press 0 0).0 6
Teletext mode
Teletext services are the text information provided by the broadcaster.
•The features may vary depending on the broadcaster.
- Display the menu with MENU.
- Select Setup > Display Settings > Teletext and press OK to access.
- Select TOP (FLOF) / List and press OK to set.
■ TOP mode (For TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
- Fast overview of the teletext information available
- Easy to use step-by-step selection of the topical subject
•Page status information on the bottom of the screen
•Available page up / down
(red) / (green)
• To select among subject blocks
(blue)
•To select next subject within the subject block
(yellow)
(After the last subject, it moves to the next subject block.)
■ FLOF (FASTEXT) mode (For FLOF (FASTEXT) broadcasting)
In FLOF mode, four differently coloured subjects are situated on the bottom of the screen.
To access more information about one of these subjects, press the appropriate coloured button.
This facility enables fast access to information on the subjects shown.
■ List mode
In List mode, four differently coloured page numbers are situated on the bottom of the screen. Each of these numbers can be changed and stored in the TV's memory.
Watching > Teletext > Viewing Teletext
Teletext Character Set
Selects teletext language font.
- Display the menu with MENU.
- Select Setup > Display Settings > Teletext Character Set and press OK to access.
- Select the font and press OK to set.
West:
English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
East1:
Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
East2:
Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Tuning and editing channels
Setting menu
You can retune channels, edit channel lists, create your favourite channel lists, etc.
- Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
-
Display the menu with MENU.
-
Select Setup > Tuning Menu and press OK to access.
DVB-C Tuning Menu / DVB-T Tuning Menu / DVB-via-IP Tuning Menu / Analogue Tuning Menu
- The menu name varies depending on the TV mode.
- Select one of the functions and press OK to access.
Favourites Edit / Channel List / Auto Setup / Manual Tuning / Update Channel List / New Channel Message / Signal Condition / Attenuator / Add TV Signal
- The function items vary depending on the TV mode and country you select.
List favourite DVB channels
Create your favourite channel lists from various broadcasters (up to 4: Favourites 1 to 4).
The favourites lists are available from Category in the information banner and the TV Guide screen.
Watching > Basic > Information banner
Watching > TV Guide > Using TV Guide
- Select Favourites Edit and press OK to access.
- Select a channel to list from all DVB channels.
• appears when the channel is encrypted.
•To display other favourites
(green)
•To sort channel names in alphabetical order
(red)
•To change the category
(blue)
- Press Oh to add it to favourites list.
• To add all channels to the list (if available)
1) Press (yellow).
2) Press (green) to add all.
• To add consecutive channels to the list at once
1) Press (yellow).
2) Make the channel block and press OK to add.
- Press BACK/RETURN and OK to store.
Edit DVB favourites list
You can edit the favourites list while the cursor is on the channel in the favourites list.
•To move the channel
1) Select the channel.
2) Press (green).
3) Select the new position with Cursor buttons.
4) Press (green) to store.
•To delete the channel
1) Select the channel.
2) Press (blue) to delete.
- Press (yellow) to delete all channels.
•To name the favourites
1) Press (red).
2) Enter characters (maximum 10 characters) with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Edit DVB channels
You can edit the list of All DVB Channels by adding / deleting and moving channels.
- Channels not in all DVB channels list cannot be displayed except in this function.
- Select Channel List and press OK to access.
• To swap / move the channel position
1) Press ■ (green) to edit.
2) Set the new position with Cursor buttons or Numeric buttons, and press ■ (green) to store.
•To delete the channel
(blue)
•To delete all channels
(yellow)
- To add channel
1) Select a channel from Channels Found.
2) Press OK to add it to All DVB Channels.
•To sort channel names in alphabetical order in Channels Found
(red)
• To add all channels (if available)
(yellow)
•To change the category of Channels Found
(blue)
- Press BACK/RETURN and OK to store.
■ Skip unwanted Analogue channels
You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.
- Select Channel List and press OK to access.
- Select a channel.
- Press OK to set Reveal / Hide (skip).
: Reveal
□: Hide (skip)
• To reveal all channels (if available)
(yellow)
■ Edit Analogue Channels
• To swap / move the channel position (if available)
1) Press (green) to edit.
2) Set the new position with Cursor buttons and press (green) to store.
•To retune each channel (Manual Tuning)
(red)
•To rename the channel name
1) Press (blue) to edit.
2) Enter characters (maximum 5 characters) with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
$$ = \text { Note } = $$
- If a VCR is connected only with the RF cable in Analogue, edit VCR.
Auto Setup
Automatically retunes the channels received in the area.
- This function is available if channel tuning is already performed.
- Only the selected mode is retuned. All the previous tuning settings are erased.
- Child Lock PIN number is required to retune locked channels.
Functions > Child Lock > PIN number
- If tuning has not been done completely, set Manual Tuning.
Watching > Tuning and editing channels > Manual Tuning
■ DVB-C, DVB-T, Analogue
- Select Auto Setup and press OK to access.
- Set DVB-C Auto Setup Settings and press OK to store. (DVB-C)
- Scan Mode
Full:
Scans the whole frequency range.
Quick:
Scans the suitable frequency in your country.
- Normally set Frequency, Symbol Rate and Network ID to Auto. If Auto is not displayed or if necessary, enter each value specified by your cable provider with Numeric buttons.
•After settings, select Start scan and press OK to search.
- A confirmation screen is displayed and press OK to start Auto Setup. (Settings are made automatically.)
- When the operation is completed, the channel at the lowest position will be displayed.
DVB-via-IP
- Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP client connection
Network > Network settings
- Select Auto Setup and press OK to access.
- A confirmation screen is displayed and press OK to access.
- Select a server from Server List.
1) Select a server and press OK to set.
2) Select Search Channels and press OK to access.
-
Select a search mode and press OK to access.
-
Set Client Settings.
1) Select Client Settings and press OK to access.
2) Select Unicast Environment / Multicast Environment and press OK to set.
- Select Unicast Environment to use in a home network.
- Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)
3) Select Server List and press OK to access.
- Select Search Channels and press OK to access.
-
Set DVB-via-IP Search Mode and press OK to start Auto Setup. (Settings are made automatically.)
-
Set DVB-via-IP Satellite Configuration to tune DVB-S channels.
- When the operation is completed, the channel at the lowest position will be displayed.
■ Auto Setup using the buttons on the TV
- Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu.
- Set Auto Setup with following control panel buttons.
- Move the cursor / select from a range of options / select the menu item
- Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button
Manual Tuning
- Normally use Auto Setup or Update Channel List to retune DVB channels.
- If tuning has not been done completely or for adjusting the direction of the aerial, use this function. (DVB)
- All DVB channels found are added to Channel List.
DVB-C
- Enter the frequency with Numeric buttons.
- Normally set Symbol Rate and Service ID to Auto.
- Select Start scan and press OK to search.
DVB-T
- Select a channel and adjust frequency for each channel.
-
Set where the level of Signal Quality becomes the maximum.
-
Press Ok to search.
Analogue
Set Analogue channel manually after Auto Setup.
- Select the channel position with Numeric buttons.
- Select the channel with Channel Up / Down.
- Set Manual Tuning.
- Select Store and press OK to set.
- Use Fine Tuning to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.).
- If a VCR is connected only with the RF cable, select channel position 0.
■ DVB-via-IP (DVB-S)
- Please consult the received satellite broadcasting companies for the setting.
- Select Transponder Frequency / Symbol Rate / Polarisation / Modulation / FEC / Service ID and set with Cursor buttons or Numeric buttons.
- Select Start scan and press OK to search.
■ DVB-via-IP (DVB-C)
- Select Frequency / Bandwidth / Modulation Type / Symbol Rate / FEC / Service ID and set with Cursor buttons or Numeric buttons.
•Normally set Symbol Rate to Auto.
- Select Start scan and press OK to search.
■ DVB-via-IP (DVB-T)
- Select Frequency / Bandwidth / Modulation / FEC / Service ID and set with Cursor buttons or Numeric buttons.
- Select Start scan and press OK to search.
= Note =
- For details of DVB-via-IP connections
Functions > DVB-via-IP > DVB-via-IP client connection
- Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
Update Channel List
By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.
- The channel list is updated while keeping your settings in Favourites Edit, Channel List, Child Lock, etc.
- Depending on the signal condition, the update may not work properly.
= Note =
- Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
New Channel Message
Selects whether to give a notification message when a new DVB channel is found or not.
- When a notification message appears, you can perform Update Channel List pressing OK.
•Not valid in DVB-via-IP
Signal Condition
Selects a channel and checks the signal condition with indicators.
•A good Signal Strength is not an indication of suitable signal reception.
•Vertical lines show the maximum signal value of the selected channel.
•To change the channel
- For DVB
Other settings
Attenuator
(On / Off)
Sets the antenna system to use plural LNBs for receiving several satellites.
- If the DVB-C signal is too strong, interference may occur. In this case, set to On to weaken the signal automatically.
Add TV Signal
Adds the TV mode.
- Allows you to add any TV mode which was skipped during initial Auto Setup.
Media Player
Using Media Player
Information
Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory / network device.
(Example)
Still pictures recorded with digital cameras are displayed.
Video mode:
Moving pictures recorded with digital video cameras and digital video data are played back.
Music mode:
Digital music data are played back.
- During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions > VIERA Link "HDAVI Control™"
- Date shows the date on which the recording was made by the recording equipment. For a file without a valid record date “*” is shown.
•Pictures may not appear correctly on this TV depending on the recording equipment used.
- Displaying may take some time when there are many files and folders.
- Partially degraded files may be displayed with reduced resolution.
•Picture setting may not work depending on the condition.
- Folder and file names may be different from those on the digital camera or digital video camera used.
■ To insert or remove the USB Flash Memory
Ensure alignment is straight and complete when inserting or removing.
1) Display the menu with MENU.
2) Select Setup > USB Device Setup and press OK to access.
3) Select the device and press OK to set.
= Note =
- Check the terminal type and devices are correct for connection.
•For details of the devices
Media Player > Technical information
- For details of supported file formats
Media Player > Technical information
Selecting device / mode
- Insert the USB Flash Memory to the TV.
Media Player > Using Media Player > Information
• To play back content in the network device, ensure the connection and settings are completed.
Media Player > Using Media Player > Network device
- Display APPS List with APPS.
- Select Media Player and press OK to access.
-
Select the device and press OK to access.
-
If only one device is connected, this step will be skipped.
•The network device already connected to the TV is also displayed.
: Enter User / Password to access.
: User / Password are already entered.
- Select Photo / Video / Music and press OK to access.
Media Player > Photo mode
Video
Media Player > Video mode
Music
Media Player > Music mode
- The thumbnail view is displayed.
(Example)
= Note =
- You may also access each mode directly from APPS List.
Home Screen > APPS List > How to use
- Select the appropriate device and content for playing back each file.
- You can use the following buttons during playback. Confirm the remote control code is "73".
Watching > External equipment > Operating with TV's remote control
■ To change the device
You can change the current device to another device directly in the same mode when two or more available devices are connected.
-
Display the device selection screen with □ (yellow) while the thumbnail is displayed.
-
Select the device and press OK to access.
■ To change the mode
You can switch to another mode of Media Player from the thumbnail view.
-
Display the content selection screen with (blue) while the thumbnail is displayed.
-
Select the content and press OK to access.
•The mode can be switched in the current device.
You can enjoy photo, video or music stored in the network devices.
- To enable this function, connect this TV to your home network.
Network > Network connections
Network > Network settings
■ How to set User / Password
- Display the menu with MENU.
- Select Network > File Sharing Settings > Network Device List and press OK to access.
- Select the network device and press OK to access.
- Enter User / Password with Cursor buttons or Numeric buttons and press OK to set.
-
Press BACK/RETURN to store.
• To register the new network device, set Server Name / Shared Folder. For details, read the manual of the equipment. -
Select Register and press Ok to set.
- To delete the registered device, select Delete and press OK to set.
$$ = \text { Note } = $$
- Regarding performance, not all servers are guaranteed.
- Up to 16 devices can be registered.
Photo mode
Selecting file
Select the file in the thumbnail view and press OK to start playback.
: Error display
•To change the size of photos in the thumbnail view
1) Display the option menu with OPTION.
2) Select Change Size and press OK to change.
- For details of supported file formats
Media Player > Technical information > Photo format
■ Thumbnail view
• To display / hide information of the highlighted content
•To display Slideshow Settings
Media Player > Photo mode > Using Slideshow
•To sort
•To change the device
•To change the content
■ Playback
•To operate Single view
◀ : To the previous photo
▷ : To the next photo
▽ : Stop (return to thumbnail)
OK: Slideshow
• To display / hide the operation guide
i
•To rotate 90°
(blue)
•To return to thumbnail
BACK/RETURN
■ To sort by folder, recorded date or recorded month
- Display the view selection in the thumbnail view with (green).
- Select Folder view / Sort by Date / Sort by Month and press OK to set.
Folder view:
Displays the thumbnail grouped by folder.
- Files which are in the root folder are collected to the folder named "/".
Sort by Date / Sort by Month:
Displays the thumbnail grouped by the same date or month.
- The group of the photos without recorded dates is shown as Unknown.
•To return to the thumbnail of all photos
1) Display the view selection in the thumbnail view with □ (green).
2) Select All photos and press Ok to set.
Using Slideshow
Slideshow ends when all photos within the current thumbnail are viewed.
- Select the file from the thumbnail of photos for the first view.
- Start Slideshow with (red) and OK.
• To display / hide the operation guide
• To pause (return to Single view)
•To return to thumbnail
BACK/RETURN
- You can change the back ground music by setting Back Ground Music in Slideshow Settings (see below).
■ Slideshow Settings
Set up the settings for Photo mode.
- Display the option menu with OPTION.
- Select Slideshow Settings with Oh.
- Select one of the following items and press OK to access.
Frame / Colour Effect / Transition Effect / Auto Makeup / Screen Mode / Burst Playback / Interval / Repeat / Back Ground Music
- Set the item and press OK to store.
Frame
(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery / Cinema)
Selects the frame type of the slideshow.
Multi:
9 photos are displayed orderly at once.
Collage:
Each photo is displayed at a random position and random scale.
Drift (+ calendar) / Drift:
Photos are displayed with flow images.
- You can select whether to display the calendar or not. Press ◀ ▷ to change the month of calendar.
Gallery (+ calendar) / Gallery:
Various sizes of photos in the frames are displayed.
- You can select whether to display the calendar or not. Press ◀ ▷ to change the month of calendar.
Cinema:
Photos are displayed as old films (sepia tone).
Colour Effect
(Off / Sepia / Gray scale)
Selects the colour effect of photos.
- Not valid when Frame is set to Drift, Gallery or Cinema
Transition Effect
(Off / Fade / Dissolve / Motion / Random)
Selects the transition effect for switching photos during the slideshow.
Fade:
The next photo fades in gradually.
Dissolve:
Each photo is dissolved when switching to the next photo.
Motion:
Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.
Random:
The transition effect is selected at random.
- This function is available when Frame is set to Off.
Auto Makeup
(On / Off)
Automatically detects the face in the photo and improves luminance and contrast.
Screen Mode
(Normal / Zoom)
Selects enlarged or normal viewing.
- Not valid when Transition Effect is set to Motion
•Not valid in the following conditions:
– Frame is set to Collage, Drift, Gallery, Cinema. - Transition Effect is set to Motion.
- Depending on the photo size, the photo may not be fully enlarged to fill the screen (e.g. portrait style picture).
Burst Playback
(On / Off)
Selects whether to display burst photos in a fast-paced slideshow mode or not.
•Not valid in the following conditions:
- Frame is set to Drift, Gallery, Cinema.
- Transition Effect is set to Motion.
- Not valid when Frame is set to Drift, Gallery or Cinema
Interval
(Long / Normal / Short)
Selects slideshow interval.
- Not valid when Transition Effect is set to Motion
- Not valid when Frame is set to Drift, Gallery or Cinema
Repeat
(On / Off)
Slideshow repeat
Back Ground Music
(Off / Type1 / Type2 / Type3 / Type4 / Type5 / User / Auto)
Selects the background music during Photo mode.
Type1 - 5:
Music files installed on this TV at the factory settings are played back.
Auto:
Music files stored in the current device are played back.
- If there is no available music data, no sound is played back.
User:
Music files in the device registered by yourself are played back.
- If no music files have been registered or the device which had registered music files is removed, no sound is played back.
To register music
1) Select the music file and press OK to access.
- Depending on the condition of the device, select folders until you reach the desired music file.
2) Select File / Folder and press OK to set.
File:
The selected music file is registered.
Folder:
All the music files in the folder which contains the selected music file are registered.
= Note =
•Picture quality may be degraded depending on the slideshow setting.
- Picture setting may not work depending on the slideshow setting.
Video mode
Selecting file
- Select the title in the thumbnail view.
: Error display
: The file does not support thumbnail view.
- The preview will start when the title / scene is highlighted in the thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.
Media Player > Video mode > Video Setup
- Start playback with (red).
- If you have stopped the last playback halfway, a confirmation screen may be displayed to select whether to start from where you stopped last time or from the beginning.
- For details of supported file formats
Media Player > Technical information > Video format
■ Thumbnail view
•To display / hide information of the highlighted content
•To start playback
•To change the content
•To change the device
■ Playback from the selected scene in the title
Playback of the selected scene starts and continues until the end of the title.
- Select the title and press OK to access.
- Select the scene.
-
Start playback with □ (red).
-
The structure of titles and scenes may vary depending on the digital video camera used.
- Playback may not continue depending on the condition.
•To repeat playback
Media Player > Video mode > Video Setup
■ Playback
•To operate playback
◀ : Rewind
▷ : Fast forward
▽ : Stop
OK : Pause (displays the time seek bar) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▷
Search rapidly
3) Jump to the specified time point with OK.
- To display / hide the operation guide and information banner
• To the previous title / scene
•To the next title / scene
•To change aspect
1) Display Aspect Selection with ASPECT.
2) Select the mode and press OK to set.
Aspect1:
Displays the content enlarged without distortion.
Aspect2:
Displays the content full-screen.
Original:
Displays the content in original size.
- You can also change the mode pressing ASPECT. (Press repeatedly until you reach the desired mode.)
– Aspect cannot be changed depending on the content.
•To return to thumbnail
BACK/RETURN
Video Setup
Set up the settings for Video mode.
- Display the option menu with OPTION.
- Select Video Setup with Ok.
- Select one of the following items and press OK to access.
Video Preview / Multi Audio / Dual Mono Audio / Repeat / Subtitle Settings
- Menu items and selectable options vary depending on the content.
- Set the item and press OK to store.
Video Preview
(On / Off)
Sets to start the preview of the title or scene in the thumbnail view.
- Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
- This function is available in the thumbnail view.
Multi Audio, Dual Mono Audio
Selects for selectable sound tracks (if available).
- It may take several seconds to change the sound.
•This function is available during playback.
Repeat
(On / Off)
Playback repeat within the title or selected file (depending on the content)
Subtitle Settings
Sets the subtitle setting.
- This function is available during playback.
Subtitle:
Display / hide subtitles (if available).
Subtitle Text:
Selects the font type to display subtitles correctly (if available).
Subtitle Text Size:
Selects the font size of subtitles.
Subtitle Text Colour:
Selects the colour of subtitles.
Subtitle Text Position:
Adjusts the position of subtitles on the screen.
Subtitle Text Delay:
Adjusts the delay time for the subtitles.
Audio output settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.
• To confirm or change the current sound status
Media Player > Video mode > Video Setup
- Display the menu with MENU.
- Select Sound > SPDIF Selection and press OK to access.
- Select Auto / PCM and press OK to set.
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM:
Digital output signal is fixed to PCM.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
Music mode
Selecting file
- Select the folder in the thumbnail view.
- Start playback with □ (red).
- For details of supported file formats
Media Player > Technical information > Music format
■ Thumbnail view
•To display / hide information of the highlighted content
•To start playback
•To change the device
•To change the content
■ Playback of the selected file in the folder
- Select the folder and press OK to access.
- Select the file.
- Start playback with (red).
■ Playback
•To operate playback
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▶
Search rapidly
3) Jump to the specified time point with OK.
• To display / hide the operation guide
i
•To the previous track
(red)
- To the next track
(green)
•To return to thumbnail
BACK/RETURN
Music Setup
Set up the setting for Music mode.
- This function is available in the thumbnail view.
- Display the option menu with OPTION.
- Select Music Setup > Repeat with OK.
- Select Off / Folder / One and press OK to set.
Folder:
Playback repeat within the selected folder
One:
Playback repeat of the selected one file
Technical information
Device handling caution
- Data modified with a PC may not be displayed.
- Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.
- Do not touch the pins on the device.
- Do not subject the device to a high pressure or impact.
- Insert the device in the correct direction. Otherwise this can damage the device or TV.
- Electrical interference, static electricity, or erroneous operation may damage the data or device.
- Back up the recorded data at regular intervals to prevent data deterioration, data damage or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.
USB devices
- It is recommended to connect the device to the TV's USB port directly.
- Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices using a USB card reader.
USB Flash Memory
USB Flash Memory format:
FAT16, FAT32 or exFAT
- USB HDDs formatted on a PC are not guaranteed to work in Media Player.
Supported Photo formats
-PEG (.jpg, .jpeg)
Sub-sampling:
4:4:4, 4:2:2, 4:2:0
Image resolution (pixel):
8 × 8 to 30719 × 17279
•DCF and EXIF standards
•Progressive JPEG is not supported.
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Supported Video formats
AVI (.avi)
Video codec:
H.264, MPEG1, MPEG2, MPEG4, VC-1, WMV9
Audio codec:
AAC, ADPCM, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3, WMA, WMA Pro
MP4 (.f4v, .m4v, .mp4)
Video codec:
H.264, MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MP3
- This TV supports this container recorded with Panasonic products. For details, read the manual of the products.
MKV (.mkv)
Video codec:
H.264, MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MP3, Vorbis
SF (.asf, .wmv)
Video codec:
MPEG4, VC-1, WMV9
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3, WMA, WMA Pro
- Copy-protected files cannot be played back.
●LV (.flv)
Video codec:
H.264
Audio codec:
AAC, MP3
●GPP (.3gp, .3g2)
Video codec:
H.264, MPEG4
Audio codec:
AAC, HE-AAC
PS (.mod, .mpg, .mpeg, .vob, .vro)
Video codec:
H.264, MPEG1, MPEG2, VC-1
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3
S (.mts, .m2ts, .tp, .trp, .ts, .tts)
Video codec:
H.264, MPEG1, MPEG2, VC-1
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MP3
Supported Subtitles formats
MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)
- The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
- If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: ".srt", ".sub", ".txt".
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Some subtitles or chapter functions may not be available.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
- Supported formats are different in Media Player and media server.
Music format
■ Supported Music formats
MP3 (.mp3)
AC (.m4a)
- Copy-protected files cannot be played back.
●LAC (.flac)
- Copy-protected files cannot be played back.
PCM (.wav)
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Network
Internet content
Information
You can access some specific websites supported by Panasonic, and enjoy internet content such as videos, games, communication tools, etc. from APPS List.
(Example)
Network > Network connections
Network > Network settings
Selecting internet content
1. Display APPS List with APPS.
•For details of APPS List
Home Screen > APPS List
- Depending on the usage conditions, it may take a while to read all the data.
2. Select the desired item and press OK to access.
(Example)
APPS
•To exit APPS List
EXIT
- You can connect a keyboard for character input in the applications. You can also use the keyboard for TV operation.
Functions > Keyboard
Note
- If you cannot access the internet content, check the network connections and settings.
Network > Network connections
Network > Network settings
- Design and specifications are subject to change without notice.
- Not all the features of the websites are available.
- Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use APPS List. You can update the software later manually.
Network > Network settings > Software Update
- The services through APPS List are operated by their respective service providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
- Content may not be available depending on the country you select.
- Content may be presented in specific languages.
- Depending on the connection environment, the internet connection may be slow or may not be successful.
DLNA
In-House streaming
This TV is a DLNA Certified™ product.
DLNA® (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org.
• To enable this function, connect this TV to your home network.
Network > Network connections
Network > Network settings
■ Playback of sharing content stored in the media server
Store photo, video or music content into the DLNA Certified media server (for example, PC, etc.) connected to your home network. And then you can enjoy the content on this TV.
(Example)
Network > DLNA > Using DLNA
- For details of supported file formats
Network > Technical information
■ Playback of sharing content on this TV with the DMC (Digital Media Controller) network equipment
You can enjoy content stored in the media server by controlling with the DMC network equipment (smartphone, PC, etc.) connected to your home network.
- To use this function with your smartphone or PC, set TV Remote App Settings of this TV.
Network > Network settings > TV Remote App Settings
And you need to install the application for controlling VIERA on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
■ Sharing the content of this TV with another piece of network equipment
You can enjoy the content of this TV with another network equipment connected to your home network.
Available content:
•Photo, video or music content of this TV
Available network equipment:
•DLNA Certified VIERA
- To use this function with another DLNA Certified VIERA, set Network Link Settings of this TV.
Network > Network settings > Network Link Settings
- Only 1 piece of other equipment can share the content of this TV.
$$ = \text { Note } = $$
• To use this function, turn this TV on.
Using DLNA
To use DLNA® features, ensure the preparations of the media server, network connections and network settings are completed.
Network > DLNA > In-House streaming
→ Network > Network connections
Network > Network settings
- Display APPS List with APPS.
- Select Media Server and press OK to access.
- Select one of the media servers and press OK to access.
- For the operations to access another TV, select the name of another TV from the displayed media server list.
•To display / hide information of the highlighted media server
i
- Select the file and press OK to access.
(Example)
•To display / hide information of the highlighted file
i
= Note =
•Non-playable files are also listed but cannot be selected.
- You can use the following buttons during playback. Confirm the remote control code is "73".
◀◀◀▶▶▶■▶
图
Watching > External equipment > Operating with TV's remote control
Network connections
Internet connection
A broadband network environment is required to use internet services.
- If you do not have any broadband network services, please consult your retailer for assistance.
•Dial-up internet connections cannot be used. - Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) and 6 Mbps for HD (High Definition) picture quality, respectively. If the transfer speed is not enough, content may not be played back properly.
■ Wireless connection
2 Access point
3 Internet environment
■ Wired connection
② LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
3 Internet environment
DLNA connection
To use DLNA features, you need a home network environment and you can operate the features without a broadband network environment.
•A broadband network environment is required to use internet services.
Network > Network connections > Internet connection
■ Wireless connection (For DLNA and internet service)
1 Built-in wireless LAN (Rear of the TV)
2 Access point
3 Hub / Router
4 Internet environment
5 Smartphone, etc.
6 DLNA Certified media server (PC, etc.)
■ Wired connection (For DLNA and internet service)
① ETHERNET terminal
② LAN cable (Shielded)
- Use Shielded Twist Pair (STP) LAN cable.
3 Hub / Router
4 Internet environment
5 DLNA Certified media server (PC, etc.)
■ Wireless connection (For DLNA)
•To use the TV as a wireless access point
Network > Network settings > Custom - Wireless Access Point
2 DLNA Certified media server (PC, etc.)
3 Smartphone, etc.
Note
- Ensure to use a LAN straight cable.
- Set up and connect equipment required for the network environment. You cannot make such settings on this TV. Read the manual of the equipment.
- If your modem has no broadband router functions, use a broadband router.
- If your modem has broadband router functions but there are no vacant ports, use a hub.
- Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
- If you use the equipment compatible only with 100BASE-TX, category 5 or later LAN cables are required.
- Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.
- Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.
- Turn the TV off with Mains Power On / Off switch, and then on again when changing or making the network connection again.
- Depending on the network condition, the content may not be played back properly.
- For details of DVB-via-IP connections
Functions > DVB-via-IP > DVB-via-IP client connection
Network settings
Network Connection
Ensure the connections are completed before starting network setup.
Network > Network connections
■ Quick setup - Wireless
- Display the menu with MENU.
- Select Network > Network Connection and press OK to access.
- Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
- Select Quick setup and press OK to access.
- When the LAN cable is connected, wired setup will be done automatically.
- Select your desired access point and press OK to access.
•Available Wireless Networks are displayed automatically.
- : Encrypted access point
- For WPS(Push button)
1) Select Easy setup with Push button and press OK to access.
2) Press the WPS button on the access point until the light flashes.
3) Connect the TV with the access point with OK.
- WPS: Wi-Fi Protected Setup™
- If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.
- It is recommended to select the encrypted access point.
- Enter the encryption key of the access point and press OK to set.
- You can set characters using Numeric buttons.
- Press BACK/RETURN to store.
- Automatically setup is done and Network Status is displayed.
Network > Network settings > Network Status
- Select Exit and press OK to set.
•To set manually
Network > Network settings > Custom - Wireless
■ Quick setup - Wired
- Display the menu with MENU.
- Select Network > Network Connection and press OK to access.
- Select Quick setup and press OK to access.
- Automatically setup is done and Network Status is displayed.
Network > Network settings > Network Status
- Select Exit and press OK to set.
•To set manually
Network > Network settings > Custom - Wired
= Note =
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
Ensure the connections are completed before starting network setup.
Network > Network connections
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wireless and press OK to access.
- Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
- Select your desired access point and press OK to access.
•Available Wireless Networks are displayed automatically.
- : Encrypted access point
- For WPS(Push button)
1) Press (red).
2) Press the WPS button on the access point until the light flashes.
3) Connect the TV with the access point with OK.
- WPS: Wi-Fi Protected Setup™
- If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.
- For WPS(PIN)
1) Press (green).
2) Enter the PIN code to the access point.
3) Connect the TV with the access point with OK.
- For Manual
1) Press (yellow).
2) You can set up SSID, security settings and encryption key manually.
3) Follow the on-screen instructions and set manually.
• To search access points again
(blue)
- To display / hide information of the highlighted access point
i
- It is recommended to select the encrypted access point.
- Enter the encryption key of the access point and press OK to set.
- You can set characters using Numeric buttons.
- Press BACK/RETURN to store.
- IP/DNS Settings is displayed.
Acquire IP Address / Acquire DNS Address
•Auto is recommended.
•Available settings are displayed automatically.
- To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address.
Proxy Settings
- It is not required for normal household use.
- Some internet services may not be available depending on the proxy setting.
Proxy:
This is the address of the relay server which is connected between the browser and the target server to send data to the browser.
1) Select Proxy and press OK to access.
2) Enter the address with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Proxy Port:
This number is also specified by the provider with the proxy address.
1) Select Proxy Port.
2) Enter the number with Numeric buttons.
3) Press BACK/RETURN to store.
- Select Network Status and press OK to access.
Network > Network settings > Network Status
- Select Exit and press OK to set.
Custom - Wired
Ensure the connections are completed before starting network setup.
Network > Network connections
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wired and press OK to access.
- IP/DNS Settings is displayed.
Acquire IP Address / Acquire DNS Address
•Auto is recommended.
•Available settings are displayed automatically.
- To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address.
Proxy Settings
- It is not required for normal household use.
- Some internet services may not be available depending on the proxy setting.
Proxy:
This is the address of the relay server which is connected between the browser and the target server to send data to the browser.
1) Select Proxy and press OK to access.
2) Enter the address with Cursor buttons or Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
Proxy Port:
This number is also specified by the provider with the proxy address.
1) Select Proxy Port.
2) Enter the number with Numeric buttons.
3) Press BACK/RETURN to store.
- Select Network Status and press OK to access.
Network > Network settings > Network Status
- Select Exit and press OK to set.
= Note =
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
You can use the TV as a wireless access point and connect the network equipment without an access point.
- Confirm the PIN code, network settings of the equipment before starting setup. For details, read the manual of the equipment.
- Display the menu with MENU.
- Select Network > Network Connection > Custom > Wireless Access Point and press OK to access.
- Select Connect to device in WPS and press OK to access.
- To set manually, select Change settings (see below).
- Select and set WPS(Push button) / WPS(PIN) and press OK to access.
WPS(Push button):
Set up the equipment for WPS(Push button). For details, read the manual of the equipment.
WPS(PIN):
Enter the PIN code of the equipment.
- If the connection fails, check the settings and positions of the equipment. And then, follow the on-screen instructions.
■ Change settings
You can set up Network Name(SSID), Encryption key, Wireless type and Channel setting method manually.
Follow the on-screen instructions and set manually.
- Set Reset settings to reset the items for Change settings.
= Note =
- You cannot connect the internet service while the TV is set to Wireless Access Point.
- You can connect up to 7 devices. But the transfer rate varies according to communication environment or the numbers of connected equipment.
• To confirm the current network settings
Network > Network settings > Network Status
- Ensure the equipment to connect supports WPS for this setup.
•WPS: Wi-Fi Protected Setup™
Network Status
Displays and checks the network status (MAC Address, current network settings, etc.).
- Display the menu with MENU.
- Select Network > Network Status and press OK to access.
- Automatically testing is done and Network Status is displayed.
Try Again:
Performs automatic testing of the network connection for the TV and displays the current status again.
Status Details:
Displays the detailed network status (SSID, security settings, etc.).
- For information about the network connection, select Help.
my Home Cloud Settings
Sets for an account to enjoy the cloud services.
- Display the menu with MENU.
- Select Network > my Home Cloud Settings and press OK to access.
- Select one of the following items and press OK to access.
Setup new account / Edit account / Remove account / Notices - Follow the on-screen instructions.
Setup new account
Set up an account for this TV.
Edit account
Displays and edits the account status.
Remove account
Deletes an account from this TV.
Notices
Displays the terms of service.
- A broadband network environment is required to fully use this function. Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
VIERA Name
Sets your favourite name for this TV.
- Display the menu with MENU.
- Select Network > VIERA Name and press OK to access.
- Enter characters and press OK to set.
- This name is used as the name of this TV on the screen of the other network equipment.
- When you use two or more TVs in your network environment, set the names of the TVs for each.
TV Remote App Settings
Sets to control the TV with the equipment (smartphone, etc.) connected to your network.
-
Display the menu with MENU.
-
Select Network > TV Remote App Settings and press OK to access.
-
Select one of the following items and press OK to access.
TV Remote / Device to upload contents
- Set the item and press OK to store.
TV Remote
(On / Off)
Enables controlling the TV from the network equipment (smartphone, etc.).
Device to upload contents
Selects device to upload content from the network equipment (smartphone, etc.).
= Note =
- This function is not available when the TV is turned off with Mains Power On / Off switch.
- You need to install the application for controlling VIERA on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
- Depending on the network condition, this function may not be available.
- Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.
Network Link Settings
Sets to control the TV with devices connected to the network.
- Display the menu with MENU.
- Select Network > Network Link Settings and press OK to access.
- Select one of the following items and press OK to access.
DLNA Server / Registration Type / Remote Device List
- Set the item and press OK to store.
DLNA Server
(On / Off)
Enables sharing the content of this TV with the network equipment (DLNA Certified VIERA, etc.).
- To use this function with another VIERA, select the name of this TV from the DLNA server list of another VIERA, and then select the content to share. Also read the manual of another VIERA.
- To use this function with your smartphone, you need to install the application for controlling VIERA on your smartphone.
Support > FAQs > Detailed information
For the operations, refer to the support information of the application.
Registration Type
(Auto / Manual)
Selects the type to restrict the access to this TV for each piece of equipment on the home network.
Auto:
All available equipment on the home network is accessible (maximum 16 pieces of equipment).
Manual:
Sets the restrictions for each piece of equipment in Remote Device List.
Remote Device List
Lists the equipment accessible to this TV on the home network.
= Note =
- Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.
File Sharing Settings
Network Device List
Lists the accessible network devices to play back the content in Media Player.
Media Player > Using Media Player > Network device
Mirroring Settings
Settings for the mirroring function
Functions > Mirroring > Mirroring Settings
Software Update
Accesses the specific website to update the TV's software if any updates are available.
- Display the menu with MENU.
- Select Network > Software Update and press OK to access.
- Follow the on-screen instructions.
- A broadband network environment is required to use this function.
New Software Message
Selects whether to give a notification message when new software is found via network or not.
- Display the menu with MENU.
- Select Network > New Software Message and press OK to access.
- Select On / Off and press OK to set.
Photos
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
- Select Media Server and press OK to access.
- Select one of the media servers and press OK to access.
- For the operations to access another TV, select the name of another TV from the displayed media server list.
• To display / hide information of the highlighted media server
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
•To display / hide information of the highlighted file
$$ = \text { Note } = $$
- Non-playable files are also listed but cannot be selected.
■ Playback
•To operate Single view
◀ : To the previous photo
▷ : To the next photo
▽ : Stop (return to list)
OK: Slideshow
• To display / hide the operation guide
i
•To rotate 90°
(blue)
•To return to list
BACK/RETURN
Using Slideshow
Slideshow ends when all photos within the list are viewed.
- Select the file from the thumbnail of photos for the first view.
- Start Slideshow with (red) and OK.
• To display / hide the operation guide
• To pause (return to Single view)
•To return to list
BACK/RETURN
Slideshow Settings
Set up the settings for photo file operations on this TV.
- Display the option menu with OPTION.
- Select Slideshow Settings and press OK to access.
-
Select one of the following items and press OK to access.
Transition Effect / Auto Makeup / Interval / Repeat / Back Ground Music -
Set the item and press OK to store.
Transition Effect
(Off / Fade / Dissolve / Motion / Random)
Selects the transition effect for switching photos during the slideshow.
Fade:
The next photo fades in gradually.
Dissolve:
Each photo is dissolved when switching to the next photo.
Motion:
Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.
Random:
The transition effect is selected at random.
Auto Makeup
(On / Off)
Automatically detects the face in the photo and improves luminance and contrast.
Interval
(Long / Normal / Short)
Selects slideshow interval.
- Not valid when Transition Effect is set to Motion
Repeat
(On / Off)
Slideshow repeat
Back Ground Music
(Off / Type1 / Type2 / Type3 / Type4 / Type5)
Selects the background music during Photo mode.
Videos
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
- Select Media Server and press OK to access.
- Select one of the media servers and press OK to access.
- For the operations to access another TV, select the name of another TV from the displayed media server list.
• To display / hide information of the highlighted media server
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
- To display / hide information of the highlighted file
$$ = \text { Note } = $$
- Non-playable files are also listed but cannot be selected.
■ Playback
If you have stopped the last playback halfway, a confirmation screen may be displayed to select whether to start from where you stopped last time or from the beginning.
•To operate playback
△ : Manual skip (if available)
- Press to skip forward approx. 30 seconds.
◀ : Rewind
▷ : Fast forward
▽ : Stop
OK : Pause (displays the time seek bar / slow playback) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▷
Search rapidly
3) Jump to the specified time point with OK.
•To play back slowly
1) Press and hold OK for 5 seconds.
Press ◀ / ▶
Search slowly
2) Return to the normal playback with OK.
• To display / hide the operation guide and information banner
i
•To the previous content
(red)
•To the next content
(green)
•To change aspect
1) Display Aspect Selection with ASPECT.
2) Select the mode and press OK to set.
Aspect1:
Displays the content enlarged without distortion.
Aspect2:
Displays the content full-screen.
Original:
Displays the content original size.
- You can also change the mode pressing ASPECT. (Press repeatedly until you reach the desired mode.)
– Aspect cannot be changed depending on the content.
•To return to list
BACK/RETURN
Video Setup
Set up the settings for video file operations on this TV.
- Display the option menu with OPTION.
- Select Video Setup and press OK to access.
- Select one of the following items and press OK to access.
Video Preview / Multi Audio / Dual Audio / Dual Mono Audio / Repeat / Subtitle Settings
- Menu items and selectable options vary depending on the content.
- Set the item and press OK to store.
Video Preview
(On / Off)
Sets to start the preview of the title or scene in the thumbnail view.
- Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
Multi Audio, Dual Audio, Dual Mono Audio
Selects for selectable sound tracks (if available).
- It may take several seconds to change the sound.
•This function is available during playback.
Repeat
(On / Off)
Playback repeat within the selected file
Subtitle Settings
Sets the subtitle setting.
- This function is available during playback.
Subtitle:
Display / hide subtitles (if available).
Subtitle Text:
Selects the font type to display subtitles correctly (if available).
Subtitle Text Size:
Selects the font size of subtitles.
Subtitle Text Colour:
Selects the colour of subtitles.
Subtitle Text Position:
Adjusts the position of subtitles on the screen.
Subtitle Text Delay:
Adjusts the delay time for the subtitles.
Audio output settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.
• To confirm or change the current sound status
Network > Videos > Video Setup
- Display the menu with MENU.
- Select Sound > SPDIF Selection and press OK to access.
- Select Auto / PCM and press OK to set.
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
- SPDIF is a standard audio transfer file format.
Auto:
Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM:
Digital output signal is fixed to PCM.
- ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
$$ = \text { Note } = $$
- During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions > VIERA Link "HDAVI Control™"
Music
Selecting file
Ensure the preparations of the media server, network connections and network settings are completed.
- Select Media Server and press OK to access.
- Select one of the media servers and press OK to access.
- For the operations to access another TV, select the name of another TV from the displayed media server list.
• To display / hide information of the highlighted media server
-
Select the file and press OK to access.
-
Depending on the condition of media server, you may need to select the folder before selecting the file.
•To display / hide information of the highlighted file
$$ = \text { Note } = $$
- Non-playable files are also listed but cannot be selected.
■ Playback
•To operate playback
◀ : Rewind
▷ : Fast forward
▽ : Stop
OK : Pause (displays the time seek bar) / Playback
•To jump to the specified time point
1) Display the time seek bar with OK.
2) While the time seek bar is displayed
Press ◀ / ▷
Search approx. 10 seconds
Press and hold ◀ / ▶
Search rapidly
3) Jump to the specified time point with OK.
• To display / hide the operation guide
i
•To the previous track
(red)
•To the next track
(green)
• To return to list
BACK/RETURN
Music Setup
Set up the settings for music file operations on this TV.
- Display the option menu with OPTION.
- Select Music Setup > Repeat with OK.
- Select Off / Folder / One and press OK to set.
Folder:
Playback repeat within the selected folder
One:
Playback repeat of the selected one file
Technical information
Photo format
■ Supported Photo formats
-PEG (.jpg, .jpeg)
Sub-sampling:
4:4:4, 4:2:2, 4:2:0
Image resolution (pixel):
8 × 8 to 30719 × 17279
•DCF and EXIF standards
•Progressive JPEG is not supported.
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Supported Video formats
AVI (.avi)
Video codec:
H.264, MPEG1, MPEG2, MPEG4, VC-1, WMV9
Audio codec:
AAC, ADPCM, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3, WMA, WMA Pro
MP4 (.f4v, .m4v, .mp4)
Video codec:
H.264, MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MP3
- This TV supports this container recorded with Panasonic products. For details, read the manual of the products.
MKV (.mkv)
Video codec:
H.264, MPEG1, MPEG2, MPEG4
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, MP3, Vorbis
SF (.asf, .wmv)
Video codec:
MPEG4, VC-1, WMV9
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3, WMA, WMA Pro
- Copy-protected files cannot be played back.
●LV (.flv)
Video codec:
H.264
Audio codec:
AAC, MP3
●GPP (.3gp, .3g2)
Video codec:
H.264, MPEG4
Audio codec:
AAC, HE-AAC
PS (.mod, .mpg, .mpeg, .vob, .vro)
Video codec:
MPEG1, MPEG2
Audio codec:
Dolby Digital, LPCM
S (.mts, .m2ts, .tp, .trp, .ts, .tts)
Video codec:
H.264, MPEG1, MPEG2
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC
Supported Subtitles formats
MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)
- The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.
- If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: ".srt", ".sub", ".txt".
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Some subtitles or chapter functions may not be available.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
- Supported formats are different in Media Player and media server.
Music format
■ Supported Music formats
MP3 (.mp3)
AC (.m4a)
- Copy-protected files cannot be played back.
●LAC (.flac)
- Copy-protected files cannot be played back.
PCM (.wav)
= Note =
- Some files may not be played back even if they fulfil these conditions.
- Do not use multi-byte characters or other special codes for file names.
- Connected devices may become unusable with this TV if the file or folder names are changed.
Functions
Mirroring
How to use
You can watch and display images of other devices (smartphone, etc.) on the TV screen using a mirroring function.
2 TV
- Display APPS List with APPS.
- Select Mirroring and press Ok.
- Follow the on-screen instructions.
- Pairing information of the device (smartphone, etc.) is registered once you use this function.
Easy Mirroring
You can also start the mirroring function from the other devices (smartphone, etc.) when Easy Mirroring is set to On.
Functions > Mirroring > Mirroring Settings
- You cannot use Easy Mirroring function while the TV is set to Wireless Access Point.
Network > Network settings > Network Status
= Note =
- This function is available with the other devices (smartphone, etc.) supporting the mirroring function. For details, refer to the operating instructions of the devices.
Mirroring Settings
You can set items for the mirroring function.
- Display the menu with MENU.
- Select Network > Mirroring Settings and press OK.
- Select one of the following items and press OK to access.
Easy Mirroring / Delete All Pairings - Set the item and press OK to store.
Easy Mirroring
(On / Off)
Enables starting the mirroring function from the other devices (smartphone, etc.) without operating the TV.
- To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.
Network > Network settings > Network Status
- Not valid when the TV is set to Wireless Access Point
Delete All Pairings
Delete the pairing information for all paired devices.
DVB-via-IP
DVB-via-IP client connection
This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
- It is recommended to connect to DVB-via-IP server with a LAN cable.
■ Wired connection
① ETHERNET terminal
② LAN cable (Shielded)
• Use Shielded Twist Pair (STP) LAN cable.
3 DVB-via-IP server
4 Satellite dish / Terrestrial aerial / Cable
■ Wireless connection
1 Built-in wireless LAN (Rear of the TV)
② Access point
3 DVB-via-IP server
4 Satellite dish / Terrestrial aerial / Cable
= Note =
- External equipment and cables shown are not supplied with this TV.
- Check the terminal type and cable plugs are correct for connection.
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
• To confirm the current network settings
Network > Network settings > Network Status
- For information about the connections, read the manual of the DVB-via-IP server.
■ Preparations
- Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP client connection
Network > Network settings
- Ensure the server settings are completed. For details, read the manual of DVB-via-IP server.
■ DVB-via-IP Server Selection
- Display the menu with MENU.
- Select Setup > Tuning Menu > Add TV Signal and press OK to access.
- Select DVB-via-IP and press OK to access.
- Select Start Auto Setup and press OK to access.
- Select a server from Server List and press OK to set.
- Select Client Settings and press OK to access.
1) Select Unicast Environment / Multicast Environment and press OK to set.
- Select Unicast Environment to use in a home network.
- Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)
2) Select Server List and press OK to access.
- Select Search Channels and press OK to access.
- Select a search mode and press OK to access.
- Set DVB-via-IP Search Mode and press OK to start Auto Setup. (Settings are made automatically.)
- Depending on the server capability (tuner types), you may have to
- Set DVB-via-IP Satellite Configuration to tune DVB-S channels.
- Set DVB-via-IP configuration to tune DVB-C or DVB-T channels.
- When the operation is completed, the channel at the lowest position will be displayed.
= Note =
- If tuning has not been done completely, set Manual Tuning.
Watching > Tuning and editing channels > Manual Tuning
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
- In case you install the DVB-via-IP client in multicast environment, please consult your professional dealer or server manufacturer.
Note
- Due to network conditions or certain broadcaster restrictions, this function may not be available.
- This function is not available when the TV is turned off with Mains Power On / Off switch.
- Please also read the manual of DVB-via-IP server.
VIERA Link "HDAVI Control™"
Summary of VIERA Link
Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control™" function.
VIERA Link (HDAVI Control) connects the TV and the equipment with VIERA Link function, and enables easy control, playback, energy saving, creating home theatre, etc. without complicated settings. Connections to the equipment (DVD Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
- This TV supports "HDAVI Control 5" function.
- Some functions are not available depending on the equipment's version of HDAVI Control. Confirm the connected equipment's version of HDAVI Control.
- VIERA Link “HDAVI Control” is a unique function that we have developed and added based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control). As such, its operation with other manufacturers’ product that supports HDMI CEC cannot be guaranteed.
- VIERA Link features may be available even with other manufacturers' equipment supporting HDMI CEC.
- Please refer to individual manuals for other manufacturers' product supporting VIERA Link function.
- About applicable Panasonic product, consult your local Panasonic dealer.
■ VIERA Link (HDMI connection)
- Use a fully wired HDMI compliant cable.
- Connect the equipment supporting VIERA Link to the TV's HDMI terminal via an HDMI cable.
About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.
① HDMI terminal
② HDMI cable
3 Equipment with VIERA Link function (DVD Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera)
■ Available features (HDMI connection)
DVD Recorder / DVD Player / Blu-ray Disc Player
- Easy playback
•Power on Link - Power off Link
- Standby Power Save*2
- Intelligent Auto Standby*2
•VIERA Link Control*1
HD Video Camera / LUMIX Camera
- Easy playback
- Power on Link
- Power off Link
•VIERA Link Control ^*1
*1 : For equipment which has "HDAVI Control 2 or later" function.
*2 : For equipment which has "HDAVI Control 4 or later" function.
■ VIERA Link (HDMI and Audio out connections)
- Use a fully wired HDMI compliant cable.
- Connect the equipment supporting VIERA Link to the TV's HDMI terminal via an HDMI cable.
- Use a fully wired SCART cable.
- Use the optical digital audio cable for audio output from the TV.
2 SCART cable
3 DVD Recorder with VIERA Link function
4 HDMI cable (Optical digital audio cable*/ SCART cable)
5 HDMI cable
6 Amplifier with VIERA Link function
7 Speaker system
8 Player theatre / Blu-ray Disc theatre with VIERA Link function
9 HD Video Camera / LUMIX Camera with VIERA Link function
*: If the connected equipment has "HDAVI Control 5" function, you do not have to use this audio cable (Optical digital audio cable / SCART cable). In this case, connect the equipment to the TV's HDMI2 terminal via an HDMI cable.
■ Available features (HDMI and Audio out connections)
Player theatre
- Easy playback ^*3
•Power on Link - Power off Link
- Intelligent Auto Standby ^24
•VIERA Link Control*1 - Speaker Selection
Blu-ray Disc theatre
- Easy playback ^*3
•Power on Link - Power off Link
- Standby Power Save ^*2
- Intelligent Auto Standby ^24
•VIERA Link Control ^*1 - Speaker Selection
Amplifier
- Power off Link
- Intelligent Auto Standby ^*2
- Speaker Selection
*1 : For equipment which has "HDAVI Control 2 or later" function.
*2 : For equipment which has "HDAVI Control 4 or later" function.
*3 : While playing a disc
*4 : Except for watching a disc
■ VIERA Link Control of compatible equipment
The following is the maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV.
For example, DVD Player connected to Amplifier which is connected to the TV via an HDMI cable.
Functions > VIERA Link "HDAVI Control™" > VIERA Link Control
- Recorder:
Maximum 3 - Player:
Maximum 3 (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)
•Audio system:
Maximum 1 (Player theatre, Blu-ray Disc theatre, Amplifier, etc.)
•Tuner:
Maximum 4 (Set top box, etc.)
Preparations
- Connect the equipment supporting VIERA Link.
- For details of VIERA Link connections
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Use a fully wired HDMI compliant cable.
- Use a fully wired SCART cable.
- Set up the connected equipment. Read the manual of the equipment.
- Set VIERA Link to On in the Setup Menu.
-
Set up the TV. After connection, turn the equipment on and then switch the TV on. Select the HDMI input from Input Selection with AV and make sure that an image is displayed correctly. (This setup should be done each time the following conditions occur.)
-
First time operation
- Adding or reconnecting equipment
- Changing setup
Easy playback
Automatic input switching - When the connected equipment is operated, the input mode is switched automatically.
Power on Link
Set Power on Link to On in VIERA Link Settings to use this function.
When the connected equipment is operated, the TV is automatically turned on. (Only when the TV is in Standby mode.)
Power off Link
Set Power off Link to On in VIERA Link Settings to use this function.
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
- This function will work even if the TV enters Standby mode automatically by auto power standby function.
Standby Power Save
Set Standby Power Save to On in VIERA Link Settings to use this function.
The power consumption of the connected equipment in Standby mode is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to quickly start the connected equipment.
- This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.
- This function works when Power off Link is set to On.
Intelligent Auto Standby
Set Intelligent Auto Standby to On in VIERA Link Settings to use this function.
When the TV is on, non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to TV (except for watching a disc).
- This function may not work properly depending on the connected equipment. In this case, set to Off.
You can control some functions of the connected equipment with this TV's remote control by pointing at the TV's signal receiver.
- Display APPS List with APPS.
- Select VIERA Link and press OK to access.
- Select VIERA Link Control and press OK to access.
- Select one of the following items and press OK to access.
Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other
(The menu of the accessed equipment is displayed. The input mode is changed automatically.)
- The displayed item may vary depending on the connected equipment.
•Home Cinema means Player theatre, Blu-ray Disc theatre or Recorder theatre. -
Other means Tuner set top box.
-
Follow the on-screen instructions to operate the menu of the equipment.
- Confirm the remote control code is "73".
Watching > External equipment > Operating with TV's remote control
•To display the operation guide
OPTION
(If other manufacturers' product is accessed, Setup / Contents Selection menu may be displayed.)
- Available TV's remote control buttons depend on the connected equipment.
■ If multiple recorders or players are connected
Each recorder / player is numbered. The number is given from the TV's lower number of HDMI terminal connected to the same type of equipment. For example, when two recorders are connected to HDMI1 and HDMI2, the recorder connected to HDMI1 is displayed as Recorder1, and the recorder connected to HDMI2 is displayed as Recorder2.
■ If you access non-VIERA Link equipment
The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use the remote control of the connected equipment.
= Note =
- If you cannot operate the equipment, check the settings and the equipment.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Some operations may not be available depending on the equipment. In this case, use the remote control of the connected equipment.
- For details of the operations for the connected equipment, read the manual of the equipment.
Speaker Selection
You can control the theatre speaker with this TV's remote control by pointing at the TV's signal receiver.
- Display APPS List with APPS.
- Select VIERA Link and press OK to access.
- Select Speaker Selection and press OK to access.
- Select TV / Home Cinema and press OK to set.
TV:
TV speakers are active.
Home Cinema:
The sound is delivered from theatre speakers. Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.
- The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be activated.
- You can use Volume Up / Down and MUTE.
■ Multi-channel sound
If you want to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect it with an HDMI cable and Optical digital audio cable, and then select Home Cinema. If your Amplifier has the “HDAVI Control 5” function, you only need to connect it with an HDMI cable to the TV’s HDMI2 terminal.
To enjoy multi-channel sound from DIGA Recorder, connect an HDMI cable from the DIGA Recorder to the Amplifier.
= Note =
- If you cannot operate the equipment, check the settings and the equipment.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Some operations may not be available depending on the equipment.
Note
• These functions may not work properly depending on the connected equipment.
- Image or sound may not be delivered for the first few seconds when the input mode is switched.
- "HDAVI Control 5" is the newest standard for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.
•To confirm the HDAVI Control version of this TV
Support > Help menu > Using Help menu
Child Lock
Using Child Lock
You can lock specific channels / AV input terminals to restrict access to them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.
- Display the menu with MENU.
-
Select Setup > Child Lock and press OK to access.
-
Enter the PIN number (4 digits) with Numeric buttons.
- Enter the PIN number twice at first setting.
-
Make a note of the PIN number in case you forget it.
-
Select Child Lock List and press OK to access.
-
Select the channel / input and press OK to lock.
• appears when the channel / input is locked.
•To cancel
1) Select the locked channel / input.
2) Press OK.
• To sort channel names in alphabetical order
(red)
•To lock all
(green)
• To cancel all locks
(yellow)
•To jump to the head of the next channel / input group
(blue)
PIN number
You can change the PIN number.
- Select Change PIN and press OK to access.
- Enter a new PIN number twice with Numeric buttons.
= Note =
- Setting Shipping Condition erases the PIN number and all settings.
Data Service Application
Using Data Service Application
You can enjoy Hybrid Broadcast Broadband TV application that may be provided via digital broadcasting as interactive data services.
- Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP
- Display the menu with MENU.
- Select Setup > Data Service Application > Service and press OK to access.
-
Select Auto Start On and press OK to set.
-
A notification message will appear when the application is available. Follow the on-screen instructions.
- is displayed on the information banner if the programme has Hybrid Broadcast Broadband TV application.
Watching > Basic > Information banner
- To terminate the running application. (The default application may start immediately.)
EXIT
Cookie
- Display the menu with MENU.
- Select Setup > Data Service Application > Store Cookie / Delete Cookie and press OK to access.
Store Cookie
(On / Off)
Enables storing the technical information that a data service application leaves into the TV in order to recognise to use it again.
Delete Cookie
Deletes all of technical information left by a data service application.
Note
- A broadband network environment is required to fully use Hybrid Broadcast Broadband TV application. Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
- Not all the data services are available depending on the country, area and broadcaster.
- Depending on the connection environment, the internet connection may be slow or may not be successful.
- Operations may vary depending on the broadcaster. Follow the on-screen instructions.
- On-screen instructions may not correspond to the remote control buttons.
Common Interface
Caution
If the encrypted message is displayed on the screen, the correct Common Interface (CI) Module and smart card that are required for this service are not inserted.
■ How to insert CI module and smart card
- Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.
- If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
- Insert or remove the CI module completely in the correct direction as shown.
= Note =
- There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.3 TV. In this case, please contact your content provider.
Using Common Interface
The Common Interface Module menu provides access to software contained in Common Interface (CI) Modules.
- This function may not be available in some countries or regions.
- Video and audio signals may not be output depending on the broadcast or service.
Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the broadcaster-approved CI module. Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.
■ Insert the CI module (optional)
- Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.) If encrypted channels do not appear, take the following steps.
-
For details, read the manual of the CI module, or check with the content provider.
-
Select the mode with TV.
DVB-C / DVB-T
- Display the menu with MENU.
- Select Setup > Common Interface and press OK to access.
- Select Slot 1:, press OK and follow the on-screen instructions.
- On-screen instructions may not correspond to the remote control buttons.
Shipping Condition
Shipping Condition
Resets the TV to its original condition (i.e. no channels tuned in).
All settings are reset (channels, picture, sound settings, etc.).
- Display the menu with MENU.
- Select Setup > System Menu > Shipping Condition and press OK to access.
- When a confirmation screen is displayed, select Yes and press OK to set.
- Follow the on-screen instructions.
•Auto Setup automatically starts.
= Note =
• To retune TV channels only (e.g. after moving house), set Auto Setup.
Watching > Tuning and editing channels > Auto Setup
Updating the TV Software
Information
A new version of software may be released for download to enhance the performance or operations of the TV.
If there is an update available and the channel has the update information, a notification message is displayed.
- To install new software, select Standby / Now and press OK to set.
Standby:
Installs new software in standby condition.
Now:
Installs new software now.
Auto update
You can update new software automatically.
- Display the menu with MENU.
- Select Setup > System Menu > System Update > Auto Update Search in Standby and press OK to access.
- Select the time and press OK to set.
- If any software updates are available, a notification message will appear. To install new software, select Standby / Now and press OK to set.
Standby:
Installs new software in standby condition.
Now:
Installs new software now.
- If System Update is performed, the software will be updated (TV functions may be changed). If you do not want to do so, set Auto Update Search in Standby to Off.
- The automatic updating cannot be performed in the following conditions:
– TV turned off with Mains Power On / Off switch
- DVB-via-IP
= Note =
- Download may take a few hours.
- During software download and update, DO NOT switch off the TV.
- A notification message may be a reminder. In this case, schedule information (the date when the new version can be used) will appear. You can set the reservation for update. The update will not start when the TV is off.
Manual update
You can update new software manually.
- Display the menu with MENU.
- Select Setup > System Menu > System Update > System Update Search Now and press OK to access.
- Searches for an update (for several minutes) and displays a corresponding message if any.
- Download with OK.
= Note =
- Download may take a few hours.
- During software download and update, DO NOT switch off the TV.
Setting characters
Using Numeric buttons
You can enter characters for free input items using Numeric buttons.
Press Numeric buttons repeatedly until you reach the desired character.
1: . @ / 1 ! : # + - * _ ( ) “ % & ? , ; = \$ [ ] \~ < > { } | ^ \
2:abc2ABC
3 : def3DEF
4: ghi4GHI
5 : jk15JKL
6:mno6MNO
7:pqrs7PQRS
8 : tu v 8 T UV
9 : wxyz9WXYZ
0 : Space 0
• The character is set automatically if you leave for 1 second.
- You can also set the character pressing OK or other Numeric buttons less than 1 second.
• The characters may vary depending on the input item.
Keyboard
Keyboard
•Keyboards requiring the drivers are not supported.
- To change the language type, set USB Keyboard Layout.
1) Display the menu with MENU.
2) Select Setup > System Menu > USB Keyboard Layout and press OK to access.
3) Select the language and press OK to set.
- Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout setting.
- Some of the keys of keyboards may correspond to the operation of the remote control.
| Keyboard Remote Control | |
| ↑/↓/←/→ | △/▽/◀ ▷ |
| Enter OK | |
| Backspace BACK/RETURN | |
| Esc EXIT | |
| 0 - 9 / Character Numeric buttons | |
| F1 HOME | |
| F2 APPS | |
| F3 MENU | |
| F4 AV | |
| F5 / F6 Channel Down / Up | |
| F7 / F8 Volume Down / Up | |
| F9 / F10 / F11 / F12 Coloured buttons | |
Settings
Setting menu
How to use
Various menus allow you to make settings for the picture, sound, and other functions.
- Display the menu with MENU.
- Displayed items vary depending on the input signal.
-
Select the menu and press OK to access.
-
Select the items and press OK to access.
- Only available items can be selected.
- You can also access from eHELP pressing (red) at each item (if available).
- You can select from among alternatives with and press to set.
- You can adjust using the slide bar with ◀ and press to set.
- You can go to the next screen with OK.
- You can enter names or numbers freely for some items.
1) Enter characters one by one with Cursor buttons and press OK to set.
- You can set characters using Numeric buttons.
Functions > Setting characters > Using Numeric buttons
2) Press BACK/RETURN to store.
- To reset the settings
- To initialise picture or sound settings only, select Reset to Defaults in the Picture Menu or Sound Menu.
- To initialise all settings, select Shipping Condition.
Functions > Shipping Condition
•To exit the menu screen
EXIT
• To return to the previous screen
BACK/RETURN
•To change the colour type of on-screen displays, set OSD Colour.
Home Screen > my Home Screen > OSD Colour
= Note =
- Menu items and selectable options vary depending on the mode (TV mode, Media Player, Network services, etc.).
■ Using control panel buttons
- Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu.
- Select and set with following control panel buttons.
- Move the cursor / select from a range of options / select the menu item / adjust levels
- Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button
Viewing Mode
Selects your favourite picture mode for each input.
(Dynamic / Normal / Cinema / True Cinema / Custom)
Watching > For best picture > Viewing Mode
Basic settings
Backlight, Contrast, Brightness, Colour, Tint, Sharpness
Adjusts the levels of these options according to your personal preference.
Watching > For best picture > Basic settings
Colour Temperature
Sets the overall colour tone of the picture (bluer - redder).
Watching > For best picture > Basic settings
Vivid Colour
(On / Off)
Automatically adjusts colours to vivid ones.
Watching > For best picture > Basic settings
Adaptive Backlight Control
Automatically controls the level of backlight according to the images.
Watching > For best picture > Basic settings
Ambient Sensor
Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting condition.
(On / Off)
Watching > For best picture > Ambient Sensor
Noise reduction settings
Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces unwanted picture noise.
Watching > For best picture > Noise reduction settings
- Not valid when 1080p Pixel Direct is set to On
MPEG Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces flicker noise in contoured parts of a picture and block noise.
Watching > For best picture > Noise reduction settings
- Not valid when 1080p Pixel Direct is set to On
Advanced Settings
You can adjust and set up the detailed picture settings.
Watching > For best picture > Advanced Settings
This function is available when Viewing Mode is set to Cinema, True Cinema or Custom.
Option Settings
[Some features are not available on all models. Available menu items are displayed on your TV screen.]
Film Cadence Mode
(On / Off)
Improves vertical resolution for movie images.
Watching > For best picture > Option Settings
- This function is available for interlaced signals (except in Network services).
1080p Pixel Direct
(On / Off)
Reproduces the original image quality in detail for 1080p (HDMI) input signal.
Watching > For best picture > Option Settings
HDMI Content Type
(Graphics / Photos / Auto / Off)
Adjusts the picture settings of each HDMI input according to the selected content type.
Watching > For best picture > Option Settings
•For HDMI
HDMI RGB Range
(Auto / Full / Normal)
Adjusts the black level of the image for each HDMI input.
Watching > For best picture > Option Settings
- For HDMI
AV Colour System
(Auto / PAL / SECAM / M.NTSC / NTSC)
Selects optional colour system based on video signals.
Watching > For best picture > Option Settings
- For AV (VIDEO)
3D-COMB
(On / Off)
Makes still or slow moving pictures more vivid.
Watching > For best picture > Option Settings
- For PAL / NTSC signal reception in TV mode or from composite connection
Screen Settings
16:9 Overscan
(On / Off)
Selects the screen area displaying the image for 16:9 aspect.
Watching > For best picture > Screen Settings
- Not valid for photo content
H-Size
Switches horizontal picture size.
Watching > For best picture > Screen Settings
Zoom Adjustments
Adjusts the vertical position and size when aspect is set to Zoom.
Watching > For best picture > Screen Settings
Screen Display
(On / Off)
Turns the screen off when you select Off.
Watching > For best picture > Screen Settings
Copy Adjustment
Copies the picture settings of True Cinema or Custom to those of the other input mode or Viewing Mode.
Watching > For best picture > Copy Adjustment
Reset to Defaults
Resets the current Picture Viewing Mode to the default settings.
Sound
Mode
Selects your favourite sound mode for each input.
(Standard / Music / Speech / User)
Watching > For best audio > Sound mode
Basic settings
Bass
Adjusts level to enhance or minimise lower, deeper sound output.
Watching > For best audio > Basic settings
Treble
Adjusts level to enhance or minimise sharper, higher sound output.
Watching > For best audio > Basic settings
Equaliser
Adjusts the frequency level to suit your favourite sound quality.
Watching > For best audio > Basic settings
Balance
Adjusts volume level of right and left speakers.
Watching > For best audio > Basic settings
Surround
(On / Off)
Provides a dynamic enhancer of width to simulate improved spatial effects.
Watching > For best audio > Basic settings
Volume settings
Speaker Setting
(TV Speaker / Headphones / Off)
Selects the sound output to adjust volume. Set to Off when using the external speakers.
Watching > For best audio > Volume settings
Headphone Volume
Adjusts the volume of headphones.
Watching > For best audio > Volume settings
Auto Gain Control
(On / Off)
Automatically regulates large sound level differences between channels and inputs.
Watching > For best audio > Volume settings
Volume Correction
Adjusts the volume of each individual channel or input mode.
Watching > For best audio > Volume settings
Speaker Distance to Wall
(Up to 30cm / Over 30cm)
Compensates for the low frequency sound due to the distance between the speakers and the wall.
Watching > For best audio > Volume settings
Voice Guidance Settings
Voice Guidance
(On / Off)
Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users.
Watching > For best audio > Voice Guidance Settings
Speed
(Fast / Normal / Slow)
Selects the readout speed for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Volume
(Max / Mid / Min)
Selects the volume for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Language
Changes language for the voice guidance.
Watching > For best audio > Voice Guidance Settings
User Level
(Beginner / Expert)
Selects the level of verbosity for the voice guidance.
Watching > For best audio > Voice Guidance Settings
Web Browser
(On / Off)
Set to On to enable voice guidance of the network content in web browser function.
Watching > For best audio > Voice Guidance Settings
Audio Description
Preferred Audio Type
(Audio Description / Standard)
Narration settings for visually impaired users
Watching > For best audio > Audio Description
- For DVB
Volume
Adjusts the volume for Audio Description.
Watching > For best audio > Audio Description
- For DVB
Speakers
(Mix / Standard)
Set to Mix to activate the description sound track from TV speakers.
Watching > For best audio > Audio Description
•For DVB
Headphones
(Mix / Standard)
Set to Mix to activate the description sound track from headphones.
Watching > For best audio > Audio Description
•For DVB
Advanced settings
MPX
Selects multiplex sound mode (if available).
Watching > For best audio > Advanced settings
- For Analogue
Audio Preference
(Auto / MPEG)
Selects the initial setting for audio tracks.
Watching > For best audio > Advanced settings
•For DVB
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
Watching > For best audio > Advanced settings
- For DVB, video content
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.
Watching > For best audio > Advanced settings
- For DVB
HDMI Input
(Digital / Analogue)
Selects to fit the input signal.
Watching > For best audio > Advanced settings
•For HDMI
Reset to Defaults
Resets the current Sound Mode to the default settings.
Network
Network Connection
Sets the network setting to use this TV in your network environment.
Network > Network settings > Network Connection
Network Status
Displays and checks the network status (MAC Address, current network settings, etc.).
Network > Network settings > Network Status
my Home Cloud Settings
Sets for an account to enjoy the cloud services.
Network > Network settings > my Home Cloud Settings
VIERA Name
Sets your favourite name for this TV.
Network > Network settings > VIERA Name
TV Remote App Settings
Sets to control the TV from network equipment (smartphone, etc.).
Network > Network settings > TV Remote App Settings
Network Link Settings
Sets to control the TV with devices connected to the network.
Network > Network settings > Network Link Settings
File Sharing Settings
Network Device List
Lists the accessible network devices to play back the content in Media Player.
Media Player > Using Media Player > Network device
Mirroring Settings
Settings for the mirroring function
Functions > Mirroring > Mirroring Settings
Other settings
Software Update
Checks for available software updates from the Panasonic website.
Network > Network settings > Software Update
New Software Message
(On / Off)
Selects whether to give a notification message when new software is found via network or not.
Network > Network settings > New Software Message
Timer
Off Timer
Sets the duration of time until the TV automatically goes into Standby mode. (90 / 75 / 60 / 45 / 30 / 15 / Off (minutes))
Watching > Basic > Off Timer
Time Zone
Adjusts the time data.
Watching > Basic > Adjusting time
Auto Standby
Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
(On / Off)
Watching > Basic > Energy saving functions
No signal Power off
Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.
(On / Off)
Watching > Basic > Energy saving functions
Setup
Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode.
Watching > Basic > Energy saving functions
USB Device Setup
Safely removes USB device.
Media Player > Using Media Player > Information
Child Lock
Applies access control for channels or inputs to prevent unwanted access.
Functions > Child Lock > Using Child Lock
Tuning Menu
Favourites Edit
Creates a list of favourite channels.
Watching > Tuning and editing channels > Favourites Edit
- Not valid in Analogue
Channel List
You can edit the channel list by adding / deleting and moving channels.
Watching > Tuning and editing channels > Channel List
Auto Setup
Automatically searches for receivable channels.
Watching > Tuning and editing channels > Auto Setup
Manual Tuning
Searches for channels manually.
Watching > Tuning and editing channels > Manual Tuning
Update Channel List
Updates the channel list while keeping your settings.
Watching > Tuning and editing channels > Update Channel List
•For DVB
New Channel Message
(On / Off)
Selects whether to give a notification message when a new channel is found or not.
Watching > Tuning and editing channels > New Channel Message
- For DVB
Signal Condition
Checks the signal condition.
Watching > Tuning and editing channels > Signal Condition
- Not valid in Analogue
Attenuator
(On / Off)
Automatically reduces the DVB-C signal to avoid the interference.
Watching > Tuning and editing channels > Other settings
Add TV Signal
Adds the TV mode.
Watching > Tuning and editing channels > Other settings
= Note =
- The settings in Tuning Menu are applicable only for the selected TV mode. The menu name varies depending on the TV mode. (DVB-C Tuning Menu / DVB-T Tuning Menu / DVB-via-IP Tuning Menu / Analogue Tuning Menu)
Language
OSD Language
Changes language for on-screen displays.
Watching > Basic > Language
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the broadcaster).
Watching > Basic > Language
Preferred Subtitles 1 / 2
Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).
Watching > Basic > Language
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster).
Watching > Basic > Language
Display Settings
OSD Colour
(Jet black / Pale grey / Organic brown / Sand beige)
Selects the preferred colour type of on-screen displays.
Home Screen > my Home Screen > OSD Colour
Preferred Subtitle Type
(Standard / Hard of Hearing)
Selects the preferred subtitle type.
Watching > Basic > Subtitle
Teletext
(TOP (FLOF) / List)
Selects teletext display mode.
Watching > Teletext > Teletext mode
Teletext Character Set
(West / East1 / East2)
Selects teletext language font.
Watching > Teletext > Teletext Character Set
Default Guide
(Channel List / TV Guide)
Selects the default screen when pressing GUIDE.
Watching > TV Guide > Using TV Guide
Input Labels
Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner.
Watching > External equipment > Watching external input
Banner Display Timeout
(10 / 9 / 8 / 7 / 6 / 5 / 4 / 3 / 2 / 1 / 0 (No display) (seconds))
Sets how long the information banner stays on screen.
Watching > Basic > Information banner
Smart Banner
(On / Off)
Displays the introduction banner for the internet service.
Watching > Basic > Information banner
Radio Mode
(20 / 15 / 10 / 5 / Off (seconds))
Sets the timer for turning off the screen automatically when a radio channel is selected.
Watching > Basic > Energy saving functions
Common Interface
Sets to watch encrypted channels, etc.
Functions > Common Interface > Using Common Interface
VIERA Link Settings
VIERA Link
(On / Off)
Sets to use VIERA Link functions.
Functions > VIERA Link "HDAVI Control™" > Preparations
Power on Link
(On / Off)
Sets to use Power on Link functions.
Functions > VIERA Link "HDAVI Control™" > Power on Link
Power off Link
(On / Off)
Sets to use Power off Link functions.
Functions > VIERA Link "HDAVI Control™" > Power off Link
Standby Power Save
(On / Off)
Controls the connected equipment to reduce power consumption in Standby.
Functions > VIERA Link "HDAVI Control™" > Standby Power Save
- This function is available when VIERA Link is set to On and Power off Link is set to On.
Intelligent Auto Standby
(On / Off)
Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption.
Functions > VIERA Link "HDAVI Control™" > Intelligent Auto Standby
- This function is available when VIERA Link is set to On.
Data Service Application
Service
(Auto Start On / Auto Start Off / Off)
Sets to use Hybrid Broadcast Broadband TV application.
- Not all the data services are available depending on the country, area and broadcaster.
Functions > Data Service Application > Using Data Service Application
- For DVB
Store Cookie
(On / Off)
Sets to store the information from a data service to the TV in order to access again quickly.
Functions > Data Service Application > Cookie
Delete Cookie
Deletes all the information from a data service.
Functions > Data Service Application > Cookie
System Menu
USB Keyboard Layout
Selects the language that your USB Keyboard supports.
Functions > Keyboard > Keyboard
Shipping Condition
Resets all settings to the original condition.
Functions > Shipping Condition > Shipping Condition
System Update
Downloads new software to this TV.
Functions > Updating the TV Software > Auto update
Licence Menu
Displays the software licence information.
Other Settings
Power Save
(On / Off)
Reduces brightness of the picture to economise on power consumption.
Support
Help menu
Using Help menu
- Display the menu with MENU.
- Select Help and press OK to access.
- Select TV Self Test / System Information / Device Information and press OK to access.
TV Self Test
Makes a diagnosis of picture or sound problems.
Follow the on-screen instructions.
System Information
Displays the system information of this TV.
Device Information
Displays the device information of this TV.
FAQs
Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of picture problem in TV Self Test.
Support > Help menu > Using Help menu
If the problem still persists, please contact your local Panasonic dealer for assistance.
Auto aspect
•Auto aspect is designed to provide you with the best ratio to fill the screen.
Watching > For best picture > Aspect Control Signal
- Press ASPECT if you want to change the aspect ratio manually.
Watching > For best picture > Aspect
Black and white picture
- Check that the output of the external equipment matches the input of the TV. When connecting with SCART, ensure the output setting of the external equipment is not S-Video.
Chaotic image, noisy
- Set Noise Reduction and MPEG Noise Reduction in the Picture Menu to remove noise.
Watching > For best picture > Noise reduction settings
- Check nearby electrical equipment (car, motorcycle, fluorescent lamp).
No image is displayed
- Check the correct input mode is selected.
- Check the setting of AV2 (COMPONENT / VIDEO) in Input Selection to match the signal being output by the external equipment.
Watching > External equipment
- Is Backlight, Contrast, Brightness or Colour in the Picture Menu set to the minimum?
Watching > For best picture > Basic settings
- Check all required cables and connections are firmly in place.
Blurry or distorted image (no sound or low volume)
- Reset channels.
Watching > Tuning and editing channels > Auto Setup
There may be red, blue, green and black spots on the screen
- This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue or black. Please note this does not affect the performance of the panel.
Digital TV
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Block noise, frozen or disappearing image occurs / Some channels cannot be tuned
- Check the position, direction and connection of the aerial.
- Check Signal Condition. If the level of Signal Quality is low, the DVB signal is weak. Connecting the aerial to the TV directly may improve signal quality than connecting the aerial through the equipment (Set top box, DVD, etc.).
Watching > Tuning and editing channels > Signal Condition
Watching > Basic > Basic connection
- Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.
- Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
- Check the network connections and settings (DVB-via-IP).
Functions > DVB-via-IP
Network > Network settings
- Turn the TV off with Mains Power On / Off switch, then turn it on again.
No programmes shown on TV Guide
- Adjust the direction of the aerial to another transmitter installed nearby.
Analogue TV
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow image (ghosting) occurs / Some channels cannot be tuned
- Check the position, direction and connection of the aerial.
- Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.
- Turn the TV off with Mains Power On / Off switch, and then on again.
- If the problem persists, consult your local dealer or service provider for the availability of services.
Sound
Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of sound problem in TV Self Test.
Support > Help menu > Using Help menu
If the problem still persists, please contact your local Panasonic dealer for assistance.
No sound is produced
- Is "Sound mute" active? Press MUTE to switch sound mute on or off.
•Is the volume set to the minimum? - Check connections and setting of external equipment.
Watching > External equipment
- Ensure that Speaker Selection is set to TV.
Functions > VIERA Link "HDAVI Control™" > Speaker Selection
- Ensure that Speaker Setting is set to TV Speaker.
Watching > For best audio > Volume settings
Sound level is low or sound is distorted
•Sound signal reception may be poor.
- Set MPX in the Sound Menu to Mono. (Analogue)
Watching > For best audio > Advanced settings
HDMI
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Sound is unusual
- Set the sound setting of the connected equipment to "2ch L.PCM".
- Check the HDMI Input setting in the Sound Menu.
Watching > For best audio > Advanced settings
- If digital sound connection has a problem, select analogue sound connection.
Watching > External equipment > HDMI features
Pictures from external equipment are unusual when the equipment is connected via HDMI
- Check the HDMI cable is connected properly.
Watching > External equipment > External connection - Turn the TV and equipment off, then turn them on again.
- Check an input signal from the equipment.
Watching > External equipment > Valid input signals
- Use equipment compliant with EIA/CEA-861/861D.
Network
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
Cannot connect to the network
- Check the LAN cable or wireless LAN is connected properly.
Network > Network connections
- Check the connections and settings.
Network > Network connections
Network > Network settings
- Check the network equipment and network environment.
- The router may not be set to issue IP address automatically. If the network administrator prefers to allocate an IP address, set an IP address manually.
Network > Network settings
- The router may be using MAC address filtering (security setting). Confirm the MAC Address of this TV and set the router to use it.
Network > Network settings > Network Status
- If the problem persists, consult your Internet Service Provider or telecommunications company.
Cannot select the file during DLNA operations
•Is media server of the connected equipment prepared?
Network > DLNA > In-House streaming
- Check applicable data format.
Network > Technical information
- Check the settings of Network Link Settings.
Network > Network settings > Network Link Settings
- Check the connections and settings.
Network > Network connections > Internet connection
Network > Network settings
•The server or connected line may be busy now.
Other
Before requesting service or assistance, please follow these simple guides to solve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
VIERA Link function does not work and an error message appears
- Check the connections.
Functions > VIERA Link "HDAVI Control™" > Summary of VIERA Link
- Turn the connected equipment on and then switch the TV on.
Functions > VIERA Link "HDAVI Control™"
Parts of the TV become hot
- Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality.
Overcurrent error message appears
- The connected USB device may cause this error. Remove the device and turn the TV off with Mains Power On / Off switch, then turn it on again.
- Check foreign objects are not inside the USB port.
An error message appears
- Follow the message's instructions.
- If the problem persists, contact your local Panasonic dealer or the authorised service centre.
When pushed with a finger, the display panel moves slightly and makes a noise
- There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.
Detailed information
Support information about the application, optional devices, operation, etc. may be found on the following website.
http://panasonic.net/viera/support (English only)
Maintenance
Care and Cleaning
First, remove the mains plug from the mains socket.
■ Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
(3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.)
(4) Carefully wipe moisten and wipe away the stubborn dirt.
(5) Finally, wipe away all the moisture.
= Caution =
- Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
•Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint. - The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
- Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.
■ Mains plug
- Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Licence
Licence
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
DVB and the DVB logos are trademarks of the DVB Project.
DLNA ^® , the DLNA Logo and DLNA CERTIFIED ^™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
HDAVI Control™ is a trademark of Panasonic Corporation.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
Text-To-Speech Powered by Dragon
2002-2016 Nuance Communications, Inc. All rights reserved.
"PlayReady" is a trademark registered by Microsoft. Please be aware of the following.
(a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
(b) Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content.
If you decline an upgrade, you will not be able to access content that requires the upgrade.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE Version 2.1 (LGPL V2.1) and/or,
(4) open sourced software other than the software licensed under the LGPL V2.1.
The software categorized as (3) and (4) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the "Software License" menu on this product.
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
Contact Information: cdrequest@unipf.jp
The source code and the copyright notice are also available for free in our website below.
http://www.unipf.jp/dl/EUIDTV16/
