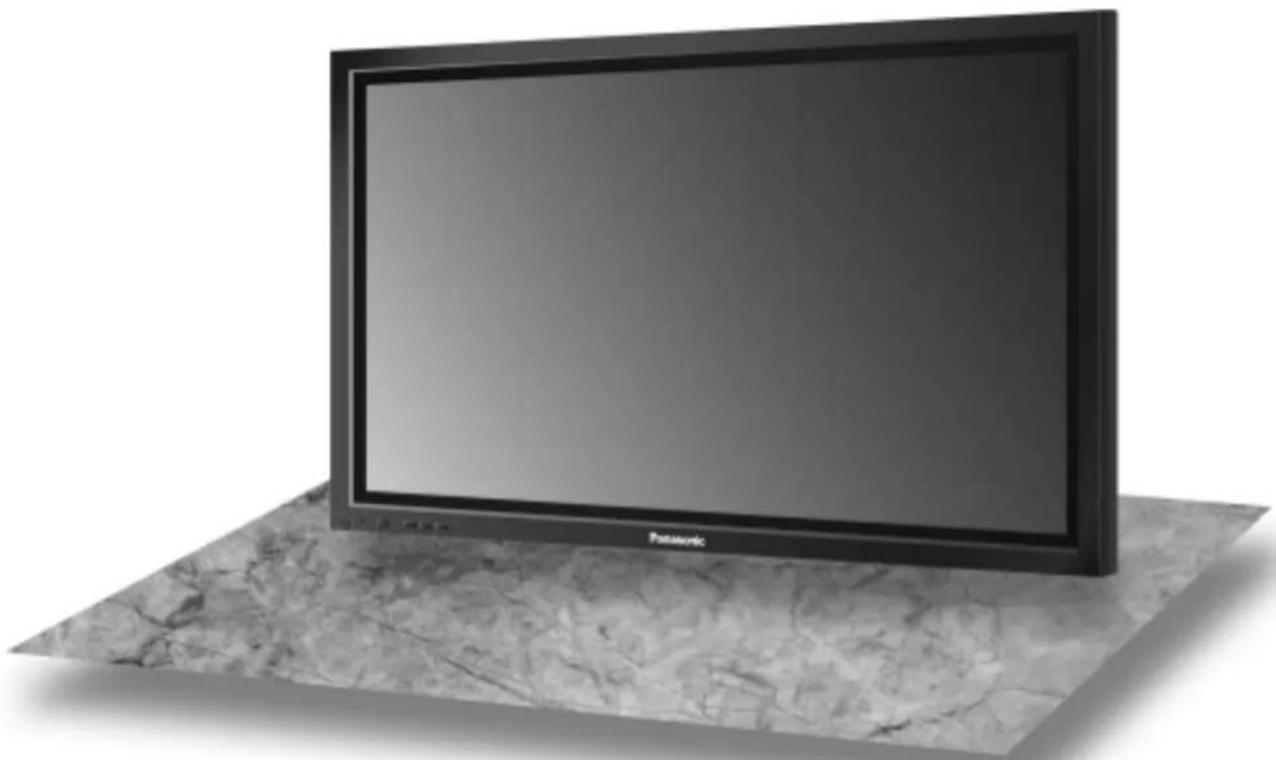

Progressive Wide Plasma Display Operating Instructions

Model No.

TH-42PWD5

Exterior view of a Panasonic TV displaying on a textured surface (no signage or text beyond brand name)

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

English

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Visit our Panasonic Web Site

• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
- S-VGA is a registered trademark of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Table of Contents

Basic

Important Safety Notice.... 4

Safety Precautions.... 5

Accessories 7

Accessories Supply.... 7

Optional Accessories 7

Remote Control Batteries...... 8

Connections 9

PC Input Terminals connection 10

SERIAL Terminals connection.... 12

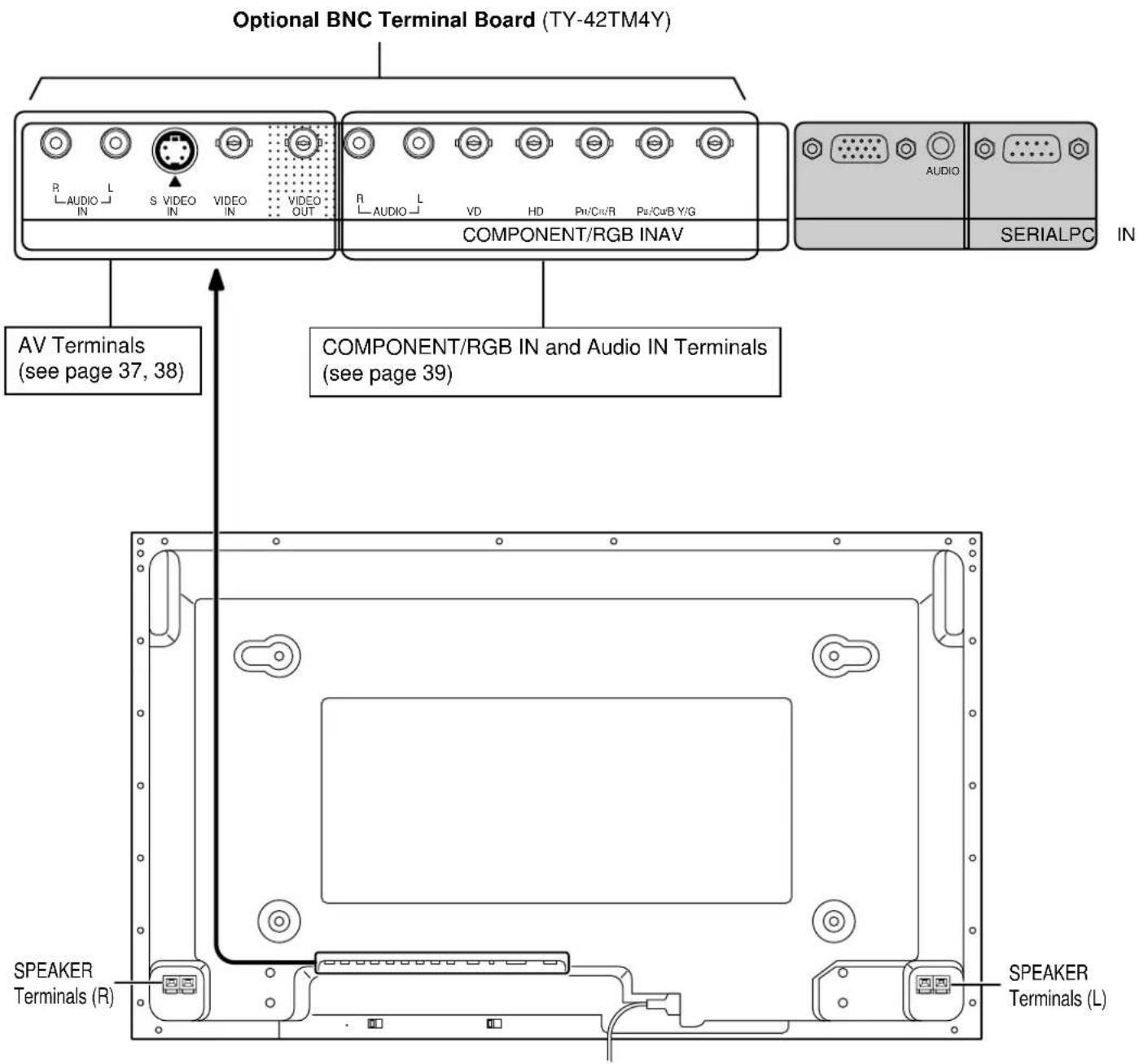

With Optional BNC Terminal Board

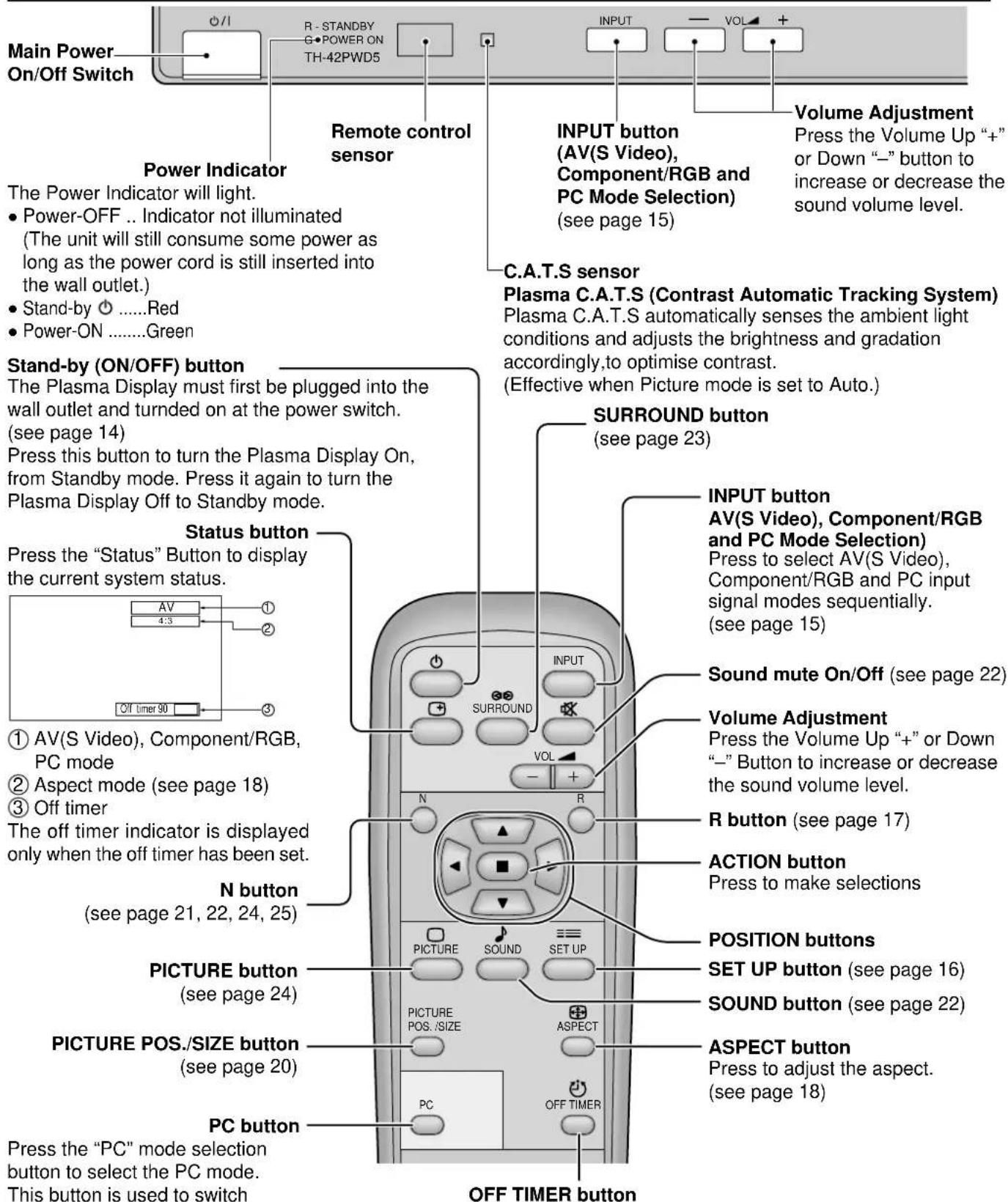

Basic Controls.... 13

Power On/Off and input signal selection .... 14

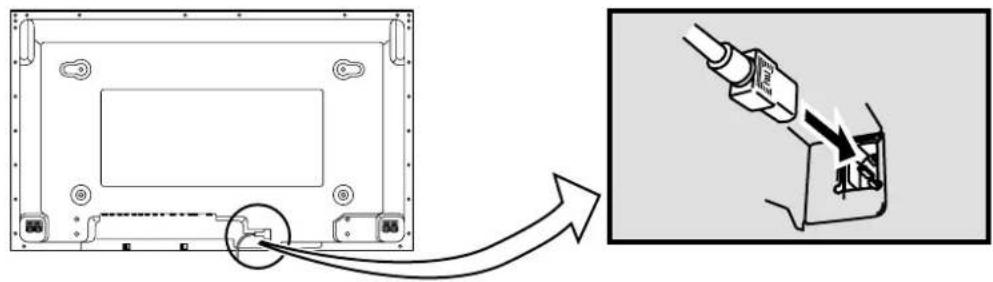

AC cord connection.... 14

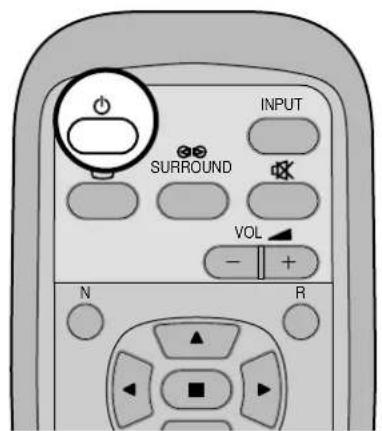

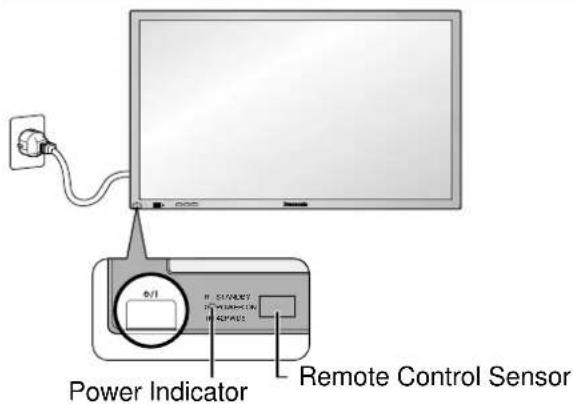

Power On/Off 14

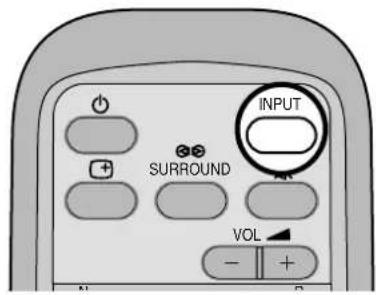

Select the input signal 15

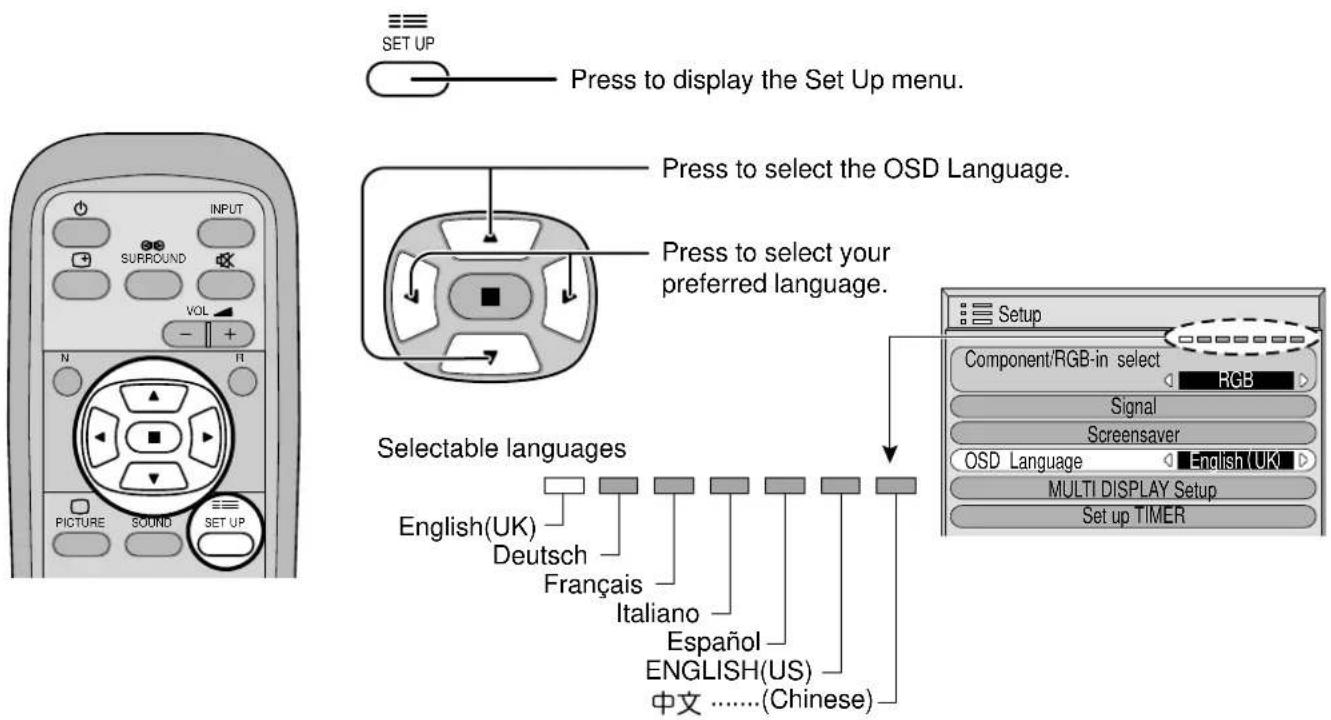

Selecting the On-Screen Menu Language 15

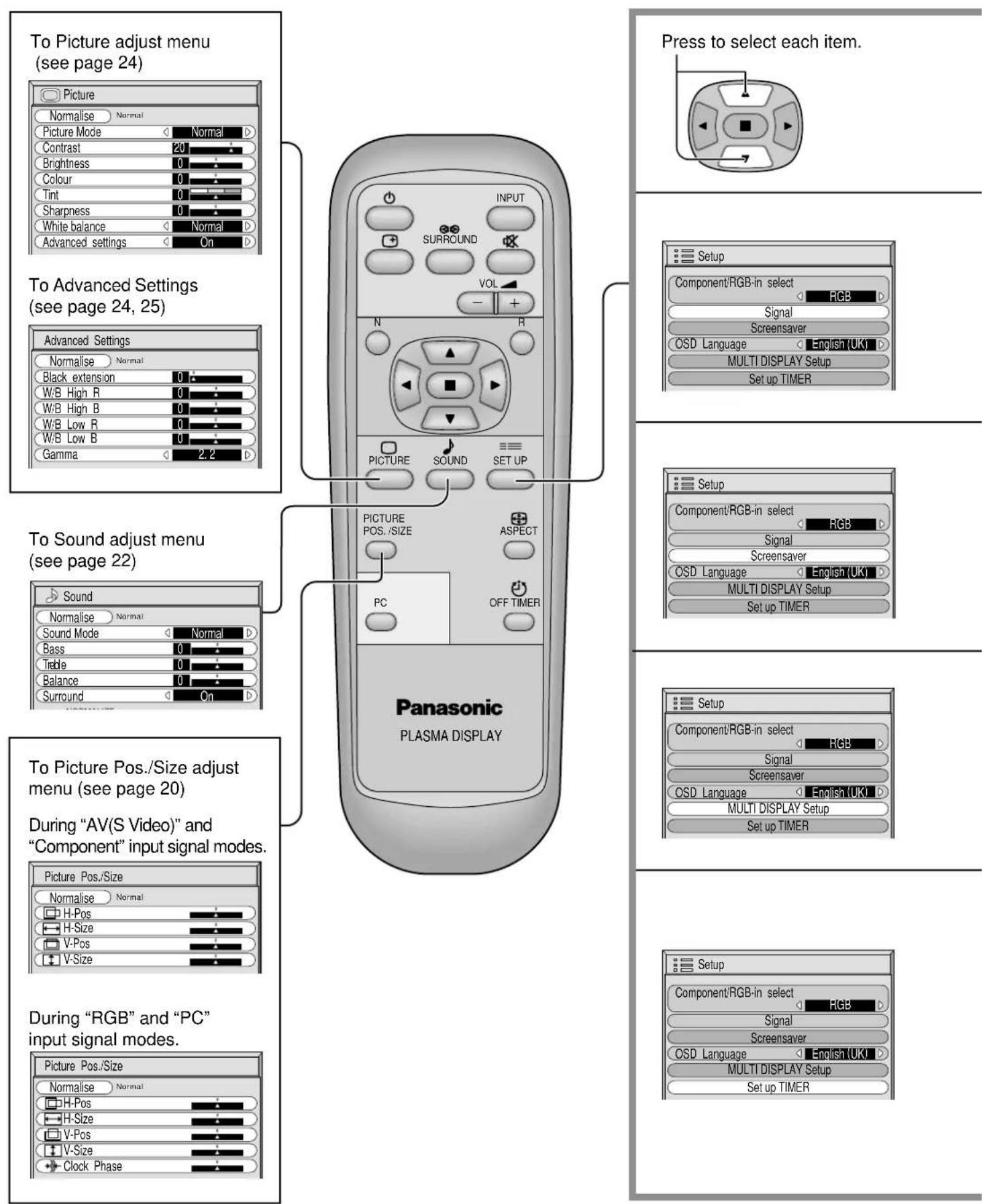

On-Screen Menu Display from Remote Control.....16

ASPECT Controls.... 18

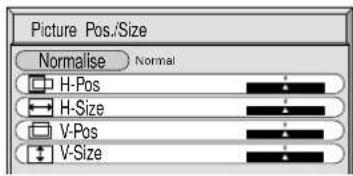

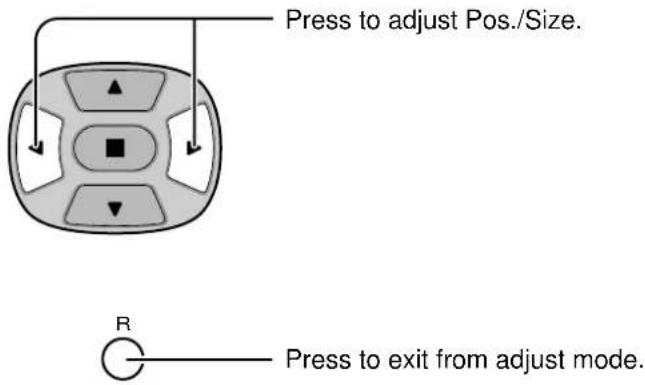

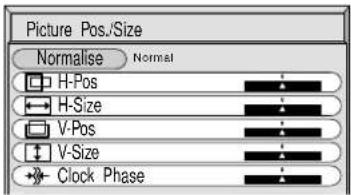

Adjusting Picture Pos./Size.... 20

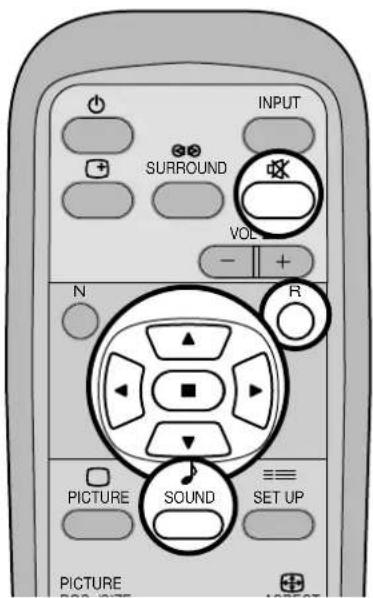

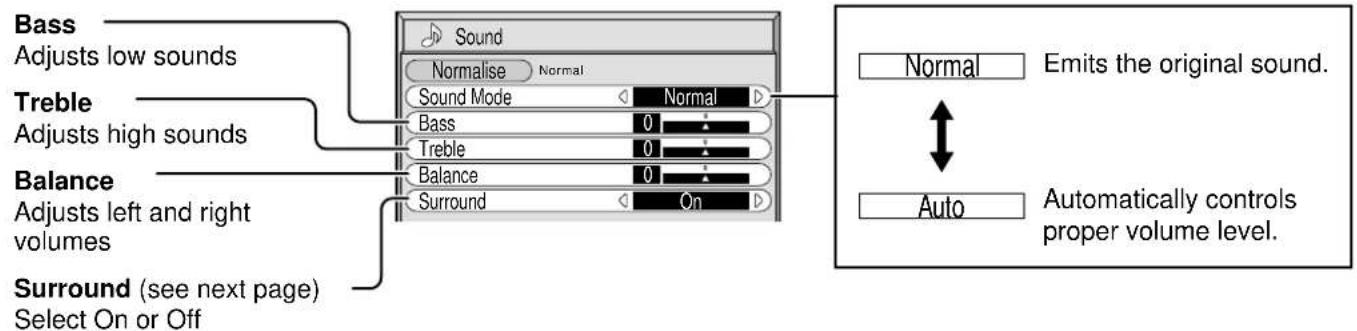

Sound Adjustment 22

Mute 22

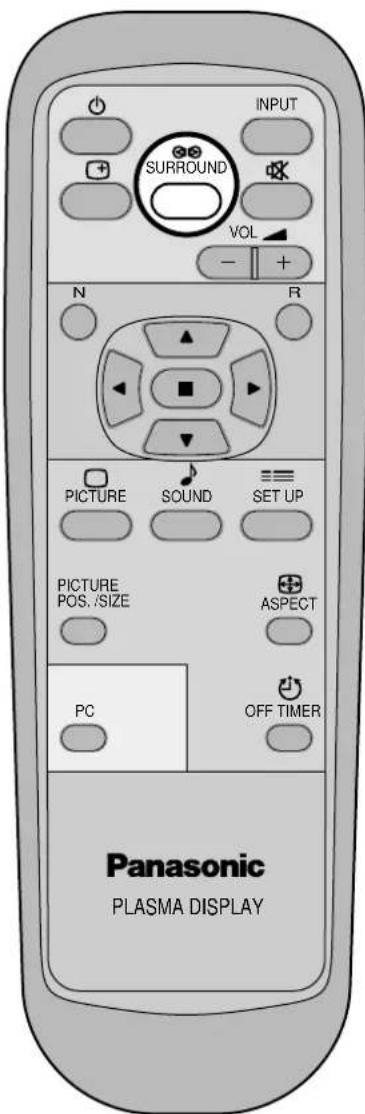

Surround Controls 23

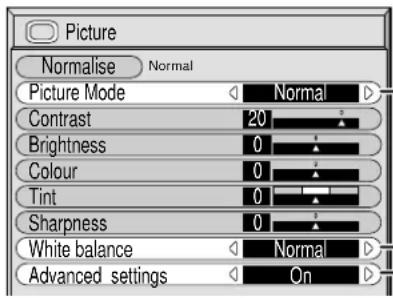

Picture Adjustments 24

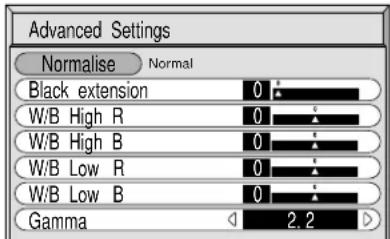

Advanced settings.... 25

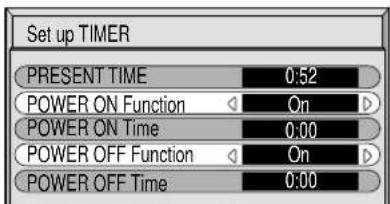

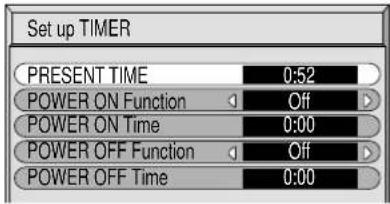

Set up TIMER 26

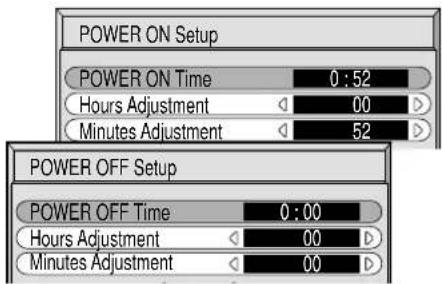

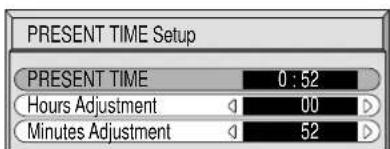

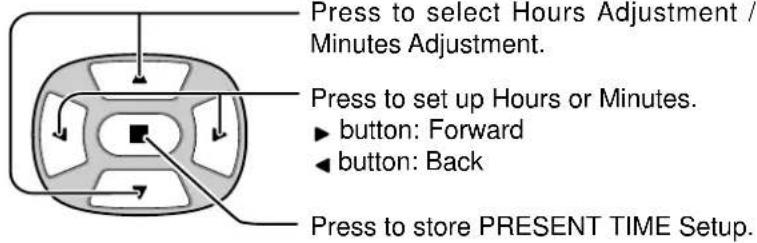

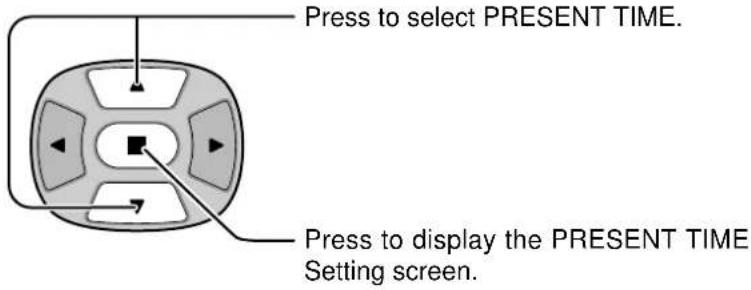

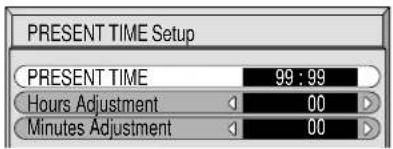

PRESENT TIME Set 26

TIMER Set 27

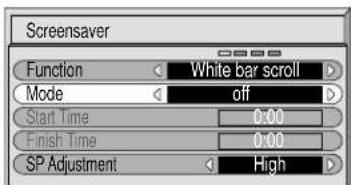

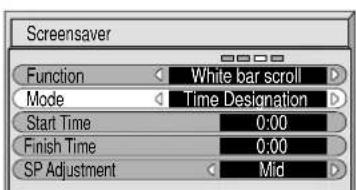

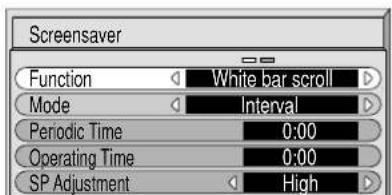

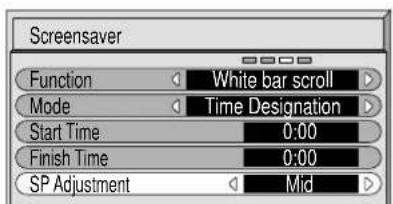

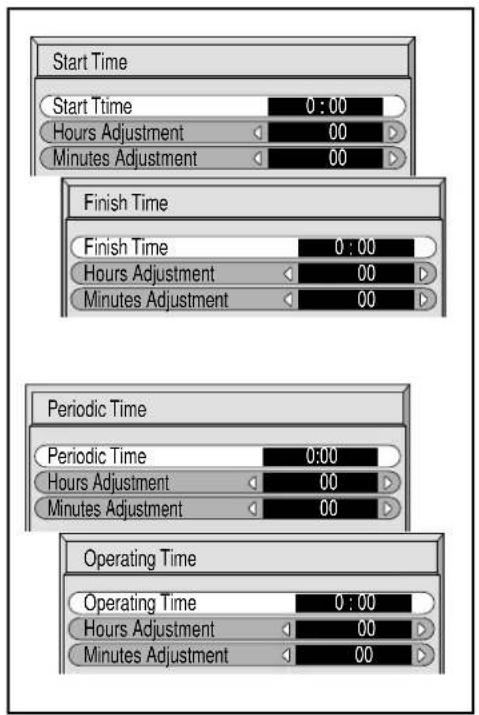

Screensaver (For preventing after-images)...... 28

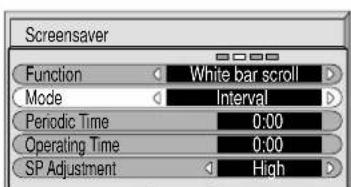

Setup of Screensaver Time.... 29

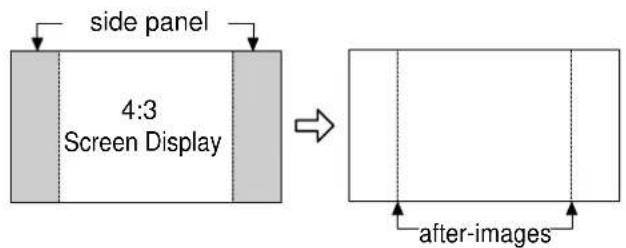

Side Panel Adjustment 29

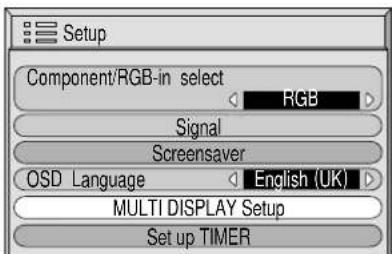

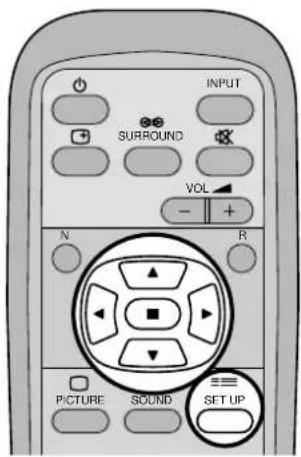

Setup for MULTI DISPLAY 30

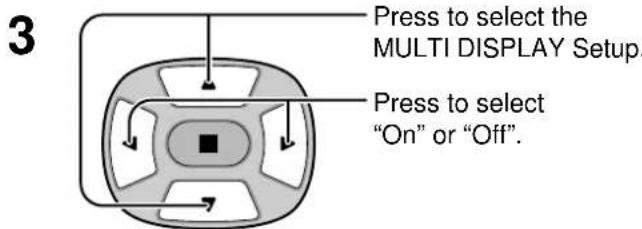

How to Setup MULTI DISPLAY 30

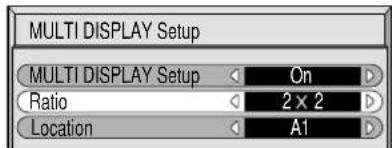

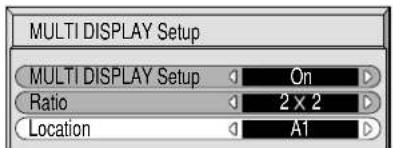

How to set the display location number for each Plasma Display .... 31

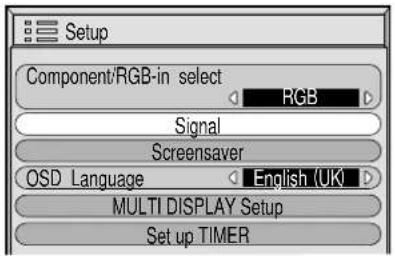

SetUp for Input Signals 32

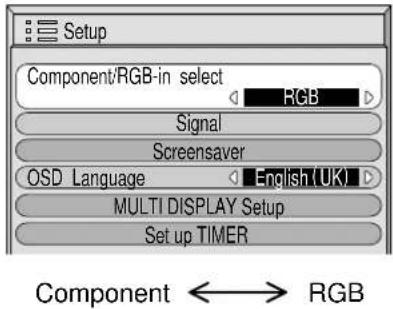

Component/RGB-in select 32

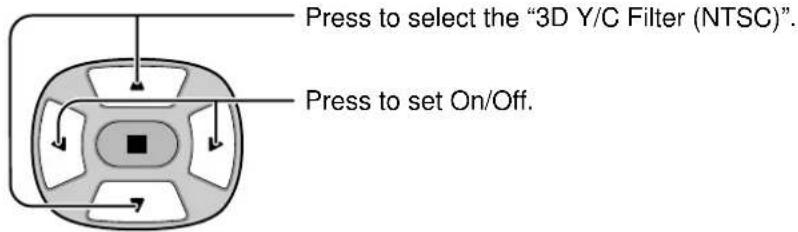

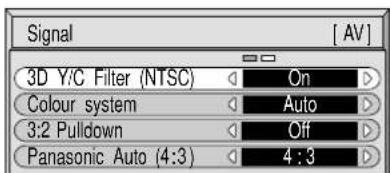

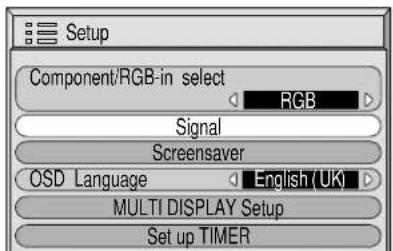

3D Y/C Filter – For NTSC AV images 32

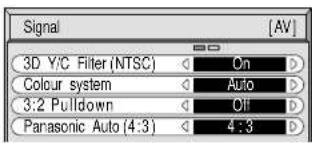

Colour system / Panasonic Auto 33

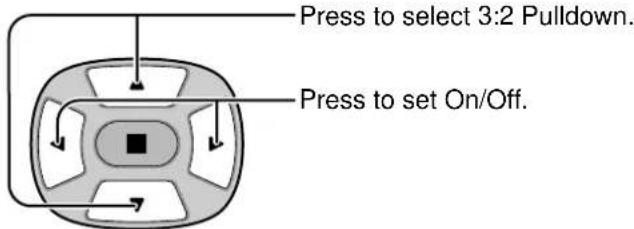

3:2 Pulldown 33

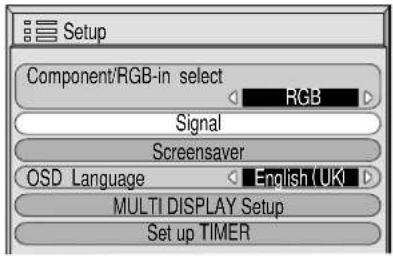

Sync 34

H-Freq. (kHz)/V-Freq. (Hz) 34

Troubleshooting 35

Connections 36

AV Input Terminals connection 37

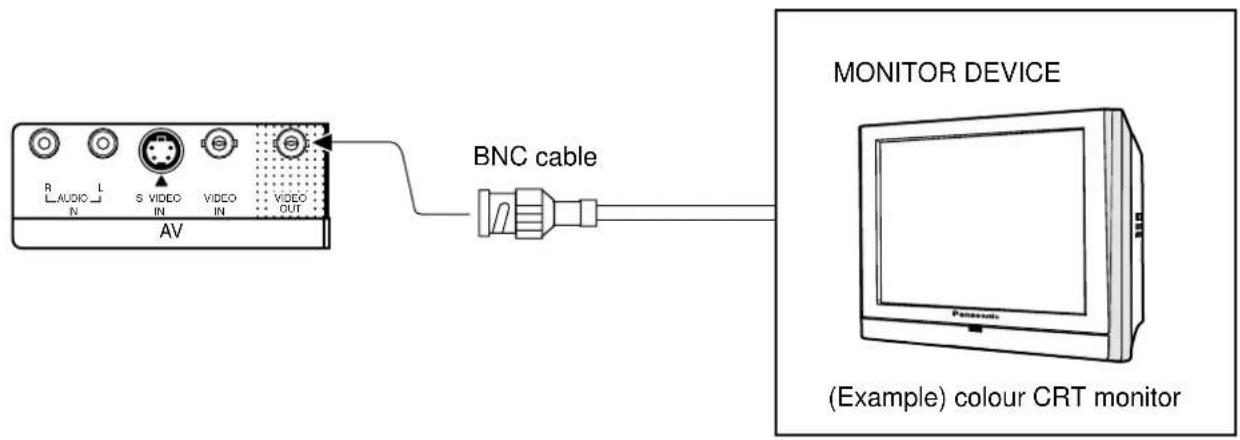

AV Out.... 38

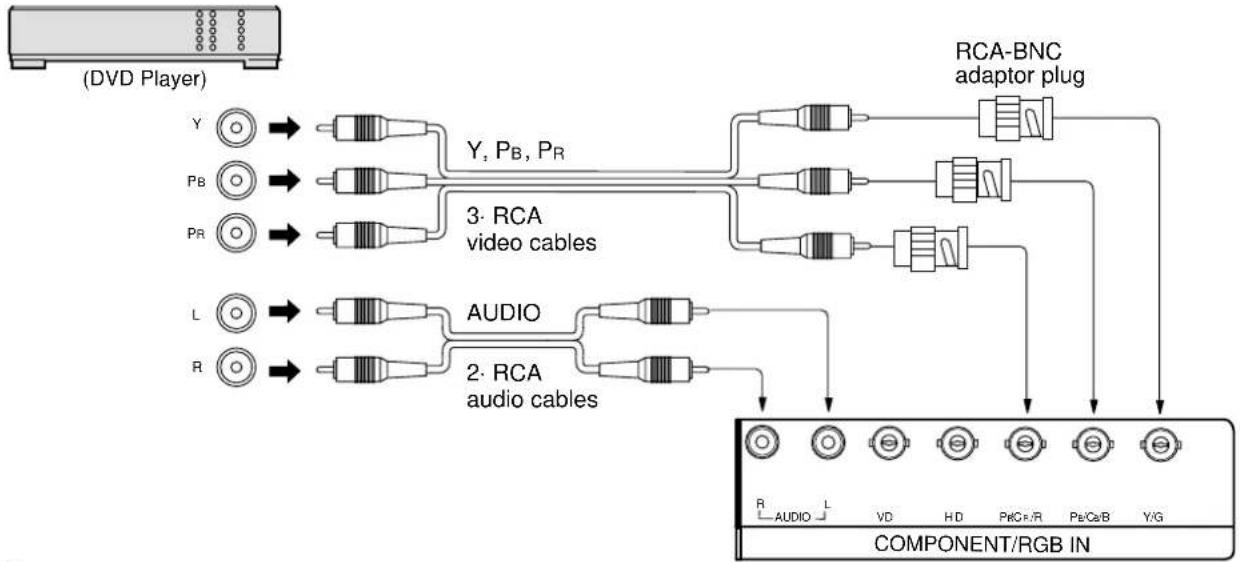

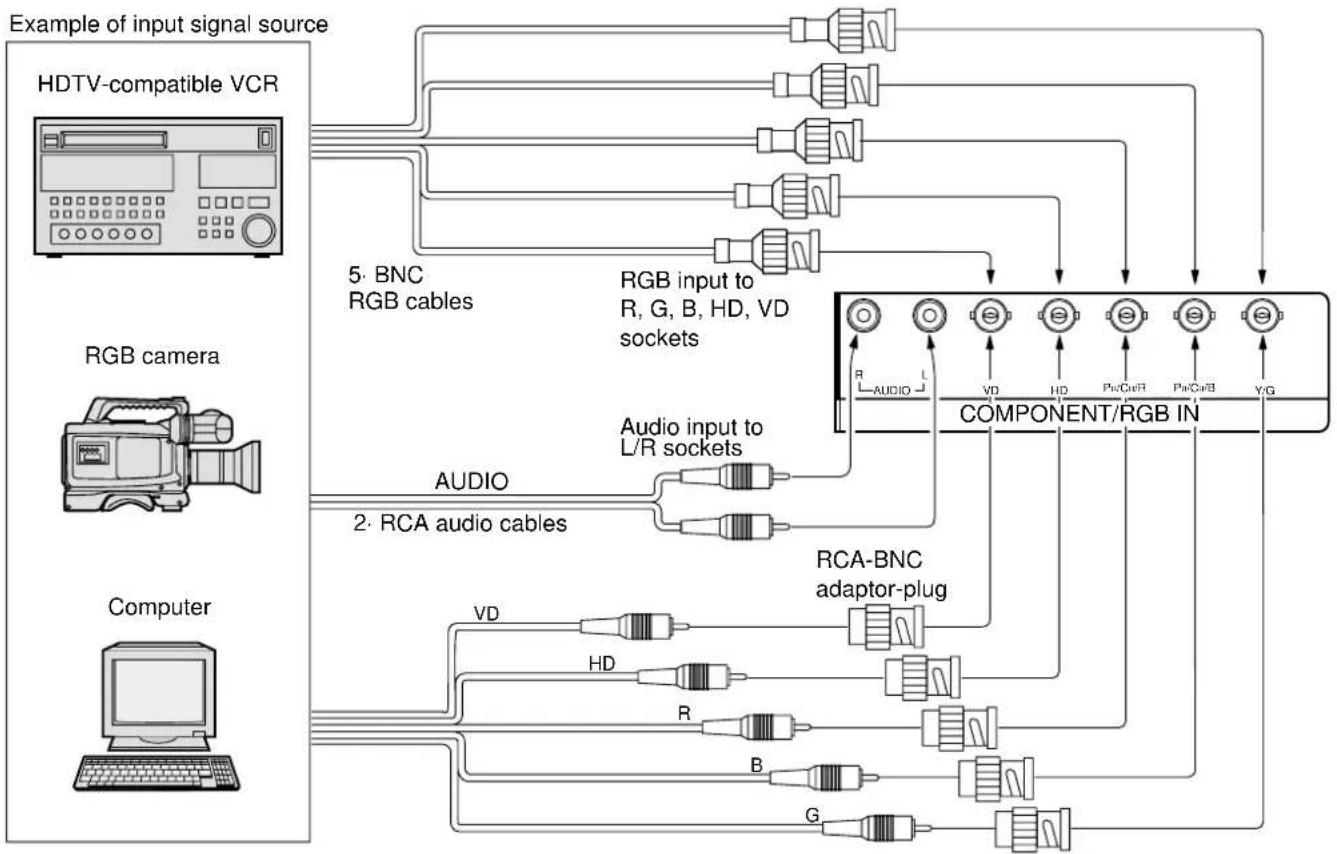

Component/RGB Input connection 39

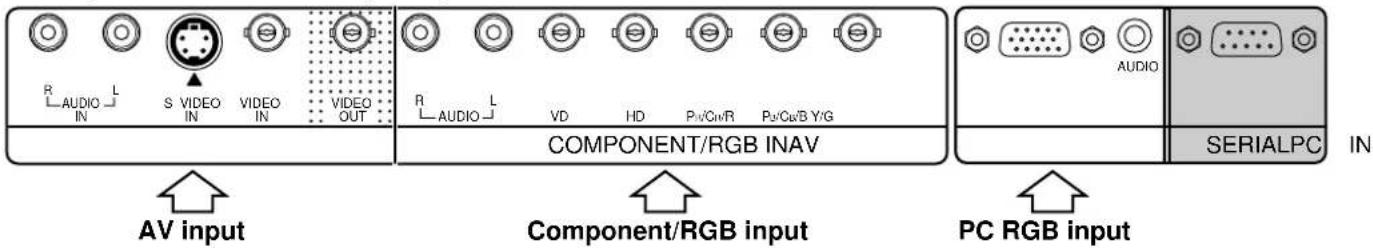

Input signal can be displayed.... 40

Specifications.... 42

Important Safety Notice

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

2) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case you may be required to take adequate measures.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fields. Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.

To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Safety Precautions

WARNING

Setup

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Speakers ...... TY-SP42P5W-K
• Pedestal TY-ST05-K
• Wall stand TY-ST42PW1
• Mobile stand …… TY-ST42PF3
• Wall-hanging bracket (vertical) …… TY-WK42PV1
• Wall-hanging bracket (angled) …… TY-WK42PR1
• Wall-hanging bracket (Drawer type) …… TY-WK42DR1
• Ceiling unit TY-CE42PS1
• BNC Terminal Board TY-42TM4Y
• RGB(digital) Terminal Board.... TY-42TM4D
• RGB active-through Terminal Board…… TY-42TM5G

Always be sure to ask a qualified technician to carry out set-up.

Do not place the Plasma Display on sloped or unstable surfaces.

- The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

- If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic dealer.

If using the pedestal (optional accessory), leave a space of at least 10 cm at the top, left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method, leave a space of at least 10 cm at the top, bottom, left and right, and at least 1.9 cm at the rear.

Avoid installing this product near electronic equipment that is easy to receive electromagnetic waves.

- It will cause interference in image, sound, etc. In particular, keep video equipment away from this product.

When using the Plasma Display

The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.

Do not cover the ventilation holes.

- Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

Do not stick any foreign objects into the Plasma Display.

- Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

- High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection, adjustment and repair work, please contact your local Panasonic dealer.

Securely insert the power cord plug as far as it will go.

- If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, they shall not be used.

Do not handle the power cord plug with wet hands.

- Doing so may cause electric shocks.

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

- Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

If the Plasma Display is not going to be used for any prolonged length of time, unplug the power cord plug from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the Plasma Display, immediately unplug the power cord plug from the wall outlet.

- If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing the Plasma Display yourself is extremely dangerous, and shall never be done.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damages, disconnect the power cord plug immediately.

- A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to be made.

CAUTION

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

- Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the Plasma Display.

- If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged, and fire or electric shock could result.

Disconnect the power cord plug from the wall socket as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it becoming dusty.

- If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire. Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

- If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

- Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

- If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

- Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

- Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instruction book

Panasonic

Remote Control Transmitter EUR646525

Batteries for the Remote Control Transmitter (2 · R6 Size)

AC cord

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Fixing bands

Illustration of two screw fasteners with threaded ends and mounting brackets (no text or symbols)

Ferrite core (small size) J0KF00000018 · 1

Ferrite core (large size) J0KG00000054 · 2

Optional Accessories

• Speakers TY-SP42P5W-K


• Pedestal TY-ST05-K


Technical line drawing of a metal bracket with two protruding pins (no text or symbols)

• Wall stand TY-ST42PW1

Line drawing of a stand with a rectangular panel and curved base (no text or symbols)

• Mobile stand TY-ST42PF3


Line drawing of a simple rectangular frame with four legs and a central horizontal panel (no text or symbols)

• Wall-hanging bracket (vertical) TY-WK42PV1

• Wall-hanging bracket (angled) TY-WK42PR1

• Wall-hanging bracket (Drawer type) TY-WK42DR1

• Ceiling unit TY-CE42PS1


• BNC Terminal Board TY-42TM4Y

Line drawing of a mechanical or electronic device with multiple ports and connectors (no text or symbols)

• RGB(digital) Terminal Board TY-42TM4D


Line drawing of a computer internal unit with ports and connectors (no text or symbols)

• RGB active through Terminal Board TY-42TM5G


Line drawing of a computer drive chassis with ports and connectors (no text or symbols)

For assembling

Full instructions are supplied with each optional accessory for use with this Plasma Display.

Remote Control Batteries

Requires two R6 batteries.

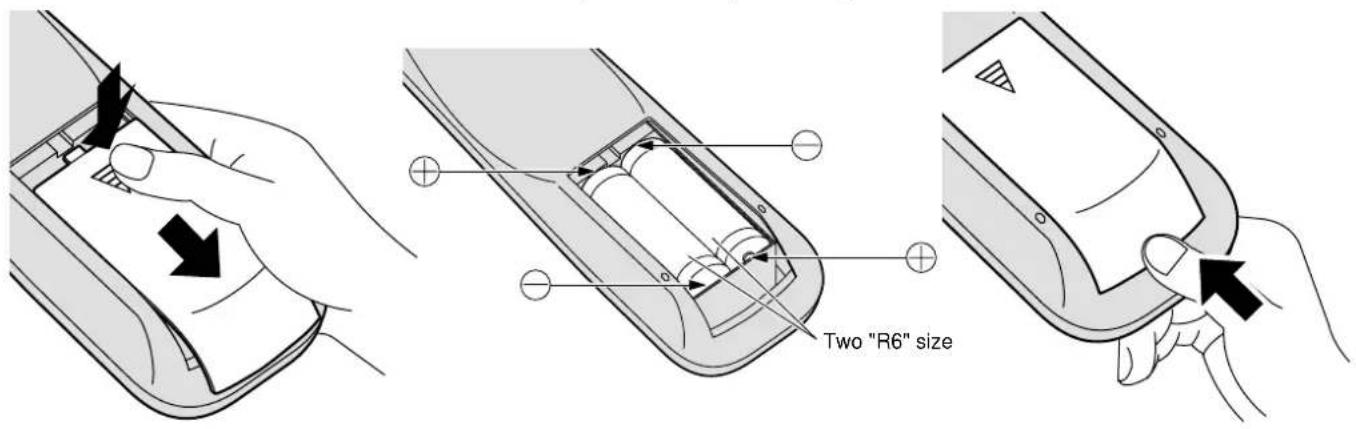

1. Turn the transmitter face down. Press and slide off the battery cover.

2. Install the batteries as shown in the battery compartment. (Polarity + or – must match the markings in the compartment.)

3. Replace the cover and slide in reverse until the lock snaps.

Two "R6" size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: "Zinc Carbon" with "Alkaline").
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.

Connections

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker's Installation Manual for details on speaker installation.

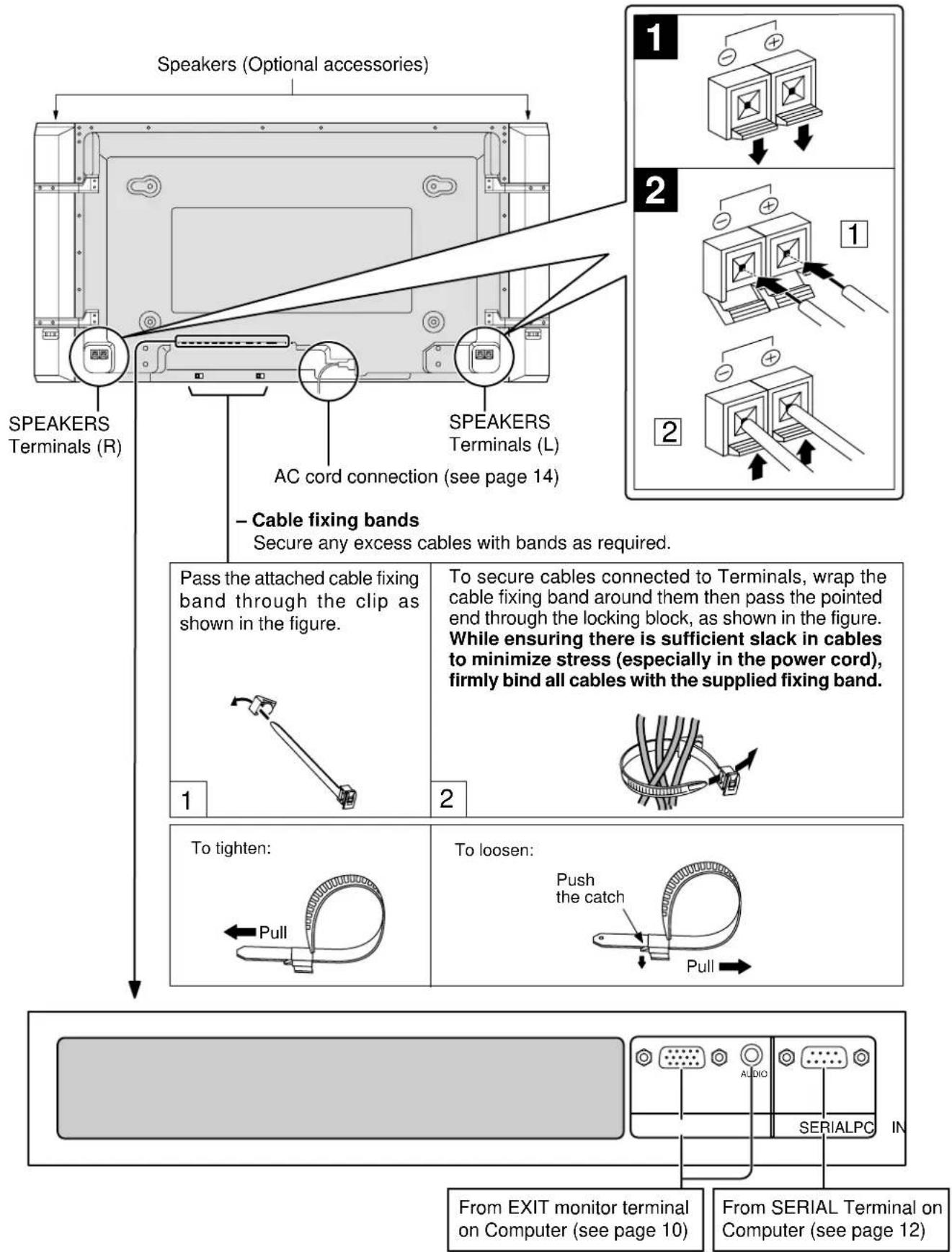

Speakers (Optional accessories) SPEAKERS Terminals (R) SPEAKERS Terminals (L) AC cord connection (see page 14) Cable fixing bands Secure any excess cables with bands as required. Pass the attached cable fixing band through the clip as shown in the figure. To secure cables connected to Terminals, wrap the cable fixing band around them then pass the pointed end through the locking block, as shown in the figure. While ensuring there is sufficient slack in cables to minimize stress (especially in the power cord), firmly bind all cables with the supplied fixing band. To tighten: Pull To loosen: Push the catch Pull From EXIT monitor terminal on Computer (see page 10) From SERIAL Terminal on Computer (see page 12)

PC Input Terminals connection

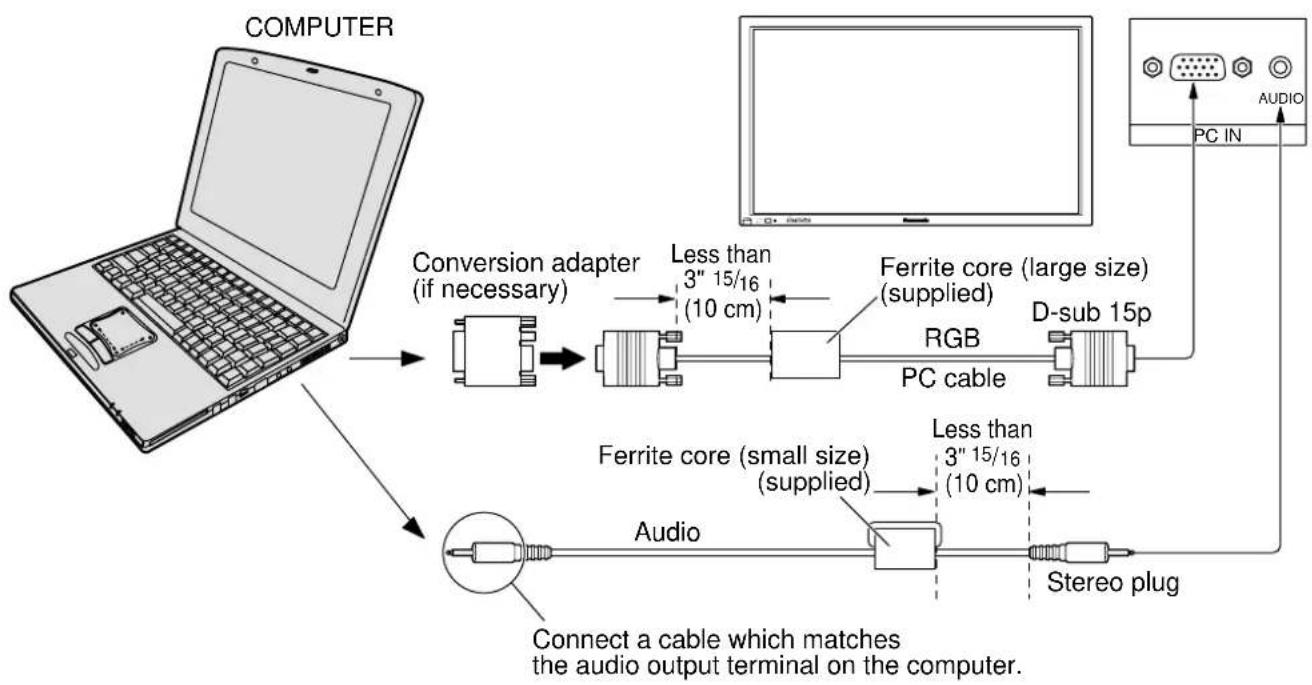


Installing the ferrite core (Small size)

1 Pull back the tabs (in two places)

2 Open

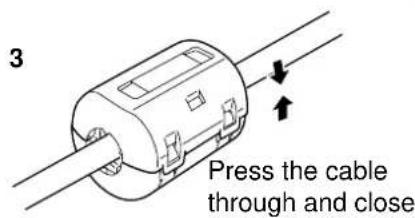

3 Press the cable through and close

Installing the ferrite core (Large size)

1 Pull back the tabs (in two places)

2 Open 3

3 Press the cable through and close

Notes:

(1) Computer signals which can be input are those with a horizontal scanning frequency of 15.6 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
(2) The display resolution is a maximum of 640 · 480 dots when the aspect mode is set to "4:3", and 852 · 480 dots when the aspect mode is set to "16:9". If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.
(3) The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible, you will need to make setting changes to the computer at the time of connection.
(4) Some PC models cannot be connected to the set.
(5) There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminal.
(6) The computer shown in the illustration is for example purposes only.
(7) Additional equipment and cables shown are not supplied with this set.
(8) Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.

Signal Names for D-sub 15P Connector

151413 ⑥⑦⑧⑨⑩ ①②③④⑤

Pin Layout for PC Input Terminal

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	R	6	GND (Ground)	11	GND (Ground)
2	G	7	GND (Ground)	12	SDA
3	B	8	GND (Ground)	13	HD/SYNC
4	GND (Ground)	9	NC (not connected)	14	VD
5	GND (Ground)	10	GND (Ground)	15	SCL

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

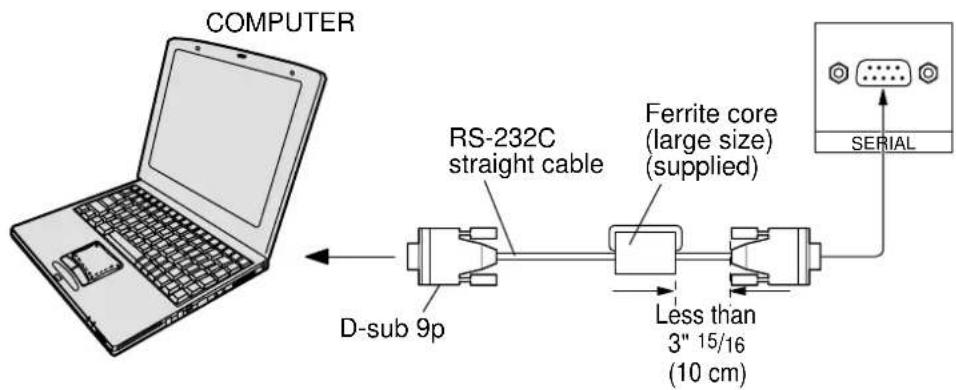

COMPUTER RS-232C straight cable Ferrite core (large size) (supplied) D-sub 9p Less than 3" 15/16 (10 cm) SERIAL

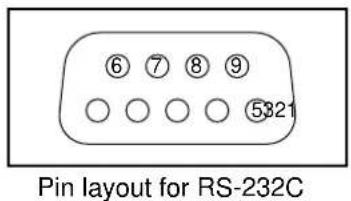

⑥ ⑦ ⑧ ⑨ ○ ○ ○ ○ ⑤321 Pin layout for RS-232C

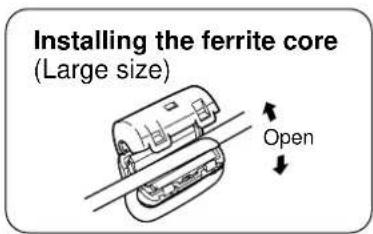

Installing the ferrite core (Large size) Open

Notes:

(1) Use the RS-232C cable to connect the computer to the Plasma Display.
(2) The computer shown is for example purposes only.
(3) Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled by a computer which is connected to this terminal.

The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level	RS-232C compliant
Synchronization method	Asynchronous
Baud rate	9600 bps
Parity	None
Character length	8 bits
Stop bit	1 bit
Flow control	—

RS-232C Conversion cable
D-sub 9-pin female	Details
2	R X D
3	T X D
5	GND
4·6	Non use
78	Shorted
1·9	NC

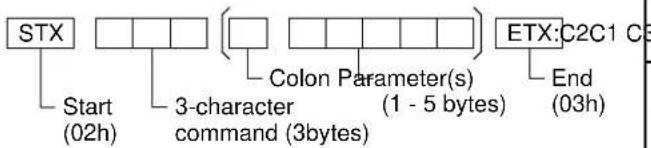

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

Notes:

(1) If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.
(2) If an incorrect command is sent by mistake, this unit will send an "ER401" command back to the computer.

Command

Command	Parameter	Control details
PON	None	Power ON
POF	None	Power OFF
AVL	**	Volume 00 - 63
AMT3 P2 P1 P3 P4	0P5	Audio mute OFF
		Audio mute ON
IIS(When Used RCATerminal Board)	NoneVIDYP1RG1	Input select (toggle)AV ModeComponent / RGB mode (processed as a Y/PB/PR or RGB signals as set by this unit)PC Mode
DAM	NoneNORMZOOMFULLJUSTSELF	Screen mode select (toggle)4 : 3Zoom16 : 9JustPanasonic Auto

With the power off, this display responds to PON command only.

Basic Controls

Explanations from here onward describe the functions when the optional BNC Terminal Board is installed.

Main Power On/Off Switch Power Indicator The Power Indicator will light. • Power-OFF .. Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.) • Stand-by ⏻ .....Red • Power-ON .....Green Stand-by (ON/OFF) button The Plasma Display must first be plugged into the wall outlet and turded on at the power switch. (see page 14) Press this button to turn the Plasma Display On, from Standby mode. Press it again to turn the Plasma Display Off to Standby mode. Status button Press the "Status" Button to display the current system status. AV 4:3 ① OFF timer 90 ② ③ ① AV(S Video), Component/RGB, PC mode ② Aspect mode (see page 18) ③ Off timer The off timer indicator is displayed only when the off timer has been set. N button (see page 21, 22, 24, 25) PICTURE button (see page 24) PICTURE POS./SIZE button (see page 20) PC button Press the "PC" mode selection button to select the PC mode. This button is used to switch R - STANDBY G POWER ON TH-42PWD5 INPUT button (AV(S Video), Component/RGB and PC Mode Selection) (see page 15) Volume Adjustment Press the Volume Up "+" or Down “-” button to increase or decrease the sound volume level. C.A.T.S sensor Plasma C.A.T.S (Contrast Automatic Tracking System) Plasma C.A.T.S automatically senses the ambient light conditions and adjusts the brightness and gradation accordingly,to optimise contrast. (Effective when Picture mode is set to Auto.) SURROUND button (see page 23) INPUT button AV(S Video), Component/RGB and PC Mode Selection) Press to select AV(S Video), Component/RGB and PC input signal modes sequentially. (see page 15) Sound mute On/Off (see page 22) Volume Adjustment Press the Volume Up "+" or Down “-” Button to increase or decrease the sound volume level. R button (see page 17) ACTION button Press to make selections POSITION buttons SET UP button (see page 16) SOUND button (see page 22) ASPECT button Press to adjust the aspect. (see page 18) OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fixed period.
The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes
(off timer cancelled) each time the button is pressed.
When three minutes remain, "Off timer 3" will flash.
The off timer is cancelled if a power interruption occurs.

Power On/Off and input signal selection

AC cord connection

Connecting the AC cord plug to the Plasma Display.

Diagram showing a device panel with labeled ports and a close-up of its internal component being inserted into a terminal block.

Power On/Off

Power Indicator Remote Control Sensor

Connecting the plug to the Wall Outlet Note:

Main plug types vary between countries. The power plug shown at left may, therefore, not be the type fitted to your set.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the Plasma Display is turned on. (setting condition is an example.)

When the Power is turned on for the first time, the Language selection screen is displayed.

From the second time on, language selection can be done from the setup menu. (see page 15)

Select the desired language using the ▲ and ▼ keys and press the ACTION ☐ button.

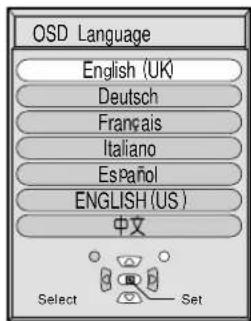

OSD Language English (UK) Deutsch Français Italiano Español ENGLISH (US) 中文 Select Set

From the second time on, the below screen is displayed for a while (setting condition is an example).

AV 4:3

INPUT SURROUND VOL N R

Press the ⏻ button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the ⏻ button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display set off by pressing the ⏻ switch on the Plasma Display, when the Plasma Display is on or in standby mode.

Select the input signal

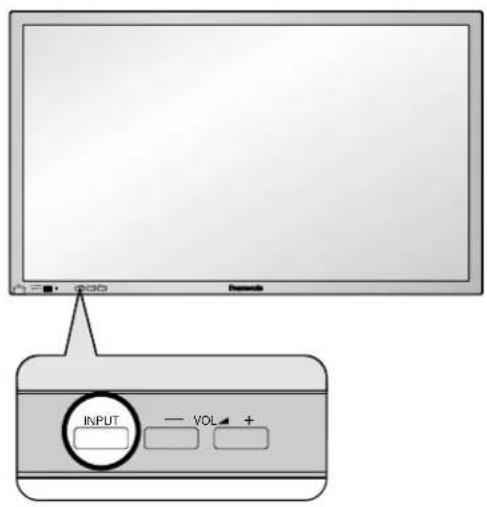

INPUT — VOL +

INPUT SURROUND VOL

Press the INPUT button to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Select the input signals to be connected by installing the optional Terminal Board. (see page 32)

Input signals will change as follows:

For Component Input

For RGB Input

Note: Input buttons do not work if no optional Terminal Board is installed.

Selecting the On-Screen Menu Language

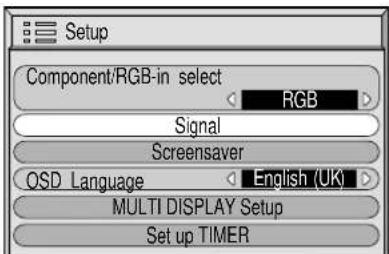

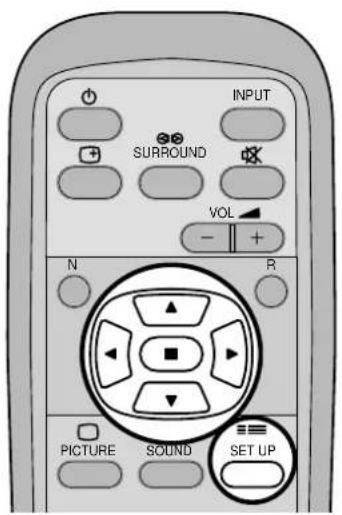

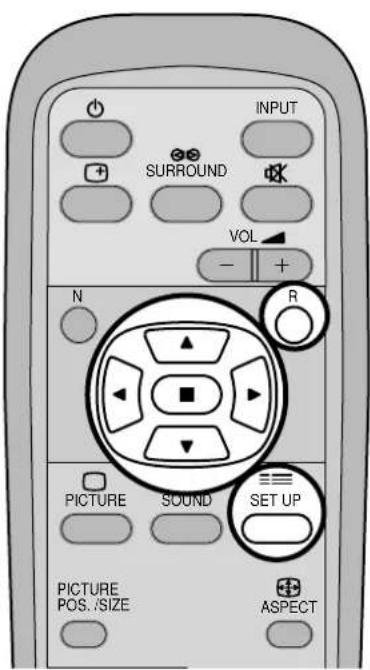

SET UP Press to display the Set Up menu. Press to select the OSD Language. Press to select your preferred language. Selectable languages English(UK) Deutsch Français Italiano Español ENGLISH(US) 中文 ......(Chinese)

On-Screen Menu Display from Remote Control

To Picture adjust menu (see page 24) Picture Normalise Normal Picture Mode Normal D Contrast 20 Brightness 0 Colour 0 Tint 0 Sharpness 0 White balance Normal D Advanced settings On D To Advanced Settings (see page 24, 25) Advanced Settings Normalise Normal Black extension 0 W/B High R 0 W/B High B 0 W/B Low R 0 W/B Low B 0 Gamma 2.2 D To Sound adjust menu (see page 22) Sound Normalise Normal Sound Mode Normal D Bass 0 Table 0 Balance 0 Surround On D To Picture Pos./Size adjust menu (see page 20) During "AV(S Video)" and "Component" input signal modes. Picture Pos./Size Normalise Normal H-Pos H-Size V-Pos V-Size During "RGB" and "PC" input signal modes. Picture Pos./Size Normalise Normal H-Pos H-Size V-Pos V-Size Clock Phase Panasonic PLASMA DISPLAY INPUT SURROUND VOL N R PICTURE SOUND SET UP PICTURE POS./SIZE ASPECT PC OFF TIMER Press to select each item. Setup Component:RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER Setup Component:RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER Setup Component:RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Press to screen.

To Signal screen for AV (see page 32, 33)

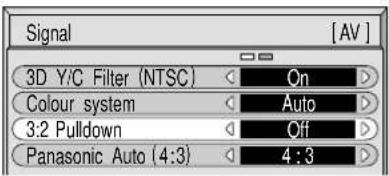

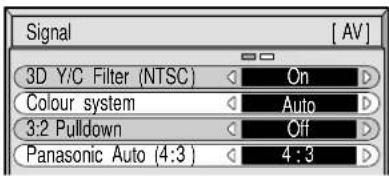

Signal 3D Y/C Filter (NTSC) On Colour system Auto 3:2 Pulldown Oil Panasonic Auto (4:3) 4:3 [AV]

Press to access each adjust screen.

To Signal screen for Component (see page 33)

Press the R button to return to "Setup" menu.

To Signal screen for RGB (see page 34)

Signal Sync H & V H-Freq. 31.5 kHz V-Freq. 60.0 Hz

To Signal screen for PC (see page 34)

Signal Sync H & V H-Freq. 31.5 kHz V-Freq. 60.0 Hz

Note:

"Signal" setup menu displays different setting condition for each input signals. (see page 15)

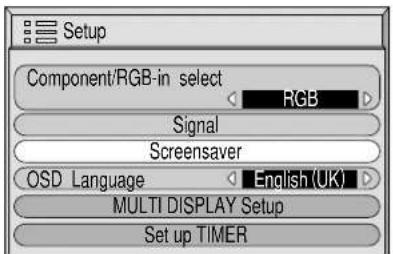

To setup Screensaver (see page 28)

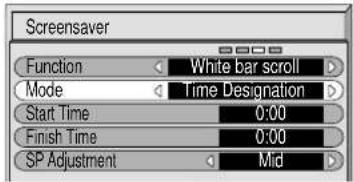

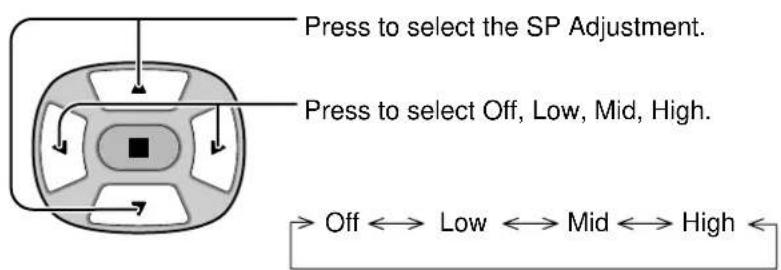

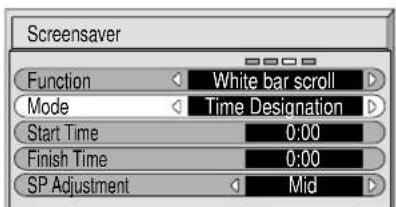

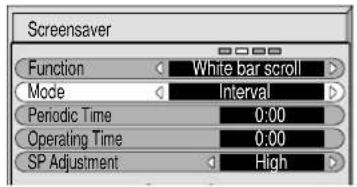

Screensaver Function White bar scroll Mode off Start Time 0:00 Finish Time 0:00 SP Adjustment High

Diagram of a control panel with directional arrows and a central square button (no text or symbols)

Press to select each time adjust screen.

Press to display each adjust screen.

Start Time Start Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

Finish Time Finish Time 0 : 00 Hours Adjustment 00 Minutes Adjustment 00

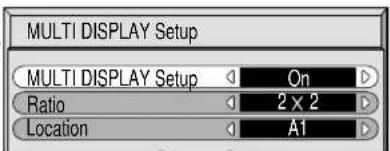

To setup Multidisplay screen (see page 30)

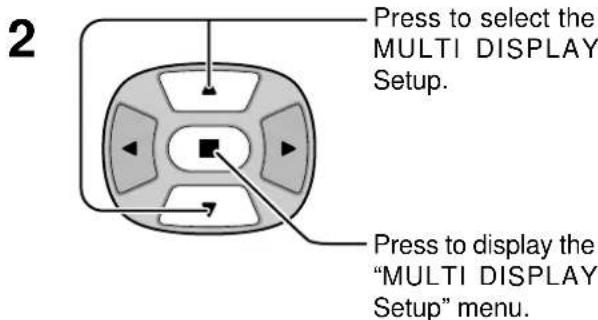

MULTI DISPLAY Setup MULTI DISPLAY Setup On Ratio 2× 2 Location A1

Press the R buttun to return to "Screensaver" menu.

Periodic Time Periodic Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

Operating Time Operating Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

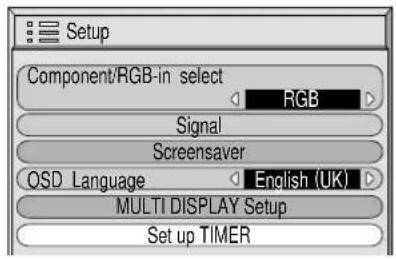

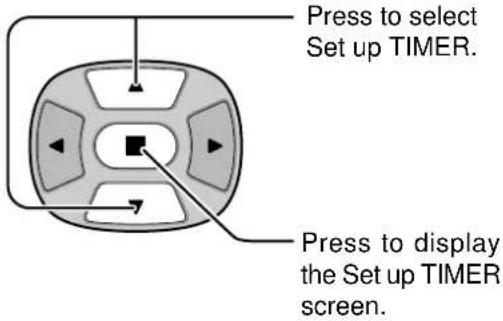

To Set up Timer selection screen (see page 26)

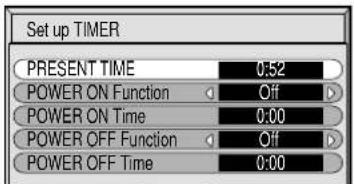

Set up TIMER PRESENT TIME 0:52 POWER ON Function Off POWER ON Time 0:00 POWER OFF Function Off POWER OFF Time 0:00

Press to select each Timer adjustment items.

When select Timer adjustment item, press this button to Setup TIMER screen.

Press the R button to return to "Setup" menu.

PRESENT TIME Setup PRESENT TIME 99 : 99 Hours Adjustment 00 Minutes Adjustment 00

POWER ON Setup POWER ON Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

POWER OFF Setup POWER OFF Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

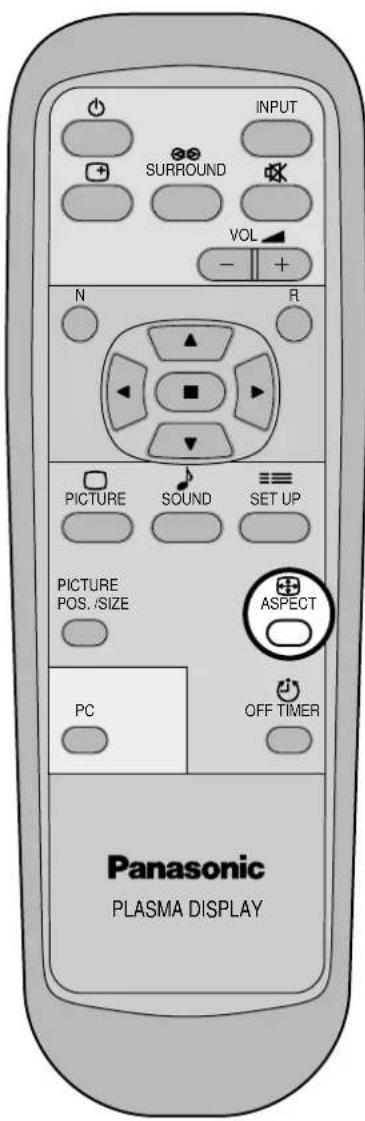

INPUT SURROUND VOL N R PICTURE SOUND SET UP PICTURE POS./SIZE ASPECT PC OFF TIMER Panasonic PLASMA DISPLAY

ASPECT button

The aspect mode changes each time the ASPECT button is pressed.

Notes:

(1) During RGB and PC input signal modes, the mode switches between "4:3", "Zoom" and "16:9" only.
(2) For a 525p (480p) signal input during "Component" input signal mode, the mode switches between "Zoom" and "16:9" only.
(3) For a 1,125i (1,080i), 750p (720p) signal input during "Component" input signal mode, the mode is set to "16:9" mode, and switching is not possible.
For a 525i (480i), 625i (575i) signal input during "Component" input signal mode, "Panasonic Auto" can not be selected.
(4) The aspect mode is memorized separately for each input terminal (AV, Component, RGB and PC).

Mode	Picture	Explanation
4:3		4:3 will display a 4:3 picture at its standard 4:3 size.
Zoom		Zoom mode magnifies the central section of the picture.
16:9		16:9 will display the picture at its maximum size but with sight elongation.
Just		Just mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

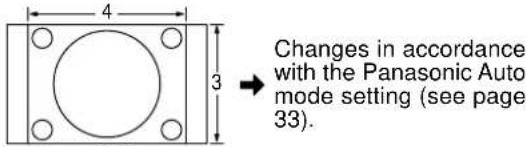

Panasonic Auto	For an elongated image Image is expandedFor a 4:3 image	The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.Note:Panasonic Auto mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to 4:3.

Note:

- Do not allow the picture displayed in 4:3 mode for an extended period, as this can cause a permanent after-image to remain on the Plasma Display Panel.

Adjusting Picture Pos./Size

Adjusting screen

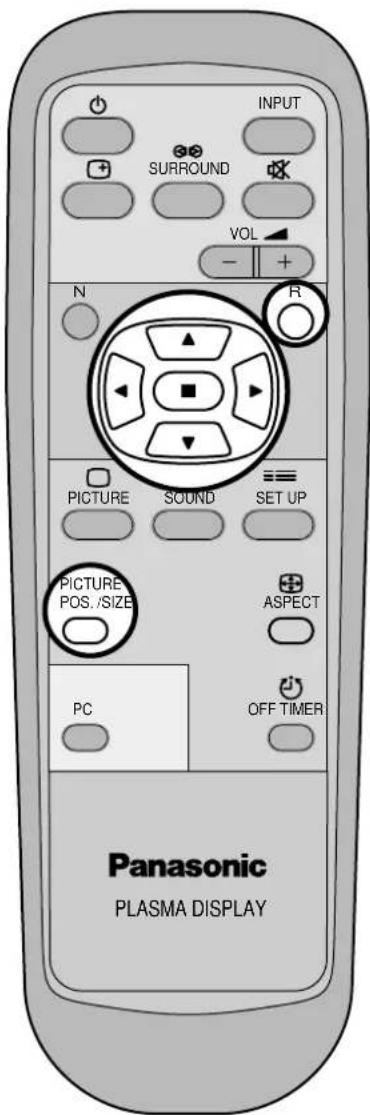

1

PICTURE POS./SIZE Press to display the Picture Pos./Size menu.

2

Diagram of a control panel with directional arrows and a central square (no text or symbols)

Press to select H-Pos/H-Size/V-Pos/V-Size/Clock Phase.

During "AV(S Video)" and "Component" input signal modes.

Picture Pos./Size Normalise Normal H-Pos H-Size V-Pos V-Size

During "RGB" and "PC" input signal modes.

Picture Pos./Size Normalise Normal H-Pos H-Size V-Pos V-Size Clock Phase

3

Press to adjust Pos./Size. R Press to exit from adjust mode.

INPUT SURROUND VOL - + N R PICTURE SOUND SET UP PICTURE POS./SIZE ASPECT PC OFF TIMER Panasonic PLASMA DISPLAY

Notes:

(1) Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are memorized for 525i (480i), 625i (575i), 525p (480p), 1,125i (1,080i) and 625p (575p), 750p (720p) each, and RGB/PC signals are memorized for each frequency.)
(2) If a "Cue" or "Rew" signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the Picture Pos./Size function.

H-Pos	When the Position Left “◀” button is pressed.	When the Position Right “▶” button is pressed.
H-Size	When the Position Left “◀” button is pressed.	When the Position Right “▶” button is pressed.
V-Pos	When the Position Left “◀” button is pressed.	When the Position Right “▶” button is pressed.
V-Size	When the Position Left “◀” button is pressed.	When the Position Right “▶” button is pressed.↓
Clock Phase (RGB/PC in Mode)	Flickering and distortion can be eliminated by using the Position Left “◀” or Right “▶” button to carry out adjustment.

Helpful Hint ( ^N / Normalise Normalisation)

While the Picture Pos./Size display is active, if either the N button on the remote control is pressed at any time or the (ACTION button) is pressed during "Normalise", then all adjustment values are returned to the factory settings.

Sound Adjustment

1

Press to display the Sound menu.

2

Select to adjust each item.

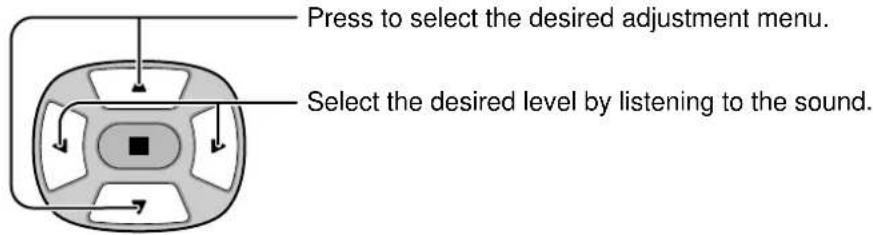

Press to select the desired adjustment menu. Select the desired level by listening to the sound.

INPUT SURROUND VOLT N R PICTURE SOUND SET UP PICTURE

Bass Adjusts low sounds Treble Adjusts high sounds Balance Adjusts left and right volumes Surround (see next page) Select On or Off Sound Normalise Normal Sound Mode Normal Bass 0 Treble 0 Balance 0 Surround On Normal Emits the original sound. Auto Automatically controls proper volume level.

- To end adjustments

Press the R button

Note:

Press the SURROUND button to directly turn the surround effect On and Off. (see next page)

Bass, Treble and Surround settings are memorized separately for each Sound mode (Normal, Auto).

Helpful Hint ( N / Normalise Normalisation)

While the "Sound" menu is displayed, if either the N button on the remote control is pressed at any time or the (ACTION button) is pressed during "Normalise", then all adjustment values are returned to the factory settings.

Mute

Useful when answering the phone or receiving unexpected visitors.

Press this button to mute the sound.

Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

Surround Controls

INPUT SURROUND VOL N R PICTURE SOUND SET UP PICTURE POS./SIZE ASPECT PC OFF TIMER Panasonic PLASMA DISPLAY

SURROUND Button

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

The surround setting switches on and off each time the SURROUND button is pressed.

On Off

Surround On

Note:

The surround settings are memorized separately for each Sound mode (Normal, Auto).

Picture Adjustments

1

Press to display the Picture menu.

2 Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

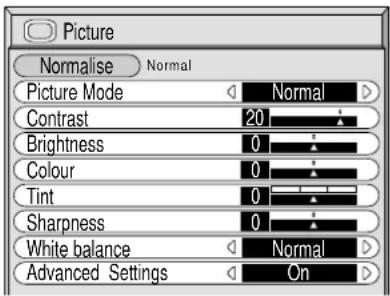

Picture Normalise Normal Picture Mode Normal Contrast 20 Brightness 0 Colour 0 Tint 0 Sharpness 0 White balance Normal Advanced Settings On

Picture Normalise Normal Picture Mode Normal Contrast 20 Brightness 0 Colour 0 Tint 0 Sharpness 0 White balance Normal Advanced settings On

Press the left ◀ or right ▶ button to select "On". Press the down ▼ button to enter Advanced Settings mode. Advanced Settings On Enables fine picture adjustment at a professional level (see next page).

Advanced Settings Normalise Normal Black extension 0 W/B High R 0 W/B High B 0 W/B Low R 0 W/B Low B 0 Gamma 2.2

Advanced Settings Off Displays images with settings of the Picture menu.

Press the left ◀ or right ▶ button to switch between modes.

Auto

Automatically selects the mode that best suits the brightness of the environment.

Normal

For viewing in standard (evening lighting) environments.

This menu selects the normal levels of Brightness and Contrast.

Dynamic

For viewing in brighter environments.

This menu selects higher than normal levels of Brightness and Contrast.

Cinema

Ideal for movies.

- Can be selected for AV/Component.

Note:

If you would like to change the picture and colour of the selected Picture menu to something else, adjust using the items in the Picture menu. (see next page)

Press the left ◀ or right ▶ button to switch between modes.

Helpful Hint ( ^N / Normalise Normalisation)

While the "Picture" menu is displayed, if either the N button on the remote control is pressed at any time or the (ACTION button) is pressed during "Normalise", then all adjustment values are returned to the factory settings.

Item	Effect	Adjustments
Contrast		Selects the proper brightness and density for the room.
Brightness	[D]	Adjusts for easier viewing of dark pictures such as night scenes and black hair.
Colour		Adjusts colour saturation.
Tint (NTSC only)	[R]	Adjust for nice skin colour.
Sharpness		Adjusts picture sharpness.

Notes:

(1) "Colour" and "Tint" settings cannot be adjusted for "RGB" and "PC" input signal modes.
(2) You can change the level of each function (Contrast, Brightness, Colour, Tint, Sharpness) for each Picture menu.
(3) The setting details for normal, dynamic and cinema respectively are memorized separately for each input mode (AV(S Video), Component, RGB and PC).
(4) The "Tint" setting can be adjusted for NTSC signal only during "AV (S Video)" input signal.

Note:

In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

Advanced Settings

Item	Effect	Details
Black extension		Adjusts the dark shades of the image in gradiation.
W/B High R		Adjusts the white balance for light red areas.
W/B High B		Adjusts the white balance for light blue areas.
W/B Low R		Adjusts the white balance for dark red areas.
W/B Low B		Adjusts the white balance for dark blue areas.
Gamma		2.0 2.2 2.5

Notes:

(1) Carry out "W/B" adjustment as follows.

Adjust the white balance of the bright sections using the "W/B High R" and "W/B High B" settings.
Adjust the white balance of the dark sections using the "W/B Low R" and "W/B Low B" settings.
C Repeat steps A and B to adjust.

Steps A and B affect each other's settings, so repeat each step in turn to make the adjustment.

(2) The adjustment values are memorized separately for each input mode (AV(S Video), Component, RGB and PC).
(3) The adjustment range values should be used as an adjustment reference.

Helpful Hint ( N / Normalise Normalisation)

On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or the ☐ (ACTION button) is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Set up TIMER

The timer can switch the Plasma Display On or Off.

Before attempting Timer Set, confirm the PRESENT TIME and adjust if necessary. Then set POWER ON Time / POWER OFF Time.

Display the Set up TIMER screen.

INPUT SURROUND VOL N R PICTURE SOUND SET UP

1

SET UP Press to display the Setup menu screen.

2

Press to select Set up TIMER. Press to display the Set up TIMER screen.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Set up TIMER PRESENT TIME 0:52 POWER ON Function Off POWER ON Time 0:00 POWER OFF Function Off POWER OFF Time 0:00

PRESENT TIME Set

To set up PRESENT TIME, follow the procedure described below.

1

Press to select PRESENT TIME. Press to display the PRESENT TIME Setting screen.

PRESENT TIME Setup PRESENT TIME 99 : 99 Hours Adjustment 00 Minutes Adjustment 00

2

Press to select Hours Adjustment / Minutes Adjustment. Press to set up Hours or Minutes. ► button: Forward ◄ button: Back Press to store PRESENT TIME Setup.

PRESENT TIME Setup PRESENT TIME 0:52 Hours Adjustment 00 Minutes Adjustment 52

TIMER Set

1

Diagram of a control panel with directional arrows and a central square button (no text or symbols)

Press to select

Press to select Hours Adjustment/Minutes Adjustment.

Press to adjust each time.

Press to complete POWER ON Time / POWER OFF Time.

POWER ON Setup POWER ON Time 0:52 Hours Adjustment 00 Minutes Adjustment 52 POWER OFF Setup POWER OFF Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

3

Press to select POWER ON Function/POWER OFF Function.

Press to select On.

Set up TIMER PRESENT TIME 0:52 POWER ON Function On POWER ON Time 0:00 POWER OFF Function On POWER OFF Time 0:00

4

Press twice to exit from Setup.

Note:

Timer function will not work unless "PRESENT TIME" is set.

Screensaver (For preventing after-images)

Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a Screensaver should be used.

1

Press to display the Setup menu screen.

2

Diagram of a circular device with six panels and directional arrows, no text or symbols present

Press to select the Screensaver.

Press to select the Screensaver screen.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English(UK) MULTI DISPLAY Setup Set up TIMER

Reversal / Scroll selection

3

Press to select the Function.

Press to select the desired function.

White bar scroll Reversal

Screensaver Function White bar scroll Mode Interval Periodic Time 0:00 Operating Time 0:00 SP Adjustment High

White bar scroll : The white bar will scroll from left to right.

Image Reversal : Negative image will be displayed on the screen.

Mode selection

4

Press to select the Mode.

Press to select each mode items.

Screensaver Function White bar scroll Mode Time Designation Start Time 0:00 Finish Time 0:00 SP Adjustment Mid

Interval : Operates when Periodic Time and Operating Time are setup and those times arrive.

Time Designation : Operates when Start Time and Finish Time are setup and those times arrive.

On: Operates when the (ACTION) is pressed.

If the Mode is at On, the menu screen will disappear and the Screensaver will be activated.

To stop the Screensaver under On, press the ⏻ button.

After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when "Mode" is "on" or "off.")

Screensaver Function White bar scroll Mode Time Designation Start Time 0:00 Finish Time 0:00 SP Adjustment Mid

Screensaver Function White bar scroll Mode Interval Periodic Time 0:00 Operating Time 0:00 SP Adjustment High

Screensaver Function White bar scroll Mode off Start Time 0:00 Finish Time 0:00 SP Adjustment High

Setup of Screensaver Time

5

Diagram of a circular device with directional arrows and control buttons, no text or symbols present

Press to select Start Time/Finish Time (When Time Designation is selected).

Press to select Periodic Time/Operating Time (When Interval is selected).

Press to select each Time Adjustment screen.

Screensaver Function White bar scroll Mode Time Designation Start Time 0:00 Finish Time 0:00 SP Adjustment Mid

Screensaver Function White bar scroll Mode Interval Periodic Time 0:00 Operating Time 0:00 SP Adjustment High

6

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Press to select Hours Adjustment/Minutes Adjustment.

Press to Setup Hours or Minutes.

▶ button: Forward
◀ button: Back

Press to store settings.

Start Time Start Time 0:00 Hours Adjustment 00 Minutes Adjustment 00 Finish Time Finish Time 0:00 Hours Adjustment 00 Minutes Adjustment 00 Periodic Time Periodic Time 0:00 Hours Adjustment 00 Minutes Adjustment 00 Operating Time Operating Time 0:00 Hours Adjustment 00 Minutes Adjustment 00

Note: Timer function will not work unless "PRESENT TIME" is set.

Side Panel Adjustment

Do not display a picture in 4:3 mode for an extended period, as this can cause an after-image to remain on the side panels either side of the display field.

To prevent the appearance of such an after-image, illuminate the side panels.

side panel 4:3 Screen Display after-images

1

To display the Screensaver screen. (Refer to the previous page, operation guide steps 1 and 2.)

2

Press to select the SP Adjustment. Press to select Off, Low, Mid, High. Off ↔ Low ↔ Mid ↔ High

Screensaver Function White bar scroll Mode Time Designation Start Time 0:00 Finish Time 0:00 SP Adjustment Mid

3

Press to exit from Screensaver.

Notes:

• Setting the side panel to High mode for an extended period may result in occurrence of after-images.
• The side panels may flash (alternate black/white) depending on the picture being shown on the screen. In such an occurrence, use the Cinema mode.

Setup for MULTI DISPLAY

① By lining up Plasma Displays in groups of 4 or 9 as illustrated below, an enlarged picture may be displayed across all screens.
② For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

group of 4 (2·2) group of 9 (3·3)

Black-and-white photo of a palm tree by the sea with a distant shoreline, framed within a 3x4 grid (no text or symbols)

Black-and-white photo of palm trees and a calm lake at sunset, framed within a grid (no text or symbols)

How to Setup MULTI DISPLAY

INPUT SURROUND VOL N R PICTURE SOUND SET UP

1 ≡ SET UP Press to display the Setup menu screen.

2 Press to select the MULTI DISPLAY Setup. Press to display the "MULTI DISPLAY Setup" menu.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Press to select the MULTI DISPLAY Setup. Press to select "On" or "Off". 3

MULTI DISPLAY Setup MULTI DISPLAY Setup On Ratio 2 x 2 Location A1

How to set the display location number for each Plasma Display

4

Press to select Ratio (2nd step).

Press to select "2·2", "3·3".

MULTI DISPLAY Setup MULTI DISPLAY Setup On Ratio 2 x 2 Location A1

5

Press to select Location.

Press to select the required arrangement number. (A1-C3 : Refer to the following.)

MULTI DISPLAY Setup MULTI DISPLAY Setup On Ratio 2 x 2 Location A1

Display Number locations for each arrangement.

A1 A2
B1 B2

A1 A2	A3
B1 B2	B3
C1 C2	C3

6

Press twice to exit from Setup.

Notes:

(1) For PC or RGB input signals, normal multi-display magnification is only available at the VGA resolution.
(2) The multi-display capability is not functional for component signals.
(3) The MultiDisplay (multiskærmdisplay) function does not display certain input signals from the terminals of the installed option boards listed below:
• Digital RGB input signals from the DV1 terminal of RGB (Digital) Terminal Board (TY-42TM4D)

Setup for Input Signals

Component/RGB-in Select

Select the input signals to be connected by installing the Optional Terminal Board.

(Refer to the service manual for the optional Terminal Board.)

Select to match the signals from the source connected to the Component/RGB input terminals.

Y, PB, PR signals “Component”

R, G, B, HD, VD signals "RGB"

INPUT SURROUND VOL - + N R PICTURE SOUND SET UP PICTURE POS. /SIZE ASPECT

1

Press to display the Setup menu screen.

2

Press to select the "Component/RGB-in Select".

Press to select the desired mode.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English(UK) MULTI DISPLAY Setup Set up TIMER Component ←→ RGB

Press to exit from adjust mode.

3D Y/C Filter – For NTSC AV images

Select "Signal" from the "Setup" menu during AV(S Video) input signal mode. ("Signal [AV]" menu is displayed.)

Press to select the "3D Y/C Filter (NTSC)". Press to set On/Off.

R Press to exit from adjust mode.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English(UK) MULTI DISPLAY Setup Set up TIMER

Signal [ AV ] 3D Y/C Filter (NTSC) On Colour system Auto 3:2 Pulldown Off Panasonic Auto (4:3) 4 : 3

Note:

When On, this setting only affects NTSC input signals.

Colour system / Panasonic Auto

Select Signal from the "Setup" menu during AV(S Video) input signal mode. ("Signal [AV]" menu is displayed.)

Press to select the "Colour System" or "Panasonic Auto".

Press to select each functions.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Press ☐ (ACTION) button

If the picture image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

Signal [ AV ] 3D Y/C Filter (NTSC) On Colour system Auto 3:2 Pulldown Off Panasonic Auto (4:3) 4:3

Mode	Function
Colour system	Set the colour system to match the input signal. If set to “Auto”, the colour system is determined automatically.
Panasonic Auto (4:3)	Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected. If you would like to view 4:3 images in “Just” format, set to “Just”.

3:2 Pulldown

When on, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second.

If the picture is not stable, turn the setting to off.

Select "Signal" from the "Setup" menu during AV(S Video) or Component input signal mode. ("Signal [AV]" menu is displayed.)

Press to select 3:2 Pulldown. Press to set On/Off.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Press ☐ (ACTION) button

Note:

When On, this setting only affects the following signal input.

• NTSC signal input during "AV(S Video)" input signal mode.
• 525i(480i) signal input during "Component" input signal mode.

Signal [AV] 3D Y/C Filter (NTSC) On Colour system Auto 3:2 Pulldown Off Panasonic Auto (4:3) 4:3

Press to exit from adjust mode.

Sync

Select Signal from the "Setup" menu during RGB or PC input signal mode.

Press to adjust.

Press to exit from adjust mode.

Setup Component/RGB-in select RGB Signal Screensaver OSD Language English (UK) MULTI DISPLAY Setup Set up TIMER

Press ☐ (ACTION) button

Signal Sync H & V H-Freq. 31.5 kHz V-Freq. 60.0 Hz

Signal Sync H & V H- Freq. 31.5 kHz V- Freq. 60.0 Hz

Setting RGB sync signal:

Confirm that the input is set to RGB input (this setting is valid only for RGB input).

H & V: The H and V sync signals are input from the HD/VD connector.

on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.

on VIDEO: Compatible with the scart plug (Europe)

The composite video signal input from the VIDEO input terminal is used by dividing the sync signals.

Sync H & V Sync on G Sync on VIDEO

Setting PC sync signal:

Confirm that the input is set to PC input (this setting is valid only for PC input).

H & V: The H and V sync signals are input from the HD/VD connector.

on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.

Sync H & V Sync on G

H-Freq. (kHz)/V-Freq. (Hz)

Displays the H (Horizontal)/V (Vertical) frequencies.

This display is valid only for RGB input and PC input.

Display range:

Horizontal 15.6 - 110 kHz

Vertical 48 - 120 Hz

H-Freq. 31.5 kHz V-Freq. 60.0 Hz

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms		Checks
Picture	Sound
Interference	Noisy Sound	Electrical AppliancesCars/MotorcyclesFluorescent light
Normal Picture	No Sound	Volume(Check whether the mute function has been activated on the remote control.)
No Picture	No Sound	Not plugged into AC outletNot switched onPicture and Brightness/Volume setting(Check by pressing the power switch or stand-by button on the remote control.)
No Picture	Normal Sound	If a signal with a non-applicable colour system format, or frequency is input, only the input terminal indication is displayed.
No Colour	Normal Sound	Colour controls set at minimum level.(see page 24, 25)Colour system (see page 33)

Plasma Display panel

Symptoms	Check
Some parts of the screen do not light up.	The plasma display panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.
After-images appear	Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display.Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.Note:The permanent after-image on the Plasma Display resulting from fixed image use is not an operating defect and as such is not covered by the Warranty.This product is not designed to display fixed images for extended periods of time.

Connections

Connection to the Optional Terminal Board

By installing the optional BNC Terminal Board, the Plasma Display can handle high quality input signals such as AV (S Video), DVD, and RGB. Below is the connecting method when the optional BNC Terminal Board is installed.

Optional BNC Terminal Board (TY-42TM4Y) R L AUDIO IN S VIDEO IN VIDEO IN VIDEO OUT COMPONENT/RGB INAV AV Terminals (see page 37, 38) COMPONENT/RGB IN and Audio IN Terminals (see page 39) SPEAKER Terminals (R) SPEAKER Terminals (L) AUDIO SERIALPC IN

Notes:

After installing the Optional Terminal Board, the Setup menu screen on the Plasma Display will change. (The input signal cables should be connected to the relevant terminals.)

• The input signals that may be selected by the INPUT button will change.
• The required mode, either "Component" or "RGB" and "Component/RGB-In Select", will be available for selection.
• On the Setup menu screen, the setting contents under Signal will change.

AV Input Terminals connection

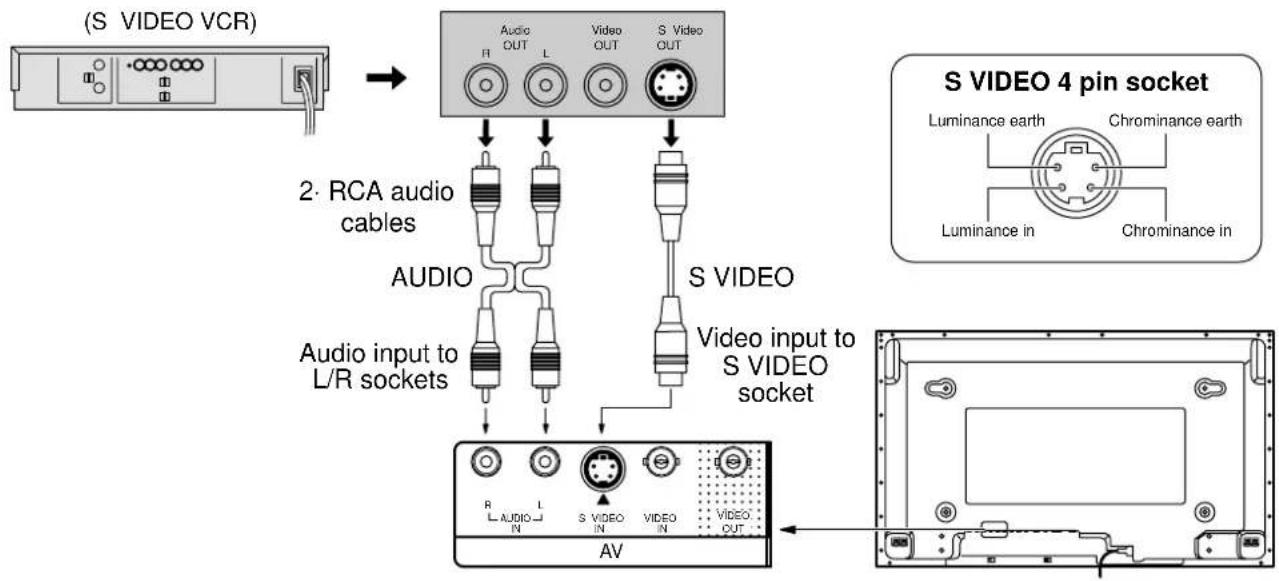

Connect the signal source equipment

(Example) When connecting an S VIDEO VCR.


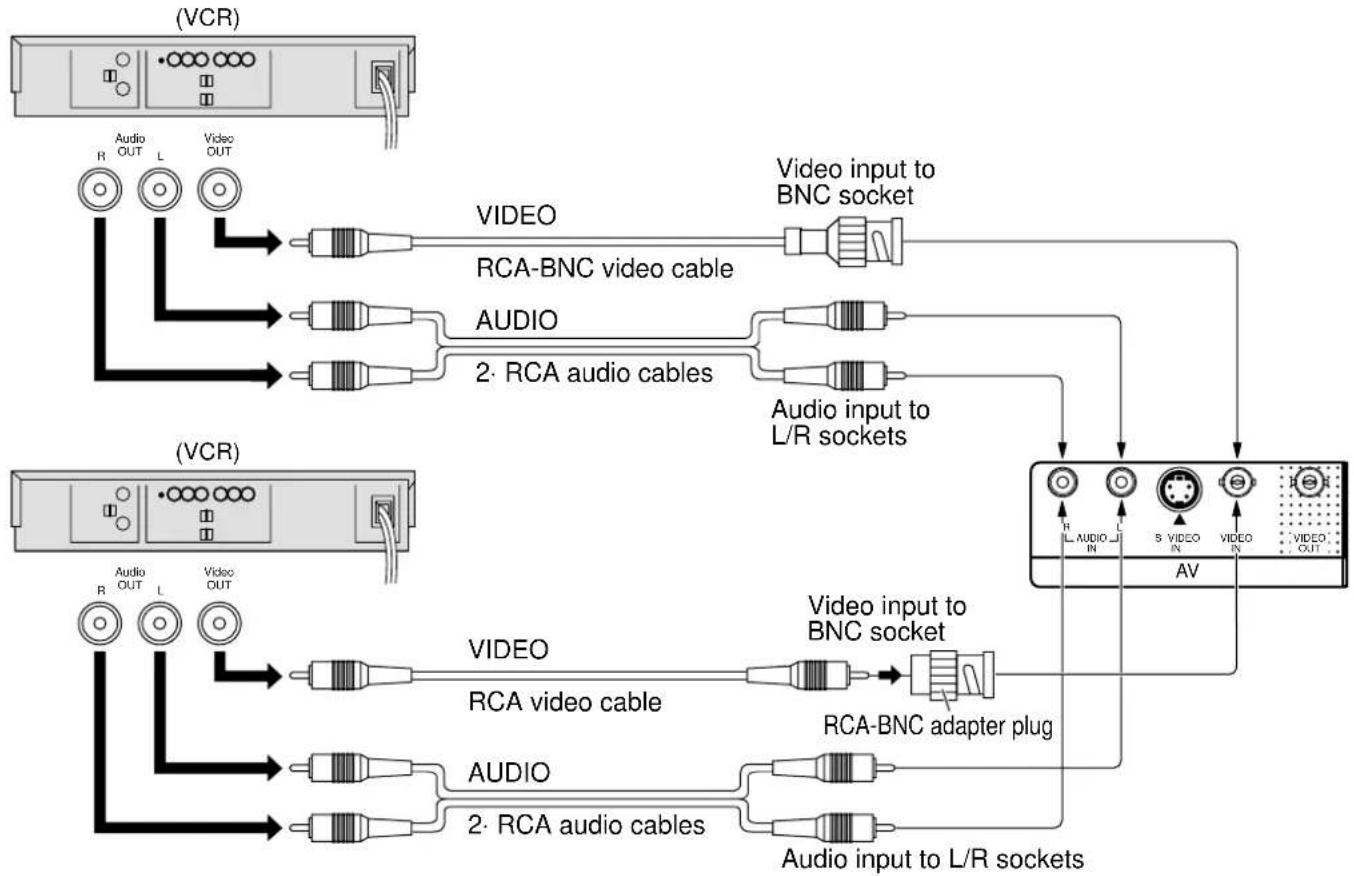

VIDEO signal connection
Notes:

(1) S-Video input will override the composite video signal when S-Video lead is connected.
(2) Additional equipment and cables shown are not supplied with this set.

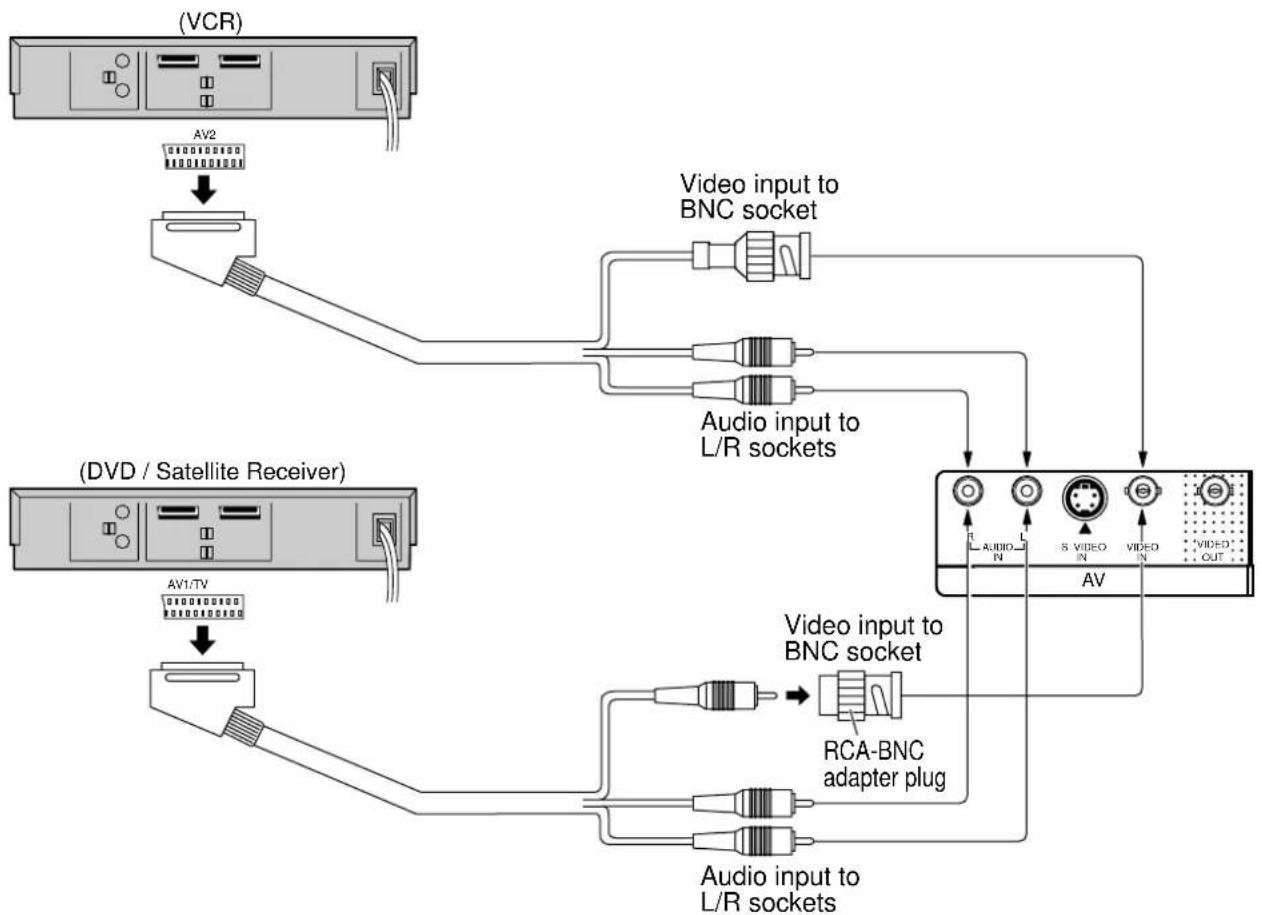

(Example) When connecting 21 pin scart cables.

Notes:

(1) Additional equipment, cables and an adaptor plug shown are not supplied with this set.
(2) 21 pin connectors and 21 pin scart plugs are connectors used in Europe.

AV Out

R AUDIO L S VIDEO VICO OUT AV BNC cable MONITOR DEVICE Example) colour CRT monitor

Component/RGB Input connection

Component signals (Y, P_B , P_R ) connection

Notes:

(1) Change the "Component/RGB-in" setting in the "Setup" menu to "Component". (see page 32)
(2) Additional equipment, cables and adaptor plugs shown are not supplied with this set.

RGB signal (R, G, B, HD, VD) connection

Notes:

(1) Change the "Component/RGB-in" setting in the "Setup" menu to "RGB". (see page 32)
(2) Additional equipment, cables and adaptor plugs shown are not supplied with this set.

Input signal can be displayed

AV/Component/RGB/PC/DVI input signals

R AUDIO L IN S VIDEO IN VIDEO IN VIDEO OUT COMPONENT/RGB INAV AV input Component/RGB input PC RGB input AUDIO SERIALPC IN

AV input

	signal name	horizontal vertical frequency(kHz) frequency(Hz)
1 NTSC	15.734	59.95
2	PAL	15.625 50
3	PAL60	15.734 59.95
4 SECAM	15.625	50
5	Modified NTSC 15.734	59.95

*Mark:

Input signal can be displayed.

Component/RGB/PC/DVI input

	signal name	horizontal vertical frequency(kHz) frequency(Hz)		Component R	GB PC DVI
1 525 (480) /60i 15.734 59.94				*	*	*
2 625 (575) /50i 15.625 50				*	*	*
3 525 (480) /60p 31.468 59.94				*	*
4 625 (575) /50p 31.25		50		*	*	*
5 750 (720) /60p	45	60		*	*	*
6	1,125 (1,080) /60i	33.75	60	*	*	*
7	1,125 (1,080) /50i	28.125 50		*	*	*
8	1,125 (1,080) /24p	27	24	*	*	*
9	1,125 (1,080) /24sF 27	48		*	*	*
10	640 · 400 @70	31.5	70		*	*
11	640 · 480 @60	31.5	59.94		*	*	**
12	Macintosh13" (640 · 480)	35	67		*	*
13	640 · 480 @75	37.5	75		*	*
14	852 · 480 @60	31.7	60		*	*	**
15	800 · 600 @60	37.9	60		*	*	**
16	800 · 600 @75	46.9	75		*	*
17	800 · 600 @85	53.7	85		*	*
18	Macintosh16" (832 · 624)	49.7	75		*	*
19	1,024 · 768 @60	48.4	60		*	*	**
20	1,024 · 768 @70	56.5	70		*	*
21	1,024 · 768 @75	60	75		*	*
22	1,024 · 768 @85	68.7	85		*	*
23	Macintosh21" (1,152 · 870)	68.7	75		*	*
24	1,280 · 1,024 @60	64	60		*	*
25	1,280 · 1,024 @75	80	75		*	*
26	1,280 · 1,024 @85	91.1	85		*	*
27	1,600 · 1,200 @60	75	60		*	*

By installing the RGB(digital)Terminal Board(TY-42TM4D) to this set the PC input signal can be displayed.

Specifications

		TH-42PWD5
Power Source		220 - 240 V AC, 50/60 Hz
Power Consumption
Normal use		295 W
Stand-by condition		2.8 W
Power off condition		1.5 W
Plasma Display panel		Drive method AC type42-inch, 16:9 aspect ratio
Contrast Ratio		3000:1
Screen size		920 mm (W) · 518 mm (H) · 1,056 mm (diagonal)No. of pixels408,960 (852 (W) · 480 (H)) [2,556 · 480 dots]
Operating condition
Temperature		0 °C - 40 °C
Humidity		20 % - 80 %
Applicable signals
	Colour System	NTSC, PAL, PAL60, SECAM, Modified NTSC
	Scanning format	525i (480i), 625i (575i), 525p (480p), 625p (575p), 750p (720p), 1,125/60i, 50i, 24p, 24sF (1,080/60i, 50i, 24p, 24sF) ...... SMPTE 274M
	PC signals	VGA displayVGASVGA, XGA, SXGA, UXGA (compressed)Horizontal scanning frequency 15.6 - 110 kHzVertical scanning frequency 48 - 120 Hz
Connection terminals
	PC	(HIGH-DENSITY D-SUB 15PIN) R,G,B/0.7 Vp-p (75-ohm)HD, VD/1.0 - 5.0 Vp-p (high impedance)AUDIO IN (M3 JACK) 0.5 Vrms (high impedance)
	SERIAL	EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE
	SPEAKERS (6 Ω)	16W [8 W + 8 W] (10 % THD)
Accessories Supplied
	Remote Control Transmitter	EUR646525
	Batteries	2 · R6 Size
	Fixing bands	(TMME203 or TMME187) · 2
	Ferrite core	J0KF00000018 · 1, J0KG00000054 · 2
Optional Supplied
	Speakers	TY-SP42P5W-K
	Pedestal	TY-ST05-K
	Wall stand	TY-ST42PW1
	Mobile stand	TY-ST42PF3
	Wall-hanging bracket(vertical)	TY-WK42PV1
	Wall-hanging bracket(angled)	TY-WK42PR1
	Wall-hanging bracket(Drawer type)	TY-WK42DR1
	Ceiling unit	TY-CE42PS1
	BNC Terminal Board	TY-42TM4Y
	RGB(digital)Terminal Board	TY-42TM4D
	RGB active-throughTerminal Board	TY-42TM5G
Dimensions(W·H·D)		1,020 mm · 610 mm · 89 mm
Mass (Weight)		approx. 28.0 kg net (main unit only)approx. 32.2 kg (with speakers)

Notes:
(1) Design and specifications are subject to change without notice. Weight and dimensions shown are approximate.
(2) This equipment complies with the EMC standards listed below.
EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2.

Customer' Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number

Serial Number
