Operating Instructions Plasma Television

Model No. TH-37PX80BA TH-42PX80BA

VIERA

VIERA Link

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

U.K. Standard

English

TQB0E0716

Turn your living room into a home theatre!

Experience an amazing level of multi-media excitement

■Receives digital terrestrial broadcastings using an integrated DVB (Digital Video Broadcasting) tuner

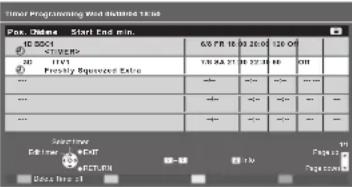

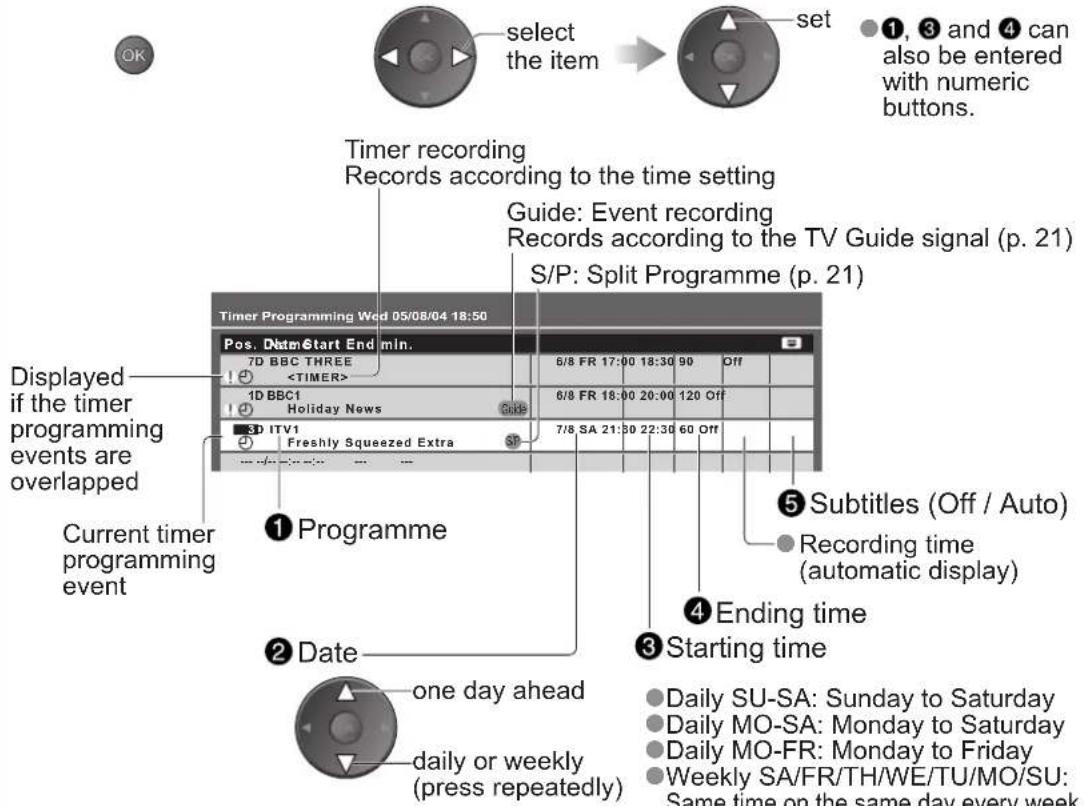

Display DVB programmes with TV Guide (p. 20) / Timer Programming (p. 40) / Register and instantly call up favourite programmes with Profile Edit (p. 32)
■ Sharp pictures with HDMI connection
Enjoy high-definition digital picture and high-quality sound by using an HDMI cable (p. 52)
■Links up and controls the connected equipment with "Q-Link" and "VIERA Link" Easy recording and playback, create home theatre without complicated settings, etc. (p. 44)
■Supports Audio Description signal (p. 15 and p. 26)
This function can add an additional audio track to describe events on-screen and aids understanding and enjoyment, particularly for visually-impaired viewers.

Illustration of a home TV setup with a CRT monitor, TV set, and two speakers (no text or symbols)

Digital Switchover

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.

If you have any questions, please call Digital UK on 08456 50 50 50

or visit www.digitaluk.co.uk

Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV programmes and some Digital TV programmes will be missing. You will need to retune your TV each time this happens to recover your digital programmes.

To retune your TV → "Auto Setup" in "Tuning Menu" (p. 35)

Cable or Satellite users should still retune the TV to continue to receive Freeview services via their aerial. (Your Analogue programme for viewing Cable or Satellite services will change to a new position.)

HD ready

High Definition signals are supported by HDMI and Component Video inputs.

100Hz Double Scan

100Hz Double Scan is a function of this TV that reduces large area f l icker.

15,000:1 Native Contrast

A wide contrast ratio will deliver pictures with a deep black level and a brighter white level for greater image depth.

24p Playback

Can support 1080p, 24 frames per second source materials.

0.001 msec Panel Response Time

Extremely fast response time to minimise picture lag.

V-Audio

Utilises Panasonic's advanced Digital Amplification technology.

Lead-free display

All VIERA plasma display panels are lead-free. This reduces the impact on the environment when recycling or disposing of them in the future.

Up to 100,000 hours Plasma Panel Lifetime

The Plasma display panel used in the 2008 VIERA TV range is rated for up to 100,000 hours.*

*This measurement is based on the time taken for the brightness of the panel to reduce to half of it's maximum level. The time taken to reach this level may vary depending on the image content and the environment where the TV is used. Image retention and malfunctions are not taken into account.

Illustration of a vintage-style office interior with a sofa, coffee table, and a door (no text or symbols)

Contents

Be Sure to Read

Safety Precautions 4 (Warning / Caution)
Notes 5
● Maintenance 5

Quick Start Guide

●Accessories / Options……6
● Identifying Controls 8
●Basic Connection …… 10

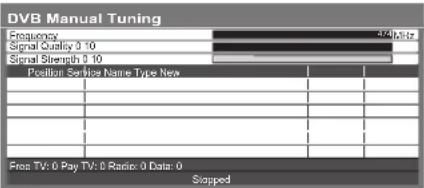

●Auto Setup 12

Enjoy your TV!

Basic Features

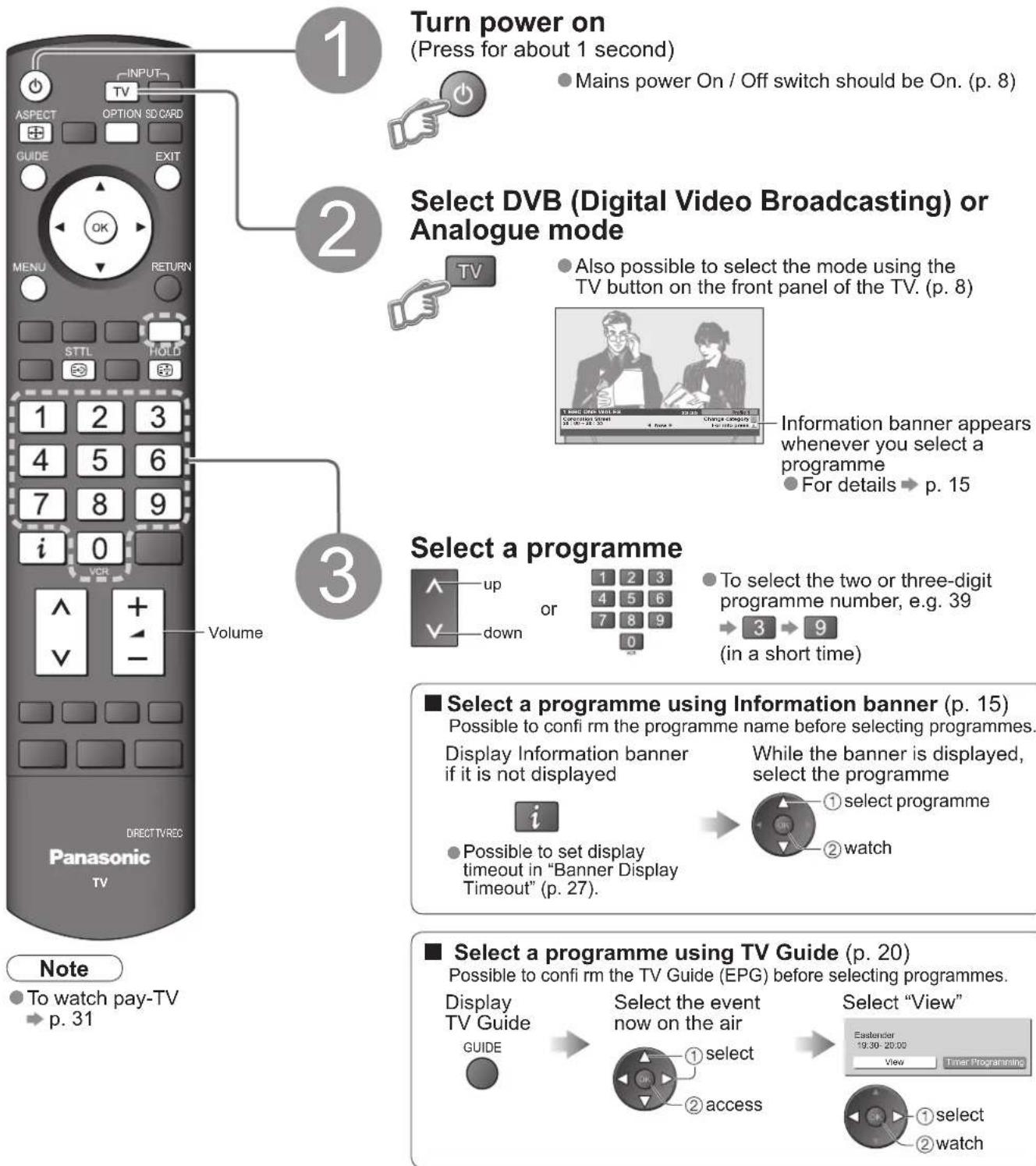

● Watching TV 14

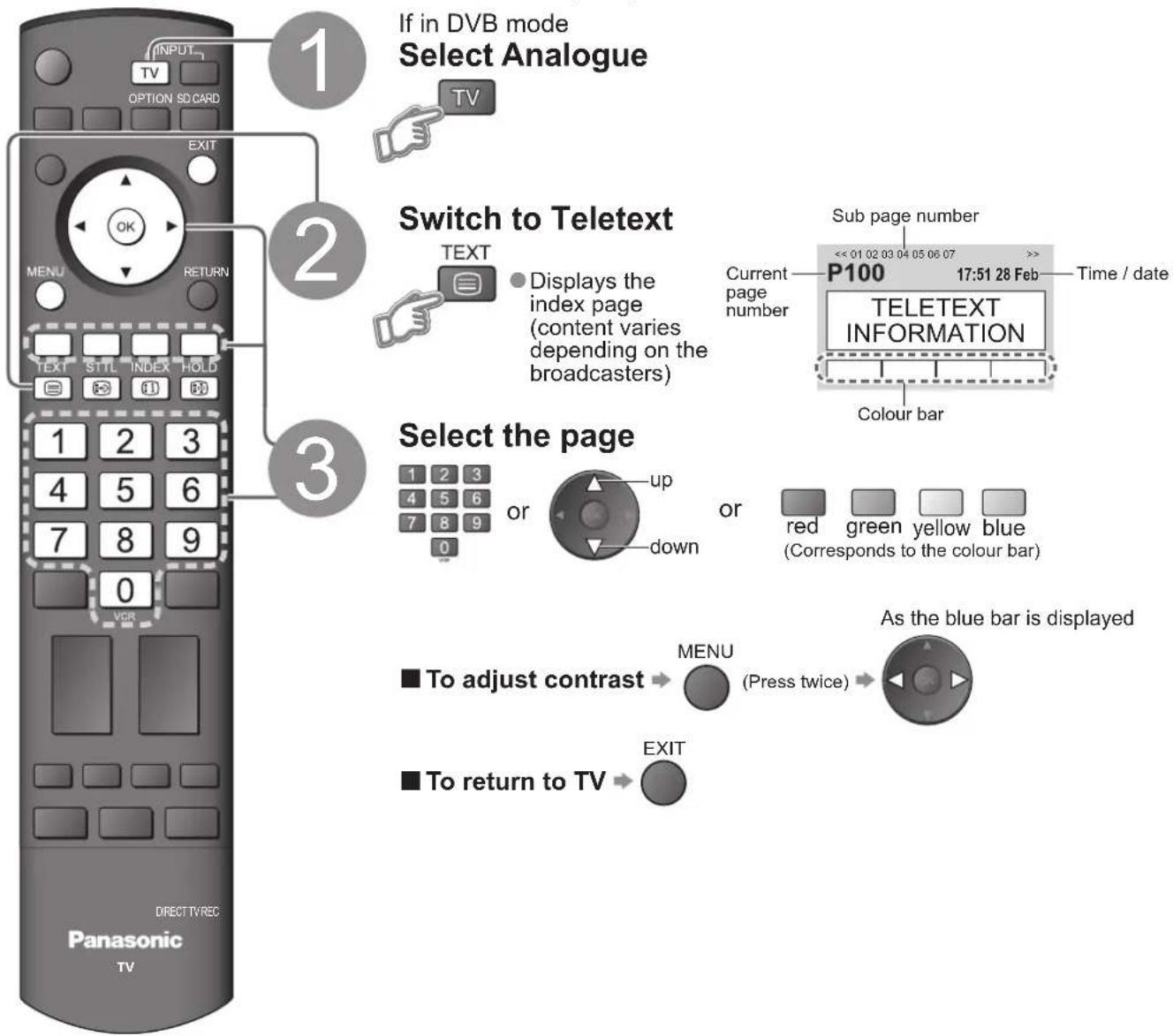

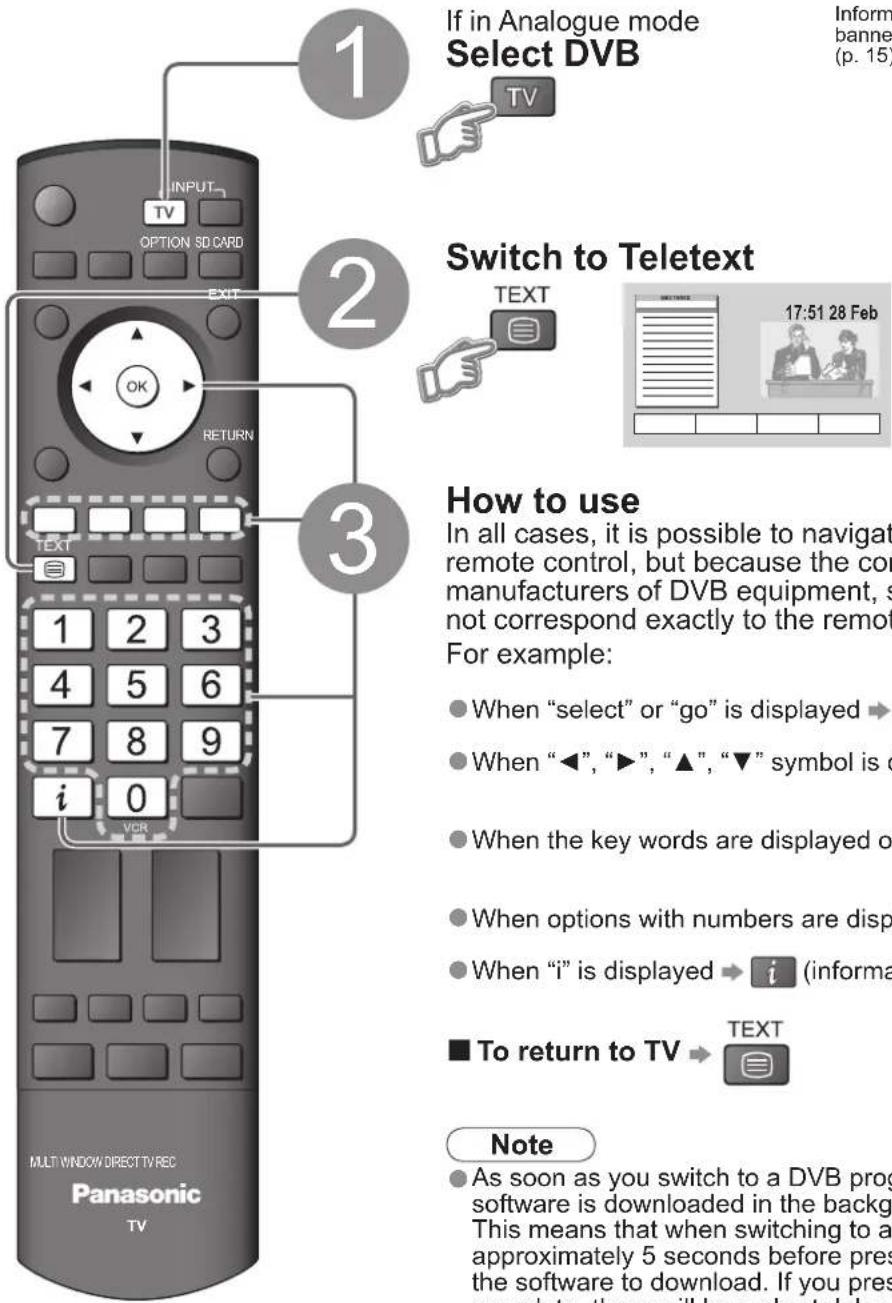

Viewing Teletext 17

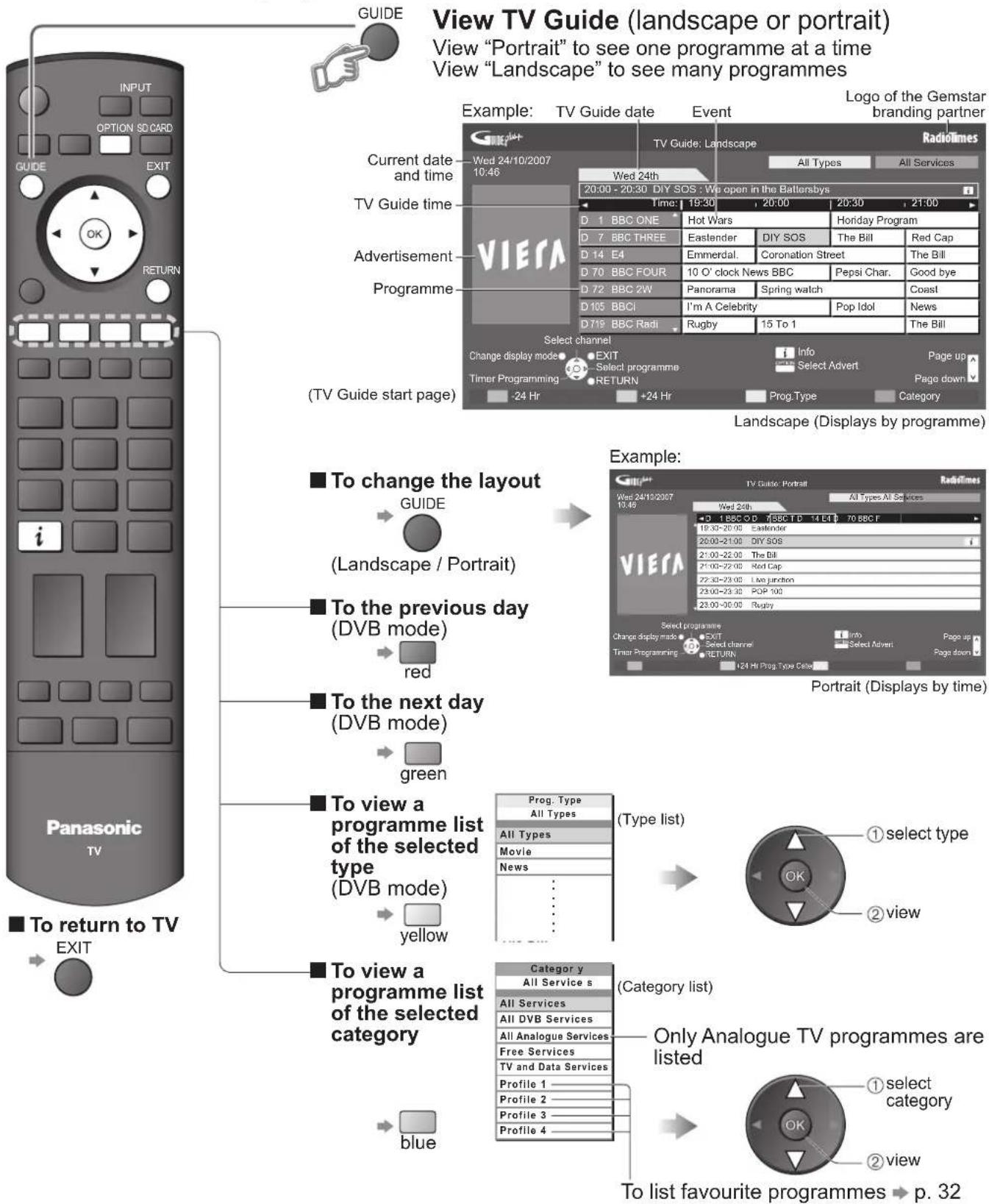

● Using TV Guide 20

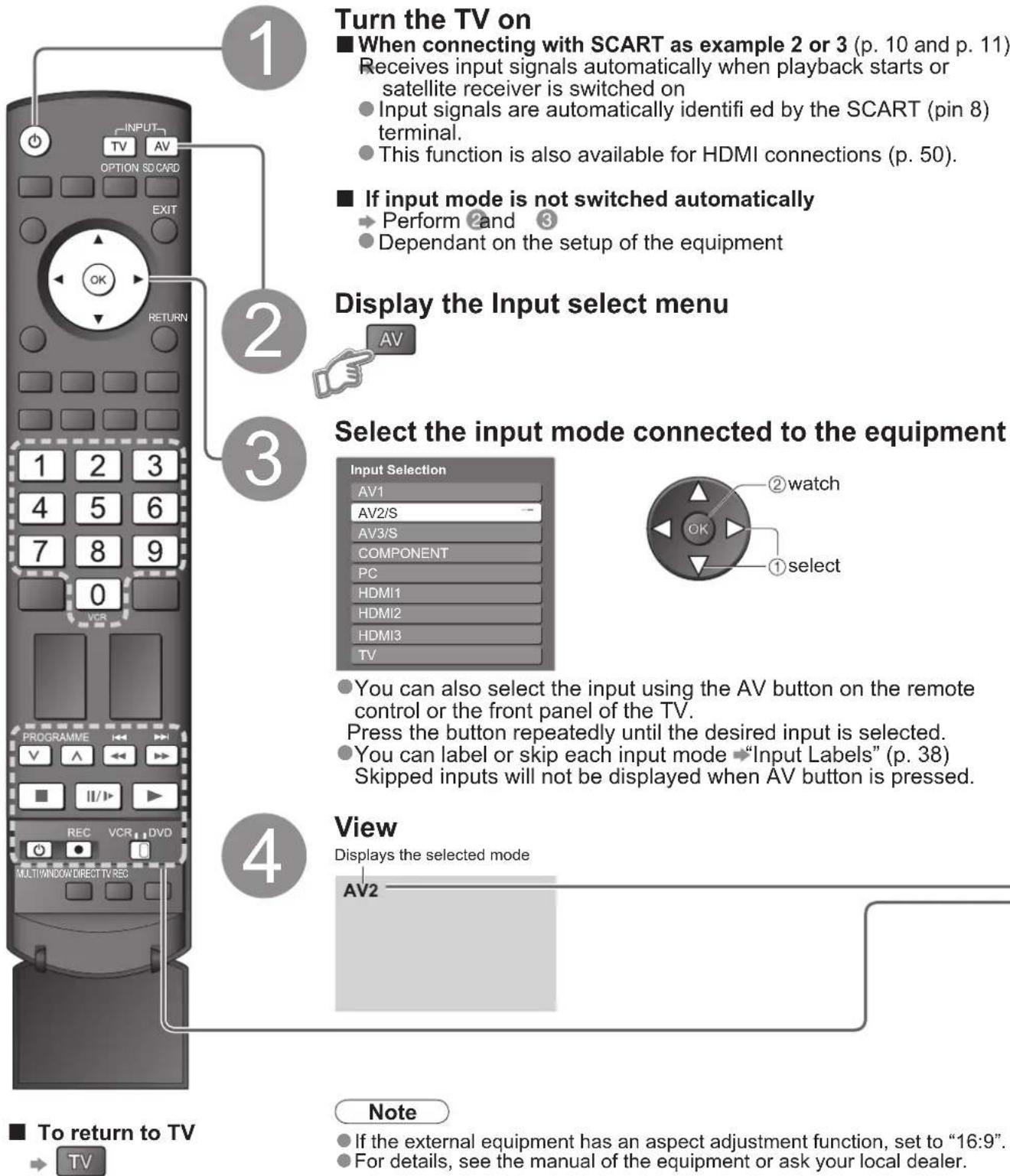

● Watching VCR, DVD and Satellites …… 22

Advanced Features

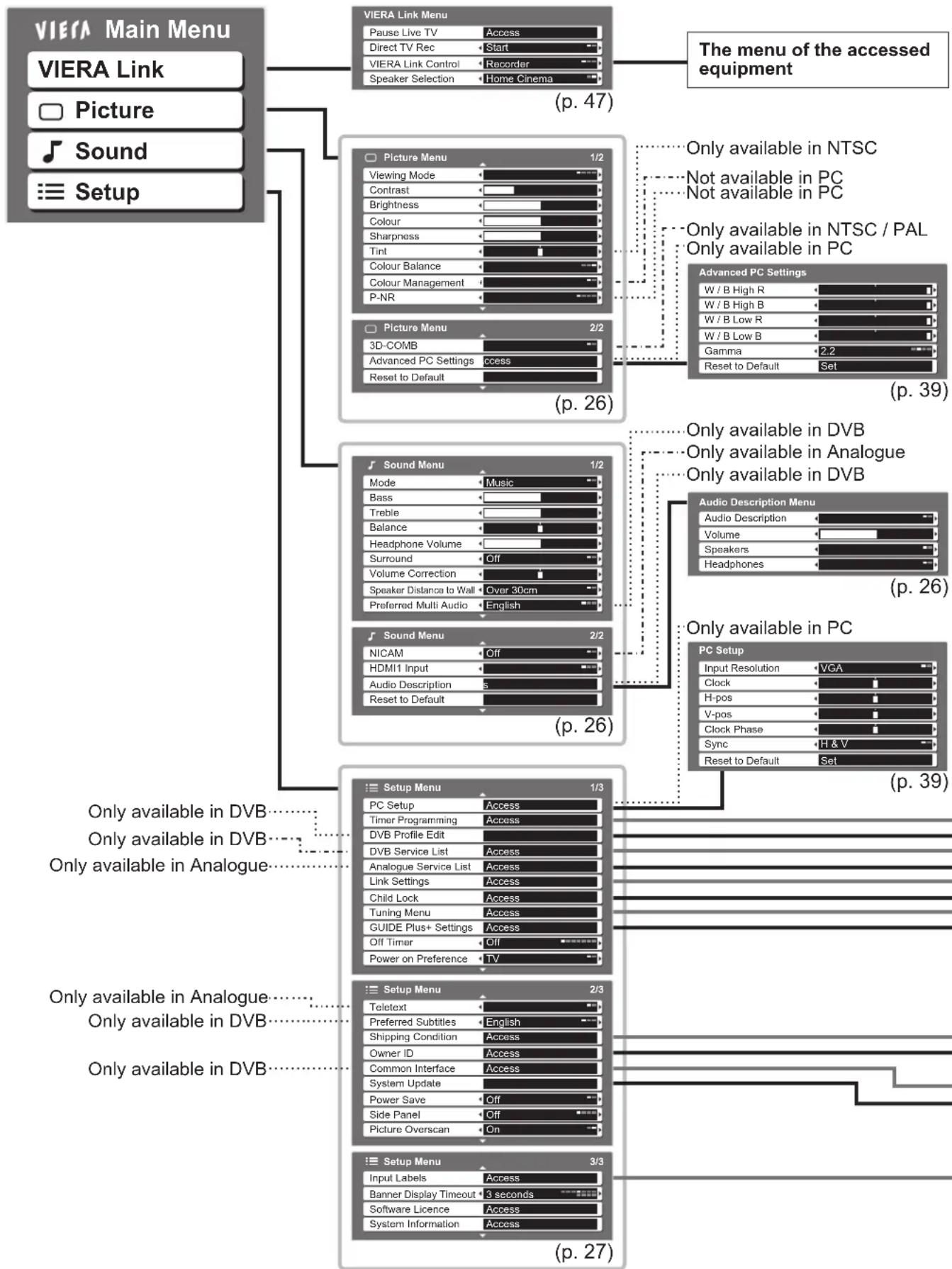

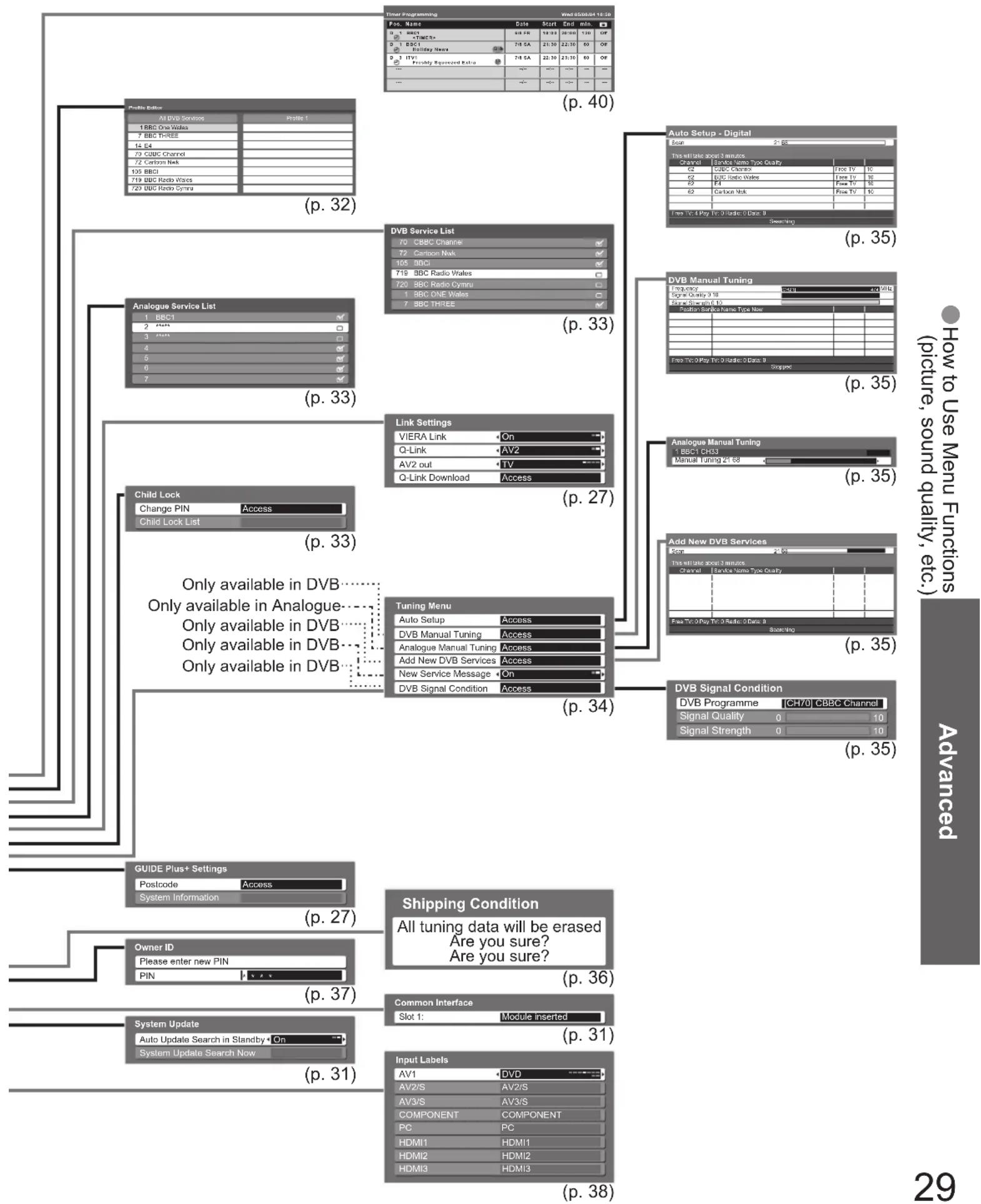

● How to Use Menu Functions …… 24 (picture, sound quality, etc.)

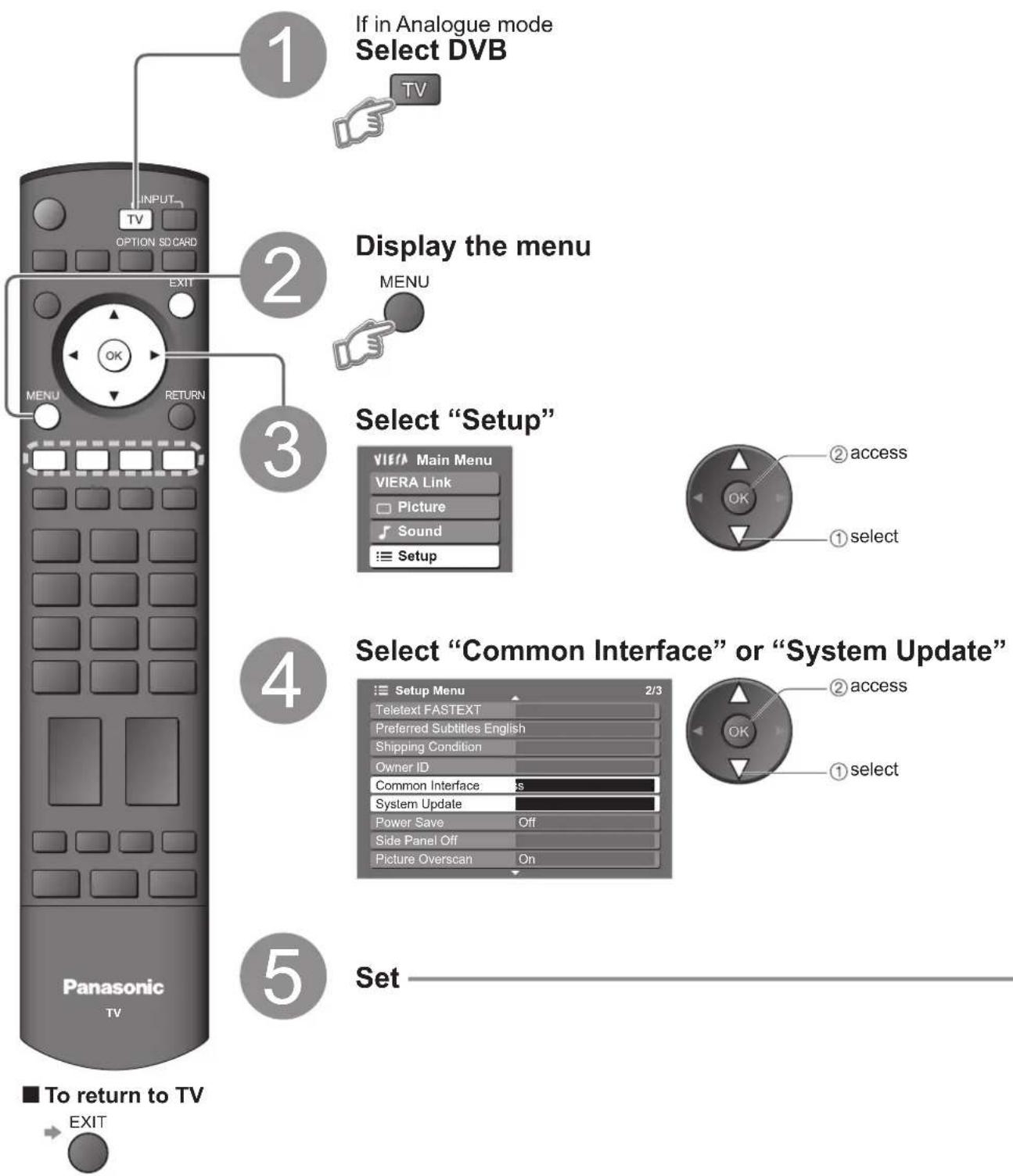

DVB Settings (DVB) 30 (pay-TV, software update)

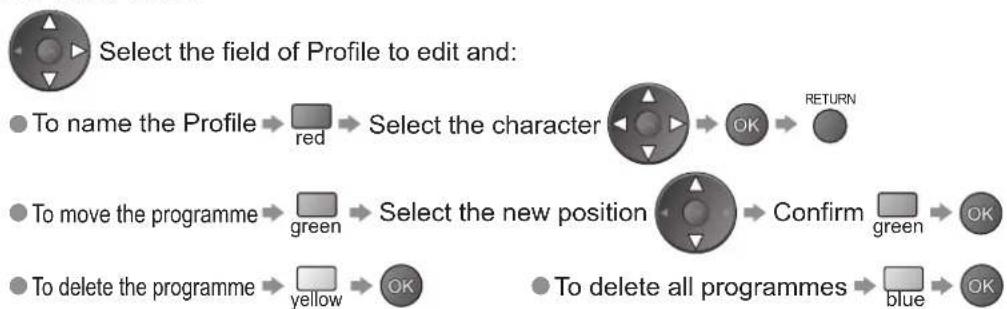

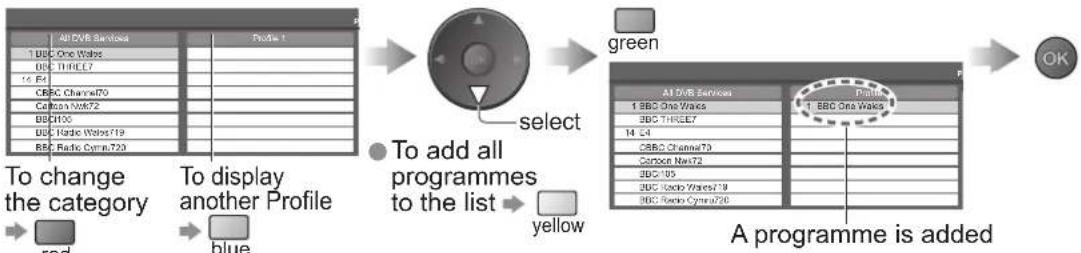

Editing Programmes 32

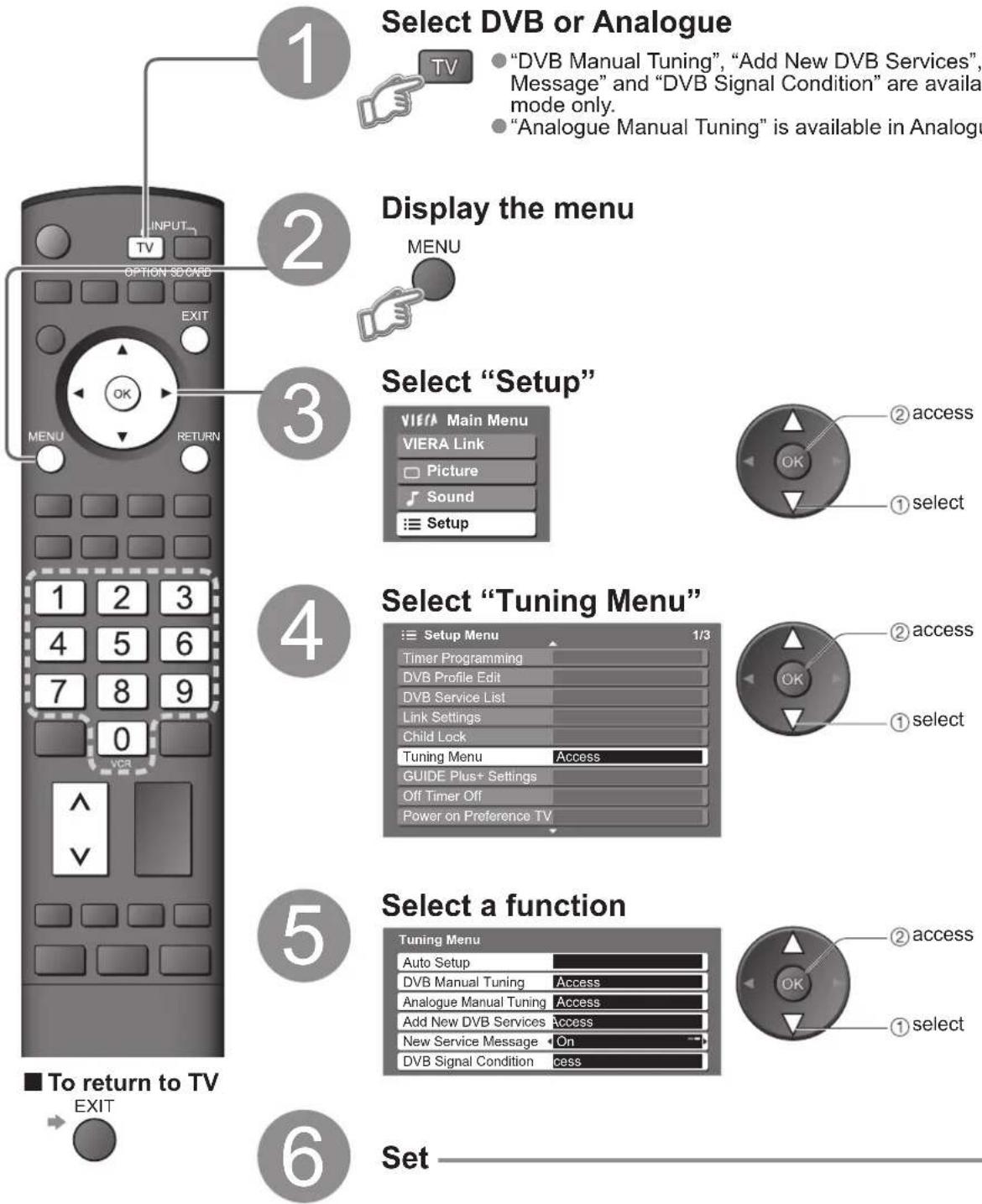

● Tuning Programmes 34
- Restore Settings 36

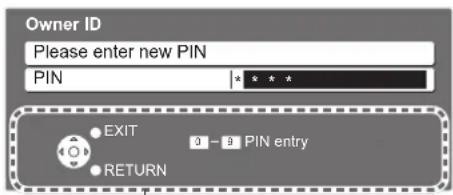

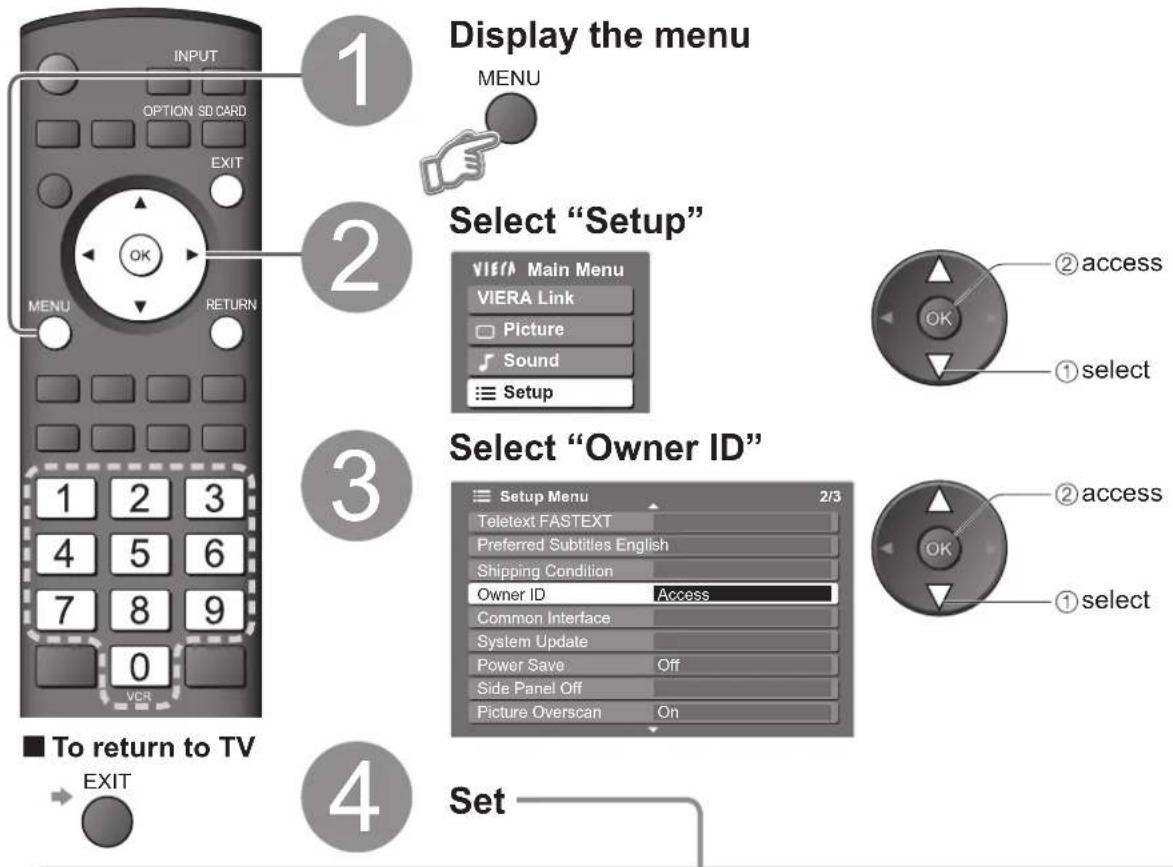

● Owner ID 37

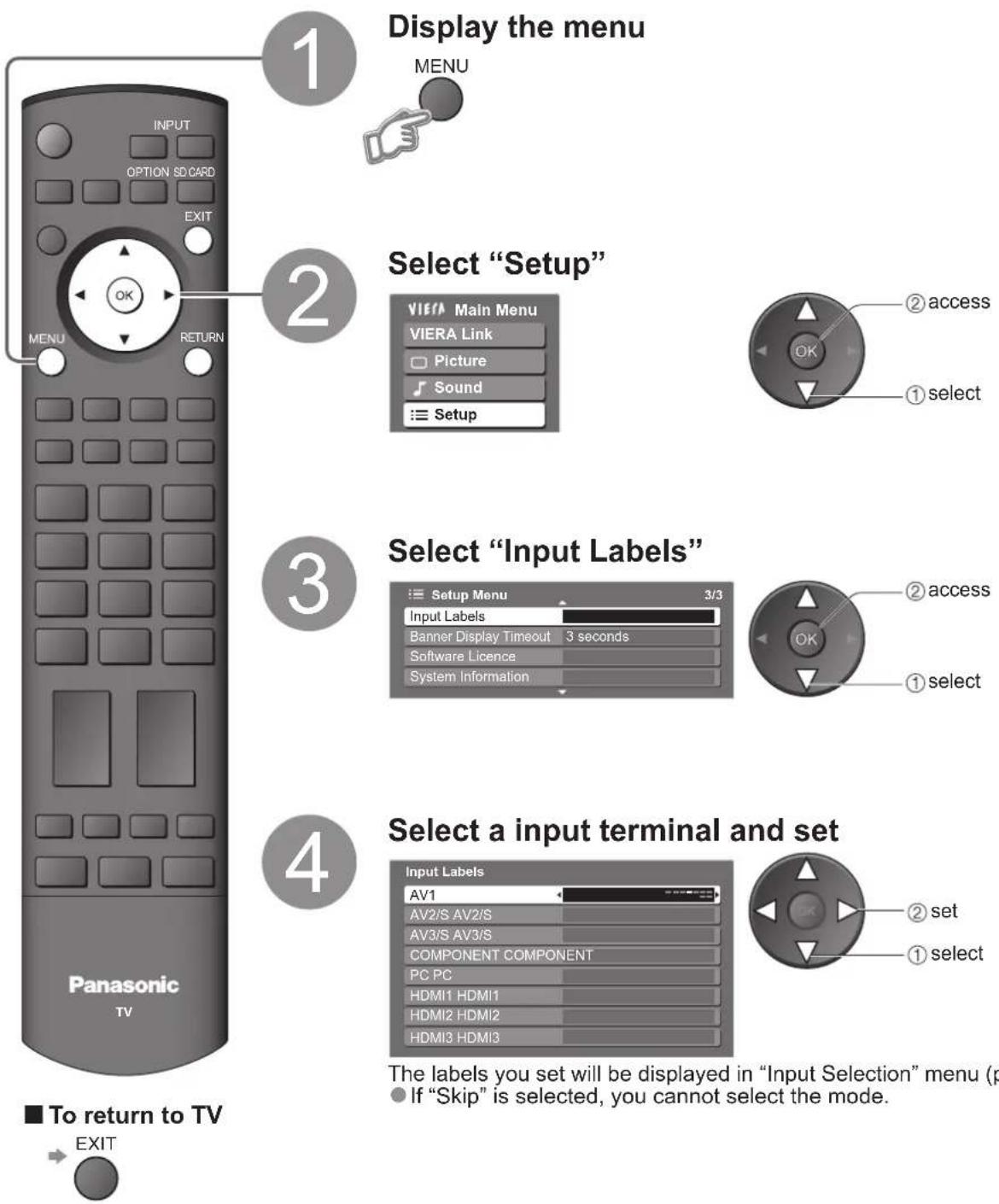

Input Labels 38
● Displaying PC Screen on TV 39
Recording Controls 40

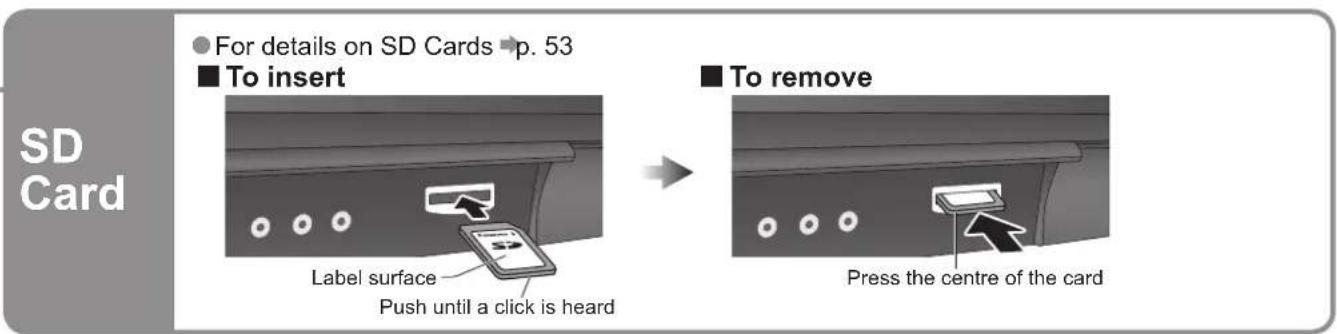

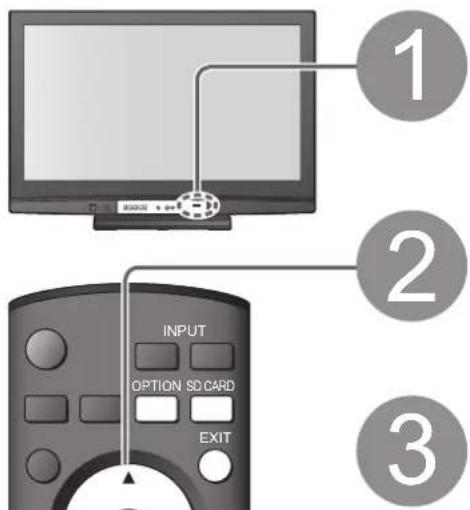

Viewing from SD Card (Photos) 42

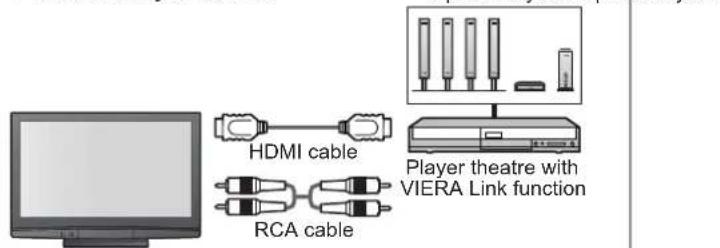

Link Functions 44 (Q-Link / VIERA Link)

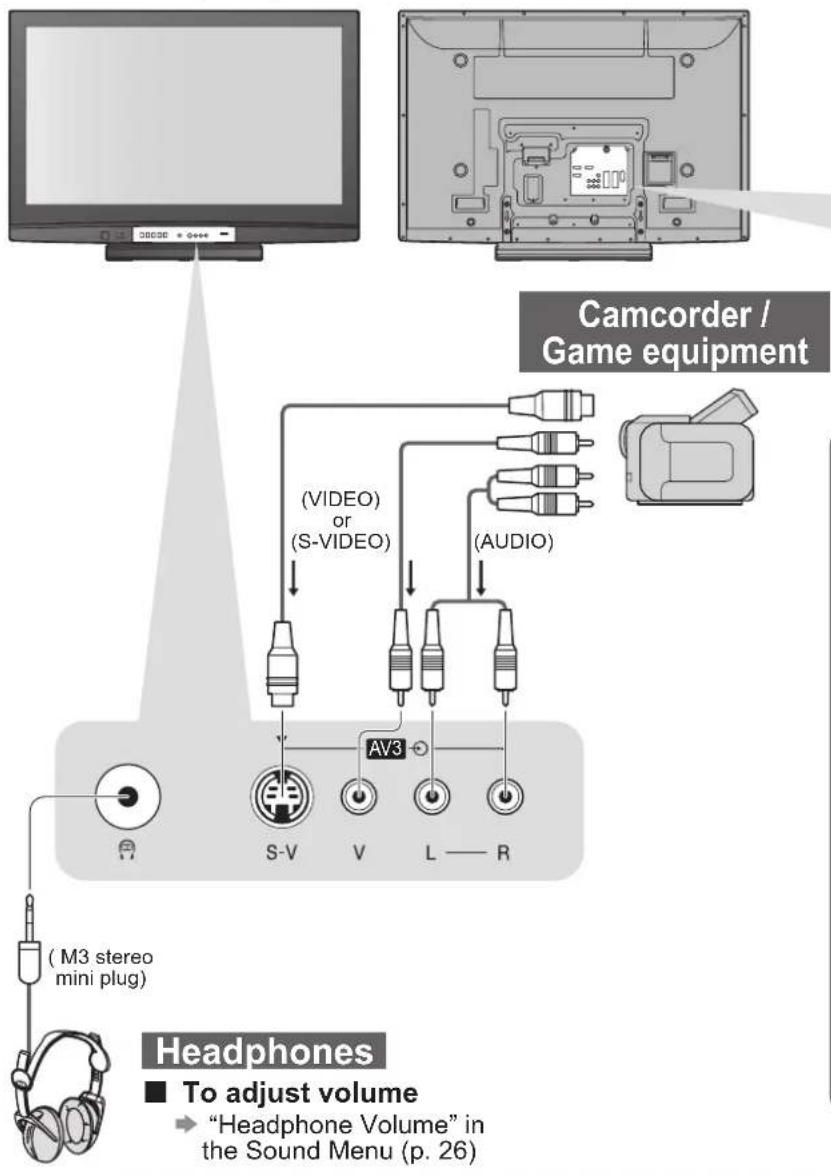

External Equipment 50

FAQs, etc.

● Technical Information 52
● FAQs 55
● On screen messages 57
Glossary 58
●Index 58
Licence 59
● Specifi cations 59

Safety Precautions

Warning & Caution

Handling the mains plug and lead

• Ensure that the mains plug is easily accessible at all times. The On / Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV is not used for a prolonged period of time.
  ● Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
• Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)

Do not expose to direct sunlight and other sources of heat

- Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces

●The TV may fall off or tip over.

Power source

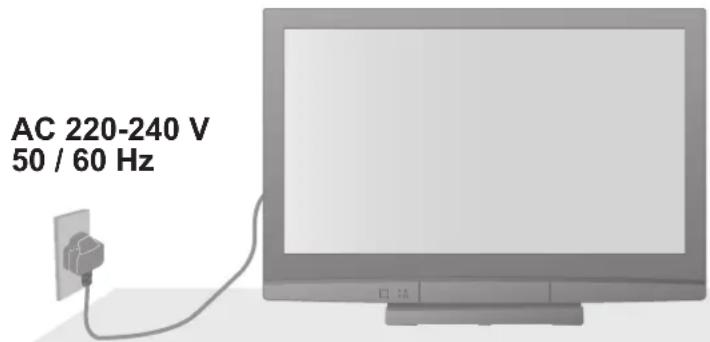

● This TV is designed to operate on 220-240 V, 50 / 60 Hz AC.

Do not remove the cover

- Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

Do not expose your ears to excessive volume from the headphones

- Irreversible damage can be caused.

AC 220-240 V 50 / 60 Hz

Transport only in upright position

●Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY. PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local Panasonic dealer.

Do not cut off the mains plug.

Do not use any other type of mains lead except the one supplied with this TV.

The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety.

If the socket outlet in your home is not suitable, get it changed by a qualified electrician.

If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING: - THIS TV MUST BE EARTHED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

Notes

Do not expose to rain or excessive moisture

● To prevent damage which might result in electric shock or fi re, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects fi lled with liquid, such as vases, must not be placed on top of or above the TV.

Do not block the rear ventilation openings

● Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

Allow suffi cient space around the TV for radiated heat

Minimum distance

10 10 10 7 (cm)

• When using the pedestal, keep the space between the bottom of the TV and the floor surface.
• In case of using Wall-hanging bracket, follow the manual of it.

Use only the dedicated pedestals / mounting equipment

• Using an unapproved pedestal or other fi xtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.
• Use approved pedestals / mounts (p. 6).

Do not allow children to handle SD Card

- As with a small object, SD Card can be swallowed by young children. Please remove SD Card immediately after use.

Do not display a still picture for a long time

This causes the image to remain on the plasma screen ("image retention").

This is not considered a malfunction and is not covered by the warranty.

Typical still images

● Programme number and other logos
● Image displayed in 4:3 mode
Video game
- Computer image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 55)

■ Auto power standby function

- If no signal is received and no operation is performed in Analogue TV mode for 30 minutes, the TV will automatically go to standby mode.

■Keep the TV away from these types of equipment

Electronic equipment

In particular, do not place video equipment near the TV (electromagnetic interference may distort images / sound).

● Equipment with an infrared sensor

This TV also emits infrared rays (this may affect operation of other equipment).

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Caution

● The surface of the display panel has been specially treated and may be easily damaged.
Do not tap or scratch the surface with your fingernail or other hard object.
● Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances (this may degrade surface quality).

Cabinet, Pedestal

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Caution

● Take care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure.)
● Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint).
- Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fire or electrical shock.)

Accessories / Options

Standard accessories

Check that you have the accessories and items shown

□ Remote Control ● N2QAYB000239

□ Batteries for the Remote Control (2) ● R6 (UM3)

□ Clamper ● TMME289 → p. 8

□ Mains Lead ● K2CT3DH00018 → p. 11

□ Operating Instructions □ Pan European Guarantee Card □ 1 Year Guarantee Registration □ CRM (Customer Relationship Management)

□ Cleaning cloth ● TXFPE01RLTB

□ Pedestal ● TBLX0053 ● TXFBL01RSTD → p. 7

● This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

Optional accessories

Wall-hanging bracket (vertical)

- TY-WK42PV3W - TY-WK42PV4W

Some items may not be available locally.

(angle) • TY-WK42PR3W • TY-WK42PR4W

Caution

• In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.
• Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

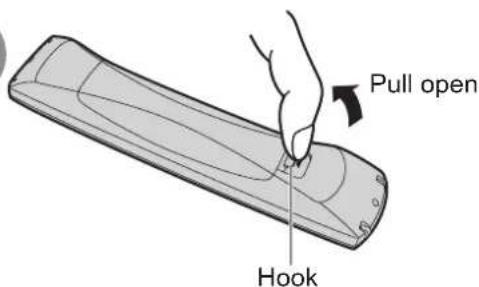

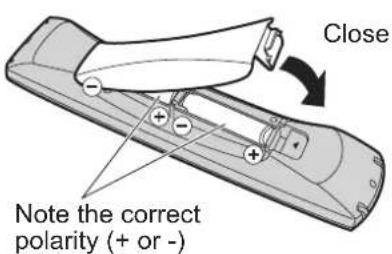

Installing / removing remote's batteries

1

Pull open Hook

2

Close Note the correct polarity (+ or -)

Caution

• Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
• Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
  ● Do not use rechargeable (Ni-Cd) batteries.
• Do not burn or breakup batteries.
  Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Attaching the pedestal

Warning

Do not disassemble or modify the pedestal.

● Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

● Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

- If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

- If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

- If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

- If two or more people are not present, the TV may be dropped, and personal injury may result.

Ⓐ Assembly screw (4) (silver)

● XYN5+F18FN

⑧ Assembly screw (4) (black)

THEL062N

M5 × 18 M5 × 25

© Pole (2)

R: TBLA3632
L: TBLA3633

D Base

TBLX0053

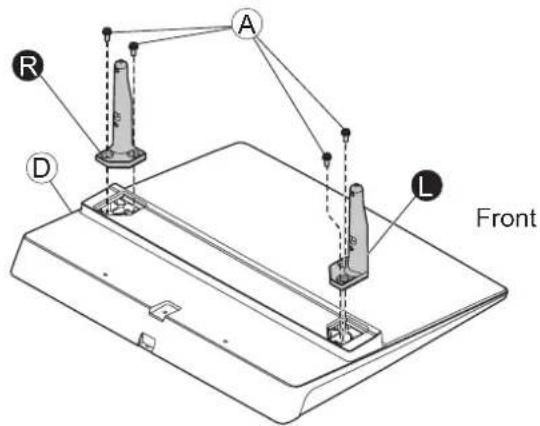

■ Assembling the pedestal

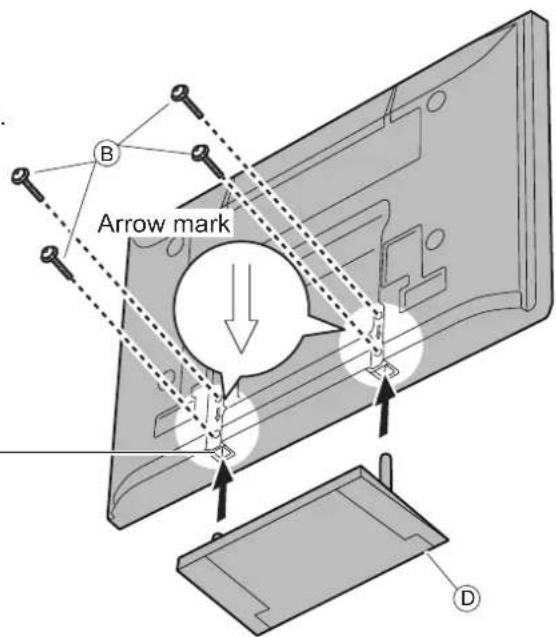

Use the four assembly screws Ⓐ to fasten the left and right poles to the base securely.

● Make sure that the screws are securely tightened.
● Forcing the assembly screws the wrong way will strip the threads.
●“L” or “R” mark is stamped on the bottom of the pole.

A R D L Front

Securing the TV

Use the assembly screws ☐ to fasten securely.

● Make sure that the screws are securely tightened.
● Carry out the work on a horizontal and level surface.

View from the bottom

Hole for pedestal installation

Arrow mark A B D

Accessories / Options

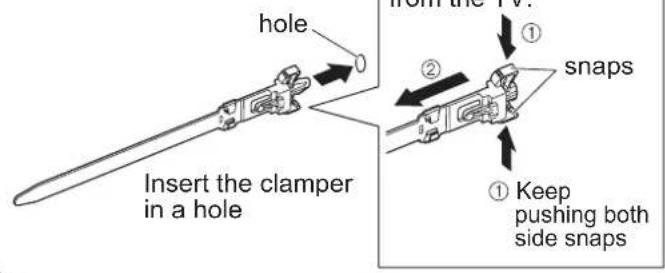

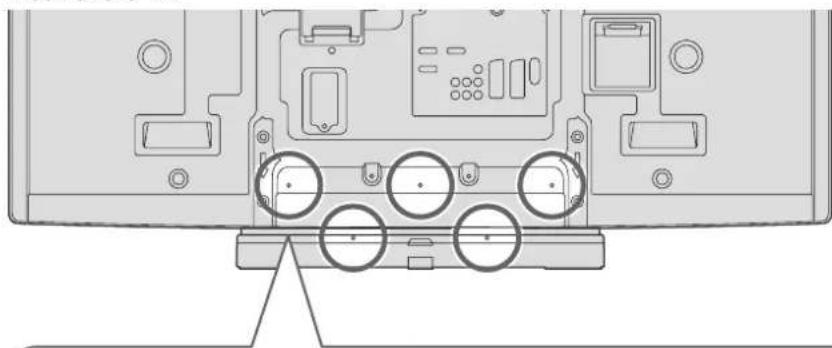

Using the clamper

Rear of the TV

Diagram of a computer monitor rear panel showing internal components and connectors (no text or labels)

• Do not bundle the RF cable and mains lead together (could cause distorted image).
  ● Fix cables with clampers as necessary.
• When using the optional accessory, follow the option's assembly manual to fix cables.

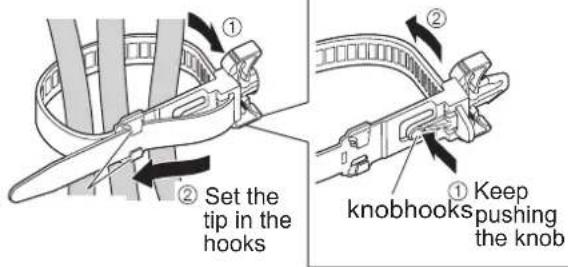

■ Attach the clamper

hole Insert the clamper in a hole from the PV. snaps ① ② ① Keep pushing both side snaps

Bundle the cables

① ② Set the tip in the hooks ① Keep knobhooks pushing the knob

Identifying Controls

TV

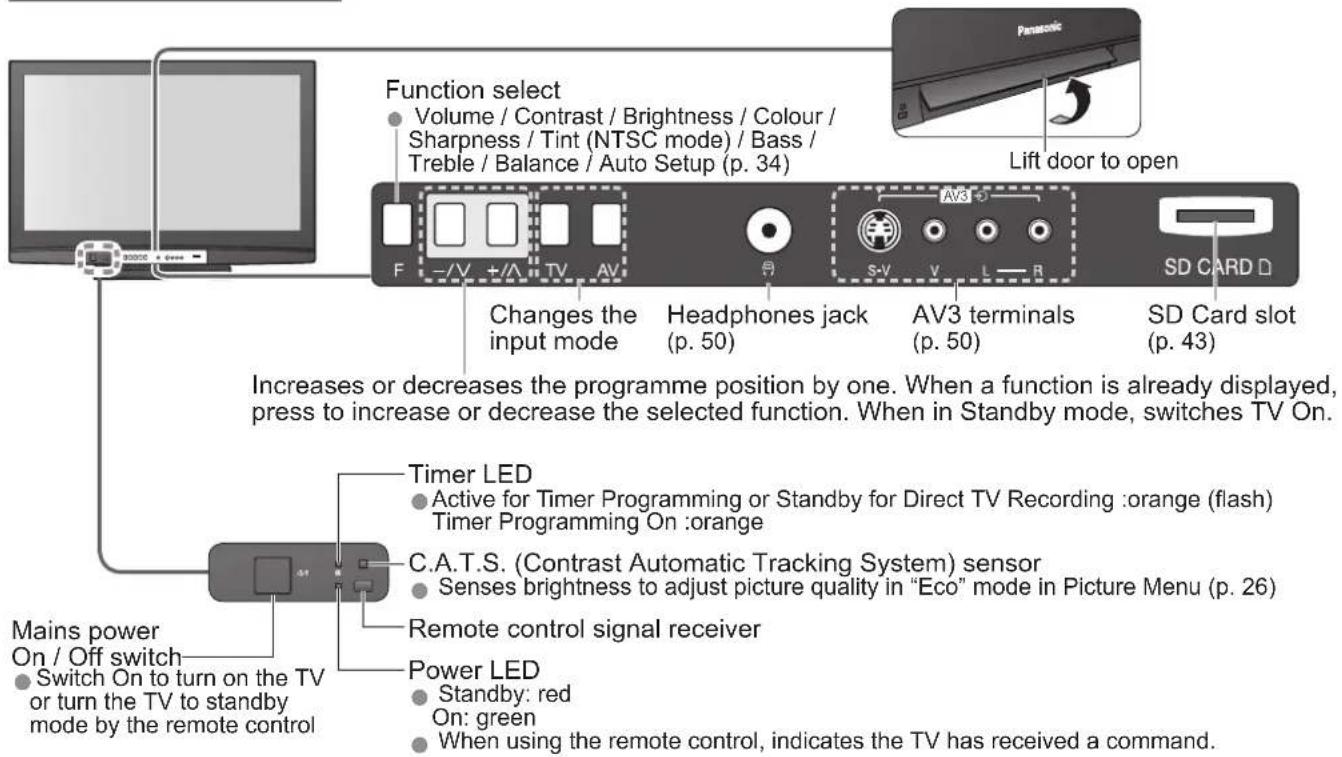

Function select Volume / Contrast / Brightness / Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 34) Lift door to open Changes the input mode Headphones jack (p. 50) AV3 terminals (p. 50) SD Card slot (p. 43) Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On. Timer LED Active for Timer Programming or Standby for Direct TV Recording :orange (flash) Timer Programming On :orange C.A.T.S. (Contrast Automatic Tracking System) sensor Senses brightness to adjust picture quality in "Eco" mode in Picture Menu (p. 26) Remote control signal receiver Power LED Standby: red On: green When using the remote control, indicates the TV has received a command. Mains power On / Off switch Switch On to turn on the TV or turn the TV to standby mode by the remote control

Identifying Controls

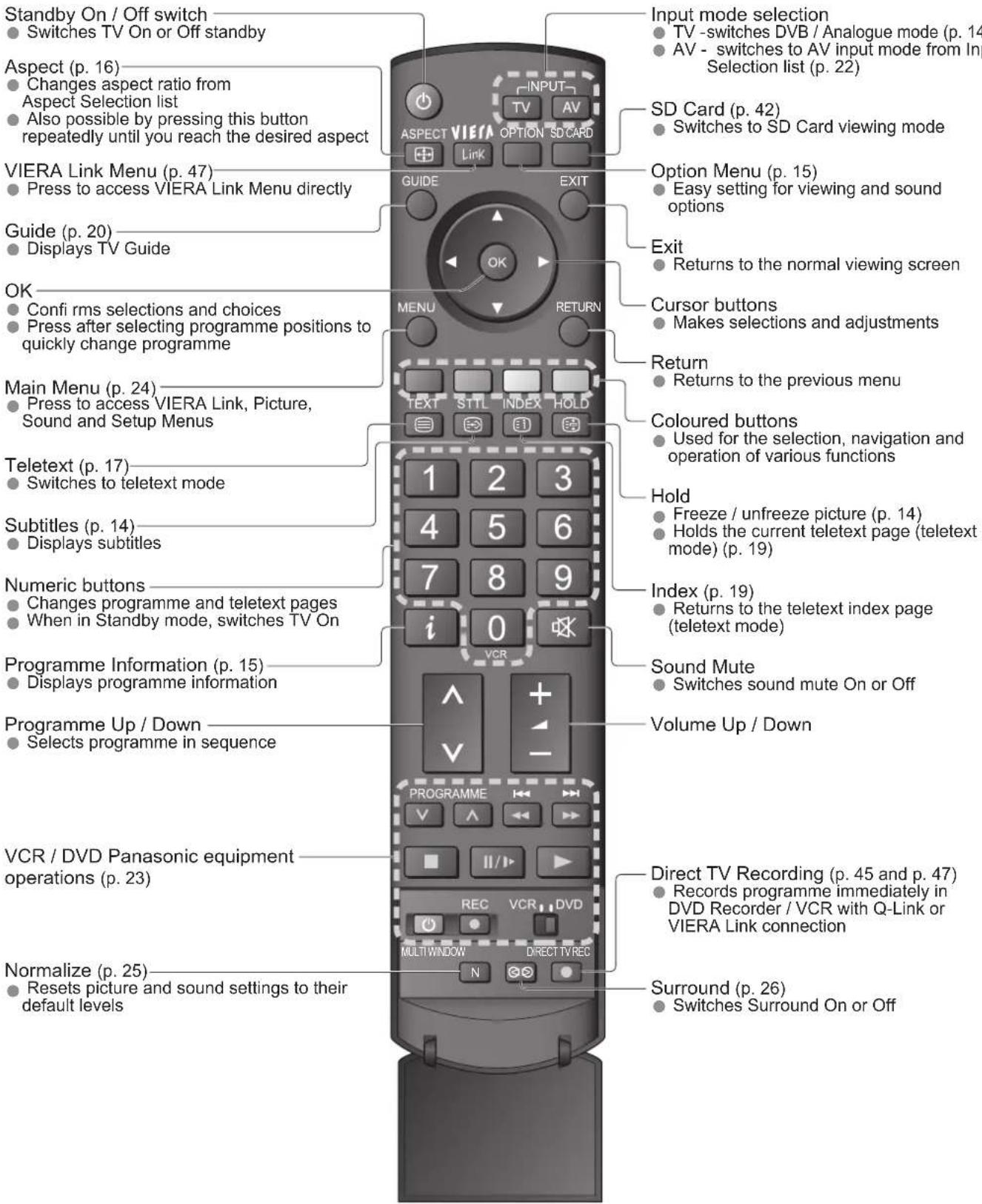

Remote Control

Standby On / Off switch ● Switches TV On or Off standby Aspect (p. 16) ● Changes aspect ratio from Aspect Selection list ● Also possible by pressing this button repeatedly until you reach the desired aspect VIERA Link Menu (p. 47) ● Press to access VIERA Link Menu directly Guide (p. 20) ● Displays TV Guide OK ● Confirms selections and choices ● Press after selecting programme positions to quickly change programme Main Menu (p. 24) ● Press to access VIERA Link, Picture, Sound and Setup Menus Teletext (p. 17) ● Switches to teletext mode Subtitles (p. 14) ● Displays subtitles Numeric buttons ● Changes programme and teletext pages ● When in Standby mode, switches TV On Programme Information (p. 15) ● Displays programme information Programme Up / Down ● Selects programme in sequence VCR / DVD Panasonic equipment operations (p. 23) Normalize (p. 25) ● Resets picture and sound settings to their default levels Input mode selection ● TV -switches DVB / Analogue mode (p. 14) ● AV - switches to AV input mode from In Selection list (p. 22) SD Card (p. 42) ● Switches to SD Card viewing mode Option Menu (p. 15) ● Easy setting for viewing and sound options Exit ● Returns to the normal viewing screen Cursor buttons ● Makes selections and adjustments Return ● Returns to the previous menu Coloured buttons ● Used for the selection, navigation and operation of various functions Hold ● Freeze / unfreeze picture (p. 14) ● Holds the current teletext page (teletext mode) (p. 19) Index (p. 19) ● Returns to the teletext index page (teletext mode) Sound Mute ● Switches sound mute On or Off Volume Up / Down PROGRAMME VCR VCR DVD MULTI WINDOW DIRECT TV REC N Surround (p. 26) ● Switches Surround On or Off

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

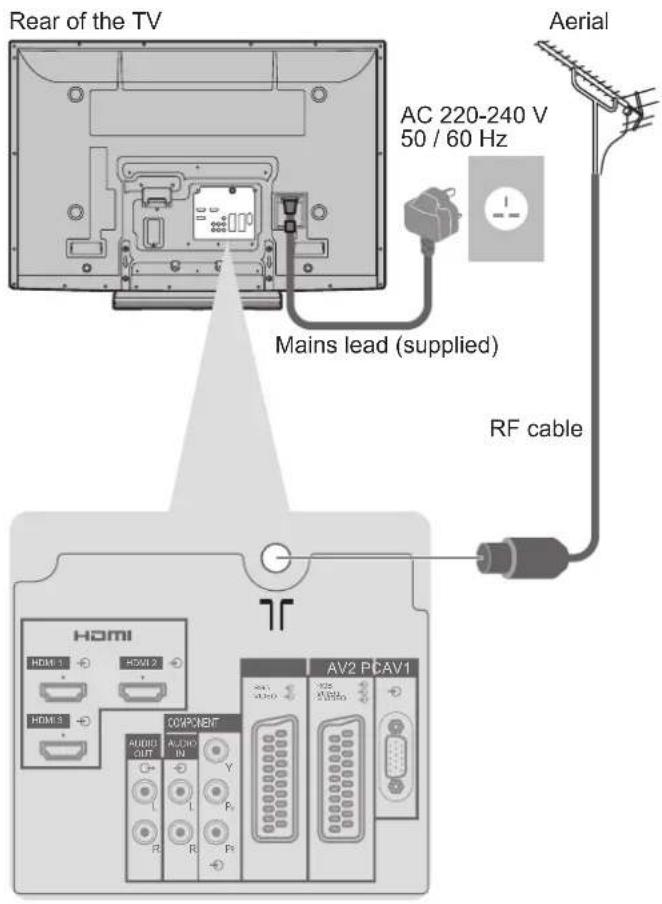

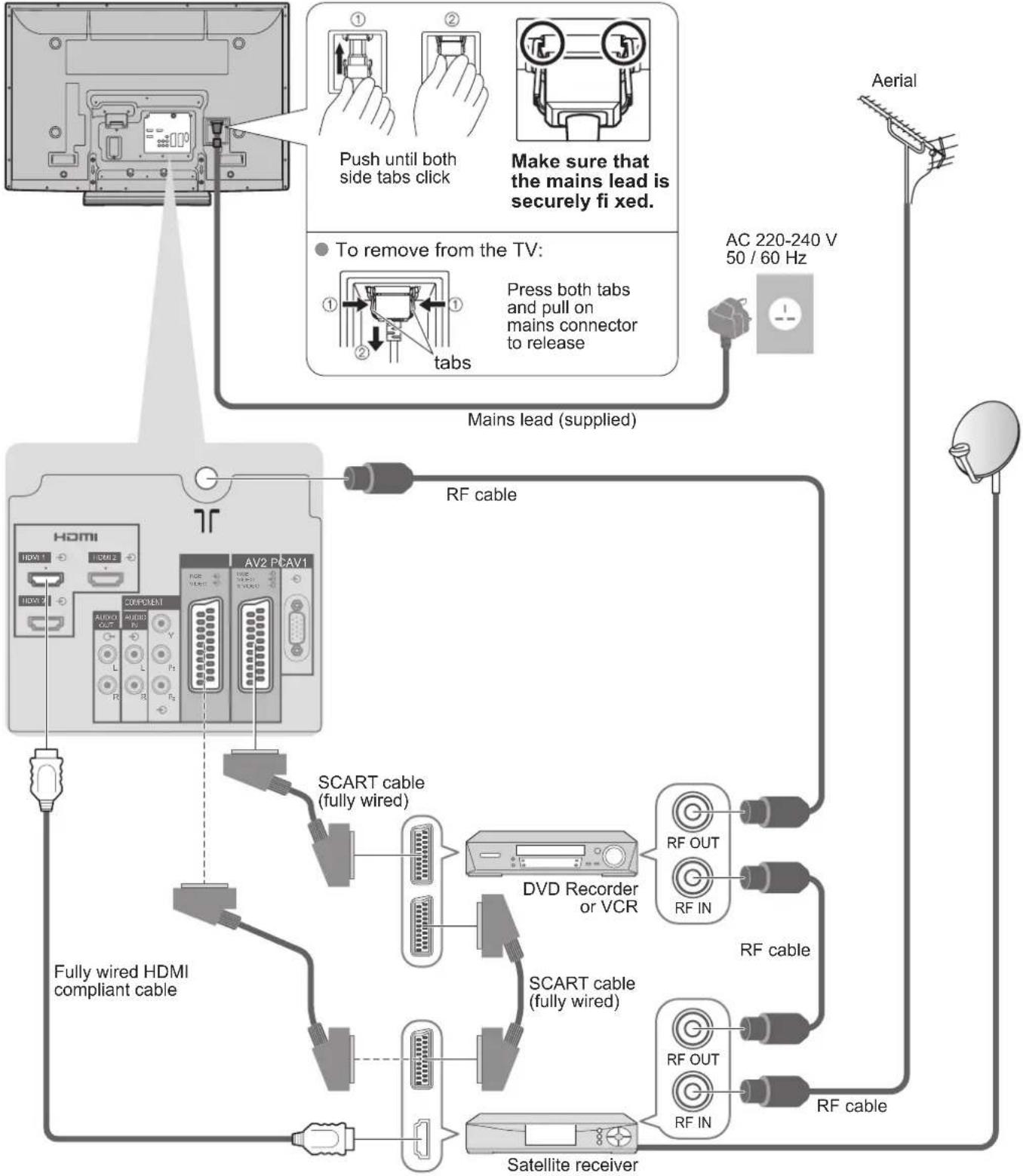

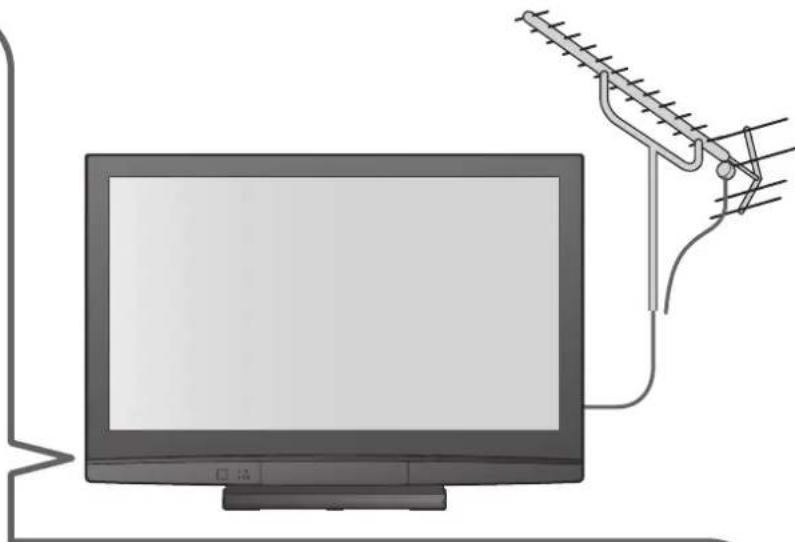

Example 1 Connecting aerial

TV only

Rear of the TV AC 220-240 V 50 / 60 Hz Mains lead (supplied) Aerial RF cable HDMI HDMI 1 HDMI 2 HDMI 3 COMPONENT AV2 PCAV1 AUDIO COUT AUDIO IN L L P R R Y P

Example 2 Connecting DVD Recorder / VCR

Rear of the TV AC 220-240 V 50 / 60 Hz Mains lead (supplied) Aerial HDMI HDMI 1 HDMI 2 HDMI 3 COMPONENT AV2 PCAV1 SCART cable (fully wired) RF cable DVD Recorder or VCR RF OUT RF IN RF cable

Note

• Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 45).
• Connect to AV1 for a Satellite receiver.
• For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using HDMI cable (p. 50).
  ●Q-Link connection → p. 44
  ●VIERA Link connection → p. 44
• Read the manual of the equipment too.

Example 3

Connecting DVD Recorder / VCR and Satellite receiver

TV, DVD Recorder / VCR and Satellite
Rear of the TV

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#ffc,stroke:#333
    style H fill:#ffc,stroke:#333
    style I fill:#cfc,stroke:#333
    style J fill:#fcc,stroke:#333
    style K fill:#fff,stroke:#333

    subgraph Legend
        L1["Push until both side tabs click"]
        L2["Make sure that the mains lead is securely fi xed."]
        L3["To remove from the TV:"]
        L4["Press both tabs and pull on mains connector to release"]
        L5["AC 220-240 V 50 / 60 Hz"]
        L6["Aerial"]
    end

Auto Setup

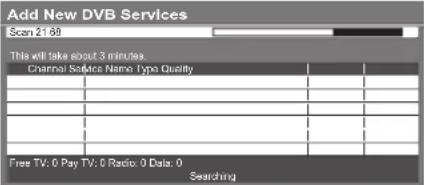

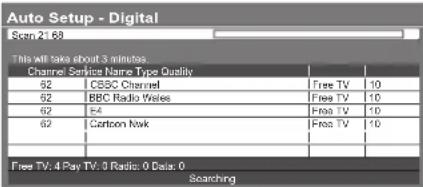

Search and store TV programmes automatically.

These steps are not necessary if the setup has been completed by your local dealer.

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

■ How to use remote control

MENU

Open the main menu

Move the cursor / select the menu

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

RETURN

Return to the previous menu

EXIT

Exit the menu system and return to the normal viewing screen

■ ON SCREEN HELP Instructions box

(example: Owner ID)

Owner ID Please enter new PIN PIN * * * EXIT 0 - 9 PIN entry RETURN

On-screen operation guide will help you.

Note

• If tuning has failed → "Auto Setup" (p. 35)
• If downloading has failed →“Q-Link Download” (p. 27)

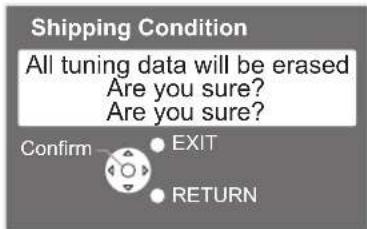

  ● To initialize all settings → "Shipping Condition" (p. 36)
• If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Watching TV

■ Other useful functions

Hold	Freeze / unfreeze picture	HOLD
Display subtitles	Display / hide subtitles (if available)● To change the language for DVB (if available)→ “Preferred Subtitles” (p. 27)	STTL

■ Other useful functions

Display Information banner ● Also appears when changing a programme Event Programme Programme type Example: (if it is Radio or Data service) Current time Category 1 BBC ONE WALES Radio 23:35 Profile 1 Coronation Street Change category 20 : 00 ~ 20 : 55 Now For info press i Mute Encrypted AD Subtitles TXT Multi Audio 45 DVB: Event Start / Finish time Analogue: Programme status Features available / Message meanings
Mute Sound mute On	Subtitles Subtitle service available
Bad signal Poor TV signal quality	TXT Teletext service available
Encrypted Scrambled programme	Multi Audio Multiple audio available
AD Audio Description service available ● This function can aid visually-impaired viewers by adding an additional audio track to describe events on-screen. ● For settings p. 26	Stereo, Mono Audio mode 1 - 90 Off Timer remaining time ● For settings p. 16
● To confirm another tuned programme name → [icon] ● To change the category → blue ● Information on the next event → (DVB mode) ● Extra information → i (press again to hide the banner) (DVB mode) ● "AD", "Subtitles", "TXT", "Multi Audio" indications are displayed as available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.
● To watch the programme listed in the banner → OK ● To hide → ● To set display timeout → "Banner Display Timeout" (p. 27) Example: ● To change → ②change ①select
Check or change the current programme status instantly Multi Audio (DVB mode) Allows you to select between alternative language for sound tracks (if available) Subtitle Language (DVB mode) Allows you to select the language in which subtitles should appear (if available) NICAM (Analogue mode) → Sound Menu (p. 26) Note ● Also possible to change the settings in Menu list (p. 26 and p. 27).

Watching TV

■ Other useful functions

Off Timer	Turn the TV off automatically after a fixed period
	Display the menu	Select "Setup"	Select "Off Timer" and set the time
		Y43W
	● To cancel → Set to "Off" or turn the TV off.● To display the remaining time → Information banner (p. 15)● When the remaining time is within 3 minutes, the remaining time will flash on screen.
Change aspect ratio	Change the aspect ratio Enjoy viewing the picture at its optimum size and aspect.			AspectSelection list
	Display Aspect Selection list → While the list is displayed, select the mode
	ASPECT
	● To change the mode using the ASPECT button only → (Press repeatedly until you reach the desired mode)
	Auto 16:9	The best ratio is chosen and the picture expanded to fi ll the screen. For details p. 52		Directly displays the image at "16:9" without distortion (anamorphic).
	14:9 4:3	Displays the image at the standard "14:9" without distortion.		Displays the image at the standard "4:3" without distortion.
	Zoom1 Zoom2	Displays a "16:9" letterbox or "4:3" image without distortion.		Displays a "16:9" letterbox (anamorphic) image full-screen without distortion.
	Zoom3	Displays a "2.35:1" letterbox (anamorphic) image full-screen without distortion. At "16:9", displays the image at its maximum (with slight enlargement).
	Note● Only "16:9" and "4:3" are available in PC mode.● Not available when Subtitle is active in DVB mode.● Not available in Analogue teletext mode.● Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

Change the aspect ratio

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

DVB mode

DVB teletext services

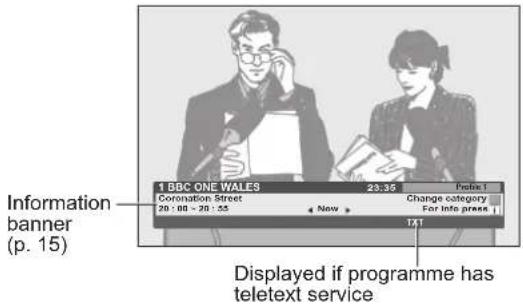

DVB teletext services differ greatly from analogue teletext. When you switch to a DVB teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

- You can check if the programme has teletext service.

1 BBC ONE WALES Coronation Street 20:08 - 20:55 Now 17:57 Polex 1 Change category For info press Information banner (p. 15) Displayed if programme has teletext service

If in Analogue mode Select DVB Inform banner (p. 15) INPUT TV OPTION SD CARD EXIT 2 Switch to Teletext TEXT 17:51 28 Feb RETURN 3 How to use In all cases, it is possible to navigate remote control, but because the cor- manufacturers of DVB equipment, s not correspond exactly to the remote For example: When "select" or "go" is displayed → When "◀", "▶", "▲", "▼" symbol is o When the key words are displayed o When options with numbers are disp When "i" is displayed → i (informa ■ To return to TV → TEXT Note As soon as you switch to a DVB prog software is downloaded in the backg This means that when switching to a approximately 5 seconds before pres the software to download. If you pres complete, there will be a short delay

If in Analogue mode Select DVB

Switch to Teletext

TEXT 17:51 28 Feb

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example:

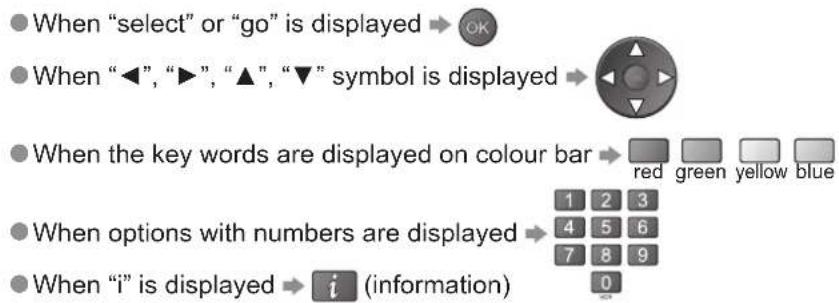

When "select" or "go" is displayed → OK When "◀", "▶", "▲", "▼" symbol is displayed → When the key words are displayed on colour bar → red green yellow blue When options with numbers are displayed → 1 2 3 When "i" is displayed → i (information) → 0

Note

As soon as you switch to a DVB programme with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a DVB programme, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, there will be a short delay before the text screen is displayed.
● While navigating DVB teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example "Loading") to let you know that this is happening.

Viewing Teletext

Analogue mode

What is FASTEXT mode (default)?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory. ("Store frequently viewed pages", p. 19)

■ To change mode → "Teletext" in Setup Menu (p. 27)

If in DVB mode Select Analogue 1 TV OPTION SCD CARD EXIT 2 MENU RETURN TEXT STTL INDEX HOLD 1 2 3 4 5 6 7 8 9 0 VCR 1 2 3 Select the page 1 2 3 4 5 6 7 8 9 0 or down up red green yellow blue (Corresponds to the colour bar) Sub page number << 01 02 03 04 05 06 07 >> P100 17:51 28 Feb Time / date TELETEXT INFORMATION Colour bar ■ To adjust contrast → MENU (Press twice) → As the blue bar is displayed ■ To return to TV → EXIT

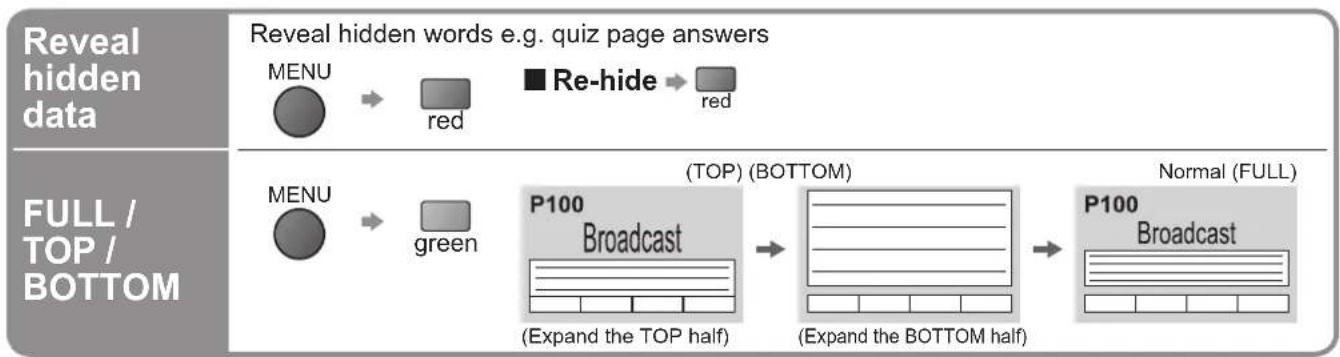


HOLD	Stop automatic updating(If you wish to hold the current page without updating)HOLD [YG20]
INDEX	Return to the main index pageINDEX
Subtitles	View subtitlesSTTL ● Factory setting is "P888" (subtitle service) on blue button (List mode).
View in multi window	Watch TV and Teletext in two windows at onceTEXT ● Operations can be made only in Teletext screen.Each time pressed: Teletext-TV and TeletextTV
Store frequently viewed pages	Store frequently viewed pages in the colour bar (List mode only)As page is displayed Corresponding colour button OK press and hold ■ To change stored pages Enter new page number Colour button you want to change 4 5 6 7 8 9 0 1 XHMAD colour button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color button you want to change 4X3W color buttons you want to change 4X3W color buttons you want to change 4X3W color buttons you want to change 4X3W color buttons you want to change 4X3W color buttons you want to change 4X3W color buttons you want to change 4X3W ^1 See the number changes to white. Colour button you want to change 4 5 6 7 8 9 0 1 XHMAD colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour buttons you want to change 4X3W Colour buttons you want to change 4X3W Colour buttons you want to change 4X3W Colour buttons you want to change 4X3W Colour buttons you want to change 4X3W Colour buttons you want to change 4X3W ^1 See the number changes to white. Colour button you want to change 4 5 6 7 8 9 0 1 XHMAD colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 1 XHMAD colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X1 XHMAD colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3 W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X1 XHMAD colour button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color button you want to change 4X3W Color buttons you want to change 4X3W Color buttons you want to change 4X3W Color buttons you want to change 4X3W Color buttons you want to change 4X3W Color buttons you want to change 4X3W Color buttons you want to change 4X3W ^1 See the number changes to white. Colour button you want to change 4 5 6 7 8 9 0 1 XHMAD colour button you want to change 4X3W Colour button youwant to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change2 XHMAD colour button you want to change 4X3W Colour button youwant to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3W Colour button you want to change 4X3 W Colour button youwant to change 4X3W Color button you want to change 4X3W Color button youwant to change 4X3W Color button youwant to change 4X3W Color button youwant to change 4X3W Color button youwant to change 4X3W Color button youwant to change 4X3W Color button youwant to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 1 XHMAD colour button you want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change 4X3W Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4[6 YCDA] Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 wantto change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to change ZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT4 Color button你的 want to changeZGT
View sub page	View sub page (Only when teletext is more than one page) Appears at top of the screen■ To view specific sub page Enter the 4-digit number example: P6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 XHMAD color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color button your want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour want to change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto change ZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT4 Color buttonyour wantto changeZGT
Watch TV while waiting for update	View the TV picture while searching for a teletext pageTeletext automatically updates itself when new information becomes available.Changes to TV screen temporarilyMENU yellow yellow P108 yellow yellow Appears when updating is completed View the updated page(You cannot change the programme.)● The news page provides a function that indicates arrival of latest news ("News Flash").

View the TV picture while searching for a teletext page

Using TV Guide

TV Guide—Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

● This TV supports the GUIDE Plus+ system.
The Gemstar branding partner will supply the rating informations in the event information and the recommended group in the Prog.Type list.
- Analogue programmes will be listed after DVB programmes. "D" means DVB programme and "A" means Analogue programme.
- When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.

View TV Guide (landscape or portrait) View "Portrait" to see one programme at a time View "Landscape" to see many programmes Example: TV Guide date Event Logo of the Gemstar branding partner Current date and time TV Guide time Advertisement Programme (TV Guide start page) Current Time: 10:46 Wed 24/10/2007 Time: 19:30 20:00 20:30 21:00 WED 24th All Types All Services VIEFA Select channel Info Select Advert Page up Change display mode EXIT Select programme Timer Programming RETURN Page down -24 Hr +24 Hr Prog.Type Category Landscape (Displays by programme) ■ To change the layout GUIDE (Landscape / Portrait) ■ To the previous day (DVB mode) red ■ To the next day (DVB mode) green ■ To view a programme list of the selected type (DVB mode) yellow ■ To view a programme list of the selected category Category y All Service s All Services All DVB Services All Analogue Services Free Services TV and Data Services Profile 1 Profile 2 Profile 3 Profile 4 Blue ■ To return to TV EXIT Example: TV Guide: Landscape Wed 24th/2007 Wed 24th All Types All Services D 1 BBC ONE Hot Wars Holiday Program D 7 BBC THREE Eastender DIY SOS The Bill Red Cap D 14 E4 Emmerdal. Coronation Street The Bill D 70 BBC FOUR 10 O' clock News BBC Pepsi Char. Good bye D 72 BBC 2W Panorama Spring watch Coast D 105 BBCI I'm A Celebrity Pop Idol News D 719 BBC Radi Rugby 15 To 1 The Bill Portra# (Displays by time) Progr. Type Info Page up All Types All Services VIEFA Select programme Selection Advert Page up Change display mode EXIT Select channel Page down Timer Programming RETURN Page down Type list ① select type OK ② view Only Analogue TV programmes are listed ① select category OK ② view To list favourite programmes p. 32

■ Other useful functions (Operate after viewing TV Guide)

Watch the programme	Select the current event or programme select access 1 select (TV screen)
View details of the event (DVB mode)	Select the event view details elect Details

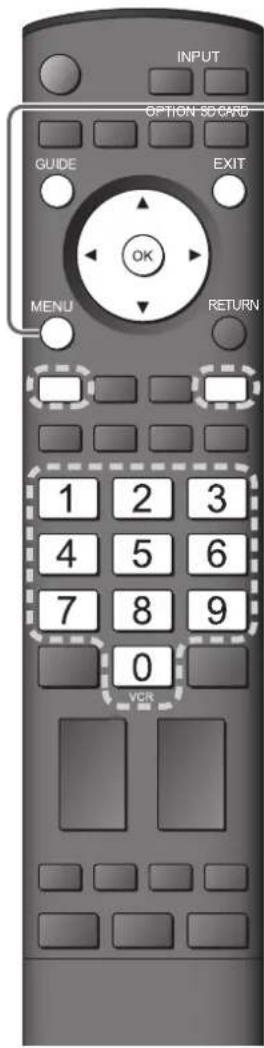

Timer Programming	Select the event to output to external recorder

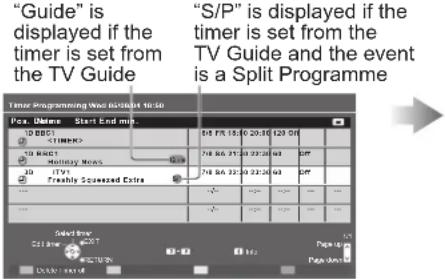

	1 select 2 set (Timer Programming screen) Timer LED will turn on if Timer Programming is set. Timer LED Timer LED
	Note When recording programmes, you must make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 45) and the "Link Settings" (p. 27) are completed, no setting of the recorder is required. Also read the manual of the recorder. If you select the current programme, a screen asking you to confirm whether you wish to watch or record it will appear. Select "Timer Programming" to record from the time you finish the Timer Programming setting.
Event recording (Timer Programming according to the TV Guide signal)	Event recording is a timer programme controlled by information from the TV Guide. Programme start and end times may be changed by broadcasters and sent to the TV for timer programme to follow the change. Split Programme is a programme which is interrupted by one or more events. Both of the above are subject to signals being sent by broadcasters. Select the event to output to external recorder
	(Timer Programming screen)

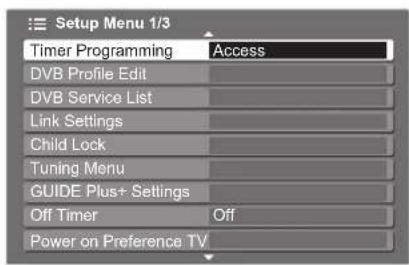

	■ To check / change / cancel an Event recording event ➔ "Timer Programming" (p. 41) If you edit the Event recording after setting to record, it will no longer be performed as Event recording. The recording will be performed according to the time setting in Timer Programming. ■ To return to TV Guide RETURN
	Note Whilst making Split Programme recording, it is not possible to record any events between sections.
View advertisement	Enter your postcode when using this function for the first time ➔ "Postcode" in "GUIDE Plus+ Settings" (p. 27) If you have already entered your postcode in Owner ID (p. 12), you do not have to enter again. If you enter an incorrect postcode for your area, or no postcodes are entered, advertisement may not be displayed correctly. Display advertisement information ▪ To change advertisements
	□ AKKC ▪ To display the latest advertisement, you will need to update the information. ▪ To update the information continuously, the TV must be left in Standby mode at night. ▪ To return to TV Guide ▪
	Note Some advertisements are for future programmes. In this case it is possible to use the Event recording function. ➔ see above ▪ The information from the GUIDE Plus+ system will not be lost even if turned Off with Mains power On / Off switch.

Note

Select the event to output to external recorder

■ To return to TV Guide

Note

Display advertisement information

Note

■ To change advertisements

■ To return to TV Guide

Watching VCR, DVD and Satellites

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.

Connect the Satellite receiver and you can watch satellite broadcasts.

● To connect the equipment→p. 10 and p. 11

The Remote Control is capable of operating some functions of selected Panasonic external equipment.

Turn the TV on ■ When connecting with SCART as example 2 or 3 (p. 10 and p. 11) Receives input signals automatically when playback starts or satellite receiver is switched on ● Input signals are automatically identified by the SCART (pin 8) terminal. ● This function is also available for HDMI connections (p. 50). ■ If input mode is not switched automatically → Perform ②and ③ ● Dependant on the setup of the equipment Display the Input select menu AV Select the input mode connected to the equipment Input Selection AV1 AV2/S AV3/S COMPONENT PC HDMI1 HDMI2 HDMI3 TV ②watch ①select ● You can also select the input using the AV button on the remote control or the front panel of the TV. Press the button repeatedly until the desired input is selected. ● You can label or skip each input mode ▼“Input Labels” (p. 38) Skipped inputs will not be displayed when AV button is pressed. View Displays the selected mode AV2 To return to TV TV Note ● If the external equipment has an aspect adjustment function, set to “16:9”. ● For details, see the manual of the equipment or ask your local dealer.

Screen display

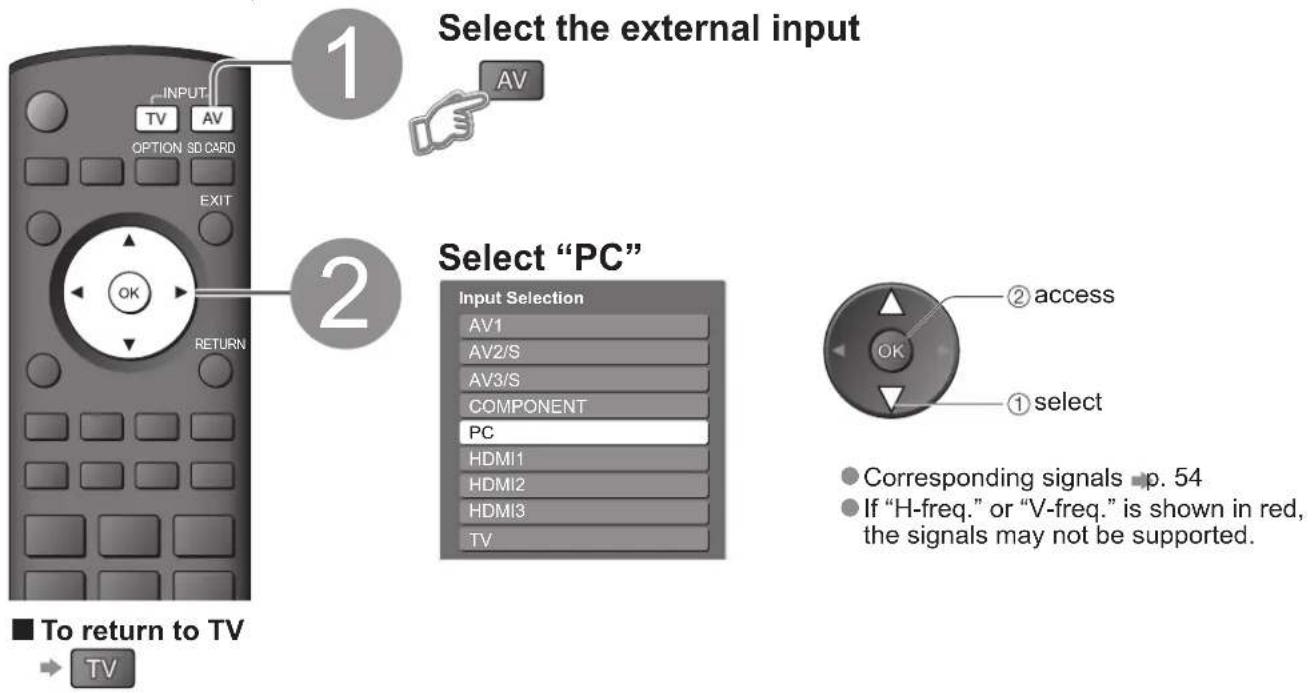

Terminal	AV1 AV2 AV3			COMPONENT	PC HDMI1	HDMI2	HDMI3
Manual input (default setting in "Input Labels")	AV1 AV1-RGB	AV2 AV2-S-Video AV2-RGB	AV3 AV3-S-Video	COMPONENT	PC HDMI1	HDMI2	HDMI3
Auto input (EC mode or VIERA Link)	EC/AV1 EC/AV1-RGB	EC/AV2 EC/AV2-S-Video EC/AV2-RGB	—	—	—	EC/HDMI1● Applicable for EC mode and VIERA Link	EC/HDMI2● Applicable for VIERA Link	EC/HDMI3● Applicable for VIERA Link

Panasonic equipment connected to the TV can be directly operated with the remote control.

VCR, DVD	VCR / DVD switch*Select VCR to operate Panasonic VCR or DVD equipmentSelect DVD to operate Panasonic DVD equipment or Player home theatre
	StandbySet to Standby mode / Turn on
	PlayPlayback videocassette / DVD
	StopStop the operations
	Rewind / Skip / SearchVCR: Rewind, view the picture rapidly in reverseDVD: Skip to the previous track or titlePress and hold to search backward
	Fast-forward / Skip / SearchVCR: Fast-forward, view the picture rapidly forwardDVD: Skip to the next track or titlePress and hold to search forward
	PausePause / ResumeDVD: Press and hold to play at slow speed
	Programme Up / DownSelect programme
	RecordStart recording

\*Setting your remote control to operate Panasonic VCR, DVD, etc.

① Set the VCR / DVD switch to the appropriate position

② Press and hold during the following operations

Enter the appropriate code for the equipment to be controlled, see table below

→ Press

"VCR" position

Equipment	Code
VCR	10 (default)
DVD	11

"DVD" position

Equipment	Code
DVD	70 (default)
Player home theatre	71

Note

• Confirm if the remote control works correctly after changing the code.
  ● The codes will be reset to default values if batteries are replaced.
  ● "DVD" means DVD player, DVD recorders and Recorder home theatre.
  ● Some operations may not be possible on some equipment models.

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

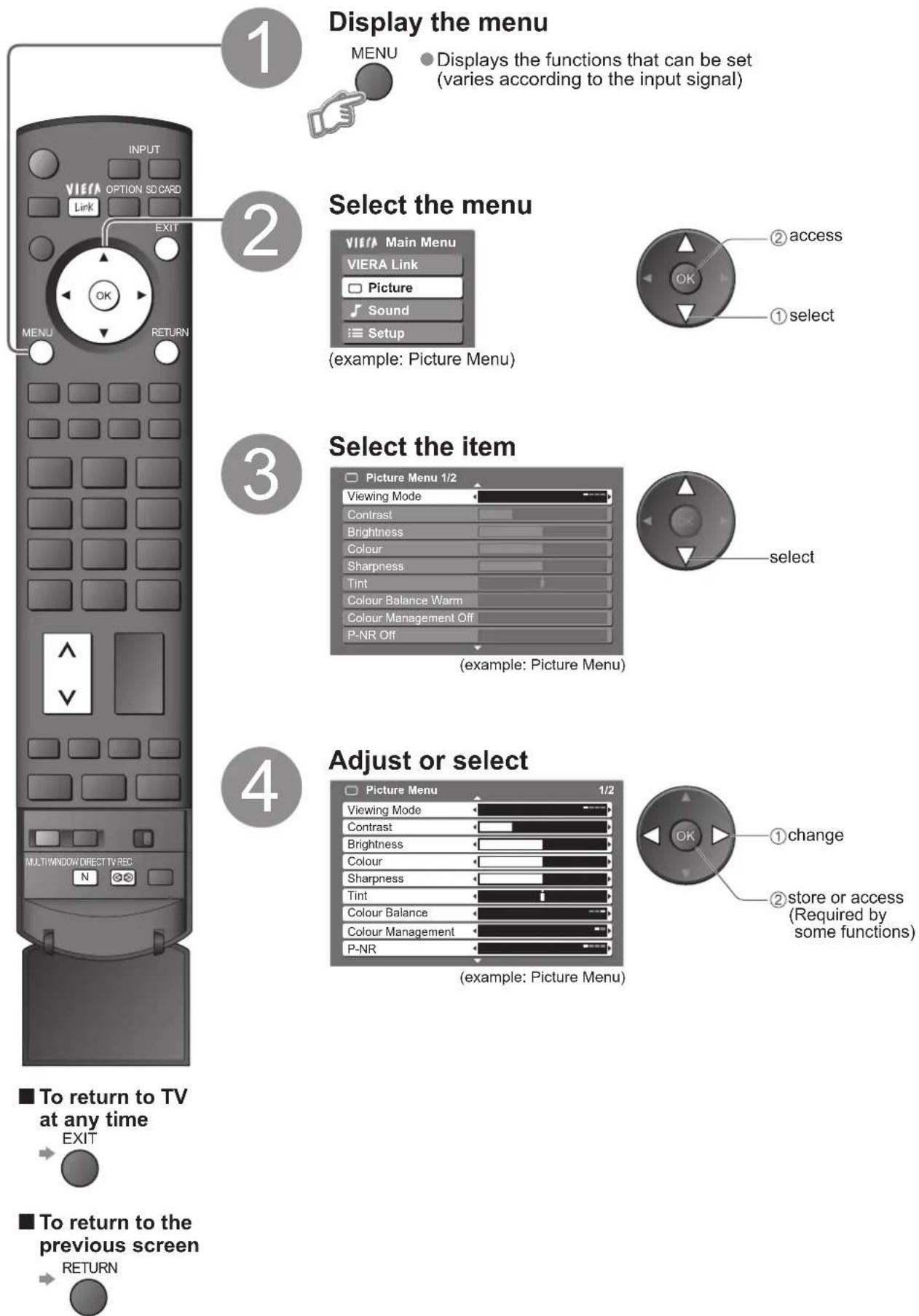

1 Display the menu MENU Displays the functions that can be set (varies according to the input signal) 2 Select the menu VIERA Main Menu VIERA Link Picture Sound Setup (example: Picture Menu) 3 Select the item Picture Menu 1/2 Viewing Mode Contrast Brightness Colour Sharpness Tint Colour Balance Warm Colour Management Off P-NR Off (example: Picture Menu) 4 Adjust or select Picture Menu 1/2 Viewing Mode Contrast Brightness Colour Sharpness Tint Colour Balance Colour Management P-NR (example: Picture Menu) 5 To return to TV at any time EXIT To return to the previous screen RETURN

■ Choose from among alternatives

Number and positions of alternatives Colour Balance Normal Changed

■ Adjust using the slide bar

■ Go to the next screen

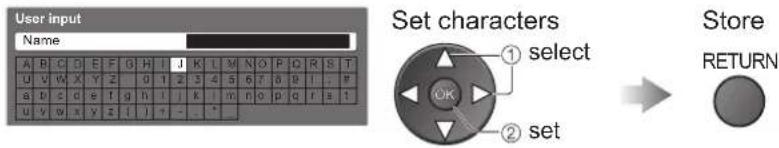

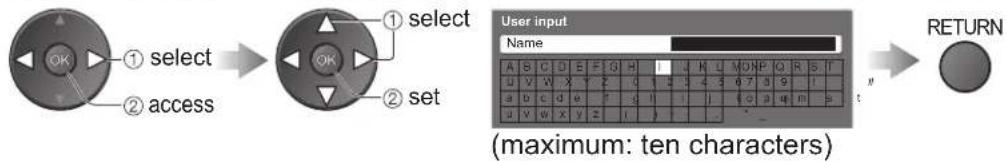

■ Enter characters using alpha / numeric keys

You can input information using alpha / numeric keys.

User input Name Set characters ① select ② set Store RETURN

■ To change menu pages

■ To reset the settings

● To reset the picture settings only → "Reset to Default" in Picture Menu (p. 26)
● To reset the sound settings only → "Reset to Default" in Sound Menu (p. 26)
● To reset the picture and sound settings together → N (Also volume level and aspect mode are reset)
● To initialize all settings → "Shipping Condition" in Setup Menu (p. 36)

How to Use Menu Functions

Menu list

Menu	Item Adjustments / Configurations (alternatives)
VIERA Link	Pause Live TV
	Direct TV Rec
	VIERA Link Control
	Speaker Selection
Picture	Viewing Mode
	Contrast, Brightness,Colour, Sharpness
	Tint
	Colour Balance
	Colour Management
	P-NR
	3D-COMB
	Reset to Default
Sound	Mode
	Bass
	Treble
	Balance
	Headphone Volume
	Surround
	Volume Correction
	Speaker Distance to Wall
	Preferred Multi Audio
	NICAM
	HDMI1 Input
	Audio Description	Useful for visually-impaired viewers (Off / On)Select “On” to activate the description sound track if available
	Description Menu	Volume
		Speakers
		Headphones
	Reset to Default

■ Menu list

Menu	Item Adjustments / Configurations (alternatives)
Setup	Timer Programming		Records forthcoming programmes (p. 40)
	DVB Profi le Edit		Creates list of favourite programmes (p. 32)
	DVB Service List		Skips the unwanted DVB programmes (p. 33)
	Analogue Service List		Skips the unwanted Analogue programmes or edits Analogue programmes (p. 33)
	Link Settings	VIERA Link	Sets to use VIERA Link functions (Off / On) (p. 46)
		Q-Link	Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) (p. 45)● Select the connected terminal to the recorder even it is not compatible with Q-Link.
		AV1 / AV2 out	Chooses the signal to be transmitted from the TV to Q-Link (TV / AV1 / AV2 / AV3 / Monitor)● Monitor: Image displayed on screen● Component, PC and HDMI signals cannot be outputted.
		Q-Link Download	Downloads analogue programme information to a Q-Link compatible equipment connected to the TV
	Child Lock		Locks a programme / AV input to prevent access to it (p. 33)
	Tuning Menu	Auto Setup	Automatically sets the programmes received in the area (p. 35)
		DVB Manual Tuning	Sets the DVB programmes manually (p. 35)
		Analogue Manual Tuning	Sets the Analogue programmes manually (p. 35)
		Add New DVB Services	Adds new DVB services (p. 35)
		New Service Message	Selects whether to give a notification message when a new DVB service is found (p. 35)
		DVB Signal Condition	Checks the DVB signal condition (p. 35)
	GUIDE Plus+ Settings	Postcode	Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 20)
		System Information	Displays the system information of the GUIDE Plus+ system
	Off Timer		Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
	Power on Preference		Set to “TV” to view picture from TV tuner.Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver (TV / AV)● The external equipment must be switched on and sending a control signal for automatic switching at power on to occur.
	Teletext		Analogue teletext display mode (FASTEXT / List) (p. 18)
	Preferred Subtitles		Selects the preferred language for DVB subtitles (depending on the broadcaster)● To display subtitles p. 14
	Shipping Condition		Resets all settings, for example, when moving house (p. 36)
	Owner ID		Inputs the owner ID (p. 37)
	Common Interface		Uses include to watch pay-TV (p. 31)
	System Update		Downloads new software to TV (p. 31)
	Power Save		Reduces brightness of picture to economise on power consumption (Off / On)
	Side Panel		Increases the brightness of the side panel (Off / Low / Mid / High)● The recommended setting is “High” to prevent panel “image retention”.
	Picture Overscan		Selects the screen area displaying the image (Off / On)On : Enlarged the image to hide the edge of the image.Off : Displayed the image in the original size.● Set to “On” if noise is generated on the edge of the screen.● This function is available when aspect is set to Auto (16:9 signal only) or 16:9.● This function can be memorized separately for SD (Standard definition) and HD (High defi nition) signals.
	Input Labels		Labels or skips each input terminal (p. 38)
	Banner Display Timeout		Sets how long the information banner (p. 15) stays on screen● 0 (No display) to 10 sec. in 1-sec. increments
	Software Licence		Displays the software licence information
	System Information		Displays the system information of this TV

● A different menu will be displayed while PC or SD Card is used. (p. 39 and p. 43)
● Only available items can be selected.

How to Use Menu Functions

Overview

● How to operate (p. 24)

    subgraph Design Details
        L1["Main Label: Date Start End Time"] --> L2["Line Style: 15.00-25.00 Time"] --> L3["Line Style: 15.00-25.00 Time"] --> L4["Line Style: 15.00-25.00 Time"] --> L5["Line Style: 15.00-25.00 Time"] --> L6["Line Style: 15.00-25.00 Time"] --> L7["Line Style: 15.00-25.00 Time"] --> L8["Line Style: 15.00-25.00 Time"] --> L9["Line Style: 15.00-25.00 Time"] --> L10["Line Style: 15.00-25.00 Time"] --> L11["Line Style: 15.00-25.00 Time"] --> L12["Line Style: 15.00-25.00 Time"] --> L13["Line Style: 15.00-25.00 Time"] --> L14["Line Style: 15.00-25.00 Time"] --> L15["Line Style: 15.00-25.00 Time"] --> L16["Line Style: 15.00-25.00 Time"] --> L17["Line Style: 15.00-25.00 Time"] --> L18["Line Style: 15.00-25.00 Time"] --> L19["Line Style: 15.00-25.00 Time"] --> L20["Line Style: 15.00-25.00 Time"] --> L21["Line Style: 15.00-25.00 Time"] --> L22["Line Style: 15.00-25.00 Time"] --> L23["Line Style: 15.00-25.00 Time"] --> L24["Line Style: 15.00-25.00 Time"] --> L25["Line Style: 15.00-25.00 Time"] --> L26["Line Style: 15.00-25.00 Time"] --> L27["Line Style: 15.00-25.00 Time"] --> L28["Line Style: 15.00-25.00 Time"] --> L29["Line Style: 15.00-25.00 Time"] --> L30["Line Style: 15.00-25.00 Time"] --> L31["Line Style: 15.00-25.00 Time"] --> L32["Line Style: 15.00-25.00 Time"] --> L33["Line Style: 15.00-25.00 Time"] --> L34["Line Style: 15.00-25.00 Time"] --> L35["Line Style: 15.00-25.00 Time"] --> L36["Line Style: 15.00-25.00 Time"] --> L37["Line Style: 15.00-25.00 Time"] --> L38["Line Style: 15.00-25.00 Time"] --> L39["Line Style: 15.00-25.00 Time"] --> L40["Line Style: 15.00-25.00 Time"] --> L41["Line Style: 15.00-25.00 Time"] --> L42["Line Style: 15.00-25.00 Time"] --> L43["Line Style: 15.00-25.00 Time"] --> L44["Line Style: 15.00-25.00 Time"] --> L45["Line Style: 15.00-25.00 Time"] --> L46["Line Style: 15.00-25.00 Time"] --> L47["Line Style: 15.00-25.00 Time"] --> L48["Line Style: 15.00-25.00 Time"] --> L49["Line Style: 15.00-25.00 Time"] --> L50["Line Style: 15.00-25.00 Time"] --> L51["Line Style: 15.00-25.00 Time"] --> L52["Line Style: 15.00-25.00 Time"] --> L53["Line Style: 15.00-25.00 Time"] --> L54["Line Style: 15.00-25.00 Time"] --> L55["Line Style: 15.00-25.00 Time"] --> L56["Line Style: 15.00-25.00 Time"] --> L57["Line Style: 15.00-25.00 Time"] --> L58["Line Style: 15.00-25.0<fcel>Advanced<br>How to Use Menu Functions (picture, sound quality, etc.)<br>( p.p .32 ) "]
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( p.p .33 )
( P.O.L.
Only available in DVB...
Only available in Analogue...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available In
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in N
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available in DVB...
Only available In,
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available In,DVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
Only available InDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
OnlyavailableInDVB
• Shipping Condition
All tuning data will be erased
Are you sure?
Are you sure?
Common Interface
Slot 1 : Module inserted
System Update
Auto Update Search in Standby + On
System Update Search Now
Input Labels
AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI AVI EVs
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L .
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.L.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.I.
P.O.CII III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III II
A,B,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C,C/C,D,F,G,H,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,I,J,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,L,K,l,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,l,k,m,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,p,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P,P, P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.P.EQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOQOCOMMANT COMPONENT COMPONENT PC HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI HDMIHDMI DMA<nl>

DVB Settings (DVB mode)

DVB Settings provide access to various advanced features.

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

This TV receiver works only Pay TV modules complying with CI standard.

Caution

• Turn Off Mains power On / Off switch whenever inserting or removing the CI module.
• If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader.
• Do not insert the module up side down.

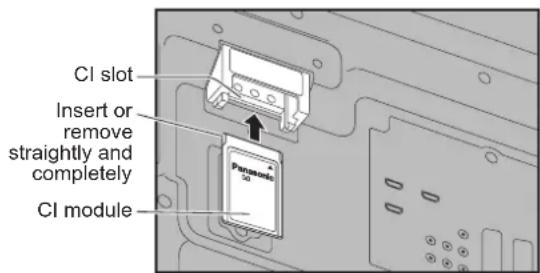

CI slot Insert or remove straightly and completely CI module Pangsonic 3012

Rear of the TV

① Insert the CI module (optional)

• The features that appear on screen are dependent on the contents of the selected CI module.
• Normally pay-TV services will appear without ②and .③ If pay-TV service does not appear, perform ②and .③
• For more details, see the manual of the CI module, or check with the broadcaster.

② Access "Common Interface"

③ Follow the on-screen instructions

- On-screen operation guide may not correspond to the remote control buttons.

Download new software to TV.

For details → p. 53

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set "Auto Update Search in Standby" to Off.

Select "Auto Update Search in Standby" and then set "On" or "Off"

System Update Auto Update Search in Standby On System Update Search Now ② set ① select

- On: Automatically performs a search in standby and downloads an update, if any software updates are available

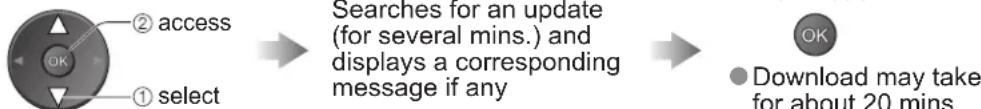

■ To update immediately

Select

"System Update Search Now"

Editing Programmes

You can make your favourite programme lists, skip unwanted programmes and control programme audience, etc.

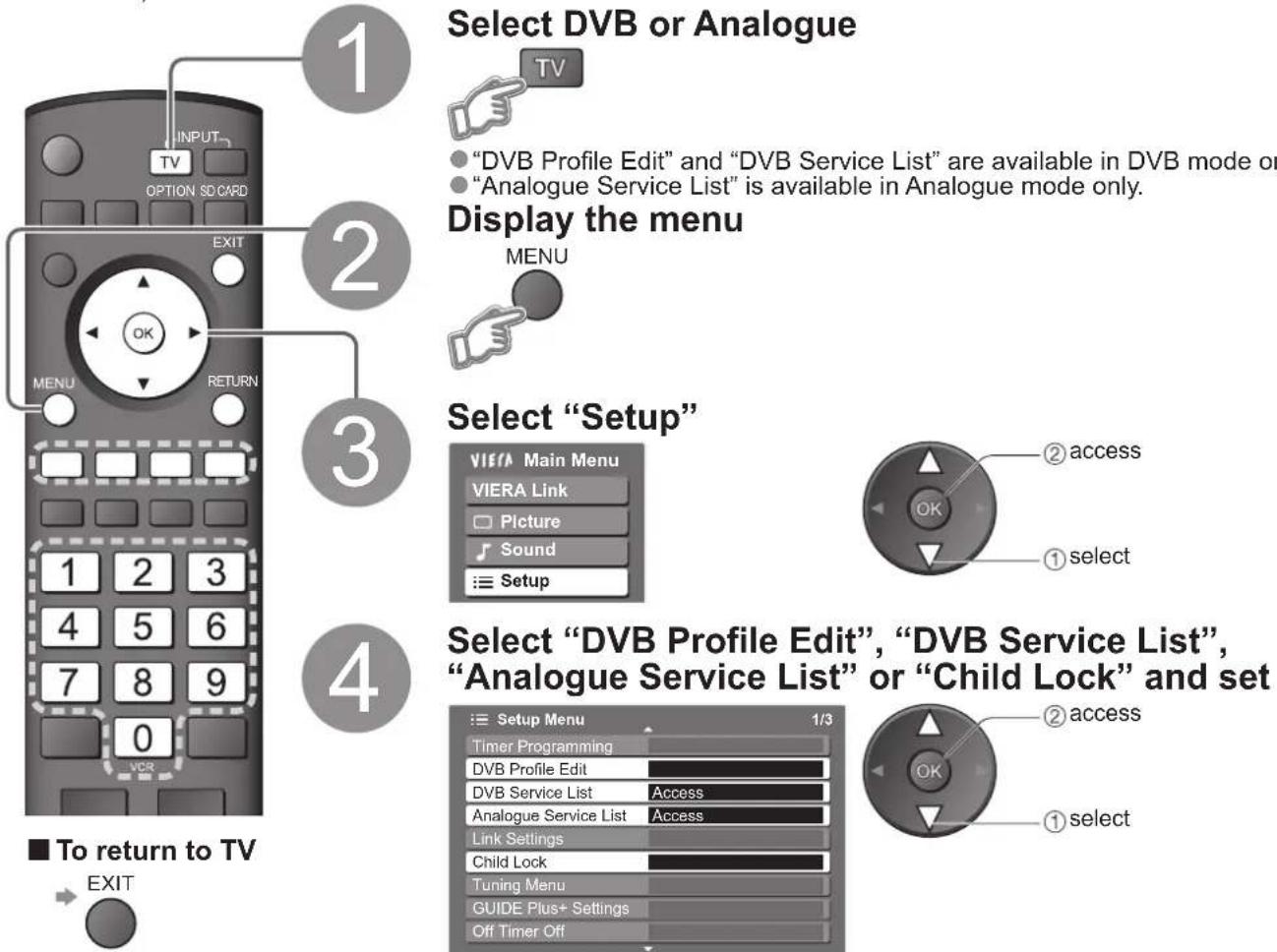

Select DVB or Analogue TV • "DVB Profile Edit" and "DVB Service List" are available in DVB mode or • "Analogue Service List" is available in Analogue mode only. Display the menu MENU Select "Setup" VIERA Main Menu VIERA Link Picture Sound Setup ② access OK ① select 4 Select "DVB Profile Edit", "DVB Service List", "Analogue Service List" or "Child Lock" and set Setup Menu 1/3 Timer Programming DVB Profile Edit DVB Service List Access Analogue Service List Access Link Settings Child Lock Tuning Menu GUIDE Plus+ Settings Off Timer Off ① select OK To return to TV EXIT

List favourite programmes

DVB Profile Edit

(DVB mode)

Create your favourite programme list (Profile) from various broadcasters (up to 4: Profile 1 to 4). The list is added to "Category" in TV Guide (p. 20) and information banner (p. 15) and then easily accessed.

Select a programme and add it to the list

■ To edit Profile

Note

- Programme numbers (known as logical channel numbers) cannot be changed, due to broadcast restrictions.

Skip unwanted programmes	You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted programmes. “DVB Service List” lists all tuned DVB programmes in DVB mode. “Analogue Service List” lists all tuned Analogue programmes in Analogue mode. Select a service and add / delete
DVB Service List
Analogue Service List
Edit analogue programmes (Change name, Move)	You can change the programme name and programme position for Analogue programmes. This function is available in Analogue mode. If a VCR is connected only with the RF cable, edit “VCR”.
Analogue Service List	1 Select the programme to edit
	2 EditTo change the name displayed when selecting programmesSelect “Rename” Set characters green → 1 select set (maximum: fi ve characters) → Store RETURN yellow → select → Store yellow
Control programme audience	You can lock specific programmes / AV input terminals and control who watches them. (When the locked programme / input is selected, a message appears; by entering the PIN number, you can watch it.)1 Enter the PIN number (4 digits)Please enter new PIN PIN 4 5 67 8 902 Select “Child Lock List”Child Lock Change PIN Child Lock List Access 2 access 3 Select the programme / input to be lockedName Tools Lock 1 BBC One Wales Free TV 2 BDC THILE7 Free TV 14 CS Free TV 14 C5 Free TV 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C5 14 C	Enter the PIN number twice at first setting.Make a note of the PIN number in case you forget it.To cancelSelect the locked programme / inputOKTo lock allyellowTo cancel all locksblue
Child Lock

Tuning Programmes

You can retune all the TV programmes when moving house or search for new services which may have recently started broadcasting.

■ For Auto Setup, using the buttons on the front of the TV (p. 8)

① Press repeatedly until "Auto Setup" appears

② Access "Auto Setup"

③ Start "Auto Setup"

To return to TV → □F

F V/V +/A TV AV

Set all DVB or Analogue programmes automaticallyAuto Setup	Automatically retune all DVB or Analogue programmes received in the area.Only DVB programmes are retuned in DVB mode.Only Analogue programmes are retuned in Analogue mode.If a Child Lock PIN number (p. 33) has been set, it must be entered.
	Start Auto Setup	Settings are made automatically
	All the previous tuning settings are erased.The analogue settings are downloaded to a Q-Link compatible equipment connected to the TV in Analogue mode.When the operation is completed, the programme at programme position "1" will be displayed.If tuning has not been done completely→“DVB Manual Tuning”, “Analogue Manual Tuning”
Set DVB programme manuallyDVB Manual Tuning	Normally use “Auto Setup” or “Add New DVB Services” to add DVB programmes to your service list.If tuning has not been done completely or for adjusting the direction of the aerial, use this function.	All services found will be added to the DVB Service List.

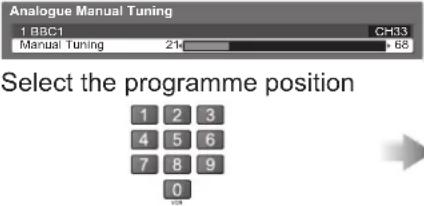

Set Analogue programme manuallyAnalogue Manual Tuning	Set Analogue programme manually after Auto Setup.If a VCR is connected only with the RF cable, select programme position "0".	Select the programme Search and store
Add DVB programme automaticallyAdd New DVB Services	Any new services found will be added to the DVB Service List.	The new service is added with the current settings saved as they are.
Display a notification messageNew Service Message	Selects whether to give a notification message when a new DVB service is found. (Off / On) Selecting OK (Auto Setup) will delete the current Profile and Childlock settings.

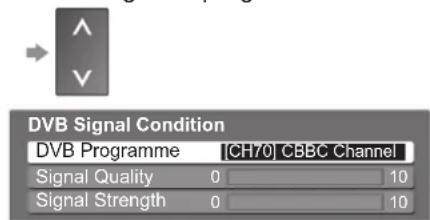

Check DVB signalDVB Signal Condition	Selects a programme and checks the DVB signal condition.To change the programme	A good Signal Strength is not an indication of suitable signal for DVB reception. Please use the Signal Quality indicator as follows:Signal Quality:Green bar→GoodYellow bar→PoorRed bar→Bad (Check the aerial)

Restore Settings

Resets the TV to its original condition, i.e. no programmes tuned in.

All settings other than "Owner ID" (programmes, picture, sound quality, etc.) are reset.


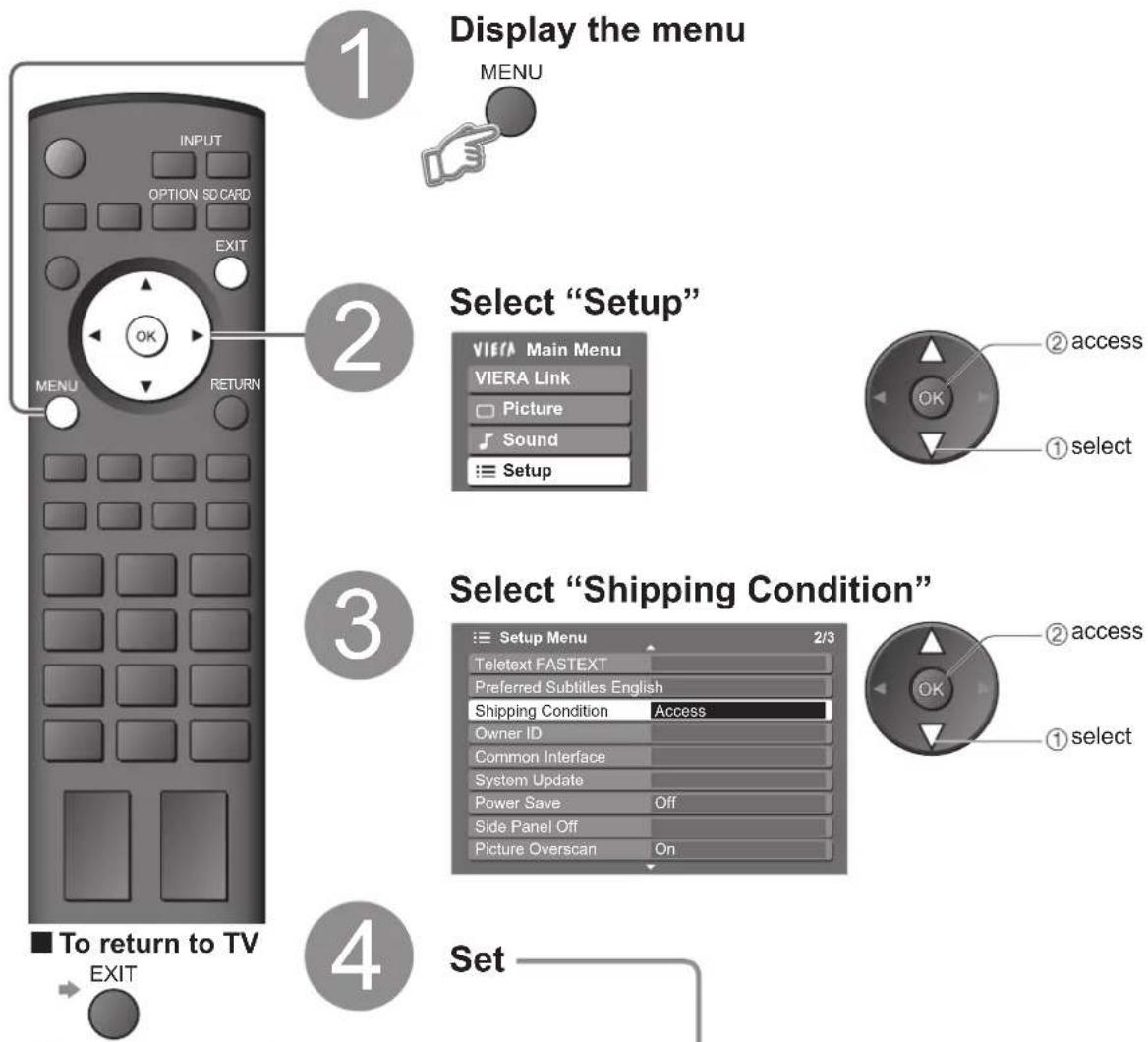

    A["1 Display the menu"] --> B["2 Select "Setup""]
    B --> C["3 Select "Shipping Condition""]
    C --> D["4 Set"]

Restore Settings

Shipping Condition

① Check the message and initialise

Shipping Condition All tuning data will be erased Are you sure? Are you sure? Confirm EXIT RETURN

② Follow the on-screen instructions

● "Auto Setup" will automatically start when Mains power On / Off switch is next turned On. (p. 12)

■ To retune TV programmes only, e.g. after moving house

→ "Auto Setup" (p. 35)

Owner ID

Entry of the security code (PIN number) and "personal information" (your name, address and postcode). In the unfortunate event of theft it will help the Police to determine the owner.

If you have skipped the Owner ID input in "Auto Setup" (p. 12), and input it later, start from ①. If you input the Owner ID in "Auto Setup" (p. 12), perform ④.

1

Display the menu

MENU

2

Select "Setup"

3

Select "Owner ID"

4

Set

Input owner ID

Owner ID

① Enter the PIN number (4 digits)

Owner ID Please enter new PIN PIN EXIT d - PIN entry RETURN

- Enter the PIN number twice at first setting. - Make a note of the PIN number in case you forget it.

② Enter your name, address, and postcode, in that order

Select the entry field

Enter the "User input" mode

Select the character

Set

Store

To check the "personal information" stored

Hold down for about 6 sec.

Displays the information on the screen (for several sec.)

F + / V +/ A TV AV

● The PIN number is not displayed.

■ To change the PIN number

Select the "PIN" field

②access

①select

Enter a new PIN number twice

Input Labels

For easier identification and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment.

● To select the input mode → p. 22

The labels you set will be displayed in "Input Selection" menu (p. 22) or banner. ● If "Skip" is selected, you cannot select the mode.

■ User input

You can name each input terminals freely.

Select "User input" Set characters

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV.

You can also listen to PC sound with the audio cable connected.

To connect PC → p. 50

Corresponding signals p. 54
- If "H-freq." or "V-freq." is shown in red, the signals may not be supported.

■ PC menu setting (changed as desired)

To make settings → "How to Use Menu Functions" 1 to 4 (p. 24)

Menu	Item Adjustments /		Configurations (options)
Picture	Advanced PC Settings	W/B High R W	White balance of bright red area	11 and 2repeatedly adjusted2
		W/B High B W	White balance of bright blue area
		W/B Low R W	White balance of dark red area
		W/B Low B W	White balance of dark blue area
		Gamma (S Curve / 2.0 / 2.2 / 2.5)
		Reset to Default	Press the OK button to reset to the default Picture settings
Setup	PC Setup	Input Resolution	Switches to a wide viewVGA (640 × 480 pixels), WVGA (852 × 480 pixels), XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)Options change depending on signals
		Clock Set to the minimum level if noise occurs
		H-pos	Adjusts horizontal position
		V-pos	Adjusts vertical position
		Clock Phase	Eliminates flicker and distortionAdjust after Clock adjustmentSet to the minimum level if noise occurs
		Sync	Chooses another synchronous signal if the image is distorted (H & V / On G)H & V : by the horizontal and vertical signals from your PCOn G : by the green signal from your PC (if available)
		Reset to Default	Press the OK button to reset to the default Setup settings

Recording Controls

Timer Programming from Menu

The Timer programming menu allows you to choose programmes that you wish to record. At the correct time, the TV will switch on and tune to the correct programme (even if the TV is in Standby mode). TV Guide may also be used to set timer programming. (p. 20)

• If the recorder is compatible with Q-Link or similar technologies (p. 45), and setup / connection are done completely (p. 44 and p. 45), you do not need to programme the recorder – the TV will control the recording progress.
• If the recorder is not compatible with Q-Link or similar technologies, set "Q-Link" in Setup Menu (p. 27) to the connected terminal (AV1 or AV2), and make timer programming of the recorder (Read the manual of the recorder).
  ● "D" means DVB programme and "A" means Analogue programme.

INPUT OPTION SCORED GUIDE EXIT OK MENU RETURN 1 2 3 4 5 6 7 8 9 0 VCR

Display the menu

Select "Setup"

① select ② access

Select "Timer Programming"

Setup Menu 1/3 Timer Programming Access DVB Profile Edit DVB Service List Link Settings Child Lock Tuning Menu GUIDE Plus+ Settings Off Timer Off Power on Preference TV

① select ② access OK

Set

Store

Caution

● The TV must either be On or in standby.
- For preparations of a recorder, read the manual of the recorder.
- No other programme can be selected during recording.
It may not be possible to record an encrypted programme (which is copy-protected).

Set timer programming details

① Start making the settings

select the item → set Timer recording Records according to the time setting Guide: Event recording Records according to the TV Guide signal (p. 21) S/P: Split Programme (p. 21) Timer Programming Wed 05/08/04 18:50 Pos. DntmStart End mln. 7D BBC THREE 1D BBC1 Holiday News 3D ITV1 Freshly Squeezed Extra 6/8 FR 17:00 18:30 90 Off 6/8 FR 18:00 20:00 120 Off 7/8 SA 21:30 22:30 60 Off ① Programme ② Date ③ Starting time ④ Ending time ⑤ Subtitles (Off / Auto) Recording time (automatic display) ● Daily SU-SA: Sunday to Saturday ● Daily MO-SA: Monday to Saturday ● Daily MO-FR: Monday to Friday ● Weekly SA/FR/TH/WE/TU/MO/SU: Same time on the same day every week ● daily or weekly (press repeatedly)

■ To change a timer programming event

→ Select the programme to be changed

→ Correct as necessary (as above)

■ To cancel a timer programming event

→ Select the programme to be deleted

■ To cancel a timer programming event temporarily

→ Select the programme to be cancelled

● Each time pressed: cancel ↔ stop cancelling

■ To view details of the programming

→ Select the programme to be viewed

- Press again to return to Timer Programming menu.

■ Event recording (Timer Programming from TV Guide-EPG) → p. 21

Event recording is a timer programme controlled by information from the TV Guide.

Programme start and end times may be changed by broadcasters and sent to the TV for timer programme to follow the change.

Split Programme is a programme which is interrupted by one or more events.

Both of the above are subject to signals being sent by broadcasters.

■ Direct TV Recording → p. 45 and p. 47

You can record the current programme to DVD Recorder / VCR immediately.

Note

• Check that the Timer LED (Orange) is lit. If not, timer programmes are not active or not stored.
  “!” will identify any timer events that have been set and overlap. If this occurs then the first event will start and finish as programmed. The next timer event can then start.
  ● 2 mins. before the starting time: a reminder message appears.

(To remove the message → OK; To cancel the programming → ○)

● A Timer Programming event will automatically change to the desired programme 10 seconds before the start time.
● To stop Timer Programming event directly prior to the start time, it is necessary to stop the recorder manually.
- Timer Programming will be performed even if the TV is in Pause Live TV recording (p. 47). In this case, Pause Live TV recording will be cancelled.

Viewing from SD Card

Still images recorded by digital cameras will be displayed.

1 2 INPUT OPTION SD CARD EXIT 3

Insert the SD Card

Signal output from all AV terminals will be disabled during SD card view. Press OK to proceed. Press EXIT to return to TV viewing.

● Warning message for output signal is displayed.

Enter SD mode (Photo View Mode)

● All photos in SD Card are displayed by thumbnail.

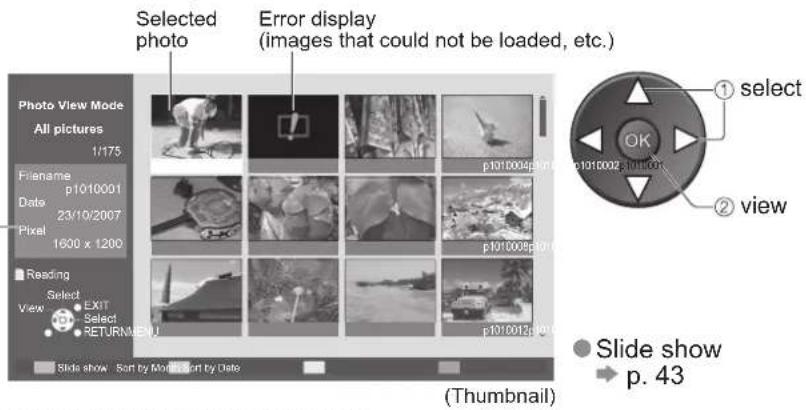

Select the photo to be viewed

Selected photo Error display (images that could not be loaded, etc.) Photo View Mode All pictures 1/175 Filename p1010001 Date 23/10/2007 Pixel 1600 x 1200 Reading Select View EXIT Select RETURNOUT Slide show Sort by Modell Sort by Date (Thumbnail) ① select OK ② view Slide show → p. 43

Selected photo information is displayed

The maximum number of characters for Filename is 8.
The photo without record of the date is shown "**/**/****".

■ To sort by date or month recorded

(Sort by Month / Sort by Date)

Display the thumbnail grouped by the same date or the same month

(Sort by Month)

(Sort by Date)

Select the group to be viewed

①select

②view the thumbnail of the selected group

Note

- The group of the photos without record of the date is shown as "Unknown".

View

■ To display the operation guide

Displayed one at a time

Single view Rotate EXIT Select ListMENU Rotate Slide show

To the previous photo Rotate 90° (anti-clockwise) To the next photo Rotate 90° (clockwise)

Operation guide

Caution

● During the operation, no signals are output from the monitor output terminals.

(Photos)

SD Card For details on SD Cards p. 53 ■ To insert Label surface Push until a click is heard ■ To remove Press the centre of the card

Slide show

■ Start Slide show (operate in step ③ or ④)

① Select the photo for the first view

② Start Slide show

red

- To pause

- To return to Single view

Note

● A Slide show will be completed within the group from which it was started.

■ Slide show settings (operate in step ③ or ④)

① Display the menu

② Select "Viewing Setup"

● "Picture Menu" (p. 26)

③ Select the items and set

Menu Item Adjustments / Configurations (alternatives)

Setup\Viewing	Interval Select slide show interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)
	Repeat Slide show repeat (Off / On)

Cautions in handling SD Card

• Do not remove the card while the TV is accessing data (this can damage card or TV).
• Do not touch the pins on the back of the card.
• Do not subject the card to a high pressure or impact.
• Insert the card in the correct direction (otherwise, card may be damaged).
  Electrical interference, static electricity, or erroneous operation may damage the data or card.
• Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

On screen messages

Message	Meaning / Action
Cannot read file	The file is broken or unreadable.The TV does not support the format.(For the applicable formats and data, see p. 53.)
Is SD Card in?	Confirm SD Card is inserted correctly.
No valid file to play	The card has no data.
Over 9999 pictures found	Maximum valid number of photos is 9,999.

Link Functions (Q-Link VIERA Link)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 45)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, etc. (p. 46 - 49)
You can use Q-Link and VIERA Link functions together.

■ Summary of Q-Link and VIERA Link functions

Features\Connection	Q-Link(SCART connection)	VIERA Link(HDMI connection only)	VIERA Link(SCART and HDMI connection)
Analogue programme download	○	-	○
Easy playback***	○	○	○
Power on link***	○	○	○
Power off link***	○	○	○
Speaker control***	-	○	○
Control the menu of the connected equipment by VIERA remote control	-	○*	○*
Direct TV Recording	○	-	○**
Pause Live TV programme	-	-	○**

* : Available with the equipment which has "HDAVI Control 2" or "HDAVI Control 3" function.
** : Available with the equipment which has "HDAVI Control 3" function.
***: These features may be available even with other manufacturers' equipment supporting HDMI CEC.

Connections

Read the manual of the equipment, too.

Q-Link

SCART cable DVD Recorder / VCR with Q-Link function

• Connect the DVD Recorder / VCR supporting Q-Link to the TV's AV1 or AV2 terminal via a fully wired SCART cable.

VIERA Link

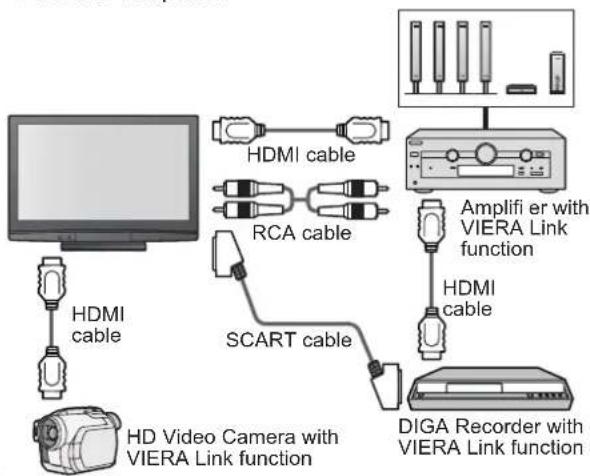

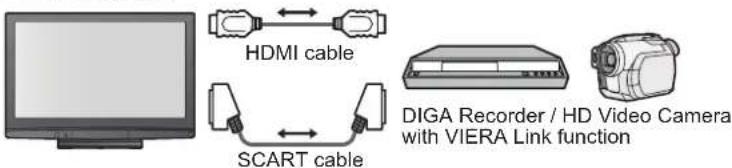

HDMI cable SCART cable DIGA Recorder / HD Video Camera with VERA Link function

- SCART cable

Use fully wired SCART cable.

HDMI cable

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.

Recommended Panasonic's HDMI cable part number:

• RP-CDHG10 (1.0 m)
• RP-CDHG15 (1.5 m)
• RP-CDHG20 (2.0 m)
• RP-CDHG30 (3.0 m)
• RP-CDHG50 (5.0 m)

Connect the equipment supporting VIERA Link to the TV's AV1, AV2, HDMI1, HDMI2 or HDMI3 terminals via fully wired SCART and HDMI cables together.
- Some functions are available only with HDMI cable connection. But use both HDMI and SCART cables to support many features normally.

For Speaker control (Home Cinema)
● To use Amplifier

● To use Player theatre

HDMI cable RCA cable Player theatre with VIERA Link function

Q-Link

■ Preparations

• Connect the DVD Recorder / VCR with the following logos:
  "Q-Link", "NEXTVIEWLINK", "DATA LOGIC", "Easy Link", "Megalogic" or "SMARTLINK"
  Q-Link connection → p. 44
• Set up the DVD Recorder / VCR. Read the manual of the equipment.
  Q-Link terminal setup in Setup Menu → "Q-Link" (p. 27), "AV1 / AV2 out" (p. 27)
• Download Analogue programme setting "Q-Link Download" (p. 27) or "Auto Setup" in Analogue mode (p. 35) or "Auto Setup" - when first using the TV (p. 12)

■ Features available

Some recorders are not applicable. Read the manual of the recorder.

Direct TV Recording - What you see is What you record	Recording the current programme in DVD Recorder / VCR immediately.● Available conditions:
	Current mode	Using tuner	How to record
	Analogue	TV	TV monitor out
		Recorder	Recorder's tuner
	DVB	TV	TV monitor out
	AV (watching recorder's tuner)	Recorder	Recorder's tuner
	AV (watching recorder's external input)	-	Recorder's external input
	AV (watching TV's external input)	-	TV monitor out
	When Direct TV Recording is performed, the recorder is automatically turned on if it is in Standby mode.Changing programme or turning off the TV is available while the recorder is recording from its own tuner.Changing programme is not available while the recorder is recording from the TV tuner.Turning off the TV will stop the recording if the recording from an AV source connected to the TV.■ To stop recordingGUIDE EXIT
Information / Message	Recording information or if recording is not possible, a message is displayed.
Power on link and Easy playback	When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)
Power off link	When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or DVD is not active.)

• "DATA LOGIC" (a trademark of Metz Corporation) • "Megalogic" (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)

Link Functions (Q-Link VIERA Link)

VIERA Link "HDAMtrol

TM" *

*Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control" function. This TV supports "HDAVI Control 3" function.

Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically.

These features are limited to models incorporating "HDAVI Control" and "VIERA Link".

Some functions are not available depending on the equipment's version of HDAVI Control. Please confirm the connected equipment's version of HDAVI Control.
- VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to individual manuals for other manufacturers' equipment supporting VIERA Link function. About applicable Panasonic equipment, consult your local Panasonic dealer or refer to the URL: www.panasonic.co.uk

■ Preparations

• Connect the equipment supporting VIERA Link.
• VIERA Link connection → p. 44
• Set up the connected equipment. Read the manual of the equipment.
• For optimal recording, the settings of the recorder might be required. For details, read the manual of the recorder.
  Download Analogue programme setting "Q-Link Download" (p. 27) or "Auto Setup" in Analogue mode (p. 35) or "Auto Setup" - when first using the TV (p. 12)
• Set VIERA Link On in Setup Menu → "VIERA Link" (p. 27)
• Set up the TV

→ After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 22), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

• for the first time
- when adding or reconnecting equipment
- when changing setup

■ Features available

Easy playback

Automatic Input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the connected equipment is also automatically set to Standby.

- This function will work even if the TV enters standby mode automatically by Off Timer function or auto power standby function.

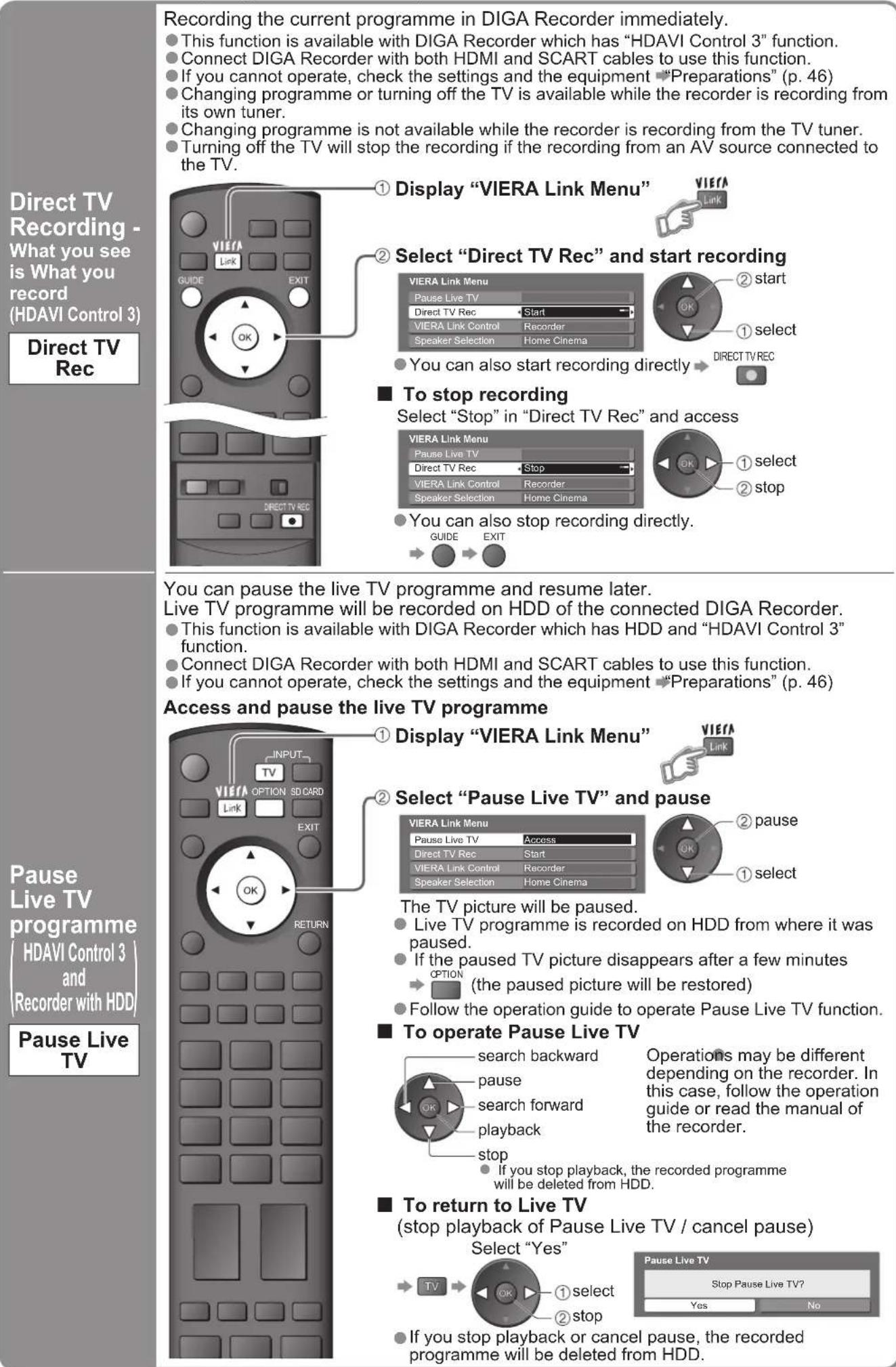

Recording the current programme in DIGA Recorder immediately. ● This function is available with DIGA Recorder which has "HDAVI Control 3" function. ● Connect DIGA Recorder with both HDMI and SCART cables to use this function. ● If you cannot operate, check the settings and the equipment "Preparations" (p. 46) ● Changing programme or turning off the TV is available while the recorder is recording from its own tuner. ● Changing programme is not available while the recorder is recording from the TV tuner. ● Turning off the TV will stop the recording if the recording from an AV source connected to the TV. Direct TV Recording - What you see is What you record (HDAVI Control 3) Direct TV Rec VIERA Link Menu SELECT "Direct TV Rec" and start recording VIERA Link Menu Pause Live TV Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema You can also start recording directly DIRECT TV REC ■ To stop recording Select "Stop" in "Direct TV Rec" and access VIERA Link Menu Pause Live TV Direct TV Rec Stop VIERA Link Control Recorder Speaker Selection Home Cinema You can also stop recording directly. GUIDE EXIT ■ To operate Pause Live TV HDAVI Control 3 and Recorder with HDD Pause Live TV You can pause the live TV programme and resume later. Live TV programme will be recorded on HDD of the connected DIGA Recorder. ● This function is available with DIGA Recorder which has HDD and "HDAVI Control 3" function. ● Connect DIGA Recorder with both HDMI and SCART cables to use this function. ● If you cannot operate, check the settings and the equipment "Preparations" (p. 46) Access and pause the live TV programme VIERA Link Menu SELECT "Pause Live TV" and pause VIERA Link Menu Pause Live TV Access Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema The TV picture will be paused. ● Live TV programme is recorded on HDD from where it was paused. ● If the paused TV picture disappears after a few minutes → OPTION (the paused picture will be restored) ● Follow the operation guide to operate Pause Live TV function. ■ To return to Live TV (stop playback of Pause Live TV / cancel pause) Select "Yes" TV → OK → 1 select 2 stop ■ If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

Link Functions (Q-Link VIERA Link)

■ Features available (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

(HDAVI Control 2) (HDAVI Control 3)

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV's signal receiver).

• This function is available with the equipment which has "HDAVI Control 2" or "HDAVI Control 3" function.
• If you cannot operate, check the settings and the equipment "Preparations" (p. 46)

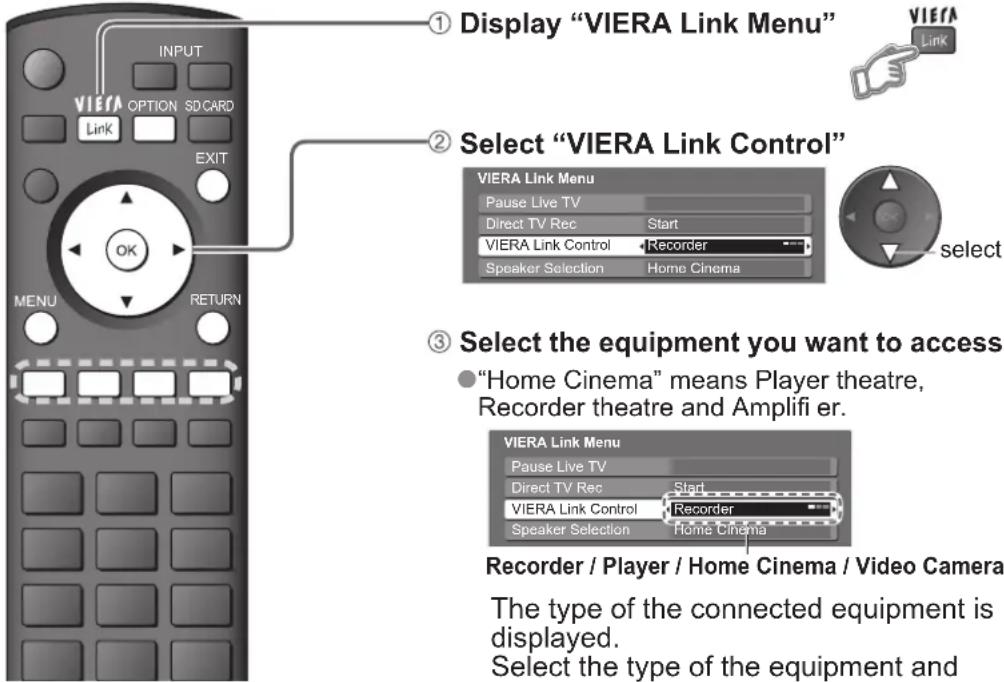

Access and operate the menu of the equipment

③ Select the equipment you want to access

● "Home Cinema" means Player theatre, Recorder theatre and Amplifi er.

The type of the connected equipment is displayed.

Select the type of the equipment and access.

The menu of the accessed equipment (Input mode will be changed automatically)

■ If you access the invalid equipment

When the equipment with "HDAVI Control" function is connected

VIERA Link Menu Pause Live TV Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema

Recorder / Player / Home Cinema / Video Camera

The type of the connected equipment is displayed. But you cannot access it. Use its own remote control to operate the equipment.

When the equipment of other types or manufacturers is connected

VIERA Link Menu Pause Live TV Direct TV Rec Start VIERA Link Control Others Speaker Selection Home Cinema

Others

"Others" is displayed. You cannot access it. Use its own remote control to operate the equipment.

④ Operate the menu of the equipment

● Available VIERA remote control buttons (depending on the connected equipment):

	Move the cursor / select the menu
	Move the cursor / access / adjust
	Store / set / access
RETURN	Return to the previous menu
EXIT	Exit the menu
OPTION	Display the operation guide for the equipment /The same functions with the OPTION button of the equipment
red green yellow blue	Access when the key words are displayed on colour bar

● About the operations for the equipment, read the manual of the equipment.

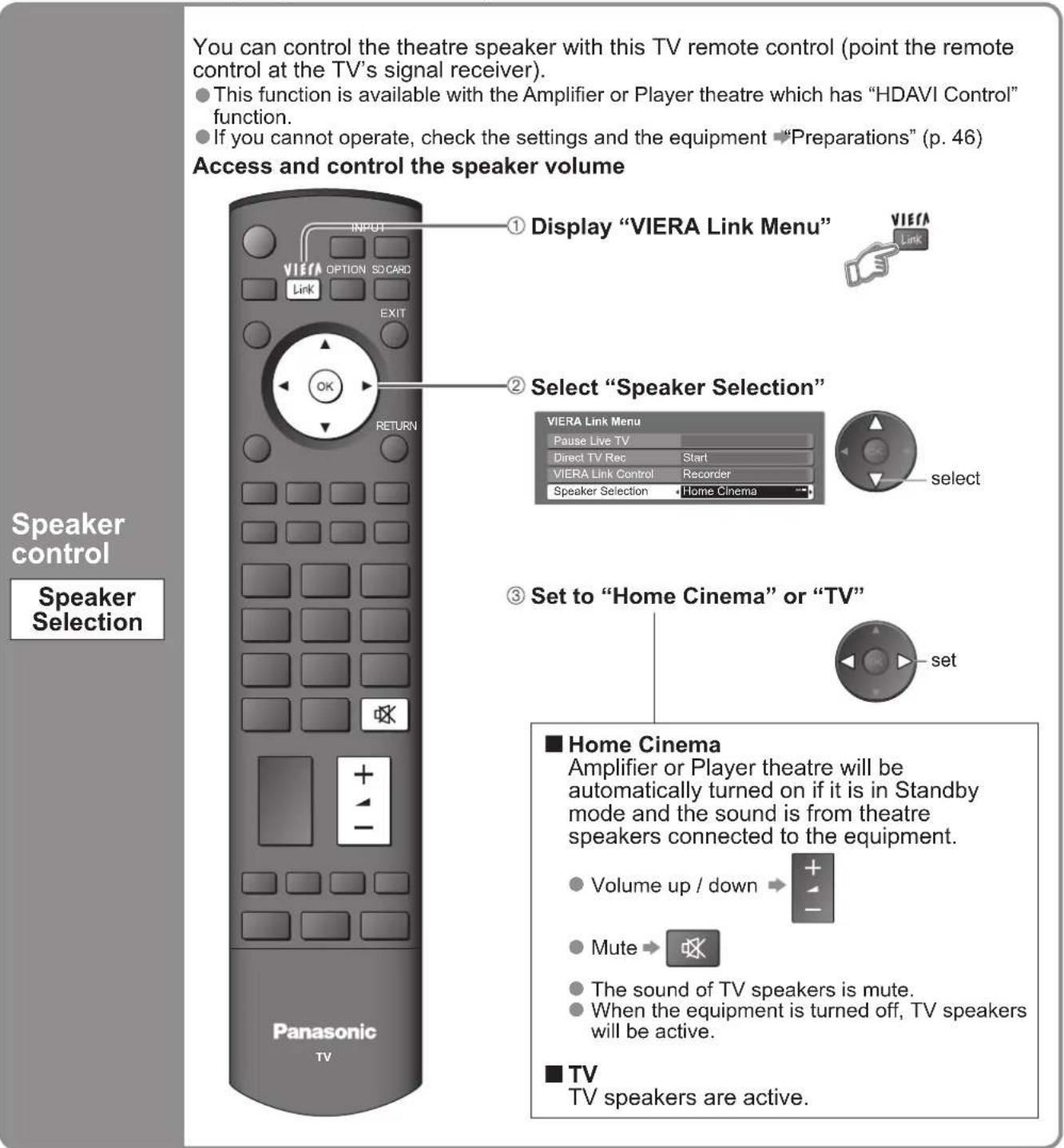

■ Features available (Using VIERA Link Menu)

You can control the theatre speaker with this TV remote control (point the remote control at the TV's signal receiver). ● This function is available with the Amplifier or Player theatre which has "HDAVI Control" function. ● If you cannot operate, check the settings and the equipment ▼Preparations" (p. 46) Access and control the speaker volume Speaker control Speaker Selection ① Display "VIERA Link Menu" VINERA LINK OPTION SD/CARD Link EXIT ② Select "Speaker Selection" VIERA Link Menu Pause Live TV Direct TV Rec Start VIERA Link Control Recorder Speaker Selection ▼Home Cinema select ③ Set to "Home Cinema" or "TV" set Panasonic TV ■ Home Cinema Amplifier or Player theatre will be automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment. ● Volume up / down → + ● Mute → ● The sound of TV speakers is mute. ● When the equipment is turned off, TV speakers will be active. ■ TV TV speakers are active.

Note

● This function may not work properly depending on the connected equipment.
● Image or sound may not be available for the first few seconds when the playback starts.
● Image or sound may not be available for the first few seconds when Input mode is switched.
● Volume function will be displayed when adjusting the volume of the equipment.
● Easy playback is also available by using the remote control for Amplifier or Player theatre. Read the manual of the equipment.
● About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
- If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case HDMI1.
- "HDAVI Control 3" is the newest standard (current as of December, 2007) for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.
● To confirm this TV's version of HDAVI Control → "System Information" (p. 27)

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 59).

Camcorder / Game equipment (VIDEO) or (S-VIDEO) (AUDIO) AV3 M3 stereo mini plug Headphones ■ To adjust volume "Headphone Volume" in the Sound Menu (p. 26)

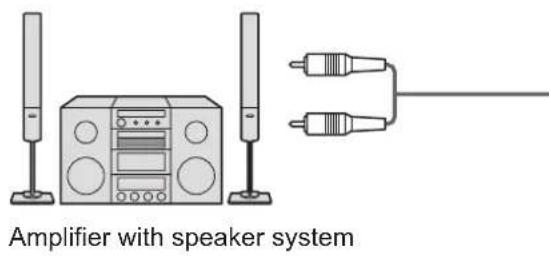

To listen with speakers

Amplifier with speaker system

To watch DVDs

DVD player

■ Types of connectable equipment to each terminal

Recording / Playback (equipment)	Terminal	AV1 AV2 AV3 (Front of TV)
		[D380]	[Y54X]	[ZSY6] —R
To record / playback videocassettes / DVDs (VCR / DVD recorder)		○	○
To watch DVDs (DVD player)		○	○	○
To watch camcorder images (Video camera)		○	○	○
To watch satellite broadcasts (Set top box)		○	○	○
To play games (Game equipment)		○	○	○
To use amplifier with speaker system
Q-Link		○	○
VIERA Link		○ (with HDMI)	○ (with HDMI)
Direct TV Recording		○	○

○: Recommended Connection

The optimum size and aspect can be chosen, and you can enjoy finer images. (p. 16)

Auto

Auto aspect determines the best aspect ratio to use to fill your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing pleasure.

The text shown on the screen indicates how Auto aspect determined which ratio to use:

"WIDE" appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal found through a SCART or HDMI terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function will also work in any aspect mode. "Auto" appears in the top left of the screen if black stripes above and below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fill the screen.

This process can take several minutes, depending on the darkness of the picture.

Signal name		Aspect Control Signal
		Widescreen signal (WSS)					Control signal through SCART (pin 8) or HDMI terminal
		TV AV1 AV2	AV3 COMPONENT AV1 AV2				HDMI1 HDMI2 HDMI3
PAL		O	O	O	O	O	O
PAL 525/60		-	-	-	-	-	O	O
DVB		O	-	-	-		-
M.NTSC		-	-	-	-		O	O
NTSC (AV input only)		-	-	-	-		O	O
SD	525(480)/60i					-			O	O	O
	525(480)/60p					-			O	O	O
	625(576)/50i					O	O		O	O
	625(576)/50p					O	O		O	O
HD	750(720)/50p					-			O	O	O
	750(720)/60p					-			O	O	O
	1125(1080)/50i					-			O	O	O
	1125(1080)/60i					-			O	O	O
	1125(1080)/50p					-			O	O	O
	1125(1080)/60p					-			O	O	O
	1125(1080)/24p					-			O	O	O

Note

The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands may appear at the top and bottom of the screen.
- If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.)

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

About connections, see "External Equipment" (p. 50).

Note

HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.
- If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter cable (*2).
- When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use COMPONENT-AUDIO terminals).
● Audio settings can be made on the "HDMI1 Input" menu screen. (p. 26)
● Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
● HDMI2 and HDMI3 terminals are for digital audio signal only.
● Use with a PC is not assumed.
- If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
● These HDMI connectors are "type A"
● These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
- An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S-VIDEO”, or “VIDEO” to receive analogue signals.
● The HDMI input terminal can be used with only the following image signals: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
● For details of the applicable HDMI signals, see p. 54.

(*1): The HDMI logo is displayed on HDMI-compliant equipment.

(*2): Enquire at your local digital equipment retailer shop.

Updating the DVB software

From time to time, a new version of software for DVB mode may become available for download to enhance the performance or operations of the TV.

A notification banner will appear when you tune to one of the BBC channels, or you can search for a new version software by using the “System Update Search Now” function (p. 31).

To start downloading press "OK", this may take up to 20 minutes to complete.

New version 1.00 found.

Do you really want to update the software and reboot the system?

Press OK to download the new version

Press EXIT to Ignore

To ignore the new software press “EXIT”, but this banner will keep appearing during the period of new software availability, usually 2 to 3 days.

To download any new software automatically, ensure that the "Auto Update Search in Standby" function in the System Update menu is set to "On" (p. 31).

The TV will then download new software automatically at night if it is left in standby without any timer programme in progress.

Note

● During software download and update, DO NOT switch off the TV.

Data format for Card browsing

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF standards Data format : Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Max. number of files : 9,999

Image resolution: 160 × 120 to 10,000,000

● Compliant card type (maximum capacity): SDHC Card (16 GB), SD Card (2 GB), Multi Media Card (128 MB), miniSD Card (1 GB) (requiring miniSD adapter)

- If miniSD Card is used, insert / remove it together with the adapter.

- Check the latest information on the card type at the following website. (English only) http://panasonic.co.jp/pavc/global/cs/

*DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

Note

● A JPEG image modified with a PC may not be displayed.
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.
● Partly degraded fi les might be displayed at a reduced resolution.
● Only “.JPG” extension can be read by this TV
● The folder and file names may be different depending on the digital camera used.
- Do not use two-byte characters or other special codes.
● The card may become unusable with this TV if the file or folder names are changed.

SCART, S-VIDEO and HDMI terminal information

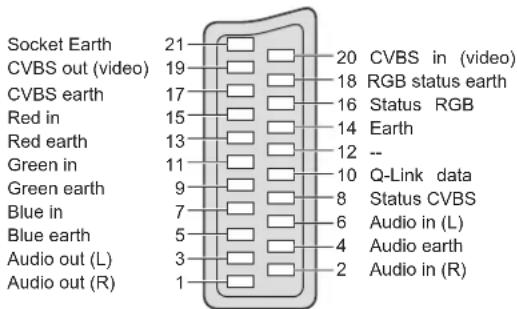

■ AV1 SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -- 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

■ AV3 S-VIDEO 4 pin terminal

Chrominance in Luminance in

Chrominance earth Luminance earth

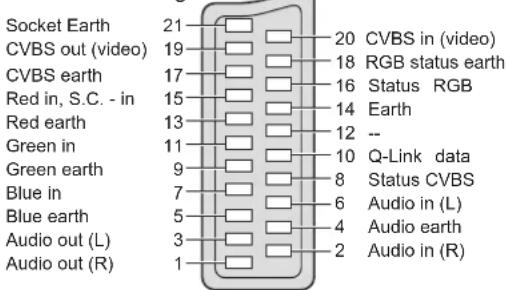

■ AV2 SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in, S.C. - in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -- 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

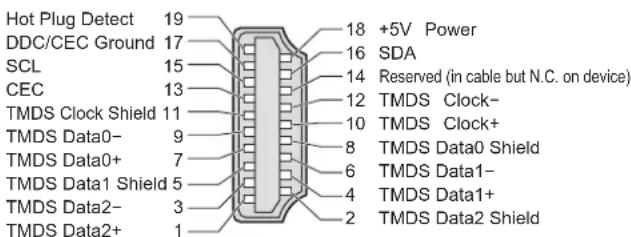

HDMI terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield 11 TMDS Data0- 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2- 3 TMDS Data2+ 1 18 +5V Power 16 SDA 14 Reserved (in cable but N.C. on device) 12 TMDS Clock- 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1- 4 TMDS Data1+ 2 TMDS Data2 Shield

Technical Information

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

● PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
● A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.

Note

● Some PC models cannot be connected to this TV.
- When using PC, set the colour display quality of PC to the highest position.
- For details of the applicable PC signals, see below.
● Max. display resolution

Aspect\Model No.	TH-37PX80BA	TH-42PX80BA
4:3	768 × 720 pixels	768 × 768 pixels
16:9	1,024 × 720 pixels	1,024 × 768 pixels

● D-sub 15-pin connector signal

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	R	6	GND (Ground)	11	NC (not connected)
2	G	7	GND (Ground)	12	NC (not connected)
3	B	8	GND (Ground)	13	HD
4	NC (not connected)	9	NC (not connected)	14	VD
5	GND (Ground)	10	GND (Ground)	15	NC (not connected)

Input signal that can be displayed

COMPONENT (Y, P_B , P_R ), HDMI

* Mark: Applicable input signal

Signal name COMPONENT HDMI
525 (480) / 60i	*	*
525 (480) / 60p	*	*
625 (576) / 50i	*	*
625 (576) / 50p	*	*
750 (720) / 60p	*	*
750 (720) / 50p	*	*
1,125 (1,080) / 60i	*	*
1,125 (1,080) / 50i	*	*
1,125 (1,080) / 60p		*
1,125 (1,080) / 50p		*
1,125 (1,080) / 24p		*

PC (D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13" (640 × 480) 35.00 66.67
Macintosh16" (832 × 624) 49.73 74.55
Macintosh21" (1,152 × 870) 68.68 75.06

Note

● Signals other than above may not be displayed properly.
● The above signals are reformatted for optimal viewing on your display.
● Applicable input signal for PC is basically compatible to VESA standard timing.
- PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 60)

White spots or shadow images (noise)

- Check the position, direction, and connection of the aerial.

Neither image nor sound is produced

● Is the TV in "AV mode"?
● Is the mains lead plugged into the socket outlet?
● Is the TV turned On?
- Check Picture Menu (p. 26) and volume.
- Check all required SCART cables and connections are firmly in place.

Auto aspect

● Auto aspect is designed to provide you with the best aspect ratio to use to fill your screen. For user control please see p. 52.

S-Video / black and white picture

- Using AV button please confirm your selection is S-Video I.e. AV2/S (p. 22).

No programmes shown on TV Guide

ViETA +0 175.05 40% 1.9 2.0% 3.0%

• Check the DVB transmitter.
• Adjust the direction of the aerial to another transmitter installed nearby.
• Check the analogue broadcast. If the image quality is poor, check the aerial and consult your nearest dealer.

On Screen messages - I.e. EC/AV1

- You can simply clear these Press again to redisplay.

Illustration of a flat-screen TV connected to an antenna, showing no text or symbols on the screen or charger.

Q-Link function does not work

- Please confirm SCART cable and connection. Also please set "AV1 / AV2 out" in the Setup Menu (p. 27).

"VIERA Link" function does not work and an error message appears

• Confir rm the connection.
  ● Turn the connected equipment on and then switch the TV on. (p. 46)

Recording does not start immediately

- Check the settings of the recorder. For details, read the manual of the recorder.

Permanently lit spots on screen

Due to production process involved in this technology this may result in some pixels which are permanently lit or unlit. This is not a malfunction.

Contrast is reduced

• Contrast is lowered in the following conditions without any user operation for a few minutes:
• no signal in DVB or AV mode
• selected locked programme
• selected invalid programme
• selected radio service
• displayed menu
  • Digital teletext (no video contents)
• Thumbnail or still picture in SD Card mode

FAQs

Problem Actions
Screen Sound DVB	Chaotic image, noisy	●Set “P-NR” in the Picture Menu (to remove noise). (p. 26)●Check nearby electrical products (car, motorcycle, fluorescent lamp).
	No image can be displayed	●Is “Colour” or “Contrast” in the Picture Menu set to the minimum? (p. 26)
	Blurry or distorted image (no sound or low volume)	●Reset programmes. (p. 35)
	Unusual image is displayed	●Turn off the TV with Mains power On / Off switch, then turn it On again.
	No sound is produced	●Is “Sound mute” active? (p. 9)●Is the volume set to the minimum?
	Sound level is low or sound is distorted	●Sound signal reception may be deteriorated.●Set “NICAM” (p. 26) in the Sound Menu to “Off”. (Analogue only)
HDMI Other	●Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in some cases, despite good reception of analogue programmes.
	Interference or frozen / disappearing image in DVB	●Check “DVB Signal Condition”. (p. 35)If “Signal Quality” or “Signal Strength” are displayed in red, check aerial.If problem persists, consult your local Panasonic dealer.Turn the TV off with the Mains power On / Off switch, then turn it On again.
	Sound is unusual	●Set the sound setting of the connected equipment to “2ch L.PCM”.●Check the “HDMI1 Input” setting in the Sound Menu. (p. 26)●If digital sound connection has a problem, select analogue sound connection. (p. 52)
	Pictures from external equipment are unusual when the equipment is connected via HDMI	●Is the HDMI cable connected properly? (p. 50)●Turn Off the TV and equipment, then turn them On again.●Check an input signal from the equipment. (p. 54)●Use an equipment compliant with EIA/CEA-861/861B.
	TV goes into “Standby mode”	●Off Timer function is activated.●The TV enters “Standby mode” about 30 mins. after analogue broadcasting ends.
	The remote control does not work	●Are the batteries installed correctly? (p. 6)●Has the TV been switched On?
	An error message appears	●Follow the message's instructions.●If the problem persists, contact the authorized Service Centre.

On screen messages

Message Meaning / Act

All tuning data will be erased	● “Shipping Condition” will erase all tuning data (p. 36).
Are you sure?	● Confi rm correct operation.
Are you sure you want to delete this timer?Press OK to delete timerPress RETURN to return	● Confi rm correct operation.
Bad Signal	● The signal is weak. Check the aerial.
Child Lock is active!Press OK to enter PIN	● The selected programme is locked in Child Lock (p. 33).
Feature not available	● It is not possible to record these sources (COMPONENT / HDMI / PC).
Invalid operation - Please check settings and connections	● Check the Q-Link or VIERA Link connection and setting (p. 44 - 46).
Invalid system time. Please exit!	● Cannot get the time information. Check the connection of the RF cable.
Max. number of Timers already set!	● The maximum number of timer programming events is 15.
New DVB Service Found!Press OK start Auto SetupPress EXIT to Ignore.Selecting Auto Setup will delete current Profi le and Childlock settings	● There is a new DVB service or programme.
New version 1.90 found.Do you really want to update the software and reboot the system?Press OK to download the new versionPress EXIT to Ignore	● There is a new software available.
No DVB Service foundPlease check aerial or localDVB service availability.Press OK to start Auto Setup	● Please follow the message.If it is still failed, consult your local Panasonic dealer.
No module inserted	● Check the CI module inserted completely (p. 31).
No Recording - Check media	● The tape or disc may be “write protected”, missing or damaged.
No Recording - Already recording	● The equipment may already be recording.
No Recording - Unknown reason	● The recording may not be performed. Check the equipment.Disc or tape may be full.
No Service	● The broadcaster has stopped the service.
No Signal	● Check the connection of the RF cable.
PIN incorrect!	● The PIN number you entered is wrong.
Please check settings and connections on HDMI devices.	● Communication error in VIERA Link function (p. 46).
Please wait.	● A function is in progress.
Recording this service now	● The recorder is recording the programme signal from its own tuner.You can turn the TV off and leave the equipment recording in the normal way.
Sending Preset Data Please wait!	● Q-Link or VIERA Link programme download is in progress.
Shipping condition completed.TV can now be switched off.	● “Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)
Software successfully updatedPress EXIT to continue	● The software updating is fi nished.
Software Update failed. Please try again later.Press EXIT to continue	● Perform “System Update Search Now” in System Update (p. 31).If this is still unsuccessful, there may not be any new software available.
Timer already expired!	● Starting time in Timer Programming is already past. Set correctly (p. 41).
Timer Event Due to StartDVB 1: BBC1 has been Programmed for recording at 20:00	● This message will appear 2 minutes before timer programming event due to start.
Timer incorrect!	● Set Start and End times in Timer Programming correctly (p. 41).
Tuner LockedPlease stop recording to operate	● If you want to unlock, cancel Direct TV Recording (p. 45 and p. 47)or Timer Programming (p. 40).
Unable to download, Check Equipment	● The tape or disc is active. Stop the equipment and try again.

Glossary

DVB

Digital Video Broadcasting

DVD

Digital Versatile Disc

DVI

Digital Visual Interface

■ EPG

Electronic Programme Guide

HDMI

High-Definition Multimedia Interface

NTSC

National Television System Committee One of the television signals used in USA, etc.

RF

Radio Frequency - Signal received from terrestrial aerial

RGB / S-Video / Video

Choose between these three video formats depending on personal preference and equipment requirement (RGB - Red, Green and Blue)

SCART

21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel)

VCR

Video Cassette Recorder

Index

A Accessories 6

Add New DVB Services 35

Analogue Manual Tuning 35

Aspect 16,

Audio Description 15,26

Auto Setup 12,35

AV1 / AV2 out 27,45

B Banner Display Timeout 27

Category list 20

Child Lock 33

CI module 31

Clamper 8

COMPONENT 50, 54

Connection 10, 44, 50

D Direct TV Recording 45, 47

Download to equipment 12, 27

D-sub 15-pin 54

DVB Manual Tuning 35

DVB Profile Edit 32

DVB Settings 30

DVB Signal Condition 35

DVI 52

DVDs 10, 22

E EPG 20

External equipment 10, 22, 50

External input 22,39

Event recording 21

F FAQs 55, 56

Free input menu 25

GUIDE Plus+ Settings 27

H HDMI 52-54

Hold 14. 19

Home Cinema 44, 49

I Information banner 15

Input Labels 38

Input signal 54

L Licence 59

M Mains Lead 10

Mains power On / Off switch 8, 12

Maintenance 5

Menu Functions 24-

Mode 26

Multi Audio 15

New Service Message 35

NICAM 2

NTSC 28, 59

Off Timer 16,27

Optional accessories 6

Owner ID 12,37

52 B PAL 59

PAL 39 BC 39 54

PC 39, 7

Pedestal View 42

Photo View 42 Picture Overscan 27

PIN number 12 33 37

P-NR 12, 36, 67 26

Power LED 8,12

Q Link 27,44,45

54 Quick Start Guide 6-13

R Remote control 6,9

eset to Default 26

RGB 59

54 S Sales and Support Information 60

Satellite receiver 11, 22, 50

CART 10,44,53

SD Card 42,53

Shipping Condition 36

Slide show 43

Specifications 59

Split Programme 21

Subtitles 14, 19

Surround 26

S-Video 50, 53

System Update 31,53

T Teletext....17-19

mer LED 8,21,41

Timer Programming 40

Tuning Menu 34

TV Guide 20

TV speaker 49

Type list 20

38 Update the software 31,53

User input 38

V Video 22,50

IERA Link 44, 46-49

Viewing Mode 26

Volume Correction 26

-29W WSS 52

Zoom 16

Licence

● DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
● VGA is a trademark of International Business Machines Corporation.
● Macintosh is a registered trademark of Apple Inc., USA.
- S-VGA is a registered trademark of the Video Electronics Standard Association. Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
- SDHC Logo is a trademark.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDAVI Control™ is a trademark of Matsushita Electric Industrial Co., Ltd.
● GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates.

GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

http://www.europe.guideplus.com/

Specifications

			TH-37PX80BA TH-42PX80BA
Power Source AC 220-240 V, 50 / 60 Hz
Power Consumption	Average use 235 W 255 W
	Standby condition		0.7 W (Without monitor out recording)20 W (With monitor out recording)
Display panel	Aspect Ratio 16:9
	Visible screen size		94 cm (diagonal)819 mm (W) × 457 mm (H)	106 cm (diagonal)922 mm (W) × 518 mm (H)
	Number of pixels		737,280 (1,024 (W) × 720 (H)) [3,072 × 720 dots]	786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]
Sound	Speaker 160 mm × 42 mm × 2 pcs, 8 Ω
	Audio Output 20 W (10 W + 10 W), 10% THD
	Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals			VGA, SVGA, XGASXGA ...... (compressed)Horizontal scanning frequency 31 - 69 kHzVertical scanning frequency 59 - 86 Hz
Receiving Systems / Band name			PAL I : UHF E21-68PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc playback from DVD player and recorder.DVB : Digital terrestrial services via UHF aerial input.M.NTSC : Playback from M.NTSC Video recorders (VCR).NTSC (AV input only) : Playback from NTSC Video recorders (VCR).
Aerial - Rear UHF
Operating Conditions			Temperature : 0 °C - 35 °CHumidity : 20 % - 80 % RH (non-condensing)
Connection Terminals	AV1 (Scart terminal) 2 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
	AV2 (Scart terminal) 2 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
	AV3	VIDEO	RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
		S-VIDEO	Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
		AUDIO L - R	RCA PIN Type × 2 0.5 V[rms]
	COMPONENT	VIDEO	Y 1.0 V[p-p] (including synchronization)PB, PR ±0.35 V[p-p]
		AUDIO L - R	RCA PIN Type × 2 0.5 V[rms]
	Others	HDMI1 / 2 / 3	TYPE A Connectors ●This TV supports “HDAVI Control 3” function.
		PC	HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 Ω)HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
		Card slot $D Card slot × 1
	Output	AUDIO L - R	RCA PIN Type × 2 0.5 V[rms] (high impedance)
Dimensions (W × H × D)			917 mm × 665 mm × 327 mm (With Pedestal)917 mm × 617 mm × 95 mm (TV only)	1,020 mm × 727 mm × 327 mm (With Pedestal)1,020 mm × 679 mm × 95 mm (TV only)
Mass			24.5 kg Net (With Pedestal)22.5 kg Net (TV only)	28.0 kg Net (With Pedestal)26.0 kg Net (TV only)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
  ● This equipment complies with the EMC standards listed below.

EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.

- Pedestal: ST-42R4-WG (For safety approval)

Information for Users on Collection and Disposal of Old Equipment and used Batteries

Cd

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Sales and Support Information

Customer Care Centre

• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
- Visit our website for product information www.panasonic.co.uk
• E-mail: [e-mail]

Direct Sales at Panasonic UK

• For customers: 0844 844 3856
- Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday — Thursday 9:00am — 5:30pm, Friday 9:30am — 5:30pm (Excluding public holidays).
- Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.
- Most major credit and debit cards accepted.
- All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
- It couldn't be simpler!
- Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Interested in purchasing an extended guarantee?

Please call 0870 240 6284 or visit www.panasonic.co.uk/guarantee.

Digital Video Broadcasting

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)

TH-37PX80BA Declaration of Conformity No. 5739, 18 June 2008

TH-42PX80BA Declaration of Conformity No. 5740, 18 June 2008

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic (U. K.) Ltd.

Willoughby Road, Bracknell, Berks RG12 8FP Web Site : http://www.panasonic-europe.com

© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
