SMT-4032A - Monitor Hanwha - Free user manual and instructions

USER MANUAL SMT-4032A Hanwha

The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

Table of contents

Before Using the Product

Copyright	7
Safety Precautions 8
Symbols	8
Cleaning	8
Storage	9
Electricity and Safety	9
Installation	10
Operation	12

Preparations

Checking the Components 15
Components	15
Parts	16
Control Panel	16
Reverse Side	18
Anti-theft Lock	19
Spacer logo	19
Remote Control	20
Before Installing the Product (Installation Guide)	22
Tilting Angle and Rotation	22
Ventilation	22
Dimensions	24

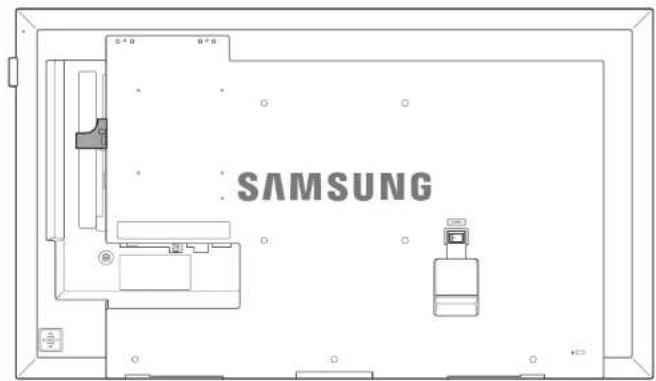

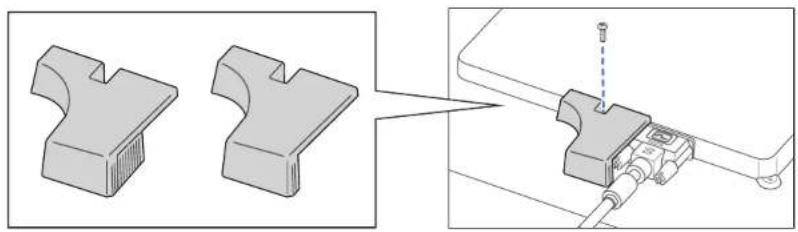

Using the COVER-JACK	25
Installing the Wall Mount	26
Installing the Wall Mount	26
Wall Mount Kit Specifications (VESA)	26

Remote Control (RS232C)	28
Cable Connection	28
Connection	31
Control Codes	32

Connecting and Using a Source Device

Before Connecting	41
Pre-connection Checkpoints	41
Connecting to a PC	41
Connection using the D-SUB cable (Analogue type)	41
Connection using a DVI cable (Digital type)	41

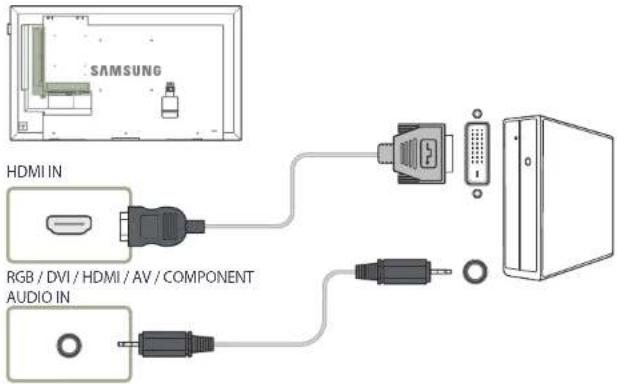

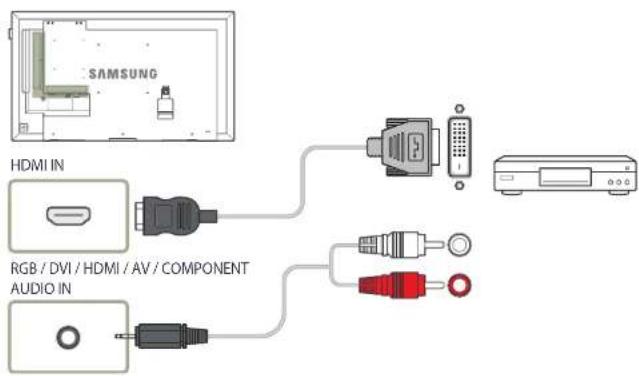

Connection Using an HDMI-DVI Cable	42

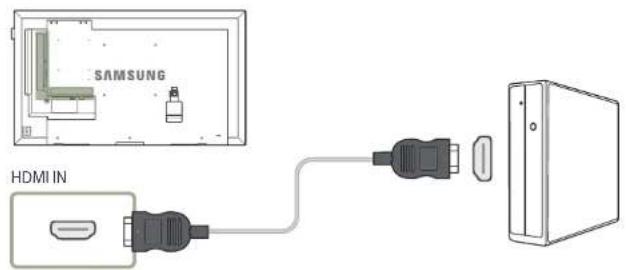

Connection Using an HDMI Cable	43
Connecting to a Video Device	44
Connection Using the AV Cable	44
Connection Using the component Cable	44
Connection Using an HDMI-DVI Cable	45
Connection Using an HDMI Cable	46

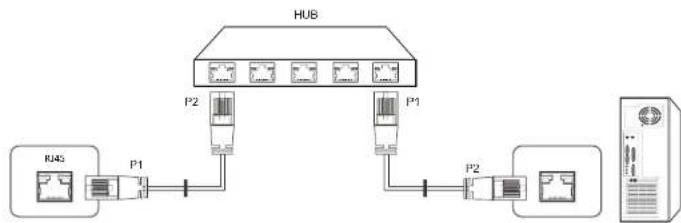

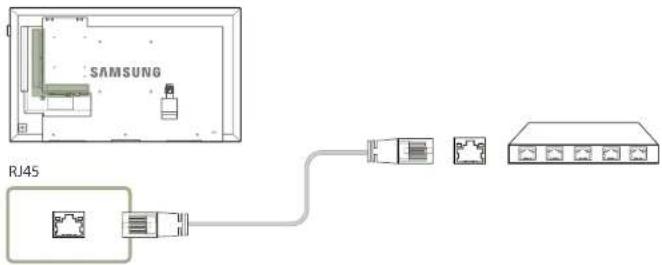

Connecting the LAN Cable	47
Changing the Input source	48
Source	48

Using MDC

MDC Programme Installation/Uninstallation 49
Installation	49
Uninstallation	49
Connecting to MDC	50
Using MDC via RS-232C (serial data communications standards)	50
Using MDC via Ethernet	51

Home feature

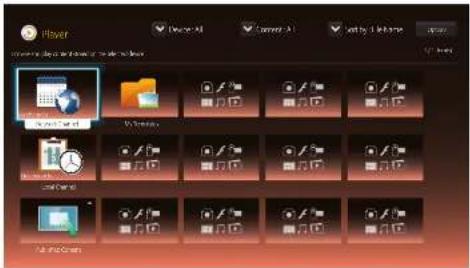

Player	53
Approving a connected device from the server	54
Network Channel	58
Local Channel	58
Published Content	58
My Templates	58
Available features in the Player page	59
Player page Settings menu	60
When Content is Running	62
File Formats Compatible with Player	64
File Formats Compatible with Videowall	69

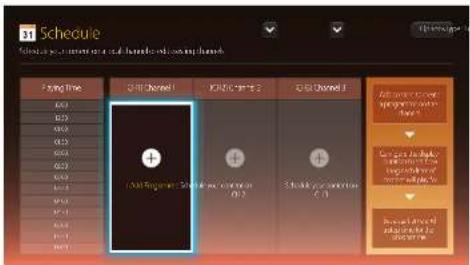

Schedule 71

Table of contents

Available features in the Schedule page	71

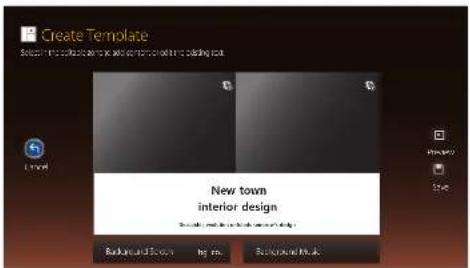

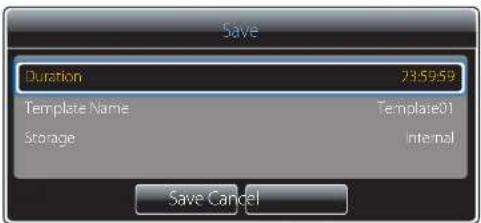

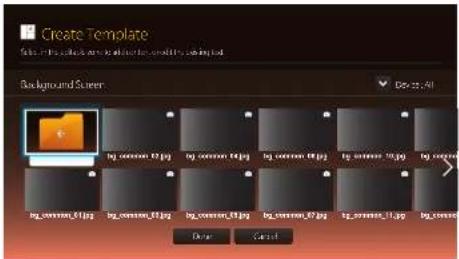

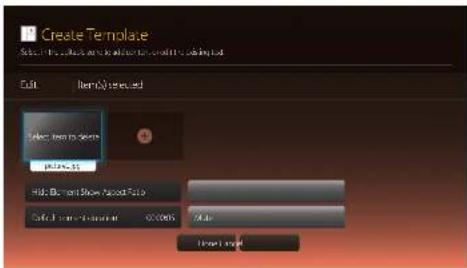

Template	73
Clone Product	76
ID Settings	77
Device ID	77
PC Connection Cable	77
Device ID Auto Set	77
Video Wall	78
Video Wall	78
Network Status	80
Picture Mode	81
On/Off Timer	82
On Timer	82
Off Timer	83
Holiday Management	83
Ticker	84
More settings	84
URL Launcher	85

Screen Adjustment

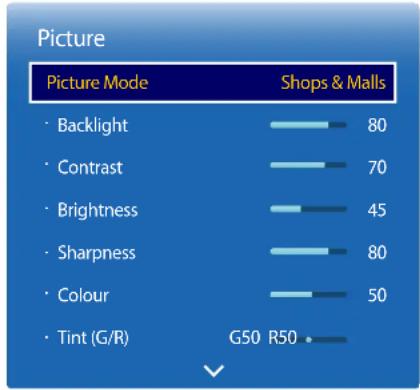

Picture Mode	86
Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)	87
Colour Temperature	88
White Balance	89
2 Point	89
10 Point	89
Gamma	90
Calibrated value	90
Advanced Settings	91
Dynamic Contrast	92
Black Tone	92
Flesh Tone	92
RGB Only Mode	92
Colour Space	92
Motion Lighting	92
Picture Options	93
Colour Tone	94
Digital Clean View	94
MPEG Noise Filter	94
HDMI Black Level	95
Film Mode	95
Dynamic Backlight	96
Picture Size	97
Picture Size	97

Position	98
Zoom/Position	98
Resolution	99
Auto Adjustment	100
PC Screen Adjustment	100
Picture Off	101
Reset Picture	101

OnScreen Display

PIP	102

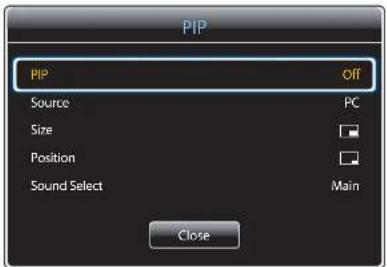

PIP Settings	102
Display Orientation	104
Onscreen Menu Orientation	104
Source Content Orientation	104
Aspect Ratio	104
Screen Protection	105
Auto Protection Time	105
Screen Burn Protection	105
Message Display	108
Source Info	108
No Signal Message	108
MDC Message	108
Download Status Message	108
Menu Language	109
Reset OnScreen Display	109

Table of contents

Sound Adjustment

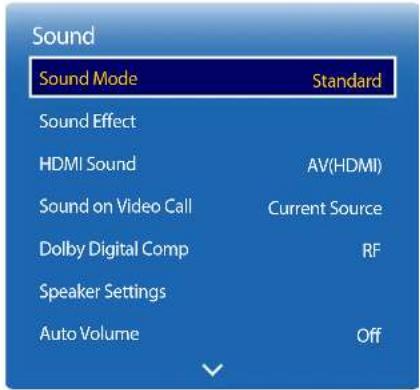

Sound Mode	110
Sound Effect	111
Virtual Surround	111
Dialog Clarity	111
Equaliser	111
HDMI Sound	112
Sound on Video Call	112
Dolby Digital Comp	113
Speaker Settings	113
Sound Output	113
Auto Volume	114
Reset Sound	114

Network

Network Status	115
Network Settings	115
Network type	115
Network Settings (Wired)	116
Network Setting (Wireless)	118
WPS(PBC)	120
Wi-Fi Direct	121
Multimedia Device Settings	121

Screen Mirroring	122
Screen Mirroring	122
Server Network Settings	122
Connect to server	122
MagicInfo Mode	122
Server Access	122
FTP Mode	122
Device Name	123

System

Accessibility	124
Menu Transparency	124
High Contrast	124
Enlarge	124
Setup	125
Initial settings (System)	125
Touch Control	127
Touch Control Lock	127
Admin Menu Lock	127
Time	128
Clock Set	128
DST	128
Sleep Timer	128
Power On Delay	128
Auto Source Switching	129
Auto Source Switching	129
Primary Source Recovery	129

Primary Source	129
Secondary Source	129
Power Control	130
Auto Power On	130
PC module power	130
Max. Power Saving	130
Standby Control	131
Power Button	131
Network Standby	131

Eco Solution	132
Energy Saving	132
Eco Sensor	132
Screen Lamp Schedule	132
No Signal Power Off	133
Auto Power Off	133

Temperature Control	133
Device Manager	134
Keyboard Settings	134
Mouse Settings	135
Pointer Settings	136

Play via	137
Change PIN	137
Security	138
Safety Lock	138
Button Lock	138
USB Auto Play Lock	139
Mobile Connection Lock	139
General	140

Table of contents

Smart Security	140
BD Wise	141

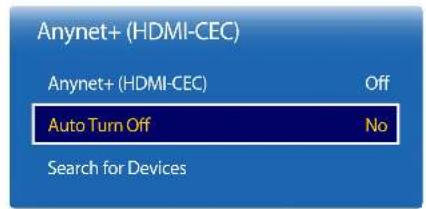

Anynet+ (HDMI-CEC)	142
Troubleshooting for Anynet+	144
HDMI Hot Plug	146
DivX® Video On Demand	146
Game Mode	146
Reset System	147

Support

Software Update	148
Update now	148
Auto update	148
Contact Samsung	149
Go to Home	150
Player	150
Schedule	150
Template	150
Clone Product	150
ID Settings	150
Video Wall	151
Network Status	151
Picture Mode	151
On/Off Timer	151
Ticker	151
More settings	151
Reset All	152

Playing photos, videos and music (Media Play)

Read the following before using media play with a USB device	153
Using a USB device	155
Playing media content from a PC/mobile device	156
Features provided in the media content list page	157
Menu items in the media content list page	158
Available buttons and features during photo playback	159
Available buttons and features during video playback	160
Available buttons and features during music playback	161
Supported Subtitle and Media play file formats	162
Subtitle	162
Supported Image resolutions	162
Supported music file formats	163
Supported Video Formats	163

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Centre	165
Testing the Product	165
Checking the Resolution and Frequency	165
Check the followings.	166
Q & A	173

Specifications

General	175
PowerSaver	177
Preset Timing Modes	178

Table of contents

Appendix

Responsibility for the Pay Service(Cost to Customers)	180
Not a product defect	180
A Product damage caused by customer's fault	180
Others	180
WEEE	181
Correct Disposal of This Product(Waste Electrical & Electronic Equipment)	181
Correct disposal of batteries in this product	181
Optimum Picture Quality and AfterimageBurn-in Prevention	182
Optimum Picture Quality	182

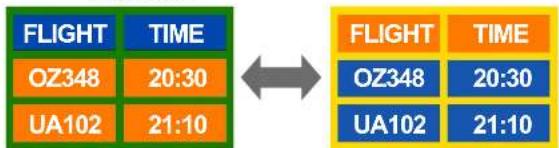

Prevention of Afterimage Burn-in	182
Licence	184
Terminology	185

Chapter 01

Before Using the Product

Copyright

The contents of this manual are subject to change without notice to improve quality.

© 2015 Hanwha Techwin Co., Ltd.

Samsung owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited.

Microsoft, Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Ownership of all other trademarks is attributed to their due owner.

• An administration fee may be charged if either
- (a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual).
(b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried out.

Safety Precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution: TO REDUCE THE RISK OF ELECTRIC S/LOCK, DO NOT REMOVE COVER (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol aerts you that important literature concerning operation and maintenance has been included with this product.

Symbols

Warning

A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

instructions marked by this symbol must be followed.

Cleaning

Exercise care when cleaning as the panel and exterior of advanced ICDs are easily scratched.

Take the following steps when cleaning.

The following images are for reference only. Real-life situations may differ from what is shown in the images.

1 Power off the product and computer.

2 Disconnect the power cord from the product.

Fold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.

3 Wipe the product with a clean, soft and dry cloth.

- Do not use detergents that contain alcohol, solvent or surface-active agents.

• Do not spray water or detergent directly on the product.

4 Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

5 Connect the power cord to the product when cleaning is finished.

6 Power on the product and computer.

Storage

Due to the characteristics of high-glossy products, using a UV humidifier nearby may create white-coloured stains on the product.

Contact Customer Service Centre if the inside of the product needs cleaning (service fee will be charged).

Electricity and Safety

The following images are for reference only. Real life situations may differ from what is shown in the images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

• An electric shock or fire may result.

Do not use multiple products with a single power socket.

• Overheated power sockets may cause a fire.

Do not touch the power plug with wet hands. Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

• An unsecure connection may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated devices only).

• An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.

• Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

• A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket with a dry cloth.

• A fire may result.

Caution

Do not disconnect the power core while the product is being used.

• The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.

• A fire or electric shock may result.

Keep the power socket where the power cord is connected unobstructed.

- The power cord must be disconnected to cut off power to the product when an issue occurs.

• Note that the product is not completely powered down by using only the power button on the remote.

Hold the plug when disconnecting the power cord from the power socket.

• An electric shock or fire may result.

Installation

Warning

DO NOT PLACE CANDLES, INSECT REPETIANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

• A fire may result.

Have a technician install the wall-mount hanger.

• Installation by an unqualified person can result in an injury

• Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a bookcase or closet.

• An increased internal temperature may cause a fire.

Install the product at least 10 cm away from the wall to allow ventilation.

• An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

• Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

• The product may fall and become damaged and/or cause an injury.
• Using the product in an area with excess vibration may damage the product or cause a fire.

Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.

• A fire or electric shock may result.

Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

• The product lifespan may be reduced or a fire may result.

Do not install the product within the reach of young children.

• The product may fall and injure children.
• As the front is heavy, install the product on a flat and stable surface.

Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Caution

Do not drop the product while moving.

• Product failure or personal injury may result.

Do not set down the product on its front.

• The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.

• The product may fall and become damaged and/or cause an injury.
• Install the product only on cabinets or shelves of the right size.

Set down the product gently:

• Product failure or personal injury may result.

Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.

- Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.

Operation

Warning

There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.

• A fire or electric shock may result.
• Contact Samsung Customer Service Centre for repairs.

Before moving the product, turn off the power switch and disconnect the power cable and all other connected cables.

• Damage to the cord may result in a fire or electric shock.

If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Centre.

• An electric shock or fire may result.

Do not let children hang from the product or climb on top of it.

• Children may become injured or seriously harmed.

If the product is dropped or the outer case is damaged, turn off the power switch and disconnect the power cord. Then contact Samsung Customer Service Centre.

• Continued use can result in a fire or electric shock.

Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

• The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.

During a lightning or thunderstorm, power off the product and remove the power cable.

• A fire or electric shock may result.

Do not drop objects on the product or apply impact.

• A fire or electric shock may result.

Do not move the product by pulling the power cord or any cable.

• Product failure, an electric shock or fire may result from a damaged cable.

If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

• Sparks can cause an explosion or fire.

Do not lift or move the product by pulling the power cord or any cable.

- Product failure, an electric shock or fire may result from a damaged cable.

Do not use or keep combustible spray or an inflammable substance near the product.

• An explosion or fire may result.

Ensure the vents are not blocked by tablecloths or curtains.

• An increased internal temperature may cause a fire.

Do not insert metallic objects (chopsticks, coins, hairpins, etc) of objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc).

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre.

• Product failure, an electric shock or fire may result.

Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre.

• Product failure, an electric shock or fire may result.

Caution

1

1

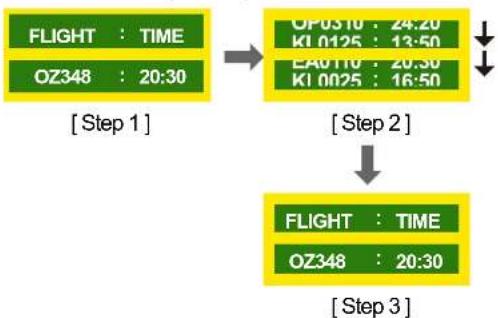

Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn in or defective pixels.

- Activate power-saving mode or a moving-picture screen saver if you will not be using the product for an extended period of time.

Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc).

- Dust accumulation combined with heat can cause a fire, electric shock or electric leakage

Use the product at the recommended resolution and frequency.

- Your eyesight may deteriorate.

Do not hold the product upside-down or move it by holding the stand.

• The product may fall and become damaged or cause an injury.

Looking at the screen too close for an extended period of time can deteriorate your eyesight.

Do not use humidifiers or stoves around the product.

• A fire or electric shock may result.

Rest your eyes for more than 5 minutes for every 1 hour of product use.

• Eye fatigue will be relieved.

Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.

Store small accessories out of the reach of children.

Exercise caution when adjusting the product angle or stand height.

• Your hand or finger may get stuck and injured.
• Tilting the product at an excessive angle may cause the product to fall and an injury may result.

Do not place heavy objects on the product.

• Product failure or personal injury may result.

When using headphones or earphones, do not turn the volume too high.

• Having the sound too loud may damage your hearing.

Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

- if children have had the battery in their mouths, consult your doctor immediately.

When replacing the battery, insert it with the right polarity (+,-).

• Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.

Use only the specified standardized batteries, and do not use a new battery and a used battery at the same time.

- Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage of the internal liquid.

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

- The customer can return used or rechargeable batteries to a nearby public recycling centre or to a store selling the same type of the battery or rechargeable battery.

Chapter 02 Preparations

Checking the Components

Components

• Contact the vendor where you purchased the product if any components are missing.
• A stand is not provided with the product. To install a stand, you can purchase one separately.
• The RS232C adapter can be used to connect to another monitor using the D-SUB (9 pin) type RS232C cable.
• Battery and Warranty card are not available for some locations.

Components may differ in different locations.

Quick Setup Guide

User manual

Power cord

Warranty card

Remote Control & Battery

COVER JACK Screw (M318, 1EA) (M418, 4FA)

Regulatory guide

D-SUB cable RS232C(IN) adapter

Safety guide

STEREO TO BNC & RCA

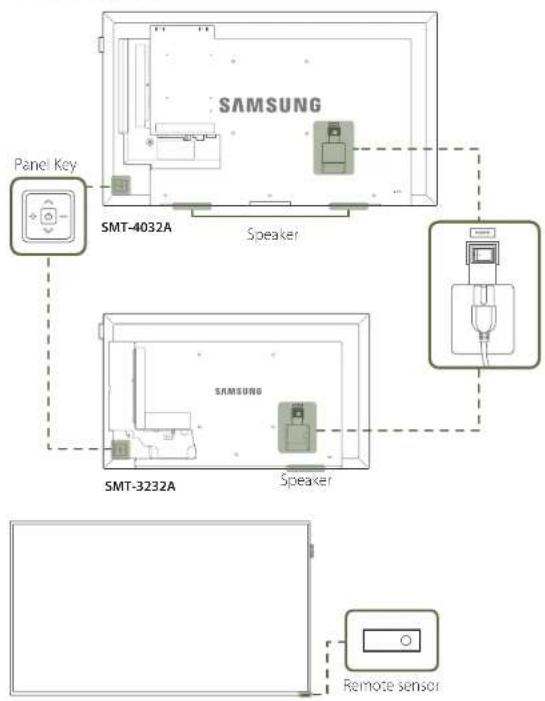

Parts

Control Panel

SAMSUNG Panel Key SMT-4032A Speaker SAMSUNG SMT-3232A Speaker Remote sensor

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Panel Key

Buttons Description

	Power on the product.If you press the button when the product is turned on, the control menu will be displayed.To exit the OSD menu, press and hold the panel key for at least one second.
	Move to the upper or lower menu. You can also adjust the value of an option.
	Move to the left or right menu.You can adjust the volume by moving the panel key left or right when the control menu is not displayed.
Remote sensor	Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right.
Store used batteries out of reach of children and recycle.
Do not use a new and used battery together. Replace both batteries at the same time.
Remove batteries when the remote control is not to be used for an extended period of time.

If you press the button on the panel key when the product is turned on, the control menu will be displayed.

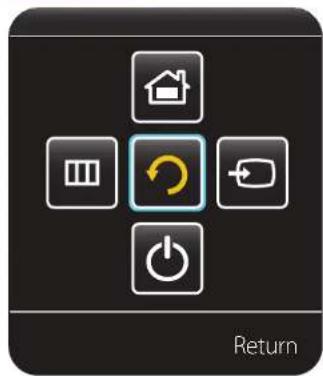

Control menu

Icon set with five function buttons (home, refresh, rotate, power, wait) and a central circular arrow symbol, labeled 'Return' at bottom (no readable text or symbols on icons)

Buttons Description

	Source	Select the connected input source.Move the panel key right to select Source in the control menu. When the list of input sources is displayed, move the panel key left or right to select the desired input source. Next, press the panel key.
	Menu	Display the OSD menu.Move the panel key left to select Menu in the control menu. The OSD control screen will appear. Move the panel key right to select the desired menu. You can select a sub-menu item by moving the panel key up, down, left, or right. To change settings, select the desired menu and press the panel key.

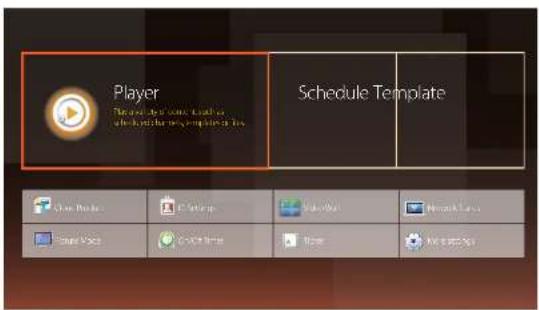

	Home	Enter Go to Home mode.Move the panel key up to select Home in the control menu.
	Power off	Power off the product.Move the panel key down to select Power off the control menu. Next, press the panel key
	Return	Exit the control menu.

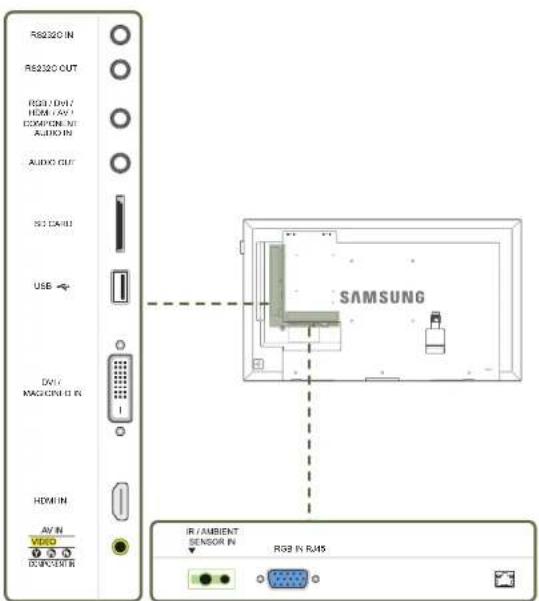

Reverse Side

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

RS2320 IN RS2320 OUT RS2320 IN HDMI / AV1 COMPOEN IN AUDIO IN AUDIO CUT RS2 DATA USB DATA MAGRICIN IN HDMI IN AV IN VIDEO COMPOEN IN SAMSUNG R / AMBIENT SENSOR IN RSB IN RMS

Port Description

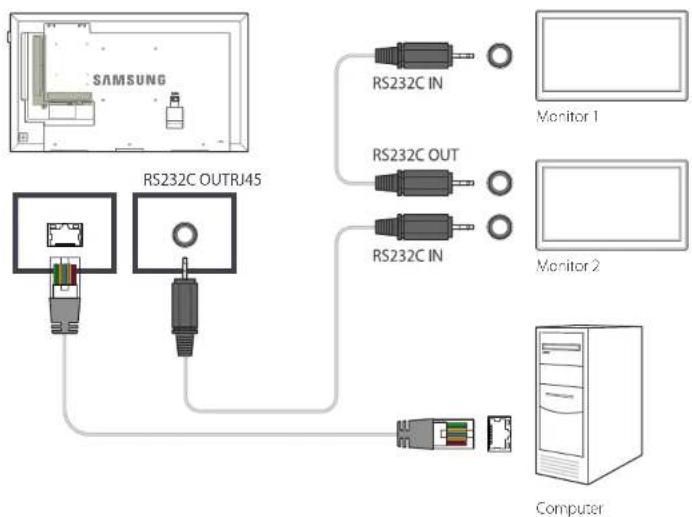

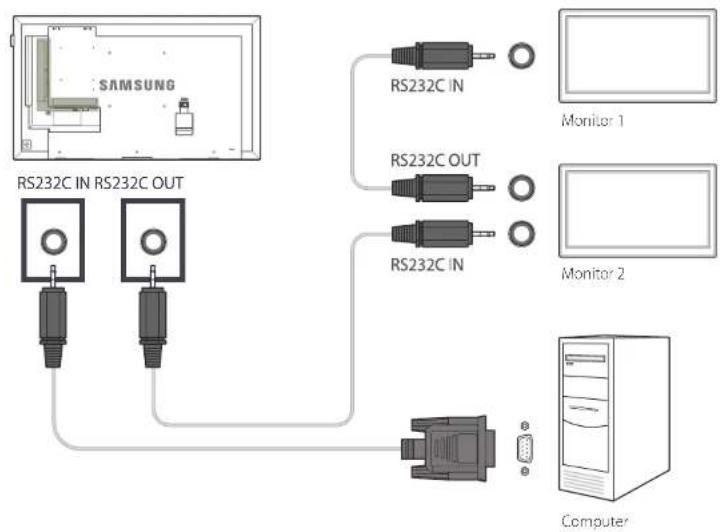

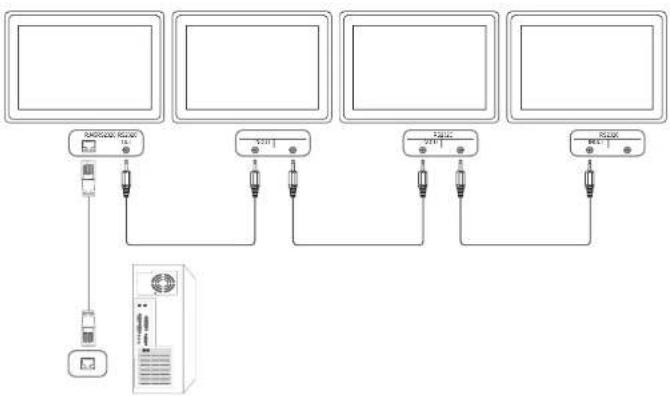

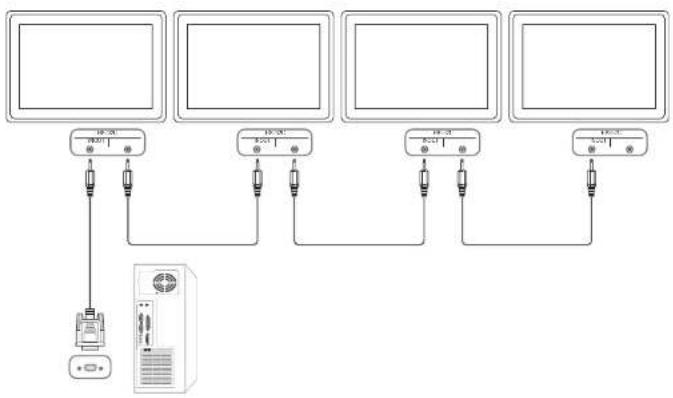

RS232C IN	Connects to MDC using an RS232C adapter.
RS232C OUT
RGB / DVI / HDMI / AV / COMPONENT AUDIO IN	Receives sound from a PC via an audio cable.

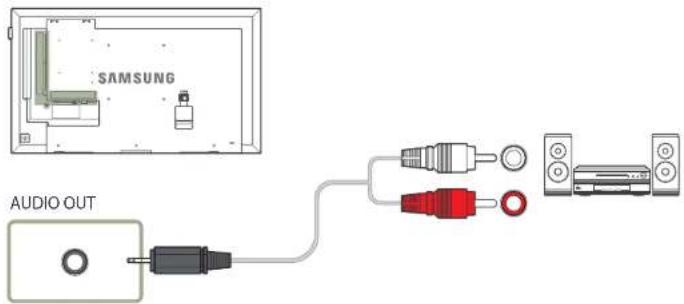

AUDIO OUT	Connects to the audio of a source device.
SD CARD	Connect to an SD memory card.
USB 🌐	Connect to a USB memory device.

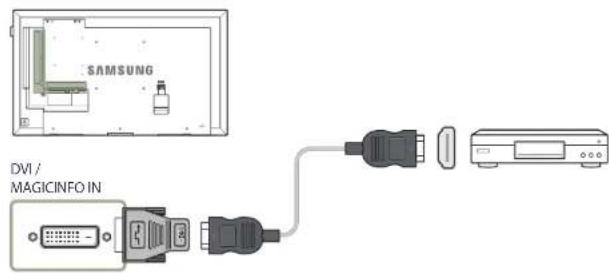

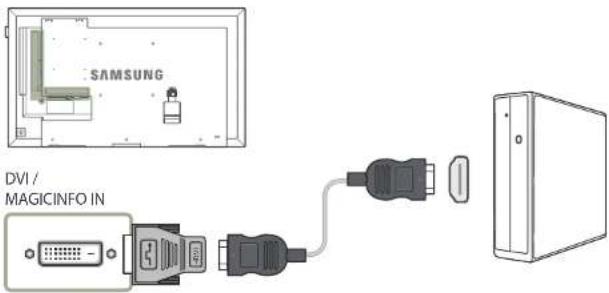

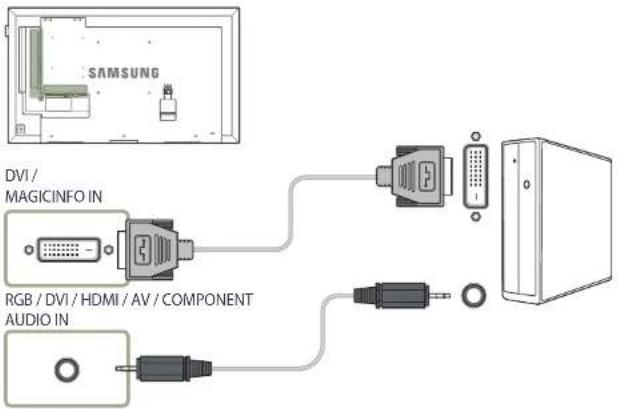

DVI / MAGICINFO IN	DVI: Connects to a source device using a DVI cable or HDMI-DVI cable.MAGICINFO IN: Use the (dedicated) DP-DVI cable when connecting a network box (sold separately).

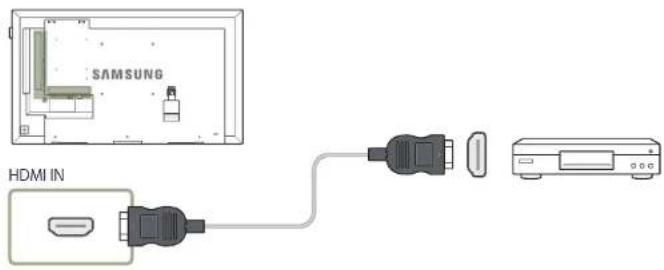

HDMI IN	Connects to a source device using an HDMI cable.

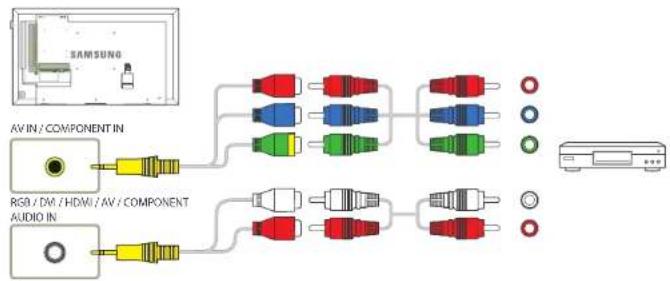

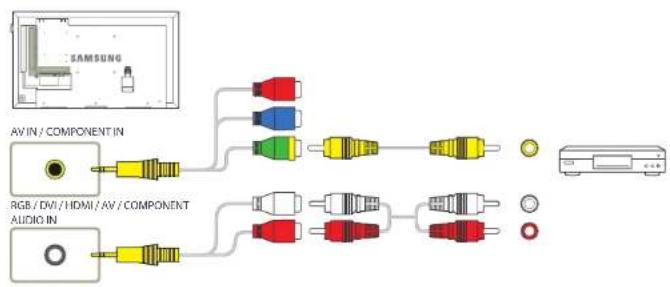

AV IN / COMPONENT IN	Connects to a source device using the AV/Component adapter.
IR / AMBIENT SENSOR IN	Supplies power to the external sensor board or receives the light sensor signal.

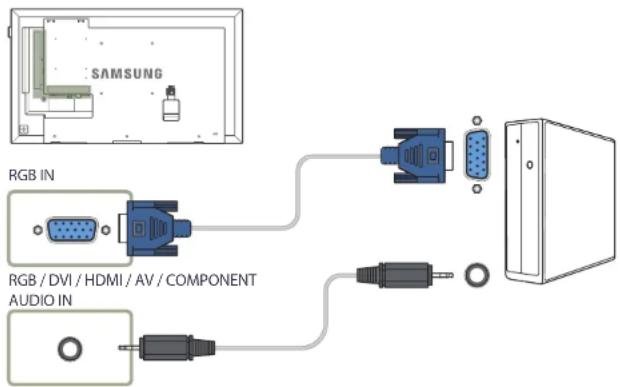

RGB IN	Connects to a source device using a D-SUB cable.

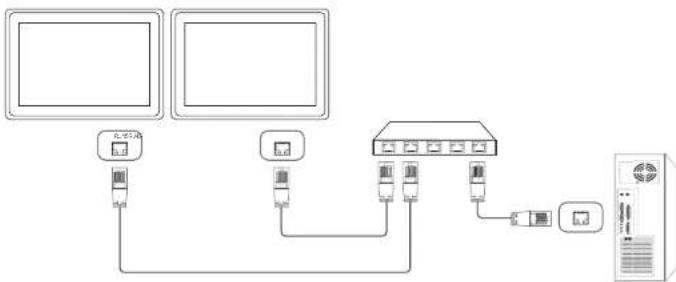

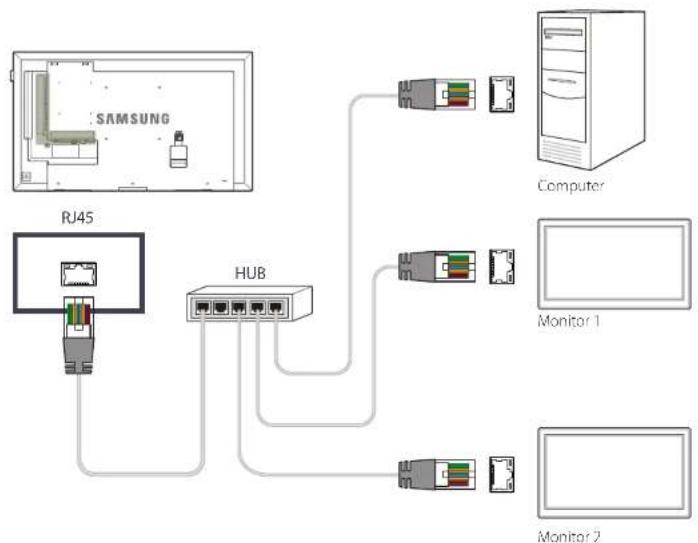

RJ45	Connects to MDC using a LAN cable.

Anti-theft Lock

An anti-theft lock allows you to use the product securely even in public places.

The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

The following images are for reference only. Real life situations may differ from what is shown in the images.

To lock an anti-theft locking device:

Simple line drawing of a device with a sensor or probe above it, no text or symbols present.

1 Fix the cable of your anti theft locking device to a heavy object such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the locking device into the anti-theft lock slot at the back of the product.
4 Lock the locking device.

• An anti-theft locking device can be purchased separately.
• Refer to the user guide provided with your anti-theft locking device for details.
• Anti-theft locking devices can be purchased at electronics retailers or online

Spacer logo

Do not pull on the spacer logo using force. The logo may tear or break off.

Simple diagram showing two overlapping rectangular shapes with a vertical label 'SAMSUNG' on the right side (no other text or symbols)

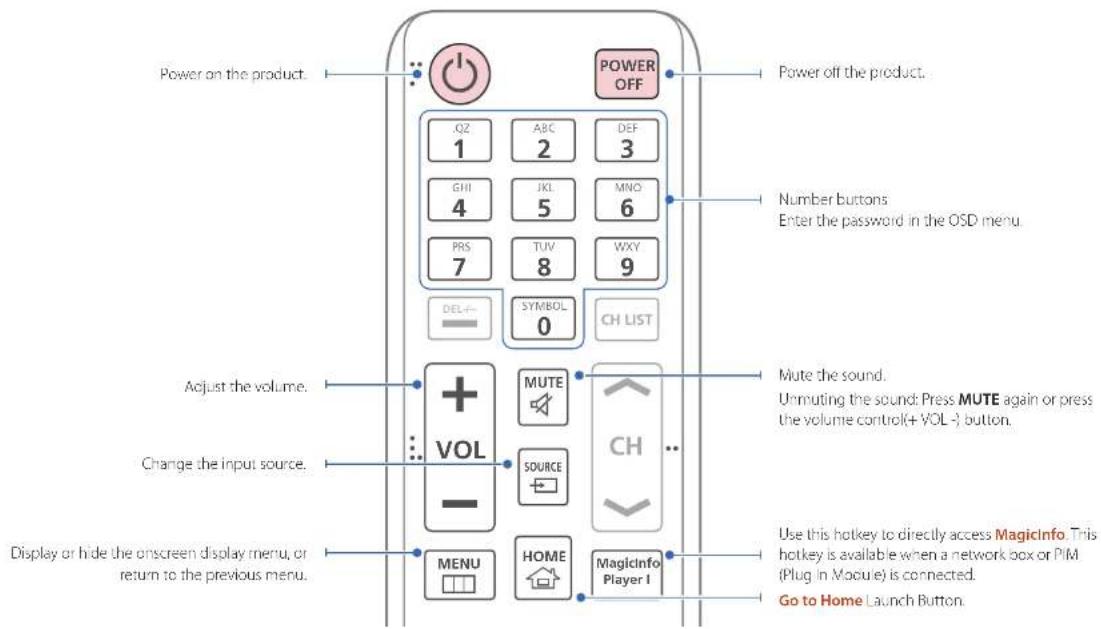

Remote Control

Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. A button without a description in the image below is not supported on the product.

Power on the product. POWER OFF QZ ABC DEF 1 2 3 GHI JKL MNO 4 5 6 PRS TUV WXY 7 8 9 DEL+ SYMBOL CH LIST 0 Adjust the volume. MUTE VOL CH Change the input source. SOURCE + - Display or hide the onscreen display menu, or return to the previous menu. MENU HOME MagicInfo Player I Power off the product. Number buttons Enter the password in the OSD menu. Mute the sound. Unmuting the sound: Press MUTE again or press the volume control(+ VOL -) button. Use this hotkey to directly access MagicInfo. This hotkey is available when a network box or PIM (Plug In Module) is connected. Go to Home Launch Button.

Line drawing of a remote control with keypad and buttons (no text or symbols)

• Remote control button functions may differ for different products.

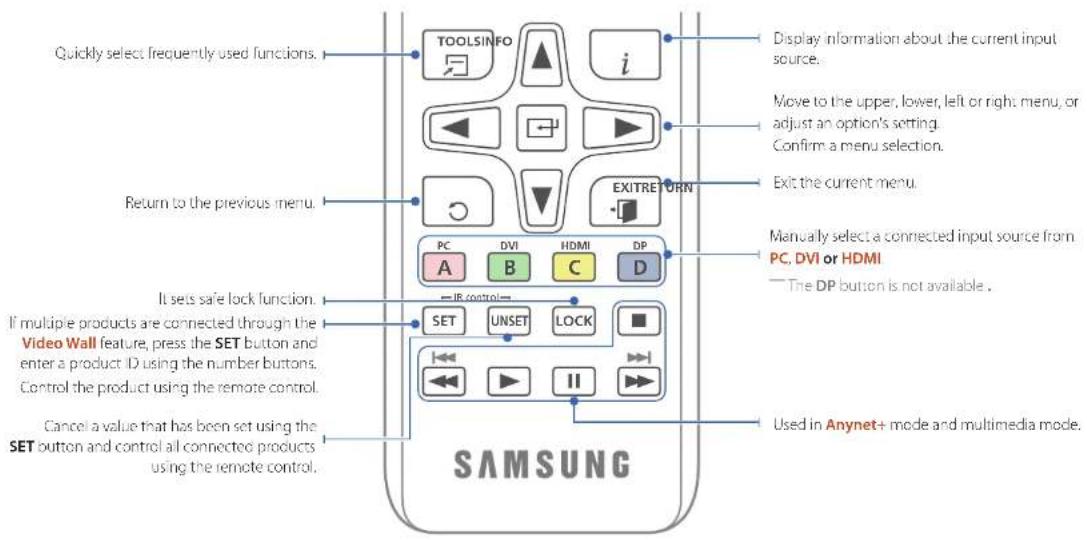

Quickly select frequently used functions. Display information about the current input source. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. Exit the current menu. Return to the previous menu. Manually select a connected input source from PC, DVI or HDMI — The DP button is not available . It sets safe lock function. If multiple products are connected through the Video Wall feature, press the SET button and enter a product ID using the number buttons. Control the product using the remote control. Cancel a value that has been set using the SET button and control all connected products using the remote control. Used in Anynet+ mode and multimedia mode. SAMSUNG

Line drawing of a Samsung remote control with keypad and buttons (no text or symbols)

• Remote control button functions may differ for different products.

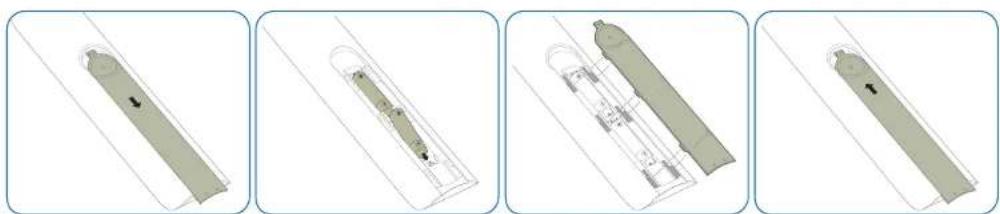

To place batteries in the remote control

Four-panel diagram showing a cylindrical device with internal components and a separate cylindrical component, all without any text or symbols.

Before Installing the Product (Installation Guide)

Technical line drawing showing three views of a door frame with a circular inset detail (no text or symbols)

Diagram showing a vertical bar with labeled points A and B, and an arrow indicating direction from left to right.

Figure 1.1 Side view

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

• Ensure that an authorized installation company installs the wall mount.
  • Otherwise, it may fall and cause personal injury.
  • Make sure to install the specified wall mount.

Tilting Angle and Rotation

Contact Samsung Customer Service Centre for further details.

• The product can be tilted at a maximum angle of 15^ from a perpendicular wall surface.
• To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.

Ventilation

Installation on a Perpendicular Wall

A Minimum 40 mm

B Ambient temperature: Under 35°C

- When installing the product on a perpendicular wall, allow at least 40 mm of space between the product and wall surface for ventilation and ensure that the ambient A temperature is kept below 35°C.

B A C E

Figure 1.2 Side view

Figure 1.3 Side view

Installation on an Indented Wall

Contact Samsung Customer Service Centre for further details.

Plane view

A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35°C

When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35^ C.

Dimensions

① ② ③ ④

Model name

Unit: mm (inches)

SMT-3232A

721.4 (28.40) 700.4 (27.57) 394.8 (15.54) 420.3 (16.55) 49.9 (1.96)

SMT-4032A 906.5 (35.69) 887.6 (34.94) 500.2 (19.69) 524.7 (20.66) 49.9 (1.36)

AT drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.

Using the COVER-JACK

To prevent theft of the SD memory card or any other USB device, install the COVER JACK.
The following images are for reference only. Real-life situations may differ from what is shown in the images.

SAMSUNG

When using a DVI cable, make sure to cut off the side of the COVER JACK first.

Cut out the Cover-Jack according to the DVI cable size before use.

Technical illustration showing two 3D mechanical parts before and after assembly, with a close-up of a component being inserted (no text or symbols present)

Installing the Wall Mount

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the product on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount.

We recommend you contact a technician for assistance when installing the wall mount bracket.

Samsung is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall.

mount on your own.

Wall Mount Kit Specifications (VESA)

— Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for additional information.

If you install the product on a slanted wall, it may fall and result in severe personal injury.

A B

• Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.
- Do not use screws that are longer than the standard length or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the product.
- For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
- Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
- Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
• Do not mount the product at more than a 15 degree tilt.
• Always have two people mount the product on a wall.
• Standard dimensions for wall mount kits are shown in the table below.

Unit: mm (inches)

Model name VESA screw hole specs (A * B) in millimeters Standard Screw Quantity

SMT-3232A	200 × 200 (7.9 × 7.9)	M8 / L14 - 16 4
SMT-4032A

Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.

Remote Control (RS232C)

Cable Connection

RS232C Cable

Interface	RS232C (9 pins)
Pin	TxD (No.2), RxD (No.3), GND (No.5)
Bit rate	9600 bps
Data bits	8 bit
Parity	None
Stop bit	1 bit
Flow control	None
Maximum length	15 m (only shielded type)

• Pin assignment


12345 6789

Pin Signal

1	Detect data carrier
2	Received data
3	Transmitted data
4	Prepare data terminal
5	Signal ground
6	Prepare data set
7	Send request
8	Clear to send
9	Ring indicator

RS232C cable

Connector: 9-Pin D-Sub to Stereo Cable

9 5 6 -P1- 1 3 2 1 -P2-

-P1--P1--P2--P2-

Female Rx	2	---->	3	Tx	STEREO
Tx	3	<----	2	Rx	PLUG
Gnd	5	----	5	Gnd	(3.5ø)

LAN Cable

- Pin assignment.

12345678

Pin No Standard Colour Signal

1 White and orange TX+
2 Orange TX
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown	NC

- Connector: RJ45

Direct LAN cable (PC to HUB)

Signal	P1 P2 Signal
TX+	1 <----> 1 TX+
TX-	2 <----> 2 TX-
RX+	3 < > 3 RX+
RX	6 <----> 6 RX

Cross LAN cable (PC to PC)

Signal	P1 P2 Signal
TX+	1 <----> 3 RX-
TX-	2 <----> 6 RX-
RX+	3 <----> 1 TX+
RX-	6 <----> 2 TX-

Connection

Ensure you connect each of the adapters to the correct RS232C IN or OUT port on the product.

- Connection 1

- Connection 2

- Connection 3

Control Codes

Viewing control state (Get control command)

Header Command ID Data length Checksum

0xAA Command type 0

Controlling (Set control command)

Header Command ID Data length Data Checksum

0xAA Command type 1 Value

Command

No. Command type Command Value range

1	Power control 0x11 0-1
2	Volume control 0x12 0-100
3	Input source control 0x14 -
4	Screen mode control 0x18
5	Screen size control	0x19 0-255
6	PIP on/off control	0x3C	0-1
7	Auto adjustment control (PC and BNC only)	0x3D	0
8	Video wall mode control	0x3C	0-1
9	Safety Lock	0x5D	0-1

No. Command type Command Value range

10	Video Wall On	0x84 0~1
11	Video Wall User Control	0x89~
All communications take place in hexadecimals. The checksum is calculated by adding up all values except the header. If a checksum adds up to be more than 2 digits as shown below (11) FE (01+01=112), the first digit is removed.E.g. Power On & ID=0
Header Command ID Data length Data 1		Checksum
0xAA 0x11	1"Power"
Header Command ID Data length Data 1		12
0xAA 0x11	11

• To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as '0xFE' and transmit commands. Commands will be executed by each device but ACK will not respond.

Power control

• Function A product can be powered on and off using a PC.
• Viewing power state (Get Power ON / OFF Status)

Header Command ID Data length Checksum

0xAA 0x110

• Setting power ON/Off (Set Power ON / OFF)

Header Command ID Data length Data Checksum

0xAA 0x111 "Power"

"Power": Power code to be set on a product.

T: Power ON

0: Power OFF

- Ack

Header Command ID Data length Ack/Nak r-CMD Va 1 Checksum

0xAA 0xFF 3 'A' 0x11 "Power"

"Power": Power code to be set on a product.

• Nak

Header Command ID Data length Ack/Nak r CMD Val 1 Checksum

0xAA 0xFF 3'N 0x'1"ERR"

"ERR": A code showing what error has occurred.

Volume control

• Function The volume of a product can be adjusted using a PC.

• Viewing volume state (Get Volume Status)

Header Command ID Data length Checksum

0xAA 0x12.0

• Setting the volume (Set Volume)

Header Command ID Data length Data Checksum

0xAA 0x12 1 "Volume"

"Volume": Volume value code to be set on a product. (0-100)

- Ack

Header Command		ID Data length Ack/Nak r-CMD Val1		Checksum
0xAA	0xIT	3	'A'	0x12	"Volume"

"Volume": Volume value code to be set on a product. (0-100)

Nak

Header Command	ID Data length Ack/Nak r CMD Valt Checksum
0xAA 0xFF	3'N'	0x12 'ERR'

"ERR": A code showing what error has occurred.

Input source control

• Function
  The input source of a product can be changed using a PC.

• Viewing input source state (Get Input Source Status)

Header Command ID Data length Checksum

0xAA 0x140

• Setting the input source (Set Input Source)

Header Command ID Data length Data Checksum

0xAA 0x141 "Input Source"

"Input Source": An input source code to be set on a product.

0×14 PC

0x18 DVI

0x0C Input source

0x08 Component

0x20 MagicInfo

0x1F DVl_video

0×30 RF(1V)

0x40DIV

0x21HDM1

0x22 HDMI PC

0x23|DM2

0x24 HDMI2_PC

0x25 DisplayPort

TVL_video, HDMI1_PC and HDMI2_PC cannot be used with the Set command. They only respond to "Get" commands.

This model does not support HDMI1, HDMI1_PC, HDMI2 and HDMI2_PC ports.

MagicInfo is only available with models that contain the MagicInfo function.

RF(TV). DTV are only available with models that include a TV.

• Ack

Header	Command	ID	Data length	Ack/Nak	r CMD	Vall	Checksum
0xAA	0xFF		3	'W'	0x14	'Input Source'

"Input Source": An input source code to be set on a product.

• Nak

Header	Command	ID	Data leng.h	Ack/Nak	r-CMD	Val1	Checksum
0xAA	0xFF		3	'N'	0x14	'TRR'

"ERR": A code showing what error has occurred.

Screen mode control

- Function

The screen mode of a product can be changed using a PC.

Screen mode cannot be controlled when the Video Wall function is enabled.

This control can only be used on models that include a TV

• Viewing screen status (Get Screen Mode Status)

Header Command ID Data length Checksum

0xAA 0x180

- Setting the picture size (Set Picture Size)

Leader Command ID Data

Data Checksum

length

0xAA 0x16 1 "Screen Mode"

"Screen Mode": A code that sets the product status

0x01 16 9

0x04 Zoom

0x31 Wide Zoom

0x084:3

- Ack

Header	Command	ID	Data length	Acq/Nak	r-CMD	Val1	Checksum
0xAA	0xFF		3	A'	0x18	'Screen Mode'

"Screen Mode": A code that sets the product status

• Nak

Header	Command	D	Data length	Ack/Nax	r-CMD	Val1	Checksum
0xAA	0xFF		3	'N'	0x18	"ERP"

*ERR': A code showing what error has occurred

Screen size control

Function

The screen size of a product can be changed using a PC.

• Viewing the screen size (Gel Screen Size Status)

Header Command ID Data length

Checksum

0xAA 0x190

- Ack

Header Command		ID Data	length	Ack/Nak r CMD		Val1	Checksum
0xAA	0xFF		3	A'	0x19	*Screen Size'

"Screen Size": product screen size (range: 0 - 255, unit inch)

• Nak

Header Command ID Data		length	Ack/Nak r-CMD		Val1	Checksum
0xAA	0xFF	3	'N'	0x19	"FRR"

"ERR": A code showing what error has occurred

PIP On/Off control

- Function

The PIP mode of a product can be turned on or off using a PC.

Only available on models that have the P-P function.

The mode cannot be controlled if Video Wall is set to On.

This function is not available in Magicinfo.

• Viewing PIP on/off state (Get the PIP ON / OFF Status)

Header Command ID Data length Checksum

0xAA 0x3C 0

- Setting PIP on/off (Set the PIP ON / OFF)

Header Command ID Data length Data Checksum

0xAA 0x3C 1 "PIP"

"PIP": A code used to turn the PIP mode of a product on or off

1:PPON

0: P/P OFF

- Ack

Header Command ID Data		length	Ack/Nak r-CMD Val* Checksum
0xAA	0xFF	3	'A'	0x3C	"PIP"

"PIP": A code used to turn the PIP mode of a product on or off

Nak

Header Command ID Data		length	Ack/Nak r CMD Val		Checksum
0xAA	0xFF	3	'A'	0x3C	"PIP"

"ERR": A code showing what error has occurred

Auto adjustment control (PC and BNC only)

Function
Automatically adjust the PC system screen using a PC.
• Viewing auto adjustment state (Get Auto Adjustment Status) None
- Setting auto adjustment (Set Auto Adjustment)

Header Command ID Data length Data		Checksum
0xAA 0x1D	1	"Auto Adjustment"

'Auto Adjustment': 0x00 (at all times)

- Ack

Header Command		ID Data	length	Ack/Avk -CMD Volt Checksum
0xAA	0xFF		3	A'	0x3D	'Auto Adjustment'

Nak

Header Command ID Data		length	Ack/Nak -CMD Volt Checksum
0xAA	0xFF	3	A'	0x3D	'ERR'

"ERR": A code showing what error has occurred

Video Wall Mode Control

• Function
  Video Wall mode can be activated on a product using a PC.
  This control is only available on a product whose Video Wall is enabled.

• Viewing video wall mode (Get Video Wall Mode)

Header Command ID Data length Checksum

0xAA 0x5C 0

- Setting the video wall (Set Video Wall Mode)

Header Command ID Data length Data Checksum

0xAA 0x5C 1 "Video Wall Mode"

"Video Wall Mode": A code used to activate Video Wall mode on a product.

1: Full

G: Natural

- Ack

Header Command ID Data		length	Ack/Nak / CMD Vall Checksum
0xAA	0xFF	3	'A'	0xSC	"Video Wall Mode"

"Video Wall Mode": A code used to activate Video Wall mode on a product

Nak

Header	Command ID Data	length	Ack/Nak r-CMD		Val1	Checksum
0xAA	0xFF	3	'A'	0x5C	"ERR"

"ERR": A code showing what error has occurred

Safety Lock

• Function PC can be used to turn the Safety Lock function on or off on a product. This control is available regardless of whether or not the power is turned on.

• Viewing the safety lock state (Get Safety Lock Status)

Header Command ID Data length	Checksum
0xAA 0x5D	0
• Enabling or disabling safety lock (Set Safety Lock Enable / Disable)
Header Command ID Data length	Data	Checksum
0xAA 0x5D	1	"Safety Lock"

"Safety lock": Safety lock code to be set on a product

1:ON

0:01

- Ack

Header	Command ID Data	length	Ack/Nav + CMD		Val1	Checksum
0xAA	0xFF	3	'A'	0x5D	"Safety Lock"

"Safety Lock": Safety lock code to be set on a product

- Nak

Header	Command ID Data	length	Ack/Nak r-CMD		Val1	Checksum
0xAA	0xTF	3	'N'	0x5D	'ERR'

*RR": A code showing what error has occurred

Video Wall On

• Function
  Turn Video Wall on or off on the product from your computer.

• Get Video Wall On/Off Status

Header Command ID Data length Checksum

0xAA 0x84 0

- Set Video Wall On/Off

Header Command ID Data length Data Checksum

0xAA 0x841 V/Wall_Cn

• V.Wall_On: Video Wall code to be assigned to the product

1: Video Wall ON

0: Video Wall OFF

- Ack

Header Command ID Data length Ack/Nak r-CMD Val 1 Checksum

0xAA

0xFF

3

'A'

0x84

V'Wall_On

V.Wall_On:Same as above

Nak

Header	Command	ID	Data length	Ack/Nak	t-CMD	Val1	Checksum
0xAA 0xFF		3	'N'		0x84 ERR

"I RR". A code showing what error has occurred

Video Wall User Control

Function
Turn the Video Wall function on or off on the product from your computer.

• Get Video Wall Status

Header Command ID Data length Checksum

0xAA 0x89 0

- Set Video Wall

Header	Command	ID	Data length	Val1	Val2	Checksum
0xAA 0x89 2		Wall_Div	Wall_SNo

Wall_Div: Video Wall Divider code assigned to the product

10x10 Video Wall Model

	1 2 3 4 5 6 7 8 9 10 11 12 13 14	15
Off	0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00	0x00
1	0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E	0x1F
2	0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x2A 0x2B 0x2C 0x2D 0x2E	0x2F
3	0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39 0x3A 0x3B 0x3C 0x3D 0x3E	0x3F
4	0x41 0x42 0x43 0x44 0x45 0x46 0x47 0x48 0x49 0x4A 0x4B 0x4C 0x4D 0x4E	0x4F
5	0x51 0x52 0x53 0x54 0x55 0x56 0x57 0x58 0x59 0x5A 0x5B 0x5C 0x5D 0x5E	0x5F
6	0x61 0x62 0x63 0x64 0x65 0x66 0x67 0x68 0x69 0x6A 0x6B 0x6C 0x6D 0x6E	0x6F
7	0x71 0x72 0x73 0x74 0x75 0x76 0x77 0x78 0x79 0x7A 0x7B 0x7C 0x7D 0x7E	N/A
8	0x81 0x82 0x83 0x84 0x85 0x86 0x87 0x88 0x89 0x8A 0x8B 0x8C N/A N/A	N/A
9	0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 0x9A 0x9B N/A N/A N/A	N/A
10	0xA1 0xA2 0xA3 0xA4 0xA5 0xA6 0xA7 0xA8 0xA9 0xA A N/A N/A N/A	N/A
11	0xB1 0xB2 0xB3 0xB4 0xB5 0xB6 0xB7 0xB8 0xB9 N/A N/A N/A N/A	N/A
12	0xC1 0xC2 0xC3 0xC4 0xC5 0xC6 0xC7 0xC8 N/A N/A N/A N/A N/A	N/A
13	0xD1 0xD2 0xD3 0xD4 0xD5 0xD6 0xD7 N/A N/A N/A N/A N/A N/A	N/A
14	0xE1 0xE2 0xE3 0xE4 0xE5 0xE6 0xE7 N/A N/A N/A N/A N/A N/A	N/A
15	0xF1 0xF2 0xF3 0xF4 0xF5 0xF6 N/A N/A N/A N/A N/A N/A N/A	N/A

Wall_SNo: Product Number code assigned to the product

10x10 Video Wall Model : ( 1 \~ 100 )

Set Number	Data
1.0x01
2.0x02
... ...
99.0x63
100.0x64

• Ack

Header Command ID Data length Ack/Nak r-CMD Val1 Val2 Checksum

0xAA	0xFF		4	'A'	0x89	Wall_Div	Wall_SNo
• Nak
Header	Command	ID	Data length	Ack/Nak	r-CMD	Val1	Checksum
0xAA	0xFF		3	'N'	0x89	ERR

"ERR": A code showing what error has occurred

Chapter 03

Connecting and Using a Source Device

Before Connecting

Pre-connection Checkpoints

Before connecting a source device, read the user manual provided with it.

The number and locations of ports on source devices may differ from device to device.

Do not connect the power cable until all connections are completed.

Connecting the power cable during connection may damage the product.

Connect the sound ports correctly: left = white and right = red.

Check the types of ports at the back of the product you want to connect.

Connecting to a PC

• Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.
  • A PC can be connected to the product in a variety of ways. Select a connection method suitable for your PC.

Connecting parts may differ in different products.

Connection using the D-SUB cable (Analogue type)

SAMSUNG RGB IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN

Connection using a DVI cable (Digital type)

SAMSUNG DVI/ MAGICINFO IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN

You can use the DVI port on the product as an HDMI port by using a DVI HDMI adapter.

SAMSUNG DVI / MAGICINFO IN

Connection Using an HDMI-DVI Cable

After connecting a computer to the product with an HDMI-DVI cable, make sure to configure the settings as shown below to enable the video and audio from the computer.

• Sound → set HDMI Sound to PC(DVI)
• Picture → set each screen mode to Text under Picture Mode
• System → General → set HDMI Hot Plug to Off

SAMSUNG HDMI IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN

Connection Using an HDMI Cable

SAMSUNG HDMI IN

Connecting to a Video Device

• Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.
• You can connect a video device to the product using a cable. Connecting parts may differ in different products. Press the SOURCE button on the remote control to change the source.

Connection Using the AV Cable

Connection Using the component Cable

Connection Using an HDMI-DVI Cable

Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To resolve this, additionally connect an audio cable to the audio ports on the product and video device. After connecting a video device to the product with an HDMI-DVI cable, make sure to configure the settings as shown below to enable the video and audio from the video device. You can use the DVI port on the product as an HDMI port by using a DVI-HDMI adapter.

Sound → set HDMI Sound to AV(HDMI)

Picture → set each screen mode to Videos/Images under Picture Mode

System → General → set HDMI Hot Plug to On

Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.

SAMSUNG HDMI IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN

SAMSUNG DVI / MAGICINFO IN

Connection Using an HDMI Cable

Using an HDMI cable or HDMI to DVI Cable (up to 1080p)

• For better picture and audio quality, connect to a digital device using an HDMI cable.
• An HDMI cable supports digital video and audio signals, and does not require an audio cable.

- To connect the product to a digital device that does not support HDMI output, use an HDMI-DVI and audio cables

• The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the product.
  If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
• Be sure to use an HDMI cable with a thickness of 14 mm or less.
• Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
  • A basic high-speed HDMI cable or one with ethernet is recommended.

This product does not support the ethernet function via HDMI.

SAMSUNG HDMI IN

Connecting to an Audio System

Connecting parts may differ in different products.

SAMSUNG AUDIO OUT

Connecting the LAN Cable

Connecting parts may differ in different products.

SAMSUNG RJ45

- Use Cat7(*STP type) cable for the connection. *Shielded Twist Pair.

Changing the Input source

Source

SOURCE → Source

Source Magichina S MagiDWeb S HUWTC ComponenterW PC To go to Options, press and hold the Enter button. SAMSUNG

- The displayed image may differ depending on the model.

- The MagicIWB S software allows you to play a variety of content on a large touchscreen monitor. Use the software to bring life to your meetings and conferences.

To use MagiclWB S, you must purchase and attach a touch overlay to the monitor. Touch overlays are sold separately. Refer to the user guide that came with the touch overlay for details.

The MagicIWB S user guide can be downloaded from http://www.samsung.com/displaysolutions.

Source allows you to select a variety of sources and change source device names.

You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.

The input source can also be changed by using the SOURCE button on the remote control.

The screen may not display correctly if an incorrect source is selected for the source device you want to convert to.

To view detailed information about connected source devices, press the TOOLS button from the Source page.

Edit Name

SOURCE → Source → TOOLS → Edit Name → ENTER

Customize the name of a connected external device.

The list can include the following source devices. Source devices on the list differ depending on the selected source.

PC / Cable STB / Satellite STB / PVR STB / Game / Blu-ray / DVD / VCR / AV Receiver / Camcorder / DVI PC / DVI

Devices / TV / IPTV / HD DVD / DMA

Information

SOURCE → Source → TOOLS → Information → ENTER

You can see detailed information about the selected external device.

Chapter 04 Using MDC

Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. For details on how to use the MDC programme, refer to Help after installing the programme. The MDC programme is available on the website.

MDC Programme Installation/Uninstallation

Installation

MDC installation can be affected by the graphics card, mother board and network conditions.

1 Click the MDC Unified installation programme.
2 Select a language for installation. Next, click 'OK'.
3 When the "Welcome to the InstallShield Wizard for MDC_Unified" screen appears, click 'Next'.
4 In the "License Agreement" window displayed, select 'I accept the terms in the license agreement' and click "Next".
5 In the displayed 'Customer Information' window, fill out all the information fields and click 'Next'.
6 In the displayed 'Destination Folder' window, select the directory path you want to install the programme in and click 'Next'.

If the directory path is not specified, the programme will be installed in the default directory path.

7 In the displayed 'Ready to Install the Program' window, check the directory path to install the programme in and click 'Install'.
8 Installation progress will be displayed.
9 Click 'Finish" in the displayed 'InstallShield Wizard Complete' window.

Select "Launch MDC Unified" and click "Finish" to run the MDC programme immediately.

10 The MDC Unified shortcut icon will be created on the desktop after installation.

The MDC execution icon may not be displayed depending on the PC system or product specifications.

Press F5 if the execution icon is not displayed.

Uninstallation

1 Select Settings > Control Panel on the Start menu and double-click Add/Delete Program.
2 Select MDC Unified from the list and click Change/Remove.

Connecting to MDC

Using MDC via RS-232C (serial data communications standards)

An RS-232C serial cable must be connected to the serial ports on the PC and monitor.

Using MDC via Ethernet

Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable.

Connection using a direct LAN cable

Multiple products can be connected using the RJ45 port on the product and the LAN ports on the HUR

Connection using a cross LAN cable

Multiple products can be connected using the RS232C IN / OUT port on the product.

SAMSUNG RS232C OUTRJ45 RS232C IN RS232C OUT RS232C IN Monitor 1 Monitor 2 Computer

Chapter 05 Home feature

This feature is provided in Support → Go to Home. Accessible using the HOME button on the remote control.

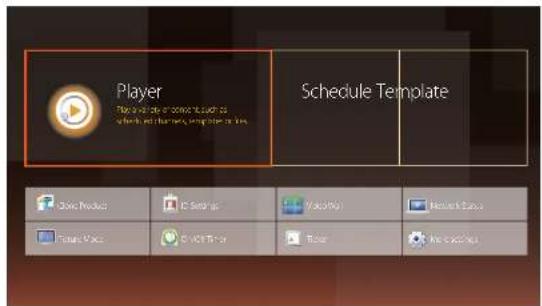

Player

HOME → Player → ENTER

Player Schedule Template China Product IC Setup Viking Research Data Total Views E-mail Timer Timer File Search

- The displayed image may differ depending on the model.

To use the Player feature, set Play via to MagicInfo in System

Play a range of content such as channels with schedules assigned, templates or files. Play channels or content using any of the following methods.

• Network Channel: Play content using the server.
To run Network Channel, make sure the product is connected to the server.
- Local Channel: Play content in internal memory or from external memory.

Approving a connected device from the server

Approving the Lite server

- Set MagicInfo Mode to Lite in Server Network Settings. Approve and use the Lite server now. First configure the server Network Settings before device approval.

1 Access the server you have assigned to your device

User ID Login Password SignMe Contact the administrator Copyright 2007 - 2010 Samsung Electronics All rights reserved. MagicInfo

2 Enter your ID and password to log in.

3 Select Device from the top menu bar.

Magemo 文件(F) 编辑(E) 视图(V) 窗口(W) 帮助(H) 新建(N) 打开(O) 保存(S) 重命名(M) 粘贴(P) 剪切(T) 复制(C) 粘贴(P)... Ctrl+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+Alt+ Alt+F C:\Program Files\2017\2018\2019\2020\2021\2022\2023\2024\2025\2026\2027\2028\2029\2030\2031\2032\2033\2034\2035\2036\2037\2038\2039\2040\2041\2042\2043\2044\2045\2046\2047\2048\2049\2050\2051\2052\2053\2054\2055\2056\2057\2058\2059\2060\2061\2062\2063\2064\2065\2066\2067\2068\2069\2070\2071\2072\2073\2074\2075\2076\2077\2078\2079\2080\2081\2082\2083\2084\2085\2086\2087\2088\2089\2090 C:\Program Files\2017\2018\2019\2020\2021\2022\2023\2024\2025\2026\2027\2028\2029\2030 C:\Program Files\2017\2018\2019\2020\2021\2022\2023\2024\2025\2026\2027\2028\2029 C:\Program Files\2017\2018\2019\2020\2021\2022\2023\2024\2025\2026\2027\2028\2029 C:\Program Files\2017\2018\2019\2020\202

4 Select Lite from the menus on the left.

5 Select Unapproved from the sub-menus of Lite.

Screenshot of a legacy software interface with menu bar and toolbar, showing Chinese text options.

6 Select the Approve button for your device from the list of unapproved Lite devices.

7 Enter the information required to approve the device.

Screenshot of a legacy software interface showing a dialog box with text fields and buttons, likely for data entry or configuration.

• Device Name: Enter the device name.
• Device Group: Select □ to specify the group.
• Location: Enter the current location of the device.

Pressing the INFO button on the remote when a network schedule is running will display the details of the schedule. Check that the correct device has been selected by viewing the device ID in the details.

8 Select the All menu to check that the device has been registered.

Screenshot of a legacy Windows application interface showing menu bar, toolbar, and status bar with icons and text elements.

9 When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded.

For further details on how to configure a schedule, refer to the . It a device is deleted from the list of devices approved by the server, the device will reboot to reset its settings.

Setting the current time

A schedule may not run if the time set on the device is different from the server's current time.

1 Go to the tabs Device → Time.

Screenshot of a legacy software interface with menu bar, toolbar, and status bar in Chinese

2 Select your device.

3 Select Clock Set, and sync the time with the server.

• When connecting to the server for the first time, the time on the product is set using the GMT time of the region where the server is installed.
  • The time on the product can be changed from the server as shown in step 3.
• Turning the product off and then on again will restore the time setting on the product to the last time that was set from the server.
  For further details on how to manage the time (scheduling, holiday management, etc.), refer to the .

Approving the Premium server

- Set MagicInfo Mode to Premium in Server Network Settings. Approve and use the Premium server now. First configure the server Network Settings before device approval

1 Access the server you have assigned to your device.

True ID Password Login Login Contact the admin科室 MagicInfo

2 Enter your ID and password to log in.

3 Select Device from the top menu bar.

4 Select Premium from the menus on the left.

5 Select Unapproved from the sub-menus of Premium.

Screenshot of a legacy software interface with menu bar, toolbar, and status bar in Chinese

6 Select the Approve button for your device from the list of unapproved Premium devices.

7 Enter the information required to approve the device.

Screenshot of a software interface showing a dialog box with text input fields and buttons, likely from an older application or configuration tool.

• Device Name: Enter the device name.
• Device Group: Select □ to specify the group.
• Location: Enter the current location of the device.

Pressing the INFO button on the remote when a network schedule is running will display the details of the schedule. Check that the correct device has been selected by viewing the device ID in the details.

8 Select the All menu to check that the device has been registered.

Screenshot of a legacy Windows application interface showing menu bar, toolbar, and control panel with icons and text.

9 When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded.

For further details on how to configure a schedule, refer to the .

If a device is deleted from the list of devices approved by the server, the device will reboot to reset its settings.

Setting the current time

A schedule may not run if the time set on the device is different from the server's current time.

1 Go to the tabs Device → Time.

Screenshot of a software interface with menu bar, toolbar, and status bar in Chinese

2 Select your device

3 Select Clock Set, and sync the time with the server.

• When connecting to the server for the first time, the time on the product is set using the GMI time of the region where the server is installed.
  • The time on the product can be changed from the server as shown in step 3.
• Turning the product off and then on again will restore the time setting on the product to the last time that was set from the server.

For further details on how to manage the time (scheduling, holiday management, etc.), refer to the .

Flower Device AI Camera AI Watch Before View View Off File Edit View Help

• The displayed image may differ depending on the model.

Network Channel

Play content, templates and schedules configured on the server.

- You can view whether the server is connected (approval) in the Player menu screen. To view whether the server is connected when a Network Channel is running, press INFO on the remote.

1 Select Network Channel from the Player menu.

The No channels message appears if no channel has been registered in Network Channel.

2 Network Channel will run.

Local Channel

Play a schedule or channel that was configured in the product.

1 Select Local Channel from the Player menu.

The No channels message appears if no channel has been registered in Local Channel

2 Local Channel will run.

Published Content

Play a template stored on a connected USB device.

The Published Content feature appears only when a USB device containing templates is connected.

Play scheduled content.

My Templates

Play a template in My Templates stored in the internal memory of the product.

Available features in the Player page

The Player list page provides the following features.

• Device Select either Internal or USB to search for a desired device list.
- All / Internal / USB
- Content Select a content type as criterion to search for a desired content list. - All / Video / Image / PDF / Flash / Office / My Templates
- Sort by Specify the content sort criterion. - File Name / Recently played
- Options

Menu items in the Player page

Option Name Operations

Play Selected	Select and play desired content.
Send	Copy content to another storage device.
Delete	Delete desired content.
Settings	Configure detailed properties of content.See the following page for details on the Settings feature.

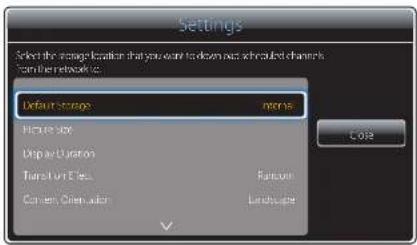

Player page Settings menu

Settings

Settings Select the average location that you want to down past scheduled channels. From the network to: Default storage means Picture size Unip at U Duration Transport E Sec. Language Content Color color Language OK

• The displayed image may differ depending on the model.

Default Storage

Select the storage location that you want to download scheduled channels from the network to.

• Internal / USB / SD Card

Picture Size

Set the screen size for content.

If Picture Size is set to Video or Image

Full Screen / Original Size / Fit to Screen

If Picture Size is set to PDF or Office

• Full Screen / Original Size

This feature is only available for Video, Image, PDF and Office files.

Display Duration

Set the duration for each page in a slideshow.

This feature is only available for Image, PDF, Flash and Office files.

Transition Effect

Configure transition effects between pages or scenes in a slideshow or video file.

• None / Fade1 / Fade2 / Blind / Spiral / Checker / Linear / Stairs / Wipe / Random

This feature is only available for Image files.

Content Orientation

Switch the orientation of playing content to Landscape or Portrait mode.

- Landscape / Portrait

ITContent Orientation is Portrait view, it does not support VP8 video codec.

Source is not available when Content Orientation is set to Portrait.

Default content

This default content will be displayed if you run a channel while no programmes are scheduled on the channel.

None

Safely Remove

Safely removes USB memory

Reset

Restore all the values under Settings to the default when the product was purchased.

When Content is Running

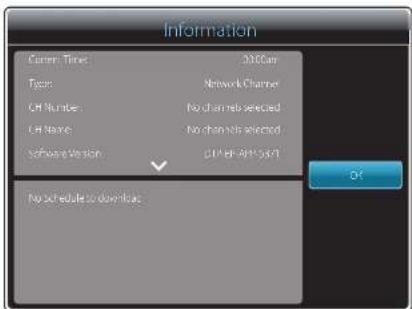

Viewing the details of the content that is running

Information Current Time 2000cm Type Network Channel CH Numbers No channel selected CH Name No channel selected Software Version C:\PER\48153\71 No schedule to download

- The displayed image may differ depending on the model.

Press the INFO button on the remote control.

• Current Time
  • Type : Type of channel currently playing Only applicable during Network Channel / Local Channel playback.
• CH Number: Number assigned to the channel currently playing Only applicable during Network Channel / Local Channel playback.
• CH Name: Name of the channel currently playing Only applicable during Network Channel / Local Channel playback.
  • Software Version: Displays the software version of a device
  • MAC Address: Displays the original identification number of a device
• Tags: Tag settings assigned to a device from the server Only applicable during Network Channel / Local Channel playback.
  • USB: Displays the connection status of a USB device

• Server: Displays the connection status (Connected, Not connected or Not approved) of the server

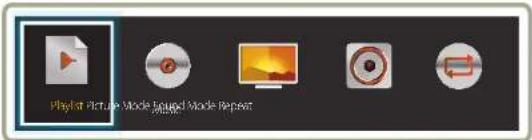

Changing the settings for the content that is running

Playtat Picture Mode Upgraded Mode Repeat

• The displayed image may differ depending on the model.
• This feature is not available when content is playing through VideoWall.

Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode and Sound Mode.

- Playlist

View a list of content items currently playing.

Music

Set the background music for the content currently playing.

Picture Mode

Customizes the screen settings for the content currently playing

- Shops & Malls / Offices & Schools / Terminals & Stations / Video Wall / Calibration

- Sound Mode

Customizes the audio settings for the content currently playing

- Standard / Music / Movie / Clear Voice / Amplify

- Repeat

Set the repeat mode.

- One / All

File Formats Compatible with Player

• Supported file systems include FAT32 and NTFS.
- A file with a vertical and horizontal resolution larger than the maximum resolution cannot be played. Check the vertical and horizontal resolution of the file.
• Check the supported video and audio Codec types and Versions.
• Check the supported file versions.
- Flash player 11.0 and older and Flash Air 3.0 and older versions are supported.
- PowerPoint version up to 97 – 2007 is supported
• Only the last USB device that was connected is recognized.

Network Schedule Multiframe

Playback restrictions

• A maximum of two video files (Video) can be played simultaneously.
• In portrait playback mode, only one video file can be played at a time.
• More than one Flash file cannot be played.
• For Office files (PPT and Word files) and PDF files, only one file type is supported at a time.
• LFD(.lfd) files are not supported.

Sound output restrictions

• More than one sound output cannot be used.
- Playback priority: Flash file > network BGM > local BGM > video file in the main frame selected by the user
Network BGM: Settings can be configured in step 1 when creating a server schedule.
Local BGM: BGM settings can be configured using the tools displayed after the TOOLS button is pressed during Player playback.
User-selected main frame: Main frame settings can be configured in step 2 when creating a server schedule.

Template files and LFD(.lfd) files

Restrictions

- Ensure a distributed folder (content / schedules) exists in Internal / USB memory.

Playback restrictions

• A maximum of two video (Video) files can be played.
• More than one Flash file cannot be played.
• For Office files (PPT and Word files) and PDF files, only one file type is supported at a time.
• Multiple videos (Video) cannot be played on a single display of a video wall simultaneously.

Sound output restrictions

• More than one sound output cannot be used.
- Playback priority: Flash file > network BGM > local BGM > video file in the main frame selected by the user

Contents

File Extension	Container	Video Codec	Resolution	Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avl	AVI	DivX 3.11/4x/5x/6x 1920 x	1080 6~30 30			AC3
*.mkv	MKV					LPCM
*.asf	ASI					AAC
*.wmv	MP4	MPEG4 SP / ASP				HE-AAC
*.mp4	3GP					WMA
*.mov	VRO	1L264 BP / MP / IIP				DD+
*.3gp	VOB					MPEG(MP3)
*.vro	PS					DTS Core
*.mpg	TS	Motion JPEG				G.711(ALaw,μ-Law)
*.mpeg
*.ts		Window Media Video v9
*.tp
*.trp		MPEG7
*.flv
*.vob		MPEG1
*.svl
*.m2ts
*.mts		VP6 640 x 480 4
*.dlvx

Video Audio Image

3D video is not supported.Content with a resolution larger than the resolution specified in the table above is not supported.Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.Video content will not play, or not play correctly, if there is an error in the content or the container.Some USB/digital camera devices may not be compatible with the player.Supports up to H.264, Level 4.1H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and MVCHD are not supported.For all Video codecs except MVC, VP8, VP6: Below 1280 x 720: 60 frame max Above 1280 x 720: 50 Frame maxGMC 2 or higher is not supported.Supports only BD MVC Spec.Only one video file can play at a time if video files on the monitor use incompatible codecs or the resolution is 1080 x 1920.When a single video file is playing. Seamless mode is not supported under the following conditions: Incompatible codec (MVC, VP3, MUPEG) ↔ Incompatible codec Incompatible codec ↔ Compatible codec The resolution is different from that of the monitor The frequency is different from that of the monitor

Audio content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy audio during playback.Video content will not play, or not play correctly, if there is an error in the content or the container.Some USB/digital camera devices may not be compatible with the player.Supports up to WMA 10 Pro 5.1 channel. WMA lossless audio is not supported.QCELP, AMR NB/WB are not supported.

Compatible image file format : JPEG, PNC, BMP - 32 bit, 24 bit and 8 bit BMP files are supported.Supported maximum resolution : 4096 x 4096 Supported maximum file size: 20MB Supported image effects : 9 effects (Fade1, Fade2, Bllnd, Spiral, Checker, Linear, Stairs, Wipe, Random)

Flash Power Point PDF

Flash player 11.0 and older and Flash Air 3.0 and older versions are supported.Flash Animation- Compatible file format: 5WFRecommended resolution: 960 x 540- CautionPerformance comparable to Flash Player on a Windows operating system cannot be guaranteedOptimization is needed during content creationFlash Video- Compatible file format: FLY- VideoCodec: H.264 BPResolution: 1920 x 1080- AudioCodec: II.264 BP- CautionI4V file format is not supportedScreen Video is not supported

Compatible document file formats- Extension: ppt, pptx- Version: Office 97 - Office 2007Functions not supported- Animation effect- 3D shapes (which will be displayed in 2D)- Header and footer (some subitems are not supported)- Word Art- AlignA group alignment error may occur- Office 2007SmartArt is not fully supported. 97 out of 115 subitems are supported.- Object insertion- Half width characters- Letter spacing- Charts- Vertical textsome subitems are not supported- Slide notes and handout

Compatible document file formats- Extension: pdfFunctions not supported- Content less than 1 pixel not supported because of performance degradation issue.- Masked Image, Tileo Image content not supported.- Content with Rotated Text, not supported.- 3D Shadow Effects not supported.- Some characters not supported(Special characters may be corrupted)

WORD Template files LFD

Compatible document file formatsExtension:doc,docxVersion:Office 97--Office 2007Functions not supportedPage background effectSome paragraph stylesWord ArtAlignA group alignment error may occur3D shapes (which will be disolayed in 2D)Office 2007SmartArt is not fully supported. 97 out of 115 subitems are supported.ChartsHalf-width charactersLetter spacingVertical textsome subitems are not supportedSlide notes and handout

Creation/editing/playback are only available in Template.

Supported in Network Channel and Local ChannelCompatible document file formatsExtension:Jfd

File Formats Compatible with Videowall

Refer to the for further details.

Video Image

• 3D video is not supported.
- Content with a resolution larger than the resolution specified in the table above is not supported.
• Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.
• Video content will not play, or not play correctly, if there is an error in the content or the container.
• Some USB/digital camera devices may not be compatible with the player.
• Supports up to H.264, Level 4.1
• H.264 FMO / ASO / RS, VCI SP / MP / AP L4 and AVCHD are not supported.
• For all Video codecs except MVC, VP8, VP6:
- Below 1280 x 720:60 frame max
- Above 1280 x 720:30 frame max
• GMC 2 or higher is not supported.
• Supports only BD MVC Spec.
• Some codecs may not be supported in portrait playback mode.

• Compatible image file format: Jpeg, bmp, png

• Supported maximum resolution : 15,360 x 8,640

A higher resolution image may take longer to display on the screen.

Restrictions

• Only one video (Video) file can be played per client.

Different content files can be played on the displays of a video wall.

Two video (Video) files cannot be played on a single display of a video wall.

Grid of nine square tiles displaying a blue sky with scattered white clouds (no text or symbols)

Available

Grid of six photos showing sky, clouds, grassy field, and outdoor group (no text or symbols)

Available Not available

Grid of four quadrants showing outdoor scenes: blue sky, red crosshair overlay, and grassy field with people (no text or symbols)

Schedule

HOME → Schedule → ENTER

31 Schedule Schedule is currently on a total scheduled session channel. Timing Time 0:00 0:01 0:02 0:03 0:04 0:05 0:06 0:07 0:08 0:09 0:10 0:11 0:12 0:13 0:14 0:15 0:16 0:17 0:18 0:19 0:20 Add to Channel 1 Add to Channel 2 Add to Channel 3 Add to Channel 4 Add to Channel 5 Add to Channel 6 Add to Channel 7 Add to Channel 8 Add to Channel 9 Add to Channel 10 Add to Channel 11 Add to Channel 12 Add to Channel 13 Add to Channel 14 Add to Channel 15 Add to Channel 16 Add to Channel 17 Add to Channel 18 Add to Channel 19 Add to Channel 20 Add to Channel 21 Add to Channel 22 Add to Channel 23 Add to Channel 24 Add to Channel 25 Add to Channel 26 Add to Channel 27 Add to Channel 28 Add to Channel 29 Add to Channel 30 Add to Channel 31 Add to Channel 32 Add to Channel 33 Add to Channel 34 Add to Channel 35 Add to Channel 36 Add to Channel 37 Add to Channel 38 Add to Channel 39 Add to Channel 40 Add to Channel 41 Add to Channel 42 Add to Channel 43 Add to Channel 44 Add to Channel 45 Add to Channel 46 Add to Channel 47 Add to Channel 48 Add to Channel 49 Add to Channel 50

Available features in the Schedule page

The Schedule page provides the following features.

Type
- Local: Add or edit schedules.
- Network: View the network schedule configured on the server.
- Device
- Display the name of a connected storage device
This option only activates if Type is set to Local in Device.
- Options

Menu items in the Schedule page

Option Name Operations

Send	Send configured schedules to another storage device. This is similar to the "copy" feature on PCs.
Delete	Delete schedules.

Configuring channel schedules

Play media content such as videos, photos and music at a desired time.

1 Select a channel to configure.

2 Select video, music and photo content you want to apply to the channel schedule.

3 Set the time to play the schedule. (Start Time \~ Stop Time)

4 Change the channel schedule name, and then select a destination folder to save to.

5 Press the Save button.

Only applicable when Type is set to Local.

Editing a channel schedule.

Change settings for a configured channel schedule such as content, the duration and the schedule name.

1 Select a channel to edit.

2 Select video, photo or music content to edit in the channel schedule.

• Deleting content: Place the cursor over the desired content and then press the button to delete it.
• Move to the far right end of the content list. Click the Ⓕ button to add content or change the playback order of content items.

3 Set the time to play the schedule. (Start Time \~ Stop Time)

4 Change the channel schedule name, and then select a destination folder to save to.

5 Press the Save button.

Only applicable when Type is set to Local.

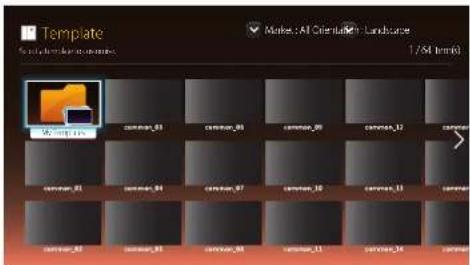

Template

HOME → Template → ENTER

Template Make: All Clients@ - Landscape 1/34 Item(s) cominar_01 cominar_02 cominar_03 cominar_04 cominar_05 cominar_06 cominar_07 cominar_08 cominar_09 cominar_10 cominar_11 cominar_12 cominar_13 cominar_14 cominar_15 cominar_16

- The displayed image may differ depending on the model.

Available features in the Template page

Create unique content using templates. It is easy to create content. Simply change images and text in a template.

Sort the template list using the following criteria.

• Market
- Orientation

- Landscape: Select this mode when using the product in landscape orientation.

- Portrait: Select this mode when using the product in portrait orientation.

1 Select a template from the provided sample templates.

Create Template Select the template design to create a new town existing project New town interior design Backward Edges Top menu Backward Breaks

2 Organize a template by inserting text, video, photo, or PDF files as desired.

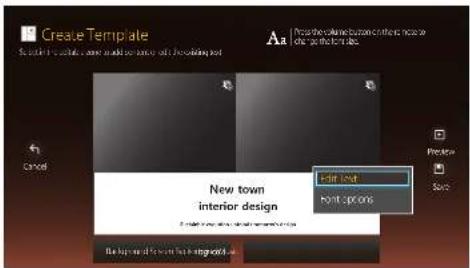

Entering text

Create Template Aa | Press the original custom to find new the project template. New town interior design Exit List Exit Options

Edit Text

Select the Edit Text window to enter text.

Font options

Font Size: Specify the text size for the message.

Font Colour: Specify the text colour for the message.

Background colour: Specify the background colour for the message.

Background opacity: Specify the background transparency for the message.

Alignment: Select a message alignment mode.

Scroll: Specify the scroll direction/speed for the message.

Hide Element: Display or hide a message.

Selecting Hide does not reset the message settings.

Reset: Reset all settings in Font options to default settings.

Inserting content such as videos, photos and PDF files

Create Template Select the template to create a template in the editing tool. Edit Item Selected Select item name: #12345-05 Hill Document Show Selected Path Hill Document Selected Path: 67.00% None Import Style

Configuring the background image/background music

Create Template File: in this folder and to add a new file. It is also displayed. Background Screen bg_conner_02.jpg bg_conner_04.jpg bg_conner_06.jpg bg_conner_08.jpg bg_conner_10.jpg bg_conner_01.jpg bg_conner_03.jpg bg_conner_05.jpg bg_conner_07.jpg bg_conner_09.jpg bg_conner_11.jpg Delete Cancel

Preview

Template preview is running it will stop after 20 seconds

New town interior design

Sustainable evolution unfelocks tomorrow's design

1 Preview the created template using the Preview feature.

2 To save the template, press the Save button.

3 Configure Template Name and Storage.

Save Duration 735959 Template Name Template01 Storage Internal Save Cancel

4 Press the Save button to finish creating the content.

Clone Product

HOME → Clone Product → ENTER

- The displayed image may differ depending on the model.

Export the product settings to a USB device or load the settings via a USB device.

This option is useful when assigning the same settings to several products.

When USB does not contain a duplicate file

1 Connect the USB device to a USB port. Run the Clone Product function
2 The No cloning file found on the USB device. Copy system settings from this product to the USB storage device? message appears.

When USB contains a duplicate file

1 Connect the USB device to a USB port. Run the Clone Product function.
2 The Cloning file found. Please select an option. message appears.

Run the Clone from USB or Clone to USB function.

• Clone from USB: Apply the USB device settings to the product.
• Clone to USB: Copy the product settings to the USB device.

After configuration is complete, the product is rebooted automatically.

ID Settings

HOME → ID Settings → ENTER

- The displayed image may differ depending on the model.

Assign an ID to a set.

Device ID

Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0\~224)

Press ▲/▼ to select a number, and press ↻.

Enter the number you want using the number buttons on the remote control

PC Connection Cable

Select a method to connect to MDC to receive the MDC signal.

RS232C cable

Communicate with MDC via the RS232C-stereo cable.

- RJ45(LAN) cable

Communicate with MDC via the R45 cable.

Device ID Auto Set

Assign ID number automatically for all connected products.

Video Wall

HOME → Video Wall → ENTER

- The displayed image may differ depending on the model.

Customize the layout of multiple displays that are connected to form a video wall.

In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays.

To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function.

Video Wall

You can activate or deactivate Video Wall.

To organize a video wall, select On.

• Off / On

Horizontal x Vertical

This feature automatically splits a videowall display based on a videowall matrix configuration.

Enter the videowall matrix.

The videowall display is split based on the configured matrix. The number of vertical or horizontal display devices can be set within the range 1 and 15.

— A videowall display can be split into a maximum of 225 screens.

The Horizontal x Vertical option is only enabled when Video Wall is set to On.

Screen Position

To rearrange split screens, adjust the number for each product in the matrix using the Screen Position feature.

Selecting Screen Position will display the videowall matrix with the numbers assigned to the products that form the videowall.

To rearrange products, use the direction buttons on the remote control to move a product to another desired number. Press the

button.

• All Displays: Assign screen positions to All displays. Then, you don't need to set up video wall for individual displays.

• Current Displays: Only Assign screen position for this first display.

Screen Position can be set up with a maximum of 15x15 split screens (225 devices). If connected using DP Loopout mode, the maximum number of devices changes to 100.

The Screen Position option is only enabled when Video Wall is set to On.

To use the function, make sure Horizontal x Vertical is configured.

Format

Select how to display images on the videowall display.

• Full: Display images in full screen with no margin.
• Natural: Display images in the original aspect ratio without enlarging or reducing the size.

The Format option is only enabled when Video Wall is set to On.

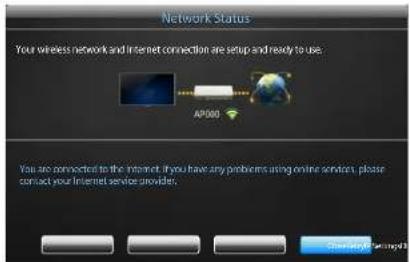

Network Status

HOME → Network Status → ENTER

- The displayed image may differ depending on the model.

Check the current network and Internet connection.

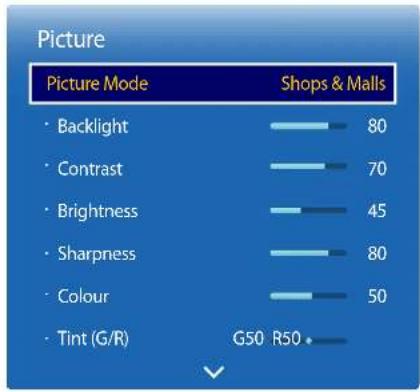

Picture Mode

HOME → Picture Mode → ENTER

- The displayed image may differ depending on the model.

Select a picture mode (Picture Mode) suitable for the environment where the product will be used.

Videos/Images mode improves the picture quality of the video device. Text mode improves the picture quality of the computer.

• Shops & Malls

Suitable for shopping malls.

- Select either Videos/Images or Text depending on the picture mode.

- Offices & Schools

Suitable for offices and schools.

- Select either Videos/Images or Text depending on the picture mode.

- Terminals & Stations

Suitable for bus terminals and train stations.

- Select either Videos/Images or Text depending on the picture mode.

- Video Wall

Suitable for environments where videowall display are used.

- Select either Videos/Images or Text depending on the picture mode.

- Calibration

In this mode, the brightness, colour, gamma and uniformity settings customized using the colour calibration programme. Advanced Color Management are applied.

- To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness, colour, gamma and uniformity, using the colour calibration programme Advanced Color Management.

- To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions.

BD Wise

Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

- Available when you connect Samsung products that support BD Wise through an HDMI cable to the product.

- The BD Wise function is enabled only when a source device with the BD Wise function is connected.

On/Off Timer

HOME → On/Off Timer → ENTER

On/OffTimer

- The displayed image may differ depending on the model.

You must set Clock Set before you can use this feature.

On Timer

Set On Timer so that your product turns on automatically at a time and on a day of your choosing.

The power is turned on with the specified volume or input source.

On Timer: Set the on timer by making a selection from one of the seven options. Ensure you set the current time first.

(On Timer 1 \~ On Timer 7)

• Setup: Select Off, Once, Everyday, Mon\~Fri, Mon\~Sat, Sat\~Sun or Manual.
  If you select Manual, you can choose the days you want On Timer to turn on your product.
• The check mark indicates days you've selected.
• Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left and right arrow buttons to change entry fields.
  • Volume: Set the desired volume level. Use the left and right arrow buttons to change the volume level.
  • Source: Select the input source of your choice.
• Content (when the Source is set to Internal/USB): From the USB device or internal memory device, select a folder containing content you want to play when the product turns on. Content can include music, photo or video files. This function is available only when a USB device is connected.

If there is no music file on the USB device or you don't select a folder containing a music file, the Timer function does not operate correctly.

If there is only one photo file in the USB, the Slide Show will not play.

If a folder name is too long, the folder cannot be selected.

Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

We recommend that you use a USB memory stick and a multi card reader when using On Timer.

The On Timer function may not work with USB devices with a built-in battery, MP3 players, or PMPs made by some manufacturers because the product can take too long to recognize these devices.

Off Timer

Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 -- Off Timer 7)

• Setup: Select Off, Once, Everyday, Mon\~Fri, Mon\~Sat, Sat\~Sun or Manual.
  If you select Manual, you can choose the days you want Off Timer to turn off your product.
• The check mark indicates days you've selected.

- Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left and right arrow buttons to change entry fields.

Holiday Management

Timer will be disabled during a period specified as a holiday.

- Add Holiday: Specify the period you want to add as a holiday. Select the start and end dates of the holiday you want to add using the ▲/▼ buttons, and click the Save button. The period will be added to the list of holidays.

- Start: Set the start date of the holiday.

- End: Set the end date of the holiday.

Delete: Delete selected items from the list of holidays.

Edit: Select a holiday item and then change the date.

- Set Applied Timer: Set the On Timer and Off Timer to not activate on public holidays.

- Press ☐ to select the On Timer and Off Timer settings you do not want to activate.

- The selected On Timer and Off Timer will not activate.

Ticker

HOME → Ticker → ENTER

- The displayed image may differ depending on the model.

Input text while a video or image is displayed and display the text on the screen.

• Off / On
  • Message: Enter a message to display on the screen.
  • Time: Set the Start Time and End Time to display a Message.
  • Font options: Specify the text font and colour for the message.
  • Position: Select an orientation to display a Message.
  • Scroll: Specify the scroll Direction and Speed for the message.
  • Preview: Preview configured caption settings.

More settings

HOME → More settings → ENTER

- The displayed image may differ depending on the model.

The picture settings menu appears.

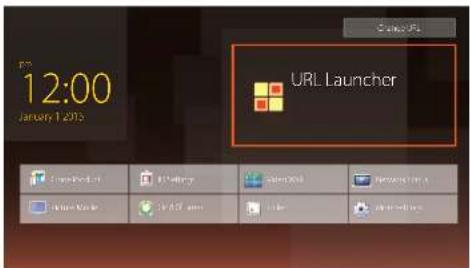

URL Launcher

HOME → URL Launcher → ENTER

PS 12:00 January 1 2013 URL Launcher

- The displayed image may differ depending on the model.

For details on how to use the URL Launcher feature, contact the dealer the product was purchased from.

To use the URL Launcher feature, set Play via to URL Launcher in System.

Chapter 06 Screen Adjustment

Configure the Picture settings (Backlight, Colour Tone, etc). The layout of the Picture menu options may vary depending on the product.

Picture Mode

MENU → Picture → Picture Mode → ENTER

• The displayed image may differ depending on the model.

Select a picture mode (Picture Mode) suitable for the environment where the product will be used.

Videos/Images mode improves the picture quality of the video device. Text mode improves the picture quality of the computer.

• Shops & Malls

Suitable for shopping malls.

- Select either Videos/Images or Text depending on the picture mode.

- Offices & Schools

Suitable for offices and schools.

- Select either Videos/Images or Text depending on the picture mode.

- Terminals & Stations

Suitable for bus terminals and train stations.

- Select either Videos/Images or Text depending on the picture mode.

- Video Wall

Suitable for environments where videowall display are used.

- Select either Videos/Images or Text depending on the picture mode.

- Calibration

In this mode, the brightness, colour, gamma and uniformity settings customized using the colour calibration programme Advanced Colour Management are applied.

- To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness,

colour, gamma and uniformity, using the colour calibration programme Advanced Colour Management.

- To download the Advanced Colour Management programme, visit www.samsung.com/displaysolutions.

BD Wise

Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

- Available when you connect Samsung products that support BD Wise through an HDMI cable to the product.

- The BD Wise function is enabled only when a source device with the BD Wise function is connected.

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

MENU → Picture → ENTER

- The displayed image may differ depending on the model.

Your product has several options for adjusting picture quality.

Picture Mode Picture Mode settings Adjustable options

Shops & Malls, Offices & Schools, Terminals & Stations, Video Wall	Videos/Images	Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)
	Text	Backlight / Contrast / Brightness / Sharpness
Calibration Backlight
BD Wise		Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

When you make changes to Backlight, Contrast, Brightness, Sharpness, Colour or Tint (G/R), the OSD will be adjusted accordingly.
You can adjust and store settings for each external device you have connected to an input on the product.
Lowering picture brightness reduces power consumption.

Colour Temperature

MENU → Picture → Colour Temperature → ENTER

Picture Colour Temperature 16000K

- The displayed image may differ depending on the model.

Adjust the colour temperature (Red / Green / Blue). (Range: 2800K–16000K)

Enabled when Colour Tone is set to Off.

Colour Temperature is disabled if Picture Mode is set to Calibration or BD Wise.

White Balance

MENU → Picture → White Balance → ENTER

Picture White Balance

- The displayed image may differ depending on the model.

2 Point

Adjust the colour temperature for a more natural picture.

• R-Offset / G-Offset / B-Offset: Adjust each colour's (red, green, blue) darkness.
• R-Gain / G-Gain / B-Gain: Adjust each colour's (red, green, blue) brightness.
- Reset: Suitable for environments where videowall display are used.

10 Point

Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

• 10 Point (Off / On)

Level, Red, Green, Blue and Reset are enabled only when 10 Point is set to On.

• Level: Select interval to adjust.
• Red: Adjust the red level.
• Green: Adjust the green level.
• Blue: Adjust the blue level.
- Reset: Suitable for environments where videowall display are used.

Some external devices may not support this function.

Enabled when Picture Mode is set to Offices & Schools (Videos/Images).

Gamma

MENU → Picture → Gamma → ENTER

Picture Gamma 0

- The displayed image may differ depending on the model.

Calibrated value

MENU → Picture → Calibrated value → ENTER

Picture Calibrated value Don't apply

- The displayed image may differ depending on the model.

Adjust the primary colour intensity.

If Picture Mode is set to Calibration, Gamma is disabled.

Select whether to apply the brightness, colour, gamma and uniformity settings customized using the colour calibration programme Advanced Colour Management to the Information and Advertisement modes.

- Don't apply / Apply

To download the Advanced Colour Management programme, visit www.samsung.com/displaysolutions.

Picture Mode is set to Calibration, Calibrated value is disabled.

Advanced Settings

MENU → Picture → Advanced Settings → ENTER

Advanced Settings
Dynamic Contrast	High
Black Tone	Darkest
Flesh Tone	0
RGB Only Mode	Off
Colour Space	Native
Motion Lighting	Off

Picture Mode Picture Mode settings Adjustable options

Shops & Malls, Offices & Schools, Video Wall	Videos/Images	Dynamic Contrast / Black Tone / Flesh Tone / RGB Only Mode / Colour Space
	Text	Dynamic Contrast / Black Tone
Terminals & Stations Videos/Images		Dynamic Contrast / Black Tone / Flesh Tone / RGB Only Mode / Colour Space / Motion Lighting
		Text
BD Wise		Dynamic Contrast / Black Tone / Flesh Tone / RGB Only Mode / Colour Space

IF Picture Mode is set to Calibration, Advanced Settings is disabled.

Advanced Settings
Dynamic Contrast	High
Black Tone	Darkest
Flesh Tone	0
RGB Only Mode	Off
Colour Space	Native
Motion Lighting	Off

• The displayed image may differ depending on the model.

Dynamic Contrast

Adjust the screen contrast.

• Off / Low / Medium / High

Black Tone

Select the black level to adjust the screen depth.

• Off / Dark / Darker / Darkest

Flesh Tone

Emphasize pink Flesh Tone.

RGB Only Mode

Displays the Red, Green and Blue colour for making fine adjustments to the hue and saturation.

• Off / Red / Green / Blue

Colour Space

Adjusts the range and variety of colours (the colour space) available to create images.

• Auto / Native / Custom

To adjust Colour, Red, Green, Blue and Reset, set Colour Space to Custom

Motion Lighting

Reduces power consumption by reducing screen brightness when the picture on the screen is in motion.

- Off / On

Picture Options

MENU → Picture → Picture Options → ENTER

Picture Options
Colour Tone	Off
Digital Clean View	Off
MPEG Noise Filter	Off
HDMI Black Level	Low
Film Mode	Off
Dynamic Backlight	Off

• The displayed image may differ depending on the mode.

Picture Mode Picture Mode settings Adjustable options

Shops & Malls, Offices & Schools, Terminals & Stations, Video Wall	Videos/Images	Colour Tone / Digital Clean View / MPEG Noise Filter / HDMI Black Level / Film Mode / Dynamic Backlight
	Text	Colour Tone / HDMI Black Level / Dynamic Backlight
Calibration		HDMI Black Level / Dynamic Backlight
BD Wise		Colour Tone / Digital Clean View / MPEG Noise Filter / HDMI Black Level / Film Mode / Dynamic Backlight

Picture Options
Colour Tone	Off
Digital Clean View	Off
MPEG Noise Filter	Off
HDMI Black Level	Low
Film Mode	Off
Dynamic Backlight	Off

• The displayed image may differ depending on the mode.

Colour Tone

If Picture Mode is set to Text

Off / Cool / Standard / Warm

If Picture Mode is set to Videos/Images or BD Wise

• Off / Cool / Standard / Warm1 / Warm2

If Picture Mode is set to Calibration, Colour Tone is disabled.

Settings can be adjusted and stored for each external device connected to an input on the product.

Digital Clean View

If the broadcast signal received by your product is weak, you can activate the Digital Clean View feature to reduce any static and ghosting that may appear on the screen.

• Off / Low / Medium / High / Auto

Received signal intensity is the strongest when the bar is green.

When the signal is weak, try all the options until the product displays the best picture.

MPEG Noise Filter

Reduces MPEG noise to provide improved picture quality.

• Off / Low / Medium / High / Auto

Picture Options
Colour Tone	Off
Digital Clean View	Off
MPEG Noise Filter	Off
HDMI Black Level	Low
Film Mode	Off
Dynamic Backlight	Off

• The displayed image may differ depending on the model.

HDMI Black Level

Selects the black level on the screen to adjust the screen depth.

Auto / Low / Normal

— Available only in HDMI, and DVI mode (AV Timing: 480p, 576p, 720p, 1080i, 1080p).

Film Mode

This mode is suitable to view movies.

Sets the product to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

- Off / Auto1 / Auto2

Available in AV, Component (480i / 1080i), HDMI (1080i).

Picture Options
Colour Tone	Off
Digital Clean View	Off
MPEG Noise Filter	Off
HDMI Black Level	Low
Film Mode	Off
Dynamic Backlight	Off

• The displayed image may differ depending on the mode.

Dynamic Backlight

Automatically adjust the backlight to provide the best possible screen contrast under the current conditions.

- Off / On

Picture Size

MENU → Picture → Picture Size → ENTER

Picture Size Picture Size 16:9 • Position Resolution Off

- The displayed image may differ depending on the model.

choose size and aspect ratio picture displayed on screen.

Picture Size

Different screen adjustment options are displayed depending on the current input source.

• 16:9: Sets the picture to 16:9 wide mode.
• Zoom1: Use for moderate magnification. Cuts off the top and sides
• Zoom2: Use for a stronger magnification.
• Smart View 1: Reduces the 16:9 picture by 50%
• Smart View 2: Reduces the 16:9 picture by 25%.
- Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.

• 4:3 Sets the picture to basic (4:3) mode

Do not set your product to 4:3 format for a long time.

The borders displayed on the left and right, or top and bottom of the screen may cause image retention (screen burn) which is not covered by the warranty.

- Screen Flt: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1060i / 1060p) signals are inputted.

• Custom: Changes the resolution to suit the user's preferences.

- Original ratio: If the input source is PC, DVI, HDMI (PC connection), the video will display in the original aspect ratio.

Position

Picture Size Picture Size Custom • Position Resolution Off

- The displayed image may differ depending on the model.

Zoom/Position

Picture Size Picture Size Custom · Zoom/Position Resolution Off

- The displayed image may differ depending on the model.

Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom.

To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps.

1 Press the ▼ button to select Position. Press the ↻ button.
2 Press the ▲ or ▼ button to move the picture up or down.
3 Press the button.

Adjusts the picture zoom and position. This option is available when the input source is set to HDMI (1080/1080p), Component (1080/1080p), AV or DVI. Picture Size must be set to Custom for the option to be available.

Custom under Picture Size is only enabled when Picture Mode is set to Videos/Images while in DVI mode.

1 Press the ▼ button to select Zoom/Position. Press the ↙ button.
2 Select the Zoom or Position. Press the □ button.
3 Press the ▲/▼/◄/► button to move the picture.
4 Press the button.

If you want to reset the picture to its original position, select Reset in the Zoom/Position screen. The picture will be set to its default position.

Resolution

If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture quality by selecting the same resolution for the product as the PC using this menu.

Available resolutions: Off / 1024x768 / 1280x768 / 1360x768 / 1366x768

Auto Adjustment

MENU → Picture → Auto Adjustment → ENTER

Picture Auto Adjustment

• Available in PC mode only.
• The displayed image may differ depending on the model.

PC Screen Adjustment

MENU → Picture → PC Screen Adjustment → ENTER

Picture PC Screen Adjustment

• Available in PC mode only.
• The displayed image may differ depending on the model.

Adjust frequency values/positions and fine tune the settings automatically.

- Coarse / Fine

Removes or reduces picture noise.

If the noise is not removed by Fine-tuning alone, use the Coarse function to adjust the frequency as best as possible

(Coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned with the centre of screen.

- Position

To adjust the PC's screen position if it is not centreed or does not fit the product screen.

Press the ▲ or ▼ button to adjust the Vertical Position. Press the ◀ or ▶ button to adjust the Horizontal Position.

- Image Reset

Resets the image to the default settings.

Picture Off

MENU → Picture → Picture Off → ENTER

Picture Picture Off

- The displayed image may differ depending on the model

Selecting Picture Off switches off the screen. The volume is not disabled.

To switch the screen on, press any button other than the volume button.

Reset Picture

MENU → Picture → Reset Picture → ENTER

Picture Reset Picture

- The displayed image may differ depending on the model.

Resets your current picture mode to its default settings.

Chapter 07 OnScreen Display

PIP

MENU III → OnScreen Display → PIP → ENTER

OnScreen Display
PIP
Display Orientation
Screen Protection
Message Display
Menu Language	English
Reset OnScreen Display

• The displayed image may differ depending on the model.
• For PIP sound, refer to the Sound Select instructions.
• If you turn the product off while watching in the PIP mode, PIP mode will remain after power OF/On.
• You may notice that the picture in the PIP screen becomes slightly unnatural when you use the main screen to view a game or karaoke.

PIP Settings

The picture from the external video source will be in the main screen and the picture from the product will be in the PIP sub-picture screen.

Main picture Sub picture

PC AV / Component
AV / Component	PC / HDMI / DVI
HDMI / DVI / MaglcInfo	AV / Component

If Source Content Orientation is set to Portrait, PIP is disabled.

PIP PIP Off Source PC Size Position Sound Select Main Close

- The displayed image may differ depending on the model.

• PIP (Off / On): Activate or deactivate the PIP function.
  • Source: You can select a source of the sub picture.
  • Size □, □, □, □, □, □, □, □, □, □, □, □
• Position ☐, ☐, ☐ Select a position for the sub-picture.

In double (1) not select Position

• Sound Select (Main / Sub): You can choose to listen to the sound from the Main picture or the Sub picture.

Display Orientation

MENU → OnScreen Display → Display Orientation → ENTER

Display Orientation
Onscreen Menu Orientation	Landscape
Source Content Orientation	Landscape
Aspect Ratio	Full Screen

• The displayed image may differ depending on the model.

Onscreen Menu Orientation

Set the menu screen orientation.

• Landscape: Display the menu in landscape mode (default).
• Portrait: Display the menu in portrait mode on the right side of the product screen.

Source Content Orientation

Set the orientation of content from external devices connected to the product.

• Landscape: Display the screen in landscape mode (default).
• Portrait: Display the screen in portrait mode.

ITPIP is set to On, Source Content Orientation is disabled.

Aspect Ratio

Set the rotated screen to be either full screen or original.

• Full Screen: Display the rotated screen in full screen.
• Original: Display the rotated screen in the original aspect ratio.

Available only when Source Content Orientation is set to Portrait.

If PIP is set to On, Aspect Ratio is disabled.

Screen Protection

MENU → OnScreen Display → Screen Protection → ENTER

Screen Protection Auto Protection Time Off Screen Burn Protection

- The displayed image may differ depending on the model.

Auto Protection Time

If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen.

• Off / 2 hours / 4 hours / 8 hours / 10 hours

Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with Screen Burn Protection screen burn prevention technology.

Screen Burn Protection moves the picture slightly on the screen.

The Screen Burn Protection Time setting allows you to programme the time between movements of the picture in minutes.

Pixel Shift

Minimize image retention by finely moving pixels horizontally or vertically.

• Pixel Shift (Off / On)
  Horizontal, Vertical and Time are enabled only when Pixel Shift is set to On.
  • Horizontal: Sets how many pixels the screen moves horizontally.
  • Vertical: Sets how many pixels the screen moves vertically.
  • Time: Set the time interval for performing the horizontal or vertical movement, respectively.

Available Pixel Shift Settings and Optimum Settings.

Available Settings Optimum Settings

Horizontal (pixels) 0 \~ 4 4

Vertical (pixels) 0 \~ 4 4

Time (minute) 1 min \~ 4 min 4 min

The Pixel Shift value may differ depending on the product size (inches) and mode.

Displaying a still image or a 4:3 output for an extended period of time may cause image retention. This is not a defect in the product.

IT Picture Size is set to Screen Fit, Pixel Shift is disabled.

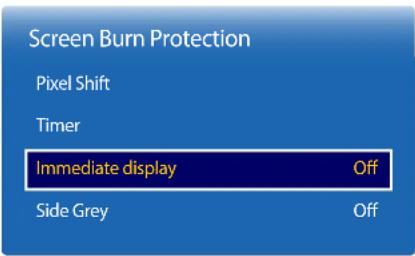

Screen Burn Protection

Pixel Shift

Timer

Immediate display

Off

Side Grey

Off

Timer

You can set the timer for Screen Burn Protection.

The Screen Burn Protection feature stops automatically after a specified period of time.

Timer

Off

Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).

Interval: Display the image retention preventive pattern set in Mode for a specified period of time (from Start Time to End Time).

Mode, Period, Time, Start Time and End Time are enabled only when Timer is set to Repeat or Interval.

• Mode: Select a screen protective pattern to display.

- Pixel: Pixels on the screen alternate black continuously.

- Rolling bar: A vertical bar moves left to right.

- Fading screen: The entire screen becomes brighter, then darker.

The Rolling bar and Fading screen patterns appear only once regardless of the specified repeat period or time.

• Period: Specify the time interval to activate the Screen Burn Protection function.

The option is enabled when Repeat is selected for Timer.

• Time: Specify the duration to keep the Screen Burn Protection function on.

Enabled when Timer is set to Repeat and Mode is set to Pixel

• Start Time: Set the start time to activate the screen protection function.

The option is enabled when Interval is selected for Timer.

• End Time: Set the end time to deactivate the screen protection function.

The option is enabled when Interval is selected for Timer.

Screen Burn Protection Pixel Shift Timer Immediate display Off Side Grey Off

- The displayed image may differ depending on the model.

Immediate display

Select the screen saver you want to display immediately.

• Off / Pixel / Rolling bar / Fading screen

Side Grey

When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen.

- Off / Light / Dark

Message Display

MENU → OnScreen Display → Message Display → ENTER

Message Display
Source Info	On
No Signal Message	On
MDC Message	On
Download Status Message	Off

• The displayed image may differ depending on the model.

Source Info

Select whether to display the source OSD when the input source changes.

- Off / On

No Signal Message

Select whether to display the no-signal OSD when no signal is detected.

- Off / On

MDC Message

Select whether to display the MDC OSD when the product is controlled by the MDC.

- Off / On

Download Status Message

Select to display the status when downloading content from a server or other device.

- Off / On

Menu Language

MENU → OnScreen Display → Menu Language → ENTER

OnScreen Display Menu Language English

- The displayed image may differ depending on the model.

Set the menu language.

A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions on your PC.

Reset OnScreen Display

MENU → OnScreen Display → Reset OnScreen Display → ENTER

OnScreen Display Reset OnScreen Display

- The displayed image may differ depending on the model.

This option returns the current settings under OnScreen Display to the default factory settings.

Chapter 08 Sound Adjustment

Configure the sound (Sound) settings for the product.

Sound Mode

MENU → Sound → Sound Mode → ENTER

Sound Sound Mode Standard Sound Effect HDMI Sound AV(HDMI) Sound on Video Call Current Source Dolby Digital Comp RF Speaker Settings Auto Volume Off

You can select a sound mode to suit your personal preferences.

• Standard: Selects the normal sound mode.
• Music: Emphasizes music over voices.
• Movie: Provides the best sound for movies.
• Clear Voice: Emphasizes voices over other sounds.
- Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired. IT Speaker Settings is set to External, Sound Mode is disabled.

Sound Effect

MENU ☐ → Sound → Sound Effect → ENTER

Sound Effect Virtual Surround Off Dialog Clarity Off Equaliser

- The displayed image may differ depending on the model.

Configure your preferred sound effect for output sound.

If Speaker Settings is set to External, Sound Effect is disabled.

Available only when Sound Mode is set to Standard.

Virtual Surround

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF(Head Related Transfer Function) technology.

- Off / On

Dialog Clarity

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly.

- Off / On

Equaliser

Use Equaliser to customize sound setting for each speaker.

• Balance L/R: Adjusts the balance between the right and left speaker.
• 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.
- Reset: Resets the equalizer to its default settings.

HDMI Sound

MENU → Sound → HDMI Sound → ENTER

Sound HDMI Sound AV(HDMI)

- The displayed image may differ depending on the model.

Sound on Video Call

MENU ☐→Sound → Sound on Video Call → ENTER

Sound Sound on Video Call Current Source

- The displayed image may differ depending on the model.

Select whether to hear from AV(HDMI) or PC(DVI).

• AV(HDMI) / PC(DVI)

Select sound output to listen to during a video call.

• Current Source / Video Call

IT Speaker Settings is set to External, Sound on Video Call is disabled.

Dolby Digital Comp

MENU ☐→Sound→Dolby Digital Comp→ENTER

Sound Dolby Digital Comp RF

- The displayed image may differ depending on the model

Speaker Settings

MENU ☐ → Sound → Speaker Settings → ENTER

Sound Speaker Settings

- The displayed image may differ depending on the model.

Set Dolby Digital Compression mode.

Line / RF

Sound Output

If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the products speakers and the speakers attached to your audio receiver. If this occurs, set the product to External.

• External / Internal / Receiver

When you set Speaker Settings to External, the products speakers are turned off.

You will hear sound through the external speakers only. When the Speaker Settings is set to Internal, both the product speakers and the external speakers are on. You will hear sound through both.

If there is no video signal, both the products speakers and the external speakers will be mute.

Auto Volume

MENU ☐ → Sound → Auto Volume → ENTER

Sound Auto Volume Off

- The displayed image may differ depending on the model.

Reset Sound

MENU ☐ → Sound → Reset Sound → ENTER

Sound Reset Sound

- The displayed image may differ depending on the model.

The volume can vary depending on the channel.

Automatically equalize the volume level when switching to another channel.

• Off / Normal / Night

Normal equalizes the volume level on each channel, so that when you change channels, the volume level is the same.

Night equalizes and decrease the volume level on each channel, so each channel is quieter. Night is useful at night, when you may want to keep the volume low.

To use the volume control of a connected source device, set Auto Volume to Off. A change to the volume control of the connected source device may not be applied if Auto Volume is set to Normal or Night.

If Speaker Settings is set to External, Auto Volume is disabled.

The displayed image may differ depending on the model. Reset all sound settings to the factory defaults.

Chapter 09 Network

Network Status

MENU → Network → Network Status → ENTER

You can check the current network and Internet status.

Network Status Your wireless network and Internet connection are setup and ready to use. AP000 You are connected to the Internet. If you have any problems using online services, please contact your Internet service provider. Standardized Internet

- The displayed image may differ depending on the model.

Network Settings

MENU → Network → Network Settings → ENTER

Configure network settings to use various smart hub features such as Internet search, content sharing through a home network and feature updates.

Network Settings Select your network type Network Type Wireless Network type: AP8000 AP8001 AP8002 Return to IP Return to IP Return to IP Return to IP

- The displayed image may differ depending on the model.

Network type

- Wireless / Wired

Network Settings (Wired)

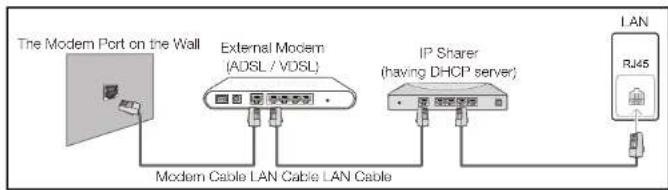

Connecting to a Wired Network

There are three ways to attach your product to your LAN using cable.

- You can attach your product to your LAN by connecting the LAN port on the back of your product to an external modem using a LAN cable. See the diagram below.

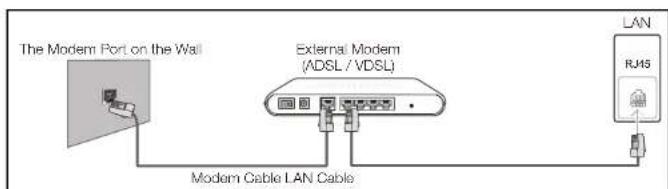

The Modem Port on the Wall External Modem (ADSL / VDSL) Modern Cable LAN Cable LAN RJ45

- You can attach your product to your LAN by connecting the LAN port on the back of your product to an IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the diagram below.

- Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your product needs to access the Internet so you do not have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your product Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).

If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

Set the network connection to use Internet services such as perform software upgrades.

Automatic Network Settings (Wired)

Connect to the network using a LAN cable.

Make sure a LAN cable is connected first.

How to set up automatically

1 Set Network type to Wired from the Network Settings page.

2 Press the Connect button to start Network Settings.

- The Connect button is only enabled when the LAN cable is properly connected.

3 The network test screen appears and verifies the network connection.

When the connection has been verified, the "Wired network and Internet connection completed," message appears.

If the connection process fails, check the LAN port connection.

If the automatic process cannot find the network connection values or if you want to set the connection manually, go to the next section, network setup.

Manual Network Settings (Wired)

Offices may use static IP addresses.

If this is the case, ask the network administrator for the IP address, subnet mask, gateway and DNS server address. Enter these values manually.

Getting the Network Connection Values

To view the Network connection values on most Windows computers, follow these steps.

1 Right click the Network icon on the bottom right of the screen.

2 In the pop-up menu that appears, click Status.

3 On the dialog that appears, click the Support tab.

4 On the Support Tab, click the Details button. The Network connection values are displayed.

How to set up manually

1 Set Network type to Wired from the Network Settings page.

2 Press the Connect button to start Network Settings.

- The Connect button is only enabled when the LAN cable is properly connected.

3 The network test screen appears and the verification process starts. Press Stop. The verification process stops.

4 Select IP Settings on network connection screen. The IP Settings screen appears.

5 Select the field at the top, press ☑, and then set IP Settings to Enter manually. Repeat the entry process for each field in the IP Address.

Setting IP Settings to Enter manually automatically changes DNS Setting to Enter manually

6 When done, select OK at the bottom of the page, and then press ☐. The network test screen appears and the verification process starts.

7 When the connection has been verified, the 'Wired network and Internet connection completed." message appears.

Network Setting (Wireless)

Connecting to a Wireless Network

Wireless IP sharer (router having DHCP server) The LAN Port on the Wall LAN Cable

Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not play smoothly.

Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure:

Your product supports only the following wireless network security protocols.

If you select the Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is set to WLP, TKIP or TKIP AES (WP57Mixed) on your AP or wireless router, Samsung products will not support a connection in compliance with new Wi-Fi certification specifications.

ITyour wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or P/N (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

Connection Methods: You can setup the wireless network connection in three ways.

Auto Setup (Using the Auto Network Search Function), Manual Setup, WPS(PBC)

Automatic Network Setup (Wireless)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the automatic or manual setup process.

How to set up automatically

1 Set Network type to Wireless from the Network Settings page.
2 The Network function searches for available wireless networks. When done, it displays a list of the available networks.
3 In the list of networks, press the ▲ or ▼ button to select a network, and then press the ☐ button twice.

The desired wireless router does not appear, select Refresh to search again.

If the router cannot be found after retrying, select the Stop button

The Add Network button appears.

4 if the Enter password. screen appears, go to step 5. If you select a wireless router that does not have security, go to step 7.
5 If the router has security, enter the Enter password. (Security key or PIN)

6 When done, use the right arrow button to move the cursor to Done, and then press ☐. The network connection screen appears and the verification process starts.

A connection with the router is established, but the Internet cannot be accessed.

7 When the connection has been verified, the "Your wireless network and Internet connection are setup and ready to use." message appears.

Manual Network Setup (Wireless)

Offices may use static IP addresses.

If this is the case, ask the network administrator for the IP address, subnet mask, gateway and DNS server address. Enter these values manually.

Getting the Network Connection Values

To view the Network connection values on most Windows computers, follow these steps.

1 Right click the Network icon on the bottom right of the screen.

2 In the pop-up menu that appears, click Status.

3 On the dialog that appears, click the Support tab.

4 On the Support Tab, click the Details button. The Network connection values are displayed.

How to set up manually

1 Set Network type to Wireless from the Network Settings page.

2 The Network function searches for available wireless networks. When done, it displays a list of the available networks.

3 In the list of networks, press the ▲ or ▼ button to select a network, and then press the ☐ button twice.

The desired wireless router does not appear, select Refresh to search again. The router cannot be found after retrying, select the Stop button.

4 If the Enter password. screen appears, go to step 5. If you select a wireless router that does not have security, go to step 7.

5 If the router has security, enter the Enter password. (Security key or PIN).

6 When done, use the right arrow button to move the cursor to Done, and then press ☐. The network connection screen appears and the verification process starts.

7 Select Stop while network connections are being attempted. This will stop the connection.

8 Select IP Settings on network connection screen. The IP Settings screen appears.

9 Select the field at the top, press ☐, and then set IP Settings to Enter manually. Repeat the entry process for each field in the IP Address.

Setting IP Settings to Enter manually automatically changes DNS Setting to Enter manually.

10 When done, select OK at the bottom of the page, and then press ☐. The network test screen appears and the verification process starts.
11 When the connection has been verified, the "Your wireless network and Internet connection are setup and ready to use." message appears.

WPS(PBC)

How to set up using WPS(PBC)

If your router has a WPS(PBC) button, follow these steps.

1 Set Network type to Wireless from the Network Settings page.
2 Select WPS(PBC), press □, and then press □ again.
3 Press the WPS(PBC) button on your router within 2 minutes. Your product automatically acquires all the network setting values it needs and connects to your network.
4 The network connection screen appears, and network setup is done.

Wi-Fi Direct

MENU → Network → Wi-Fi Direct → ENTER

Set to connect the product to wireless mobile devices. Using this function, you can connect wireless mobile devices with your product directly without a router.

To connect your mobile device with your product using Wi-Fi Direct, follow these steps:

1 Go to Wi-Fi Direct screen. The product starts to search devices.
2 Turn on the WI-FI Direct function on your device. Select the desired Wi-Fi device.

• PBC (Push Button Configuration): Press the WPS(PBC) button on your Wi-Fi device within 2 minutes. Your product automatically acquires all the network setting values it needs and connects to your network.
  • PIN: Input the displayed PIN on your device.

If you want to disconnect the device, select the connected Wi-Fi device, and then select Disconnected.

Multimedia Device Settings

MENU → Network → Multimedia Device Settings → ENTER

Allow other devices such as smart phones and tablets on your network, to share content with your product.

Screen Mirroring

MENU → Network → Screen Mirroring → ENTER

Connect a mobile device that supports the mirroring function to the product. This allows the screen and sound from the mobile device to be outputted on the product. Mirroring refers to outputting the screen and sound from a mobile device on a display device.

To use Screen Mirroring, make sure the mobile device supports the mirroring function such as AllShare Cast, WiDi (version 3.5 or higher) and Miracast. To check if the mirroring function is available, visit the mobile device manufacturer website.

Screen or sound output may be choppy if there is network congestion.

Screen Mirroring

Run the mirroring function from the mobile device. The mobile device automatically searches and displays the product in a list.

If the mobile device cannot connect to the product, turn them off and then on again, and try again.

Server Network Settings

MENU → Network → Server Network Settings → ENTER

Connect to server

To run Player connect to a network.

Server Address / SSL / Port

If the SSL option is enabled, the server is configured to use https and data transfer is encrypted. Enter the server IP address and port number. Use 7001 as the port number. (If unable to connect to the server using port number 7001, check with your server administrator to find the correct port number and then change the port number.)

MagicInfo Mode

Select the appropriate MagicInfo Mode depending on the environment where you are using the product.

- Lite / Premium

Server Access

Select a method to connect the server network.

- Allow / Deny

FTP Mode

Specify the FTP operating mode.

• Active / Passive

Device Name

MENU ☐ → Network → Device Name → ENTER

Select or enter a device name.

This name can be shown on network remote controls over the network.

• User Input / [Signage]Display 1 \~ 6

Chapter 10 System

Accessibility

MENU → System → Accessibility → ENTER

Accessibility
Menu Transparency	Medium
High Contrast	Off
Enlarge	Off

Menu Transparency

Adjust transparency of menu box.

• High / Medium / Low

High Contrast

Set the background and font to high-contrast colours in Menu. Menu transparencies become opaque when the option is selected.

- Off / On

Enlarge

Set whether to enlarge highlighted item in Menu.

• Off / On

Setup

MENU → System → Setup → ENTER

System Accessibility Setup Touch Control Time Auto Source Switching Power Control Eco Solution

- The displayed image may differ depending on the model.

Initial settings (System)

After powering on the product for the first time, configure basic settings such as the language, channel and time. Press the button.

Enter your 4-digit PIN number. The default PIN number is "0.0-0.0".

if you want to change the PIN number, use the Change PIN function.

1 Menu Language

Selecting a language

Press the ▲ or ▼ button, and then press the ➕ button. Specify the OSD menu language.

2 Display Orientation

Configure the menu page orientation.

Landscape / Portrait

3 Auto Power Off

The product will automatically turn off if you don't press a button on the remote or touch a button on product front panel within select hours to prevent overheating.

- Off (Recommended) / 4 hours / 6 hours / 8 hours

4 Network Settings

Set up your network connection. Press the 📋 button to start. If you do not know your network set up information or want to set to it later, select Skip. You can set up the network connection later using the Network menu.

5 Clock Set

Set the current date and time, and then select Next.

6 Play vla

- MagicInfo / URL Launcher

Select the appropriate player mode depending on the environment where you are using the product.

The Play via setting step only appears when connected to the network.

7 Device Name

Select or enter a device name.

This name can be shown on network remote controls over the network.

- User Input / [Signage]Display 1 \~ 6

8 Setup Complete

Congratulations! Setup is complete and you're ready to get started.

Touch Control

MENU → System → Touch Control → ENTER

Touch Control Touch Control Lock Off Admin Menu Lock Off

- The displayed image may differ depending on the model

Configure touch control related features.

Touch Control Lock

Lock the touchscreen control mode to prevent devices from being controlled by touch input

- Off / On

Admin Menu Lock

Set the Admin Menu Lock to display the administrator settings menu when you tap and hold the finger on the screen.

- Off / On

To use the Touch Control feature, attach the touch screen overlay kit (sold separately).

Time

MENU → System → Time → ENTER

Time
Clock Set
DST	Off
Sleep Timer	Off
Power On Delay	0 sec

• The displayed image may differ depending on the model.

You can configure Clock Set or Sleep Timer. You can also set the product to automatically turn on or off at a specified time using the Timer function.

Press the INFO button if you want to view the current time.

Clock Set

Select Clock Set. Select Date or Time, and then press ↩.

Use the number buttons to enter numbers or press the up and down arrow buttons. Use the left and right arrow buttons to move from one entry field to the next. Press ☐ when done.

You can set the Date and Time directly by pressing the number buttons on the remote control.

DST

Switches the DST (Daylight Saving Time) function on or off.

Off / On

• Start Date: Set the start date of Daylight Saving Time.
• End Date: Set the end date of Daylight Saving Time.
• Time Offset: Select the correct time offset your timezone.

Sleep Timer

Automatically shuts off the product after a preset period of time.

(Off / 30 min / 60 min / 90 min / 120 min / 150 min / 180 min)

Use the up and down arrows to select a period of time, and then press ☐. To cancel Sleep Timer, select Off.

Power On Delay

When connecting multiple products, adjust the power-on time for each product to prevent power overload (within the range 0–50 seconds).

Auto Source Switching

MENU → System → Auto Source Switching → ENTER

Auto Source Switching
Auto Source Switching	Off
Primary Source Recovery	10%
Primary Source	All
Secondary Source	DVI

• The displayed image may differ depending on the model.

Turning on the display with Auto Source Switching On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video.

Auto Source Switching

When the Auto Source Switching is On, the display video source will automatically be searched for active video.

The Primary Source selection will be activated, if the current video source is not recognized.

Secondary Source selection will become active, if no primary video source is available.

If both the primary and secondary input sources are not recognized, the display will perform two searches for an active source, each search checking the primary and then secondary source. If both searches fail, the display will return to the first video source and display a message indicating that there is no signal.

When the Primary Source selection is set to All, the display will search all the video source inputs twice in sequence looking for an active video source, returning back to the first video source in the sequence if no video is found.

Primary Source Recovery

Select whether to restore the selected primary input source when a primary input source is connected.

The Primary Source Recovery function is disabled if Primary Source is set to All.

Primary Source

Specify Primary Source for the automatic input source.

Secondary Source

Specify Secondary Source for the automatic input source.

The Primary Source Recovery function is disabled if Primary Source is set to All.

Power Control

MENU → System → Power Control → ENTER

Power Control
Auto Power On	Off
PC module power
Max. Power Saving	On
Standby Control	Auto
Power Button	Power on only
Network Standby	Off

• The displayed image may differ depending on the model.

Auto Power On

This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed.

- Off / On

PC module power

The PC module can be turned on/off separately from the LFD.

Synced power-on

To turn on the PC module without turning on the LFD, select Off

- Off / On

Synced power-off

To turn off the LFD without turning off the PC module, select Off.

- Off / On

Max. Power Saving

Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time.

- Off / On

Available only PC, DVI, HDMI mode.

Power Control
Auto Power On	Off
PC module power
Max. Power Saving	On
Standby Control	Auto
Power Button	Power on only
Network Standby	Off

• The displayed image may differ depending on the model.

Standby Control

You can set the screen standby mode to be applied when an input signal is received.

• Auto

Power-saving mode will activate if no input signals are detected even though a source device is connected to the display. The message No Signal will appear if no source device is connected.

• Off

The message No Signal will appear if no input signals are detected.

The Standby Control option is only enabled when Source is set to PC, DVI, or HDMI.

If No Signal is displayed although a source device is connected, check the cable connection.

If No Signal Message is set to Off, the No Signal message does not appear.

If this is the case, set No Signal Message to On.

• On

Power-saving mode will activate if no input signals are detected.

Power Button

The power button can be set to either turn on the power or turn on/off the power.

• Power on only: Set the power button to turn on the power.
• Power on and off: Set the power button to turn on/off the power.

Network Standby

This feature keeps the network power on when the product turns off.

- Off / On

Eco Solution

MENU → System → Eco Solution → ENTER

Eco Solution
Energy Saving	Off
Eco Sensor	Off
Screen Lamp Schedule	Off
No Signal Power Off	Off
Auto Power Off	4 hours

• The displayed image may differ depending on the model.

Energy Saving

Reduce the power consumption by adjusting the screen brightness.

• Off / Low / Medium / High

Eco Sensor

To enhance your power savings, the picture settings will automatically adapt to the light in the room.

- Off / On

Adjusting the High setting under Picture while Eco Sensor is on will disable the Off.

Min. Backlight

When Eco Sensor is On, you can manually adjust the minimum screen brightness. Min. Backlight is the darkest backlight mode. Make sure the Min. Backlight setting is lower than the Backlight setting.

TT Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

Screen Lamp Schedule

Adjust the panel brightness. A value closer to 100 makes the panel brighter.

- Off / On

Eco Solution
Energy Saving	Off
Eco Sensor	Off
Screen Lamp Schedule	Off
No Signal Power Off	Off
Auto Power Off	4 hours

• The displayed image may differ depending on the model.

Temperature Control

MENU → System → Temperature Control → ENTER

System Temperature Control 77

No Signal Power Off

Save power by turning the device off when no signal is received from any source.

• Off / 15 min / 30 min / 60 min

Disabled when an attached PC is in power saving mode.

The product will automatically power off at a specified time. The time can be changed as required.

Auto Power Off

The product will automatically turn off if you don't press a button on the remote or touch a button on product front panel within select hours to prevent overheating.

• Off / 4 hours / 6 hours / 8 hours

This function detects the internal temperature of the product. You can specify the temperature range that is acceptable. The default temperature is set to 77°C.

The recommended operating temperature for this product is 75 to 80°C (based on an ambient temperature of 40°C). The screen will become darker if the current temperature exceeds the specified temperature limit. If the temperature continues to rise, the product will power off to prevent overheating.

Device Manager

MENU → System → Device Manager → ENTER

Device Manager Keyboard Settings Mouse Settings Pointer Settings

- The displayed image may differ depending on the model.

Configure options for external input devices connected to the product.

Keyboard Settings

Connecting a keyboard to the product displays the Keyboard Settings menu.

Select Keyboard

Select a keyboard you want to use from the available connected keyboards.

It is possible to use only one connected keyboard.

Keyboard Options

Depending on the country.

Keyboard Language

Specify the keyboard input language.

Keyboard type

Specify the keyboard type.

Switch Input Language

Configure the key combination used to change the input language.

Device Manager

Keyboard Settings

Mouse Settings

Pointer Settings

- The displayed image may differ depending on the model.

Mouse Settings

Connecting a mouse to the product displays the Mouse Settings menu.

Select Mouse

Configure mouse connection settings or options for connected mouse devices. Among connected mouse devices, only one mouse can be used.

Mouse Options

Depending on the country.

Primary Button

Select a button on the mouse that will perform basic functions (click and enter). - Left (default) / Right

Pointer Speed

Set the mouse pointer speed. • Slow / Standard / Fast

Device Manager

Keyboard Settings

Mouse Settings

Pointer Settings

- The displayed image may differ depending on the model.

Pointer Settings

Specify the pointer size, speed and shape.

Pointer Size

Specify the pointer size.

• Small / Medium / Large / Extra Large

Pointer Speed

Specify the pointer speed. A higher speed increases the pointer sensitivity.

- Slow / Standard / Fast

Pointer Image

Specify the pointer shape.

• Image 1 ... Image 10

Play via

MENU → System → Play via → ENTER

System Play via MagicInfo

- The displayed image may differ depending on the model.

Change PIN

MENU → System → Change PIN → ENTER

System Change PIN

- The displayed image may differ depending on the model.

Select the appropriate Play via mode depending on the environment where you are using the product.

The home screen may be different depending on the setting.

• MagicInfo / URL Launcher

The Change PIN screen will appear.

Choose any 4 digits for your PIN and enter it in Enter New PIN. Reenter the same 4 digits in Confirm New PIN.

When the Confirm screen disappears, press the Close button. The product has memorised your new PIN.

Default password: 0 - 0 - 0 - 0

Security

MENU → System → Security → ENTER

Security
Safety Lock	Off
Power On Button	Off
Button Lock	Off
USB Auto Play Lock	Off
Mobile Connection Lock	Off

• The displayed image may differ depending on the model.

Safety Lock

Enter your 4 digit PIN number. The default PIN number is "0-0-0-0".

If you want to change the PIN number, use the Change PIN function.

- Off / On

All the menus and buttons of the product and remote control, except for the LOCK button on the remote control, will be locked by the Safety Lock function.

To unlock the menus and buttons, press the LOCK button and then enter the password (default password: 0 - 0 - 0 - 0).

Power On Button

Turn on this feature to enable the remote control's Power button to turn on the device while Safety Lock is enabled.

- Off / On

Button Lock

This menu can be used to lock the buttons on the product.

Only the remote control can control the product if Button Lock is set to On.

- Off / On

Security
Safety Lock	Off
Power On Button	Off
Button Lock	Off
USB Auto Play Lock	Off
Mobile Connection Lock	Off

• The displayed image may differ depending on the model.

USB Auto Play Lock

Select whether to automatically play MagicInfo content saved on a connected USB device.

• Off

Play MagicInfo content saved on the USB device automatically.

On

Do not play MagicInfo content saved on the USB device automatically.

Connecting a USB device containing MagicInfo content displays "USB Auto Play Lock : On" for five seconds.

Mobile Connection Lock

Restrict other devices on your network, such as smart phones and tablets, to share content with your signage.

- Off / On

General

MENU → System → General → ENTER

General
Smart Security	On
BD Wise	On
Anynet+ (HDMI-CEC)	On
HDMI Hot Plug	On
DivX® Video On Demand
Game Mode	Off

• The displayed image may differ depending on the model.

Smart Security

Security provided to protect your TV and connected storage devices against viruses includes.

Smart Security

Use this option to turn Smart Security protection On/Off.

- Off / On

Scan

Inspect the TV and connected storage devices to check for viruses.

Isolated List

This is the list of items that have been isolated for containing viruses.

Allowed List

This is the list of items that have been Allowed as not containing viruses.

Settings

Set the Smart Security options.

Auto Scan

Scan automatically when the TV is turned on

• Off / On

Move to Isolated List automatically

Moves viruses to the Isolated List automatically.

- Off / On

General
Smart Security	On
BD Wise	On
Anynet+ (HDMI-CEC)	On
HDMI Hot Plug	On
DivX® Video On Demand
Game Mode	Off

• The displayed image may differ depending on the model.

BD Wise

Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

- Off / On

Available when you connect Samsung products that support BD Wise through an HDMI cable to the product.

The BD Wise function is enabled only when a source device with the BD Wise function is connected.

General
Smart Security	On
BD Wise	On
Anynet+ (HDMI-CEC)	On
HDMI Hot Plug	On
DivX® Video On Demand
Game Mode	Off

• The displayed image may differ depending on the model.

Anynet+ (HDMI-CEC)

Anynet+ (HDMI-CEC)

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

You can only control Anynet+ devices using the product remote control, not the buttons on the product.

The product remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.

Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

While in PIP mode, Anynet+ functions only when an AV device is connected as the primary display. It does not work if the AV device is connected as a secondary display.

Anynet+ supports up to 12 AW devices in total. Note that you can connect up to 3 devices of the same type.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the product.

Press the TOOLS button to display the Anynet+ menu and select a menu you want.

Anynet+ Menu Description

View PC	Changes Anynet+ mode to PC mode.
Select Device Shows the Anynet+ device list.
(device_name) MENU	Shows the menu of the connected device menus. E.g. if a DVD player is connected, the disc menu of the DVD player will appear.
(device_name) Tools	Shows the tools menu of the connected device. E.g. if a DVD player is connected, the tools menu of the DVD player will appear. Depending on the device, this menu may not be available.
(device_name) Title Menu	Shows the title menu of the disc in the connected device. E.g. if a DVD player is connected, the title menu of the movie in the DVD player will appear. Depending on the device, this menu may not be available.

Anynet+ (HDMI-CEC) Anynet+ (HDMI-CEC) Off Auto Turn Off No Search for Devices

- The displayed image may differ depending on the model.

Auto Turn Off

Setting an Anynet+ Device to turn Off automatically when the product is turned off.

No/Yes

If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off

May not be enabled depending on the device.

Search for Devices

Switching between Anynet+ Devices

1 Press the TOOLS button, select Anynet+ (HDMI-CEC), and then press
2 Select Select Device, and then press the button.

If you cannot find a device you want, select Refresh to refresh the list.

3 Select a device, and then press the ▼ button. You can switch to the selected device.

The Select Device menu appears only when you set Anynet+ (HDMI-CEC) to On in the System menu.

Switching to the selected device may take up to 2 minutes. You cannot cancel the switching operation while switching is in progress.

If you have selected an Anynet+ device by pressing the SOURCE button and then selecting its input source, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Select Device.

Troubleshooting for Anynet+

Problem Possible Solution

Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Check if the Anynet+ device power cord is properly connected.Check the Anynet+ device's Video/Audio/HDMI cable connections.Check whether Anynet+ (HDMI-CEC) is set to On in the System menu.Check whether the remote control is Anynet+ compatible.Anynet+ doesn't work in certain situations. (initial setup)If you have removed and then reconnected the HDMI cable, please make sure to search devices again or turn your product off and on again.Check if the Anynet+ function of the Anynet device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the product and check if the Anynet+ (HDMI-CEC) is set to On in the System menu.Press the TOOLS button to display the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	Select View PC in the Anynet+ menu.Press the SOURCE button on the product remote control and select a non-Anynet+ device.
The message "Disconnecting Anynet+ device ..." appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.Use the remote control after the product has completed Anynet+ configuration or has finished switching to Anynet+.
The Anynet+ device does not play.	You cannot use the play function when initial setup is in progress.

Problem Possible Solution

The connected device is not displayed.

• Check whether or not the device supports Anynet+ functions.
• Check whether or not the HDMI cable is properly connected.
• Check whether Anynet+ (HDMI-CEC) is set to On in the System menu.
  • Search Anynet+ devices again.
  • Anynet+ requires an HDMI connection. Make sure the device is connected to your product with an HDMI cable.
  • Some HDMI cables may not support Anynet+ functions.
• If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please repeat the device scan.

General
Smart Security	On
BD Wise	On
Anynet+ (HDMI-CEC)	On
HDMI Hot Plug	On
DivX® Video On Demand
Game Mode	Off

• The displayed image may differ depending on the model.

HDMI Hot Plug

This feature is used to activate the time delay to turn on a DVI/HDMI source device.

- Off / On

DivX® Video On Demand

Shows the registration code authorized for the product.

If you connect to the DivX® web site and register using that code, you can download the VOD registration file.

For more information about DivX® VOD, visit "http://vod.divx.com".

Game Mode

When connecting to a game console such as PlayStation ^™ or Xbox ^™ , you can enjoy a more realistic gaming experience by selecting game mode.

- Off / On

Precautions and limitations for Game Mode

To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

Game Mode is not available when the input source is set to DVI.

Reset System

This option returns the current settings under system to the default factory settings.

MENU → System → Reset System → ENTER

System Reset System

- The displayed image may differ depending on the model.

Chapter 11 Support

Software Update

- Current version: This is the software version already installed in the product.

MENU → Support → Software Update → ENTER

The Software Update menu lets you upgrade your product software to the latest version.

Be careful not to turn off the power until the upgrade is complete. The product will turn off and on automatically after completing the software upgrade.

When you upgrade software, all video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

Update now

Update the software to the latest version.

Auto update

This feature automatically updates the product when not in use.

- Off / On

Contact Samsung

MENU → Support → Contact Samsung → ENTER

View this information when your product does not work properly or when you want to upgrade the software.

You can find information regarding our call centres and how to download products and software.

Contact Samsung and find the product Model Code and Software Version.

Go to Home

Accessible using the HOME button on the remote control. MENU → Support → Go to Home → ENTER

Player Schedule Template

Go to Home to play a variety of content from a memory device or a connected network.

Player

Search or play channels or content saved on devices.

Schedule

Create content schedules in local channels or edit saved channels.

Template

To create content, select a template.

Clone Product

Export the product settings to a USB device or load the settings via a USB device. This option is useful when assigning the same settings to several products.

ID Settings

Assign an ID to a set. Press ▲/▼ to select a number, and press 🔒.

Video Wall

Customize the layout of multiple displays that are connected to form a video wall.

In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays.

To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function.

Network Status

Check the current network and Internet connection.

Picture Mode

Select a picture mode (Picture Mode) suitable for the environment where the product will be used.

On/Off Timer

You must set the clock before you can use On/Off Timer.

Set On Timer so that your product turns on automatically at a time and on a day of your choosing.

The power is turned on with the specified volume or input source.

Ticker

Input text while a video or image is displayed and display the text on the screen.

More settings

The picture settings menu appears.

Reset All

This option returns all the current settings for a display to the default factory settings.

MENU → Support → Reset All → ENTER

Support Reset All

- The displayed image may differ depending on the model.

Chapter 12 Playing photos, videos and music (Media Play)

Enjoy videos, photos, music files saved on a USB Mass Storage Class (MSC) device.

Play photos, videos or music saved on a storage device.

Play a variety of content using the following methods.

• Using a USB device: Play media content such as videos, photos and music from a USB device.
- Connecting a storage device: Play media content saved on a storage device such as a smartphone, camera, PC or cloud service.

Read the following before using media play with a USB device

Caution

• Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung is not liable for any damage or loss of data.
  • Do not remove a USB device while it is loading.
  • If a USB device is connected using a USB extension cable, the USB device may not be recognized or files saved on the device may not be able to be read.
• If the product does not recognize a connected USB device, the files on the USB device may be corrupted or may not be able to be played. If this occurs, connect the USB device to the PC to format the device, then make sure the device is connected properly.
  • USB HDD greater than 2TB is not supported.

Compatible devices with media play

• Some USB digital cameras, smartphones and audio devices may not be compatible with the product.
• Media play is only compatible with USB MSC devices.
• MSC device refers to a Mass Storage Class Bulk-Only Transport device.
Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs. (USB hubs are not supported.)
These MSC devices must be connected directly to a USB port on the product.
• If more than one Picture Transfer Protocol (PTP) device is connected, only one will work at a time.
• If multiple MSC devices are connected, some devices may not be recognized. USB devices that require high power (higher than 500mA or 5V) may not be supported.
• If an overheating warning message appears when a USB device is connected or used, the USB device may not be recognized or function properly.
• The screensaver activates if the product is left idle for a period of time specified in Auto Protection Time.
• Power-saving mode on some external hard disk drives may automatically deactivate after connecting to the product.

File system and formats

• Media play may not function properly with unlicensed multimedia files.
• Media Transfer Protocol (MTP) is not supported.
• Supported file systems include FAT16, FAT32 and NTFS (read only).
• Media play supports the sequential JPEG format.
It does not support the progressive JPEG format.
• Images with a higher resolution take longer to be displayed on the screen.
• The maximum JPEG resolution supported is 15360x8640 pixels.
• If a file is incompatible or corrupted, a message Not Supported File Format. appears.
- When sorting files in folder view mode, a maximum of 1000 files can be displayed in each folder.
• If a USB device contains 8000 files and folders or more, some files and folders may not open.
• DRM MP3 files downloaded from websites that charge a fee cannot be played.
Digital Rights Management (DRM) refers to a system for protecting the copyrights of data circulated via the Internet or other digital media by enabling secure distribution and/or disabling illegal distribution of the data.

It is recommended to use a USB HDD that has a power adapter.

It is recommended to remove a USB device using the Disconnect USB Device function.

Using a USB device

Connecting a USB device

1 Turn on your product.
2 Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the product.
3 The Player page automatically appears as soon as a USB device connects to the product.
If only one USB device is connected, files saved on the USB device are displayed automatically. To view content saved on a USB device, connect the USB device to a USB port on the product.

Removing a USB device

Removing a USB device from Source

1 Press SOURCE on the remote control. Alternatively, go to Source using the OSD menu.
SOURCE → Source
2 Select USB from Source, and then press the TOOLS button on the remote control. The Options menu is displayed.
3 Select Disconnect USB Device and wait until the USB device is disconnected. The USB device is disconnected.

Playing media content from a PC/mobile device

Approving a PC/mobile device connection

Play photos, videos or music saved on a PC or mobile device.

To play media content from a PC or mobile device on the product, the connection with the PC or mobile device must be approved.

The media playback feature is available on any devices that support DI NA DMC. The DI NA DMC feature allows you to search media content and control content playback from a product after connecting a PC or mobile device to the product.

1 Press SOURCE on the remote control. Alternatively, go to Source using the OSD menu.

SOURCE → Source

2 Select Network from Source. The Network Device menu appears.

3 Select Options from the screen, and then select Multimedia Device Settings. A list of devices connected to the product will appear.

4 Select a device and approve the device connection. Playback is only available on devices that are permitted to connect.

Sending a media content playback request from a PC or mobile device displays a prompt asking if connection with the product is permitted. Conveniently connect the devices using the prompt.

For details on how to configure a network, refer to the section Network Settings.

Ensure the product and PC are connected to the same network subnet.

All IP addresses are made up of four parts separated by dots.

(E.g. IP address 111.222.333.444) The product should have the same IP address as the PC, except for the fourth part of the address, if they are connected to the same subnet. (E.g. 111.222.333. ^xx )

When connected to a home network (DLNA)

Play content saved on a device connected to a home network.

Playing media content using a non-Samsung DLNA server may result in a compatibility issue.

Playback of some media content shared with a PC or mobile device may not be possible depending on the content encoding type or the content file format. Some functions may not be available.

Media content may not play properly if there is network congestion. If this is the case, use a USB device.

1 Press SOURCE on the remote control. Alternatively, go to Source using the OSD menu.
SOURCE → Source
2 Select Network from Source. The Network Device menu appears.
3 Select a device connected via the home network (DLNA). A list of files and folders shared with the selected device will appear.
4 Select media content to play from the list. Play the selected media content.

Features provided in the media content list page

SOURCE → Source → USB

The media content list page on a storage device provides the following features.

- Sort by

Rearrange the media content list under the selected file format in a desired view mode.

- This menu item is not available if Filter is set to All.

- Filter

Among Photos, Videos and Music content saved on a storage device, view content files under a desired file format only.

Options

- This menu item is not available if Filter is set to All.

Menu items in the media content list page

Option Name Operations Photos Videos Music

Slide Show	Start a slideshow.This menu item is not available ifSort byis set toFolder.	√
Encoding	Select an encoding language if the title of media content appears corrupted.		√
Rename Playlist	Rename a playlist.		√
Delete Playlist	Delete a playlist.		√
Add to Playlist	Add files to a playlist or create a new playlist.		√
Play Selected	Select and play desired content from the media content list.	√ √ √
Send	Send media content to another storage device. This is similar to the "copy" feature on PCs.	√ √ √
Index	Select an index to conveniently locate media content if a storage device contains a lot of media content.Provided indices include dates and alphanumeric characters.This menu item is not available ifSort byis set toFolder.	√ √ √

Available buttons and features during photo playback

Pressing the ↕ or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear.

• Pause / Play
  Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder.
• Previous / Next
  View the previous or next photo.
• Settings

Option Name Operations

Slideshow Settings	Speed: Change the slideshow speed.Effects: Apply transition effects between photos.
Rotate	Rotate photos.
Zoom	Zoom in on photos up to 4x.
Picture Mode	Change the Picture Mode.
Background Music	Play background music while viewing photos.Make sure a music file is saved on the same device.The mini player is displayed while background music (Background Music) is playing. Using the mini player, pause the music currently playing or change to another music.
Sound Mode	Change the Sound Mode.This menu item is only available when background music (Background Music) is playing.
Select Speakers	Select a speaker that will output the background music (Background Music).This menu item is only available when background music (Background Music) is playing.
Send	Send open photos to another storage device. This is similar to the 'copy' feature on PCs.
Information	View information about a file.

Available buttons and features during video playback

Pressing the 🔊 or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear.

- Pause/Play

Pause or play a video.

The following features are available in pause mode. Note that sound cannot be heard in pause mode.

- Rewind / Fast Forward

Rewind or fast forward a video. Speed up playback up to 3x, if required. To change the playback speed to the original speed, select ▶.

- Previous / Next

To play the previous video, select twice. Selecting once will play the current video from the beginning.

To play the next video, select ▶.

- Settings

Option Name Operations

Select Scene	Thumbnails: Select a scene and play the video from the scene.Thumbnails is not available if 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds.Chapter Titles: Select and play another video in the same folder.Time Bar: You can use the ◀ and ▶ buttons to scan through the file in 10-second intervals or enter a specific time value to jump to that point in the video.
Repeat	Configure Repeat.OffRepeat One: Play the current video repeatedly.Repeat All: Play all videos in a folder repeatedly.
Rotate	Rotate an image.
Picture Size	Change the screen size (Picture Size). Supported screen sizes vary depending on the image.
Picture Mode	Change the Picture Mode.
Sound Mode	Change the Sound Mode.
Select Speakers	Select a speaker that will output sound from the product.
Audio Language	Play a video using a desired language. This feature only activates when a streaming file that supports multiple audio formats is playing.
Information	View information about a file.

Available buttons and features during music playback

- Pause / Play

Pause or play music.

- Rewind / Fast Forward

Rewind or fast forward music. Speed up playback up to 3x, if required. To play the previous music file, select ▶ twice.

- Previous / Next

To play the previous music file, select twice. Selecting once will play the current music from the beginning.

To play the next music file, select ▶.

- Repeat

Configure Repeat mode. Repeat One plays the current music file repeatedly. Repeat All plays all files in a folder repeatedly.

- Shuffle

Enable or disable shuffle playback mode.

- Select Speakers

Select a speaker that will output sound from the product.

Sound Mode

Change the Sound Mode.

Supported Subtitle and Media play file formats

Subtitle

External Internal

• MPEG-4 timed text (.ttxt)
• SAMI (.smi)
- SubRip (.srt)
- SubViewer (.sub)
• Micro DVD (sub or .txt)
- SubStation Alpha (.ssa)
• Advanced SubStation Alpha (ass)
• Powerdivx (.psb)

• Xsub
Container: AVI
- SubStation Alpha
Container: MKV
• Advanced SubStation Alpha Container: MKV
- SubRip
Container: MKV
• MPEG-4 timed text Container: MP4

Supported image resolutions

File Extension Type Resolution

*.jpg,*.jpeg JPEG 15360 x 8640

*.png PNG 1920 x 1080

*.bmp BMP 1920 x 1080

*.mpo MPO 15360 x 8640

Supported music file formats

File Extension Type Codec Comments

*.mp3 MPEG MPEG1 Audio Layer 3

*.m4a, *.mpa, *.aac, *.3ga MPEG4 AAC

*.flac FLAC FLAC The Seek (jump) function is not supported.

Supports up to 2 channel

Supported Video Formats

• Video content will not play, or not play correctly, if there is an error in the content or the container.
• Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above.
• If the Index Table is in error, the Seek (Jump) function is not supported.
• You may experience file stuttering while playing a video through a network connection.
• The menu may take longer to appear if the video's bit rate exceeds 10Mbps.
• Some USB/digital camera devices may not be compatible with the player.

Video Decoder Audio Decoder

Supports up to H.264, Level 4.1

H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

For all Video codecs except MVC, VP8, VP6:

• Below 1280 x 720: 60 frame max

• Above 1280 x 720: 30 frame max

GMC 2 over is not supported.

Supports only BD MVC Spec.

Supports up to WMA 10 Pro 5.1 channel.

WMA lossless audio is not supported.

QCELP, AMR NB/WB are not supported.

If Vorbis is only in Webm container, supports up to 2 channel.

File Extension	Container Video Codec Resolution Frame rate			(fps)	Bit rate (Mbps)	Audio Codec
*.avl	AVI	DivX 3.11 / 4x / 5x / 6x 1920 x 1080 6~30 30				AC3
*.mkv	MKV					LPCM
*.asf	ASF					ADMPCM
*.wmv	MP4	MPEG4 SP / ASP				(IMA, MS)
*.mp4	3GP					AAC
*.mov	VRO	11264 BP / MP / IIP				HE-AAC
*.3gp	VOB					WMA
*.vro	PS					DD+
*.mpg	TS	Motion JPEG				MPEG(MP3)
*.mpeg						DTS Core
*.ts		Window Media Video v9				G.711(ALaw,μ-Law)
*.tp
*.trp		MPEG2
*.mov
*.flv		MPEG1
*.vob
*.svl		VP6 640 x 480 4
*.m2ts
*.mts		MVC 1920 x 1080 24 / 25 / 30 40
*.dlvx
*.webm	WebM	VPB 6 ~ 30 B				VorbIs

Chapter 13 Troubleshooting Guide

Before calling Samsung Customer Service Centre, test your product as follows. If the problem persists, contact Samsung Customer Service Centre.

If the screen remains blank, check the PC system, video controller and cable.

Requirements Before Contacting Samsung Customer Service Centre

Testing the Product

Check if your product is operating normally by using the product test function.

If the screen remains blank while the power LED blinks even when the product is correctly connected to a PC, perform product testing.

1 Power off both the PC and product.
2 Disconnect all the cables from the product.
3 Power on the product.
4 If No Signal is displayed, the product is operating normally.

Checking the Resolution and Frequency

Not Optimum Mode will briefly be displayed if a mode that exceeds a supported resolution is selected (refer to Supported Resolutions).

Check the followings.

Installation issue (PC mode)

The screen keeps switching on and off.	Check the cable connection between the product and PC, and ensure the connection is secure.
Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to the product and PC.	The blank spaces found on the screen have nothing to do with the product.
	Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.
	If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.(Please contact the graphics card or computer manufacturer for further details about how to adjust the screen settings.)
PC Is shown In Source when a PC is not connected.	PC is always shown in Source irrespective of whether or not a PC is connected.

Screen issue

The power LED is off. The screen will not switch on.	Make sure that the power cord is connected.
No Signal Is displayed on the screen.	Check that the product is connected correctly with a cable.
	Check that the device connected to the product is powered on.
Not Optimum Mode Is displayed.	This message is displayed when a signal from the graphics card exceeds the product's maximum resolution and frequency.
	Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to the product specifications.
The images on the screen look distorted.	Check the cable connection to the product

Screen issue

The screen is not clear. The screen is blurry.	Adjust Coarse and Fine.
	Remove any accessories (video extension cable, etc) and try again.
	Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky.	Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product. Then, change the screen settings if required by referring to the Additional Information on the product menu and the Standard Signal Mode Table.
There are shadows or ghost Images left on the screen.
The screen Is too bright. The screen Is too dark.	Adjust Brightness and Contrast.
Screen colour Is Inconsistent.	Go to Picture and adjust the Colour Space settings.
White does not really look white.	Go to Picture and adjust the White Balance settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second.	The product is in power-saving mode.
	Press any key on the keyboard or move the mouse to return to the previous screen.
The product will turn off automatically.	Go to System and make sure Sleep Timer is set to Off.
	If a PC is connected to the product, check the power status of the PC.
	Make sure the power cable is connected properly to the product and power outlet.
	If the signal from a connected device is not detected, the product automatically turns off after 10 to 15 minutes.
Picture quality of the product is different from the dealer shop where it was purchased.	Use an HDMI cable to obtain high-definition (HD) picture quality.

Screen issue

The screen display does not look normal.	Encoded video content may cause the display to appear corrupted in scenes featuring fast moving objects such as in a sports event or action video.
	Low signal level or low picture quality may cause the display to appear corrupted. This does not mean the product is defective.
	A cell phone within a distance of one-meter radius may cause static on analogue and digital products.
The brightness and colour do not look normal.	Go toPictureand adjust the screen settings such asPicture Mode,Colour,Brightnessand Sharpness.
	Go toSystemand adjust theEnergy Savingsettings.
	Reset the screen settings to the default settings.
Broken lines are displayed on the edges of the screen.	IfPicture Sizeis set toScreen Fit,change the setting to16:9.
Lines (red, green or blue) are displayed on the screen.	These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Centre to resolve the issue.
The display looks unstable and then freezes.	The screen may freeze when a resolution other than the recommended resolution is used or if the signal is not stable. To resolve the issue, change the PC resolution to the recommended resolution.
The screen cannot be displayed In full screen.	A scaled SD (4:3) content file can cause black bars on both sides of an HD channel screen.
	A video with an aspect ratio different from the product can cause black bars at the top and bottom of the screen.
	Change the screen size setting to full screen on the product or source device.

Sound issue

There is no sound.	Check the connection of the audio cable or adjust the volume.
	Check the volume.

Sound issue

The volume is too low.	Adjust the volume.
	If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software programme.
Video is available but there is no sound.	If an HDMI cable is connected, check the audio output settings on the PC.
	Go toSoundand changeSpeaker SettingstoInternal
	If a source device is usedMake sure the audio cable is properly connected to the audio input port on the product.Check the audio output settings for the source device.(For example, if an HDMI cable is connected to the monitor, the audio setting for the cable box may need to be changed to HDMI.)
	If a DVI HDMI cable is used, a separate audio cable is required.
	If the product has a headphone port, make sure nothing is connected to it.
	Reconnect the power cable to the device and then reboot the device.
There is static coming from the speakers.	Check the cable connection. Make sure a video cable is not connected to an audio input port.
	Check the signal strength after connecting a cable.
	Low signal level can cause corrupted sound.
There is audible sound when the volume is muted.	WhenSpeaker Settingsis set toExternal, the volume button and mute function are disabled. Adjust the volume for the external speakers.
	Audio settings for main speakers are separate from the internal speakers on the product.Changing or muting the volume on the product does not affect an external amplifier(decoder).
Sound from the monitor does not change afterSound ModeIs changed.	Audio settings for main speakers are separate from the internal speakers on the product. Audio settings on a source device do not affect the internal speaker settings on the product.

Sound issue

There is an echo sound coming from the speakers.

Different decoding speeds between the product speakers and external speakers can cause an echo.In this case, setSpeaker Settingsto External.

Remote control issue

The remote control does not work.	Make sure that the batteries are correctly in place (+/-).
	Check if the batteries are flat.
	Check for power failure.
	Make sure that the power cord is connected.
	Check for any special lighting or neon signs switched on in the vicinity.

Source device issue

A beeping sound is heard when my PC is booting.

If a beeping sound is heard when your PC is booting, have your PC serviced.

Other issue

The product smells like plastic.	The plastic smell is normal and disappears over time.
The monitor appears tilted.	Remove and then attach the stand again to the product.
Audio or video cuts out intermittently.	Check the cable connection and connect it again if required.
	Using a very hard or thick cable may corrupt audio and video files.Make sure cables are flexible enough to ensure durability. When mounting the product onto a wall, it is recommended to use right-angle cables.
Small particles are found on the edges of the product.	The particles are part of the product design. The product is not defective.
The PIP menu is not available.	The menu is enabled or disabled depending on theSource mode.
When I try to change the PC resolution, a message "The defined resolution is not supported." appears.	The message "The defined resolution is not supported." appears if the input source resolution exceeds the maximum resolution of the display.To resolve the issue, change the PC resolution to a resolution supported on the display.
There is no sound from the speakers in HDMI mode when a DVI-HDMI cable is connected.	DVI cables do not transmit sound data.Make sure to connect the audio cable to the correct input jack to enable audio.
HDMI Black Level is not functioning properly on an HDMI device with YCbCr output.	This function is available only when a source device, such as a DVD player and STB, is connected to the product via an HDMI (RCB signal) cable.
There Is no sound In HDMI mode.	Displayed picture colours may not look normal. Video or sound may not be available. This can occur if a source device that only supports an older version of the HDMI standard is connected to the product. If these issues occur, connect an audio cable along with the HDMI cable.
	Some PC graphics cards may not automatically recognize HDMI signals that do not include sound. In this case, manually select a sound input.
		Sound input Screen mode
	PC Auto PC settings
	DMI PC Audio In (Stereo	ports) PC settings

Other issue

The IR sensor Is not functioning.	Make sure the sensor light turns on when a button is pressed on the remote control.
	If the sensor light does not turn on, turn the power switch off and then on again on the back of the product.(The power LED lights up red when the screen is switched off.)If the sensor light still does not turn on after the power switch is turned off and then on again, an internal jack may be disconnected.Contact your nearest service centre to have the product serviced.
	If the sensor light that is on does not flash red when a button is pressed on the remote control, the IR sensor may be defective.Contact your nearest service centre to have the product serviced.
	This function is available only when a source device, such as a DVD player and STB, is connected to the product via an HDMI (RGB signal) cable.

Q & A

Question Answer

- Refer to the user manual for your PC or graphics card for further instructions on adjustment.

How can I change the frequency?	Set the frequency on your graphics card.
	Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings.
	Windows ME/2000: Go to Control Panel → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings.
	Windows Vista: Go to Control Panel → Appearance and Personalization → Personalize → Display Settings → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.
	Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust resolution → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.
	Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust resolution → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.
How can I change the resolution?	Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings and adjust the resolution.
	Windows ME/2000: Go to Control Panel → Display → Settings and adjust the resolution.
	Windows Vista: Go to Control Panel → Appearance and Personalization → Personalize → Display Settings and adjust the resolution.
	Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust Resolution and adjust the resolution.
	Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution and adjust the resolution.

Question Answer

How do I set powersaving mode?

Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display → Screen Saver Settings or BIOS SETUP on the PC.Windows ME/2000: Set power-saving mode in Control Panel → Display →Screen Saver Settings or BIOS SETUP on the PC.Windows Vista: Set power saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.Windows 7: Set power saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.Windows 8: Set power-saving mode in Settings → Control Panel →Appearance and Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.

Chapter 14 Specifications

- Size

- Display area

- Dimensions (W×H×D)

Simple line drawing of a rectangular frame with labeled dimensions D, W, and H (no text or symbols beyond labels)

General

Model Name SMT-3232A
SMT-4032A

Panel Size		32 CLASS (31.5 inches / 80 cm) 40 CLASS (40.0 inches / 101 cm)
	Display area	698.4 mm (H) x 392.85 mm (V)	885.6 mm (H) x 498.15 mm (V)
		27.50 inches (H) x 15.47 inches (V)	34.87 inches (H) x 19.61 inches (V)
Dimensions (W x H x D)		721.4 x 420.3 x 49.9 mm	906.6 x 524.7 x 49.9 mm
		28.40 x 16.55 x 1.96 inches	35.69 x 20.66 x 1.96 inches
Weight (without stand)		4.8 kg / 10.6 lbs 7.5 kg / 16.5 lbs
Audio Output		10 W 10 W + 10 W
Power Supply		AC 100 to 240 VAC (+/- 10%), 60 / 50 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.
Environmental considerations	Operating	Temperature: 32^ - 104^ ( 0^ - 40^ ), With PIM: 50^ - 104^ ( 10^ - 40^ )Humidity: 10% – 80%, non-condensing
	Storage	Temperature: -4^ 113^ ( -20^ 45^ )Humidity: 5% – 95%, non-condensing

—Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings.
Monitor installation takes place automatically. However, you can customize the installation settings if desired.
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1 ppm) may appear brighter or darker on the panel. This does not affect product performance.
— This device is a Class A digital apparatus.

[Recommendation] - EU Only

• Hereby, Samsung declares that this Monitor is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
• This equipment may only be used indoors.
• This equipment may be operated in all EU countries.

PowerSaver

The power-saving function of this product reduces power consumption by switching off the screen and changing the colour of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode only functions when the product is connected to a PC with a power saving function.

PowerSaver Normal Operation Power saving mode			Power off(Power Button)	Power off(Power Switch)
	Rating Typical Max	(SOG Signal : Not Support the DPM Mode)
Power Indicator	Off Blinking On Off
Power Consumption SMT-3232A	70 W 54 W 77 W Less than 0.5 W Less than 0.5 W 0 W
SMT-4032A	110 W 76 W 121 W

The displayed power consumption level can vary in different operating conditions or when settings are changed.
— SOG(Sync On Green) is not supported.
To reduce the power consumption to 0, turn off the switch at the back or disconnect the power cord. Disconnect the power cable if you will not be using the product for an extended period of time (during vacation, etc.).

Preset Timing Modes

This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.

Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. If the LCD product does not support 85Hz, change the vertical frequency to 60Hz using the CDT product before you exchange it with the LCD product.

- Horizontal Frequency

The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.

- Vertical Frequency

The product displays a single image multiple times per second (like a fluorescent light) to display what the viewer sees. The rate of a single image being displayed repeatedly per second is called vertical frequency or refresh rate. Vertical frequency is measured in Hz.

Model Name	SMT-3232A / SMT-4032A
Synchronization Horizontal Frequency	30 - 81 kHz
Vertical Frequency	48 - 75 Hz
Resolution Optimum resolution	1920 x 1380 @ 60 Hz
Maximum resolution	1920 x 1380 @ 60 Hz

The screen will automatically be adjusted if a signal that belongs to the following standard signal modes is transmitted from your PC. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank with the power LED on. In such a case, change the settings according to the following table by referring to the graphics card user manual.

Resolution Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.079 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 RB 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 148.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+

Chapter 15 Appendix

Responsibility for the Pay Service (Cost to Customers)

When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

• If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.
  • If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.
  • If a product is reinstalled to move to a different spot or to move to a different house.
  • If customer requests instructions on how to use because of another company's product.
  • If customer requests instructions on how to use the network or another company's programme.
  • If customer requests software installation and setup for the product.
  • If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home shopping or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair

If a product damage is caused by;

• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorised electrical connections.
• Not following the 'cautions' in User Manual.

Others

• If product fails by natural disaster: (lightning, fire, earthquake, flood damage, etc)
- If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)

IT customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.

WEEE

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Optimum Picture Quality and Afterimage Burn-in Prevention

Optimum Picture Quality

• Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the panel. This does not affect product performance.
• The number of sub-pixels by panel type: 6,220,800
• Run Auto Adjustment to improve the picture quality. If noise is still found even after auto adjustment, adjust Coarse or Fine.
  • Leaving the screen fixed on a stationary image for an extended period of time may cause after-image burn-in or defective pixels.

Activate power-saving mode or a dynamic screen saver if you will not be using the product for an extended period of time.

Prevention of Afterimage Burn-in

What is afterimage burn-in?

Afterimage burn-in should not occur when the LCD panel is operating normally. Normal operation refers to a continuously changing video pattern. If the LCD panel displays a fixed pattern for an extended period of time (more than 12 hours), a slight voltage difference may occur between the electrodes in pixels that control the liquid crystals.

Such a voltage difference between electrodes increases with time and makes the liquid crystals thinner. When this occurs, a previous image can remain on the screen when the pattern changes. To prevent this, the accumulated voltage difference should be reduced.

Afterimage burn-in should not occur when an LCD panel is operating in proper conditions.

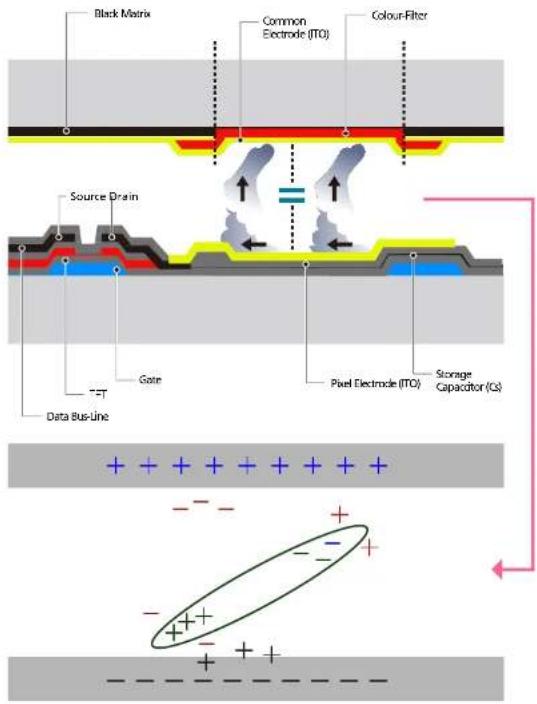

Black Matrix Common Electrode (ITO) Colour-Filter Source Drain Gate Data Bus-Line Pixel Electrode (ITO) Storage Capacitor (GS) + + + + + + + + - - - - - + - + + - + + + + + +

Preventing afterimage burn-in

The best way to protect the product from afterimage burn-in is switching the power off or setting the PC or system to run a screen saver when not in use. Also, Warranty service may be limited depending on instruction guide.

• Powering Off, Screen Saver and Power Saving Mode

- Power off the product for 2 hours after using it for 12 hours.

- Go to Display Properties > Power Supply on your PC and set the product to power off as required.

- Using a screen saver is recommended.

It is best to use a single-colour or moving-image screen saver.

• Regular colour Change

- Use 2 colours

Switch between 2 colours every 30 minutes as shown above.

Type 1 Type 2

FLIGHT TIME OZ348 20:30 UA102 21:10 FLIGHT TIME OZ348 20:30 UA102 21:10

- Avoid combinations of a text colour and background colour of contrasting brightness.

(Brightness: refers to the lightness or darkness of a colour which varies depending on the amount of light emitted.)

Avoid using grey as it may contribute to afterimage burn-in.

Avoid using colours of contrasting brightness (black and white; grey).

FLIGHT : TIME

OZ348 : 20:30

• Regular Text colour Change

- Use bright colours of similar brightness.

Interval: Change text colour and background colour every 30 minutes

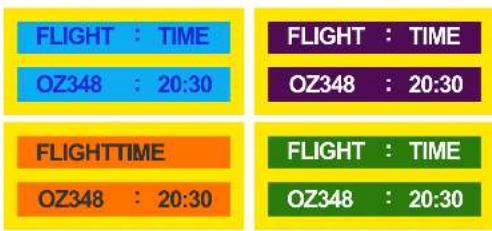

FLIGHT : TIME OZ348 : 20:30 FLIGHT : TIME OZ348 : 20:30 FLIGHTTIME OZ348 : 20:30 FLIGHT : TIME OZ348 : 20:30

- Move and change text every 30 minutes as shown below.

- Regularly display a moving image along with a logo.

Interval: Display a moving image along with a logo for 60 seconds after using for 4 hours.

Licence

DOLBY DIGITAL PLUS

Manufactured under licence from Dolby Laboratories.

Dolby and the double D symbol are trademarks of Dolby Laboratories.

Manufactured under a licence from U.S. Patent No's: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,348,853 DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Premium Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.

Manufactured under a license from U.S. Patent No's: 6,285,767,802,477,5319,713,533,701,5638,452,5771,295,5970,152,5912,976,7200,236,7492,907,8050,434,7720,240,7031,474,7907,736 and 7,764,802. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Studio Sound is a trademark of DTS, Inc. ©2017 DTS, Inc. All Rights Reserved.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DIVX. HD

DivX Certified ® to play DivX ® video up to HD 1080p, including premium content.

DivX(1), DivX Certified(2) and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Row Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DI MAND: This DivX Certified® device must be registered in order to play purchased DivX Video on Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu. Open Source Licence Notice is written only English.

Terminology

480i / 480p / 720p / 1080i /

1080p____ Each of the scanning rates above refers to the number of effective scanning lines that decides the screen resolution. The scanning rate may be indicated in i (interlaced) or p (progressive), depending on the scanning method.

- Scanning

Scanning refers to a process of sending pixels that form an image progressively. A larger number of pixels will deliver a clearer and more vivid picture.

- Progressive

In progressive scan mode, all lines of pixel's are scanned one by one (progressively) on the screen. - Interlaced

In interlaced scan mode, every other line of pixels is scanned from top to bottom first and then the remaining lines of pixels (that were not scanned) are scanned.

Non-interlace Mode and Interlace

Mode____ Non-Interface mode (progressive scan) displays a horizontal line from the top to the bottom of a screen progressively. Interface mode displays the odd number lines first and the even number lines next. Non-interlace mode is mainly used in monitors as it produces screen clarity and interface mode is mainly used in TVs.

Dot Pitch____ The screen consist of red, green and blue dots. A shorter distance between the dots produces a higher resolution. Dot pitch refers to the distance between the shortest distance between dots of the same colour. Dot pitch is measured in millimeters.

Vertical Frequency____ The product displays a single image many times per second (like a fluorescent light that flickers) to display an image for a viewer to see. The rate of a single image being displayed repeatedly per second is called vertical frequency or refresh rate. Vertical frequency is measured in Hz. E.g. 60Hz refers to a single image being displayed 60 times in one second.

Horizontal Frequency____ The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.

Source____ Input source refers to a video source device connected to the product such as a camcorder or video or DVD player.

Component ports (green, blue and red)____ The component ports, which identify, transmit and receive contrast signals, provide superior picture quality to any other video connection methods.

Plug & Play____ Plug & Play is a function that allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The product uses VESA, DDC (International standard) to execute Plug & Play.

Resolution____ Resolution is the number of horizontal dots (pixels) and vertical dots (pixels) that form a screen. It represents the level of display detail. A higher resolution enables more data to be displayed on the screen and is useful to perform multiple tasks simultaneously.

E.g. A resolution of 1920 X 1080 consists of 1,920 horizontal pixels (horizontal resolution) and 1,080 vertical pixels (vertical resolution).

DVD (Digital Versatile Disc)____ DVD refers to a CD-sized mass storage disk where you can save multimedia (audio, video or game) applications using MPEG-2 video compression technology.

HDMI (High Definition Multimedia

Interface)____ It is an interface that can be connected to a digital audio source as well as a high-definition video source by using a single cable without compression.

Multiple Display Control (MDC)

MDC (Multiple Display Control) is an application that allows multiple display devices to be controlled simultaneously using a PC. Communication between a PC and monitor takes place using RS232C (serial data transmission) and RI45 (LAN) cables.
