USER MANUAL AirRam MK2 K9 AR30 G-TECHNOLOGY

Line drawing of two Gte AirRA vacuum cleaner units, shown from front and side views (no text or symbols on the device itself)

Gtech AirRAM K92

Model number: AR30
OPERATING MANUAL

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
  • Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
  • Particularly keep hair away from openings and moving parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don't wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery safety:

• This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.
• Liquid ejected from the battery may cause irritation or burns.
  • In an emergency situation contact professional help immediately!

• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.

• Use only as described in this manual.

• Don't use on concrete, tarmacadam or other rough surfaces.

• The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. If in doubt please test on an inconspicuous area first.
• The Gtech AirRAM K9 has been designed to clean a wide variety of floor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• The AirRAM K9 has a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the floor surface.

WARNING:

• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the filter fitted.

Portrait of a smiling man in a striped shirt (no text or symbols visible)

Thank you for choosing a Gtech AirRAM K9

"I started Gtech to create sensible, easy to use products that do a great job. Your opinion is important to us and we'll use your feedback to improve our products and services, and to let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, owner of Gtech

Make a note of your product serial number code for future reference. You can find this on the underside of item

Front view line drawing of a vehicle chassis with no visible text or symbols

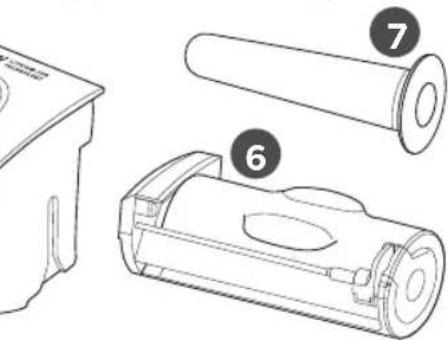

What's in the box

1 Head full assembly
2 Lower Handle X 2 components
3 Upper Handle X 2 components
4 Battery
5 Charger
6 Bin
7 Filter
8 5 x spare scented cartridges

(Filter, battery and bin are already in place)

Line drawing of a portable washing machine (no text or symbols)

Simple line drawing of a mechanical component with a numbered label (2) and no text or symbols on the body.

Line drawing of a mechanical tool or tool with a handle and base (no text or symbols)

Technical line drawings of battery components including a container, cylindrical tube, and cylindrical housing (no text or symbols)

Simple line drawing of a cord with a plug and power plug, no text or symbols present

Assembly

Line drawing of a car interior showing a seatbelt switch and green directional arrows (no text or symbols)

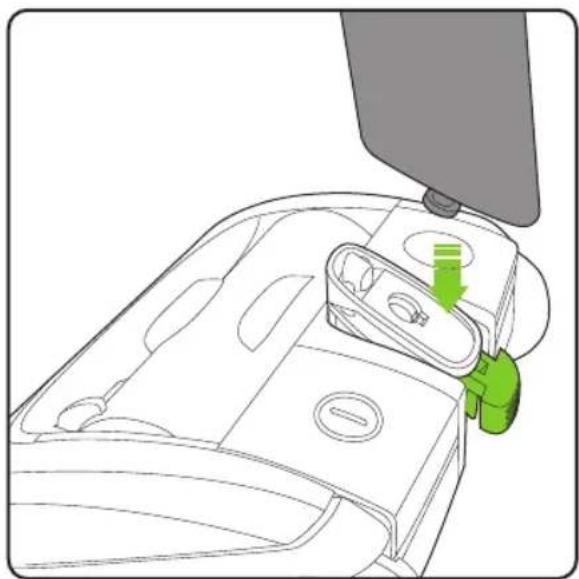

To attach the lower handle to the head assembly, insert the metal pin on the lower handle into the hole located on the pivot yoke. Make sure the green locking clip is unlocked to allow the lower handle to fit.

Line drawing of a hand holding a green plastic clip attached to a small electronic device (no text or symbols visible)

Ensure the lower handle is sitting completely flush against the yoke. Then push the green locking clip into the back of the head.

Diagram showing a robotic car with green arrows indicating motion or force direction, next to a mechanical component (no text or symbols)

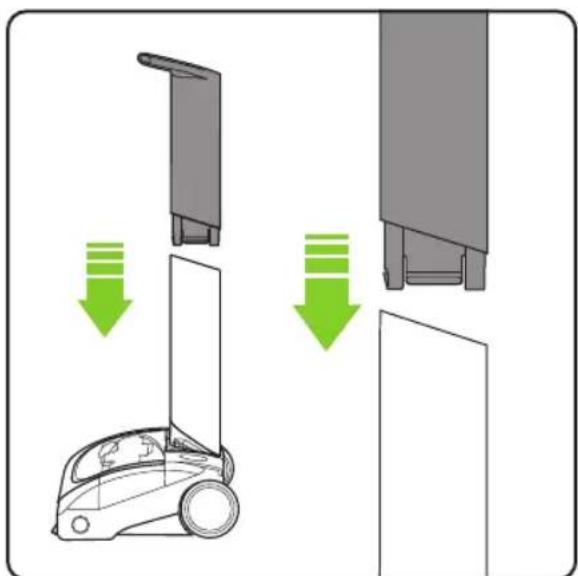

Fit the two components of the lower handle together in the orientation shown in the image above. They will only fit together one way. The components will click into place and will remain permanently fixed.

Diagram showing two mechanical components with downward green arrows indicating motion or assembly (no text or symbols)

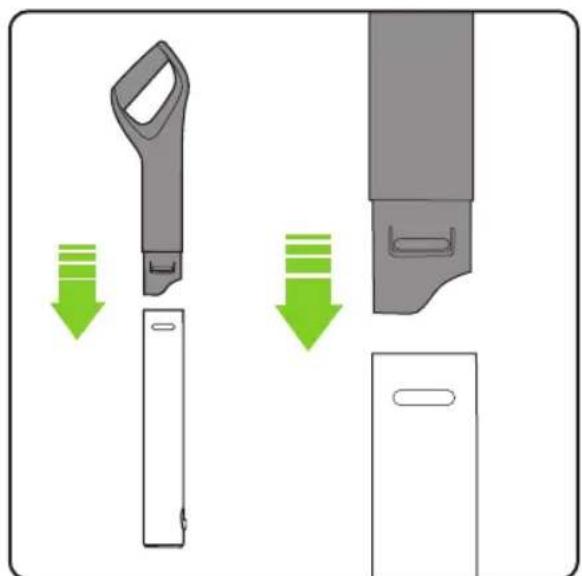

Fit the two components of the Upper Handle together in the orientation shown in the image above. They will only fit together one way. The components will click into place and will remain permanently fixed.

Assembly (continued)

Technical line drawing of a mechanical component with a green highlighted section (no text or symbols)

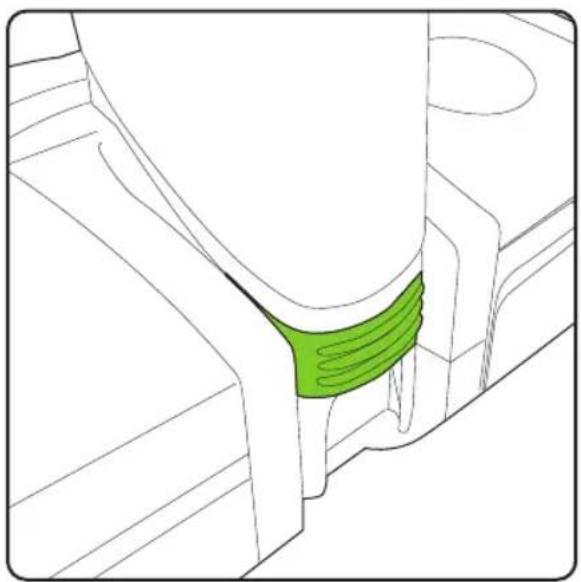

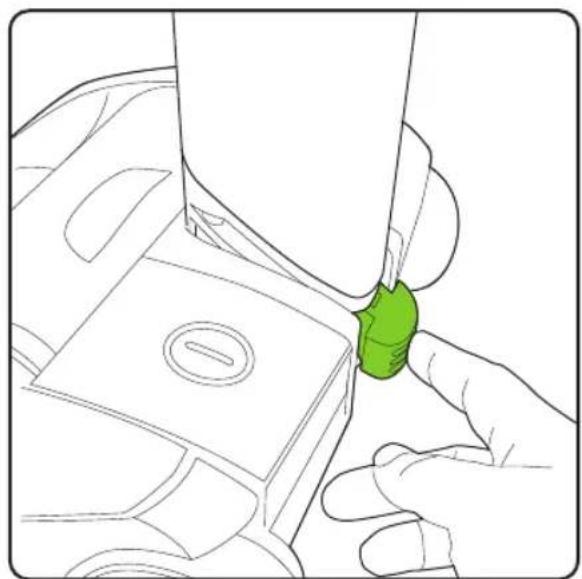

The green locking clip, when correctly fitted, will click and hold the lower handle in place. Should the handle assembly need to be removed the clip can be pulled out to unlock the lower handle.

The green locking clip remains permanently attached to the head assembly.

Illustration of a hand holding a tool with a green arrow indicating downward motion (no text or symbols)

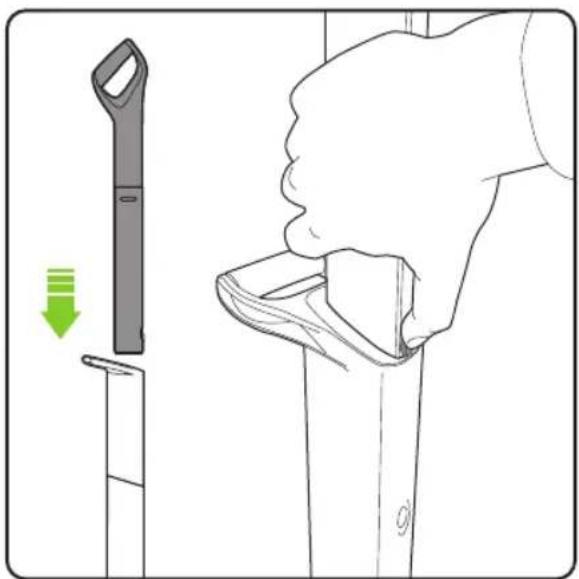

Insert the upper handle into the lower handle. You will need to press the button on the upper handle to fit it in.

Once it slides down you will hear it click into place.

Storage

Illustration of a hand holding a tool or device with a green double-headed arrow indicating compression or movement (no text or symbols present)

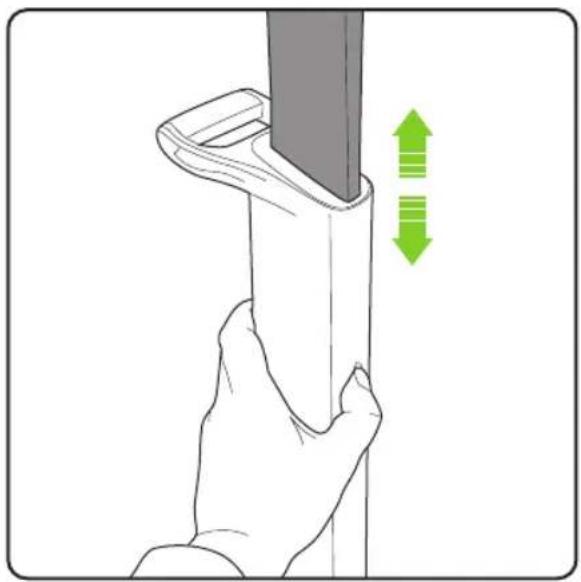

To stow or extend the upper handle simply press the button on the lower handle to unlock the upper handle.

The upper handle will now slide up or down depending on required position.

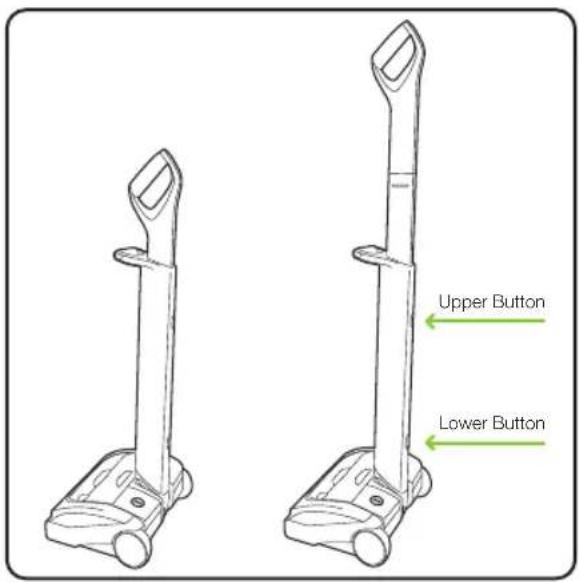

Upper Button Lower Button

The upper handle can be set in two positions: Lowered for storage and raised for use. To lower the handle, release the upper button. To raise the handle from the stored position, release the lower button.

Installing scented cartridge

Illustration of hands using a green cylindrical device to add material, with a green arrow indicating the process (no text or symbols present)

Slide the filter and inner shroud out of the filter housing.

Illustration of hands using a green filter tool to press or adjust a green object, with a green arrow indicating the process (no text or symbols present)

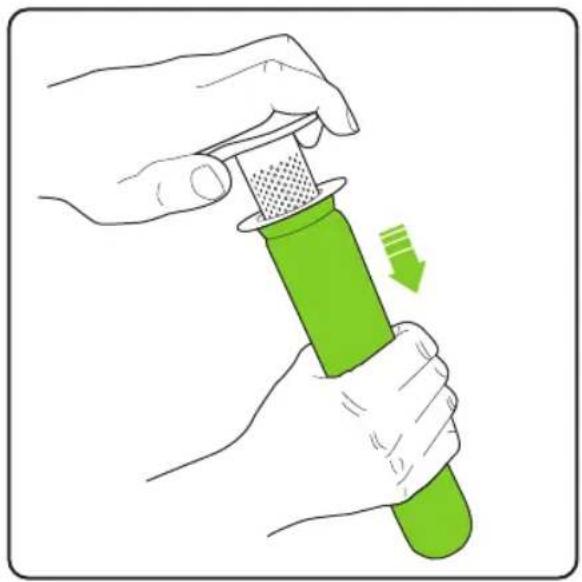

Remove the filter from the inner shroud, by twisting and pulling.

Diagram of a test tube with liquid and a green downward arrow indicating a measurement or process (no text or symbols)

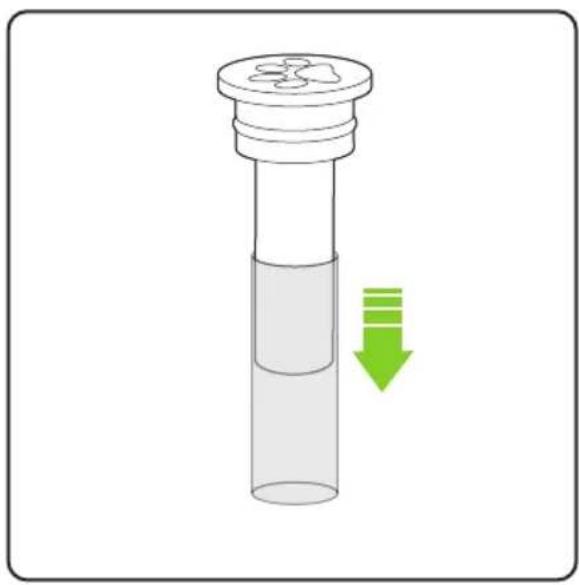

Remove the scented cartridge from its box then slide the plastic sleeve off.
Please refer to page 14 for scented cartridge health warnings.

Illustration of a hand holding a small object with a green arrow indicating direction (no text or symbols)

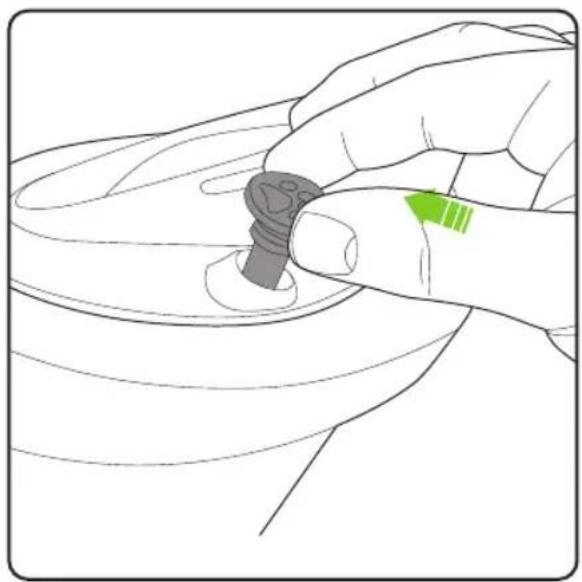

Slide scented cartridge into the end of the shroud. Replace filter and return to filter housing.

Operation

Illustration of a hand inserting a device into a device with green arrows indicating rotation (no text or symbols)

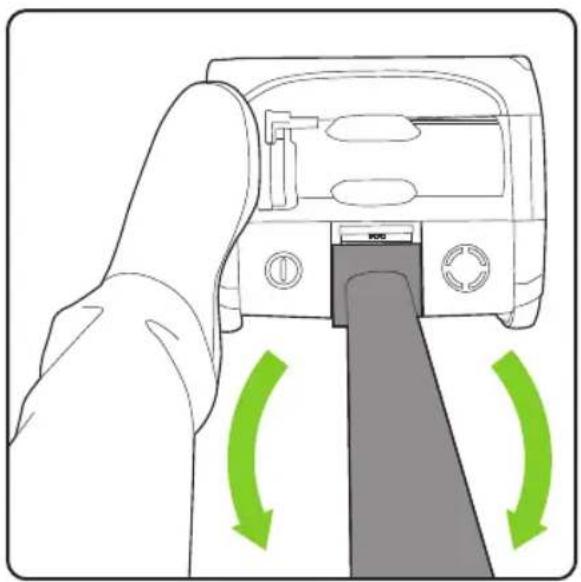

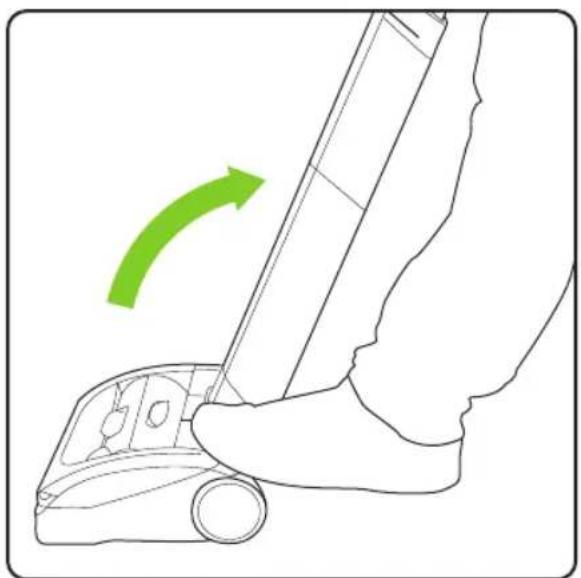

Without pressing the power button, place your foot on the left side of the AirRAM K9 head and pull the handle back.

Diagram of a car interior with a highlighted circular component (no text or symbols)

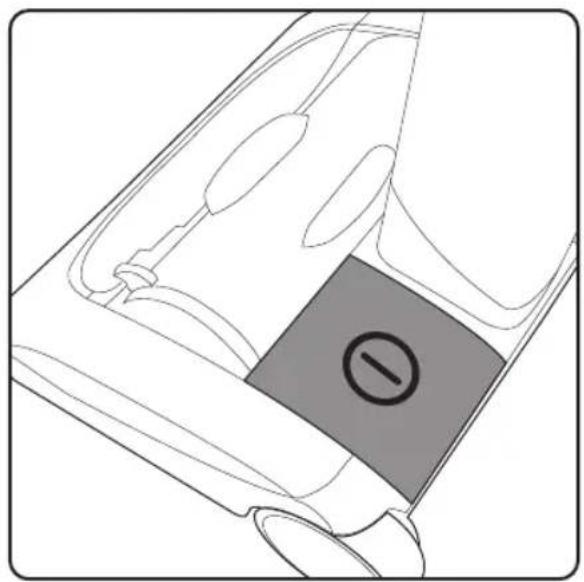

The power button is located on the left hand side of the AirRAM K9 head assembly.

Line drawing of a hand using a vacuum cleaner to lift a vehicle, with a green arrow indicating the motion direction (no text or symbols)

Press the power button with your foot to turn the AirRAM K9 on.

Battery charging

Circular icon with a green arc and light green rays, no text or symbols present.

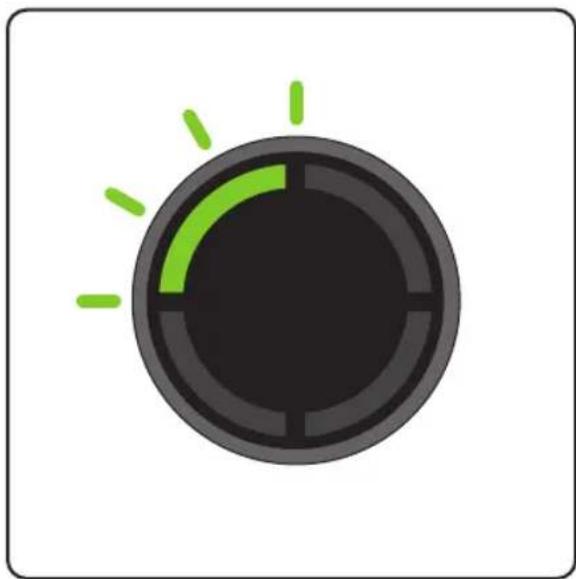

When the state of charge indicator starts to flash one green LED, recharge the battery.

Illustration of hands using a tool to press a small mechanical component with a green upward arrow (no text or symbols)

The battery can be charged whilst it's in the AirRAM, or when it's off the product. To remove the battery, squeeze the latch underneath and pull upwards.

Line drawing of a power outlet connected to a device with cable (no text or symbols)

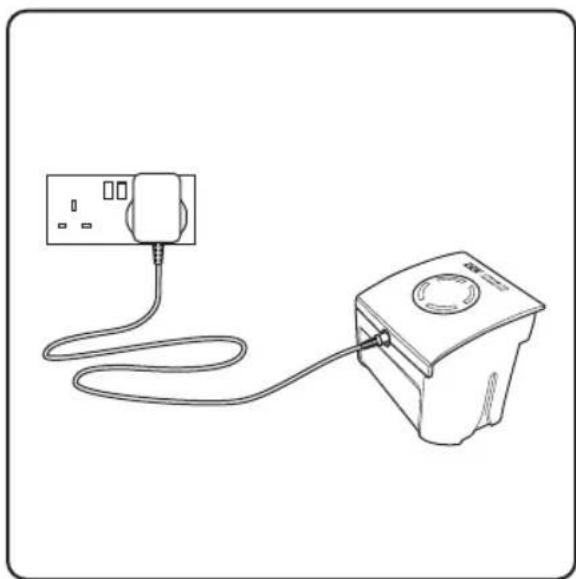

Plug the charger into the mains and connect it to the battery. Switch on at the mains.

4 hours

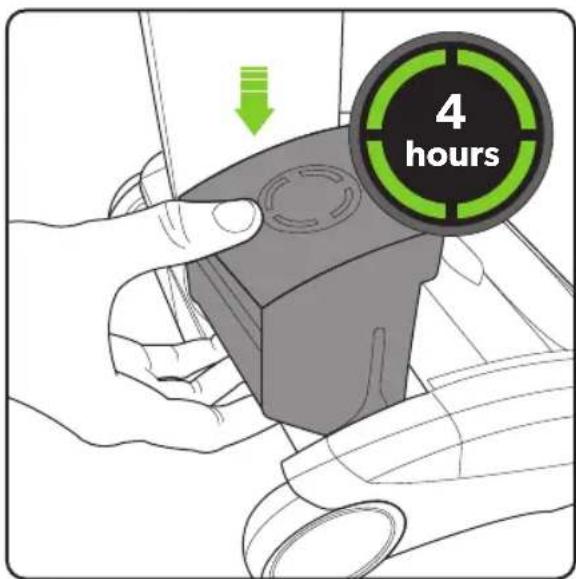

The battery can be charged from flat in 4 hours. The state of charge indicator will show 4 solid green lights when it is charged. It is OK to charge for 1 hour for a burst of cleaning. Replace the battery by sliding it down into the head assembly. It will click into place.

Emptying the bin

Illustration of hands using a cleaning tool to adjust or install a mechanical component, with a green arrow indicating the process (no text or symbols present)

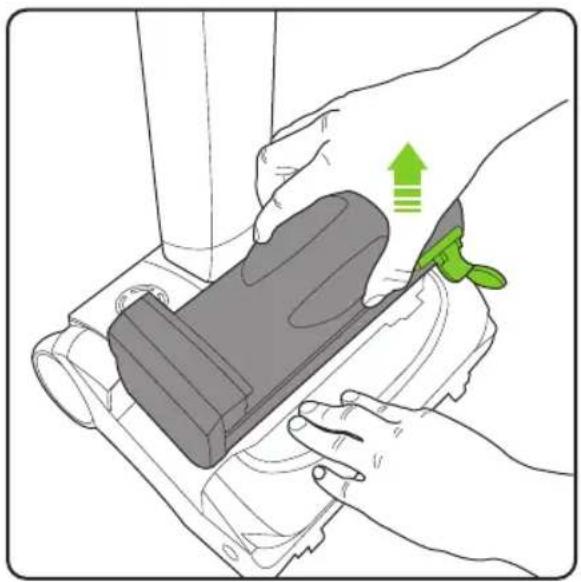

Holding onto the AirRAM K9 with one hand, pull the bin handle and lift the bin out of the AirRAM.

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

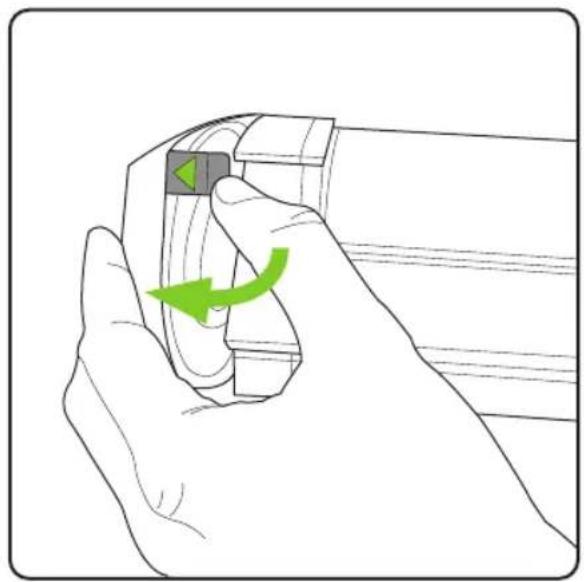

Lift and release the latch marked with the green arrow to pull open the lid.

Illustration of a hand using a tool to press or inspect a mechanical component, with no visible text or symbols.

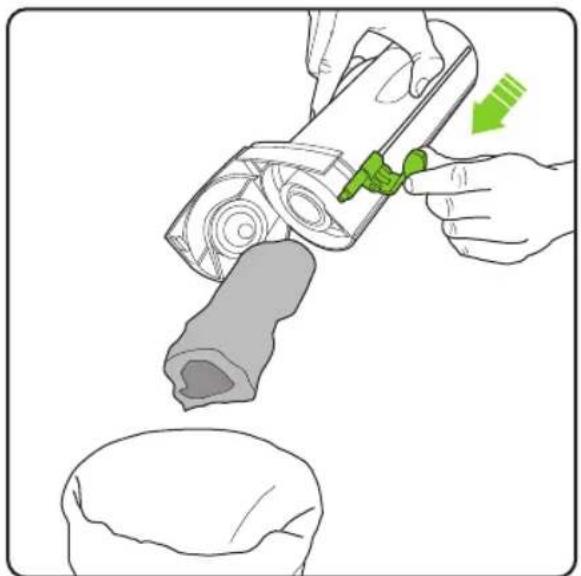

Hold the AirRAM's bin over a rubbish bin and push the green lever towards the lid to empty the dirt.

Illustration of hands using a tool to adjust or install a device component, with a green arrow indicating the motion (no text or symbols present)

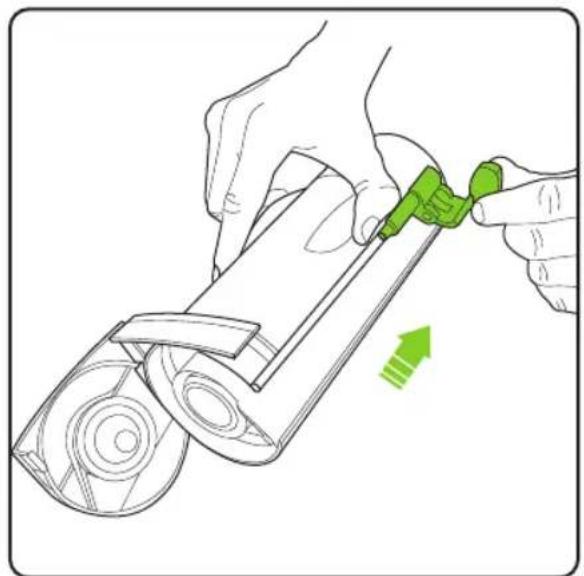

Pull the green lever back towards the bottom of the bin. Close the bin lid and reinsert the bin into the AirRAM.

Cleaning the filters - do this once a month or more frequently depending on use.

Illustration of hands using a cleaning tool to clean or adjust a device (no text or symbols visible)

Holding onto the AirRAM K9 with one hand, pull the bin handle and lift the bin out of the AirRAM.

Illustration of hands using a green tool to add a green cylindrical component into a plastic container (no text or symbols)

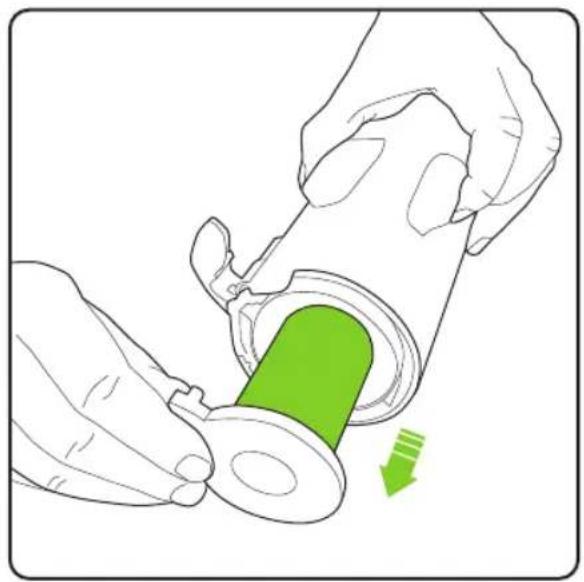

Pull the filter out of the filter housing. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

Illustration of hands using a green filter tool to press or adjust a green object (no text or symbols present)

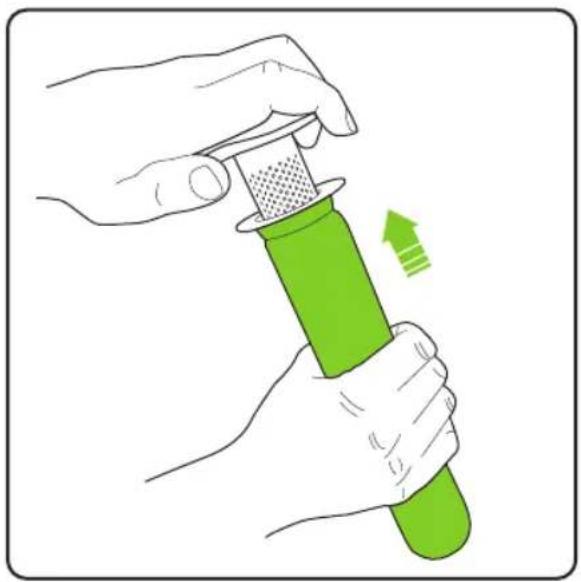

Remove the filter from the inner shroud, by twisting and pulling.

Tap the inner shroud over a bin to remove any excess dirt.

Illustration showing two hands holding green test tubes, one with a blue tool and the other with a green tool (no text or symbols)

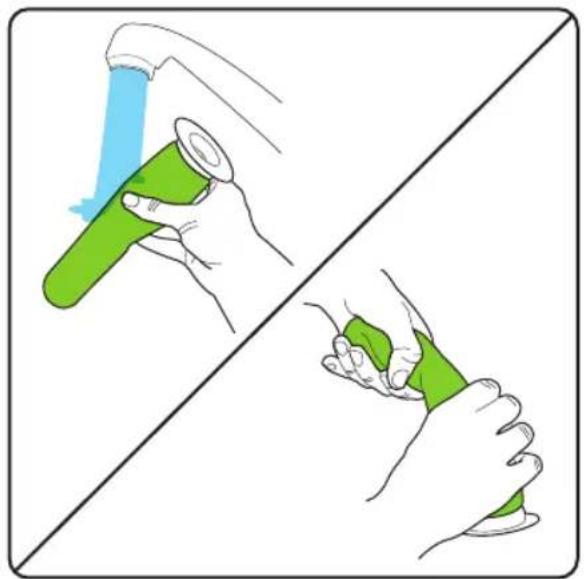

Wash the filter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the AirRAM. Recommended water temperature 40°C. Do not use detergent or soaps. Never put bin back without filter inside. You could damage the motor.

11

Replacing the filters

Illustration of hands using a green filter tool to press or install a green object, with an arrow indicating motion (no text or symbols present)

Illustration of hands installing a green cylindrical component into a plastic housing (no text or symbols)

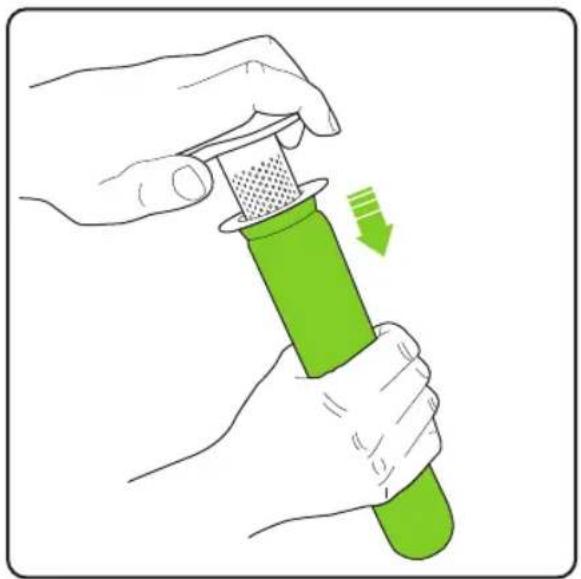

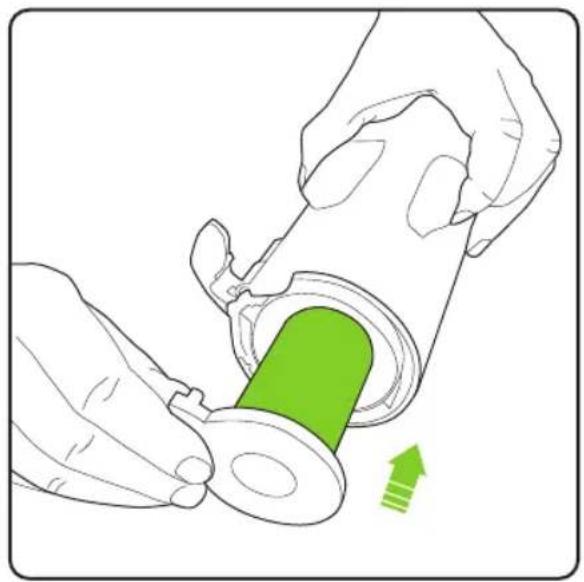

Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter housing.

Removing and cleaning the brush bar

Illustration of hands using a tool to press a mechanical component with a green arrow indicating upward motion (no text or symbols)

Line drawing of a hand using a stylus to press or install a device (no text or symbols present)

If the brush bar jams during use, the AirRAM K9 will stop and the LEDs will appear red. Before checking for a blockage, remove the battery.

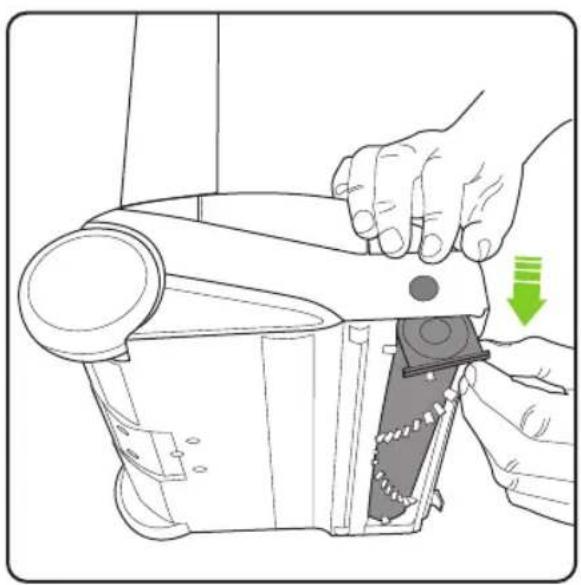

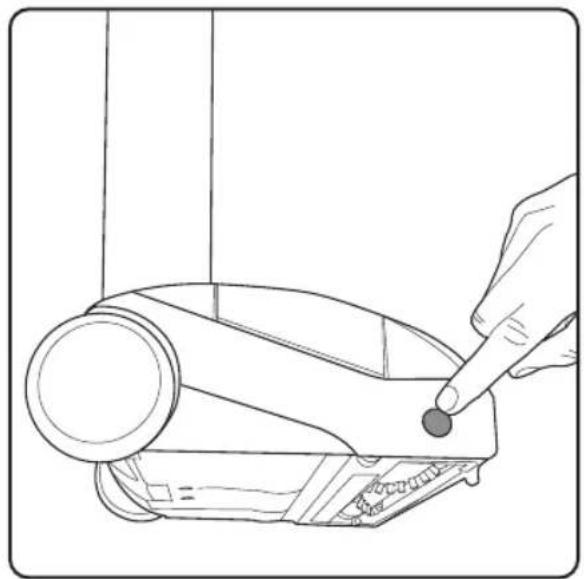

Rest the AirRAM K9 on its side and locate the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the AirRAM.

Illustration of hands operating a mechanical device with a green downward arrow indicating motion (no text or symbols)

The brush bar can now be removed, starting at the button end.

Illustration of a syringe being cut with scissors, showing blade arrangement and green ring (no text or symbols)

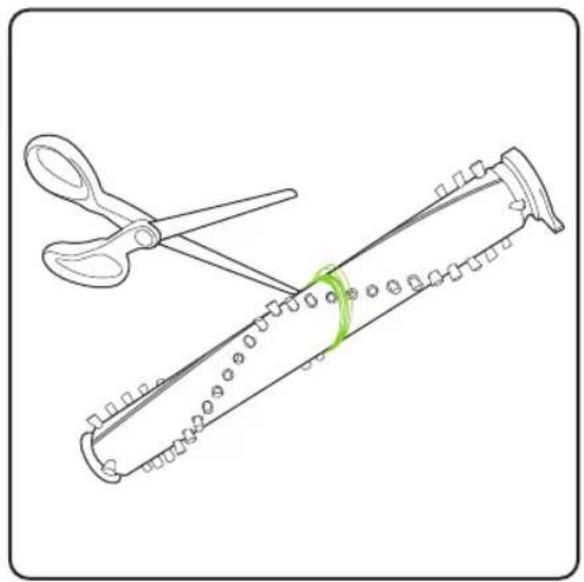

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out.

Illustration of hands operating a mechanical device with a green upward arrow indicating motion (no text or symbols)

Re-insert the brush bar, starting by the end furthest away from the button. Then line up and push the brush bar into the AirRAM K9 until it clicks into place.

Illustration of a hand holding a small mechanical component with a green arrow indicating downward motion (no text or symbols)

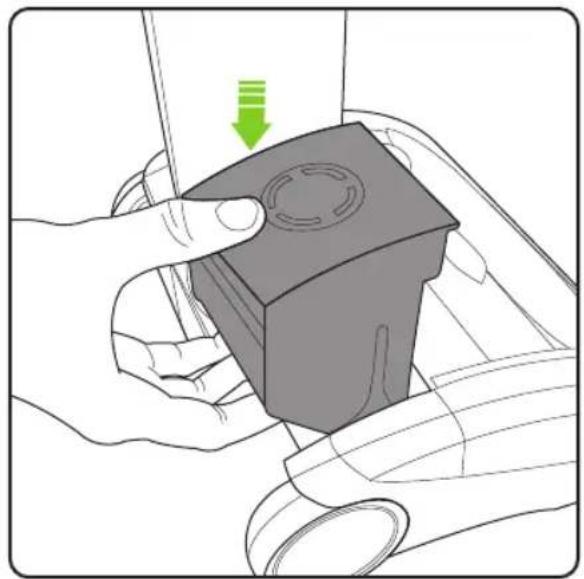

Replace the battery by sliding it down into the head assembly. It will click into place.

Clearing a jam / fault

Circular diagram with red and black segments, no text or symbols present

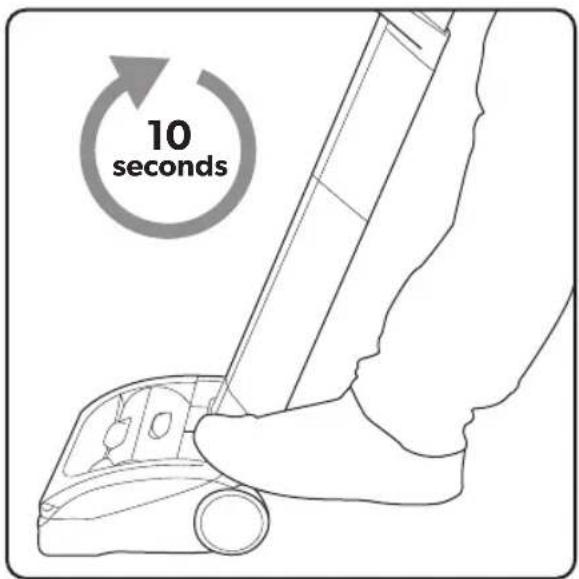

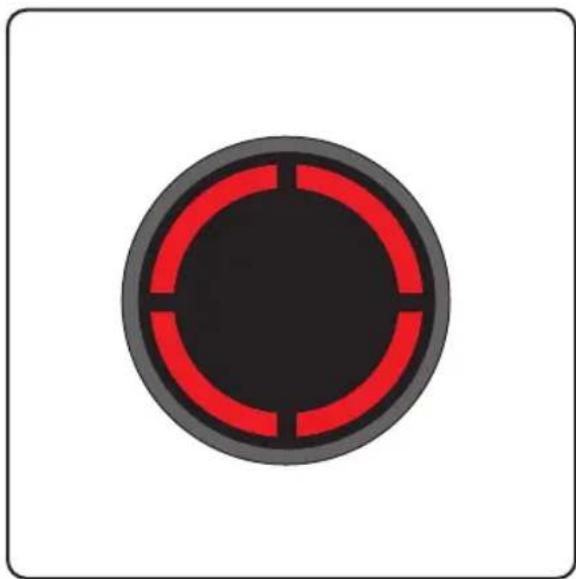

If the brush bar jams during use, the AirRAM K9 will stop and the LEDs will appear red. You will need to remove and clean the brush bar (see page 12).

10 seconds

The AirRAM K9 will not re-start until the red lights go out. This will take ten seconds.

If the problem persists, follow the troubleshooting instructions below.

Scented Cartridge

Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20

Product Care

Your Gtech AirRAM K9 doesn't need much maintenance: keep the filters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.

Troubleshooting

AirRAM K9 is not cleaning well 1. Empty the bin2. Check bin is correctly fitted3. Check filter is correctly fitted4. Clean and/or replace filter5. Check brush bar fitment

AirRAM K9 has stopped or won’t work 1. Charge battery2. Clear debris from brush bar

Battery will not charge 1. Check the charger is correctly connected to the battery and mains supply2. Check wall socket

Product Support

If these initial tips don't solve your problem, we have various other ways to help.

Visit: www.gtech.co.uk/support

[e-mail] chat supportOnline How to Videos

AIRRAM K9 TECHNICAL SPECIFICATION

Battery model 103A022
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight 3.3kg

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-lon battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

CE

Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all the information required to provide you with quick and efficient support.

You will need your product's serial code.

Front view of a vehicle chassis with no visible text or symbols

If you purchased directly from Gtech your details are already registered and your 2 year warranty will start automatically.

If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty.

WARRANTY - TERMS AND CONDITIONS

Your Gtech AirRAM K9 is guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. filters, brush bar)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech AirRAM K9 operating manual.
- Blockages - please refer to the Gtech AirRAM K9 operating manual for details of how to unblock your vacuum cleaner.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech)
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.

Notes

Notes

Gtech

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk

CPN04107
