USER MANUAL DS-2CE56H1T-ITZE Hikvision

Abstract graphic with geometric shapes and a red square featuring a globe and hand (no text or symbols)

TURBO HD

H1T Series Dome Camera

User Manual

UD05830B

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I Camera	DS-2CE56H1T-(A)VPIT3Z(E)
Type II Camera	DS-2CE56H1T-(A)ITZ(E)

This manual may contain technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info.

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with

this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly fixed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn o the power at once and unplug the power cord, and then contact the service center.
• Never attempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnetic radiaon or extremely hot, cold, dusty or damp environment.
• To avoid heat accumulation, good ventilation is required for the operang environment.
• Keep the camera away from liquid while in use for non-water-proof device.
• While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

1.1 Product Features

The camera is applicable for both indoor and outdoor conditions, and the applicaon scenarios include road, warehouse, underground parking lot, bar, etc..

The main features are as follows:

• High performance CMOS sensor
- Low illumination, 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- IR cut Iter with auto switch
- OSD menu with congorable parameters
• Auto white balance
• internal synchronizaon
- SMART IR mode
- PoC (with -E)
- 3-axis adjustment

Note:

Type II camera is applicable to indoor only.

1.2 Overview

Before you start:

• The device cables vary according to dierent models. The cables of each type are shown in the gures below, refer to the actual device.
• You can debug the camera by connecng an auxiliary HD TVI cable to the auxiliary video output.

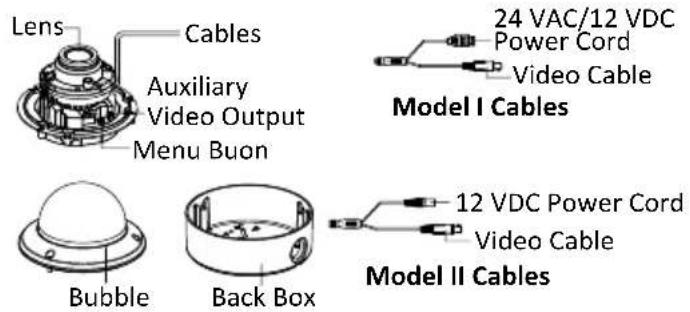

1.2.1 Overview of Type I Camera

Lens Cables Auxiliary Video Output Menu Buon 24 VAC/12 VDC Power Cord Video Cable Model I Cables Bubble Back Box 12 VDC Power Cord Video Cable Model II Cables

Figure 1-1 Overview of Type I Camera

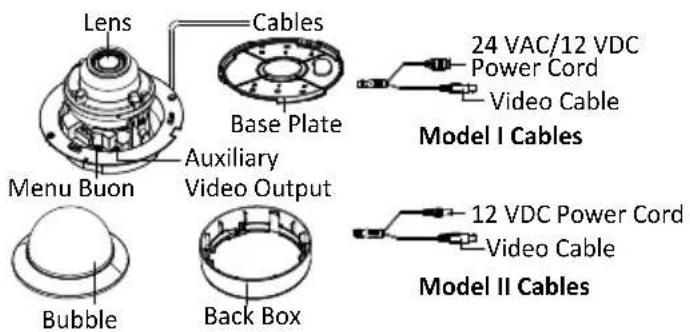

1.2.2 Overview of Type II Camera

Lens Cables Base Plate 24 VAC/12 VDC Power Cord Video Cable Menu Buon Auxiliary Video Output Bubble Back Box 12 VDC Power Cord Video Cable Model I Cables Model II Cables

Figure 1-2 Overview of Type II Camera

2 Installaon

Before you start:

• Make sure that the device in the package is in good condion and all the assembly parts are included.

• Make sure that all the related equipment is power-o during the installaon.

• Check the specification of the products for the installaon environment.

• Check whether the power supply is matched with your power output to avoid the damage.
• Make sure the wall is strong enough to withstand three mes the weight of the camera and the bracket.
• If the wall is cement, you need to insert expansion bolts before you install the camera. If the wall is wooden, you can use self-tapping screws to secure the camera.
• If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Ceiling Mounng

Before you start:

Both wall mounng and ceiling mounng are suitable for the dome camera. Ceiling mounng will be taken as an example in this secon. You can take steps of ceiling mounng as a reference for wall mounng.

Steps:

1. Paste the drill template to the ceiling.
2. Drill screw holes and the cable hole (oponal) on the ceiling according to the supplied drill template.

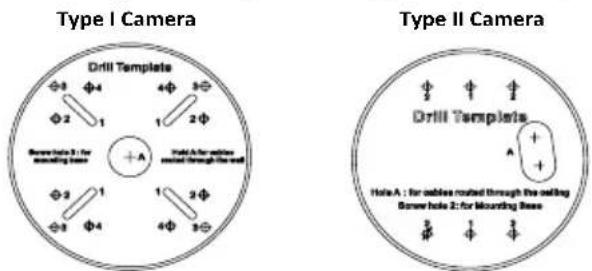

Figure 2-1 The Drill Template

Note:

Drill the cable hole, when adoping the ceiling outlet to route the cable.

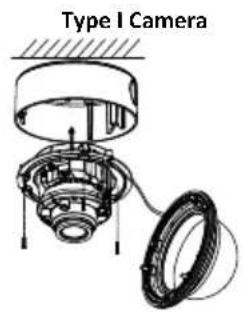

1. Loosen the screws on the bubble of the dome camera to remove the bubble and the black liner.

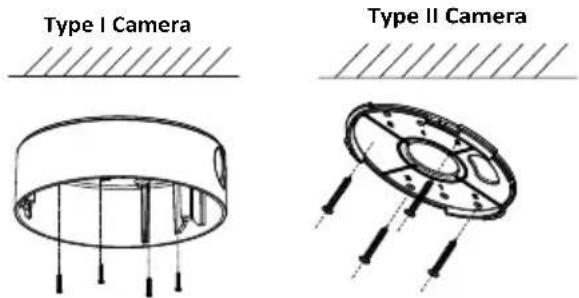

2. Aach the back box of type I camera/base plate of type II camera to the ceiling and secure them with supplied screws.

Figure 2-2 Aach the Back Box/Base Plate

Note:

• In the supplied screw package, both self-tapping screws and expansion bolts are contained.

• For cement ceiling, expansion bolts are required to x the camera. For wooden ceiling, self-tapping screws are required.

• Route the cables through the cable hole, or the side opening.

• Align the camera with the back box/base plate, and tighten the screws to secure the camera with the back box/base plate.

Type I Camera

Type II Camera

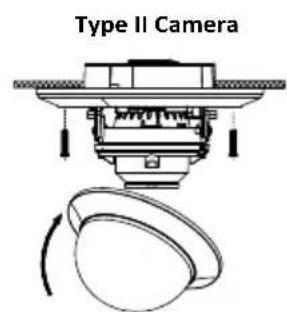

Figure 2-3 Fix the camera to the Ceiling

1. Connect the corresponding cables, such as power cable and video cable.
2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

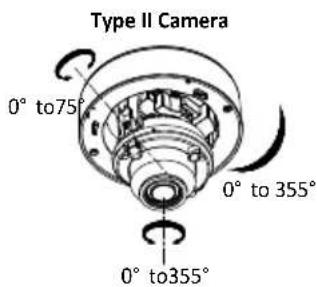

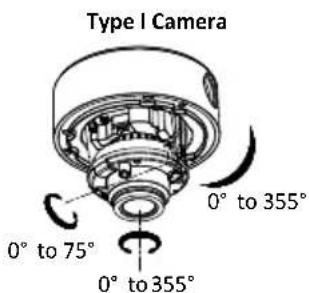

Type I Camera 0° to 75° 0° to 355° 0° to 355°

Type II Camera 0° to 75° 0° to 355° 0° to 355°

Figure 2-4 3-Axis Adjustment

1. Fit the black liner back to the camera and ghten the screws on the bubble of the dome camera to nish the installaon.

2.2 Wall Mounng with a Braket

Before you start:

You need to purchase a wall mounng bracket separately.

Steps:

1. Drill 4 screw holes in the wall according to the holes of the bracket.
2. Aach the bracket to the wall by aligning the 4 screw holes of the bracket with expansion screws on the wall.
3. Secure the bracket with 4 hex nuts and washers.

Type I Camera

Type II Camera

Figure 2-5 Install Wall Mounng Bracket

1. Refer to step 3 of 2.1 Ceiling Mounng to remove dome camera's bubble and the black liner.
2. Aach the back box/base plate of the dome camera to the wall mounng bracket and secure them with supplied screws.

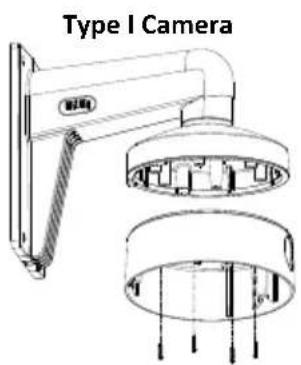

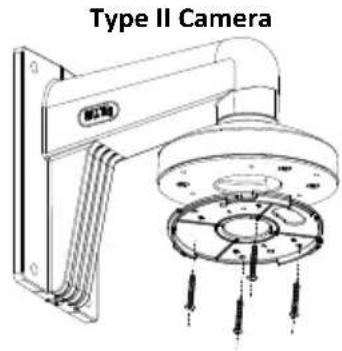

Type I Camera

Type II Camera

Figure 2-6 Aach the Base Plate to the Bracket

1. Route the cables through the bracket.
2. Repeat steps 6 to 9 of the 2.1 Ceiling Mounng to complete the installaon.

2.3 In-Ceiling Mounng

Before you start:

You need to purchase an in-ceiling moung bracket separately.

Steps:

1. Aach the drill template on the ceiling.
2. Drill the screw holes and cable holes (oponal) in the ceiling according to the supplied drill template.

Note:

Drill the cable hole when adopng the ceiling outlet to route the cable.

1. Screw the bolts through the mounng bracket by aligning with the 2 bolt holes. Fit the toggles onto the bolts.
2. Push the two bolts through the two screw holes in the ceiling. Rotate the bolt II the toggle holds the ceiling ghtly.

Pure mechanical assembly diagram showing a beam supported at both ends with support legs (no text or symbols)

Figure 2-7 Install the In-Ceiling Mounng Bracket

1. Route the cables through the cable hole.
2. Fix the camera to the in-ceiling moung bracket with the supplied screws.

Type I Camera

Type II Camera

Figure 2-8 Fix the Camera to the Mount

1. Connect the corresponding cables, such as power cord, and video cable.
2. Repeat steps 8 to 9 of the 2.1 Ceiling Mounng to complete the installaon.

2.4 Mounng with Inclined Base of Type I Camera

Before you start:

You need to purchase an inclined base separately. Steps:

1. Drill 4 screw holes and the cable hole in the ceiling according to the holes of the inclined base.
2. Install the inclined base to the ceiling with supplied screws, as shown in Figure 2-9.

Simple diagram of a beam under load with downward arrows indicating force or direction (no text or symbols)

Figure 2-9 Fix the Inclined Base

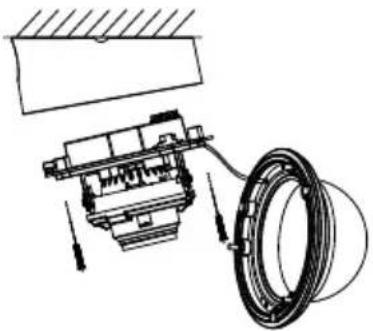

1. Route the cables through the cable hole, or the side opening of the inclined base.
2. Fix the camera to the inclined base with the supplied screws.

Technical diagram of a mechanical assembly with a coiled spring and housing (no text or labels)

Figure 2-10 Fix the Camera to the Base

1. Repeat the steps 7 to 9 of the 2.1 Ceiling Mounng secon to complete the installaon.

3 Menu Descripon

Purpose:

Call the menu by clicking the buon ☐ on the PTZ Control interface, or call preset No.95.

Steps:

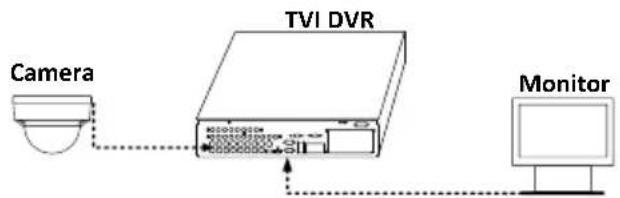

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or call preset No. 95.

		BRIGHTNESS
		EXPOSURE MODE
		GAIN
	EXPOSURE	DWDR
		ANTI-FLICKER
OUTPUTMODE		BACK
	WHITE	MODE
	BALANCE	BACK
	DAY/NIGHT	MODE
		BACK
SET UP		CONTRAST
	VIDEO	SHARPNESS
	SETTINGS	COLOR GAIN
LANGUAGE		DNR
		MIRROR
		BACK
	RESET
FOCUS	SAVE & EXIT

Figure 3-2 Main Menu Overview
5. Click the direcon arrow to control the camera.

1). Click up/down direcon buon to select the item.

2). Click Iris + to conrm the selecon.

3). Click le/right direcon buon to adjust the value of the selected item.

3.1 OUTPUT MODE

In the OUTPUT MODE submenu, you can set RESOLUTION, FRAME RATE, and NTSC/PAL.
OUTPUT MODE

RESOLUTION	5 MEGA
FRAME RATE	12.5 FPS
NTSC/PAL	PAL
APPLY
BACK

Figure 3-3 OUTPUT MODE

RESOLUTION

Resoluon refers to the number of the pixels contained in an image. You can set the resoluon as 5 megapixels, 4 megapixels or 1080p. The higher the value, the ner the image is.

FRAME RATE

Frame rate refers to the number of image output in 1 second.

When the resoluon is set as 5 megapixels, you are allowed to set the frame rate as 20 fps or 12.5 fps. When the resoluon is set as 4 megapixels, you are allowed to set the frame rate as 25 fps or 30 fps.

NTSC/PAL

PAL

(Phase Alternang Lines) is a color encoding system for analog television used in broadcast television systems in most countries.

NTSC

(Naonal Television System Commiee) is the analog television system that is used in most of North America, parts of South America, Myanmar, South Korea, etc.

Note:

NTSC/PAL is only available under the mode of 5 MEGA@12.5fps.

3.2 FOCUS

Move the cursor to FOCUS, and press the Iris+ to enter the submenu. Click FOCUS+, FOCUS-, ZOOM+, and ZOOM- to adjust the focus.

3.3 LANGUAGE

Supports English, and Chinese.

3.4 SET UP

3.4.1 EXPOSURE

Exposure describes the brightness-related parameters, which can be adjusted by BRIGHTNESS, EXPOSURE MODE, GAIN, DWDR and ANTI-FLICKER.

EXPOSURE

BRIGHTNESS	5
EXPOSURE MODE	GLOBAL
GAIN	LOW
DWDR	OFF
ANTI-FLICKER	ON
BACK

Figure 3-4 EXPOSURE

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, or BLC.

GLOBAL

GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness.

BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong.

When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.

GAIN

It optimizes the clarity of the image in poor light conditions. The GAIN level can be set as HIGH, MEDIUM, or LOW. Select OFF to disable the GAIN funcon.

Note:

The noise will be amplified, when the GAIN is on.

DWDR (Digital Wide Dynamic Range)

The DWDR helps the camera provide clear images even under backlight circumstances. When both very bright and very dark areas simultaneously exist in the image, DWDR balances the brightness level of the whole image to provide clear images with details.

Set the DWDR as ON to improve the image quality under the backlight environment.

Set the DWDR as OFF to disable the funcon.

ANTI-FLICKER

Set the ANTI-FLICKER as ON to prevent the image from ickering.

3.4.2 WHITE BALANCE

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image.

WHITE BALANCE

MODE	MWB
R GAIN	5
B GAIN	5
BACK

Figure 3-5 MWB MODE

3.4.3 DAY/NIGHT

COLOR, BW (Black White), and AUTO are selectable for DAY/NIGHT switch.

COLOR

The image is colored in day mode all the me.

B/W

The image is black and white all the me, and the IR LED turns on in the poor light conditions.

AUTO

Automacally switch COLOR or BW (Black and White) according to actual scene brightness

You can turn on/o the INFRARED and set the value of SMART IR in this menu.

DAY/NIGHT

MODE	AUTO
INFRARED	ON
SMART IR	1
BACK

Figure 3-6 DAY NIGHT

INFRARED

You can turn on/o the IR LED to meet the requirements of dierent circumstances.

SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 1 to 3. The higher the value, the more obvious eects are.

3.4.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, DNR, and MIRROR are adjustable.

VIDEO SETTINGS CONTRAST ←S> SHARPING 5G ←S> COLOR GAIN ←S> ON A ←S> MIRROR ←DE FAULT> BACK

Figure 3-7 VIDEO SETTING

CONTRAST

This feature enhances the difference in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color. The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp image quality. You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180° horizontally.

V: The image flips 180° vertically.

HV: The image flips 180° both horizontally and vertically.

3.4.5 RESET

Reset all the settings to the default.

3.4.6 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the setting and exit the menu.
