Product Type	Grill and Sandwich Maker
Brand	Arzum
Model	AR290
Power	1800 W
Voltage	220-240 V ~ 50-60 Hz
Cooking Plates	Double-sided, non-stick, removable
Temperature Settings	3 positions: Warming, Making sandwich, Grilling - Cooking
Temperature Control	Adjustable variable temperature button with pilot light
Opening Angle	Upper cover opens up to 180° for flat grilling surface
Handle	Cool-touch handle for safe operation
Storage	Automatic security latch for upright storage
Oil Drip Channel	Yes, for draining excess oil
Legs	Ergonomic legs for stability
Clips	Cooking plates holding clips for easy removal
Product Life	7 years
Compliance	CE, WEEE
Cleaning	Removable plates dishwasher safe; wipe exterior with damp cloth

Frequently Asked Questions - AR290 Arzum

How do I use the Arzum AR290 as a sandwich maker?

Plug in the appliance, set the temperature button to position 2 (Making sandwich), and preheat until the pilot light goes off. Butter the outside of the bread if desired, place the sandwich on the lower plate, and gently close the lid. Cook until golden brown.

How do I use the double-sided grill function?

Set the temperature control to position 3 (Grilling - Cooking) and preheat. Place food on the lower cooking surface and close the upper cover onto the food. Cooking is done on both sides simultaneously, so you do not need to turn the food.

Can I use the grill with only one side?

Yes, for one-sided grilling. Set the temperature, preheat, and place food on the lower surface. Pull the upper cover upright to a 90° position so it does not touch the food. Turn food with a wooden spatula as needed.

How do I use it as a party grill (barbecue)?

Open the upper cover 180° backward so both plates are flat. Place the top cover on the tabs underside by pulling vertically. Set the temperature and preheat. You can cook on both surfaces simultaneously, increasing the cooking area for parties and picnics.

Can I remove the cooking plates for cleaning?

Yes, the double-sided non-stick cooking plates are removable. Depress the clips slightly to release them. Rinse with warm water and mild detergent, or wash in a dishwasher. Do not use abrasive materials.

How should I clean the appliance?

Always unplug and let it cool first. Remove the cooking plates and wash them. Wipe the body and heat-reflector trays with a slightly damp cloth. Never immerse the appliance in water. Use plastic or wooden utensils to avoid scratching the non-stick coating.

What is the power consumption of the Arzum AR290?

The appliance operates at 1800 W with a voltage of 220-240 V ~ 50-60 Hz.

Is the Arzum AR290 safe for children to use?

Children aged 8 years and above can use the appliance under supervision, provided they understand the hazards. Children should not play with the appliance. Keep the appliance and cord out of reach of children under 8 years.

What does the pilot light indicate?

The pilot light is thermostatically controlled. It turns off when the appliance reaches the set temperature and cycles on and off during cooking to maintain the correct temperature.

Can I use metal utensils on the cooking plates?

No, never use metal tongs, forks, or knives as they can damage the non-stick coating. Use plastic or wooden utensils instead.

USER MANUAL AR290 Arzum

Close-up of a glossy, smooth, droplet-like object with a red border (no text or symbols visible)

Close-up of a mechanical component with a knob and curved edge, no visible text or symbols

Close-up of a grating or meshing device with four rectangular blocks arranged in a grid pattern (no text or symbols visible)

Izgara

Çift Taraflı Izgara

Close-up of a smooth, glossy surface with a small droplet-like feature, possibly a droplet or bubble, against a plain background (no text or symbols visible)

Close-up of a mechanical device with open lid and internal compartments (no visible text or symbols)

Tek Taraflı Izgara

Close-up of a textured, curved surface with a glossy, glossy finish (no text or symbols visible)

Steamed grill with various meat slices and grates arranged on a grater (no visible text or labels)

Parti Izgara (Barbekü)

Grilled outdoor grater with skewers and meat cuts (no visible text or symbols)

NOT:

Close-up of a black frying pan with two white omeats (no text or symbols visible)

TEMİZLEME ve BAKIM

Close-up of a mechanical component with a red arrow pointing to a feature (no visible text or symbols)

Close-up of a metallic component with a red arrow pointing to a small feature (no visible text or symbols)

Two gray textured surfaces with a red border (no text or symbols)

Close-up of a mechanical component with a red arrow pointing to a cutaway section (no visible text or symbols)

Gray rectangular device with embossed text, no visible symbols or labels

Kullanım ömrü 7 yıl

TEKNİK ÖZELLİKLER

220-240 V \~ 50-60 Hz

1800 W

TAŞIMA VE NAKLİYE SIRASINDA DİKKAT EDİLECEK HUSUSLAR

I - Cool-touch handle
2- Heater upper body opening to 180° can be adjusted according to the thickness of food
3- Bottom body
4- Variable temperature button

5- Temperature and pilot light
6- Security latch
7- Double-sided cooking plates
8- Oil dripping channel
9- Cooking plates holding clips
10- Ergonomic legs

Thank you for purchasing Arzum brand Grill and Sandwich Maker. We wish this product to make life easier for you, as with other Arzum products offered to you.

In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum Tostçu Red Grill and Sandwich Maker corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.
• Your device is for household use only. Do not use outdoors for commercial or industrial purposes.
• Your device is for household use only. Do not use outdoors for commercial or industrial purposes.

- To prevent harming your appliance do not use extension cords that supply insufficient current.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision of instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of the children less than 8 years.

- Do not place the Arzum Tostçu Red Grill and Sandwich Maker over or near direct heat sources such as a stove or heating oven.

• Do not let cord hang over edge of a table or counter, or touch any other appliances or hot surfaces.
• Place the unit on a flat and fixed surface, which would be resistant to heat.
• After having used, remove the mains plug from the wall socket and allow it to cool down; move only after it has completely cooled down.
• When not in use and before cleaning, disconnect the mains plug from power outlet.
• Never operate the appliance without cooking plate(s) attached.
• NEVER immerse the appliance into water for cleaning or any other purposes; do not let any water / water steam leak into the unit.
• Do not touch metal parts when in use.
• Avoid actions that may harm or damage the cord or plug of your device. To unplug the appliance, first hold the plug and NEVER pull by the cord.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as by dropping down, etc.

Do not attempt to repair it by yourself. Immediately contact an Arzum Authorized Service.

- Use your appliance as recommended.

SUGGESTIONS OF USE

• You can use your Arzum Tostçu Red Grill and Sandwich Maker for various purposes such as warming and cooking foods, grilling, making sandwiches, and toasting.
• Owing to its adjustable temperature setting button and pilot light, this unit operates safely, prevents overheating, and keeps the cooking surface at constant temperature selected, ensuring the proper cooking on time.
• You can remove the double-sided non-stick cooking plates of your appliance by depressing the clips slightly.
• Before using for the first time rinse the cooking plates with tepid water and a little dishwashing detergent. Then, attach the cooking plates to their place. A click sound will indicate that the edges have been fitted well onto the cooking surface.
  • We recommend you to oil the surfaces slightly, before using for the first time.
• Connect the mains plug to the power outlet and set the variable temperature button to the maximum level. You may notice a slight smoke or odor. This is normal and will not recur after a while.

Note:

Ensure that the cord is kept away from the cooking plates when in use.

SETTING TEMPERATURE

- Your turning the temperature setting stages so that they will stand against the

temperature indication, according to the process to be made, would be sufficient for you to set the temperature range.

I Warming

2 Making sandwich

3 Grilling - Cooking

Close-up of a glossy, smooth, teardrop-shaped object with a glossy surface and a small mark on the surface (no text or symbols visible)

COOKING FUNCTIONS

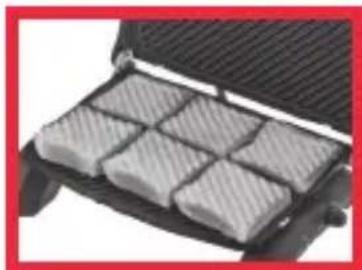

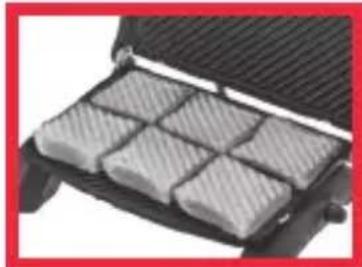

Use as a Sandwich Maker

- Plug your appliance to the socket, set the variable temperature button to a proper position for cooking settings indicated on your appliance, and preheat the unit. When the thermostat / pilot light go off, your appliance reaches the necessary temperature.

- Butter the outside of the toast or sandwich breads and gently close the lid.

- The length of cooking time depends on the case, filling and personal taste. Your sandwich maker cooks on both sides at a time.

- It is not necessary to butter the outsides of all breads as the sandwich maker / grill has non-stick cooking plates.

Close-up of a mechanical component with a knob and curved edge, no visible text or symbols

Close-up of a grater with four rectangular grilles on a black tray (no text or symbols visible)

Use as a Grill

Double-Sided Grill

- Set the variable temperature control to the position 3, and preheat the unit.

- Place the foods to the lower cooking surface and close the upper cover onto the foods.

- You are not required to turn the foods in the double-sided grill.

• After the desired amount of time the food should be done.

- Carefully open the lid and collect and take the foods in the plate using a wooden spatula.

Close-up grayscale image of a smooth, curved object with a glossy surface and small circular highlights (no text or symbols)

Close-up of a mechanical device with internal components and a handle (no visible text or symbols)

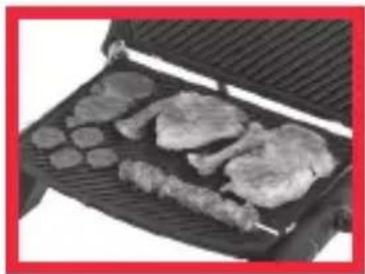

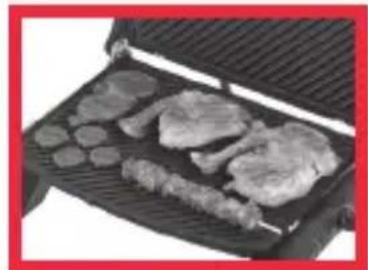

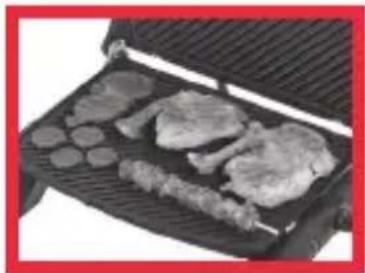

One-Sided Grill

- Set the variable temperature control to the appropriate position, and preheat the unit.

- Place the foods to be cooked in the lower cooking surface.

Close-up of a glossy, smooth, teardrop-shaped object with a small circular mark on its surface (no text or symbols visible)

Steamed grill with various meat and utensils arranged on a grater (no text or symbols visible)

- Pull the upper cover in the upright position, and open by 90^ .

- Grilling may be done with your appliance's upper cover opened and not touching the upper cover.

- Turn and collect the foods in the plate using a wooden spatula.

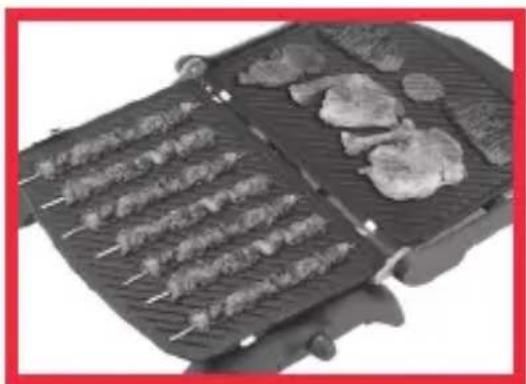

Party Grill (Barbecue)

- In order to increase the cooking area in picnics and parties open the upper cover towards back by 180^ , so you can provide a wide surface for cooking.

- Place the top cover on tabs underside by pulling vertically and upwardly. In this way, you can open the top cover to 180^ .

- Set the variable temperature control to the appropriate position, and preheat the unit.

Close-up of a grating board with skewers and meat pieces (no text or symbols visible)

- You can place the foods in both surfaces, use both of them at the same time, and make your grills easily.

- Turn and collect the foods in the plate using a wooden spatula.

NOTE:

The light is thermostatically controlled and will cycle during cooking to ensure that the correct temperature is maintained.

WARNING:

I- NEVER touch the outer surfaces of the unit as they heat up during operation. Use the handle to open the upper cover. Vapor may come out from between the heating plates of your equipment when the upper cover is opened or during the cooking process. Be careful when taking out the foods.

2- Carefully open the lid and remove the foods using plastic or wooden utensils to avoid damaging the non-stick coating. Never use metal tongs, forks or a knife as these can damage the coating.

Double-Sided Cooking Plates

- You can use the cooking plates of your Arzum Tostçu Red Grill and Sandwich Maker in such manner as double-sided.

- You can cook eggs, crepes, hamburger meatballs, etc. on the flat surface of cooking plates of your device easily and practically.

Close-up of two white oval-shaped food items on a black tray, no text or symbols visible

CLEANING & CARE

- Before cleaning and care, unplug the appliance from the wall socket and allow it to cool down.

• After each use, wipe cooking plates to protect the cooking surfaces coated with the non-stick material.

- Remove the cooking plates by slightly twisting outwards the clips holding the surfaces.

- Rinse cooking plates with a soft cloth or plastic brush, or wash using warm water and soap, or wash in a dishwa

Close-up of a metallic tool interacting with a grid-like mechanical component (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a specific part (no visible text or symbols)

- Some resistance trays may occur due to the temperature on the cooking plates. To prevent this it is sufficient for you to wash the plates.

- Do not use abrasive materials such as metal brush or steel wool as this will scratch the non-stick coating.

Two gray textured surfaces with a red border (no text or symbols)

• After having removed the cooking plates, you can wipe the resistance and heat-reflector trays with a slightly damp cloth.

- You can wipe the plastic compounds and outer metal parts with a soaped cloth, and then dry it completely.

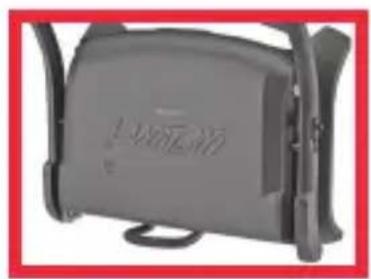

- You can store your appliance in the upright position, by using its automatic security latch.

• NEVER immerse into water, except for the cooking plates.

Close-up of a mechanical component with a red star marker, no visible text or symbols

Gray rectangular device with black straps and a red border (no visible text or symbols)

Product life 7 years

TECHNICAL SPECIFICATIONS

220-240 V \~ 50-60 Hz

1800 W

The product is in compliance with the EEE Directives.

WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

CE

Manufacturer / Importer:
